TBS Group AROFLY01 Arofly ULTRA SMART BIKE METER SOLUTION (Bluetooth) User Manual Arofly instruction EN 1013
TBS Group Corporation Arofly ULTRA SMART BIKE METER SOLUTION (Bluetooth) Arofly instruction EN 1013
User Manual
Arofly ULTRA SMART BIKE METER SOLUTION (BLUETOOTH) : Quick Start Guide
P1 Package Contents
Arofly Main Device *1
Valve Adaptor *1
CR 1632 *1
AROFLY FLEXI-HOLD *1
This Quick Start Guide *1
P2 Getting Started
a. Install Arofly

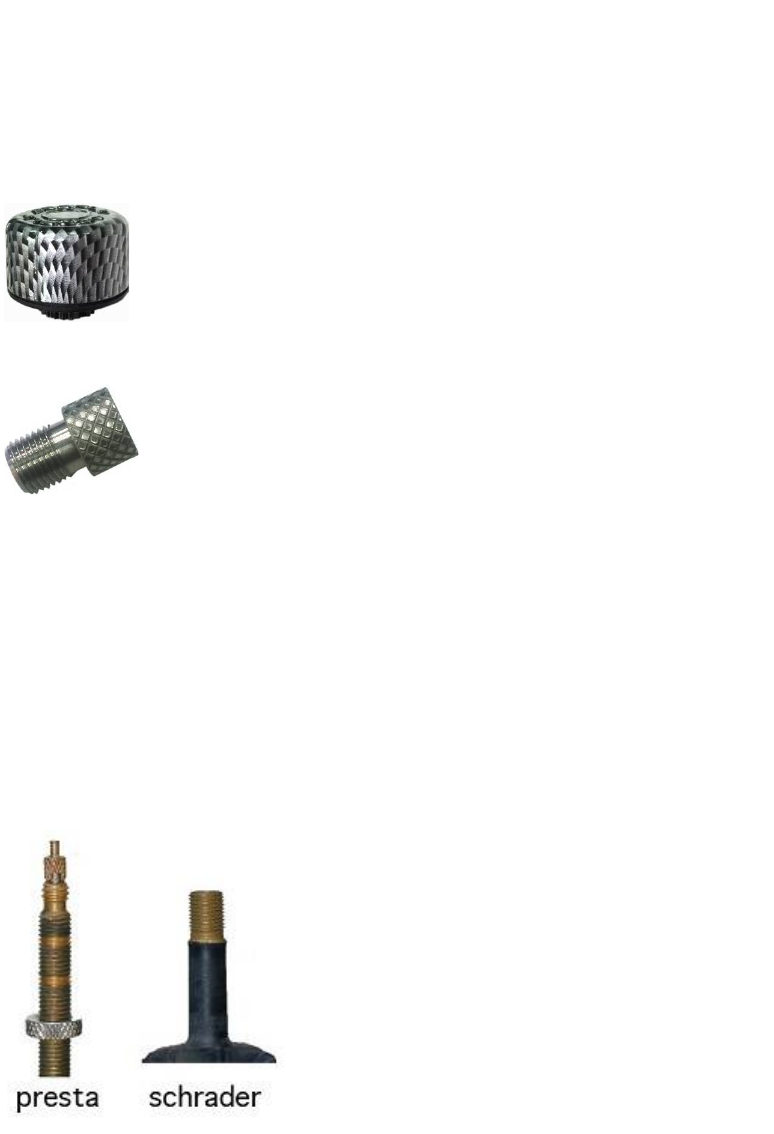

This Arofly with valve adaptor can be fitted for both Presta Valve & Schrader Valve.
1. Check your bike tire valve & Identify its type : Presta or Schrader
2. Remove valve cap from your bike (either Front or Back wheel), and keep it.
If Schrader valve, tighten Arofly on valve directly. No tool required.
If Presta valve, install Adaptor on valve first, then tighten Arofly on Adaptor.
PS. Please double check and make sure Arofly is tightened securely on Valve.
3. Open APP from your Smart Phone, and Connect Arofly for starting up.
Check battery power of Arofly is in good condition by battery sign on App interface.
Trade name : Arofly Model name : Arofly01
b. Download APP
1. APP downloading and installation: Arofly APP is compatible for both Android & iOS
operating system.
APP download URL Smart Phone operating System For Smart Phone
Apple APP Store iOS 7.1.2 & later iPhone 4S,5,5S,6,6Plus or later
Android Google Play
Store
Android 4.3 or later Android smart Phone
2. How to download
You can scan the QR code for connecting and downloading.
QR code for iOS operating system :
QR code for Android operating system:
Either: You can type keyword of ”Arofly” on Apple APP Store or Android Google
Play Store.
Finish the downloading of APP, please "Restart" your Smart Phone & ensure
Bluetooth is functioning.
First opening APP, main menu of iOS system will inquire " Location Services" and
"Bluetooth connect". Please turn on and enable both for APP functioning.
As for Android system, it will remind " to Enable Bluetooth" for APP functioning.
3. Initial Setting:
Please make sure Bluetooth is ON before opening APP.
Arofly Specification:
Arofly ULTRA SMART BIKE METER SOLUTION
(BLUETOOTH)
Size 2cm diameter/ 1.8 cm height
Weight 10g
Operating Temperature -30 °C to + 85 °C
Battery CR 1632
Battery Capacity for 2 months by 8 hours a day
Transmission Bluetooth 4.0
Frequency: 2.4GHz
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Notice:
Any changes or modifications not expressly approved by the party responsible for
compliance could void your authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/ TV technician for help.
The antenna(s) used for this transmitter must not be co-located of operating in
conjunction with any other antenna or transmitter.
This device complies with FCC radiation exposure limits set forth for an uncontrolled
environment. Ln order to avoid the possibility of exceeding the Fcc radio frequency
exposure limits, human proximity to the antenna shall not be less than 20cm (8inches)
during normal operation.
FCC ID : 2AJGD-AROFLY01
ThisdevicecomplieswithIndustryCanadalicenceͲexemptRSS
standard(s).
Operationissubjecttothefollowingtwoconditions:
(1)thisdevicemaynotcauseinterference,and
(2)thisdevicemustacceptanyinterference,includinginterference
thatmaycauseundesiredoperationofthedevice.
ThisClassBdigitalapparatuscomplieswithCanadianICESͲ0003.
ThisequipmentcomplieswithICradiationexposurelimitssetforthforan
uncontrolledenvironment.Theantennashouldbeinstalledandoperated
withminimumdistanceof20cmbetweentheradiatorandyourbody.
ThistransmittermustnotbecoͲlocatedoroperatinginconjunctionwithany
otherantennaortransmitter.
LeprésentappareilestconformeauxCNRd'IndustrieCanada
applicablesauxappareilsradioexemptsdelicence.
L'exploitationestautoriséeauxdeuxconditionssuivantes:
(1)l'appareilnedoitpasproduiredebrouillage,et
(2)l'utilisateurdel'appareildoitacceptertoutbrouillage
radioélectriquesubi,mêmesilebrouillageestsusceptibled'en
compromettrelefonctionnement.
Cetappareilestconformeauxlimitesd'expositionauxrayonnementsdela
ICpourunenvironnementnoncontrôlé.L'antennedoitêtreinstallédefaçon
àgarderunedistanceminimalede20centimètresentrelasourcede
rayonnementsetvotrecorps.
L'émetteurnedoitpasêtrecolocalisénifonctionnerconjointementavecà
autreantenneouautreémetteur.
