TCL Communication ACC01 Bluetooth keyboard User Manual
TCL Communication Ltd. Bluetooth keyboard
User manual
PIXI 10’’ Stand TypeFlip
CJB1D6101AAA
Quick Start Guide
10
2 3
Catalog
Specication ����������������������������������������������������������������� 3
Getting started ������������������������������������������������������������ 4
Connecting Keyboard and Tablet ����������������������������� 5
Indicator Status ������������������������������������������������������������ 6
Keyboard Interface ����������������������������������������������������� 6
Hot Keys ����������������������������������������������������������������������� 7
Battery charging for keyboard ��������������������������������� 8
Certication ����������������������������������������������������������������� 8
Warranty ��������������������������������������������������������������������� 11
3
Specication
Product Name Stand TypeFlip
Model Name KB10
Bluetooth Bluetooth 3�0
Compatible Device PIXI 10
Dimension 273 × 170 × 25�5 mm
Weight 350g
Battery Capacity 180mAh
Standby Time >1700H
Keyboard’s Using Time >72H
Battery Type Li-Po
Available Distance about 10m
Charging Time of Keyboard <2H
Operating Temperature 0 - 40 °C
4 5
Getting started

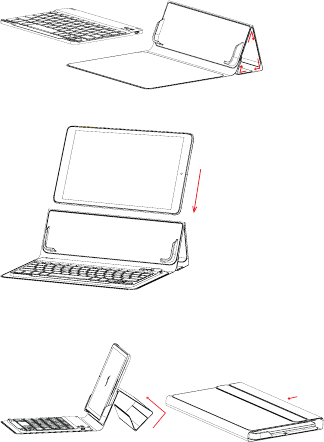

1. Follow the fold line to fold typelp like a triangle, see gure
as below:
2. Put Tablet into frame and x.
3. Unfold the typelp to near the Tablet, and then close the
typelp like a book to protect your device.
5
Connecting Keyboard and Tablet
Keyboard connects with the Tablet through Bluetooth�
When using it for the rst time, please pair the Keyboard
with the Tablet�
1. Make sure Tablet Bluetooth is open
Touch Apps → Settings → Network connections section
from home screen and turn on the Bluetooth switch�
2. Turn on the Keyboard
When you turn on the Keyboard for the rst time, please
press Connect button to pair� When the power light blinking
blue for 3 min, the Keyboard is discoverable and ready for
pairing with your Tablet�
3. Pair Keyboard with Tablet
i) In the Tablet’s Bluetooth settings page, select “ALCATEL
ONETOUCH KB10” from available device’s list.
ii) According to prompt, input the pairing code in
the Keyboard and conrm to connect “ALCATEL
ONETOUCH KB10” keyboard�
When successfully connected, the light turns solid blue
for 3S to indicate a stable status�
iii) If unsuccessful, restart Keyboard and return to step 2�
6 7
Indicator Status
LED Light Notes
Orange Charging
Blinking Orange power is equal to or less than 10%
Solid Blue
for 3S
Connecting is successful
Blinking Blue
for 3 min
The keyboard is discoverable, ready
for pairing
Keyboard Interface
7
Keys Function
Back
Search
Browser
Email
Brightness dark
Brightness light
play previous
play/pause
paly next
Keys Function
Volume down
Volume up
PrtScn
Lock
Delete
HOME
Recent apps
Menu
Hot Keys
8 9
Battery charging for keyboard
If the power light is blinking orange, the Keyboard folio
battery needs to be charged�
1. Plug one end of the USB cable supplied into the charging
port of keyboard, and the other end into a USB port on
Alcatel Onetouch charger.
The status light is solid orange as the battery charges�
2. Charge the battery until the charge light turns off.
Certication
The Bluetooth word mark and logos are owned
by the Bluetooth SIG, Inc� and any use of such marks
by TCL Communication Ltd� and its afliates is
under license� Other trademarks and trade names are those
of their respective owners�
KB10 Bluetooth Declaration ID D027953
Battery:
Observe the following precautions for battery use:
- Do not attempt to open the back cover and replace the
inner rechargeable Li-polymer battery� Please contact
the dealer to replace it�
- Do not attempt to eject, replace and open battery�
- Do not punctuate the back cover of your device�
- Do not burn or dispose of your device in household
rubbish or store it at temperature above 50°C�
- Dispose of used batteries according to the instructions�
Risk of explosion if battery replaced by an incorrect type�
9
This symbol on your device, the battery and the
accessories means that these products must be
taken to collection points at the end of their
life:
- Municipal waste disposal centers with specic bins for
these items of equipment�
- Collection bins at points of sale�
They will then be recycled, preventing substances being
disposed of in the environment, so that their components
can be reused�
Please make sure the temperature for device will not be
higher than 40 ˚C for use in charging mode and not be
higher than 45 ˚C for use in non-charge mode�
In European Union countries:
These collection points are accessible free of charge�
All products with this sign must be brought to these
collection points�
In non-European Union jurisdictions:
Items of equipment with this symbol are not to be thrown
into ordinary bins if your jurisdiction or your region has
suitable recycling and collection facilities; instead they are
to be taken to collection points for them to be recycled�
FCC Regulations:
This device complies with part 15 of the FCC Rules�
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operation�
10 11
This device has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules� These limits are designed to provide
reasonable protection against harmful interference in a
residential installation� This equipment generates uses and
can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications� However,
there is no guarantee that interference will not occur in a
particular installation if this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user,
is encouraged to try to correct the interference by one
or more of the following measures:
- Reorient or relocate the receiving antenna�
- Increase the separation between the equipment and
receiver�
- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected�
- Consult the dealer or an experienced radio/TV technician
for help�
Caution: Changes or modications not expressly approved
by the party responsible for compliance could void the
user‘s authority to operate the equipment
RF Exposure Information
This device meets the government’s requirements for
exposure to radio waves�
This device is designed and manufactured not to exceed
the emission limits for exposure to radio frequency (RF)
11
energy set by the Federal Communications Commission
of the U�S� Government�
This device complies with FCC radiation exposure limits
set forth for an uncontrolled environment�
General information
Internet address: www�alcatelonetouch�com
Address: Room 1910-12A, Tower 3, China HK City, 33
Canton Road, Tsimshatsui, Kowloon, Hong Kong
Warranty
Your product is warranted against any defect or
malfunctioning which may occur in conditions of normal
use during the warranty period of six (6) months
(1) from
the date of purchase as shown on your original invoice�
In case of any defect of your product which prevents you
from normal use thereof, you must immediately inform
your vendor and present your product with your proof
of purchase�
If the defect is conrmed, your product or part thereof
will be either replaced or repaired, as appropriate� Repaired
product and accessories are entitled to a one (1) month
warranty for the same defect� Repair or replacement may
be carried out using reconditioned components offering
equivalent functionality�
This warranty covers the cost of parts and labor but
excludes any other costs�
This warranty shall not apply to defects to your product
and/or accessory due to (without any limitation):
(1) The warranty period may vary depending on your country�
12 13
1) Non-compliance with the instructions for use or
installation, or with technical and safety standards applicable
in the geographical area where your product is used,
2) Connection to any equipment not supplied or not
recommended by TCL Communication Ltd�,
3) Modication or repair performed by individuals not
authorised by TCL Communication Ltd� or its afliates
or your vendor,
4) Modication, adjustment or alteration of software or
hardware performed by individuals not authorized by TCL
Communication Ltd�,
5) Inclement weather, lightning, re, humidity, inltration
of liquids or foods, chemical products, download of les,
crash, high voltage, corrosion, oxidation…
Your product will not be repaired in case labels or serial
numbers have been removed or altered� There are no express
warranties, whether written, oral or implied, other than
this printed limited warranty or the mandatory warranty
provided by your country or jurisdiction�
In no event shall TCL Communication Ltd� or any of its
afliates be liable for indirect, incidental or consequential
damages of any nature whatsoever, including but not limited
commercial or nancial loss or damage, loss of data or loss
of image to the full extent those damages can be disclaimed
by law� Some countries/states do not allow the exclusion or
limitation of indirect, incidental or consequential damages,
or limitation of the duration of implied warranties, so the
preceding limitations or exclusions may not apply to you�
13
ALCATEL is a trademark of Alcatel-Lucent and is used
under license by TCL Communication Ltd��
© Copyright 2015 TCL Communication Ltd� All rights reserved
TCL Communication Ltd� reserves the right to alter material
or technical specication without prior notice�
