TCL Communication B017 GSM Quad Band & UMTS Dual Band Entry 3G Mobile User Manual

TCL Communication Ltd. GSM Quad Band & UMTS Dual Band Entry 3G Mobile

User manual

1 2
English - CJB2890ALAAA
Quick Start Guide
For more information about how to use the phone, please go to
www.alcatelonetouch.com to download the complete user manual.
From the website you can also consult the FAQ, upgrade software,
etc.
www.sar-tick.com
This product meets applicable
national SAR limits of
3 4
Volume up
Volume down
P
V
V
Camera
Flash/Torch
Power key
Menu key
• Option menu. Touch to access Manage Home
screen, Add widgets, WALLPAPERS and
SETTINGS.
• Recent apps. Touch and hold to open a list of
thumbnail images of apps you've worked with recently.
Touch it to open an app. Swipe it leftwards or
rightwards to remove a thumbnail from the list.
Home key
• While on any application or screen, touch to return
to the Home screen.
Back key
• Touch to go back to the previous screen, or to close a
dialog box, options menu, the notification panel, etc.
Power key
• Press: Lock the screen/Light up the screen.
• Press and hold: Power on or generate a pop up menu
selecting from Power off/Restart/Airplane mode.
• Press and hold for more than 10 seconds to restart the
phone when the system halted.
• Press and hold Power key and Volume down key to
capture a screenshot.
• Press and hold Power key and Volume up key under
power off mode to restore factory set.
Volume keys
• Under call mode, adjust the earpiece or headset
volume.
• In Music/Video/Streaming mode, adjust the media
volume.
• In general mode, adjust the ringtone volume.
• Mute the ringtone of an incoming call.
5 6
1.2 Getting started
1.2.1 Set up
Removing or installing the back cover
Inserting or removing the SIM card
You must insert your SIM card to make phone calls. Please power off
your phone before inserting or removing the SIM card.
2
1
2
1
2
1
2
1
5025E
Place the SIM card with the chip facing downwards and slide it into its
housing. Make sure that it is correctly inserted. To remove the card,
press and slide it out.
For dual SIM models, both SIM1 and SIM2 can support 2G
and 3G networks. If both of them are 3G SIM cards, only one
card can support 3G network. Your phone only supports
mini-SIM card. Do not attempt to insert other SIM types
like micro and nano cards, otherwise you may damage your
phone.
Connect battery charger to your phone and plug into the socket.
If the battery is very low, there will be no indication that
power is being received until the charge is sufficient to show
the charging status bar. To reduce power consumption and
energy waste, once the battery is fully charged, disconnect
your charger from the plug; switch off Wi-Fi, GPS, Bluetooth
or background-running applications when not in use; reduce
the backlight time, etc.
7 8
1.2.2 Power on your phone
Hold down the Power key until the phone powers on. It will take a
few seconds before the screen lights up.
Set up your phone for the first time
The first time you power on the phone, you should set the following
options: language, input method, Google account, etc.
If you power on your phone with no SIM card inserted, you can
connect to a Wi-Fi network to sign into your Google account to
use some features.
For dual SIM mode, you should select a SIM card or choose Always
ask for voice call, messaging, etc.
1.2.3 Power off your phone
Hold down the Power key until the Phone options appear, select
Power off.
1.3 Home screen
You can bring all the items (applications, shortcuts, folders widgets)
you love or use most frequently to your Home screen for quick
access. Touch the Home key to switch to Home screen.
Status bar
• Status/Notification indicators
• Touch and drag down the screen to
open the notification panel.
Application tab
• Touch to open main menu.
Search bar
• Touch to enter text search screen.
• Touch to enter voice search screen.
Favourite applications tray
• Touch to enter the application.
• Touch and hold to move or change
applications.
Add a location to display local
weather.
Home screen is provided in an extended format to allow more
space for adding applications, shortcuts etc. Slide the Home screen
horizontally left and right to get a complete view of the Home
screen. The row of small squares at the lower part of the screen
indicates which screen you are viewing.
1.3.1 Using the touchscreen
Touch
To access an application, touch it with your finger.
Touch and Hold
Touch and hold the Home screen to access the available options for
setting the Home screens.
Drag
Place your finger on any item to drag it to another location.
Slide/Swipe
Slide the screen to scroll up and down the applications, images, web
pages… at your convenience.
Flick
Similar to swiping, but flicking makes it move quicker.
Pinch/Spread
Place your fingers of one hand on the screen surface and draw them
apart or together to scale an element on the screen.
Rotate
Automatically change the screen orientation from portrait to
landscape by turning the phone sideways to have a better view.
1.3.2 Status bar
From status bar, you can view both phone status (to the right side)
and notification information (to the left side).
9 10
Status icons
For dual SIM model, status icons referring to either SIM1 or SIM2 will
be identified by a colour which you have defined. (1)
GPRS connected Roaming
GPRS in use No SIM card inserted
EDGE connected Vibrate mode
EDGE in use Ringer is silenced
3G connected Phone microphone is
muted
3G in use Battery is very low
HSPA (3G+) connected Battery is low
HSPA (3G+) in use Battery is partially
drained
Connected to a Wi-Fi
network Battery is full
Bluetooth is on Battery is charging
Airplane mode Headset connected
Alarm is set No signal
GPS is on Signal strength
(1)
Define through Settings\SIM management\SIM INFORMATION\
Set background colour. 4027D only.
Notification icons
New text or
multimedia message Missed call
Problem with SMS or
MMS delivery Call on hold
New Hangouts message Call forwarding is on
New voicemail Uploading data
Upcoming event Downloading data
Data is synchronising Download finished
Screenshot error Select input method
USB tethering is on An open Wi-Fi network
is available
Portable Wi-Fi hotspot
is on
Phone is connected via
USB cable
Screenshot captured Radio is on
Carrier data use
threshold approaching
or exceeded
System update available
Call in progress Connected to VPN
11 12
Notification panel
Touch and drag down the Status bar to open the notification panel.
Touch and drag up to close it. From the Notification panel, you can
open items and other reminders indicated by notification icons or
view wireless service information.
Touch to access Quick setting bar.
Touch one notification and slide it sideways to delete it.
Touch the to clear all event–based notifications (other ongoing
notifications will remain).
Touch and then the Settings icon to access Settings.
Quick setting bar
•Touch icons to enable/disable
functions or to change modes.
1.3.3 Lock/Unlock your screen
To protect your phone and privacy, you can lock the phone screen by
creating a variety of patterns, PIN or password etc.
1.3.4 Personalise your Home screen
Add
Touch the application tab , touch and hold an application to
activate Move mode, and drag the item to any Home screen as
you prefer.
Reposition
Touch and hold the item to be repositioned to activate Move mode,
drag the item to the desired position and then release. You can
move items both on the Home screen and the Favourite tray. Hold
the icon on the left or right edge of the screen to drag the item to
another Home screen.
Remove
Touch and hold an item to activate Move mode and remove it by
dragging it on top of the Remove icon. Release after the icon
turns red.
Create folders
To improve the organisation of items (shortcuts or applications) on
the Home screen and the Favourite tray, you can add them to a folder
by stacking one item on top of another. To rename a folder, open it,
touch the folder’s title bar to input the new name.
Wallpaper customisation
Touch the Menu key and select WALLPAPERS. A popup window
named Select wallpaper from will appear, offering a range of
options. Select an option and slide left or right to locate a desired
image, touch Set wallpaper to confirm. Alternatively follow these
steps: Settings > Display > Wallpaper.
1.3.5 Application tab
Touch from the Home screen to enter the applications list.
To return to the Home screen, touch the Home key.
Consult recently-used applications
To consult recently-used applications, you can touch and hold the
Home key. Touch a thumbnail in the window to open the related
application.Touch one thumbnail and slide it leftwards or rightwards
to delete it.
13 14
1.3.6 Volume adjustment
You can set ringer, media and phone ringtone volume to your
preference by pressing Volume up/down key or touching Settings\
Sound & notification.
1.4 Applications and widgets
The Applications (apps) list contains all pre-embedded and newly
installed apps.
To access the list, touch from the Home screen. To return to the
Home screen, touch the Home key or the Back key.
By touching and holding an empty area in the Home screen, you can
switch to widget interface mode.
2 Text input .....................
2.1 Using Onscreen Keyboard
Onscreen Keyboard settings
Touch application tab from the Home screen, select Settings\
Language & input, touch Android keyboard, and then a
series of settings are available for your selection.
Adjust the Onscreen Keyboard orientation
Turn the phone sideways or upright to adjust the Onscreen Keyboard
orientation. You can also adjust it by marking the checkbox in
Settings\Accessibility\ Auto-rotate screen.
2.1.1 Android keyboard
Touch to switch between symbol and numeric keyboard.
Touch to enter symbols/emoticons.
Touch to enter text or numbers.
Touch & hold to show input options; when Wi-Fi or data
connection is on, touch to enter voice input.
Touch to switch between "abc/
Abc" mode; Touch & hold to switch
between "abc/ABC" mode.
2.1.2 SwiftKey keyboard
Slide through letters to input characters
Touch to delete incorrect characters
Touch to insert a space or complete the
current word or insert a prediction as
preferred
Touch and hold to switch voice input
Touch to enter Numbers and symbols, etc.
15 16
2.2 Text editing
You can edit the text you have entered.
• Touch and hold or double-tap within the text you would like
to edit.
• Drag the tap to change the highlighted selection.
• The following options will appear: Select all , Cut , Copy
and Paste .
3 Phone call ...............

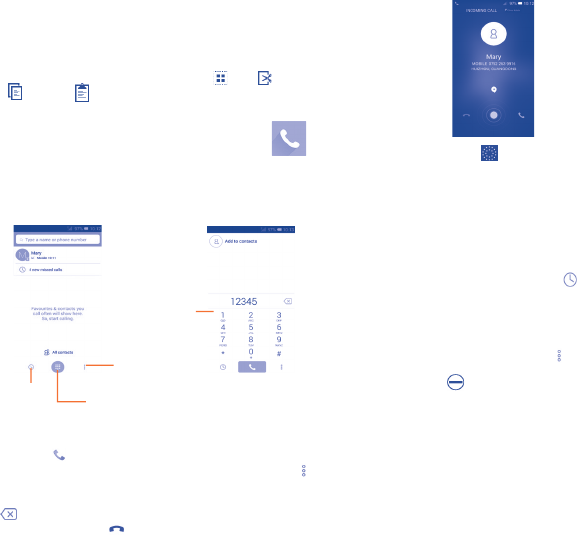

3.1 Placing a call
You can easily launch a call using Phone. Touch Application tab from
the Home screen and select Phone.
Call log Touch to dial new
number
Touch to access
New contact,
People and
Settings.
Touch and hold to
access voicemail.
Enter the desired number from the keyboard directly or select a
contact from All contacts or Call log by sliding or touching tabs,
then touch to place the call.
The number you entered can be saved to Contacts by touching
and selecting Add to contacts.
If you make a mistake, you can delete the incorrect digits by touching
.
To hang up a call, touch .
3.2 Answering or rejecting a call
When you receive a call, touch .
• Slide rightward to answer;
• Slide leftward to reject;
• Slide upward to reject the call by sending a preset message.
To mute incoming calls, press the Volume up/down key.
3.3 Consulting your call memory
You can access your call memory by touching from the Dial
screen to view call history in categories of Incoming calls, Outgoing
calls, and Missed calls.
3.4 Speed dial settings
You can access this setting screen by touching and then Speed
Dial on Dial screen, then select contacts to define 2-9 screen keys
as a speed dialer. Touch to remove contacts from speed dial.
17 18
4 Contacts ..................
You can view and create contacts on your phone and synchronise
these with your Gmail contacts or other applications on the web
or on your phone.
4.1 Adding a contact
Touch Application tab on the Home screen, select Contacts app,
then touch the icon in the contact list to create a new contact.
Contact group list;
Touch to find contacts
in contact list;
Favourites
Contact list
Touch to add
contact
4.2 Importing, exporting and sharing
contacts
From Contacts screen, touch to open the options menu, touch
Import/export, then choose to import/export contacts from/to
SIM card, Phone, SD card, Phone storage, Accounts, etc.
To import/export a single contact from/to SIM card, choose an
account and target SIM card(s), select the contact you want to
import/export, and touch to confirm.
To import/export all contacts from/to SIM card, choose an account
and target SIM card(s), touch Select all and touch to confirm.
You can share a single contact or contacts with others by sending the
contact's vCard to them via Bluetooth, Gmail, etc.
Touch a contact you want to share, touch and Share from
the contact details screen, then select the application to perform
this action.
4.3 Synchronising contacts in multiple
accounts
Contacts, data or other information can be synchronised from
multiple accounts, depending on the applications installed on your
phone.
5 Messaging ................
You can create, edit and receive SMS and MMS with this phone.
To access this feature, touch Application tab from the Home screen,
then select Messaging.
All messages you receive or send out can be saved in
phone memory or SIM card. To consult the SMS messages
stored in SIM card, touch from Messaging screen, then
touch Settings\Text Message(SMS)\Manage SIM
card messages.
5.1 Write message
On message list screen, touch the new message icon to write text\
multimedia messages.
Touch to create a new message.
Touch to search in all messages.
Touch to view the whole message
thread.
Touch & hold message threads to
delete messages or to add shortcut.
19 20
Sending a text message
Enter the mobile phone number of the recipient on Type name
or number bar or touch to add recipients, touch Type text
message bar to enter the text of the message. When finished, touch
to send the text message.
An SMS of more than 160 characters will be charged as
several SMS. Specific (accented) letters will also increase
the size of the SMS, this may cause multiple SMS to be sent
to your recipient.
Sending a multimedia message
MMS enables you to send video clips, pictures, contact, calendar, slides
and audio to other compatible phones and e-mail addresses.
An SMS will be converted to MMS automatically when media files (image,
video, audio, slides, etc.) are attached or Subject or email addresses are
added.
6 Email .......................
Besides your Gmail account, you can also set up external POP3 or
IMAP email accounts in your phone.
To access this function, touch Application tab from the Home screen,
then select Email.
An email wizard will guide you through the steps to set up an email
account.
• Enter the email address and password of the account you want
to set up.
• Touch NEXT. If the account you entered is not provided by
your service provider in the phone, you will be prompted to go
to the email account settings screen to enter settings manually.
Alternatively, you can touch MANUAL SETUP to directly enter
the incoming and outgoing settings for the email account you are
setting up.
• Enter the account name and display name in outgoing emails.
• To add another email account, you can touch and Settings,
and finally touch ADD ACCOUNT on the right of the title to
create the account.
To create and send emails
• Touch the icon from Inbox screen.
• Enter recipient(s) email address(es) in To field.
• If necessary, touch and touch Add Cc/Bcc to add a copy or a
blind carbon copy to the message.
• Enter the subject and the content of the message.
• Touch , touch Attach file to add an attachment.
• Finally, touch to send.
• If you do not want to send the mail right away, you can touch and
Save draft or touch Back key to save a copy.
7 Getting connected .......
To connect to the Internet with this phone, you can use GPRS/
EDGE/3G networks or Wi-Fi, whichever is most convenient.
7.1 Connecting to the Internet
7.1.1 GPRS/EDGE/3G
The first time you turn on your phone with a SIM card inserted, it
will automatically configure network service: GPRS, EDGE or 3G.
To check the network connection you are using, touch Application
tab on the Home screen, then touch Settings\More\Cellular
networks\Access Point Names or Network operators.
7.1.2 Wi-Fi
Using Wi-Fi, you can connect to the Internet when your phone is
within range of a wireless network. Wi-Fi can be used on the phone
even without a SIM card inserted.
21 22
To turn Wi-Fi on and connect to a wireless network
• Touch on Quick setting bar to get to Settings.
• Touch the switch beside Wi-Fi to turn on\off Wi-Fi.
• Touch Wi-Fi, detailed information of all detected Wi-Fi networks
is displayed in the Wi-Fi networks section.
• Touch a Wi-Fi network to connect to it. If the network you selected
is secured, you are required to enter a password or other credentials
(contact network operator for details). When finished, touch
CONNECT.
7.2 Browser .....................................
Using Browser, you can enjoy surfing the Web.
To access this function, touch Application tab from the Home screen,
then touch Browser.
To go to a web page
On Browser screen, touch the URL box at the top, enter the address
of the web page, then touch to confirm.
7.3 Connecting to a computer
With the USB cable, you can transfer media files and other files
between micro SD card/internal storage and a computer.
Before using MTP or PTP, first mark USB storage.
•Touch Settings\About phone, then touch Build number 7 times.
Then touch Settings\Developer options\USB debugging.
To connect/disconnect your phone to/from the computer:
•Use the USB cable to connect the phone to a USB port on your
computer. You will receive a notification that the USB is connected.
• If you use mass storage, open the Notification panel and touch USB
connected, then touch TURN ON USB STORAGE in the dialog
that opens to confirm that you want to transfer files.
• If you use MTP or PTP, your phone will be automatically
connected.
To disconnect (from mass storage):
• Unmount the microSD card on your computer.
• Open the Notification panel and touch TURN OFF USB
STORAGE.
For Windows XP or lower operating systems, you
should download and install Windows Media Player 11 on
your computer.
To locate the data you have transferred or downloaded in
the internal storage:
• Touch Application tab from the Home screen to open the
applications list.
• Touch File Manager.
All data you have downloaded is stored in File Manager, where you
can view media files (videos, photos, music and others), rename files,
install applications on your phone, etc.
7.4 Sharing your phone's mobile data
connection
You can share your phone's mobile data connection with a single
computer via a USB cable (USB tethering) or with up to eight devices
at once by turning your phone into a portable Wi-Fi hotspot.
To turn on USB tethering or Portable Wi-Fi hotspot
• Touch on Quick setting bar to get to Settings.
• Touch More\Tethering & portable hotspot.
• Mark the checkbox of USB tethering or turn on Wi-Fi hotspot
to activate this function.
These functions may incur additional network charges
from your network operator. Extra fees may also be
charged in roaming areas. You can check data usage by
touching Settings\Data usage.
23 24
8 Find my location using
GPS satellites ..............
To activate your phone’s global positioning system (GPS) satellite receiver:
• Touch on Quick setting bar to get to Settings.
• Touch Location.
• Touch the switch beside Location to turn on.
Find your location by opening Maps:
Use your phone’s GPS satellite receiver to pinpoint your location
within an accuracy as close as several meters ("street level"). The
process of accessing the GPS satellite and setting your phone's precise
location for the first time will require up to 5 minutes. You will need
to stand in a place with a clear view of the sky and avoid moving. After
this, GPS will only need 20-40 seconds to identify your precise location.
Then you can start the navigation to find the target location.
9 Data backup .................
This phone enables you to back up your phone’s settings and other
application data to Google Servers, with your Google Account.
If you replace your phone, the settings and data you’ve backed up
are restored onto the new phone the first time you sign in with
your Google Account.
To activate this function:
• Touch on Quick setting bar to get to Settings.
• Touch Backup & reset\Back up my data to mark the checkbox.
Once activated, a wide variety of settings and data are backed up,
including your Wi-Fi passwords, bookmarks, a list of the applications
you’ve installed, the words you’ve added to the dictionary used by
the Onscreen keyboard, and most of the settings configured within
the Settings application. If you deactivated this option, settings are
no longer backed up, and any existing backups are deleted from
Google Servers.
10 Factory data reset
To activate factory data reset:
• Touch on Quick setting bar to get to Settings.
• Touch Backup & reset\Factory data reset
• Touch RESET PHONE\ERASE EVERYTHING
Phone reset will erase all of your personal data from internal phone
storage, including information about your Google Account, any other
accounts, your system and application settings, and any downloaded
applications. Resetting the phone does not erase any system software
updates you’ve downloaded. If you reset the phone in this way, you’re
prompted to re-enter the same kind of information as when you
first started Android.
When you are unable to power on your cellphone, there is another
way to perform a factory data reset by pressing the Volume up key
and the Power key simultaneously until the screen lights up.
11 Applications &
Internal storage ....
11.1 Applications
With this phone, some built-in Google applications and other third
party applications are available for your convenience.
With the built-in applications, you can:
• Communicate with friends.
25 26
• Exchange messages or emails with friends.
• Track your location, view traffic situations, search for locations and
get navigation information to your destination.
• Download more applications from Google Play Store and more.
For more information about these applications, please check the
online user manual at: www.alcatelonetouch.com.
11.2 Internal storage
Touch Settings\Storage to display the amount of internal phone
storage used by the operating system, its components, applications
(including those you downloaded), permanent and temporary data.
All personal music, pictures, applications, and files will be saved in
internal phone storage if no external SD card is inserted.
If a warning message comes up saying that phone memory
is limited, you are required to free up space by deleting
some unwanted applications, downloaded files, etc.
12 Making the most
of your phone ........
You can download software upgrades for free from the website
(www.alcatelonetouch.com).
12.1 Smart Suite
Smart Suite includes:
• Contacts
It allows you to back up contact entries so that you don't have
to worry about losing, breaking, switching phones or changing
service providers.
• Messages
It frees you from painstakingly inputting text on the keypads. All of
your messages are easily accessible and well-organised.
• Calendar
It allows you to sync events freely between your phone and
Outlook and create and edit new events from a PC.
• Photos
It allows you to easily import photos from a PC or the handset and
organise them in different albums for better management.
• Music
It allows you to quickly search for your favourites in a PC, manage
the ultimate Library, and enjoy the easiest digital jukebox in your
own mobile way.
• Application
It allows you to import downloaded mobile applications and have
them installed into your handset upon synchronisation.
• Backup
It allows you to back up your contacts, messages, calendar, photos
and applications, then import the backup files to your phone.
Supported Operating Systems
Windows XP/Vista/Windows 7/Windows 8.
12.2 Upgrade
You can use Mobile Upgrade tool or FOTA Upgrade tool to update
your phone's software.
12.2.1 Mobile Upgrade
Download Mobile Upgrade from ALCATEL ONETOUCH website
(www.alcatelonetouch.com) and install it on your PC. Launch the
tool and update your phone by following the step by step instructions
(refer to the User Guide provided together with the tool). Your
phone’s software will now have the latest software.
All personal information will be permanently lost following
the update process. We recommend you back up your
personal data using Smart Suite before upgrading.
27 28
12.2.2 FOTA Upgrade
Using FOTA Upgrade tool you can update your phone's software.
To access System Updates, please open notification panel and
touch and then , then press About phone\System updates
(storage). Or you can directly touch and access Settings\
About phone\System updates (storage). Touch Check for
updates, and the phone will search for the latest software. If you
want to update the system, please touch the button Download, after
it's done please touch Install to complete the upgrade. Now your
phone's software will have the latest version.
You should turn on data connection or Wi-Fi before searching for
updates. Settings for auto-check intervals and reminders about
upgrades are also available once you restart the phone.
If you have chosen auto-check, when the system discovers the
new version, the icon will appear in the status bar. Touch the
notification to access the System Updates directly.
During FOTA downloading or updating, to avoid errors in
locating the correct update packages, do not change your
default storage location.
Safety and use ......................
We recommend that you read this chapter carefully before using
your phone. The manufacturer disclaims any liability for damage, which
may result as a consequence of improper use or use contrary to the
instructions contained herein.
• TRAFFIC SAFETY:
Given that studies show that using a mobile phone while driving a vehicle
constitutes a real risk, even when the hands-free kit is used (car kit,
headset...), drivers are requested to refrain from using their mobile when
the vehicle is not parked.
When driving, do not use your phone and headphone to listen to music
or to the radio. Using a headphone can be dangerous and forbidden in
some areas.
When switched on, your phone emits electromagnetic waves that can
interfere with the vehicle’s electronic systems such as ABS anti-lock
brakes or airbags. To ensure that there is no problem:
- do not place your phone on top of the dashboard or within an airbag
deployment area,
- check with your car dealer or the car manufacturer to make sure that
the dashboard is adequately shielded from mobile phone RF energy.
• CONDITIONS OF USE:
You are advised to switch off the telephone from time to time to
optimise its performance.
Switch the phone off before boarding an aircraft.
Switch the phone off when you are in health care facilities, except in
designated areas. As with many other types of equipment now in regular
use, mobile telephones can interfere with other electrical or electronic
devices, or equipment using radio frequency.
Switch the phone off when you are near gas or flammable liquids. Strictly
obey all signs and instructions posted in a fuel depot, petrol station, or
chemical plant, or in any potentially explosive atmosphere.
When the phone is switched on, it should be kept at least 15 cm from any
medical device such as a pacemaker, a hearing aid or insulin pump, etc. In
particular when using the phone, you should hold it against the ear on
the opposite side to the device, if any.
To avoid hearing impairment, pick up the call before holding your phone to
your ear. Also move the handset away from your ear while using the "hands-
free" mode because the amplified volume might cause hearing damage.
Do not let children use the phone and/or play with the telephone and
accessories without supervision.
When replacing the cover please note that your phone may contain
substances that could create an allergic reaction.
Always handle your phone with care and keep it in a clean and dust-free place.
29 30
Do not allow your phone to be exposed to adverse weather or
environmental conditions (moisture, humidity, rain, infiltration of
liquids, dust, sea air, etc). The manufacturer’s recommended operating
temperature range is -10°C to +55°C.
At over 55°C the legibility of the phone’s display may be impaired, though
this is temporary and not serious.
Emergency call numbers may not be reachable on all cellular networks.
You should never rely only on your phone for emergency calls.
Do not open, dismantle or attempt to repair your mobile phone yourself.
Do not drop, throw or bend your mobile phone.
Do not use the phone if the glass made screen, is damaged, cracked or
broken to avoid any injury.
Do not paint it.
Use only batteries, battery chargers, and accessories which are
recommended by TCL Communication Ltd. and its affiliates and are
compatible with your phone model. TCL Communication Ltd. and its
affiliates disclaim any liability for damage caused by the use of other
chargers or batteries.
Remember to make back-up copies or keep a written record of all
important information stored in your phone.
Some people may suffer epileptic seizures or blackouts when exposed to
flashing lights, or when playing video games. These seizures or blackouts
may occur even if a person never had a previous seizure or blackout. If you
have experienced seizures or blackouts, or if you have a family history of
such occurrences, please consult your doctor before playing video games
on your phone or enabling a flashing-lights feature on your phone.
Parents should monitor their children’s use of video games or other
features that incorporate flashing lights on the phones. All persons should
discontinue use and consult a doctor if any of the following symptoms
occur: convulsion, eye or muscle twitching, loss of awareness, involuntary
movements, or disorientation. To limit the likelihood of such symptoms,
please take the following safety precautions:
- Do not play or use a flashing-lights feature if you are tired or need sleep.
- Take a minimum of a 15-minute break hourly.
- Play in a room in which all lights are on.
- Play at the farthest distance possible from the screen.
- If your hands, wrists, or arms become tired or sore while playing, stop
and rest for several hours before playing again.
- If you continue to have sore hands, wrists, or arms during or after
playing, stop the game and see a doctor.
When you play games on your phone, you may experience occasional
discomfort in your hands, arms, shoulders, neck, or other parts of your
body. Follow the instructions to avoid problems such as tendinitis, carpal
tunnel syndrome, or other musculoskeletal disorders.
PROTECT YOUR HEARING
To prevent possible hearing damage, do not listen at high
volume levels for long periods. Exercise caution when
holding your device near your ear while the loudspeaker
is in use.
• PRIVACY:
Please note that you must respect the laws and regulations in force in
your jurisdiction or other jurisdiction(s) where you will use your mobile
phone regarding taking photographs and recording sounds with your
mobile telephone. Pursuant to such laws and regulations, it may be strictly
forbidden to take photographs and/or to record the voices of other
people or any of their personal attributes, and duplicate or distribute
them, as this may be considered to be an invasion of privacy. It is the
user's sole responsibility to ensure that prior authorisation be obtained,
if necessary, in order to record private or confidential conversations
or take a photograph of another person; the manufacturer, the seller
or vendor of your mobile phone (including the operator) disclaim any
liability which may result from the improper use of the mobile phone.
• BATTERY:
Observe the following precautions for battery use:
- Do not attempt to open the battery (due to the risk of toxic fumes
and burns).
- Do not puncture, disassemble or cause a short-circuit in a battery.
- Do not burn or dispose of a used battery in household rubbish or store
it at temperatures above 60°C.
Batteries must be disposed of in accordance with locally applicable
environmental regulations. Only use the battery for the purpose for
which it was designed. Never use damaged batteries or those not
recommended by TCL Communication Ltd. and/or its affiliates.
This symbol on your telephone, the battery and the
accessories means that these products must be taken to
collection points at the end of their life:
- Municipal waste disposal centres with specific bins for these
items of equipment
- Collection bins at points of sale.
They will then be recycled, preventing substances being disposed of in the
environment, so that their components can be reused.
In European Union countries:
These collection points are accessible free of charge.
All products with this sign must be brought to these collection points.
31 32
In non European Union jurisdictions:
Items of equipment with this symbol are not to be thrown into ordinary
bins if your jurisdiction or your region has suitable recycling and
collection facilities; instead they are to be taken to collection points for
them to be recycled.
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN
INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO
THE INSTRUCTIONS.
• CHARGERS
Mains powered chargers will operate within the temperature range of:
0°C to 40°C.
The chargers designed for your mobile phone meet with the standard
for safety of information technology equipment and office equipment use.
They are also compliant to the ecodesign directive 2009/125/EC. Due to
different applicable electrical specifications, a charger you purchased in
one jurisdiction may not work in another jurisdiction. They should be
used for this purpose only.
• RADIO WAVES:
Proof of compliance with international standards (ICNIRP) or with
European Directive 1999/5/EC (R&TTE) is required of all mobile phone
models before they can be put on the market. The protection of the
health and safety for the user and any other person is an essential
requirement of these standards or this directive.
THIS DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE
TO RADIO WAVES
Your mobile device is a radio transmitter and receiver. It is designed
not to exceed the limits for exposure to radio waves (radio frequency
electromagnetic fields) recommended by international guidelines. The
guidelines were developed by an independent scientific organization
(ICNIRP) and include a substantial safety margin designed to assure the
safety of all persons, regardless of age and health.
The radio wave exposure guidelines use a unit of measurement known
as the Specific Absorption Rate, or SAR. The SAR limit for mobile
devices is
FCC Regulations:
This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This mobile phone has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiated radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Note:
Caution: Changes or modifications not expressly approved by the party responsible for compliance could
void the user‘s authority to operate the equipment.
RF Exposure Information (SAR)
This phone is designed and manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission of the United States.
During SAR testing, this device was set to transmit at its highest certified power level in all tested
frequency bands, and placed in positions that simulate RF exposure in usage against the head with no
separation, and near the body with the separation of 10 mm. Although the SAR is determined at the
highest certified power level, the actual SAR level of the device while operating can be well below the
maximum value. This is because the phone is designed to operate at multiple power levels so as to use
only the power required to reach the network. In general, the closer you are to a wireless base station
antenna, the lower the power output.
The exposure standard for wireless devices employing a unit of measurement is known as the Specific
Absorption Rate, or SAR.
The SAR limit set by the FCC is 1.6W/kg.
This device is complied with SAR for general population /uncontrolled exposure limits in ANSI/IEEE
C95.1-1992 and had been tested in accordance with the measurement methods and procedures
specified in IEEE1528. This device has been tested and meets the FCC RF exposure guidelines when
tested with the device directly contacted to the body.
The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels
evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone
is on file with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid
after searching on FCC ID: 2ACCJB017.
For this device, the highest reported SAR value for usage against the head is 1.13 W/kg, for usage near
the body is 0.88 W/kg.
While there may be differences between the SAR levels of various phones and at various positions, they
all meet the government requirements.
SAR compliance for body-worn operation is based on a separation distance of 10 mm between the unit
and the human body. Carry this device at least 10 mm away from your body to ensure RF exposure level
compliant or lower to the reported level. To support body-worn operation, choose the belt clips or
holsters, which do not contain metallic components, to maintain a separation of 10 mm between this
device and your body.
RF exposure compliance with any body-worn accessory, which contains metal, was not tested and
certified, and use such body-worn accessory should be avoided.
Hearing Aid Compatibility (HAC) regulations for Mobile
phones
In 2003, the FCC adopted rules to make digital wireless telephones compatible with hearing
aids and cochlear implants. Although analog wireless phones do not usually cause
interference with hearing aids or cochlear implants, digital wireless phones sometimes do
because of electromagnetic energy emitted by the phone's antenna, backlight, or other
components. Your phone is compliant with FCC HAC regulations (ANSI C63.19- 2011).
While some wireless phones are used near some hearing devices (hearing aids and cochlear
implants), users may detect a buzzing, humming, or whining noise. Some hearing devices are
more immune than others to this interference noise and phones also vary in the amount of
interference they generate. The wireless telephone industry has developed a rating system for
wireless phones to assist hearing device users in finding phones that may be compatible with
their hearing devices. Not all phones have been rated. Phones that are rated have the rating on
their box or a label located on the box. The ratings are not guarantees. Results will vary
depending on the user's hearing device and hearing loss. If your hearing device happens to be
vulnerable to interference, you may not be able to use a rated phone successfully. Trying out
the phone with your hearing device is the best way to evaluate it for your personal needs.
This phone has been tested and rated for use with hearing aids for some of the wireless
technologies that it uses. However, there may be some newer wireless technologies used in
this phone that have not been tested yet for use with hearing aids. It is important to try the
different features of this phone thoroughly and in different locations, using your hearing aid
or cochlear implant, to determine if you hear any interfering noise. Consult your service
provider or the manufacturer of this phone for information on hearing aid compatibility. If
you have questions about return or exchange policies, consult your service provider or phone
retailer.
M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to generate less
interference to hearing devices than phones that are not labeled. M4 is the better/higher of the
two ratings.
Your phone meets the M4 level rating.
Hearing devices may also be rated. Your hearing device manufacturer or hearing health
professional may help you find this rating. For more information about FCC Hearing Aid
Compatibility, please go to http://www.fcc.gov/cgb/dro.
33 34
Please note by using the device some of your personal data may be shared
with the main device. It is under your own responsibility to protect your
own personal data, not to share with it with any unauthorized devices
or third party devices connected to yours. For products with Wi-Fi
features, only connect to trusted Wi-Fi networks. Also when using your
product as a hotspot (where available), use network security. These
precautions will help prevent unauthorized access to your device. Your
product can store personal information in various locations including a
SIM card, memory card, and built-in memory. Be sure to remove or clear
all personal information before you recycle, return, or give away your
product. Choose your apps and updates carefully, and install from trusted
sources only. Some apps can impact your product’s performance and/or
have access to private information including account details, call data,
location details and network resources.
Note that any data shared with TCL Communication Ltd. is stored
in accordance with applicable data protection legislation. For these
purposes TCL Communication Ltd. implements and maintains
appropriate technical and organizational measures to protect all personal
data, for example against unauthorized or unlawful processing and
accidental loss or destruction of or damage to such personal data
whereby the measures shall provide a level of security that is appropriate
having regard to
(i) the technical possibilities available,
(ii) the costs for implementing the measures,
(iii) the risks involved with the processing of the personal data, and
(iv) the sensitivity of the personal data processed.
You can access, review and edit your personal information at any time by
logging into your user account, visiting your user profile or by contacting
us directly. Should you require us to edit or delete your personal data,
we may ask you to provide us with evidence of your identity before we
can act on your request.
• LICENCES
microSD Logo is a trademark.
SwiftKey is a registered trademark of TouchType Ltd.
The Android robot is reproduced or modified from work created
and shared by Google and used according to terms described in the
Creative Commons 3.0 Attribution License (the text will show when
you touch and hold Google legal in Settings\About phone\Legal
information). (1)
You have purchased a product which uses the open source (http://
opensource.org/) programs mtd, msdosfs, netfilter/iptables and initrd in
object code and other open source programs licensed under the GNU
General Public License and Apache License.
We will provide you with a complete copy of the corresponding source
codes upon request within a period of three years from the distribution
of the product by TCL Communication.
You may download the source codes from http://sourceforge.net/
projects/alcatel/files/. The provision of the source code is free of charge
from internet.
(1) It may not available according to the countries.
35 36
General information ...........
• Internet address: www.alcatelonetouch.com
• Hot Line Number: see "TCL Communication Services" leaflet or
go to our website.
• Address: Room 1910-12A, Tower 3, China HK City, 33 Canton Road,
Tsimshatsui, Kowloon, Hong Kong
• Electronic labeling path: Touch Settings\Regulatory & Safety or
press *#07#, you can find more information about labeling (1).
On our website, you will find our FAQ (Frequently Asked Questions)
section. You can also contact us by e-mail to ask any questions you
may have.
An electronic version of this user guide is available in English
and other languages according to availability on our server:
www.alcatelonetouch.com
Y
our telephone is a transceiver that operates on GSM in quad-
band (850/900/1800/1900 MHz) or UMTS in
37 38
Warranty ..............................
Your phone is warranted against any defect or malfunctioning which
may occur in conditions of normal use during the warranty period of
twelve (12) months (1) from the date of purchase as shown on your
original invoice.
Batteries (2) and accessories sold with your phone are also warranted
against any defect which may occur during the first six (6) months (1) from
the date of purchase as shown on your original invoice.
In case of any defect of your phone which prevents you from normal
use thereof, you must immediately inform your vendor and present your
phone with your proof of purchase.
If the defect is confirmed, your phone or part thereof will be either
replaced or repaired, as appropriate. Repaired phone and accessories
are entitled to a one (1) month warranty for the same defect. Repair
or replacement may be carried out using reconditioned components
offering equivalent functionality.
This warranty covers the cost of parts and labor but excludes any
other costs.
This warranty shall not apply to defects to your phone and/or accessory
due to (without any limitation):
1) Non-compliance with the instructions for use or installation, or with
technical and safety standards applicable in the geographical area
where your phone is used,
2) Connection to any equipment not supplied or not recommended by
TCL Communication Ltd,
3) Modification or repair performed by individuals not authorised by TCL
Communication Ltd. or its affiliates or your vendor,
4) Modification, adjustment or alteration of software or hardware
performed by individuals not authorized by TCL Communication Ltd,
5) Inclement weather, lightning, fire, humidity, infiltration of liquids or
foods, chemical products, download of files, crash, high voltage,
corrosion, oxidation…
(1) The warranty period may vary depending on your country.
(2) The life of a rechargeable mobile phone battery in terms of
conversation time standby time, and total service life, will depend
on the conditions of use and network configuration. Batteries being
considered expendable supplies, the specifications state that you
should obtain optimal performance for your phone during the first six
months after purchase and for approximately 200 more recharges.
Your phone will not be repaired in case labels or serial numbers (IMEI)
have been removed or altered.
There are no express warranties, whether written, oral or implied, other
than this printed limited warranty or the mandatory warranty provided
by your country or jurisdiction.
In no event shall TCL Communication Ltd or any of its affiliates be
liable for indirect, incidental or consequential damages of any nature
whatsoever, including but not limited commercial or financial loss or
damage, loss of data or loss of image to the full extent those damages
can be disclaimed by law.
Some countries/states do not allow the exclusion or limitation of
indirect, incidental or consequential damages, or limitation of the
duration of implied warranties, so the preceding limitations or exclusions
may not apply to you.
Troubleshooting...................
Before contacting the service centre, you are advised to follow the
instructions below:
• You are advised to fully charge ( ) the battery for optimal
operation.
• Avoid storing large amounts of data in your phone as this may
affect its performance.
• Use Factory data reset and Mobile Upgrade tool to perform
phone formatting or software upgrading (to reset factory data,
hold down the Power key and the Volume up key at the same
time under power off mode). ALL User phone data: contacts,
photos, messages and files, downloaded applications will be lost
permanently. It is strongly advised to fully backup the phone data
and profile via Smart Suite before doing formatting and upgrading.
and carry out the following checks:
My phone cannot be switched on or is frozen
• When the phone cannot be switched on, charge for at least 20
minutes to ensure the minimum battery power needed, then try
to switch on again.
• When the phone falls into a loop during power on-off animation
and the user interface cannot be accessed, press and hold the
Volume down key to enter Safe Mode. This eliminates any
abnormal OS booting issues caused by 3rd party APKs.
39 40
• If neither method is effective, please reset the phone using the
Power key and the Volume up key (holding both together) or
upgrade software via Mobile Upgrade tool.
My phone has not responded for several minutes
• Restart your phone by pressing and holding the Power key.
• Remove the battery and re-insert it, then restart the phone
• If it still does not work, please use Factory data reset to reset the
phone or FOTA/Mobile Upgrade to upgrade software.
My phone turns off by itself
• Check that your screen is locked when you are not using your
phone, and make sure the Power key is not accidentally contacted
while the screen is unlocked.
• Check the battery charge level.
• If it still does not work, please use Factory data reset to reset the
phone or FOTA/Mobile Upgrade to upgrade software.
My phone cannot charge properly
• Make sure you are using an ALCATEL ONETOUCH battery and
the charger from the box.
• Make sure your battery is inserted properly and clean the battery
contact if it’s dirty. It must be inserted before plugging in the
charger.
• Make sure that your battery is not completely discharged; if the
battery power is empty for a long time, it may take around 20
minutes to display the battery charger indicator on the screen.
• Make sure charging is carried out under normal conditions (0°C
to +40°C).
• When abroad, check that the voltage input is compatible.
My phone cannot connect to a network or "No service"
is displayed
• Try connecting in another location.
• Verify the network coverage with your operator.
• Check with your operator that your SIM card is valid.
• Try selecting the available network(s) manually
• Try connecting at a later time if the network is overloaded.
My phone cannot connect to the Internet
• Check that the IMEI number (press *#06#) is the same as the one
printed on your warranty card or box.
• Make sure that the internet access service of your SIM card is available.
• Check your phone's Internet connecting settings.
• Make sure you are in a place with network coverage.
• Try connecting at a later time or another location.
Invalid SIM card
• Make sure the SIM card has been correctly inserted (see "Inserting
or removing the SIM card").
• Make sure the chip on your SIM card is not damaged or scratched.
• Make sure the service of your SIM card is available.
Unable to make outgoing calls
• Make sure you have dialled a valid number and have touched Call.
• For international calls, check the country and area codes.
• Make sure your phone is connected to a network, and the network
is not overloaded or unavailable.
• Check your subscription status with your operator (credit, SIM
card valid, etc.).
• Make sure you have not barred outgoing calls.
• Make sure that your phone is not in airplane mode.
Unable to receive incoming calls
• Make sure your phone is switched on and connected to a network
(check for overloaded or unavailable network).
• Check your subscription status with your operator (credit, SIM
card valid, etc.).
• Make sure you have not forwarded incoming calls.
• Make sure that you have not barred certain calls.
• Make sure that your phone is not in airplane mode.
The caller’s name/number does not appear when a call is
received
• Check that you have subscribed to this service with your operator.
• Your caller has concealed his/her name or number.
I cannot find my contacts
• Make sure your SIM card is not broken.
• Make sure your SIM card is inserted properly.
• Import all contacts stored in SIM card to phone.
The sound quality of the calls is poor
• You can adjust the volume during a call by pressing the Volume
Up/Down key.
• Check the network strength .
• Make sure that the receiver, connector or speaker on your phone is clean.
I am unable to use the features described in the manual
• Check with your operator to make sure that your subscription
includes this service.
• Make sure this feature does not require an ALCATEL ONETOUCH
accessory.
41 42
When I select a number from my contacts, the number
cannot be dialled
• Make sure that you have correctly recorded the number in your file.
• Make sure that you have selected the country prefix when calling a
foreign country.
I am unable to add a contact in my contacts
• Make sure that your SIM card contacts are not full; delete some
files or save the files in the phone contacts (i.e. your professional
or personal directories).
My callers are unable to leave messages on my voicemail
• Contact your network operator to check service availability.
I cannot access my voicemail
• Make sure your operator’s voicemail number is correctly entered
in "Voicemail number".
• Try later if the network is busy.
I am unable to send and receive MMS
• Check your phone memory availability as it might be full.
• Contact your network operator to check service availability and
check MMS parameters.
• Verify the server centre number or your MMS profile with your
operator.
• The server centre may be swamped, try again later.
SIM card PIN locked
• Contact your network operator to obtain the PUK code (Personal
Unblocking Key).
I am unable to connect my phone to my computer
• Install Smart Suite.
• Check that your USB driver is installed properly.
• Open the Notification panel to check if the Smart Suite Agent has
been activated.
• Check that you have marked the checkbox of USB debugging.
• Check that your computer meets the requirements for Smart
Suite Installation.
• Make sure that you’re using the right cable from the box.
I am unable to download new files
• Make sure there is sufficient phone memory for your download.
• Select the microSD card as the location to store downloaded files.
• Check your subscription status with your operator.
The phone cannot be detected by others via Bluetooth
• Make sure that Bluetooth is turned on and your phone is visible
to other users.
• Make sure that the two phones are within Bluetooth’s detection range.
How to make your battery last longer
• Make sure you follow the complete charge time (minimum 2.5
hours).
• After a partial charge, the battery level indicator may not be exact.
Wait for at least 20 minutes after removing the charger to obtain
an exact indication.
• Adjust the brightness of screen as appropriate
• Extend the email auto-check interval for as long as possible.
• Update news and weather information on manual demand, or
increase their auto-check interval.
• Exit background-running applications if they are not being used
for a long time.
• Deactivate Bluetooth, Wi-Fi, or GPS when not in use.
The phone will become warm following prolonged calls,
game playing, internet surfing or running other complex
applications.
• This heating is a normal consequence of the CPU handling
excessive data. Ending above actions will make your phone return
to normal temperatures.
ALCATEL is a trademark of Alcatel-Lucent
and is used under license by
TCL Communication Ltd.
© Copyright 2015 TCL Communication Ltd
All rights reserved
TCL Communication Ltd reserves
the right to alter material
or technical specification
without prior notice.
All "Signature" ringtones embedded in this phone have been
composed, arranged and mixed by NU TROPIC (Amar Kabouche).

Navigation menu
