TCL Communication B035 Mobile WIFI Router User Manual
TCL Communication Ltd. Mobile WIFI Router
user manual
Quick Start Guide
CJB1B3A01AAB
2
www.sar-tick.com
This product meets applicable national
SAR limits of 1.6 W/kg.
The specic maximum SAR values can
be found in the Radio Waves section
of this user guide.
When carrying the product or using
it while worn on your body, either
use an approved accessory such as
a holster or otherwise maintain a
distance of 10 mm from the body to
ensure compliance with RF exposure
requirements. Note that the product
may be transmitting even if you are
not surng internet.
Safety and use
We recommend that you read this chapter carefully before
using this device. The manufacturer disclaims any liability for
damage, which may result as a consequence of improper
use of this device or of use contrary to the instructions
contained herein.
Do not switch on your device when its use is
prohibited or when using the device may cause
interference or danger.
Follow rules or regulations in hospitals and
health care facilities. Switch off your device near
medical apparatus.
3
Switch off your device in an aircraft. The device
may cause interference to aircraft control
signals.
Switch off your device near high-precision
electronic devices. The device may affect the
performance of these devices.
Do not attempt to disassemble your device or
its accessories. Only qualied personnel are
allowed to service or repair the device.
Do not place your device or its accessories in
containers with a strong electromagnetic eld.
Do not place magnetic storage media near your
device. Radiation from the device may erase the
information stored on them.
Do not subject your device to high temperatures
or use it in a place with ammable gas such as
a petrol station.
Keep your device and its accessories away from
children. Do not allow children to use your
device without guidance.
Only use approved batteries and chargers to
avoid the risk of explosion.
Observe the laws or regulations on device use.
Respect others’ privacy and legal rights when
using your device.
It is recommended that the equipment only be used in an
environment where the temperature is between -10°C and
50°C and humidity is between 10% to 90%.
4
CHARGERS
Mains powered chargers will operate within the
temperature range of: 0°C to 40°C.
The chargers designed for your device meet with the
standard for safety of information technology equipment
and ofce equipment use.
They are also compliant to the ecodesign directive
2009/125/EC. Due to different applicable electrical
specications, a charger you purchased in one jurisdiction
may not work in another jurisdiction. They should be used
for this purpose only.
1. Overview
Y859 is a portable wireless router, providing a simple way to
share 4G with any Wi-Fi embedded device.

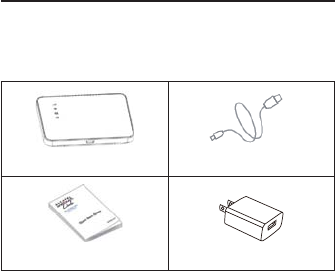

1.1 Package contents
Y859 USB cable
Quick start guide Charger
5
1.2 Application
PC
PAD Smart phone
1.3 Device overview
Number Description
Power on/off Key
WPS Key
6
Number Description
LED light
Micro USB Interface
Use the device’s 2 buttons as follows:
Button Description
Power
On/Off
Long press to turn on/off the device
Short press to put the LED in either active
or sleep mode.
WPS
Long press to turn on WPS
Short press to put the LED in either active
or sleep mode
1.4 Turning on the device
Step 1: Open back cover from Bottom of right corner,
then take out battery and put SIM card as remark.
Step 2: Long Press the Power On/Off button.
7
1.5 LED Display
The LED display is interpreted as follows:
Network Indicator(Red or Blue LED)
Wi-Fi indicator (Blue LED)
SMS indicator (Blue LED)
Battery indicator (Red or Blue LED)
LED description:
Category Icon Display
Network
Indicator
Light Blue LED when connect to internet
or ash when no internet service;
Light Red LED when no Network/no
service/no SIM card
Wi-Fi
indicator Light Blue LED when Wi-Fi active
SMS
indicator
Light Blue LED when new message coming
or ash when SMS full
Battery
indicator
Light Red LED for low power alarm; Light
Blue LED during charging
1.6 Connecting in Wi-Fi mode
SSID: locate the SSID information on the sticker on Back
Cover.
8
Step 1: Use the Wi-Fi manager on the Wi-Fi embedded
device to select network name (SSID).
r From a Windows PC: Right-click Wireless network
connection on the task bar, and select: View Available
Networks.
Choose SSID from the list of available networks.
r From a Mac computer: Select System Preferences ->
Network -> Airport. Click “Advanced” to choose SSID
from the list of available networks.
r From an iOS device: Settings -> Wi-Fi. Choose SSID from
the available networks.
r From an android device: Settings -> Wireless controls ->
Wi-Fi settings. Choose SSID from the available networks.
Step 2: Enter the Wi-Fi key when prompted for a security
key.
2. Quick Setup
2.1 Website
Open your browser and enter http://192.168.1.1 to access
the login page.
Default login password: admin
Login and click “Setting” to congure the basic settings.
Admin Password:
r Login Password: Set the password for login.
Wi-Fi Settings:
r SSID: Set the network name of this device.
9
r Security: Congure the security mode for Wi-Fi
connection.
2.2 LINK APP
Download the “LINK APP” by scanning the QR code on
App Leaet.
Open the LINK app by entering the password. The default
password is: admin
Set the Wi-Fi network name & Wi-Fi password.
Save the settings & restart network connection.
3. Charging the device
You have two ways to charge your device.
Wall Charger charging:
Connect USB cable with Charger head and device, then
charging begin.
When the device is powered off, charging will take a
maximum of 3 hours.
USB Charger charging
You can also charge the device by connecting it to a PC
with the USB cable.
When the device is powered off, charging will take a
maximum of 4 hours.
Note: In order to protect the battery, when low power
LED indicator ash, please charge the device.
10
4. Certication
This symbol on device means that these
products must be taken to collection points at
the end of their life:
- Municipal waste disposal centres with specic
bins for these items of equipment.
- Collection bins at points of sale.
They will then be recycled, preventing substances being
disposed of in the environment, so that their components
can be reused.
In European Union countries:
These collection points are accessible free of charge.
All products with this sign must be brought to these
collection points.
In non European Union jurisdictions:
Items of equipment with this symbol are not to be thrown
into ordinary bins if your jurisdiction or your region has
suitable recycling and collection facilities; instead they are
to be taken to collection points for them to be recycled.
Radio Waves Federal Communications
Commission Notice (United States)
The SAR limit set by public authorities such as the Federal
Communications Commission of the US Government
(FCC), or by Industry Canada, is 1.6 W/kg averaged over
1 gram of body tissue. The highest tested SAR value for this
device compliance against the standard is 0.56 W/kg.
Although the SAR is determined at the highest certied
power level, the actual SAR Level of the modem while
11
operating can be well below the maximum value. This is
because the modem is designed to operate at multiple
power levels so as to use only the power required to reach
the network. In general, the closer you are to a wireless
base station antenna, the lower the power output of the
modem.
While there may be differences between SAR levels of
various modems and at various positions, they all meet
the government requirement for RF exposure. The modem
meets FCC RF exposure guidelines provided that it is used
with this device at least 10mm from the body.
The World Health Organization (WHO) considers that
present scientic information does not indicate the need
for any special precautions for use of modem. If individuals
are concerned, they might choose to limit their own or
their children’s RF exposure by limiting the length of use
to keep data card away from the head and body. (fact sheet
n°193) Additional WHO information about electromagnetic
elds and public health are available on the following
website: http://www.who.int/peh-emf.
This device has been tested and found to comply with
the limits for a Class B digital , pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiated radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation If this equipment does cause harmful
interference to radio or television reception, which can be
12
determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician
for help.
Changes or modications not expressly approved by the
party responsible for compliance could void the user’s
authority to operate the equipment.
FCC RF Exposure Information (SAR):
This device is designed and manufactured not to exceed
the emission limits for exposure to radio frequency (RF)
energy set by the Federal Communications Commission of
the United States.
During SAR testing, this is set to transmit at its highest
certied power level in all tested frequency bands, and
placed in positions that simulate RF exposure in usage near
the body with the separation of 10 mm. Although the SAR
is determined at the highest certied power level, the actual
SAR level of the device while operating can be well below
the maximum value. This is because the device is designed
to operate at multiple power levels so as to use only the
power required to reach the network. In general, the closer
you are to a wireless base station antenna, the lower the
power output.
13
The exposure standard for wireless s employs a unit of
measurement known as the Specic Absorption Rate, or
SAR. The SAR limit set by the FCC is 1.6W/kg.
Tests for SAR are conducted using standard operating
positions accepted by the FCC with the device transmitting
at its highest certied power level in all tested frequency
bands.
The FCC has granted an Equipment Authorization for this
model device with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines.
For more information you can go to www.alcatelonetouch.com;
Additional information about electromagnetic elds
and public health are available on the following site:
http://www.who.int/peh-emf
This device is equipped with a built-in antenna. For optimal
operation, you should avoid touching it or degrading it.
Licenses
The Wi-Fi Logo is a certication mark of
the Wi-Fi Alliance.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operation.
14
Warranty
The device is warranted against any deviation from technical
specications for a period of twelve (12) (1) months from the
date specied on your original invoice.
Under the terms of this warranty, you must immediately
inform your vendor in case of a conformity defect on this
device, and present a proof of purchase.
The vendor or repair center will decide whether to replace
or repair this device, as appropriate.
Repaired or replaced this device is warranted ONE (1)
month unless there are statutory provisions to the contrary.
This warranty shall not apply to damage or defects to this
device due to:
1) Not following the instructions for use or installation,
2) Not being compliant with technical and safety standards
applicable in the geographical area where this device
is used,
3) Improper maintenance of sources of energy, and of the
overall electric installation,
4) Accidents or consequences of theft of the vehicle in which
this device is transported, acts of vandalism, lightning, re,
humidity, inltration of liquids, inclement weather,
5) Connecting to or integrating into this device any
equipment not supplied or not recommended by the
manufacturer,
6) Any servicing, modication or repair performed by
individuals not authorised by the manufacturer, the
vendor or the approved maintenance centre,
(1) The warranty period may vary depending on your country.
15
7) Use of this device for a purpose other than that for
which it was designed,
8) Malfunctions caused by external causes (e.g., radio
interference from other equipment, power voltage
uctuations),
9) Faulty connections resulting from unsatisfactory radio
transmission or caused by the absence of radio relay
coverage.
Warranty is also excluded for this device on which markings
or serial numbers have been removed or altered.
This device is also warranted against hidden defects (defects
inherent in the design, manufacture, etc.).
There are no other express warranties than this printed
limited warranty, expressed or implied, of any nature
whatsoever.
In no event shall the manufacturer be liable for incidental or
consequential damages of any nature whatsoever, including
but not limited to trading loss, commercial loss, to the
full extent those damages can be disclaimed by law. Some
countries/states do not allow the exclusion or limitation
of incidental or consequential damages, or limitation of the
duration of implied warranties, so the preceding limitations
or exclusions may not apply to you.
Alcatel is a trademark of Alcatel-Lucent used under license
by TCL Communication LTD.
All rights reserved © 2014-2016 TCL Communication LTD.
Address: Room 1910-12A, Tower 3, China HK City, 33
Canton Road, Tsimshatsui, Kowloon, Hong Kong
Freely download the App that helps you remotely control LINK mobile WiFi
iOS versionAndroid version
LINK APP
Note: LINK APP and Web UI share same password. Default password is: admin
LINK APP
CJE000022AAB
Freely download the App that helps you remotely control LINK mobile WiFi
1 Make sure your device is connected to the Net
2 Scan the QR Code
3 Download the LINK APP from App Store SM or Google Play™ store
4 Click on LINK APP icon to log on to the management page
Alcatel name is a trademark of Alcatel-Lucent used under license by TCL Communication Ltd.
Onetouch is a trademark or registered trademark of TCL Communication Ltd.
App Store is a trademarks of Apple Inc.
Google Play is a trademark of Google Inc.
The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device
types Y859ND (FCC ID: 2ACCJB035) has also been tested against this SAR limit.
The highest SAR value reported under this standard during product certification for use when
properly worn on the body is 1.1W/kg. Simultaneous RF exposure is 1.388W/Kg.
