User manual
CJB1F61ALAAA
MOVETIME
Track&Talk watch
Quick Start Guide
2

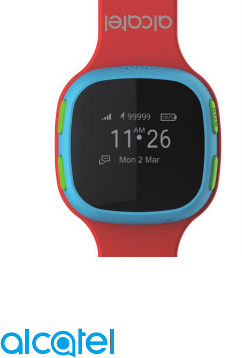

Know your watch
Overview
Front Back
B
C
D
E
F
G
A
H
I
J
AWatch-buon
BSpeaker
CVolume + On the Home screen: Press to open the
phonebook, press again to choose contacts.
In the List mode: Press to increase the volume
or page up.
DVolume - On the Home screen: Press to enter the voice
messages list.
In the List mode: Press to decrease the volume
or page down.
When you have an incoming voice call, short
press to answer.
Press for 3 seconds to start recording.
3
ESOS key Emergency calls: Long press the ‘SOS’ key for at
least 3 seconds.
FPower key • Power on/o.
• Enter into the volume list.
• When you have an incoming call, short press
to reject the call.
• On the Home screen, short press to enter
the volume mode.
• On all screens other than Home, short press
once to go back.
• Depress the buon for at least 8 seconds to
iniate a system reboot.
GMicrophone
HWristband
ISIM slot
JCharging port
Notes:
• The screen will light up by pressing any key.
• Watch only supports GPRS network and Nano SIM card without
encrypng PIN code.
Screen
Baery power
Time
Date
G: GPRS
R: Roaming
Steps
Signal strength
Voice SMS ps
When the watch is roaming, the right side of the signal bar will appear
“R”. At the same me, prompt informaon will display in the message
bar in the applicaon. Note: Consult the local operators to open the
roaming service.
4

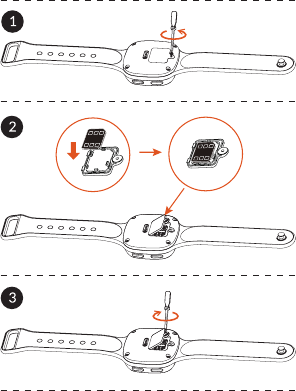

Inserng Nano SIM card
5
Basic operaons on your watch
Power on/o
Press and hold the Power key for 3 seconds to power on/o your
watch.
Press and hold the Power key for 8 seconds to reboot when your
watch crashes.
SOS
Press and hold the SOS key for 3 seconds on any screen (except the
incoming/ongoing/dialing call screen) to call ve key family members.
1. Once your watch has obtained a x on your locaon, it will
send details of your locaon to 10 chosen family members.
(Applicaon shows the SOS alarm screen with prompt).
2. It will aempt to dial 10 chosen numbers in turn. If there is no
answer within 10 seconds, it will move onto the next number in
the list unl a call successfully connects.
3. If a SIM card is not inserted, or if the watch does not have a
signal, the SOS feature will instead aempt to dial 112
(Emergency services). You can press the Power Key at any me
to either cancel the call setup or hang up the call. Note: Currently
emergent number is not set by default, you can customize it.
Note: Press the Power key to interrupt the call.
Sending a voice message
1. Press Volume - for 3 seconds to start recording.
2. Release to stop recording, as well as to send the voice message.
3. When nishes sending, it will go back to the last screen.
Note: Nocaon icon will ash when your watch receives a voice
message.
Voice message management
• Press Volume + to scroll up the menu.
• Press Volume - to scroll down the menu.
• Short press the Power key to go back to the Home screen.
Note: The storage is limited to 30 voice messages. If there are more
than 30 messages, the message will be overwrien automacally.
Calling and answering
1. Short press Volume + to enter the family number list.
2. Short press Volume + to choose the next family number.
6
3. Press Volume - for 3 seconds to send a voice message to chosen
family number.
Note: Press the Power key to go back to the Home screen.
Volume adjustment
• Short press power on/o buon rst, then press Volume + to
increase the volume.
• Short press power on/o buon rst, then press Volume - to
decrease the volume.
Note: Decrease the volume to mute your watch. When you have an
incoming call, your watch will vibrate.
Power o & Airplane mode
Long press the Power key for 3 seconds to enter “Power o &
Airplane mode” screen.
Update
Watch will install the rmware automacally aer nishing
downloading.
7
Using the applicaon from your
smartphone

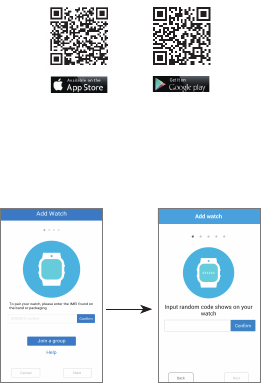

Download the applicaon from App Store or Google play.
Pairing
Input the IMEI to pair your watch
Obtain the informaon of IMEI number through the package
informaon or pressing Volume +/- and the SOS key in the same
me unl the informaon displayed on the screen. Then input the
IMEI number to the applicaon informaon bar and conrm.
Input IMEI
and press
Conrm.
The server will send a random code to your watch and the informaon
displayed on the screen should be noted at this me. Input the
random code to the applicaon informaon bar and conrm.
8

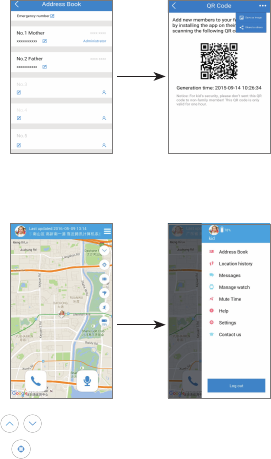

Scan the QR code to pair your watch
You can share the QR code to add some group members. Scanning
the QR code will be automacally adjusted according to the interval
me.
Funcons

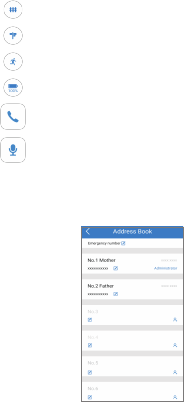

Applicaon screen
Slide le
to nd
the list
Hide or show the shortcut menu.
Click to refresh the watch locaon instantly.
9
Click to enter the details page of Electronic fence.
Click to jump to the navigaon page.
Steps.
Power.
Click to enter the voice message screen.
Click to dial by the watch.
Member management

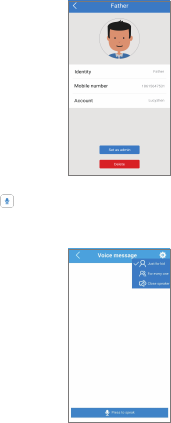

Touch Family numbers to open the member list.
Set the local emergency call number here.
Note: Each device will have only one administrator, and the user will
be regarded as an administrator for the rst me.
10
Administrator can transfer the management rights in the members’
management page.
Voice message
Touch to enter the voice screen.
When you create a voice message, the length of each recording is
15s. You can dialogue with some group members, or dialogue with
your children alone.
11

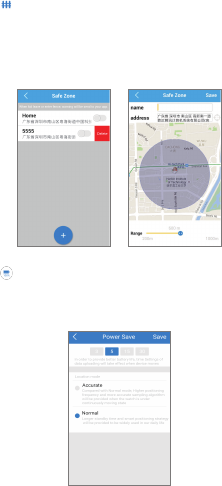

Safe zone
Touch to enter the Safe zone screen.
In this funcon, you can set an area on the map as a safe area for your
child. When your child leaves the security area, you will be noed.
Pay aenon that the meliness of the nocaon will depend on
the frequency of the locaon. The longer interval me for posioning
that you set, the me to receive the nocaon will be relavely
longer.
Save power
Touch to enter the power screen.
You can choose the locaon frequency according to the daily usage
habit. Dierent posioning mode will aect the posioning accuracy
and standby me. Choose the appropriate use mode according to
the actual scene.
12

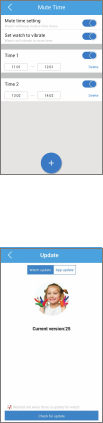

Mute me
Touch Mute me to set the reminder funcon of your watch.
You can set to mute or cancel the vibraon according to the actual
environment in use by your children. Pay aenon that in the silent
mode, children can recover the seng by adjusng the volume of the
watch. But in the vibraon mode, it need to be recovered through
applicaon seng.
Upgrade
Touch Update to upgrade your watch and App.
The status bar at the boom will display the related downloading
progress when upgrading. Be aware that the watch relies on the
network when upgrading. It will use a certain amount of data.
13
FAQ
1. Unable to obtain the posion of your watch
Go to check if your watch has a SIM card or if you’re in a place where
can’t receive the signal. If SIM was inserted with device already
powered on, it will not register as this device does not support “hot
swap”. In this case user will need to restart (power o/on device) to
restore service.
2. Unable to obtain the vericaon code
You need to open the relevant SMS receiving service. For more
informaon, consult your local operators.
3. Waterproof noce
This product has an IP65 rang which means it is protected against
water jets. Do not submerge your watch in water, for example when
swimming.
4. Posioning accuracy
Your watch will provide three kinds of posioning modes: GPS,
Wi-Fi, LBS. Posion accuracy will be dierent according to dierent
posioning methods. All posion informaon is only for reference in
a certain range.
5. Data service
The posion informaon of watch and remote seng caused by voice
message and applicaon will be working based on the communicaon
between GPRS network and cloud server. It will consume the data
which need to be paid by yourself.
6. SOS
The guardian should be familiar with the specic operaon of SOS
and the operaon instrucon for children.
7. Whether the material of this product is harmful to children
The material in use has passed related safety tesng for children,
which can ensure the safety of daily use.
8. Charging
When the charging port is corroded or dirty, it will seriously aect the
charging process which requires a clean surface. Aer playing sports,
wipe any sweat from your watch before charging.
14
9. Storage and use of locaon data for user
For all the data related to you, we will only use the queries you submit
to us. We will not use for any commercial applicaon or development
without authorisaon.
www.sar-ck.com
This product meets applicable naonal SAR limits of 4W/kg.
The specic maximum SAR values can be found in the secon of this
user guide.
When carrying the product or using it while worn on your body, either
use an approved accessory such as a holster or otherwise maintain
a distance of 0 mm from the body to ensure compliance with RF
exposure requirements. Note that the product may be transming
even if you are not making a phone call.
Cercaon
WEEE Approval
This device is in compliance with the essenal requirements and
other relevant provisions of the Waste Electrical and Electronic
Equipment Direcve 2012/19/EU (WEEE Direcve).
This symbol on device means that these products must
be taken to collecon points at the end of their life:
- Municipal waste disposal centres with specic bins for
these items of equipment.
- Collecon bins at points of sale.
They will then be recycled, prevenng substances being disposed of
in the environment, so that their components can be reused.
In European Union countries:
These collecon points are accessible free of charge.
All products with this sign must be brought to these collecon points.
In non European Union jurisdicons:
Items of equipment with this symbol are not to be thrown into
ordinary bins if your jurisdicon or your region has suitable recycling
15
and collecon facilies; instead they are to be taken to collecon
points for them to be recycled.
CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN
INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCRDING TO
THE INSTRUCTIONS
Following air regulaon, the baery of your product is not charged.
Please charge it rst.
RoHs Approval
This device is in compliance with the restricon of the use of
certain hazardous substances in electrical and electronic equipment
Direcve 2011/65/EU (RoHs Direcve).
CHARGERS
Chargers will operate within the temperature range of: 0°C to 40°C.
The chargers designed for your device meet with the standard for
safety of informaon technology equipment and oce equipment
use. They are also compliant to the eco design direcve 2009/125/
EC. Due to dierent applicable electrical specicaons, a charger you
purchased in one jurisdicon may not work in another jurisdicon.
They should be used for this purpose only.
The charger shall be installed near the device and shall be easily
accessible.
Federal Communicaons Commission (FCC) Declaraon of
Conformity
This device complies with part 15 of the FCC Rules. Operaon is
subject to the following two condions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operaon.
Changes or modicaons not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protecon against
harmful interference in a residenal installaon. This equipment
generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instrucons, may cause
harmful interference to radio communicaons. However, there is no
guarantee that interference will not occur in a parcular installaon.
If this equipment does cause harmful interference to radio or
television recepon, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
16
• Reorient or relocate the receiving antenna.
• Increase the separaon between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
FCC Cauon:
Changes or modicaons not expressly approved by the party
responsible for compliance could void the user‘s authority to operate
the equipment.
FCC RF Exposure Informaon (SAR):
This device is designed and manufactured not to exceed the emission
limits for exposure to radio frequency (RF) energy set by the Federal
Communicaons Commission of the United States.
During SAR tesng, this is set to transmit at its highest cered
power level in all tested frequency bands, and placed in posions that
simulate RF exposure in usage near the body with the separaon of
0 mm. Although the SAR is determined at the highest cered power
level, the actual SAR level of the device while operang can be well
below the maximum value. This is because the device is designed to
operate at mulple power levels so as to use only the power required
to reach the network. In general, the closer you are to a wireless base
staon antenna, the lower the power output.
The exposure standard for wireless devices employs a unit of
measurement known as the Specic Absorpon Rate, or SAR. The
SAR limit set by the FCC is 4W/kg.
Tests for SAR are conducted using standard operang posions
accepted by the FCC with the device transming at its highest
cered power level in all tested frequency bands.
The FCC has granted an Equipment Authorizaon for this model
device with all reported SAR levels evaluated as in compliance with
the FCC RF exposure guidelines. SAR informaon on this model
device is on le with the FCC and can be found under the Display
Grant secon of HYPERLINK “hp://www.fcc.gov/oet/ea/fccid”
www.fcc.gov/oet/ea/fccid aer searching on FCC ID: 2ACCJB072.
For this device, the highest reported SAR value for usage near the
body is:
Maximum SAR for this model and condions under which it was
recorded.
Body-worn SAR GSM 1900 2.57 W/kg
17
SAR compliance for body operaon is based on a separaon distance
of 0 cm between the device and the human body. During use, the
actual SAR values for this device are usually well below the values
stated above. This is because, for purposes of system eciency and
to minimize interference on the network, the operang power of your
device is automacally decreased when full power is not needed. The
lower the power output of the device, the lower its SAR value.
Body-worn SAR tesng has been carried out at a separaon
distance of 0 cm. To meet RF exposure guidelines during body-worn
operaon, the device should be posioned at least this distance away
from the body.
If you are not using an approved accessory ensure that whatever
product is used is free of any metal and that it posions the device
the indicated distance away from the body.
Organizaons such as the World Health Organizaon and the US
Food and Drug Administraon have suggested that if people are
concerned and want to reduce their exposure they could use a hands-
free accessory to keep the wireless device away from the head or
body during use, or reduce the amount of me spent on the device.
For more informaon you can go to www.alcatel-mobile.com;
Addional informaon about electromagnec elds and public health
are available on the following site: hp://www.who.int/peh-emf
This device is equipped with a built-in antenna. For opmal operaon,
you should avoid touching it or degrading it.
Licenses
This equipment is in compliance with the essenal requirements and
other relevant provisions of Direcve 1999/5/EC. The enre copy
of the Declaraon of Conformity for your device can be obtained
through our Website: www.alcatel-mobile.com
Warranty
The device is warranted against any deviaon from technical
specicaons for a period of twelve (12) (1) months from the date
specied on your original invoice.
(1) The warranty period may vary depending on your country.
18
Under the terms of this warranty, you must immediately inform your
vendor in case of a conformity defect on this device, and present a
proof of purchase.
The vendor or repair center will decide whether to replace or repair
this device, as appropriate.
Repaired or replaced this device is warranted ONE (1) month unless
there are statutory provisions to the contrary.
This warranty shall not apply to damage or defects to this device
due to:
1) Not following the instrucons for use or installaon,
2) Not being compliant with technical and safety standards
applicable in the geographical area where this device is used,
3) Improper maintenance of sources of energy, and of the overall
electric installaon,
4) Accidents or consequences of the of the vehicle in which this
device is transported, acts of vandalism, lightning, re, humidity,
inltraon of liquids, inclement weather,
5) Connecng to or integrang into this device any equipment not
supplied or not recommended by the manufacturer,
6) Any servicing, modicaon or repair performed by individuals
not authorised by the manufacturer, the vendor or the approved
maintenance centre,
7) Use of this device for a purpose other than that for which it
was designed,
8) Malfuncons caused by external causes (e.g., radio interference
from other equipment, power voltage uctuaons),
9) Faulty connecons resulng from unsasfactory radio
transmission or caused by the absence of radio relay coverage.
Warranty is also excluded for this device on which markings or serial
numbers have been removed or altered.
This device is also warranted against hidden defects (defects inherent
in the design, manufacture, etc.).
There are no other express warranes than this printed limited
warranty, expressed or implied, of any nature whatsoever.
In no event shall the manufacturer be liable for incidental or
consequenal damages of any nature whatsoever, including but
not limited to trading loss, commercial loss, to the full extent those
damages can be disclaimed by law. Some countries/states do not
allow the exclusion or limitaon of incidental or consequenal
damages, or limitaon of the duraon of implied warranes, so the
preceding limitaons or exclusions may not apply to you.
