TCL Communication BC01 Home Bridge User Manual LIFECONNECT QG US CJB1H1002AAA v0 1 170116 rev1
TCL Communication Ltd. Home Bridge LIFECONNECT QG US CJB1H1002AAA v0 1 170116 rev1
LIFECONNECT QG US CJB1H1002AAA v0.1-170116_rev1
Quick Start Guide
CJB1H1002AAA
2

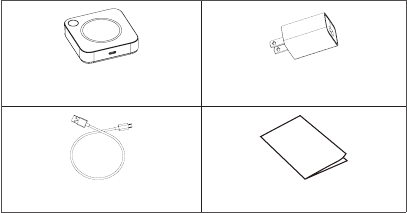

What's In The Box?
LIFECONNECT x 1 Charger x 1
Quick start guide
USB cable x 1 (1 meter) Quick start guide x 1
3
Specicaon
Product name LIFECONNECT
Model name HB01
Operang
frequency 2.4 GHz
Transmied
power
• Zigbee: 8±2dbm
• Wi-Fi: 17±2dbm (Mode: 11b, Rate: 1Mbps)
4
Geng to Know Your LIFECONNECT
Your LIFECONNECT is the control centre of your smart home.
It allows you to monitor and remotely control your home from
anywhere, using a range of connected smart devices. You can also
create customized scenarios using the LIFE App.
Reconnect buon
LED indicator
Micro-USB port
Reconnect
buon
• Short press: Turn on LED
• Long press: 5s to reconnect to Wi-Fi
LED indicator
• Flashing Blue: Conguring Wi-Fi
• Constant Blue: Wi-Fi connected
• Flashing Red: Wi-Fi disconnected
• Constant Purple: Zigbee Radio on
Micro USB port For charging
5
Your LIFECONNECT: Quick Set Up Guide
1. Download LIFE Applicaon
Download the App using either of the QR codes shown below. Both
QR codes are also printed on the box. Alternavely, you can also
search for “LIFE” in the Apple Store or in Google Play Store.
Apple Store Google Play
2. Connecng Devices

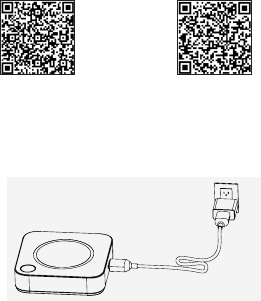

1) Connect your LIFECONNECT to the power supply as shown in
the following gure. LIFECONNECT can only be added to the App
when it is powered on with the LED ashing blue.
6
2) Ensure your smartphone and your LIFECONNECT are in the same
Wi-Fi zone.
3) Open the LIFE App and create an account.
4) Log in your account, select “+” in the LIFE App, and follow the on-
screen instrucons to connue.
5) If the connecon fails, long press the Reconnect buon unl the
blue LED turns on, then retry.
Note:
• Keep some distance between your LIFECONNECT and router. 2~6 me-
tres is ideal.
• This device does not support 5 GHz Wi-Fi.
7
Reseng Your LIFECONNECT
Open the back cover of your LIFECONNECT, and press the “R”
buon to reset it.
Warning: Reseng the LIFECONNECT will disconnect all previously
connected devices. You will need to reconnect them later.
8
FAQ
1. Q: Does the LIFECONNECT have a baery inside?
A: No, the LIFECONNECT does not have a baery inside, but
it supports a 1A/5V or 2A/5V charger power supply. It also
supports a 1A~2A/5V power bank to power supply via the USB
cable.
2. Q: What’s the connectivity capacity of my LIFECONNECT?
How wide is the coverage?
A: For Zigbee devices, connecvity of over 60,000 devices is
theorecally possible. The coverage range is up to 100 metres
(without obstrucons).
3. Q: Does the LIFECONNECT work via a SIM card or only
through the router's Wi-Fi?
A: LIFECONNECT only works with Wi-Fi from a router. No SIM
or internet cable (RJ45) connecons are supported.
4. Q: Why is my LIFECONNECT oine again?
A: Make sure your smartphone and your LIFECONNECT are
both connected to the same Wi-Fi network. If the Wi-Fi network
password has been changed, reconnect the LIFECONNECT to
your smartphone as follows:
9
1) Long press the Reconnect buon for about 5 seconds unl
the blue LED turns on.
2) Open the LIFE App on your smartphone and go to
LIFECONNECT.
3) Touch "Switch Wi-Fi" and follow the setup process.
5. Q: Does my LIFECONNECT support any 3rd party devices?
A: LIFECONNECT works with Zigbee HA1.2 standard, so any
products that support Zigbee HA1.2 and have passed HA1.2
cercaon can usually be connected to your LIFECONNECT.
10
Safety and Use
Electronic Devices
Turn o your device near high-precision electronic devices. The
wireless device may aect the performance of these devices.
Such devices include hearing aids, pacemakers, re alarm systems,
automac gates, and other automac devices. If you are using an
electronic medical device, consult the device manufacturer to
conrm whether radio waves aect its operaon.
Hospitals
Pay aenon to the following points in hospitals or health care
facilies:
• Do not take your wireless device into the operang room, inten-
sive care unit, or coronary care unit.
• Do not use your wireless device at places for medical treatment
where wireless device use is prohibited.
Storage Environment
• Do not place magnec storage media such as magnec cards and
oppy disks near the wireless device. Radiaon from the wireless
device may erase the informaon stored on them.
• Do not put your wireless device and other accessories in contain-
ers with strong magnec elds, such as an inducon cooker or a
11
microwave oven. Otherwise, circuit failure, re, or explosion may
occur.
• Do not leave your wireless device in a very hot or cold place.
Otherwise, malfuncon of the product, re, or explosion may oc-
cur.
• Do not subject your wireless device to serious collision or shock.
Otherwise, wireless device malfuncon, overheang, re, or ex-
plosion may occur.
Child Safety
• Put your wireless device in places beyond the reach of children.
Do not allow children to use the wireless device without guid-
ance.
• Do not allow children to put the device in their mouths.
• Do not allow children to touch small ngs. Otherwise, suoca-
on or choking could occur if they are swallowed.
Operang Environment
• The wireless device is not water-resistant. Keep it dry. Protect
the wireless device from water or vapour. Do not touch the wire-
less device with a wet hand. Otherwise, short-circuit, malfunc-
on of the product or electric shock may occur.
• Do not use the wireless device in dusty, damp and dirty places
12
or within magnec elds. Otherwise, malfuncon of the circuitry
may occur.
• The wireless device may interfere with nearby TV sets, radios and
PCs.
• In accordance with internaonal standards for radio frequency
and radiaon, use wireless device accessories approved by the
manufacturer only.
Trac Safety
When driving, do not use the wireless device.
• When switched on, this device emits electromagnec waves that
can interfere with the vehicle’s electronic systems such as ABS
an-lock brakes or airbags. To ensure that there is no problem,
do not place this device on top of the dashboard or within an
airbag deployment area.
• Check with your car dealer or the car manufacturer to make sure
that the dashboard is adequately shielded from this device RF
energy.
Condions of Use
• Indoor use only.
• Do not allow your devicve to be exposed to adverse weather or
environmental condions (moisture, humidity, rain, inltraon of
13
liquids, dust, sea air, etc.).
• When this device is switched on, it should be kept at least 20 cm
from the body.
• When this device is switched on, it should be kept at least 15 cm
from any medical device such as a pacemaker, a hearing aid or
insulin pump, etc.
• When replacing the cover, please note that this device may con-
tain substances that could create an allergic reacon.
• Do not paint it.
• The manufacturer’s recommended operang temperature range
is 0°C to +45°C.
• Always handle this device with care and keep it in a clean and
dust-free place.
• Clean this device with a dry cloth only.
• Do not aempt to disassemble or repair this device or its acces-
sories.
• Do not drop, throw or bend this device.
• Do not let children use this device and/or play with the this de-
vice and accessories without supervision.
14
Cercaon
This symbol on the device means that these products must
be taken to collecon points at the end of their life:
- Municipal waste disposal centres with specic bins for
these items of equipment.
- Collecon bins at points of sale.
They will then be recycled, prevenng substances being disposed
of in the environment and allowing their components to be reused
In European Union countries:
These collecon points are accessible free of charge.
All products with this sign must be brought to these collecon points.
In non European Union jurisdicons:
Items of equipment with this symbol are not to be thrown into
ordinary bins if your jurisdicon or your region has suitable recycling
and collecon facilies; instead they are to be taken to collecon
points for them to be recycled.
CHARGERS
Mains powered chargers will operate within the temperature range
of: 0°C (32°F) to 40°C (104°F ).
15
The chargers designed for your device meet the standard for safety
of informaon technology equipment and oce equipment use.
They are also compliant with the ecodesign direcve 2009/125/EC.
Due to dierent applicable electrical specicaons, a charger you
purchased in one jurisdicon may not work in another jurisdicon.
They should be used for this purpose only.
Characteriscs of power supply (depending on the country):
Charger: Input: 100-240 V, 50/60 Hz, 500 mA
Output: 5V, 2A
Radio Waves
THIS DEVICE MEETS THE GOVERNMENT’S REQUIREMENTS FOR
EXPOSURE TO RADIO WAVES.
Your device is a radio transmier and receiver. It is designed and
manufactured not to exceed the emission limits for exposure to
radio-frequency (RF) energy. These limits are part of comprehensive
guidelines and establish permied levels of RF energy for the
general populaon. The guidelines are based on standards that were
developed by independent scienc organizaons through periodic
and thorough evaluaon of scienc studies. These guidelines
include a substanal safety margin designed to ensure the safety of
all persons, regardless of age and health.
16
The World Health Organizaon (WHO) considers that present
scienc informaon does not indicate the need for any special
precauons for use of wireless devices. If individuals are concerned,
they might choose to limit their own or their children’s RF exposure
by liming the length of use to keep device away from the head
and body. Addional WHO informaon about electromagnec elds
and public health are available on the following website: hp://www.
who.int/peh-emf.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protecon against
harmful interference in a residenal installaon. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instrucons, may cause
harmful interference to radio communicaons. However, there is no
guarantee that interference to radio or television recepon, which
can be determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna;
- Increase the separaon between the equipment and receiver;
- Connect the equipment into an outlet on a circuit dierent from
that to which the receiver is connected;
17
- Consult the dealer or an experienced radio/ TV technician for help.
Changes or modicaons not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.
For the receiver devices associated with the operaon of a licensed
radio service (e.g. FM broadcast), they bear the following statement:
This device complies with Part 15 of the FCC Rules and Innovaon,
Science and Economic Development Canada licence-exempt RSS
standard(s).
Operaon is subject to the following two condions:
- This device may not cause harmful interference;
- This device must accept any interference received, including
interference that may cause undesired operaon.
Your device is equipped with a built-in antenna. For opmal
operaon, you should avoid touching it or degrading it.
Please note by using the device some of your personal data may
be shared with the main device. It is under your own responsibility
to protect your own personal data, not to share with it with any
unauthorized devices or third party devices connected to yours.
For products with Wi-Fi features, only connect to trusted Wi-Fi
networks. These precauons will help prevent unauthorized access
to your device. Choose your apps and updates carefully, and install
from trusted sources only. Note that any data shared with TCL
18
Communicaon Ltd. is stored in accordance with applicable data
protecon legislaon. For these purposes TCL Communicaon
Ltd. implements and maintains appropriate technical and
organizaonal measures to protect all personal data, for example
against unauthorized or unlawful processing and accidental loss
or destrucon of or damage to such personal data whereby the
measures shall provide a level of security that is appropriate having
regard to
- The technical possibilies available;
- The costs for implemenng the measures;
- The risks involved with the processing of the personal data, and;
- The sensivity of the personal data processed.
You can access, review and edit your personal informaon at any
me by logging into your user account, vising your user prole or by
contacng us directly. Should you require us to edit or delete your
personal data, we may ask you to provide us with evidence of your
identy before we can act on your request.
Innovaon, Science and Economic Development Canada (ISEDC)
Noce
This device complies with Innovaon, Science and Economic
Development Canada license-exempt RSS standard(s). Operaon is
subject to the following two condions:
- This device may not cause interference, and;
19
- This device must accept any interference, including interference
that may cause undesired operaon of the device.
This Class B digital apparatus complies with Canadian ICES-003.
Innovaon, Science and Economic Development Canada (ISEDC)
Radiaon Exposure Statement
Lisense
FCC ID: 2ACCJBC01
Warranty
The device is warranted against any deviaon from technical
specicaons for a period of twelve (12) (1) months from the date
specied on your original invoice.
Baeries and accessories sold with your device are also warranted
against any defect which may occur during the rst six (6) months
from the date of purchase as shown on your original invoice.Under
the terms of this warranty, you must immediately inform your vendor
in case of a conformity defect on this device, and present a proof
of purchase.
The vendor or repair centre will decide whether to replace or repair
this device, as appropriate.
(1) The warranty period may vary depending on your country.
20
Repaired or replaced versions of this device are warranted for ONE
(1) month unless there are statutory provisions to the contrary.
This warranty shall not apply to damage or defects to this device
due to:
1) Not following the instrucons for use or installaon.
2) Not being compliant with technical and safety standards applicable
in the geographical area where this device is used.
3) Improper maintenance of sources of energy, and of the overall
electric installaon.
4) Accidents or consequences of the of the vehicle in which this
device is transported, acts of vandalism, lightning, re, humidity,
inltraon of liquids, inclement weather.
5) Connecng to or integrang into this device any equipment not
supplied or not recommended by the manufacturer.
6) Any servicing, modicaon or repair performed by individuals
not authorised by the manufacturer, the vendor or the approved
maintenance centre.
7) Use of this device for a purpose other than that for which it was
designed.
8) Malfuncons caused by external causes (e.g., radio interference
from other equipment, power voltage uctuaons).
21
9) Faulty connecons resulng from unsasfactory radio
transmission or caused by the absence of radio relay coverage.
Warranty is also excluded for this device on which markings or serial
numbers have been removed or altered.
This device is also warranted against hidden defects (defects inherent
in the design, manufacture, etc.).
There are no other express warranes other than this printed limited
warranty, expressed or implied, of any nature whatsoever.
In no event shall the manufacturer be liable for incidental or
consequenal damages of any nature whatsoever, including but
not limited to trading loss, commercial loss, to the full extent those
damages can be disclaimed by law. Some countries/states do not
allow the exclusion or limitaon of incidental or consequenal
damages, or limitaon of the duraon of implied warranes, so the
preceding limitaons or exclusions may not apply to you.
All rights reserved © 2017 TCL Communicaon LTD.
Address: Room 1910-12A, Tower 3, China HK City, 33 Canton Road,
Tsimshatsui, Kowloon, Hong Kong
