Introduction ..........................................................

T&A Mobiles phones would like to thank you for your purchasing this mobile.

Your handset boasts a wide quality 65k colour display, in a stylish compact design, an embedded VGA

camera, video shooting and playback, java games, IM/Chat (1) (Instant message/Chat), E-mail (1), Remote

Synchronisation (1), etc.

Just 3 clicks and your images and voice messages will be sent to your friends. It’s so simple!

Music and lights

Want to see the backlight of your phone dancing to the music? Every time your phone rings, the backlight

will be synchronized aswell. Fantastic!

Panorama

Have you ever thought that your viewfinder was too narrow to take in everything you wanted to capture?

We can help you. Panorama can provide up to 3 pictures in QVGA format. Capture the whole scene.

Unbelievable!

Video & Video tone

Do you want to capture laughter, music and greetings in your video? It’s all in your phone. You can also set

any video clip as the incoming melody. We call it Videotone!

(1) Depending on your network operator and product.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:47 Page 1

Ta b le of contents ..................................................

Introduction ......................................................................................................................................1

Safety and Use..................................................................................................................................5

General Information ........................................................................................................................9

1. Your mobile ............................................................................................................................10

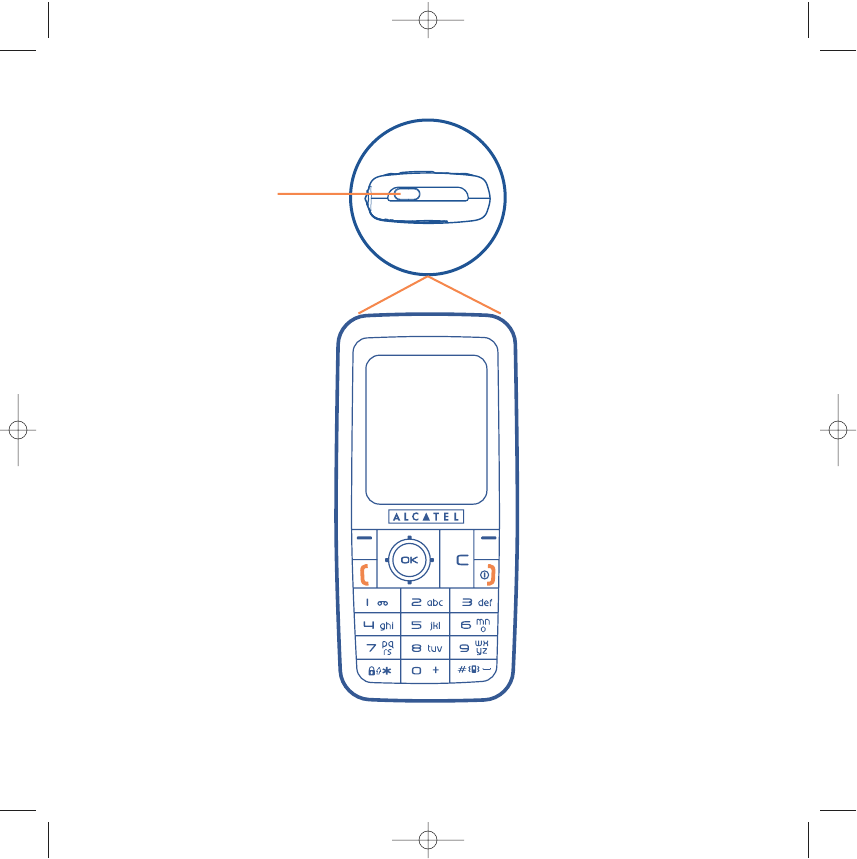

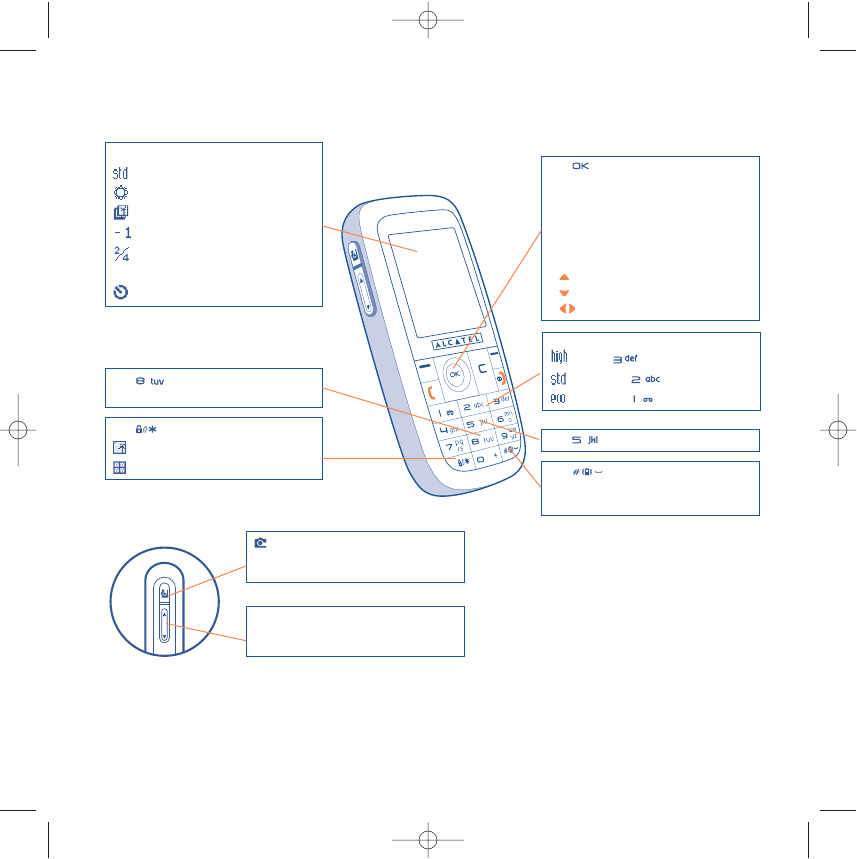

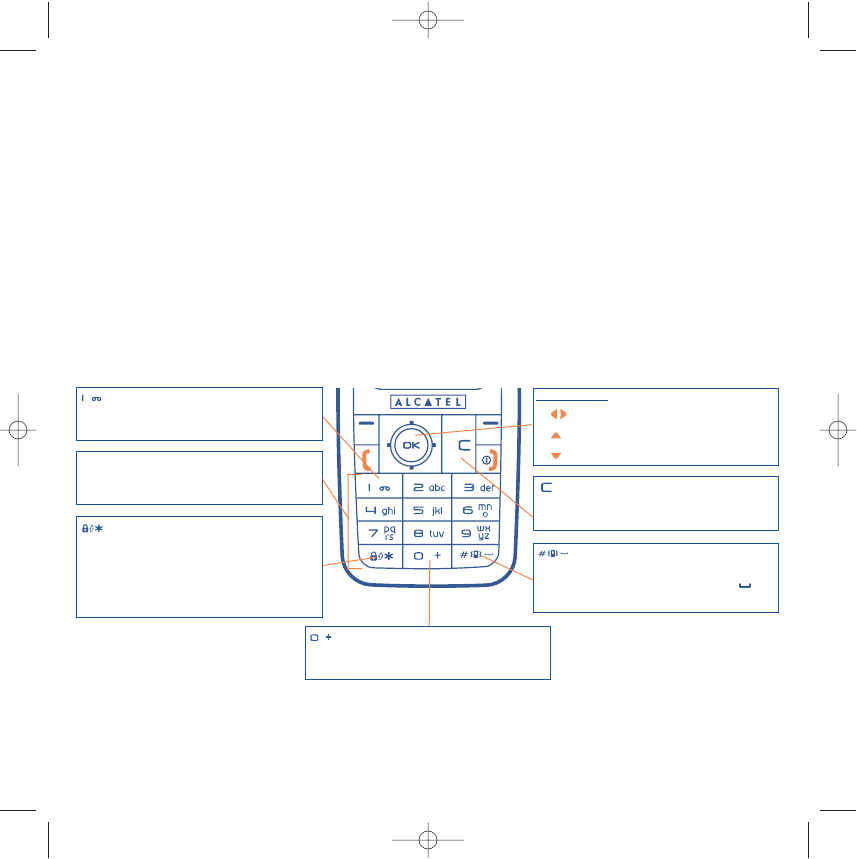

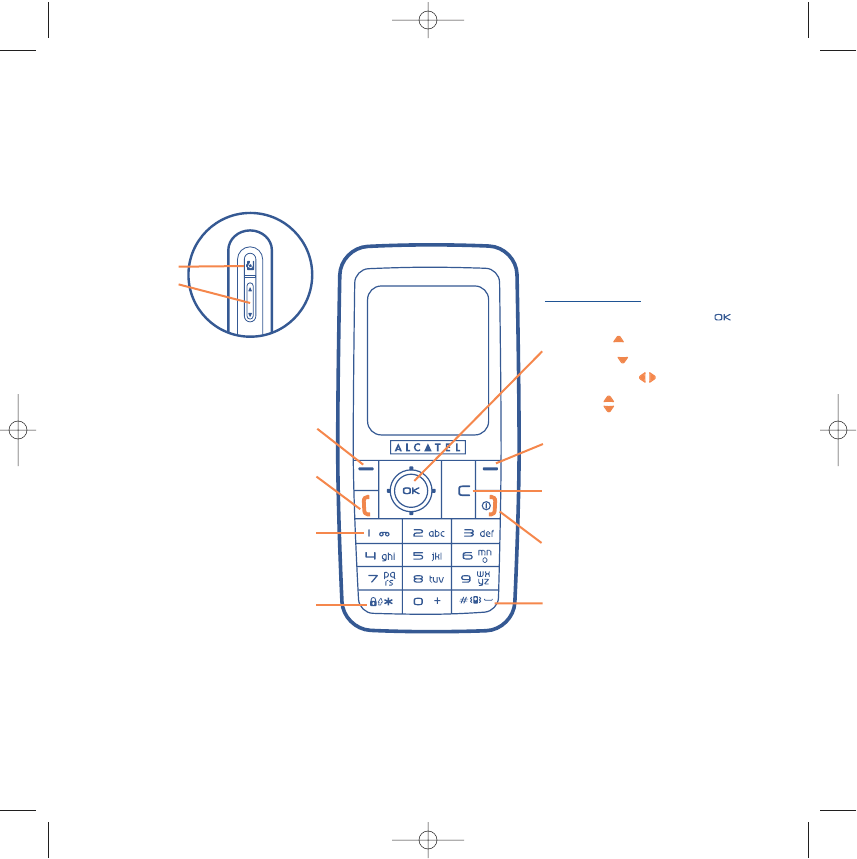

1.1 Keys ..........................................................................................................................................................................................12

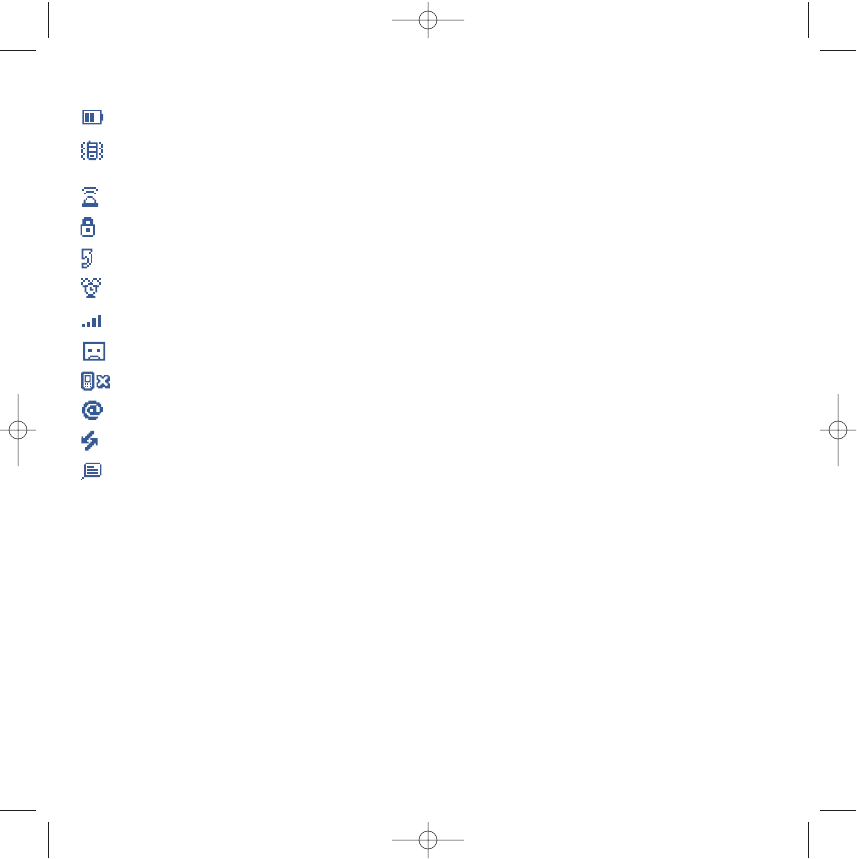

1.2 Main screen icons ..................................................................................................................................................................13

2. Getting started ......................................................................................................................15

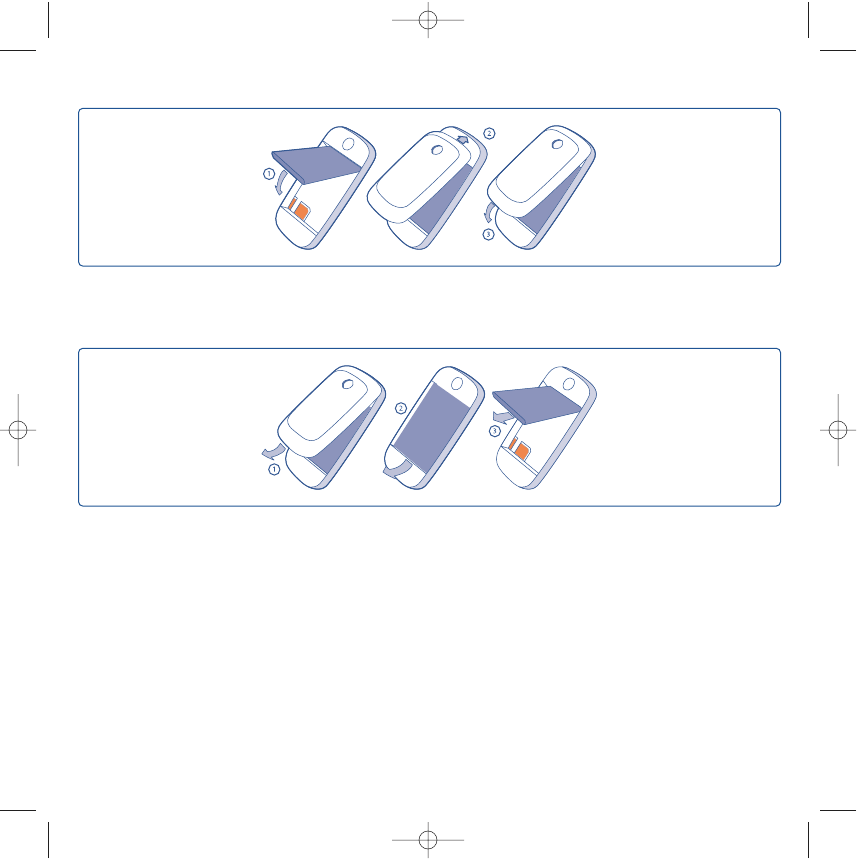

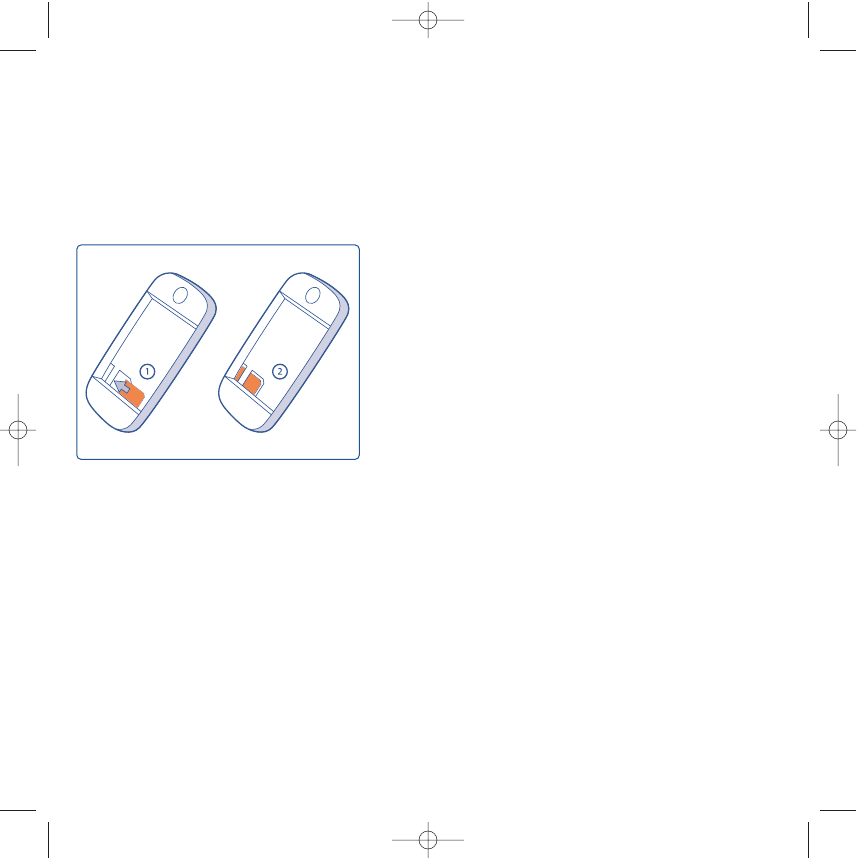

2.1 Set-up ........................................................................................................................................................................................15

2.2 Switching on your telephone ..............................................................................................................................................18

2.3 Start-up wizard........................................................................................................................................................................19

2.4 Switching off your telephone ..............................................................................................................................................19

3. Calls ........................................................................................................................................20

3.1 Making a call ............................................................................................................................................................................20

3.2 Calling your voicemail ..........................................................................................................................................................21

3.3 Receiving a call ........................................................................................................................................................................21

3.4 During the call ........................................................................................................................................................................22

3.5 Conference calls ....................................................................................................................................................................24

3.6 Double line (ALS)...................................................................................................................................................................24

4. Call log ....................................................................................................................................25

4.1 Call memory ............................................................................................................................................................................25

4.2 My Numbers............................................................................................................................................................................25

4.3 My e-mail address ..................................................................................................................................................................26

4.4 Billing ........................................................................................................................................................................................26

4.5 Call settings..............................................................................................................................................................................27

5. Menu ........................................................................................................................................30

6. Directory ................................................................................................................................32

6.1 Consulting your directory....................................................................................................................................................32

6.2 Creating a file .........................................................................................................................................................................34

6.3 Available options.....................................................................................................................................................................35

6.4 Creating a new directory ....................................................................................................................................................36

6.5 Voice recognition ..................................................................................................................................................................36

6.6 Assigning a ringtone to a directory....................................................................................................................................37

6.7 Assigning an image, an animation or a video to a file....................................................................................................37

6.8 Privacy ......................................................................................................................................................................................37

E5LIQUID_UM_USA_21-03-06 21/03/06 8:47 Page 2

7. Messages: SMS, MMS, e-mail ................................................................................................38

7.1 Creating SMS/MMS/e-mail ....................................................................................................................................................39

7.2 Inbox..........................................................................................................................................................................................41

7.3 Sent messages..........................................................................................................................................................................42

7.4 Unsent messages ....................................................................................................................................................................42

7.5 Drafts ........................................................................................................................................................................................42

7.6 IM (Instant messaging) ..........................................................................................................................................................42

7.7 Archives ....................................................................................................................................................................................42

7.8 Templates ................................................................................................................................................................................42

7.9 Voicemail ..................................................................................................................................................................................43

7.10 WAP alerts ..............................................................................................................................................................................43

7.11 Settings......................................................................................................................................................................................43

7.12 Distribution list ......................................................................................................................................................................45

7.13 My favourite ............................................................................................................................................................................45

8. IM/Chat (Instant Messaging) ................................................................................................46

8.1 Presence ...................................................................................................................................................................................46

8.2 Always on ................................................................................................................................................................................47

8.3 Send and IM (Instant Message)............................................................................................................................................47

8.4 Receiving and reading IM......................................................................................................................................................48

8.5 IM parameters ........................................................................................................................................................................48

9. My settings ..............................................................................................................................49

9.1 Ringtones .................................................................................................................................................................................49

9.2 Sound interface ......................................................................................................................................................................50

9.3 Display ......................................................................................................................................................................................51

9.4 Clock ........................................................................................................................................................................................54

9.5 Network time..........................................................................................................................................................................54

9.6 Music & lights ..........................................................................................................................................................................54

9.7 Keys ..........................................................................................................................................................................................55

9.8 More settings ..........................................................................................................................................................................56

10. My Shortcuts ..........................................................................................................................61

11. Extras ......................................................................................................................................62

11.1 Alarms ......................................................................................................................................................................................62

11.2 Calculator ................................................................................................................................................................................63

11.3 Converter ................................................................................................................................................................................63

11.4 Memory ....................................................................................................................................................................................64

11.5 Infrared......................................................................................................................................................................................65

11.6 Data synchronisation: Remote synchronisation..............................................................................................................66

11.7 Melody composer ..................................................................................................................................................................68

11.8 Voice memo ............................................................................................................................................................................69

11.9 Voice recognition ..................................................................................................................................................................69

11.10 Alarms list ................................................................................................................................................................................70

E5LIQUID_UM_USA_21-03-06 21/03/06 8:47 Page 3

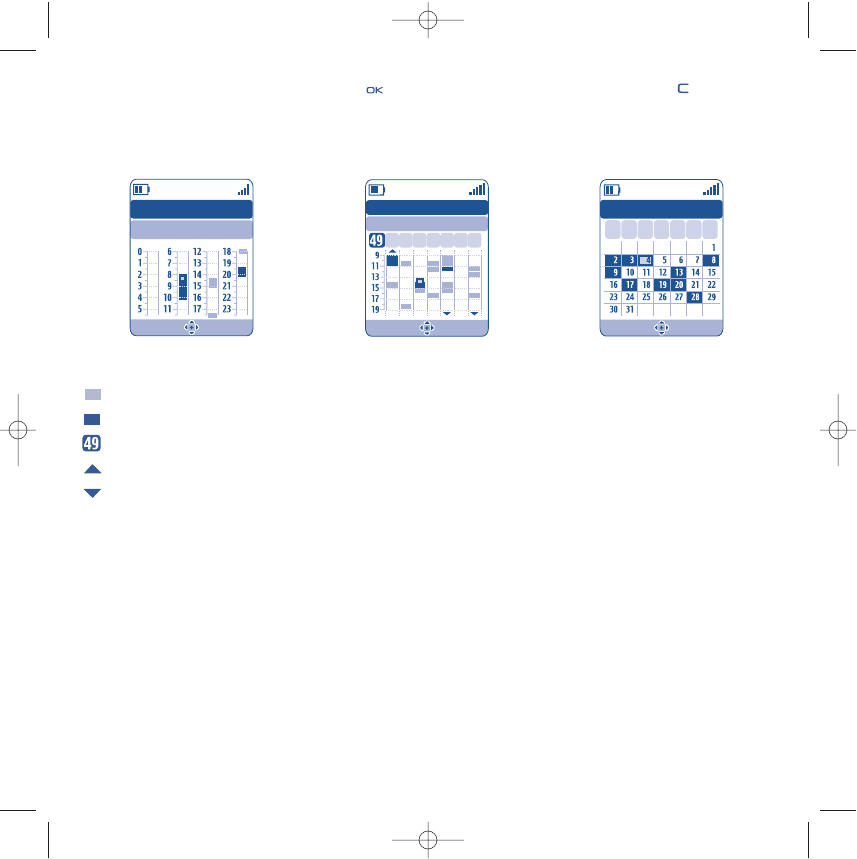

12. Diary ........................................................................................................................................71

13. WAP ......................................................................................................................................74

13.1 Access WAP menu ................................................................................................................................................................74

13.2 Programming your access ....................................................................................................................................................74

13.3 Direct access/profile access ................................................................................................................................................76

13.4 GPRS function ........................................................................................................................................................................76

13.5 WAP browser options..........................................................................................................................................................77

14. Media Album ..........................................................................................................................78

14.1 My Images ................................................................................................................................................................................79

14.2 My Videos ..............................................................................................................................................................................80

14.3 My Sounds ................................................................................................................................................................................80

14.4 Managing sounds, images and videos ................................................................................................................................81

14.5 Download new videos, photos, sounds, ... ......................................................................................................................82

14.6 Formats and compatibility ....................................................................................................................................................82

14.7 Games & Applications ..........................................................................................................................................................82

14.8 Memory ....................................................................................................................................................................................82

15. Photo/Video/Panorama..........................................................................................................83

15.1 Access........................................................................................................................................................................................83

15.2 Photo ........................................................................................................................................................................................84

15.3 Video ........................................................................................................................................................................................84

15.4 Panorama..................................................................................................................................................................................86

15.5 Settings (photos, videos, panorama)..................................................................................................................................87

15.6 ......................................................................................................................................................................91

16. Games & Applications............................................................................................................92

16.1 Launch an application ............................................................................................................................................................92

16.2 Available options ....................................................................................................................................................................93

16.3 Download an application ......................................................................................................................................................93

16.4 Java™ Push ..............................................................................................................................................................................94

16.5 Settings......................................................................................................................................................................................94

17. Making the most of your mobile ..........................................................................................96

17.1 “My One Touch” services by T&A Mobile Phones........................................................................................................96

17.2 Alcatel PC suite ......................................................................................................................................................................96

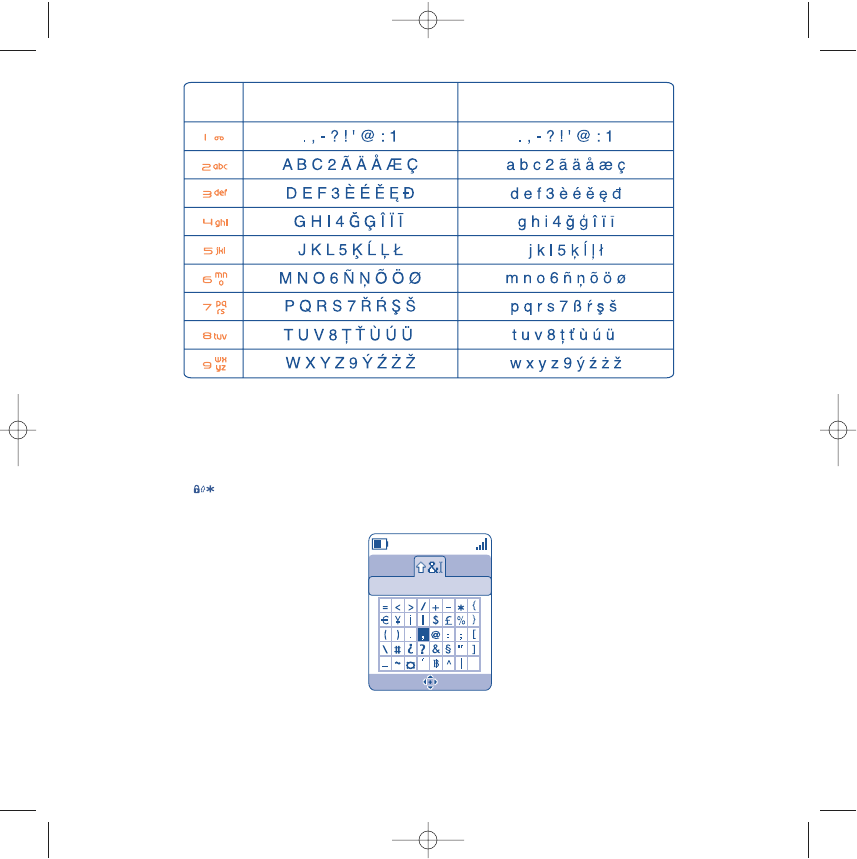

18. Latin input mode/character table ........................................................................................97

19. Telephone warranty ............................................................................................................101

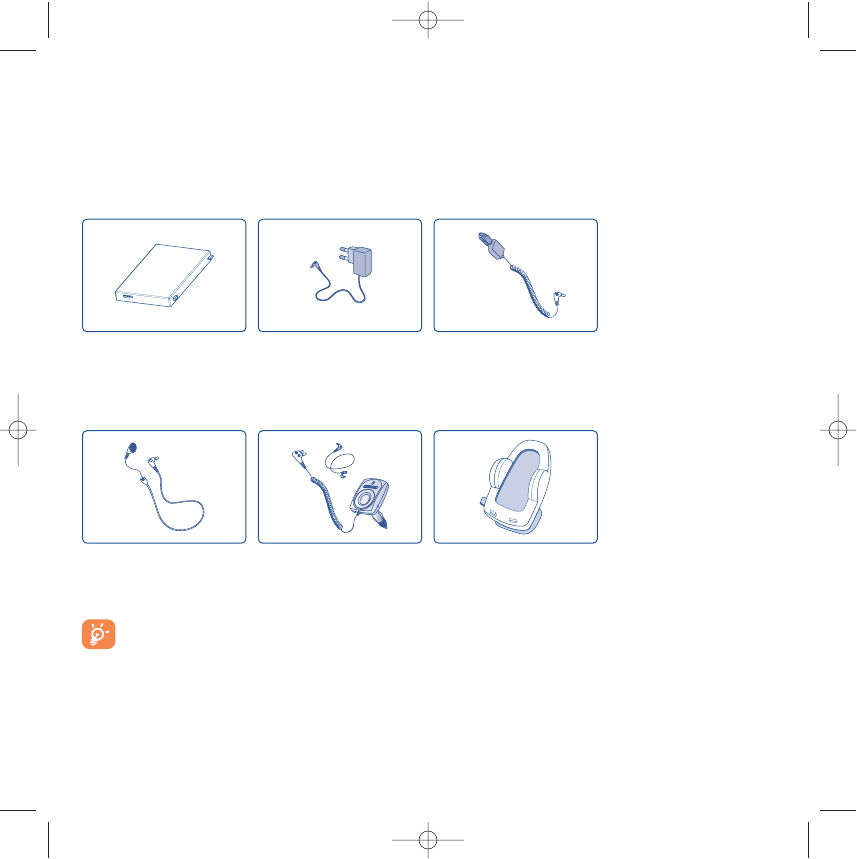

20. Accessories............................................................................................................................103

21. Troubleshooting....................................................................................................................104

E5LIQUID_UM_USA_21-03-06 21/03/06 8:47 Page 4

Safety and Use ......................................................

We recommend that you read this chapter carefully before using your phone. The manufacturer disclaims any liability for damage, which may

result as a consequence of improper use or use contrary to the instructions contained herein.

•TRAFFIC SAFETY:

Given that studies show that using a cellphone while driving a vehicle constitutes a real risk, even when the hands-free kit is used (car kit,

headset...), drivers are requested to refrain from using their cellphone when the vehicle is not parked.

When switched on, your phone emits electromagnetic waves that can interfere with the vehicle’s electronic systems such as ABS anti-lock

brakes or airbags. To ensure that there is no problem:

-do not place your phone on top of the dashboard or within an airbag deployment area,

-check with your car dealer or the car manufacturer to make sure that the car’s electronic devices are shielded from cellphone RF energy.

•CONDITIONS OF USE:

You are advised to switch off the telephone from time to time to optimize its performance.

Switch the phone off before boarding an aircraft to avoid prosecution.

Switch the phone off when you are in health care facilities, except in designated areas. As with many other types of equipment now in regular

use, cellphones can interfere with other electrical or electronic devices, or equipment using radio frequency.

Switch the phone off when you are near gas or flammable liquids. Strictly obey all signs and instructions posted in a fuel depot, gas station, or

chemical plant, or in any potentially explosive atmosphere.

When the phone is switched on, it should be kept at least 15 cm from any medical device such as a pacemaker, a hearing aid or insulin pump.

In particular when using the phone you should hold it against the ear on the opposite side to the device, if any.

To avoid hearing impairment, pick up the call before holding your phone to your ear. Also move the handset away from your ear while using

the “hands-free” option because the amplified volume might cause hearing damage.

Do not let small children use your cellphone without supervision.

When replacing the cover please note that your phone may contain substances that could create an allergic reaction.

Always handle your phone with care and keep it in a clean and dust-free place.

Do not allow your phone to be exposed to adverse weather or environmental conditions (moisture, humidity, rain, infiltration of liquids, dust,

sea air, etc.). The manufacturer’s recommended operating temperature range is -10°C to +55°C.(the max value depends on product i.e. if paint

or not) Over 55°C the legibility of the phone’s display may be impaired, though this is temporary and not serious.

Do not open or attempt to repair your cellphone yourself.

Do not drop, throw or try to bend your cellphone.

Do not paint it.

Use only Alcatel batteries, battery chargers, and accessories that are compatible with your phone model. (See Accessories List, page 103). T&A

Mobile Phones Limited and its affiliates disclaim any liability for damage caused by the use of other chargers or batteries.

Your phone should not be disposed of in a municipal waste. Please check local regulations for disposal of electronic products.

Remember to make back-up copies or keep a written record of all important information stored in your phone.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:47 Page 5

Some people may suffer epileptic seizures or blackouts when exposed to flashing lights, or when playing video games. These seizures or

blackouts may occur even if a person never had a previous seizure or blackout. If you have experienced seizures or blackouts, or if you have

a family history of such occurrences, please consult your doctor before playing video games on your phone or enabling a flashing-lights feature

on your phone. Parents should monitor their children’s use of video games or other features that incorporate flashing lights on the phones. All

persons should discontinue use and consult a doctor if any of the following symptoms occur: convulsion, eye or muscle twitching, loss of

awareness, involuntary movements, or disorientation. To limit the likelihood of such symptoms, please take the following safety precautions:

-Do not play or use a flashing-lights feature if you are tired or need sleep.

-Take a minimum of a 15- minute break hourly.

-Play in a room in which all lights are on.

-Play at the farthest distance possible from the screen.

When you play games on your phone, you may experience occasional discomfort in your hands, arms, shoulders, neck, or other parts of your

body. Follow these instructions to avoid problems such as tendinitis, carpal tunnel syndrome, or other musculoskeletal disorders:

-Take a minimum of a 15 minute-break every hour of game playing.

-If your hands, wrists, or arms become tired or sore while playing, stop and rest for several hours before playing again.

-If you continue to have sore hands, wrists, or arms during or after playing, stop the game and see a doctor.

•PRIVACY:

Please note that you must respect the laws and regulations in force in your country regarding taking photographs and recording sounds using

your cellphone. Pursuant to such laws and regulations, it may be strictly forbidden to take photographs and/or to record the voices of other

people or any of their personal attributes, and reproduce or distribute them, as this may be considered to be an invasion of privacy. It is the

user's sole responsibility to ensure that prior authorization be obtained, if necessary, in order to record private or confidential conversations

or take a photograph of another person; the manufacturer, the seller or vendor of your cellphone (including the operator) disclaim any liability

which may result from the improper use of the cellphone.

•BATTERY:

Before removing the battery from your phone, please make sure that the phone is switched off. Observe the following precautions for battery

use:

-Do not attempt to open the battery (due to the risk of toxic fumes and burns).

-Do not puncture, disassemble or cause a short-circuit in a battery,

-Do not burn or dispose of a used battery in the garbage or store it at temperatures above 60 °C.

Batteries must be disposed of in accordance with locally applicable environmental regulations. Only use the battery for the purpose for which

it was designed. Never use damaged batteries or those not recommended by T&A Mobile Phones Limited and/or its affiliates.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:47 Page 6

This symbol on your telephone, the battery and the accessories means that these products must be taken to collection points at the

end of their life:

- Municipal waste disposal centres with specific bins for these items of equipment

- Collection bins at points of sale.

They will then be recycled, preventing substances being disposed of in the environment, so that their components can be reused.

In European Union countries:

These collection points are accessible free of charge. All products with this sign must be brought to these collection points.

In non European Union countries:

Items of equipment with this symbol are not be thrown into ordinary bins if your country or your region has suitable recycling and collection

facilities; instead they are to be taken to collection points for them to be recycled.

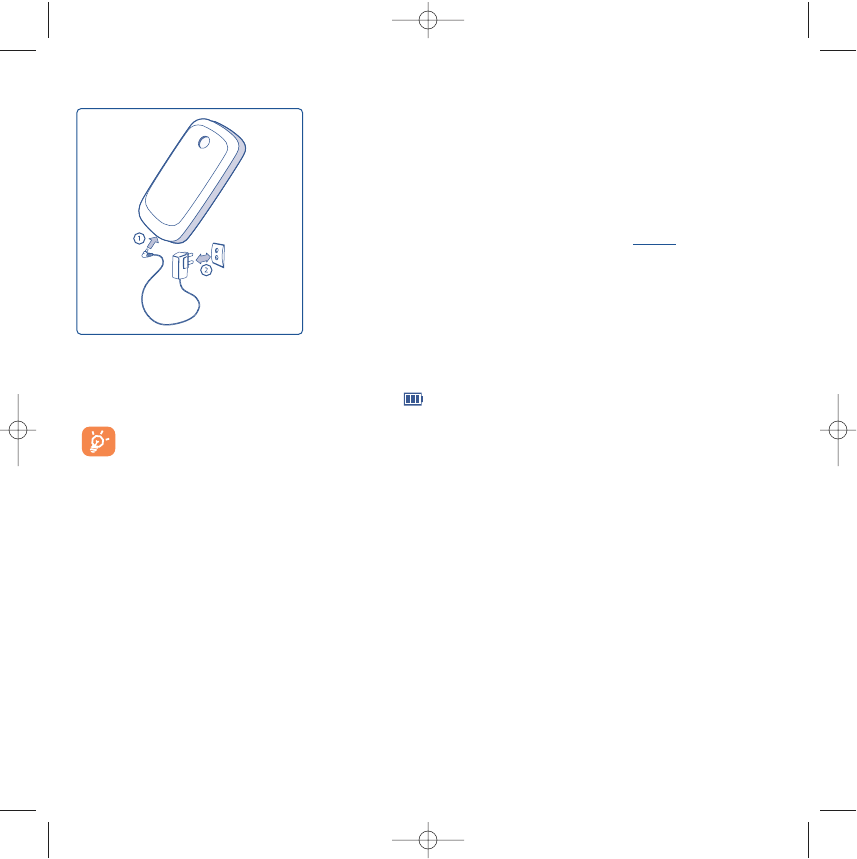

•CHARGERS:

Mains powered chargers will operate within the temperature range of: 0°C to 40°C.

The chargers designed for your cellphone meet with the standard for safety of information technology equipment and office equipment use.

They should be used for this purpose only.

Characteristics of power supply (depending on the country):

110 V charger (used in Mexico): 220 V charger:

Input: 100-127 V, 50/60 Hz, 0.30 A Input: 220-240 V, 50/60 Hz, 0.30 A

Output: 4.5 V, 350 mA Output: 4.5 V, 350 mA

Travel charger: Battery: Lithium 650 mAh

Input : 100-240 V, 50/60 Hz, 0.15 A

Output : 6.5 V, 350 mA

•RADIO WAVES:

THIS CELLPHONE MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.

Your cellphone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio-

frequency (RF) energy. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population.

The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of

scientific studies. These guidelines include a substantial safety margin designed to ensure the safety of all persons, regardless of age and health.

The exposure standard for cellphones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by

public authorities such as the Federal Communications Commission of the US Government (FCC), the Australian Communications Authority

(ACA) or by Industry Canada, is 1.6 W/kg averaged over 1 gram of body tissue. Tests for SAR are conducted using standard operating positions

with the cellphone transmitting at its highest certified power level in all tested frequency bands.

Although the SAR is determined at the highest certified power level, the actual SAR level of the cellphone while operating can be well below

the maximum value. This is because the cellphone is designed to operate at multiple power levels so as to use only the power required to reach

the network. In general, the closer you are to a wireless base station antenna, the lower the power output of the cellphone Before a cellphone

model is available for sale to the public, compliance with national regulations and standards must be shown.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:47 Page 7

The highest SAR value for this model cellphone when tested for use at the ear is 0.79 W/Kg and for use close to the body is 1.09 W/Kg. While

there may be differences between the SAR levels of various cellphones and at various positions, they all meet the government requirement for

RF exposure. For body-worn operation, the cellphone meets FCC RF exposure guidelines provided that it is used with a non-metallic accessory

with the handset at least 2 cm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines.

The World Health Organization (WHO) considers that present scientific information does not indicate the need for any special precautions for

use of cellphones. If individuals are concerned, they might choose to limit their own or their children's RF exposure by limiting the length of

calls, or using "hands-free" devices to keep cellphones away from the head and body. (fact sheet n°193).Additional WHO information about

electromagnetic fields and public health are available on the following website: http://www.who.int/peh-emf.

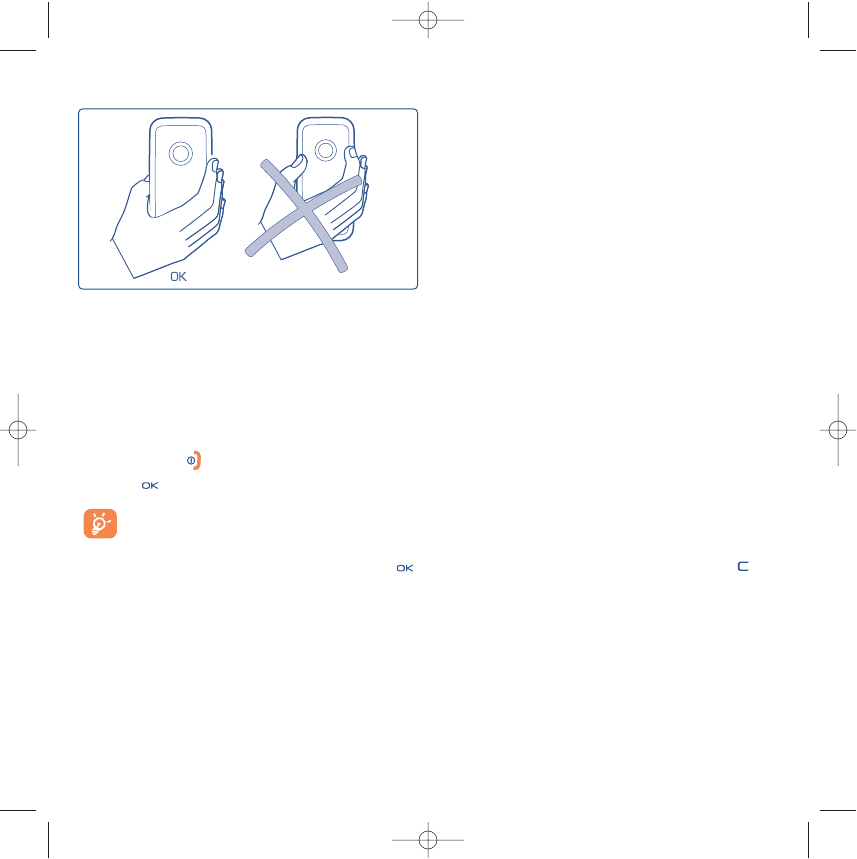

Your telephone is equipped with a built-in antenna. For optimal operation, you should avoid touching it or degrading it (see page 18).

•LICENCES:

T9 Text Input is licensed under one or more of the following: U.S. Pat. Nos. 5,187,480, 5,818,437, 5,945,928, 5,953,541,

6,011,554, 6,286,064, 6,307,548, 6,307,549, and 6,636,162, 6,646,573; European Pat. Nos. 0 842 463 (96927260.8), 1 010 057

(98903671.0), 1 018 069 (98950708.2); and additional patents are pending worldwide.

The Wap navigator is the exclusive property of Openwave. For this reason, it is forbidden to modify, translate, disassemble

or even decompile all or part of the software that makes up the navigator.

Java™ and all Java™ based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S.

and other countries.

and logos are trademarks or registered trademarks of Aplix Corporation in Japan and other countries.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:47 Page 8

General Information ............................................

•Website: www.tcl-ta.com - Wap address: wap.my-onetouch.com

•Hot Line Number: see “T&A Mobile Phones Services” leaflet or go to our Internet site.

On our Internet site, you will find our FAQ (Frequently Asked Questions) section. You can also contact us

by e-mail to ask any questions you may have.

Your telephone is a transceiver that operates on GSM networks with 850 MHz and 1900 MHz bands.

Protection against theft (1)

Your cellphone is identified by an IMEI (phone serial number) shown on the packaging label and in the

product’s memory. We recommend that you note the number the first time you use your telephone by

entering * # 0 6 # and keep it in a safe place. It may be requested by the police or your operator if your

telephone is stolen. This number allows your cellphone to be blocked preventing a third person from using

it, even with a different SIM card.

Disclaimer

There may be certain differences between the user manual description and the phone’s operation, depending

on the software release of your telephone or specific operator services.

July 2005

(1) Check the availability of this service with your operator.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:47 Page 9

1Your mobile ....................................................

Delete/Back

Voicemail Switch on/Switch off

End call

Keypad lock/unlock

Left softkey Right softkey

Pick up/Send call

Call memory

Voice recognition

Navigation key (1):

Menu/Confirm an option

Messages

Directory

Messages

Diary

Services (1)

Voice memo (record your current call).

Display notes

E5LIQUID_UM_USA_21-03-06 21/03/06 8:47 Page 23

3.5 Conference calls (1)

Your phone allows you to talk to several people at the same time (up to 5). If you are on a double call, press

“Options” and select “Conference” then confirm with the key. If a third call comes in, answer it by

pressing the key and speak with your new correspondent.

This correspondent becomes a member of the conference if you press “Options” and select “Add conf.”,

and then confirm by pressing . Pressing disconnects the current call.

To end the conference call, press “Options” and select “End conf.”.

3.6 Double line (ALS) (1)

Your SIM card can contain two distinct telephone numbers. Under “Call log”, choose “Double line” and

then select a default line; all your outgoing calls will be made from this number. Incoming calls, however, will

continue to use the two lines.

The services programmed on the default line do not impact those selected on the other line.

(1) Contact your network operator to check service availability.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:47 Page 24

4Call log ......................................................

CALL LOG

•CALL MEMORY

- Unanswered

-Outgoing calls

-Answered calls

•MY NUMBERS

-My Number

-Voicemail

•MY E-MAIL (1)

• BILLING

- Amount

•Total cost

•Available credit

•Maximum credit

•Reset

•Unit cost

-Duration

•Total duration

•Avail. duration

•Set duration

•Reset

-GPRS counters

-Cost summary

•Last call

•Total cost

-Beep duration

4.1 Call memory

You can access your call memory by pressing the key from the main

screen. Choose the icon of the desired list:

Unanswered calls

Outgoing calls (Redial)

Answered calls

The icon that may be displayed to the left of the person’s

name shows the type of telephone number recorded in the

directory (Home, Office, Mobile Phone).

Select a number of the call memory and press the “Options” softkey

to View call details, Write message, Save or delete the selected

number (Delete number), or clear the entire list (Clear list).

4.2 My Numbers

Type in or modify your telephone number or the number to access

your voicemail and confirm by pressing . Your telephone number is

usually written on your SIM card.

(1) Contact your network operator to check service availability.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:47 Page 25

4.3 My e-mail address (1)

Enter your own e-mail address to send pictures, images, video clips, sounds... by MMS to your PC. You can

do it also via the options while writing an MMS.

4.4 Billing

You can access different items with this option:

Amount: you can view the total cost of charged calls, the available credit, set a credit limit beyond which

any billable call is barred, modify it or reset it and enter the cost of a Telecom Unit in the currency of your

choice.

Duration: you can view the total duration of all outgoing calls, set a duration beyond which any billable call

is barred, modify it or reset it.

GPRS counters: management of the volume of data communications charged for (in kilobytes).

Cost summary: you can display the duration and cost of the last call or all calls made.

Beep duration: you can activate or cancel the beep emitted during a call with a specified frequency (enter

the frequency and confirm by ).

(1) Contact your network operator to check service availability.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:47 Page 26

4.5 Call settings (1)

You can access a number of items with this option:

Call forward: you can activate, cancel or verify the status of the call

forwarding (Voice, Fax or Data) to the voicemail or to a specified

number (type in the number or select the name and confirm by pressing

). The following configurations are possible:

•Unconditional: systematic forwarding of all your calls. The icon is

displayed.

•Conditional: if your line is busy, if you don’t answer or if you are

outside the network range.

•If busy, no reply or unreachable.

Call barring: you can activate or deactivate the call barring for

outgoing and incoming calls. The various options are:

Outgoing calls Activate/deactivate the call barring. This option is

applied as follows:

•Except SIM Dir. Outgoing calls to numbers not included in your

directory are barred.

•All (1) All outgoing calls are barred.

•International (1) Outgoing international calls are barred.

•Except->Home Outgoing international calls except those to your

country of subscription are barred.

•CALL SETTINGS (1)

-Call forward

•Voice

•Data

•Fax

• Status

•Cancel all

-Call barring

•Outgoing calls

•Incoming calls

• Status

(1) Contact your network operator to check service availability.

CALL LOG

E5LIQUID_UM_USA_21-03-06 21/03/06 8:47 Page 27

(1) Contact your network operator to check service availability.

•Except FDN Barring of outgoing calls in accordance with a specific “FDN” directory contained in

Dir. (1) the SIM card.

Activate/ All calls not beginning with one of the numbers recorded in the “FDN” directory are

Deactivate barred.

Change You can update the “FDN” directory if the “Except FDN dir.” feature has been

activated, after entering PIN2 (update “FDN” directory by pressing ).

Incoming calls Activate/deactivate the barring of incoming calls. The following configurations are

possible:

•Except SIM Dir. All calls from numbers not in your directory are barred.

•All (1) All incoming calls are barred.

•If abroad (1) Incoming calls are barred when you are abroad.

Status List of incoming call barring options activated on this phone.

If you cannot send or receive calls, a call forward or a call barring option could be activated. Please

check.

(1) Contact your network operator to check service availability.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:47 Page 28

Calls

Call waiting (1) Activate/deactivate the notification of a second

incoming call by a beep.

Conceal ID (1) Activate/deactivate the option making your calls

(CLIR) anonymous (your number is no longer transmitted

by the network to the party you are calling).

Caller ID (1) Activate/deactivate the display of your caller’s

(CLIP) number (or name if found in the directory) for each

call.

Pick up (1) Choose your pick up mode: key or any key.

Network auto Enables automatic callback by the network of the

redial (1) last dialled busy number.

Automatic redial: you can activate or deactivate the automatic

callback of your party for calls that do not get through the first time.

You can also display the list of the 10 numbers for which automatic

callback was not successful and delete it.

Double line (1): your SIM card can contain two distinct telephone

numbers. Choose “Double line” and then select a default line; all your

outgoing calls will be made from this number. Incoming calls, however,

will continue to use the two lines.

The services programmed on the default line do not impact

those selected on the other line.

-Calls

•Call waiting

•Conceal ID

•Caller ID

•Pick up

•Network autoredial

-Automatic redial

• Activate

•See list

•Clear list

-Double line

CALL LOG

(1) Depends on your network operator.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:47 Page 29

5Menu (1) ............................................................

•GAMES & APPS

•MEDIA ALBUM

-My Images

-My Videos

-My Sounds

-Games & Apps

-Memory

•EXTRAS

-Alarms

- Calculator

- Converter

-Memory

-Infrared

-Remote synchro. (1)

-Melody composer

-Voice memo

-Voice recognition

-Alarms list

•PHOTO/VIDEO

-Take a picture

-Record a video

-Panorama

-My Images

-My Videos

•DIRECTORY

•MESSAGES

-Create message

-Inbox

- Sent

- Unsent

-Drafts

-IM/Instant Msg. (1)

- Archives

- Templates

- Voicemail

-WAP alerts

- Settings

-Distribution list

-My favourite

-Memory

(1) Depending on your network operator and product.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:47 Page 30

(1) Contact your network operator to check service availability.

•CALL LOG

-Call memory

-My Numbers

-My e-mail (1)

-Billing

-Call settings

•MY SETTINGS

-Ringtones

-Sound interface

- Display

- Clock

-Network time

-Music & lights

-Keys

-More settings...

•MY SHORTCUTS

•SERVICES

•WAP

-Homepage

-Bookmarks

- Profiles

-Enter address

•DIARY

E5LIQUID_UM_USA_21-03-06 21/03/06 8:47 Page 31

6Directory ..................................................

6.1 Consulting your directory

To access the directory from the main screen, press the key (1) downwards or press the key and

select the icon from the menu.

You can also customise a quick access to your contact with the keypad customisation (see page 55).

You have 4 directories:

SIM directory Personal directory

General directory Professional directory

In addition to the directories already provided, you can create your own directories (see page 36).

Searching for a name by its first letter

You can search for the person’s name by pressing the key associated with the first letter of his/her name.

For some languages that have a specific entry mode, you should use the “Search name” option.

Read a file

Select a name from your directory, then press to read the file.

(1) Depending on your network operator.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:47 Page 32

Sending your directory file via InfraRed

1. Select the file you wish to transfer.

2. Place your phone or PDA opposite the other phone’s InfraRed port.

3. Select “Options/Send/Infrared”.

The transfer will take place.

Receiving the file

You must activate the infrared via “Menu/Extras/Infrared”.

Once you have selected the option, the icon will appear on the screen (you will be disconnected if there

is an incoming call).

A message will inform you of the data’s reception. Save the data by pressing .

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 33

Making the call

Press the key once the name is selected. If several numbers are associated with the name to be called,

you must first choose the number from the list (Mobile, Home, Office, etc.) using the key. Press the

key to make the call.

Information in the directory and the diary may be sent to and received from a computer using the

Alcatel PC suite (see page 96).

6.2 Creating a file

Select the directory in which you wish to create a file, press the “Options” softkey, select “Create file”

then . You can save the data you have entered at any time by pressing the “Options” softkey and

choosing “Save & quit”. Go to the following field using the navigation key .

When you create a new contact in the product directory, at least one of the following fields must be filled

in: Identity card, Birthday, Nickname, URL Address, Numbers, Image, E-mail,

Address, Notes, Perso. Info. You can move from one field to another using the key.

When the field “Birthday” is filled in, an alarm is automatically created in the Diary.

If you use your phone abroad, store the numbers in your directories in international format “+”

followed by the country code (see page 20).

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 34

6.3 Available options

From the list of names in your directories, you can access the following options via the left softkey:

View •View a complete file: name,

address, e-mail, etc.

Create file •Create a file (name, numbers,

address, e-mail, etc.) in the

desired directory.

Call •Once you have entered the

number, you can call directly

from the directory.

Write •Send an SMS/MMS/VMS/IM (1)/

message e-mail to a contact from the

directory.

Modify •Modify the contents of a file.

Image •Select a video/photo/image in

the Album and assign it to the

current file (not valid for the SIM

directory).

Delete •Delete the selected file.

Classify file •Move a file from one directory

to another.

Dir. ringtone •Assign a melody to the current

directory.

Create dir. •Create your own directory.

Empty dir. •Empty the contents of a

directory.

Delete dir. •This directory and its files will

be completely erased (created

directory only).

Copy all-> •Copy the whole directory to the

SIM/Phone SIM or telephone directory in

one go if there is sufficient

memory.

Voice reco. •Record a voice recognition

command except in the SIM.

Send •Exchange data via infrared (see

page 65) or Multimedia/MMS.

Remote •The files in the directory may be

synchro. synchronised with a network

store (see page 66) (1).

Default num. •Select the telephone number in

your contact file that you want

to be displayed under the name

of the contact.

(1) Depending on your network operator.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 35

6.4 Creating a new directory

From the product directory, press the “Options” softkey and select “Create dir.”, confirm using the

key, then name your new directory. You can create up to 13 new directories. You can delete only those

directories that you created, by selecting “Delete dir.”.

6.5 Voice recognition

Voice recognition allows you to place your call by pronouncing the party’s name without using your

directory.

Select a file from the product directory and confirm with the “Options” softkey. Then select “Voice reco.”

and confirm once again. Three different beeps will signal the start of recording, its failure or its success. After

recording, you can “Listen to”, “Replace” or “Delete” a recorded voice recognition command.

The files for which a voice recognition command has been recorded are indicated by the icon.

The number of names accessible through voice recognition is limited. This feature can be used in

all directories except the SIM card directory.

Activate voice recognition by holding down the key from the main screen, then follow the instructions

on the screen.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 36

6.6 Assigning a ringtone to a directory

Select a file from the product directory, press the “Options” softkey and select “Dir. ringtone”. This ring

tone can be one of your videotones.

When you receive a call from a contact classified in the product directory, the ringtone will be the one

assigned to that directory.

6.7 Assigning an image, an animation or a video to a file

Select a file from the product directory, press the “Options” softkey and select “Image”.

When you receive a call, the picture, animation or video clip that you have chosen will be displayed on the

screen. It is possible to assign either an image or a video but not both for the same contact.

6.8 Privacy

The data of your directory can be protected (see option “Privacy” page 59).

“Activate” this option in order to protect your diary or directory data. This option is useful if you use PC

synchronisation.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 37

7Messages: SMS, MMS, e-mail ..................

From your telephone, you can read, write, send messages and share them with other devices: “Te xt/SMS”,

“Multimedia/MMS”, “E-mail (1)” and “IM/Instant Msg. (2)”.

Multimedia messages are messages whereby you can send video clips, images, photos, animations, sounds,

voice messages (or “Voice/Vox MMS” that allows you to send a voice memo as a message) to other

compatible mobiles and e-mail addresses.

Mobile e-mail offers the possibility of sending and receiving e-mail with your phone wherever you are. You

may configure several e-mail accounts: professional e-mails, personal e-mails (3).

The multimedia/MMS, e-mail and IM functions can only be used if the service is provided by your

operator, if your contract includes the option, and if all the appropriate parameters have been

entered (see page 44 for MMS, page 45 for e-mails and page 48 for IM).

To write a digit or a number in an SMS, hold down the corresponding key ; to exit the SMS mode,

hold down the key.

(1) Depending on your network operator and product.

(2) See Chapter 8 for IM.

(3) Depends on whether your e-mail provider supplies “Pop3” access.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 38

To access the messages from the main screen, press the top of the key (1). You can also access the menu

by pressing the key and selecting “Messages” with the navigation key and then confirming with the

key.

-Create message

-Inbox

- Sent

-Unsent

-Drafts

-IM/Instant Msg. (1)

- Archives

- Templates

- Voicemail

-WAP alerts

- Settings

-Distribution list

-My favourite

-Memory

7.1 Creating SMS/MMS/e-mail (2)

From the main menu select “Messages/Create message”.

You can type a message but you can also modify a predefined message or customise your message, by

adding pictures, photos, sounds, title, etc. While writing, select “Options” to access to all the messages

options.

You can save your message as a Draft or a Template.

By selecting “Preview” you can view the contents of your message.

(1) Depending on your network operator.

(2) E-mail for electronic mail. Depending on the operator.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 39

The message will be sent as either an SMS or an MMS, depending on the type of content (with or without

images, photos).

An SMS message of more than 160 characters will be charged as several SMS. An MMS message

containing photos and/or sounds may also be billed as more than one message.

The person receiving your MMS must be equipped with a compatible phone in order to display the

objects or listen to the sounds in your message.

You can create an e-mail as a text message with or without attachments. You must however fill in the e-

mail parameters beforehand in “Messages/Settings/Advanced/E-mail”.

Creating Vox MMS (Voice memo)

From the main menu, select “Messages/Create message/Voice/Vox MMS”. This function allows you to

send a vocal message quickly without having to write. The recipient is not disturbed and simply receives a

normal MMS (1).

You can Send the message:

•Manually by entering the number of the recipient

•To a person stored in one of your directories

•To your favourite number

•To several different people by specifying a distribution list (choose the “Distribution list” option).

(1) To compose a text you can use the normal text input or T9 predictive input (see page 97).

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 40

7.2 Inbox

All received messages (read and unread) are stored in the same Inbox.

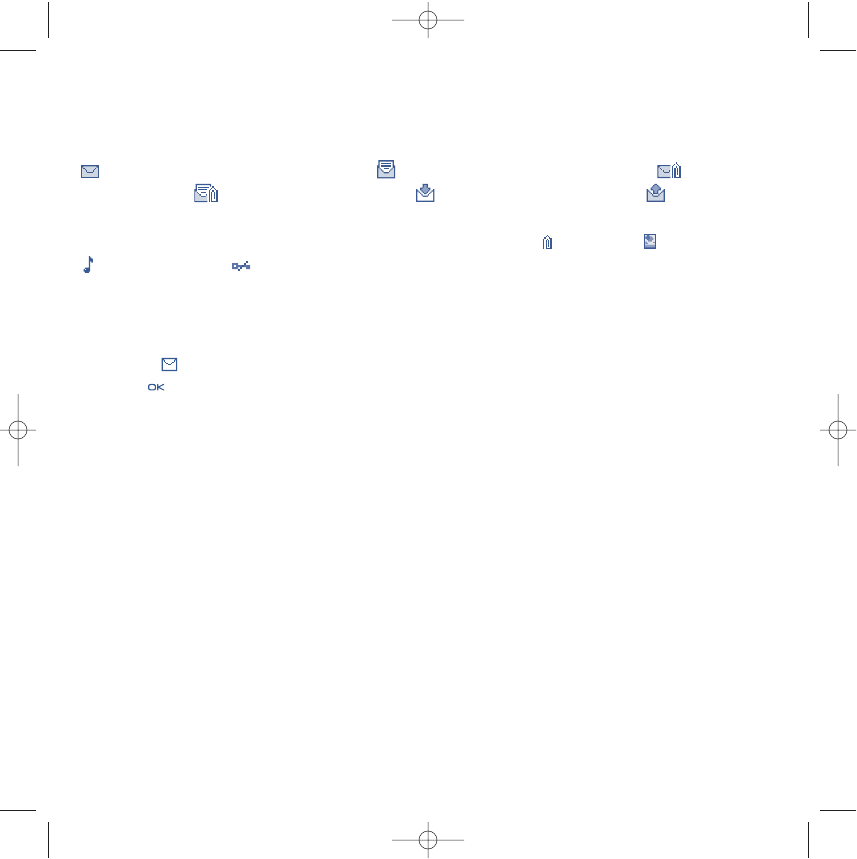

When viewing your messages, you will find the following status icons, depending on the type of message:

unread text message (SMS/MMS/e-mail), read text message (SMS/MMS/e-mail), unread e-mail

with attachment, read e-mail with attachment, message reception in progress, message sending

in progress.

The following icons are added to the master icons according to type: attachment, MMS attachment,

sound attachment, copyrighted data.

Receiving and reading SMS/MMS/e-mail

When you receive a new message, the following message is displayed: “You have received a new

message!”, or you may have a specific alert for each type of message received (E-mail, Message), a beep

sounds, the icon shows up, a line with the number of messages appears on the screen. Select this line

and press to read it directly from the main screen. To modify or deactivate the audible signal, see page

50.

You have two ways of managing the reception of MMS:

-National (in your network)

-International (if abroad)

For both, you can choose to “Always download” or “Always defer” (we recommend choosing “Always

defer” when abroad).

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 41

Once you have read the message, the following options are given: delete, reply, forward the message to

another person, archive the message, save the animation, sound, pictures, etc… save the sender’s number.

You can reply to any message using a “Voice/Vox MMS”.

7.3 Sent messages

All sent messages.

7.4 Unsent messages

All messages to be sent or failed messages. If you type an MMS while on the phone, you must go to

“Messages/Unsent” after hanging up in order to send it.

7.5 Drafts

All drafts messages.

7.6 IM (Instant messaging) (1)

As IM includes Presence whereas the other messaging services don’t, IM is described separately on page 46.

7.7 Archives

All archived messages.

7.8 Templates

A list of predefined messages are available. Select one, edit it if required, and then send it. You can also

create your own predefined messages.

(1) Depending on your network operator.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 42

7.9 Voicemail

All vocal messages received.

7.10 WAP alerts

All WAP notifications received.

7.11 Settings

7.11.1 Message sending parameters

•Expiration: request a deletion of undelivered messages from server (never delete, after 30 minutes, 1

hour, 6 hours, 1 day, 1 week). You can select or cancel this option.

•Delay delivery: you can delay a message delivery by 30 minutes, 1 hour, 6 hours, 1 day, 1 week or never.

•Message type: SMS/MMS.

•Receipt:- delivery status report Yes/no

- read status report Yes/No

7.11.2 Message receiving parameters

Request for downloading new messages: always, always defer, defer if 1,10, or 50kb.

•Reception:

-National: Reception mode depending on operator.

-International: If roaming you can always download, always defer, or download or not depending on

the size.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 43

•Anonymous senders: You have the possibility to reject or not the messages from anonymous senders

•Receipt:- request for acknowledgement of delivery report Yes/no

- request for acknowledgement of reading receipt Yes/No

7.11.3 Look & Feel

•Emoticons: graphical display of emoticons.

•Slide duration: page display duration in seconds.

•Personalisation: insert signature and/or add an introduction: always, never, only on e-mail.

7.11.4 IM parameters

Set up Instant Messaging (IM/Chat) parameters, see page 48.

7.11.5 Advanced parameters

You can program specific parameters for SMS/MMS or e-mail.

SMS: Format (to be used for delivery to recipient: Fax, SMS, etc.), Reply path, Service centre (name and

number of your operator’s service centre, which may be provided automatically).

MMS: To set up your MMS profile, follow the same procedure as for setting up your WAP connection.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 44

7.12 Distribution list

Create and manage distribution lists: predefined list of recipients.

7.13 My favourite

Enter the number or e-mail of your favourite contact. Then, when you want to send a message, select

“Send” and “My favourite” directly without searching in the directory.

E-mail (1)

Accounts •Enter your e-mail account

parameters.

Active account•Choose the e-mail account you

want to use.

Check for mail •To select an automatic check for

new e-mail on the server (every

15 minutes, hour, 4 hours, every

day or week or never).

Nb of msg. •The number of e-mails you want

to retrieve at one time.

Message size •To select the maximum size of

e-mail you want to open or the

header only.

Message •While deleting the message, you

deletion can choose whether to delete it

from the server or keep a copy

on the server.

(1) Contact your network operator to check service availability.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 45

8IM/Chat (Instant Messaging) (1) ..............

Instant Messaging (IM, also called “Chat”) is one of the most popular services on the Internet after e-mails.

The presence feature allows users to check when their friends are online and communicate with them in

near real-time.

You can now “chat” with your mobile phone.

8.1 Presence

IM enables a user to see the connection status or presence of other users.

The presence includes a combination of network status information (online or offline) and user specified

status information (available or busy).

An important privacy protection feature of Instant Messaging is the ability to block another user at any time.

Blocked users cannot see your presence neither send you unsolicited IM (SPIM: the word for IM spam).

In one glance you can know the presence of your friends thanks to the IM buddy list: it is the list of contacts

with whom you may chat.You can manage your IM buddy list: add a new contact (using a mobile phone

number or the messenger ID), or search for a contact.

IM buddy list and directory: You can link your IM buddy list and your directory, meaning that you can place

a call from the IM application, or send an IM from a contact in the directory. There is a specific IM field in

the directory.

(1) Depending on your network operator and product.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 46

8.2 Always on

Mobile IM works the same way as on a PC: you can still receive IM messages, even if the IM application is

not on the screen. An IM icon in the status bar shows you whether IM is on or off. The icon shows:

•if you are online and available,

•if you are online and busy,

•if there are unread IM

No icon means that you are not connected.

8.3 Send an IM (Instant Message)

If an IM buddy list (list of contacts for IM) has already been created, you can send an IM and start a chat

simply by pressing or selecting a “buddy”.

You can also send an IM from your directory by going to “Directory/Writemessage/IM”.

Depending on your operator, you may use the same IM buddy list as on your PC

1. See if your contacts are present

2. Start the IM chat, with the online buddy.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 47

8.4 Receiving and reading IM

When you receive a new IM notification (a new IM, an information message…),

•an IM message is displayed: “You have received an IM message from…”, “You have received an

invitation from…”

•you have a specific sound alert for IM (to modify or deactivate the audible signal, refer to IM parameters

below),

•in the status bar, the IM icon is updated,

•a line with the number of conversations with different friends (whatever the number of IMs) or

information messages appears on the idle screen. Select this line and press to access it from the main

screen.

8.5 IM parameters

You can choose:

1. to assign a specific melody to an IM notification.

2. to automatically launch IM in the background at mobile switch on.

You can update the IM network profile parameters in the same way as for a WAP profile, see page 74.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 48

9My settings................................................

From the main screen, select the icon menu and select the function of your choice in order to

customise your telephone.

(1) Depending on the operator.

•RINGTONES

•SOUND INTERFACE

MY SETTINGS 9.1 Ringtones

9.1.1 Available functions

To modify the sound settings, select an option using the key:

Select a melody from the list using the key then confirm by

pressing . You can also select from this list the random

melody function called “Surprise melody” (see page 50), or

you can select a Videotone.

Mode (normal, discreet, vibrate...).

Adjust the volume using the key.

Select the type of key beep.

Select a melody for a new incoming message.

Select a melody for a new incoming appointment.

Activate/deactivate the network beep (1).

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 49

9.1.2 Mode

You may set your phone ringtone to Normal, Discreet (ring with beep), Vibrate (all sounds are replaced by

vibrations), Vibrate and ring, Vibrate then ring, Beep and vibrate, Silence (no sounds except for alarms, the

icon will be displayed).

Ringtones sound with increasing volume.

9.1.3 Surprise melody

At the top of the list of melodies, access the item “Surprise melody”; choose up to 20 melodies. Then,

each time you receive a call, one of the melodies you have chosen will be played at random.

9.1.4 Videotone

You can select a video as a melody (with both audio and visual effects).

9.2 Sound interface

Specific sounds assigned to each menu icon are emitted.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 50

9.3 Display

9.3.1 Main screen

The main screen is displayed when you switch on your telephone

and/or when no functions have been used for a short time (calls,

sending of short messages...).

You can access the main functions from the main screen either with the

navigation key or by selecting the icons displayed on the screen (1).

Select “Main screen” to customise it by replacing the default image or

animation displayed on your telephone.

When you receive an event (incoming call, SMS/MMS,

notifications, etc.) the icon, type and number of events will be

displayed on your main screen allowing you to consult them

directly.

(1) Depending on the operator.

• DISPLAY

-Main screen

•General

• Photos

• Pictures

• Icons

•Frames

-Screen saver

• Videos

• Slideshow

• Image

• None

-Colours

- Atmospheres

-On/Off screen

•Switch On

•Switch Off

-Zoom

-Battery saver

- Contrast

MY SETTINGS

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 51

9.3.2 Screen saver

If you activate this option, the screen saver will be displayed a little while after the main screen. You can

choose a picture, an animation, a slideshow, or a videoclip as your screen saver.

For both Main screen and Screen saver, the eco-mode screen will appear after a little while: only

the battery and network levels and the time or an envelope (for incoming event) will be displayed.

9.3.3 Colours

This function enables you to customise the graphic style and the colours of your telephone (menu screens,

entry screens, etc.)

9.3.4 Atmospheres

The “Atmospheres” menu allows you to customise your telephone to suit your own taste. You can modify

seven customisable items at the same time.

When using the telephone for the first time, a default Atmosphere is activated.

Even if you choose an Atmosphere, you can still modify the elements in it one by one. You can reactivate

an Atmosphere at any time.

When changing an Atmosphere, an installation screen appears until the seven elements are installed.

The installation of the Atmosphere can be stopped and cancelled if you receive an incoming call or

if you press the key ; the previous choice of Atmosphere is kept.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 52

9.3.5 On/Off screens

You can customise your welcome message, animation, melody or image that appears when you switch on

your telephone.

You can also customise your OFF screen with an image, animation and melody.

9.3.6 Zoom (1)

Two character sizes are available for your telephone screen. Large characters are selected by default. If you

wish to display more information select “Zoom”.

9.3.7 Battery saver

-High: turns off the screen

-Medium: only displays clock, battery charge level, events

When your phone returns to idle mode, if the battery saver is set to High, your backlight will be

switch off. Press any key to reactivate the backlight. But do not remove the battery!

9.3.8 Contrast

Set the contrast of your main screen.

(1) Depending on the language.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 53

9.4 Clock

You can display two clocks (local and remote) at the same time on the

main screen.

Go first to the “Clock type” icon and select the “2 clocks”

option. Then go back to the “Clock set up”, select “Local clock”,

choose a city and confirm. The automatic transition to daylight saving

time is activated. Repeat the same operation for the “Remote clock”.

Display format

You can display your clock in analog or digital format and the date in

the following formats: day/month/year, month/day/year or

year/month/day in digits or using the first three letters for the day and

month.

9.5 Network time (1)

Activate/deactivate the automatic update of your clock with network

time.

9.6 Music & lights

Activate/deactivate the backlight and vibrator of your phone dancing to

the rhythm of the music when you receive a call.

•CLOCK

•NETWORK TIME

•MUSIC & LIGHTS

• KEYS

-Softkeys

•Left softkey

•Right softkey

-Keypad

•Contacts list

•Custom keys

•MORE SETTINGS

-Keypad lock

- Languages

-Dictionary

MY SETTINGS

(1) Depending on the operator.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 54

9.7 Keys (1)

9.7.1 Softkeys/ key (1)

These keys have predefined functions, which vary from one model to another (operator services, games

access, or Games & Applications, ...). You can customise (1) them, assigning the functions you wish to each

key. For example, they can be used as a shortcut to access the Diary, to write a message,...

9.7.2 Keypad

By customising your keys, you can call someone or access a function directly from the main screen.

To programme a key on your keypad, select “Keypad” and choose the key that you wish to programme.

Then select:

-“Contacts list” activate this option to access a contact in the directory whose first letter corresponds

to the letter on the key, for instance key for “PETERSON John”.

-“Custom keys”: activate this option to access the numbers or functions that you have already

programmed. If you want to change them, press the “Options” softkey, select “Modify” and choose the

first key you want to program.

You will then access these shortcuts directly from the main menu in the “My Shortcuts” item.

(1) Depending on your network operator.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 55

9.8 More settings...

9.8.1 Keypad lock

Activate/deactivate the automatic keypad lock by pressing on the key.

If the telephone is plugged in using a car kit accessory or the charger, it will be unlocked

automatically on receiving a call.

9.8.2 Languages (1)

Display language for messages (select using ). The “Automatic” option selects the language according to

the home network (if available).

9.8.3 Dictionary

You have a dictionary to which you can add your own words in addition to those suggested by the predictive

input system. When you consult your dictionary, you can add, modify or erase words by using the

“Options” softkey.

(1) Contact your network operator to check service availability.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 56

9.8.4 Start-up wizard

You can use this tutorial start-up as a help to define your basic

parameters (time/date settings).

9.8.5 Input mode (1)

Please see chapter “latin input mode”, page 97. In addition to the

specific characters table for Cyrillic and Chinese, other data input

modes are also available in your telephone. This feature allows you to

write short messages and add names with special characters to your

directory.

9.8.6 Extensions display

This function allows you to choose whether to display the extensions

of your photos, videos, sounds, files in your Album.

9.8.7 WAP access features

(See page 77).

(1) Depending on the language.

-Start wizard

-Input mode

- Extensions

• Displayed

•Not displayed

-WAP/GPRS

•WAP access

•Access modem

•GPRS attachment

-Security

•PIN code

•PIN 2 code

•Network code

•Menu code

•Telephone code

-Privacy

- Networks

•SMS CB

•Search

- Accessories

• Headset

•Car kit

- Codecs

MY SETTINGS

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 57

9.8.8 Security

PIN code (1) The SIM card protection code is requested each time the phone is switched on if this

code is activated.

Activate/ Activate/deactivate this code.

Deactivate

Change Update code (between 4 and 8 digits).

PIN 2 code (1) A protection code for certain SIM card features (Billing/Cost/FDN, etc.) will be

requested if you attempt to access it, if the code is activated.

Change Update code (between 4 and 8 digits).

Network Password requested for network “Call Barring” options.

code (1)

Menu code A protection code for certain MENU options (services, settings, language) will be

requested if you attempt to access it, if the code is activated.

Activate/ Activate (or cancel) this code.

Deactivate

Change Update code (between 4 and 8 digits).

Telephone A telephone protection code will be requested each time the phone is switched on, if

code this code is activated.

Activate/ Activate (or cancel) this code.

Deactivate

Change Update code (between 4 and 8 digits).

(1) Contact your network operator.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 58

9.8.9 Privacy

“Activate” this option in order to protect your diary or directory data. This option is useful if you use PC

synchronisation.

9.8.10 Networks

SMS CB (1) Messages broadcast over the network (weather forecast, traffic conditions, etc.) are

automatically displayed on the main screen.

•CB list List of codes for messages to be displayed.

•Reception Depending on the option selected, the phone will display messages broadcast over the

network.

Partial The phone receives messages intermittently and will display them according to your list

(see “CB list” option).

Complete The phone continually receives messages and will display them according to your list (see

“CB list” option).

None The phone will not receive any messages.

Search Search for a network connection.

•Available List of networks available in your radio environment.

•Search mode Depending on the option selected, the network search mode will be:

Automatic The first network searched for is the network you used last.

Manual The choice of the connection network is left up to the user.

•Preferred list List of networks to which you wish to be connected in order of priority (update this list

using ).

(1) Contact your network operator to check service availability.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 59

9.8.11 Accessories

Headset

A predefined melody will be played if the ringtone you selected is not an .amr file.

Pick up

•Key Only by pressing the key.

•Automatic Automatically without any keypress, after approximately 2 ringtones (this option is

operational only if your mobile phone is connected to an audio kit or handsfree kit).

•Any key By pressing any key from the keypad (except side keys).

Audio mode Choose to ring in headset, or both in telephone and headset.

Car kit

Headset pick up Choose the pick up mode: key, automatic or any key.

Melodies A default melody is assigned as the ringtone of your phone when connected to the car

kit. You can select a new one from a predefined list.

9.8.12 Codecs

List of all file formats (visual and sound) supported by the telephone.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 60

10 My Shortcuts ..........................................

A shortcut is a quick access to a function, a telephone number or a WAP bookmark.

Program your own shortcuts to functions that you will choose from a list, via the “My shortcuts” menu.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 61

11.1 Alarms

Access this feature by selecting “Extras” from the main menu, then

“Alarms”.

Alarm clock

First set the alarm frequency (daily or only once), then enter the time

and date and confirm by pressing the key. You can also enter the

purpose of the alarm and then confirm with the key.

Timer

Set the amount of time desired before the alarm is to sound and

confirm with the key.

Settings

When the alarm is set, the icon is displayed on the main screen. The

alarm will sound whether the handset is switched on or off and can be

switch off by pressing any key.

If you have chosen the “Snooze” option, the alarm will go off at regular

intervals.

You can select a melody for a new alarm by selecting the icon.

•ALARMS

• CALCULATOR

•CONVERTER

EXTRAS

11 Extras ......................................................

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 62

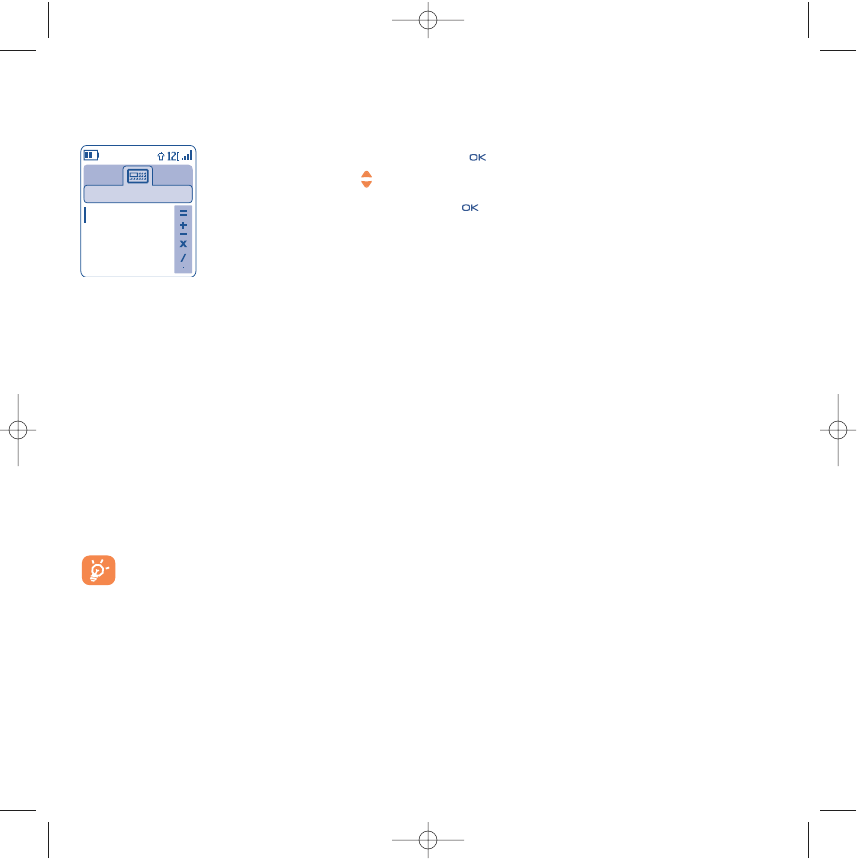

11.2 Calculator

Access this feature by selecting “Extras” from the main menu, then “Calculator”.

Enter a number and confirm with the key, then select the type of operation to be

performed using the key and confirm again.

Enter the second number and press .

Select the “=” sign to display the result.

To return to the main screen, press the “Back” softkey.

Calculator

(1) For the former European national currencies, the currency converter uses the final Euro conversion

rates set on 31/12/1998, which are used in accordance with official conversion rules.

11.3 Converter

Access this feature by selecting “Extras” from the main menu, then “Converter”.

The currency converter allows you to:

•Convert a currency directly into euros and vice versa (1).

•Convert a sum of money into another currency (e.g. dollars to pounds).

For a conversion into euros, you can modify the default currency by selecting “Set up”.

If converting between international currencies, both currencies must be selected. You must also enter the

appropriate exchange rate.

An exchange rate value is pre-set for each currency. You can change this value by selecting “Set up”.

From the main screen, enter the amount in euros to be converted into the programmed currency,

then press the “Options” softkey and select “Converter”.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 63

11.4 Memory

Access this feature by selecting “Extras” from the main menu, then

“Memory”.

View available memory space.

Your telephone’s memory is shared between several functions:

directory, diary, messages, voice messages, voice recognition, images

and melodies, games and applications, video clips. For example, if you

use a lot of memory for your voice memos, you will have less memory

available for the directory.

Do not forget to delete large items such as voice memos,

MMSs, images, photos, recorded sounds, applications, video

clips..., in order to free up memory space, otherwise the

performance of your terminal may be affected. You can also

delete certain items included in your telephone on purchase.

•MEMORY

•INFRARED

•REMOTE SYNCHRO.

EXTRAS

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 64

(1) If you use infrared often, we recommend that you set a quick access to it from the keypad (see page

55).

11.5 Infrared

Access this feature by selecting “Extras” from the main menu, then “Infrared”.

Your phone’s infrared feature allows you to exchange contacts, diary data, images, videos, melodies via an

infrared link with an other mobile or a PC. The infrared port is located at the top of your telephone.

Sending data

To send data, select the file, then select the “Send” option. It is not necessary to activate the infrared

feature before sending.

Receiving data

To receive data, you must activate the infrared feature. A message will advise you of the arrival of data; you

will have to save the data by pressing the “Ye s ” softkey.

Once you have selected the option, the icon appears on your screen. The infrared will be deactivated

automatically after a short while (1). The connection will cut off if you have an incoming call.

To use the PC suite (see page 96) you must first activate the infrared to have the phone recognised by the

PC. See instructions while installing the PC suite for further details.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 65

11.6 Data synchronisation: Remote synchronisation (1)

Your mobile phone allows you to synchronise the data stored in your phone (i.e. directory files, diary entries

and to-do lists), either with your PC, or over the mobile network:

1. PC Synchronisation: with the Alcatel PC suite, you can synchronise your data between your mobile

and your PC, see page 96.

2. Remote synchronisation (SyncML): when a user is mobile, data can be synchronised over the mobile

network, giving the user up-to-date access to his/her directory files, diary data and to-do lists.

What are the benefits of Data Synchronisation?

•thanks to synchronization, backup data can be restored (use the download feature from server function),

if you lose your phone or change it,

•no need to maintain several databases: your PC and your mobile keep the same information, the changes

on one side are automatically updated on the other side.

Remote synchronisation

The default synchronisation is the “fastest synchronisation”. Before any synchronisation, you must set the

server parameters.

(1) Depending on your network operator and product.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 66

You can start a remote synchronisation in several ways:

1. From “Extras” select “Remote synchro.” and then select “Sync”.

2. From “Directory/Options/Remote synchro.” for directory files only: Directory synchronisation

begins.

3. From “Diary/Options/Remote synchro.” for diary files only: Diary synchronisation begins.

4. From “To-Do/Options/Remote synchro.” for To-do files only: To do synchronisation begins.

The SyncML parameters can be changed using the Settings menu (Extras, Remote synchro., Settings):

Sync Type •Fastest (update only, default

synchronisation), Full (complete

synchronisation), Upload to

server (all data from phone to

server, this is for the 1st

Synchronisation), Download

from server (update all data

from server, if you lose your

phone, for example).

Schedule •You can start synchronisation

manually (default) or program an

automatic one: Daily, Weekly or

Monthly.

Applications •Directory, Diary, To-do list.

Background •Decide whether to perform the

automatic Synchronisation in the

background or not.

Server •Choose the account you want to

use, fill in the following

parameters: server name, server

address, user name, and

password.

When in remote synchronisation mode, access to other functions is blocked. If you answer an

incoming call, synchronisation will stop.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 67

11.7 Melody composer

Access this feature by selecting “Extras” from the main menu, then

“Melody composer”.

11.7.1 Compose

Select “Compose” then use the keypad as shown below:

Select an instrument

“Options” softkey: Go to the options

Delete a note

Key 1 to 7: basic notes of an octave (C, D, E, F, G, A, B)

Change the length of a note or a pause

Change the octave

Add a pause

Add a sharp

11.7.2 Record

Select “Record” to record a sound of your own.

In both cases, you can use a sound as a melody. If you want to listen to

a sound (composed or recorded), select the desired one and press the

“Options” softkey.

•MELODY COMPOSER

- Compose

- Record

•VOICE MEMO

•VOICE RECOGNITION

•ALARMS LIST

EXTRAS

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 68

11.9 Voice recognition

Access this feature by selecting “Extras” from the main menu, then “Voice reco.”.

Voice recognitions allow you to access one of the menu functions by pronouncing the name of that function.

Recording a voice recognition

In order to record a voice recognition for one of the menu functions, select “Voice reco.” and the desired

function and then follow the instructions.

The functions for which a voice recognition has been recorded are indicated by the icon. There are 10

functions accessible through voice recognition.

Listen to •Listen to a recorded voice

memo.

Send •Send your memo by MMS or

infrared.

Handsfree/ •Switch between handsfree and

Discreet discreet mode.

Title •Modify the name of the memo.

Memo->album •Copy the memo to your sound

album (to send it by MMS or use

it as a ringtone).

Delete •Delete the selected memo.

11.8 Voice memo

Access this feature by selecting “Extras” from the main menu, then “Voice memo”.

The voice memo feature enables you to record personal messages. To record a voice memo, select “Voice

memo”, then “Record”, and begin speaking after the beep. Once the voice memo has been created, you

can access the following options:

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 69

Using voice recognition

You activate “voice reco.” by holding down the key from the main screen. To use voice recognition,

follow the instructions on the screen.

After recording, you can “Listen to”, “Replace” or “Delete” a recorded voice recognition.

11.10 Alarms list

Access this feature by selecting “Extras” from the main menu, then “Alarms list”.

You can view all the alarms that you have set. The icon will appear on your main screen if the alarm

clock or the timer has been set, or if the alarm is set for the current day or the following day.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 70

12 Diary........................................................

Your phone has a sophisticated diary that will help you to manage your daily schedule. You can also save

“To D o ” lists.

Consulting your diary

Three views are possible. You must first choose the appropriate icon:

Daily view

Weekly view

Monthly view

“To D o ” list.

Parameters

You can scroll through the dates by pressing the key.

According to the view you can read, create, modify or send an item.

Information in the directory and Diary data may be shared with a computer using the Alcatel PC

suite (see page 96) or synchronised with a distant server using the SyncML (Synchronisation

feature) (1).

(1) Depending on your operator.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 71

Creating an appointment and programming an alarm

When you create an appointment (“Create” option), you can also activate an alarm. You can set the desired

alarm activation time to coincide with your appointment time.

Creating a task

Scroll to the icon using the key, and confirm using the key. Select “Select type”, then confirm

once again using the key and enter the type of task to be performed (“to do” or call appointment), then

enter the purpose.

This list can be arranged by deadline or by priority. To do this, scroll to the icon using the key,

then confirm using the key.

You can set an alarm for a task for which you have set a due date. This alarm will sound on the chosen day

at the time that you entered.

Configure the diary

Scroll to the icon using the key, to access the following options:

Alarm •Set a default time for the alarm

to sound before the scheduled

appointment.

Diary •Programme the start time for

your day, your first day of the

week and your first week of the

year.

“To Do” •Sort your tasks by priority or by

due date.

Delete •Delete all tasks or diary items or

only those items that have

expired.

Synchronise •Your appointments and your

“To Do” tasks in your diary can

be synchronised with a network

database (1) (see page 66).

Privacy:

The data of your diary can be protected (see option “Privacy” page 59).

(1) Depending on your network operator.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 72

Daily view Weekly view Monthly view

Activate or deactivate a setting by pressing . Exit the configuration function by pressing .

More about your diary

Graphic view

A single appointment recorded.

Two or more appointments recorded during this time slot.

Week number.

An appointment was recorded prior to this time slot.

An appointment was recorded after this time slot.

Monthly view

Blue background Meeting scheduled

White background No meeting scheduled

The current day, week and month views will flash.

Wed. 4th December 02

2 Events

Wed. 4th December 02

2 Events

December 2002

TMWFTSS TMWFTSS

Options Back Options Back Options Back

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 73

Launch •Launch WAP with this profile

even if another one has been

selected as the default.

Activate •Select the current profile as the

default (this option is not

displayed if it is already

selected).

Create •Enter the parameters of a new

profile.

Modify •Modify the parameters of a

profile.

Delete •Delete the selected profile.

13WAP ........................................................

13.1 Access WAP menu (1)

WAP (Wireless Application Protocol) is a service that allows you to access the mobile Internet, where you

can obtain information such as weather conditions, stock market information, traffic information, etc.

- “Homepage” launches the WAP browser on the homepage of the default profile.

- “Bookmarks” gives access to the list of your favourite sites or adds new sites to them.

- “Profiles” lists the WAP profiles.

- “Enter address” allows you to directly access the WAP page for which you enter the URL address.

13.2 Programming your access (2)

Select a profile from the “Profiles” list and press the “Options” softkey:

(1) Contact your network operator to check service availability.

(2) Enter the information supplied by your access provider.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 74

To “Create” or “Modify” a profile, you are required to enter the following parameters (1):

-Profile name

-Homepage

-IP address

-Profile type: connection mode (secure, normal, http)

-Bearer choice

- Confirm

In the “Bearer choice” item you can choose the transmission mode: GPRS/GSM, GPRS or GSM.

When you select the GPRS/GSM transmission mode, GSM mode is activated if GPRS mode is not

available.

If you select the GPRS transmission mode, select a GPRS bearer and then fill in the following

parameters (1):

-Authentication (user name and password)

-APN

If you select the GSM transmission mode, select a GSM bearer and then fill in the following parameters (1):

-User name

-Password

-Telephone number

-Access type

If you select the GPRS/GSM transmission mode, select a GPRS bearer and then a GSM bearer; fill in the

required parameters for each one (1).

(1) Enter the information supplied by your access provider.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 75

13.3 Direct access/profile access

From the main screen, select “My Settings/More settings.../WAP/GPRS/WAP access”, to change the

launch access:

•Direct access: when you launch WAP from the main menu, you go directly to the homepage of your

default WAP profile.

•Profile Access: when you launch WAP from the main menu, you will have the following items:

Homepage, Bookmarks, Profiles, Enter address.

13.4 GPRS function (1)

Your mobile phone has an efficient high-speed modem based on GPRS technology (1). With this modem you

will be able to surf faster on the WAP and send your MMS more quickly. This service may be billed at a

different rate (contact your operator for more information).

You can use the GPRS function if:

-the service is supplied by your operator,

-your subscription includes the GPRS option,

-the profiles have been configured and the corresponding bearer selected (GPRS or GPRS/GSM (see page

75); the icon appears when the GPRS context is active.

(1) Contact your network operator to check service availability.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 76

13.5 WAP browser options

Once you have launched the WAP browser, while reading a page, you can access the options by selecting

the icon on the top left of the screen, or press the “Options” softkey, or press (long keypress).

Home •Access the homepage directly.

Bookmarks •Access your favourite sites

(bookmarked sites).

Alert Inbox •View information sent over

WAP.

Snapshot •Save the whole of your screen.

Save Items •Save images or sounds.

Send Link •Send an SMS with the URL

address of the visited page.

Go To URL •Access the WAP site directly by

entering the address.

Show URL •Display the URL address of the

current page.

Reload •Refresh the current page.

Settings •Customise your WAP access.

About... •Display the browser version.

History •Display the list of the last visited

URL.

Exit •End your WAP session and

return to the main screen.

At any time during your navigation, hold down the key allows you to exit the WAP mode.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 77

14 Media Album ..........................................

To access the Album from the main screen, press the navigation key to the left or to the right (1) or

press and select the icon. The Album is a function that groups together all visual and sound items

in your telephone, regardless of whether they are embedded, downloaded, recorded or composed.

Three types of Album are available:

-: “My Images” album, containing images, icons, photos etc...

-: “My Videos” album, containing videos.

-: “My Sounds” album, containing sounds and melodies.

In each of these three types, you can create new folders with the option “Create folder”.

(1) Depending on your network operator.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 78

14.1 My Images

You can select an image or a photo and use it as the main screen or the

ON/OFF screen. You may change it, send it by MMS or assign it to a

contact in the directory using the “Image” option (see page 37).

The “My Images” Album is made up of the following folders (1):

General: list of all images (built-in or created) from all album

folders.

Photos: default folder for pictures taken with the camera.

Pictures: contains all images not belonging to one of the other

folders.

Icons: contains icons, stamps...

Frames: contains frames for enhancing your images.

To make searching easier, thumbnail images are displayed on the

screen. To view one image at a time, select an image, then press the

“View” softkey.

Then, from this view you can scroll through the images by making a

short keypress on . Holding down the key will start the slide show

(or press the “Options” softkey then “Slideshow”).

(1) The embedded folder names cannot be modified. However, in certain cases, you can modify, delete and

add items included in these folders.

MEDIA ALBUM

•MY IMAGES

-General

- Photos

- Pictures

- Icons

-Frames

•MY VIDEOS

-General

- Recorded

-Crazy clips

-Video trailers

•MY SOUNDS

-General

-Melodies

-Crazy sounds

- Recorded

- Composed

•GAMES & APPS

• MEMORY

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 79

14.2 My Videos

The “My Videos” Album contains the following folders (1):

General, contains all the items from all the folders (created and embedded),

Recorded, contains the video clips you have recorded,

Crazy clips,

Video trailers.

You can search any Image, Sound or Video files by pressing the key bearing the first character of

the filename.

14.3 My Sounds

Choose a sound for the ON/OFF screen, for an incoming call, a message alert or an alarm (see page 49).

The “My Sounds” Album contains the following folders (1):

General, contains all sound items (built-in or created) from all album folders,

Melodies,

Crazy sounds,

Recorded sounds or videotone (only contains recordings made with the “Record” function),

Composed sounds (only contains compositions made using “Compose”).

DRM: Digital Rights Management feature allows sounds and images to be broadcast while

protecting the associated copyright.

(1) The embedded folder names cannot be modified. However, in certain cases, you can modify, delete and

add items included in these folders.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 80

14.4 Managing sounds, images and videos

According to the item chosen, you can access some of the functions below:

(1) Files marked with cannot be forwarded.

(2) Only applies to composed sounds and images that can be cleared.

View •View the selected image. If you

want to view all the pictures in

your folder in a slideshow press

on the current picture.

Listen to •Listen to the selected sound.

Play •Play the selected video.

Send (1) •Send the sound/image/video.

Delete •Delete the image/sound/video

selected (Not applicable for

embedded items).

Set as •-Image->main screen, switch

ON/OFF, assign it to a contact.

-Sound->ringtone, switch

ON/OFF, assign it to a contact.

-Video->Screen saver or assign

it to a contact,

-Videotone, select a sound

video as a ringtone.

Ringtones •Choose a melody for an

incoming call ringtone.

Modify •Modify a sound/image (2).

Download •Access your bookmark sites to

download new items.

Rename •Rename the sound/image/video.

Classify file •Move an image from one folder

to another.

Create folder •Create folders grouping together

a series of images or sounds (for

example: “Holidays” or

“Birthday”).

Delete folder •Delete a folder.

Rename folder •Rename a folder that you

created.

Empty folder •Empty the contents of a folder.

Sort by size/ •Sort the images by size, by

name/copyright alphabetical order or by

Capture •Access the “Photo” function

directly.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 81

14.5 Download new videos, photos, sounds, ...

With the “Download” option, you can access your favourite sites saved in your bookmarks list, and

download new items that you will be able to save in your Album.

14.6 Formats and compatibility

List of audio, image and video formats compatible with your telephone:

-Audio: AMR (.amr) (1); Midi (.mid); AAC (depending on the operator).

-Image: JPEG (.jpg) (2); GIF (.gif); PNG (.png); BMP (.bmp)

-Video: 3GP (.3gp) (H263 (3) + AMR (1) or MPEG-4 (4))

MP4 (.mp4) (MPEG-4 (4))

-You can convert large image and sound files using the PC software suite so that they are compatible with

your terminal.

14.7 Games & Applications

See page 92.

14.8 Memory

See page 64.

(1) AMR-NB.

(2) Except for progressive Jpeg. The telephone uses the “Independent Jpeg Group” code.

(3) H263 profile 0, level 10.

(4) MPEG-4 simple visual profile, level 0.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 82

15 Photo/Video/Panorama ..........................

Your telephone is fitted with a camera for taking photos, shooting videos and creating panoramic photos

that you can use in different ways:

-store them in your “Media Album”,

-send them in a multimedia message (MMS) to a mobile phone or an e-mail address,

-customise your main screen (see page 51),

-assign them to a contact in your directory (see page 37),

-transfer them by Infrared to your computer,

-modify your photos adding frames, stamps, etc (see page 90).

15.1 Access

To access the function from the main screen:

-press the key (landscape (1) mode),

-press the key to access the menu and select the icon (portrait mode).

If you access the camera via the menu, you will be in Portrait mode. If you access it via the key, you will

be in landscape mode.

Pressing the key will take you to a selection screen. You can change the capture mode by pressing the

key again. To confirm, either press or wait a few seconds.

(1) Depending on the operator.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 83

15.2 Photo

Access this function from the main screen by pressing the key (on

the left handside of the phone), or by going via the “Camera” menu.

15.2.1 Taking a photo

The screen acts as the viewfinder. Position the object or landscape in

the viewfinder and press or to take the picture. Avoid touching

the lens situated on the back of the phone.

15.2.2 Taking a talking photo

Liven up the photo by adding comments to it. To do so, hold down the

key or the key when taking the photo. The recording will stop

when you release the key. Press to return to the photo shot screen.

Self portrait (1): you can take a self portrait.

15.3 Video

You can choose from 2 video clip lengths:

-10 seconds that you can send by MMS,

-30 seconds that you can transfer via Infrared or e-mail.

•TAKE A PICTURE

•RECORD A VIDEO

•PANORAMA

•MY IMAGES

-General

- Photos

- Pictures

- Icons

-Frames

•MY VIDEOS

-General

- Recorded

-Crazy clips

-Video trailers

PHOTO/VIDEO

(1) Two formats are available: VGA and 128x160.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 84

Key : White balance

settings (in Framing mode)

Key : With sound /

Without sound (in Framing

mode only)

:Zoom in/out (in Framing

and in Recording modes)

:Volume (in Playing mode)

key: Starts the

recording (in Framing mode

only)

key: Stops the

recording (in Recording mode

only)

Key : Colour settings

(in Framing mode only)

IFA BILDERTEAM@Agenceimages.com

15.3.1 Framing mode

When you enter the “Video” function, you are in Framing mode. Use the telephone screen as a viewfinder

and press the “Options” softkey to set the white balance, to activate or deactivate the sound, to choose

the colour, to access the Video Album or the “Camera”, and to change the default folder.

Video settings (direct access):

Key : Adjusts

image size

Viewfinder

:Underexposure

(in Framing mode only)

:Overexposure

(in Framing mode only)

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 85

Memory space

A 10-second video clip takes about 100 kB of memory space.

15.3.2 Recording mode

Once you have chosen your settings, you can launch the recording of your video-clip by pressing the

key; a short beep is emitted.

During the recording, you can use the and keys to zoom in or out.

In Recording mode with sound, you cannot receive any calls or messages.

In Recording mode without sound, if you receive a call, recording is stopped and lost.

15.3.3 Playing mode

After recording the video sequence, press the key to play the video and choose to Save, Play, Send,

Save and send,Cancel the video, assign it (Set as) to a contact or to the Main screen, and choose a

different folder (Default folder) to save your videos.

15.4 Panorama

You can create a panoramic photo by merging a series of two or three photos. For best results, ensure that

the photos overlap slightly when creating a panoramic photo. Take the first photo, pan across, take the

second photo and repeat for the third photo. A panoramic photo can only be created in landscape mode.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 86

Key :

-Short keypress: take a photo

-Long keypress: take a photo with sound

- Exposure:

Left: underexposure

Right: overexposure

-Zoom:

: zoom in

: zoom out

: zoom in/out for landscape

Selected options bar:

photo quality

white balance

capture mode

exposure (over/under)

number of photos taken (for

mosaic)

timer

Quality:

: High - key

: Standard - key

: Economy - key

Key Capture mode (1)

: Single

: Mosaic

Key : White balance

Key : Image size:

-VGA

-XL/L/M/S

Key Colour mode: colour,

black&white or sepia

15.5 Settings (photos, videos, panorama)

15.5.1 Before taking the photo, you can adjust a number of settings.

(1) Not available in Panorama format.

key

Short keypress: access the camera

Second keypress: access selection screen

Side keys:

+: zoom in

-: zoom out

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 87

From the photo shot screen, press the “Options” softkey to access the following:

Image size

Select “Image size” in the list of options or press the key until you reach the required size: VGA

(640x480), XL (360x640), L (128x160), M (64x64) and S (32x32).

Capture mode

Select “Capture mode” in the options list or press the key to choose one from the following modes:

Single: a single photo; this is the default mode.

Mosaic: in this mode, you will get an image made up of 4 thumbnails.

Frame

Select the frame that will be placed on your photo. You will also find this option in the “Modify” function

(see page 90).

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 88

Quality

Select “Quality” in the list of options or access it directly by pressing the , , keys:

:Economy quality: memory space is optimised.

:Standard quality: compromise between size and quality,

:High quality: excellent quality to be sent to a PC,

Warning: the higher the quality, the more memory is required. For example, you may store the

following number of photos:

Format High quality Low quality

VGA 10 photos* 20 photos*

128 x 160 146 photos* 340 photos*

Timer

The photo will be taken 10 seconds after pressing . A sound will be emitted when you take a photo.

White balance

By pressing the “Options” function key, you can choose from 5 settings:

Auto: the settings adjust automatically (no icon will be displayed on your screen),

Sunny,

Cloudy,

Night: when selected, exposure time is increased for a sharper picture.

Indoor/artificial light.

*These estimations are only given as an indication for product with 1 Megabyte of memory.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 89

Colour

You can choose the colour effects. You can access this option directly from the photo shot screen by

pressing the key.

Other direct access options from the photo shot screen

Exposure: adjust the contrast of your photo with the navigation key: : underexposure, : overexposure.

Zoom (1): activate the zoom with the navigation key: : zoom in, : zoom out (portrait). For landscape,

use the keys or side keys +/-.

You can also access video, panorama, change the default folder and store your photos.

15.5.2 Options available after taking the photo

Once you have taken a photo or an animation, you can Send your photo, Save and Send your photo,

Save it, Discard it, Modify it (see below), Attach sound to it, access your Image album, or assign (Set

as) it to a contact or a main screen, etc.

Just after taking the photo, you can rotate the image with the key or reduce the image size with the

key (for certain formats).

15.5.3 Modifying images

Access the “Media Album” or the “Camera” menu (2) and select “Modify”. You can Reduce the size of

the image, Add stamp or Add frame to it. More frames are available from www.myonetouch.com

(1) Zoom is not available for VGA and XL formats.

(2) The multimedia content (melodies, images, drawings, etc.) in this telephone is for private use only, and

may not be used for commercial purposes. Violators will be subject to prosecution.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 90

15.6

This exclusive feature allows you to send an MMS with photo and sound or video with only three clicks on

the key:

Press the key to select the camera mode,

Press the key to shoot your photo or video,

Press the key to send it to “My favourite”.

Please use your camera sensibly. Respect others and observe current regulations in your country.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 91

16 Games & Applications ............................

Your Alcatel phone may include (1) some Java™ applications and games. You can also download new

applications and games to your phone from other service providers (2).

The “Games & Apps” menu allows you to manage the Java™ applications installed in your phone. It

includes three directories and one configuration folder:

General: contains all applications and games,

Games: contains the games,

Applications: contains the other applications,

Settings: contains your sound, backlighting and network settings.

16.1 Launch an application

Select the application. Press to “Launch”.

(1) Depending on your country or your operator.

(2) Requires access to WAP services (see page 74).

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 92

(1) For the availability of different WAP services, pricing and tariffs, contact your network operator and

/or the WAP service provider.

16.2 Available options

Launch •Launch the application.

Information •This option gives information on the application.

Download •Download an application.

Delete •Deletes the application. If you delete a pre-installed application in your phone, you

may, depending on the application:

-download it again from the www.tcl-ta.com server.

-download it again from your operator’s Website. Contact your operator for further

information.

However, some applications cannot be re-downloaded.

Classify •Classify in “Games” or “Applications”.

16.3 Download an application

You can download new Java™ applications in 2 ways:

-Either, in the “Games & Apps” menu by selecting the “Downld” softkey. The list of available WAP

bookmarks dedicated to the application download will then be displayed. Select the appropriate

bookmark to go to the desired WAP page.

You can download a Java™ application only if the WAP profile is activated (1) (see page 74).

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 93

-Or, from the main screen by selecting “WAP” then “Bookmarks” and choosing “My One Touch”.

The downloaded applications can be saved either in the Games folder or Application folder.

16.4 Java™ Push

Depending on your server/operator, you may receive Java™ Push messages inviting you to launch new

applications they propose.

16.5 Settings

-Sound Switch sound ON/OFF for all applications.

-Backlight Activate or deactivate the backlight.

-Network List of network profiles available for Games & Applications. This list comprises the current

access WAP profiles and specific profiles for Games & Applications. To select a profile, go to the list,

press and select “Confirm”. To modify a specific profile for Games & Applications, go to

the list, press and select “Modify”. To create a profile, go to the list, press and select

“Create”. For the options available, see page 74.

-Memory View memory available. Applications use shared memory (see page 64).

While an application is running

-Short keypress on : pause

-Hold down the key: exit the application

Authorisation for network access: some applications require network access or the sending of an SMS. In

this case, select the authorisation profile required with the navigation key , press then validate the

selection then press “Confirm” to validate everything.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 94

Disclaimer

Downloading or running applications will not damage or alter any software already in your mobile telephone

designed to support Java™ technology. T&A Mobile Phones Limited and its affiliates waive any responsibility

and refuse to guarantee applications that are subsequently used, as well as for all applications not embedded

in the handset upon purchase. The purchaser alone bears the risk of loss, damage or defect of the handset,

or of applications/software, and generally of any damage or consequence resulting from the use of the said

applications/software. In the event the said applications/software, or the subsequent setup of any function

are lost due to technical reasons if the handset is replaced/repaired, the mobile phone owner should repeat

the operation and download or set up again. T&A Mobile Phones Limited and its affiliates grant no guarantee

and disclaim any responsibility if the operation cannot be repeated or cannot be performed without

incurring additional costs.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 95

17 Making the most of your mobile................

17.1 “My One Touch” services by T&A Mobile Phones

On the website you will find all the services available to make the most of your mobile telephone.

Go to “www.tcl-ta.com” or simply choose the “My One Touch” option in your mobile telephone.

Access this by selecting “Services” or “My Settings/Ringtones” or “Media Album/My

Images/Download” from the main menu.

17.2 Alcatel PC suite

Depending on your model, your packaging box may contain a PC suite. Otherwise, you can download it for

free from the website. The PC suite includes:

-Multimedia Studio:

•customise your mobile with sounds, melodies, images, animations and videos.

•transfer to your PC the photos and videos taken with your camera.

-One Touch Sync:

•synchronise your mobile phone with: MS Outlook 98 / 2000 / 2002 / 2003, Outlook Express 5.0 / 6.0,

Lotus Notes 4.6 / 5.0 / 6.0 / 6.5, Lotus Organiser 5.0 / 6.0

-Data Connection Wizard:

•use your mobile phone to connect your PC to the internet.

Supported Operating Systems

-Windows 2000 with Service Pack 4 (SP4) or later

-Windows XP with Service Pack 1 (SP1) or later

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 96

18 Latin input mode/character table (1) ..........

To write messages or an e-mail, there are two writing methods:

•Normal

•Predictive with the T9 mode

Normal

This mode allows you to type a text by choosing a letter or a sequence of characters associated with a key.

Press the key several times until the desired letter is highlighted.

When you release the key the highlight character is inserted into the text.

Messages

Tomor

(1) For specific languages as Chinese, please see specific input leaflets.

Options Back

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 97

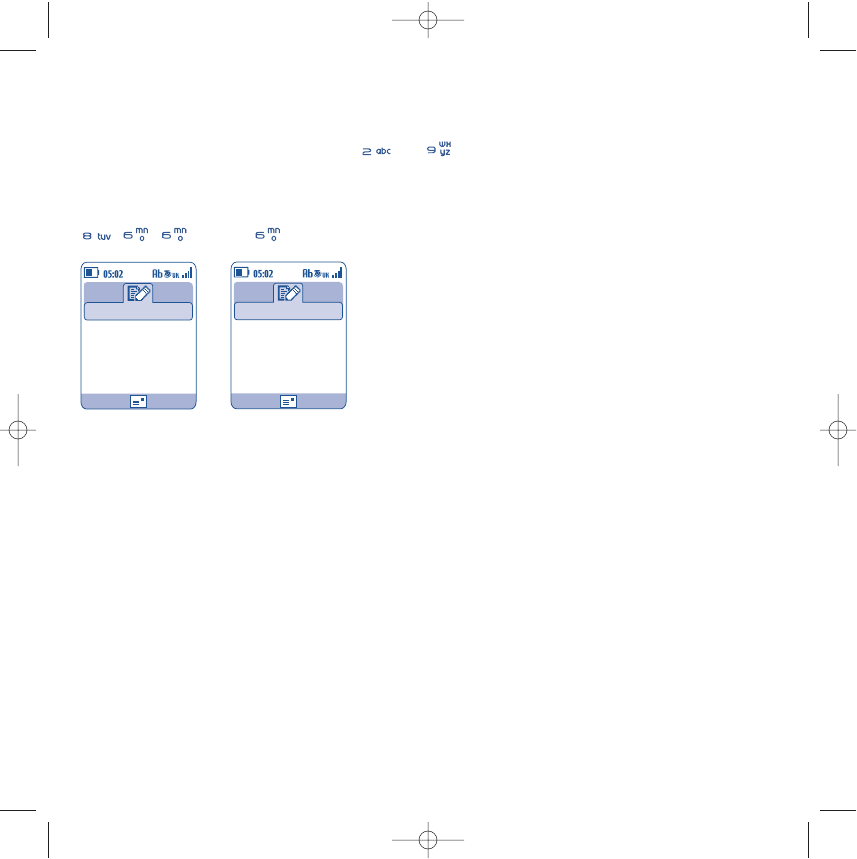

Predictive T9 mode

This mode speeds up the writing of your text.

Write the word by pressing a key between and . Press the key once and the word will be modified

each time you press a key. As you go on, the word will keep changing.

Example: For “Tomorrow”, press on the following keys:

, , = Too -> -> tomorrow

Messages

Tomor

Messages

Tomorrow

Options Back

By pressing the “Options” softkey, you can access the following options at any time: switch between

normal/predictive/T9 modes (“Normal/Predictive”), access the symbols (“Symbols”), access the digits

(“Add numbers”), launch T9 help (“T9 Help”), view the list of the available languages (“Languages”),

add a word to the user database (“My words”), complete the word or not (“End word ON/OFF”) and

complete the sentence or not (“End phrase”).

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 98

Navigation key:

-RIGHT/LEFT: Validate the word

-UP: Previous word

-DOWN: Next word

key

-Short press: insert a Smart punctuation as , - ‘

-Long press: insert 1

Keypad

-Short press: alpha input (a, b)

-Long press: numeric input (1, 2, 3)

key

-Short press: switch the current mode into:

Ab -> AB -> ab

-Switch from T9 predictive mode to Normal

mode

-Long press: access the Symbols table

key

-Short press: DELETE character by character

-Long press: DELETE the entire word

key

-Short press: Valid the displayed word in

predictive mode and/or insert a space

-Long press: Add word

key

-Short press: Access the language list

-Long press: Enter zero

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 99

100

This character table is generic. All available characters are not displayed. The candidate letters may vary

according to the languages.

Symbol table

Hold down the key to display the symbols table; the cursor is positioned in the centre. Use the

navigation key to move it.

Symbols table

Select Back

Latin uppercase Latin lower case

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 100

101

19Telephone warranty ....................................

Congratulations on choosing this mobile phone. We hope that you will be completely satisfied with it.

Your phone is guaranteed against any deviation from technical specifications for a period of twelve (12) months from the

date specified on your original invoice (1).

The warranty terms defined in the manual also apply to the battery and accessories but for a period of six (6) months (2)

from the date of purchase shown on your original invoice.

Under the terms of this warranty, you must inform your vendor (or any maintenance centre approved by T&A Mobile

Phones Limited or its affiliates, which are listed on our website www.tcl-ta.com) without delay, of any defect and present

the invoice given to you at the time of purchase. The vendor or maintenance centre will decide whether to replace or

repair, as appropriate, all or any part of the telephone or accessory found to be defective; this warranty covers the cost of

parts and labour but excludes any other costs. Repair or replacement may be carried out using reconditioned components

offering equivalent functionality.

Servicing under the terms of this warranty, especially repair, modification or replacement of products, shall entitle to a

THREE (3) month warranty unless there are statutory provisions to the contrary.

This warranty shall not apply to damage or defects to your telephone and/or accessory caused by:

1) failure to follow the instructions for use or installation,

2) failure to comply with technical and safety standards applicable in the geographical area where the equipment is used,

3) improper maintenance of batteries and other sources of energy, and of the overall electric installation,

4) accidents or consequences of theft of the vehicle in which the telephone is transported, acts of vandalism, lightning, fire,

humidity, infiltration of liquids, inclement weather,

5) connecting or integrating the phone into equipment not supplied or not recommended by T&A Mobile Phones Limited

or its affiliates, without their express written consent for such,

(1) The warranty period may vary if overriding statutory provisions are applicable in your country.

(2) The life of a rechargeable Alcatel telephone battery in terms of conversation time, standby time, and

total service life, will depend on the conditions of use and network configuration. Batteries being

considered expendable supplies, the specifications state that you should obtain optimal performance

for your Alcatel phone during the first six months after purchase and for approximately 200 more

recharges.

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 101

6) any servicing, modification or repair performed by individuals not authorised by T&A Mobile Phones Limited or its

affiliates, the vendor or the approved maintenance centre.

7) use of the equipment for a purpose other than that for which it was designed

8) normal wear

9) malfunctions caused by external causes (e.g., radio interference from other equipment, power or telephone line voltage

fluctuations)

10)modifications made to the equipment even if required by changes in regulations and/or modification of network

parameters

11)faulty connections resulting from unsatisfactory radio transmission or caused by the absence of radio relay coverage.

Equipment on which markings or serial numbers have been removed or altered, and handsets on which labels have been

removed or deteriorated shall be excluded from the warranty.

In accordance with the applicable law, T&A Mobile Phones Limited or its affiliates guarantee your product against hidden

defects (defects inherent in the design, manufacture, etc.).

The above provisions constitute the only claims enforceable against the manufacturer and vendor in the event of defects in

the phone or accessory.

There are no express warranties, whether written or oral, other than this printed limited warranty .All implied warranties,

including without limitation the implied warranties of merchantability or fitness for a particular purpose, are limited to the

duration of this limited warranty. In no event shall T&A Mobile Phones Limited or its affiliates be liable for incidental or

consequential damages of any nature whatsoever, including but not limited to loss of profits, commercial loss, to the full

extent those damages can be disclaimed by law. Some countries/states do not allow the exclusion or limitation of incidental

or consequential damages, or limitation of the duration of implied warranties, so the preceding limitations or exclusions

may not apply to you.

102

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 102

20Accessories (1) ................................................

The latest generation of Alcatel GSM mobile phones offers a built-in handsfree feature that allows you to

use the telephone from a distance, placed on a table for example. For those who prefer to keep their

conversations confidential, an earpiece is also available known as the headset.

103

Battery

BC-10744

Cigar lighter charger

C56

Basic car kit

MP79

Universal car craddle

CC-11161

(1) Depending on availability.

Only use your telephone with Alcatel batteries, chargers and accessories compatible with your

model.

Multi-voltage charger

C58XX

Single-voltage charger

C55XX

Headset

M13

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 103

104

21Troubleshooting ..........................................

Before contacting the aftersales department, you are advised to follow the instructions below:

•You are advised to switch off the telephone from time to time to optimise its performance.

•You are advised to fully charge the battery ( ) for optimal operation.

•Avoid storing large amounts of data in your telephone as this may affect the performance of your telephone.

and carry out the following checks:

My mobile phone will not switch on

•Press until the screen comes on

•Check the battery charge level

•Check the battery contacts, remove and reinstall your battery, then turn your telephone back on

My phone has not responded for several minutes

•Press the key

•Remove the battery and re-insert it, then switch the phone back on

My screen is difficult to read

•Clean your screen

•Use your mobile phone in accordance with the recommended conditions of use

My mobile phone turns off by itself

•Check that your keypad is locked when you are not using your mobile phone

•Check the battery charge level

My mobile phone has a low level of autonomy

•Make sure you respected the complete charge timing (minimum 3 hours)

•After a partial charge, the battery level indicator may not be exact. Wait for at least 20 minutes after removing the charger

to obtain an exact indication

My mobile phone will not charge properly

•Make sure that your battery is not completely discharged; the battery charge indicator can take several minutes and may

be accompanied by a quiet whistling sound

•Make sure charging is carried out under normal conditions (0°C +40°C)

•Make sure your battery is inserted. It must be inserted before plugging in the charger

•Make sure you are using an Alcatel battery and charger

•When abroad, check that the electrical current is compatible

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 104

My mobile phone will not connect to a network

•Try connecting in another location

•Verify the network coverage with your operator

•Check with your operator that your SIM card is valid

•Try selecting the available network(s) manually (see page 59)

•Try connecting at a later time if the network is overloaded

SIM card error

•Make sure the SIM card has been correctly inserted (see page 15)

•Verify with your operator that your SIM card is 3V compatible; the old 5V SIM cards cannot be used

•Make sure the chip on your SIM card is not damaged or scratched

Unable to make outgoing calls

•Make sure you have dialled a valid number and press the key

•For international calls, check the country and area codes

•Make sure your mobile phone is connected to a network, and that the network is not overloaded or unavailable

•Check your subscription status with your operator (credit, SIM card valid, etc.)

•Make sure you have not barred outgoing calls (see page 27)

Unable to receive incoming calls

•Make sure your mobile phone is switched on and connected to a network (check for overloaded or unavailable network)

•Check your subscription status with your operator (credit, SIM card valid, etc.)

•Make sure you have not forwarded incoming calls (see page 27)

•Make sure that you have not barred certain calls

The caller’s name does not appear when a call is received

•Check that you have subscribed to this service with your operator

•Your caller has concealed his/her number

The sound quality of the calls is not optimal

•You can adjust the volume during a call by means of the key

•Check the radio reception icon level

I am unable to use the features described in the manual

•Check with your operator to make sure that your subscription includes this service

•Make sure this feature does not require an Alcatel accessory

105

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 105

When I select a number from my directory, the number is not dialled

•Make sure that you have correctly recorded the number in your file

•Make sure that you have selected the country prefix when calling a foreign country

I am unable to create a file in my directory

•Make sure that your SIM card directory is not full; delete some files or save the files in the product directory (i.e. your

professional or personal directories)

•Check the “Call barring” option for “Incoming calls” to be sure that the “Except SIM Dir.” feature is not activated

My callers are unable to leave messages on my voicemail

•Contact your network operator to check service availability

I cannot access my voicemail

•Make sure your operator’s voicemail number is correctly entered in “My Numbers”

•Try later if the network is busy

I am unable to send and receive messages MMS,Vox MMS

•Check your phone memory available as it might be full

•Contact your network operator to check service availability and check MMS parameters (see page 44)

•Verify the server centre number or your MMS profile with your operator

•The server centre may be saturated; try again later

The icon is displayed on my standby screen

•You have saved too many short messages on your SIM card; delete some of them or archive them in the product memory

The << - >> icon is displayed

•You are outside of the network coverage area

I have already entered 3 incorrect PIN codes

•Contact your network operator to obtain the PUK code (Personal Unblocking Key)

I am unable to connect my telephone to my computer

•Install first of all Alcatel’s PC suite

•Use “Install the connection” and perform the installation

•If you use the infrared port, check that it is correctly activated (see page 65)

•If you use infrared often, we advise you to set a quick access to it from the keypad (see page 55)

•Check that your computer meets the requirements for Alcatel’s PC Suite installation

106

E5LIQUID_UM_USA_21-03-06 21/03/06 8:48 Page 106

English - 3DS12052AAAA 01

Alcatel logo and Alcatel name are trademarks of Alcatel used

under license by T&A Mobile Phones Limited.

Limited.

T&A Mobile Phones Limited reserves the right,

in the customer’s interest, to alter material or

technical specification without prior notice.
