TCT Mobile 146 HSUPA USB Modem User Manual Manual

TCT Mobile Limited HSUPA USB Modem Manual

Manual

User Manual

Table of Contents

Safety and Use...............................................................................................................2

Installation Guide ..........................................................................................................4

Main Interface Overview.............................................................................................4

Entrance to Main Interface.........................................................................................5

Connect to Internet......................................................................................................6

SMS Services (Text Message).......................................................................................7

Contacts.........................................................................................................................8

Settings............................................................................................................................9

Warranty .......................................................................................................................12

FAQs...............................................................................................................................13

Installation Guide for Mac.........................................................................................14

Safety and Use

We recommend that you read this chapter carefully before using the

modem. The manufacturer disclaims any liability for damage, which

may result as a consequence of improper use of the modem or of use

contrary to the instructions contained herein.

Traffic Safety

When driving, do not use the modem

 When switched on, the modem emits electromagnetic waves that

can interfere with the vehicle’s electronic systems such as ABS

anti-lock brakes or airbags. To ensure that there is no problem;

please do not place the modem on top of the dashboard or within

an airbag deployment area.

 Check with your car dealer or the car manufacturer to make sure

that the dashboard is adequately shielded from modem RF energy.

Conditions of Use

1. Switch the modem off before boarding an aircraft.

2. Switch the modem off when you are in health care facilities, except

in designated areas. As with many other types of equipment now in

regular use, mobile telemodems can interfere with other electrical

or electronic devices, or equipment-using radio frequencies.

3. Switch the modem off when you are near gas or flammable liquids.

Strictly obey all signs and instructions posted in a fuel depot, petrol

station, chemical plant, or in any potentially explosive atmosphere.

4. When the modem is switched on, it should be kept at least 15 cm

from any medical device such as a pacemaker, a hearing aid or

insulin pump, etc.

5. Do not let children use the modem without supervision. The modem

may contain small parts that could become detached and create

a choking hazard.

6. When replacing the cover, please note that the modem may

contain substances that could create an allergic reaction.

7. Always handle the modem with care and keep it in a clean and

dust-free place.

 Do not open, dismantle or attempt to repair the modem yourself.

 Do not drop, throw or bend the modem.

 Do not paint the modem.

Collection Point:

This symbol on the modem means that it must be taken to

collection points at the end of their life:

 Municipal waste disposal centers with specific bins for these items of

equipment

Collection bins at points of sale.

 They will then be recycled, preventing substances being disposed

of in the environment, so that their components can be reused.

In European Union countries:

These collection points are accessible free of charge.

All products with this symbol must be brought to these collection points.

In non European Union jurisdictions:

Items of equipment with this symbol are not to be thrown into ordinary

bins if your jurisdiction or your region has suitable recycling and

collection facilities; instead they are to be taken to collection points for

them to be recycled.

In the United States, please visit www.recyclewirelessphones.org for

more information on recycling wireless products.

Protection against theft

The modem is identified by an IMEI (modem serial number) shown on

the packaging label and in the modem’s dashboard. We recommend

that you note the number the first time you use the modem by opening

the dashboard “Settings” > “Diagnostics” to get it.

Disclaimer

There may be certain differences between the user manual description

and the modem’s operation, depending on the software release of the

modem or specific operator services.

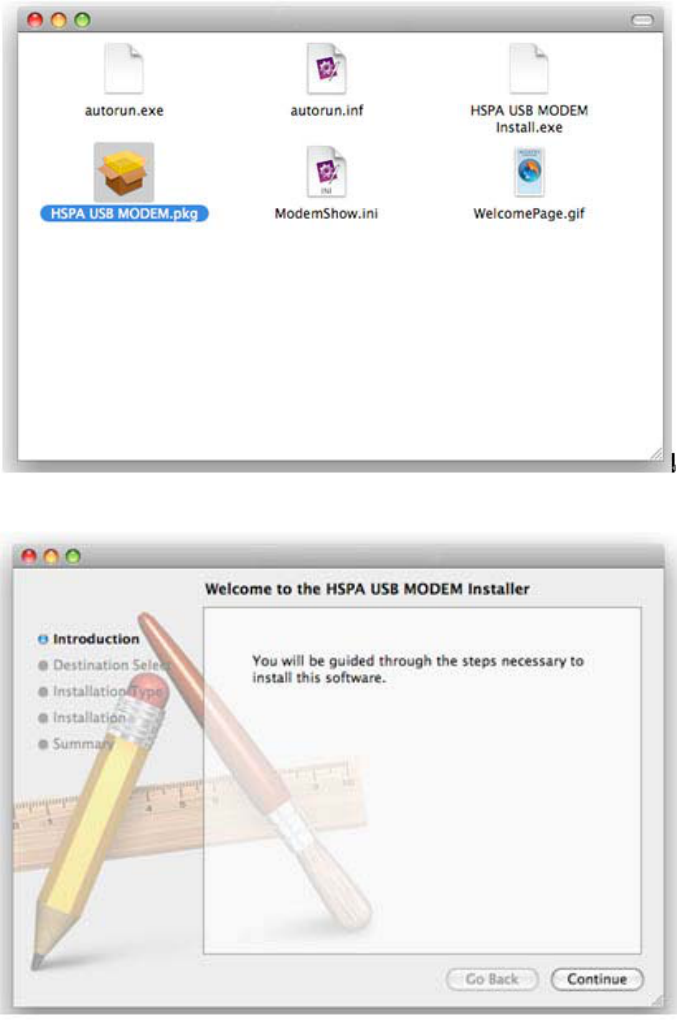

Installation Guide

Installation procedures may vary based on the operating system

installed on your PC. The following instructions are based on the

Windows XP OS:

Turn on your PC and plug the modem into the USB interface slot to

begin software installation. Windows should automatically detect the

new device and will prompt you to begin installation.

After following the prompts of installation setup, upon completion, a

shortcut will be placed on your desktop for quick future access.

Note:

1. If installation “auto-run” does not begin, you will need to locate the

“autoRun.exe)” file in the driver path, and Double-Click on

AutoRun.exe to run the installation manually.

2. A Micro-SD card is an optional accessory

3. Please do not remove the USIM/SIM card and or the Micro-SD card

when the modem is in use.

Upon successful installation of the HSPA management program, the

program will launch automatically. You may also double-click the short

cut icon on the desktop to launch the program.

Main Interface Overview

Following table are listed Short Cut Icons in PC Suite Interface.

Interface Icons Provided Services

Home Home Page (Click on <Connect> icon from the

main window to connect/disconnect from the

Internet)

Contacts Display The Phones Book Interface

SMS Display The Text Message Interface

Browser Launch the OS default internet browser

Settings Display the Settings manual

Following table are listed the Icons of status bar information

Connection Statistics Icon

Description

Network Signal Indicates the signal strength of the network

Network Status Indicates the network status. This will display the

operator name which the modem can find the

network. Or show the modem haven’t ready.< No

(U)SIM> or <NO Device>

Network Type Display in the status bar, to show you which

network you are using (GPRS / EDGE/ UMTS or

HSPA)

Roaming Roaming Icon “ ”, when the network is under

roaming.

New Message Display the SMS status including new SMS/SIM card

memory is full/Data Card memory is full.

Network Connecting Connecting Icon “ “display in the status bar,

when the network is connected into internet

network. .

Following table are listed the LED Indicates for each status.

LED Indicator Desctiption

Flashing Green & Red multicolour

circularly

Network Searching

Quickly Flashing Green & Red multicolour

circularly

Out of order

Green Light Slow Flashing Registering into HSPA or UMTS network

Constant Green Light Registered to HSPA or UMTS network

Red Light Slow Flashing Registering into GPRS or EDGE network

Constant Red Light Registered to GPRS or EDGE network

Entrance to Main Interface

The application runs automatically and the main window will pop up

when the modem will be connected. You can also access and run the

application from the <Start> menu.

If the PIN code is enabled, please enter the correct PIN code in the

entry field, and click on <OK>. You may try only 3 times to enter the

correct PIN code; after three incorrect attempts, the USIM or SIM card

will be blocked.

A PUK dialog box will then be displayed asking you to enter the right

PUK code, PIN Code and Confirmed PIN. Click on <OK> if you fail to

input the correct PUK code after 10 attempts, you will need to contact

your service provider.

If the PUK and PIN code is correct, the application will be launched and

all features are enabled

Connect to Internet

1. Connecting with the default logon profile

If you want to connect to the Internet without setting any user-defined

or predefined profiles, press icon of “connect”. The default connection

profile will be used in accordance with your USIM/SIM card.

Connecting

y Click on <Connect> from the home page;

y Wait several seconds until the connection is established;

y Once you are connected, Icon of <Connect> will change into

<Disconnect>.

Disconnecting

Click on Icon of <Disconnect> from the home page to disconnect from

the Internet.

2. Connecting with a user-defined logon profile

Click on settle icon and select the <Connection Profile…> menu to

open the profile setting window.

Adding a new connection profile

Click on <Settings> and select the connect Profile to add a new

connection

y If <ADD> is selected, the new connection profile windows will pop

up.

y Please enter the info of requested;

y Account (Connection Naming), Number, APN, User Name,

password and final choice which Auth Type you are using by

manually;

y Click <OK>

y Please select you preferred network and click on <Activate> to

default your connection setting.

Note：Users may obtain Number, APN Code, User Name, Password and

Auth type information from networks provider.

SMS Services (Text Message)

Click SMS icon from the main interface of the PC suite to access the SMS

service.

1. Displaying the received SMS

When a new message is received, a message box appears in the status

bar. .

y Click the content of the chosen message. You may also display

the content on the message window.

Note: Received SMS will be saved your modem. If the modem Memory

is full, the message will saved on USIM/SIM

2. New SMS

y Click on <New> in the shortcut menu bar. An SMS creation window

will pop up;

y Enter the text.

3. Send

(1) You may enter a recipient’s number in 3 ways:

y Enter the number directly. If there are two or more recipients, use

“;” to separate each;

y Enter the name of a recipient saved in the phonebook;

y Click Icon of SMS in the pop up the window to access the

recipient’s selection window. Select one party, or more (using the

ctrl/shift key), and the click on <OK> to add the chosen party (ies)

to the recipient list.

(2) Click on <Send> to send the message. If the message is not sent, it

will be saved in the Outbox.

4. Reply

y Select a message in the inbox and then click on <Reply> in the

shortcut menu bar;

y The recipient’s / number will appear. It can now be modified;

y Enter the reply in input field, and then click on <Send>.

5. Forward

y Select a message and then click on <Forward> in the shortcut menu

bar;

y The content of the selected message will appear in the input field. It

can now be modified;

y Enter the recipient’s number and then click on <Send>.

6. Edit

y Access the draft list to select a message, and open it by

double-clicking on it;

y Click on <Save> or <Send> when you have finished editing.

7. Delete

y Select a message, or several messages (using the ctrl/shift key);

y Click on <Delete> in the tool bar. A dialog box will ask “Are you sure

to delete the message(s)?”

y Click on <OK> and the SMS will be deleted. Once deleted, SMS

messages cannot be restored.

8. Resend

y Access the Outbox to select a message or several messages (using

the ctrl/shift key);

y Click on <Resend> in the tool bar;

y The application will resend the unsent/sent message(s).

9. Export

y Select a message or several messages (using the ctrl/shift key) in the

current list;

y Then right click mouse, to export SMS to the chosen location and

saved as a *.txt file.

Contacts

Click contacts from the main interface of PC suite to access the

contacts management.

The contacts list column contains: (U) SIM /Modem /Computer. Your

can use contacts stored either on the (U) SIM, modem or on computer

in the corresponding window.

1. New

y Select <New> from the tool bar to access the contacts editor;

y Enter the relevant information, and press <OK>; the new contact will

appear in the current contact list.

2. Edit

y Select a contact and access the contact editor by selecting <Edit>

from the tool bar or by double-clicking on the contact;

y Modify the relevant contact information, and select <OK> to save

the changes.

3. Delete

y Select one contact, or more (using the ctrl/shift key);

y Click on <Delete> from the tool bar. A dialog box will ask “Are you

sure to delete the contacts?”

y Click on <OK> and the contact(s) will be deleted; deleted contacts

will not be restored.

4. Send SMS

y Select one contact or more (using ctrl/shift key);

y Click on <Send SMS> in the tool bar;

y When the message is completed, you may send it by clicking on

<Send>.

5. Copy to (U) SIM card/Modem/Computer

y Select one contact, or more (using ctrl/shift key) stored in the same

memory;

y Right-Click your mouse pointer, if selected <Copy to> in the manual

and select a target memory different from the memory being used;

y Contact(s) will be copied to the target memory.

Settings

Click on settings icon from the main interface of PC Suite. A menu with

various settings will appear.

1. Network select

y Select <Network selection> in the Settings menu. The default setting

is<Auto>;

y Click on<Manual…> to activate the network list window;

y A list of networks appears when the search is complete;

y Click <Search> an available network from the list of available

operators and click on <Select>. It will register the selected network.

2. Network mode

y Select <Network mode> in Settings menu. The default setting is

<Auto>;

y Click on the mode which you prefer, it will search and register the

network mode which was chosen at next time of device

connection.

3. Network Band (This function is depend on product)

y Select <Network band> in Settings menu. The default setting is

<Auto>;

y Click on the band which you prefer, it will search and register the

network band which was chosen at next time of device

connection.

4. SMS settings

Choose <SMS settings> in the Settings menu to access the SMS settings

window.

a. Service Center: The default number is found in the (U)SIM card. You

may change it.

b. Validity period:- You can choose between: 6 hours/1 day/1 week.

c. Message Alert - Click to validate the message alert sound.

5. Connection profile settings

Select<Connection profile…> in the Settings menu to access the

connection profile setting window.

<ADD>

Adding a new connection profile

Click on <Settings> and select the connect Profile to add a new

connection

y If <ADD> is selected, the new connection profile windows will pop

up.

y Please enter the info of requested;

y Account (Connection Naming), Number, APN, User Name,

password and final choice which Auth Type you are using by

manually;

y Click <OK>

y Please select you preferred network and click on <Activate> to

default your connection setting.

y Select an item in the connection profile list;

y Click on <Delete> on the keyboard. You will be asked if you “Are

sure you delete”;

y Choose <OK> to delete the profile from the list.

y Select an item in the connection profile list;

y Click on <Modify> to access the profile edit window;

y Modify the parameters and click on <OK> to save the modification.

y Select an item in the connection profile list;

y Click on <Deactivate> to release default setting

6. System settings

Click to validate the sound prompt when the Internet will be

connected/ disconnected.

7. Request PIN

y Click on the <Request PIN> menu and select <Enable/Disable PIN>.

Activate the PIN input dialog box;

y Select <Enable PIN> and Enter the correct PIN code;

y Click on <OK>.

8. Change PIN

y Click on <Change PIN>, and activate the PIN modify dialog box;

y Input the old PIN and the new PIN, then confirm;

y Click on <OK> to confirm the new PIN code

Note: You can only access the modify menu if the PIN is enabled.

9. Unlock (U) SIM Card

Click on <(U)SIM Unlock>, and activate the code which is requested in

dialog box to unlock this function, Then click on <OK> to confirm;

Note: All about code is supplied by your network provider (except PIN

Code).

10. Diagnostics Statistic

y This menu is used to display the diagnostic information, including:

y Model Information: Modem Name/ Firmware version/IMEI/IMSI

y Operator Information: PIN code status/Network code/Network

selection mode/ Network mode/Signal strength.

y Network Status: CS network registration/PS network registration/PS

network attachment

11. About

You can get information on the version in the <About> menu.

12. Help

When the application is open, you can read the instructions about the

Modem

Warranty

• The modem is warranted against any deviation from technical

specifications for a period of twelve (12) months from the date

specified on your original invoice1.

• Under the terms of this warranty, you must immediately inform your

vendor in case of a conformity defect on the modem, and present a

proof purchase;

• The vendor or repair centre will decide whether to replace or repair,

as appropriate the modem;

• Repaired or replaced modems are warranted ONE (1) month unless

there are statutory provisions to the contrary.

• This warranty shall not apply to damage or defects to the modem

due to:

1) not following of the instructions for use or installation,

2) not being compliant with technical and safety standards

applicable in the geographical area where the your modem is

used,

3) improper maintenance of sources of energy, and of the overall

electric installation,

4) accidents or consequences of theft of the vehicle in which the

modem is transported, acts of vandalism, lightning, fire, humidity,

infiltration of liquids, inclement weather,

5) connecting to or integrating into the modem any equipment not

supplied or not recommended by the manufacturer,:

6) any servicing, modification or repair performed by individuals not

authorised the manufacture, the vendor or the approved

maintenance centre,

7) use of the modem for a purpose other than that for which it was

designed,

8) normal wear,

9) malfunctions caused by external causes (e.g., radio interference

from other equipment, power voltage fluctuations),

10) faulty connections resulting from unsatisfactory radio transmission or

1 The mandatory warranty period may vary if overriding statutory provisions are applicable in your jurisdiction

caused by the absence of radio relay coverage.

• Warranty is also excluded for the modem on which markings or serial

numbers have been removed or altered.

• The modem is also warranted against hidden defects (defects

inherent in the design, manufacture, etc.).

• There are other express warranties than this printed limited warranty,

express or implied, of any nature whatsoever.

• In no event shall the manufacturer be liable for incidental or

consequential damages of any nature whatsoever, including but

not limited to trading loss, commercial loss, to the full extent those

damages can be disclaimed by law. Some countries/states do not

allow the exclusion or limitation of incidental or consequential

damages, or limitation of the duration of implied warranties, so the

preceding limitations or exclusions may not apply to you.

FAQs

1. Q: Which operation systems does the software support?

A: It supports Windows 2000, Windows XP, Windows Vista, Windows 7

and Mac OS.

2. Q: I cannot install the driver

A: On some PCs, installation of the modem may take a long time

because of the PC configuration. So please wait and do not

cancel the process or you will have to uninstall and re-install

again.

3. Q: What should I do if the main interface continues to display

“Searching device”<”Initializing”>?

A: Please remove the modem and reinsert it.

4. Q: What should I do if the SIM/USUM card is unplugged during the

application?

A: Please disconnect the modem first, and then restart the

application.

5. Q: The SIM/USIM card does not register any networks

A: The reasons are shown below:

1. Unstable local signal;

2. The software is an old version;

3. Hardware problem.

You may:

1. Try to logon from another location;

2. Update the software;

3. Check the hardware or use another data card and retry.

6. Q: Why does the prompt “ No available connection profile. Please

set an available default one in connection profile.”appear?

A: Please add a connection profile manually.

7. Q: It failed to connect to the internet

A: Please make sure the connection profile and settings are correct.

8. Q: The connection speed and data transfer rates are too slow

A: Please check the local network signal strength.

9. Q: Sending an SMS failed

A: Please make sure the SMS center number is correct.

10. Q: I cannot receive an SMS

A: Please check whether your SIM/USIM card’s memory is full.

11. Q: Why can I only save part of the name when adding a new

contact?

A: The SIM/USIM card can only hold 12 SBC characters, and 6 DBC

characters.

12. Q: Does it support roaming?

A: This depends on the local operator. Please check with your local

operator or service provider.

Installation Guide for Mac

This manual describes the operations of the connect application.

This application requires MAC OS X10.4.9 or later.

1. To install the MODEM connect application on MAC OS X. Please

double-click the file HSPA USB MODEM.pkg

2. Click Continue

3. Select the MAC OS volume to install the application and click

“Continue Installation”

4. When the installation is finished, you will see the following window,

you need to restart your computer to use the modem.

5. Clicking Application>HSPA USB MODEM to start the connect

application. You may install this application in the Dock to access it

faster.

FCCRFExposurerequirements:

The highest SAR value reported under this standard during product certification for use next to the

body is 0.749 W/kg. USB dongle transmitter is approved for use in typical laptop computers. To

comply with FCC RF exposure requirements, it should not be used in other devices or certain

laptop and tablet computer configurations where the USB connectors on the host computer are

unable to provide or ensure the necessary operating configurations intended for the device and its

users or bystanders to satisfy RF exposure compliance requirements.

USB dongle transmitter is approved for use in typical laptop computers. To comply with FCC

RF exposure requirements, this USB dongle should not be used in other devices or certain laptop

and tablet computer configurations where the USB connectors on the host computer are unable to

provide or ensure the necessary operating configurations intended for the device and its users or

bystanders to satisfy RF exposure compliance requirements.

This device complies with part 15 of the FCC rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

NOTE: The manufacturer is not responsible for any radio or TV interference caused by

unauthorized modifications to this equipment. Such modifications could void the user’s authority

to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates

uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more

of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

-Consult the dealer or an experienced radio/TV technician for help

Alcatel is a trademarks of Alcatel-Lucent used under license by TCT mobile Limited.

TCT Mobile Limited reserves the right in the customer’s interest to alter material or technical

specification without prior notice.

TCT Mobile 146 HSUPA USB Modem User Manual Manual

TCT Mobile Limited HSUPA USB Modem Manual

Manual

Navigation menu

Namespaces

Views

Navigation
