TCT Mobile 261 Quad-Band GSM Mobile Phone User Manual
TCT Mobile Limited Quad-Band GSM Mobile Phone
User Manual
1

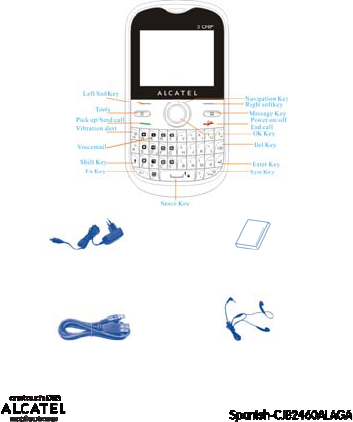

1 Your Phone ..........................................
Standard charger
S003KV0500040
（CBA3120AA0C2）
Battery
（CAB31L0002C1）
USB cable
（CDA3122002C2）
Headset
（CCB3160A10C0）
2
The figure above shows the appearance of your phone and is provided only for your reference.
1.1 Keys
Power on or power off the phone (Long keypress)
End or reject a call
Return to the standby mode
Left softkey
Right softkey
Access Tools function in standby mode
Access Write message in standby mode
Navigation Key
Confirm an option (Press the middle of the key)
Select the shortcut functions list on the screen (Press the left or right key)
Adjust volume during a call (Press Navigation Key)
Make a call from the SIM1, SIM2, or SIM3 card in standby mode
Answer a call
View dialed calls of SIM1, SIM2, and SIM3 cards in standby mode
3
Access your voice mail(Long keypress)
In Idle Screen:
Long/short keypress: Lock/Unlock the keypad
In edit mode:
Short keypress: input space
Long keypress: switch language
Fn key + Space: switch input mode
1.2 Main Screen Icons
Level of network reception
Battery charge level
Bluetooth status
Headset connected to the phone
Keypad locked
Call forwarding activated
New text messages
New MMS
Missed calls
Reject calls
Alarm clock
Silent profile activated
Indoor profile activated
Meeting profile activated
4
Outdoor profile activated
MicroSD card inserted.
2 Getting Started....................................
2.1 Installing SIM Cards and the Battery
You can install three Subscriber Identification Module (SIM) cards in the phone at the
same time. When inserting a SIM card, ensure that the golden contact area on the SIM
card is facing downward and that the beveled edge of the SIM card is properly aligned
with that of the SIM card slot.
2.2 Removing the Battery and the SIM Card
Before removing the battery and the SIM cards, ensure that your phone is powered off.
5
2.3 Installing a microSD Card
You can install a microSD card to expand the memory capacity of your phone. When
inserting the microSD card, ensure that the golden contact area on the microSD card is
facing downward.
2.4 Charging the Battery
To charge the battery, do the following:
Connect the smaller end of the USB cable (should be shielded cable) to the charger jack of
the phone and the larger end to the charger.
Connect the charger to a power socket.
Wait until the battery is fully charged.
During the charging, the charging icon is displayed in animation. When the charging icon
becomes static, it indicates that the battery is fully charged.
Disconnect the charger from the power socket and then from the phone.
6
2.5 Working with the Main Menu
1. In standby mode, press (Menu) to access the main menu.
2. Press to scroll to the desired submenu, and then press or (OK)
to access the submenu.
3. Press to scroll to an option, and then press or (OK) to access the
option.
4. Press (Back) to return to the previous menu.
To return to the standby mode, press .
2.6 Accessing a Shortcut Menu
1. In standby mode, press to scroll to the desired shortcut menu.
2. Press to access the menu.
2.7 Phone Lock
The phone lock protects your phone from unauthorized use. By default, the phone lock is
disabled. Once the phone lock is enabled, you are required to enter the phone code each
time you power on the phone.
To enable the phone lock, do the following:
1. Select Menu > Settings > Security settings > Power-on password
2. Enter the phone code, and then press or (OK).
You can change the default phone code (1234) to any numeric string of four to eight
digits.
To change the phone code, do the following:
1. Select Menu > Settings > Security settings> Power-on password> Modify.
Enter the old phone code, and then press or (OK).
Enter the new phone code, and then press or (OK).
Enter the new phone code again to confirm it.
If you forget the phone code, contact the service provider.
2.8 Udisk
When the phone is connected to a personal computer (PC) through a USB cable, options
such as Udisk are displayed on the phone screen.
7
When you select Udisk, you can manage the files stored in the phone memory and on the
microSD card.
The microSD card and the phone memory are displayed as removable disks on the PC.
You can perform the following operations:
Double-click a disk to open it.
Copy, paste, or delete files on a disk.
Disconnect the phone from the PC.
Ensure that you connect and disconnect the USB cable properly.
Do not run the formatting command on the PC to format the phone memory. Otherwise, the phone
memory may get permanently damaged.
You can transfer data and charge the battery by connecting the phone to the PC through the USB
cable.
2.9 PIN and PUK
The personal identification number (PIN) protects your SIM card from unauthorized use.
The PIN unblocking key (PUK) unlocks the blocked PIN. Both the PIN and the PUK are
provided with the SIM card. For details, contact your service provider.
SIM1 and SIM2 PINs are configured separately.
To enable the PIN lock, do the following:
1. Select Menu > Settings > Security settings> PIN >SIM1, SIM2 or SIM3 >
Activated.
2. Enter the PIN, and then press or (OK).
If you enter wrong PINs a specified number of times consecutively, the phone prompts
you to enter the PUK.
If you enter wrong PUKs a specified number of times consecutively, the SIM card
becomes permanently invalid. In that case, contact your service provider for a new SIM
card.
2.10 Locking the Keypad
To lock the keypad, press and hold in standby mode for 3s. To unlock the
keypad, press (Unlock) and then (Left soft key).
If the Auto keypad lock function is enabled and if the phone is in standby mode for a
preset period, the phone locks the keypad automatically.
8
To enable the Auto keypad lock function, select Menu > Settings > Security settings >
Auto keypad lock, scroll to a preset duration, and then press or (OK) to
select the duration.
When the keypad is locked, you can press , or (Left soft key) to answer a
call or make an emergency call.
2.11 Entertainment
Audio player: to play the audio clips stored on the microSD card.
Video player: to play the video clips stored on the microSD card.
FM radio: to listen to the radio.
Recorder: to record audio clips.
Video recorder: to record video clips.
Camera: to take pictures.
Image browser: to view the pictures stored on the microSD card.
9
3 Voice Services.................................
3.1 Making a Call
1. In standby mode, enter the phone number.
a) To make an international call, press to enter the plus sign (+), and then
enter the country or region code, area code, and phone number in sequence.
b) To call an extension, enter the phone number, press to enter P, and then
enter the extension number.
2. Press to select SIM1/2/3 and dial the number.
3. Press to end the call.
You can also make calls through call logs, contacts, and message.
During a call, you can press to adjust the volume.
3.2 Answering a Call
When there is an incoming call, do the following:
1. Press , or (Left soft key) to answer the call.
2. Press (Right soft key) to reject the call.
3. Press (Silent) to mute the speaker, and then press (Reject) to
reject the call.
4. Press (Silent) to mute the speaker, press , or (Answer)
to answer the call.
10
4 Latin input mode...........................
To write messages, there are two writing methods:
- Normal: this mode allows you to type a text by choosing a letter
or a sequence of characters associated with a key.
- Predictive with the Zi mode: This mode speeds up the writing of your text.
Fn key : Press once: input top-half character.
Press twice: lock top-half character inputting mode, then press once to
unlock top-half character inputting mode.
Sym key : Short keypress: access the Symbols table
Long keypress & Fn + Sym: popup smileys page
Space key
:
Short press: input space
Long press: press to switch language
Fn+Space: switch input mode
Shift key : In abc (Multitapabc) input mode (no Abc mode):
Short press once: to ABC
Short press twice: to Abc
In eZiabc (Smartabc) input mode:
Short press once: to eZi ABC
Short press twice: to eZi Abc
Del key : Short keypress: delete one by one
Long keypress: delete one by one quickly
11
5 Call Logs..........................................
5.1 To Check Call Logs
1. Select Menu > Call logs.
2. Select Dialed Calls.
3. Press to scroll desired record, press to check detailed information.
4. Press (Options) to select Details, Call, etc.
5. The operations in Received calls, Missed calls and Rejected calls are the same as
Dialed call.
6. Select Delete all to delete all call logs.
5.2 To Check Call Timers, Call Cost, and GPRS Counter
1. Select Menu > Call logs.
2. Select Call timers and select SIM1/2/3 to enter to check Last call, Received calls,
Dialed calls, and Call history. Press or (Reset) to reset all records.
3. Select GPRS counter and select SIM1/2/3 to enter to check Last sent, Last received,
Total sent, and Total received. Press or (Reset) to reset all records.
6 Contacts.............................................
6.1 Creating a Contact
1. Select Menu > Contacts >Options >New.
2. Select Phone, SIM1, SIM2 or SIM3 for saving the contact.
3. Enter the contact information.
12
4. Press (Save) to store the contact.
6.2 Searching for a Contact
1. Select Menu > Contacts > Options >Search.
2. Enter the first letter of the contact name.
3. Press to scroll to the desired contact.
6.3 Send Message to a Contact
1. Select Menu > Contacts > Options >Write message.
2. To select write SMS or MMS.
3. After completing a SMS, press and select SIM1/2/3 to send, or press
(Options) to select Send to send the message.
4. After completing a MMS, press (Options) to select Send, and choose
SIM1/2/3 to send message.
6.4 Call the Contact
1. Select Menu > Contacts > Options > Call.
2. Select SIM1/2/3 to call the contact.
6.5 Send vCard
1. Select Menu > Contacts > Options > Send vCard.
2. Select SMS or Bluetooth.
3. Input Recipients and select SIM1/2/3 to send vcard.
4. Activate Bluetooth to search other wireless device to transmit vcard.
6.6 Delete and Mark Contacts
1. Select Menu > Contacts > Options > Delete.
2. Press or confirm to delete the desired contact.
3. Select Menu > Contacts > Mark.
4. Mark one or more contacts to do further operations such as delete, copy, etc.
6.7 Copying Contacts
You can copy contacts to SIM1, to SIM2, to SIM3, to phone, or copy to card.
Copying One Contact
1. Select Menu > Contacts.
13
2. Press to scroll to the desired contact.
3. Press (Options), and then select Copy.
4. Select To SIM1, To SIM2, To SIM3, To Phone, or Copy to card to copy the contact to
the desired location.
Copying Multiple Contacts
1. Select Menu > Contacts.
2. Press (Options), and then select Copy all.
3. Press to scroll to the desired option, such as SIM1 to Memory Card, SIM2 to
Memory Card, SIM3 to Memory Card, etc.
4. Press or (OK) to copy contacts to the desired location.
6.8 More Operations of Contacts
1. Select Menu > Contacts > Others.
2. Select Speed dial settings to set number 2-9 as speed dial keys.
3. Select Caller ID to save the own number, each SIM card can be saved 2 numbers.
4. Select Memory status to check memory status of SIM1, SIM2, SIM3 and Phone.
5. Select Single/Double line display to set display contacts list as single line or double
line.
7 Internet...............................................
This function allows you to acquire or visit diversified services on the Internet through
message or network. Please contact your network operator for more information. Select
SIM1/2/3 to enter:
Homepage: start a connection to the default URL
Bookmark management: to check bookmark list or press (Options) to add
new bookmark.
History: to check browsed pages
Offline pages: to check the pages stored
Go to URL: input URL address and link to it
Tool: select to Clear cache, Clear cookies, and do operations for Settings.
14
8 Multimedia....................................
This menu includes more multimedia applications. It includes Audio player, Video player,
FM radio, Recorder, and Video recorder.
8.1 Audio Player
The audio player plays audio clips that are stored in My music on the microSD card. It is
recommended that you listen to audio clips by using the headset so that you can enjoy
enhanced quality sound.
1. Select Menu > Multimedia >Audio player.
2. Press to and press to start playing audio clips. When audio clips
are being played, you can do the following:
3. Press to select , press to confirm and then press to
adjust the volume.
15
4. Press to or and press to rewind or fast-forward the audio
clip.
5. Press (Left soft key) to configure the relevant settings.
6. Press to and press to pause or continue.
7. Press (Right soft key) or select and press to stop playing audio
clips and exit.
8.2 Video Player
The video player plays downloaded or recorded video clips that are stored in the Videos
folder in File list of Memory card.
To play a video clip, do the following:
1. Select Menu > Multimedia >Video player.
2. Press to or and press to choose a video clip.
3. Press to and press to play the video clip.
4. Press to enter options and select play list, Order play, Video application, and
File attribute.
5. When the video clip is being played, you can do the following:
6. Press to select , press to confirm and then press to
adjust the volume.
7. Press to or and press to rewind or fast-forward the video
clip.
8. Press to and press to pause or continue.
9. Press (Right soft key) or select and press to stop playing the
video clip and exit.
16
Only files in .mp4 and .3gp formats are supported. Files in other formats may fail to be played.
8.3 FM Radio
The headset cable also functions as an antenna. To ensure reception of radio programs, do
not disconnect the headset from the phone or bend the headset cable with strength.
Select Menu > Multimedia >FM radio.
When listening to the radio, you can do the following:
1. Press to open/close speaker.
2. Press , to adjust the volume.
3. Press to change frequency or channels.
4. Press (Options) to enter options menu and set.
8.4 Recorder
The recorder functions as a digital recorder.
To record an audio clip, do the following:
1. Select Menu > Multimedia > Recorder.
2. Press to and press to record an audio clip directly. Also, press
(Options) to select Start Recording to record. Select to pause recording,
select to stop and save. Select to play the audio clip just recorded. Select
to enter record file list.
3. After record one audio clip, press (Options) to enter:
Audition: to review the audio clip
Record again: to record a new audio clip
Delete: to delete the audio clip
Send: to send the audio clip to other devices by MMS or via Bluetooth
Record file list: to enter record file list Use , or press to adjust
volume.Press (Options) to select Record file list to check record files.
8.5 Video Recorder
To record a video clip, do the following:
1. Select Menu > Multimedia > Video recorder.
17
2. In video recording mode, do the following:
Press to record. Press (Pause) to Pause, (Stop) to stop and save,
(Cancel) to stop without saving. After take a record, press (Play) to play
the video clip. Press (Options) to select New, Delete, Send, Play, and View.
Press to set parameters for video recorder. This includes: Shoot mode, Size,
Brightness, Contrast, and Effect. Press to select options, press or
(Select) to select or set.
Press (Options) to select View, Settings, Help.
Press (Back) to exit video recorder.
9 Message..............................................
9.1 Writing and Sending a Text Message
1. Select Menu > Message > Write message > New SMS.
2. Write the message.
3. Press (Send) to add recipients and select SIM1/2/3 to send message
4. Press (Options), and then select Send.
5. Enter Recipients; or select Contacts, and then add a recipient from the contacts.
To add multiple recipients, repeat this step.
6. Press or (OK) to select SIM1/2/3 and send message.
18
7. There are more operations in Options such as Insert template, Add contact info, Add
phiz, etc.
9.2 Writing and Sending a Multimedia Message
Select Menu > Message > Write message > New MMS.
Write the message.
Press (Options) for the following options:
Input receiver, and select Send to send message via SIM1, SIM2 or SIM3.
Add recipient: to add phone number or select the numbers from Contacts
Preview: to view the multimedia message
Add: to add Text, Next slide, Previous slide, Picture, Audio , Video or Attachment
Page timer (1s-600s): to set time to show the page
Save as draft: save the message to draft box
Text layout: to select Text up or Text down
9.3 Read Messages
Select Menu > Message.
Select Inbox, to check received messages.
Select Outbox, to check messages sent unsuccessfully.
Select Drafts, to check messages saved in draft box.
Select Sentbox, to check sent messages.
Select Voice mail server:
Voice mail server is a network service. You may apply for this service beforehand. For
detailed information and voice mail server number, please contact your network
operator. Enter the menu to set Voice mail number, Fax number or Data number.
In standby mode, long pressing the numeric key "1" after set the voice mailbox number.
Select Broadcast message:
Broadcast message is a service provided by the network operator to send messages such
as weather forecast, traffic status, etc. to all GSM subscribers in a specific area.
The realization of the cell broadcast function needs the support of the network. For
details, please contact the network operator.
You can contact your service provider for the availability of the Multimedia Messaging Service
(MMS) and the method for subscribing to the service.
Your phone supports a multimedia message of a maximum size of 300 KB.
Open multimedia messages with caution. Objects in multimedia messages may contain viruses
(such as malicious software) that can damage your phone.
19
10 Tools...............................................
10.1 Alarm
Your phone supports Alarm function. The phone will alarm (ring) when the time reaches
the set time and it will display on screen.
1. Select Menu > Tools >Alarm to select alarm and set.
2. Select a certain alarm, press (On/Off) to turn on/off alarm, press
(Edit) to set:
Message: to set alarm name
Time: to set alarm time
Ringtone: to select Fixed ringtones or More ringtones as alarm ringtone
To select Once, Daily, or Weekly as alarm frequency
After set all parameters, press (OK) to activate the alarm.
When the alarm alerts, press (Off) to deactivate, press (Delay) to
delay the alarm and it will alert 5 minutes later.
10.2 Bluetooth
By using the Bluetooth function, you can synchronize data between a PC and your phone,
exchange data with other Bluetooth devices, and connect a Bluetooth headset to your
phone.
You can turn on the Bluetooth function by configuring Bluetooth settings.
In the menu, you can select Open/Close Bluetooth, Bluetooth visibility, Paired device,
Shared folder settings, My Bluetooth name, Bluetooth Address, and Help.
Open/Close Bluetooth: to turn on/off this function
Bluetooth visibility: to set the phone Show or Hide
Paired device: to check paired device list or add new device
Shared folder settings: to set Shared folder permission and Shared folder
My Bluetooth name: to rename the Bluetooth name
Bluetooth Address: to check Bluetooth address of your phone
Help: to view help information
20
Connecting a Bluetooth Headset to Your Phone
Select Menu > Tools >Bluetooth > Open/Close Bluetooth > to turn on the Bluetooth
function.
Select Paired Device > Add new device to search for available Bluetooth headsets.
Scroll to the desired Bluetooth headset, and then press or (Pair).
Enter the password for pairing the Bluetooth headset with your phone.
When the Bluetooth headset is connected to your phone, the headset icon is displayed on
the standby screen, indicating that you can use the headset.
No Bluetooth headset is included in the product package. If you want to use a Bluetooth headset,
you need to purchase it individually.
Transferring Data
Select Menu > Tools >Bluetooth > Open/Close Bluetooth to turn on the Bluetooth
function.
Select Paired Device > Add new device to search for available Bluetooth devices.
Scroll to the desired Bluetooth device, and then press or (Pair).
When the Bluetooth device is connected to your phone for the first time, you need to
enter the password for pairing the device with your phone.
Exchange data between your phone and the Bluetooth device.
10.3 Calendar
With this function, you can view the calendar and schedule, and you can schedule with the
scheduler to set the schedule and alert. If a memo has been set in the schedule of some
date, the date is highlighted. To view all memos of a day, press to the date. Press
(Options) and the following operations can be performed:
Add task: select to input Subject, Date, Time, Ringtone, Type, and Deadline. Press
(Edit) to edit, press (Save) to save and exit.
View tasks: to check today’s tasks
All tasks: to check all tasks
Clear tasks today: select to clear today’s tasks
Clear all: to clear all tasks
Go to date: input the date to enter the calendar
Weekly/Monthly: to display the calendar in weekly or monthly
21
10.4 Calculator
This function can use your phone as a calculator. The accuracy of this calculator is limited,
and the calculator can only be used for simple calculations.
1. Eight operators are provided. They are “+”, ”-“, ”x”, ”÷”, ”M+”, ”M-“, “MC”, “MR”.
2. Press to delete items entered. Long pressing to clear all content. Press
to calculate, press (Equal) to show the result of calculation.
10.5 Timer
This function counts down time, when it reaches 00, your phone rings or vibrates.
22
11 Camera........................................
The phone is equipped with a CMOS camera(1).
Select Menu > Camera.
On the picture taking screen, do the following:
Press to capture a picture. After take a photo, press or (Save) to
save the picture. Then, press (Send) to send the picture to other devices by
MMS or via Bluetooth. Press (Options) to Delete, Set as wallpaper, or go to
Gallery.
Press to set parameters for camera. This includes: Shoot mode, Size, Scene
mode, Brightness, Contrast, Exposure bias, Frame, Cont. shot, White balance, Delay,
and Effect. Press to select options, press or (Select) to
select or set.
Press (Options) to select Gallery, Settings, Help.
Press (Back) to exit camera.
（1）1.3-MEGA pixel camera effect via software.
23
12 File List..........................................
This menu enables you to access the File List, where folders or files in Memory Card can
be managed.
Press to choose desired folder, press to open or press (Options) to
do options.
New folder: to create new folder
Delete: to delete the folder
Details: to check detailed information of the folder
Edit: Rename or Copy this folder
Search: input folder name and press and (OK) to search
Sort: to sort the folders by Name, Date, Size or Type
Mark: mark or unmark one or all folder to do further operations
More: to check memory card capacity or format memory card
Press to choose desired file, press to open or press (Options) to do
options.
The operations of files may different from folders.
24
13 Image Browser..............................
The shot photos are stored in the image browser. Press to choose pictures, press
(Preview) to view the picture, press (Options) to do options.
Change folder: select other folders to preview pictures
Send: send the picture to other devices by MMS or via Bluetooth
Slide play: to preview pictures as slide
Delete: to delete the picture
Set image as wallpaper: select the picture and set it as a wallpaper shown on standby
screen
Rename: rename the picture
Mark: mark or unmark the picture(s) to do further operations
Details: to check detailed information
Slide settings: to select effect and delay time for slide play
25
14 Applications...................................
Facebook & Twitter
The built-in Internet communication applications FACEBOOK and Twitter on your
phone allow you to use the functions to connect with other people.
To run FACEBOOK, do the following:
Select Menu > FACEBOOK > SIM1, SIM2 or SIM3.
Your phone will link to the WAP page.
The method for running Twitter is similar.
Check your GPRS settings before using the chat applications.
Before saving chat history, ensure that a microSD card has been inserted in the phone.
Ebook Reader
Your phone supports ebooks in .txt format.
Select Menu > Applications > Ebook reader to display the bookshelf.
The phone automatically adds the ebooks stored in Ebook on the microSD card to the
bookshelf.
Scroll to the desired ebook.
Press to open and start reading the ebook. During the reading, press
(Options) to Add bookmark, View bookmark, Jump to start, Jump to end, Jump to
percent and Cancel backlight always on(*).
Press (Options) to check Details, Recent books, select Send via Bluetooth,
Delete, Mark, and Settings.
Press (Back) to exit Ebook Reader.
When reading an ebook, you can press to turn pages.
It is recommended that you store ebooks in Ebook in the phone memory or on the microSD card.
When you open an ebook stored in a folder other than Ebook, the phone automatically moves the
ebook to Ebook so that you can find it easily next time your want to open it.
26
15 Profiles..............................................
Your phone provides different profiles for you to customize ring tone and other settings
under different environments. You can customize a profile according to your needs and
enable the profile. The available profiles include Normal, Silent, Meeting, Indoor,
Outdoor, Earphone ,Bluetooth.
In each profile, you can set one of the following options:
Select Menu > Profiles.
Select one profile, and press or (Options) to enter:
Activate: to activate the desired profile
Settings: to set Ring settings, Adjust volume, Call alert, Message alert, Alarm &
calendar remind, Key tone, Battery low alert, and Power on/off tone
Rename: to rename the profile
27
16 Settings...........................................
16.1 Call Settings
Select Menu > Settings > Call settings. There lists several options for call settings
include: Multi-SIM, Network selection, Call divert, Call barring, Call waiting, Hide ID,
and others.
Multi-SIM: to select Standby mode, Reply by original SIM, Set SIM name, Dual SIM
setting Wizard, check Help information, etc.
Network selection: press to select SIM1, SIM2 or SIM3 and then press or
(OK) to select Auto select or Manual select.
Call divert: It is a network function that can only be activated when you apply for this
service with the network operator. The function can divert calls that satisfy the conditions
to the other caller's phone number you have designated. Press to select SIM1, SIM2
or SIM3. Then press or (OK) to set.
Call barring: When the call barring is activated, some of the calls will be barred
according to the call barring setting condition. Contact your service provider to sign up for
call barring. Press to select SIM1, SIM2 or SIM3. Then press or
(OK) to set.
Call waiting: To set functions like activate/deactivate and enquire status. During call
holding and making multi-party calls, this function should be activated first, and network
support is required for the specific implementation of the function. Press to select
SIM1, SIM2 or SIM3. Then press or (OK) to set.
Hide ID: to set whether to send or hide the number of the phone.
Others: this includes 50 secs voice call alert, Connect prompt, Any-key answer, and Auto
redial.
16.2 Phone Settings
Select Menu > Settings > Phone settings. There lists Time and date, Select language,
Shortcut Menu, Auto power on/off, and Restore settings.
Time and date: to set time, date, time format, and date display type.
Select language: to set display language
Shortcut Menu: to set shortcut functions which list on standby mode.
28
Auto power on/off: to set the time to power on/off the phone
Restore settings: to restore all settings to default. The default password is 1234.
16.3 Display Settings
Select Menu > Settings > Display settings. There lists Wallpaper settings, Idle screen
style, Contrast, Backlight, Keypad light, and Animation effect.
Wallpaper settings: set the background picture in standby screen interface.
Idle screen style: to select Standard style or Smart style(1).
Contrast: press to set contrast, press or (OK) to confirm.
Backlight: to set time of screen display.
Keypad light: to set time of keypad light.
Animation effect: to set animation effect for power on/off display.
16.4 Security Settings
Select Menu > Settings > Security settings. There lists PIN, PIN2, Privacy, Auto keypad
lock, Power-on password, and Guardlock.
PIN: to lock or unlock SIM card. Please refer to “PIN & PUK”
PIN2: The personal identification number used for special functions such as charging
function provided by the network.
Privacy: use this function to protect Call logs, Message, Camera, Contacts, etc.
Auto keypad lock: please refer to “Locking the Keypad”
Power-on password: please refer to “Phone Lock”
Guardlock: When user activated this function and lost the mobile, if someone pick-up
the mobile and insert new SIM, the Mobile Tracker will send SMS to
predetermined numbers to show detail of the lost mobile. This message can be
edited by end user.
(1) Smart style: 7 shortcuts icons will display on the idle screen. You can access the shortcut function directly
in idle mode. And you can change the shortcuts in Shortcut Settings.
Standard style: In standard style mode, you can set four direction keys with different shortcut functions in
Shortcut Settings.
29
16.5 Connection Management
You can access Wireless Application Protocol (WAP) sites and use WAP-based services
on your phone. To access WAP sites on your phone, you need to subscribe to the
corresponding service from your service provider and set the relevant parameters on your
phone.
For details about the service and the charges, contact your service provider.
1 Network Account
To access WAP sites on your phone, you need to set your data account and WAP
parameters first.
Setting the Connection Profile
Select Menu > Settings > Connection management > Network account.
Press (Options), and then select New connection.
Set the parameters based on the information provided by your service provider.
Press (OK) to save the settings.
If the data account provided by your service provider already exists, you do not
need to create a data account.
2 GPRS Settings
To set parameters for GPRS. This function only valid with single SIM card in.
Connect when necessary
Always connect
Safety and use..............................................
We recommend that you read this chapter carefully before using your phone. The
manufacturer disclaims any liability for damage, which may result as a consequence of
improper use or use contrary to the instructions contained herein.
• TRAFFIC SAFETY:
Given that studies show that using a mobile phone while driving a vehicle constitutes a
real risk, even when the hands-free kit is used (car kit, headset...), drivers are requested to
refrain from using their mobile when the vehicle is not parked.
When driving, do not use your phone and headphone to listen to music or to the radio.
Using a headphone can be dangerous and forbidden in some areas.
30
When switched on, your phone emits electromagnetic waves that can interfere with the
vehicle's electronic systems such as ABS anti-lock brakes or airbags. To ensure that there
is no problem:
- do not place your phone on top of the dashboard or within an airbag deployment area,
- check with your car dealer or the car manufacturer to make sure that the dashboard is
adequately shielded from mobile phone RF energy.
• CONDITIONS OF USE:
You are advised to switch off the telephone from time to time to optimise its performance.
Switch the phone off before boarding an aircraft.
Switch the phone off when you are in health care facilities, except in designated areas.As
with many other types of equipment now in regular use, mobile telephones can interfere
with other electrical or electronic devices, or equipment using radio frequency.
Switch the phone off when you are near gas or flammable liquids. Strictly obey all signs
and instructions posted in a fuel depot, petrol station, or chemical plant, or in any
potentially explosive atmosphere.
When the phone is switched on, it should be kept at least 15 cm from any medical device
such as a pacemaker, a hearing aid or insulin pump, etc. In particular when using the
phone, you should hold it against the ear on the opposite side to the device, if any.
To avoid hearing impairment, pick up the call before holding your phone to your ear. Also
move the handset away from your ear while using the "hands-free" mode because the
amplified volume might cause hearing damage.
Do not let children use the phone and/or play with the telephone and accessories without
supervision.
When replacing the cover please note that your phone may contain substances that could
create an allergic reaction.
Always handle your phone with care and keep it in a clean and dust-free place.
Do not allow your phone to be exposed to adverse weather or environmental conditions
(moisture, humidity, rain, infiltration of liquids, dust, sea air, etc).The manufacturer's
recommended operating temperature range is -10°C to +55°C.
At over 55°C the legibility of the phone's display may be impaired, though this is
temporary and not serious.
31
Emergency call numbers may not be reachable on all cellular networks. You should never
rely only on your phone for emergency calls.
Do not open, dismantle or attempt to repair your mobile phone yourself.
Do not drop, throw or bend your mobile phone.
Do not paint it.
Use only batteries, battery chargers, and accessories which are recommended by TCT
Mobile Limited and its affiliates and are compatible with your phone model (see
Accessories List).
TCT Mobile Limited and its affiliates disclaim any liability for damage caused by the
use of other chargers or batteries.
Remember to make back-up copies or keep a written record of all important information
stored in your phone.
Some people may suffer epileptic seizures or blackouts when exposed to flashing lights,
or when playing video games. These seizures or blackouts may occur even if a person
never had a previous seizure or blackout. If you have experienced seizures or blackouts, or
if you have a family history of such occurrences, please consult your doctor before
playing video games on your phone or enabling a flashing-lights feature on your phone.
Parents should monitor their children's use of video games or other features that
incorporate flashing lights on the phones. All persons should discontinue use and
consult a doctor if any of the following symptoms occur: convulsion, eye or muscle
twitching, loss of awareness, involuntary movements, or disorientation. To limit the
likelihood of such symptoms, please take the following safety precautions:
- Do not play or use a flashing-lights feature if you are tired or need sleep.
- Take a minimum of a 15-minute break hourly.
- Play in a room in which all lights are on.
- Play at the farthest distance possible from the screen.
- If your hands, wrists, or arms become tired or sore while playing, stop and rest for
several hours before playing again.
- If you continue to have sore hands, wrists, or arms during or after playing, stop the
game and see a doctor.
32
When you play games on your phone, you may experience occasional discomfort in
your hands, arms, shoulders, neck, or other parts of your body. Follow the instructions to
avoid problems such as tendinitis, carpal tunnel syndrome, or other musculoskeletal
disorders.
Prolonged exposure to music at full volume on the music player may damage the listener's
hearing.
Set your phone volume safely. Use only headphones recommended by TCT Mobile
Limited and its affiliates.
• PRIVACY:
Please note that you must respect the laws and regulations in force in your jurisdiction
or other jurisdiction(s) where you will use your mobile phone regarding taking hotographs
and recording sounds with your mobile telephone. Pursuant to such laws and regulations,
it may be strictly forbidden to take photographs and/or to record the voices of other people
or any of their personal attributes, and duplicate or distribute them, as this may be
considered to be an invasion of privacy.
It is the user's sole responsibility to ensure that prior authorisation be obtained, if
necessary, in order to record private or confidential conversations or take a photograph
of another person; the manufacturer, the seller or vendor of your mobile
phone (including the operator) disclaim any liability which may result from
the improper use of the mobile phone.
• BATTERY:
Before removing the battery from your phone, please make sure that the phone is switched
off.
Observe the following precautions for battery use:
- Do not attempt to open the battery (due to the risk of toxic fumes and burns).
- Do not puncture, disassemble or cause a short-circuit in a battery,
- Do not burn or dispose of a used battery in household rubbish or store it at
temperatures above 60°C.
Batteries must be disposed of in accordance with locally applicable environmental
regulations. Only use the battery for the purpose for which it was designed. Never use
damaged batteries or those not recommended by TCT Mobile Limited and/or its affiliates.
33
This symbol on your telephone, the battery and the accessories means that these products
must be taken to collection points at the end of their life:
- Municipal waste disposal centres with specific bins for these items of equipment
- Collection bins at points of sale.
They will then be recycled, preventing substances being disposed of in the environment,
so that their components can be reused.
In European Union countries:
These collection points are accessible free of charge.
All products with this sign must be brought to these collection points.
In non European Union jurisdictions:
Items of equipment with this symbol are not to be thrown into ordinary bins if your
jurisdiction or your region has suitable recycling and collection facilities; instead they are
to be taken to collection points for them to be recycled.
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES
ACCORDING TO THE INSTRUCTIONS.
• CHARGERS
Mains powered chargers will operate within the temperature range of: 0°C to 40°C.
The chargers designed for your mobile phone meet with the standard for safety of
information technology equipment and office equipment use. Due to different applicable
electrical specifications, a charger you purchased in one jurisdiction may not work in
another jurisdiction. They should be used for this purpose only.
• RADIO WAVES:
Proof of compliance with international standards (ICNIRP) or with European Directive
1999/5/EC (R&TTE) is required of all mobile phone models before they can be put on
the market. The protection of the health and safety for the user and any other person is an
essential requirement of these standards or this directive.
34
THIS MOBILE PHONE COMPLIESWITH INTERNATIONAL AND EUROPEAN
REQUIREMENTS REGARDING EXPOSURE TO RADIO WAVES.
General information ....................................
• Internet address: www.alcatel-mobilephones.com
• Hot Line Number: see "TCT Mobile Services" leaflet or go to our Internet site.
On our Internet site, you will find our FAQ (Frequently Asked Questions) section.You
can also contact us by e-mail to ask any questions you may have.
An electronic version of this user guide is available in English and other languages
according to availability on our server:
www.alcatel-mobilephones.com
Your telephone is a transceiver that operates on GSM networks with 850, 900, 1800 and
1900 MHz bands.
Protection against theft
Your telephone is identified by an IMEI (phone serial number) shown on the packaging
label and in the product's memory. We recommend that you note the number the first time
you use your telephone by entering * # 0 6 # and keep it in a safe place. It may be
requested by the police or your operator if your telephone is stolen.This number allows
your mobile telephone to be blocked preventing a third person from using it, even with a
different SIM card.
Disclaimer
There may be certain differences between the user manual description and the phone's
operation, depending on the software release of your telephone or specific operator
services.
Warranty....................................
Your phone is warranted against any defect which may occur in conditions of normal use
during the warranty period of twelve (12) months (1) from the date of purchase as shown
on your original invoice.
35
Batteries (2) and accessories sold with your phone are also warranted against any effect
which may occur during the first six (6) months (1)
from the date of purchase as shown on your original invoice.
of purchase.
In case of any defect of your phone which prevents you from normal use thereof, you
must immediately inform your vendor and present your phone with your proof of
purchase. If the defect is confirmed, your phone or part thereof will be either replaced or
repaired, as appropriate. Repaired Phone and accessories are entitled to a one (1) month
warranty for the same defect. Repair or replacement may be carried out using
reconditioned components offering equivalent functionality.
This warranty covers the cost of parts and labor but excludes any other costs.
（1） The warranty period may vary depending on your country.
（2） The life of a rechargeable mobile phone battery in terms of conversation time standby time, and total
service life, will depend on the conditions of use and network configuration. Batteries being
considered expendable supplies, the specifications state that you should obtain optimal performance
for your phone during the first six months after purchase and for approximately 200 more recharges.
This warranty shall not apply to defects to your phone and/or accessory due to (without
any limitation):
1 Non-compliance with the instructions for use or installation, or with technical and
safety standards applicable in the geographical area where your phone is used,
2 Connection to any equipment not supplied or not recommended by TCT Mobile
Limited,
3 Modification or repair performed by individuals not authorised by TCT Mobile
Limited or its affiliates or your vendor,
36
4 Inclement weather, lightning, fire, humidity, infiltration of liquids or foods, chemical
products, download of files, crash, high voltage, corrosion, oxidation
Your phone will not be repaired in case labels or serial numbers (IMEI) have been
removed or altered.
There are no express warranties, whether written, oral or implied, other than this printed
limited warranty or the mandatory warranty provided by your jurisdiction.
In no event shall TCT Mobile Limited or any of its affiliates be liable for incidental or
consequential damages of any nature whatsoever, including but not limited commercial
loss, to the full extent those damages can be disclaimed by law. Some countries/states do
not allow the exclusion or limitation of incidental or consequential damages, or limitation
of the duration of implied warranties, so the preceding limitations or exclusions may not
apply to you.
Troubleshooting ........................
Before contacting the aftersales department, you are advised to follow the instructions
below:
• You are advised to switch off the telephone from time to time to optimise its
performance.
• You are advised to fully charge( ) the battery for optimal operation.
• Avoid storing large amounts of data in your telephone as this may affect the
performance of your telephone.
and carry out the following checks:
My mobile phone will not switch on
• Press until the screen comes on
• Check the battery charge level
• Check the battery contacts, remove and reinstall your battery, then turn your telephone
back on
My phone has not responded for several minutes
• Press the key
• Remove the battery and re-insert it, then switch the phone back on
My screen is difficult to read
• Clean your screen
• Use your mobile phone in accordance with the recommended conditions of use
My mobile phone turns off by itself
37
• Check that your keypad is locked when you are not using your mobile phone
• Check the battery charge level
My mobile phone will not charge properly
• Make sure that your battery is not completely discharged; the battery charge indicator
can take several minutes and may be accompanied by a quiet whistling sound
• Make sure charging is carried out under normal conditions (0°C - +40°C)
• Make sure your battery is inserted. It must be inserted before plugging in the charger
• Make sure you are using an Alcatel battery and charger
• When abroad, check that the electrical current is compatible
My mobile phone will not connect to a network
• Try connecting in another location
• Verify the network coverage with your operator
• Check with your operator that your SIM card is valid
• Try selecting the available network(s) manually
• Try connecting at a later time if the network is overloaded
SIM card error
• Make sure the SIM card has been correctly inserted
• Verify with your operator that your SIM card is 3V compatible; the old 5V SIM cards
cannot be used
• Make sure the chip on your SIM card is not damaged or scratched
Unable to make outgoing calls
• Make sure you have dialed a valid number and press the key
• For international calls, check the country and area codes
• Make sure your mobile phone is connected to a network, and that the network is not
overloaded or unavailable
• Check your subscription status with your operator (credit, SIM card valid, etc.)
• Make sure you have not barred outgoing calls
Unable to receive incoming calls
• Make sure your mobile phone is switched on and connected to a network (check for
overloaded or unavailable network)
• Check your subscription status with your operator (credit, SIM card valid, etc.)
• Make sure you have not forwarded incoming calls
• Make sure that you have not barred certain calls
The caller's name does not appear when a call is received
38
• Check that you have subscribed to this service with your operator
• Your caller has concealed his/her number
The sound quality of the calls is not optimal
• You can adjust the volume during a call by means of the optical finger navigation key
• Check the radio reception icon level
I am unable to use the features described in the manual
• Check with your operator to make sure that your subscription includes this service
• Make sure this feature does not require an Alcatel accessory
When I select a number from my directory, the number is not dialed
• Make sure that you have correctly recorded the number in your file
• Make sure that you have selected the country prefix when calling a foreign country
I am unable to add a contact in my directory
• Make sure that your SIM card directory is not full; delete some files or save the files in
the product directory (i.e. your professional or personal directories)
My callers are unable to leave messages on my voicemail
• Contact your network operator to check service availability
I cannot access my voicemail
• Make sure your operator's voicemail number is correctly entered in "My numbers"
• Try later if the network is busy
I am unable to send and receive MMS
• Check your phone memory available as it might be full
• Contact your network operator to check service availability and check MMS
parameters
• Verify the server centre number or your MMS profile with your operator
• The server centre may be swamped; try again later
"No service" is displayed
• You are outside of the network coverage area
I have already entered 3 incorrect PIN codes
• Contact your network operator to obtain the PUK code (Personal Unblocking Key)
I am unable to download new files
• Check for free space
• Delete some files
• Select the MicroSD Card to store the files you downloaded
• Check your subscription status with your operator
39
The phone can't be detected by others via Bluetooth
• Make sure that Bluetooth is turned on and your mobile phone is visible to other users
My mobile phone is dead, can't power on
• Make sure your battery is not completely used up or damaged.
• Remove your battery, remove your SIM card then power it on again.
How to make your battery last longer
• Make sure you followed the complete charge time (minimum 3 hours)
• After a partial charge, the battery level indicator may not be exact.Wait for at least 20
minutes after removing the charger to obtain an exact indication
• Switch on the backlight upon request
• Update news, weather info. upon demand manually or set its auto-check interval
longer
• Deactivate Bluethooth when not in use
40
FCC Regulations:
This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
This mobile phone has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiated radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user‘s authority to operate the equipment.
The antenna(s) used for this transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
RF Exposure Information (SAR)
This mobile phone meets the government’s requirements for exposure to radio waves.
This phone is designed and manufactured not to exceed the emission limits for exposure
to radio frequency (RF) energy set by the Federal Communications Commission of the
U.S. Government.
The exposure standard for wireless mobile phones employs a unit of measurement known
as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.
41
*Tests for SAR are conducted using standard operating positions accepted by the FCC
with the phone transmitting at its highest certified power level in all tested frequency
bands. Although the SAR is determined at the highest certified power level, the actual
SAR level of the phone while operating can be well below the maximum value. This is
because the phone is designed to operate at multiple power levels so as to use only the
poser required to reach the network. In general, the closer you are to a wireless base
station antenna, the lower the power output.
The highest SAR value for the model phone as reported to the FCC when tested for use at
the ear is 1.26 W/kg and when worn on the body, as described in this user guide, is 0.958
W/kg (Body-worn measurements differ among phone models, depending upon available
accessories and FCC requirements.)
While there may be differences between the SAR levels of various phones and at various
positions, they all meet the government requirement.
The FCC has granted an Equipment Authorization for this model phone with all reported
SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR
information on this model phone is on file with the FCC and can be found under the
Display Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC ID: RAD261.
For body worn operation, this phone has been tested and meets the FCC RF exposure
guidelines for use with an accessory that contains no metal and the positions the handset a
minimum of 1.5 cm from the body. Use of other accessories may not ensure compliance
with FCC RF exposure guidelines. If you do not use a body-worn accessory and are not
holding the phone at the ear, position the handset a minimum of 1.5cm from your body
when the phone is switched on.
42
Este produto está homologado pela ANATEL, de acordo com os
Procedimentos regulamentados pela Resolução nº 242/2000 e atende aos requisitos
técnicos aplicados, incluindo os limites de exposição da Taxa de Absorção Específica
referente a campos elétricos, magnéticos e eletromagnéticos de radiofreqüência, de acordo
com a Resolução nº 303/2002.e . 533/2009.
Para maiores informações, consulte o site da ANATEL-www.anatel.gov.br
ALCATEL is a trademark of Alcatel-Lucent
and used under license by
TCT Mobile Limited.
Este equipamento opera em caráter secundário, isto é, não
tem direito à proteção contra interferência prejudicial, mesmo
de estações do mesmo tipo, e não pode causar interferência a
sistemas operando em caráter primário
43
All rights reserved © Copyright 2011
TCT Mobile Limited.
TCT Mobile Limited reserves
the right to alter material or technical
specification without prior notice.
