TCT Mobile 264 UMTS Dualband / GSM Quadband mobile phone User Manual IP4209 Alcatel OT871A UM Eng USA 21 120904 indd
TCT Mobile Limited UMTS Dualband / GSM Quadband mobile phone IP4209 Alcatel OT871A UM Eng USA 21 120904 indd
User Manual
Some of the contents in this manual may differ from your phone depending on the
software of the phone. Actual color may vary.
Your phone is designed to make it easy for you to access a wide variety of content. For
your protection, we want you to be aware that some applications that you enable may
involve the location of your phone being shared. For applications available through AT&T,
we offer privacy controls that let you decide how an application may use the location of
your phone and other phones on your account. However, the AT&T privacy tools do not
apply to applications available outside of AT&T. Please review the terms and conditions
and the associated privacy policy for each location-based service to learn how location
information will be used and protected. In addition, your AT&T phone may be used to
access the internet and to download, and/or purchase goods, applications, and services
from AT&T or elsewhere from third parties. AT&T provides tools for you to control access
to the Internet and certain Internet content. These controls may not be available for
certain devices which bypass AT&T controls.
Service provided by AT&T Mobility. Portions © 2012 AT&T Intellectual Property. All rights
reserved. AT&T, the AT&T logo and all other AT&T marks contained herein are trademarks
of AT&T Intellectual Property and/or AT&T affiliated companies. All other marks contained
herein are the property of their respective owners.
ALCATEL is a trademark of Alcatel-Lucent used under license by TCT Mobile Limited.
©2012 All rights reserved. • OM871A• CJA3254ALAAA
1
Table of contents
1. Basics .................................. 3
Box Contents .........................................3
Activating Your Phone ............................3
Powering On or Off .................................5
Charging Your Phone ..............................5
Phone Overview ..................................... 6
Setting Up Voicemail ...............................7
2. Getting Started ....................... 8
Status Bar Icons ....................................8
Menu Navigation .....................................9
Changing Your Shortcuts Menu ............ 10
3. Phone Calls ..........................11
Making a Call ........................................11
Answering a Call ................................... 12
Ending a Call .........................................13
Adjusting Call Volume ........................... 13
Recent Calls .......................................... 13
In-Call Options .....................................13
4. Address Book .......................14
Using the Contact List ...........................14
Adding New Contacts ............................14
Editing/Deleting Contacts ...................... 15
Making a Call from Your Contact List ...15
Speed Dial List ......................................15
Address Book Settings ..........................16
5. Entering Text .........................17
Keypad Inputting ...................................17
Text Input Mode ...................................18
Changing Text Mode ............................. 18
6. Messaging ...........................18
Types of Messages ............................... 18
Creating and Sending New Text Messages
..20
Creating and Sending New Multimedia
Messages ..............................................20
Reading New Messages ........................20
Using Message Options ........................20
Deleting Messages ................................21
Message Settings ..................................21
7. Email .................................22
Accessing Email .................................... 22
Email Account Set-up ...........................22
Using Email Options .............................23
8. AppCenter ...........................24
Accessing AppCenter ............................ 24
Ringtones .............................................24
Ringback Tones .................................... 24
Wallpapers ............................................ 24
Accessing My Accounts & Credits ........24
9. Mobile Web .........................25
Launching Browser ............................... 25
Accessing a WAP Site ........................... 25
Navigating with the Browser .................25
Settings .................................................25
2
10. Music .................................26
Music Player .........................................26
Shopping Music .................................... 26
AT&T Radio ..........................................26
11. Settings ..............................27
Accessing the Setting Menu ..................27
Phone Settings ......................................27
Call Settings .......................................... 28
Flight Mode ........................................... 30
Security .................................................30
Networks ...............................................30
Connectivity ..........................................31
Widget Settings ....................................31
12. Profiles ...............................32
General .................................................32
Meeting .................................................32
Outdoor .................................................32
Indoor ................................................... 32
Silence ..................................................32
13. Tools .................................33
Alarm Clock ..........................................33
Calendar ................................................33
Calculator ..............................................34
World Clock .......................................... 34
Voice Recorder .....................................34
Unit Converter .......................................35
Notes ....................................................35
Currency Converter ............................... 35
Stop Watch ...........................................35
Flashlight ..............................................35
14. My Stuff ..............................36
Applications ..........................................36
Marketplace ..........................................36
File Manager .........................................36
15. Camera ...............................37
Access ..................................................37
Camera .................................................37
Video .....................................................37
16. Image Viewer .......................38
17. Video Player ........................39
18. FM Radio ............................39
19. Twitter ................................40
20. Facebook ............................40
21. News .................................41
22. Weather ..............................41
Add New City ........................................41
Set As default ........................................41
23. Bluetooth™ ..........................42
Turning On/Off Bluetooth ...................... 42
Visibility ................................................42
Device List ............................................ 42
Pairing and Registering Your Bluetooth
Device ................................................... 42
Available Functions ...............................43
24. Safety and Use ......................43
25. General Information ................50
26. Warranty ..............................51
3
Basics1.
Box Contents
You should find the following items inside
the box:
Battery•
USB cable •
Charger•
SIM card•
User guide•
Phone and feature guide•
Quick start guide•
Activating Your Phone

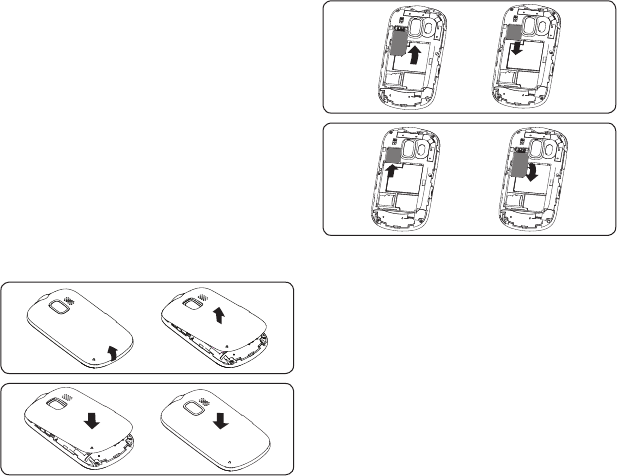

Removing or Installing the Back Cover
Inserting or Removing the SIM Card
You must insert your SIM card before making
and receiving calls.
1. Power off your phone and remove the
battery before inserting or removing the
SIM card.
2. Place the SIM card with the metal contact
facing down and slide it into its housing.
The cut corner should be on the bottom
right.
3. To remove the card, press the bottom and
slide it out.
4

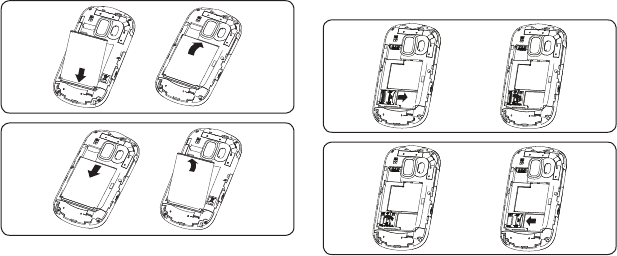

Installing or Removing the Battery
1. Place the battery on the back of the phone
so the metal contacts match up on the
battery and in the battery cavity.
2. Slide the battery down into the battery
cavity until it locks into place.
3. To remove, lift the battery out of the cavity
from the upper left corner.
Installing or Removing the MicroSD
Card
1. Release the MicroSD card holder and slide
it in the direction of the arrow and lift it.
2. Insert the MicroSD card with the golden
contact window downward.
3. Turn down the MicroSD card holder and
slide it in the opposite direction to lock it.
5
Powering On or Off
Power On Your Phone
1. Press and hold the key until the phone
powers on.
2. Enter your PIN code if necessary and then
press and hold the key.
3. The Home screen is displayed.
4. While the phone is searching for a network,
Searching/Emergency will be displayed.
If you don’t know your PIN code or
if you have forgotten it, contact your
network operator.
Power Off Your Phone
Press and hold the key from the Home
screen.

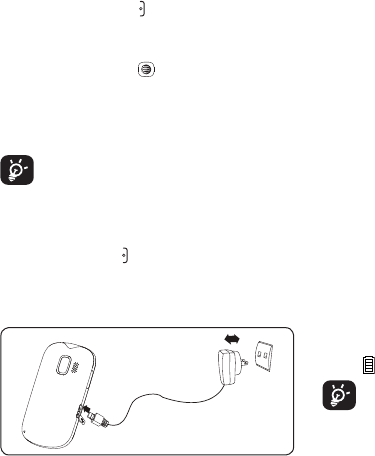

Charging Your Phone
The light at the top of the phone when the
phone is plugged in indicates that it's charg-
ing.
1. Plug the USB port to the end of the AC
charger.
2. Plug the AC Charger into a standard outlet.
3. To access the charging port on the lower
right side of your phone, open the flap and
plug the other end of the AC charger into
the charging port.
Charging may take about 10 minutes to •
start if the battery is completely dead.
Be careful not to force the plug into the •
socket.
Make sure the battery is correctly inserted •
before connecting the charger.
Use a wall socket that is easily accessible •
and in close proximity to the phone (avoid
electric extension cables).
When using your phone for the first time, •
charge the battery fully (approximately 3
hours). When the battery is fully charged
the will display on the screen.
To reduce power consumption, when
the battery is fully charged, disconnect
your phone from the AC Charger and
the charger from the wall outlet. Switch
off some applications when not in use;
reduce the backlight time, etc.
6
Phone Overview
11
15
12
13
14
Left soft key: Performs the functions
indicated by the screen text
on the bottom left of the
display
Send key: Answer a call
Make a call
Access recent calls
Camera key: Access Camera
Profile key: Activate vibration alert (press
and hold)
Voicemail key: Access your voicemail
(press and hold)
Caps key: Switch between ABC/abc/Abc
Alt key: Enter a top-half character
Lock the keyboard in top-half key
input mode (press twice)
Enter top-half characters only until
key is released (press and hold)
Right soft key: Performs the functions
indicated by the screen text
on the bottom right of the
display
End key: Power on/off (press and hold)
End a call
Return to the Home screen
Message key: Access Messaging
11 Enter key: Turn on/off flashlight (press and
hold)
Confirm an option
Enter the next line (in edit mode)

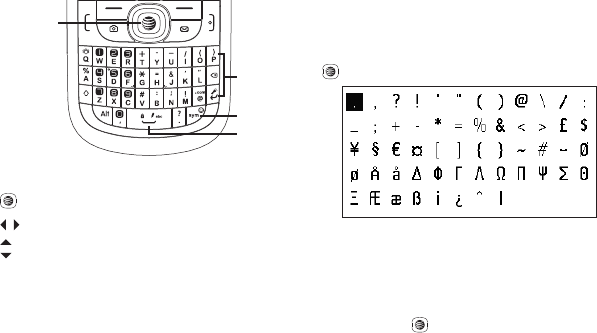

12 SYM key: Access symbol table
Access emoticon table (press
and hold Alt key)
7
13 Space key: Access language list (press and
hold while in edit mode)
Lock the keypad (press and
hold while on Home screen)
Enter a space (in edit mode)
Confirm an option (in edit
mode)
Unlock the keypad (on Home
screen)
Select input method (press and
hold Alt key)
14 Side key:
Side up key:
Increase volume (press)
Increase volume continuously
(press and hold)
Side down key: Decrease volume(press)
Decrease volume
continuously (press and
hold)
15 Navigation key:
Up: Recent Calls
Down: Address Book
Left/Right: Widget bar
OK: Confirm an option (press)
Launch Mobile Web (press and hold)
Setting Up Voicemail
1. From the Home screen, press and hold the
key.
2. When connected, you’re prompted to set up
your voicemail.
Changing the Voicemail Number
1. From the Home screen, press the Right soft
key to access the main menu.
2. From the main menu, select Messaging >
Voicemail.
3. To edit voicemail, press Options and select
Edit.
4. Change voicemail name/number as you
want.
5. Press the key to save the change.
8
Getting Started 2.
Status Bar Icons (1)
This list covers the symbols appearing on
your phone’s display and indicator area.
Battery charge level
Meeting mode: Your phone vibrates,
but does not ring or beep with the
exception of the alarm.
Silence mode: Your phone does not
ring, beep or vibrate with the exception
of the alarm.
Bluetooth status
Bluetooth headset connected
Radio is on
Stopwatch is on
Music acitve
WAP alerts unread
(1) The icons and illustrations in this guide are
provided for informational purposes only.
Email unread
Headset connected
Call forwarding activated: Your calls
are forwarded.
Alarm or appointments programmed
Level of network reception
Voicemail message arrived
Missed calls
SIM card unavailable
2G GPRS data exchanging
2G GPRS connected
EDGE connected
EDGE data exchanging
3G WCDMA data exchanging
3G WCDMA connected
9
Voice only, no data connection
Message unread
(Red) Message list is full: Your phone
cannot accept any new messages.
You must access the message list and
delete at least one message on your
SIM card.
Flight mode
Menu Navigation
Accessing Menus
You can access menus and submenus by
scrolling the Navigation keys or by using the
shortcut keys.
Accessing a Menu Function by
Scrolling
1. From the Home screen, press the Right soft
key to access the main menu.
2. Access submenus included in the menu by
scrolling to and highlighting the option and
pressing the Left soft key or the key. If
the menu contains further options, repeat
this step.
3. Press the Up or Down Navigation key
to scroll through the menus. Make your
selection by pressing the Left soft key or
the key.
4. Return to the previous menu level by
pressing the Right soft key.
5. Press the key to directly exit the menu
without changing any settings.
10
Changing Your Shortcuts Menu
Using Numbered Menu Shortcuts
Numbered menu items, such as menus, sub-
menus, and options can be quickly accessed
by using their shortcut numbers. From the
Home screen, you can also press and hold the
number keys (2 to 9) to access any function/
URL/contact to which you have previously
assigned a shortcut.
1. From the Home screen, press the Right soft
key to access the main menu.
2. From the main menu, select Settings >
Phone Setting > Keypad > Numeric Keys.
3. Set the Function/URL/Contact shortcut of
your choice by pressing the Left soft key.
Navigation Keys
The Navigation keys come preset, however
you are able to change them to suit your
needs.
1. From the Home screen, press the Right soft
key to access the main menu.
2. From the main menu, select Settings >
Phone Settings > Keypad > Navigation
Key.
3. Change the Up, Down, Left and Right menu
options by highlighting the option and
pressing the Left soft key / key.
4. Use the Up or Down Navigation keys to
scroll to your new shortcut choice.
5. Press the Left soft key / key to save the
change.
Go To
Applications can be accessed from the Home
screen by pressing the Go To soft key.
This displays the following menu items:
Camera: • Open the camera. For more
information, refer to Camera on page 36.
Bluetooth:• Displays the Bluetooth settings
screen. For more information, refer to
Bluetooth on page 41.
11
Alarm Clock:• Allows you to set the alarm
clock for your phone. For more information,
refer to Alarm on page 32.
Recent Calls:• Displays the Recent Calls
screen. For more information, refer to
Recent Calls on page 13.
Refill Account:• Allows you to add more
minutes or data as you need them.
Profiles:• Displays the Profiles menu. For
more information, refer to Profiles on page
31.
Mobile Email:• Allows you to access Mobile
Email. For more information, refer to
Mobile Email on page 22.
Games:• Displays the Games menu.
Weather:• Displays the Weather menu. For
more information, refer to Weather on
page 41.
Phone Calls3.
Making a Call
1. From the Home screen, enter the area code
and phone number.
2. If you press an incorrect key, press the
Right soft key to delete the incorrect digits.
3. Press the key to make the call.
Making an Emergency Call
Dial emergency number and press the •
key.
Or
Press and hold the • key to make an
emergency call.
You can directly make an emergency
call without a SIM card in phone or
unlocking the phone.
Making an International Call
1. Press the key to enter "+" character.
2. Enter the country code, area code and
phone number.
3. Press the key to make the call.
12
Calling Your Voicemail (1)
Voicemail allows callers to leave voice mes-
sages in your voice mailbox. You can review,
play, and delete your voice messages any time
you are in your carrier's network coverage
area.
From the Home screen, press and hold the
key.
If the access number for your operator’s
voicemail service does not work, dial the
number that you were given. To change this
number at a later date, refer to My Numbers
(see page 28).
Answering a Call
Press the / key to answer an incoming
call.
Muting the Ringtone
To mute the ringtone of a current incoming
call
Press the Right soft key.•
Rejecting a Call
Press the • key once to reject the call.
(1) Contact your network operator to check
service availability.
Handling Two Calls
1. To add a second party during a call, dial the
number directly.
2. After answering a second call, you can
press Navigation key to change connection
status.
Conference Calls (1)(2)
Your phone allows you to talk to several
people at the same time.
1. If you are on a double call, press the
Options soft key and select Conference.
2. If a third call comes in, answer it by
pressing the key and speak with your new
caller.
3. This caller becomes a member of the
conference if you press Options and select
Conference.
4. To end the current conference call, press
Options and select End.
5. To end the whole call, press Options and
select End All Calls.
(1) Contact your network operator to check
service availability.
13
Ending a Call
When you want to end your call, briefly press
the key.
Adjusting Call Volume
You can adjust the sound level during a call
using the Side key or Up/Down key.
Recent Calls
You can access the function using the follow-
ing options:
Select • Go To > Recent Calls from Home
screen.
Select • Recent Calls from the main menu.
Press the • key from Home screen.
Once you enter this menu, the following lists
will be displayed:
Missed calls
Outgoing calls (Redial)
Answered calls/Rejected calls
Select a number from the call memory and
press Options, to Send Message, Edit Before
Call, etc.
In-Call Options (1)
During a call, press the Options soft key to
access the following:
Mute/Unmute:• Mutes/Unmutes the
conversation from your end.
Hold:• Hold the current call.
End:• End the current call.
New Call:• Hold the current call and dial
another number.
Address Book:• Access Address Book.
Messaging:• Send an SMS/MMS to the
caller.
Mobile Web:• Access Mobile Web.
DTMF Off/On:• Allows you to send DTMF
(Dual Tone Multi-Frequency) tones to the
contacts you have selected.
Calendar:• Access Calendar.
Audio Path:• Switch between your active
calls.
Services:• Access Services.
Sound Recorder:• Record your current call.
(1) Connect your network operator to check
service availability
14
Address Book 4.
Using the Contact List
The contact list is sub-divided into SIM
contacts and Phone contacts.
1. From the main menu, select Address Book.
2. Press the key to access the Contact List.
Available Options
When you highlight a specific contact, press
the Options soft key to access the following:
Send Message:• Send an SMS/MMS to a
contact you’ve selected.
Add: • Add a contact (name, numbers,
address, e-mail, etc.).
View:• Review the information you’ve stored
for a contact.
Edit:• Modify the contents of a file: name,
number, ringtone, image, etc.
Edit Before Call:• Edit the phone number
before placing a call.
Delete: • Delete a single contact highlighted.
Call: • Call the selected contact.
Copy: • Copy the selected contact to phone,
SIM card or File Manager if there is
sufficient memory.
Move:• Move the selected contacts to phone
or SIM card.
Send vCard:• Exchange data via SMS, MMS,
Email or Bluetooth.
Select: • Multi-mark selected contacts to
send message to.
Groups:• You can view, send messages or
e-mails to the selected groups or you can
create or delete groups as you want.
Settings:• Address Book settings. For more
information, refer to Address Book Settings
on page 16.
Adding New Contacts
1. From the main menu, select Address Book.
2. When the contact list screen appears, select
Add New Contact.
3. Enter information into the fields provided.
Press the Up or Down Navigation key to
scroll the list.
4. To save the new information, press Save.
15
Editing/Deleting Contacts
Edit contacts information or delete the con-
tacts you do not want to keep.
Editing a Contact
1. From the main menu, select Address Book.
2. When the contact list screen displays,
highlight and select a contact to edit their
information.
3. Once you have selected the contact, press
the Left soft key / key to edit each field.
4. To save the information entered, press
Save.
Deleting Contact
1. From the main menu, select Address Book.
2. To delete a contact, press Options >
Delete; to delete more contacts, press
Options > Select.
Making a Call from Your
Contact List
You can make a call from your Address Book.
1. From the main menu, select Address Book.
2. When the contact list screen displays,
highlight the contact you want to call and
press the key.
Searching For a Number in the
Address Book
1. From the main menu, select Address Book.
2. When the contact list screen displays, enter
the first few letters of the name to display.
A list of contacts appears based on the
letters you have entered.
3. Scroll to the name you are looking for by
pressing the Up or Down Navigation key.
4. Press the key to select the contact.
Speed Dial List
Once you have stored phone numbers from
your Address Book, you can set a maximum
of 8-speed dial entries and then dial them eas-
ily by pressing and holding the corresponding
numeric key.
Setting Up Speed Dial Entries
1. From the main menu, select Settings >
Phone Settings > Keypad > Numeric Keys.
2. Highlight the key with which you wish to
assign the speed-dialing number (from 2 to
9), press Options > Edit.
3. Scroll to choose a contact you want to
assign from Address Book and press OK.
16
Changing a Number Assigned to a
Key
1. From the main menu, select Settings >
Phone Setting > Keypad > Numeric Keys.
2. Highlight the key with which you wish to
re-assign the speed-dial number press
Options > Edit.
3. Scroll to choose the new contact you want
to assign from Address Book and press OK.
Address Book Settings
Address Book Settings allows you to adjust
various settings.
1. From the main menu, press Address Book
> Options > Settings.
2. Choose from the following options:
Preferred Storage:• Choose to save your
contacts in one of the following locations:
SIM/Phone/Phone And SIM.
My vCard:• Allows you to add information as
an attachment when sending a message.
Memory Status:• Displays the space used
and allocated for the Address Book in the
phone and SIM card.
Emergency Call:• Allows you to add one or
more contacts in the Emergency call list.
Copy Several: • Allows you to copy several
or all contacts from the SIM card to the
phone or vice versa.
Delete Several: • Allows you to delete
several or all contacts from the phone and
SIM card.
Display Format:• Allows you to choose the
way in which contact names are displayed.
17
Entering Text5.
This section describes how to choose your
preferred text input mode when entering
characters.
Keypad Inputting
Navigation key:
: Validate a letter/word.
: Previous/next letter/word.
: Page up/down.
Keypad:
Press: Alphabetic input (a, b, c).
Press and hold: Numeric input (1, 2, 3).
SYM key:
Press: Enter symbol table.
Press and hold Alt key: Enter emoticon table.
Space key:
Press: Enter a space.
Press and hold: Access language list.
Press and hold Alt key: Change input method.
Symbol Table
Press the SYM key to display the symbol
table. Use the Navigation key to move the
cursor over the desired symbol and press the
key to select.
Emoticon Table
Press the SYM key and hold Alt key to display
the emoticon table. Use the Navigation key to
move the cursor over the desired emoticon
and press the key to select.
18
Text Input Mode
Text mode allows you to choose between
Smart ABC, ABC, or Numeric modes.
Smart ABC Mode:• Allows you to enter
words with fewer keystrokes. Smart ABC
Mode automatically compares the series
of keystrokes you make with its preset
linguistic dictionary and selects the most
likely word you are writing, to help save
time.
ABC Mode:• Allows you to enter alphabetic
characters by pressing the key labeled with
the corresponding letter.
Numeric Mode:• Allows you to enter
numbers.
Changing Text Mode
1. When you are in a text entry field, press
Options > Input Mode to change text input
mode.
2. Choose from the following options: Smart
ABC, Smart abc, Smart Abc, ABC, abc, Abc
or Add numbers.
Messaging 6.
You can create, edit and receive SMS and
MMS messages.
The MMS function can only be used if
the service is provided by your opera-
tor, if your contract includes an MMS
option.
Types of Messages
Your phone provides the following message
types:
Text Message•
Multimedia Message•
Service Message•
The Short Message Service (SMS) allows you
to send and receive text messages to and from
other mobile phones.
To use this feature, you may need to sub-
scribe to your service provider’s message
service.
The Multimedia Messaging Service (MMS)
allows you to send and receive multimedia
messages (such as picture messages) to and
from other mobile phones.
To use this feature, you may need to sub-
scribe to your service provider’s multimedia
message service.
19
Broadcast SMS
Allows you to receive and store Broadcast
SMS. Choose from the following options:
Receiving Mode:• Set to On/Off as required,
depending on whether you want to receive
Broadcast SMS or not.
Channel Settings:• Select a channel in a
list from which you would like to receive
Broadcast SMS.
Languages:• Select either English or
Spanish languages.
Read Messages:• View a Broadcast SMS.
Emergency Alerts
Emergency Alerts allows customers to receive
geographically-targeted messages. Alert
messages are provided by the US Department
of Homeland Security and will alert customers
of imminent threats to their safety within
their area. There is no charge for receiving an
Emergency Alert message.
There are three types of Emergency Alerts:
Alerts issued by the President•
Alerts involving imminent threats to safety •
of life
AMBER Alerts (missing child alert)•
Customers may choose not to receive
Imminent Threat and AMBER Alerts. Alerts
issued by the President can not be disabled.
To disable Imminent Threat and AMBER
Alerts, follow the instructions below:
Enabling/Disabling Imminent Threat
Emergency Alerts
1. From the main menu, select Messaging >
Emergency Alerts > Options > Settings >
Emergency Alert Notification.
2. Choose from All Alerts On, Extreme Alerts
Only, or Presidential Alerts Only.
Enabling/Disabling AMBER Emergency Alerts
3. From the main menu, select Messaging >
Emergency Alerts > Options > Settings >
AMBER Alert Notification.
4. Choose On or Off, select OK.
Templates
Gives you the option to send commonly used
messages to save time. There are two kinds of
templates to choose from.
Text Messages: • Choose from a list of
standard SMS messages.
Multimedia Messages:• Choose from a list
of standard MMS messages or choose one
of your own.
20
Creating and Sending New Text
Messages
1. From the main menu, select Messaging >
New Message.
2. Write a text message. One or more
recipients can be added from the Address
Book, or you can enter a recipient by
pressing the Left soft key / key to enter
the telephone number.
3. Press the Left soft key / key to send the
message.
Creating and Sending New
Multimedia Messages
An SMS will be converted to MMS automati-
cally when pictures or sounds are included.
1. From the main menu, select Messaging >
Write Message > Switch To MMS.
2. Write your multimedia message, adding
pictures, sounds. Enter a recipient by
pressing the Left soft key / key to enter
the telephone number.
3. Press the Left soft key / key to send the
multimedia message.
An SMS message of more than a
certain number of characters (the
number of characters depends on your
language) will be charged as several
SMS messages. An MMS message
containing photos and/or sounds may
also be billed as more than one mes-
sage. Specific letters (accented) will
increase the size of the SMS, which
may also cause multiple SMS mes-
sages to be sent to your recipient.
Reading New Messages
1. From the main menu, press Messaging >
Inbox.
2. Highlight an unread message and press the
Left soft key / key.
3. Press the Up or Down Navigation key to
scroll through the message screen.
4. When you have finished, press the Right
soft key to view more messages or the
key to return to the Home screen.
Using Message Options
When text or multimedia messages are high-
lighted in the Inbox, the following options are
available by pressing the Left soft key / key.
View: • Allows you to view the message.
Reply:• Allows you to reply to the message.
Call:• Allows you to call the sender of the
message.
Move To Archive:• Allows you to move the
selected message to Archive.
Save To Contacts: • Allows you to extract the
number of sender to add to contact list.
21
Forward:• Allows you to forward this
message to another recipient.
Delete: • Allows you to delete the selected
message.
Delete All: • Allows you to delete all Inbox
messages.
Mark Several:• Allows you to mark several
messages for further operation.
Advanced: • Allows you to perform advanced
settings upon the message.
Details: • Allows you to check details of the
message.
While viewing the contents of a single text or
multimedia message, you can access the fol-
lowing options by pressing the Left soft key.
Reply:• Allows you to reply to the message.
Forward: • Allows you to forward this
message to another recipient.
Save To Contacts: • Extracts the number of
the sender and adds it to your contact list.
Call: • Allows you to call the sender of the
message.
Add To Calendar: • Allows you to add the
selected message to Calendar event.
Move To Archive:• Allows you to move the
selected message to Archive.
Delete:• Allows you to delete the selected
message.
Advanced: • Allows you to perform advanced
settings upon the message.
Details:• Allows you to check details of the
message.
Deleting Messages
1. From the main menu, select Messaging >
Inbox.
2. Delete messages by pressing Options >
Delete or Delete All.
3. Press the Left soft key to confirm.
Message Settings
1. From the main menu, select Messaging >
Options > Settings.
2. Select one of the three options and choose
a setting for it.
Text Message:
Profile Settings: • Allows you to choose
a profile for text message writing. It can
be retrieved directly from your SIM card.
Alternatively, you can create your own
profile.
Memory Status: • Displays the amount of
space currently in use on your phone and
SIM card.
22
Preferred Storage: • Select the default
message storage location: SIM or Phone.
Multimedia Message:
Data Account: • There are several accounts
for you to select from when you are editing
a multimedia message.
Common Settings:• Choose from a range
of options including Edit/Send/Retrieve/
Memory Status depending on the current
task.
Service Message:
Enable Push: • You can select from Accept
All/Accept Authenticated Or Trusted/
Disabled when deciding which messages
are received.
Enable White List: • Provides the following
action options if a white list has been
created: Discard If Unmatched/Notify If
Unmatched/Disabled.
Enable Black List: • Provides the following
action options if a black list has been
created: Notify If Unmatched/Disabled.
White List: • Allows you to add a phone
number or IP address to a white list.
Black List: • Allows you to add a phone
number or IP address to a black list.
Email 7.
Your phone has an email client with the
settings pre-defined for a few popular email
services — Gmail, Yahoo, AOL, etc. You can
also set up other POP3 or IMAP4 email ac-
counts that you may be using.
Accessing Email
• From the main menu, select Email.
• From widget bar, select Email.
Email Account Set-up
The first time you select Email, you are re-
quested to create new Email account and later
times, you will directly get access to this Email
account automatically.
Pre-defined Email Service
If you own an email account of predefined
services, you can install it to your phone by
selecting the service (Gmail, Yahoo, etc.),
entering the Email address and password, and
then confirming with OK.
New Email Service
To set up a new email account other than
the predefined email services, select Other
Accounts.
23
You are required to enter your Email address,
select protocol (1) (POP3 or IMAP4) and data
account, then enter your incoming server
address, outgoing server address, username,
password and account name, finally confirm
with Done.
Creating Emails
Select Email > Options > New Email to enter
new email interface.
You can add a recipient by entering their
Email address from the enter bar, by selecting
it from recent recipients or by just adding it
from Address Book.
Inbox:• Folder of all received Emails.
Outbox:• Folder of all unsent Emails.
Sent:• Folder of all sent Emails.
Drafts:• Folder of all draft Emails.
(1) Consult your email service provider for
more information about protocol.
Using Email Options
View:• View the selected email.
Refresh This Acct.:• Connect this email
account's server in order to receive/send
mails.
Refresh All Accounts:• Connect all email
accounts’ server in order to receive/send
mails.
Get More Emails:• Connect the highlighted
email account's server in order to receive/
send mails.
New Email:• Create a new email.
Settings:• Perform a series of settings
upon the email account — Display Name,
Username, Password, etc.
Delete Account:• Delete the current selected
account.
New Account:• Create a new email account.
Signature:• Attach your signature when
sending emails.
Select Storage:• Select the default email
storage location: Phone or SD Card.
24
AppCenter 8.
The AppCenter website provides links to a va-
riety of content such as ringing tones, graph-
ics, multimedia, and applications that may be
purchased and downloaded to your device.
Accessing AppCenter
From the main menu, select AppCenter.
Ringtones
This menu option connects to AT&T’s ringtone
download site.
Additional charges may be incurred
when downloading ringtones. Contact
AT&T for additional information.
Ringback Tones
This menu option connects to AT&T’s ring-
back tones download site. Ringback Tones
replace the standard ringing sound that callers
normally hear while they wait for you to
answer your phone.
Additional charges may be incurred
when downloading ringtones. Contact
AT&T for additional information.
Wallpapers
This menu option connects to AT&T’s wallpa-
pers download site.
Additional charges may be incurred
when downloading games or graphics.
Contact AT&T for additional informa-
tion.
Accessing My Accounts &
Credits
You can view and manage accounts linked to
your AT&T Access ID from the AppCenter.
From the myAT&T Mobile login screen, enter
your AT&T Access ID and password. For
AT&T Access IDs with two or more linked
accounts, the subsequent screen will provide
the option to select which account you would
like to manage.
25
Mobile Web 9.
Your phone is equipped with a Mobile Web
browser allowing you to access Internet sites
specifically for mobile phones.
Launching Browser
1. From the main menu, select Mobile Web.
2. Your phone connects to the network and
loads the homepage of the Wireless Web
service provider. The content of the start-up
homepage depends on your Wireless Web
service provider.
3. To scroll through the screen, use the Up
and Down Navigation keys.
4. To exit the browser at any time, simply
press the key.
Accessing a WAP Site
There are several ways to access a WAP site:
By selecting a link on the browser.•
By using a bookmark item in the Favorites •
menu. Use View in the browser Options.
By entering a URL address manually. Use •
Enter URL in the browser Options.
Navigating with the Browser
1. To scroll through browser items, press the
Up or Down Navigation keys.
2. To select a browser item, press Options >
Use Link > Go To or the key.
3. To return to the previous page, press
Options > Navigate > Backward or the Left
soft key.
4. To move to next page, press Options >
Navigate > Proceed.
5. To access the browser menu list, press the
Left soft key.
6. To return to the start-up homepage, press
Options > Homepage.
Settings
Homepage:• You can use the default
homepage or select a custom one.
Data Account:• Several data accounts are
provided for you to choose from.
Browser Options:• A range of browser
options are provided.
Preferences: • Activate Timeout, and
whether or not to Show Images/Play
Sounds/Load Unknown Media etc. when
you are browsing a website.
Security Settings:• Displays a list of Trusted
certificates.
26
Service Message Settings:• When you
are browsing a website , you can choose
Options/Service Message Settings, and
enter the following fields Enable Push/
Enable Service Loading/Enable White List/
Enable Black List/White List/Black List.
Restore Browser Settings:• You can restore
the browser to its default settings by
pressing the Left soft key or the key.
Music 10.
Music Player
From the main menu, select Music > Music
Player, you will have full flexibility of manag-
ing music both on your phone and SD card.
You can have access to your music files
through one of the following:
All Songs: Contains all songs both on your
phone and SD card.
Favorites: You can simply add your favorite
songs to Favorites by holding down while the
song is playing (max 100).
Folders: Category of songs in folder.
Album/Artist/Genre: Music files are catego-
rized by Album, Artist or Genre based on
information stored in the tags.
Shopping Music
This menu option connects to AT&T’s music
download site.
Additional charges may be incurred
when downloading music. Contact
AT&T for additional information.
AT&T Radio
This menu option connects to AT&T’s radio.
27
Settings 11.
Accessing the Setting Menu
From the main menu, select Settings and
select the function of your choice in order to
customize your mobile phone.
Phone Settings
Setting the Time and Date
Allows you to set the date and time in 12H or
24H format.
You can also set the daylight saving adjust-
ment.
From the main menu, select Settings > Phone
Setting > Time And Date.
Display Settings
Wallpaper•
The wallpaper is displayed when you switch
on your phone.
By selecting Wallpaper you can customize it
by replacing the default image or animation.
Theme•
Enables you to customize the graphic style
and the colors of your mobile phone.
Brightness•
Adjusts the LCDs black levels by using the
Left or Right Navigation key.
Backlight•
Screen: Allows you to reduce brightness for
enhanced battery performance and to save
power during periods of expected inactivity.
Language Settings
Adjust the language used for message display.
The Auto option selects the language accord-
ing to the home network (if available).
From the main menu, select Settings > Phone
Settings > Languages.
HAC
HAC (Hearing Aid Compliance) Allows us-
ers with impaired hearing to use the phone
conveniently.
You can choose this function by pressing the
HAC > On button.
Headset Mode
Switch audio play (incoming call, message
beep, alarm beep...) between Headset Only
and Phone & Headset.
28
From the main menu, select Settings > Phone
Settings > Headset Mode.
Widget Bar
You can customize the widget bar by selecting
On/Off for your preference.
Keypad Settings
Numeric Keys
From the main menu, select Settings > Phone
Settings > Keypad.
By customizing your keys, you can access any
function directly from the Home screen.
Navigation Key
Customize the Navigation key by assigning
specific functions, numbers from contacts
and URLs to each key. (See more details on
page 7)
Auto Keypad Lock
Customize your auto keypad lock by selecting
5s/30s/1'/5'/Off these options.
Input Settings
Please see the Text input mode chapter on
page 18. In addition to the specific characters
table for Chinese, other data input modes
are also available in your mobile phone. This
feature allows you to write short messages
and add names with special characters to your
contacts.
Call Settings
From the main menu, select Settings > Call
Settings.
My Numbers
My Number: • Type in or modify your mobile
phone number or the number to access
your voicemail and then confirm. Your
telephone number is usually written on
your SIM card.
Voicemail Server:• Edit your Voicemail
name or Voicemail number in order to
access. For more information, refer to
Setting Up Voicemail on page 7.
29
Call Timer
Call Timer: • View and reset the times of last
call, dialed calls and received calls.
Call Time Reminder:• Select your
preference from the following three options:
Off/Single/Periodic.
Call Waiting
Activate/Deactivate/Query Status the notifica-
tion beep of a second incoming call.
Call Forwarding
Activate, cancel or verify the status of call for-
warding to Voice Calls, Data Calls, and Fax,
or you can choose Cancel All Forwarding.
Voice Calls:• Transfer all voice calls if your
line is busy, unreachable, or you do not
answer.
Data Calls:• Transfers data calls when
activated.
Fax:• Transfers Fax messages.
Cancel All:• Cancels all forwarding settings.
Caller ID
Set By Network:• This may be different
according to the network in your country.
Hide Number:• Hide your Caller ID when
you are making a call.
Send Number: • Your Caller ID will be sent
along with your call.
Auto Redial
Activate or deactivate the automatic callback
of any calls that do not get through the first
time.
Text Phone
Text phone can be used by people who are
hearing or speech impaired.
After connecting the cell phone and TTY
machine it connects to a relay service, which
converts incoming speech to text for the
person using the TTY and converts outgo-
ing text from the TTY machine to a spoken
voice for the person on the other end of the
conversation.
30
Flight Mode
Functions such as Voice calls and Messages
etc. are barred. It can also be used to increase
the length of time the phone can be left in
standby mode.
From the main menu, select Settings > Flight
Mode.
Security
Activate PIN:• The SIM card protection
code is requested each time the phone is
powered on.
Change PIN:• Change PIN code.
Change PIN2:• A protection code for certain
SIM card features (Billing/Cost/FDN, etc.)
will be requested if you attempt to access
them when this option is activated. You can
also update it with a new one (between 4
and 8 digits).
Activate Phone Code:• Once activated,
this is requested each time the phone is
powered.
Change Phone Code:• Initial setting is 1234.
Fixed Dialed Number: • Allows the phone
to be locked so that it can only dial certain
numbers, or numbers with certain prefixes.
To activate this function, PIN2 code is
mandatory.
Master•
Master Clear: Clears mobile phone settings
(e.g. user profiles) and private data (e.g.
photos, messages and recent calls etc.)
Master Reset: Clears your preferential set-
tings but keeps private data and independ-
ent data.
Networks
From the main menu, select Settings >
Networks.
Network Selection
Select Network: • The choice of network
connection is left up to the user.
Search Mode:• Network connection can be
switched between Manual and Automatic.
31
Data Service
Allows you to activate or deactivate data inter-
national roaming service by selecting On/Off.
Data International Roaming
Enables data services to be used while roam-
ing overseas.
Connectivity
Multimedia Message
Data Account: • Select from a list of preset
data accounts.
Common Settings:• Edit the settings for
sending multimedia messages and view
memory status.
Web
Produces a list of settings identical to those
available for a browser.
Email
Provides a list of settings for Email account
connection.
Streaming
Provides a list of settings for streaming.
Widget Settings
Edit Widget
Allows you to select the widgets that you want
to add to Home screen.
Reorder Widgets
Allows you to modify the order of the widgets
in Home screen.
32
Profiles 12.
With this menu, you may personalize ring-
tones for different events and environments.
General
To modify the sound settings, select Options
> Customize. The following functions are
available:
Mode:• You can set your phone ringtone
to Ring Only, Discreet (ring with beep),
Vibration (all sounds are replaced by
vibrations except for alarms), Vibration +
Melody, Vibration Then Melody, Beep Then
Vibration, Silence (no sounds except for
alarms, the icon will then be displayed).
Ringtone:• Select a melody from the list by
scrolling up/down.
Ring Type:• There are three types for you to
select: Ascending/Once/Repeat.
Volume:• Adjust the volume by pressing the
Up or Down key.
Key Beep:• Select the type of key beep.
Message Beep:• Select a melody for a new
incoming message.
Meeting
The phone will not ring or beep unless an
alarm has been set. A new event will cause it
to vibrate.
Outdoor
This profile is designed for outdoor users who
require louder ringtones.
Indoor
Ringtone/beep volumes will be slightly lower
than the General mode volume.
Silence
This profile will turn off all ringtones, including
notification sounds.
33
Tools 13.
Alarm Clock
Your mobile phone has a built-in alarm clock
with a snooze feature. You can set up to five
separate alarms and choose whether or not
the alarm should repeat.
Setting an Alarm
1. From the main menu, select Tools > Alarm
Clock.
2. To edit the alarm, press Edit. The following
options display:
Time:• Set the specified time for this
alarm.
Repeat: • Select Once (default)/Everyday/
Days or Customize as preferred.
Snooze:• The alarm will repeat at regular
intervals.
Mode:• Select the mode for your alarm
Ringtone: Vibration + Melody (default),
Ring Only, Vibration, FM Radio or
Silence.
Melody:• Choose a melody as your alarm
notification sound.
3. Press Save to save the changes and turn
on your new alarm.
Viewing Saved Alarms
1. From the main menu, select Tools > Alarm
Clock.
2. The screen displays 5 saved alarms. The
alarm marked by “ √ ” is ON.
Editing/Deleting an Alarm
1. From the main menu, select Tools > Alarm
Clock.
2. To edit the alarm, press Edit; To turn on/off
the alarm, press On/Off.
Calendar
Your phone has a built-in Calendar with a
monthly-view calendar for you to keep track of
important meetings, appointments, etc.
Viewing Your Calendar
From the main menu, select Tools > Calendar.
Days with events entered will be marked in
color.
Adding an Event
1. From the main menu, select Tools >
Calendar.
2. Using the Navigation key, highlight the
date, and press Options > Create New
Appointment.
3. Fill in all required information for this new
event.
34
4. When done, press Save.
Viewing an Event
1. From the main menu, select Tools >
Calendar.
2. To check the event, press Options > All
Appointments.
3. To view the details of the event, press
View.
Editing/Deleting an Event
1. From the main menu, select Tools >
Calendar.
2. To view the event, press View.
3. To edit the event, press Options and select
Edit; to delete the event, press Options and
select Delete/Delete All.
Calculator
1. From the main menu, select Tools >
Calculator.
2. Enter a number, select the type of operation
to be performed using the Navigation keys,
and enter the second number, then select the
Left soft key / key to display the result.
3. Once an operation is complete, you can
select Clear to clear numbers and carry out
a new operation.
World Clock
The World clock shows current local time and
the time zone in different cities. You may view
up to 3 cities at one time.
From the main menu, select Tools > World
Clock.
Voice Recorder
Recording a New Memo
1. From the main menu, select Tools > Voice
Recorder.
2. The first time you record the memo, press
Create, or press Options and select Create
New.
3. The voice recorder screen displays.
4. Press the key to start/pause the
recording.
5. When done, press Stop to stop recording
and save the file.
Naming/Renaming a Voice Memo
1. From the main menu, select Tools > Voice
Recorder.
2. To rename the memo, press Options and
select Rename.
35
Sending a Voice Memo
1. From the main menu, select Tools > Voice
Recorder.
2. To send the memo via MMS, press Options
and select Send.
Deleting a Voice Memo
1. From the main menu, select Tools > Voice
Recorder.
2. To delete the memo, press Options and
select Delete/Delete All.
Unit Converter
From the main menu, select Tools > Unit
Converter.
Use the weight or length converter by select-
ing the unit you wish to convert, then pressing
the numeric key to input the digits.
Finally confirm with OK.
Notes
Create a note in text format by accessing
Notes from the main menu.
Currency Converter
Calculate foreign values by setting the cur-
rency rate you wish to convert, then inputting
the local value. Finally press the OK soft key.
Stop Watch
Measure time with the possibility to register
several results and suspend/resume measure-
ment.
Flashlight
From the main menu, select Flashlight.
Flashlight provides a handy light source
which you can turn on/off as needed.
36
My Stuff 14.
Applications
Applications:• To launch Java applications.
Shop Applications:• To download various
applications from AT&T’s website.
Shop Games:• To download various games
from AT&T’s website.
Task Manager: • To manage and track the
progress of Java tasks.
Java Settings:• To make settings about Java
applications such as backlight, vibration,
network, etc.
Trusted Certificates:• View detailed
information of the trusted certificates
supported by your phone.
Marketplace
Shop Tones:• To download various ring
tones from AT&T’s website.
Shop Wallpapers:• To download various
wallpapers from AT&T’s website.
Shop Videos:• To download various videos
from AT&T’s website.
File Manager
Phone:• An entry to access all files in all
folders stored in phone.
SD Card:• An entry to access all files in all
folders stored in memory card.
Memory Status:• Indicates how much space
is used and how much is currently free on
your phone and SD card (if any).
37
Camera 15.
Your mobile phone is fitted with a camera for
taking photos and shooting videos that you
can use in different ways:
store them as your creations in memory •
card.
send them in a multimedia message (MMS) •
to a mobile phone or an email address.
send them directly by Email or Bluetooth.•
customise your Home screen.•
select them as incoming call image to a •
contact in your Contacts.
transfer them by data cable or memory card •
to your computer.
Access
From the main menu, select Camera.
Camera
Take a Photo, Save or Delete
The screen acts as the viewfinder. Position
the object or landscape in the viewfinder and
press to take the image and the images will
be automatically saved. If you don’t want it,
you may directly delete it.
Settings in Framing Mode
Before taking the photo, you can adjust a
number of settings:
From the photo shot screen, press Options
through the Left soft key not only to access:
Flash LED, Image Size, Shutter Sound,
Capture Mode, Image Quality, Timer, Night
Mode, Banding, EV, White Balance, Color
Mode, but also following ones:
Gallery• : Go to your memory card to view
the photos you have taken.
Storage• : You may choose saving location if
memory card is inserted.
Switch To Video• : Access video recording
mode.
Restore Default• : Return all settings to
default values.
Options Available After Taking The
Once you have taken a photo, you can send
your photo by Bluetooth, MMS and Email,
assign it to a contact, set as wallpaper, or go
to Gallery to view it.
Video
You can record a video clip of unlimited
length, as long as the battery sustains and
there is sufficient memory.
38
Framing Mode
When you enter the Video function, your are
in Framing mode. Use the mobile screen as a
viewfinder and press Options for the settings
of Video Quality, Night Mode, Record Size,
Record Audio, Color Mode, EV, Encode
Format and Storage, to Switch To Camera
and My Videos.
Recording Mode
Once you have chosen your settings, you can
launch the recording of your video-clip by
pressing the key.
If you receive a call in recording mode,
video recording will stop and save
automatically.
Further Operations After Shooting a
Video
After shooting a video, you can choose to
send your video by Email, MMS, Bluetooth or
go to My Videos to view it.
In the list of My Videos, press Options to
rename the video, send it by Bluetooth, MMS
and Email, etc.
Image Viewer 16.
A library links to the images both in phone
and SD card to be shown in list, slide, set as
wallpaper, power on/off display and incoming
call image or sent by MMS, Email, Bluetooth.
Press an image once to view it in full screen.
39
Video Player 17.
Contains all video clips both in phone and SD
card and enables you to play, send, set as
power on/off display, delete, rename, sort, etc.
FM Radio 18.
Your phone is equipped with a radio with RDS
functionality. You can use the application as a
traditional radio with saved channels or with
parallel visual information related to the radio
program on the display if you tune to stations
that offer Visual Radio service. You can listen
to it while running other applications.
To use it, you must plug in your
headset, which works as an antenna
connected with your phone.
40
Twitter 19.
Twitter is a social networking and microblog-
ging service that has gained notability and
popularity worldwide. This feature enables
phone users to exchange news updates
and ideas with a community in the form of
messages or posts. Posts are displayed on
the author's profile page and delivered to the
author's subscribers or followers.
To open an account online, please go to:
http://m.twitter.com/.
Facebook 20.
Facebook is a social utility that connects peo-
ple with friends and others who work, study
and live around them. It provides a number of
features with which users may interact: Wall, a
space on every user's profile page that allows
friends to post messages for the user to see;
Pokes, which allow users to send a virtual
"poke" to each other; Gifts, a feature allowing
users to send virtual gifts which appear on the
recipient’s profile; Market places, which lets
users post free classified goods, etc.
To open an account online, please go to:
http://m.facebook.com/.
41
News 21.
From the main menu or Widget bar, select
News.
There are several built-in channels for your
choice and for the first time you enter these
channels, you need to update them.
You can also create channel by selecting
Options > Create Channel and then fill in
title, URL and select whether to activate Auto
update On or Off, finally confirm with the
Right soft key.
Once subscribed to a channel, it gives you the
ability to track and manage all your favorite
RSS content on your mobile phone at anytime,
anywhere!
Weather 22.
Your phone is equipped with a weather func-
tion for consulting up to 3-day forecasts of
favorite cities.
From the main menu or Widget bar, select
Weather.
Add New City
From the weather menu, Select • Options >
My Cities, you can check the cities you have
added for weather concern.
Select • Options > Add New City to enter and
search the city name and then add it to your
cities list.
Set As default
From the weather menu, Select • Options >
My Cities.
Select • Options > Set As default.
The default city will display in the weather •
menu and you can directly check the
information.
Select AccuWeather.com to access
online website. Extra charges may
apply.
42
Bluetooth™ 23.
Turning On/Off Bluetooth
From the main menu, select • Bluetooth.
Select • Power to switch On/Off by pressing
the Left soft key.
The icon • will display in the status bar
while Bluetooth is on.
Visibility
From the main menu, select • Bluetooth.
Select • Visibility to switch On/Off by
pressing the Left soft key.
It will show or hide your device to all •
devices nearby.
Device List
From the main menu, select • Bluetooth and
power it on.
Select • Device list to search all devices
nearby and perform further operations.
Pairing and Registering Your
Bluetooth Device
From the Device list, select the device you •
want to pair directly.
Enter the same set of password on both •
handset and the device to get it registered.
Press the • Options soft key to search,
show service, delete and rename from the
connected list.
43
Available Functions
Data Transmit:• Exchange files with another
Bluetooth device.
Handle A Call:• Initiate or receive a phone
call with a Bluetooth headset.
Listen To Music:• Support A2DP profile.
Dialup Networking Profile:• Network
connection can be activated via bluetooth.
Always activate Bluetooth in your
phone first before connecting it to
a Bluetooth device. Be aware that
Bluetooth activation will slightly affect
battery life of your phone.
Bluetooth technology allows free wireless
connections between all Bluetooth-compliant
devices within short range. Please make sure
that the Bluetooth headset or the Bluetooth
car kit and your mobile phone are in this range
and set as visible.
Safety and Use24.
We recommend that you read this chapter
carefully before using your mobile phone.
The manufacturer disclaims any liability for
damage, which may result as a consequence
of improper use or use contrary to the instruc-
tions contained herein.
TRAFFIC SAFETY:•
Given that studies show that using a mobile
phone while driving a vehicle constitutes a
real risk, even when the hands-free kit is used
(car kit, headset...), drivers are requested to
refrain from using their mobile phone when
the vehicle is not parked. Check the laws and
regulations on the use of wireless mobile
phones and their accessories in the areas
where you drive. Always obey them. The
use of these devices may be prohibited or
restricted in certain areas.
When driving, do not use your mobile phone
and headphone to listen to music or to the
radio. Using a headphone can be dangerous
and forbidden in some areas.
When switched on, your mobile phone emits
electromagnetic waves that can interfere with
the vehicle’s electronic systems such as ABS
anti-lock brakes or airbags. To ensure that
there is no problem:
44
- do not place your mobile phone on top of
the dashboard or within an airbag deploy-
ment area,
- check with your car dealer or the car
manufacturer to make sure that the car’s
electronic devices are shielded from mobile
phone RF energy.
CONDITIONS OF USE:•
You are advised to switch off the mobile
phone from time to time to optimize its
performance.
Remember to abide by local authority rules of
mobile phone use on aircrafts.
Operational Warnings: Obey all posted signs
when using mobile devices in public areas.
Follow Instructions to Avoid Interference
Problems: Turn off your mobile device in any
location where posted notices instruct you
to do so. In an aircraft, turn off your mobile
device whenever instructed to do so by airline
staff. If your mobile device offers an airplane
mode or similar feature, consult airline staff
about using it in flight.
Switch the mobile phone off when you are
in health care facilities, except in designated
areas. As with many other types of equipment
now in regular use, mobile phones can inter-
fere with other electrical or electronic devices,
or equipment using radio frequency.
Switch the mobile phone off when you are
near gas or flammable liquids. Strictly obey
all signs and instructions posted in a fuel
depot, gas station, or chemical plant, or in any
potentially explosive atmosphere.
When the mobile phone is switched on, it
should be kept at least 15 cm from any medi-
cal device such as a pacemaker, a hearing aid
or insulin pump. In particular when using the
mobile phone you should hold it against the
ear on the opposite side to the device, if any.
Read and follow the directions from the manu-
facturer of your implantable medical device.
If you have any questions about using your
mobile device with your implantable medical
device, consult your healthcare provider.
To avoid hearing impairment, answer the call
before holding your mobile phone to your ear.
Also move the handset away from your ear
while using the “hands-free” option because
the amplified volume might cause hearing
damage.
It is recommended to have proper supervision
while small children use your mobile phone.
When replacing the cover please note that
your mobile phone may contain substances
that could create an allergic reaction.
Always handle your mobile phone with care
and keep it in a clean and dust-free place.
45
Do not allow your mobile phone to be exposed
to adverse weather or environmental condi-
tions (moisture, humidity, rain, infiltration of
liquids, dust, sea air, etc.). The manufacturer’s
recommended operating temperature range is
14°F (-10°C) to 131°F (+55°C) (the max value
depends on device, materials and housing
paint/texture).
Over 131°F (55°C) the legibility of the mobile
phone’s display may be impaired, though this
is temporary and not serious.
Do not open or attempt to repair your mobile
phone yourself.
Do not drop, throw or try to bend your mobile
phone.
Do not paint it.
Use only batteries, battery chargers, and
accessories which are recommended by
TCT Mobile Limited and its affiliates and are
compatible with your mobile phone model.
TCT Mobile Limited and its affiliates disclaim
any liability for damage caused by the use of
other chargers or batteries.
Your mobile phone should not be disposed
of in a municipal waste. Please check local
regulations for disposal of electronic products.
Remember to make back-up copies or keep
a written record of all important information
stored in your mobile phone.
Prolonged exposure to music at full vol-
ume using the music player may damage
your hearing. Set your mobile phone’s
volume to it’s lowest setting prior to
inserting headphones in your ears and
adjust the volume to your preference.
Only use headphones that are recom-
mended by TCT Mobile Limited and it’s
affiliates.
PRIVACY:•
Please note that you must respect the laws
and regulations in force in your jurisdiction or
other jurisdiction(s) where you will use your
mobile phone regarding taking photographs
and recording sounds with your mobile
phone. Pursuant to such laws and regulations,
it may be strictly forbidden to take photo-
graphs and/or to record the voices of other
people or any of their personal attributes, and
reproduce or distribute them, as this may be
considered to be an invasion of privacy.
It is the user’s sole responsibility to ensure
that prior authorization be obtained, if neces-
sary, in order to record private or confidential
conversations or take a photograph of another
person; the manufacturer, the seller or vendor
of your mobile phone (including the operator)
disclaim any liability which may result from
the improper use of the mobile phone.
46
BATTERY AND ACCESSORIES:•
Before removing the battery from your mobile
phone, please make sure that the mobile
phone is switched off.
Observe the following precautions for battery
use:
- Do not attempt to open the battery (due to
the risk of toxic fumes and burns).
- Do not puncture, disassemble or cause a
short-circuit in a battery,
- Do not burn or dispose of a used battery
in the garbage or store it at temperatures
above 140°F (60°C).
Batteries must be disposed of in accordance
with locally applicable environmental regula-
tions. Only use the battery for the purpose for
which it was designed. Never use damaged
batteries or those not recommended by TCT
Mobile Limited and/or its affiliates.
This symbol on your mobile phone,
the battery and the accessories means
that these products must be taken to
collection points at the end of their
life:
- Municipal waste disposal centers
with specific bins for these items of
equipment
- Collection bins at points of sale.
They will then be recycled, preventing sub-
stances being disposed of in the environment,
so that their components can be reused.
In European Union Countries:
These collection points are accessible free of
charge. All products with this sign must be
brought to these collection points.
In Non European Union Jurisdictions:
Items of equipment with this symbol are not
be thrown into ordinary bins if your jurisdic-
tion or your region has suitable recycling
and collection facilities; instead they are to
be taken to collection points for them to be
recycled.
In the United States you may learn more about
CTIA’s Recycling Program at www.recy-
clewirelessphones.com
CAUTION: RISK OF EXPLOSION IF BATTERY
IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS.
CHARGERS
Home A.C./Travel chargers will operate within
the temperature range of: 32°F (0°C) to 104°F
(40°C).
The chargers designed for your mobile phone
meet with the standard for safety of informa-
tion technology equipment and office equip-
ment use. Due to different applicable electrical
47
specifications, a charger you purchased in one
jurisdiction may not work in another jurisdic-
tion. They should be used for this purpose
only.
Characteristics of power supply (depending
on the country):
Travel charger: Input: 100-240 V, 50/60 Hz,
0.15 A
Output: 5 V, 550 mA
Battery: Lithium 850 mAh
RADIO WAVES:
THIS MOBILE PHONE MEETS THE GOVERN-
MENT’S REQUIREMENTS FOR EXPOSURE TO
RADIO WAVES.
Your mobile phone is a radio transmitter and
receiver. It is designed and manufactured not
to exceed the emission limits for exposure
to radio-frequency (RF) energy. These limits
are part of comprehensive guidelines and
establish permitted levels of RF energy for
the general population. The guidelines are
based on standards that were developed by
independent scientific organizations through
periodic and thorough evaluation of scientific
studies. These guidelines include a substantial
safety margin designed to ensure the safety of
all persons, regardless of age and health.
The exposure standard for mobile phones
employs a unit of measurement known as the
Specific Absorption Rate, or SAR. The SAR
limit set by public authorities such as the
Federal Communications Commission of the
US Government (FCC), or by Industry Canada,
is 1.6 W/Kg averaged over 1 gram of body
tissue. Tests for SAR are conducted using
standard operating positions with the mobile
phone transmitting at its highest certified
power level in all tested frequency bands.
Although the SAR is determined at the highest
certified power level, the actual SAR level of
the mobile phone while operating can be well
below the maximum value. This is because the
mobile phone is designed to operate at multi-
ple power levels so as to use only the power
required to reach the network. In general,
the closer you are to a wireless base station
antenna, the lower the power output of the
mobile phone. Before a mobile phone model
is available for sale to the public, compliance
with national regulations and standards must
be shown.
The highest SAR value for this model mobile
phone when tested is 1.33 W/Kg for use at the
ear and 1.19 W/Kg for use close to the body.
While there may be differences between the
SAR levels of various mobile phones and at
various positions, they all meet the govern-
ment requirement for RF exposure. For
body-worn operation, the mobile phone meets
FCC RF exposure guidelines provided that it is
used with a non-metallic accessory with the
48
handset at least 1.5 cm from the body. Use of
other accessories may not ensure compliance
with FCC RF exposure guidelines.
Additional information on SAR can be found
on the Cellular Telecommunications & Internet
Association (CTIA) Web site: http://www.
phonefacts.net
The World Health Organization (WHO) consid-
ers that present scientific information does not
indicate the need for any special precautions
for use of mobile phones. If individuals are
concerned, they might choose to limit their
own or their children’s RF exposure by limit-
ing the length of calls, or using “hands-free”
devices to keep mobile phones away from the
head and body. (fact sheet n°193). Additional
WHO information about electromagnetic fields
and public health are available on the follow-
ing website: http://www.who.int/peh-emf.
Note: This equipment has been tested and
found to comply with the limits for a Class B
digital device pursuant to part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful interfer-
ence in a residential installation. This equip-
ment generates, uses and can radiate radio
frequency energy and, if not installed and
used in accordance with the instructions, may
cause harmful interference to radio commu-
nications. However, there is no guarantee that
interference to radio or television reception,
which can be determined by turning the equip-
ment off and on, the user is encouraged to try
to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equip-
ment and receiver.
- Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/
TV technician for help.
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to operate
the equipment.
For the receiver devices associated with the
operation of a licensed radio service (e.g. FM
broadcast), they bear the following statement:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interfer-
ence
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
49
Your mobile phone is equipped with a built-in
antenna. For optimal operation, you should
avoid touching it or degrading it.
As mobile devices offer a range of functions,
they can be used in positions other than
against your ear. In such circumstances the
device will be compliant with the guidelines
when used with headset or usb data cable. If
you are using another accessory ensure that
whatever product is used is free of any metal
and that it positions the mobile phone at least
1.5 cm away from the body.
LICENCE•
Obigo® is a registered trademark of
Obigo AB.
microSD Logo is a trademark.
The Bluetooth word mark
and logos are owned by the
Bluetooth SIG, Inc. and any use
of such marks by TCT Mobile
Limited and its affiliates is under
license. Other trademarks and
trade names are those of their
respective owners.
Alcatel OT871A Bluetooth
QD ID B0xxxxx
Java™ and all Java™ based
trademarks and logos are
trademarks or registered
trademarks of Sun Microsystems,
Inc. in the U.S. and other
countries.
is a registered trademark of
Opera Mini.
Facebook and the f Logo are
trademarks of Facebook, Inc., and
are used under license.
Twitter and the T Logo are
trademarks of Twitter, Inc., and
are used under license.
50
Hearing Aid Compatibility
This phone has been tested and rated for use
with hearing aids for some of the wireless
technologies that it uses. However, there may
be some newer wireless technologies used in
this phone that have not been tested yet for
use with hearing aids. It is important to try the
different features of this phone thoroughly and
in different locations, using your hearing aid
or cochlear implant, to determine if you hear
any interfering noise. Consult your service
provider or the manufacturer of this phone for
information on hearing aid compatibility. If
you have questions about return or exchange
policies, consult your service provider or
phone retailer. Your telephone is rated: “For
Hearing Aid", to assist hearing device users in
finding phones that may be compatible with
their hearing devices.
Your telephone is rated: “For Hearing Aid", to
assist hearing device users in finding phones
that may be compatible with their hearing
devices.
This device is HAC M3/T3 compatible.
For more information please refer to "Hearing
Aid Compatibility with Mobile Phones" leaflet
or visit our website www.tctmobile.com
General Information25.
Website:• www.alcatelonetouch.com
Facebook: • http://www.facebook.com/
alcatelonetouchusa
Twitter: • http://www.twitter.com/
alcatel1touch
Hot Line Number:• In the United States, call
877-702-3444 for technical support.
On our Internet site, you will find our FAQ
(Frequently Asked Questions) section. You can
also contact us by e-mail to ask any questions
you may have.
An electronic version of this user guide is avail-
able in English and other languages according
to availability on our server: www.alcatelone-
touch.com
Your mobile phone is a transceiver
that operates on GSM in quad-band
(850/900/1800/1900 MHz) bands or UMTS in
tri-band (850/1900/2100 MHz).
51
Protection Against Theft (1)
Your mobile phone is identified by an IMEI
(mobile phone serial number) shown on the
packaging label and in the product’s memory.
We recommend that you note the number the
first time you use your mobile phone by enter-
ing *#06# and keep it in a safe place. It may
be requested by the police or your operator if
your mobile phone is stolen.
Disclaimer
There may be certain differences between
the user manual description and the mobile
phone’s operation, depending on the software
release of your mobile phone or specific
operator services.
TCT Mobile shall not be held legally respon-
sible for such differences, if any, nor for their
potential consequences, which responsibility
shall be borne by the operator exclusively.
(1) Contact your network operator for service
availability.
Warranty26.
12 MONTH LIMITED WARRANTY
Personal Communications Devices, LLC (the
"Company") warrants to the original retail
purchaser of this cellular handset or wireless
device (Product), that should this Product
or any part thereof during normal consumer
usage and conditions, be proven defective
in material or workmanship that results in
the Product's failure within the first twelve
(12) month period from the date of purchase
(proof of purchase required), such defect(s)
will be repaired or replaced (with new or
rebuilt parts) at the Company’s option, without
charge for parts or labor directly related to the
defect(s).
The antenna, keypad, display, rechargeable
battery and battery charger, if included with
the Product, are similarly warranted for twelve
(12) months from the date of purchase.
This Warranty extends only to consumers who
purchase the product in the United States or
Canada and it is not transferable or assign-
able.
52
This Warranty does not apply to:
(a) Product subjected to abnormal use or
conditions, accident, mishandling, neglect,
unauthorized alteration, misuse, improper
installation or repair or improper storage;
(b) Product whose mechanical serial number
or electronic serial number has been
removed, altered or defaced;
(c) Damage from exposure to moisture,
humidity, excessive temperatures or
extreme environmental conditions;
(d) Damage resulting from connection to, or
use of any accessory or other product not
approved or authorized by the Company;
(e) Defects in appearance, cosmetic,
decorative or structural items such as
framing and non-operative parts;
(f) Product damaged from external causes
such as fire, flooding, dirt, sand, weather
conditions, battery leakage, blown fuse,
theft or improper usage of any electrical
source;
g) Product subjected to unauthorized
modifications to the software of the
Product or to the Product itself;
(h) Product subjected to the unauthorized
opening or repair of the Product;
(i) Product subjected to hacking, password-
mining, jail breaking, the unlocking of the
boot loader using the fast boot program or
the tampering with or short-circuiting of
the battery;
(j) Product that has been modified to alter
functionality or capability of the Product
without the written permission of the
Company.
The Company disclaims liability for removal
or reinstallation of the Product, for geographic
coverage, for inadequate signal reception by
the antenna or for communications range or
operation of the cellular system as a whole.
When sending your wireless device to the
Company for repair or service, please note
that any personal data or software stored on
the Product may be inadvertently erased or al-
tered. Therefore, we strongly recommend you
make a back up copy of all data and software
contained on your Product before submit-
ting it for repair or service. This includes
all contact lists, downloads (i.e. third-party
software applications, ringtones, games and
graphics) and any other data added to your
Product. In addition, if your Product utilizes
a SIM or Multimedia card, please remove the
card before submitting the Product and store
for later use when your Product is returned.
The Company is not responsible for and does
not guarantee restoration of any third-party
53
software, personal information or memory
data contained in, stored on, or integrated
with any other wireless device, whether under
warranty or not, returned to the Company for
repair or service.
To obtain repairs or replacement within the
terms of this Warranty, the Product should
be delivered with proof of Warranty cover-
age (e.g. dated bill of sale), the consumer’s
return address, daytime phone number and/
or fax number and complete description of
the problem, transportation prepaid, to the
Company at the address shown below or to
the place of purchase for repair or replace-
ment processing. In addition, for reference to
an authorized Warranty station in your area,
you may telephone in the United States (800)
229-1235, and in Canada (800) 465-9672 (in
Ontario call 416-695-3060).
THE EXTENT OF THE COMPANY’S LIABILITY
UNDER THIS WARRANTY IS LIMITED TO
THE REPAIR OR REPLACEMENT PROVIDED
ABOVE AND, IN NO EVENT, SHALL THE
COMPANY’S LIABILITY EXCEED THE PUR-
CHASE PRICE PAID BY PURCHASER FOR THE
PRODUCT.
ANY IMPLIED WARRANTIES, INCLUDING
ANY IMPLIED WARRANTY OF MERCHANT-
ABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, SHALL BE LIMITED TO THE
DURATION OF THIS WRITTEN WARRANTY.
ANY ACTION FOR BREACH OF ANY WAR-
RANTY MUST BE BROUGHT WITHIN A
PERIOD OF 18 MONTHS FROM DATE OF
ORIGINAL PURCHASE. IN NO CASE SHALL
THE COMPANY BE LIABLE FOR AN SPECIAL
CONSEQUENTIAL OR INCIDENTAL DAMAGES
FOR BREACH OF THIS OR ANY OTHER WAR-
RANTY, EXPRESS OR IMPLIED, WHATSO-
EVER. THE COMPANY SHALL NOT BE LIABLE
FOR THE DELAY IN RENDERING SERVICE
UNDER THIS WARRANTY OR LOSS OF USE
DURING THE TIME THE PRODUCT IS BEING
REPAIRED OR REPLACED.
No person or representative is authorized to
assume for the Company any liability other
than expressed herein in connection with the
sale of this product.
Some states or provinces do not allow limita-
tions on how long an implied warranty lasts
or the exclusion or limitation of incidental or
consequential damage so the above limitation
or exclusions may not apply to you. This War-
ranty gives you specific legal rights, and you
may also have other rights, which vary from
state to state or province to province.
54
IN USA: Personal Communications Devices,
LLC.
555 Wireless Blvd.
Hauppauge, NY 11788
(800) 229-1235
IN CANADA: PCD Communications Canada
Ltd.
5535 Eglington Avenue West
Suite #210
Toronto, ON M9C 5K5
(800) 465-9672
