TCT Mobile 287 UMTS Triband / GSM Quadband mobile phone User Manual IP4398 768 UM Eng USA TMO 12 121015 indd
TCT Mobile Limited UMTS Triband / GSM Quadband mobile phone IP4398 768 UM Eng USA TMO 12 121015 indd
Exhibit09.IP4398_768_UM_USA_TMO_15_10_12.pdf
1 2
Introduction ................................
Thank you for purchasing your new TMobile 768 3G phone. The TMobile
768 comes equipped with many of the features and functions you want
and need.
Home screen
• Convenient at-a-glance view of Shortcut applications
• Menu shortcuts for quick access
Power media applications
• Music & Radio
• Video & Streaming
• Webcam
Bluetooth
With Bluetooth 2.1 supporting A2DP profiles, you can enjoy hands-free
conversations.
Table of contents
General information ........................................................... 6
1 Getting started .............................................................. 7
1.1 Set-up .....................................................................................................7
1.2 Power on your phone ........................................................................9
1.3 Power off your phone ........................................................................9
2 Your mobile ................................................................. 10
2.1 Keys and connectors ........................................................................10
2.2 Status bar icons ..................................................................................13
2.3 Home screen ......................................................................................16
3 Making a call ................................................................ 17
3.1 Placing a call ........................................................................................17
3.2 Calling your voicemail ......................................................................17
3.3 Receiving a call ...................................................................................18
3.4 During a call ........................................................................................18
3.5 Conference calls ................................................................................20
4 Messaging ..................................................................... 21
4.1 Access ..................................................................................................21
4.2 SMS/MMS .............................................................................................21
4.3 Email .....................................................................................................26
3 4
5 Contacts ....................................................................... 29
5.1 Contacts ..............................................................................................29
5.2 Adding a contact ................................................................................30
5.3 Available options................................................................................31
6 Call log .......................................................................... 33
6.1 Access ..................................................................................................33
6.2 Available options................................................................................33
7 Media ............................................................................ 34
7.1 Camera.................................................................................................34
7.2 Music player .......................................................................................37
7.3 Picture viewer ....................................................................................39
7.4 Video player ........................................................................................39
7.5 FM Radio..............................................................................................40
7.6 Voice recorder ...................................................................................41
7.7 Ebook ...................................................................................................42
7.8 Files ......................................................................................................42
8 MobileLife ..................................................................... 47
8.1 Homepage ...........................................................................................47
8.2 Bookmarks ..........................................................................................47
8.3 Go to URL ..........................................................................................47
8.4 Open file ..............................................................................................47
8.5 Last web address ...............................................................................47
8.6 Recent pages .......................................................................................47
8.7 Offline pages .......................................................................................47
8.8 Service inbox ......................................................................................47
8.9 Settings ...............................................................................................47
9 Applications ................................................................. 48
9.1 WEB ......................................................................................................48
9.2 News ....................................................................................................48
9.3 Weather ..............................................................................................49
9.4 Java ........................................................................................................49
10 Tools ............................................................................. 51
10.1 Alarm ....................................................................................................51
10.2 Calculator ............................................................................................51
10.3 Calendar ..............................................................................................52
10.4 Tasks .....................................................................................................52
10.5 Notes ....................................................................................................53
10.6 Bluetooth™ ........................................................................................53
10.7 World clock ........................................................................................55
10.8 Stopwatch ............................................................................................55
10.9 Unit converter ...................................................................................55
11 Settings ......................................................................... 56
11.1 Profiles .................................................................................................56
11.2 Phone settings ....................................................................................57
11.3 Call settings .........................................................................................60
11.4 Airplane mode ....................................................................................62
11.5 Security settings .................................................................................63
11.6 Networks settings .............................................................................64
11.7 Connectivity ........................................................................................65
11.8 System update ...................................................................................65
11.9 GPS settings ........................................................................................65
11.10 Text phone .........................................................................................65
5 6
General information ..................
Your TMobile 768 is a transceiver that operates on GSM Quadband with
850/900/1800/1900 MHz or UMTS Triband 850/1900/AWS.
Protection against theft
Your mobile phone is identified by an IMEI (mobile phone serial number)
shown on the packaging label and in the product’s memory. We
recommend that you note the number the first time you use your mobile
phone by entering *#06# and keep it in a safe place. It may be requested
by the police or T-Mobile if your mobile phone is stolen.
12 Making the most of your mobile ............................... 66
12.1 Webcam .............................................................................................66
13 Warranty ...................................................................... 67
14 Troubleshooting .......................................................... 70
Safety and Use. .................................................................. 75
7 8

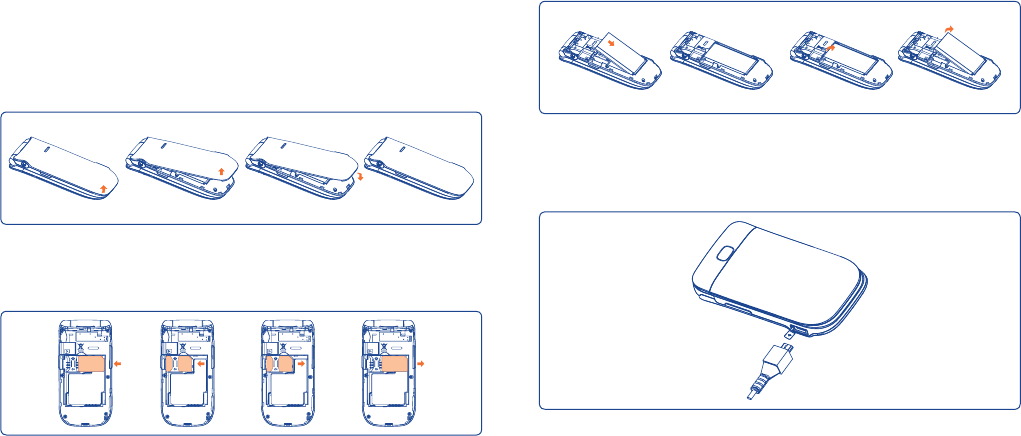

Installing or removing the battery
Insert and click the battery into place, then close the telephone cover.
Unclip the cover, then remove the battery.
Charging the battery
Connect the battery charger to your phone and outlet respectively.
• LED light will be on when it is charging, and be off when battery is fully
charged.
• Charging may take about 20 minutes to start if the battery is flat.
• Be careful not to force the plug into the socket.
• Make sure the battery is correctly inserted before connecting the charger.
• The outlet must be near to the phone and easily accessible (avoid
electric extension cables).
Getting started
1 .....................
Set-up1.1
Removing or installing the back cover
Inserting or removing the SIM card (1)
You must insert your SIM card to make phone calls. Please power off your
phone and remove battery before inserting or removing the SIM card.
Place the SIM card with the chip facing downwards and slide it into its
housing. Make sure that it is correctly inserted. To remove the card, press
and slide it out.
(1) Check with T-Mobile to make sure that your SIM card is 3V or 1.8V compatible.
The old 5 Volt cards can no longer be used. Please contact T-Mobile.
9 10
• When using your telephone for the first time, charge the battery fully
(approximately 3 hours). You are advised to fully charge the battery
().
To reduce power consumption and energy waste, when the
battery is fully charged, disconnect your charger from the plug;
switch off Bluetooth and background-running applications when
not in use; reduce the backlight time, etc.
Power on your phone1.2
Hold down the key until the telephone powers on, type in your PIN
code if necessary and then confirm with the key. The Home screen is
displayed.
If you do not know your PIN code or if you have forgotten it, contact
T-Mobile. Do not leave your PIN code with your telephone. Store this
information in a safe place when not in use.
If Broadcast SMS are displayed, use the key to browse through them or
press the to return to the Home screen.
While the phone is searching for a network, "Searching/Emergency"
will be displayed.
Power off your phone1.3
Hold down the key from the Home screen.
Your mobile
2 ...........................
Keys and connectors2.1
Left softkey
Right softkey
Navigation key/ OK
key
End key
Delete key
Send key
Headset
connector
Camera key Volume key
micro-USB
connector
11 12
Navigation key • (1)
Press to go left/right/up/down
Press to access function
UP: Call log
DOWN: Contacts
LEFT (2): Write message
RIGHT (2): Camera
OK key Press to confirm an option•
Answer/Send a call•
Enter Call log•
Press: End a call •
Return to the Home screen
Press and hold: Power on/off•
Press: Delete characters in Edit mode•
Press: Dial "#"•
Press and hold: Vibrate alert
In Edit mode•
Press: Switch between ABC/Abc/abc
Press and hold: Switch between Multi-Tap/Smart
Press: Dial "1"•
Press and hold: Access your voicemail
In Edit mode•
Press: Input "1"
Input frequently-used symbols
Press: Dial "*"•
In Edit mode•
Press: change input method
Press and hold: Access the Symbols table
Press: Dial "0"•
Press and hold: Switch between "+/P/W"
In Edit mode•
Press: Enter a space
Press and hold: Input "0"
Press: Take a picture•
Press and hold: Access Camera•
Press: Volume up/down•
In Camera mode•
Press: Zoom in/out
In music playing mode•
Press and hold: Previous/Next song
In Radio mode•
Press and hold: Previous/Next channel
Incoming call (Clamshell close)•
Press: Mute
Press and hold: End
Alarm beep (Clamshell close)•
Press: Snooze
Press and hold: Stop
(1) You can personalize navigation key in Settings.
(2) The shortcut to access function for LEFT/RIGHT only be available when
shortcut bar is off.
13 14
Status bar icons 2.2 (1)
Battery charge level
Vibrate alert: your phone vibrates, but does not ring or
beep with the exception of the alarm (see page 67).
Bluetooth status (Activated).
Bluetooth status (Connected to an audio device).
Java status (Activated).
Headset connected.
Call forwarding activated: your calls are forwarded
(see page 45).
Alarm or appointments programmed (see page 78, 81).
Level of network reception.
Voicemail message arrived.
Missed calls.
Call in progress.
Stopwatch is active.
Radio is on.
Email unread.
WAP messages.
Roaming.
microSD card scanning completed.
GPRS connection status (Activated).
GPRS connecting.
EDGE connecting.
EDGE attached.
3G network connecting.
3G network attached.
(1) The icons and illustrations in this guide are provided for informational
purposes only.
15 16
Music active.
MMS receipt in progress.
Silence mode: your phone does not ring, beep or vibrate
with the exception of the alarm (see page 67).
SMS unread.
MMS unread.
(Flickering) Message list is full: your phone cannot accept
any new messages. You must access the message list and delete at
least one message on your SIM card.
Airplane mode.
Home screen2.3
Shortcut bar2.3.1
Shortcuts are home screen icons for your frequently used items, like Calls
or Messages.
Status bar
Shortcut bar
You can customize shortcut bar by selecting "Settings\Phone settings\
Shortcut bar".
To display a shortcut, press the key. To scroll through the shortcuts to
select one, press the Navigation key right and left.
To add/remove a shortcut, select "Edit shortcuts" and use key to
mark shortcuts you need, and then confirm by pressing "Save".
To reorder shortcuts, select "Reorder shortcuts" and choose one item
by pressing key, scroll up or down to the required position, place it by
pressing key.
You aren't allowed to add more than five shortcuts. Two
shortcuts cannot be removed: Calls, Messages.
17 18
Making a call
3 ..........................
Placing a call3.1
Dial the desired number then press the key to place the call. The
number you entered can be saved to Contacts by selecting "Save". If you
make a mistake, you may press key to delete the incorrect digits one by
one, or you may press and hold key to delete all.
To hang up the call, press the key.
Making an emergency call
If your phone has network coverage, dial emergency number and press the
key to make an emergency call. This works even without a SIM card and
without typing the PIN code.
Calling your voicemail3.2
Your voicemail is provided by your network to avoid missing calls. It works
like an answering machine that you can consult at any time. To access your
voicemail, hold down the key.
If the access number for T-Mobile's voicemail service does not work, dial
the number that you were given. To change this number at a later date,
refer to "My numbers" (see page 44).
To use your voicemail service from abroad, contact T-Mobile
before leaving.
Receiving a call3.3
When you receive an incoming call, press the key to talk and then hang
up using the key.
If the icon is displayed, the vibrator is activated and there is no ringtone.
If the icon is displayed, the phone neither rings nor vibrates.
The caller’s number is displayed if it is transmitted by the network
(contact T-Mobile to check service availability).
If the flip is open
To pick up a call, press the • key.
To mute ringtone of current incoming call, press the Right softkey.•
To reject a call, press the• key or the Right softkey. To reject call with
SMS by pressing the Left softkey.
If the flip is closed
To p• ick up a call, open the flip.
To mute ringtone of current incoming call, press the Volume key.•
To reject a call, press and hold the Volume key.•
During a call3.4
During a call, following options are available:
Mute (Turn the Mute function on/off during a call)•
New call (Hold the current call and dial another number)•
Hold (Hold the current call)•
19 20
End (End the current call)•
DTMF (Enable/Disable sending DTMF during the call)•
Contacts (Enter Contacts)•
Messaging (Enter Message)•
Calendar (Enter Calendar)•
Services (Enter Service)•
Sound recorder (record your current call)•
MobileLife (Enter MobileLife)•
You can switch the audio speech from handset to Bluetooth device when
connected.
You can use Handsfree function by pressing Right softkey during a call.
You may also adjust sound level by using Navigation key directly during
a call.
Move the handset away from your ear while using the "Handsfree"
option because the amplified volume might cause hearing
damage.
Handling two calls
• Answering a second call (ensure that "Call waiting" is activated, see
page 44).
• To call a second party during a call, you can select "Options\New call".
Conference calls3.5
Your phone allows you to talk to several people at the same time
(up to five). If you are on a double call, press "Options" and select
"Conference". If a third call comes in, answer it by pressing the key
and speak with your new caller.
This caller becomes a member of the conference if you press "Options"
and select "Conference call". Pressing disconnects the current call.
21 22
Messaging
4 .......................
You can create, edit and receive SMS/MMS, Email with this mobile phone.
MMS enables you to send video clips, pictures, photos, animations and
sounds to other compatible mobiles and e-mail addresses.
The MMS function can only be used if the service is provided
by T-Mobile, and if your contract includes the MMS option
and if all the parameters for MMS have been entered (see
page 33).
Access4.1
You may access this menu using the following options:
• Access from the main menu by selecting "Messaging".
• Select from shortcut bar, and then enter the sub-menu you require.
When you access "Messaging", you can switch between SMS/MMS and
Email by navigation key.
SMS/MMS4.2
Conversational On (Off) mode4.2.1
In conversational on mode, you can view chat history in chronological
order. In conversational off mode, you may have access to the following
folders: Inbox, Outbox, Sent, Drafts, Voicemail, Broadcast
SMS, Empty folder, Archive, Templates, Emergency alerts and
Settings. Conversational view mode is set as default. You may switch
to conventional mode by selecting "Settings\Switch view mode". The
following instructions are based on conversational mode.
Write message4.2.2
You can select "Messaging\New message" from the main menu or
access from shortcut to write text/multimedia message. One or more
recipients can be added from contact list and you can remove a recipient
by pressing the Delete key. Press the key and select "More" to multi-
choice recipients from Contacts.
An SMS will be converted to MMS automatically when pictures, videos,
audio, slides or attachments are inserted; Subject, CC/BCC/email address
is added; or the message contains more than 8 pages of text.
Delay send
Schedule a SMS/MMS to be sent out at predefined time ("Options\Delay
send").
An SMS message of more than a certain number of characters
(the number of characters depends on your language) will be
charged as several SMS. An MMS message containing photos and/
or sounds may also be billed as more than one message. Specific
letters (accent) will increase the size of the SMS, this may cause
multiple SMS to be sent to your recipient.
23 24
Available options4.2.3
WAP alerts4.2.3.1
WAP messages
Alerts list from WAP
Setting messages
Store provisioning messages.
Emergency alert4.2.3.2
Launch the list of Emergency alerts
Switch view mode4.2.3.3
You can switch message view mode between conversational on and off
modes.
Voicemail4.2.3.4
View and edit the voicemail number.
Broadcast SMS4.2.3.5
Store the received Broadcast SMS.
Settings4.2.3.6
Text messages
Profile settings • Profiles can be retrieved directly from SIM card.
Alternatively, you can create your own profile.
Common
settings
• Delivery report: request for acknowledgement
of delivery report On/Off; Reply path: show
reply path; Save sent messages: save all your sent
messages.
Alphabet
management
• Enables the definition of SMS data coding for
management SMS sending.
Memory status • Show memory used on the phone and SIM card.
Preferred storage • Select default message storage, SIM or phone.
25 26
Multimedia messages
Data account • Select your data account for multimedia
messages.
Common settings
Edit • Set slide timing, edit mode, picture size, signature,
etc.
Send • Set the values for validity period, Read report, etc.
Retrieve • Set the values for Home network, Roaming
network, etc.
Prefered storage • Select default MMS storage, phone or memory
card.
Memory status • Show memory used on the phone or microSD
card.
Service messages
Enable push • Enable/Disable to accept all or trusted push
messages.
Enable service
loading
• Enable/Disable service loading.
Enable white list • Enable/Disable white list.
Enable black list • Enable/Disable black list.
White list • Edit the white list.
Black list • Edit the black list.
Email4.3
Your phone has an email client with the settings pre-defined for a few
popular email services like – Gmail, Yahoo, AOL, etc. Besides this, you can
set up other POP3 or IMAP4 email accounts that you may be using.
Email account set-up4.3.1
Pre-defined email service
If you own an email account of predefined services, you can install it to
your phone by selecting the service (GoogleMail, yahoo, etc.), entering
the Email address and password, and then confirming with "OK".
New email service
To set up a new email account other than the predefined email services,
select "Other accounts".
You are required to enter your Email address, select protocol(1) (POP3
or IMAP4) and data account, then enter your incoming server address,
outgoing server address, username, password and account name, finally
confirm with "Done".
(1) Consult your email service provider for more information about protocol.
27 28
Write email4.3.2
Select "New email" to enter write email interface. You can add a
recipient by entering their Email address from the enter bar or by just
adding it from Contacts.
Inbox4.3.3
Folder of all received Emails.
Outbox4.3.4
Folder of all unsent Emails.
Sent4.3.5
Folder of all sent Emails.
Drafts4.3.6
Folder of all draft Emails.
Available options4.3.7
View Select to enter the menu.
Refresh this account To connect the email server in order to
receive/send mails.
Refresh all accounts To connect all email accounts’ server in order
to receive/send mails.
New email To create a new email.
Settings To edit the detailed configuration information of
the selected account.
Delete account To delete the current selected account.
New account To create a new email account.
Signature To attach your signature when sending emails.
Selecte storage Select email to store in phone or microSD card.
29 30
Contacts
5 ..........................
Contacts5.1
You can access to this function by selecting "Contacts" from the main
menu.
Contacts stored in phone
Contacts stored in SIM card
Searching for a contact
You can search for a contact by inputting the initial of their name.
Subsequent letters may be added to refine the search.
Viewing a contact
Select a name from your contacts to read the contact information.
Making the call
Press the key once the name is selected. If several numbers are
associated with that name and none has been set as a default, first choose
the required number from the list (Mobile, Home, Work, etc.), and then
press the key to make the call.
Adding a contact5.2
You can add a new contact to phone or SIM card by selecting "Add new
contact".
Following fields are accessible when you create a new contact in the
Contacts: Name, Group, Picture, To SIM, To phone, Mobile, Home, Work,
Email, Birthday, URL, Address, Ringtone.
You can move from one field to another using the navigation key.
If you use your phone abroad, store the numbers in your
Contacts in international format "+" followed by the country
code.
31 32
Available options5.3
From the contact list, you can access the following options:
Add new
contact
Add a contact (name, numbers, address, e-mail, etc.)
in the Contacts.
Send message Send an SMS/MMS to a contact you selected from
Contacts.
View Display details of selected contact
Call Make a call to the selected contact.
Edit Modify the contents of a file: name, number, ringtone,
picture, etc.
Delete Delete the selected contact.
Edit before call Edit the phone number before placing a call.
Copy Copy the selected contact to phone, SIM card or File
manager.
Send vCard Exchange data via SMS, MMS, Email, Bluetooth.
Groups You can view, send messages to the group you select
or you can create, delete groups as you want.
Send email Send an email to contacts you selected from Contacts.
Move Move to phone or SIM card.
Management • My vCard Type in or modify user's own
name, number, email and work.
•
Preferred
storage
Select default message storage,
SIM or phone.
• Memory status View used and available space
in SIM card, Phone and Group
contacts.
•
Emergency call Make a emergency call
• Copy several Copy selected contacts to phone
or SIM card.
• Delete several Delete selected contacts from
SIM or phone.
• Move several Move selected contacts to phone
or SIM card.
• Display format Select the display way of contacts.
33 34
Call log
6 ..............................
Access6.1
You can access the function using the following options:
• Select from main menu
• Press key from Home screen
• Select from shortcut bar, and then enter the sub-menu you require.
Missed calls
Outgoing calls (Redial)
Answered calls/Rejected calls
Available options6.2
When you press "Options", you can have access to Send message,
Call, Missed calls, Edit before call, Delete, etc.
Media
7 ................................
Camera7.1
Your mobile phone is fitted with a camera for taking photos and shooting
videos that you can use in different ways:
• store them in your "File manager\ Phone" or "File manager\
microSD card".
• send them in a multimedia message (MMS) to a mobile phone or an
email address.
• send them directly by MMS, Email, Bluetooth, to Facebook.
• customize your Home screen (see page 83).
• select them as incoming call picture to a contact in your Contacts.
• transfer them by data cable or microSD card to your computer.
Access7.1.1
You can access this feature from the main menu by selecting "Media\
Camera".
Camera7.1.2
Take a photo, save or delete7.1.2.1
The screen acts as the viewfinder. Position the object or landscape in
the viewfinder and press to take the picture and the picture will be
automatically saved. If you don’t want it, you may directly delete it.
35 36
Settings in framing mode7.1.2.2
Before taking the photo, you can adjust a number of settings:
From the photo shot screen, press "Options" through Left softkey not only
to access: "Picture size", "Capture mode", "Picture quality", "Timer",
"Night mode", "Banding", "Exposure Value", "White balance",
"Color mode", but also following ones:
Gallery •
Go to "File manager\Phone" or "File manager\
Memory card" to view the photos you have taken.
Storage • You may choose saving location if microSD card is
inserted.
Switch to video • Access video recording mode.
Restore default • Return all settings to default values.
Shutter sound • Select to turn on/off sound when taking a picture.
Shutter sound
Capture mode
Picture quality
Timer
Banding
Gallery
Storage
Options available after taking the photo7.1.2.3
Once you have taken a photo, you can send your photo by Bluetooth,
MMS and Email, assign it to a contact, set as wallpaper, or go to "Gallery"
to view it.
Video recorder7.1.3
You can record a video clip of unlimited length, as long as the battery
sustains and there is sufficient memory.
Framing mode7.1.3.1
When you enter the video function, you are in Framing mode. Use the
mobile screen as a viewfinder and press "Options" for the settings of
Video quality, Night mode, Record size, Record audio, Color
mode, Exposure Value, Encode format and Storage, to Switch to
camera and "Videos".
Recording mode7.1.3.2
Once you have chosen your settings, you can launch the recording of your
video-clip by pressing the key.
If you receive a call in recording mode, video recording will stop and
save automatically.
Further operations after shooting a video7.1.3.3
After shooting a video, you can choose to send your video by Email, MMS,
Bluetooth or go to "Videos" to view it.
In the list of "Videos", press "Options" to rename the video, send the
video, etc.
Picture size
Switch to Video
Restore default
Night mode
Exposure Value
White balance
Color mode
37 38
Music player 7.2
You can access this feature from the main menu by selecting "Media\
Music player".
You will have full flexibility of managing music both on your mobile and
microSD card.
You can have access to your music files through one of the following:
All songs Contains all songs both on phone and microSD card.
Favourites
You can simply add your favorite songs to "Favourites "
by holding down during playing music (max 100).
Folders Category of songs in folder.
Album/Artist/ Music files are categorized by Album, Artist or
Genre Genre based on information stored in the tags.
Those missing such information will be classified as
"Other".
Update songs7.2.1
Update the information of songs saved in phone or microSD card.
Music playing mode7.2.2
Play/pause
- Previous song
(press the Navigation
key(LEFT) key)
- Backward
(press and hold the
Navigation key(LEFT)
key)
Equalizer Play mode
- Next song
(press the Navigation
key(RIGHT) key)
- Forward
(press and hold the
Navigation key(RIGHT)
key)
To adjust the volume, use the navigation key.
Settings7.2.3
Access by pressing the Left softkey for following options:
Play mode Enable you to switch among Normal, Repeat, Repeat
all, Shuffle and Repeat shuffle.
Equalizer Show different music styles preset in the phone.
Display Enable your player to display song information lyric.
39 40
Picture viewer7.3
A library links to the pictures both in phone and microSD card to be
shown in list, slide, sent, set as wallpaper, and incoming call picture or sent
by MMS, Email, and Bluetooth.
Press an picture once to view it in full screen.
Video player7.4
Contains all video clips both in phone and microSD card and enables you to
play, send, delete, rename, sort, etc.
Streaming URL
This feature enables the user to start watching video almost as soon as it
begins downloading from internet.
Useful icons/keys:
/ / Set as play/pause/resume
Press the Navigation key(UP/DOWN) to set the volume level
/ Press the Navigation key: Previous/next video
Press and hold the Navigation key: Backward/forward
Back to previous menu or exit
/ Switch between normal screen and full screen display.
FM Radio7.5
Your phone is equipped with a radio with RDS(1) functionality. You can use
the application as a traditional radio with saved channels or with parallel
visual information related to the radio program on the display if you tune
to stations that offer Visual Radio service. You can listen to it while running
other applications.
To use it, you must plug in your headset, which works as an
antenna connected with your phone.
Available options:
Channel list Open the list of saved stations.
Save channel Save the current tuned station to the "Channel
list".
Auto search Start auto search and stations will be automatically
saved to "Channel list".
Manual search Search channels manually.
Enter Enter the frequency manually.
frequency
Record Record the radio: files will be automatically saved to
"Voice memo".
Settings Use Navigation key to manage settings.
Turn radio off Stop playing the radio.
Activate Listen to the radio using loudspeaker or headset.
loudspeaker/
Play in headset
Play/Mute Use key to switch between play and mute.
(1) Depending on your network operator and market.
41 42
Voice recorder7.6
Accessing this feature from the main menu by selecting "Media\Voice
recorder", allows you to make voice or sound recordings.
Available options:
Send Send by MMS, Email or Bluetooth.
Create new Add new voice memo.
Rename Rename a recorded file.
Delete Delete the selected voice/sound recording.
Delete all Delete all recorded files.
Select Select voice recordings to do further options.
Ebook7.7
A bookshelf contains the electronic books (.txt and .pdb file only). While
reading the book, you may add bookmark, or reach the text by searching
words, phrases (Options\Find, Options\Jump to).
Available options:
Refresh bookshelf Delete cookies from browsing history.
Book information Display the detailed information (title, size and
format) about the book.
Delete Delete the current book.
Delete all Delete all books.
Sort Sort the books by name, type, time or size.
Global settings Set the font, scroll mode, display format, etc.
Apply global
settings
Select to apply global settings.
Help List all hotkeys.
To avoid character corruption, please ensure that the encoding
format is correct (Global settings or Settings\Encoding
format).
Files 7.8
You will have access to all audio and visual files stored in phone or
microSD card in File manager.
43 44
Phone7.8.1
An entry to access all files in all folders stored in phone.
Audio7.8.1.1
Choose an audio for an incoming call ringtone, a message alert beep,
power on/off ringtone, incoming call ringtone, etc.
The "Audios" album contains the following folders (1):
• Music: full track music.
• Melodies: melodies that can be set as ringtone.
• Recorded: all recorded sounds.
DRM: Digital Rights Management feature allows sounds and
pictures to be played while protecting the associated copyright.
DRM counter-based files and files with expired rights will not be
automatically played when scrolling the list.
Pictures7.8.1.2
You can select an picture or a photo as wallpaper, power on/off screen, or
assign it as incoming call picture.
The picture will be displayed in alphabetical order.
Videos7.8.1.3
"Videos" album contains video clips recorded, received or downloaded.
Ebook7.8.1.4
A bookshelf containing the electronic books (.txt and .pdb files only).
(1) The embedded folder names cannot be modified. However, in certain cases,
you can modify, delete and add items included in these folders.
Gallery7.8.1.5
This feature stores all the photos captured by your mobile phone.
Downloads7.8.1.6
This feature stores all downloaded files.
microSD card7.8.2
You can access all files stored in the microSD card here.
When a microSD card is inserted for the first time, it will be
scanned and the default folders will be created.
Inserting the microSD card:
Insert the microSD card with golden contact facing downwards into the
slot until it is locked. Gently push the memory card until it is unlocked.
Available options:
Create folder Create more folders.
Empty folder Remove folders.
Rename Edit folder’s name.
Open Open the folder
Delete Delete the folder
Sort Sort folders
Details Check details of the folder
45 46
Managing audios, pictures, videos and others7.8.3
According to the item chosen, you can access some of the functions
below:
Send (1) Send the audio/pictures/video/Java.
Delete Delete the audio/pictures/video selected (not applicable
for embedded items).
Set as • PictureÆwallpaper, assign it to a contact.
• SoundÆringtone, message beep, assign it to a contact.
Select Mark/Unmark a tick on a file for further operation. Press
Left softkey to mark all diretly.
Download Download new items.
Rename Rename the audio/picture/video.
Sort Sort the files by name, type, time and size.
Move Move a file from the phone memory to the microSD card
and vice-versa.
Properties Display part of the ID3 Tag content of an MP3 file.
Activate DRM file option.
Copy Copy a file to the phone memory or the microSD card.
Delete all Delete all the files except the embedded ones.
Details View details of the file.
Formats and compatibility7.8.4
• Sounds: mp3, m4a, aac, midi, wav, amr
• Pictures: jpg, gif, wbmp, bmp , png
• Videos: 3gp, 3g2, avi, mp4, H.263, MPEG4 (may vary on specific product)
Memory status7.8.5
Indicates how much space is used and how much is currently free on your
phone and microSD card (if any).
Phone7.8.5.1
View available memory space.
Your phone’s memory is shared among several functions: contacts,
calendar, messages, pictures, melodies, games and video clips.
microSD card7.8.5.2
View the memory available on your microSD card.
You are advised to save large files (like songs) on your microSD card.
(1) Files marked with cannot be sent.
47 48
MobileLife
8 ........................
Homepage8.1
Launch the MobileLife with the preset homepage.
Bookmarks8.2
Access your favorite sites.
Go to URL8.3
Enter the URL of WAP site.
Open file8.4
Open web pages stored on your phone.
Last web address8.5
Last visited URL.
Recent pages8.6
Pages which you recently browsed.
Offline pages8.7
Pages available for offline viewing.
Service inbox8.8
Store WAP push messages.
Settings 8.9
Customize your MobileLife preferences.
Applications
9 .....................
WEB9.1
WEB not only gives you the full Web experience where you stay in touch
with your friends, obtain information, do your online banking etc., but also
saves time by using compressed web pages.
News9.2
It is a huge time saver providing news updates from a website in a simple
form.
Once subscribed to a channel, it gives you the ability to track and
manage all your favorite RSS content on your mobile phone at anytime,
anywhere!
Available options:
Update Refresh the content of a channel.
Create channel Create a new channel with name and URL.
Delete Delete the channel.
Edit Edit the name or URL of a channel.
Update all Refresh all channels.
Settings Select a regular interval to retrieve updates
automatically, set to show pictures or not, as
well as a WAP account to connect to.
Enable/Disable all
auto-update
Activate auto-update or not to all channels.
Send Share a channel with your friend by sending it by
SMS, MMS or Email.
49 50
Weather9.3
Your phone is equipped with a weather function for consulting up to 3-day
forecasts of favorite cities.
You can access this feature from the main menu by selecting "Applications\
Weather".
Select "AccuWeather.com" to access online website, which may
charge extra fee.
Available options:
More information Search more weather information online.
Forecast Display 3-day weather forecast.
Update Refresh weather information.
My cities List all my cities, you can add new city, set default city,
delete the selected city, etc. via "My cities\Options".
Settings Set unit, update mode and network.
Java9.4
Launch an application9.4.1
Select "Applications" to launch applications.
Java settings9.4.2
The "Java" menu allows you to manage Java settings, in which you may
set Java audio, backlight, vibration, network and identify how much Heap
size is available.
Trusted certificates 9.4.3
View detailed information of the trusted certificates supported by your
phone.
Disclaimer
Downloading or running applications will not damage or alter any software
already in your mobile telephone designed to support Java™ technology.
TCT Mobile Limited and its affiliates waive any responsibility and refuse
to guarantee applications that are subsequently used, as well as for all
applications not embedded in the handset upon purchase.
The purchaser alone bears the risk of loss, damage or defect of the handset,
or of applications/software, and generally of any damage or consequence
resulting from the use of the said applications/software. In the event that
the said applications/software, or the subsequent setup of any function are
lost due to technical reasons resulting from the handset being replaced/
repaired, the mobile phone owner should repeat the operation and
download or set up again. TCT Mobile Limited and its affiliates grant
no guarantee and disclaim any responsibility if the operation cannot be
repeated or cannot be performed without incurring some cost.
51 52
Tools
10 ..............................
Alarm10.1
Your mobile phone has a built-in alarm clock with a snooze feature. You
can set up to five separate alarms and choose whether or not the alarm
should repeat.
Repeat You may select Once (default)/Every day/Days or
Customize to your desire.
Snooze The alarm will repeat at regular intervals.
Mode You may select the mode of Ringtone: Ring only,
Vibration, Silence, Vibration and melody.
Alarm beep You may choose one melody or FM radio as the alarm
ringtone.
Calculator10.2
Access this feature by selecting "Tools\Calculator" from the main
menu.
Enter a number, select the type of operation to be performed using the
navigation keys, and enter the second number, then select "=" to display
the result.
Once an operation is complete, you can select the key to clear numbers
and carry out a new operation.
To return to the main menu, select "Back".
To return to the Home screen, press the key.
Calendar10.3
Once you enter this menu from the main menu, there is a monthly-view
calendar for you to keep track of important meetings, appointments, etc.
Days with events entered will be marked in color.
Available options:
View
See today’s appointments.
View all See all the created appointments.
Jump to date Input the required date and it will be immediately
highlighted.
Go to today Focus on today's date.
Create Create an appointment.
Settings Set the first day of the week and the first week
of the year.
Tasks10.4
Enables you to easily manage and track the progress of a task with
priorities. All the tasks will be sorted by due date.
Available options:
View View current task
Create Add new task
Delete Delete the current task
Select as done/Select
as not done
Change task’s status
53 54
Notes10.5
You can create a note in text format by accessing "Tools\Notes" from
the main menu.
Available options:
New note Add new text note.
Delete Delete note.
Rename Rename the note.
Delete all Delete all notes.
Send Send note by SMS/MMS/Email/Bluetooth.
Edit Edit the note
Select Select notes to do further options.
Bluetooth™10.6
Access this feature by pressing "Menu" through Left softkey from
the Home screen to enter the main menu, then selecting "Tools\
Bluetooth".
To use your phone with a Bluetooth device, you need to proceed in two
steps:
Pair and register the device to your phone,•
Select it to use hands-free communication. Only one Bluetooth audio •
device (your Bluetooth headset or your Bluetooth car kit) can be
connected during the communication.
Pair and register your Bluetooth device
Activate the Bluetooth feature by selecting the "Bluetooth\Activation\
On" option. Then enter the "Device list" menu to search for connectable
Bluetooth devices. From the list, select the device you want to pair directly.
If the bluetooth device has no keyboard, enter its default password to
register it with your phone. If the Bluetooth device has keyboard/keypad,
enter the same set of password on both handset and the device to get it
registered.
Press the "Options" to show service, rename, authorization, delete and
delete all from the connected list.
Don’t forget to turn on your Bluetooth device and activate the
pairing mode while pairing it with your phone.
Visibility
Select whether you want to hide or show to all.
My phone's name
You may change your phone name,which is visible to the others.
Available functions
Data transmit Exchange files with another Bluetooth device.
Handle a call Initiate or receive a phone call with a Bluetooth
headset.
Listen to music Listen music by Bluetooth headset.
Dialup networking
profile
Network connection can be activated via
bluetooth.
55 56
Always activate Bluetooth in your phone first before connecting
it to a Bluetooth device. Be aware that Bluetooth activation will
slightly affect battery life of your phone.
Bluetooth technology allows free wireless connections between all
Bluetooth-compliant devices within short range. Please make sure that the
Bluetooth headset or the Bluetooth car kit and your mobile phone are in
this range and set as visible.
World clock10.7
The World clock shows current local time and the time zone in different
cities. You may view up to 3 cities.
Stopwatch10.8
The stopwatch is a simple application for measuring time with the
possibility to register several results and suspend/resume measurement.
Unit converter10.9
You can use the Weight and Length conversion by selecting the unit
you wish to convert, then press to input the digits. Finally confirm with
"OK".
Settings
11 .........................
From the main menu, select the menu icon and select the function of
your choice in order to customize your telephone.
Profiles11.1
With this menu, you may personalize ringtones for different events and
environments.
General11.1.1
To modify the sound settings, press "Options\Customize" and you will
see the functions below using the navigation key:
Profile mode You may set your phone ringtone to Ring only,
Vibration only, Discreet (ring with beep), Vibration (all
sounds are replaced by vibrations except for alarms),
Vibration and ring, Vibration then ring, Beep and
vibration, Silence (no sounds except for alarms, the
icon will be displayed).
Ringtone Select a melody from the list by scolling up/down.
Ring type Select the type for ringtone.
Ringtone Adjust the volume by the Navigation key.
volume
Keypad Select silence or the type of keybeep.
Message beep Select a melody for a new incoming message.
Flip tone Select to turn on/off flip tone.
57 58
Meeting11.1.2
When this is selected the phone will not ring or beep unless an alarm has
been set. A new event will cause it to vibrate.
Outdoor11.1.3
It is a profile designed for outdoor users who require louder ringtones.
Indoor11.1.4
Ringtone/beep volume will be slightly lower than General mode volume.
Silence11.1.5
This profile will turn off all ringtones, even notification sounds.
Phone settings11.2
Date and time11.2.1
Allows you to have settings of home city, date and time, including 12/24h
format.
You can also set the daylight saving adjustment and activate auto update
if needed.
Display11.2.2
Wallpaper
The wallpaper is displayed when you switch on your telephone.
By selecting "Wallpaper" you can customize it by replacing the default
picture or animation displayed on your telephone.
Theme
This function enables you to customize the graphic style and the colours
of your telephone.
Brightness
You may adjust black level with respect to LCD display by using the
navigation key.
Backlight
• Screen Allows you to reduce brightness for enhanced battery performance
and to save power during periods of expected inactivity.
Languages11.2.3
Display language for messages. The "Automatic" option selects the
language according to the home network (if available).
HAC11.2.4
Activate/Deactivate HAC as needed.
Default browser11.2.5
You can set MobileLife/WEB as default browser.
Reset web11.2.6
You can reset web and all relevant data will be lost.
Headset mode11.2.7
Switch audio play (incoming call, message beep, alarm beep...) between
Headset only and Phone and headset.
Keypad11.2.8
Numeric keys
By customizing your keys, you can access any function directly from the
Home screen.
59 60
Clamshell 11.2.9
Clamshell open answer
You can decide whether you want to automatically answer the call when
you open the flip.
Clamshell close options
You can decide whether you want to continue or stop the running
application when you close the flip.
Input method 11.2.10 (1)
Please see chapter "Latin input mode", page 90. In addition to the specific
characters table for Cyrillic, Chinese, other data input modes are also
available in your telephone. This feature allows you to write short
messages and add names with special characters to your contacts.
Default browser11.2.11
With this option, you can select either MobileLife or WEB as the default
browser.
Shortcut bar11.2.12
From Shortcut bar, you can quickly access the features that you use the
most. When activated, pressing left/right to access application shortcuts
one by one, and pressing up/down to access a list of available actions of the
selected applications. You can choose to display, hide or edit the shortcut
bar (see page 23).
(1) Depending on the language.
Call settings11.3
You can access a number of items with this option:
My numbers
Type in or modify your telephone number and confirm. Your telephone
number is usually written on your SIM card.
Billing
You can access different items with this option:
Last call cost/
Total cost/Max
cost/Reset cost/
Price per unit
• You can view the last, max or total cost of
charged calls, modify it or reset it and enter the
cost of a call in the currency of your choice.
Call timer • You can view the total duration of last call,
outgoing calls, received calls or reset duration.
GPRS counter • Management of data usage volume (in kilobytes).
Call time
reminder
• You can select it to set reminder time.
Call waiting
Activate/deactivate the notification of a second incoming call by a beep.
Call forwarding
You can activate, cancel or verify the status of the call forwarding to
the voicemail or to a specified number. The following configurations are
possible:
• Unconditional: systematic forwarding of all your calls. The icon is
displayed.
• Conditional: if your line is busy, if you don’t answer or if you are outside
the network range.
61 62
Call barring
You can activate or deactivate the call barring for outgoing and incoming
calls. The various options are:
Outgoing calls The following configurations are possible:
All calls• All outgoing calls are barred.
International •
calls
Outgoing international calls
are barred.
International •
except home
Outgoing international calls
except those to your country
of subscription are barred.
All calls except •
SIM card
All outgoing calls except those
stored in SIM card are barred.
Incoming calls The following configurations are possible:
All calls• All incoming calls are barred.
Roaming• Incoming calls are barred
when you are abroad.
All calls •
except SIM
card
All incoming calls except
those stored in SIM card are
barred.
Cancel all Deactivate all call barring.
Change Password Change the original Password for activating call
barring.
Caller ID
Activate/deactivate CLIR.
Auto redial
You can activate or deactivate the automatic callback of your party for calls
that do not get through the first time.
Airplane mode11.4
Activate/Deactivate Airplane mode as needed.
63 64
Security settings11.5
PIN locked The SIM card protection code is requested
each time the phone is powered on if this code
is activated.
Change PIN Change PIN code.
Change PIN2
A protection code for certain SIM card features
(Billing/Cost/FDN, etc.) will be requested if you
attempt to access it, if the code is activated.
Select to update it with a new one (between
4 and 8 digits).
Phone locked It is requested each time the phone is powered
on if this code is activated.
Change password Activate phone password.
Fixed dialed number Allows the phone to be "locked" so that it can
only dial certain numbers, or numbers with
certain prefixes. To activate this function, PIN2
code is mandatory.
Networks settings11.6
Network selection
Select network The choice of network connection is left up to •
the user.
Search mode Network connection can be switched between •
"Manual" and "Auto".
Service selection
Select communication system service.
GPRS connection (1)
When needed GPRS mode active depending on connection •
requirements.
Always GPRS mode continuously active.•
GPRS international roaming
GPRS data services can be used while roaming overseas.
(1) Depending on network availability.
65 66
Connectivity11.7
A set of profile settings for messaging (MMS, Email...) and Web
connection.
System update 11.8
Select to check software version and update status.
GPS settings11.9
Select to get data from server.
Text phone11.10
Activate/Deactivate TTY mode.
Making the most of your
12 mobile .................................
Webcam 12.1 (1)
You can use your phone as a webcam for instant messaging on your PC.
• Connect your phone to PC via USB cable.
• Go to "My computer" folder on your PC and find USB video device
(Under Scanners & Cameras).
(1) The using of webcam may vary according to the operating system of your PC.
67 68
Warranty
13 ..............................
Personal Communications Devices, LLC (the Company) warrants to the
original retail purchaser of this wireless device that should this product
or any part thereof during normal consumer usage and conditions, be
proven defective in material or workmanship that results in product
faulure within the first ninety (90) day period from the date of purchase,
such defect(s) will without charge for parts or labor directly related to the
defect(s). The antenna, keypad, display, rechargeable battery and battery
charger, if included, are similarly warranted for ninety (90) days from date
of purchase.
This Warranty extends only to consumers who purchase the product in
the United States or Canada and it is not transferable or assignable.
This Warranty does not apply to:
(a) Product subjected to abnormal use or conditions, accident, mishandling,
neglect, unauthorized alteration, misuse, improper installation or repair
or improper storage;
(b) Product whose mechanical serial number or electronic serial number
has been removed, altered or defaced.
(c) Damage from exposure to moisture, humidity, excessive temperatures
or extreme environmental conditions;
(d) Damage resulting from connection to, or use of any accessory or other
product not approved or authorized by the Company;
(e) Defects in appearance, cosmetic, decorative or structural items such as
framing and non-operative parts;
(f) Product damaged from external causes such as fire, flooding, dirt, sand,
weather conditions, battery leakage, blown fuse, theft or improper
usage of any electrical source.
The Company disclaims liability for removal or reinstallation of the product,
for geographic coverage, for inadequate signal reception by the antenna or
for communications range or operation of the cellular system as a whole.
When sending your wireless device to Personal Communications Devices
for repair or service, please note that any personal data or software
stored on the device may be inadvertently erased or altered. Therefore,
we strongly recommend you make a back up copy of all data and software
contained on your device before submitting it for repair or service. This
includes all contact lists, downloads (i.e. third-party software applications,
ringtones, games and graphics) and any other data added to your device.
In addition, if your wireless device utilizes a SIM or Multimedia card,
please remove the card before submitting the device and store for later
use when your device is returned, Personal Communications Devices is
not responsible for and does not guarantee restoration of any third-party
software, personal information or memory data contained in, stored on,
or integrated with any wireless device, whether under warranty or not,
returned to Personal Communications Devices for repair or service.
To obtain repairs or replacement within the terms of this Warranty, the
product should be delivered with proof of Warranty coverage (e.g. dated
bill of sale), the consumer’s return address, daytime phone number and/
or fax number and complete description of the problem, transportation
prepaid, to the Company at the address shown below or to the place of
purchase for repair or replacement processing. In addition, for reference
to an authorized Warranty station in your area, you may telephone in the
United States (800) 229-1235, and in Canada (800) 465-9672 (in Ontario
call 416-695-3060).
69 70
THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS
WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT
PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S
LAIBILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER
FOR THE PRODUCT. ANY IMPLIED WARRANTIES, INCLUDING ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION
OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF
ANY WARRANTY MUST BE BROUGHT WITHIN A PERIOD OF 18
MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL
THE COMPANY BE LIABLE FOR AN SPECIAL CONSEQUENTIAL OR
INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER
WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. THE COMPANY
SHALL NOT BE LIABLE FOR THE DELAY IN RENDERING SERVICE
UNDER THIS WARRANTY OR LOSS OF USE DURING THE TIME THE
PRODUCT IS BEING REPAIRED OR REPLACED.
No person or representative is authorized to assume for the Company
any liability other than expressed herein in connection with the sale of this
product. Some states or provinces do not allow limitations on how long
an implied warranty lasts or the exclusion or limitation of incidental or
consequential damage so the above limitation or exclusions may not apply
to you. This Warranty gives you specific legal rights, and you may also have
other rights, which vary from state to state or province to province.
IN USA: Personal Communications Devices, LLC.
555 Wireless Blvd.
Hauppauge, NY 11788
(800) 229-1235
IN CANADA: PCD Communications Canada, LTD.
5535 Eglinton Avenue West
Suite# 234
Toronto, ON M9C 5K5
(800) 465-9672
Troubleshooting
14 .................
Before contacting the service center, you are advised to follow the
instructions below:
You are advised to fully charge (• ) the battery for optimal operation.
Avoid storing large amounts of data in your phone as this may affect its •
performance.
and carry out the following checks:
My phone is frozen or cannot switch on
Check the battery contacts, remove and reinstall your battery, then turn •
your phone on
Check the battery power level, charge for at least 20 minutes•
If it still does not work, please use User Data Format to reset the phone•
My phone has not responded for several minutes
Restart your phone by pressing and holding the • key
Remove the battery and re-insert it, then restart the phone•
My phone turns off by itself
Check whether your phone is locked when not in use, and make sure you don't •
accidentally turn off your phone when locking it by pressing the power key.
Check the battery charge level•
71 72
My phone cannot charge properly
Make sure you are using an ALCATEL ONE TOUCH battery and the •
charger from the box
Make sure your battery is inserted properly and clean the battery contact if •
it’s dirty. It must be inserted before plugging in the charger
Make sure that your battery is not completely discharged; if the battery •
power is empty for a long time, it may take around 20 minutes to display
the battery charger indicator on the screen.
Make sure charging is carried out under normal conditions (0°C (32°F) to •
+40°C (104°F))
When abroad, check that the voltage input is compatible•
My phone cannot connect to a network or "No service" is displayed
Try connecting in another location•
Verify the network coverage with T-Mobile•
Check with T-Mobile that your SIM card is valid•
Try selecting the available network(s) manually (see page 87)•
Try connecting at a later time if the network is overloaded•
My phone cannot connect to the Internet
Check that the IMEI number (press *#06#) is the same as the one printed •
on your warranty card or box
Make sure that the internet access service of your SIM card is available.•
Check your phone's Internet connecting settings•
Make sure you are in a place with network coverage•
Try connecting at a later time or another location•
Invalid SIM card
Make sure the SIM card has been correctly inserted (see page 14)•
Make sure the chip on your SIM card is not damaged or scratched•
Make sure the service of your SIM card is available•
Unable to make outgoing calls
Make sure you have dialed a valid number and press • key
For international calls, check the country and area codes•
Make sure your phone is connected to a network, and the network is not •
overloaded or unavailable
Check your subscription status with T-Mobile (credit, SIM card valid, etc.)•
Make sure you have not barred outgoing calls (see page 45)•
Make sure that your phone is not in airplane mode•
Unable to receive incoming calls
Make sure your phone is switched on and connected to a network (check •
for overloaded or unavailable network)
Check your subscription status with T-Mobile (credit, SIM card valid, etc.)•
Make sure you have not forwarded incoming calls (see page 45)•
Make sure that you have not barred certain calls•
Make sure that your phone is not in airplane mode•
The caller’s name/number does not appear when a call is received
Check that you have subscribed to this service with T-Mobile•
Your caller has concealed his/her name or number•
I cannot find my contacts
Make sure your SIM card is not broken•
Make sure your SIM card is inserted properly•
Import all contacts stored in SIM card to phone•
The sound quality of the calls is poor
You can adjust the volume during a call by pressing the navigation key•
Check the network strength •
Make sure that the receiver, connector or speaker on your phone is clean•
I am unable to use the features described in the manual
Check with T-Mobile to make sure that your subscription includes this •
service
Make sure this feature does not require an ALCATEL ONE TOUCH •
accessory
73 74
When I select a number from my contacts, the number cannot be
dialed
Make sure that you have correctly recorded the number in your file•
Make sure that you have selected the country prefix when calling a foreign •
country
I am unable to add a contact in my contacts
Make sure that your SIM card contacts are not full; delete some files or •
save the files in the phone contacts (i.e. your professional or personal
directories)
My callers are unable to leave messages on my voicemail
Contact T-Mobile to check service availability•
I cannot access my voicemail
Make sure T-Mobile's voicemail number is correctly entered in "• My
numbers"
Try later if the network is busy•
I am unable to send and receive MMS
Check your phone memory availability as it might be full•
Contact T-Mobile to check service availability and check MMS parameters •
(see page 33)
Verify the server center number or your MMS profile with T-Mobile•
The server center may be swamped, try again later•
The flickering icon is displayed on my standby screen
You have saved too many short messages on your SIM card; delete some of •
them or archive them in the phone memory
SIM card PIN locked
Contact T-Mobile to obtain the PUK code (Personal Unblocking Key)•
I am unable to connect my phone to my computer
Install ALCATEL ONE TOUCH PC suite first of all•
Check that your computer meets the requirements for ALCATEL ONE •
TOUCH PC Suite installation
Make sure that you’re using the right cable from the box•
I am unable to download new files
Make sure there is sufficient phone memory for your download•
Select the microSD card as the location to store downloaded files•
Check your subscription status with T-Mobile•
The phone cannot be detected by others via Bluetooth
Make sure that Bluetooth is turned on and your phone is visible to other •
users (see page 74)
Make sure that the two phones are within Bluetooth’s detection range•
How to make your battery last longer
Make sure you follow the complete charge time (minimum 3 hours)•
After a partial charge, the battery level indicator may not be exact. Wait for •
at least 20 minutes after removing the charger to obtain an exact indication
Switch on the backlight upon request•
Extend the email auto-check interval for as long as possible•
Update news and weather information on manual demand, or increase their •
auto-check interval
Exit background-running Java applications if they are not being used for a •
long time
Deactivate Bluetooth when not in use•
75 76
Safety and Use. ............................
We recommend that you read this chapter carefully before using your OT665. The manufacturer
disclaims any liability for damage, which may result as a consequence of improper use or use
contrary to the instructions contained herein.
EXPOSURE TO RADIO FREQUENCY SIGNALS
Your wireless handheld portable telephone is a low power radio transmitter and receiver. When
it is ON, it receives and also sends out radio frequency (RF) signals. In August 1996, the Federal
Communications Commissions (FCC) adopted RF exposure guidelines with safety levels for
handheld wireless phones. Those guidelines are consistent with the safety standards previously
set by both U.S. a nd international standards bodies:
ANSI C95.1 (1992) *
NCRP Report 86 (1986) *
ICNIRP (1996) *
Those standards were based on comprehensive and periodic evaluations of the relevant scientific
literature. For example, over 120 scientists, engineers, and physicians from universities, government
health agencies, and industry reviewed the available body of research to develop the ANSI Standard
(C951).
The d esign of your phone complies with the FCC guidelines (and those standards).
1: American National Standards Institute.
2: National Council on Radiation Protection and Measurements.
3: International Commission on Nonionizing Radiation Protection.
ANTENNA SAFETY
Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications,
or attachments could impair call quality, damage the phone, or result in violation of FCC
regulations. Please contact your local dealer for replacement antenna.
Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the
skin, a minor burn may result. Please contact your local dealer for replacement antenna.
DRIVING SAFETY
Talking on the phone while driving is extremely dangerous and is illegal in some states. Remember,
safety comes first. Check the laws and regulations on the use of phones in the areas where you
drive. Always obey them. Also, if using your phone while driving, please:
• Give full attention to driving. Driving safely is your first responsibility.
• Use hands-free operation, if available.
• Pull off the road and park before making or answering a call, if driving conditions so require.
If you must use the phone while driving, please use one-touch, speed dialing, and auto answer
modes.
An airbag inflates with great force. DO NOT place objects, including both installed or portable
wireless equipment, in the area over the airbag or in the air bag deployment area. If in-vehicle
wireless equipment is improperly installed and the air bag inflates, serious injury could result.
WARNING: Failure to follow these instructions may lead to serious personal injury and possible
property damage.
ELECTRONIC DEVICES
Your wireless handheld portable telephone is a low power radio transmitter and receiver. When
it is ON, it receives and also sends out radio frequency (RF) signals. Most modern electronic
equipment is shielded from RF energy. However, certain electronic equipment may not be shielded
against the RF signals from your wireless phone. Therefore, use of your phone must be restricted
in certain situations.
PACEMAKERS
The Health Industry Manufacturers Association recommends that a minimum separation of six
(6”) inches be maintained between a handheld wireless phone and a pacemaker to avoid potential
interference
with the pacemaker. These recommendations are consistent with the independent research by
and recommendations of Wireless Technology Research. Persons with pacemakers:
• ALWAYS keep the phone more than six inches from your pacemaker when the phone is
turned on.
• Do not carry the phone in a breast pocket.
• Use the ear opposite the pacemaker to minimize the potential for interference.
• If you have any reason to suspect that interference is taking place, turn your phone OFF
immediately.
HEARING AIDS
Some digital wireless phones may interfere with some hearing aids. In the event of such
interference, you may want to consult your service provider (or call the customer service line to
discuss alternatives).
OTHER MEDICAL DEVICES
If you use any other personal medical device, consult the manufacturer of your device to determine
if they are adequately shielded from external RF energy.
Your physician may be able to assist you in obtaining this information. Turn your phone OFF in
healthcare facilities when any regulations posted in these areas instruct you to do so. Hospitals or
healthcare facilities may be using equipment that could be sensitive to external RF energy.
VEHICLES
RF signals may affect improperly installed or inadequately shielded electronic systems in motor
vehicles. Check with the manufacturer or its representative regarding your vehicle. You should also
consult the manufacturer of any equipment that has been added to your vehicle.
POSTED FACILITIES
Turn your phone OFF where posted notices so require.
OTHER SAFETY GUIDELINES
AIRCRAFT
FCC regulations prohibit using your phone while in the air. Turn your phone OFF before boarding
an aircraft. Always request and obtain prior consent and approval of an authorized airline
representative before using your phone aboard an aircraft.
Always follow the instructions of the airline representative whenever using your phone aboard an
aircraft, to prevent any possible interference with airborne electronic equipment.
BLASTING AREAS
To avoid interfering with blasting operations, turn your phone OFF when in a “blasting area” or in
areas posted: “Turn off two-way radio.” Obey all signs and instructions.
77 78
POTENTIALLY EXPLOSIVE ATMOSPHERES
Turn your phone OFF when in any area with a potentially explosive atmosphere and obey all signs
and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury
or even death.
Areas with a potentially explosive atmosphere are often, but not always, clearly marked. They
include fueling areas such as gas stations; below deck on boats; fuel or chemical transfer or storage
facilities; vehicles using liquefied petroleum gas (such as propane or butane); areas where the air
contains chemicals or particles, such as grain, dust, or metal powders; and any other area where
you would normally be advised to turn off your vehicle’s engine.
PRECAUTIONS
Your Handheld Portable Telephone is a high quality piece of equipment. Before operating, read all
instructions and cautionary markings on (1) USB AC Adapter (2) Battery and (3) Product Using
Battery.
Failure to follow the directions below could result in serious bodily injury and/or property damage
due to battery liquid leakage, fire or rupture.
• DO NOT use this equipment in an extreme environment where high temperature or high
humidity exists.
• DO NOT abuse the equipment. Avoid striking, shaking or shocking. When not using, lay down
the unit to avoid possible damage due to instability.
• DO NOT expose this equipment to rain or spilled beverages.
• DO NOT use unauthorized accessories.
• DO NOT disassemble the phone or its accessories. If service or repair is required, return unit
to an authorized PCD cellular service center. If unit is disassembled, the risk of electric shock
or fire may result.
• DO NOT short-circuit the battery terminals with metal items etc.
SAFETY INFORMATION FOR FCC RF EXPOSURE
WARNING! READ THIS INFORMATION BEFORE USING
CAUTIONS
In August 1996 the Federal Communications Commission (FCC) of the United States with its action
in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio
frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are
consistent with the safety standard previously set by both U.S. and international standards bodies.
The design of this phone complies with the FCC guidelines and these international standards.
BODY-WORN OPERATION
This device was tested for typical body-worn operations with the back of the phone kept 2 cm.
from the body. To maintain compliance requirements, use only belt-clips, holsters or similar
accessories that maintain a 2 cm separation distance between the user’s Body and the back of the
phone, including the antenna.
The use of belt-clips, holsters and similar accessories should not contain metallic components in its
assembly. The use of accessories that do not satisfy these requirements may not comply with FCC
RF exposure requirements, and should be avoided.
For more information about RF exposure, please visit the FCC website at http://www.fcc.gov
SAR INFORMATION
THIS MODEL PHONE MEETS THE GOVERNMENT’S
REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.
Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not
to exceed the emission limits for exposure to radiofrequency (RF) energy set by the Federal
Communications
Commission of the U.S. Government. These limits are part of comprehensive guidelines and
establish permitted levels of RF energy for the general population. The guidelines are based on
standards that were developed by independent scientific organizations through periodic and
thorough evaluation of scientific studies. The standards include a substantial safety margin designed
to assure the safety of all persons, regardless of age and health.
The exposure standard for wireless mobile phones employs a unit of measurement known as the
Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. * Tests for SAR are
conducted with the phone transmitting at its highest certified power level in all tested frequency
bands. Although the SAR is determined at the highest certified power level, the actual SAR level
of the phone while operating can be well below the maximum value. This is because the phone is
designed to operate at multiple power levels so as to use only the power required to reach the
network. In general, the closer you are to a wireless base station antenna, the lower the power
output.
Before a phone model is available for sale to the public, it must be tested and certified to the
FCC that it does not exceed the limit established by the government adopted requirement for
safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on
the body) as required by the FCC for each model. The highest SAR value for this model phone
when tested for use at the ear is 0.747 W/Kg and when worn on the body, as described in this
user guide, is 0.832 W/Kg. (Body-worn measurements differ among phone models, depending upon
available accessories
and FCC requirements). While there may be differences between the SAR levels of various phones
and at various positions, they all meet the government requirement for safe exposure.
The SAR testing for Body-worn operation was performed with a belt clip that provided a 2 cm
separation. The User’s Manual indicates that any holsters/clips used with this device should contain
no metallic components.
The FCC has granted an Equipment Authorization for this model phone with all reported SAR
levels evaluated as in compliance with the FCC RF exposure guidelines.
SAR information on this model phone is on file with the FCC and can be found under the Display
Grant section of http://www.fcc.gov/oet/ea after searching on JYCBLADE.
Additional information on Specific Absorption Rates (SAR) can be found on the Cellular
Telecommunications
Industry Association (CTIA) web-site at http://www.ctia.org.
* In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg
(W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety
to give additional protection for the public and to account for any variations in measurements.
79 80
HEARING AID COMPATIBILITY (HAC) FOR WIRELESS
TELECOMMUNICATIONS DEVICES
PCD’S COMMITMENT
PCD believes that all of our customers should be able to enjoy the benefits of digital wireless
technologies. We are committed to providing a selection of compatible devices for our customers
who wear hearing aids.
THIS PHONE HAS A HAC RATING OF M4/T4
WHAT IS HEARING AID COMPATIBILITY?
The Federal Communications Commission has implemented rules and a rating system designed to
enable people who wear hearing aids to more effectively use these wireless telecommunications
devices. The standard for compatibility of digital wireless phones with hearing aids is set forth
in American National Standard Institute (ANSI) standard C63.19. There are two sets of ANSI
standards with ratings from one to four (four being the best rating): an “M” rating for reduced
interference
making it easier to hear conversations on the phone when using the hearing aid microphone, and a
“T” rating that enables the phone to be used with hearing aids operating in the telecoil mode thus
reducing unwanted background noise.
HOW WILL I KNOW WHICH WIRELESS PHONES ARE
HEARING AID
COMPATIBLE?
The Hearing Aid Compatibility rating is displayed on the wireless phone box.
A phone is considered Hearing Aid Compatible for acoustic coupling (microphone mode) if it has an
“M3” or “M4” rating. A digital wireless phone is considered Hearing Aid Compatible for inductive
coupling (telecoil mode) if it has a “T3” or “T4” rating.
This phone has been tested and rated for use with hearing aids for some of the wireless
technologies that it uses. However, there may be some newer wireless technologies used in this
phone that have not been tested yet for use with hearing aids. It is important to try the different
features of this phone thoroughly and in different locations, using your hearing aid or cochlear
implant, to determine if you hear any interfering noise. Consult your service provider about its
return and exchange policies and for information on hearing aid compatibility.
HOW WILL I KNOW IF MY HEARING AID WILL WORK
WITH A PARTICULAR DIGITAL WIRELESS PHONE?
You’ll want to try a number of wireless phones so that you can decide which works the best with
your hearing aids. You may also want to talk with your hearing aid professional about the extent
to which your hearing aids are immune to interference, if they have wireless phone shielding, and
whether your hearing aid has a HAC rating.
FOR MORE INFORMATION ABOUT HEARING AIDS AND
DIGITAL WIRELESS PHONE
• FCC Hearing Aid Compatibility and Volume Control – http://www.fcc.gov/cgb/dro/hearing.html
• Hearing Loss Association of America – http://www.hearingloss.org/learn/cellphonetech.asp
• CTIA – http://www.accesswireless.org/Disability-Categories/Hearing.aspx
• Gallaudet University, RERC – http://tap.gallaudet.edu/voice
FDA CONSUMER UPDATE
U.S. FOOD AND DRUG ADMINISTRATION - CENTER FOR
DEVICES AND RADIOLOGICAL
HEALTH CONSUMER UPDATE ON WIRELESS PHONES
1. Do wireless phones pose a health hazard?
The available scientific evidence does not show that any health problems are associated with using
wireless phones. There is no proof, however, that wireless phones are absolutely safe. Wireless
phones emit low levels of radiofrequency energy (RF) in the microwave range while being used.
They also emit very low levels of RF when in the idle mode. Whereas high levels of RF can produce
health effects (by heating tissue), exposure to low level RF that does not produce heating effects
causes no known adverse health effects. Many studies of low level RF exposures have not found
any biological effects. Some studies have suggested that some biological effects may occur, but such
findings have not been confirmed by additional research. In some cases, other researchers have had
difficulty in reproducing those studies, or in determining the reasons for inconsistent results.
2. What is FDA’s role concerning the safety of wireless phones?
Under the law, FDA does not review the safety of radiation-emitting consumer products such as
wireless phones before they can be sold, as it does with new drugs or medical devices. However,
the agency has authority to take action if wireless phones are shown to emit radiofrequency energy
(RF) at a level that is hazardous to the user. In such a case, FDA could require the manufacturers
of wireless phones to notify users of the health hazard and to repair, replace or recall the phones
so that the hazard no longer exists. Although the existing scientific data do not justify FDA
regulatory actions, FDA has urged the wireless phone industry to take a number of steps, including
the following:
• Support needed research into possible biological effects of RF of the type emitted by wireless
phones;
• Design wireless phones in a way that minimizes any RF exposure to the user that is not
necessary
for device function;
and
• Cooperate in providing users of wireless phones with the best possible information on possible
effects of wireless phone use on human health.
FDA belongs to an interagency working group of the federal agencies that have responsibility for
different aspects of RF safety to ensure coordinated efforts at the federal level. The following
agencies
belong to this working group:
• National Institute for Occupational Safety and Health
• Environmental Protection Agency
• Federal Communications Commission
• Occupational Safety and Health Administration
• National Telecommunications and Information Administration
The National Institutes of Health participates in some inter-agency working group activities, as
well. FDA shares regulatory responsibilities for wireless phones with the Federal Communications
Commission (FCC). All phones that are sold in the United States must comply with FCC safety
guidelines that limit RF exposure. FCC relies on FDA and other health agencies for safety questions
about wireless phones. FCC also regulates the base stations that the wireless phone net works rely
upon. While these base stations operate at higher power than do the wireless phones themselves,
the RF exposures that people get from these base stations are typically thousands of times lower
81 82
than those they can get from wireless phones. Base stations are thus not the subject of the safety
questions discussed in this document.
3. What kinds of phones are the subject of this update?
The term “wireless phone” refers here to hand-held wireless phones with built-in antennas, often
called “cell,” “mobile,” or “PCS” phones. These types of wireless phones can expose the user to
measurable radiofrequency energy (RF) because of the short distance between the phone and
the user’s head. These RF exposures are limited by Federal Communications Commission safety
guidelines that were developed with the advice of FDA and other federal health and safety agencies.
When the phone is located at greater distances from the user, the exposure to RF is drastically
lower because a person’s RF exposure decreases rapidly with increasing distance from the source.
The so-called “cordless phones,” which have a base unit connected to the telephone wiring in a
house, typically operate at far lower power levels, and thus produce RF exposures far below the
FCC safety limits.
4. What are the results of the research done already?
The research done thus far has produced conflicting results, and many studies have suffered from
flaws in their research methods. Animal experiments investigating the effects of radiofrequency
energy (RF) exposures characteristic of wireless phones have yielded conflicting results that often
cannot be repeated in other laboratories. A few animal studies, however, have suggested that low
levels of RF could accelerate the development of cancer in laboratory animals. However, many
of the studies that showed increased tumor development used animals that had been genetically
engineered or treated with cancer-causing chemicals so as to be predisposed to develop cancer
in the absence of RF exposure. Other studies exposed the animals to RF for up to 22 hours per
day. These conditions are not similar to the conditions under which people use wireless phones,
so we don’t know with certainty what the results of such studies mean for human health. Three
large epidemiology studies have been published since December 2000. Between them, the studies
investigated any possible association between the use of wireless phones and primary brain cancer,
glioma, meningioma, or acoustic neu-roma, tumors of the brain or salivary gland, leukemia, or
other cancers. None of the studies demonstrated the existence of any harmful health effects from
wireless phone RF exposures. However, none of the studies can answer questions about long-term
exposures, since the average period of phone use in these studies was around three years.
5. What research is needed to decide whether RF exposure from wireless phones
poses a health risk?
A combination of laboratory studies and epidemiological studies of people actually using wireless
phones would provide some of the data that are needed. Lifetime animal exposure studies could
be completed in a few years. However, very large numbers of animals would be needed to provide
reliable proof of a cancer promoting effect if one exists. Epidemiological studies can provide data
that is directly applicable to human populations, but 10 or more years’ follow-up may be needed to
provide answers about some health effects, such as cancer. This is because the interval between the
time of exposure to a cancer-causing agent and the time tumors develop - if they do -may be many,
many years. The interpretation of epidemiological studies is hampered by difficulties in measuring
actual RF exposure during day-to-day use of wireless phones. Many factors affect this measurement,
such as the angle at which the phone is held, or which model of phone is used.
6. What is FDA doing to find out more about the possible health effects of wireless
phone RF?
FDA is working with the U.S. National Toxicology Program and with groups of investigators
around the world to ensure that high priority animal studies are conducted to address important
questions about the effects of exposure to radiofrequency energy (RF). FDA has been a leading
participant in the World Health Organization International Electromagnetic Fields (EMF) Project
since its inception in 1996. An influential result of this work has been the development of a detailed
agenda of research needs that has driven the establishment of new research programs around
the world. The Project has also helped develop a series of public information documents on EMF
issues. FDA and the Cellular Telecommunications & Internet Association (CTIA) have a formal
Cooperative Research and Development Agreement (CRADA) to do research on wireless phone
safety. FDA provides the scientific oversight, obtaining input from experts in government, industry,
and academic organizations. CTIA-funded research is conducted through contracts to independent
investigators. The initial research will include both laboratory studies and studies of wireless phone
users. The CRADA will also include a broad assessment of additional research needs in the context
of the latest research developments around the world.
7. How can I find out how much radiofrequency energy exposure I can get by using
my wireless phone?
All phones sold in the United States must comply with Federal Communications Commission
(FCC) guidelines that limit radiofrequency energy (RF) exposures. FCC established these guidelines
in consultation with FDA and the other federal health and safety agencies. The FCC limit for RF
exposure from wireless telephones is set at a Specific Absorption Rate (SAR) of 1.6 watts per
kilogram (1.6 W/kg). The FCC limit is consistent with the safety standards developed by the
Institute of Electrical and Electronic Engineering (IEEE) and the National Council on Radiation
Protection and Measurement. The exposure limit takes into consideration the body’s ability to
remove heat from the tissues that absorb energy from the wireless phone and is set well below
levels known to have effects. Manufacturers of wireless phones must report the RF exposure level
for each model of phone to the FCC. The FCC website (http://www.fda.gov (under “c” in the
subject index, select Cell Phones > Research)) gives directions for locating the FCC identification
number on your phone so you can find your phone’s RF exposure level in the online listing.
8. What has FDA done to measure the radiofrequency energy coming from wireless
phones?
The Institute of Electrical and Electronic Engineers (IEEE) is developing a technical standard for
measuring the radiofrequency energy (RF) exposure from wireless phones and other wireless
handsets with the participation and leadership of FDA scientists and engineers. The standard,
“Recommended Practice for Determining the Spatial-Peak Specific Absorption Rate (SAR) in
the Human Body Due to Wireless Communications Devices: Experimental Techniques,” sets
forth the first consistent test methodology for measuring the rate at which RF is deposited in
the heads of wireless phone users. The test method uses a tissue-simulating model of the human
head. Standardized SAR test methodology is expected to greatly improve the consistency of
measurements made at different laboratories on the same phone. SAR is the measurement of the
amount of energy absorbed in tissue, either by the whole body or a small part of the body. It is
measured in watts/kg (or milliwatts/g) of matter. This measurement is used to determine whether
a wireless phone complies with safety guidelines.
83 84
9. What steps can I take to reduce my exposure to radiofrequency energy from my
wireless phone?
If there is a risk from these products—and at this point we do not know that there is—it is probably
very small. But if you are concerned about avoiding even potential risks, you can take a few simple
steps to minimize your exposure to radiofrequency energy (RF). Since time is a key factor in how
much exposure a person receives, reducing the amount of time spent using a wireless phone will
reduce RF exposure.
• If you must conduct extended conversations by wireless phone every day, you could place
more distance between your body and the source of the RF, since the exposure level drops off
dramatically with distance.
For example, you could use a headset and carry the wireless phone away from your body or use
a wireless phone connected to a remote antenna. Again, the scientific data do not demonstrate
that wireless phones are harmful. But if you are concerned about the RF exposure from these
products, you can use measures like those described above to reduce your RF exposure from
wireless phone use.
10. What about children using wireless phones?
The scientific evidence does not show a danger to users of wireless phones, including children and
teenagers. If you want to take steps to lower exposure to radiofrequency energy (RF), the measures
described above would apply to children and teenagers using wireless phones. Reducing the time
of wireless phone use and increasing the distance between the user and the RF source will reduce
RF exposure. Some groups sponsored by other national governments have advised that children
be discouraged from using wireless phones at all. For example, the government in the United
Kingdom distributed leaflets containing such a recommendation in December 2000. They noted
that no evidence exists that using a wireless phone causes brain tumors or other ill effects. Their
recommendation to limit wireless phone use by children was strictly precautionary; it was not based
on scientific evidence that any health hazard exists.
11. What about wireless phone interference with medical equipment?
Radiofrequency energy (RF) from wireless phones can interact with some electronic devices. For
this reason, FDA helped develop a detailed test method to measure electromagnetic interference
(EMI) of implanted cardiac pacemakers and defibrillators from wireless telephones. This test
method is now part of a standard sponsored by the Association for the Advancement of Medical
instrumentation (AAMI). The final draft, a joint effort by FDA, medical device manufacturers, and
many other groups, was completed in late 2000. This standard will allow manufacturers to ensure
that cardiac pacemakers and defibrillators are safe from wireless phone EMI. FDA has tested hearing
aids for interference from handheld wireless phones and helped develop a voluntary standard
sponsored by the Institute of Electrical and Electronic Engineers (IEEE). This standard specifies
test methods and performance requirements for hearing aids and wireless phones so that that no
interference occurs when a person uses a “compatible” phone and a “compatible” hearing aid at the
same time. This standard was approved by the IEEE in 2000. FDA continues to monitor the use of
wireless phones for possible interactions with other medical devices. Should harmful interference
be found to occur, FDA will conduct testing to assess the interference and work to resolve the
problem.
12. Where can I find additional information?
For additional information, please refer to the following resources:
• FDA web page on wireless phones
(http://www.fda.gov/Radiation-EmittingProducts/RadiationEmittingProductsandProcedures/
HomeBusinessandEntertainment/CellPhones/default.htm)
• Federal Communications Commission (FCC) RF Safety Program (http://www.fcc.gov/oet/
rfsafety)
• International Commission on Non-Ionizing Radiation Protection (http://www.icnirp.de)
• World Health Organization (WHO) International EMF Project (http://www.who.int/peh-emf/en/)
• National Radiological Protection Board (UK) (http://www.hpa.org.uk/radiation/)
AVOID POTENTIAL HEARING LOSS
Prolonged exposure to loud sounds (including music) is the most common cause of preventable
hearing loss. Some scientific research suggests that using portable audio devices, such as portable
music players and cellular telephones, at high volume settings for long durations may lead to
permanent noise-induced hearing loss. This includes the use of headphones (including headsets,
earbuds and Bluetooth® or other wireless devices). Exposure to very loud sound has also been
associated in some studies with tinnitus (a ringing in the ear), hypersensitivity to sound and
distorted hearing. Individual susceptibility to noise-induced hearing loss and other potential hearing
problems varies.
The amount of sound produced by a portable audio device varies depending on the nature of the
sound, the device, the device settings and the headphones. You should follow some commonsense
recommendations when using any portable audio device:
• Set the volume in a quiet environment and select the lowest volume at which you can hear
adequately.
• When using headphones, turn the volume down if you cannot hear the people speaking near you
or if the person sitting next to you can hear what you are listening to.
• Do not turn the volume up to block out noisy surroundings. If you choose to listen to your
portable device in a noisy environment, use noise-cancelling headphones to block out background
environmental noise.
• Limit the amount of time you listen. As the volume increases, less time is required before your
hearing could be affected.
• Avoid using headphones after exposure to extremely loud noises, such as concerts, that might
cause temporary hearing loss. Temporary hearing loss might cause unsafe volumes to sound
normal.
• Do not listen at any volume that causes you discomfort. If you experience ringing in your ears,
hear muffled speech or experience any temporary hearing difficulty after listening to your portable
audio device, discontinue use and consult your doctor.
YOU CAN OBTAIN ADDITIONAL INFORMATION ON THIS
SUBJECT FROM THE FOLLOWING SOURCES:
AMERICA ACADEMY OF AUDIOLOGY
11730 Plaza American Drive, Suite 300
Reston, VA 20190
Voice: 800-AAA-2336
Email: infoaud@audiology.org
Internet: http://www.audiology.org
85 86
NATIONAL INSTITUTE ON DEAFNESS AND OTHER
COMMUNICATION
DISORDERS
NATIONAL INSTITUTES OF HEALTH:
31 Center Drive, MSC 2320
Bethesda, MD USA 20892-2320
Voice: (301) 496-7243
Email: wengerj@nidcd.nih.gov
Internet: http://www.nidcd.nih.gov/health/hearing
CENTERS FOR DISEASE CONTROL AND PREVENTION
1600 Clifton Rd. Atlanta, GA 30333, USA
Voice: 800-CDC-INFO (800-232-4636)
Internet: http://www.cdc.gov/niosh/topics/noise/default.html
FCC COMPLIANCE INFORMATION
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received. Including interference that may cause
undesired operation.
INFORMATION TO THE USER
This equipment has been tested and found to comply with the limits for a Class B digital device
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful Interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful Interference to radio communications. However, there is no guarantee that
interference will not occur in a particular Installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna. Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet of a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for assistance.
CAUTION: Changes or modification not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment. Connecting of peripherals
requires the use of grounded shielded signal cables.
LICENCES
Obigo® is a registered trademark of Obigo AB.
microSD Logo is a trademark.
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and
any use of such marks by TCT Mobile Limited and its affiliates is under license.
Other trademarks and trade names are those of their respective owners.
eZiText™ and Zi™ are trademarks of Zi Corporation and/or its Affiliates.
Java™ and all Java™ based trademarks and logos are trademarks or registered
trademarks of Sun Microsystems, Inc. in the U.S. and other countries.
English - CJB32J1ALAAA
