TCT Mobile 387 HSPA + USB Dongle User Manual GB UM X600 20130313 final
TCT Mobile Limited HSPA + USB Dongle GB UM X600 20130313 final
Manual
1
User Manual
2

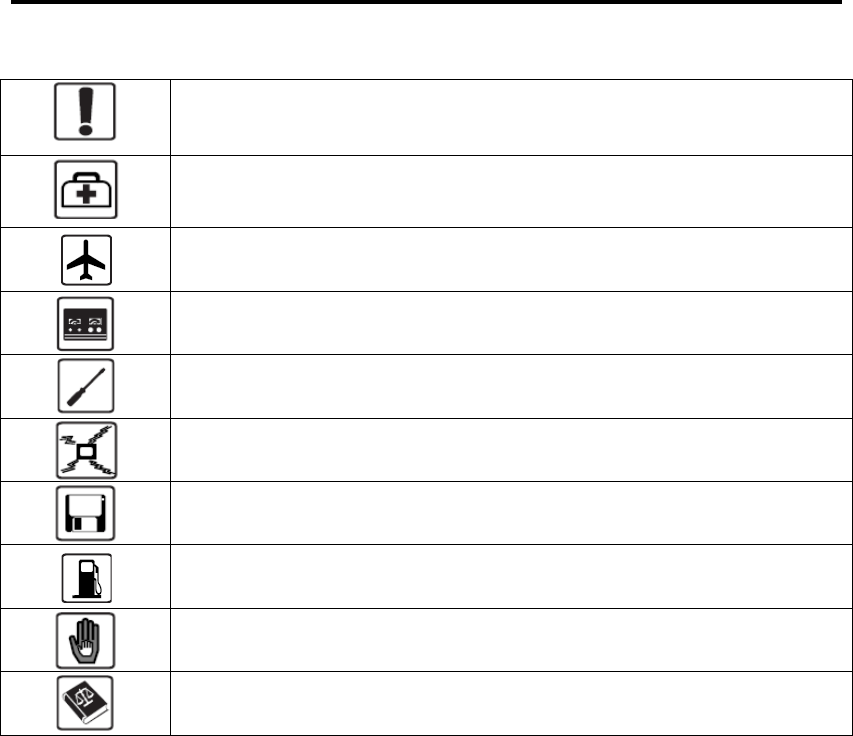

Safety Precautions
Read the safety precautions carefully to ensure the correct and safe use of your
wireless device.
Do not switch on your device when the device use is prohibited or when
the device use may cause interference or danger.
Follow the rules or regulations in hospitals and health care facilities.
Switch off your device near medical apparatus.
Switch off your device in an aircraft. The device may cause interference
to control signals of the aircraft.
Switch off your device near high-precision electronic devices. The
device may affect the performance of these devices.
Do not attempt to disassemble your device or its accessories. Only
qualified personnel are allowed to service or repair the device.
Do not place your device or its accessories in containers with strong
electromagnetic field.
Do not place magnetic storage media near your device. Radiation from
the device may erase the information stored on them.
Do not put your device in a high-temperature place or use it in a place
with flammable gas such as a gas station.
Keep your device and its accessories away from children. Do not allow
children to use your device without guidance.
Observe the laws or regulations on device use. Respect others’ privacy
and legal rights when using your device.
It is recommended that the equipment only be used in the environment where
temperature is between -10 and ℃50 and humidity is between 10% to 90%. Keep ℃
the equipment in the environment where temperature is between -10 and 70 or ℃℃
humidity is between 10% to 90%.
3
Content
Safety Precautions .................................................................................................... 2
1. Overview ................................................................................................................ 4
2. Web UI configuration ............................................................................................ 4
3. Connection ............................................................................................................ 4
4. SMS ........................................................................................................................ 5
5. Settings .................................................................................................................. 6
5.1 Network ................................................................................................................ 6
5.2 PIN Code Management ....................................................................................... 6
5.3 Connection Profile .............................................................................................. 7
5.4 Connection Mode ................................................................................................ 7
5.5 Language ............................................................................................................. 8
5.6 System ................................................................................................................. 8
6. Warranty ................................................................................................................. 8
7. FAQs....................................................................................................................... 9
8. Certification ......................................................................................................... 11
4
1. Overview
Welcome to choose our mobile broadband device. This device allows you to connect
to internet from anywhere, anytime. To use this device you need a device with web
browser.
2. Web UI configuration
Open the browser, and then input the address http://192.168.1.1. The page is
displayed as bellow:
Fig 2
3. Connection
Current status
Active profile: Select the profile you want to use from the drop down box.
Connection Status: display the network is connected or disconnected;
Usage: Display usage data
Duration: the duration for current connection;
WAN status
Network name: the network name you are using;
5
Network type: GPRS/EDGE/UMTS/HSDPA/HSUPA/HSPA+
Roaming: display whether you are in roaming network or not;
IP address: this is the IP address arranged for this device.
Usage History
Click link of Usage History, will display current data and total data of usage.
Usage: Display usage data
Upload: Display upload usage data
Download: Display download usage data
Duration: Display duration time
4. SMS
You can move the mouse to "SMS" and click the items you want. In this section, the
following items are included:
Inbox: list the SMS received;
Sent: list the SMS sent successfully.
Draft: save the SMS not sent or sent failed.
SMS settings: set the SMS center number and the SMS saved location ;
Read SMS: Click the content of the SMS to read;
Write SMS
1,Click “New Message” to create a new SMS on “Inbox/Sent/Draft”;
2,Input the number and the content;
3,Click <Sent>;
Forward SMS
1,Click the content of the SMS you want to forward;
2,Click <Forward>;
3,Input the number;
4,Click <Sent>;
Reply SMS
1,Click the content of the SMS you want to reply;
2,Click <Reply>;
3,Input the content;
4,Click <Sent>;
Delete SMS
1,Click the Mark of the SMS you want to delete;
6
2,Click <Delete>;
Delete all SMS
1,Click <Mark All> icon on top of SMS list;
2, Click <Delete>;
SMS settings
SMS Center Number: You can get it from your operator;
SMS Save Mode: the location SMS stored, default is SIM card;
5. Settings
You can move the mouse to "Settings" and click the items you want. In this section,
the following items are included:
Network: set network mode;
PIN Code Management: Enable/Disable/Change PIN code;
Connection Profile: set connection profile;
Connection Mode: set connection mode in Auto or Manual;
Language: set the language displayed on the web UI
System: display the device info, save & restore the configuration;
5.1 Network
Network Mode: Automatic /3G only/2G only, default is automatic
Network Selection: Automatic/Manual, default is automatic
Select a Network Manually
1,Choose Manual in the network selection;
2,Click <Apply>;
3,Click <Refresh> to list the available network;
4,Choose the network and Click <Select> to register;
Note: For the Services, UMTS, GSM; For the Status, Active( the network registered),
Available( the network can be used).
5.2 PIN Code Management
Enable PIN
1, When PIN is disable, click <Enable>, PIN input page is displayed;
2, Enter the PIN code number (refer to SIM/USIM card kit for the number);
3,Click <Apply>;
Disable PIN
7
1, When PIN is enable, click <Disable>, PIN input page is displayed;
2,Enter the correct PIN;
3,Click <Apply>;
Change PIN
1, When PIN is enable, click <Change PIN>,PIN input page is displayed;
2,Enter the Old PIN/New PIN/Confirm PIN;
3,Click <Apply>;
Note: when you entered wrong PIN 3 times, PUK is needed, you can get this key from
the operator.
5.3 Connection Profile
Add a new profile:
1, Click <New>;
2, Input the correct parameters you get from the operator;
Note: Profile Name/Number/APN is the mandatory to be filled.
3, Click <Save>;
Edit a profile:
1, Select the profile from the connection profile list;
2, Change the parameters;
3, Click <Save>;
Delete a profile:
1, Select the profile from the connection profile list;
2, Click <Delete>;
3, On the pop up dialog ”are you sure to delete this profile?”,click <OK>;
Note: the default profile cannot be deleted.
Set as default:
1, Select the profile from the connection profile list;
2, Click <Set default>;
3, On the pop up dialog ”are you sure to set this profile as default?”, click <OK>.
Note: Once set the profile as default,(D) will be added as a mark.
5.4 Connection Mode
To set connection mode in Auto or Manual:
1, In Auto-connect mode, the device will connect to internet automatically when insert to
computer;
8
2, In Manual mode, the device dials to internet by clicking “connect” button in connection
page
Note: The default connection mode is “Auto-connect”.
5.5 Language
Change language:
1,Choose the language, ;
2, Click <Apply>.
The default language is English.
5.6 System
Reboot
Click <Reboot> to restart the device.
Reset
Reset the device to the original factory settings. you can also use the hardware reset
button under the back cover, marked with R.
Save the configuration
1,Click <Backup>;
2,Select the location to save current settings.
Restore the configuration
1,Click <Restore>;
2,Select a file saved previously to restore the settings.
6. Warranty
The modem is warranted against any deviation from technical specifications for a
period of twelve (12) months from the date specified on your original invoice1.
Under the terms of this warranty, you must immediately inform your vendor in
case of a conformity defect on the modem, and present a proof of purchase.
The vendor or repair centre will decide whether to replace or repair, as appropriate
the modem.
Repaired or replaced modems are warranted ONE (1) month unless there are
statutory provisions to the contrary.
This warranty shall not apply to damage or defects to the modem due to:
1) Not following of the instructions for use or installation,
1 The mandatory warranty period may vary if overriding statutory provisions are applicable in
your jurisdiction.
9
2) Not being compliant with technical and safety standards applicable in the
geographical area where the modem is used,
3) Improper maintenance of sources of energy, and of the overall electric
installation,
4) Accidents or consequences of theft of the vehicle in which the modem is
transported, acts of vandalism, lightning, fire, humidity, infiltration of liquids,
inclement weather,
5) Connecting to or integrating into the modem any equipment not supplied or not
recommended by the manufacturer,
6) Any servicing, modification or repair performed by individuals not authorised the
manufacture, the vendor or the approved maintenance centre,
7) Use of the modem for a purpose other than that for which it was designed,
8) Normal wear,
9) Malfunctions caused by external causes (e.g., radio interference from other
equipment, power voltage fluctuations),
10) Faulty connections resulting from unsatisfactory radio transmission or caused by
the absence of radio relay coverage.
Warranty is also excluded for the modems on which markings or serial numbers
have been removed or altered.
The modem is also warranted against hidden defects (defects inherent in the
design, manufacture, etc.).
There are other express warranties than this printed limited warranty, express or
implied, of any nature whatsoever.
In no event shall the manufacturer be liable for incidental or consequential
damages of any nature whatsoever, including but not limited to trading loss,
commercial loss, to the full extent those damages can be disclaimed by law. Some
countries/states do not allow the exclusion or limitation of incidental or
consequential damages, or limitation of the duration of implied warranties, so the
preceding limitations or exclusions may not apply to you.
7. FAQs
1. Q: Which browser does the device support?
10
A: It supports Firefox, Safari 4.0.2-5. 2, IE 7.0-10.0, Opera; Chrome;
2. Q: Which operation systems does the software support?
A: It supports Windows XP, Windows Vista, Windows 7, Windows 8 and Mac
OS X 10.5-10.8
3. Q: I cannot install the driver automatically.
A: Find the AutoRun.exe file in modem’s root and double-click it to run.
4. Q: Why the LED indicator of device is always in solid red?
A: The status for solid red LED indicator may be:
1. No service;
2. No SIM card;
3. SIM Error
You may need:
1. Check network signal;
2. Insert a SIM card;
3. Check SIM card status.
5. Q: The SIM/USIM card does not register any networks
A: The reasons are shown below:
1. Unstable local signal;
2. The software is an old version;
3. Hardware problem.
You may:
1. Try to logon from another location;
2. Update the software;
3. Check the hardware or use another data card and retry.
6. Q: Why does the prompt “No available connection profile. Please set an
available default one in connection profile” appear?
A: Please add a connection profile manually.
7. Q: It failed to connect to the internet
A: Please make sure the connection profile and settings are correct.
8. Q: The connection speed and data transfer rates are too slow
A: Please check the local network signal strength.
11
9. Q: Sending an SMS failed
A: Please make sure the SMS center number is correct.
10. Q: I cannot receive an SMS
A: Please check whether your SIM/USIM card’s memory is full.
11. Q: Does it support roaming?
A: This depends on the local operator. Please check with your local operator or
service provider.
8. Certification
www.sar-tick.com
This product meets applicable national SAR limits of 2.0W/kg in EU and
1.6W/Kg in US.
The specific maximum SAR values can be found in the following section of
this user guide.
When carrying the product or using it while worn on your body, either use an
approved accessory such as a holster or otherwise maintain a distance of
5mm from the body to ensure compliance with RF exposure requirements.
Note that the product may be transmitting even if you are not making a phone
call.
CE: Proof of compliance with international standards (ICNIRP) or with European
Directive 1999/5/EC (R&TTE) is required of all Modem models before they can be put
on the market. The protection of the health and safety for the user and any other
person is an essential requirement of these standards or this directive.
THIS DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO
WAVES.
The USB-Modem is a radio transmitter and receiver. It is designed not to exceed the
limits for exposure to radio waves (radio frequency electromagnetic fields)
recommended by international guidelines. The guidelines were developed by an
independent scientific organization (ICNIRP) and include a substantial safety margin
designed to assure the safety of all persons, regardless of age and health.
12
The radio wave exposure guidelines use a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit for mobile devices is 2 W/kg in EU, and
1.6W/Kg in US.
Tests for SAR are conducted using standard operating positions with the device
transmitting at its highest certified power level in all tested frequency bands. The
highest SAR values under the ICNIRP guidelines for this device model are:
Maximum SAR for this model and conditions under which it was recorded.
Body SAR 0.785W/Kg
During use, the actual SAR values for this device are usually well below the values
stated above. This is because, for purposes of system efficiency and to minimize
interference on the network, the operating power of your mobile device is
automatically decreased when full power is not needed for the call. The lower the
power output of the device, the lower its SAR value.
Body-worn SAR testing has been carried out at a separation distance of 5mm. To
meet RF exposure guidelines during body-worn operation, the device should be
positioned at least this distance away from the body. If you are not using an
approved accessory ensure that whatever product is used is free of any metal and
that it positions the phone the indicated distance away from the body.
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
NOTE: The manufacturer is not responsible for any radio or TV interference caused
by unauthorized modifications to this equipment. Such modifications could void the
user’s authority to operate the equipment.
13
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications made to this equipment not expressly approved by TCT
may void the FCC authorization to operate this equipment.
The World Health Organization has stated that present scientific information does not
indicate the need for any special precautions for the use of mobile devices. They
recommend that if you are interested in further reducing your exposure then you can
easily do so by limiting your usage or keep the device away from the head and body.
For more information you can go to www.alcatelonetouch.com
Additional information about electromagnetic fields and public health are available on
the following site: http://www.who.int/peh-emf
