TCT Mobile 456 Tablet PC User Manual

TCT Mobile Limited Tablet PC

User manual

You have purchased a product which uses the open source (http://opensource.org/) programs mtd, msdosfs, netfilter/iptables and initrd in

object code and other open source programs licensed under the GNU General Public License and Apache License.

We will provide you with a complete copy of the corresponding source codes upon request within a period of three years from the

distribution of the product by TCT.

You may download the source codes from http://sourceforge.net/projects/alcatel/files/. The provision of the source code is free of charge

from internet.

English: CJB1760ALAAA

www.sar-tick.com

This device meets applicable national SAR limits of 1.6 W/kg. SAR values can be found on page 20 of this user

guide. When carrying the device or using it while worn on your body, either use an approved accessory such

as a holster or otherwise maintain a distance of 0 cm from the body to ensure compliance with RF exposure

requirements. Note that the product may be transmitting even if you are not using it.

To prevent possible hearing damage, do not listen at high volume levels for long periods. Exerice caution when

holding your device near your ear while the loudspeaker is in use.

The tablet contains magnets which may interfere with other devices and items (such as credit card,

pacemakers, defibrillators, etc.). Please maintain at least 15 cm of separation between your tablet and the

devices/items mentioned above.

Table of contents

1 Your device..................................................................................................................................................................................................................3

1.1 appearance illustration...........................................................................................................................................................................................3

1.2 home screen............................................................................................................................................................................................................6

1.3 apps and widgets.....................................................................................................................................................................................................8

1.4 basic operation........................................................................................................................................................................................................9

2 Settings.....................................................................................................................................................................................................................13

2.1 Device.....................................................................................................................................................................................................................13

2.2 Personal..................................................................................................................................................................................................................13

2.3 System.....................................................................................................................................................................................................................14

1 Your device ...................................................................

1.1 Appearance illustration

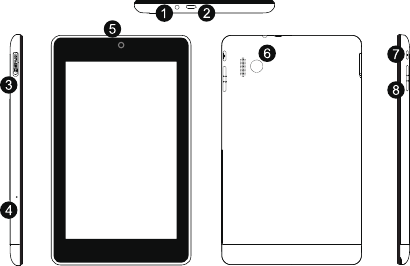

Number Function Number Function

1Earphone Interface 5Front camera

2Micro-USB connector / Battery charge 6Rear camera

3Micro SDcard 7Power key

4 Microphone 8 Volume Up / Down

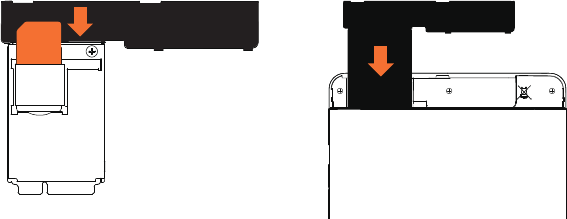

Inserting the SIM card Installing the 3G/ 4G Module

Note

Please charge before first use. Normally, long press the Power key will power the pad on and the Home

Screen will show up, but a battery icon will show instead of the Home Screen when the pad is lack of

power, that indicates you should charge before use. Use only charger recommended by TCT Mobile

Limited and its affiliates.

1.2 Home screen

Your device includes five pages of Home screen giving you more space to add your own favorite apps, folders, and widgets for

one-touch access. To switch between screens, sliding your finger to left or right.

● Lock/Unlock your screen

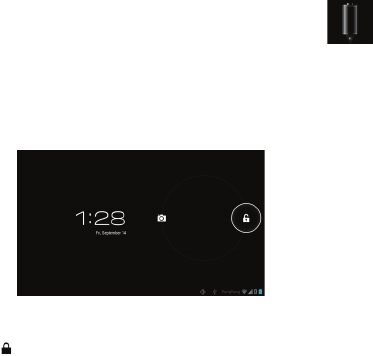

Once your device is powered on, it shows a locked screen interface, which is set as default.

Touch the locked icon , then a circle will shows around it.

Touch and hold the locked icon , drag it to the lock icon at the right of the circle, home screen is unlocked.

● Icons on your screen

Icon Name Description

Google search Touch it to access the Google search engine.

Voice actions Use Voice Actions to watch a video, send email, set alarm, get directions, etc.

All apps Touch to show all apps list interface.

Back Go back to the previous menu or screen.

Home Return to the home screen.

Background program Press to view background program list.

Wi-Fi Press to view Wi-Fi connection

3G Press to view 3G connection (the icon should be different depends on operator)

On the right of the screen bottom, there is a notification bar . A hidden menu will popup when you press the bar,

which includes time, date, network connection and battery information, etc. For further operation, you can press setting.

1.3 Apps and widgets

● Apps

The Applications (apps) list contains all pre-embedded and newly installed apps. To access the apps list, touch the all apps key

from Home screen.

● Widgets

Touch the Widgets tab at the top of All apps screen or slide left at All apps screen, you can switch to widgets interface.

● Get more apps

Touch the Google play store icon to get more apps.

● Create and manage shortcut on desktop

Touch and hold an icon on All Apps or widgets interface, it will jump to home screen automatically, drag it to the right place you

want. Overlap icons together will build a folder. You can name the folder by touching the tap under the icons.

● Remove apps icon from desktop

Touch and hold the icon you want to delete from the desktop, drag it right over the " ", which appears right in the middle of

the screen top.

● Uninstall apps

Press to enter all Apps, then touch and hold the Apps icon you want to uninstall, drag it over the , which appeas top-left

in the desktop.

1.4 Basic Operation

● Power on your device

Long press the Power key until the pad powers on. It will take some seconds before the screen lights up.

● Power off your device

1. Long press the Power key about 3 seconds until the options appear, select OK to power off your device.

2. Long press the Power key about 10 seconds to shut down your device.

● Stand-by mode

Press Power key once to shut down the screen and the product enters stand-by mode.

Note: without operation, the product will enter stand-by mode automatically. Press Power key once to wake it up.

● Restart

When your device is out of function, long press the Power key about 10 seconds to shut down your device. Then press the

Power key to restart.

● Connecting to a computer via USB

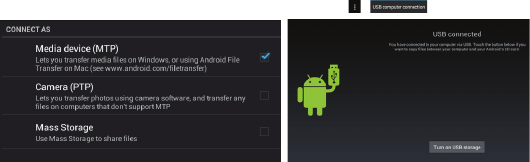

When connecting your device to computer by USB, Select Setting\Storage\ \ ,

turn on USB Storage, you can transfer files between your device and the computer.

Note: files copied to pad are not available until USB data cable is disconected with PC completely.

● Change your wallpaper

You can change your wallpaper in two different ways: touch & hold any space on home screen, select a wallpaper source from

Gallery, Live Wallpapers or Wallpapers, touch a picture, select OK at the top of the screen (for Gallery images) or Set wallpaper;

For another way is following the steps Settings > DEVICE > Display > Wallpaper.

● Wi-Fi

To turn Wi-Fi on and connect to a wireless network

• Touch Application tab from the Home screen.

• Select Settings\Wireless & networks\Wi-Fi.

• Mark/Unmark the checkbox to turn on/off Wi-Fi.

• Touch Wi-Fi. The detailed information of any detected Wi-Fi networks are displayed in the Wi-Fi networks section.

• Touch a Wi-Fi network to connect. If the network you selected is secured, you are required to enter a password or other

credentials (You may need to contact the network operator for details). When finished, touch Connect.

Tip: To extend the battery life, turn off Wi-Fi when you're not using it.

● Zoom in/out

Draw your fingers together/apart to zoom in/out (Web broswer, Gallery ect...)

2 Settings..........................................................................

2.1 Device

3.1.1 Sound

You can set Volumes, Touch sounds and Screen lock sound to your preference with the Volume up/down key, or touch

Settings\DEVICE\Sound.

3.1.2 Display

Touch settings> DEVICE >Display, you can see the items:

Brightness: adjust your screen in a comfortable brightness

Wallpaper: set your wallpaper

Auto-rotate screen: mark the checkbox, to enable or disable auto-rotation

Sleep: set Screensavers time

Font size: select a suitable font size for your tablet

3.1.3 Storage

Touch Settings> DEVICE >Storage to view the memory using status.

3.1.4 Battery

Touch Settings> DEVICE >battery to check the battery power and its service status.

2.2 Personal

2.2.1 Language & input

Touch Settings>PERSONAL>Language & input to view or set system language and input methods.

Language: set the system language

Keyboard & input methods: check and select all the input methods installed in the pad

2.2.2 Backup & reset

You can back up settings and other data associated with one or more of your Google Accounts. If you need to replace or factory

reset your device, you can restore your data for any accounts that were previously backed up.

Touch Settings\PERSONAL\Backup & reset

Tips: please make sure that all the important data have been backed-up before you run factory data reset, for this function will

eraser all apps and data that user installed; and remaining the battery is more than 50%.

2.3 System

3.3.1 Date & time

Touch Settings>SYSTEM>Date & time, to set date, time and format

3.3.2 About tablet

Touch Settings>SYSTEM>About tablet to check legal information, tablet status and software version, etc.
