1. YOUR DEVIDE
What’s in the box
Appearance illustration
A Indicator LED
The LED will light when V101 starts up.
B
Micro USB Port
Connect V101 to USB port of TV or
charger(5V, 1A) using an USB cable
C
HDMI Port
Connect V101 to the HDMI port of TV
using an HDMI cable
D
Key
Press the key when you need to debug
V101 after connected with PC
4
Installation

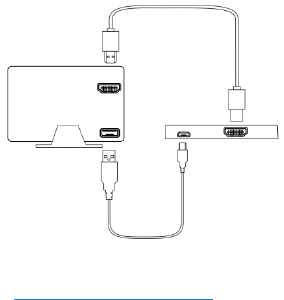

Connect HDMI Cable:
a) Connect one end of the HDMI cable to the
back/side of your TV;
b) Connect the other end of the cable to HDMI
port on the back of V101;
Connect USB Cable:
a) Connect one end standard USB port of the
USB cable to the back/side of your TV;
b) Connect the Micro USB port of the USB cable
to Micro port on the back of V101.
Install TV Link tool
a) Download TV Link tool from our web site
http://support.alcatelonetouch.com;
b) Copy TV Link tool to your mobile device then
install it;

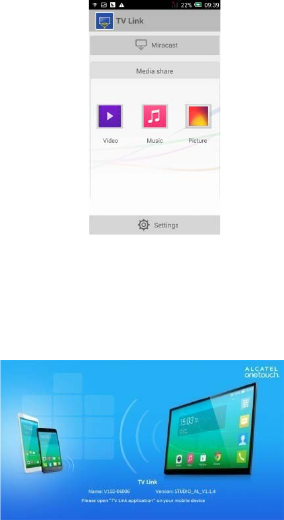

c) Open TV Link tool on your mobile device;
5
d)

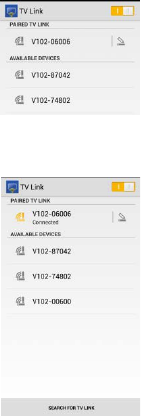

To play Miracast, please click “Miracast” button,
then you will see the available V102 devices on
the list. If you’ve ever connected with one device
successfully, the device will be shown on the
paired list. Select the device which also shown on
the monitor, and start connecting.
6
When the device shows “connected”, the miracast
connection is successful.
e) To play the media share, please select the
media content you would like to share. If the
device is not connected, the settings menu will
pop up and ask you to make the connection.
7

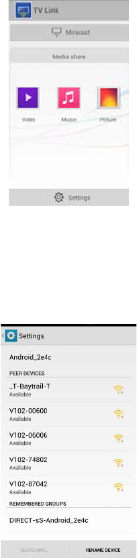

f) Please select the available device that show on
your monitor.
g) If you can’t find the device V102, you may click
the “SEARCHING” and wait for seconds.
h) If you would like to have your own name of the
device, you can click the RENAME DEVICE
button.
8
i) Back to Settings menu
① Access Point:
② Upgrade: FW upgrade
③ Remote OSD: To remote control the OSD of
display
④ Language: To select the language that user
would like to use.
⑤ Information: Product and Software information
j) When you would like to upgrade firmware,
please download the firmware from webpage:
___________________________ , and then
save the file in your mobile device.

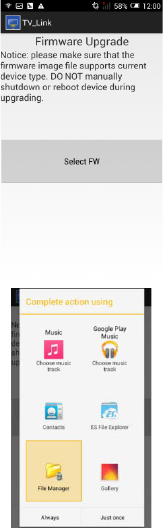

k) Click the Upgrade in the Settings menu and
select FW in the file manager.
①
②
③
④
⑤
9
10
You can find the Network and software information
on the Information page.
2. SAFETY AND USE
We recommend that you read this chapter
carefully before using the Wi-Fi display Dongle.
The manufacturer disclaims any liability for
damage, which may result as a consequence of
improper use of the Wi-Fi display Dongle or of
use contrary to the instructions contained herein.
Traffic Safety
11
When driving, do not use the Wi-Fi display
Dongle.
When switched on, the Wi-Fi display Dongle
emits electromagnetic waves that can interfere
with the vehicle’s electronic systems such as
ABS anti-lock brakes or airbags. To ensure that
there is no problem:
- Do not place the Wi-Fi display Dongle on top
of the dashboard or within an airbag
deployment area.
- Check with your car dealer or the car
manufacturer to make sure that the
dashboard is adequately shielded from
Dongle RF energy.
Conditions of Use
- Switch the Wi-Fi display Dongle off before
boarding an aircraft.
- Switch the Wi-Fi display Dongle off when
you are in health care facilities, except in
designated areas. As with many other types
of equipment now in regular use, the Wi-Fi
display Dongle can interfere with other
electrical or electronic devices, or
equipment-using radio frequencies.
- Switch the Wi-Fi display Dongle off when
you are near gas or flammable liquids.
Strictly obey all signs and instructions
posted in a fuel depot, petrol station,
chemical plant, or in any potentially
explosive atmosphere.
- When the Wi-Fi display Dongle is switched
on, it should be kept at least 15 cm from any
medical device such as a pacemaker, a
hearing aid or insulin pump, etc.
- Do not let children use the Wi-Fi display
Dongle without supervision.
- When replacing the cover, please note that
12
the Wi-Fi display Dongle may contain
substances that could create an allergic
reaction.
- Always handle the Wi-Fi display Dongle with
care and keep it in a clean and dust-free
place.
- Do not allow the Wi-Fi display Dongle to be
exposed to adverse weather or environmental
conditions (moisture, humidity, rain, infiltration
of liquids, dust, sea air, etc). The
manufacturer’s recommended operating
temperature range is -15°C to +55°C.
- Do not open, dismantle or attempt to repair
the Wi-Fi display Dongle yourself.
- Do not drop, throw or bend the USB Dongle.
- Do not paint it.
