F102G

Quick Start Guide

For more information about how to use the device, please go

towww.alcatelonetouch.com to download complete user

manual(English version only).Moreover, from the website you

can also consult FAQ, realize software upgrade, etc (English

version only).

This product meets applicablenational SAR

limits of 2.0 W/kg. When carrying the product

or usingit whileworn on your body, eitheruse

an approved accessory such asa holster or

otherwise maintain a distance of 15 mm from

the body toensure compliance with RF exposurerequirements.

Note that the productmay be transmitting even if you arenot

making a phone call.

PROTECT YOUR HEARING

To prevent possible hearing damage, do not listen

athigh volume levels for long periods. Exercise

cautionwhen holding your device near your ear

while the loudspeakeris in use.

1YourDevice.....................

Leftsoftkey Navigation key

2 Pick up/Send callMenu/Confirm an option

Call logProfiles

Voice MailCalendar

Right soft key Write a message

Power on/off keyAlarm

End call

1.1Keys

Confirman option (press the middle of the key)

Pick up; Send a call

In idle screen:Access call log (Redial) (press)

Switch on/Switch off the telephone (press and hold)

End call

Return to idle screen

Left softkey

Right softkey

Access your voicemail (press and hold)

In Edit mode:

- Press once to enterspace; Press and

hold to enter zero

In idle screen:

- Press and hold to switch between 0, + ,P, W

- Press to enter zero

In Edit mode:

- Press to access the symbols table

- Press and hold to switch between multi-tap and

predictive input method

In idle screen:

- Press and hold to lock the keypad

- Press to enter *

In idle screen:

- Press: #

- Press and hold: activate/deactivate silent mode

In Edit mode:

- Press to change input method

1.2 Main

screenicons

(1)

Battery

Call forwarding activated: your calls are forwarded

Alarmorappointmentsprogrammed

Levelofnetworkreception

Voicemail message received

Missed calls

Roaming

Silence mode: your phone does not ring, beep

with the exception of the alarm

SMSunread

Flight mode

(1)Theiconsand illustrations inthisguideareprovidedforinformation

purposes only.

2Getting Start.............

2.1Set-up

Removing

and

installing

thebackcover

Removing

and

installing

thebattery

InsertingandremovingtheSIMcard

Place the SIM card with the chip facing downwards and slide it

into its housing. Make sure that it is correctly inserted. To

remove the card, press it and slide it out.

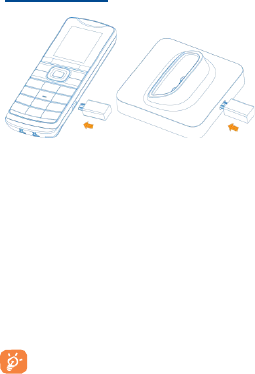

Charging the battery

Connect the battery charger to your phone cradle(or phone)

and mains socketrespectively.

• Charging may take about 20 minutes to start if the battery

isflat.

• Be careful not to force the plug into the socket.

• Make sure the battery is correctly inserted before

connectingthe charger.

• The mains socket must be near to the phone and

easilyaccessible (avoid electric extension cables).

• When using your device for the first time, charge thebattery

fully (approximately 3 hours). You are advised to fullycharge

the battery.

• To reduce power consumption and energy waste,

whenbattery is fully charged, disconnect your charger from

theplug; reduce the backlight time, etc.

The charge is complete when the animation stops.

2.2 Poweronyourphone

Holddownthe keyuntilthe device powerson. If the

deviceasks for the lock code, enter the lock code, and select

OK. The factory setting for the lock code is1122

2.3 Poweroffyourphone

Hold down the key until the phone powers off.

3Calls...........................

3.1 Makinga call

Dialthedesired number then press the key to place the

call. If you make a mistake, you can delete the incorrect digits

by pressing the right soft key. To hang up the call, press the

key.

Makinganemergencycall

If your phone is covered by the network, dial emergency number

and press the key to make an emergency call. This

works even without a SIM card and without typing the PIN code.

3.2 Calling your voicemail

(1)

To access your voicemail, hold down the key.

3.3

Receiving

a call

When you receive an incoming call, press the key to

talk, and then hang up using the key

(1)

Contact yournetworkoperatorto check service availability.

4Contacts.............

Your phone features two phonebooks, the SIM phonebook and

the smart phonebook which is integrated into the phone

memory.

4.1

Consulting

yourcontacts

To access the Contacts from the main screen,pressthe key

and select the contact from the list.

4.2

Adding a contact

You can add a new contact to phone or SIM card by

selecting“Add New”, enter the contact information and then

press “save”.

4.3

Searching a contact

You can press key to access Contacts list, then enter the

first few letters or numbers of the contact name to search.

5Messages............

5.1 Createmessage

From the main menu select “Messages” to create text. You can

typea message and you can also modify a predefinedmessage

in Templates. While writing a message, select“Options” to

access all of the messaging options. You can save your

messages that you send often to Drafts.

Specific letters (accent) will increase the size of the

SMS, this may cause multiple SMS to be sent to

your recipient.

6Call log.................

6.1Access

You can access the function to view up to20 numbers that you

last called or attempted to call or the call you missed by using

the following options:

• Select Recent Callsfrom main men

• Press the send key from Home screen

6.2Availableoptions

When you press “Options”, you can have access to View, Call,

Send Message, Save, Delete etc.

7Settings.................

Select “Settings” from the main menu, and select the function of

your choice in order to customize your telephone: Phone

settings, Call settings,Network settings, Security, Restore etc.

7.1Phone settings

Select “Phone settings” from “Settings” menu, you can set the

display, language, time and date format, preferred input method

etc.

To set the device automatic lock the keypad after a certain time,

select “Screen auto lock”, and set the time.

7.2 Call settings

Select from the following:

-Answer Mode: active any key answer or send key answer only

-Minute Beep: once active, the device will play a beep per each

minute during callings

-Auto Redial: set your device to maximum of 10 attempts to

connect the call after an unsuccessful call attempt. To stop auto

redial, select off

-Supply services: to active call forward or call waiting mode.

7.2 Security

To prevent you device from illegal use, you can lock you

device.If activated, you will need to enter the correct

password when power on your device.

To restore all settings back to factory settings, select“Restore

Settings”.

8Tools.....................

8.1Calculator

Enter a number, select the type of operation to be performed,

and enter the second number, then press “=” to display the

result.

8.2 World clock

Your device has a built-in world clock.

8.3Stopwatch

Your device has a built-in stopwatch.

8.4UnitConverter

Weight converter and Length converter.

8.5Services

Contactyournetwork operator to check service

availability.

8.6FM radio

Your phone is equipped with a radio

(1)

.You can use the

application as a traditional radio with savedchannels. You can

listen to it while running otherapplications.

(1) The quality of the radio depends on the coverage of the radio

station inthat particular area.

9Alarm.....................

Your device has a built-in alarm clock, you can set up to five

alarms.

10Calendar..............

Once you enter this menu from the main menu, there is a

monthly-view calendar for you to query date.

11Profiles................

With this menu, you may personalise ringtones for different

events and environments.

12Games.................

Your device embedded two games.

13Latin Input Mode......

In edit mode, there are two writing methods:

• Normal: this mode allows you to type a text by choosing

aletter or a sequence of characters associated with a key.

• Predictive inputmode : this mode speeds up thewriting of your

text.

key in edit mode:

- Press to access the symbols table

- Press and hold to switch between multi-tap and

predictive input method

ALCATEL is a trademarkof

Alcatel-Lucent and used under license by

TCT Mobile Limited.

TCT Mobile Limited reserves the right to

alter material or technical specification without

prior notice.

PROTECT YOUR HEARING

To prevent possible hearing damage, do not listen

athigh volume levels for long periods. Exercise

cautionwhen holding your device near your ear while the

loudspeakeris in use.

Safety and Use

We recommend that you read this chapter carefully before using

your phone. The manufacturer disclaims any liability for damage,

which may result as a consequence of improper use or use contrary

to the instructions contained herein.

• TRAFFIC SAFETY:

Given that studies show that using a mobile phone while driving a

vehicle constitutes a real risk, even when the hands-free kit is used

(car kit, headset...), drivers are requested to refrain from using their

mobile when the vehicle is not parked.

When driving, do not use your phone and headphone to listen to

music or to the radio. Using a headphone can be dangerous and

forbidden in some areas.

When switched on, your phone emits electromagnetic waves that

can interfere with the vehicle’s electronic systems such as ABS

antilock brakes or airbags. To ensure that there is no problem:

- do not place your phone on top of the dashboard or within an

airbag deployment area,

- check with your car dealer or the car manufacturer to make sure

that the dashboard is adequately shielded from mobile phone RF

energy.

• CONDITIONS OF USE:

You are advised to switch off the telephone from time to time to

optimise its performance.

Switch the phone off before boarding an aircraft.

Switch the phone off when you are in health care facilities, except

in designated areas. As with many other types of equipment now in

regular use, mobile telephones can interfere with other electrical or

electronic devices, or equipment using radio frequency.

Switch the phone off when you are near gas or flammable liquids.

Strictly obey all signs and instructions posted in a fuel depot, petrol

station, or chemical plant, or in any potentially explosive atmosphere.

When the phone is switched on, it should be kept at least 15 cm

from any medical device such as a pacemaker, a hearing aid or

insulin pump, etc. In particular when using the phone, you should

hold it against the ear on the opposite side to the device, if any.

To avoid hearing impairment, pick up the call before holding your

phone to your ear. Also move the handset away from your ear

while using the “hands-free” mode because the amplified volume

might cause hearing damage.

Do not let children use the phone and/or play with the telephone and

accessories without supervision.

When replacing the cover please note that your phone may contain

substances that could create an allergic reaction.

Always handle your phone with care and keep it in a clean and dust

free place.

Do not allow your phone to be exposed to adverse weather or

environmental conditions (moisture, humidity, rain, infiltration of

liquids, dust, sea air, etc). The manufacturer’s recommended

operating temperature range is -10°C to +55°C.

At over 55°C the legibility of the phone’s display may be impaired,

though this is temporary and not serious.

Emergency call numbers may not be reachable on all cellular

networks.

You should never rely only on your phone for emergency calls.

Do not open, dismantle or attempt to repair your mobile phone

yourself.

Do not drop, throw or bend your mobile phone.

Do not use the phone if the glass made screen, is damaged, cracked

or broken to avoid any injury.

Do not paint it.

Use only batteries, battery chargers, and accessories which are

recommended by TCT Mobile Limited and its affiliates and are

compatible with your phone model. TCT Mobile Limited and its

affiliates disclaim any liability for damage caused by the use of other

chargers or batteries.

Remember to make back-up copies or keep a written record of all

important information stored in your phone.

Some people may suffer epileptic seizures or blackouts when

exposed to flashing lights, or when playing video games. These

seizures or blackouts may occur even if a person never had a

previous seizure or blackout. If you have experienced seizures or

blackouts, or if you have a family history of such occurrences, please

consult your doctor before playing video games on your phone or

enabling a flashing-lights feature on your phone.

Parents should monitor their children’s use of video games or other

features that incorporate flashing lights on the phones. All persons

should discontinue use and consult a doctor if any of the following

symptoms occur: convulsion, eye or muscle twitching, loss of

awareness, involuntary movements, or disorientation. To limit the

likelihood of such symptoms, please take the following safety

precautions:

- Do not play or use a flashing-lights feature if you are tired or need

sleep.

- Take a minimum of a 15-minute break hourly.

- Play in a room in which all lights are on.

- Play at the farthest distance possible from the screen.

- If your hands, wrists, or arms become tired or sore while playing,

stop and rest for several hours before playing again.

- If you continue to have sore hands, wrists, or arms during or after

playing, stop the game and see a doctor.

When you play games on your phone, you may experience

occasional discomfort in your hands, arms, shoulders, neck, or other

parts of your body. Follow the instructions to avoid problems such as

tendinitis, carpal tunnel syndrome, or other musculoskeletal

disorders.

PROTECT YOUR HEARING

To prevent possible hearing damage, do not listen at high

volume levels for long periods. Exercise caution when holding your

device near your ear while the loudspeaker is in use.

• PRIVACY:

Please note that you must respect the laws and regulations in force in

your jurisdiction or other jurisdiction(s) where you will use your

mobile phone regarding taking photographs and recording sounds

withyour mobile telephone. Pursuant to such laws and regulations, it

maybe strictly forbidden to take photographs and/or to record the

voicesof other people or any of their personal attributes, and

duplicate ordistribute them, as this may be considered to be an

invasion of privacy.It is the user's sole responsibility to ensure that

prior authorization beobtained, if necessary, in order to record private

or confidentialconversations or take a photograph of another person;

themanufacturer, the seller or vendor of your mobile phone

(includingthe operator) disclaim any liability which may result from the

improperuse of the mobile phone.

• BATTERY:

Before removing the battery from your phone, please make sure that

the phone is switched off.

Observe the following precautions for battery use:

- Do not attempt to open the battery (due to the risk of toxic fumes

and burns).

- Do not puncture, disassemble or cause a short-circuit in a battery,

- Do not burn or dispose of a used battery in household rubbish or

store it at temperatures above 60 °C.

Batteries must be disposed of in accordance with locally applicable

environmental regulations. Only use the battery for the purpose for

which it was designed. Never use damaged batteries or those not

recommended by TCT Mobile Limited and/or its affiliates.

This symbol on your telephone, the battery and the

accessories means that these phones must be taken to

collection points at the end of their life:

- Municipal waste disposal centres with specific bins for

these items of equipment

- Collection bins at points of sale.

They will then be recycled, preventing substances being disposed of

in the environment, so that their components can be reused.

In European Union countries:

These collection points are accessible free of charge.

All phones with this sign must be brought to these collection points.

In non European Union jurisdictions:

Items of equipment with this symbol are not to be thrown into

ordinary bins if your jurisdiction or your region has suitable recycling

and collection facilities; instead they are to be taken to collection

points for them to be recycled.

CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY

AN INCORRECT TYPE. DISPOSE OF USED BATTERIES

ACCORDING TO THE INSTRUCTIONS.

• CHARGERS

Mains powered chargers will operate within the temperature range of:

0 °C to 40 °C.

The chargers designed for your mobile phone meet with the standard

for safety of information technology equipment and office equipment

use. They are also compliant to the ecodesign directive 2009/125/EC.

Due to different applicable electrical specifications, a charger you

purchased in one jurisdiction may not work in another jurisdiction.

They should be used for this purpose only.

• RADIO WAVES:

Proof of compliance with international standards (ICNIRP) or with

European Directive 1999/5/EC (R&TTE) is required of all mobile

phone models before they can be put on the market. The protection

of the health and safety for the user and any other person is an

essential requirement of these standards or this directive.

THIS DEVICE MEETS INTERNATIONAL GUIDELINES FOR

EXPOSURE TO RADIO WAVES.

Your device is a radio transmitter and receiver. It is designed not to

exceed the limits for exposure to radio waves (radio frequency

electromagnetic fields) recommended by international guidelines.

The guidelines were developed by an independent scientific

organization(ICNIRP) and include a substantial safety margin

designed to assure the safety of all persons, regardless of age and

health.

During use, the actual SAR values for this device are usually well

below the values stated above. This is because, for purposes of

system efficiency and to minimize interference on the network, the

operating power of your mobile device is automatically decreased

when full power is not needed for the call. The lower the power output

of the device, the lower its SAR value.

Organizations such as the World Health Organization and the US

Food and Drug Administration have stated that if people are

concerned and want to reduce their exposure they could use a

hands-free device tokeep the phone away from the head and body

during phone calls, or reduce the amount of time spent on the phone.

For more information you can go to www.alcatelonetouch.com

Additional information about electromagnetic fields and public health

are available on the following site: http://www.who.int/peh-emf.

Your telephone is equipped with a built-in antenna. For optimal

operation, you should avoid touching it or degrading it.

As mobile devices offer a range of functions, they can be used in

positions other than against your ear. In such circumstances the

devicewill be compliant with the guidelines when used with headset

or usbdata cable. If you are using another accessory ensure that

whatever product is used is free of any metal and that it positions the

phone at least 15 mm away from the body.

General Information

• Internet address: www.alcatelonetouch.com

• Hot Line Number: see "TCT Mobile Services" leaflet or go to

our Internet site.

• Address: Room 1910-12A, Tower 3, China HK City, 33 Canton

Road, Tsimshatsui, Kowloon, Hong Kong

On our Internet site, you will find our FAQ (Frequently Asked

Questions) section. You can also contact us by e-mail to ask any

questions you may have.

An electronic version of this user guide is available in English and

other languages according to availability on our server:

www.alcatelonetouch.com

Your device is a transceiver that operates on CDMA networks with

1900MHz band.

Disclaimer

There may be certain differences between the user manual

description and the phone’s operation, depending on the software

release of your telephone or specific operator services.

TCT Mobile shall not be held legally responsible for such differences,

if any, nor for their potential consequences, which responsibility shall

be borne by the operator exclusively.

This handset may contain materials, including applications and

software in executable or source code form, which is submitted by

third parties for inclusion in this handset (“Third Party Materials”).

All third party materials in this handset are provided “ as is”, without

warranty of any kind, whether express or implied, including the

implied warranties of merchantability, fitness for a particular purpose

or use/third party application, interoperability with other materials or

applications of the purchaser and non-infringement of copyright. The

purchaser undertakes that TCT Mobile has complied with all quality

obligations incumbent upon it as a manufacturer of mobile devices

and handsets in complying with Intellectual Property rights. TCT

Mobile will at no stage be responsible for the inability or failure of the

Third Party Materials to operate on this handset or in interaction with

any other devices of the purchaser. To the maximum extent permitted

by law, TCT Mobile disclaims all liability for any claims,demands,

suits or actions, and more specifically – but not limited to – tort law

actions, under any theory of liability, arising out of the use, by

whatever means, or attempts to use, such Third Party Materials.

Moreover, the present Third Party Materials, which are provided free

of charge by TCTMobile, may be subject to paid updates and

upgrades in the future; TCT Mobile waives any responsibility

regarding such additional costs, which shall be borne exclusively by

the purchaser. The availability of the applications may vary

depending on the countries and the operators where the handset is

used; in no event shall the list of possible applications and software

provided with the handsets be considered a s an undertaking from

TCT Mobile; it shall remain merely as information forthe purchaser.

Therefore, TCT Mobile shall not be held responsible for the lack of

availability of one ormore applications wished for by the purchaser, as

its availability depends on the country and the operator of the

purchaser. TCT mobile reserves the right at any time to add or

remove Third PartyMaterials from its handsets without prior notice; in

no event shall TCT Mobile be held responsible by the purchaser for

any consequences that such removal may have on the purchaser

regarding the useor attempt to use such applications and Third Party

Materials.

Device Warranty

Your phone is warranted against any defect or malfunctioning

which may occur in conditions of normal use during the

warranty period of twelve (12) months(1) from the date of

purchase as shown on your original invoice.

Batteries(2)and accessories sold with your phone are also

warranted against any defect which may occur during the first

six (6) months(1) from the date of purchase as shown on your

original invoice.

In case of any defect of your phone which prevents you from

normal use thereof, you must immediately inform your vendor

and present your phone with your proof of purchase.

If the defect is confirmed, your phone or part thereof will be

either replaced or repaired, as appropriate. Repaired Phone and

accessories are entitled to a one (1) month warranty for the

same defect. Repair or replacement may be carried out using

reconditioned components offering equivalent functionality.

This warranty covers the cost of parts and labor but excludes

any other costs.

(1)

Thewarranty

period

mayvarydepending

onyourcountry.

(2) Thelifeof

arechargeablemobile phone

batteryintermsof

conversation

time

standby

time,

and

total

servicelife,

will

depend

onthe

conditions

useandnetwork

configuration. Batteries beingconsidered

expendable

supplies,the

specifications

statethat you

shouldobtainoptimal

performance

foryourphoneduringthefirstsix

months

after

purchase

and

for

approximately

200morerecharges.

This warranty shall not apply to defects to your phone and/or

accessory due to (without any limitation):

1) Non-compliance with the instructions for use or installation,

or with technical and safety standards applicable in the

geographical area where your phone is used,

2) Connection to any equipment not supplied or not

recommended by TCT Mobile Limited,

3) Modification or repair performed by individuals not authorised

by TCT Mobile Limited or its affiliates or your vendor,

4) Modification, adjustment or alteration of software or

hardware performed by individuals not authorized by TCT

Mobile Limited,

5) Inclement weather, lightning, fire, humidity, infiltration of

liquids or foods, chemical phones, download of files, crash,

high voltage, corrosion, oxidation…

Your phone will not be repaired in case labels or serial numbers

have been removed or altered.

There are no express warranties, whether written, oral or

implied, other than this printed limited warranty or the

mandatory warranty provided by your country or jurisdiction.

In no event shall TCT Mobile Limited or any of its affiliates be

liable for indirect, incidental or consequential damages of any

nature whatsoever, including but not limited commercial or

financial loss or damage, loss of data or loss of image to the full

extent those damages can be disclaimed by law.

Some countries/states do not allow the exclusion or limitation

of indirect, incidental or consequential damages, or limitation of

the duration of implied warranties, so the preceding limitations

or exclusions may not apply to you.

Troubleshooting

Before contacting the service centre, you are advised to follow

the instructions below:

• You are advised to fully charge the battery for optimal operation.

• Avoid storing large amounts of data in your phone as this may

affect its performance.

My phone cannot switch on

• Check the battery contacts, remove and reinstall your battery,

then turn your phone on

• Check the battery power level, charge for at least 20 minutes

My phone is frozen or has not responded for several

minutes

• Restart your phone by pressing and holding the power key

• Remove the battery and re-insert it, then restart the phone

My phone turns off by itself

• Make sure power off key is not mis-contacted

• Check the battery charge level

My phone cannot charge properly

• Make sure you are using an ALCATEL ONE TOUCH battery

and the charger from the box

• Clean the battery contact if it’s dirty.

• Make sure your battery is inserted properly before plugging in

the charger.

• Make sure that your battery is not completely discharged;

If the battery power is empty for a long time, it may take around

20 minutes to display the battery charger indicator on the screen

• Make sure charging is carried out under normal conditions

(0°C to +40°C)

• When abroad, check that the voltage input is compatible

My phone cannot connect to a network or “No service”

is displayed

• Try connecting in another location

• Verify the network coverage with your operator

• Check with your operator that your SIM card is valid

• Try selecting the available network(s) manually

• Try connecting at a later time if the network is overloaded

Invalid SIM card

• Make sure the SIM card has been correctly inserted

• Make sure the chip on your SIM card is not damaged or

scratched

• Make sure the service of your SIM card is available

Unable to make outgoing calls

• Make sure you have dialed a valid number and press the

Pick up key

• For international calls, check the country and area codes

• Make sure your phone is connected to a network, and the

network is not overloaded or unavailable

• Check your subscription status with your operator (credit,

SIM card valid, etc.)

• Make sure you have not barred outgoing calls

• Make sure that your phone is not in flight mode

Unable to receive incoming calls

• Make sure your phone is switched on and connected to a

network (check for overloaded or unavailable network)

• Check your subscription status with your operator (credit,

SIM card valid, etc.)

• Make sure you have not forwarded incoming calls

• Make sure that you have not barred certain calls

• Make sure that your phone is not in flight mode

The caller’s name/number does not appear when a call

is received

• Check that you have subscribed to this service with your operator

• Your caller has concealed his/her name or number

I cannot find my contacts

• Make sure your SIM card is not broken

• Make sure your SIM card is inserted properly

• Import all contacts stored in SIM card to phone

The sound quality of the calls is poor

• You can adjust the volume during a call by pressing the key

• Check the network strength

• Make sure that the receiver, connector or speaker on your

phone is clean

I am unable to use the features described in the manual

• Check with your operator to make sure that your subscription

includes this service

• Make sure this feature does not require an ALCATEL ONE

TOUCH accessory

When I select a number from my contacts, the number

cannot be dialed

• Make sure that you have correctly recorded the number in

your file

• Make sure that you have inputted the country prefix when

calling a foreign country

I am unable to add a contact in my contacts

• Make sure that your SIM card contacts are not full; delete

some files from your SIM card or save the files in the phone

contacts

My callers are unable to leave messages on my voicemail

• Contact your network operator to check service availability

I cannot access my voicemail

• Make sure your operator’s voicemail number is correctly

entered to “Messages/SMS settings/SIM/oicemail server”.

SIM card PIN locked

• Contact your network operator to obtain the PUK code

(Personal Unblocking Key)

I am unable to connect my phone to my computer

• Make sure that you’re using the right cable from the box

How to make your battery last longer

• Make sure you follow the complete charge time (minimum

3 hours)

• After a partial charge, the battery level indicator may not be

exact. Wait for at least 20 minutes after removing the

charger to obtain an exact indication

• Switch on the backlight upon request

Due to the used enclosure material, the GSM mobile phone shall only

be connected to a USB Interface of version 2.0 or higher. The

connection to so called power USB is prohibited.

The adapter shall be installed near the equipment and shall be easily

accessible.

The charger type is YJS003G-050550G， output voltage/current is

5Vdc/0.55A. The plug considered as disconnect device of adapter

Hereby, TCT Mobile Limited Corporation declares that this device is

in compliance with the essential requirements and other relevant

provisions of Directive 1999/5/EC.

This device complies with part 15 of the FCC rules. Operation is

subject to the

following two conditions: (1) this device may not cause harmful

interference, and (2)

this device must accept any interference received, including

interference that may

cause undesired operation.

NOTE: The manufacturer is not responsible for any radio or TV

interference caused

by unauthorized modifications or changes to this equipment. Such

modifications or changes could void the user’s authority to operate

the equipment.

NOTE: This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This

equipment generates uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio

or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to

try to correct the interference by one or more of the following

measures:

‐ Reorient or relocate the receiving antenna.

‐ Increase the separation between the equipment and receiver.

‐Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

‐Consult the dealer or an experienced radio/TV technician for help .

The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of

tissue. Device types F102G (FCC ID: RAD508) has also been tested

against this SAR limit.

The highest SAR value reported under this standard during product

certification for use when properly worn on the body is 1.287 W/kg

and for head is 1.326 W/kg.

This device was tested for typical body‐worn operations with the

back of the handset kept 10mm from the body.

To maintain compliance with FCC RF exposure requirements, use

accessories that maintain a 10mm separation distance between the

user's body and the back of the handset. The use of belt clips,

holsters and similar accessories should not contain metallic

components in its assembly. The use of accessories that do not

satisfy these requirements may not comply with FCC RF exposure

requirements, and should be avoided.

the USB cable cannot be connected to a

laptop for data transfer.

TCT Mobile 508 TERRACE User Manual

TCT Mobile Limited TERRACE

user manual

Navigation menu

Namespaces

Views

Navigation
