A8 EC01 User manual FCC_Rev1

EC01 (E-Card)
Quick Start Guide
CJB3430ALAAA
1
1 Your E-Card ������������������
1�1 Keys and connectors
Left key
Center key
Right key
Power key
Left key
• Press to turn to the last page.
• Press to mute the ringtone when there’s an incoming call.
Right key
• Press to turn to the next page.
• Press to reject the ringtone when there’s an incoming call.
Center key
• Press to adjust font size.
Idle screen
2
Power key
• Press: Switch between idle screen and previous
application screen.
• Press and hold to power on/off.
...X... Disconnected indicator
• It will be shown to remind your E-card is disconnected.
1�2 Installation
Download and install two APKs on your phone.
iReader is a APK with reading program.
ONETOUCH E-CARD is a APK which connects and transfer
data between phone and E-Card, it need to match with
iReader.
1�3 Getting started
1�3�1 Power on your phone
Hold down the Power key until the phone powers on. It will take a
few seconds before the screen lights up.
1�3�2 Power off your phone
Hold down the Power key.
1�3�3 Charging the battery
Connect the battery charger to your phone and mains socket
respectively.
The charging status bar will not appear if your battery
charge is very low. To reduce power consumption and
energy waste, once the battery is fully charged, disconnect
your charger from the plug.
3

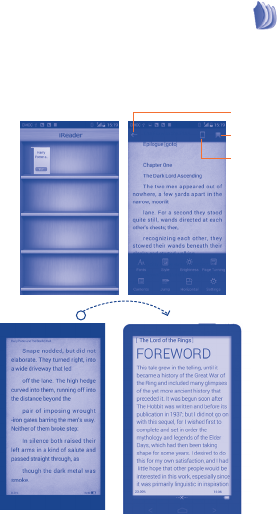

2 iReader ����������������������
Launch iReader application on your phone, open a book on
bookshelf, and touch Transfer button. If you E-card is connected
with your phone successful, this book will be projected on E-card.
Then you can start reading on E-card.
Back to
bookshelf
Transfer
to E-card
Add a
bookmark
4
3 ONETOUCH E-card
3�1 Notification
In reading mode or idle, if there’s incoming call, new mail, new
message and alarm, you can see notification on E-card.
Open ONETOUCH E-card on phone and select activation mode for
these notifications.
• When reading
• Always
• Never
If you activate notification on your E-card, you can do further
operation.

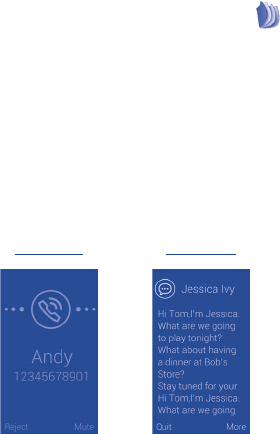

Incoming call New message
5
New mail Alarm
3�2 Weather
Open ONETOUCH E-card, select Weather update to change
interval.
4 Pairing ��������������������������
You have two ways to connect you E-card with mobile phone.
• Bluetooth
• NFC
When you launch iReader on phone and touch Transfer button, it
will indicate you and switch to relevant menu and make connection.
6
Troubleshooting�������������������
Please refer to the instructions below before contacting our
after-sales service:
1. Pairing Failures
Since signal interference may occur with Bluetooth connections,
the pairing times may differ from case to case. If pairing
attempts keep failing, please try the following suggestions before
re-connecting:
A. Reboot Bluetooth;
B. Reboot your cellphone;
C. Check whether it is charged;
D. Log out of your E-Card and log in again.
2. Battery not Charged
Please check whether the Corebox inserted correctly into the
charger (refer to the picture in section 1.2).
After the battery is totally consumed, it will enter a pre-charging
period. After 3 to 5 minutes' charging, it will enter a normal
charging period (the charging light will indicate normally).
3. Vibration and LED lights not working
Charge and confirm that the battery works, then start pairing. If
the pairing fails, refer to “Pairing Failures”. If the pairing succeeds,
check the indicator lights and the vibrator by knocking.
4. Unexpected vibration or blink: this may be caused by
misoperation.
5. Factory reset
If the instructions above do not solve your issue, try resetting
your Corebox as a last resort. Fit the Corebox into the charger,
then insert a paper clip or similar alternative into the Reset hole.
Push slightly until a click is heard, then all 5 LED indicator lights
will blink together, followed by the 1st light blinking.
7
Safety and use ����������������������
It is recommended to read all safety content before using E-Card.
The E-Card manufacturer is not liable for results caused by improper
usage or failure to follow this manual.
Please carefully read through and follow the instructions below:
• Pay attention to any warning.
• Don’t attempt to open the Corebox. Under inappropriate
operation, the product and the battery can be hazardous to the
human body and the environment.
• Don't disturb the normal working of E-Card.
• Don’t clean E-Card with corrosive cleaning products.
• Don’t place E-Card in dishwashers, washing machines or dryers.
• Don’t expose E-Card to extreme temperatures.
• Don’t expose E-Card to prolonged direct sunlight.
• Don’t place E-Card close to fire.
• Don’t throw E-Card into fire. This may cause the battery to
explode.
• Don’t attempt to disassemble E-Card. The components cannot
be repaired.
• Don’t allow children to play with E-Card. Small components may
present a choking hazard to children.
8
General information �����������
• Internet address: http://www.alcatelonetouch.com
• Address: Room 1910-12A, Tower 3, China HK City, 33 Canton
Road, Tsimshatsui, Kowloon, Hong Kong
This equipment is in compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC. The entire copy of the
Declaration of Conformity for your telephone can be obtained through
our website: www.alcatelonetouch.com.
• LICENCES
The Bluetooth word mark and logos are owned by the
Bluetooth SIG, Inc. and any use of such marks by TCT Mobile
Limited and its affiliates is under license. Other trademarks and
trade names are those of their respect-ive owners.
ALCATEL ONETOUCH EC01Bluetooth
Declaration ID B0XXXXX
XXX
(NFC)
9
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/ TV technician for help.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) this device may not cause harmful interference
(2) this device must accept any interference received, including
interference that may cause undesired operation.
10
• Regulatory information
The following approvals and notices apply in specific regions as noted.
11
ALCATEL is a trademark of ALCATEL-Lucent
and is used under license by
TCT Mobile Limited.
© Copyright 2014 TCT Mobile Limited
All rights reserved
TCT Mobile Limited reserves
the right to alter material
or technical specification
without prior notice.
