TECHCity Technology LC-40T SCENE CONTROLLER User Manual LC X0T 20130110
TECHCity Technology Co., Ltd. SCENE CONTROLLER LC X0T 20130110
User Manual
1
Product Name : Smart Scene Controller
Model No. : LC-X0T
Features :
z Multi-spot mobile remote control
z RF transmit no wiring necessary
z 2,3,4,6 touch keys to be programmed easily.
z One touch to transmit sigle or multi direction
z One extra code to activate a scene controller
nearby. (Scene 1~10 for assigned or disable)
z N.C. / N.O. dry contact input (Digital Input) to
trigger key 1 content
z Looks like LC series SW, can be paste on a spot
where there has no gang box to take control SW,
curtain & appliances.
P/N:LC-X0T_20130110
1. Forewords
A. Each key of LC-X0T can be programmed as a(n):
a. 2-Way SW: to store one single action, such as [1], [ON] (Light No.1, ON). The key
become a 2-way SW to every SW set as Light No.1.
b. Scene button: to store up to 36 actions including dimming.
c. Appliances Activate Button: touch this key to activate a scene, stored in a scene
controller nearby (ex. RP-10,12, HC-12) to accomplish a series control of home appliances
and lightings. This function can be disabled.
B. DI Input: LC-X0T provide one N.C./N.O. input wire to accept trigger signal from various sensors, to
carry out a series scene control action pre-stored in key 1.
Function Descriptions
Specification :
z RF Radio Frequency: 433.92 MHz
z Power Input : AC - 110V ~ 230V
z Use an RC-07 to program a scene & input to a key to store.
z If to program a key to become a 2-way SW button, the corresponding SW
should be a standard e2-LiVE SW that can be a 2-Way SW control system.
NOTE: 2-Way or scene control function is alternative, the Appliances Activation
function can be coexistence & Dry Contact input can only activate key 1 scenes.
IR Output for scenes’ actions ouput
RC-07
2
B. Procedures
0. Practice to feel the press of the setup button with setup stick (A click)
1. Touch & hold a button & press the setup button (press & let go), LED flash 3 times means it’s under
setting mode now. You have 7 sec. to input command by RC-07.
2. Pick up an RC-07, which has preset a scene, point its IR Digital Output to the Setup button, within 5cm
distance & 5 Sec. at least.
3. When the LED flash twice, it means the process is completed, please put away RC-07.
The 2-Way macro input is done.
4. Continue to set the next key or test the key function you’ve just set.
C. Control: Touch the key to control in 2-Way mode.
2. 2-Way SW Setup
A. Preparation:
Pre-set a Macro as a single action as [X], [ON] on a scene button of RC-07.
- [X] is the target light no. to be controlled as 2-Way; ex.: the target light no. is “3”.
then we need to set a scence [3] [ON] in a scene button on RC-07.
(please refer to the user manual of RC-07 to obtain the detail setup procedures.)
LC-X0T Setting
3. Scene Control Setup:
A. Preset a scene, which contains 36 actions or less;
(ex.: “Light no.1 – ON”, “Light no.2 – ON”…, 36 actions are the most).
Follow the procedures as “2-Way Setup” to input this macro to any key of LC-X0T, to accomplish the setting.
B. Control: Touch a key to start a macro & touch any key to break off the action.
※ Please see appendix for the details to take apart / dress up the front panel.
S

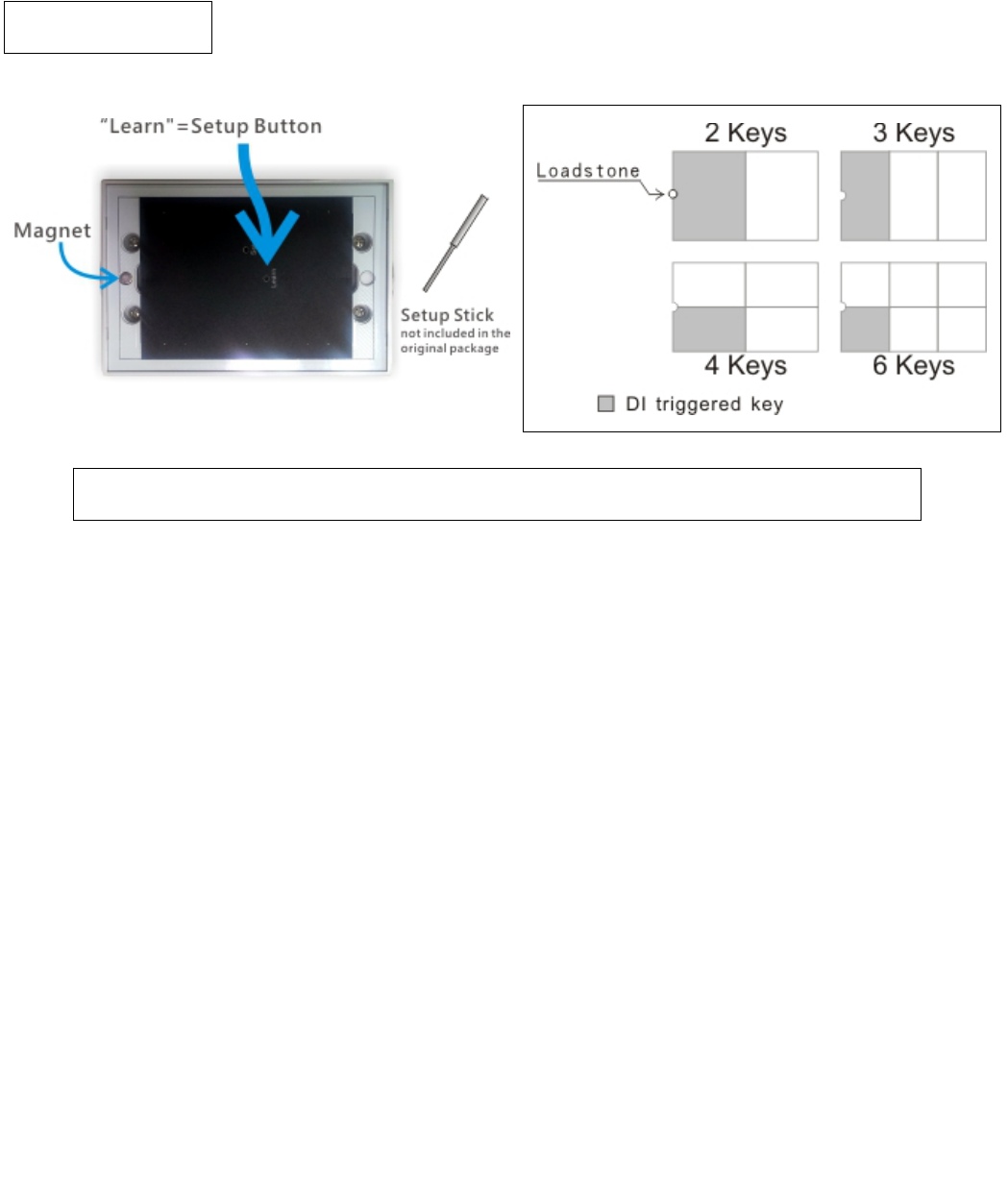

ense Zones & DI key’s Descriptions
3
Note:
1. This product should be programmed by RC-07.
2. Please contact the distributor near you to obtain correct/updating of product information.
3. Please refer to each manual of HC-12/RP-12/RP-10 for the details of scene (macro) setting.
4. Appliances Activatation Setup
A. Procedure:
a. Press & hold a key, punch Setup Button with a Setup Stick (punch – feel a click & let go), after
LED flash 3 times & off, use setup stick to punch the setup button again, & observe the LED blinking.
b.
The Sequence
of Blinking 1st 2nd 3rd 4th 5th 6th 7th 8th 9th 10th
Constant ON
for 1 Sec.
Macro No. 1 2 3 4 5 6 7 8 9 10 Clear
C. As above table, press any key as LED blinking sequence no. indicates the macro you want to
assign. & it will confirm the assignment with blinking LED with times as the macro no. you’ve
choose. ex.: If the linked macro no. 7, is what you need; when the LED blinks the 7th, touch any key
on LS-330T panel, & the LED will blink 7 times to confirm the macro you’ve selected.
At last, the 3 LED will blink 2 times together to leave the setting mode.
- If you touch any key as the LED ON for 1 Sec., it means “Clear”, no linked macro code assigned in
this setting.
- The setting cycle is once at a time, if you do nothing under setting mode. The system will be
recovery after LED blinks 10 times & constant ON for 1 Sec.
B. Control:
a.) Touch the key to send a Linked Macro Activating Code to a controller nearby, after it finished all
its preset 2-Way / Macro Control action.
b.) Touch any key to break off the action as LC-X0T is transmitting actions.
Annex A：Panel Install / uninstall
[Uninstall]
Put the sucker on the marked spot, press to squeeze out air
& make sure the sucker is fixed, then pull out of the panel.
[Install]
There are 2 latches on the top of the panel, & a crystal in the
buttom. there is 2 slot for those 2 latches & a magnet for
crystal. PLS make sure the direction correctly. Slide latches
into slots first then press the crystal side into the magnet side
till the panel sink completely.
Pull！
FCC WARNING
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
NOTE 1: Any changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
