1 General overview
Mifare Reader with Technogym code 0wq00485AA is an accessory of Technogym
Equipments that let them to identify, read and write an RFID transponder, named
Technogym Wellness System Keys, in a contactless way.
Technogym Wellness System Keys are Mifare transponders customized with a private
password to access data inside it.
By means of the system made by “TGS Mifare Reader” + “Technogym Wellness System
Keys” each equipment may identify the user, propose its specific training and save a log of
the training executed on the equipment.
2 Description
Mifare Reader is made by a board inside a plastic housing that may change depending of
the Technogym equipment where the device must be mounted on.
Technogym equipment can be enabled to read and write RFID devices connecting first a
Technogym NFC reader 0WQ00484AB (adding NFC read/write data exchange capabilities)
and second this Mifare reader 0WQ00485AA (adding Mifare Classic read/write data
exchange capabilities).
This connection must be “in chain” mode, as follow:
Picture 1 – System block diagram
NFC reader and Mifare reader never work at the same tame.
Technogym equipment
(host)
NFC
reader
(first)
M
ifare
reader
(second)
TGS User Manual.doc
Pag. 4 di 7
TECHNOGYM S.p.A.
Via G. Perticari, 20 - 47035
Gambettola (FC) - Italia
Tel.: +39 (0) 547- 56047
Rev. 1.1
Author: Alessandro Cevoli
Data di stampa
: 27/06/13

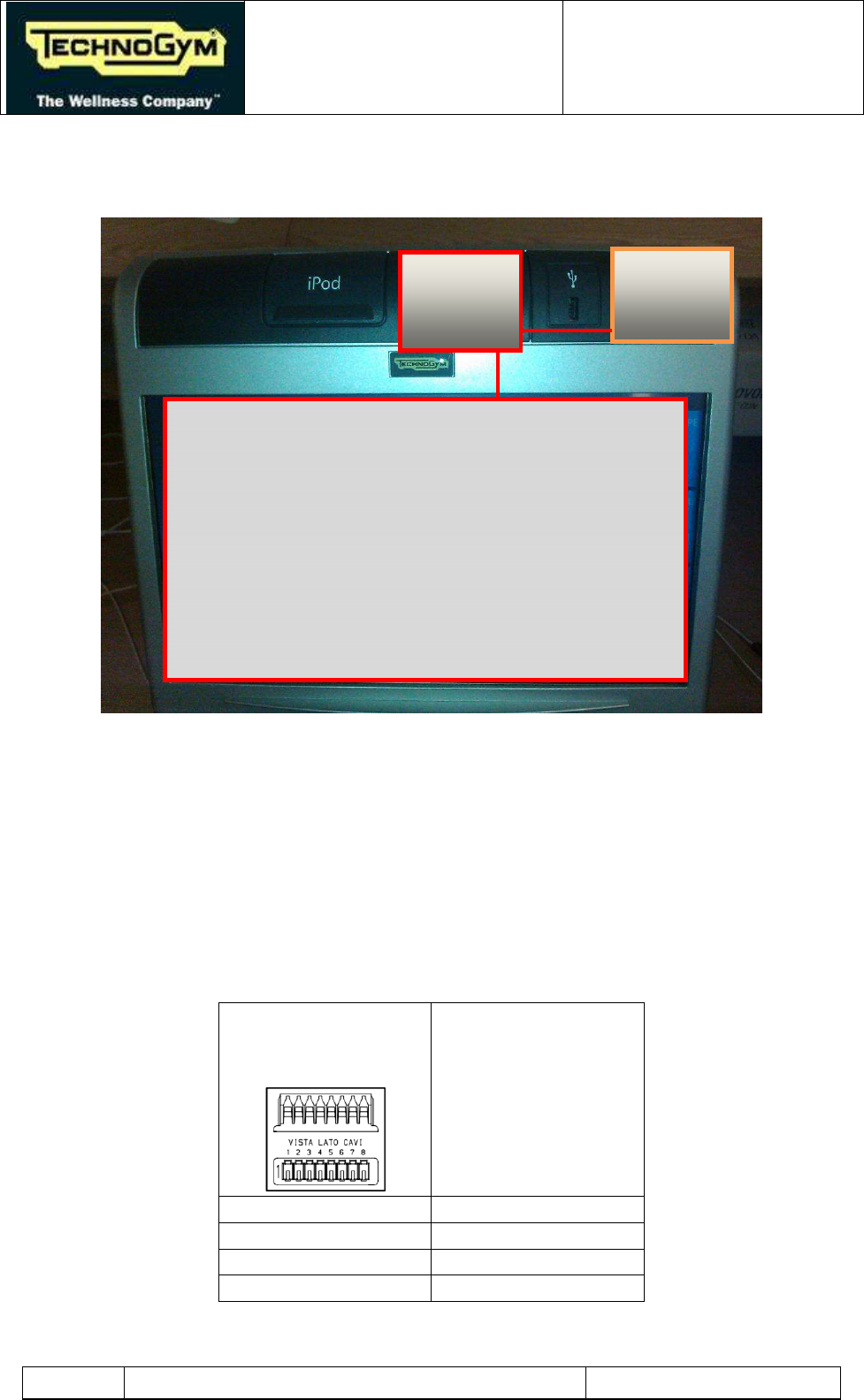

This block diagram can be better understood in the next picture, overlayed with the real
equipment:
The connection to the host is made by means of a cable that allows:
- Device powering;
- Data communication (the host SW manage a serial port switch to enable once the
NFC reader and once the Mifare reader, working in time slots).
The module antenna is embedded on the board.
3 Communication and connector
Connector of Mifare Reader has the following signals and pinout:
Picoblade Molex on
the device (on
board)
Description
1
+3.3
Vdc
2
TX out
3
RX in
4
N.C.
Technogym equipment (host)
NFC
reader
(first)
Mifare
reader
(second
TGS User Manual.doc
Pag. 5 di 7
TECHNOGYM S.p.A.
Via G. Perticari, 20 - 47035
Gambettola (FC) - Italia
Tel.: +39 (0) 547- 56047
Rev. 1.1
Author: Alessandro Cevoli
Data di stampa
: 27/06/13
5
N.C.
6
N.C.
7
N.C.
8
GND
Data communication is standard RS232 with next parameters:
• Baud rate: 115200 bps;
• Data bits: 8;
• Parity: None;
• Stop Bit: 1;
Over this serial communication Technogym has developed a proprietary communication
protocol implemented on every host that may be connected to this device.
The SW driver for the Mifare Reader is developed by Technogym an integrated into
Operating System of the host.
4 Operationg mode
The Technogym equipment host switches continuously between NFC and Mifare reader,
looking for a compatible device present in the RF field.

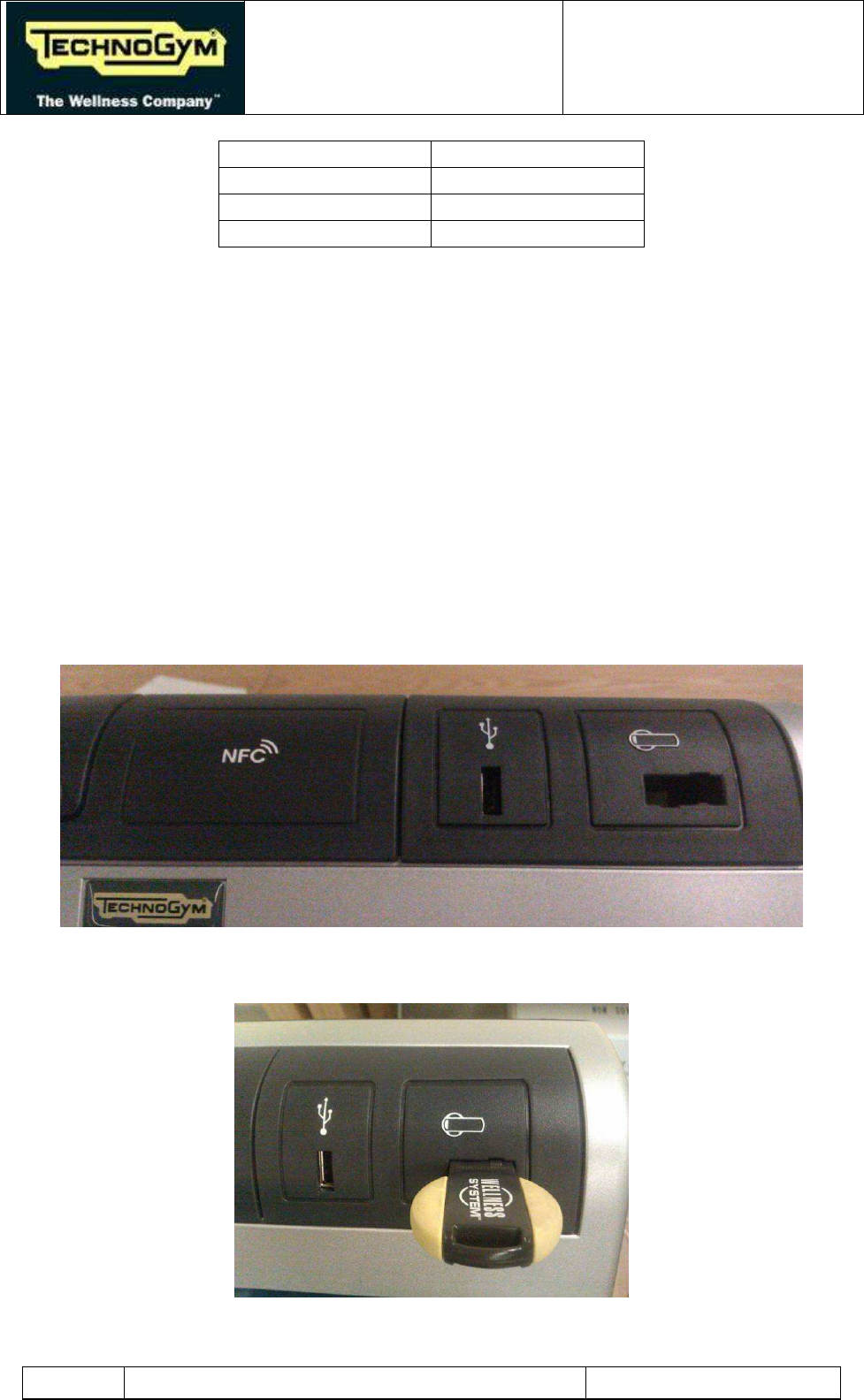

Mifare reader will recognize only the Technogym Wellness System Keys with a Mifare
Classic chip inside:
TGS User Manual.doc
Pag. 6 di 7
TECHNOGYM S.p.A.
Via G. Perticari, 20 - 47035
Gambettola (FC) - Italia
Tel.: +39 (0) 547- 56047
Rev. 1.1
Author: Alessandro Cevoli
Data di stampa
: 27/06/13

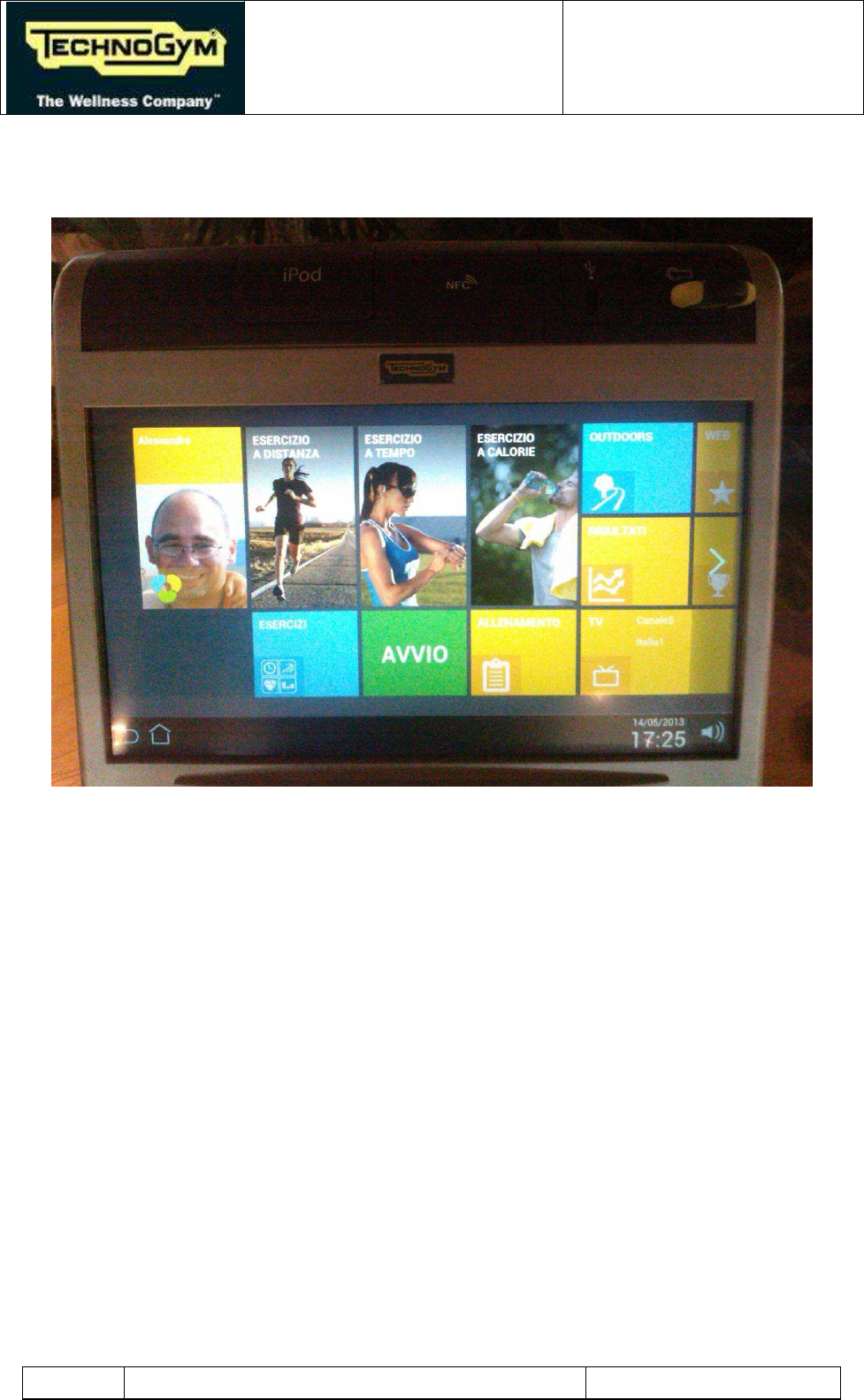

After the Technogym Wellness System Keys is read and the end user recognized, the
access to the unit is granted:
5 Installation
Each equipment has a specific upgrade kit to upgrade it with TGS Mifare Reader
0wq00485, please refer to the specific equipment service manual to get the right part
number with the right housing and the right installation procedure.
6 FCC Statements
FCC § 15.19 Labelling requirements
This device complies with part 15 of the FCC Rules subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
TGS User Manual.doc
Pag. 7 di 7
TECHNOGYM S.p.A.
Via G. Perticari, 20 - 47035
Gambettola (FC) - Italia
Tel.: +39 (0) 547- 56047
Rev. 1.1
Author: Alessandro Cevoli
Data di stampa
: 27/06/13
When integrating the module into end products, the end product label shall be marked in
the following way:
Contains FCC ID: ZQWGIT000003
FCC § 15.21 Information to user
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
