TECHVISION INFORMATION TECHNOLOGY W103 Tablet PC User Manual W103 Win10 20151013
TECHVISION INFORMATION TECHNOLOGY (HK) LIMITED Tablet PC W103 Win10 20151013
User manual
1
Safety Precautions
Do not subject the device to severe impact or drop it from heights.
Do not use the device in extreme hot or cold, dusty or damp conditions. Do not
expose it to direct sunlight.
Avoid using the device near strong magnetic fields.
Normal functioning of the product may be disturbed by ESD. If so, simply reset
and restart the device following the instruction manual. During file transmission,
please handle with care and operate in a static-free environment.
Keep the device away from water and other liquids. In the event that water or
other liquids enter the device, power off the product immediately and clean the
device.
Do not use chemicals to clean the device in order to avoid corrosion. Clean it
with a dry cloth.
Do not install this equipment in a confined space such as a book case or similar
unit. The ventilation should not be impeded by covering the ventilation openings
with items such as newspaper, table-cloths, curtains etc.
No naked flame sources, such as lighted candles, should be placed on the
apparatus.
Attention should be drawn to environmental aspects of battery disposal.
Use the apparatus in moderate climates.
We are not responsible for damage or lost data caused by malfunction, misuse,
modification of the device or battery replacement.
Do not attempt to disassemble, repair or modify the product. This will invalidate
the warranty.
If the device will not be used for an extended period of time, please charge the
battery at least once per month to maintain battery life.
Charge the battery if:
a) The battery level icon displays (An empty battery)
b) The device powers off automatically when restarted.
c) There is no response when pressing keys with keys unlocked and battery full.
Do not interrupt the connection when the device is being formatted or
transferring files. Otherwise, data may be corrupted or lost.
When the device is used as a portable HD, please use only per the instructions.
Otherwise, permanent data loss could occur.
Please use and install data using the attachments/accessories provided and only
according to the manufacturer’s instruction.
Please refer to the information on the bottom of the device for electrical and
safety information before installing data or operating the device.
To reduce the risk of fire or electric shock, do not expose this device to rain or
moisture. The device should not be exposed to dripping or splashing. Never
place objects filled with liquids, such as vases, on the device.
There is danger of explosion if the battery is replaced incorrectly. Replace only
with the same or equivalent type.
2
The battery (battery or batteries or battery pack) should not be exposed to
excessive heat such as sunlight, fire or the like.
Please follow responsible procedures for battery disposal.
If the power adaptor disconnected from the device, the device will remain
operable as long as the battery has sufficient charge.
The power adaptor is a CLASS II apparatus with double insulation, and no
external ground is provided.
Safety symbol explanation:
- The lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of non-insulated “dangerous
voltage” within the product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock.
- To reduce the risk of electric shock, do not remove the cover (or back) as
there are no user-serviceable parts inside. Refer servicing to qualified
personnel.
- The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance instructions in
the literature accompanying the device.
- Correct Disposal of this product. This marking indicates that this
product should not be disposed of with other household waste in the EU. To
prevent possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote the
sustainable reuse of material resources. To dispose of your used device,
please use the return and collection systems available in your area or
contact the retailer where the product was purchased. They can take this
product for safe environmental recycling.
This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
CE in which countries where the product may be used freely: Germany, UK, Italy,
Spain, Belgium, Netherlands, Portugal, Greece, Ireland, Denmark, Luxembourg,
Austria, Finland, Sweden, Norway and Iceland.
3
Listening Cautions
This product respects the current regulations for limiting the output volume of
consumer audio devices to a safe level. By listening to your device with
headphones or earbuds at high volumes, you run the risk of permanent damage
to your ears. Even if you get used to listening at high volumes and it seems
normal to you, you still risk the possibility of damaging your hearing. Reduce the
volume of your device to a reasonable level to avoid permanent hearing damage.
If you hear ringing in your ears, reduce the volume or shut off your device. This
device has been tested with the supplied earphones. In order to preserve your
hearing, it is advised that you use only the following headphone models: the
earphones supplied with your device, or any other headphones that respect the
current regulations. Other types of headphones may produce higher volume
levels.（At full power ,the prolonged listening of the walkman can damage the ear
of the use）
Do not use while operating a motorized vehicle. It may create a traffic hazard
and is illegal in many areas.
You should use extreme caution or temporarily discontinue use in potentially
hazardous situations created by obstructed hearing.
Even if your headphones or earphones are the open-air type designed to let you
hear outside sounds, don’t turn up the volume so high that you can’t hear what’s
around you.
Sound can be deceiving. Over time your hearing “comfort level” adapts to higher
volumes of sound. What sounds “normal” can actually be loud and harmful to
your hearing. Guard against this by setting the volume of your device at a safe
level BEFORE your hearing adapts.
To establish a safe volume level:
a. Start your volume control at a low setting.
b. Slowly increase the sound until you can hear it comfortably and clearly,
and without distortion. Once you have established a comfortable sound
level, leave it there.
This manual may not reflect your actual device’s operation. All information is subject to change
without prior notification. Please follow your actual device’s operational procedures.
4
Table of Content
Safety Precautions ........................................................................... 1
Listening Cautions ............................................................................ 3
Packing Contents ............................................................................. 5
Features & Functionality ..................................................................... 5
Basic Connections ........................................................................... 6
Basic Operation ............................................................................... 8
Maintenance ................................................................................. 12
Major Specifications ....................................................................... 13
FCC Statement ............................................................................. 14
5
Packing Contents
When you get your device, be sure to check the following items are included in the
package:
Main Unit ● Power Adaptor ●Warranty Card
Keyboard ● User’s Manual
Features & Functionality

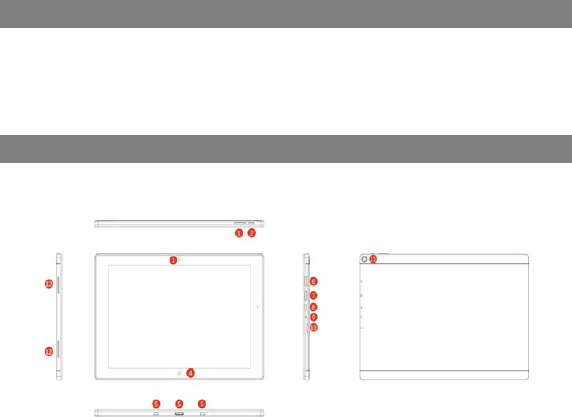

All view ID:
1. Sound-/sound+: Lower/raise volume
2. Power button: Press it down to start or close the touch screen panel. You can also
let the computer to enter dormancy through this button or wake from the dormancy
mode.
3. Front camera: take photos, and record pictures
4. Windows key: Press this button to return to the Start screen.
5. Movable base keyboard interface: This interface is magnetic, which is convenient
for alignment and firmly linking the Table PC and the keyboard.
6. USB Interface: You can read the data through USB.
7. Mini HDMI Interface: High-Definition Multimedia Interface
8. Micro USB Interface: You can read the data through USB.
9.Socket for earphone and microphone: This socket can transmit the audio signals of
Tablet PC to loudspeaker or earphone.
10. Micro SD card slot: The built-in storage card reader slot supports MicroSD and
MicroSDHC format.
11.Back CCD camera: take photos, and record pictures.
12. Loudspeaker: The built-in loudspeaker enables you to hear the sound without
having to linking additional device.
Note:
1. Both cameras support zoom and face tracking.
2. User can connect a keyboard and USB mouse to this tablet if necessary.
6
Basic Connections
Charging the tablet
Note: If using the tablet for the first time, or after a long period of idle time, charge the
battery for more than half an hour before turning it on, to ensure system stability.
The tablet has a built-in rechargeable battery. Charge the device when the battery
level is low.

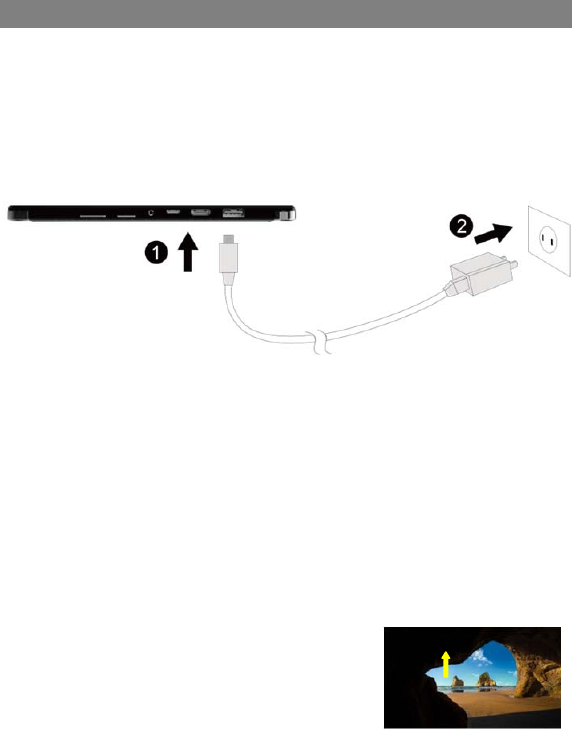

1. Plug the power adapter into the USB socket.
2. Connect the power adapter to an electrical outlet and charge the tablet until the
battery is fully charged.
Caution:
1. Charge the battery in an ambient temperature of 0 °C to 35 °C.
2. Use only the supplied power adapter to charge your tablet. Using unauthorized
power adapters may severely damage your tablet.
Note:
1. The battery is not fully charged when you unpack your tablet.
2. A fully discharged battery takes about 5 hours to fully charge.
3. When the battery is being charged, the LED indicator lights red, and when the
battery has been fully charged, the LED indicator lights orange.
Turning On the Tablet
Note: This device has been equipped with Windows10 system at the factory, so user
need not perform Windows setup again before using for the first time.
1. Press and hold the Power button for 3 seconds to
turn on your tablet. The lock screen appears.
2. Swipe-up your finger from the bottom of the
display to switch to the login screen, and then enter
password to log in to Windows.
Now the tablet is ready for use when the Windows Start screen is displayed.
Note: If the login screen is not enabled in Windows 10, you will be taken directly from
the lock screen to the Start screen.
Turning Off the Tablet
You can turn off the tablet in two ways:
7
Using the Power button:
1. Press and hold the Power button for at least 4 seconds.
2. Swipe-down the shutdown confirmation screen to the bottom edge of the display
to turn off the tablet.
Using Start menu:

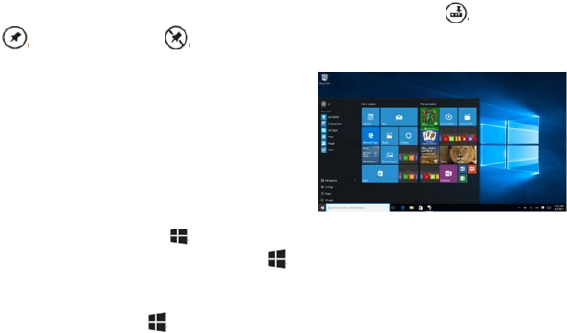

1. Touch the Windows/ Start button to bring up Start menu.
2. Touch Power → Shut down to turn off the tablet.
Turning On/Off screen
Usually, user can press once the power button to turn on/ off the screen display.
Optionally, user can also use the Start menu:
1. Touch the Windows/ Start button to bring up Start menu.
2. Touch Power → Sleep to turn off the screen.

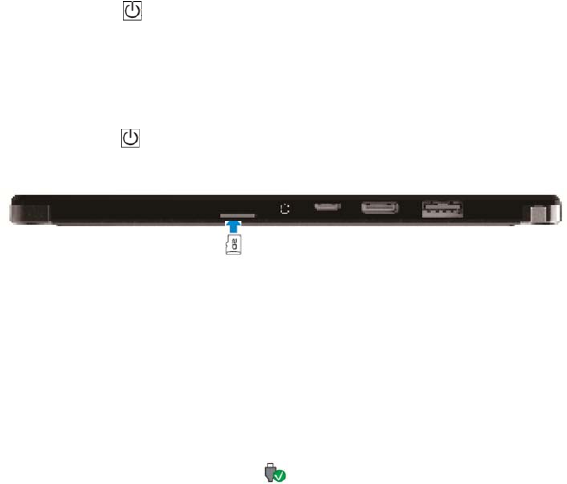

Inserting a microSD card
1. Pick up a microSD card.
2. Align the microSD card so that the pins are pointed toward the card slot.
3. Push the microSD card into the card slot until it locks into place.
Removing a microSD card
Caution: Removing the microSD card while it is in use may cause data loss or result
in application errors. Make sure all save operations to the microSD card are complete
before removing the microSD card.
1. Touch the Tray button in the notification area in the lower-right corner of the
screen.
2. Touch Safely Remove Hardware .
3. Touch Eject XXXX SD Card. A message appears confirming that the microSD
card can be safely removed. If a warning message appears stating the microSD
card cannot be removed, ensure all data transfers involving the microSD card are
complete.
4. Press on the microSD card to release it.
5. Slide the card out after it pops out from the microSD card slot.
Using Headphones
You can connect a headset or headphones to the audio port of your tablet.
8
Warning:
Listening to loud music for an extended period of time can lead to
hearing loss.
1. Connect headphones to the audio port (3.5 mm) on the tablet.
2. Insert the earphones in your ears and adjust the volume level to a comfortable
level.
Note: When you connect an audio device to the 3.5 mm audio jack, the integrated
speakers on your tablet are muted automatically
.
Caution: To prevent damage to the headphones when disconnecting it from the
tablet, pull the connector instead of the cable.
Connecting the Keyboard
Attention: Keyboard is optional, and configure the product according to the
specific type of the tablet PC you have bought.
○

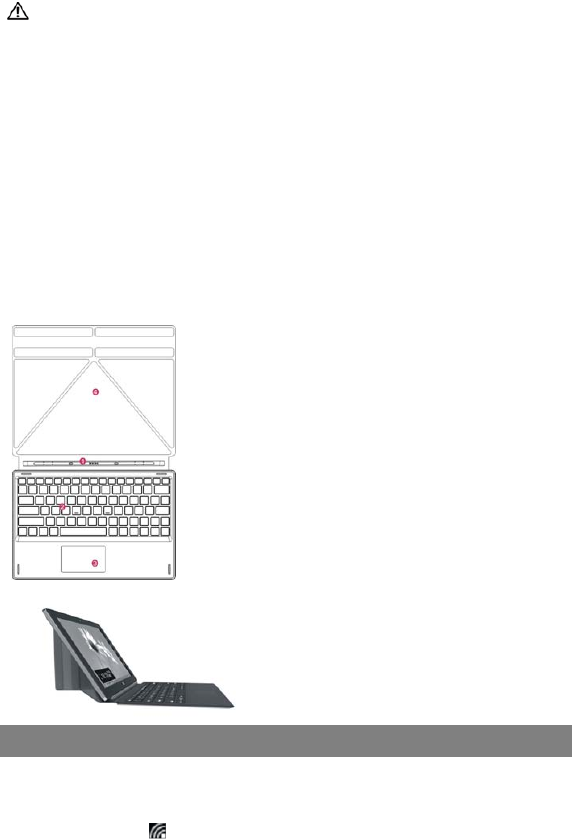

1 Movable base keyboard interface: This interface is
magnetic, which is convenient for alignment and firmly
linking the Table PC and the keyboard.
○
2 Keyboard group: The keyboard group provides full
size QWERTY key and best typewriting comfortability.
○
3 Touch Tablet: Used to control the cursor on the Tablet
PC, with the same function as a mouse.
○
4 Base: Folding base of Tablet PC.
Use of tablet and keyboard
Basic Operation
Wi-Fi Setting
Turning On/Off Wi-Fi:
1. Touch WiFi icon in the notification area in the lower-right corner of the screen
to view the available WiFi hot spots.
9
2. Touch Available WiFi icon to turn on/off WiFi connection.
Connecting to a network:
1. Touch WiFi icon in the notification area in the lower-right corner of the screen
to view the available WiFi hot spots.
2. Select an available network from the list and touch Connect.
3. Input the password if necessary, then touch Connect to start connecting to the
Internet.
Gestures
Your tablet has a multi-touch display. You can touch the screen to operate the tablet.

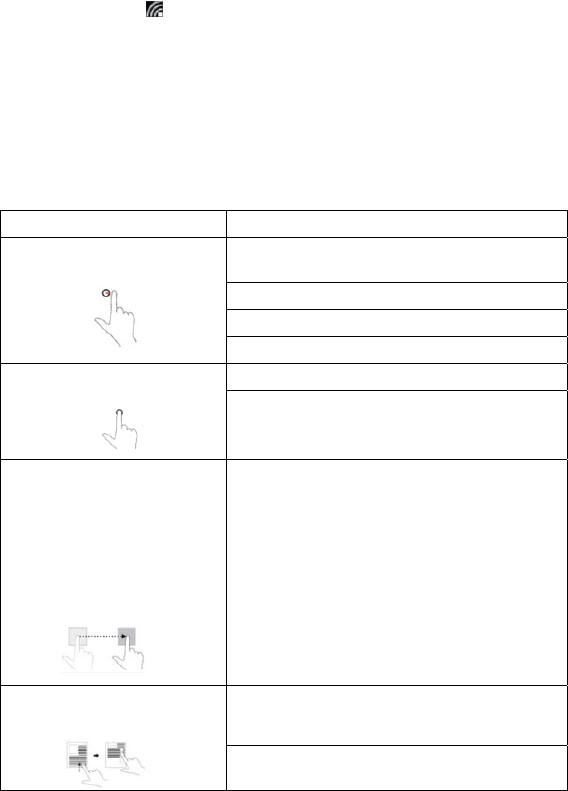

Finger Gesture You can do
Touch
Tap gently on the display with your
fingertip.
Select items on the screen, including options, entries,
images, and icons.
Start apps.
Touch buttons on the screen.
Input text using the on-screen keyboard.
Touch and Hold
Touch and hold your finger on the
display.
Display detailed information about an item.
Open the context menu of an item to perform further
actions.
Drag
1. Touch and hold your finger on
an item on the screen.
2. Keeping your finger in contact
with the display, move your fingertip
to the desired location.
3. Take your finger off the display to
drop the item in the desired
location.
Move items such as images and icons on the screen.
Swipe or Slide

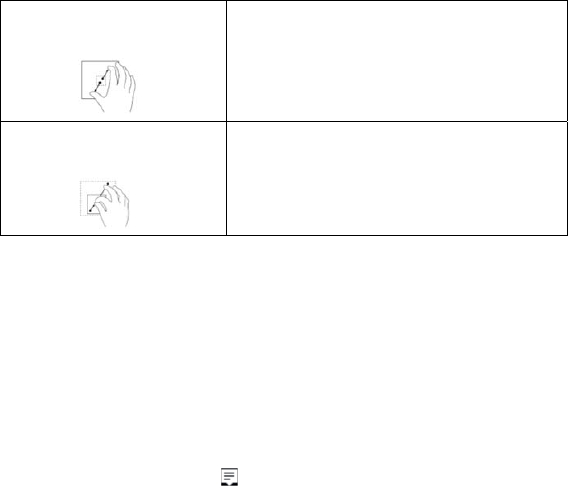

Move your finger in a vertical or
horizontal direction on the display.
Scroll through the Start screen, web pages, lists,
entries, photos, contacts, and so on.
Close an app. (Swipe the app to the bottom of the
display.)
10
Zoom in
Touch the display with two fingers
and then move the fingers apart.
Enlarge the view of an image or web page.
Zoom out
Touch the display with two fingers
and then move the fingers closer.
Reduce the view of an image or web page.
Screen Orientation
For optimal viewing experience, the screen orientation changes automatically to
portrait or landscape format depending on how you hold the tablet. You can disable
automatic screen rotation and lock the screen in portrait or landscape mode.
Note: Some apps may not support automatic screen rotation and are designed to
work only in one orientation.
Locking the screen orientation
1. Change the screen to the desired orientation.
2. Touch Action Center button in the notification area to access the Action
Center;
3. Touch Rotation lock icon to lock or unlock screen rotation.
Windows 10 Start Screen
The Windows 10 Start screen displays a list of default and custom Live Tiles, which
act as a shortcut to Mail, Mail, Microsoft Edge, Weather app, Calendar, Windows
Store, and other installed apps.
Live Tiles on your Start screen change and update in real time to show news and
sports updates, weather updates, social-networking feeds, and so on.
The tile-based user interface gives you direct access to your most recently used apps,
emails, photos, music, videos, contacts, updates from social-networking sites, and
frequently viewed websites. You can pin your favorite apps as tiles to customize the
Start screen.
You also can personalize the Start screen by setting your favorite picture as the
wallpaper.
11
Note: Live Tiles can be added or removed by using Pin to taskbar , Pin to Start
or Unpin from Start options.
Accessing the Start screen
When your computer boots into Windows,
the Start screen appears by default. To
access the start screen from any other
window or app, use any of the following
methods:
1. Press the Windows button.
2. Touch the Start button in the lower left corner of the screen.
Note: The functionality of the Start icon is same as Windows button
.
Getting Started
Touch the Start icon to bring up the start menu, from which you can find a list
of Most used apps. Among the apps, Get Started is extremely useful for new
user of the newestWindows system-Windows 10，includes some video clips
introducing the new features of the newest system.
Windows Search bar
Next to Start button in the lower-left corner of the screen, it is Windows search
bar, with which you can type in any keywords to search the web and Windows.
Swipe left/right/down
Swipe-in from the right edge of the display to show the Action Center, which provide
access to the system commands, such as Tablet mode, Airplane mode, Rotation lock,
WiFi connection, Location, Settings etc..
Swipe-in from the left edge of the display to show thumbnails of open apps.
Swipe-in from the top to the bottom of an app to dock or move the app.
Narrator Mode
This is a featured function that is friendly for blind users. Narrator is a screen reader
that reads all elements on screen, like text and buttons.
1. Touch Start > Settings>Easy access>Narrator, then toggle the slider to turn on
Narrator.
2.
To turn Narrator off with the touch screen, tap the Narrator slider, and then
double-tap anywhere on the screen.
12
Synchronizing Your Tablet
1. If your computer has Microsoft Windows 10 installed, you can synchronize
user settings of your tablet with your computer using a Microsoft account.
When you sign in with your Microsoft account on your tablet, your settings,
including internet browser history, app settings, and personal files etc., are
synchronized with other Windows 10 PCs and tablets computers.
2. On the tablet, access Action Center by touching button → All Settings →
Accounts → Sync your settings to switch your computer local account to
your Microsoft account.
Copy music, photos, and videos
1. Connect your tablet to a USB storage device with a Micro-USB to standard USB
conversion cable, then transfer files to or from the USB storage device.
2. After transferring files, use the Safely Remove Hardware wizard to remove the
USB storage device.

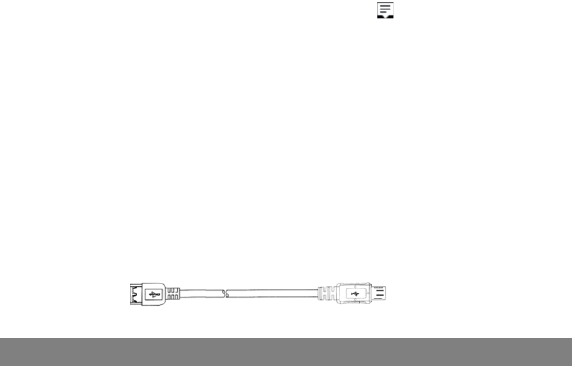

Note: The Micro-USB to standard USB conversion cable is sold separately and is
not shipped with the tablet. See the picture below for reference.
Maintenance
Cleaning Your Tablet
Caution:
Before you clean your tablet, disconnect all the cables and turn off the tablet. Clean
your tablet with a soft cloth dampened with water. Do not use liquid or aerosol
cleaners, which may contain flammable substances.
1. Turn off your tablet. For more information on turning off your tablet,
2. Disconnect any attached devices, headphones, and speakers from the tablet and
from their electrical outlets.
3. Moisten a soft, lint-free cloth with either water or a display cleaner, and wipe the
surface of the tablet until it is clean. Do not allow water from the cloth to seep
down to the tablet ports or buttons.
Caution:
1. To avoid damaging the tablet or display, do not spray cleaning solution directly
onto the display. Only use products specifically designed for cleaning displays
and follow the instructions included with the product.
2. Do not clean the keyboard with a moist cloth.
13
Resetting your tablet
If your PC isn’t running well, resetting it might help. This lets you choose to keep your
files or remove them, and then reinstall Windows.
To restore your tablet:
1. Touch button in the notification area to access the Action Center;
2. Touch All Settings →Update and security→ Recovery→ Reset this PC.
3. Touch Get started to choose an option from Keep my files or Remove every
thing.
4. You can have more choices if you select Advanced startup.
Note:
Apps installed from the Windows Store are automatically reinstalled after the refresh
is complete. Apps installed from sources other than the Windows Store are removed
and have to be manually installed. A list of apps removed during this process is
created on the desktop after the process is complete.
In shutdown status, user can press and hold Power & Vol- keys at the same time to
boot the device and enter Recovery mode, for the purpose of repairing or resetting
the system.
Caution:
Resetting your tablet erases all data from your tablet, including your account
configuration, apps, music, pictures, files, and so on. Make sure that you back up all
the required data before you proceed.
Major Specifications
Item Descriptions
CPU Intel BayTrail-T CR, Quad core/1.8GHz (Z3735F)
Operation system Windows 10
DDR
2GB
Internal Memory EMMC: 32 GB
Expandable Memory Micro SD card: up to 64 GB
Interfaces USB 2.0 high speed /Micro SD (compatible SDHC, up to 64GB) card
3.5mm Earphone
Connection Agreement WiFi (802.11 b/g/n); BT4.0
Front Webcam Front camera, 2.0 Mega Pixels; rear camera, 2.0 Mega Pixels
Photo Format JPEG/BMP/GIF/PNG
Audio File Format
(Windows Media Player) MP3/WAV/m4a/AAC/WMA(license required)
Video File Format
(window media play)
AVI/WMV/ASF/3GP/MPEG-2 TS (.m2ts)/MPG/MPEG/MOV/MP4
Bluetooth Support
Display Resolution,1280*800 Pixels, 10.1 inch LCD IPS
14
Battery charging time About 7 hours
Battery endurance time
(50% brightness,50%
volume from speaker)
Music playback time: about 9hours
Video playback time: about 8hours;
Web browsing time: about 9hours
Power Supply Rechargeable lithium battery, 8000mAh;
AC Adapter: DC-Out 5V/2.0 A
Storage Temp. -20℃ ～ +65℃
Ambient Temp. 0℃ ～ +40℃
Operation RH 20% ～ 90% (40℃)
Storage RH 20% ～ 93% (40℃)
FCC Statement
FCC Caution.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between theequipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The devic
e can be used in portable exposure condition without restriction.
This manual was correct and complete at the time of printing. However, new
specifications and updates can occur at any time without prior notice. No part of this
manual may be copied, republished, reproduced, transmitted or distributed in any way
without prior written consent of Haier. Any unauthorized distribution of this manual is
expressly forbidden.
Haier may find it necessary to modify, amend or otherwise change or update this
manual. We reserve the right to do this at any time, without any prior notice. All
specifications and features are subject to change without notice. All screen shots
15
shown are simulated and may not represent the actual screen on production units
sold to consumers.
