TECNO MOBILE K8 Mobile phone User Manual Sanjeev

TECNO MOBILE LIMITED Mobile phone Sanjeev

User Manual

Explosion
Explosion diagram
diagram specification
specification
1
LCM Assembly
2
Front Housing Assembly
3
Power Key
4
Volume Key
5
Front Flash Lens
6
MIC Rubber
7
Audio Jack Rubber
8
Coaxia Cable
9
Motor
10
Sidkey FPC
11
Back Camera
12
PCBA
13
Main PCB
14
Speaker
15
Fingerprint Module
16
Front Camera
17
Battery
18
Proximity Sensor Rubber
19
Lowhousing Assembly
20
Black Screw
21
Silver Screw
22
Battery Cover Assembly
Know
Know your
your phone
phone
Front camera
Volume key
Power key
Recent key
Home key

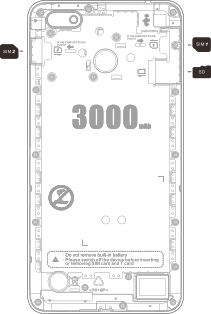

SIM/SD card installation
1. Power off mobile.
2. Refer to the following picture for SIM / SD card installation.
Charging the phone
You can charge your device using a charger or by connecting it
to the computer using a USB cable (comes with the phone).
1. Please remind the front and back of the plug.
2. Use only TECNO charger and cables. Other chargers or cables
may damage the device or your device. This will invalidate
your phone warranty.
FCC Caution
Labelling requirements.
This device complies with part 15 of the FCC Rules. Operation is subject
to the condition that this device does not cause harmful interference.
Information to user.
Any Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
Information to the user.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more
of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Specific Absorption Rate (SAR) information:
This Mobile phone meets the government's requirements for exposure to
radio waves. The guidelines are based on standards that were developed
by independent scientific organizations through periodic and thorough
evaluation of scientific studies. The standards include a substantial safety
margin designed to assure the safety of all persons regardless of age or
health.
FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is
1.6 W/kg averaged over one gram of tissue. Device types: K8(FCC ID:
2ADYY-K8) has also been tested against this SAR limit. The highest SAR
value reported under this standard during product certification for use at
the ear is 0.59W/kg and when properly worn on the body is 1.12 W/kg.
This device was tested for typical body-worn operations with the back of
the handset kept 10mm from the body. To maintain compliance with FCC
RF exposure requirements, use accessories that maintain a 10mm
separation distance between the user's body and the back of the handset.
The use of belt clips, holsters and similar accessories should not contain
metallic components in its assembly. The use of accessories that do not
satisfy these requirements may not comply with FCC RF exposure
requirements, and should be avoided.
Body-worn Operation
This device was tested for typical body-worn operations. To comply with
RF exposure requirements, a minimum separation distance of 1.0 cm
must be maintained between the user’s body and the handset, including
the antenna. Third-party belt-clips, holsters, and similar accessories used
by this device should not contain any metallic components. Body-worn
accessories that do not meet these requirements may not comply with RF
exposure requirements and should be avoided. Use only the supplied or
an approved antenna.
Android
Android is
is a
atrademark
trademark of
of Google
Google Inc.
Inc.
