TECNO MOBILE W4 Mobile Phone User Manual Sanjeev
TECNO MOBILE LIMITED Mobile Phone Sanjeev
Users Manual
1 Takingcare of your device
Your device is a product of superior design & craftsmanship and should be
handled with care: The following recommendations will help protect your
phone:
Keep the device dry. Precipitation, humidity, and all types of liquid or
moisture may contain minerals that can rust electronic circuits. If your
device gets wet, remove the battery and refrain from turning on
device.Wipe it with a dry cloth and take it to the service center.
Do not store the device under extreme temperatures; it can damage the
77
Do not use or store device in dusty and dirty areas; the electronic
components may be damaged.
Do not attempt to open device in any way other than instructed in this
guide. Repairs attempted by an entity other than designated service
agent/center will void warranty.
Licking the battery or charger is strictly prohibited; saliva is more corrosive
than water. Residual saliva may short-circuit phone and damage its
motherboard, causing the device to become inoperable; battery & charger
may also be damaged in the process.
1
WARNING:
Licking USB plug or metallic battery component is strictly prohibited.
Do not drop, knock, or shake device. Rough handling can disrupt internal
circuit boards and fine mechanical parts.
Do not use harsh chemicals, cleaning solvents, or strong detergents to
clean the device. Use a soft and dry cloth to wipe down surfaces.
Do not place battery in fire, explosion may occur.With concern for the
environment, please abide local laws & ordinances in battery disposal.
Only use original battery, charger, and accessories applicable to the
specific mobile model. Failure to do so voids the warranty and may result
in a hazard.
Power off mobile prior to testing its charger. If charger malfunctions,
off-mode will prevent damage to the motherboard.
Please keep the charging mobile away from small children.
Do not touch charger or mobile with wet hands; it’s hazardous and may
damage electronic parts.
WARNING:
Risk of explosion if original battery is replaced.
Tampering with mobile OS and ROOT voids warranty and may cause
software instability.
Battery &charger safety
2
2 Know your phone
Position of Keys
1. Earphone plug 2. Receiver
3. USB port 4. Light/proximity sensor
5. Front camera 6. Microphone
7. Rear camera 8. Flashlight
9. Speaker 10.Volume button
11. Power button
3
3 Exploded view of all parts
Description
1. 00_W4_CTP 2. 00_W4_A
3. 00_W4_CTP_CAM_SPONG 4. 00_W4_GPS_FRAMER_ANT
5. 5_W4_REC 6. 00_W4_IR_RUBBER
7. 00_W4_WIFI_ANT 8. 00_W4_AUDIO_RUBBER
9. 3_W4_FRONT_CAM 10.0_W4_MAIN_PCBA
11. 4_W4_BACK_CAM 12.00_W4_B
13.W4_CAMERA_LENS 14.W4_BAT_TECNO
15.W4_GSM_ANT 16. 6_W4_SPK
17. 8_W4_BATTERY 18.7_W4_MOTO
19. 10_W4_LINK_FPC 20.W4_KB_PCB
21. 9_W4_KEY_FPC 22.W4_CABLE_LINK
23.00_W4_MIC_RUBBER 24.00_W4_REC_DEC
4

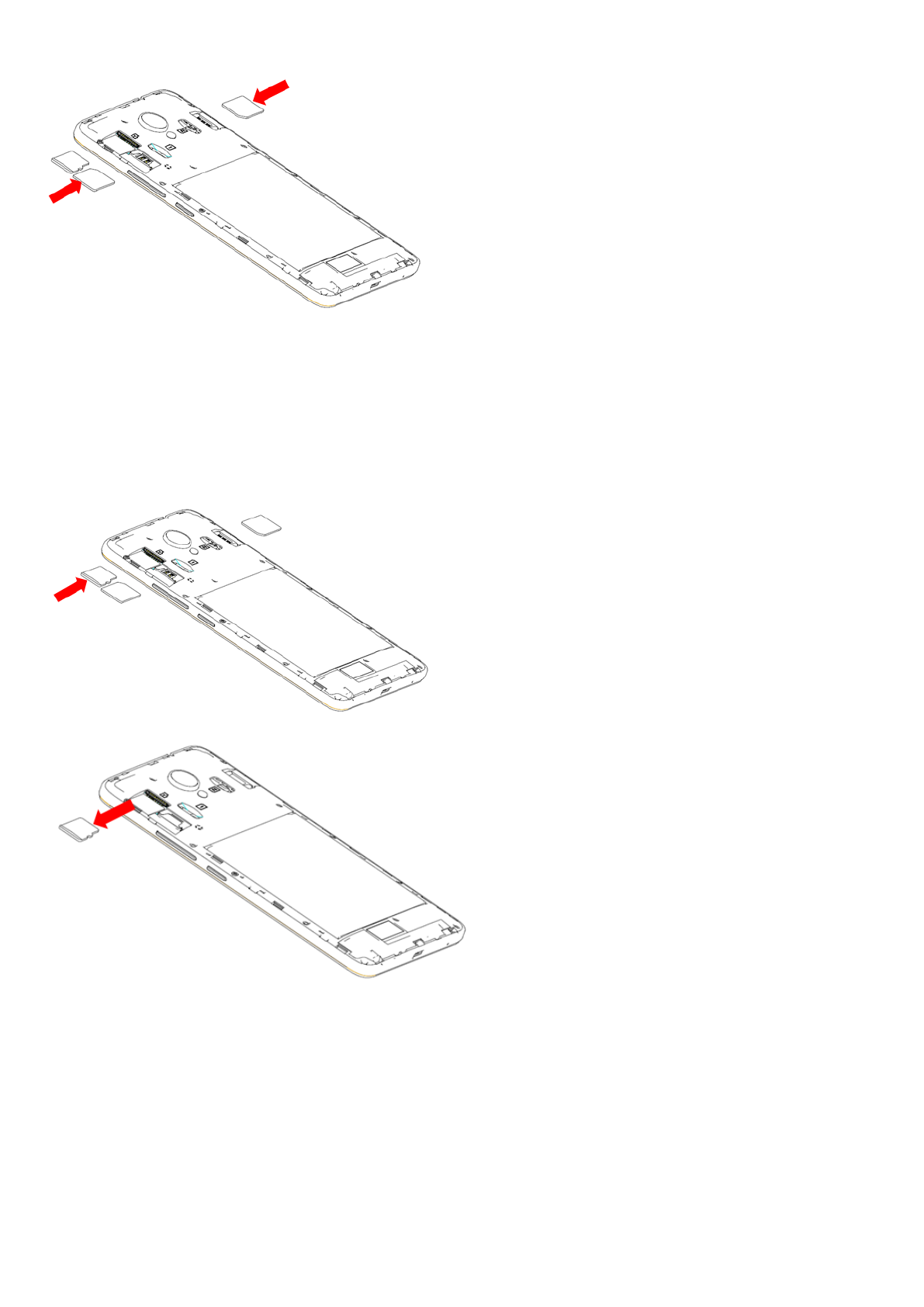

4 SIM / SD card installation
1. Power off mobile.
2. Refer to the following picture for SIM / SD card installation.
Removing the cover and SIM cards.
1. Unclip the cove r.
2. To remove the SIM cards, press and slide it out.
Installing the SIM cards and cover.
1. You must insert your SIM cards to make phone calls.
2. To install SIM cards, place the SIM cards with chip facing downwards,
and then slide it into its slot. Make sure that it is correctly inserted.
5
3. Close the phone cover.
Installing and removing the microSD card.
1. Insert the external microSD card into the slot with the gold contact
facing down. To remove the external microSD card, gently press and slide it
out.
2. In addition, regularly removing or inserting the SD card may cause the
phone to restart.
6
5 Homescreen
Home screen showcases frequently used apps, you can also display
ubiquitousinformation such as time, weather (third-party apprequired),
date, etc.
7
6Dialing
Tap the phone icon to open call interface. Enter contact number via keypad
to start a call. The keypad interface also enables functions such as texting
and contact storage.
8
7Notification&function toggle
The notification screen displays new information & events; simply tap the
notification to access its detailed content.
The function-toggle screen lists commonly used functions and their virtual
switches. Tap a switch to quickly turn a function on/off.
9
8Messages
The message function sends plain or multimedia texts to your friends. Tap
a message to view its content. Tap the “Compose new message” button to
start composing a message and send it todesignated contact.
Add new message
Settings
10
9Camera
The camera function captures your surroundings via the front or rear
camera.
Take video
Take picture
Back/Front Camera
Shoot mode
Change Flash
Photo Sticker
Settings
11
10Gallery
The gallery can be used to browse images and photos from mobile or SD
card storage; editing function can be performed. Images can be designated
as wallpaper or contact avatar. The sharing function allows images to be
shared with friends viaBluetooth and MMS, etc.
12
11Wi-Fi
Enabling Wi-Fi grants access to local hotspots and allows you to browse
Internet. Private networks will require a password.
13

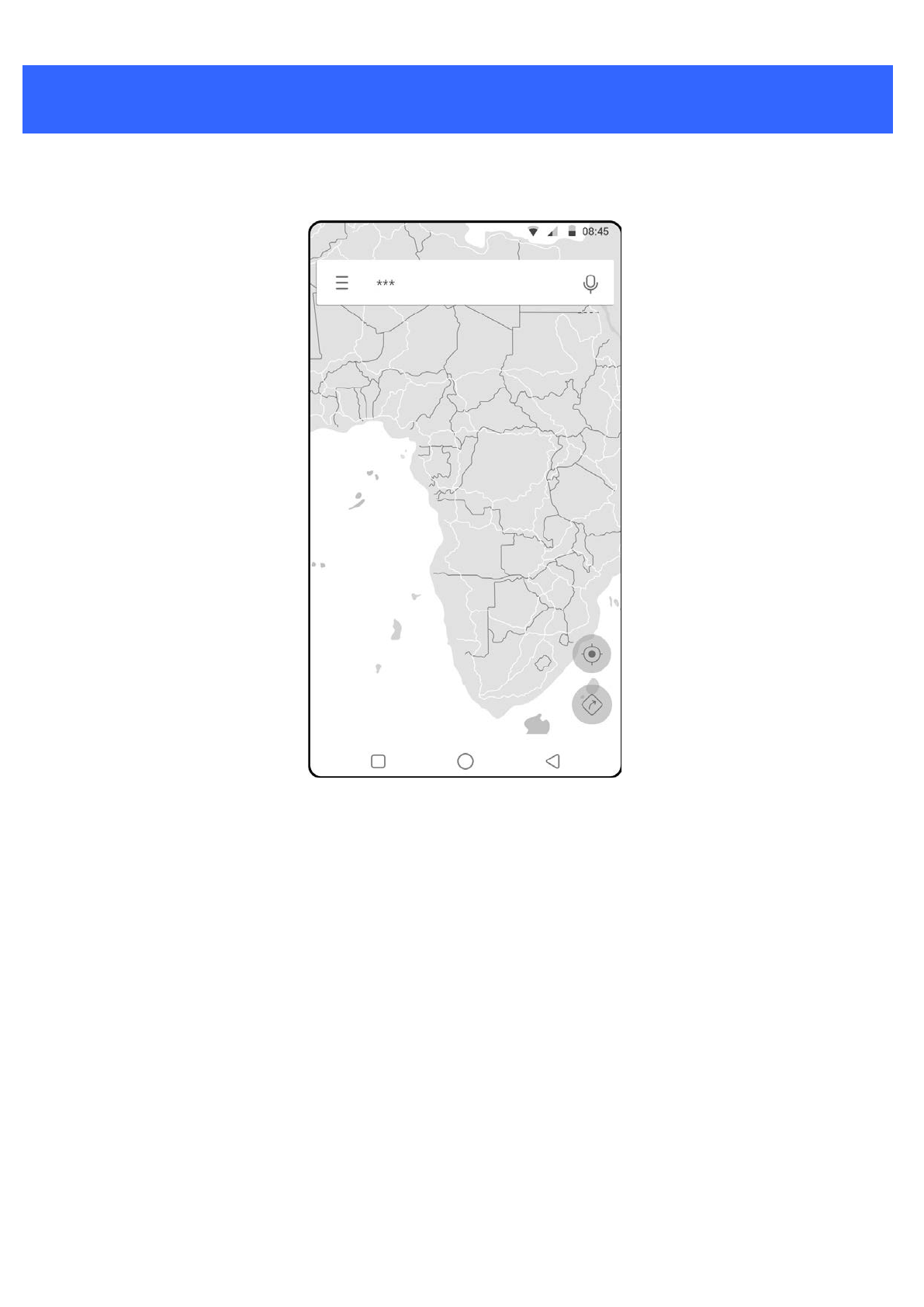

12Map
“Google Maps” provides users with complete GPS & navigation services. It
can display maps in terrain or terrain contour modes.
14

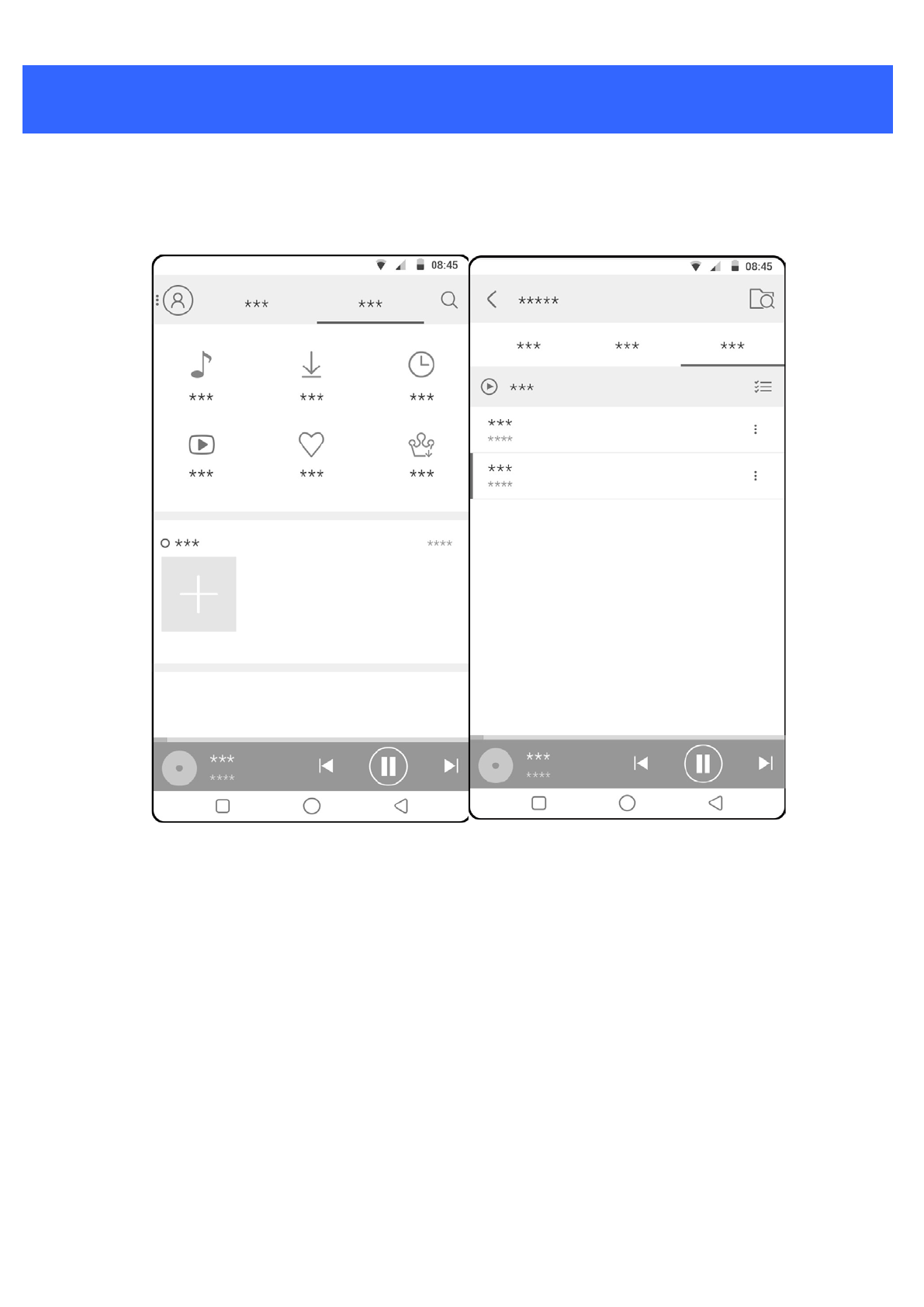

13Music
Music playlist displays all relevant files saved on the mobile or SD card
storage. You can play, pause, and switch between tracks through the music
control panel. Volume control is accessed via side buttons.
15
14Factorydata reset
“Factory data reset” resets all configurations to their default state. Internal
mobile storage is cleared of all data including apps, photos, music, videos,
mail, contacts, etc. This procedure may take a long time. Please wait
patiently for mobile to restart and do not power off.
WARNING:
Reset factory settings as a last resort. Once activated all user data &
configurations are deleted and cannot be restored.
16
15SAR declaration
Specific Absorption Rate (SAR) Certification
THIS DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO
RADIO WAVES
Your mobile device is a radio transmitter and receiver. It is designed not to
exceed the limits for exposure to radio waves (radio frequency
electromagnetic fields) recommended by international guidelines. The
guidelines were developed by an independent scientific organization
(ICNIRP) and include a substantial safety margin designed to assure the
safety of all persons, regardless of age and health.
The radio wave exposure guidelines use a unit of measurement known as
the Specific Absorption Rate, or SAR. The SAR limit for mobile devices is 2.0
W/kg. Tests for SAR are conducted using standard operating positions with
the device transmitting at its highest certified power level in all tested
frequency bands. The highest SAR values under the ICNIRP guidelines for
this device model are:
Maximum SAR for this model and conditions under which it was recorded
Head
0.588 W/Kg
Body
0.451 W/Kg
During use, the actual SAR values for this device are usually well below the
values stated above. This is because, for purposes of system efficiency and
to minimize interference on the network, the operating power of your
mobile device is automatically decreased when full power is not needed for
the call. The lower the power output of the device, the lower its SAR value.
A body-worn SAR test has been performed on this device at a separation
distance of 1.5cm.To meet RF exposure guidelines during body-worn
operation, the device must be positioned at least 1.5cm away from the
body.
Organizations such as the World Health Organization and the US Food and
Drug Administration have suggested that if people are concerned and want
to reduce their exposure, they could use a hands-free accessory to keep the
wireless device away from the head and body during use, or reduce the
amount of time spent using the device. For more information, visit
17
17Warning
Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. changes or
modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
RF Exposure Information:
The SAR limit of USA (FCC) is W/kg averaged over one gram of tissue.
Device Types (FCC ID: 2ADYY-W4) has also been tested against this SAR
limit.The highest SAR value reported under this standard during product
certification for use when properly worn on the body is0.854 W/kg and for
head is 0.526W /kg. Simultaneous RF exposure is 1.29 W/Kg.
This device was tested for typical body‐worn operations with the back of
the handset kept 10 mm from the body.To maintain compliance with FCC
RF exposure requirements, use accessories that maintain amm separation
distance between the user's body and the back of the handset.
The use of belt clips, holsters and similar accessories should not contain
metallic components in its assembly.
The use of accessories that do not satisfy these requirements may not
comply with FCC RF exposure requirements, and should be avoided.
NOTE:
This equipment has been tested and found to comply with the limits for
aClass B digital device, pursuant to Part 15 of the FCC Rules. These limits
aredesigned to provide reasonable protection against harmful interference
in aresidential installation. This equipment generates, uses and can radiate
radiofrequency energy and, if not installed and used in accordance with the
19
instructions, may cause harmful interference to radio communications.
However,there is no guarantee that interference will not occur in a
particular installation.If this equipment does cause harmful interference to
radio or television reception,which can be determined by turning the
equipment off and on, the user isencouraged to try to correct the
interference by one or more of the followingmeasures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit differentfrom that to
which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device and its antenna(s) must not be co-located or operation in
conjunction with any other antenna or transmitter.
