TECNO MOBILE WX3FLTE Mobile phone User Manual
TECNO MOBILE LIMITED Mobile phone
User Manual
1
1.Taking care of your device
Your device is a product of superior design & craftsmanship and should be
handled with care: The following recommendations will help protect your
phone:
Keep the device dry. Precipitation, humidity, and all types of liquid or
moisture may contain minerals that can rust electronic circuits. If your
device gets wet, remove the battery and refrain from turning on device.
Wipe it with a dry cloth and take it to the service center.
Do not store the device under extreme temperatures; it can damage the
battery and shorten device lifespan.
Do not use or store device in dusty and dirty areas; the electronic
components may be damaged.
Do not attempt to open device in any way other than instructed in this
guide. Repairs attempted by an entity other than designated service
agent/center will void warranty.
Licking the battery or charger is strictly prohibited; saliva is more corrosive
than water. Residual saliva may short-circuit phone and damage its
motherboard, causing the device to become inoperable; battery & charger
may also be damaged in the process.
2
WARNING:
Licking USB plug or metallic battery component is strictly prohibited.
Do not drop, knock, or shake device. Rough handling can disrupt internal
circuit boards and fine mechanical parts.
Do not use harsh chemicals, cleaning solvents, or strong detergents to
clean the device. Use a soft and dry cloth to wipe down surfaces.
Do not place battery in fire, explosion may occur. With concern for the
environment, please abide local laws & ordinances in battery disposal.
Only use original battery, charger, and accessories applicable to the
specific mobile model. Failure to do so voids the warranty and may result
in a hazard.
Power off mobile prior to testing its charger. If charger malfunctions,
off-mode will prevent damage to the motherboard.
Please keep the charging mobile away from small children.
Do not touch charger or mobile with wet hands; it’s hazardous and may
damage electronic parts.
WARNING:
Risk of explosion if original battery is replaced.
Tampering with mobile OS and ROOT voids warranty and may cause
software instability.
Battery &charger safety
3
2.Know your phone
Position of Keys
1. Earphone plug 2. Front flashlight
3. Front camera 4. Receiver
5. USB port 6. Microphone
7. Volume button 8. Power button
9. Rear camera 10. Flashlight
11. Fingerprint 12. Speaker
4
3.Exploded view of all parts
Description
1. TP_ASM 2. LCD
3. FH_ASM 4. SIDEKEY_FPC
5. MIC_RUBBER 6. RECEIVER
7. PCBA 8. FRONT_CAMERA
9. BACK_CAMERA 10. MOTOR
11. FINGERPRINT 12. FINGERPRINT_FRAME
13. FINGERPRINT_EC_FOAM 14. JACK_RUBBER
15. SPEAKER 16. REAR_HOUSING_ASM
17. BACK_CAM_LENS 18. BATTERY
19. MAIN_ANTENNA_FPC 20. CDMA_ANTENNA_FPC
21. GPS_ANTENNA_FPC 22. MACHINE_SCREW
23. SCREW 24. BATTERY_COVER_ASM
5
4. SIM / SD card installation
1. Power off mobile.
2. Refer to the following picture for SIM / SD card installation.

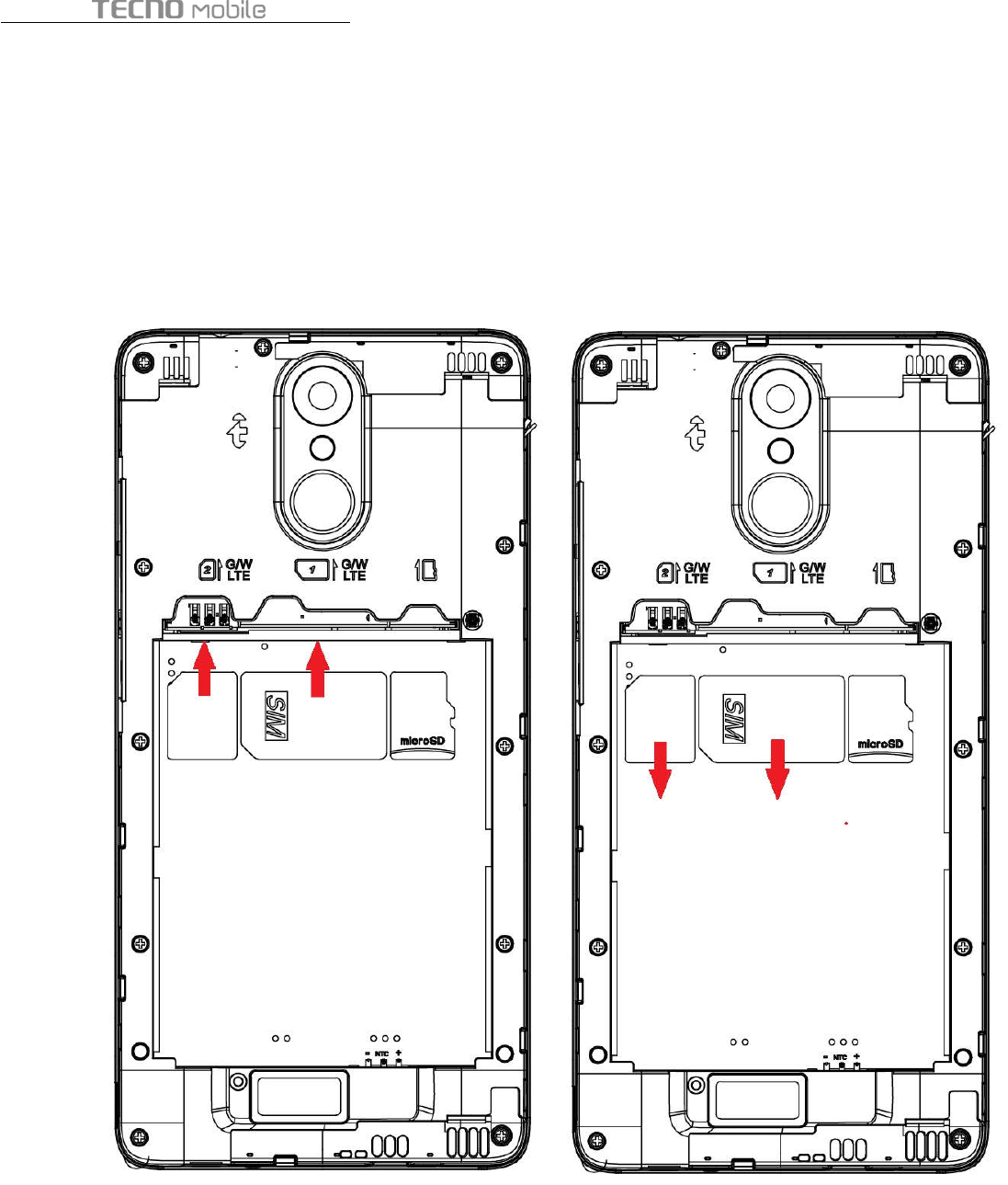

Removing the cover and SIM cards.
1. Unclip the cover.
2. To remove the SIM cards, press and slide it out.
6
Installing the SIM cards and cover.
1. You must insert your SIM cards to make phone calls.
2. To install SIM cards, place the SIM cards with chip facing downwards,
and then slide it into its slot. Make sure that it is correctly inserted.
3. Close the phone cover.
7

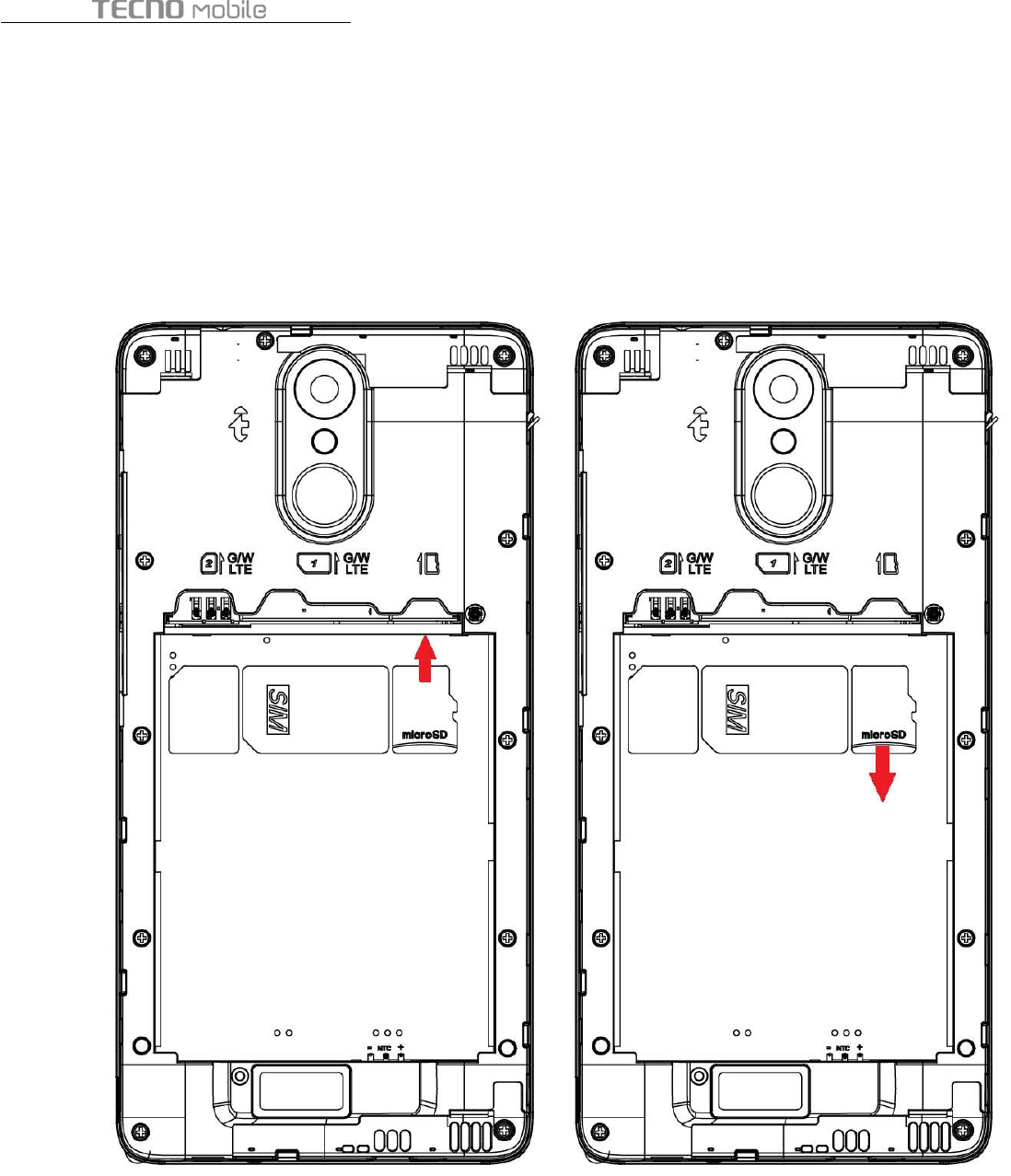

Installing and removing the SD card.
1. Insert the external SD card into the slot with the gold contact facing
down. To remove the external SD card, gently press and slide it out.
2. In addition, regularly removing or inserting the SD card may cause the
phone to restart.
8
5.Home screen
Home screen showcases frequently used apps, you can also display
ubiquitous information such as time , date, etc.
9
6.Dialing
Tap the phone icon to open call interface. Enter contact number via keypad
to start a call. The keypad interface also enables functions such as texting
and contact storage.
10
7.Notification & Function toggle
The notification screen displays new information & events; simply tap the
notification to access its detailed content.
The function-toggle screen lists commonly used functions and their virtual
switches. Tap a switch to quickly turn a function on/off.
11
8.Messages
The message function sends plain or multimedia texts to your friends. Tap
a message to view its content. Tap the “Compose new message” button to
start composing a message and send it to designated contact.
12
9.Camera
The camera function captures your surroundings via the front or rear
camera.
13
10.Gallery
The gallery can be used to browse images and photos from mobile or SD
card storage; editing function can be performed. Images can be designated
as wallpaper or contact avatar. The sharing function allows images to be
shared with friends via Bluetooth and MMS, etc.
14
11.Wi-Fi
Enabling Wi-Fi grants access to local hotspots and allows you to browse
Internet. Private networks will require a password.
15
12.Factory data reset
“Factory data reset” resets all configurations to their default state. Internal
mobile storage is cleared of all data including apps, photos, music, videos,
mail, contacts, etc. This procedure may take a long time. Please wait
patiently for mobile to restart and do not power off.
WARNING:
Factory data reset as a last resort. Once activated all user data &
configurations are deleted and cannot be restored.
16
13.FCC Caution
Labelling requirements.
This device complies with part 15 of the FCC Rules. Operation is subject to
the condition that this device does not cause harmful interference.
Information to user.
Any Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
Information to the user.
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Specific Absorption Rate (SAR) information:
This Mobile phone meets the government's requirements for exposure to
radio waves. The guidelines are based on standards that were developed
by independent scientific organizations through periodic and thorough
evaluation of scientific studies. The standards include a substantial safety
17
margin designed to assure the safety of all persons regardless of age or
health.
FCC RF Exposure Information and Statement
The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue.
Device types: WX3F LTE (FCC ID: 2ADYY-WX3FLTE) has also been tested
against this SAR limit. The highest SAR value reported under this standard
during product certification for use at the ear is 0.71W/kg and when
properly worn on the body is 1.26/kg. This device was tested for typical
body-worn operations with the back of the handset kept 10mm from the
body. To maintain compliance with FCC RF exposure requirements, use
accessories that maintain a 10mm separation distance between the user's
body and the back of the handset. The use of belt clips, holsters and
similar accessories should not contain metallic components in its assembly.
The use of accessories that do not satisfy these requirements may not
comply with FCC RF exposure requirements, and should be avoided.
Body-worn Operation
This device was tested for typical body-worn operations. To comply with
RF exposure requirements, a minimum separation distance of 1.0 cm must
be maintained between the user’s body and the handset, including the
antenna. Third-party belt-clips, holsters, and similar accessories used by
this device should not contain any metallic components. Body-worn
accessories that do not meet these requirements may not comply with RF
exposure requirements and should be avoided. Use only the supplied or an
approved antenna.
