Users Manual

1



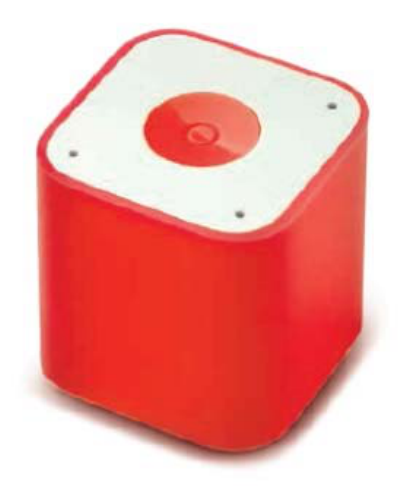

BluetoothSpeaker



Model:56802BT



INSTRUCTIONMANUAL

PLEASEREADALLINSTRUCTIONSCAREFULLYANDRETAINFOR

FUTUREUSE



GettingStarted

• Removethespeakerfromthebox.

• Removeanypackagingfromtheproduct.

• Pleaseretainallpackaginguntilyouhavecheckedandcountedallthepartsandthecontents

againstthepartslist.



2



PackageContents

• BluetoothMicroCubeSpeakerwithlanyard

• USBrechargeablecable

• InstructionManual



KeyFeatures

• WirelessConnectivityusingBluetooth®2.1+EDRTechnology

• UseasHands‐Freespeakerphone,withabuilt‐inmicrophone

• CompatiblewithallBluetoothenableddevicessuchasSmartPhones,Tablets,etc.

• Built‐inwirelessshutterremote–perfectforselfies

• WirelessStreamingRange–26to33Feet



SAFETYINSTRUCTIONS

• Keeptheunitawayfromheatsources,directsunlight,humidity,waterandanyotherliquids.

• Donotoperatetheunitifithasbeenexposedtowater,moistureoranyotherliquidstoprevent

againstelectricshock,explosionand/orinjurytoyourselfanddamagetotheunit.

• Donotusetheunitifithasbeendroppedordamagedinanyway.

• Repairstoelectricalequipmentshouldonlybeperformedbyaqualifiedelectrician.Improper

repairsmayplacetheuseratseriousrisk.

• Donotusetheunitwithwethands.

• Donotputobjectsintoanyoftheopenings.

• Keeptheunitfreefromdust,lintetc.

• Donotusethisunitforanythingotherthanitsintendeduse.

• Keeptheunitoutofreachofchildren.

• Thisapplianceisnotatoy.

• Donotusethehandsetatexcessivelevelsasdamagetohearingmayoccur.

• Batteries(batterypackorbatteriesinstalled)shallnotbeexposedtoexcessiveheatplace,such

assunshine,fireorthelike.



3



DescriptionofParts



INSTRUCTIONSFORUSE

Chargingthespeaker

Thespeakerhasbuilt‐inrechargeablebattery.Whenthebatteryisdrainedout,devicewouldturn

OFFautomatically.Pleaserechargethebatteryeverytimeitdrainsout.



PlugtheMicroUSBendoftheincludedUSBrechargeablecableintothechargingport.Plugtheother

endintoaUSBportonyourcomputerorotherdevicesmadeforUSBcharging.RedchargingLEDLight

illuminatesindicatingthatthedeviceisbeingcharged.



Ittakesupto2hourstofullychargethedevice.Oncethedeviceisfullycharged,RedchargingLED

LightwouldturnOFF.



4



TurningON/OFFtheSpeaker–

BeforeTurningONthedevice,pleaseensurethattheunitisfullycharged.

PressandholdthemiddlebuttonforfewsecondstoturnON/OFFthedevice.



ConnectusingBluetoothTechnology(manually)

 TurnOntheSpeaker.Youwouldhearastart‐uptone,andBlueoperationLEDlightwouldflash

rapidly,indicatingthatyouarenowinBluetoothPairingMode.

 ActivatetheBluetoothfunctiononyoursourcedevice(MobilePhoneorTablet).Pleasereferto

manufacturer’sinstructionsforinstructionsonenablingBluetoothonyourdevice.

 SearchforavailableBluetoothdevicesandyouwouldfind“SLMICROCUBE”–Pairitwiththis

device.

 Ifrequired,enterthepassword“0000”topairwiththedevice

 Youcannowstreamwirelessmusiconyourspeakerthroughyoursourcedevice.

 Waitforfewsecondsandyouwillheartonesoundfromthespeaker,andtheBlueoperation

LEDwillturnonindicatingpairinghasbeensuccessful.

 Youcannowstreamwirelessmusiconyourspeakerthroughyoursourcedevice.



TalkingusingtheBluetoothSpeaker

PleaseensurethatyourcellphoneispairedwiththeBluetoothSpeakertousethebelow

functions.

FunctionOperationButton

AnswerIncoming

Call

IncomingCall Pressthemiddlebuttononcetoansweranincomingcall.

EndCall IncomingCall Afteryourphoneconversation,pressthemiddlebuttononce.

(Note:Afterendingtheincomingcall,youmayneedtopressthemiddlebuttononceagaintoresume

music,dependingonyourphone,)



ListeningtoMusicWirelessly

Pleaseensurethatyourdevice(iPhone,TabletorOtherSmartPhone)ispairedwiththe

BluetoothSpeakertostreammusicwirelessly.Onceitispaired,playmusicfromyourdevice.



FunctionOperationButton

PausePlayingmusicPressthemiddlebuttononcewillpausethemusic.

PlayPausingPressthemiddlebuttononcewillresumethemusic.

(Note:TheabovefunctionsonlycanbeusedinBluetoothmodeonly.Forvolumeincrease/decrease,

youwillneedtocontrolthroughyoursourcedevice.)



UsingtheWirelessShutterRemote

Pleaseensurethatyourdevice(iPhone,TabletorOtherSmartPhone)ispairedwiththe

BluetoothSpeakertousethisWirelessShutterRemotefunction.Onceitispaired,shortpress

themiddlebuttontotakephotooncameramode.

Note:Microphonefunctiondoesn’tworkinWirelessShutterRemotemode.



5



ChangingfromWirelessMusictoWirelessShutterRemoteorviceversa

1. Pleaseensurethatyourdevice(iPhone,TabletorOtherSmartPhone)ispairedwiththe

BluetoothSpeakertoplaymusicwirelessly.Shortpressthemiddlebuttontwiceandthen

waitforafewsecondsforchangingtoWirelessShutterRemote.Adjustyourdevicetocamera

modeandthenpressthemiddlebuttononceeachtimetotakeaphoto.

2. ShortpressthemiddlebuttontwiceforchangingbacktoWirelessMusicmode.



Specifications–

Bluetooth®Version:V2.1+EDR

WirelessStreamingRangeDistance:26to33Feet

Speaker:2Watts

PowerInput:DC5V

Built‐InRechargeableLithiumBattery:3.7V200mAh

ChargingTime:Upto2hours

Playtime:about60mins(maxvolume)

(Note:Batterylife&chargingtimemayvarybasedonusage&typesofdevicesused.)

Dimension:26x26x30mm

Weight:24g



Careandmaintenance

ReadthefollowingrecommendationsbeforeusingtheBluetoothSpeaker.Followingtheseyouwillbe

abletoenjoytheproductformanyyears.

• Donotexposetheunittoliquid,moistureorhumiditytoavoidtheproduct’sinternalcircuitbeing

affected.

• Don’tuseabrasivecleaningsolventstocleantheunit.

• Donotexposetheunittoextremelyhighorlowtemperatureasthiswillshortenthelifeof

electronicdevices,destroythebatteryordistortcertainplasticparts.

• Don’tdisposeoftheunitinfireasitwillresultinanexplosion.

• Don’texposetheunittocontactwithsharpobjectsasthiswillcausescratchesanddamage.

• Don’tlettheunitfalldownontothefloor.Theinternalcircuitmightgetdamaged.

• Don’tattempttodisassembletheunitasitmaygetdamagedifyouarenotprofessional.

Incasetheunitdoesnotfunctionproperly,pleasecontactthenumbershownontheWarrantyPagefor

help.



FCCInstructions

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttopart

15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceina

residentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalled

andusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,

thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescause

harmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffand

on,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:

•Reorientorrelocatethereceivingantenna.

•Increasetheseparationbetweentheequipmentandreceiver.

•Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.

•Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

6



Caution:Anychangesormodiﬁcationstothisdevicenotexplicitlyapprovedbymanufacturercouldvoidyour

authoritytooperatethisequipment.



Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)This

devicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,including

interferencethatmaycauseundesiredoperation.



ThedevicehasbeenevaluatedtomeetgeneralRFexposurerequirement.Thedevicecanbeusedinportable

exposureconditionwithoutrestriction.



LimitedWarranty

Thismanufacturer'sproductwarrantyextendstotheoriginalconsumerpurchaseroftheproduct.

Neithertheretailernoranyothercompanyinvolvedinthesaleorpromotionofthisproductisaco‐

warrantorofthismanufacturerwarranty.

WARRANTYDURATION:Allmaterialsandworkmanshiparewarrantedtotheoriginalconsumer

purchaserforaperiodofninety(90)daysfromtheoriginalpurchasedate.

WARRANTYCOVERAGE:Thisproductiswarrantedagainstdefectivematerialsorworkmanship.This

warrantyisvoidiftheproducthasbeendamagedbyaccident,inshipment,unreasonableuse,

misuse,neglect,improperservice,commercialuse,repairsbyunauthorizedpersonnelorother

causesnotarisingoutofdefectsinmaterialsorworkmanship.Thiswarrantyiseffectiveonlyifthe

productispurchasedandoperatedinUSA,anddoesnotextendtoanyunitswhichhavebeen

usedinviolationofwritteninstructionsfurnishedbymanufacturerortounitswhichhavebeenaltered

ormodifiedor,todamagedproductsorpartsthereofwhichhavehadtheserialnumberremoved,

altered,defacedorrenderedillegible.

WARRANTYDISCLAIMERS:Thiswarrantyisinlieuofallwarrantiesexpressedorimpliedandno

representativeorpersonisauthorizedtoassumeformanufactureranyotherliabilityinconnectionwith

thesaleofourproducts.Thereshallbenoclaimsfordefectsorfailureunderanytheoryoftort,

contractorcommerciallawincludingbutnotlimitedto,negligence,grossnegligence,strictliability,

breachofwarrantyandbreachofcontract.UndernocircumstanceswillManufacturer’s/Distributor’s

maximumliabilityexceedtheretailvalueoftheproduct.

WARRANTYPERFORMANCE:Duringtheabove90daywarrantyperiod,aproductwithadefectwillbe

eitherrepairedorreplacedwithareconditionedcomparablemodel(atmanufacturer'soption).The

repairedorreplacementproductwillbeinwarrantyforthebalanceofthe90daywarranty

periodandanadditionalone‐monthperiod.Nochargewillbeapplicableforsuchrepairorreplacement.

SERVICEANDREPAIR:Ifserviceisrequiredforthisproduct,youshouldfirstcontactMidwestTrading

GroupCustomerServiceatinfo@mtradinggroup.comorbycalling1(866)815‐4714,Mondayto

Friday10amto6pmEST.

7



NOTE:Manufacturercannotassumeresponsibilityforlossordamageduringincomingshipment.As

aprecautionarymeasure,carefullypackagetheproductforshipment,andinsureitwiththecarrier.

Besuretoenclosethefollowingdetailswiththeproduct:yourfullname,returnaddressanddaytime

phonenumber,anotedescribingtheproblemyouexperienced,acopyofyoursalesreceiptorother

proofofpurchasetodeterminewarrantystatus.C.O.D.shipmentscannotbeaccepted.
