TELEGRID Technologies WHD310V1 WZRDnet User Manual Operation Manual 1 5 3
TELEGRID Technologies, Inc. WZRDnet Operation Manual 1 5 3
User Manual
![](/img.php?id=1361539&img=bg1.png)
DRAFT
WZRDnet™
Handheld Device Model WHD-310(V)1
USER MANUAL
Document Number: USM310(V)1-100922
10/01/2010
DRAFT
TELEGRID Technologies, Inc.
19 Microlab Road
Livingston, NJ 07039
(973) 994-4440
info@telegrid.com
www.telegrid.com
![](/img.php?id=1361539&img=bg2.png)
WZRDnet Operation Manual
2
TABLE OF CONTENTS
SECTION 1: GENERAL INFORMATION................................................................... 5
1. Introduction............................................................................................................. 5
2. Features................................................................................................................... 5
SECTION 2: EQUIPMENT DESCRIPTION................................................................ 6
1. Device Characteristics ............................................................................................ 6
SECTION 3: DEVICE POWER ..................................................................................... 8
1. Device Power.......................................................................................................... 8
1.1 Battery Charging............................................................................................. 8
1.2 Battery Gauge ................................................................................................. 8
SECTION 4: MODES OF OPERATION....................................................................... 9
1. Start-up Mode ......................................................................................................... 9
2. Power-on Mode....................................................................................................... 9
3. Idle Mode................................................................................................................ 9
4. No LCD Mode ........................................................................................................ 9
5. Power-off Mode ...................................................................................................... 9
5.1 Controlled Power-off .................................................................................... 10
5.2 Uncontrolled Power-off ................................................................................ 10
6. No Supply Mode................................................................................................... 10
SECTION 5: NETWORK COMMUNICATIONS...................................................... 11
1. Overview............................................................................................................... 11
2. Mesh Networking.................................................................................................. 11
3. Network Device Types ......................................................................................... 11
3.1 Coordinator ................................................................................................... 11
3.2 Router............................................................................................................ 11
4. Ad-Hoc Network................................................................................................... 11
4.1 Network Formation....................................................................................... 11
4.2 Joining a WMN............................................................................................. 12
4.3 Allowing Joining........................................................................................... 12
5. Network Addressing ............................................................................................. 12
5.1 16-bit Network Address................................................................................ 12
5.2 64-bit MAC Address..................................................................................... 12
5.3 Node Identifier String (NI) ........................................................................... 13
6. Broadcast Transmission........................................................................................ 13
7. Node Discovery .................................................................................................... 13
8. Node Search .......................................................................................................... 13
SECTION 6: WZRDnet COMMUNICATION UTILITIES...................................... 14
1. WZRDtalk Voice Communication ....................................................................... 14
1.1 Call Initiation ................................................................................................ 14
1.2 Call Invitation ............................................................................................... 14
1.3 Call Establishment ........................................................................................ 14
1.4 Call Communication ..................................................................................... 14
1.5 Call Disconnect............................................................................................. 14
1.6 Call Reply ..................................................................................................... 14
2. External Network Dialing ..................................................................................... 15
![](/img.php?id=1361539&img=bg3.png)
WZRDnet Operation Manual
3
2.1 External Dialing Elements ............................................................................ 16
3. WZRDgroup™ Talk Group Communications...................................................... 17
4. WZRDtext Text Messaging .................................................................................. 17
4.1 Acknowledgments......................................................................................... 18
4.2 Long-Term Message Storage........................................................................ 18
5. WZRDchat PC Instant Messaging........................................................................ 18
6. WZRDalert Network-Wide Notification .............................................................. 18
SECTION 7: SECURE COMMUNICATIONS........................................................... 19
1. Encryption............................................................................................................. 19
1.1 Link Key ....................................................................................................... 19
1.2 Network Key................................................................................................. 19
1.3 Key Update Interval...................................................................................... 19
SECTION 8: Global Positioning System (GPS)........................................................... 20
1. GPS Locator.......................................................................................................... 20
2. GPS Clock Sync.................................................................................................... 20
3. GPS Tracking........................................................................................................ 20
4. GPS Mapping........................................................................................................ 20
SECTION 9: OPERATING INSTRUCTIONS ........................................................... 21
1. Network Activation............................................................................................... 21
1.1 Forming a Network....................................................................................... 21
1.2 Assigning Network IDs................................................................................. 21
2. Getting Started ...................................................................................................... 24
2.1 Buttons and Connectors ................................................................................ 24
2.2 Battery Voltage Indicator.............................................................................. 24
2.3 Charging the Battery..................................................................................... 24
2.4 Turning ON/OFF .......................................................................................... 25
2.5 Navigation Tool ............................................................................................ 25
2.6 IDLE mode.................................................................................................... 25
3. Using the Menu..................................................................................................... 25
3.1 Scrolling........................................................................................................ 26
3.2 List of Menu Functions................................................................................. 26
4. Menu Functions .................................................................................................... 27
4.1 User Settings ................................................................................................. 27
4.2 Network Management................................................................................... 28
4.3 Contacts......................................................................................................... 30
5. WZRDtalk............................................................................................................. 31
5.1 Call Initiation ................................................................................................ 31
5.2 Call Invitation ............................................................................................... 32
5.3 Call Establishment ........................................................................................ 32
5.4 Call Termination ........................................................................................... 32
5.5 Speed Dial..................................................................................................... 33
6. WZRDgroup ......................................................................................................... 33
6.1 Group Establishment..................................................................................... 33
6.2 Group Maintenance....................................................................................... 33
6.3 Call Establishment ........................................................................................ 34
6.4 Call Display .................................................................................................. 34
![](/img.php?id=1361539&img=bg4.png)
WZRDnet Operation Manual
4
7. WZRDtext............................................................................................................. 34
7.1 Message Creation.......................................................................................... 34
7.2 Message Received Status.............................................................................. 35
7.3 Incoming Message Alert............................................................................... 35
7.4 Reading a Message ....................................................................................... 35
7.5 Replying to a Message.................................................................................. 35
7.6 Deleting a Message ....................................................................................... 36
7.7 Message Archive........................................................................................... 36
8. WZRDchat ............................................................................................................ 36
8.1 Node Discovery ............................................................................................ 37
8.2 New Message................................................................................................ 37
9. WZRDalert............................................................................................................ 38
10. GPS ................................................................................................................... 38
10.1 View Position................................................................................................ 39
10.2 Save Position................................................................................................. 39
10.3 Upload GPS Coordinates .............................................................................. 39
10.4 Enable/Disable GPS...................................................................................... 39
SECTION 10: PRODUCT AND SAFETY INFORMATION .................................... 40
1. Safety Information ................................................................................................ 40
1.1 WHD-310(V)1 Information.......................................................................... 40
1.2 Battery Information....................................................................................... 40
1.3 Antenna......................................................................................................... 41
1.4 Health and General Use ................................................................................ 41
2. Certifications......................................................................................................... 42
2.1 FCC Notice ................................................................................................... 43
2.2 Industry Canada (IC)..................................................................................... 43
3. Legal Notices ........................................................................................................ 43
3.1 Copyright ...................................................................................................... 43
3.2 Software Copyright Notice ........................................................................... 44
3.3 Jurisdiction.................................................................................................... 44
![](/img.php?id=1361539&img=bg5.png)
WZRDnet Operation Manual
5
SECTION 1: GENERAL INFORMATION
1. Introduction
This document forms the user manual for the WZRDnet handheld device Model
WHD-310(V)1. As such it presents a detailed equipment description including the
physical characteristics and operational instructions for the device.
2. Features
The WHD-310(V)1 is a portable handheld wireless communication device that is a
key element of the WZRDnet low-power wireless ad-hoc mesh network. The mesh
architecture of the network facilitates wireless communication between handheld
devices without infrastructure (e.g. satellites, cell towers, etc.). Every device in the
network acts as both a router and a data/ voice terminal. This design creates a robust
network without distance limitations or expensive maintenance. The devices
automatically associate themselves with a network and are assigned a dynamic
network address and ID. This self-forming, ad-hoc configuration eliminates the need
for additional overhead or external monitoring. A device that is part of a network is
referred to as a node. Nodes can send voice or data messages to other specific nodes
or talk groups.
The innovative voice and data communication methods of the WHD-310(V)1 feature
the following capabilities:
WZRDtalk™ allows peer-to-peer and talk group voice communications. The handset
also allows communications with users on the WZDRnet network and stations on
external Wide Area Networks (WANs).
WZRDtext™ allows users to transmit text messages of unlimited length including
files to other users or to multiple users. A message archive maintains sent and
received messages on the device until deleted by the user.

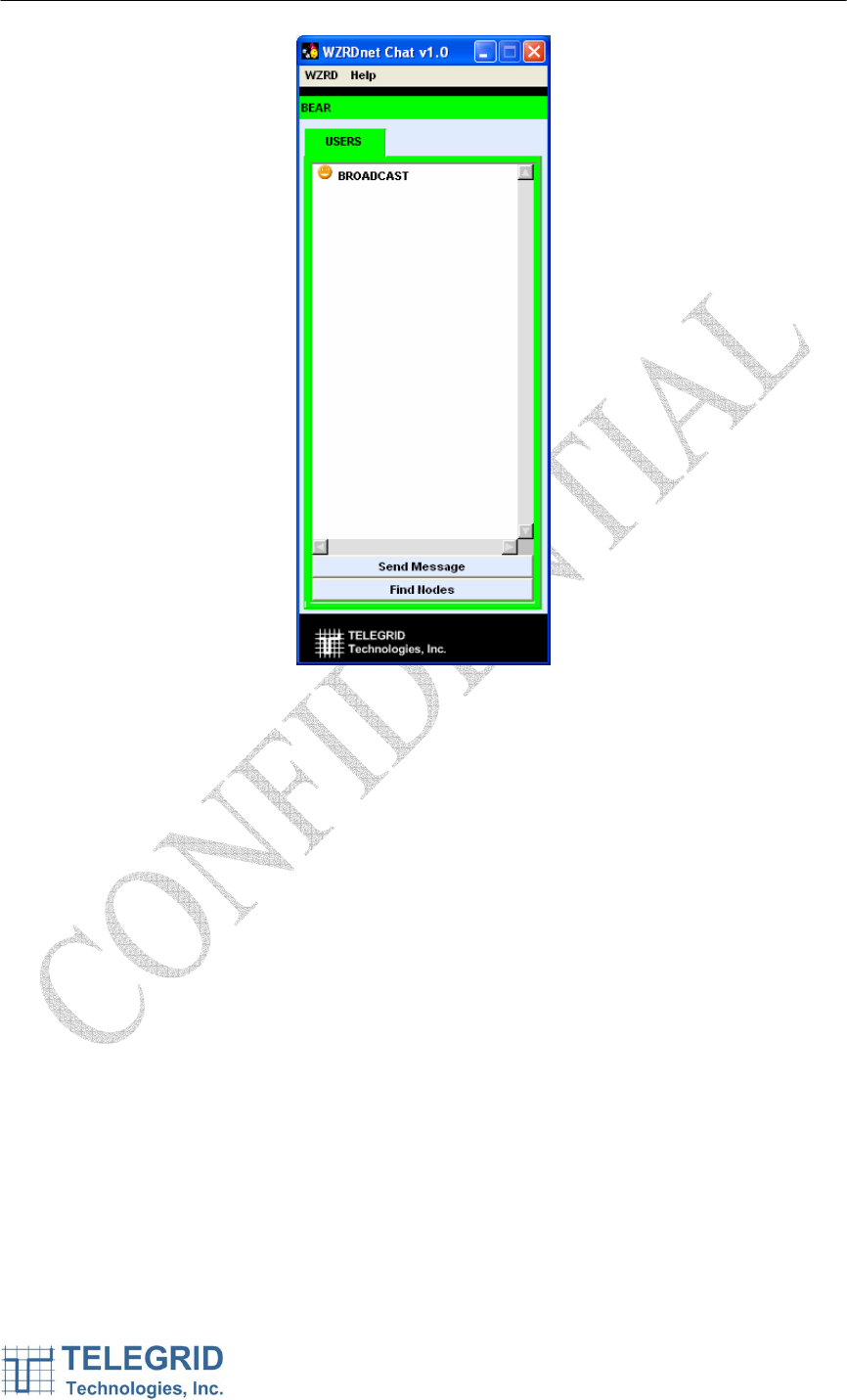

WZRDchat™ uses a USB connection to provide a user-friendly PC interface for text
messaging and network monitoring. WZRDchat also allows uploading of GPS
coordinates and modification of node settings. The WZRDchat application serves as
a gateway to a local Personal Computer (PC) and the Internet where available.
WZRDalert™ broadcasts text alerts/ notifications to all users on the network.
![](/img.php?id=1361539&img=bg6.png)
WZRDnet Operation Manual
6
SECTION 2: EQUIPMENT DESCRIPTION

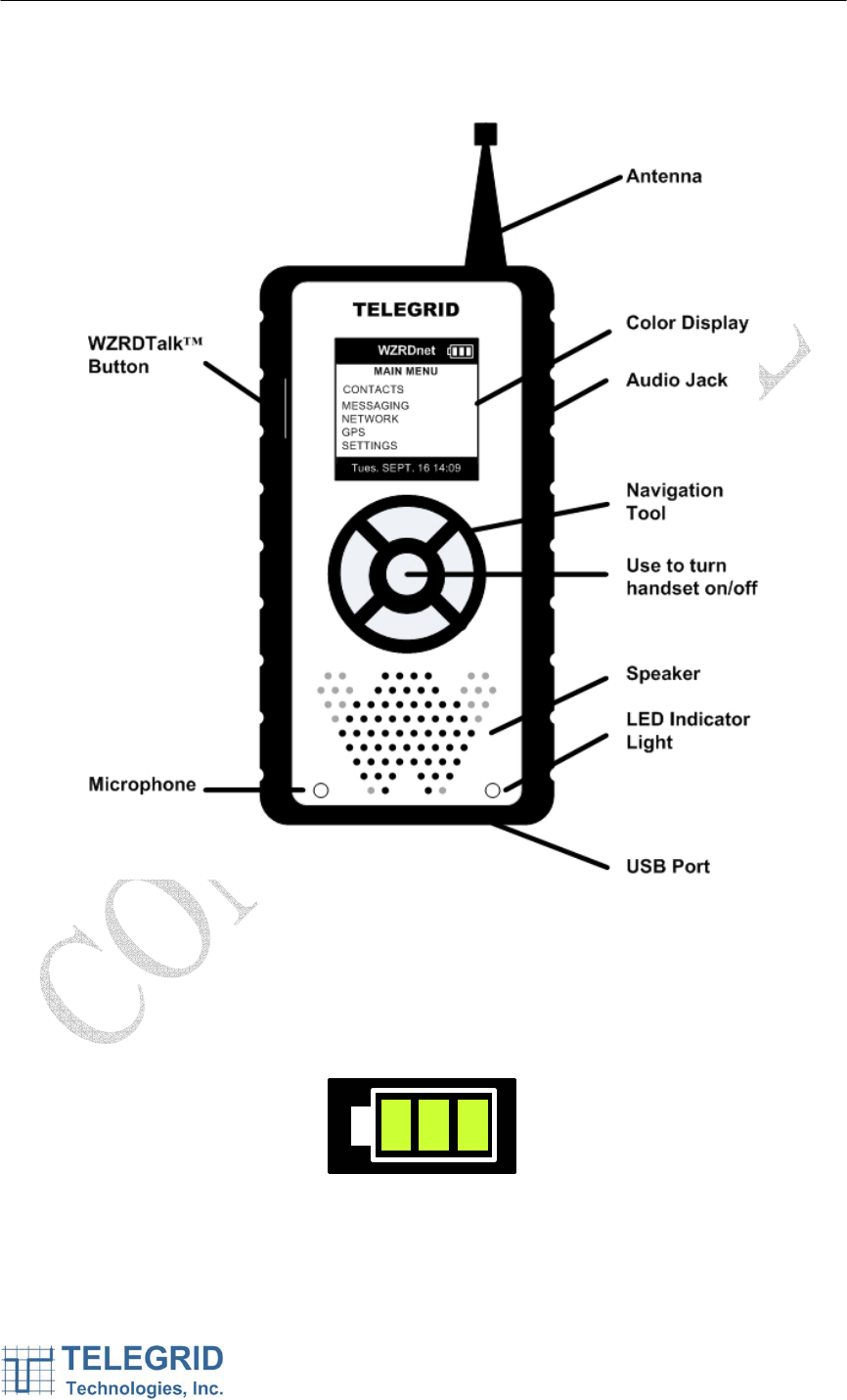

1. Device Characteristics
Physical Characteristics
• Dimensions:
o Device: 4.97 x 2.66 x 1.21 inch
o Antenna length: 1.95 inch
• Weight: 0.53 lbs including batteries
Internal Components
• 1.5 inch Color LCD Screen
• 2.4 GHz Radio Transceiver
• GPS Receiver
• Two 1800mAhr Rechargeable Lithium Polymer Battery
• Real-Time Clock
• Integrated Speakerphone
• Microphone
• 5-Button Navigation Tool
• Illuminated Keypad
• Mini-USB Port
• 2.5mm Audio Output Jack
External Components
• Mini-USB to USB Cable
• Headset with Push-to-Talk button and microphone
• 110VAC Wall Adapter.
Additional Software
• USB to Serial Driver

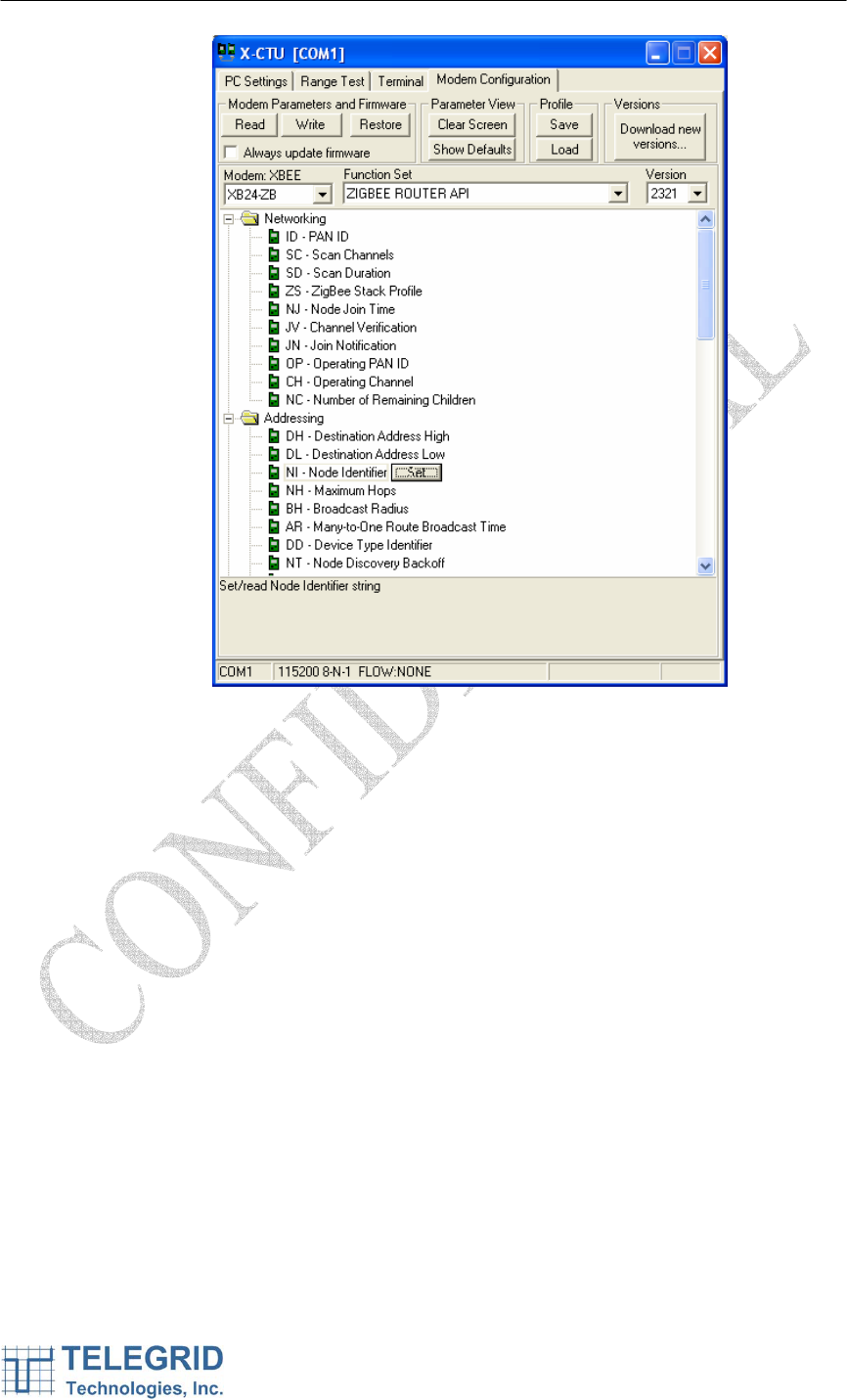

• X-CTU Network Management

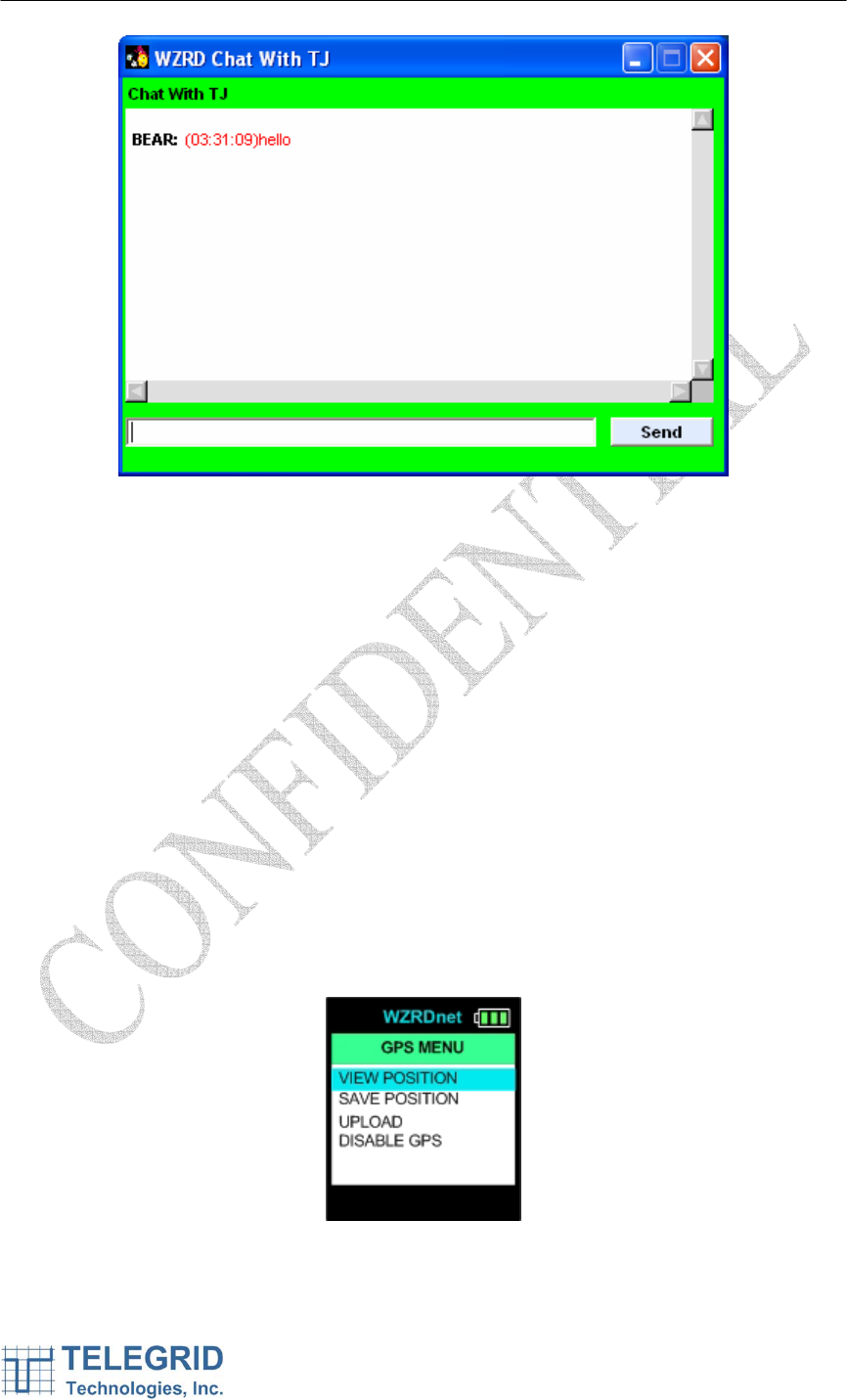

• WZRDChat PC Instant Messaging
![](/img.php?id=1361539&img=bg7.png)
WZRDnet Operation Manual
7
Figure 2.1 WHD-310(V)1 Handset
![](/img.php?id=1361539&img=bg8.png)
WZRDnet Operation Manual
8
SECTION 3: DEVICE POWER
1. Device Power
Main power to the WHD-310(V)1 is provided by two internal rechargeable
1800mAhr Lithium Polymer batteries or by an external power source connected to the
Device’s USB port such as a wall charger or PC. The internal batteries are constantly
monitored and protected by an embedded battery gauge circuit. They are recharged
whenever an external power source is connected to the USB port. An internal charger
circuit determines whether the power is being supplied by the batteries or through an
external power source.
The Device’s on-board voltage regulator provides three separate outputs of 3.3VDC
each. One output powers the microcontroller, and the other two power the peripherals
and the DC-DC converter for the Liquid Crystal Display (LCD) backlight.
1.1 Battery Charging
The batteries are recharged via the USB port. This can be done by connecting
to the USB port of a PC or to a 5VDC 500mA to 1A wall charger. The Device
will automatically determine which charging method is being used and
configure itself accordingly.
1.2 Battery Gauge
The current state of the Device’s batteries is displayed with a battery icon on the
LCD screen. The user can monitor the voltage and be alerted when the battery
is low. When the battery voltage drops below a predetermined level, the device
will shut down automatically to save power.
![](/img.php?id=1361539&img=bg9.png)
WZRDnet Operation Manual
9
SECTION 4: MODES OF OPERATION
1. Start-up Mode
The Device enters the Start-up Mode when the batteries are charged and the center
button of the keypad is pressed. It can also enter this mode automatically through a
Real-Time Clock alarm. In the absence of charged batteries, the Device enters the
Start-up Mode when an external power source, i.e., a PC or a wall charger is
connected to the USB port.
When Start-up Mode is entered, the microcontroller first checks the condition of the
battery supply to determine if it should proceed to Power-on Mode.
2. Power-on Mode
The Device is in Power-on Mode when the user is interacting with the device and the
device is running at maximum clock frequency with all the peripherals fully
functional. Because this mode consumes the most power, the device will go into
either Idle Mode or Power-off Mode to preserve battery life as soon as conditions
permit.
3. Idle Mode
The Device enters Idle Mode when the user is inactive for a predetermined amount of
time and the USB port is not connected to an external power source, i.e., a PC or a
wall charger. In Idle Mode the LCD screen is disabled and the microprocessor runs at
minimal clock frequency of 500Hz in order to preserve power.
In Idle Mode, the RF transceiver remains active as a repeater in order to interchange
messages inside the mesh network. If the transceiver receives a message for the
Device, then the Device transitions to Power-on Mode and the microprocessor
resumes running at the higher clock frequency, while the LCD remains off, in order to
analyze the received message. If the received message packet is not for the Device,
then the Device returns to Idle Mode.
4. No LCD Mode
The Device enters the No LCD Mode when the user is inactive for a predetermined
amount of time and the USB port is connected to an external power source, i.e., a PC
or a wall charger. Note that the Device does not go into a complete Idle Mode in
order to allow the USB to continue charging the batteries. The LCD will turn back on
when any button is pressed or upon message receipt.
5. Power-off Mode
The Device enters the Power-off Mode by a controlled powering off sequence or by
an uncontrolled power off sequence. Both sequences will cause the main regulator to
be disabled as the voltage supply disappears, thus the Device would remain off.
![](/img.php?id=1361539&img=bga.png)
WZRDnet Operation Manual
10
5.1 Controlled Power-off
The WHD-310(V)1 can be powered off by pressing the center button of the
keypad for 1 second.
5.2 Uncontrolled Power-off
The Device is powered off automatically if the battery voltage falls below a
predetermined threshold or if the battery is removed from the Device. The
Device is also powered off when the battery gauge disconnects the battery due
to over temperature, over voltage, or under voltage.
Return to the Power-on Mode occurs when an external power source, i.e., a PC
or a wall charger is connected to the USB port or a charged battery is inserted.
6. No Supply Mode
The Device enters this mode if the battery is completely depleted and the voltage
level falls below the undervoltage threshold.
Return to the Power-on Mode occurs when an external power source, i.e., a PC or a
wall charger is connected to the USB port or a charged battery is inserted.
![](/img.php?id=1361539&img=bgb.png)
WZRDnet Operation Manual
11
SECTION 5: NETWORK COMMUNICATIONS
1. Overview
The networking technology employed by WZRDnet is based on the IEEE 802.15.4
protocol. Each Wireless Mesh Network (WMN) and is defined with a unique WMN
Identifier (WMN ID).
2. Mesh Networking
WZRDnet supports mesh routing, allowing data packets to traverse multiple nodes in
order to reach the destination node. This allows nodes to be spread out over a large
region, and still support communications among all devices in the network.
3. Network Device Types
The following two device types exist in the network:
3.1 Coordinator
A Coordinator selects a channel and WMN ID at the formation of a network.
After starting the network a Coordinator behaves like a router except that it
maintains the capability of updating network encryption keys.
3.2 Router
A Router must join a WMN before it can transmit, receive, or route data. After
joining, it can allow other Routers to join the network. It assists in routing data
and therefore its RF section must remain fully-powered.
4. Ad-Hoc Network
WZRDnet is an ad-hoc network that is a comprised of self-configuring devices.
These devices either form a new network or join the nearest available network. The
ad-hoc architecture allows new devices to automatically join a network without
manual configuration. This encourages large-scale networks with minimal
infrastructure support required.
4.1 Network Formation
The Coordinator is responsible for initiating a network. Networks are formed
when a coordinator selects a channel and WMN ID. To start a WMN, the
coordinator performs an energy scan in order to discover RF activity on
different channels as well as a WMN scan to identify nearby operating WMNs.
4.1.1 Energy Scan
When a Coordinator powers up for the first time, it performs an energy
scan on multiple channels (frequencies) to detect energy levels on each
channel. Channels with excessive detected energy levels are removed from
its list of potential channels. When the energy scan is complete, the
Coordinator scans the remaining quiet channels for existing WMNs.
![](/img.php?id=1361539&img=bgc.png)
WZRDnet Operation Manual
12
4.1.2 WMN Scan
A WMN Scan allows the Coordinator to detect nearby WMN IDs in order
to avoid duplication. The Coordinator sends a broadcast information
request and all nearby Coordinators and Routers respond with information
about their specific WMNs including WMN ID, and whether or not
joining is allowed. Once the Coordinator has completed the scans, it
parses all received responses and creates a WMN with an unused WMN
ID on a channel with minimal traffic.
4.2 Joining a WMN
Routers must discover and join a WMN in order to be part of a network. They
first issue a WMN scan and receive a list of responses from nearby nodes. They
then parse this list to find valid candidate networks. Routers can be configured
to join any WMN, or to only join a WMN with a specific WMN ID. However,
they must always find a Coordinator or Router that allows joining. When they
discover a device operating on a valid network that also allows joining, they
attempt to join the WMN by sending an association request to that device.
4.3 Allowing Joining
The Coordinator and Routers can allow or not allow new Routers to join the
network. The number of Routers that can join is only restricted by the number
of network addresses.
5. Network Addressing
The 802.15.4 protocol specifies two address types:
• 16-bit network address
• 64-bit MAC address
A Node Identifier String can also be specified which will route to the underlying
address.
5.1 16-bit Network Address
A 16-bit network address is assigned to a node when it joins a network. The
network address is unique to each node in the network. However, network
addresses are not static and can change. The 16-bit address must be discovered
before transmitting data to a node.
5.2 64-bit MAC Address
Each node contains a unique IEEE defined 64-bit MAC address. The 64-bit
address uniquely identifies a node and is static.
![](/img.php?id=1361539&img=bgd.png)
WZRDnet Operation Manual
13
5.3 Node Identifier String (NI)
A node can also be assigned a character based Node ID. This Node ID can be
used to identify the node in order to route messages. The node ID will then be
linked to the corresponding network address for packet transmission.
6. Broadcast Transmission
Broadcast transmissions are intended to be propagated throughout the entire network
such that all nodes receive the transmission. This is useful for emergency alerts or
network notifications. Each WHD-310(V)1 comes with the ability to broadcast text
messages as a standard feature.
7. Node Discovery
A node discovery mechanism can be used to discover all modules that have joined a
network. A node discovery sends a broadcast discovery transmission throughout the
network. All devices that receive the command will send a response that includes the
device’s addressing information, Node Identifier String, and other relevant
information.
8. Node Search
The WHD-310(V)1 provides the ability to search for a specific node based on the
assigned Node Identifier String.
![](/img.php?id=1361539&img=bge.png)
WZRDnet Operation Manual
14
SECTION 6: WZRDnet COMMUNICATION UTILITIES
1. WZRDtalk Voice Communication
WZRDtalk is the voice communication utility of the WHD-310(V)1 which allows
users to send and receive voice quickly and seamlessly. Voice messages are played
out loud through an integrated speaker or through a Push-To-Talk (PTT) headset for
private conversations. The WHD-310(V)1’s speaker should never be held against a
user’s head.

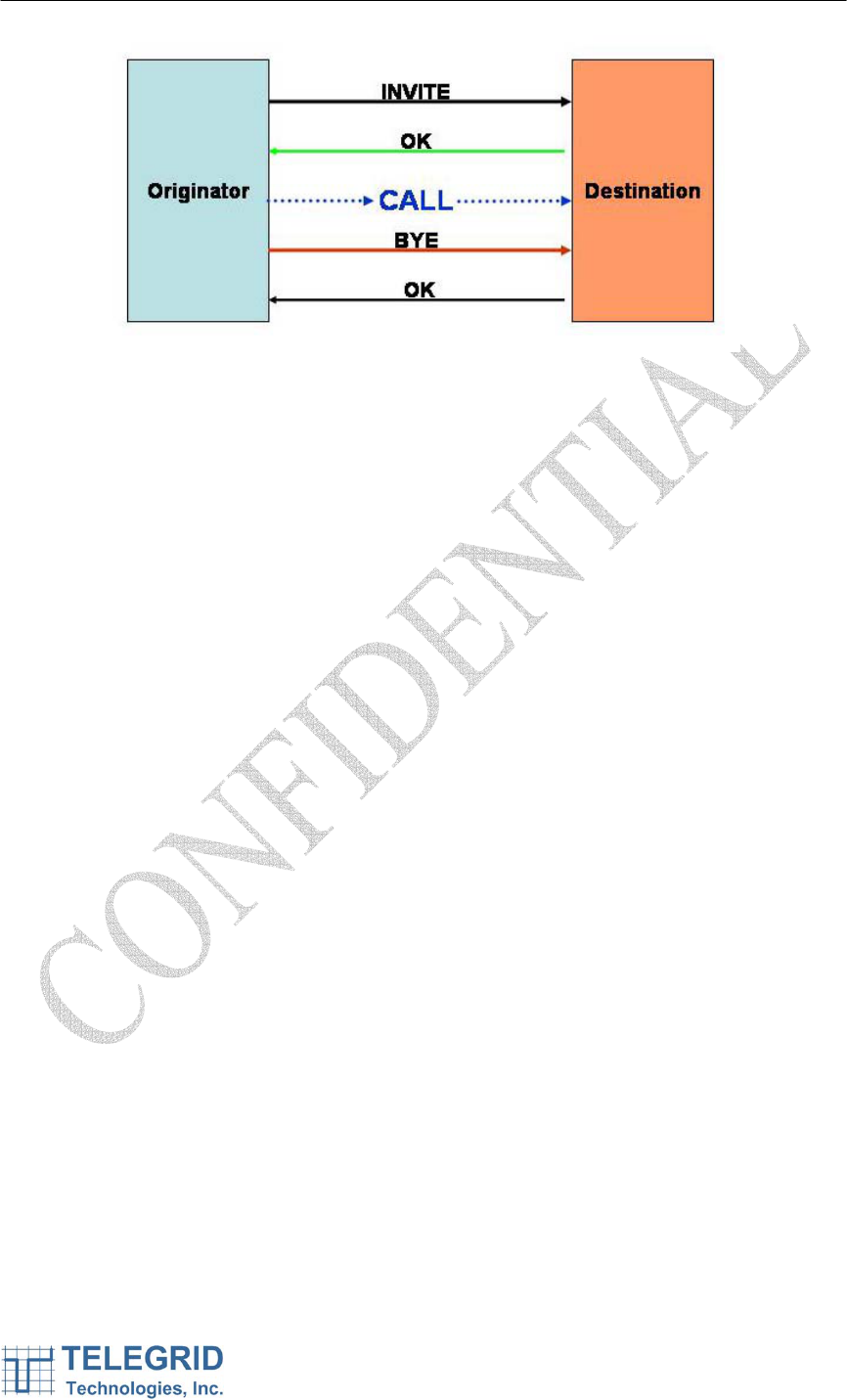

1.1 Call Initiation
The call originator selects a destination and initiates a call to that destination.
After a call is initiated by pressing and holding the PTT button, an invitation is
sent to the destination.
1.2 Call Invitation
The call invitation determines the operating status of the destination. The
destination hears an audible alert that an invitation was received. The system
then automatically responds whether the user is ready to accept calls or is busy.
1.3 Call Establishment
The call originator receives an audible alert if a response to the invitation was
received and the destination is ready to accept the call. The response is
received approximately 1-3 second after the call was initiated depending on the
location of the destination and the status of the routing path. If the user is out of
range and no response is received, a message will be displayed informing the
user that the call has failed.
1.4 Call Communication
After a call is established the call originator will continue to hold the PTT
button and begin talking.
1.5 Call Disconnect
A call disconnect is sent automatically when the user is finished speaking and
the PTT button is released.
1.6 Call Reply
The call remains active for 15 seconds after each communication. The active
status will allow the call originator and destination to communicate with each
other by simply pushing the PTT button.
After 15 seconds the call status will become inactive. The originator and
destination will then have to go through the call initiation process. Alternatively
it is possible to connect via the Speed Dial feature described below.
![](/img.php?id=1361539&img=bgf.png)
WZRDnet Operation Manual
15
Figure 6.1 WZRDtalk Process

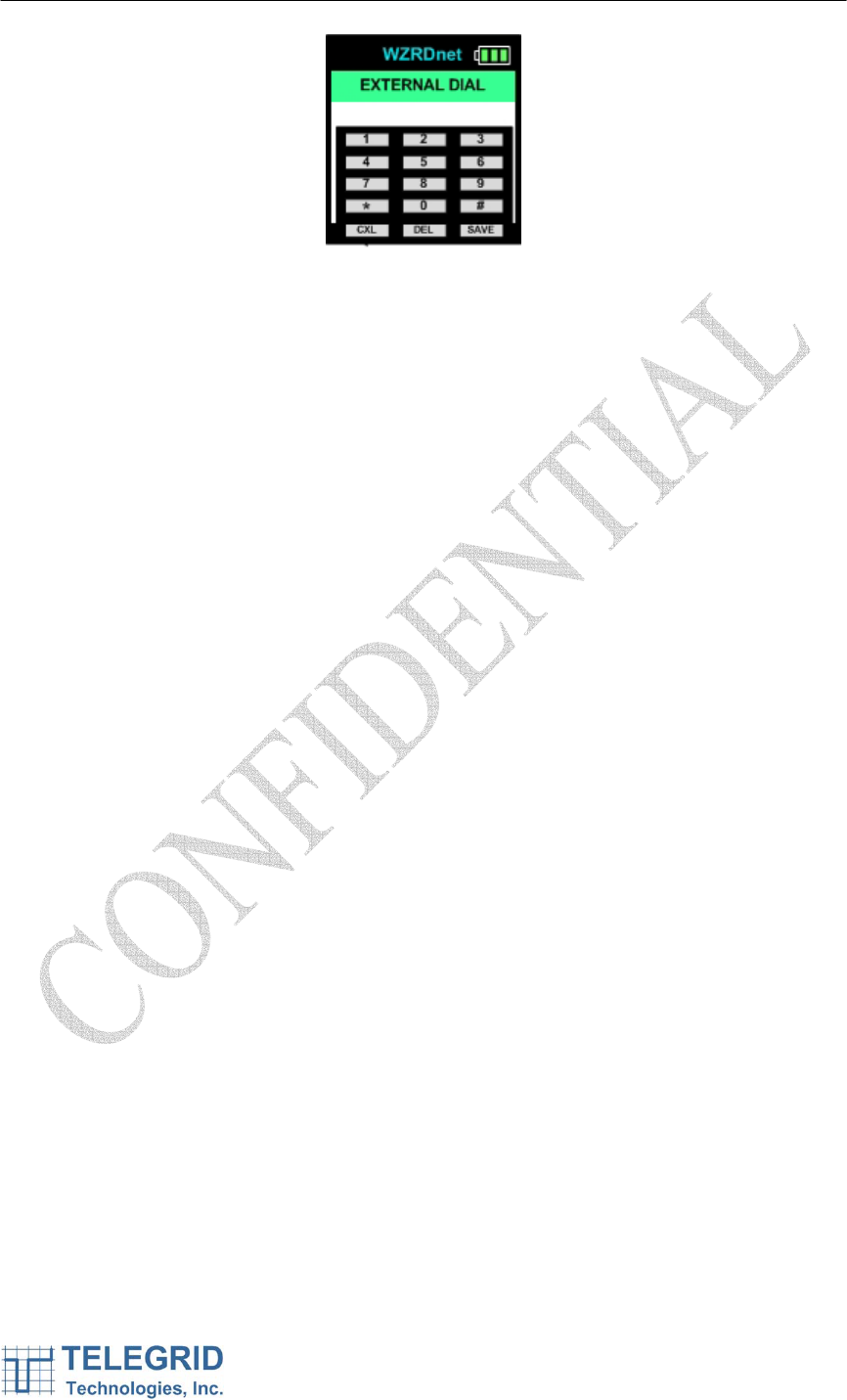

2. External Network Dialing
WZRDnet allows any device to communicate with external Wide Area Networks
(WANs) by providing a mechanism to transfer voice or data to the following external
networks and utilities:
Public Switched Telephone Network (PSTN)
• Provides analog voice communication via landline or mobile telephones.
Session Initiation Protocol (SIP) Phone
• SIP is a signaling protocol that is used to control voice communication over
Internet Protocol (IP). A SIP phone is a hardware-based or software-based
SIP user agent, that provides call functions such as dial, answer, reject,
hold/unhold, and call transfer.
Instant Messaging (IM) Client
• An IM client is a service that is based on either of the following real-time
communication protocols developed by the Internet Engineering Task Force
(IETF):
o SIMPLE - Session Initiation Protocol for Instant Messaging and
Presence Leveraging Extensions.
o XMPP - Extensible Messaging and Presence Protocol (XMPP) which
is an open source XML-based protocol.
![](/img.php?id=1361539&img=bg10.png)
WZRDnet Operation Manual
16

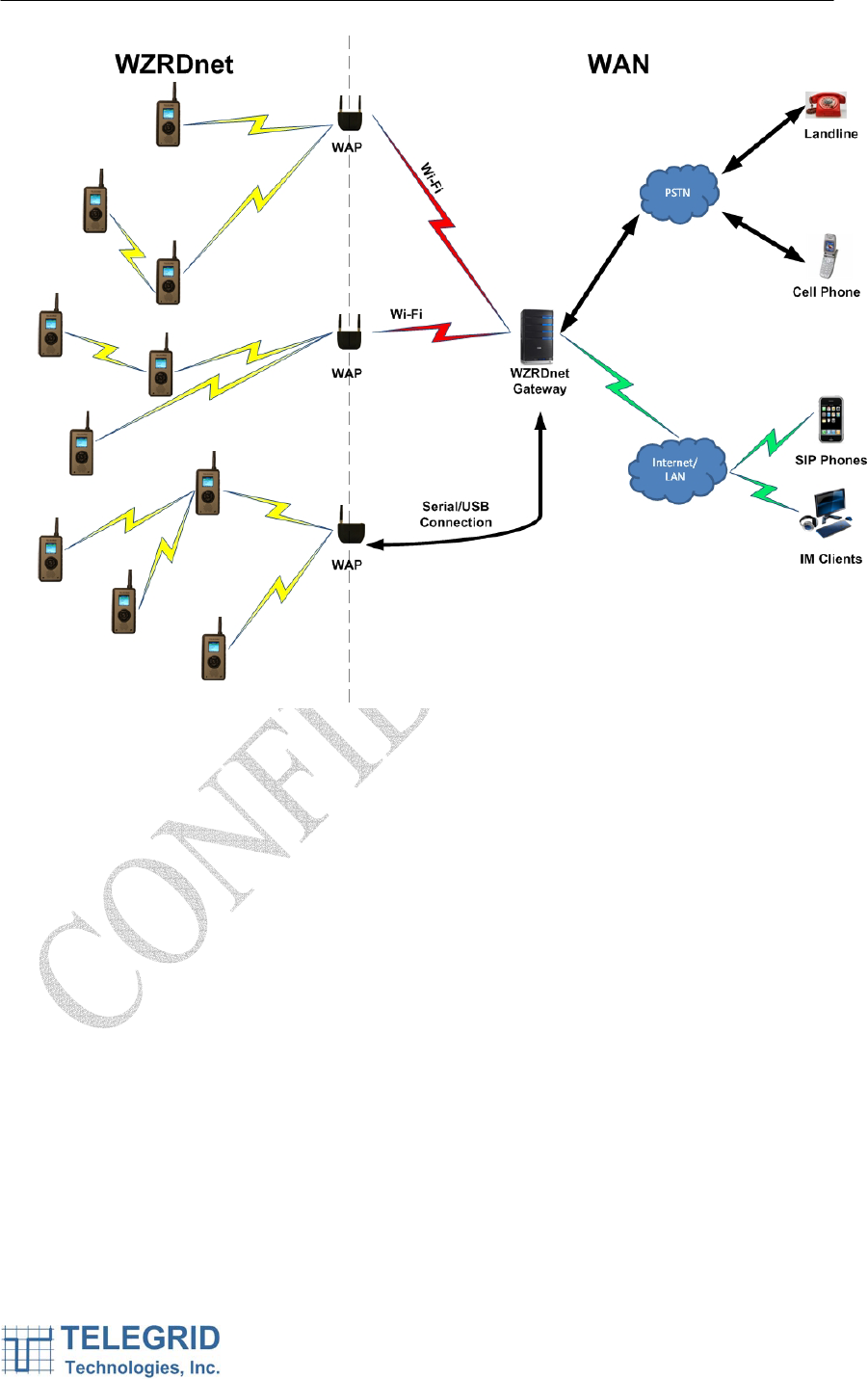

Figure 6.2 Sample External Dialing Network Design
2.1 External Dialing Elements
The key WZRDnet element which supports the external dialing feature is the
WZRDgate™. This element consists of a hardware unit and internal supporting
software. The key components of the WZRDgate are described in the
following:
2.1.1 WZRDnet Access Point
The WZRDnet Access Point (WAP) can be either embedded in the
WZRDgate or act as a standalone piece of equipment. It provides a
wireless link between the WZRDnet network and the WAN realm and
performs the adaptation of a WZRDnet packet to a WAN format.
A single WAP can process multiple calls simultaneously. In operation, a
WHD-310(V)1 desiring to send a voice segment to a WAN destination
will identify the WAP in closest proximity to it. The voice segment,
defined as the time between pressing and releasing the PTT button, will be
![](/img.php?id=1361539&img=bg11.png)
WZRDnet Operation Manual
17
processed through the same WAP. The WAP can change over the course
of a “call” but not within a single voice segment.
2.1.2 Gateway
The Gateway resides in the WZRDgate and consists of software that
receives packets and sends them to a SIP server for processing. The
Gateway also converts inbound messages back into the WZRDnet packet
format for transmission to a WHD-310(V)1 handset.
2.1.3 Connectivity
The WAP is able to transfer packets between the WZRDnet and the WAN
via Wi-Fi, Ethernet or Serial transmission.
2.1.4 Device Registration
WHD-310(V)1 devices and WAP register automatically with the
Gateway. The Gateway maintains a constant list of all devices in the
network including their MAC addresses and other identifying information.
2.1.5 WHD-310(V)1 Location Identification
Each WHD-310(V)1 sends a registration message to the Gateway at a pre-
determined interval. The Gateway uses this information to identify the
nearest WAP to the WHD-310(V)1. This information is used to route
inbound calls to a WHD-310(V)1 and provides the highest chance of a
successful connection.
2.1.6 Hosting
The SIP server can be hosted locally or remotely depending on the user’s
needs.

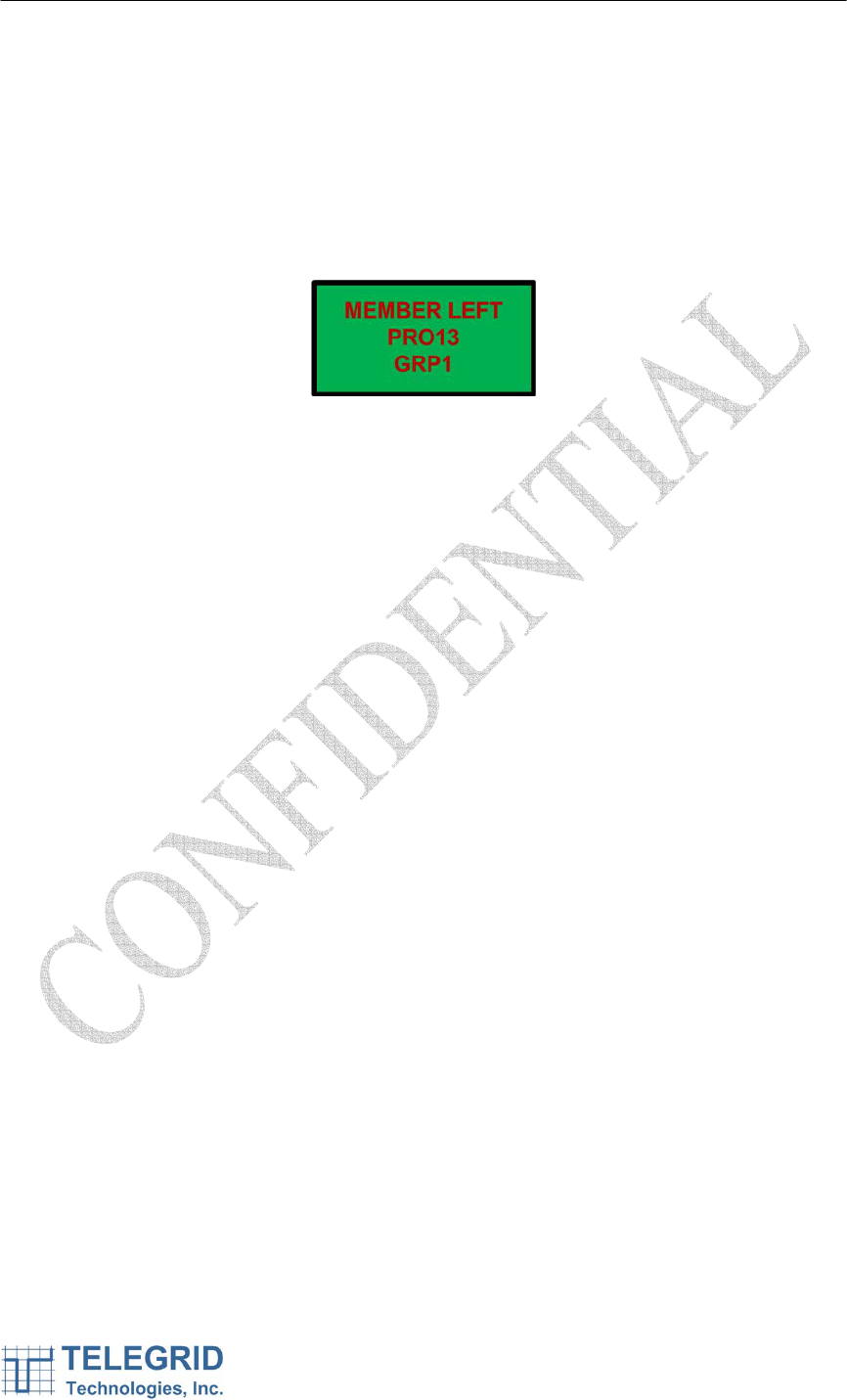

3. WZRDgroup™ Talk Group Communications
WZRDGroup provides communication with multiple users simultaneously. Users
can establish “talk groups” without the need of a group administrator. A user can add
or remove themselves from a talk group directly from the handset. This approach
allows the group to remain dynamic and eliminates the need for a group administrator

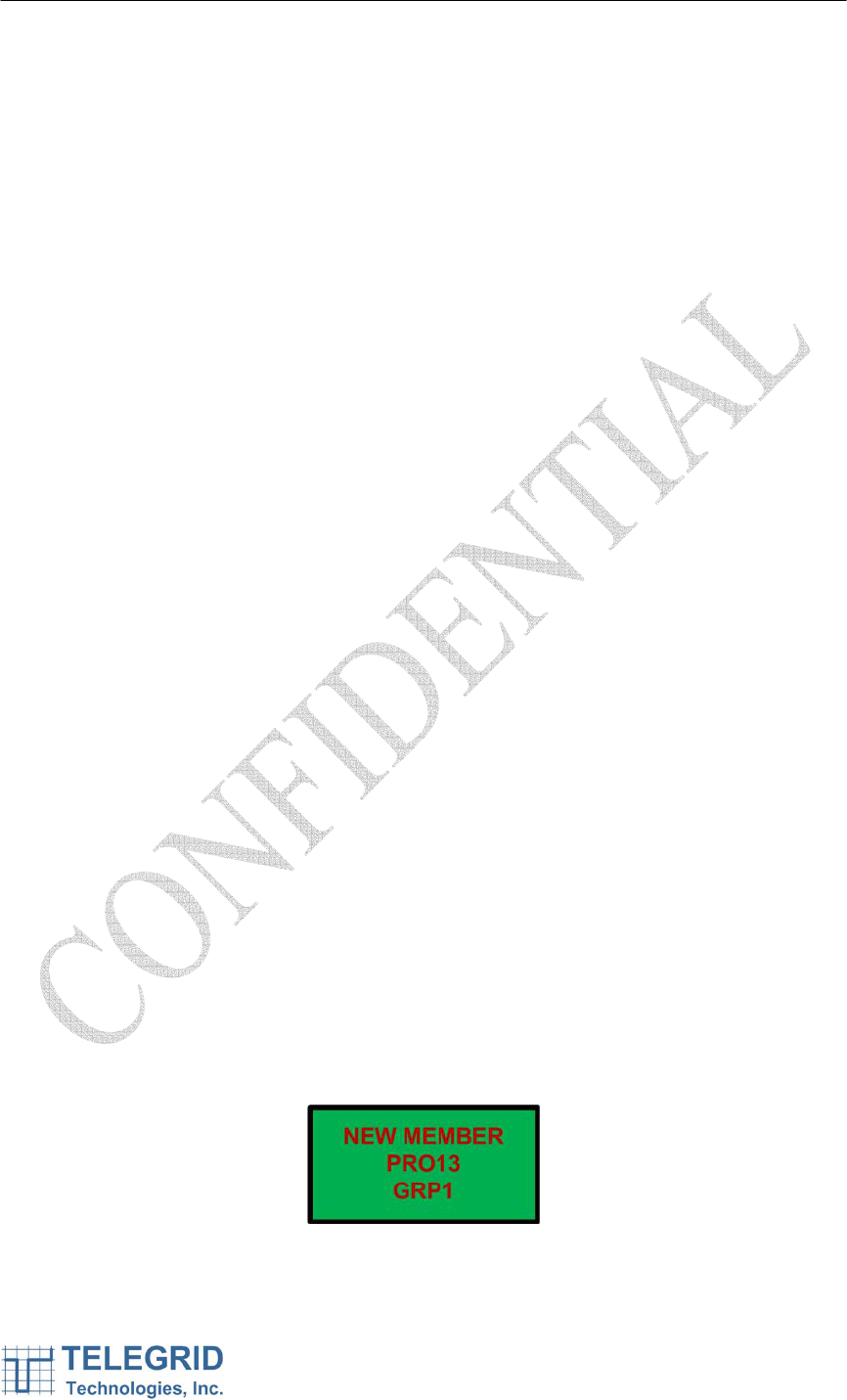

to maintain the list of members. An alert will be forwarded to the existing members
of the group declaring the arrival or removal of a new member. While this design
allows large scale talk groups, call quality deteriorates when talk groups reach more
than 5 users. A user can be a member of up to 10 different talk groups.

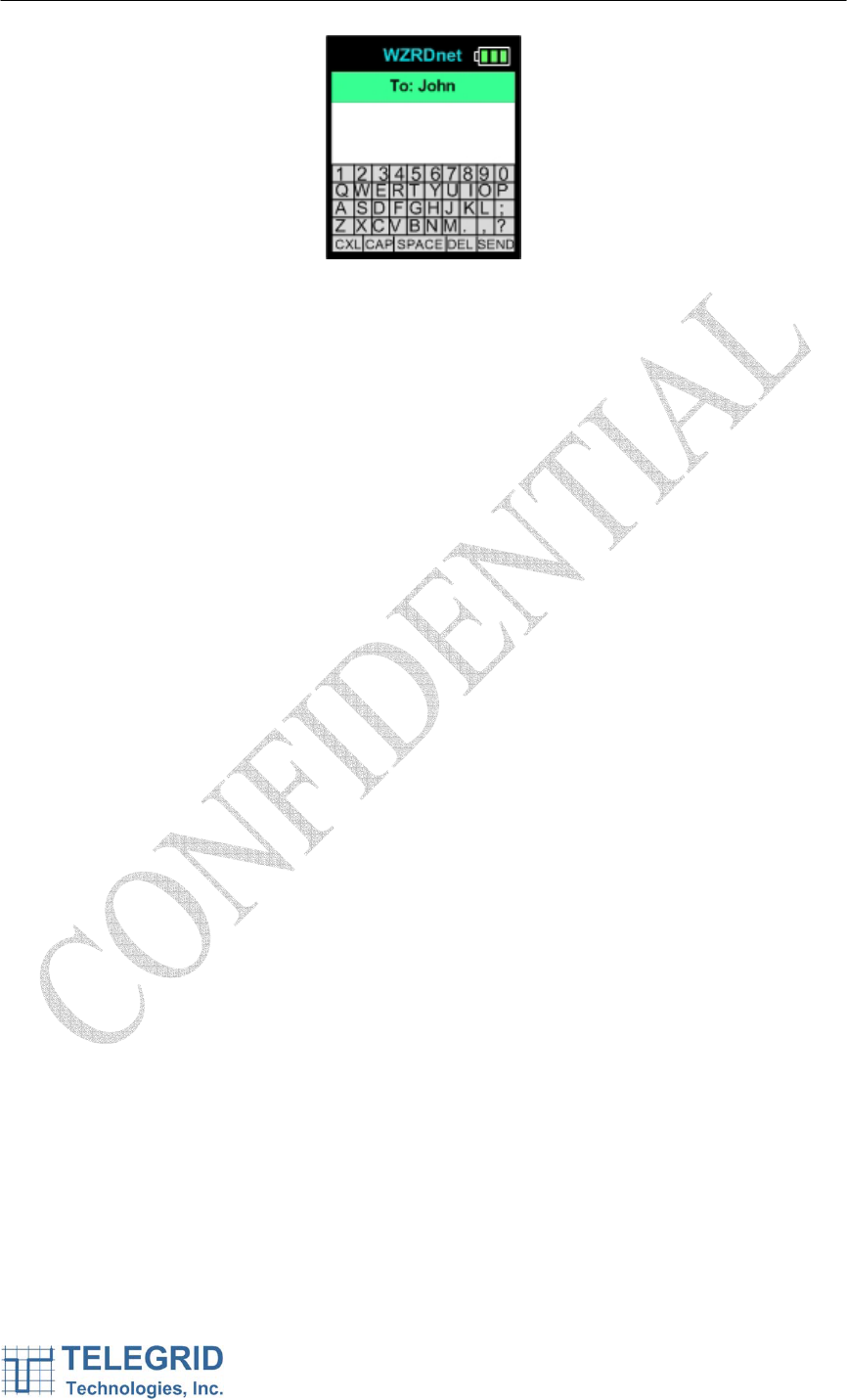

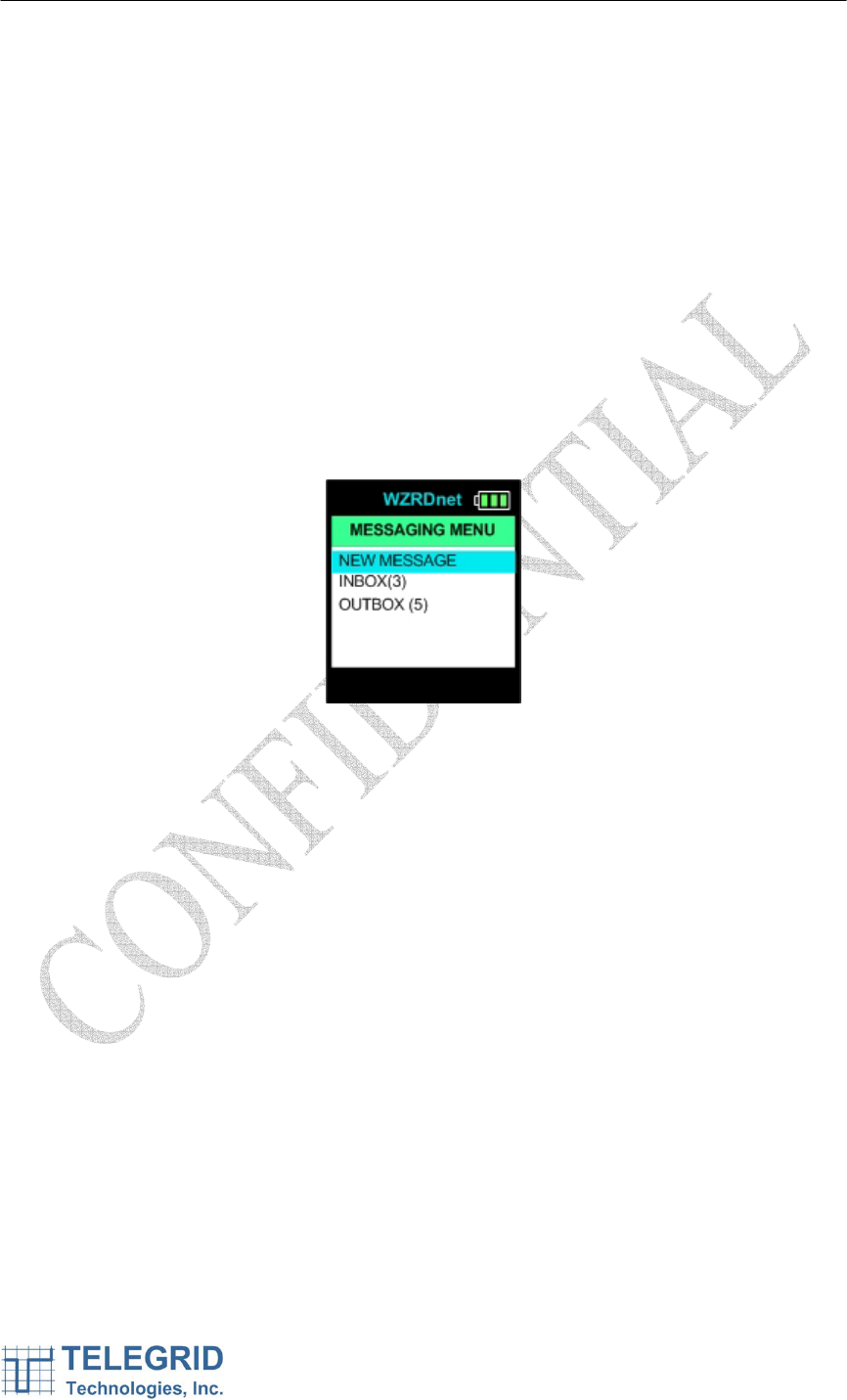

4. WZRDtext Text Messaging
The WZRDtext feature allows devices to send and receive text messages rapidly and
effectively. The user selects a destination based on the Node Identifier String. The
messaging component includes utilities to bolster network communication.
![](/img.php?id=1361539&img=bg12.png)
WZRDnet Operation Manual
18
4.1 Acknowledgments
Upon receipt of a new message, the Device will automatically send an
acknowledgement to the sender. The sender will then be able to determine if
the message reached its destination.
4.2 Long-Term Message Storage
The Device will store up to 30 sent messages and 30 received messages. A new
message will automatically override the oldest message eliminating the need for
message maintenance. The messages can be deleted or replied to at any time.
5. WZRDchat PC Instant Messaging
WZRDchat is a java-based PC application that can be used to send instant messages
to other nodes on the network. A node is attached to a PC using a USB connector
cable. The user can then monitor the network and send instant messages to other
nodes from the PC keyboard.
6. WZRDalert Network-Wide Notification
The WZRDalert feature broadcasts a text message to all users on the network for
emergency alerts or notifications.
![](/img.php?id=1361539&img=bg13.png)
WZRDnet Operation Manual
19
SECTION 7: SECURE COMMUNICATIONS
1. Encryption
The WZRDnet system can be set for secure or non-secure communication. If security
is enabled, the network employs 128-bit AES encryption with both a network security
key and link key. Only devices that have the same security keys can communicate on
the WMN. Routers that join a secure WMN must obtain the correct security keys.
1.1 Link Key
The link key is pre-defined and installed on each Router that wishes to join a
secure network. The link key is used to encrypt the network key which is sent
to devices upon joining the network.
1.2 Network Key
The Coordinator distributes a network security key when forming the network
and periodically based on the Key Update Interval. Routers obtain the key when
they join the network. The network key is encrypted with the preinstalled link
key and is transmitted securely to joining routers by the Coordinator. The
network security key is used to apply 128-bit AES encryption to all network
level transmissions. Network layer security is applied on a hop-by-hop basis.
As each node along a route receives an encrypted packet, it decrypts and
authenticates the packet before processing it. When forwarding the packet to the
next hop, the node re-encrypts the packet.
1.3 Key Update Interval
The administrator sets a periodic interval for the Coordinator to update the
Network Key. The Key Update Interval can be a specific number of days or
hours. The Network Key is generated randomly by the system.
![](/img.php?id=1361539&img=bg14.png)
WZRDnet Operation Manual
20
SECTION 8: Global Positioning System (GPS)
1. GPS Locator
The WHD-310(V)1 includes an embedded GPS locator which provides the local GPS
latitude and longitude position.

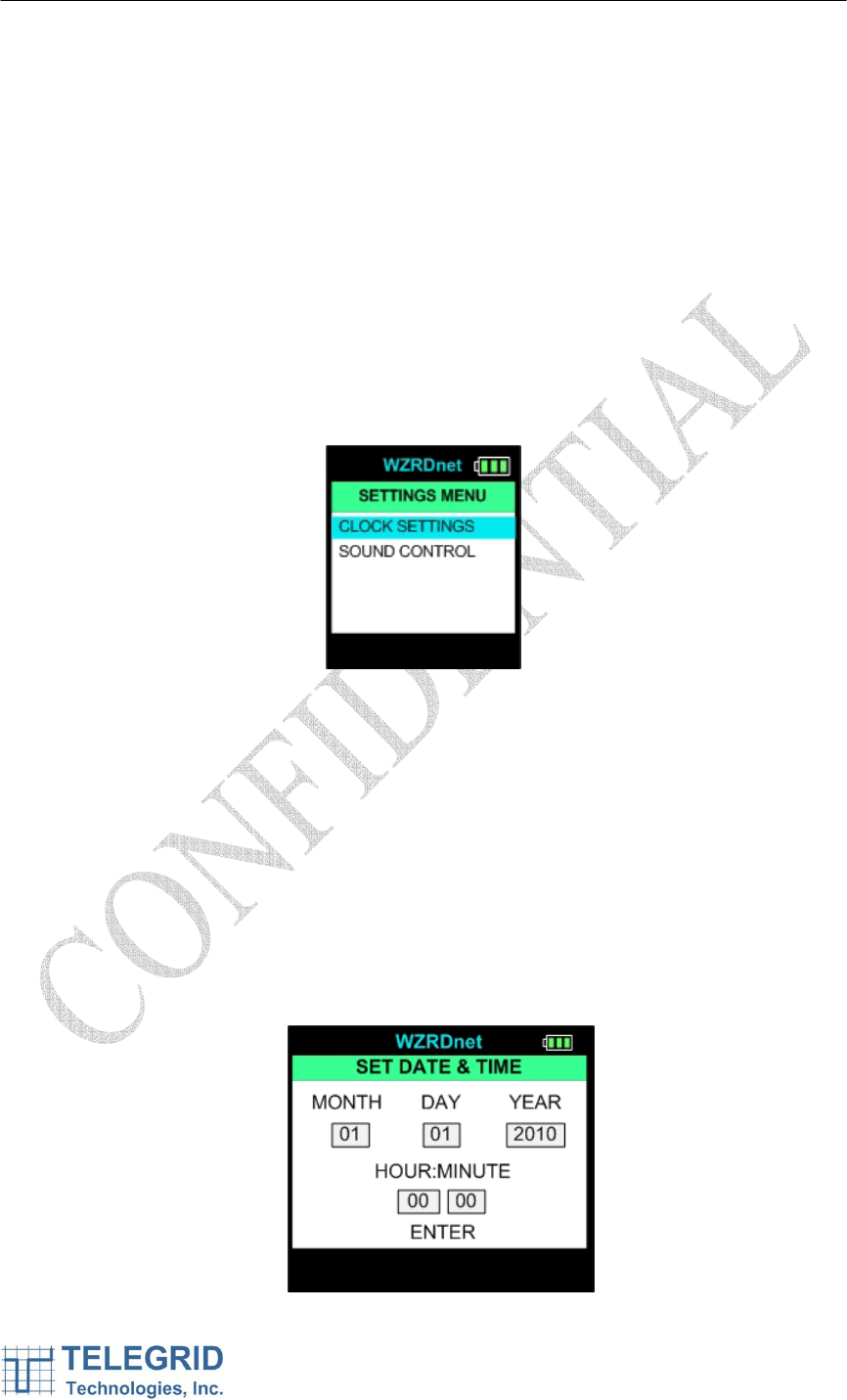

2. GPS Clock Sync
The WHD-310(V)1 allows syncing of the time to the GPS clock. GPS time is
reported in Greenwich Mean Time (GMT). The user has the ability to maintain a
local time offset that will automatically recalculate the time to the local time before
syncing.
3. GPS Tracking
The WHD-310(V)1 allows local storage of GPS coordinates along with a description.
The coordinates, user description and timestamp can be uploaded to a PC via the
WZRDchat software. These coordinates can then be displayed on a map.
4. GPS Mapping
A file of captured GPS coordinates can be uploaded to a PC for visual display on a
map. The file of GPS coordinates will be stored in a formatted .CSV file for upload
into any internet GPS mapping software.
![](/img.php?id=1361539&img=bg15.png)
WZRDnet Operation Manual
21
SECTION 9: OPERATING INSTRUCTIONS
1. Network Activation
1.1 Forming a Network
Turn on the Coordinator device. The Coordinator will perform an RF Energy
and WMN scan and then automatically form the network.
1.2 Assigning Network IDs
1.2.1 PC Serial Port Connection
In order to assign Node Identifier String to devices a USB to serial port
connection must be established on the PC. A driver will need to be
installed on the PC is order to communicate with the device through the
PC USB port.
Follow the steps below:
1) Insert WZRDnet CD into CD-ROM of a PC
2) Double-Click USBSerialDriver File
3) Follow instructions to install driver
1.2.2 Assigning a Node Identifier String
In order to communicate the device must be assigned a character based
Node Identifier String which can not exceed 20 characters. Assigning the
ID can begin after the USB to Serial driver has been installed.
Follow the steps below:
1) Power on the device
2) Attach device to a PC via the mini-USB to USB cable
3) Insert WZRDnet CD into CD-ROM of a PC
4) Open X-CTU
![](/img.php?id=1361539&img=bg16.png)
WZRDnet Operation Manual
22
5) Highlight the COM port that device is connected on (not
COM1).
6) Set Baud to 115200
7) Click API Enable Box
8) Go to the Modem Configuration Tab
![](/img.php?id=1361539&img=bg17.png)
WZRDnet Operation Manual
23
9) Press Read Button
10) Update NI – Node Identifier Value with desired Network ID
11) Press Write Button
12) DONE
![](/img.php?id=1361539&img=bg18.png)
WZRDnet Operation Manual
24
2. Getting Started
2.1 Buttons and Connectors
2.2 Battery Voltage Indicator
The battery voltage indicator is located in the upper right hand corner of the
screen. The number of bars signifies the amount of voltage in the battery with
three bars indicating full voltage. Low voltage will result in zero bars and the
battery voltage indicator flashing. The handset will power off when the voltage
drops below the minimum required threshold.
2.3 Charging the Battery
Charging the battery of the handset can be performed using a USB port or AC
wall adapter. Handset operation is permitted while charging. The battery
![](/img.php?id=1361539&img=bg19.png)
WZRDnet Operation Manual
25
indicator will cycle through the bars to indicate charging is in progress. Use
only approved chargers with the WHD-310(V)1.
2.3.1 USB Charging
1. Attach the USB cable to the mini-USB cable on the bottom of the
device.
2. Attach the USB cable to the USB port of a PC.
2.3.2 AC Wall Adapter Charging
1. Attach the AC wall adapter to the mini-USB cable on the bottom of
the device.
2. Attach the AC wall adapter to a wall outlet.
2.4 Turning ON/OFF
To turn the device on and off simply press and hold the center button shown
below.

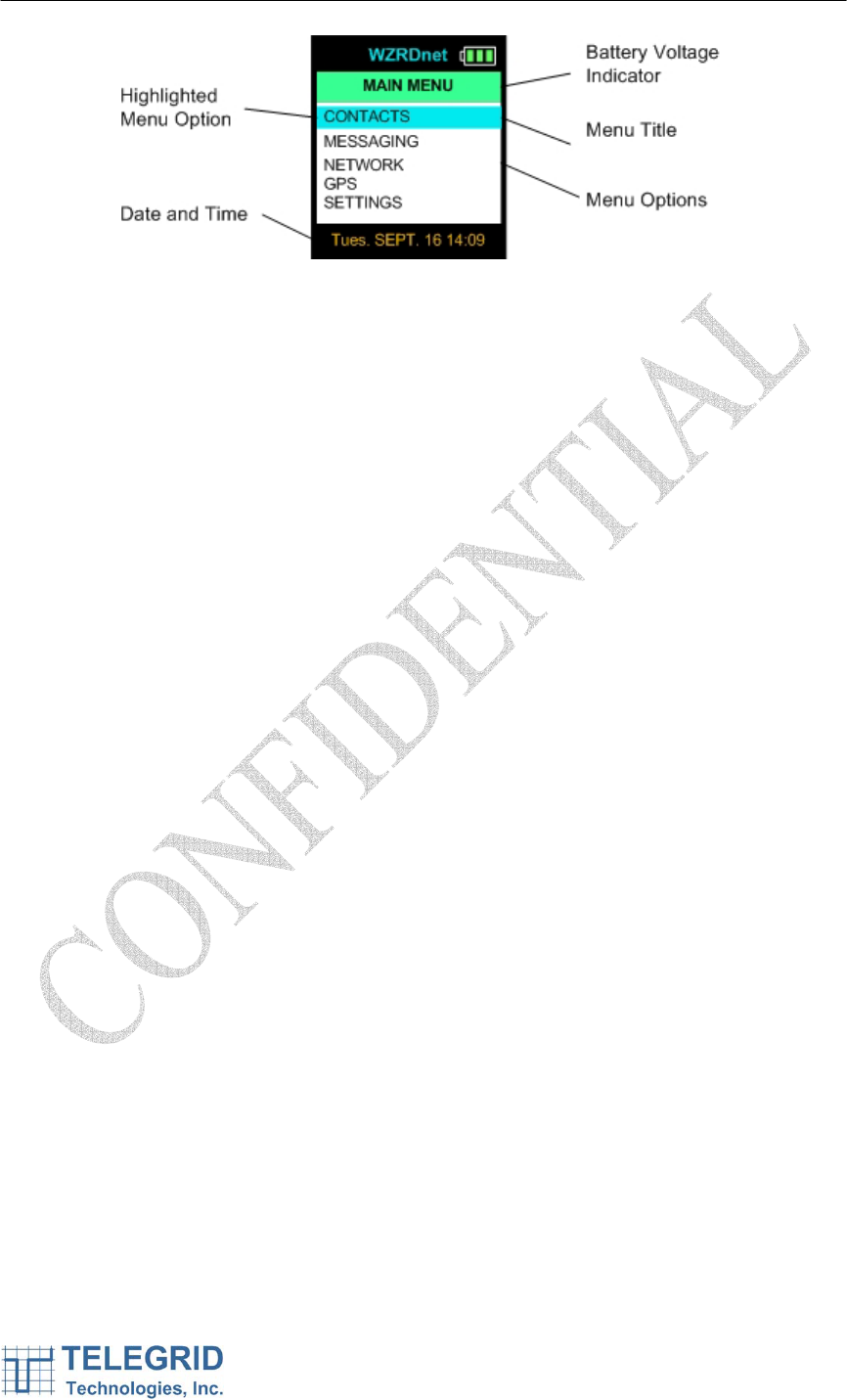

2.5 Navigation Tool
The WHD-310(V)1 is a menu driven device. A 5-button lighted
navigation tool is used to maneuver through the provided menus. The
navigation tool includes an up button, down button, left button, right
button and center button as shown below:
In most instances the left button can be used to go back to the previous menu.
2.6 IDLE mode
To save power the device will automatically go into an idle mode state when no
function of the device has been used for a certain period of time. Press any
button to deactivate IDLE mode and return to the last screen.
3. Using the Menu
The device offers an extensive range of functionality that is grouped in a series of
color menus. The main menu is shown below:
![](/img.php?id=1361539&img=bg1a.png)
WZRDnet Operation Manual
26
3.1 Scrolling
To access available menu items simply scroll using the up and down button.
The left button will return to the previous menu.
3.2 List of Menu Functions
• MAIN MENU
o Contacts
Contact List
Add Contact
Add Group
o Messaging
New Message
Inbox (# in Inbox)
Outbox (# in Outbox)
o Network
Network Info
Find Network
Node Search
Change Channel
o GPS
View Position
Save Position
Upload
Enable/Disable GPS
o Settings
Clock Settings
• Set Date & Time
• Sync to GPS
• Local Offset
Sound Control
• MESSAGE DETAILS
o Main Menu
o Reply
o Delete
• NODE LIST
![](/img.php?id=1361539&img=bg1b.png)
WZRDnet Operation Manual
27
o Send Txt Msg
o Add Contact
o Main Menu
• CONTACT LIST
o Send Txt Msg
o Remove Contact
o Main Menu
4. Menu Functions
4.1 User Settings
User settings can be accessed by performing the following steps:
Main Menu → Settings
4.1.1 Clock Settings
4.1.1.1 Set Date & Time
The device contains a real-time clock that will maintain the correct
date and time when the device is off or the battery is depleted. The
real time clock uses a back-up battery in absence of the main battery
supply. The date and time are displayed on the main menu screen.
The user can set the clock manually by performing the following
steps:
Main Menu → Settings → Clock Settings → Set Date and Time
![](/img.php?id=1361539&img=bg1c.png)
WZRDnet Operation Manual
28
Use the up button to move through the numbers. Use the right
button to go to the next section. Press the center button to store the
new date and time settings.
4.1.1.2 Sync to GPS Clock
Sync the time to the GPS clock by performing the following steps:
Main Menu → Settings → Clock Settings →Sync to GPS
4.1.1.3 Local Offset
GPS time is transmitted in Greenwich Mean Time (GMT). The user
can create a local time offset by doing the following:
Main Menu → Settings → Clock Settings →Local Offset

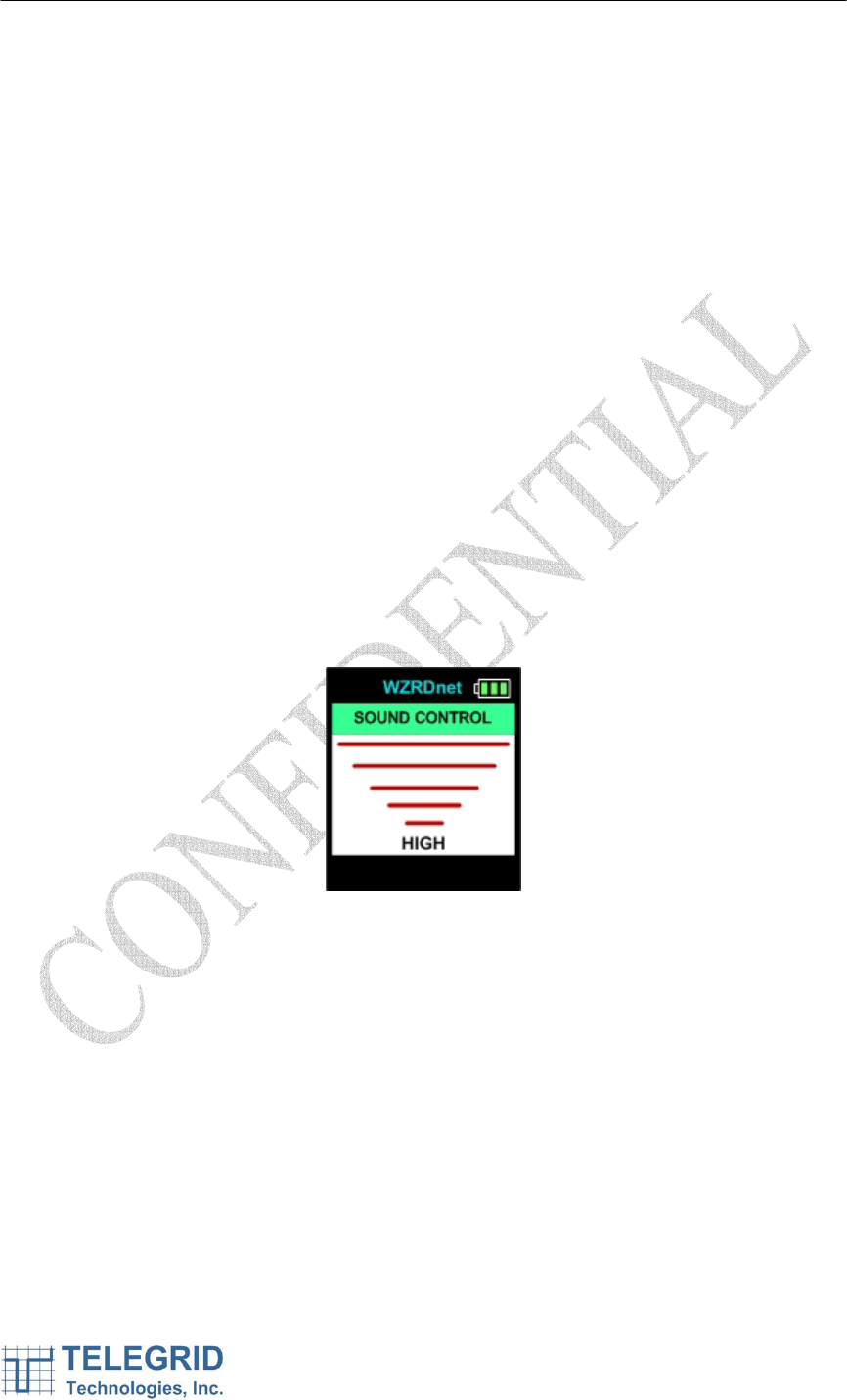

4.1.2 Sound Control
The device contains a volume control feature that the user can set from the
interface by performing the following steps:
Main Menu → Settings → Sound Control
The current volume is displayed on the bottom of the screen. Use the up
and down button to adjust the volume. Press the center button to save the
volume setting.
4.1.3 Encryption Key Update Interval
If security is enabled the Network Key will be updated periodically by the
Coordinator as described above. In order to establish the Key Update
Interval, the Coordinator will access a screen on the handset that allows
setting a specified number of hours or days.
4.2 Network Management
The network management tools can be accessed by performing the following
steps:
![](/img.php?id=1361539&img=bg1d.png)
WZRDnet Operation Manual
29
Main Menu → Network
4.2.1 Network Info
The Network Info screen displays the devices network information
including the following:
• Node Identifier String
• 64 bit IEEE MAC Address
• 16 bit Network Address
• Channel
• 64 bit PAN ID
4.2.2 Find Network
The WHD-310(V)1 is capable of sending out a node discovery request to
update the list of available nodes. The number of node responding will be
displayed in real time. Upon completion of the node search the screen will
display a list of nodes found.
4.2.3 Node List
When all available nodes have been found the node list will be displayed.
To add a node scroll through the list and highlight the desired node. Press
the center button and select Add Contact from the pop-up menu. The pop-
menu features the following options:
• Send a text message
• Add to contacts
• Return to Main menu.
After adding a contact press the left button to return to the node list. To
begin a call with a node in the node list, highlight the desired node and
press the PTT button.
4.2.4 Node Search
The Node Search function allows the user to search for a specific node
based on the Node Identifier String. The system will display a virtual
keyboard to enter the ID. The system will check locally for the node using
![](/img.php?id=1361539&img=bg1e.png)
WZRDnet Operation Manual
30
a node discovery. If the node is not found, the system will then query the
Gateway for the node information. The system will then display if the
node was found. If the node was found the system will provide the
following pop-menu featuring the following options:
• Send a text message
• Add to contacts
• Return to Main menu.
To begin a call with the node, press the PTT button.
4.2.5 Change Channel
If a channel becomes crowded it is possible for the network coordinator to
switch to a new channel. Turn off the handset and wait for the network
coordinator to establish the network on a new channel. Each handset must
change channel one at a time. While changing channel no handset on the
old channel can be powered on. When notified by the network
coordinator, turn the handset back on and perform the following steps:
Main Menu → Network → Change Channel
4.3 Contacts
The user can maintain a list of personal contacts in the device. The contacts are
a subset of the network node list. The contacts can be accessed by performing
the following steps:

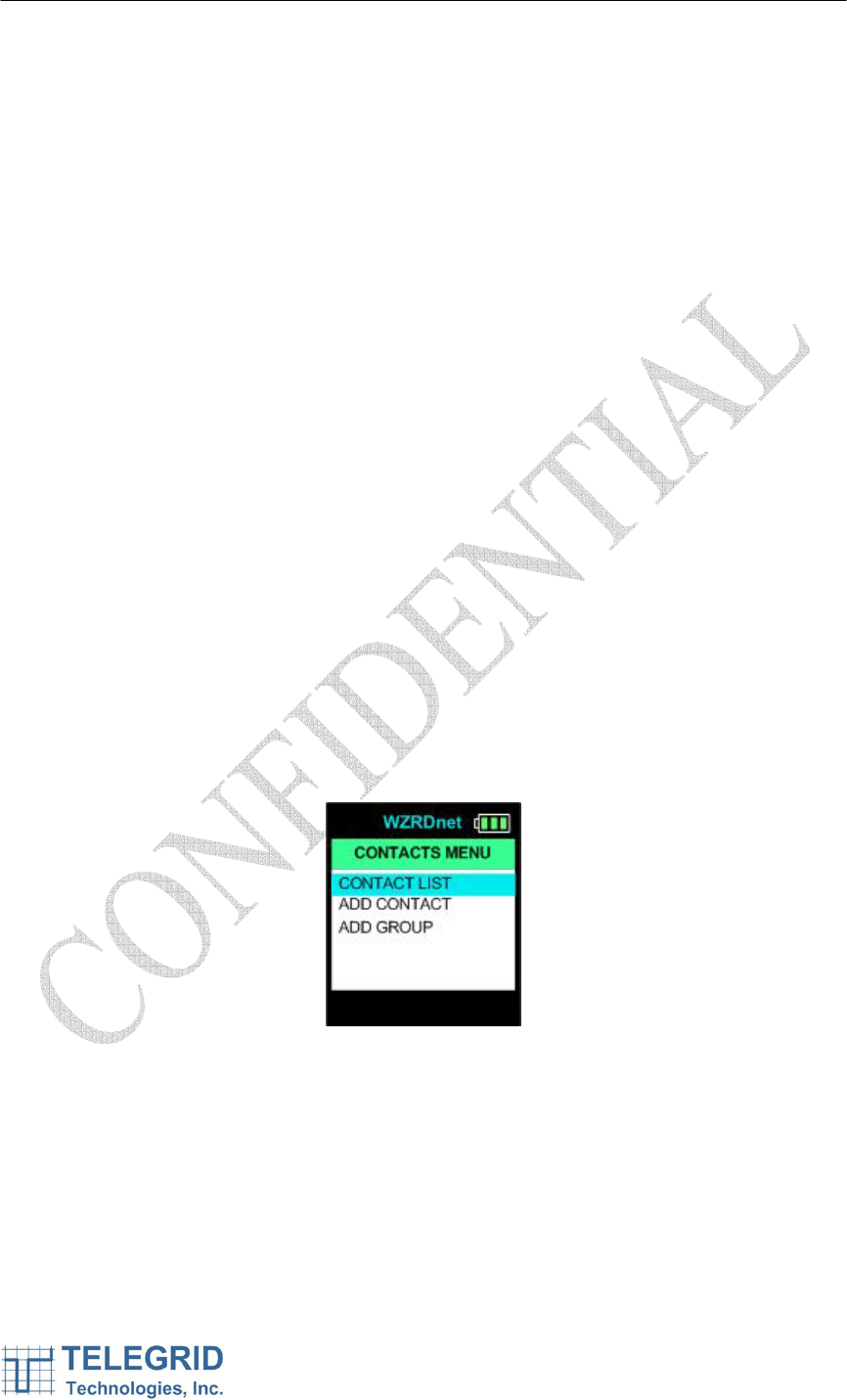

Main Menu → Contacts
4.3.1 Contact List
An alphabetical list of contacts can be accessed as follows:
Main Menu → Contacts → Contact List
4.3.2 Adding Contacts
Nodes can be added to the contact list directly from the node list by
performing either of the following steps:
![](/img.php?id=1361539&img=bg1f.png)
WZRDnet Operation Manual
31
Main Menu → Contacts → Add Contact
Main Menu → Network → Find Network
A node discovery will be performed and the user can add a contact per the
instructions above. Pressing the left button will return the user to the node
list.
4.3.3 Navigation
The user can scroll through the list using the up and down buttons.
Pressing the center button will allow the user to create a text message.
Pressing the PTT button will send a call invitation.
4.3.4 Removing Contacts
Contacts can be removed from the list by performing the following steps:
Main Menu → Contacts → Contact List
Highlight the contact the desired contact and press the center button.
Select Remove Contact from the pop-up menu and press the center button.
5. WZRDtalk
5.1 Call Initiation
5.1.1 WHD-310(V)1 to WHD-310(V)1
A call begins by selecting a node from the contact list or the node list by
performing the following steps:
Main Menu → Contacts
or
Main Menu → Network → Find Network.
Highlight the desired recipient and simply press and hold the PTT button
on the side of the device. The selected recipients ID will appear in RED
on the screen.
5.1.2 External Network Calling
5.1.2.1 Dial-Pad
The handset includes an external call feature for Wide Area Network
access. The user can access the numeric keypad by performing the
following steps:
Main Menu → Contacts → External Dial
![](/img.php?id=1361539&img=bg20.png)
WZRDnet Operation Manual
32
Upon selecting the external call option a numeric dial pad will
appear on the LCD screen. Enter a phone number manually using
the 5-button navigation tool. After the number has been entered
simply press and hold the PTT button on the side of the device.
The entered phone number will appear in RED on the screen.
5.1.2.2 Contact List
External phone numbers can be stored in the contact list for later use.
To add an External Network contact, enter the number and select
SAVE from the dial pad. An alphanumeric keypad will appear to
enter a contact description. The name will appear in BLACK in the
contact list in order to distinguish it from WZRDnet contacts.
5.2 Call Invitation
After a call is initiated an invitation is sent to the recipient to check their status
and alert them to the inbound call. If available the recipient will see the
following:
• The caller’s ID will appear in RED and then BLUE on the LCD
• A single audible beep will be sounded.
5.3 Call Establishment
The system will make 2 attempts to connect to the recipient within the local
network. If the device is unavailable locally it will try to contact to a remote
WZRDnet network through theWZRDgate. If the recipient is available the
caller will the following:
• The recipient’s ID will turn to BLUE on the LCD
• A double audible beep will be sounded.
The caller can then begin speaking.
5.4 Call Termination
A call is terminated by releasing the PTT button. Upon termination the caller’s
LCD will display the recipient’s IDs in BLACK and the recipient’s LCD will
display the caller’s IDs in BLACK.
![](/img.php?id=1361539&img=bg21.png)
WZRDnet Operation Manual
33
If no call activity occurs within 15 seconds the system will return to the main
menu.
5.5 Speed Dial
WZRDtalk provides a quick mechanism to redial the last caller. The system
retains the address information of the most recent caller/ recipient.
This address can be called quickly by simply pressing and holding the PTT
button. The most recent caller/ recipient is also retained through a power cycle.
6. WZRDgroup
6.1 Group Establishment
Talk Groups are defined and established by individual users in the system.
Users will define a name for the new group and add it to their handsets. Users
can be added or removed as often as necessary. An alert will be forwarded to
the existing members of the group declaring the arrival of a new member or the
removal of a member.
6.2 Group Maintenance
Talk groups are maintained in the handset and do not require a third party group
administrator. The user is allowed to add, remove and view talk groups from
the handset.
6.2.1 Group List Display
Talk Groups are displayed in red and uppercase in the Contact List.
6.2.2 Add Group
To add a group perform the following:
Main Menu → Contacts → Add Group
A virtual keyboard will be displayed to enter the new talk group name.
When the new name is entered press the save button. A message
indicating that the new group was added will be displayed. A message
will then be forwarded to the existing members of the group declaring the
new member. The following alert will notify members of the new
member and the associated talk group:
![](/img.php?id=1361539&img=bg22.png)
WZRDnet Operation Manual
34
6.2.3 Remove Group
A member can remove themselves from the group by selecting the Talk
Group from the contact list. A sub-menu will pop-up and the user will
select remove. A message indicating the group was removed will be
displayed. A message will then be forwarded to the existing members of
the group declaring the member has been removed. The following alert
will notify members of the group the name of the member that was
removed and the associated talk group:
6.3 Call Establishment
Talk group calls are initiated the same way as a unicast calls. The group is
highlighted in the Contact List and the PTT button is pressed. The speed dial
feature will maintain a talk group if it was the most recent caller/ recipient.
6.4 Call Display
Talk Group calls alert the user in the same mechanism as unicast calls. The user
will see the name of the node who is speaking as well as the name of the Talk
Group. The name of the Talk Group will appear in red above the name of the
node who is speaking. Pressing the PTT button will call back the entire group
not the last node speaking.
7. WZRDtext
7.1 Message Creation
A new text message can be created in the following ways:
Main Menu → Contacts.
Main Menu → Find Network
Main Menu → Messaging → New Message.
Highlight the desired node and press the center button. Select NEW TXT
MSG from the pop-up menu and a virtual keyboard will be displayed.
7.1.1 Virtual Keyboard
WZRDtext contains a full on-screen QWERTY keyboard. The keys can
be maneuvered using the up, down, left and right button buttons. When
the desired key is highlighted, press the center button and it will be added
to the message.
![](/img.php?id=1361539&img=bg23.png)
WZRDnet Operation Manual
35
7.2 Message Received Status
The destination will send an ACK to confirm the message has been received.
The Outbox will display messages in RED that were not received while
messages displayed in GREEN were received.
7.3 Incoming Message Alert
Upon receipt of the message the system will do the following:
• A new message pop-up will appear on the display
• A single audible beep will be sounded.
7.4 Reading a Message
When a message is received, the full message details will be displayed by
pressing the center button. Pressing the left button will remove the pop-up and
return the user to the prior screen.
7.4.1 Message Details
The message will contain the following details:
• Senders Node ID
• Full Message Text
• Local Received Timestamp
7.4.2 Message Options
When reading a messing the following options will be displayed by
pressing center button:
• Main Menu
• Reply
• Delete
7.5 Replying to a Message
By selecting reply the virtual keyboard will be displayed with the recipient’s
Node Identifier String displayed at the top.
![](/img.php?id=1361539&img=bg24.png)
WZRDnet Operation Manual
36
7.6 Deleting a Message
By selecting delete the message is removed from the system.
7.7 Message Archive
The device will maintain the 30 most recently received messages and 30 most
recently sent messages. All messages will be automatically saved until the user
selects them for deletion.
To view received messages to the following:
Main Menu → Messaging → Inbox (# of messages)
To view sent messages to the following:
Main Menu → Messaging → Outbox (# of messages)
Scroll through the list of messages using the up and down buttons. To see the
full message screen highlight a message and press the center button.
8. WZRDchat
WZRDchat is the PC application used to send and receive text messages through an
attached node. The main screen of the WZRDchat application is shown below:
![](/img.php?id=1361539&img=bg25.png)
WZRDnet Operation Manual
37
8.1 Node Discovery
A node discovery can be performed by selecting Find Nodes. The list of
available nodes will update as responses are received.
8.2 New Message
To create a new message, highlight the desired node, and select Send Message.
A new chat window will appear.
![](/img.php?id=1361539&img=bg26.png)
WZRDnet Operation Manual
38
The new chat window will also appear by double-clicking on the node ID. Type
a message and press send to transmit. The message and all responses including
the timestamp will appear in the section above.
9. WZRDalert
WZRDalert broadcasts a text message to all users on the network. To send a
broadcast message perform the following steps:
Main Menu → Messaging →Broadcast
The virtual keyboard will be displayed.
10. GPS
The device contains a GPS receiver to allow viewing and saving coordinates. The GPS
menu can be accessed by performing the following steps:
Main Menu → GPS
![](/img.php?id=1361539&img=bg27.png)
WZRDnet Operation Manual
39
10.1 View Position
The user can view their GPS location by performing the following steps:
Main Menu → GPS →View Position
The screen will display Searching for Signal followed by the handset’s
latitude and longitude.
10.2 Save Position
To save a location with a description perform the following steps:
Main Menu → GPS →Save Position
Enter a description using the keypad and the location will then be saved in the
system for future upload.
10.3 Upload GPS Coordinates
In order to upload saved GPS coordinates the user will perform the following
steps:
1) Plug USB connector into device and then connect to a PC.
2) Open WZRDChat application
3) Go to Main Menu → GPS →Upload
4) WZRDChat will alert the user that a file is ready for upload and
prompt for a location to save the file.
5) WZRDChat will alert the user when the upload is complete.
10.4 Enable/Disable GPS
The GPS feature can be disabled or enabled by performing the following
steps:
Main Menu → GPS →Disable GPS/ Enable GPS
![](/img.php?id=1361539&img=bg28.png)
WZRDnet Operation Manual
40
SECTION 10: PRODUCT AND SAFETY INFORMATION
1. Safety Information
1.1 WHD-310(V)1 Information
Do not disassemble, crush, open, bend, deform, microwave or puncture
device.
Avoid dropping device.
Avoid excessive pressure on device.
Do not expose to extreme temperatures, liquid, moisture, or high humidity.
Device contains small parts risk which may present a choking hazard.
Keep metal objects away from connectors and battery terminals.
Do not expose to open flames.
Do not dispose of device in fire or water. Recycle or dispose of device
according to local regulations.
Do not use harsh chemicals, aerosol cleaners or solvents to clean the device
Avoid dramatic shifts in temp as will cause moisture. Allow sufficient time
for moisture to evaporate before using the device.
Avoid pushing objects into the device as this action might cause a short
circuit, a fire, or electric shock. Never force a connector into a port
Do not disassemble device or accessories.
Do not repair or service the device yourself.
Turn your device OFF where posted notices so require.
Failure to observe all safety instructions will void Warranty.
1.2 Battery Information
The WHD-310(V)1 contains rechargeable Lithium Ion batteries. Lithium Ion
batteries pose a risk of fire, explosion, leakage, or other hazard. Replace only
with approved batteries. Recycle or dispose of used batteries according to
local regulations.
Use only approved batteries and chargers. Use of an unapproved battery or
charger may present a risk of fire, explosion, leakage, or other hazard.
Do not disassemble, crush, open, bend, deform, microwave or puncture
battery.
Avoid dropping battery.
![](/img.php?id=1361539&img=bg29.png)
WZRDnet Operation Manual
41
Keep metal objects away from battery terminals.
Do not expose battery to extreme temperatures, fire, direct sunlight, liquid,
moisture, or high humidity.
Do not use batteries that appear damaged, deformed, discolored, rust or emits
foul odor.
In the event the battery leaks and the fluid gets into one's eye, do not rub the
eye. Rinse well with water and immediately seek medical care. If left
untreated, the battery fluid could cause damage to the eye.
Do not use charger if the power cord or plug has become frayed or damaged;
The charger is exposed to rain, liquid, or excessive moisture; The charger has
become damaged.
1.3 Antenna
Use only approved replacement antennas. Unauthorized antennas or
modifications could damage your device or result in a violation of FCC
regulations.
Do not use any device that has a damaged antenna. If a damaged antenna
comes into contact with your skin, a minor burn can result.
1.4 Health and General Use
Loud speaker can cause hearing loss. Keep device away from head and set
volume to a safe level. When using the earpiece set volume to a safe level.
Use of earpiece at high volume can lead to hearing loss.
Avoid repetitive motion and take frequent breaks when using the device.
Avoid use on Aircraft. RF Interference might disrupt instrumentation,
communication and performance; Might disrupt the network; Might be illegal.
Turn your device OFF before boarding an aircraft. Always request and obtain
prior consent and approval of an authorized airline representative before using
your device aboard an aircraft. Always follow the instructions of the airline
representative whenever using your device aboard an aircraft, to prevent any
possible interference with airborne electronic equipment
Do not place the device in the area over an air bag or in the air bag
deployment area. Air bags inflate with great force. If a device is placed in the
air bag deployment area and the air bag inflates, the device may be propelled
with great force and cause serious injury to occupants of the vehicle.
Do not use in explosive atmosphere in presence of explosive fumes, explosive
dust, or other explosive chemicals. Sparks could cause fire or explosion
resulting in serious injury or death.
Areas with a potentially explosive atmosphere are often, but not always,
clearly marked. They include fueling areas such as gasoline or petrol stations;
below deck on boats; fuel or chemical transfer or storage facilities; vehicles
![](/img.php?id=1361539&img=bg2a.png)
WZRDnet Operation Manual
42
using liquefied petroleum gas (such as propane or butane); areas where the air
contains chemicals or particles, such as grain, dust, or metal powders; and any
other area where you would normally be advised to turn off your vehicle
engine.
Blasting areas: To avoid interfering with blasting operations, turn off all
wireless connections on the BlackBerry device when in a “blasting area” or in
areas posted: “Turn off two-way radio”. Obey all signs and instructions.
Use of device when driving, riding or walking is not recommended and is
illegal in some areas. Comply with local laws and regulations regarding use
of wireless devices when driving, riding or walking.
Pacemakers: The Advanced Medical Technology Association (AdvaMed)
recommends that a minimum separation of 6 inches (15 centimeters) be
maintained between a handheld wireless device and a pacemaker.
These recommendations are consistent with those of the U.S. Food and Drug
Administration.
Persons with pacemakers should:
• ALWAYS keep the device more than 6 inches (15 centimeters) from their
pacemaker when the device is turned ON.
• Not carry the device in the breast pocket.
• Use the ear opposite the pacemaker to minimize the potential for
interference.
• Turn the device OFF immediately if you have any reason to suspect that
interference is taking place.
Hearing Aids: Some digital wireless radios may interfere with some hearing
aids. In the event of such interference, you may want to consult your hearing
aid manufacturer to discuss alternatives.
This device may cause RF Interference with other personal medical
equipment. Consult manufacturer of medical device to determine if it is
adequately shielded
Do not rely on this phone during emergencies. All wireless devices operate
using radio signals which cannot guarantee a connection at all times due to
network availability or environmental interference.
2. Certifications
FCC ID: XAYWHD310V1
IC ID: 9251A-WHD310V1
![](/img.php?id=1361539&img=bg2b.png)
WZRDnet Operation Manual
43
2.1 FCC Notice
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Re-orient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications not expressly approved by TELEGRID
Technologies, Inc. could void the user’s authority to operate the equipment.
2.2 Industry Canada (IC)
This device complies with the Class B limits for radio noise emissions as set out in
the interference-causing equipment standard entitled “Digital Apparatus,” ICE-003 of
Industry Canada. Cet appareil numérique de la classe A est conforme à la norme
NMB-003 du Canada. This Category II radiocommunication device complies with
Industry Canada Standard RSS-310. Ce dispositif de radiocommunication de
catégorie II respecte la norme CNR-310 d'Industrie Canada. This device complies
with RSS 210 of Industry Canada under certification number 9251A-WHD310V1.
3. Legal Notices
3.1 Copyright
Copyright ©2010 TELEGRID Technologies Inc. All rights reserved. This manual
contains proprietary information that belongs to TELEGRID Technologies, Inc. and
is protected by copyright. This information is intended for internal use only and is not
to be disclosed to third parties. No part of this publication may be copied,
reproduced, stored in a retrieval system, or transmitted, by any means, electronic or
mechanical without written consent from TELEGRID Technologies, Inc.
TELEGRID® is a registered trademark of TELEGRID Technologies, Inc.
![](/img.php?id=1361539&img=bg2c.png)
WZRDnet Operation Manual
44
3.2 Software Copyright Notice
TELEGRID Technologies, Inc. products may include copyrighted TELEGRID
Technologies, Inc. and third-party software stored in semiconductor memories or
other media. Laws in the United States and other countries preserve for TELEGRID
Technologies, Inc. and third-party software providers certain exclusive rights for
copyrighted software, such as the exclusive rights to distribute or reproduce the
copyrighted software. Accordingly, any copyrighted software contained in
TELEGRID Technologies, Inc. products may not be modified, reverse-engineered,
distributed, or reproduced in any manner to the extent allowed by law. Furthermore,
the purchase of TELEGRID Technologies, Inc. products shall not be deemed to grant
either directly or by implication, estoppel, or otherwise, any license under the
copyrights, patents, or patent applications of TELEGRID Technologies, Inc. or any
third-party software provider, except for the normal, non-exclusive, royalty-free
license to use that arises by operation of law in the sale of a product.
Java is a trademark of Sun Microsystems, Inc.
3.3 Jurisdiction
This Customer’s rights and obligations shall be governed and construed pursuant to
the laws of the State of New Jersey; (b) Any lawsuit concerning this product shall be
brought in a court of competent jurisdiction in Essex County, New Jersey; (c)
Customer consents to be subject to the jurisdiction of the state or federal courts
located in Essex County, New Jersey; (d) Customer may not assign this Agreement
except with TELEGRID’s prior written approval; (e) No action may be brought by
the Customer more than one year after the cause of action has occurred;
