User manual_1

Wireless N150/N300 Portable Router

is the registered trademark of Shenzhen Tenda Technology Co., Ltd. All the

products and product names mentioned herein are the trademarks or registered trademarks of

their respective holders. Copyright of the whole product as integration, including its accessories

and software, belongs to Shenzhen Tenda Technology Co., Ltd. No part of this publication can

be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any

language in any form or by any means without the prior written permission of Shenzhen Tenda

Technology Co., Ltd. If you would like to know more about our product information, please visit

our website at http://www.tendacn.com.

Disclaimer

Pictures, images and product specifications herein are for references only. To improve internal

design, operational function, and/or reliability, Tenda reserves the right to make changes to the

products described in this document without obligation to notify any person or organization of

such revisions or changes. Tenda does not assume any liability that may occur due to the use or

application of, the product or circuit layout(s) described herein. Every effort has been made in

the preparation of this document to ensure accuracy of the contents, but all statements,

information and recommendations in this document do not constitute the warranty of any kind,

express or implied.

Wireless N150/N300 Portable Router

III

Preface

Thank you for choosing Tenda! Please read this user guide before you start! This user guide

instructs you to install and configure your device.

This user guide uses the following formats to highlight special

messages:

Icon Description

Note:

This format is used to highlight information of importance or

special interest. Ignoring this type of note may result in

ineffective configurations, loss of data or damage to device.

Tip

This format is used to highlight a procedure that will save time or

resources.

Knowledge Center

Description of fields on the device GUI.

Technical Support

 support02@tenda.com.cn

 YouTube: Tendasz1999

 Hotline:

1-800-570-5892 (USA) (061) 1300787922 (Australia)

(044)197-780-6119 (UK) (0852)36120883 (HongKong)

(064) 800787922 (New Zealand)

 Website: http://www.tendacn.com

Wireless N150/N300 Portable Router

Contents

Preface.........................................................................................................................................................III

Contents.....................................................................................................................................................IV

IProductOverview........................................................................................................................................1

1PackageContent..............................................................................................................................................1

2Gettingtoknowyourrouter............................................................................................................................1

LED..................................................................................................................................................................1

Button&Interface..........................................................................................................................................2

Label...............................................................................................................................................................3

IIQuickInternetSetup...................................................................................................................................4

1GettingPrepared..............................................................................................................................................4

2Install................................................................................................................................................................4

3ConnecttoRouter............................................................................................................................................6

3.1ConfigurePCTCP/IPSettings....................................................................................................................6

3.2JoinYourWirelessNetwork......................................................................................................................6

4Auto‐detectingInternetConnectionType.....................................................................................................12

5InternetSetup................................................................................................................................................14

5.1WebLogin...............................................................................................................................................14

5.2ManualInternetSetup&WirelessSecuritySetup..................................................................................15

6VerifyInternetConnectivity...........................................................................................................................27

IIIFeatures&Configurations.......................................................................................................................30

1AdvancedSettings..........................................................................................................................................30

1.1Status......................................................................................................................................................30

1.2.InternetSetup........................................................................................................................................31

1.3MACClone..............................................................................................................................................35

1.4WANSpeed.............................................................................................................................................35

1.5LANSettings............................................................................................................................................36

1.6DNSSettings............................................................................................................................................37

1.7DHCPServer............................................................................................................................................38

1.8DHCPClientList......................................................................................................................................39

2WirelessSettings............................................................................................................................................42

2.1WirelessBasicSettings...........................................................................................................................42

2.2WirelessSecurity....................................................................................................................................56

2.3WirelessAccessControl..........................................................................................................................57

2.4WirelessClients.......................................................................................................................................58

3BandwidthControl.........................................................................................................................................58

3.1BandwidthControl..................................................................................................................................58

3.2TrafficStatistics.......................................................................................................................................60

Wireless N150/N300 Portable Router

4SpecialApplications.......................................................................................................................................61

4.1PortRangeForwarding...........................................................................................................................61

4.2DMZHost................................................................................................................................................63

4.3DDNS.......................................................................................................................................................64

4.4UPNP.......................................................................................................................................................67

4.5StaticRouting..........................................................................................................................................67

4.6RoutingTable..........................................................................................................................................72

5Security..........................................................................................................................................................72

5.1URLFilter.................................................................................................................................................72

5.2MACFilter...............................................................................................................................................74

5.3ClientFilter..............................................................................................................................................75

6Tools...............................................................................................................................................................77

6.1Reboot....................................................................................................................................................77

6.2RestoretoFactoryDefaultSettings........................................................................................................77

6.3Back/Restore...........................................................................................................................................78

6.4Logs.........................................................................................................................................................82

6.5RemoteWebManagement....................................................................................................................82

6.6Time........................................................................................................................................................84

6.7LoginPassword.......................................................................................................................................86

6.8FirmwareUpgrade..................................................................................................................................86

IVAppendix.................................................................................................................................................89

1ConfigurePCTCP/IPSettings.........................................................................................................................89

Windows7....................................................................................................................................................89

WindowsXP..................................................................................................................................................95

2DefaultSettings..............................................................................................................................................98

3FAQs.............................................................................................................................................................100

4RemoveWirelessNetworkfromYourPC....................................................................................................102

Windows7..................................................................................................................................................102

WindowsXP................................................................................................................................................103

5SafetyandEmissionStatement....................................................................................................................105

I Product Overview

1 Package Content

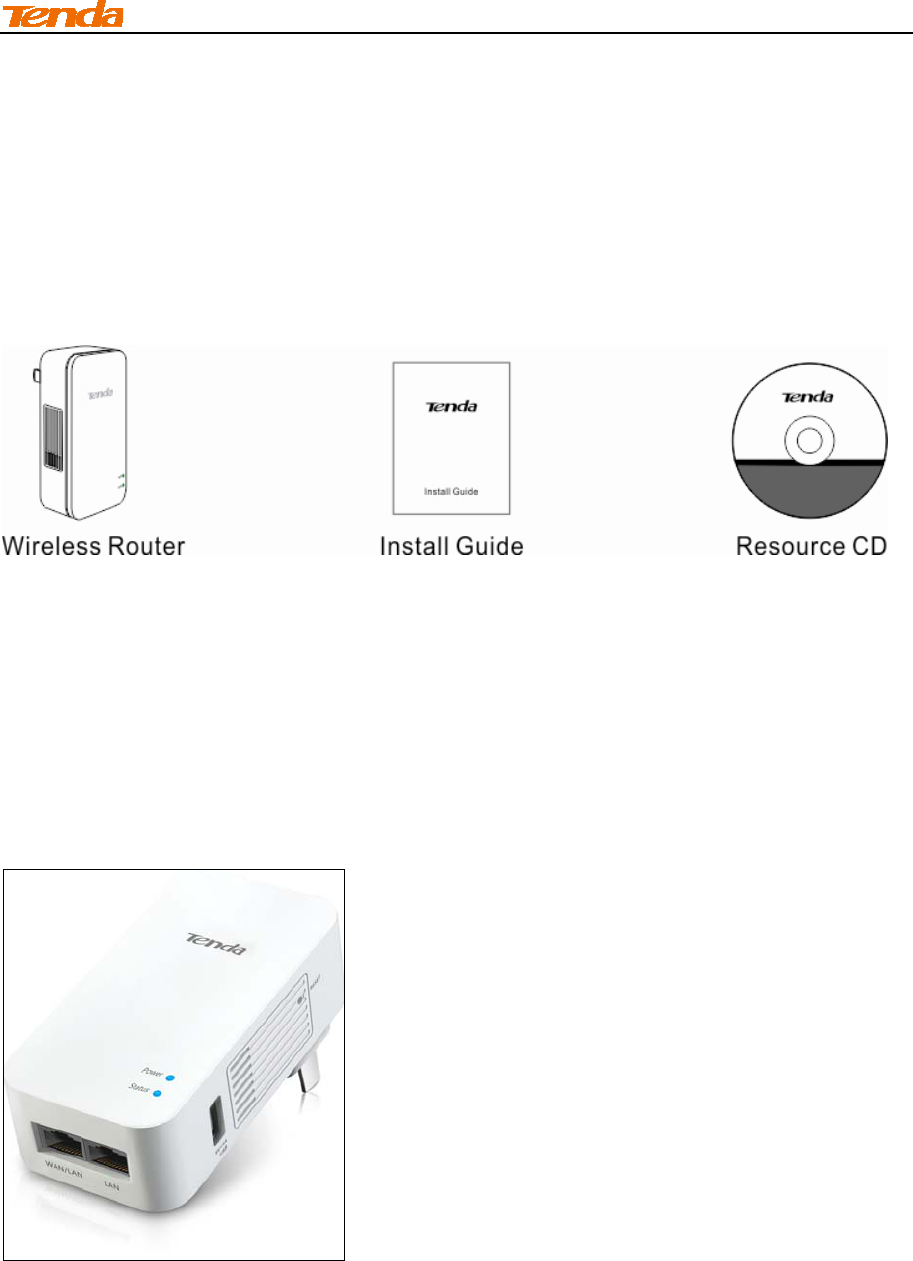

Unpack the package. Your box should contain the following items:

If any of the parts are incorrect, missing, or damaged, contact your dealer. Keep the carton,

including the original packing materials, in case you need to return the product for repair.

2 Getting to know your router

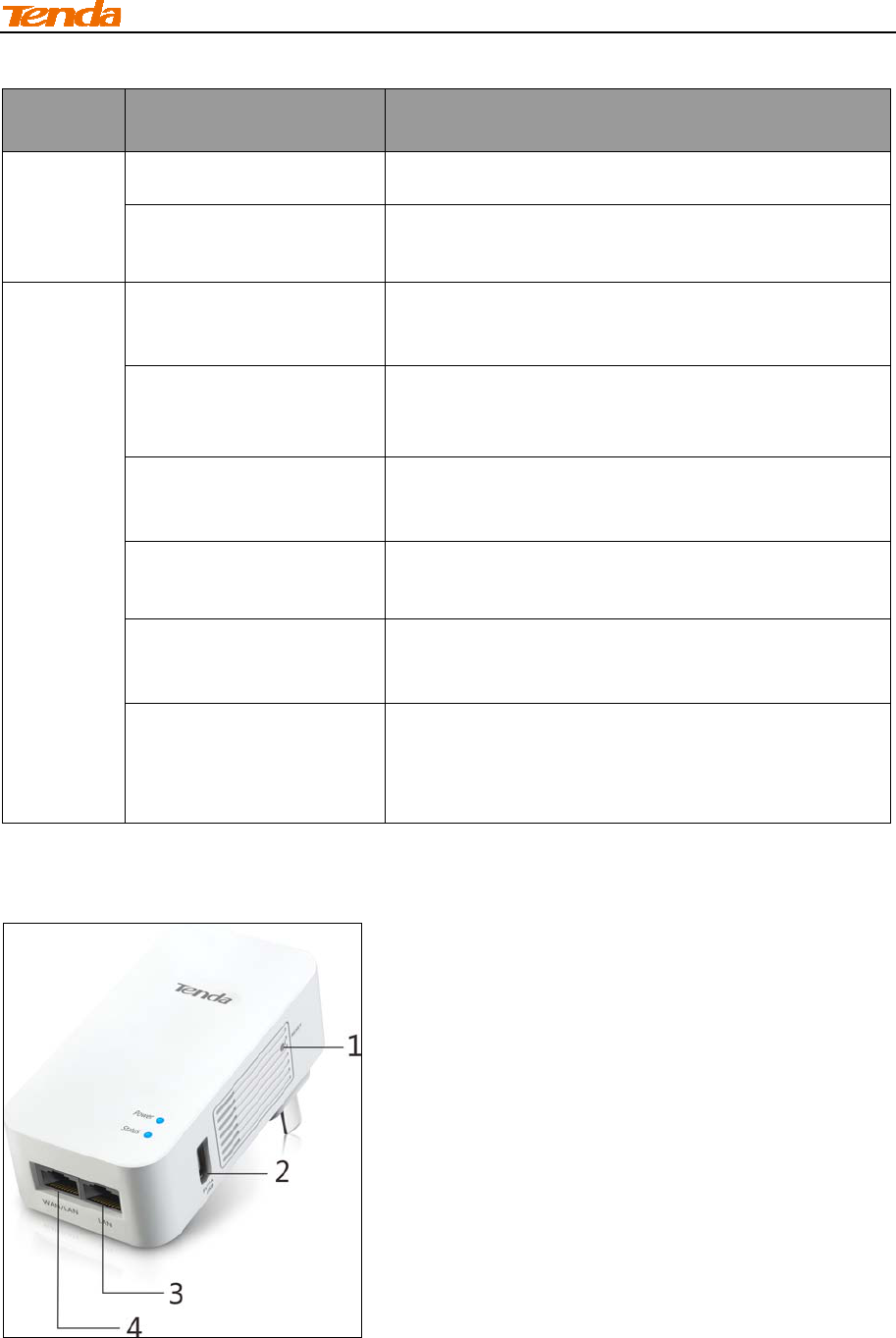

LED

I Product Overview

LED Status Description

Power

Solid The device is functioning correctly.

Off Power is not supplied to the router. Make sure the

device is properly connected to power outlet.

Status

A green and blinking light Device is currently operating in hotel mode and WAN

port is NOT properly connected

A green and solid light Device is currently operating in hotel mode and WAN

port is connected

A blinking blue light Device is currently operating in residence mode and

WAN port is NOT properly connected

A solid blue light Device is currently operating in residence mode

and WAN port is connected

A light blue and blinking

light

Device is currently operating in Universal Repeater

Mode and is not connected to a wireless hotspot

A light blue and solid light Device is currently operating in Universal Repeater

Mode and is connected to a wireless hotspot.

Button & Interface

I Product Overview

1→RST: Pressing it for over 10seconds restores the device to factory default settings. For device's

factory default settings, see Appendix 3 Factory Default Settings.

2→USB: The USB port that charges terminal devices such as a smart phone or an iPad over a

USB cable.

3→LAN: The local (LAN) 100M Ethernet ports are for cabling the device to local computers,

switches, etc.

4→WAN/LAN: 100M LAN/WAN interchangeable interface, which functions as: a) a WAN interface

for connecting to an Internet-enabled DSL modem or other uplink network device when operating

in Residence Mode or Hotel Mode; or b) a LAN interface for connecting to a PC or an Ethernet

switch when operating in Universal Repeater Mode.

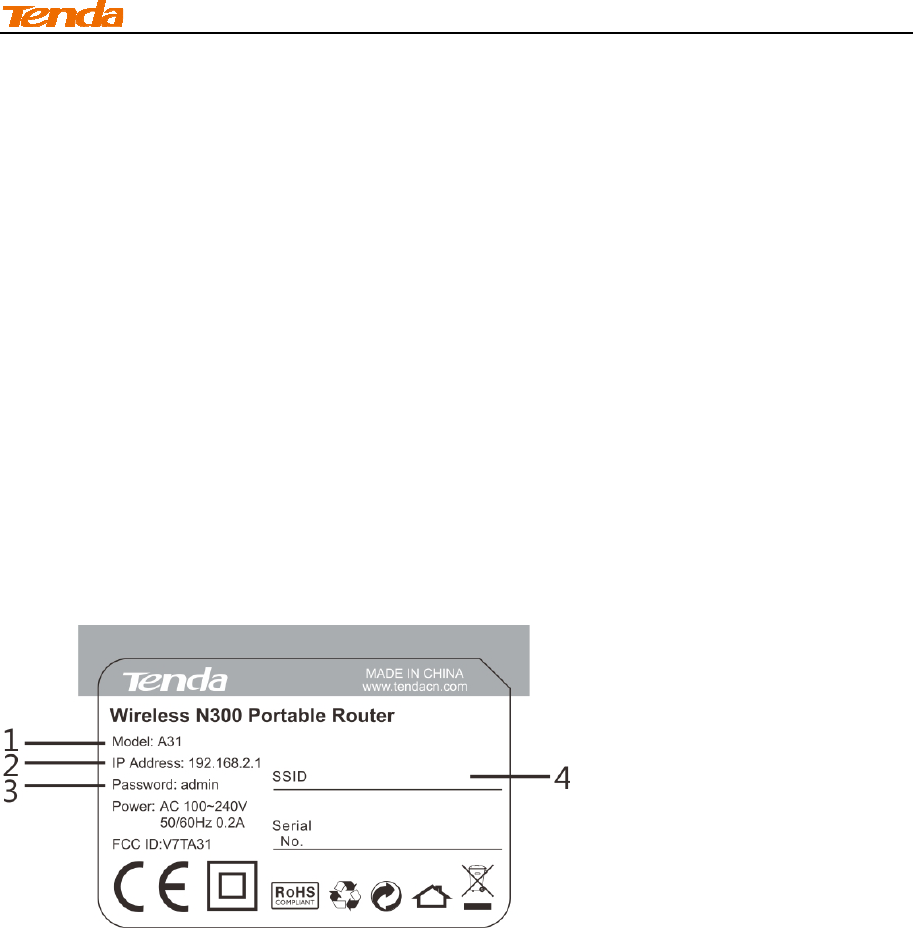

Label

1→ Product Model

2→ Default Login IP address. This IP address is to be used to access the router’s settings through

a web browser. If you change it, you have to open a new connection to the new IP address and log

in again.

3→ Default login password

4→ Default wireless network name (SSID).

II Quick Internet Setup

1 Getting Prepared

Before you start the installation process, you need to prepare the following:

Item Description

Router Find it in your package

PC Should have a installed IE8 or higher browser

Ethernet Cable You will need it to connect your PC to the router

Ethernet Cable from

the incoming Internet

side

This is provided by your ISP

Gather ISP

Information

Your Internet service provider (ISP) should have provided you with all

of the information needed to connect to the Internet. If you cannot

locate this information, ask your ISP to provide it.

 If your ISP uses a PPPoE Internet connection, you will need ISP

 If you use a DHCP Internet connection, no information is needed.

 If your ISP gives you a fixed or static IP address for Internet

connection, you will need to gather the following information:

1) IP Address

2) Subnet Mask

3) Gateway

4) DNS Server

5) Alternate DNS Server (Optional)

2 Install

Note----------------------------------------------------------------------------------------------------------------------

Before you start, make sure you can access Internet by directly connecting the Ethernet cable

from the incoming Internet side to your PC.

---------------------------------------------------------------------------------------------------------------------------------

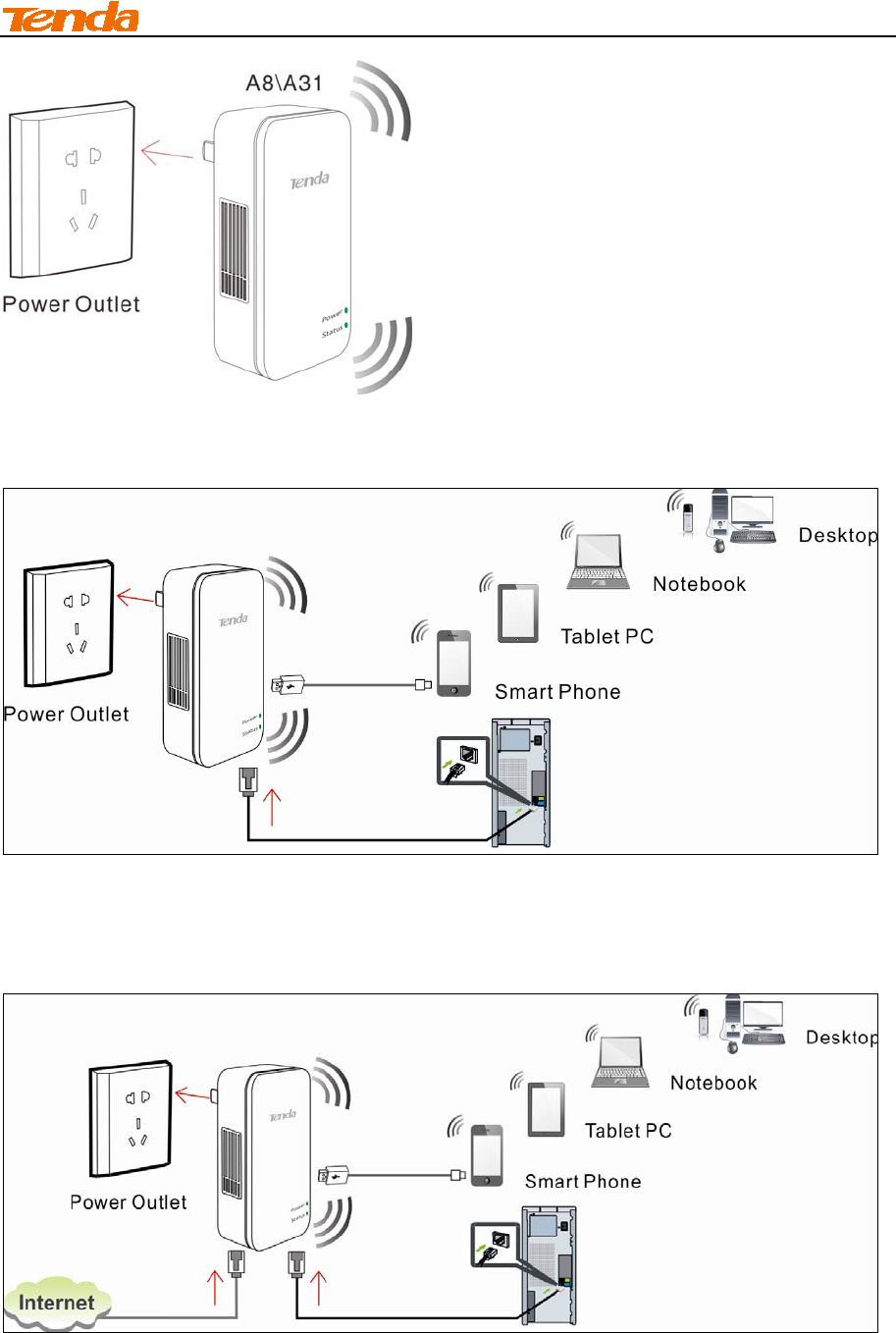

① Plug the device into a power outlet (For better wireless performance, place it near the center of

the area where your computers, smart phones and other devices operate, and preferably within

line of sight to your wireless devices.)

II Quick Internet Setup

② Connect the NIC port on your PC to one LAN port on the router using an Ethernet cable or

connect to the router wirelessly.

③ Connect the Ethernet cable from the incoming Internet side to the WAN port on the router.

II Quick Internet Setup

3 Connect to Router

If you use a wired NIC, refer to 3.1 Configure PC TCP/IP Settings and then 4 Auto-switch

Mode.

3.1 Configure PC TCP/IP Settings

If your computer is set to a static or fixed IP address (this is uncommon), change it to "Obtain an IP

address automatically" and "Obtain DNS server address automatically" from the device.

Tip ------------------------------------------------------------------------------------------------------------------------

If you are unsure, see Appendix1 Configure PC TCP/IP Settings.

---------------------------------------------------------------------------------------------------------------------------------

3.2 Join Your Wireless Network

Tip-------------------------------------------------------------------------------------------------------------------------

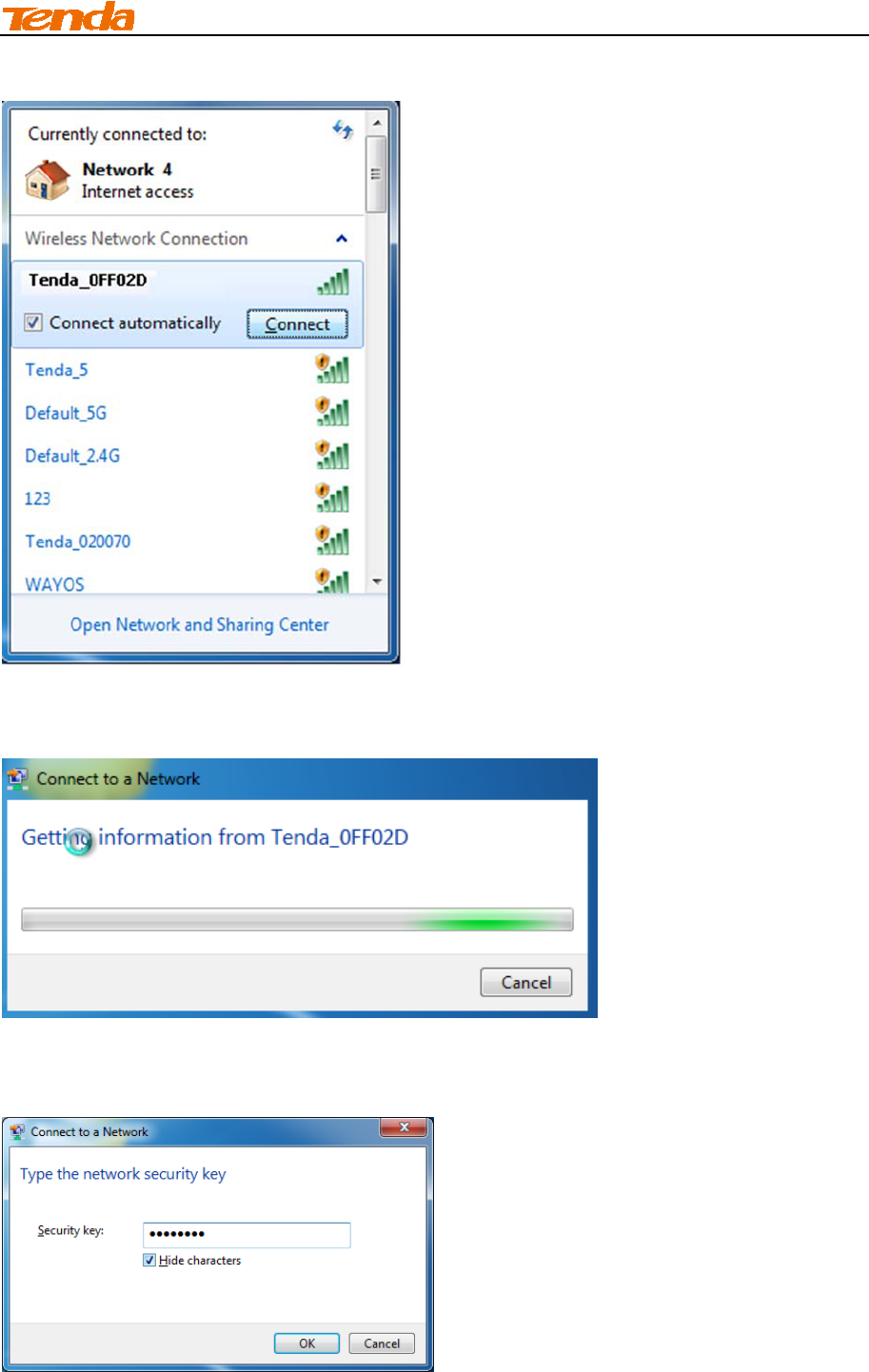

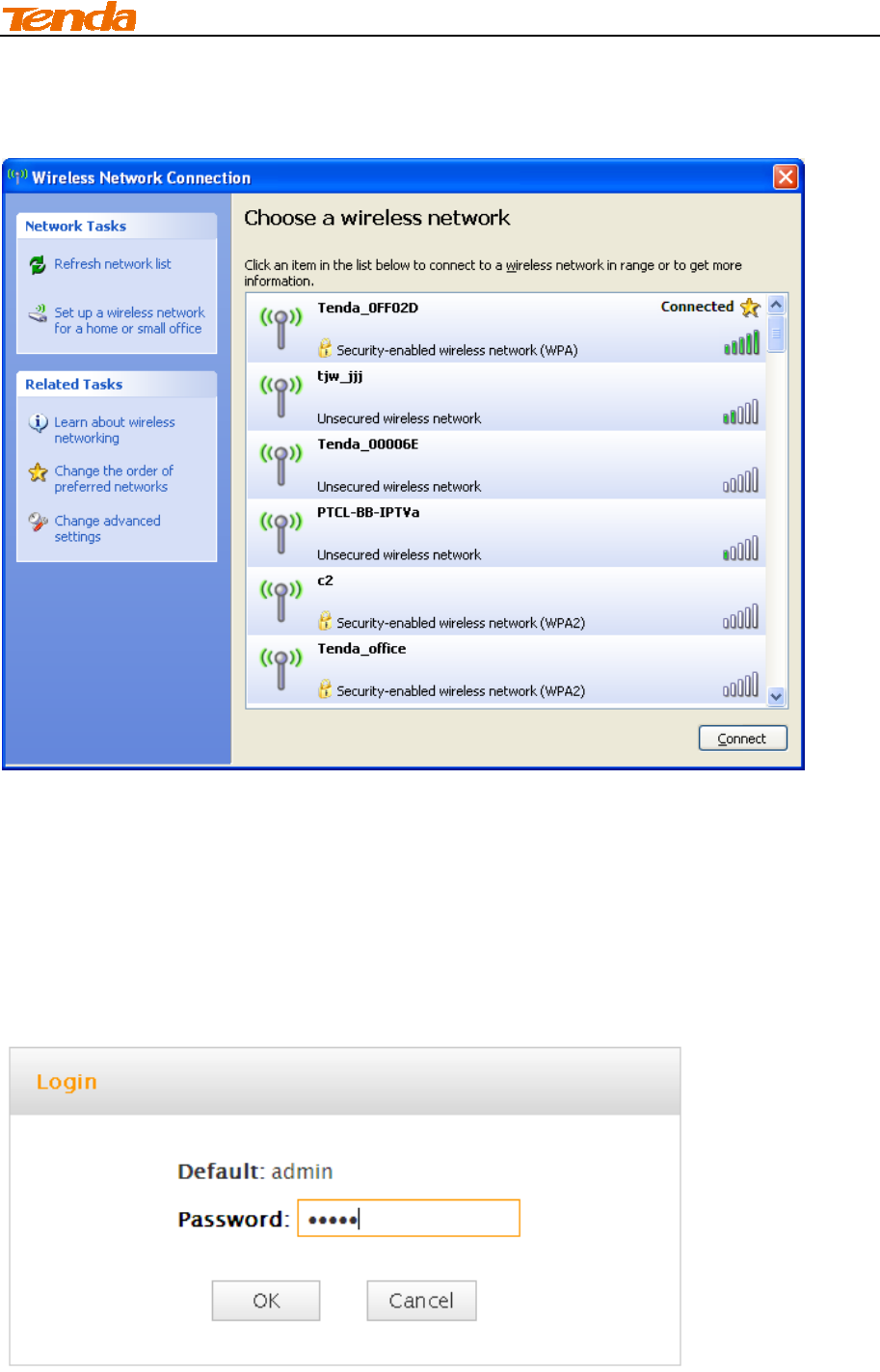

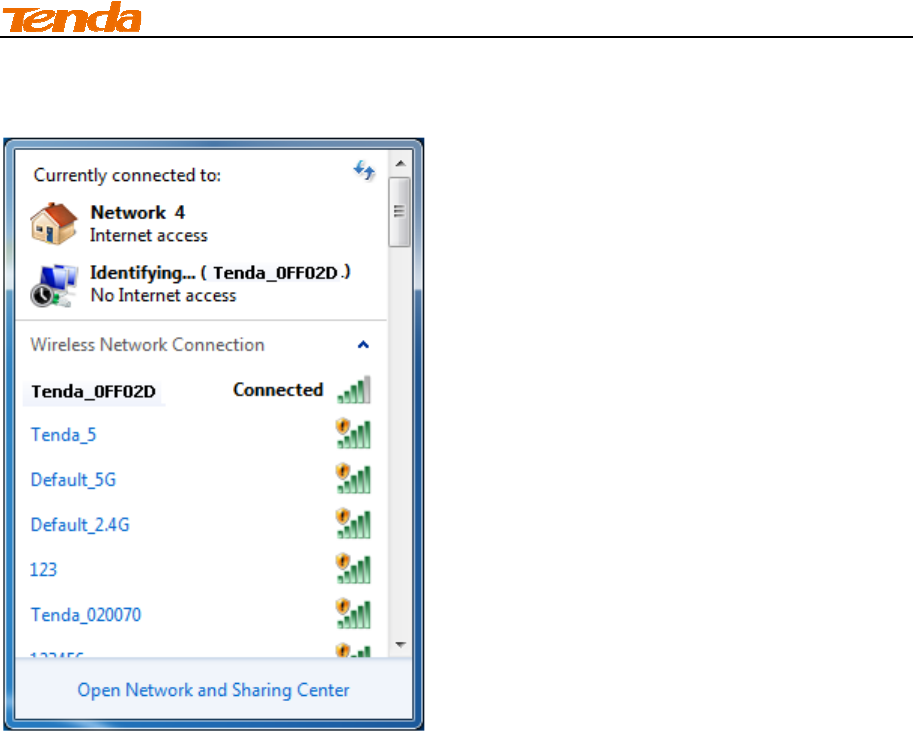

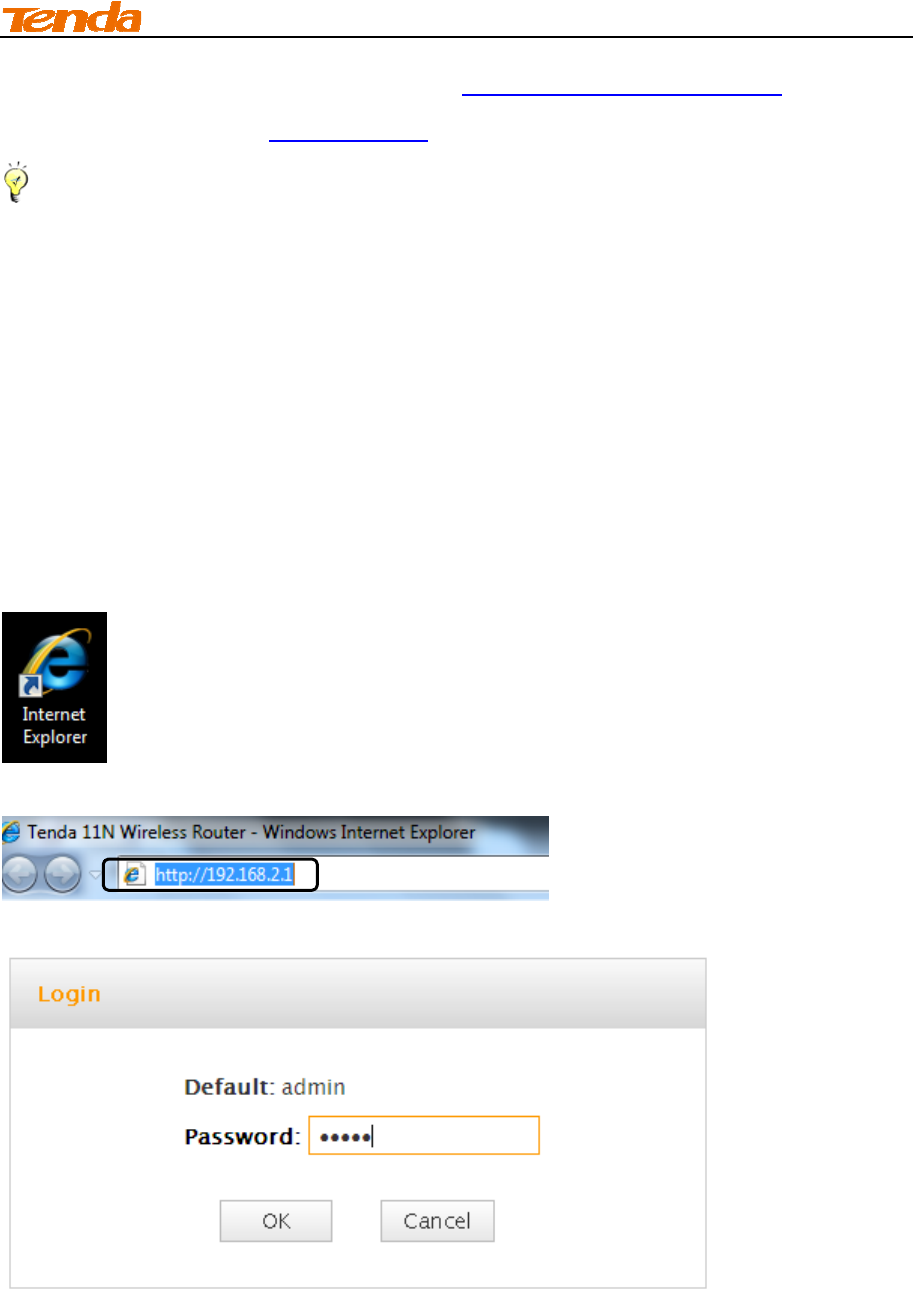

1. The device's SSID is "Tenda_xxxxxx" by default (You can find it on the attached label).

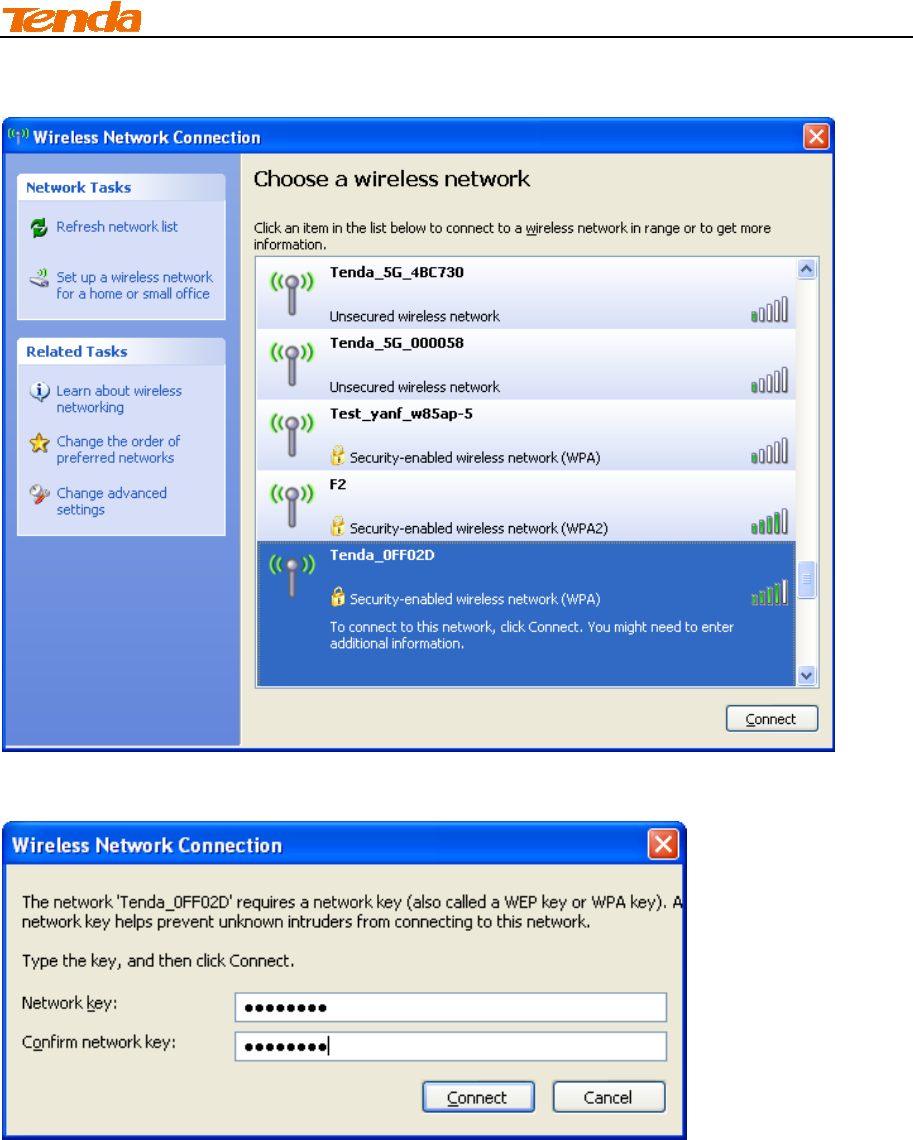

2. If you secure your wireless network, you must use the security key to join it.

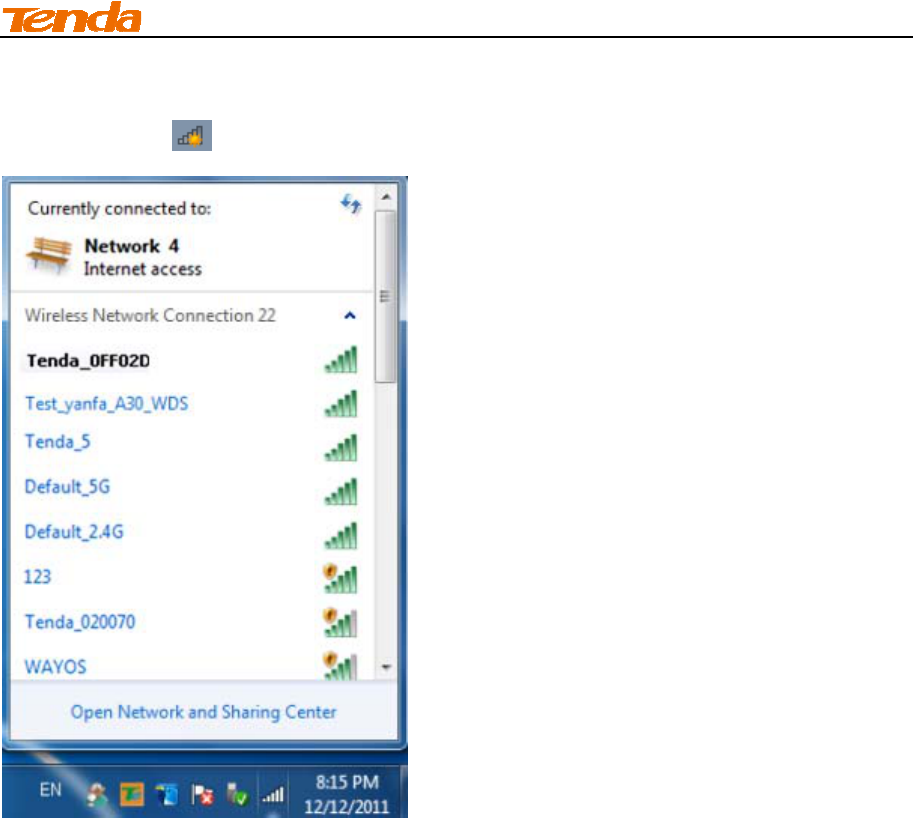

3. To join your wireless network, the PC you use must have an installed wireless network adapter.

If not, install one.

II Quick Internet Setup

Windows 7

① Click the icon on the notification area on the bottom right corner.

II Quick Internet Setup

② Select the wireless network you wish to connect and click Connect.

③ If you see the screen below, you are connecting to the wireless network.

④ Enter the security key and click OK.

II Quick Internet Setup

When you see Connected displayed next to the wireless network you selected, you have

connected to the wireless network successfully.

II Quick Internet Setup

Windows XP

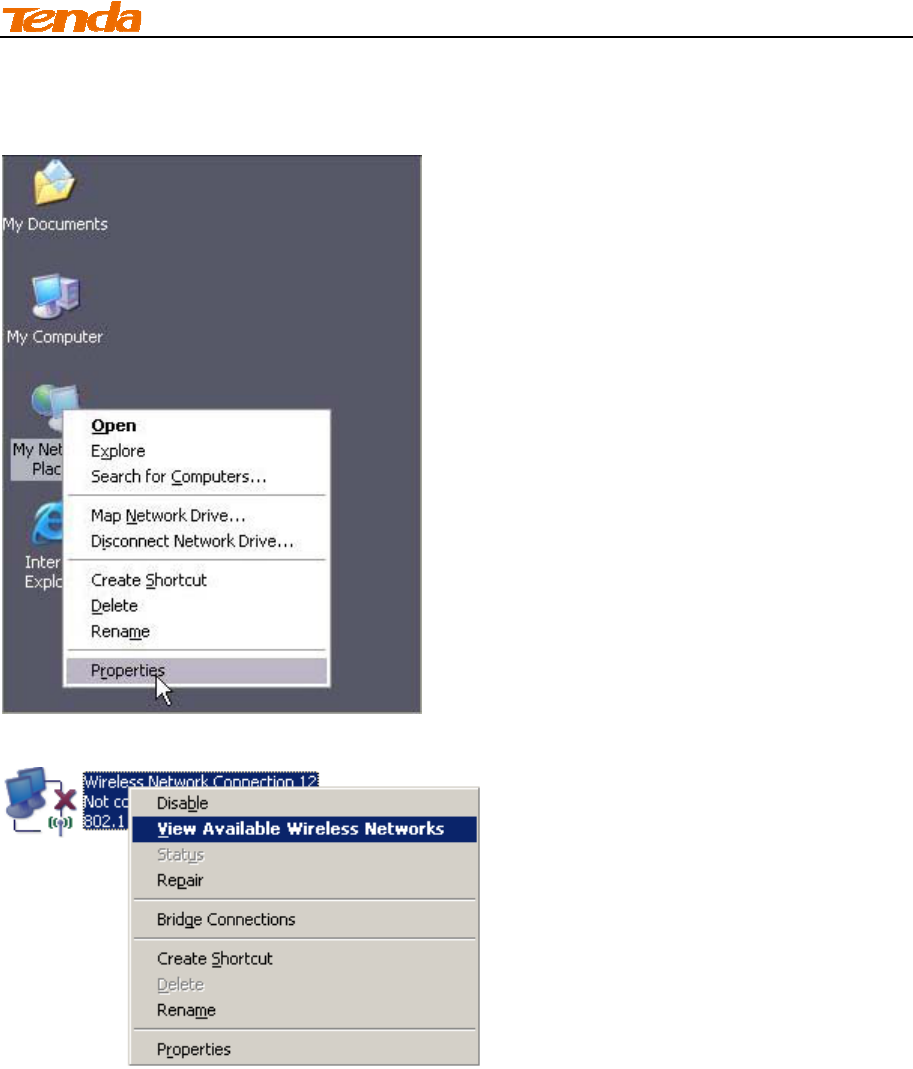

① Right click My Network Places from your PC's desktop and select Properties.

② Right click Wireless Network Connection and select View Available Wireless Networks.

II Quick Internet Setup

③ Double click the wireless network you wish to connect.

④ Enter the security key and click Connect.

II Quick Internet Setup

⑤ When you see Connected displayed next to the wireless network you selected, you have

connected to the wireless network successfully.

4 Auto-detecting Internet Connection Type

By default, this device automatically detects and switches between DHCP and PPPoE according

to actual environment. To test Internet connectivity:

① Launch a web browser and enter the device's IP address. Input the default password (admin)

and click OK on the login window.

II Quick Internet Setup

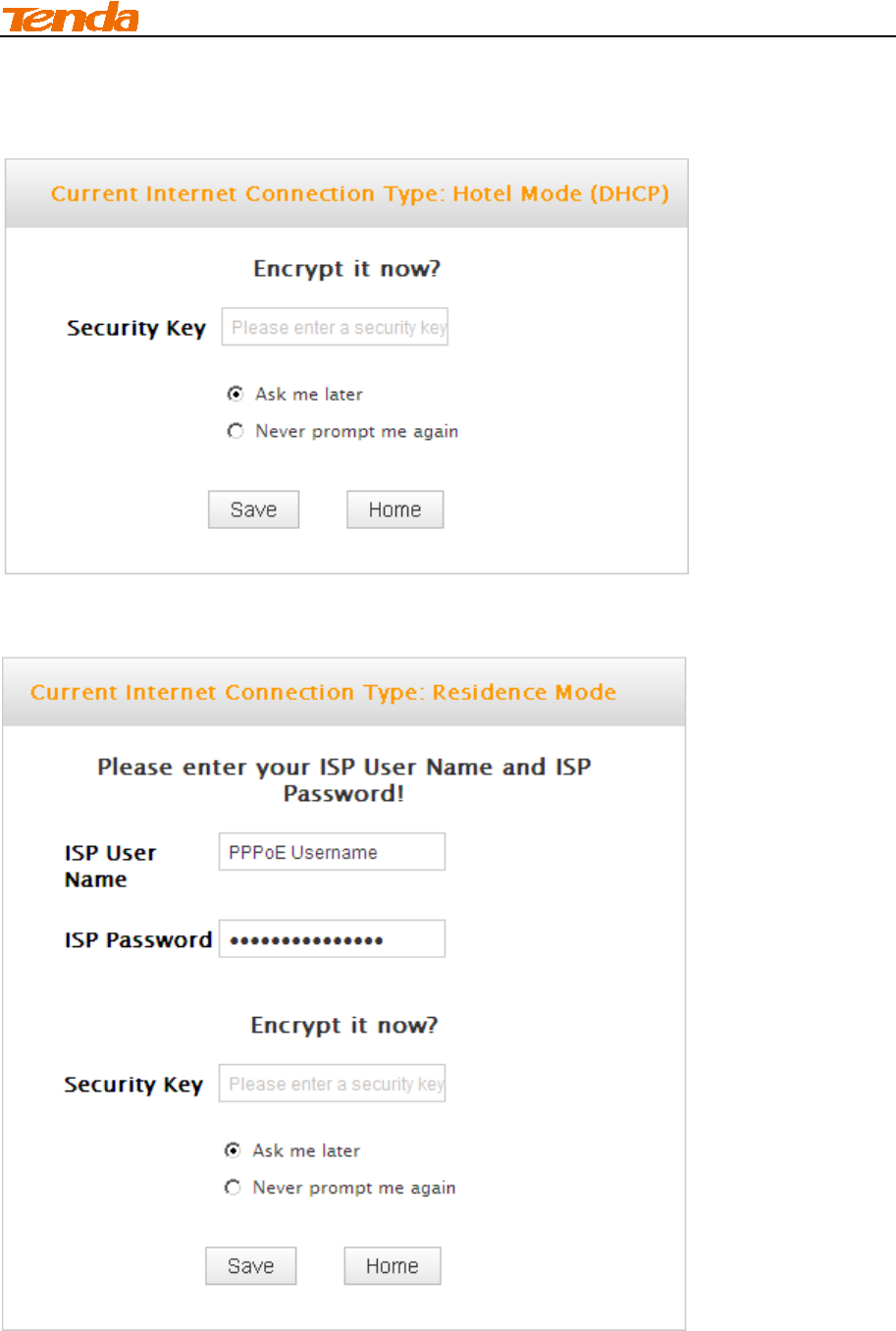

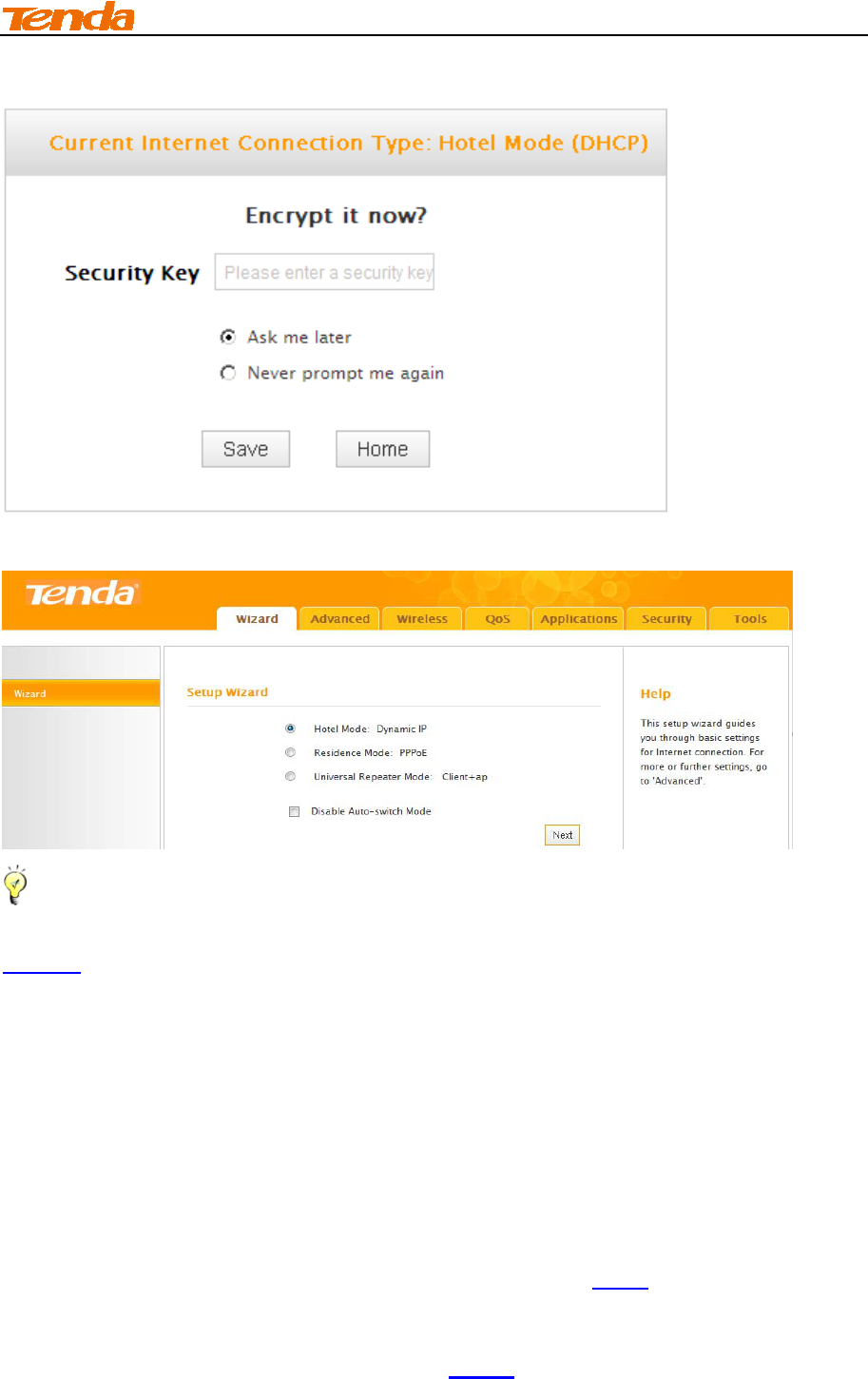

② The following screen appears if DHCP Internet connection type is detected. Simply specify a

wireless security key, click Save and then close the browser.

The following screen appears if PPPoE Internet connection type is detected. Enter the ISP login

name and password, specify a wireless security key, and then click Save.

II Quick Internet Setup

③ See whether you can access Internet (See 3.2 Join Your Wireless Network, if you use a

wireless NIC), if not, refer to 5 Internet Setup.

Tip-------------------------------------------------------------------------------------------------------------------------

If the Auto-switch feature is disabled, the device will automatically detect and switch to the right

Internet connection type in case of an Internet connection failure.

---------------------------------------------------------------------------------------------------------------------------------

5 Internet Setup

Read this section only when you fail to access Internet after you tried the above mentioned steps

or you can access Internet and want to change the SSID (wireless network name) and security key

of this device.

5.1 Web Login

① Launch a web browser, say, IE.

② In the address bar, input 192.168.2.1, and press "Enter".

③ Enter the login password and click OK. The default password is admin.

II Quick Internet Setup

④ Click Home on the appearing screen.

⑤ The Setup Wizard screen appears.

Tip-------------------------------------------------------------------------------------------------------------------------

1. If you access Internet by connecting to the Ethernet cable from the incoming Internet side, see

Static IP.

2. If you don't want to use the Auto-switch feature, check the Disable Auto-switch mode box.

3. You can also enable the Auto-switch mode feature after you manually set up Internet and your

wireless network so that your router can fit different environment, eliminating manual intervention.

---------------------------------------------------------------------------------------------------------------------------------

5.2 Manual Internet Setup& Wireless Security Setup

Read the following and determine your Internet connection type. Then follow the right setup

wizard.

A. If your ISP provides you with an Ethernet cable from the incoming Internet side but no ISP login

account or IP information, your ISP uses a DHCP connection. See DHCP.

B. If your ISP provides you with an Ethernet cable from the incoming Internet side and ISP login

account, your ISP uses a PPPoE connection. See PPPoE.

II Quick Internet Setup

C. If your ISP provides you with an Ethernet cable from the incoming Internet side IP information

(IP address, subnet mask, gateway IP address, DNS server address), your ISP uses a static IP

connection. See Static IP .

D. If you acquire Internet access from a remote AP on an existing network see Universal

Repeater Mode.

Hotel Mode (DHCP)

If your ISP does not give you any IP or user name/password info (your ISP uses a DHCP

connection), simply connect the network cable from the incoming Internet side to the router and

the router to your PC or simply search for and connect to your wireless router from your notebook.

No configuration needed, simply plug and play.

For typical network topology, see below:

Tip------------------------------------------------------------------------------------------------------------------------

1. If you already have a wired router, you can use this wireless router (operating in this mode) to

convert the wired network into a wireless network. Simply connect the WAN port on this wireless

router to a LAN port on the wired router and a wireless access point will be created instantly.

2. If your computer is set to a static or fixed IP address (this is uncommon), change it to obtain an

IP address automatically from the router. For more information, see Appendix 1 Configure PC

TCP/IP Settings.

---------------------------------------------------------------------------------------------------------------------------------

II Quick Internet Setup

Configuration Procedures:

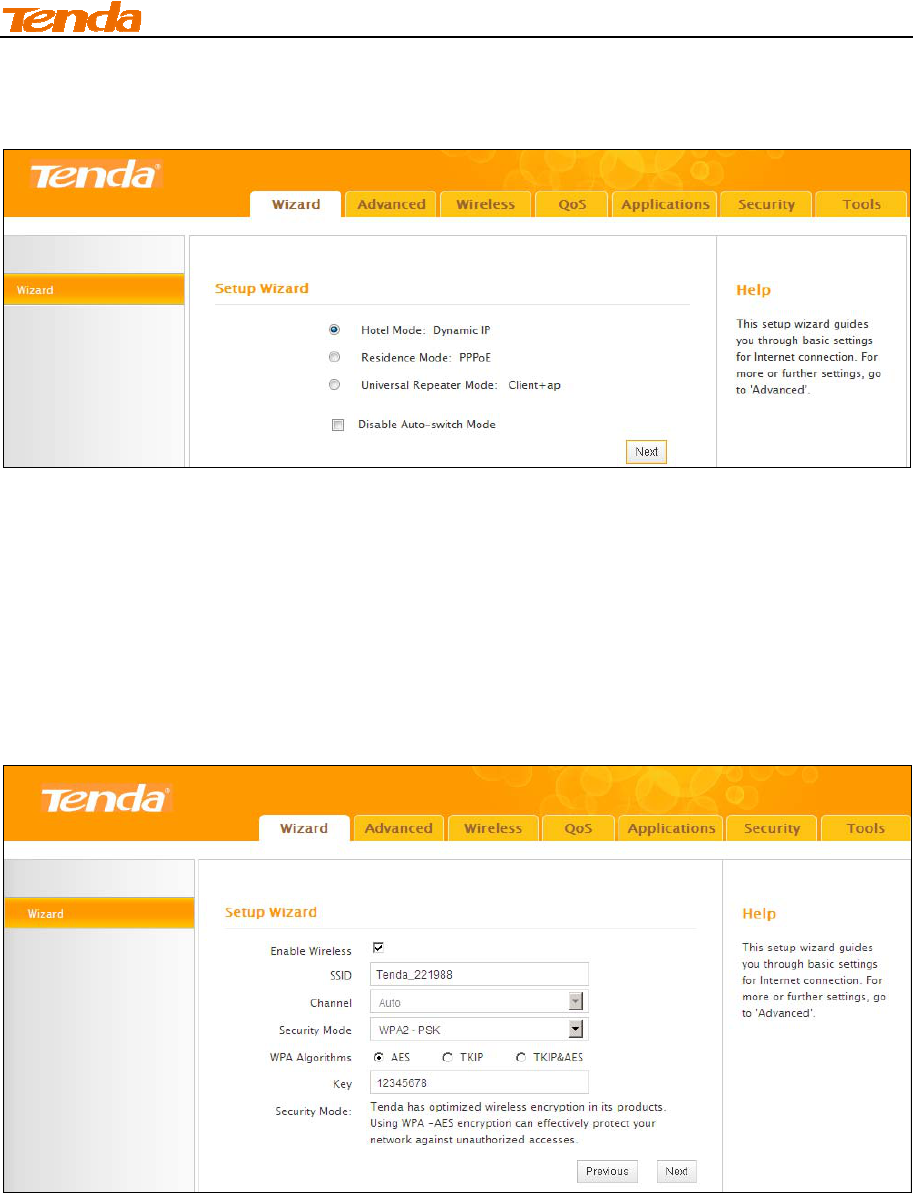

① Select Hotel Mode: Dynamic IP and click Next.

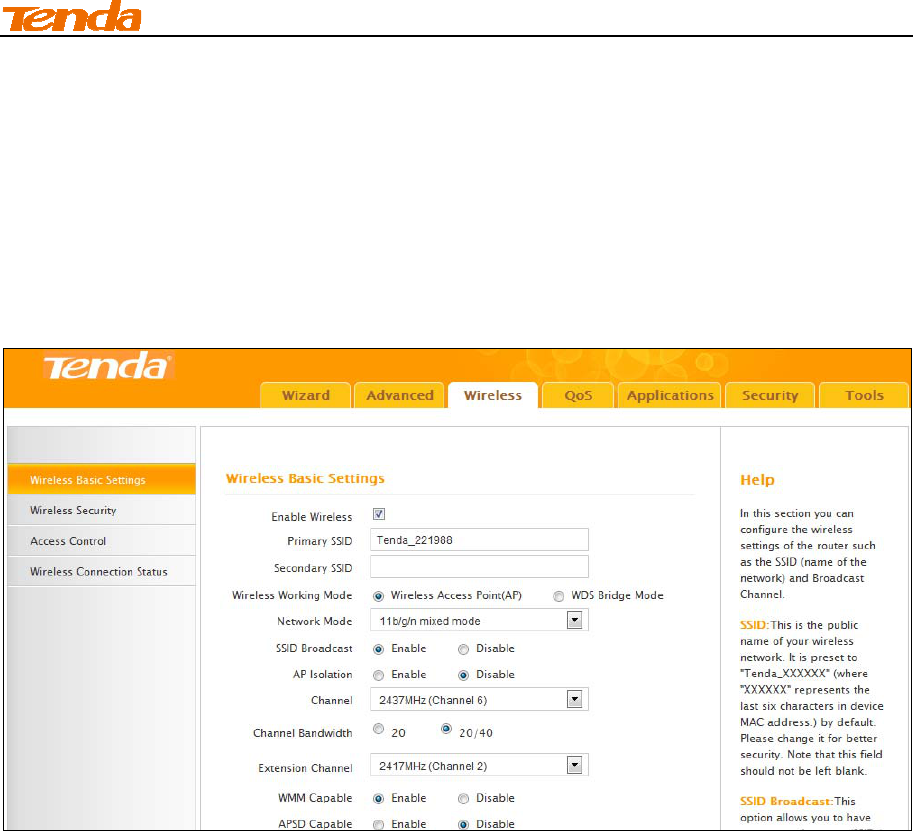

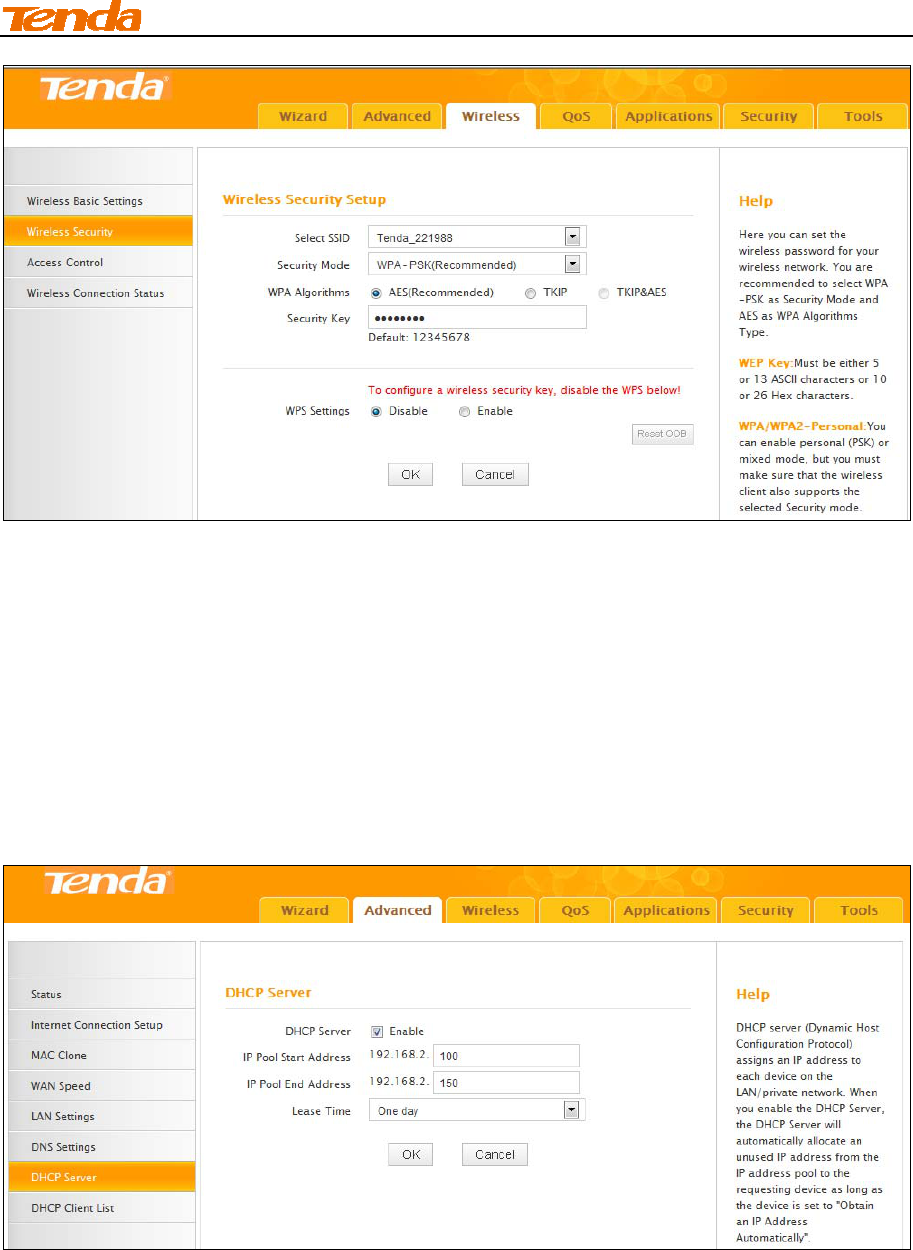

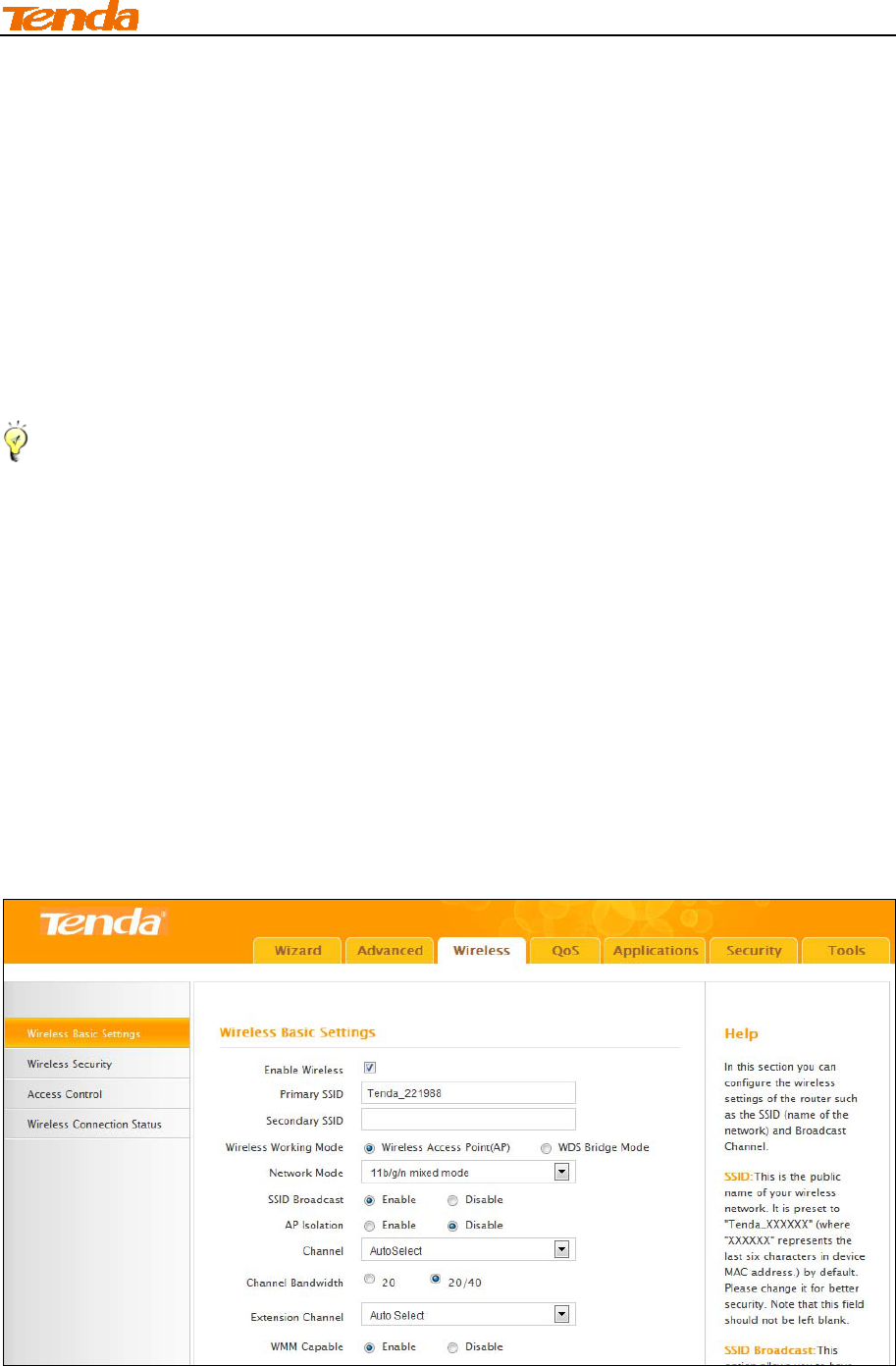

② Configure your wireless network: SSID, channel, security settings and then click Next.

SSID: Tenda_221988

Channel: 6

Security Mode: WPA-PSK

Cipher Type: AES

Security Key: 12345678

II Quick Internet Setup

③ MAC Clone Setup: Enter the computer or broadband modem authorized by your ISP. Then

click Next.

④ Click Finish and wait for the device to restart automatically. After reboot, reconnect to this

device wirelessly or using an Ethernet cable and you will be able to access Internet.

Residence Mode

If your ISP uses a PPPoE Internet connection (Router operates in Residence Mode), you will need

ISP login name and password.

For common application scenario, see below:

II Quick Internet Setup

Configuration Procedures:

① Select Residence Mode: PPPoE and click Next.

② Configure your wireless network: SSID, channel, security settings and then click Next.

SSID：Tenda_221988

Channel: 6

Security Mode: WPA-PSK

Cipher Type: AES

Security Key: Myrouter

II Quick Internet Setup

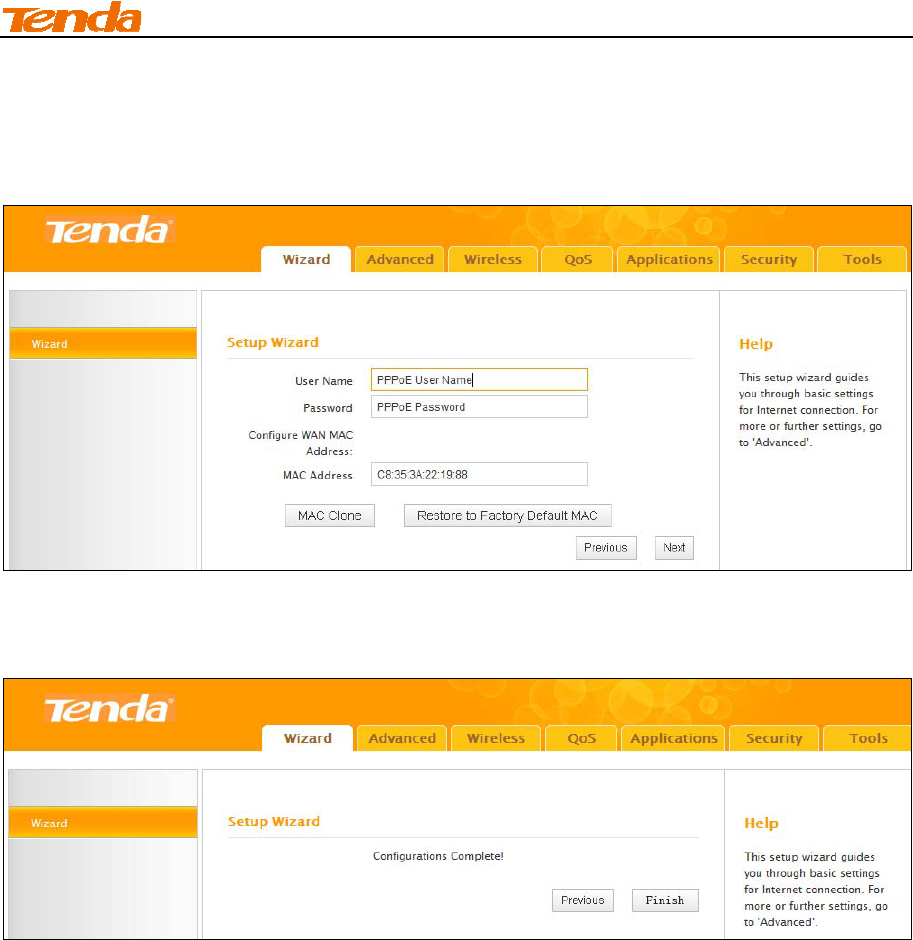

③ Internet Setup & MAC Clone: Enter your ISP login user name and password (case sensitive)

and the MAC address of the computer or broadband modem authorized by your ISP. Then click

Next.

④ Click Finish and wait for the device to restart automatically. After reboot, reconnect to this

device wirelessly or using an Ethernet cable and you will be able to access Internet.

II Quick Internet Setup

Universal Repeater Mode

Use this universal repeater mode to extend your existing wireless network coverage.

For application scenario, see below:

In this mode, you only need to configure the following settings on the repeater wireless router:

 Configure LAN IP: Specify an IP address that is in the same subnet as yet different from the

remote wireless router for this Tenda wireless router.

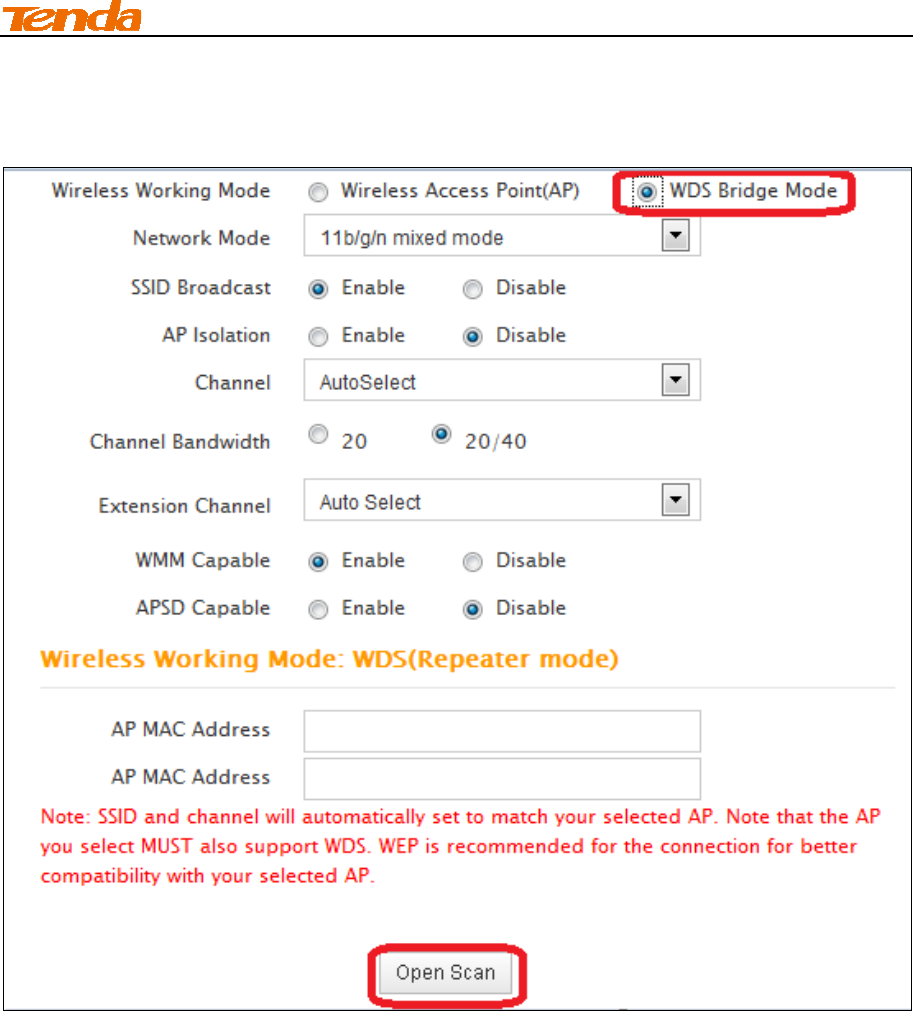

 Universal Repeater: Configure this router to bridge the remote wireless router for extended

network coverage.

Tip ---------------------------------------------------------------------------------------------------------------------

Before you start, make sure you have the following information:

1. Remote router's SSID, security mode, cipher type and security key.

2. Remote router's LAN IP address.

3. No Ethernet cable is connected to the Repeater wireless router's WAN port.

II Quick Internet Setup

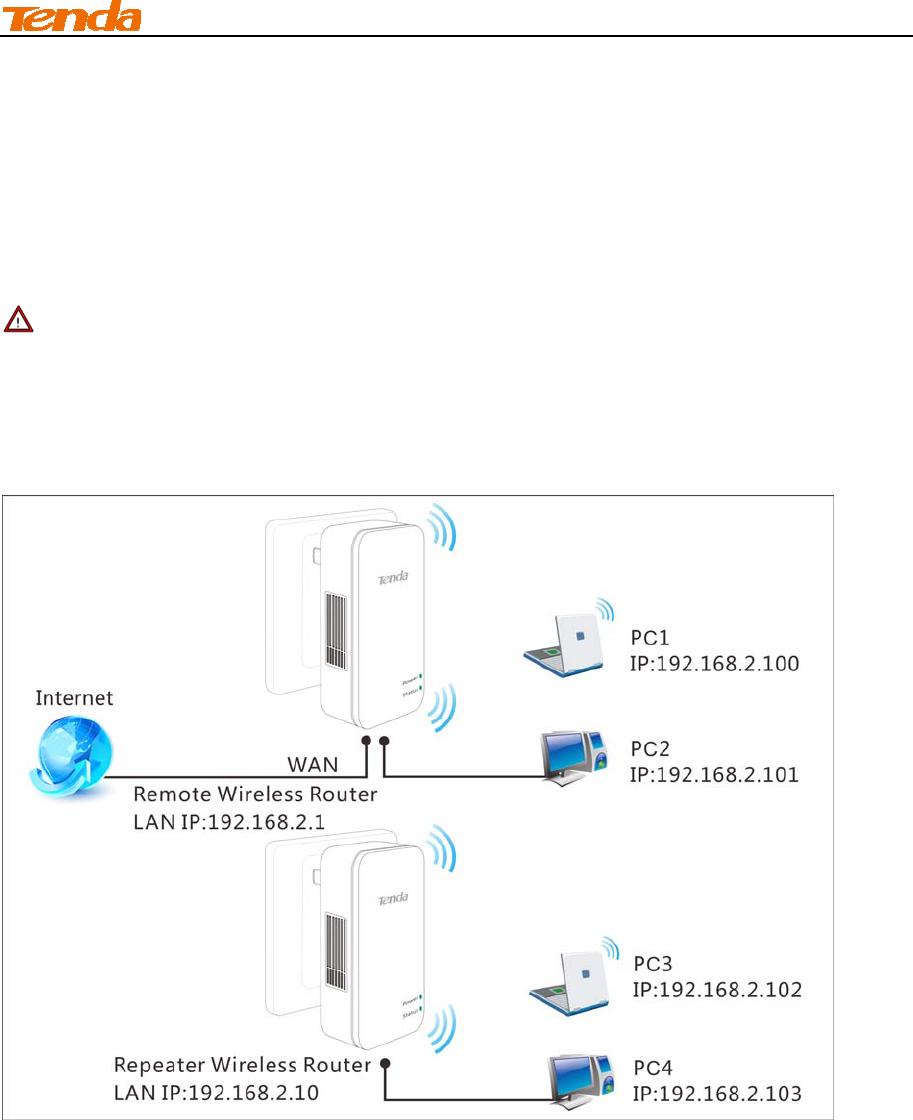

Universal Repeater Application Example:

Step 1 Gather information of the remote wireless router:

SSID: Tenda_888

Security Mode: WPA-PSK

Cipher Type: AES

Security Key: 12345678

LAN IP Address: 192.168.2.1

Step 2 Configure Repeater Wireless Router:

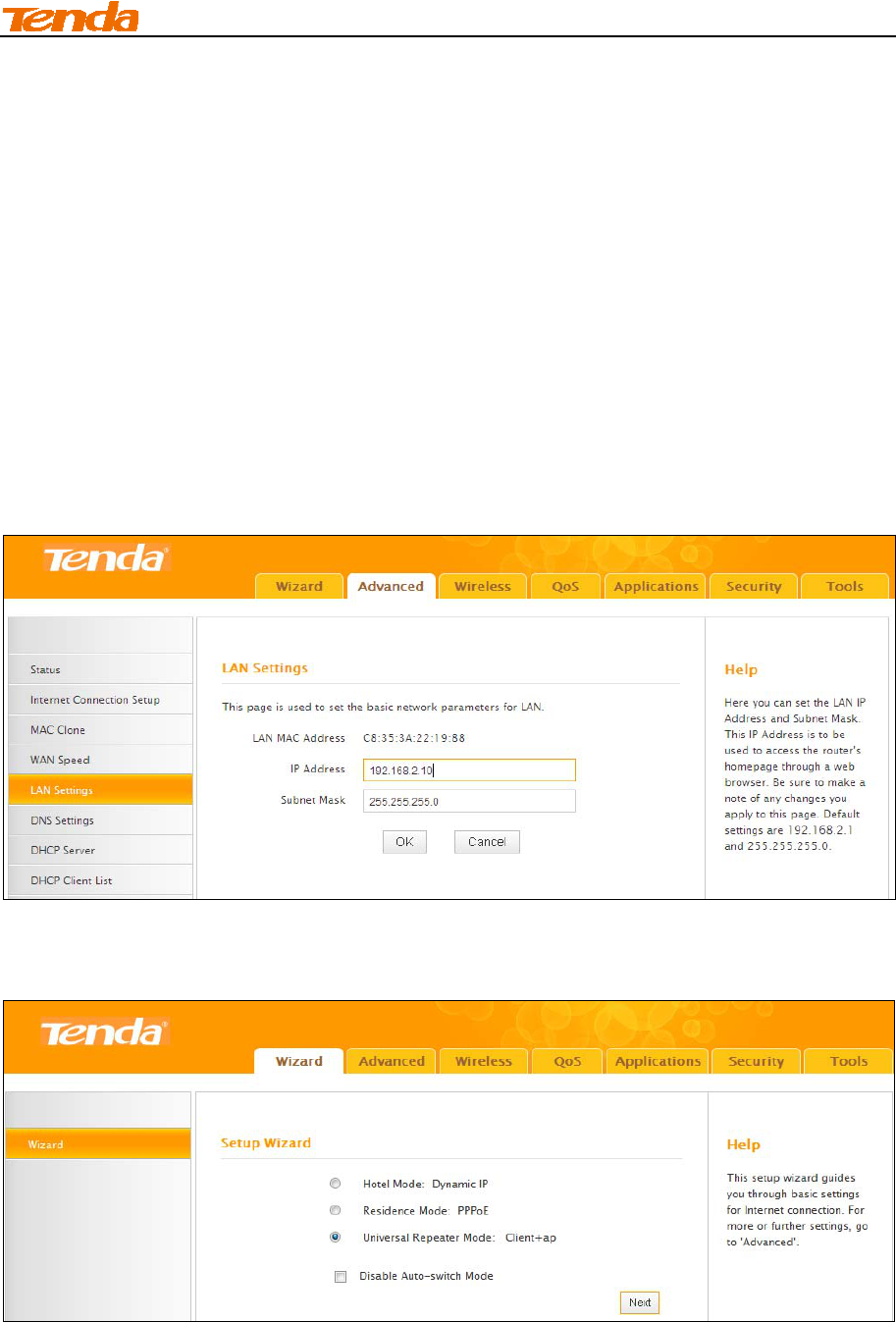

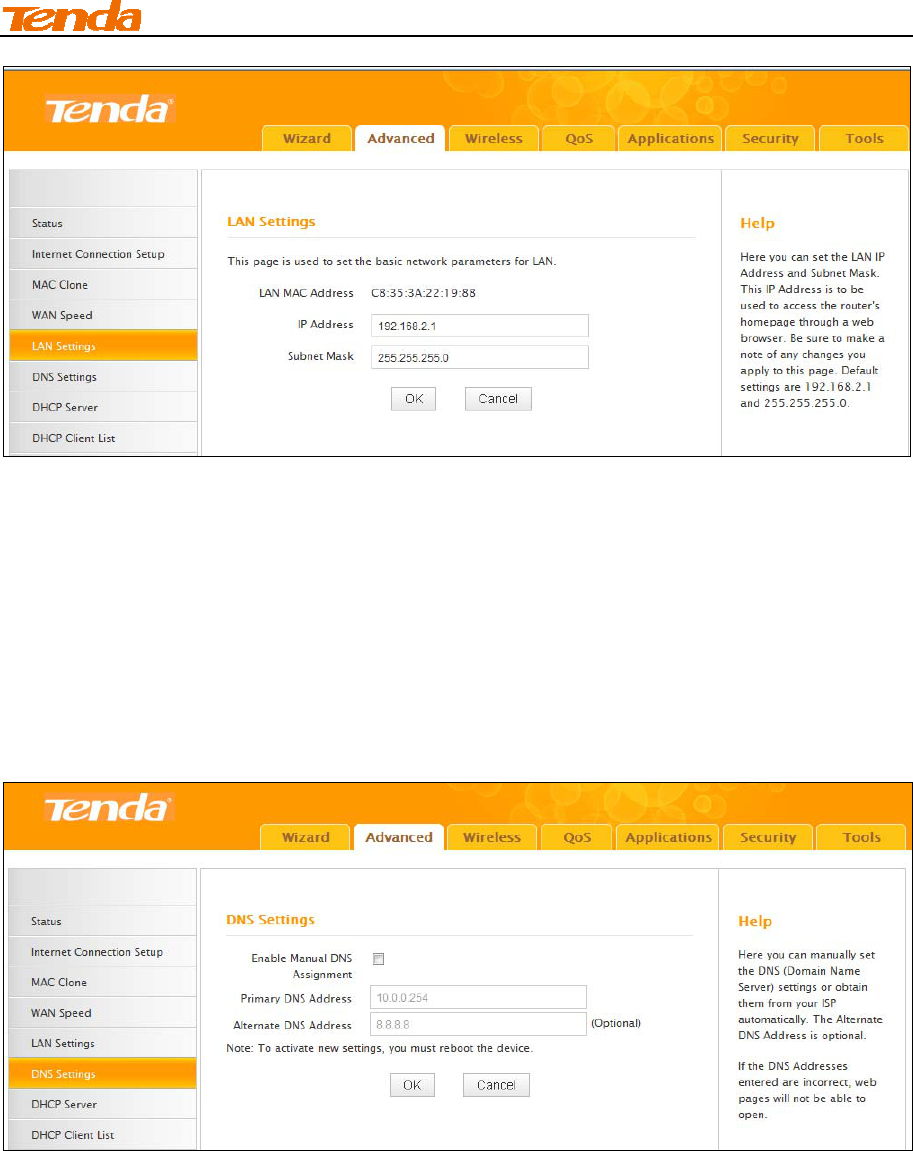

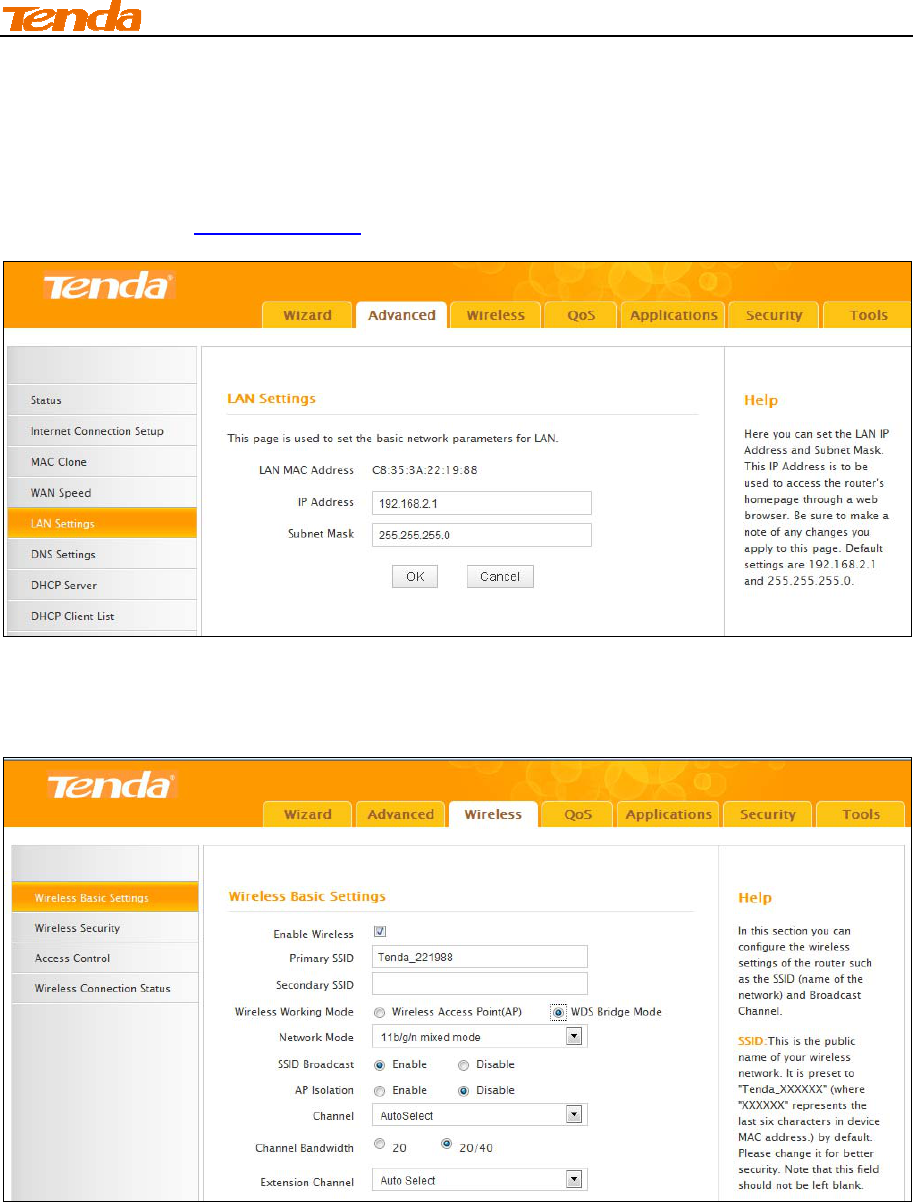

① Click Advanced -> LAN Settings to configure an IP address that is in the same subnet as yet

different from the remote wireless router for this Tenda wireless router.

② Click OK in the appearing screen.

③ Select Universal Repeater Mode: Client +AP and click Next.

II Quick Internet Setup

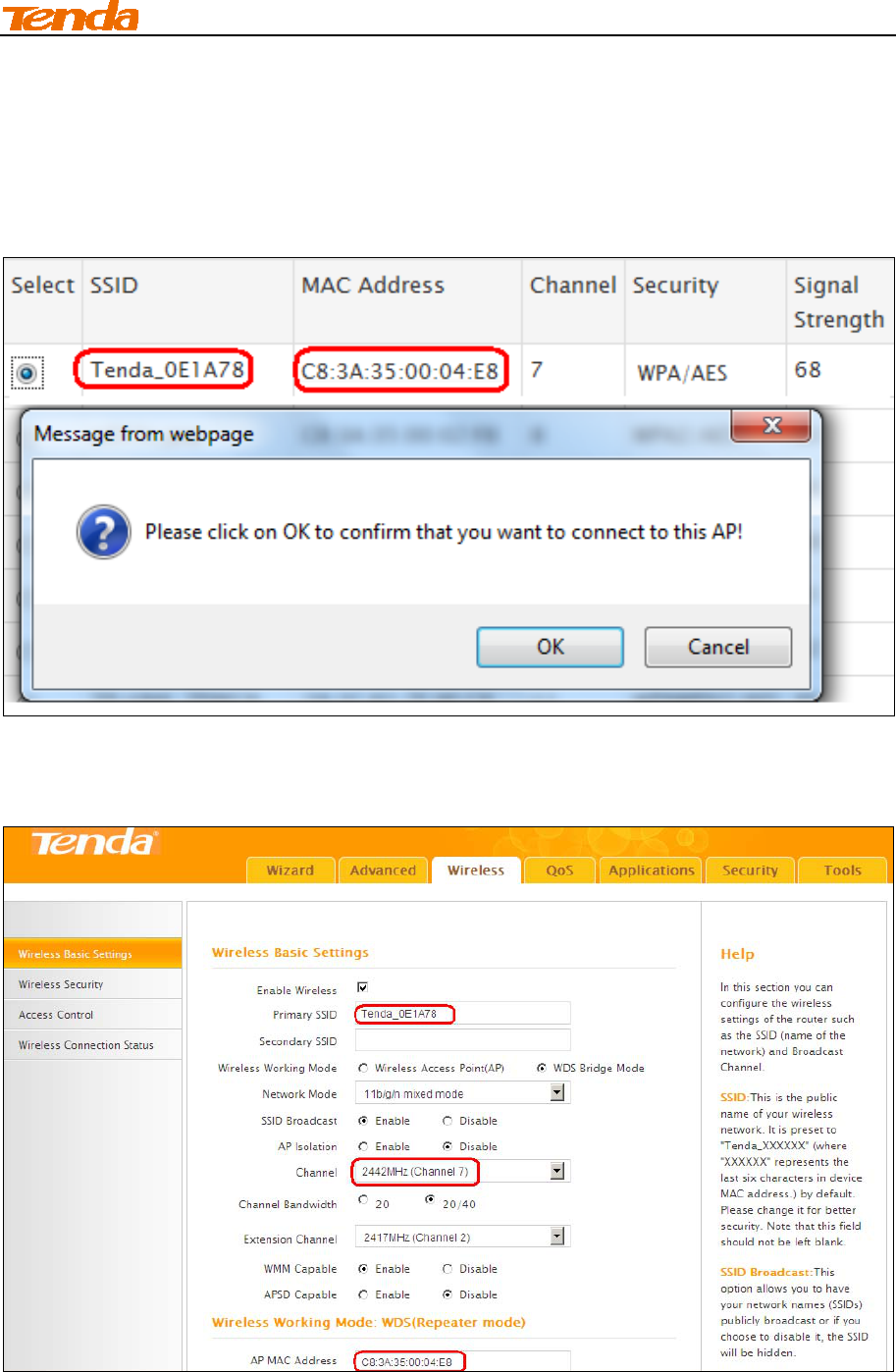

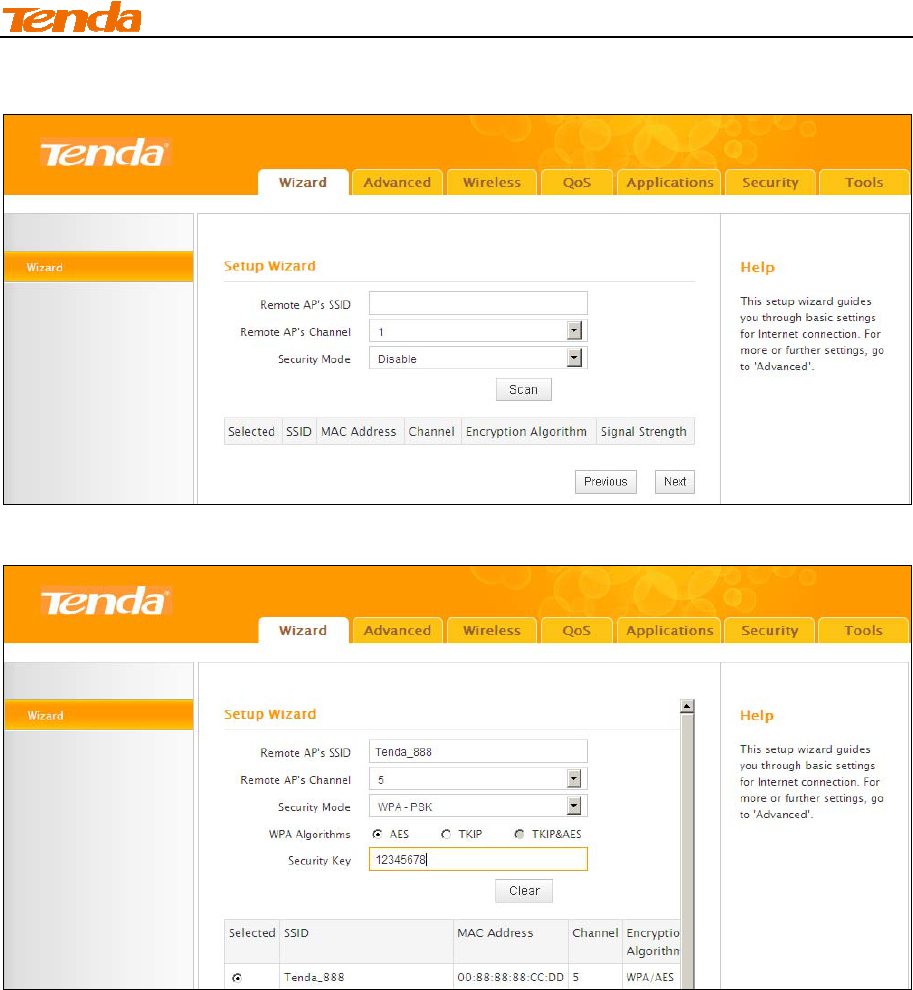

④ Click here to search for available APs.

⑤ Select the wireless network you wish to connect to.

⑥ The information of the remote AP will be added automatically. You only need to enter the

security key.

II Quick Internet Setup

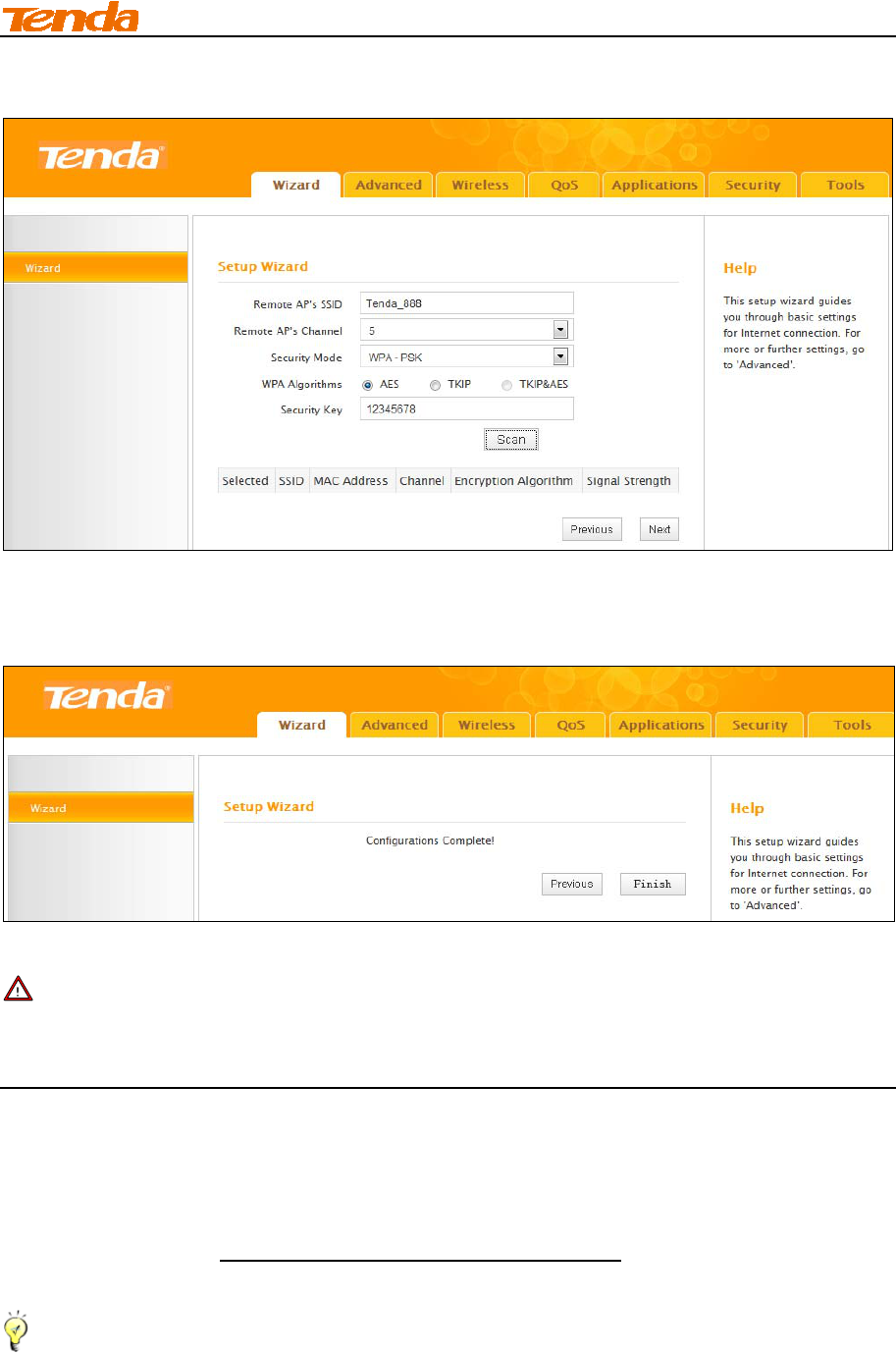

⑦ Click Clear and Next.

⑧ Click Finish and wait for the device to restart automatically. After reboot, reconnect to this

device wirelessly or using an Ethernet cable and you will be able to access Internet.

Note----------------------------------------------------------------------------------------------------------------------

When the Universal Repeater is configured successfully, wireless clients need to join the repeater

wireless router's SSID for Internet access.

Step 3: Configure PC3 & PC4

① If PC 3 and PC 4 are set to static or fixed IP addresses (This is uncommon), change them to

"Obtain an IP address automatically" and "Obtain DNS server address automatically" from the

device. For details, see Appendix 1Configure PC TCP/IP Settings.

Tip------------------------------------------------------------------------------------------------------------------------

If PC 3 and PC 4 are already set to "Obtain an IP address automatically" and "Obtain DNS

II Quick Internet Setup

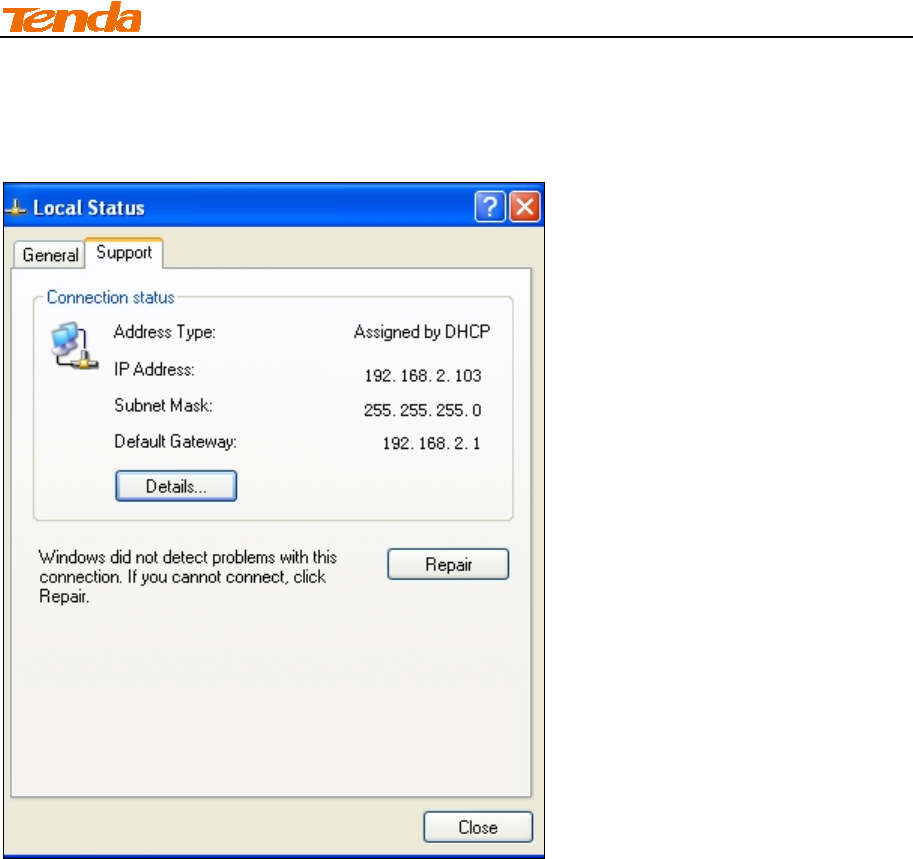

server address automatically" from the device, click Repair to repair the IP settings.

--------------------------------------------------------------------------------------------------------------------------------

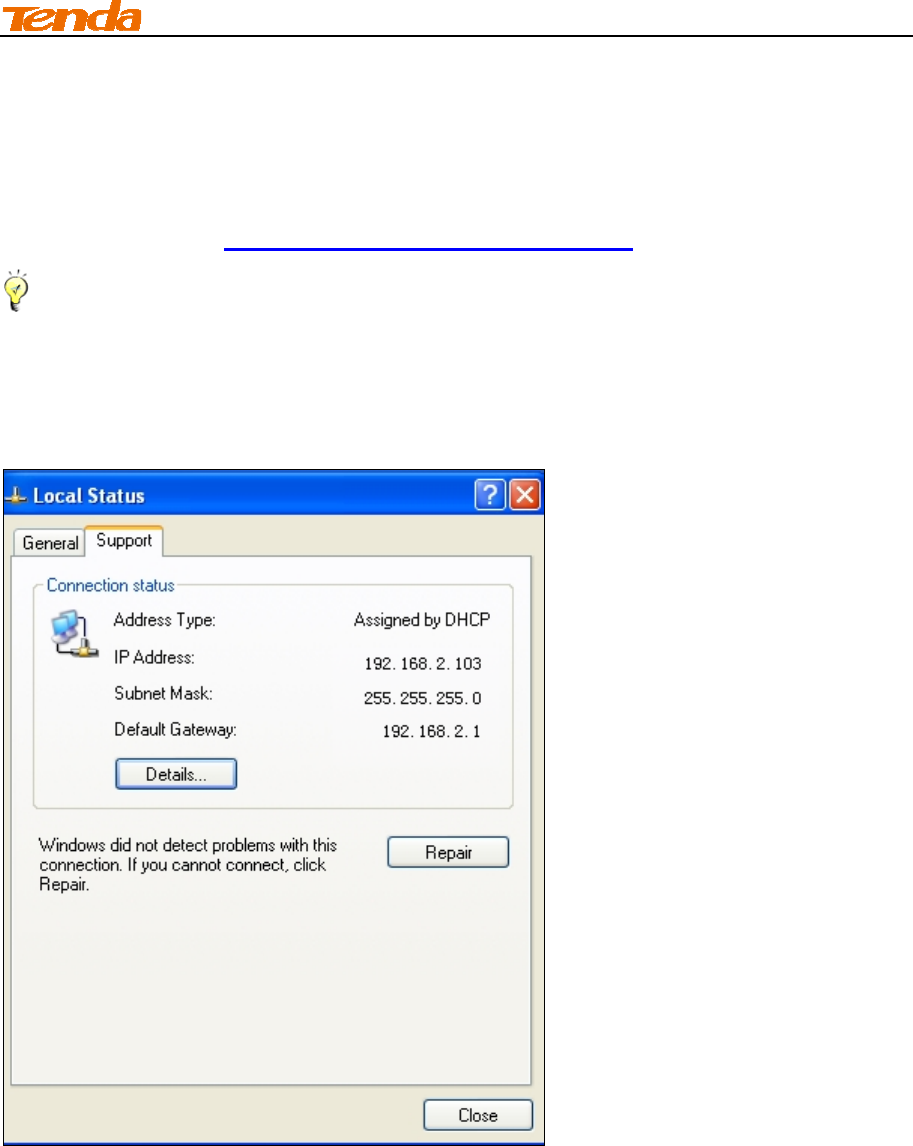

② Wait until your PC successfully obtains an IP address.

II Quick Internet Setup

Verify Connectivity:

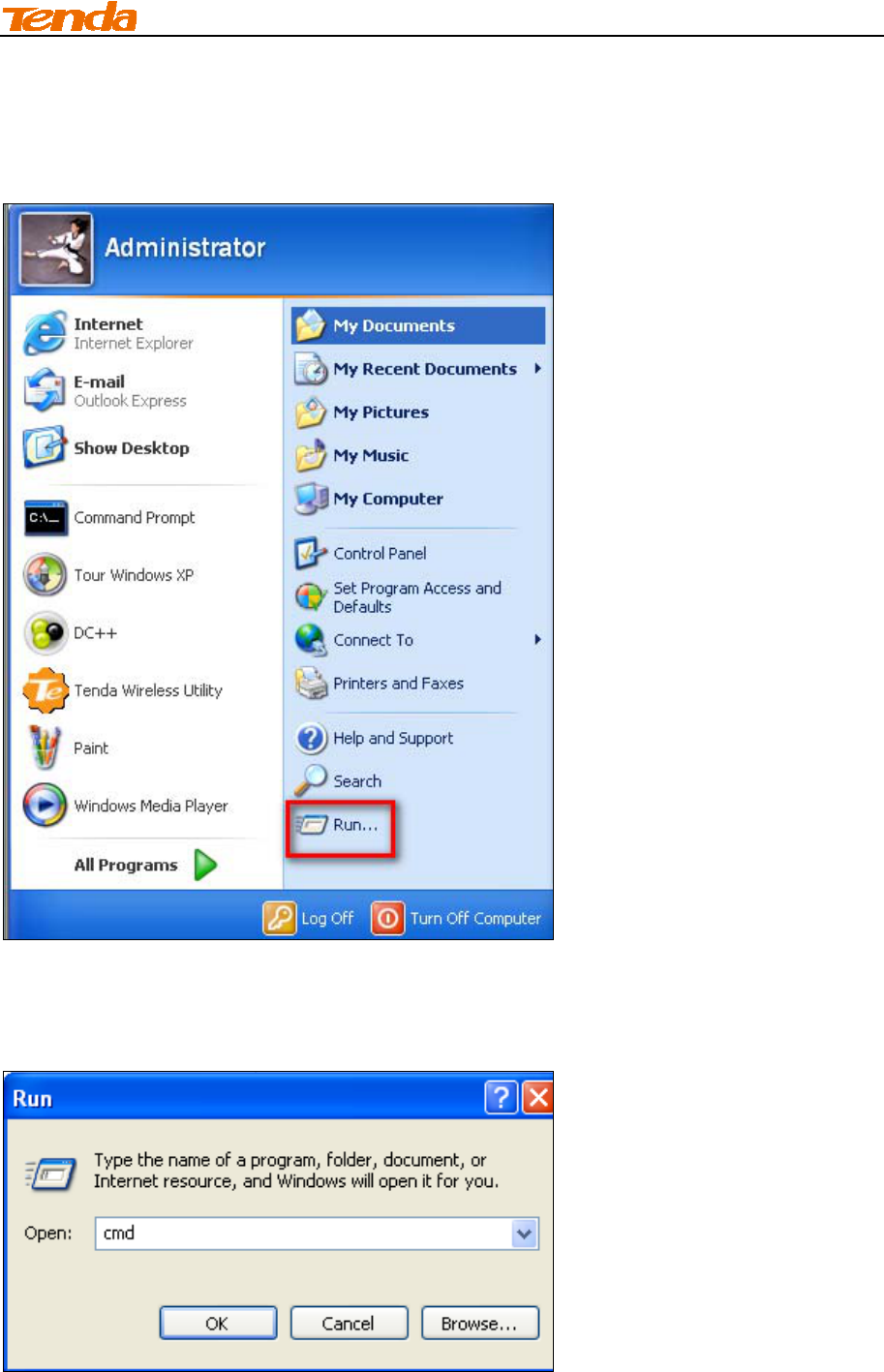

① On PC 3 or PC4, Click Start -> Run.

② Enter cmd and click OK.

II Quick Internet Setup

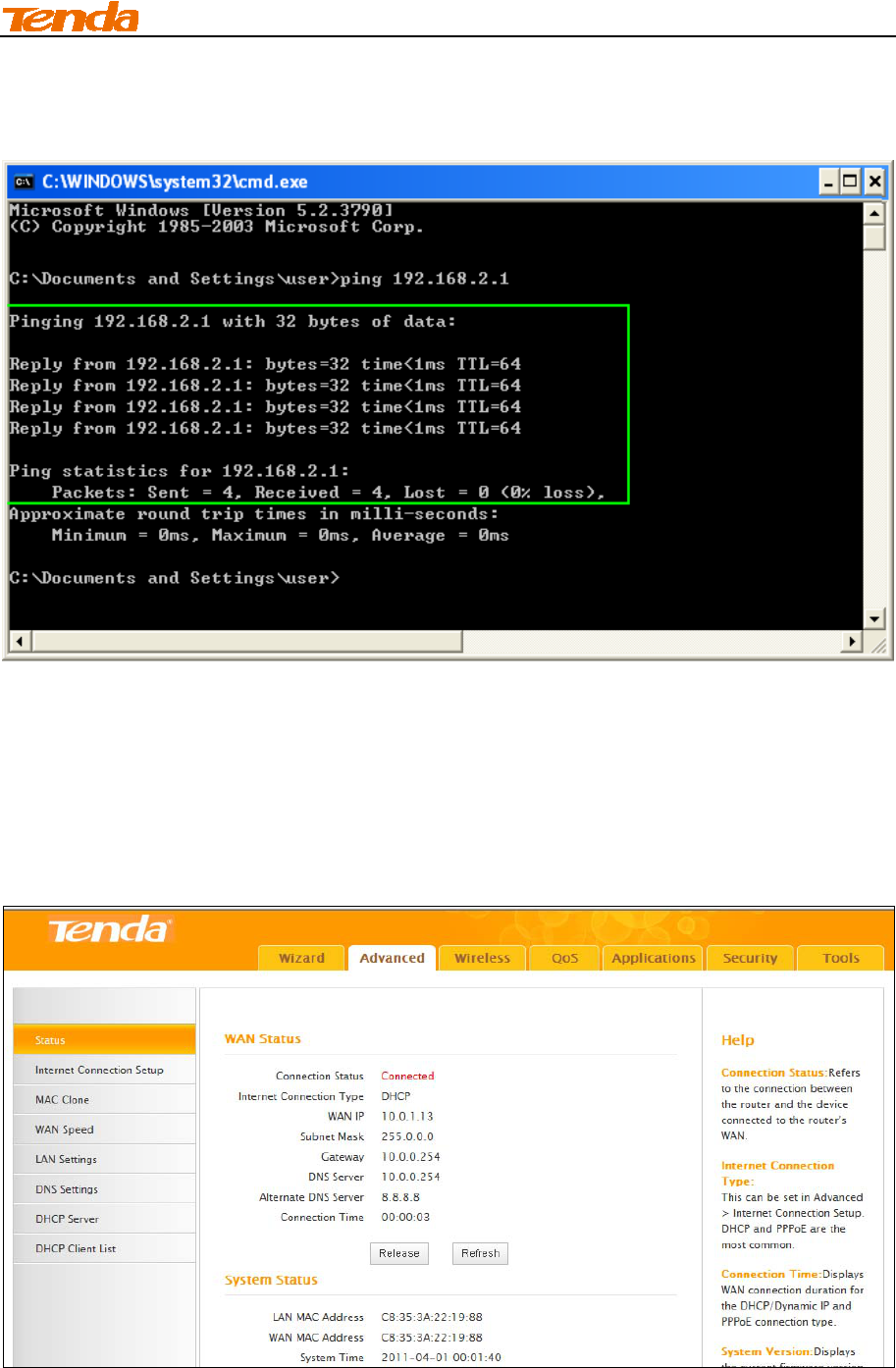

③ Input ping 192.168.2.1 and press Enter. If you get a screen as seen below, you have

successfully implemented WDS.

6 Verify Internet Connectivity

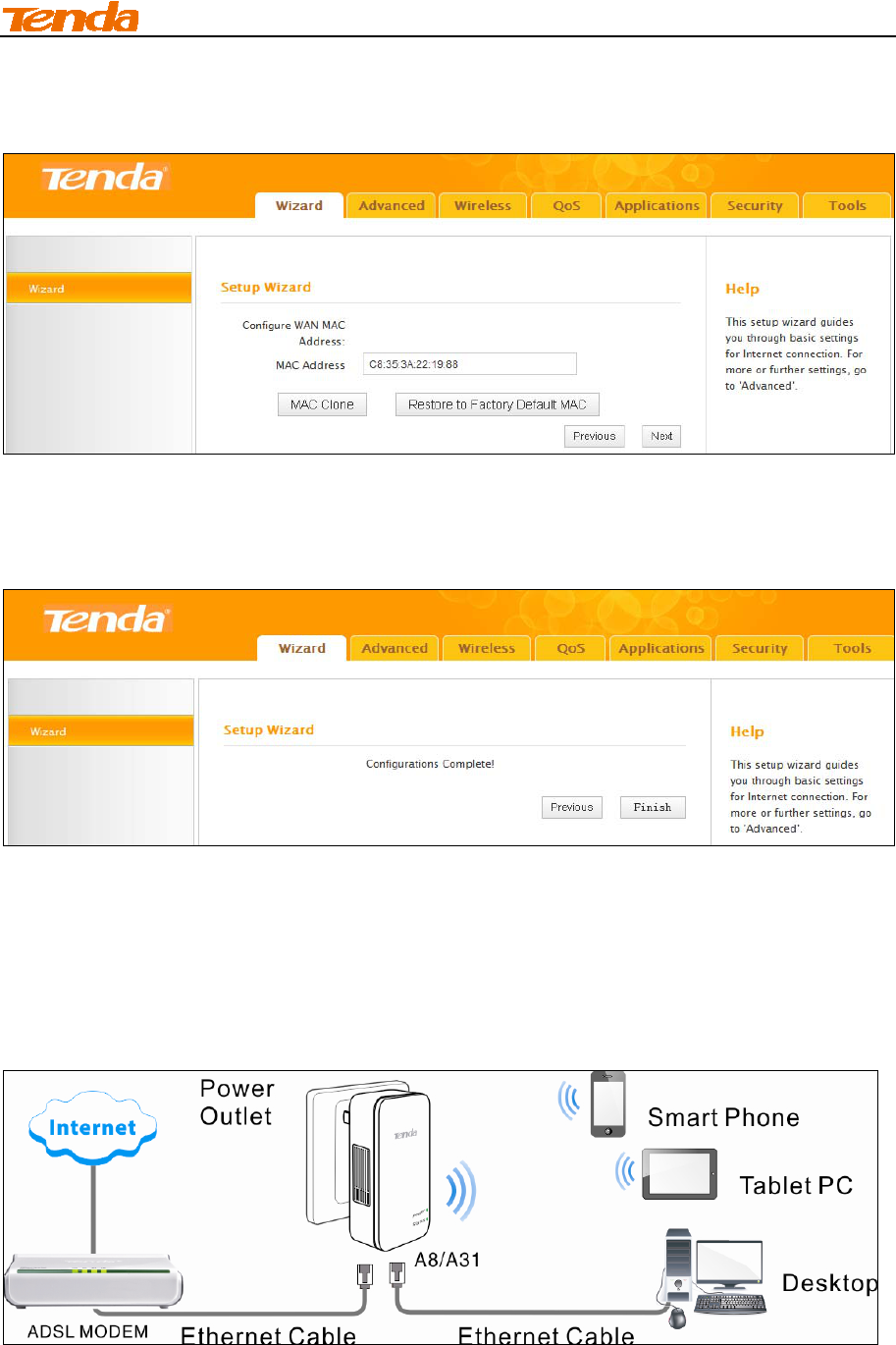

Click Advanced-> Status and check the Connection Status.

A． If connection status displays "Connected” (as shown below), you are connected to the

Internet.

II Quick Internet Setup

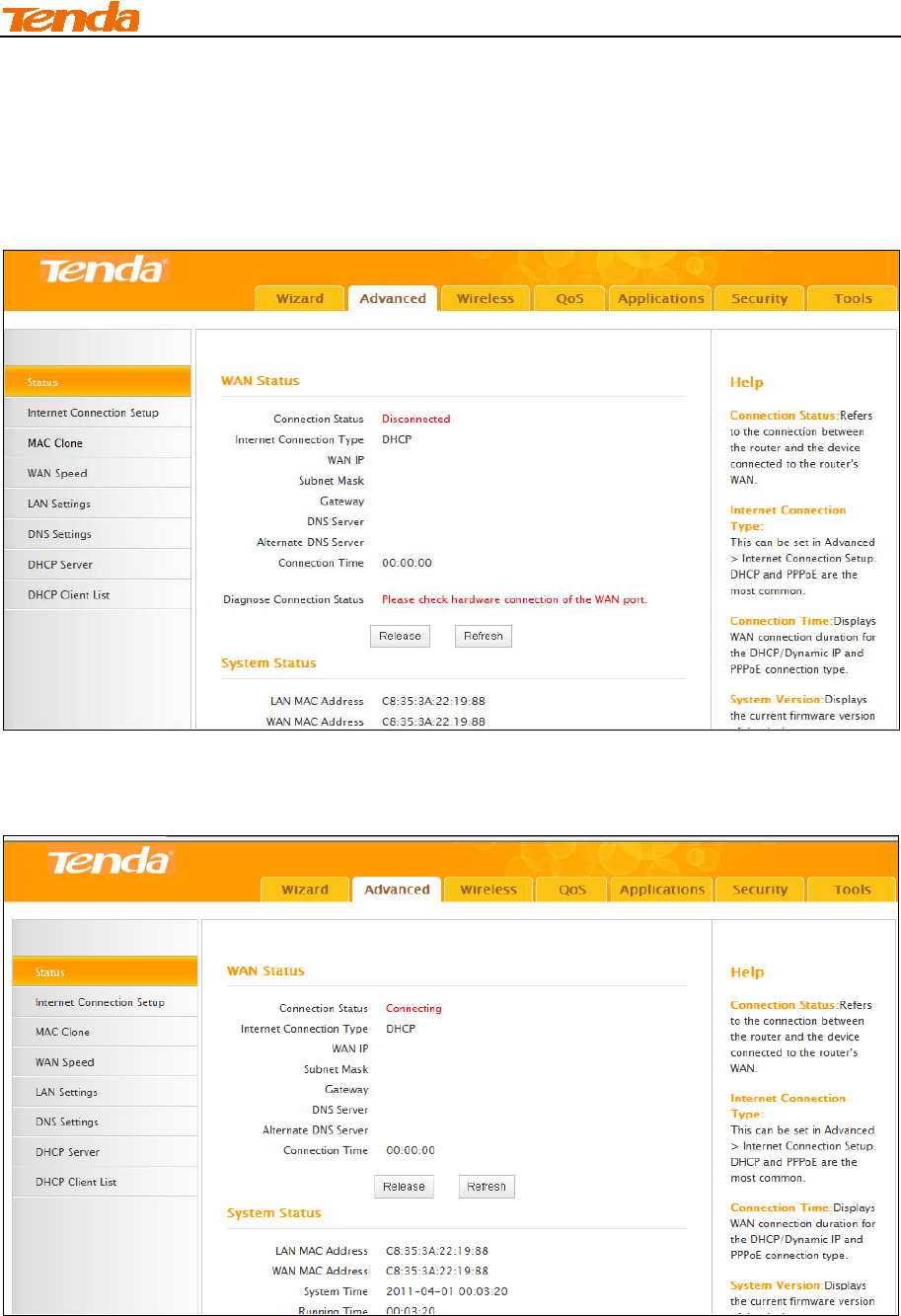

B. If connection status displays "Disconnected” (as shown below), the Ethernet cable from the

incoming Internet side to the router's WAN port may be connected improperly or disconnected.

Make sure the cable from the incoming Internet side is properly connected to the router's WAN

port. If nothing is wrong, "Connecting" or "Connected" will be displayed.

C. If connection status displays "Connecting”, wait until the webpage automatically refreshes 5

times.

And if it still displays "Connecting", try the following steps:

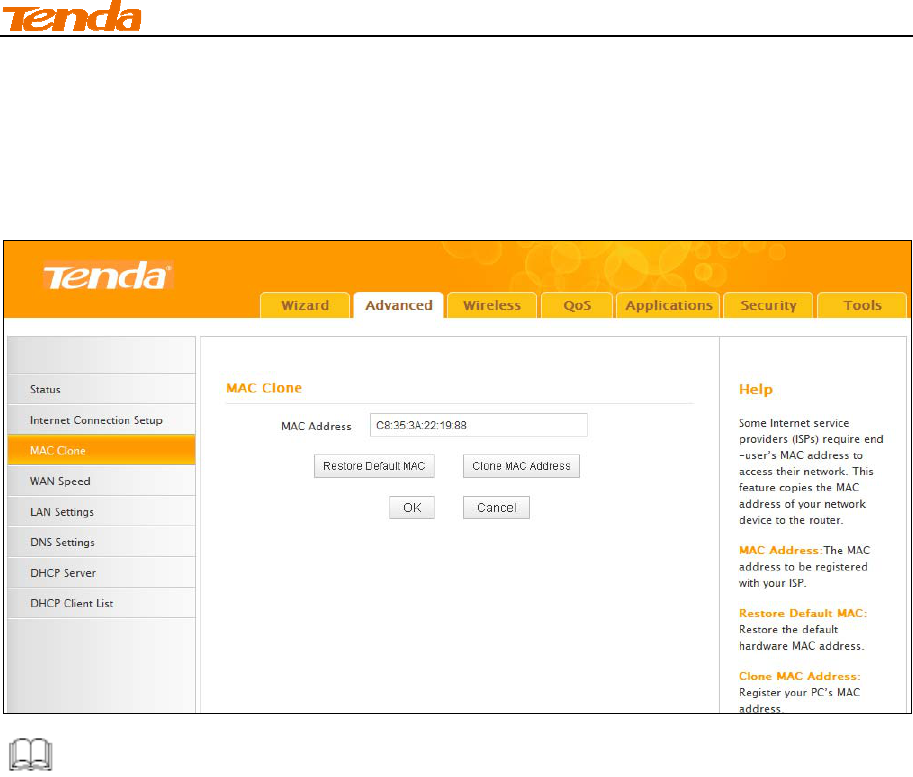

 If you are using DHCP Internet connection type, try cloning MAC address. For more

II Quick Internet Setup

information, see 1.3 MAC Clone.

 If you are using the PPPoE Internet connection type, read the diagnostic information next to

the Diagnose Connection Status on the screen.

III Features &Connectivity

III Features & Configurations

1 Advanced Settings

1.1 Status

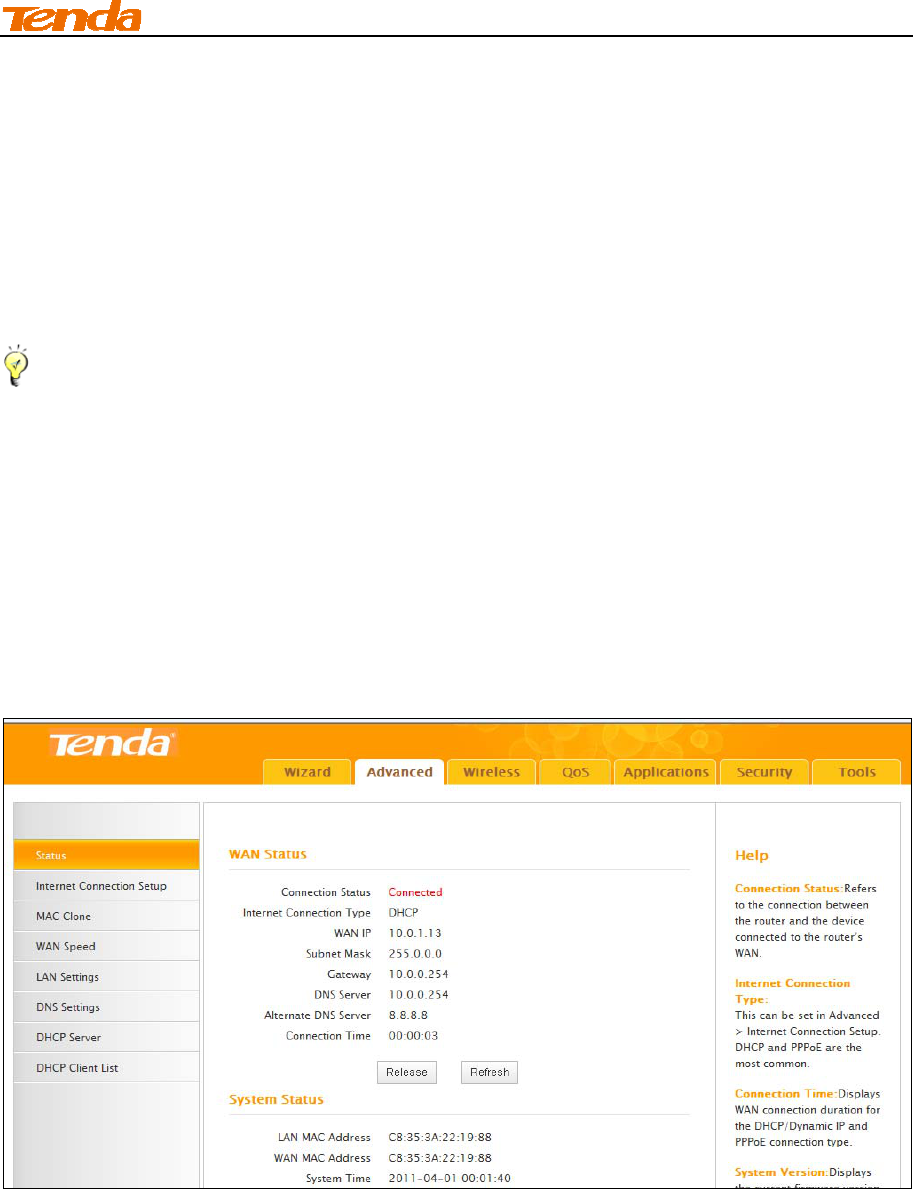

Click Advanced to enter the status screen. Here you can view the router’s WAN status and

system status as noted below:

Tip----------------------------------------------------------------------------------------------------------------------

1. IP Address/Subnet Mask/WAN subnet mask/Gateway/Primary DNS Server/Secondary DNS

Server: This type of information appears only if the router successfully connects to Internet via a

PPPoE or DHCP (dynamic IP) connection. However if you connect the router to Internet with

static IP settings provided by your ISP, these fields will display the settings you entered whether

the router successfully connects to the Internet or not.

2. If nothing appears in the secondary DNS server field, there is no available secondary DNS

server.

--------------------------------------------------------------------------------------------------------------------------------

III Features &Connectivity

1.2. Internet Setup

Click Advanced -> Internet Connection Setup to configure your Internet connection settings.

Select your Internet connection type:

A. Select PPPoE if your ISP uses a PPPoE connection and gives you a PPPoE user name and a

PPPoE password.

B. Select Static IP if your ISP provides you with fixed or static IP address settings (special

deployment by ISP; this is rare).

C. Select DHCP (Dynamic IP) if you can access Internet simply by directly connecting your

computer to an Internet-enabled ADSL/Cable modem without configuring any settings.

PPPoE

Configuration Procedures:

① Internet Connection Type: Select PPPoE.

② PPPoE Username: Enter the ISP login name.

③ PPPoE Password: Enter the ISP login password.

④ Click OK to save your settings.

Knowledge Center----------------------------------------------------------------------------------------------

1. MTU: The MTU (maximum transmission unit) is the largest data packet a network device

III Features &Connectivity

transmits. The normal MTU value for most Ethernet networks is 1500 bytes, or 1492 bytes for

PPPoE connections. The best MTU value is often just the factory default value. For some ISPs,

you might need to change the MTU. This is rarely required, and should not be done unless you are

sure it is necessary for your ISP connection. For more information, see WAN MTU Setup.

2. Service Name: This is the descriptive name of the current connection. Only enter it if your ISP

provides it.

3. Server Name: This is the descriptive name of the server. Only enter it if your ISP provides it.

-------------------------------------------------------------------------------------------------------------------------------

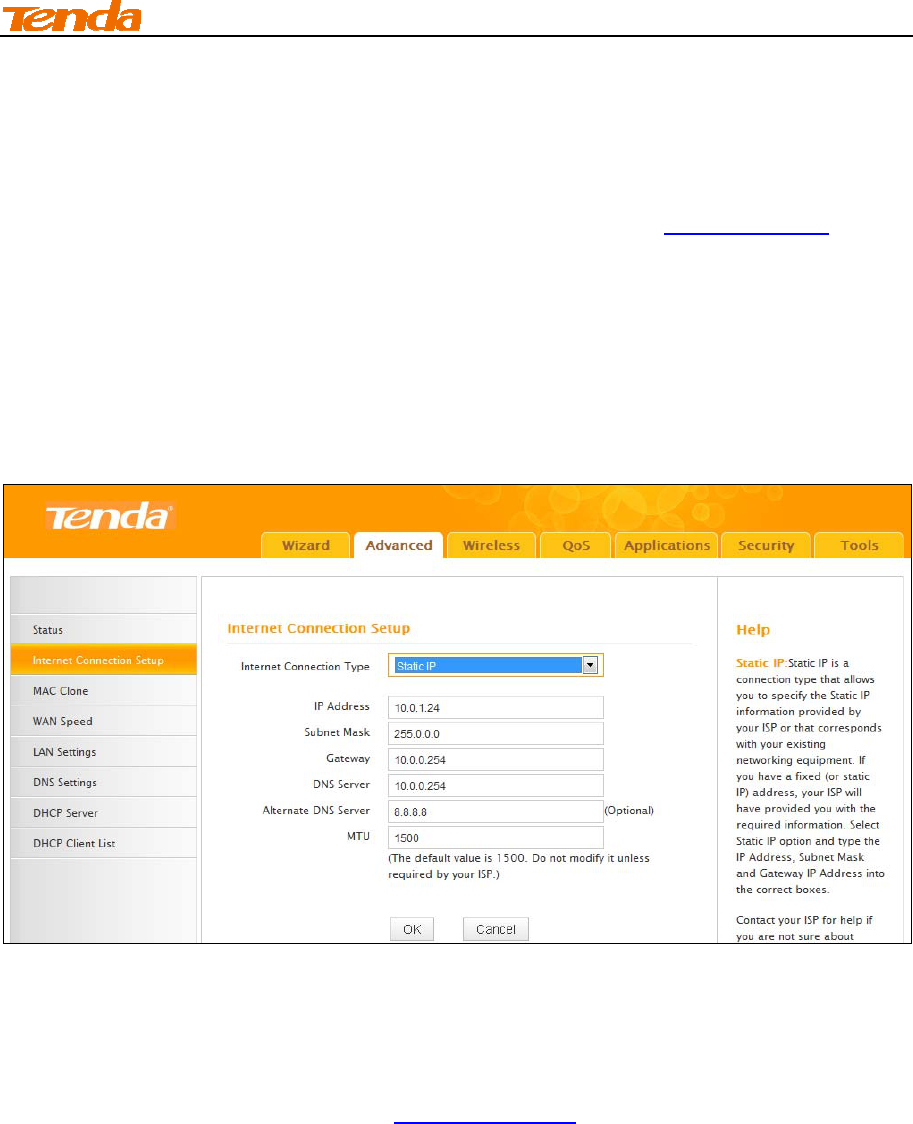

Static IP

Configuration Procedures:

① Internet connection Type: Select Static IP.

② IP Address/Subnet Mask/WAN subnet mask/Gateway/DNS Server/Alternate DNS Server:

Enter the ISP information you gathered in 1Getting Prepared.

③ Click OK to save your settings.

III Features &Connectivity

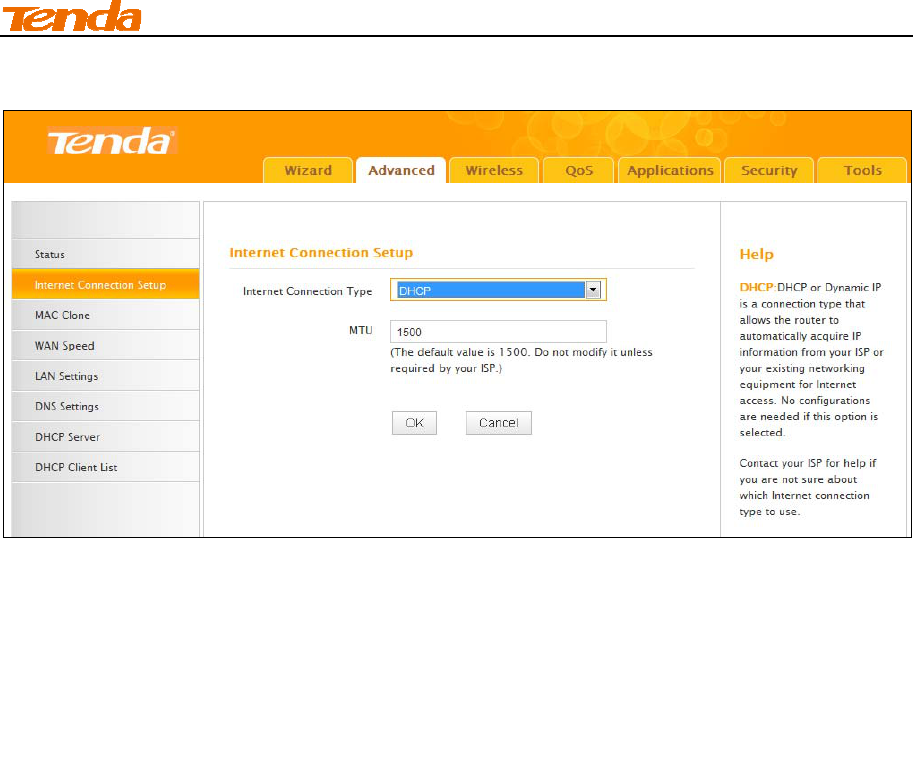

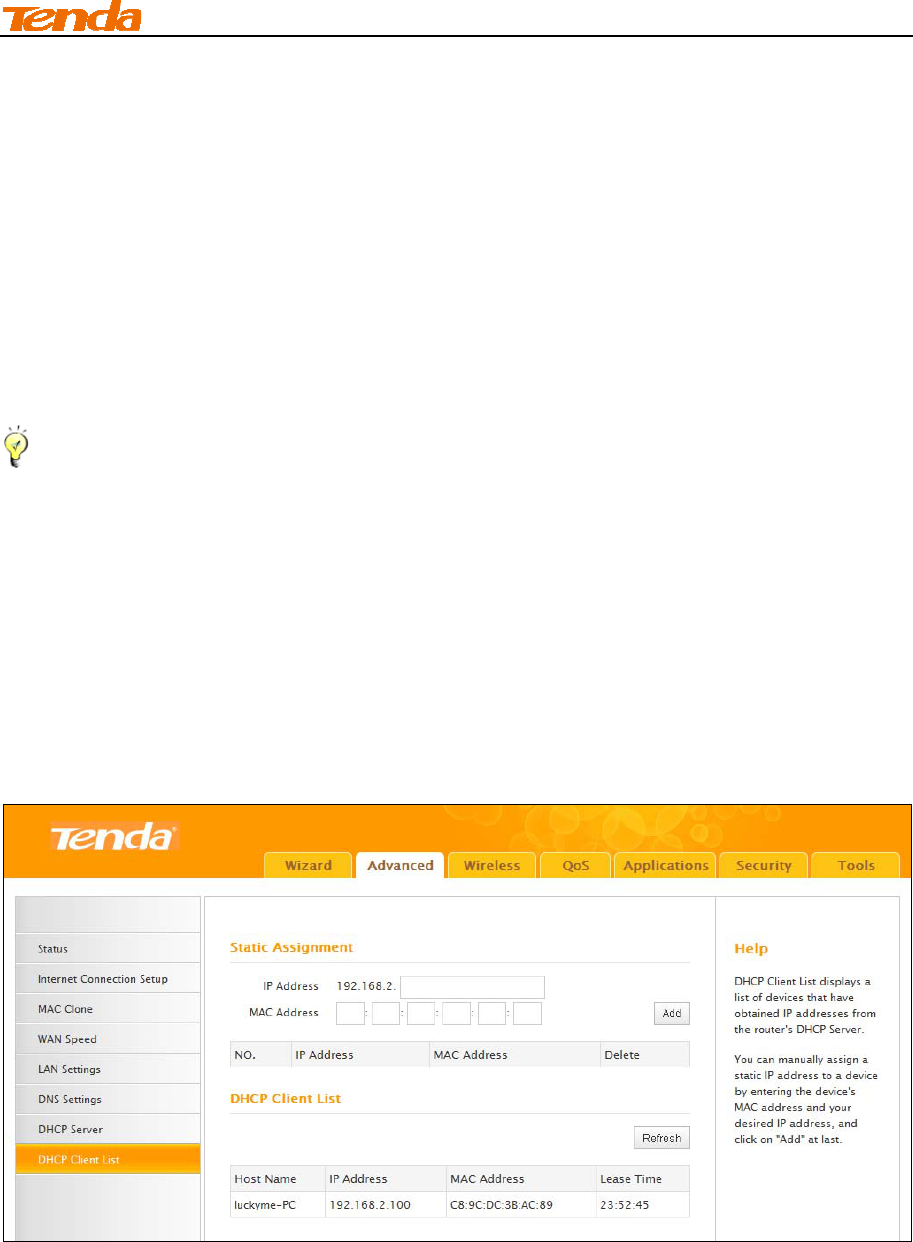

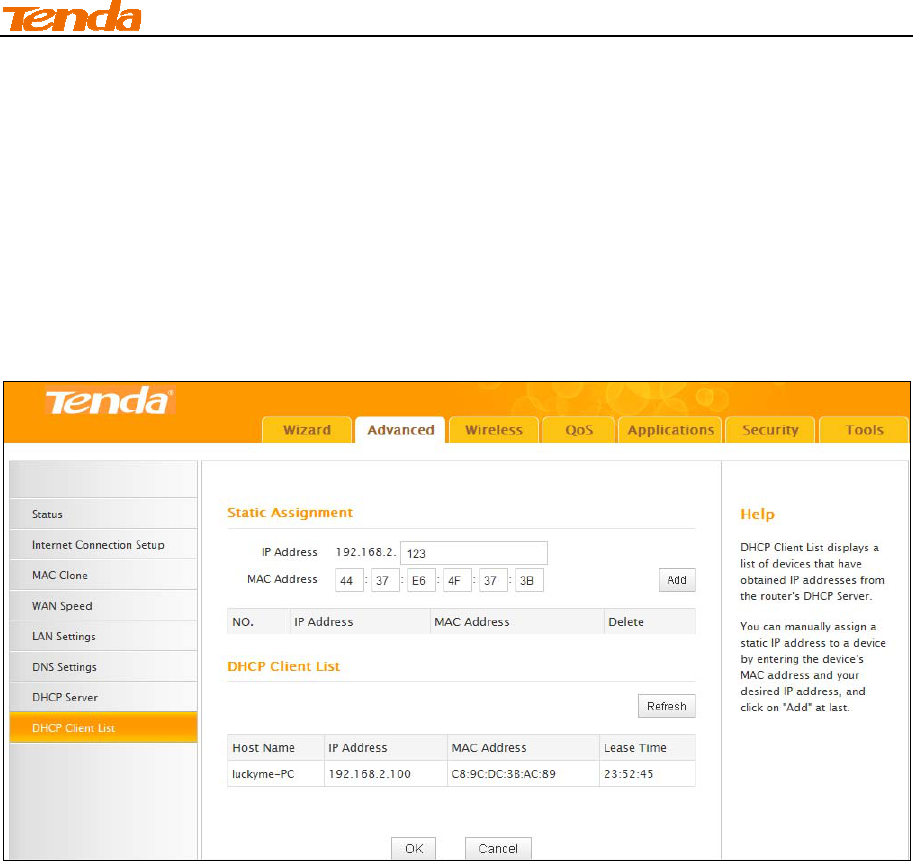

DHCP

Configuration Procedures:

① Internet connection Type: Select DHCP.

② Click OK to save your settings.

WAN MTU Setup

The MTU (maximum transmission unit) is the largest data packet a network device transmits.

The normal MTU value for most Ethernet networks is 1500 bytes, or 1492 bytes for PPPoE

connections. For some ISPs, you might need to change the MTU. This is rarely required, and

should not be done unless you are sure it is necessary for your ISP connection. When one

network device communicates across the Internet with another, the data packets travel through

many devices along the way. If a device in the data path has a smaller MTU value than the other

devices, the data packets have to be "fragmented" to accommodate the device with the smallest

MTU value.

The best MTU value is often just the factory default value. In some situations, changing the MTU

value fixes one problem but causes another. Leave the MTU unchanged unless one of these

situations occurs:

A. You have problems connecting to your ISP or other Internet service, and either your ISP or our

technical support suggests changing the MTU value. Below web-based applications might require

an MTU change:

 A secure website that does not open, or displays only part of a web page

III Features &Connectivity

 Yahoo email

 MSN portal

B. You use VPN and encounter serious performance problems.

C. You used a program to optimize MTU for performance reasons, and now you have connectivity

or performance problems.

If you suspect an MTU problem, try changing the MTU to 1400. If this does not help, gradually

reduce the MTU from the maximum value of 1500 until the problem disappears.

The common MTU sizes and applications are listed in the table below.

MTU Application

1500 Typical for connections that do not use PPPoE or VPN.

1492 Used in PPPoE environments.

1472 Maximum size to use for pinging. (Larger packets are

fragmented.)

1468 Used in some DHCP environments.

1436 Used in PPTP environments or with VPN.

Note ---------------------------------------------------------------------------------------------------------------------

A wrong/improper MTU value may cause Internet communication problems. For example, you

may be unable to access certain websites, frames within websites, secure login pages, or FTP or

POP servers.

---------------------------------------------------------------------------------------------------------------------------------

III Features &Connectivity

1.3 MAC Clone

Some ISPs (Internet Service Providers) require end-user's MAC address to access their network.

This feature copies your current PC's MAC address to the router. Click Advanced -> MAC Clone

to enter the configuration screen.

Knowledge Center-----------------------------------------------------------------------------------------------

1. Restore Default MAC: Reset the router’s WAN MAC to factory default.

2. Clone MAC Address: Clicking this button copies the MAC address of the computer that you

are now using to the router. Also, you can manually enter the MAC address that you want to use.

You have to use the computer whose MAC address is allowed by your ISP.

---------------------------------------------------------------------------------------------------------------------------------

To restore default MAC address:

① Click Restore Default MAC.

② Click OK to save your settings.

To clone the MAC address of the computer that you are currently using to the router:

① Click Clone MAC Address.

② Click OK to save your settings.

To manually enter the MAC address allowed by your ISP:

① Enter the MAC address allowed by your ISP.

② Click OK to save your settings.

1.4 WAN Speed

III Features &Connectivity

Click Advanced -> WAN Speed to enter the WAN port mode screen. Here you can configure the

router's WAN speed and duplex mode.

Tip-------------------------------------------------------------------------------------------------------------------------

1. The best port mode is often just the factory default of "Auto".

2. In some situations, you might need to change the port mode. For example, if the cable

connected to your router's WAN port is too long, you may need to use 10M full-duplex or 10M

half-duplex for better performance.

---------------------------------------------------------------------------------------------------------------------------------

1.5 LAN Settings

Click Advanced -> LAN Settings to enter the configuration screen. Here you can configure the

LAN IP address. This IP address is to be used to access the router’s settings through a web

browser. Be sure to make a note of any changes you apply to this page.

Tip ----------------------------------------------------------------------------------------------------------------------

1. Default IP address and subnet mask are respectively 192.168.2.1 and 255.255.255.0.

2. This router does not support VLSM.

3. Be sure to make a note of any changes you apply to this page. If you change the LAN IP

address of the router, you have to open a new connection to the new IP address and log in

again.

---------------------------------------------------------------------------------------------------------------------------------

III Features &Connectivity

Configuration Procedures:

① Change the IP address to the one you wish to use, for example, 192.168.10.1.

② Click OK to save your settings.

1.6 DNS Settings

Click Advanced -> DNS Settings to enter the configuration screen. Here you can set the DNS

(Domain Name Server) settings. The DNS server is used to look up site addresses based on their

names.

Configuration Procedures:

① Enable Manual DNS Assignment: Check to enable the DNS settings.

② Primary DNS Server: Enter the IP address of your ISP’s primary DNS server.

③ Alternate DNS Address: If a secondary DNS server address is available, enter it here. This

field is optional.

④ Click OK to save your settings.

III Features &Connectivity

Note --------------------------------------------------------------------------------------------------------------------

The default DNS settings are recommended. Only change the DNS default settings if you know

that your ISP requires specific servers. If incorrect DNS settings are configured, webpages will be

unable to open.

---------------------------------------------------------------------------------------------------------------------------------

1.7 DHCP Server

DHCP (Dynamic Host Configuration Protocol) assigns an IP address to each device on the

LAN/private network. When you enable the DHCP Server, the DHCP Server will automatically

allocate an unused IP address from the IP address pool specified in this screen to the requesting

device as long as the device is set to "Obtain an IP Address Automatically". If you disable this

feature, you have to manually configure the TCP/IP settings for all PCs on your LAN to access

Internet.

Click Advanced -> DHCP Server to enter the DHCP Server screen. Here you can change the

DHCP IP address pool and lease time.

III Features &Connectivity

Configuration Procedures:

① DHCP Server: Select whether to enable or disable the DHCP server feature.

② IP Pool Start IP Address / IP Pool End IP Address: You can specify the starting and ending

address of the IP address pool here. These addresses should be part of the same IP address

subnet as the router’s LAN IP address.

③ Lease Time: The lease time is a time length that the IP address is assigned to each device

before it is refreshed.

④ Click OK to save your settings.

Tip-----------------------------------------------------------------------------------------------------------------------

1. By default, the router functions as a DHCP server. Do not disable the DHCP server feature

unless you want to manually configure the TCP/IP settings for all PCs on your LAN.

2. Lease time will be renewed automatically upon expiry. No additional configurations are

needed.

3. If you are not an advanced user, the default DHCP server settings are recommended.

---------------------------------------------------------------------------------------------------------------------------------

1.8 DHCP Client List

Click Advanced -> DHCP Client List. You can know whether there are unauthorized accesses by

viewing the client list.

Also, you can specify a reserved IP address for a PC in the LAN. That PC will always receive the

same IP address each time when it accesses the DHCP server. Reserved IP addresses could be

assigned to servers that require permanent IP settings.

III Features &Connectivity

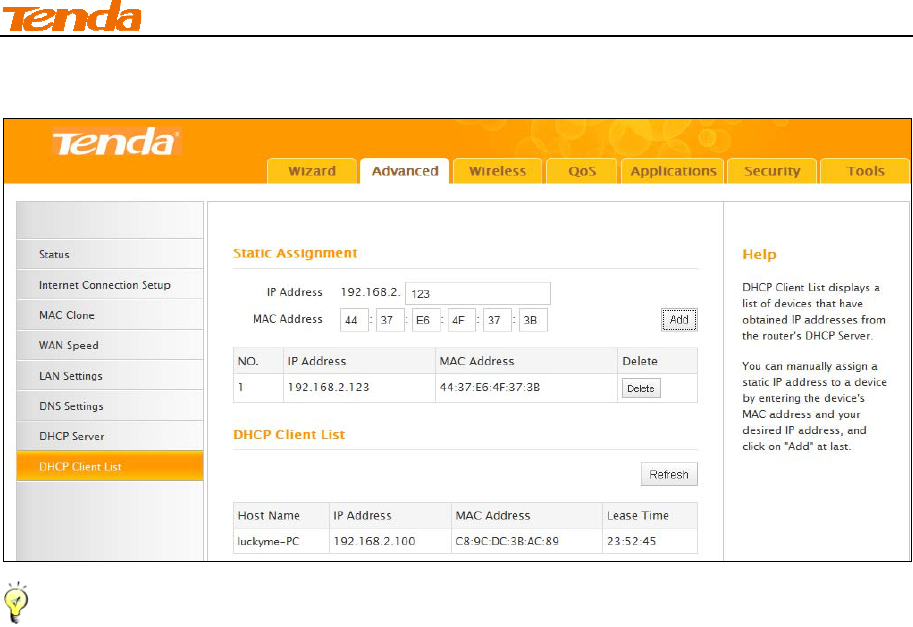

Static Assignment Application Example:

To have a PC at the MAC address of 44:37:E6:4F:37:3B always receive the same IP address of

192.168.0.123.

Configuration Procedures:

① Enter the last number of the IP address you want to reserve, for example, 123.

② Enter the MAC address of 44:37:E6:4F:37:3B.

③ Click Add.

III Features &Connectivity

④ Click OK to save your settings.

Tip-------------------------------------------------------------------------------------------------------------------------

1. If the IP address you have reserved for your PC is currently used by another client, then you

will not be able to obtain a new IP address from the device's DHCP server, instead, you must

manually specify a different IP address for your PC to access Internet.

2. For PCs that has already obtained IP addresses, you may need to perform the Repair action

to activate the configured static IP addresses.

---------------------------------------------------------------------------------------------------------------------------------

III Features &Connectivity

2 Wireless Settings

2.1 Wireless Basic Settings

Here you can configure the basic wireless settings of the router. This router supports two operating

modes: Wireless Access Point (AP) and WDS Bridge Mode.

A. To only use the wireless network delivered by this router, select Wireless Access Point (AP).

B. To extend an existing wireless network, select WDS Bridge Mode.

Wireless AP Mode

Tip-----------------------------------------------------------------------------------------------------------------------

1. By default, this device operates in the Wireless Access Point (AP) mode.

2. The primary SSID is defaulted to Tenda_XXXXXX, where XXXXXX is the last six characters in

the device's MAC address. You can find this SSID on the label attached on the bottom of the

device.

3. If you are not an advanced user, it is advisable to only change the primary SSID (name of the

network) and channel and leave other items unchanged.

4. The device supports two SSIDs: primary SSID and secondary SSID. The secondary SSID is

optional. By default, the secondary SSID is disabled.

5. Instructions to configure the primary SSID also apply to the secondary SSID. The primary SSID

is used as an example below to illustrate all wireless related features.

---------------------------------------------------------------------------------------------------------------------------------

III Features &Connectivity

Configuration Procedures:

① Primary SSID: This is the public name of your wireless network.

② Channel: Select a channel or select Auto to let system automatically select one for your

wireless network to operate on if you are unsure. The best selection is a channel that is the least

used by neighboring networks.

③ Click OK to save your settings.

Knowledge Center---------------------------------------------------------------------------------------------

1. Secondary SSID: This is an alternate name for your wireless network.

2. Network Mode (802.11 Mode): Select a correct mode according to your wireless clients.

 11b: This network mode delivers wireless speed up to 11Mbps and is only compatible with

11b wireless clients.

 11g: This network mode delivers wireless speed up to 54Mbps and is only compatible with

11g wireless clients.

 11b/g mixed: This network mode delivers wireless speed up to 54Mbps and is compatible

with 11b/g wireless clients.

 11b/g/n mixed: This network mode delivers wireless speed up to 300Mbps (A31)/150Mbps

(A8) and is compatible with 11b/g/n wireless clients.

3. SSID Broadcast: This option allows you to have your network names (SSIDs) publicly

broadcast or if you choose to disable it, the SSIDs will be hidden.

4. AP Isolation: When enabled, devices wirelessly connected to the same SSID will not be able

to intercommunicate.

5. Channel Bandwidth: Select a proper channel bandwidth to enhance wireless performance.

This option is available only in 802.11b/g/n. Wireless speed in the channel bandwidth of 20/40 is 2

times in 20.

6. Extension Channel: This is used to ensure N speeds for 802.11n devices on the network. This

option is available only in 11b/g/n mixed mode with channel bandwidth of 20/40.

7. WMM Capable: WMM is QoS for your wireless network. Enabling this option may better stream

wireless multimedia data (such as video or audio).

8. ASPD Capable: Select to enable/disable the auto power saving mode. This option is effective

only if WMM Capable is enabled. It is advisable to disable it.

III Features &Connectivity

WDS Bridge Mode

WDS Bridge Mode: wireless distribution system (WDS) is a system enabling the wireless

interconnection of access points in an IEEE 802.11 network. It allows a wireless network to be

expanded using multiple access points without the traditional requirement for a wired backbone to

link them.

Note----------------------------------------------------------------------------------------------------------------------

The Access Points you select MUST support WDS.

---------------------------------------------------------------------------------------------------------------------------------

III Features &Connectivity

WDS Bridge Mode Application Example:

To implement WDS Bridge for the application scenario above, do as follows:

Step 1: Get Prepared

① View and note down the SSID and wireless security settings of Router 1.

Click Wireless -> Wireless Basic Settings to enter the wireless basic configuration screen. Here

you can view the SSID and channel.

 SSID：Tenda_221988

 Channel: 6

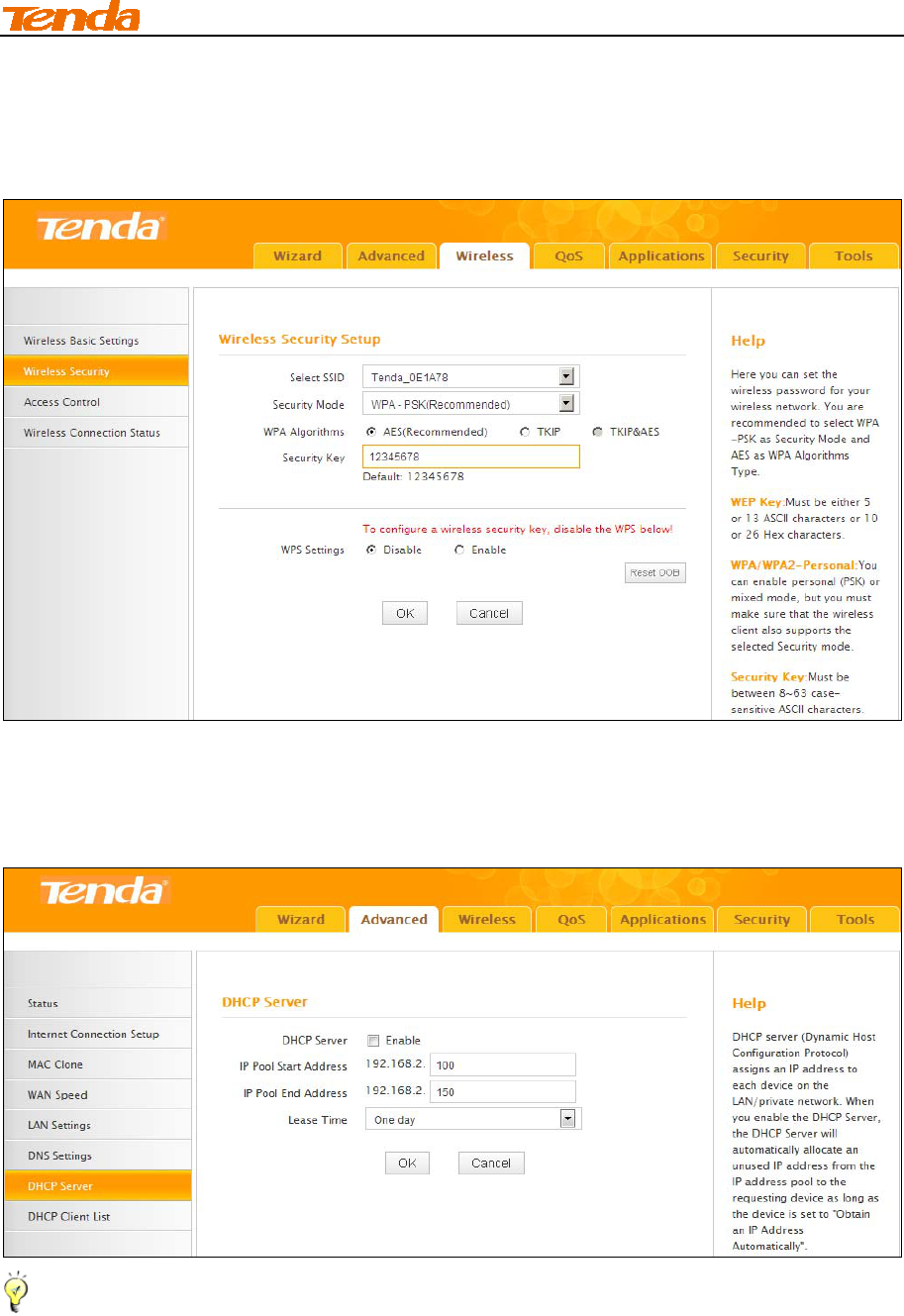

Click Wireless -> Security to enter the wireless security configuration screen. Here you can view

the security settings.

III Features &Connectivity

 Security Mode: WPA-PSK

 Cipher Type: AES

 Password: 12345678

 AP MAC (BSSID): C8:3A:35:00:01:20 (can be found on the label attached to the device)

 Make sure DHCP server is enabled on router 1.

Click Advanced -> DHCP Server to enter the DHCP server configuration screen. You can view

and configure the DHCP server settings here.

② Set the LAN IP address of Router 1 to a different address yet on the same net segment as

Router 2.

For example, Router 1: 192.168.2.1, Router 2: 192.168.2.10.

About how to configure these IP addresses, see 1.6 LAN Setting.

III Features &Connectivity

Step 2: Configure Router 1

① Set the LAN IP address of Router 1 (Set it to a different address yet on the same net segment

as Router 2. For example, Router 1: 192.168.2.1, Router 2: 192.168.2.10). For more

information, see 1.6 LAN Settings.

② Click Wireless -> Wireless Basic Settings to enter the configuration screen. Select WDS

Bridge Mode and click Open Scan.

III Features &Connectivity

③ Select the AP you wish to connect to and click OK to confirm it and then click Close Scan.

④ Verify that the automatically populated SSID, channel and MAC address, etc. are correct and

then click OK.

III Features &Connectivity

Step 3: Configure Router 2

① Configure the LAN IP address of Router 2

III Features &Connectivity

② Click Wireless -> Wireless Basic Settings to enter the configuration screen. Select WDS

Bridge Mode and click Open Scan.

III Features &Connectivity

③ Select the AP you wish to connect to (The SSIDs of these two wireless networks become the

same now. You need to identify them by their MAC addresses.) . Click OK on the appearing

dialog box and then close scan.

④ Check the automatically populated SSID, channel and MAC address, etc of the remote AP.

Verify that all settings are correct and then click OK.

III Features &Connectivity

⑤ Set the security key of Router 2 to the same as Router 1.

Click Wireless -> Security to set the security settings to match the remote device (Security Mode:

WPA2-PSK, Cipher Type: AES, Security Key: 12345678).

⑥ Click Advanced -> DHCP Server and disable the DHCP server on Router 2 (Disable DHCP

server on the local router that is used to extend the wireless network from the remote

Internet-enabled router).

Tip-------------------------------------------------------------------------------------------------------------------------

If WDS connection fails, try a different security mode and/or cipher type.

---------------------------------------------------------------------------------------------------------------------------------

III Features &Connectivity

Step 4: Configure PC3 & PC4

③ If PC 3 and PC 4 are set to static or fixed IP addresses (This is uncommon), change them to

"Obtain an IP address automatically" and "Obtain DNS server address automatically" from the

device. For details, see Appendix 1Configure PC TCP/IP Settings.

Tip-----------------------------------------------------------------------------------------------------------------------

If PC 3 and PC 4 are already set to "Obtain an IP address automatically" and "Obtain DNS

server address automatically" from the device, click Repair to repair the IP settings.

--------------------------------------------------------------------------------------------------------------------------------

④ Wait until your PC successfully obtains an IP address.

III Features &Connectivity

Verify Bridge Connectivity:

④ On PC 3, Click Start -> Run.

⑤ Enter cmd and click OK.

III Features &Connectivity

⑥ Input ping 192.168.2.1 and press Enter. If you get a screen as seen below, you have

successfully implemented WDS.

Note ---------------------------------------------------------------------------------------------------------------------

1 WDS feature can only be implemented between 2 WDS-capable wireless devices. Plus, SSID,

channel, security settings and security key must be exactly the same on both such devices.

2 To ensure a proper wireless connection, do not change any settings on the two devices after

WDS is successfully implemented.

---------------------------------------------------------------------------------------------------------------------------------

TENDA TECHNOLOGY A8 Wireless N150 Portable Router User Manual 1

SHENZHEN TENDA TECHNOLOGY CO., LTD. Wireless N150 Portable Router 1

Contents

User manual_1

Navigation menu

Namespaces

Views

Navigation
