user manual

Wireless N150/N301 Easy Setup Router

is the registered trademark of Shenzhen Tenda Technology Co.,

Ltd. All the products and product names mentioned herein are the trademarks or

registered trademarks of their respective holders. Copyright of the whole product

as integration, including its accessories and software, belongs to Shenzhen

Tenda Technology Co., Ltd. Without prior expressed written permission from

Shenzhen Tenda Technology Co., Ltd, any individual or party is not allowed to

copy, plagiarize, reproduce, or translate it into other languages.

All photos and product specifications mentioned in this manual are for

references only. Upgrades of software and hardware may occur; Tenda reserves

the right to revise this publication and to make changes in the content hereof

without obligation to notify any person or organization of such revisions or

changes. If you would like to know more about our product information, please

visit our website at http://www.tendacn.com.

Wireless N150/N301 Easy Setup Router

Contents

COPYRIGHT STATEMENT .......................................................................................................1

CHAPTER 1 PRODUCT OVERVIEW ......................................................................................1

1 PACKAGE CONTENTS................................................................................................................1

2 LEDS AND PORTS.....................................................................................................................1

CHAPTER 2 INSTALLATION AND QUICK SETUP GUIDE ...............................................3

1 PHYSICAL INSTALLATION .........................................................................................................3

1.1 Preparation............................................................................................................................................3

1.2 Physical installation..............................................................................................................................4

2 INTERNET CONNECTION SETUP................................................................................................5

2.1 Log in to Web Manager ........................................................................................................................5

2.2 Internet Connection Setup ....................................................................................................................7

3 VERIFY INTERNET CONNECTION SETTINGS..............................................................................9

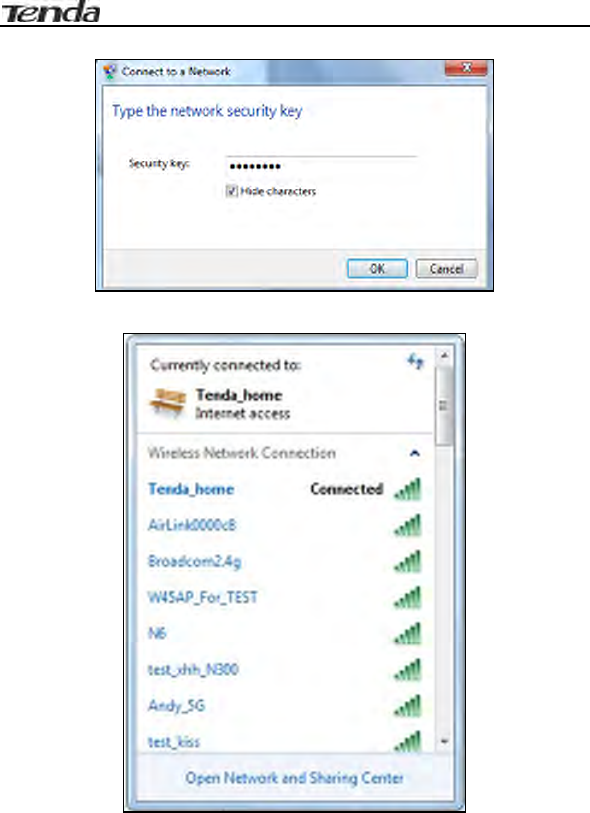

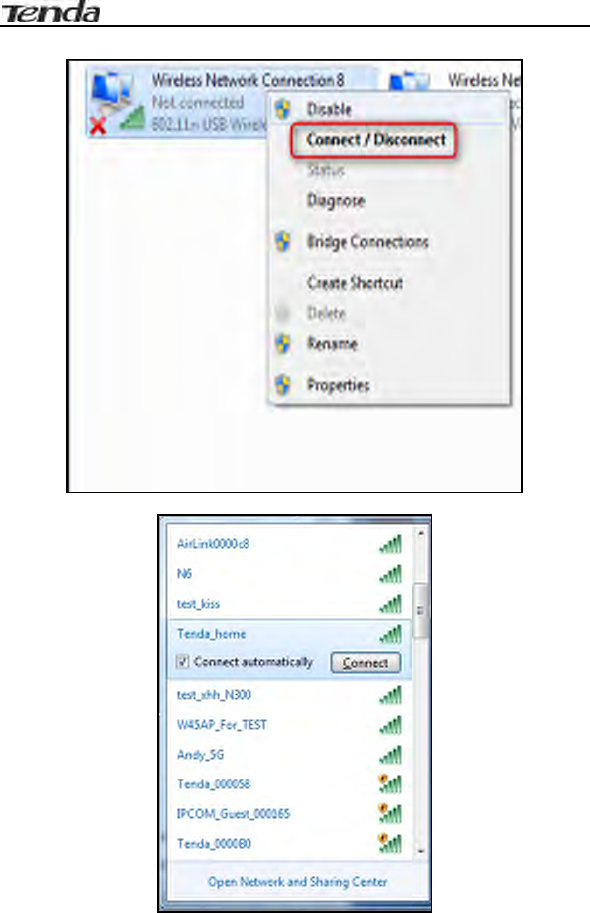

4 CONNECT TO DEVICE WIRELESSLY ........................................................................................ 11

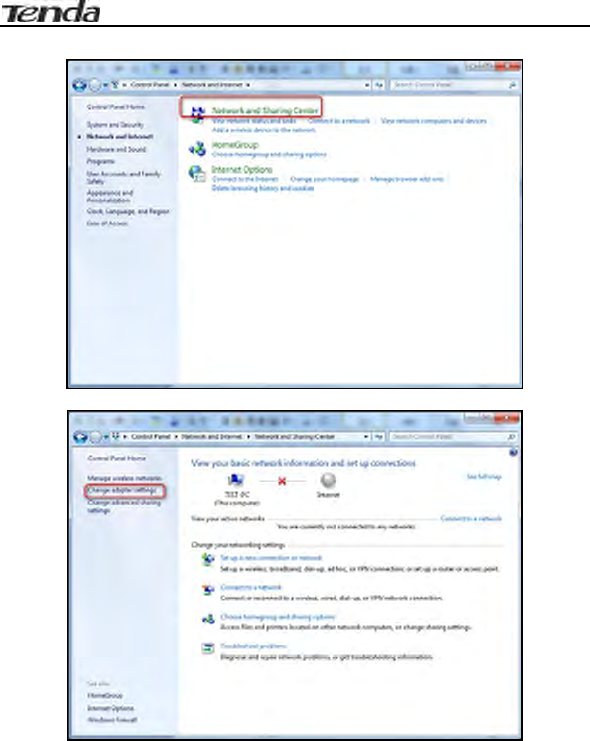

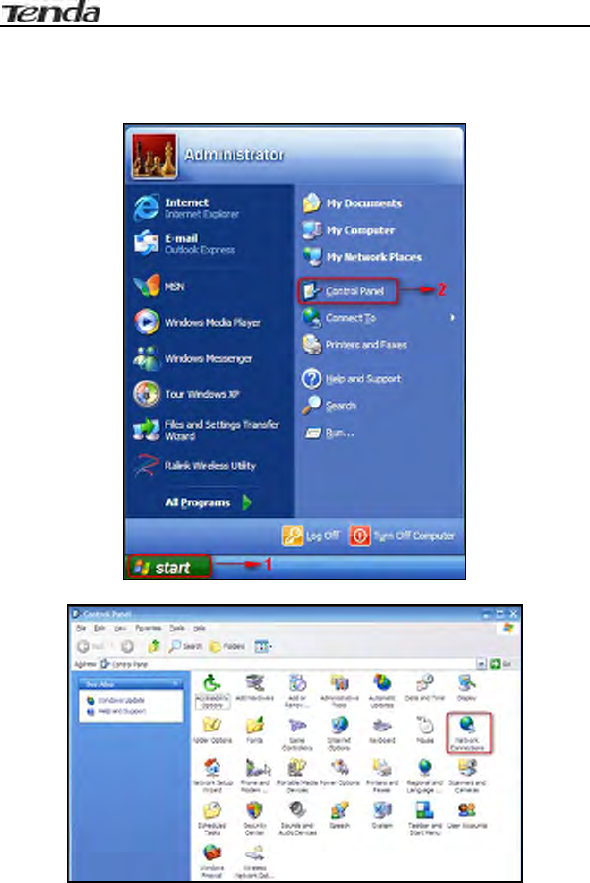

WIN7 Operation .......................................................................................................................................11

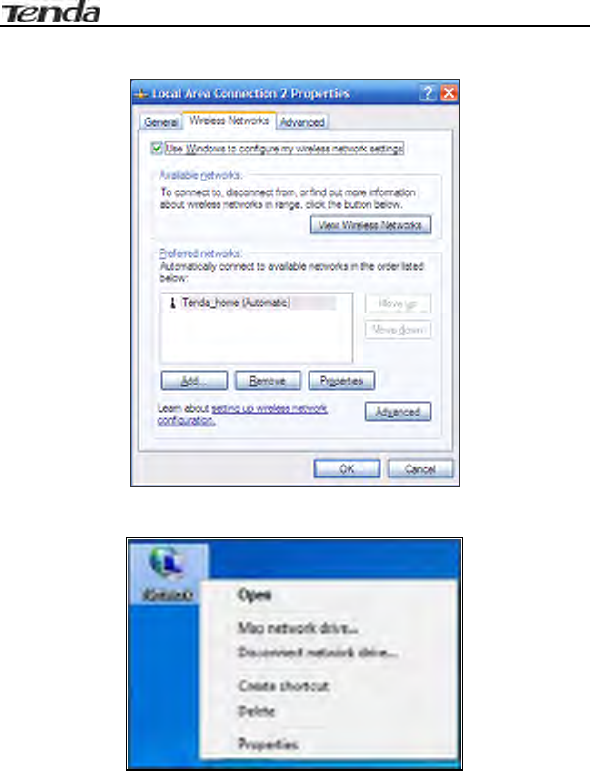

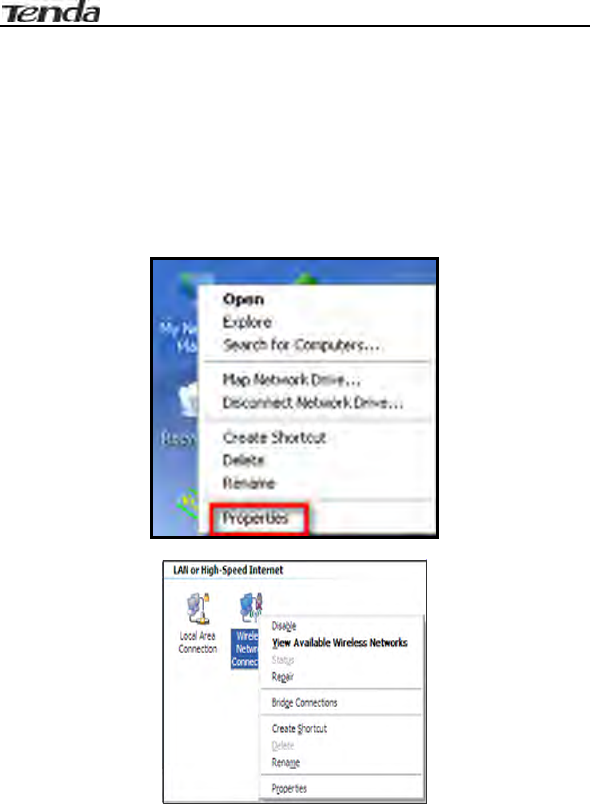

Windows XP Operation............................................................................................................................15

CHAPTER 3 ADVANCED SETTINGS ....................................................................................18

1 ADVANCED .............................................................................................................................18

1.1 Status...................................................................................................................................................18

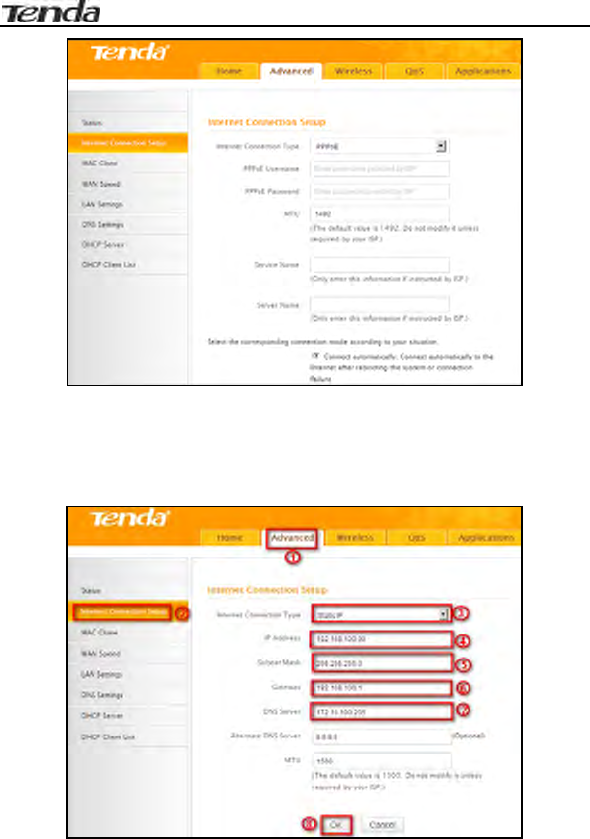

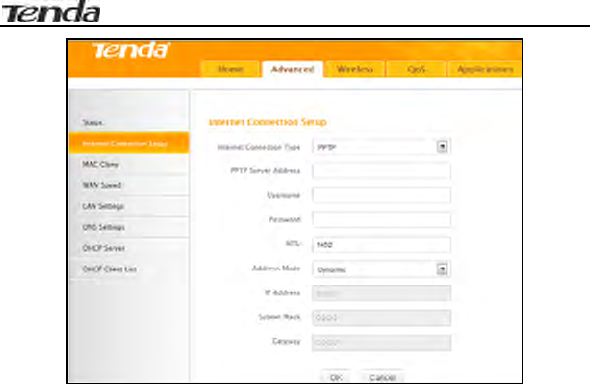

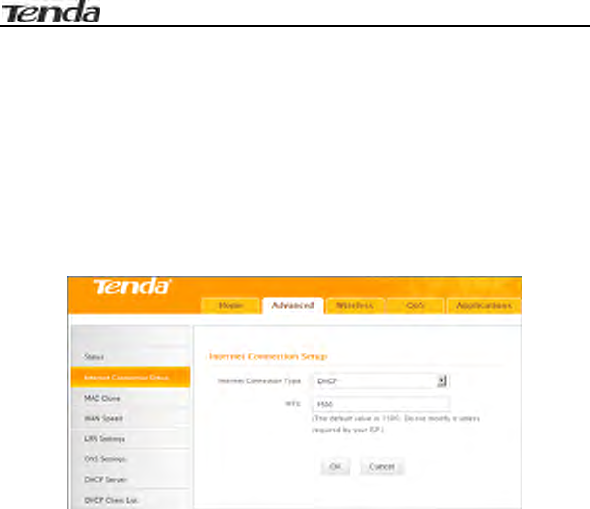

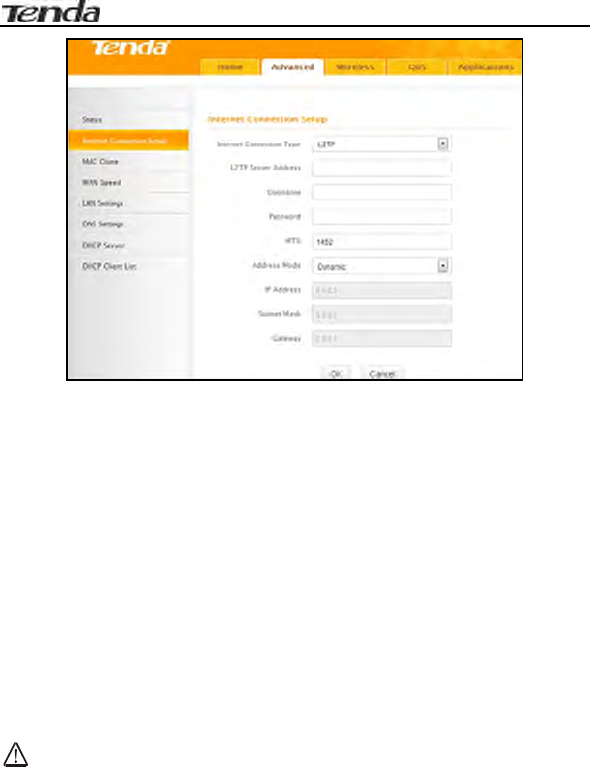

1.2 Internet Connection Setup ..................................................................................................................18

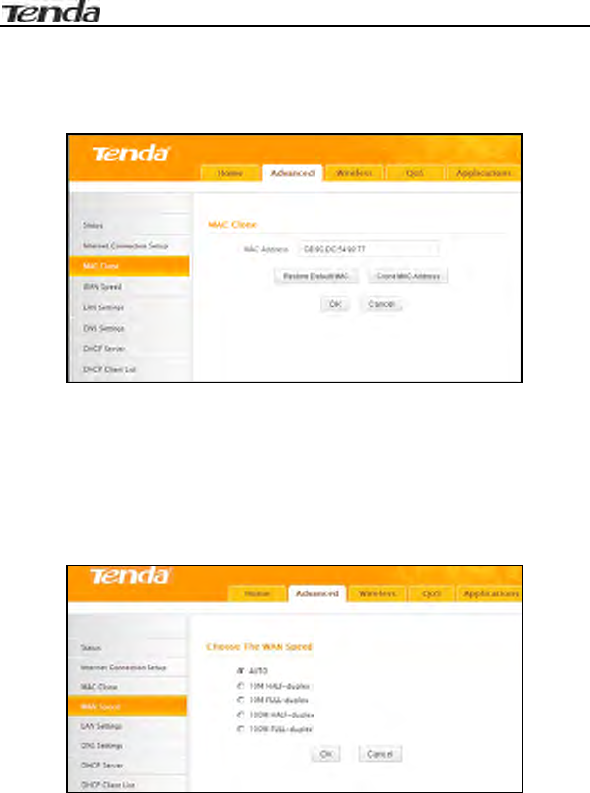

1.3 MAC Clone.........................................................................................................................................24

1.4 WAN Speed ........................................................................................................................................24

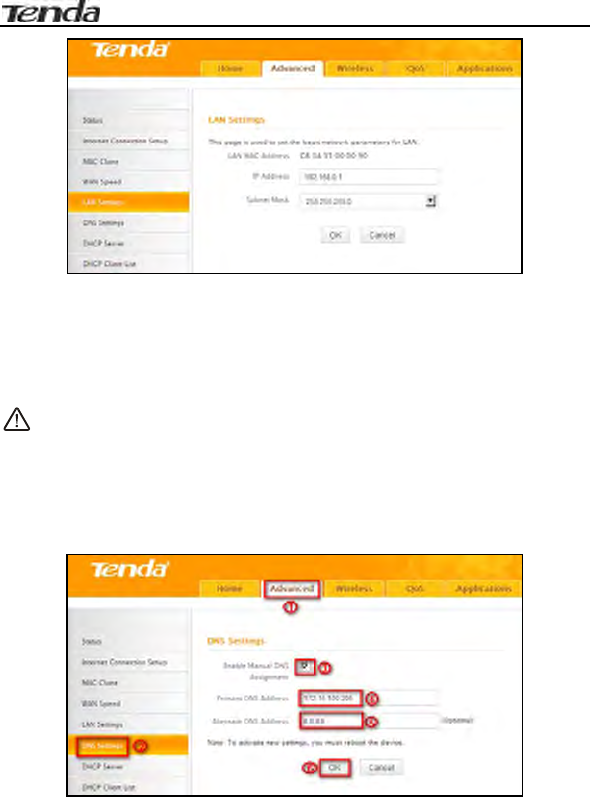

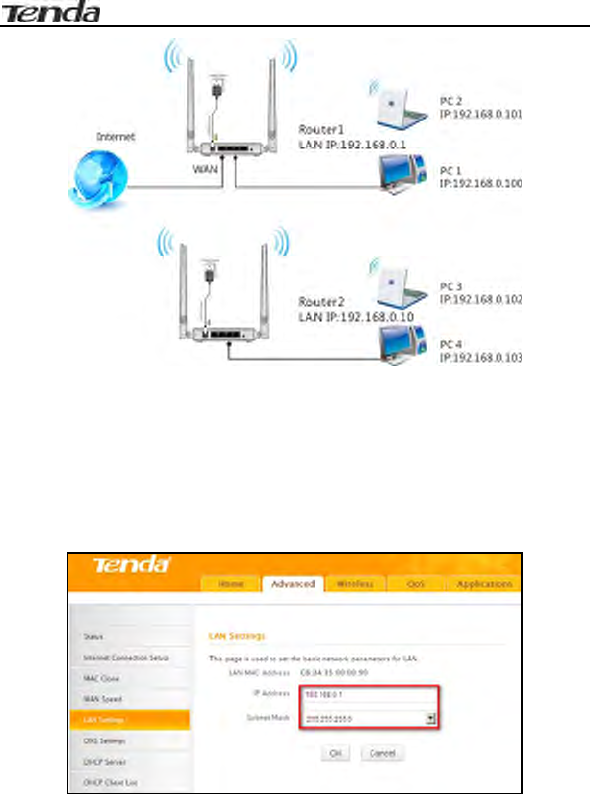

1.5 LAN Settings ......................................................................................................................................24

1.6 DNS Settings ......................................................................................................................................25

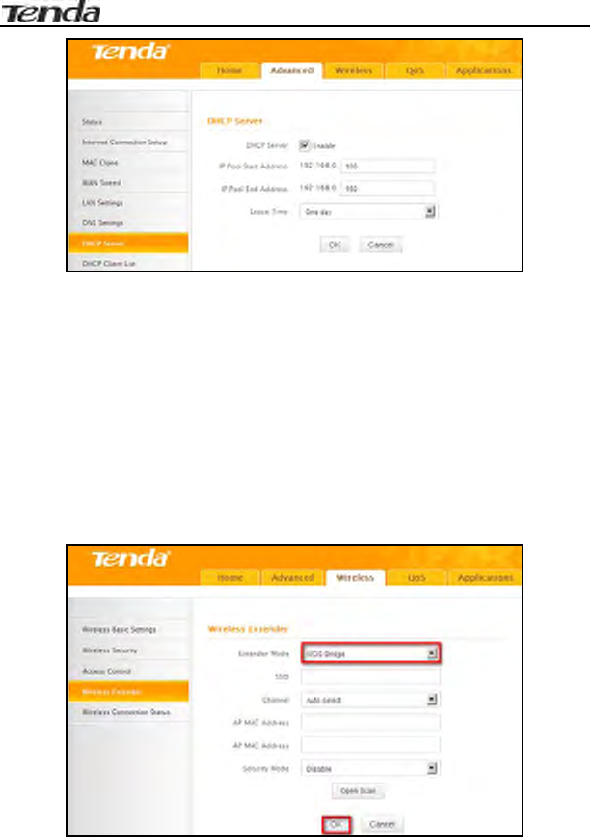

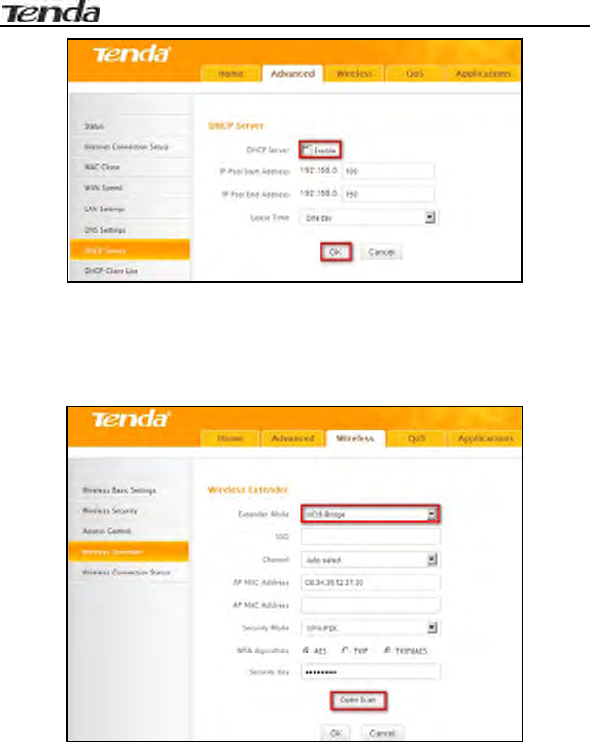

1.7 DHCP Server ......................................................................................................................................26

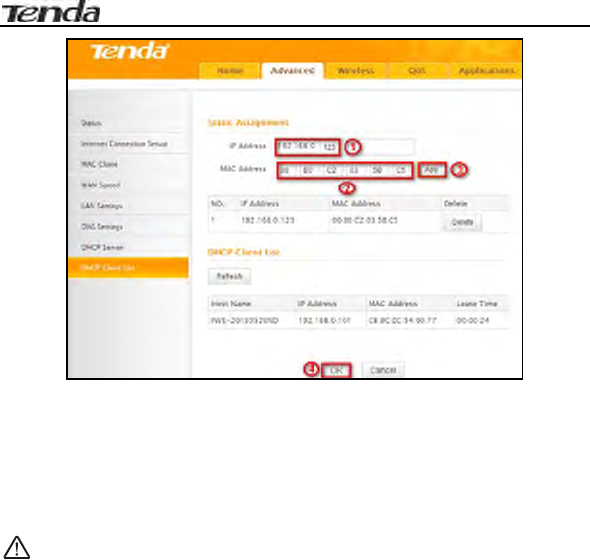

1.8 DHCP Client List................................................................................................................................26

2 WIRELESS SETTINGS ..............................................................................................................28

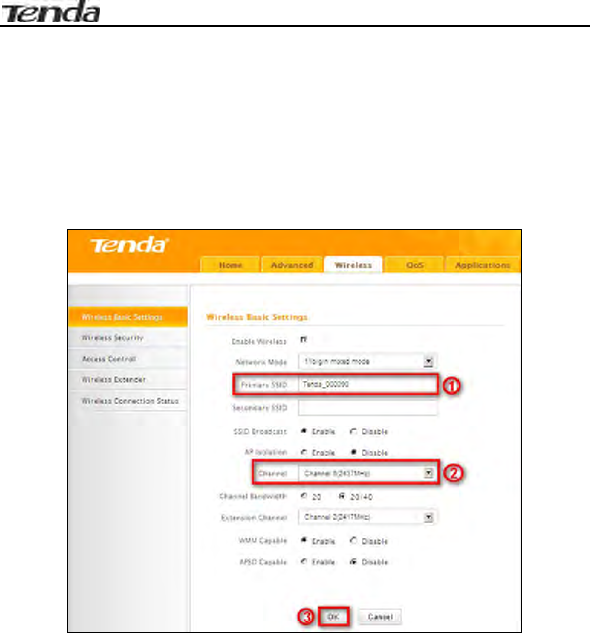

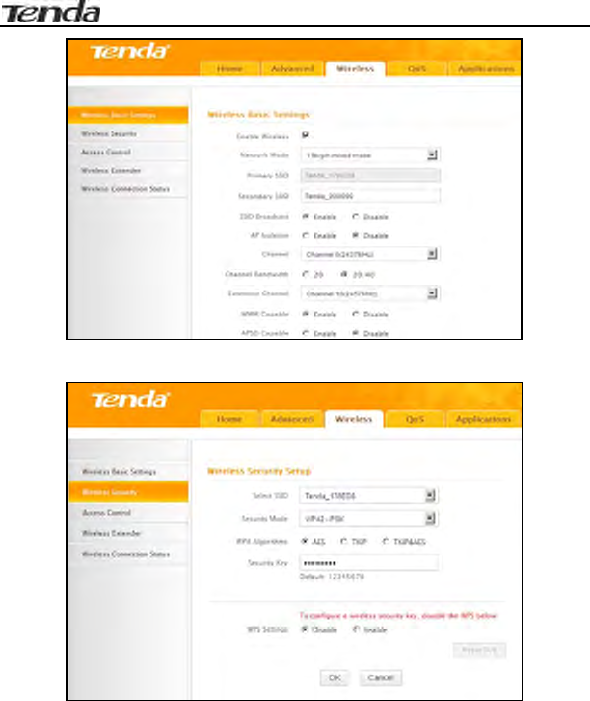

2.1 Wireless Basic Settings.......................................................................................................................28

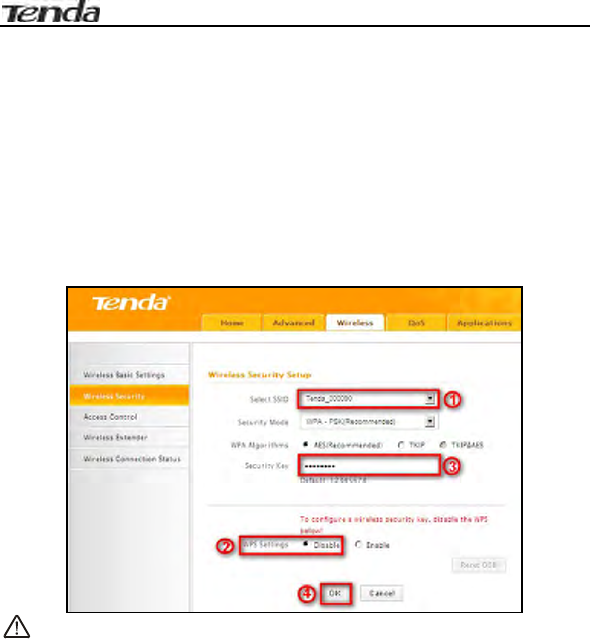

2.2 Wireless Security................................................................................................................................28

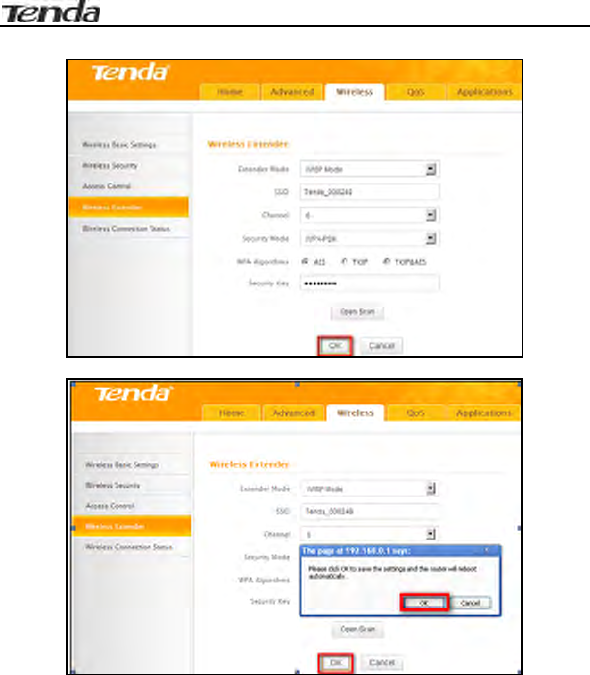

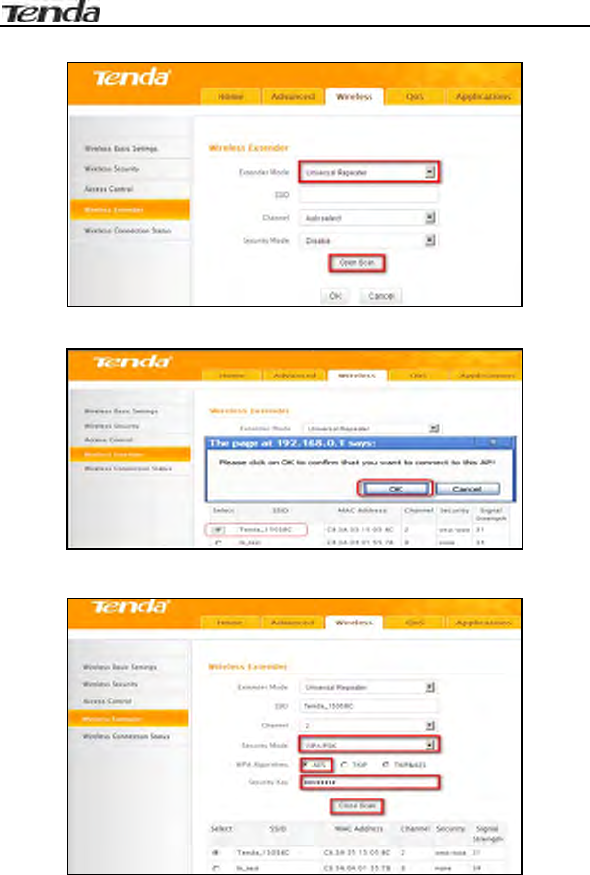

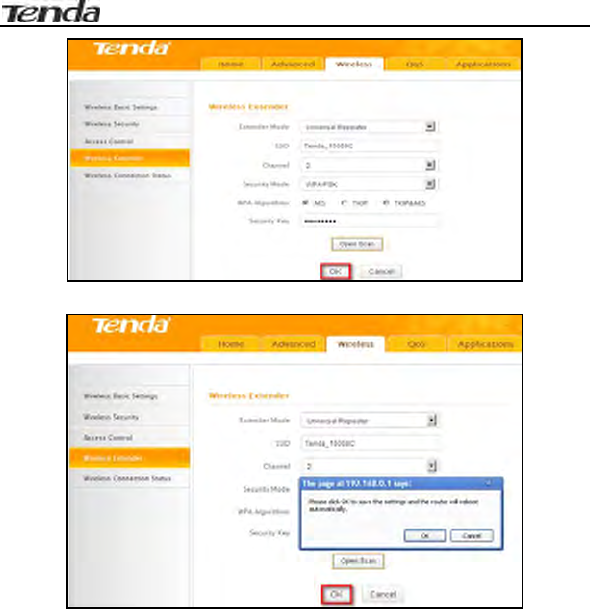

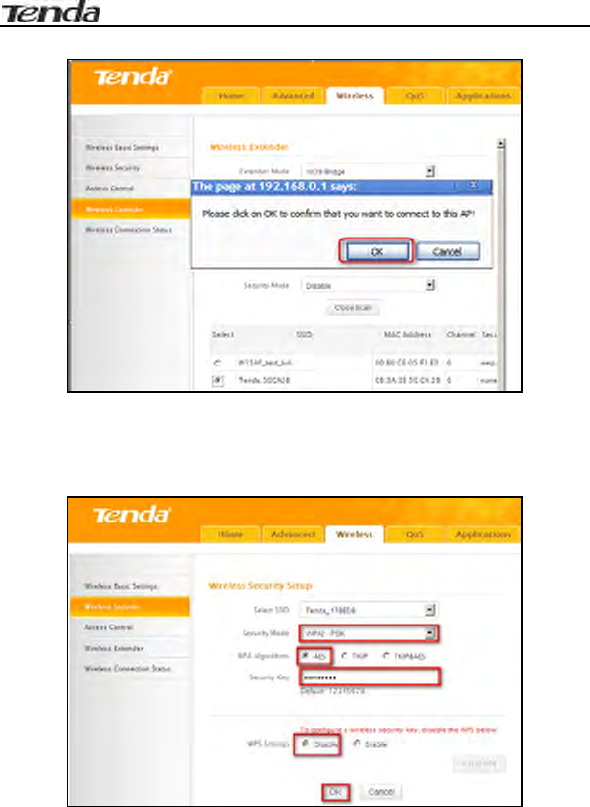

2.3 Wireless Extender...............................................................................................................................31

2.4 Wireless Access Control.....................................................................................................................41

2.5 Wireless Client....................................................................................................................................42

3 BANDWIDTH CONTROL ..........................................................................................................44

3.1 Bandwidth Control .............................................................................................................................44

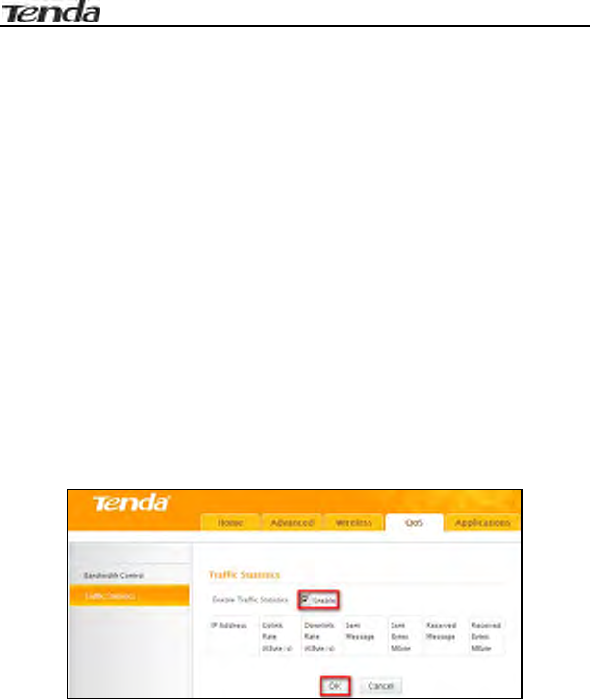

3.2 Traffic Statistics..................................................................................................................................45

４ SPECIAL APPLICATIONS .......................................................................................................47

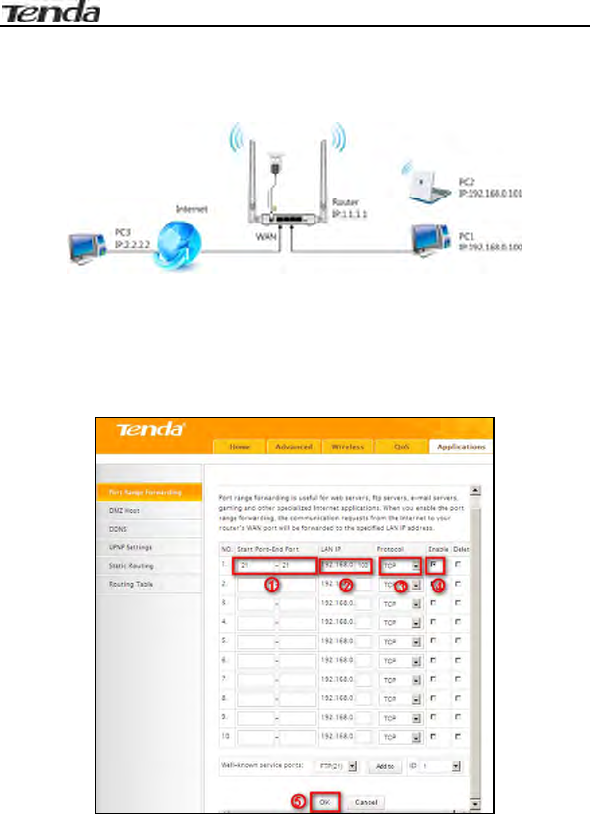

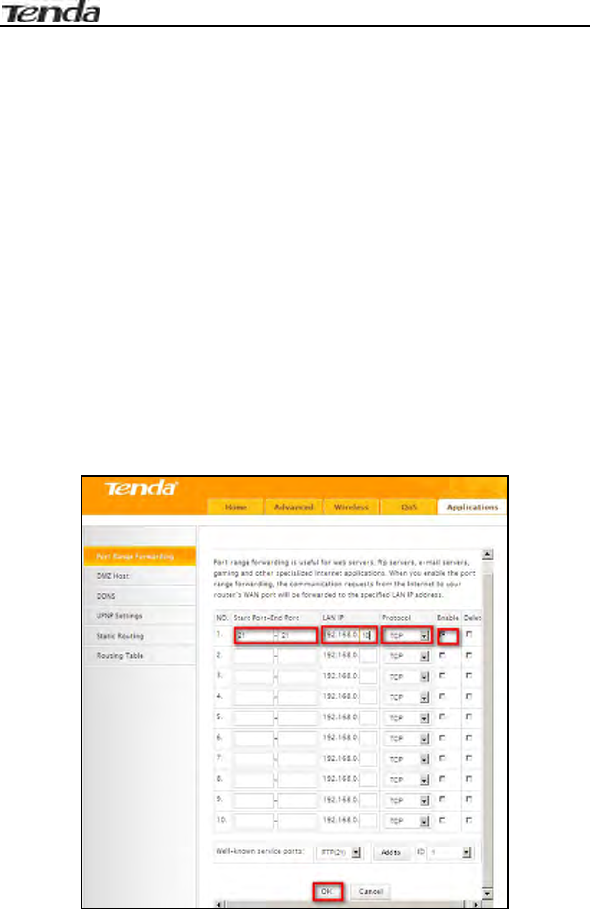

4.1 Port Range Forwarding.......................................................................................................................47

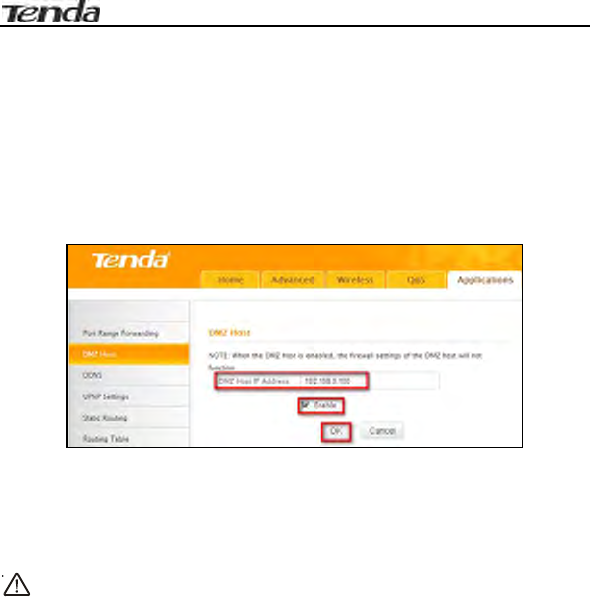

4.2 DMZ Host...........................................................................................................................................49

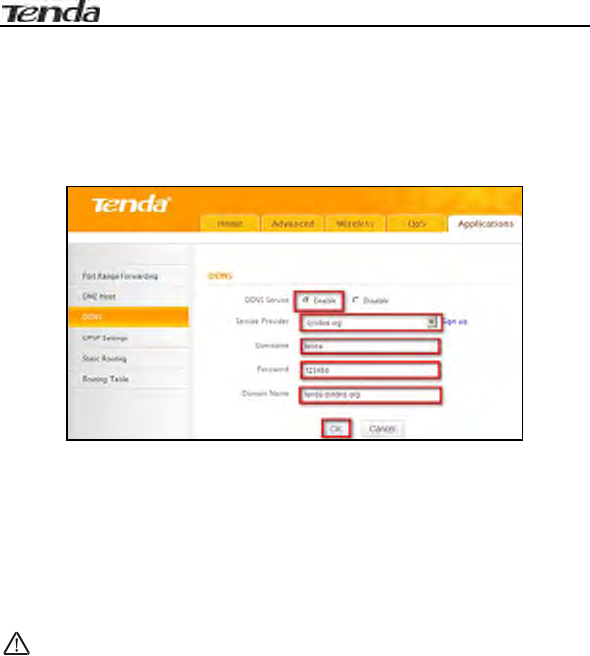

4.3 DDNS .................................................................................................................................................49

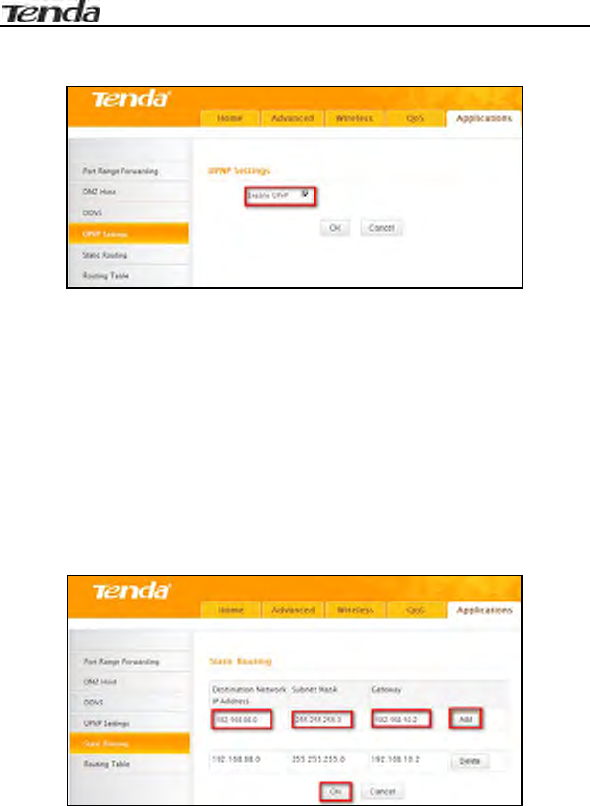

4.4 UPNP..................................................................................................................................................50

4.5 Static Routing .....................................................................................................................................51

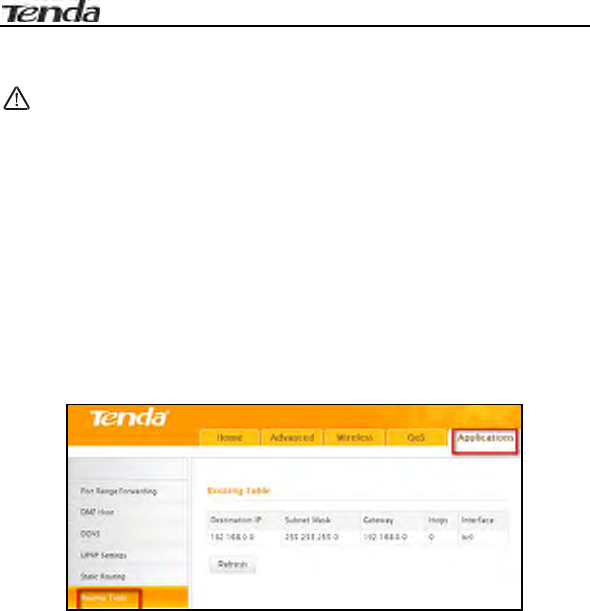

4.6 Routing Table......................................................................................................................................52

５ SECURITY ............................................................................................................................53

5.1 URL Filter...........................................................................................................................................53

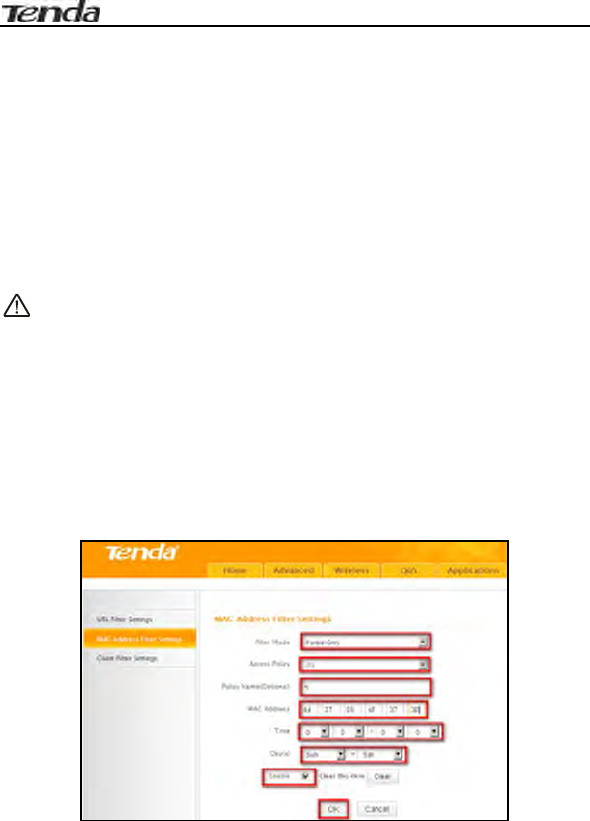

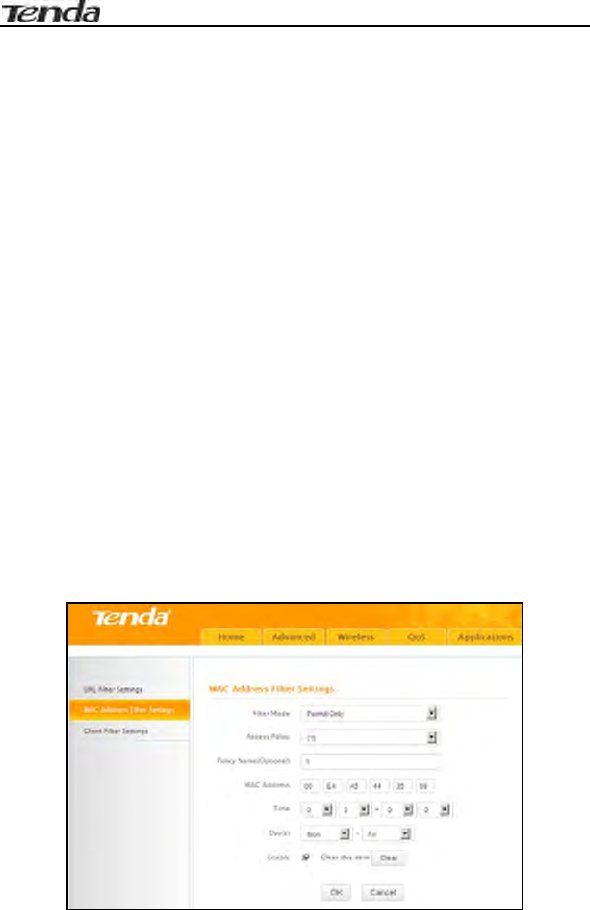

5.2 MAC Filter .........................................................................................................................................54

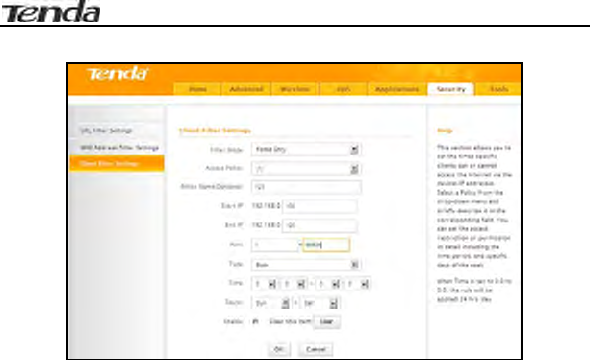

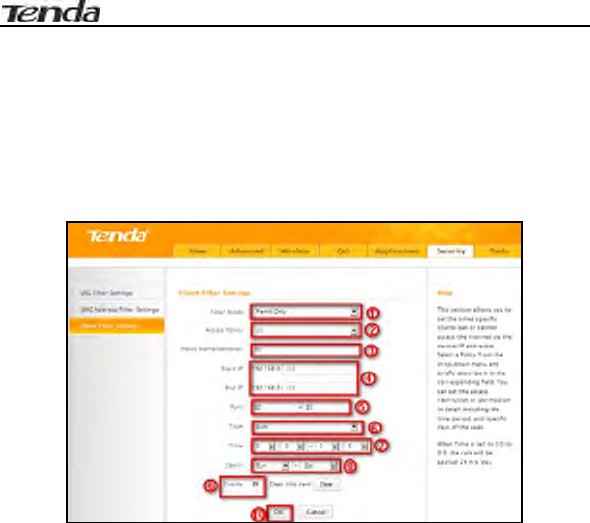

5.3 Client Filter......................................................................................................................................56

6 TOOLS ....................................................................................................................................58

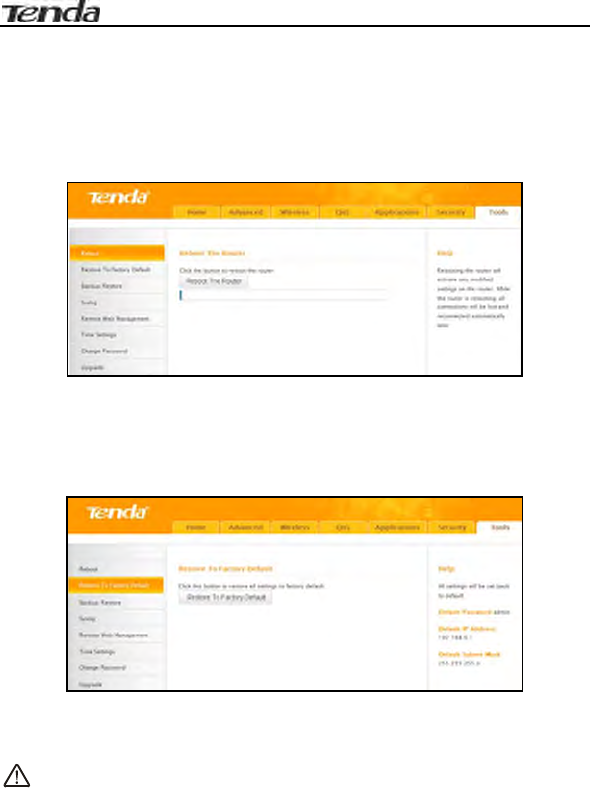

6.1 Reboot.................................................................................................................................................58

Wireless N150/N301 Easy Setup Router

6.2 Restore to Factory Default Settings....................................................................................................58

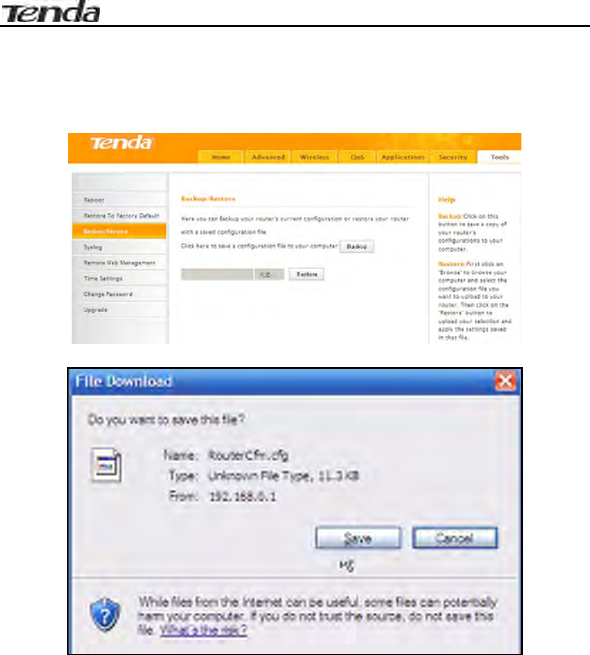

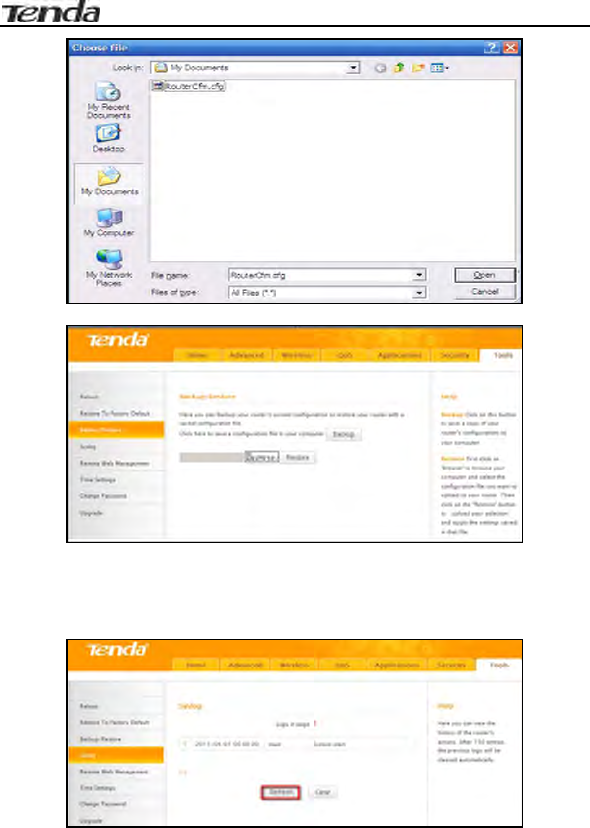

6.3 Backup/Restore...................................................................................................................................58

6.4 Syslog .................................................................................................................................................60

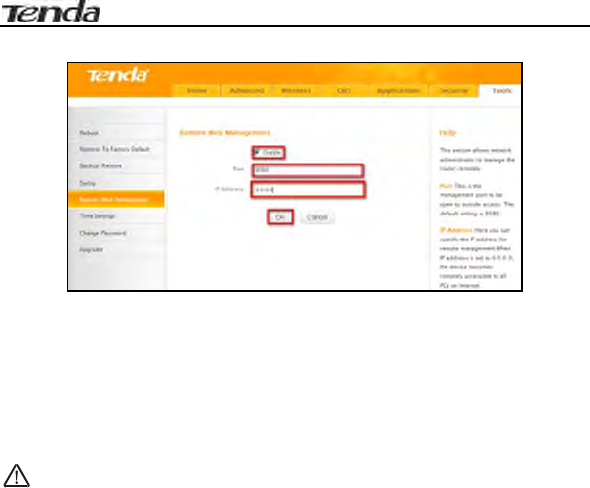

6.5 Remote Web Management..................................................................................................................60

6.6 Time....................................................................................................................................................61

6.7 Login Password ..................................................................................................................................62

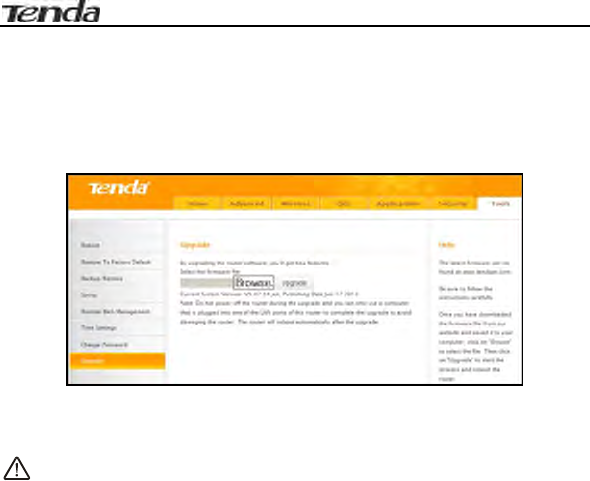

6.8 Firmware Upgrade..............................................................................................................................63

APPENDIX 1 GLOSSARY.........................................................................................................64

APPENDIX 2 VERIFY THE WDS CONNECTION ...............................................................67

APPENDIX 3 FAQS ....................................................................................................................71

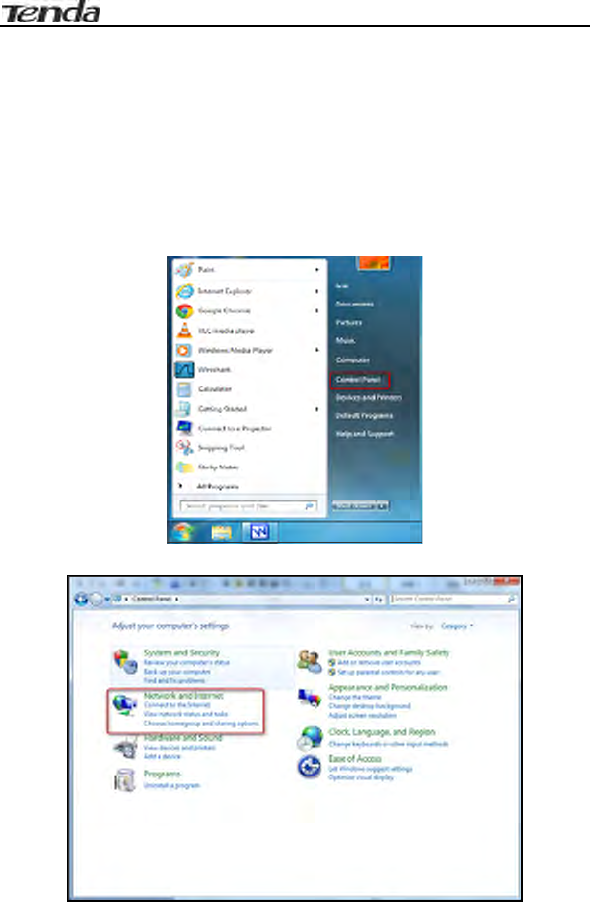

APPENDIX 4 REMOVE WIRELESS NETWORK FROM YOUR PC.............................73

APPENDIX 5 SAFETY AND EMISSION STATEMENT.......................................................76

Wireless N150/N301 Easy Setup Router

Chapter 1 Product Overview

1 Package Contents

Unpack the box and verify that the package contains the following:

　 ⑴Wireless Broadband Router

　 ⑵Power Adapter

　 ⑶Quick Install Guide

If any of the above items is incorrect, missing, or damaged, please contact your

Tenda reseller for immediate replacement.

2 LEDs and Ports

This part describes this device’s hardware features. The topics include:

1) Wireless Router’s front and back panels 2) LED designations

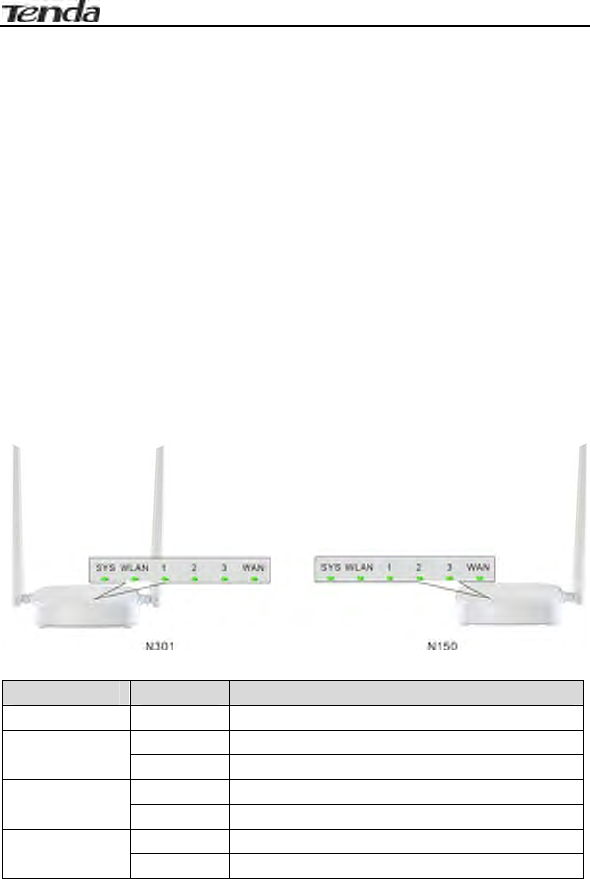

◈ Front Panel

Front LED Overview:

LED Status Description

SYS Blinking Indicates system is functioning properly

Solid Wireless is enabled

WLAN Blinking Transferring data

Solid LAN port connected correctly

1/2/3 Blinking LAN port is transferring data

Solid WAN port connected correctly

WA N Blinking WAN port is transferring data

Wireless N150/N301 Easy Setup Router

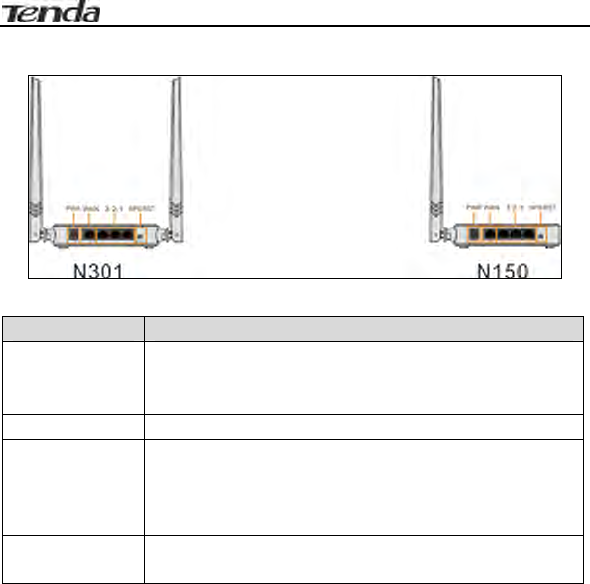

◈ Back Panel

Back LED Overview:

Port Function Description

WA N Usually for connecting DSL MODEM 、CABLE

MODEM、ISP to the Internet.

1/2/3 Usually for connecting computers, switches .etc.

WPS/ RST

When you press this button for 7 seconds, files set by the

router will be deleted and restored to default factory; for

1 second, WPS will be enabled and the WPS LED will be

blinking accordingly.

PWR The power adapter is connected and you can use the

provided adapter to supply power.

Wireless N150/N301 Easy Setup Router

Chapter 2 Installation and Quick Setup Guide

1 Physical Installation

1.1 Preparation

Before connecting network lines, please verify the following items:

Item Description

Wireless Router Used with the provided power supply

PC Installed with IE8 or other better web browsers.

Ethenet Cable Used for linking the PC to the router

Broadband Service Provided by ISP

Internet Connection

Setup

 If you connect to the Internet using a broadband

connection that requires a username and a

password provided by your ISP, please select

PPPoE;

 If your ISP provides all the needed information: IP

address, subnet mask, gateway address, and DNS

address(es), please select Static IP;

 If you can access Internet as soon as your

computer directly connects to an Internet-enabled

ADSL/Cable modem, please select DHCP;

 If your ISP uses a PPTP connection, please select

PPTP;

 If your ISP uses an L2TP connection, please select

L2TP;

 PPPoE Dual Access (only supported in special

Area e.g.Russia.).

Wireless N150/N301 Easy Setup Router

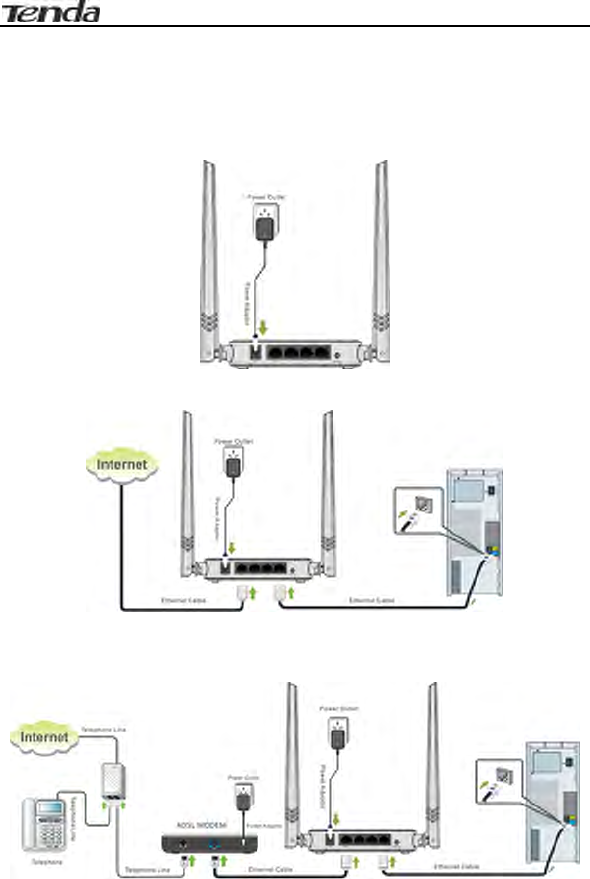

1.2 Physical installation

1. Connect one end of the included power adapter to the device and plug the

other end into a wall outlet nearby.(Using a power adapter with a different

voltage rating than the one included with the device will cause damage to the

device)

2. Connect one of the LAN ports on the Device to the NIC port on your PC

using an Ethernet cable.

3. Connect the Ethernet cable from Internet side to the WAN port on the device.

If it is connected to the telephone line, please link the telephone line to the

MODEM and connect the MODEM to the WAN port on the device.

4. When connected, log in to Web manager to set up Internet connection.

Wireless N150/N301 Easy Setup Router

2 Internet Connection Setup

2.1 Log in to Web Manager

1. Launch a web browser, such as IE Web browser;

2. In the address bar, input 192.168.0.1 and press Enter;

3. Enter admin in the password field on the appearing login window and then

click OK.

4. Now you may access the device’s home page for quickly setting up Internet

connection and wireless security.

Wireless N150/N301 Easy Setup Router

5. If you fail to log in to it, please refer to Appendix 3 FAQs.

Wireless N150/N301 Easy Setup Router

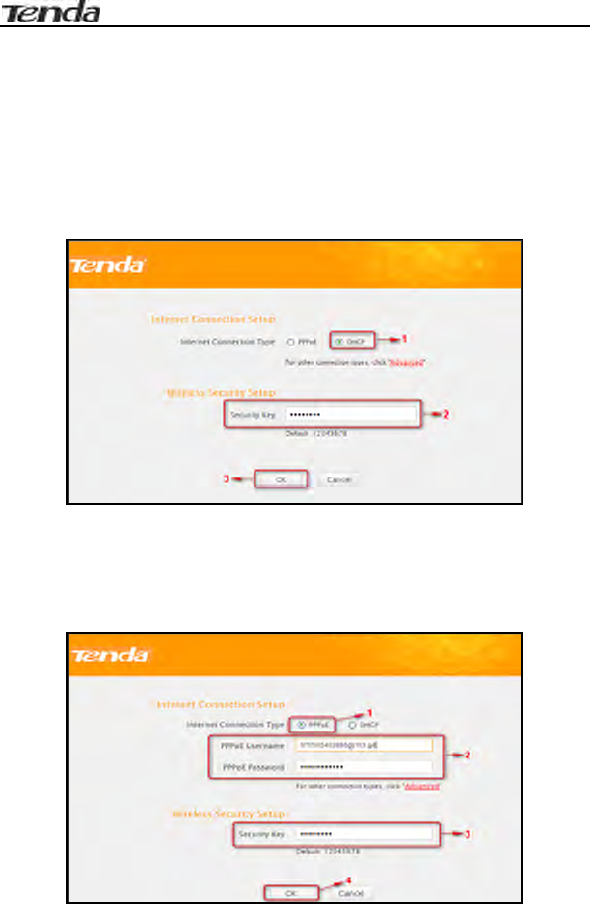

2.2 Internet Connection Setup

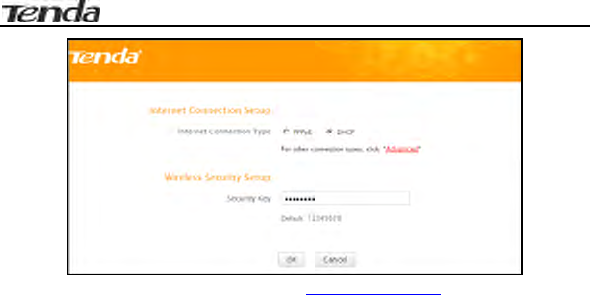

Common Internet connection types are available on the home page: PPPoE and

DHCP.

DHCP

Select DHCP (Dynamic IP) if you can access Internet as soon as your computer

directly connects to an Internet-enabled ADSL/Cable modem; configure a

security key (8-63 characters) to secure your wireless network and then click

OK.

PPPoE

Select PPPoE (Point to Point Protocol over Ethernet) if you used to connect to

the Internet using a broadband connection that requires a username and a

password. Enter the user name and password provided by your ISP; configure a

security key to secure your wireless network and then click OK.

Wireless N150/N301 Easy Setup Router

Note:

1. DHCP is the default Internet connection type;

2. If you are not sure about your PPPoE username and password, contact your

Internet service provider (ISP) for help. For other Internet connection types,

please go to section 1.2: Internet Connection Setup.

Wireless N150/N301 Easy Setup Router

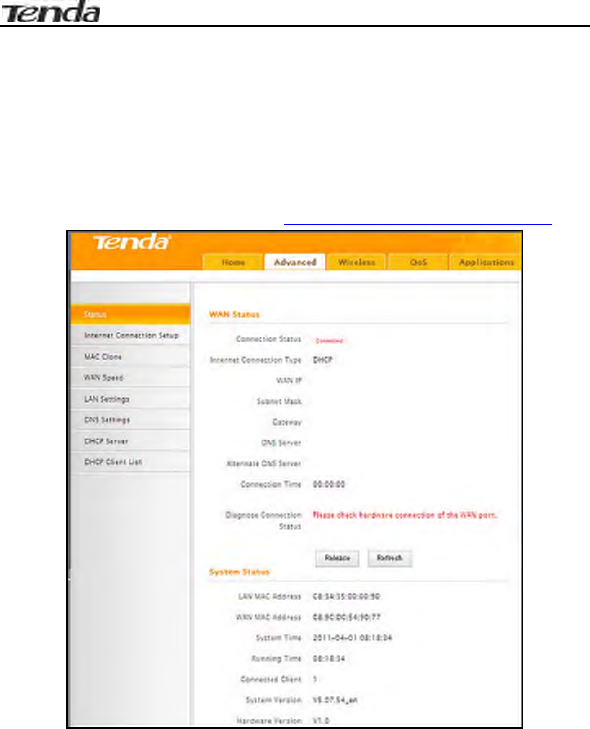

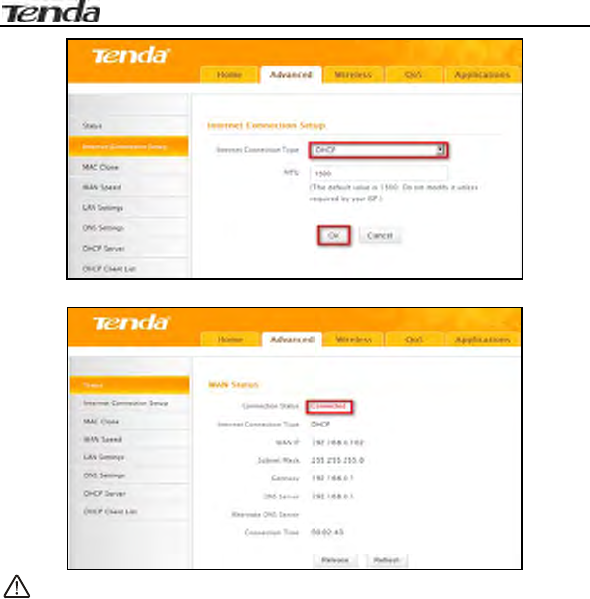

3 Verify Internet Connection Settings

System automatically skips to the status page when you finish all needed settings

on the home page. Here you can see the system status and WAN connection

status of the device.

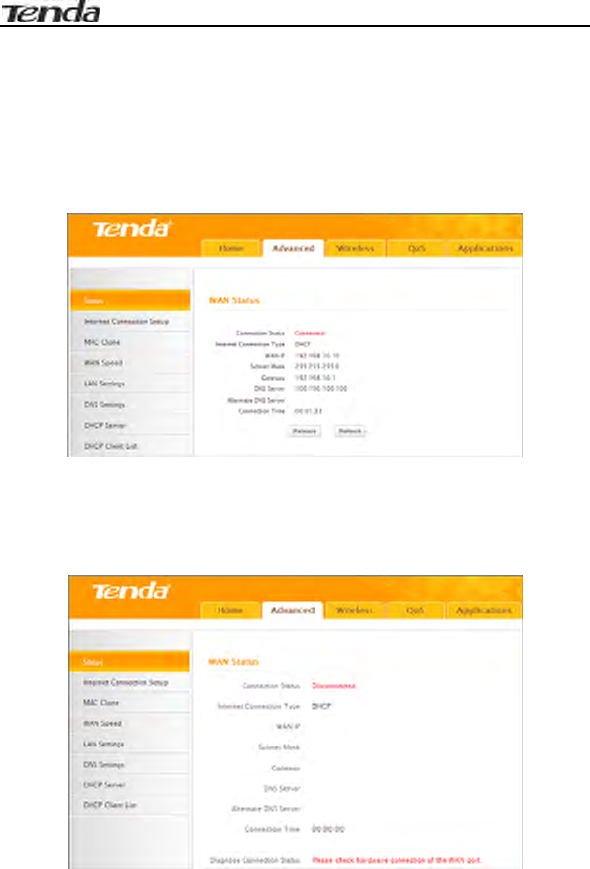

1. If you find "Connected" and a WAN IP address displayed there (as shown

below), you have got a wired internet access now.

2. If connection status displays "Disconnected" and there is no WAN IP address

displayed (as seen below), connection between the Internet-enabled modem

and your device may have failed. Please double check or re-connect all

involved devices and cables properly and then refresh the page. If nothing is

wrong, "Connecting" or "Connected" will be displayed.

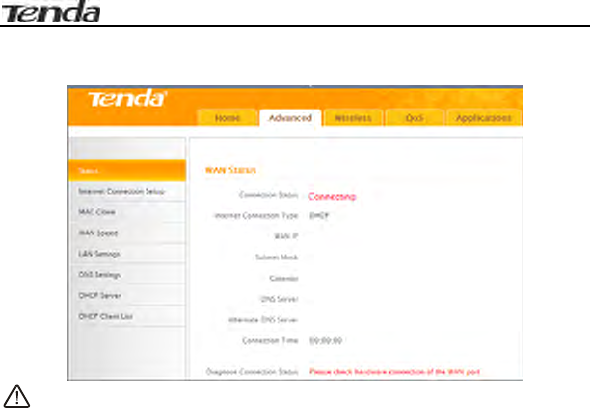

3. If "Connecting" is displayed and no WAN IP address is seen, try refreshing

the page five times. And if it still displays "Connecting" try steps below:

Wireless N150/N301 Easy Setup Router

1). Contact your ISP for assistance if you are using the DHCP connection type.

2). Read the connection diagnostic info on WAN status.

Note:

Below diagnostic info will be displayed on particular occasions for your

reference:

1). You have connected to Internet successfully.

2). You might have entered a wrong user name and/or a wrong password. Please

contact your ISP for the correct user name and password and enter them

again.

3). Ethernet cable is not connected or not properly connected to the WAN port

on the device. Please reconnect it properly.

4). No response is received from your ISP. Please verify that you can

access Internet when you directly connect your PC to an

Internet-enabled modem. If not, contact your local ISP for help.

Wireless N150/N301 Easy Setup Router

4 Connect to Device Wirelessly

Having finished above settings, you can search the device's wireless network

(SSID) from your wireless devices (notebook, iPad, iPhone, etc) and enter a

security key to connect to it wirelessly.

WIN7 Operation

1. If you are using Windows 7 OS, do as follows:

1) Click Start and select Control Panel.

2) Click Network and Internet.

Wireless N150/N301 Easy Setup Router

3) Click Network and Sharing Center.

4) Click Change adapter settings.

Wireless N150/N301 Easy Setup Router

5) Select a desired wireless connection and click Connect/Disconnect.

6) Select the wireless network you wish to connect and click Connect.

Wireless N150/N301 Easy Setup Router

7) Enter the security key and click OK.

8) You can access Internet via the device when "Connected" appears next to the

wireless network name you selected.

Wireless N150/N301 Easy Setup Router

Windows XP Operation

2. If you are using Windows XP OS, do as follows:

1) Click Start and select Control Panel.

2) Click Network Connections.

Wireless N150/N301 Easy Setup Router

3) Right click Wireless Network Connection and then select View Available

Wireless Networks.

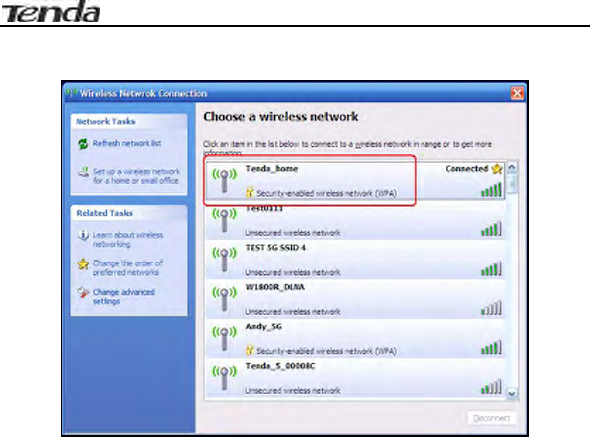

4) Select the desired wireless network, click Connect, enter the security key and

then click OK.

Wireless N150/N301 Easy Setup Router

5) You can access Internet via the device when "Connected" appears next to the

wireless network name you selected.

Wireless N150/N301 Easy Setup Router

Chapter 3 Advanced Settings

1 Advanced

1.1 Status

Here you can see at a glance the operating status of the device. If WAN port

displays Disconnected, please refer to 3 Verify Internet Connection Settings.

1.2 Internet Connection Setup

PPPoE

Select PPPoE (Point to Point Protocol over Ethernet) if you used to connect to

the Internet using a broadband connection that requires a username and a

password and enter the user name and password provided by your ISP.

Wireless N150/N301 Easy Setup Router

Static IP

Select Static IP if your ISP provides all the needed info. You will need to enter

the provided IP address, subnet mask, gateway address, and DNS address(es) in

corresponding fields.

1. Click Advanced.

2. Click Internet Connection Setup.

3. Internet connection Type: Select Static IP.

Wireless N150/N301 Easy Setup Router

4. IP Address: Enter the IP address provided by your ISP. Consult your ISP if

you are not clear.Consult your ISP if you are not clear.

5. Subnet mask: Enter the subnet mask provided by your ISP.

6. Gateway: Enter the WAN Gateway provided by your ISP.

7. DNS Server: Enter the DNS address provided by your ISP.

8. OK: Click it to save all your settings.

DHCP

Select DHCP (Dynamic IP) if you can access Internet as soon as your computer

directly connects to an Internet-enabled ADSL/Cable modem.

1. Internet connection Type: Select DHCP.

2. MTU: Maximum Transmission Unit. DO NOT change it from the factory

default of 1500 unless instructed by your ISP. You may need to change it for

optimal performance with some specific websites or application software that

cannot be opened or enabled; in this case, try 1450, 1400, etc.

3. OK: Click it to save your settings.

PPTP

Select PPTP (Point-to-Point-Tunneling Protocol) if your ISP uses a PPTP

connection. The PPTP allows you to connect a router to a VPN server.

For example：

A corporate branch and headquarter can use this connection type to implement

mutual and secure access to each other’s resources.

Wireless N150/N301 Easy Setup Router

1. Internet connection Type: Displays the current Internet connection type.

2. PPTP Server Address: Enter the IP address of a PPTP server.

3. User Name: Enter your PPTP User Name.

4. Password: Enter the password.

5. MTU: Maximum Transmission Unit. DO NOT change it from the factory

default of 1492 unless instructed by your ISP. You may need to change it for

optimal performance with some specific websites or application software that

cannot be opened or enabled; in this case, try 1450, 1400, etc.

6. Address Mode: Select "Dynamic" if you don’t get any IP info from your ISP,

otherwise select "Static". Consult your ISP if you are not clear.

7. IP Address: Enter the IP address provided by your ISP. Consult your ISP if

you are not clear.

8. Subnet mask: Enter the subnet mask provided by your ISP.

9. Gateway: Enter the WAN Gateway provided by your ISP. Consult your ISP if

you are not clear.

L2TP

Select L2TP (Layer 2 Tunneling Protocol) if your ISP uses an L2TP connection.

The L2TP connects your router to a L2TP server.

For Example：

A corporate branch and headquarter can use this connection type to implement

mutual and secure access to each other’s resources.

Wireless N150/N301 Easy Setup Router

a) Internet connection Type: Displays the current Internet connection type.

b) L2TP Server Address: Enter the IP address of a L2TP server.

c) User Name: Enter your L2TP username.

d) Password: Enter the password.

e) MTU: Maximum Transmission Unit. DO NOT change it from the factory

default of 1492 unless instructed by your ISP. You may need to change it for

optimal performance with some specific websites or application software that

cannot be opened or enabled; in this case, try 1450, 1400, etc.

f) Address Mode: Select "Dynamic" if you don’t get any IP info from your ISP,

otherwise select "Static". Consult your ISP if you are not clear.

g) IP Address: Enter the IP address provided by your ISP. Consult your ISP if

you are not clear.

h) Subnet mask: Enter the subnet mask provided by your ISP.

i) Gateway: Enter the WAN Gateway provided by your ISP. Consult your ISP if

you are not clear.

Note:

1. PPPOE, PPTP and L2TP cannot be used simultaneously!

2. For PPTP and L2TP Internet connections, only Static IP or Dynamic IP is

available.

3. Note that PPTP and L2TP may not be available on some products.

Wireless N150/N301 Easy Setup Router

PPPoE Dual Access

PPPoE dual access only supported in special Area e.g.Russia.

1. Internet connection Type: Displays the current Internet connection type.

2. PPPoE User Name: Enter the User Name provided by your ISP.

3. PPPoE Password: Enter the password provided by your ISP.

4. MTU: Maximum Transmission Unit. DO NOT change it from the factory

default value unless necessary.

5. Service Name: Description of PPPoE connection. Leave blank unless

otherwise required.

6. Server Name: Description of server. Leave blank unless otherwise

required.

7. Address Mode: Select "Dynamic" if you don’t get any IP info from your ISP,

otherwise select "Static". Consult your ISP if you are not clear.

8. IP Address: Enter the IP address provided by your ISP. Consult your ISP if

you are not clear.

9. Subnet mask: Enter the subnet mask provided by your ISP.

Wireless N150/N301 Easy Setup Router

1.3 MAC Clone

Some Internet service providers (ISPs) require end-user’s MAC address to

access their network. This feature copies the MAC address of your network

device to the router.

1. MAC Address: Configure device’s WAN MAC address.

2. Clone MAC Address: Click to copy your PC's MAC address to the device as

a new WAN MAC address.

3. Restore Default MAC: Reset device’s WAN MAC to factory default.

1.4 WAN Speed

Here you can set the speed and duplex mode for WAN port. It is advisable to

keep the default Auto setting to get the best speed.

1.5 LAN Settings

Click Advanced > LAN Settings to enter the screen below:

Wireless N150/N301 Easy Setup Router

1. LAN MAC Address: Displays device's LAN MAC address, which is NOT

changeable.

2. IP Address: Device's LAN IP address. The default is 192.168.0.1. You can

change it according to your need.

3. Subnet Mask: Device’s LAN subnet mask, 255.255.255.0 by default.

4. OK: Click to save your settings.

Note：If the default IP address is changed, you must enter the new IP

address to log in.

1.6 DNS Settings

DNS is short for Domain Name System or Domain Name Service.

1. Enable Manual DNS Assignment: Check to activate DNS settings.

2. Primary DNS Server：Enter the primary DNS address provided by your

IPS.

3. Alternate DNS Server：Enter the other DNS address if your ISP provides

such addresses (optional).

Wireless N150/N301 Easy Setup Router

4. OK: Click to save your settings.

Note:

1. Web pages are not able to open if DNS server addresses are entered

incorrectly.

2. Do remember to reboot the device to activate new settings when you finish all

settings.

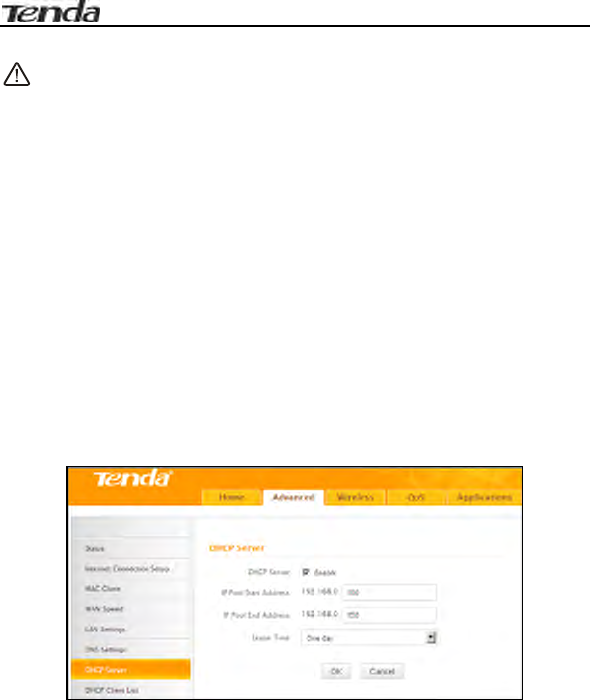

1.7 DHCP Server

The Dynamic Host Configuration Protocol (DHCP) is an automatic

configuration protocol used on IP networks. If you enable the built-in DHCP

server on the device, it will automatically configure the TCP/IP settings for all

your LAN computers (including IP address, subnet mask, gateway and DNS etc),

eliminating the need of manual intervention. Just be sure to set all computers on

your LAN to be DHCP clients by selecting "Obtain an IP Address

Automatically" respectively on each such PC. When turned on, these PCs will

automatically load IP information from the DHCP server. (This feature is

enabled by default. Do NOT disable it unless necessary).

1.8 DHCP Client List

DHCP Client List displays information of devices that have obtained IP

addresses from the device’s DHCP Server. If you would like some devices on

your network to always get the same IP addresses, you can manually add a static

DHCP reservation entry for each such device.

Wireless N150/N301 Easy Setup Router

1. IP Address: Enter the IP address for static DHCP reservation.

2. MAC Address: Enter the MAC address of a computer to always receive the

same IP address (the IP you just specified).

3. Add: Click to add the entry to the MAC address reservation list.

4. OK: Click to save your settings.

Note:

If the IP address you have reserved for your PC is currently used by another

client, then you will not be able to obtain a new IP address from the device's

DHCP server, instead, you must manually specify a different IP address for your

PC to access Internet.

Wireless N150/N301 Easy Setup Router

2 Wireless Settings

2.1 Wireless Basic Settings

If you want to create a WLAN for sharing Internet connection, simply click

Wireless-> Wireless Basic Settings. Change the SSID, you can name it

whatever you like. For example, select 2437MHz (channel 6) and leave other

options unchanged and then click OK.

1. SSID: This is the public name of your wireless network. The default is

Tenda_XXXXXX. XXXXXX is the last six characters in the device's MAC

address. It is recommended that you change it for better security and

identification.

2. Channel: Select a channel that is the least used by neighboring networks

from the drop-down list or Auto. Channels 1, 6 and 11 are recommended.

3. OK: Click to save your settings.

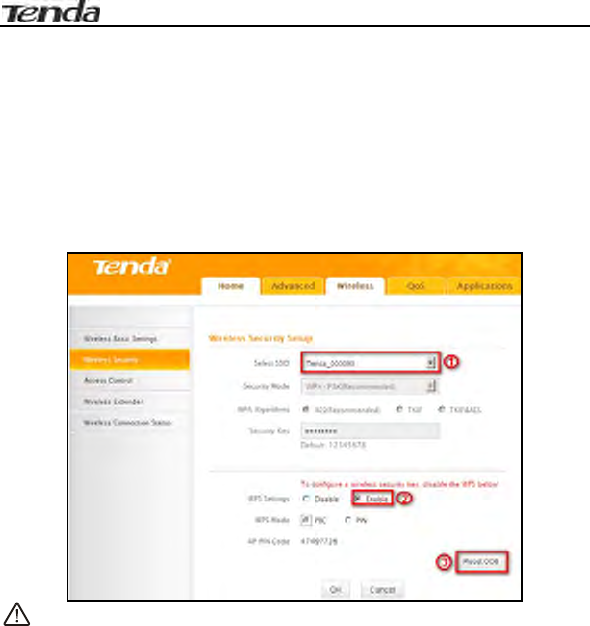

2.2 Wireless Security

Wireless Security Setup

This section allows you to secure your wireless network and block unauthorized

Wireless N150/N301 Easy Setup Router

accesses and malicious packet sniffing. To encrypt your wireless network, do as

follows:

1. Select the wireless network (SSID) you wish to encrypt.

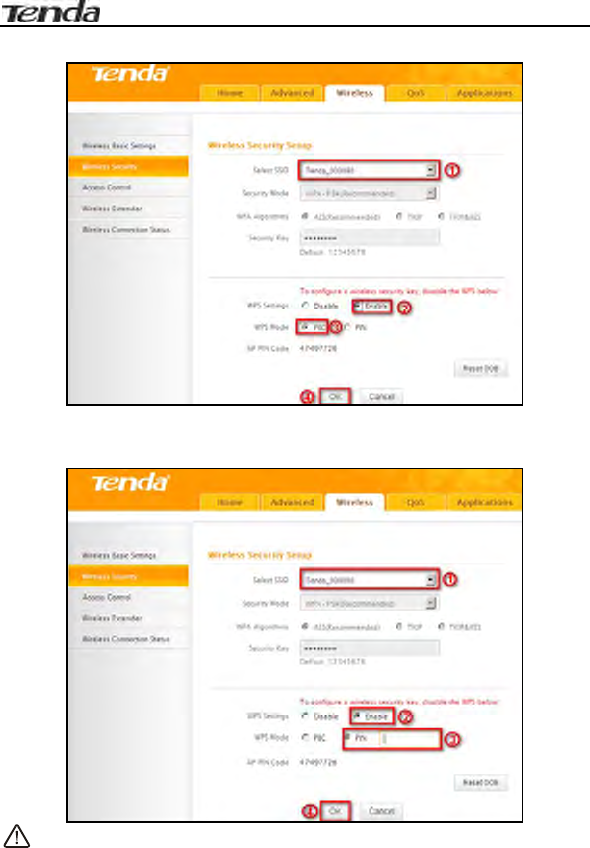

2. Disable WPS. (WPS is enabled on the router by default. If you want to use

other security modes, you must first disable the WPS.)

3. Select a proper security mode and cipher type (also known as WPA Algorithm

or WPA Encryption Type). WPA-PSK and AES are recommended by system

default (5 security modes are available for your selection. Among them,

WPA-PSK outstands with greater compatibility and security. For more

information of other security modes, see appendix 2). Specify a security key

that includes at least 8 characters.

4. Click OK to complete your settings.

Note：

You can also select other security modes as you need.

WPS

Wi-Fi Protected Setup makes it easy for home users who know little of wireless

security to establish a home network, as well as to add new devices to an

existing network without entering long passphrases or configuring complicated

settings. Simply enter a PIN code or press the software PBC button or hardware

WPS button (if any) and a secure wireless connection is established.

Operation Instructions:

PBC: To use WPS-PBC, try the way below:

Press the hardware WPS button on the router for about 1 second and then enable

Wireless N150/N301 Easy Setup Router

WPS/PBC on the client device within 2 minutes;

PIN: On the wireless security page, enable WPS, select PIN and enter the

8-digit PIN code from network adapter; then, within 2 minutes, enable

WPS/PIN on the client device;

Note：

1. With WPS successfully enabled, the WPS LED on the router keeps blinking

for about 2 minutes, and during this time, you can enable WPS on a wireless

Wireless N150/N301 Easy Setup Router

adapter; if the adapter successfully joins the wireless network, the WPS LED

will display a solid light. Repeat steps above if you want to add more wireless

adapters to the router.

2. Reset OOB: Clicking this button will reset SSID to factory default and

disable security mode.

3. Existing wireless settings will still be maintained by default after a successful

WPS connection. Namely security settings and SSID on the router will still be

the same. If you want to generate a random wireless key via WPS, click Reset

OOB and then follow WPS setup instructions above.

Note:

1. To use the WPS security, the wireless client must be also WPS-capable.

2. Before you press the hardware WPS button on the device for WPS/PBC

connection, making sure the WPS feature has been enabled on the device.

2.3 Wireless Extender

WISP Mode

If your router acquires Internet access from a wireless Access Point, please

select WISP mode. Specific steps are as follows:

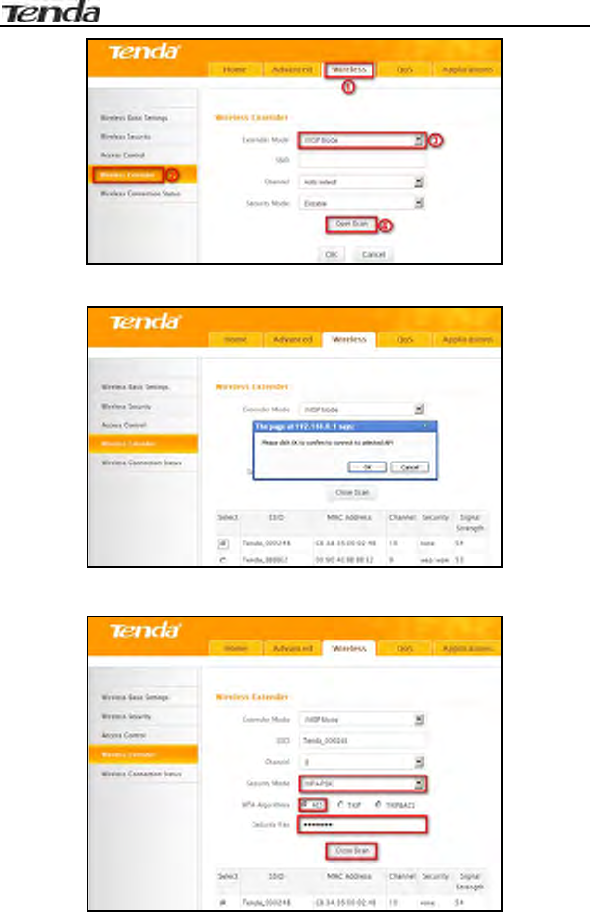

1. Click Wireless>Wireless Extender, select WISP mode and click Open

Scan.

Wireless N150/N301 Easy Setup Router

2. Click Open Scan, select the AP you wish to connect, such as Tenda-000248,

and click OK.

3. View and note down the wireless security settings: security mode, cipher type,

security key.

Wireless N150/N301 Easy Setup Router

4. Click Close Scan and OK.

5. Save the settings and the router will reboot automatically.

6. Internet Connection Setup: Click Advanced>Internet Connection Setup,

select Internet Connection Setup, such as DHCP, and click OK.

Wireless N150/N301 Easy Setup Router

7. Click Advanced>Status and the connection status displays Connected.

Note：

1. When the settings finished, remember to enter Internet Connection Setup to

set up Internet connection.

2. Verify that the SSID, channel, and security mode on the page match those of

the added wireless network. If not, manually correct them.

3. For the normal wireless connection between two routers, do not change this

router’s SSID settings, including SSID, channel, security mode and security

key.

Universal Repeater Mode

In this mode, the router will relay data to an associated root AP and AP function

is enabled meanwhile. The wireless repeater relays signal between its stations

and the root AP for greater wireless range. Steps are shown as below:

1. Click Wireless>Wireless Extender, select Universal Repeater in the

Wireless N150/N301 Easy Setup Router

extender mode and click Open Scan.

2. Click Open Scan, select the AP you wish to connect, such as Tenda-15058C,

and click OK.

3. View and note down the wireless security settings: security mode, cipher type,

security key, etc., which should be in accordance with the upper device.

4. Click Close Scan and OK.

Wireless N150/N301 Easy Setup Router

5. Save the settings and the router will restart automatically.

WDS Bridge Mode

Wireless distribution system (WDS) is a system enabling the wireless

interconnection of access points in an IEEE 802.11 network. It allows a wireless

network to be expanded using multiple access points without the traditional

requirement for a wired backbone to link them. Note: The Access Points you

select must support WDS.

Wireless N150/N301 Easy Setup Router

For example:

As seen in the figure above, PC1 and PC2 access Internet via a wireless

connection to Router 1. While PC3 and PC4 are too far to directly connect to

Router 1 for Internet access. Now you can use the WDS bridge feature to let

PC3 and PC4 access Internet.

Before you get started:

1. View and note down the wireless security settings: security mode, cipher type,

security key, etc. on Router 1; Click Status>LAN Settings and check the IP

address.

2.Click Wireless>Wireless Basic Settings to check router one’s wireless basic

settings.

Wireless N150/N301 Easy Setup Router

3.Click Wireless>Wireless Security to check router one’s wireless security

settings.

4. Verify that DHCP server is enabled on Router 1: Click Advanced>DHCP

Server.

Wireless N150/N301 Easy Setup Router

5.Set the LAN IP address of Router 2 to a different address yet on the same net

segment as Router 1.

As shown below:

Router 1:

LAN IP: 192.168.0.1;

Subnet Mask: 255.255.255.0;

Router 2:

LAN IP：192.168.0.10;

Subnet Mask: 255.255.255.0;

Then do as follows:

1. Configure Router 2:

1) Wireless Working Mode: Select WDS Bridge Mode.

2) Click Open Scan to search for Router 1.

Wireless N150/N301 Easy Setup Router

3) Select the wireless network to connect and click OK.

4) Verify that the SSID, channel, and AP MAC address on the page match those

of the added wireless network. If not, manually correct them.

5) Close Scan and click OK to save your settings.

6) Go to Wireless Security page and set the wireless security settings exactly as

they are on the link partner (Router 1).

7) Go to DHCP Server to disable the DHCP on Router 2. Now you have

finished all settings on Router 2 required for WDS.

Wireless N150/N301 Easy Setup Router

2. Configure Router 1:

1. Go to wireless section on Router 1 and specify WDS (or WDS Bridge) as its

wireless working mode.

2. Manually enter Router 2's MAC address (Also, you can use the Scan option

as mentioned above) and click OK to finish your settings.

2.4 Wireless Access Control

The Access Control feature allows you to specify a list of devices to Permit or

Forbid a connection to your wireless network via the devices’ MAC addresses.

All other devices not listed as Permitted will be Forbidden and vice versa.

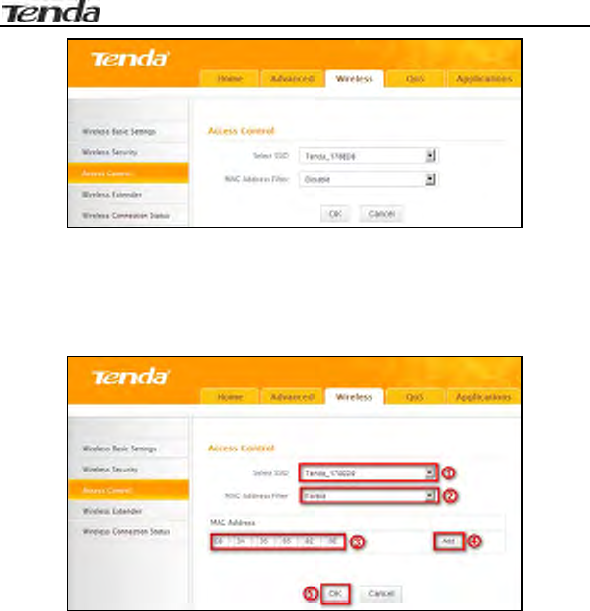

1. Select the wireless network (SSID) you wish to enable Access Control on.

2. MAC Address Filter: Select Permit or Forbid from the drop-down list.

Wireless N150/N301 Easy Setup Router

3. To permit a wireless device to connect to your wireless network, select Permit,

enter its MAC address, click Add and then OK. Then only this device listed

as “Permitted” will be able to connect to your wireless network; all other

wireless devices will forbidden.

Example: To forbid the PC at the MAC address of C8:3A:35:65:82:E6 from

connecting to your wireless network, do as follows:

Step1. Select an SSID, say, Tenda_178ED8.

Step2. Select Forbid from the corresponding drop-down menu.

Step3. Enter C8:3A:35:65:82:E6 in the MAC address box and click Add.

Step4. Click OK to save your settings. You can add more wireless MAC

addresses you wish to forbid.

2.5 Wireless Client

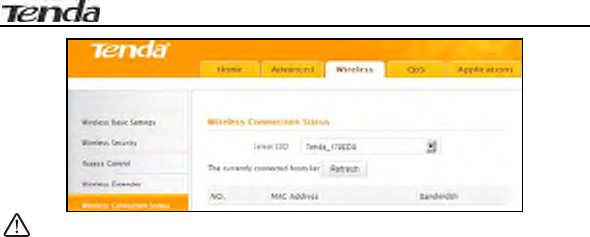

Here you can see a list of wireless devices connected to the router, including

their MAC addresses and bandwidth

Wireless N150/N301 Easy Setup Router

Note: The bandwidth here refers to the channel bandwidth instead

of wireless connection rate.

Wireless N150/N301 Easy Setup Router

3 Bandwidth Control

3.1 Bandwidth Control

Use this section to manage bandwidth allocation to devices on your LAN. If

there are multiple PCs behind your router competing for limited bandwidth

resource, then you can use this feature to specify a reasonable amount of

bandwidth for each such PC, so that no one will be over stuffed or starved to

death.

1. Enable Bandwidth Control: Check or uncheck the box to Enable or disable

the bandwidth control feature.

2. IP Address: Specify the same IP address (say, 100, 100) or two different IP

addresses (say, 100, 110) in both boxes to specify a single IP address or an

IP range to which the current bandwidth control rule will apply.

3. Upload/Download: Select to control bandwidth over data upload or

download.

4. Bandwidth Range: Specify an upload/download bandwidth range limit on

specified PC(s). The unit is KByte/s. 1M=128KByte/s. Note that maximum

upload/download bandwidth should not exceed your router's WAN bandwidth

limit. (Consult your ISP if you are not clear.).

5. Enable: Check to enable current rule. (When disabled, corresponding entry

will not take effect though existing in fact.)

6. Add to List: Click to add current rule to the rule list.

Wireless N150/N301 Easy Setup Router

7. OK: Click to activate your settings.

For example:

If you are sharing a 4M broadband connection with a neighbor, who always

exhausts the bandwidth resource downloading data, this feature will help.

Simply specify half of the 4M bandwidth for your neighbor's PC (say,

192.168.0.100) and you will no longer need to struggle for bandwidth and your

neighbor will only get up to 2M bandwidth. To do so, follow instructions below:

1. Check Enable.

2. Input "192.168.0.100" in both IP address boxes.

3. Select Download.

4. Enter "256" in both bandwidth range fields.

5. Check Enable.

6. Click Add To List

7. Click OK.

3.2 Traffic Statistics

Traffic Statistics allows you to see at a glance how much traffic each device in

your network is using.

1. Enable Traffic Statistics: Check/uncheck the box to enable/disable the

Traffic Statistics feature. To see at a glance how much traffic each device in

your network is using, enable this option. However usually, disabling it may

boost your network performance. This option is disabled by default. However,

once enabled the page refreshes every five minutes.

2. OK: Click to activate corresponding settings.

IP Address: Displays IP addresses of PCs connected to the device.

Uplink Rate: Displays the upload speed (KByte/s) of a corresponding PC.

Downlink Rate: Displays the download speed (KByte/s) of a corresponding PC.

Wireless N150/N301 Easy Setup Router

Sent Message: Displays the number of packets sent by a corresponding PC via

the device since Statistics is enabled.

Sent Bytes: Displays the number of Bytes sent by a corresponding PC via the

device since Statistics is enabled. The unit is MByte.

Received Message: Displays the number of packets received by a corresponding

PC via the device since Statistics is enabled.

Received Bytes: Displays the number of Bytes received by a corresponding PC

via the device since Statistics is enabled. The unit is MByte.

Wireless N150/N301 Easy Setup Router

4 Special Applications

4.1 Port Range Forwarding

Port range forwarding is useful for web servers, ftp servers, e-mail servers,

gaming and other specialized Internet applications. When you enable port

forwarding, the communication requests from the Internet to your router’s WAN

port will be forwarded to the specified LAN IP address. As seen in the figure

above, to let PC3 access service ports on PC1, you must first configure port

forwarding settings on the router to which PC1 is uplinked.

1. Start/End Port: Specify a range of ports between 1~65535 (for a single port,

enter the port number in both Start and End fields, say, 21 for FTP). Contact

corresponding service provider if you don't know the port number of the

service to use.

Wireless N150/N301 Easy Setup Router

2. LAN IP: Specify the internal host’s IP address. Be sure to statically assign the

host’s IP address to make this function constant.

3. Protocol: Specify the protocol required for the service utilizing the port(s).

4. Enable: Check to enable current settings.

5. OK: Click to activate your settings.

Now, your friends only need to enter ftp://xxx.xxx.xxx.xxx:21 in their browsers

to access your FTP server xxx.xxx.xxx.xxx is the router's WAN IP address.

Assuming it is 172.16.102.89, and then your friends need to enter

ftp://172.16.102.89：21 in their browsers.

For example: You want to share some large files with your friends who are not

in your LAN; however it is not convenient to transfer such large files across

network. Then, you can set up your own PC as a FTP server and use the Port

(Range) Forwarding feature to let your friends access these files. Assuming that

the static IP address of the FTP server (Namely, your PC) is 192.168.0.10, you

want your friends to access this FTP server through default port of 21 using the

TCP protocol, then do as follows:

1. Start/End Port: Enter 21 in both Start Port and End Port fields.

2. LAN IP: Enter 192.168.0.10

3. Protocol: Select TCP.

4. Enable: Check to enable current settings.

5. OK: Click to activate your settings.

Wireless N150/N301 Easy Setup Router

Note: If you include port 80 on this section, you must set the port for remote

(web-based) management to a different number than 80, such as 8080, otherwise

the virtual server feature may not take effect.

4.2 DMZ Host

The DMZ (De-Militarized Zone) function disables the firewall on the router for

one device for a special purpose service such as Internet gaming or video

conferencing. Enabling DMZ host may expose your local network to potential

attacks. So it is advisable to use it with caution.

DMZ Host IP Address: The IP Address of the device for which the router’s

firewall will be disabled. Be sure to statically set the IP Address of that device

for this function to be consistent.

Enable: Check/uncheck to enable/disable the DMZ host feature.

OK: Click to enable your settings.

Note:

Once enabled, the DMZ host loses protection from device's firewall and

becomes vulnerable to attacks.

4.3 DDNS

Dynamic DNS or DDNS is a term used for the updating in real time of Internet

Domain Name System (DNS) name servers. Dynamic DNS or DDNS is a term

used for the updating in real time of Internet Domain Name System (DNS) name

servers. We use a numeric IP address allocated by Internet Service Provider (ISP)

to connect to Internet; the address may either be stable ("static"), or may change

from one session on the Internet to the next ("dynamic"). However, a numeric

address is inconvenient to remember; an address which changes unpredictably

makes connection impossible. The DDNS provider allocates a static host name

to the user; whenever the user is allocated a new IP address this is

Wireless N150/N301 Easy Setup Router

communicated to the DDNS provider by software running on a computer or

network device at that address; the provider distributes the association between

the host name and the address to the Internet's DNS servers so that they may

resolve DNS queries. Thus, uninterrupted access to devices and services whose

numeric IP address may change is maintained. (You need to have an account

with one of the Service Providers in the drop-down menu first.)

DDNS Service: Select to enable/disable the DDNS feature.

Service Provider: Select your DDNS service provider from the drop-down

menu. (Here you can see a list of available service providers. Note that service

providers not listed here are not available for use.)

User Name: Enter the registered user name.

Password: Enter the registered password.

Domain Name: Enter the domain name you register, say, tenda.dyndns.org.

OK: Click to activate your settings.

Note:

This feature is usually used together with virtual server and is disabled by

default. Configure necessary settings on port forwarding interface and enter the

information provided by your DDNS service provider on the DDNS screen.

Others can access your web server by simply entering http://tenda.dyndns.org in

their browser address bar.

4.4 UPNP

The Universal Plug and Play (UPnP) feature allows network devices, such as

computers from Internet, to access resources on local host or devices as needed.

UPnP-enabled devices can be discovered automatically by the UPnP service

Wireless N150/N301 Easy Setup Router

application on the LAN. This feature is enabled by default. No settings are

required.

Enable UPnP: Check/uncheck to enable/disable the UPnP feature.

OK: Click to complete your settings.

4.5 Static Routing

When there are several routers in the network, you may want to set up static

routing. Static routing determines the path of the data in your network. You can

use this feature to allow users on different IP domains to access the Internet via

this device. It is not recommended to use this setting unless you are familiar with

static routing. In most cases, dynamic routing is recommended, because this

feature allows the router to detect the physical changes of the network layout

automatically. If you want to use static routing, make sure the router’s DHCP

function is disabled.

1. Destination Network IP Address: Specify a single IP address, say,

172.17.0.100, or an IP net segment, .say, 192.168.88.0.

2. Subnet Mask: Specify a Subnet Mask that corresponds to the specified

destination IP.

Wireless N150/N301 Easy Setup Router

3. Gateway: Specif the IP address for next hop.

4. OK: Click to activate your settings.

Note:

1. Gateway must be on the same IP net segment as device's LAN/WAN IP

address.

2. Subnet Mask must be entered 255.255.255.255 if destination IP address is a

host.

3. Subnet Mask must be entered accordingly if destination IP address represents

an IP network segment. It must correspond to the specified IP address. For

example, for IP address of 10.0.0.0, you may enter a subnet mask of

255.0.0.0.

4.6 Routing Table

This page displays the device core routing table which lists destination IP, subnet

mask, gateway, hop count and interface.

The principal task for a router is to look for an optimal transfer path for each

data packet passing through it, and transfer it to the specified destination. To

complete this work, the router stores and maintains related data of various

transfer paths, i.e. establishing a routing table, for future route selection.

Wireless N150/N301 Easy Setup Router

5 Security

5.1 URL Filter

To better control LAN PCs, you can use the URL filter functionality to allow or

disallow such PCs to access certain websites within a specified time range.

1. Filter Mode: Select a proper filter mode, say, Forbid Only.

2. Access Policy: Select an access policy number, say, 1, from the drop-down

list.

3. Policy Name: Briefly describe the current rule, say, baidu, (It can only consist

of numbers, letters, or underscore).

4. Start IP/End IP: Enter the same IP address or 2 different IP addresses in both

boxes to specify a single PC or a range of PCs for the current rule to apply to.

5. URL Character String: Enter the domain name you wish to filter out, say,

baidu.

6. Time: Specify a time period for a current rule to take effect. If the field is set

to 0:00-0:00, the rule will be applied 24hrs/day.

7. Day(s): Select a day or several days for a current rule to take effect. If

Sun-Sat is selected, the rule will apply 7days/week.

8. Enable: Check/uncheck to enable/disable the feature.

9. OK: Click to activate your settings.

Example:

If you want to disallow all computers on your LAN to access youtube.com from

8：00 to 18：00 during working days: Monday- Friday, then do as follows:

Wireless N150/N301 Easy Setup Router

1. Filter Mode: Select Forbid Only.

2. Access Policy: Select an access policy number, say, 1, from the drop-down

list.

3. Policy Name: Briefly describe the current rule, say, baidu, (It can only consist

of numbers, letters, or underscore).

4. Start IP/End IP: Enter 2-254.

5. URL Character String: Enter baidu.

6. Time: Select 8:00-18:00.Day(s): Select Monday to Friday.

7. Enable: Check the Enable box.

8. OK: Click to save your settings.

Note: Each rule can only include one domain name. Simply add more rules

accordingly, if you want to filter multiple domain names.

5.2 MAC Filter

This section allows you to set the times specific clients can or cannot access the

Internet via the devices’ MAC Addresses.

Forbid Only: Specify a list of devices to Forbid access to Internet. All

other devices not listed as Forbidden will be permitted.

Permit Only: Specify a list of devices to Permit access to Internet. All

other devices not listed as “Permitted” will be forbidden.

1. Filter Mode: Select a proper filter mode, say, Forbid Only.

2. Access Policy: Select an access policy number, say, 1, from the drop-down

list.

Wireless N150/N301 Easy Setup Router

3. Policy Name: Briefly describe the current rule (It can only consist of numbers,

letters, or underscore).

4. MAC Address: Specify a MAC address for a corresponding MAC filter rule

to apply to.

5. Time: Specify a time period for a current rule to take effect. If the field is set

to 0:00-0:00, the rule will be applied 24hrs/day.

6. Day(s): Select a day or several days for a current rule to take effect. If

Sun-Sat is selected, the rule will apply 7days/week.

7. Enable: Check/uncheck to enable/disable the feature.

8. OK: Click to activate your settings.

For Example:

To allow a PC at the MAC address of 00:E4:A5:44:35:69 to access Internet from

Monday to Friday.

a) Filter Mode: Select Permit Only.

b) Access Policy: Select an access policy number, say, 1, from the drop-down

list.

c) Policy Name: Briefly describe the current rule, say, Permit_only, (It can only

consist of numbers, letters, or underscore).

d) MAC Address: Enter 00:E4:A5:44:35:69.

e) Time: Select 0 for all fields to apply the rule 24hrs/day.

f) Day(s): Select Monday to Friday.

g) Enable: Check the Enable box.

h) OK: Click to save your settings.

Wireless N150/N301 Easy Setup Router

5.3 Client Filter

This section allows you to set the times specific clients can or cannot access the

Internet via the devices’ assigned IP addresses and service port.

Forbid Only: Only PCs listed as Forbidden will be forbidden from accessing

specified services; others are not restricted;

Permit Only: Only PCs listed as permitted will be permitted to access specified

services; others will be forbidden.

Filter Mode: Select Permit Only.

Access Policy: Select an access policy number, say, 1, from the drop-down

list.

Policy Name: Briefly describe the current rule, say, 80.

Start IP/End IP: Enter the same IP address, say, 110, or 2 different IP addresses,

say, 110 and 120 in both boxes to specify a single PC or a range of PCs for the

current rule to apply to.

Port: Specify TCP/UDP protocol port number (s), say, 80.

Type: Select Both.

Time: Specify a time period for a current rule to take effect. If the field is set to

0:00-0:00, the rule will be applied 24hrs/day.

Day(s): Specify a day or several days for a current rule to take effect.

Enable: Check/uncheck to enable/disable the feature.

OK: Click to activate your settings.

For example:

If you want to prohibit PCs within the IP address range of

Wireless N150/N301 Easy Setup Router

192.168.0.100--192.168.0.120 from accessing Internet, do as follows:

1. Filter Mode: Select Forbid Only.

2. Access Policy: Select an access policy number, say, 1, from the drop-down

list.

3. Policy Name: Briefly describe the current rule, say, 123.

4. Start IP: Enter 100.

5. End IP: Enter 120.

6. Port: Enter 1-65535 to forbid all Internet services and applications.

7. Type (or Protocol): Select Both.

8. Time: Select 0 for all fields to apply the rule 24hrs/day.

9. Day(s): Select Sun-Sat to apply the rule 7days/week.

10. Enable: Check the Enable box.

11. OK: Click to activate your settings.

Wireless N150/N301 Easy Setup Router

6 Tools

6.1 Reboot

Reboot the device to activate your settings. WAN connection will be

disconnected during reboot.

6.2 Restore to Factory Default Settings

Click the Restore to Factory Default button to reset device to factory default

settings. You need to reconfigure the device for Internet access as well as many

other settings including wireless settings.

The factory default settings are listed below:

IP Address: 192.168.0.1

Subnet mask: 255.255.255.0.

Note:

To activate your settings, you need to reboot the device after you reset it.

6.3 Backup/Restore

Backup: Once you have configured the device the way you want it, you can

save these settings to a configuration file on your local hard drive that can later

Wireless N150/N301 Easy Setup Router

be imported to your device in case that the device is restored to factory default

settings. To do so, follow below instructions:

1.Click the Backup button and specify a directory to save settings on your local

hardware.

2.Click OK to save the configuration file.

To restore previous settings, do as follows:

Click the Browse button to locate and select a configuration file that is saved

previously to your local hard drive.

Wireless N150/N301 Easy Setup Router

Click the Restore button to reset your device to previous settings.

6.4 Syslog

Here you can view the history of the device’s actions. After 150 entries, the

earliest logs will clear automatically.

6.5 Remote Web Management

The Remote management allows the device to be configured and managed

Wireless N150/N301 Easy Setup Router

remotely from the Internet via a web browser.

1. Enable: Check/uncheck to enable/disable the DMZ host feature.

2. Port: This is the management port to be open to outside access. The default

setting is 8080. Do NOT change it unless instructed by your ISP.

3. IP Address: Here you can specify the IP Address Range for remote

management (When set to 0.0.0.0, the device becomes remotely accessible to

all the PCs on Internet or other external networks).

4. OK: Click to activate your settings.

Note:

1. To access the device via port 8080, enter "http://x.x.x.x:8080" where "x.x.x.x"

represents the the device's Internet IP address and 8080 is the remote admin

port. Assuming the device's Internet IP address is 220.135.211.56, then,

simply replace the "x.x.x.x" with "220.135.211.56" (namely,

http://220.135.211.56:8080).

2. Leaving the IP address field at "0.0.0.0" makes the device remotely accessible

to all the PCs on Internet or other external networks; populating it with a

specific IP address, say, 218.88.93.33, makes the device only remotely

accessible to the PC at the specified IP address.

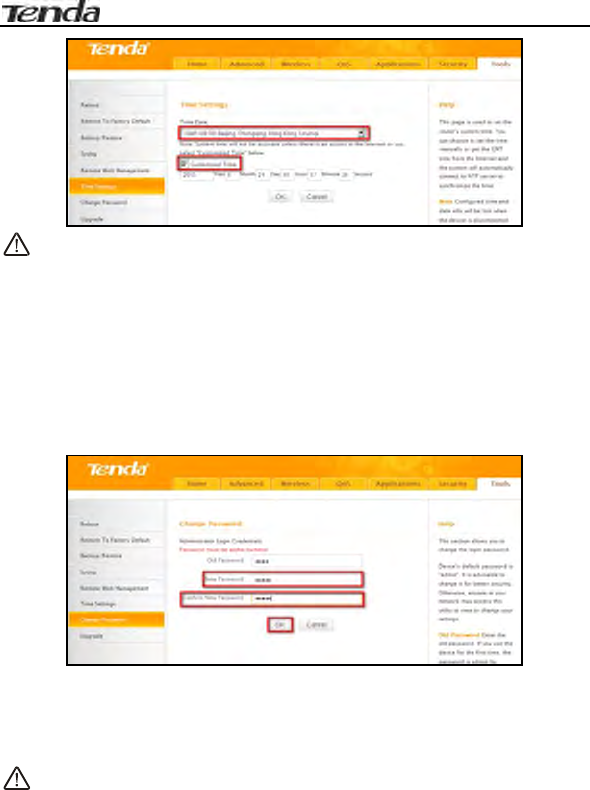

6.6 Time

This page is used to set the router’s system time. You can choose to set the time

manually or get the GMT time from the Internet and the system will

automatically connect to NTP server to synchronize the time.

Wireless N150/N301 Easy Setup Router

Note:

Configured time and date info will be lost when the device gets disconnected

from power supply. However, it will be updated automatically when the device

reconnects to Internet. To activate time-based features (e.g. firewall), the time

and date info shall be set correctly first, either manually or automatically.

6.7 Login Password

This section allows you to change login password for accessing device’s

Web-based interface for better security.

1. New Password: Enter a new password, say, 12345 (Note that the password

can only be alphanumeric).

2. Confirm New Password: Re-enter the new password for confirmation.

3. OK: Click to activate your settings.

Note:

For security purpose, it is highly recommended that you change Device's default

Wireless N150/N301 Easy Setup Router

6.8 Firmware Upgrade

Firmware upgrade is released periodically to improve the functionality of your

device and also to add new features. If you run into a problem with a specific

feature of the device, log on to our website (www.tendacn.com) to download the

latest firmware to update your device.

1.Browse: Click to locate and select the firmware.

2. Upgrade (or Update): Click to update firmware. Device will restart

automatically when update completes.

Note:

1. Before you upgrade the firmware, making sure you are having a correct

firmware. A wrong firmware may damage the device.

2. Do NOT upgrade the firmware wirelessly or disconnect device from power

supply while firmware update is in process. Note that you need to update the

device's firmware via a wired connection.

Wireless N150/N301 Easy Setup Router

Appendix 1 Glossary

Channel

A communication channel, also known as channel, refers either to a physical

transmission medium such as a wire or to a logical connection over a

multiplexed medium such as a radio channel. It is used to transfer an information

signal, such as a digital bit stream, from one or more transmitters to one or more

receivers. If there is only one AP in the range, select any channel you like. The

default is Auto.

If there are several APs coexisting in the same area, it is advisable that you select

a different channel for each AP to operate on, minimizing the interference

between neighboring APs. For example, if 3 American- standard APs coexist in

one area, you can set their channels respectively to 1, 6 and 11 to avoid mutual

interference.

SSID

Service set identifier (SSID) is used to identify a particular 802.11 wireless LAN.

It is the name of a specific wireless network. To let your wireless network

adapter roam among different APs, you must set all APs’ SSID to the same

name.

WPA/WPA2

The WPA protocol implements the majority of the IEEE 802.11i standard. It

enhances data encryption through the Temporal Key Integrity Protocol (TKIP)

which is a 128-bit per-packet key, meaning that it dynamically generates a new

key for each packet. WPA also includes a message integrity check feature to

prevent data packets from being hampered with. Only authorized network users

can access the wireless network. The later WPA2 protocol features compliance

with the full IEEE 802.11i standard and uses Advanced Encryption Standard

(AES) in addition to TKIP encryption protocol to guarantee better security than

that provided by WEP or WPA. Currently, WPA is supported by Windows XP

SP1.

IEEE 802.1X Authentication

IEEE 802.1X Authentication is an IEEE Standard for port-based Network

Access Control (PNAC). It is part of the IEEE 802.1 group of networking

Wireless N150/N301 Easy Setup Router

protocols. It provides an authentication mechanism to devices wishing to attach

to a LAN or WLAN.IEEE 802.1X defines the encapsulation of EAP over LAN

or EAPOL. 802.1X authentication involves three parties: a supplicant, an

authenticator, and an authentication server. The supplicant is a client device

(such as a laptop) that wishes to attach to the LAN/WLAN - though the term

'supplicant' is also used interchangeably to refer to the software running on the

client that provides credentials to the authenticator. The authenticator is a

network device, such as an Ethernet switch or wireless access point; and the

authentication server is typically a host running software supporting the

RADIUS and EAP protocols. The authenticator acts like a security guard to a

protected network. The supplicant (i.e. client device) is not allowed access

through the authenticator to the protected side of the network until the

supplicant’s identity has been validated and authorized. With 802.1X port-based

authentication, the supplicant provides credentials, such as user name / password

or digital certificate, to the authenticator, and the authenticator forwards the

credentials to the authentication server for verification. If the authentication

server determines the credentials are valid, the supplicant (client device) is

allowed to access resources located on the protected side of the network.

PPPOE

The Point-to-Point Protocol over Ethernet (PPPoE) is a network protocol for

encapsulating PPP frames inside Ethernet frames. Integrated PPP protocol

implements authentication, encryption, and compression functions that

traditional Ethernet cannot provide and can also be used in the cable modem and

digital subscriber line (DSL) and Ethernet that provide access service to the

users. Essentially, it is a protocol that allows to establish a point-to-point tunnel

between two Ethernet interfaces within an Ethernet broadcast domain.

DNS

The Domain Name System (DNS) is a hierarchical distributed naming system

for computers, services, or any resource connected to the Internet or a private

network. It associates various information with domain names assigned to each

of the participating entities. A Domain Name Service resolves queries for these

names into IP addresses for the purpose of locating computer services and

devices worldwide. An often-used analogy to explain the Domain Name System

is that it serves as the phone book for the Internet by translating human-friendly

Wireless N150/N301 Easy Setup Router

computer hostnames into IP addresses.

WDS

A wireless distribution system (WDS) is a system enabling the wireless

interconnection of access points in an IEEE 802.11 network. It allows a wireless

network to be expanded using multiple access points without the traditional

requirement for a wired backbone to link them. All base stations in a wireless

distribution system must be configured to use the same radio channel, method of

encryption (none, WEP, or WPA) and the same encryption keys. They may be

configured to different service set identifiers. WDS also requires every base

station to be configured to forward to others in the system. WDS may also be

considered a repeater mode because it appears to bridge and accept wireless

clients at the same time (unlike traditional bridging).WDS may be incompatible

between different products (even occasionally from the same vendor) since it is

not certified by the Wi-Fi Alliance. WDS may provide two modes of wireless

AP-to-AP connectivity:

Wireless bridging, in which WDS APs communicate only with each other and

don't allow wireless clients or stations (STA) to access them.

Wireless repeating, in which APs communicate with each other and with

wireless STAs.

DMZ

In computer security, a DMZ (sometimes referred to as a perimeter networking)

is a physical or logical subnetwork that contains and exposes an organization's

external-facing services to a larger untrusted network, usually the Internet. The

purpose of a DMZ is to add an additional layer of security to an organization's

local area network (LAN); an external attacker only has access to equipment in

the DMZ, rather than any other part of the network. Hosts in the DMZ have

limited connectivity to specific hosts in the internal network, although

communication with other hosts in the DMZ and to the external network is

allowed. This allows hosts in the DMZ to provide services to both the internal

and external network, while an intervening firewall controls the traffic between

the DMZ servers and the internal network clients. Any services such as Web

servers, Mail servers, FTP servers and VoIP servers, etc. that are being provided

to users on the external network can be placed in the DMZ.

Wireless N150/N301 Easy Setup Router

Appendix 2 Verify the WDS Connection

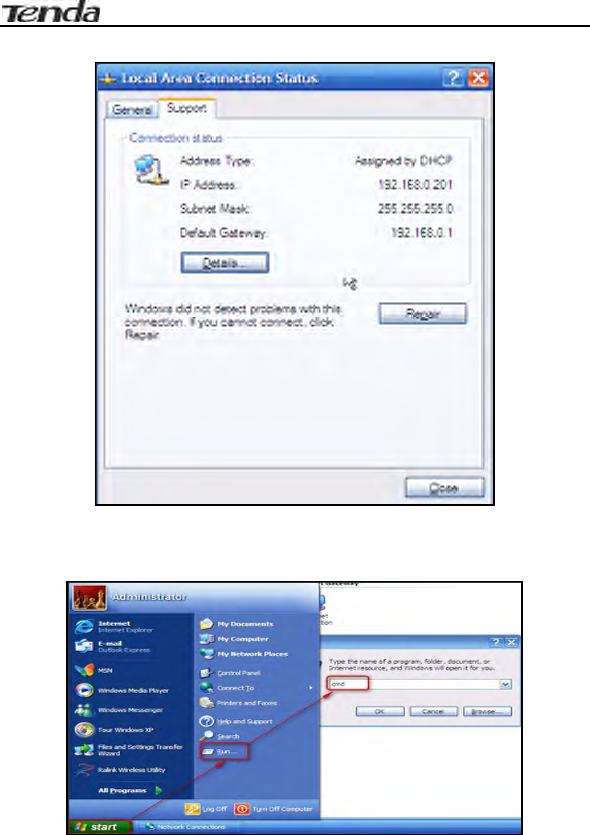

Configure PC2:

Click Start> Run on PC3, input cmd on the appearing window and

then click OK.

Input ping 192.168.0.1 and press Enter.

Wireless N150/N301 Easy Setup Router

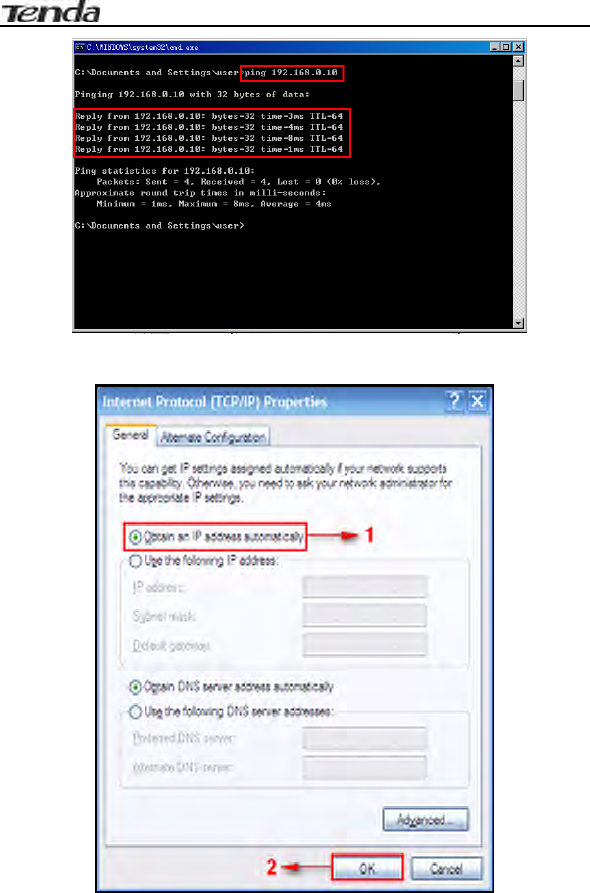

Configure PC3 and PC4：

1. Set PC3 and PC4 to Obtain an IP address automatically.

Wireless N150/N301 Easy Setup Router

2. When the two PCs get IP addresses,

try below steps to verify the WDS connection:

Click Start-> Run on PC3, input cmd on the appearing window and then click

OK.

Input ping 192.168.0.1 and press Enter. If you get a screen as seen below, you

have successfully implemented WDS.

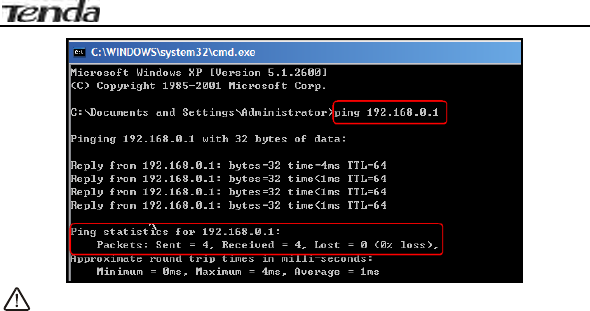

Wireless N150/N301 Easy Setup Router

Note:

1. WDS feature can only be implemented between 2 WDS-capable wireless

devices. Plus, SSID, channel, security settings and security key must be

exactly the same on both such devices.

2. To ensure a proper wireless connection, do not change any settings on the two

devices after WDS is successfully implemented.

Wireless N150/N301 Easy Setup Router

Appendix 3 FAQs

This section provides solutions to problems that may occur during installation

and operation of the device. Read the following if you are running into problems.

If your problem is not covered here, please feel free to go to www.tendacn.com

to find a solution or email your problems to: support@tenda.com.cn or

support02@tenda.com.cn. We will be more than happy to help you out as soon

as possible.

1. Q: I entered the device’s LAN IP address in the web browser but cannot

access the utility. What should I do?

a.Check whether device is functioning correctly. The SYS LED should blink a

few seconds after device is powered up. If it does not light up, then some

internal faults may have occurred.

b.Verify physical connectivity by checking whether a corresponding port’s link

LED lights up. If not, try a different cable. Note that an illuminated light does

NOT ALWAYS indicate successful connectivity.

c. Run the "ping 192.168.0.1" command. If you get replies from 192.168.0.1,

open your browser and verify that Proxy server is disabled. In case that ping

fails, press and hold the "RESET" button on your device for 7 seconds to restore

factory default settings, and then run "ping192.168.0.1" again.

d. Contact our technical support for help if the problem still exists after you tried

all the above.

2. Q: What should I do if I forget the login password to my device?

A: Reset your device by pressing the Reset button for over 7 seconds. Note: All

settings will be deleted and restored to factory defaults once you pressed the

Reset button.

3. Q: My computer shows an IP address conflict error after having

connected to the device. What should I do?

a.Check if there are other DHCP servers present in your LAN. If there are

other DHCP servers except your router, disable them immediately.

b.The default IP address of the device is 192.168.0.1; make sure this

address is not used by another PC or device. In case that two computers or

devices share the same IP addresses, change either to a different address.

4.Q: I cannot access Internet and send/receive emails; what

should I do?

This problem mainly happens to users who use the PPPoE or Dynamic IP

Wireless N150/N301 Easy Setup Router

Internet connection type. You need to change the MTU size (1492 by default). In

this case, go to “WAN Settings” to change the MTU value from default 1480 to

1450 or 1400, etc.

5. Q: How do I share resources on my computer with users on Internet

through the device?

To let Internet users access internal servers on your LAN such as e-mail server,

Web, FTP, via the device, use the "Virtual Server" feature. To do so, follow steps

below:

Step 1: Create your internal server, make sure the LAN users can access

these servers and you need to know related service ports, for example, port

number for Web server is 80; FTP is 21; SMTP is 25 and POP3 is 110.

Step 2: Enter Port Forwarding (also called Port Range Forwarding on some

products) screen from device web UI.

Step 3: Complete the Start Port (also called External/Ext Port on some

products) and End Port (also known as Internal/Int Port on some products) fields,

say, 80-80.

Step 5: Input the internal server’s IP address. For example, assuming that

your Web server’s IP address is 192.168. 0.10, then simply input it.

Step 6: Select a proper protocol type: TCP, UDP, or Both depending on

which protocol(s) your internal host is using.

Step 7: Click Enable and save your settings.

For your reference, we collected a list of some well-known service ports as

follows:

Server Protocol Service Port

Web Server TCP 80

FTP Server TCP 21

Telnet TCP 23

Net Meeting TCP 1503、1720

MSN Messenger TCP/UDP

File Send:6891-6900(TCP)

Voice:1863, 6901(TCP)

Voice:1863, 5190(UDP)

PPTP VPN TCP 1723

Iphone5.0 TCP 22555

SMTP TCP 25

POP3 TCP 110

Wireless N150/N301 Easy Setup Router

Appendix 4 Remove Wireless Network from

Your PC

If you change wireless settings on your wireless device, you must remove them

accordingly your PC; otherwise, you may not be able to wirelessly connect to

the device. Below describes how to do remove a wireless network from your PC.

If you are using Windows XP, do as follows:

1.Right click "My Network Places" and select "Properties".

2.Click “Wireless Network Connection” and then select “Properties”.

Wireless N150/N301 Easy Setup Router

3.Click "Wireless Networks", select the item under "Preferred networks" and

then click the Remove button.

If you are using Windows 7, do as follows:

1.Click Network from your desktop and select Properties.

Wireless N150/N301 Easy Setup Router

2.Select "Manage Wireless Networks".

3. Click the wireless connection and select "Remove network".

Wireless N150/N301 Easy Setup Router

Appendix 5 Safety and Emission Statement

CE Mark Warning

This is a Class B product In a domestic environment, this product may cause

radio interference, in which case the user may be required to take adequate

measures. This device complies with EU 1999/5/EC.

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference,

and (2) this device must accept any interference received, including interference

that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate this

equipment.

This transmitter must not be co-located or operating in conjunction with any

other antenna or transmitter.

The manufacturer is not responsible for any radio or TV interference caused by

unauthorized modifications to this equipment.

Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an

Wireless N150/N301 Easy Setup Router

uncontrolled environment. This equipment should be installed and operated with

minimum distance 20cm between the radiator & your body.

NOTE:

1. The manufacturer is not responsible for any radio or TV interference caused

by unauthorized modifications to this equipment.

2. To avoid unnecessary radiation interference, it is recommended to use a

shielded RJ45 cable.

TENDA TECHNOLOGY N150 Wireless N150 Easy Setup Router User Manual

SHENZHEN TENDA TECHNOLOGY CO., LTD. Wireless N150 Easy Setup Router

user manual

Navigation menu

Namespaces

Views

Navigation
