TENDA TECHNOLOGY W15E AC1200 Wireless Hotspot Router User Manual W15EV1 0 TDE01

SHENZHEN TENDA TECHNOLOGY CO., LTD. AC1200 Wireless Hotspot Router W15EV1 0 TDE01

Contents

User Manual

FAQ
If any item is missing, or damaged, please keep the original package and contact the local reseller
or distributor immediately.
Before using this router, please read this Installation Guide carefully for proper and quick installation.
For detailed product information or more functions, please visit http://www.tendacn.com.
2．Connecting to WAN Port
For ADSL scenario, connect the Ethernet cable that has been connected to the
ADSL modem to the WAN port of the router.
For FTTB scenario, connect the Ethernet cable provided by the ISP to the WAN
port of the router.
For FTTH scenario, connect the Ethernet cable that has been connected to the
optical modem to the WAN port of the router.
3. Connecting Computer, Smart Phones or Other Clients
Power receptacle
Switch
Wireless connection
Wired connection
Step 1: Connecting the Router
1．Installing Router
WAN
1
Place the router upside down on the workbench, and paste the four
footpad stickers onto the round recesses at the bottom of the router.
1Power on the router with the attached power adapter in the package.
Connect your computer to one LAN port of the router, or a switch that has
been connected to the router with the Ethernet cable. Wireless clients, such
as smart phones, can connect to the Wi-Fi network of the router.
1
2
Place the router right side up on the workbench, and adjust the
position of the antennas as below.
2
Pad
Bottom
Round recess
WAN port
Phone cable
ADSL modem
ADSL
or or
FTTB Cable port
Packing List
Wireless Hotspot Router x 1
Power adapter x 1
Ethernet cable x 1
Pad x 4
Installation guide x 1
Installation Guide
AC1200 Wireless Hotspot Router
Model: W15E
or
Optical cable
FTTH Optical modem
LAN port
LED Indicator
LED Indicators Description
SYS
Solid on: The system is faulty;
Blinking: The system works properly;
Off: The system is not powered on.
Solid on: The 2.4 GHz Wi-Fi is enabled without data transmission;
Blinking: Data is transmitted over 2.4 GHz;
Off: The 2.4 GHz Wi-Fi is disabled.
Solid on: The 5 GHz Wi-Fi is enabled without data transmission;
Blinking: Data is transmitted over 5 GHz;
Off: The 5 GHz Wi-Fi is disabled.
WAN port indicator
Solid on: No data is transmitted over WAN port 1.
Blinking: Data is transmitted over WAN port 1.
Off: No device connects to WAN port 1, or connection is faulty.
WAN/LAN port 2/3/4 indicators (By default, thay are LAN port indicators.)
Solid on: No data is transmitted.
Blinking: Data is transmitted.
Off: No device connects to these ports, or connection is faulty.
LAN port indicator
Solid on: No data is transmitted over LAN port 5.
Blinking: Data is transmitted over LAN port 5.
Off: No device connects to LAN port 5, or connection is faulty.
5GHz
2.4GHz
1
2/3/4
5
SYS
2.4GHz 1 5
5GHz 2/3 4/
Port, and Button
Port or Button
Reset 1 5
Description
Reset Reset button. After the router is powered on, use a paper clip to hold down
the Reset button for 8 seconds to restore the device to factory settings.
It is the WAN port used to connect to the internet using Ethernet cable.
The Ethernet cable may be a cable connected to the ADSL modem,
optical modem, or cable modem, or a cable provided by the ISP.
They can be used either as WAN ports or LAN ports. By default, they are
LAN ports. You can login to the router web UI to change them to WAN
ports.
It is the LAN port used to connect to a device such as a computer or switch.
2/3/4
1
5
2/3 4/
Q: I cannot login to the web UI of the router after entering www.tendawifi.com
or 192.168.0.1. What should I do?
A: 1. Ensure that the Ethernet cables are correctly connected.
2. If you connect your computer to the router using Ethernet cable, ensure that
the Obtain an IP address automatically of your computer is selected.
3. If you use wireless devices, such as smart phones, to connect to the Wi-Fi, ensure
that the wireless devices have been successfully connected to the Wi-Fi.
4. Clear the cache of your web browser or replace the web browser, and try to
login again.
5. Use another computer or smart phone and try to login again.
6. Press the Reset button with a paper clip for 8 seconds to restore the device to
factory settings, and try to login again.
Q: I can scan the SSID, but cannot connect to it. What should I do?
A: 1. Verify that the WiFi password is correct.
2. Clear the cache of your wireless clients (such as smart phone and notebook),
and try again.
3. Connect your computer to the router using Ethernet cable, and login to the
web UI of the router. Change the SSID or Wi-Fi password, and try to reconnect
and login again.
Q: The Wi-Fi signal is successfully connected, but I still cannot access the
internet. What should I do?
A: 1. Verify that you connect to the correct SSID.
2. Access the System Info page of the router web UI, and verify that the connection
status of corresponding port is Connected.
Q: What should I do if I forget the Wi-Fi password?
A: 1. Connect your computer to the router using Ethernet cable, and login to the
web UI of the router. Choose Wireless > Basic, view or reset the Wi-Fi password.
2. If the above method does not work, power on the router, press the Reset button
with a paper clip for 8 seconds to restore the device to factory settings. In this
case, you need to reconfigure the internet settings and WiFi password.
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.
This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
The mains plug is used as disconnect device, the disconnect device shall remain
readily operable.
NOTE: (1) The manufacturer is not responsible for any radio or TV interference caused
by unauthorized modifications to this equipment. (2) To avoid unnecessary radiation
interference, it is recommended to use a shielded RJ45 cable.
Declaration of Conformity
Hereby, SHENZHEN TENDA TECHNOLOGY CO., LTD. declares that the radio equipment
type W15E is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet
address: http://www.tendacn.com/en/service/page/ce.html
Operate Frequency: 2400-2483.5MHz; 5150-5250MHz
EIRP Power (Max.): 2.4GHz: 19.8dBm; 5.1GHz: 22.5dBm
Software Version: V15.11.0.5
RECYCLING
This product bears the selective sorting symbol for Waste electrical and electronic
equipment (WEEE). This means that this product must be handled pursuant to
European directive 2012/19/EU in order to be recycled or dismantled to minimize its
impact on the environment.
User has the choice to give his product to a competent recycling organization or to the
retailer when he buys new electrical or electronic equipment.
Caution:
Adapter Model: BN036-A12012E
Manufacturer: SHENZHEN HEWEISHUN NETWORK TECHNOLOGY CO., LTD
Input: 100-240V~, 50/60Hz, 0.4A
DC Voltage
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Radiation Exposure Statement
This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
Caution:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
NOTE: (1) The manufacturer is not responsible for any radio or TV interference caused
by unauthorized modifications to this equipment. (2) To avoid unnecessary radiation
interference, it is recommended to use a shielded RJ45 cable.
Appendix 1: Configure Your Computer (Example: Windows7)
Interne t
??
Network and Internet Network and Sharing Ce nte r Se arc h Con tro l Pan el
Conn ec t or discon ne ct
No Int er net acces s
Loca l Are a Conne ct io n
or VPN c on nection ,o r set up a
-up, o r VP N network c on necti on
work c om puter,or c ha nge sha ri ng
See fu ll m ap
Cont ro l Panel H om e
Chan ge a dapte r se tt i
Chan ge a dvanc ed s h
sett in gs
See al so
Home Gr oup
Inte rn et Option s
查看基本网络信息并设置连接
TD-PC
Activity
IPv4 Connectivity: N o In terne t ac ce ss
No Int er net acces s
Enab led
05:52:33
1.0 Gbps
I v6 PConn ectivity:
Medi a State:
Dura tion:
Spee d:
Deta ils...
Clos e
Diag nose
Sent Recei ved
Bytes: 41，627，947 6 1,784 ,832
Proper ties Disable
Local Area Connection S tat us
Gene ra l
Conn ectio n
Realtek PCIe GBE Family Controller
Networking
Connect using
Configure...
QoS Packet Scheduler
File and Printer Sharing for Microsoft Networks
Internet Protocol Version 6(TCP/IPv6)
Internet Protocol Version 4(TCP/IPv4)
Link-Layer Topology Di scovery Mapper I/0 Driver
Link-Layer Topology Di scovery Resp onder
LLooccaall AArreeaa CCoonnnneeccttiioonn PPrrooppeerrttiieess
OK
Install... Pr opertiesUninstall...
Cancel
This connection uses the following items:
Transmission Control Protocol/Internet Protocol. The default
wide area network protocol that provides commun ication
across diverse interconnected networks.
Description
Currently connected to：
Unidentified network
No Internet access
Open Network and Sharing Center
2:30 PM
3/21/2014
General Alternate Configuration
You can get IP settings assigned automatically if your network supports
this capability. Otherwise,you need to ask your network administrator for
the appropriate IP settings.
Obtain an IP address automatically
Use the following IP address:
Obtain DNS server address automatically
Use the following DNS server addresses:
Advanced
OOKKCancel
Default gateway:
Subnet mask:
IP address:
Preferred DNS server:
Alternate DNS server:
Validate settings upon exit
IInntteerrnneett PPrroottooccooll VVeerrssiioonn 44 ((TTCCPP//IIPPvv44))PPrrooppeerrttiieess
2. Click Open Network
and Sharing Center;
1. Right-click the icon in the
lower-right corner of the desktop.
1.Click Local Area
Connection
2.Click Properties
Find and double click
Internet Protocol
Version 4(TCP/IPv4);
2.click OK
Open Network and Sharing Center
10:32 PM
10/5 7/201
Click the icon in the lower-right corner
of the desktop.
1.Select Obtain an IP address
automatically and Obtain
DNS server address
automatically
Not connected
Connections are available
Wireless Network Connection
Tenda_XXXXXX
Connect automatically Connect
Open Network and Sharing Center
Select your wireless
network from the list,
click Connect and
then follow onscreen
instructions.
Currently connected to:
Tenda_XXXXXX
Internet
Wireless Network Connection
Tenda_XXXXXX Connected
Open Network and Sharing Center
Connected successfully!
Appendix 2: Example: Connection WiFi ( Windows 8)
* Operating temperature: 0 C ~ 40 C;
operating humidity: 10%RH ~ 90%RH (non-condensing)
Technical Support
United States Hotline: 1-800-570-5892
Canada Hotline: 1-888-998-8966
Hong Kong Hotline: 00852-81931998
Skype: Tendasz
Website: http:// www.tendacn.com
E-mail: support@tenda.com.cn
Address Info:
6-8 Floor, Tower E3, No.1001, Zhongshanyuan Road, Nanshan District, Shenzhen,
China. 518052
Safety and Emission Statement

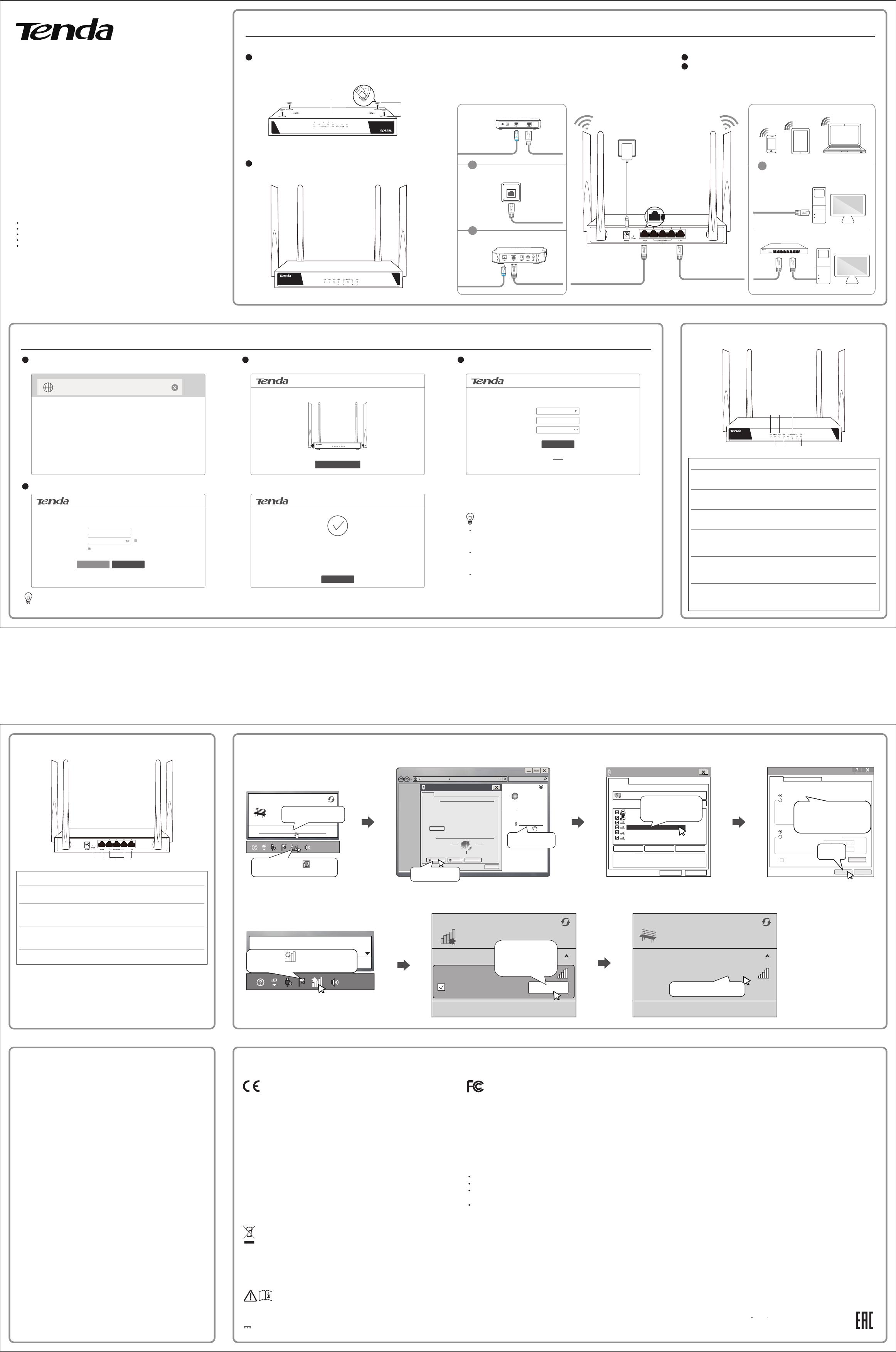

Step 2: Configuring the Router
tendawifi.com 进入
Start a browser, enter tendawifi.com or 192.168.0.1, and press Enter.
Set your wireless network name and Wi-Fi password, and click Next. Wait a second for the completion of settings.
For more functions, visit http://www.tendacn.com to download user
guide of the router.
Click Start. The system automatically detects your internet connection type. Enter
related values according to the on-screen instructions, and click Next.
1
4
2 3
Welcome to Tenda Wireless Hotspot Router
Click Start to configure the internet and wireless settings quickly.
Start
Internet Settings
Settings completed!
You are disconnected. Please reconnect to:
Tenda_A0BE70
Or Tenda_A0BE70_5G
Click More to configure other functions, such as portal authorization and bandwidth control.
More
Wireless Settings
Please set your wireless network name and password
By default, the Set the wireless password as login password is
enabled. You can also disable this option and customize your login
password.
By default, the wireless network has no password. You need to
reconnect to the Wi-Fi signal once the SSID or WiFi password is
changed.
By default, the SSID of the 2.4 GHz network is Tenda_XXXXXX (see the
label at the bottom of the router), and the SSID of the 5 GHz network
is Tenda_XXXXXX_5G.
The computer can connect to the Wi-Fi signal only when a wireless
adapter is installed and works properly.
Please select an internet connection type
Connection Type: PPPoE
PPPoE Username:
PPPoE Password:
Next
Skip
SSID: Tenda_A0BE70
WiFi Password: No password required
Set the wireless password as login password
Enter 8 or more ch
Next
Back
Tips
Tips
AC1200 Wireless Hotspot Router
W15E
AC1200 Wireless Hotspot Router
W15E
AC1200 Wireless Hotspot Router
W15E

Navigation menu
