TENDA TECHNOLOGY W322PDET 300Mbps Wireless PCI Adapter User Manual W322P W322P User Guide
SHENZHEN TENDA TECHNOLOGY CO., LTD. 300Mbps Wireless PCI Adapter W322P W322P User Guide
Users Manual
W322P+ 300Mbps Wireless PCI Adapter
W322P+ 300Mbps Wireless PCI Adapter
300Mbps Wireless PCI Adapter User Guide
-- 1 --
Copyright Statement
is the registered trademark of
Shenzhen Tenda Technology Co., Ltd. All the products
and product names mentioned herein are the
trademarks or registered trademarks of their
respective holders. Copyright of the whole product as
integration, including its accessories and software,
belongs to Shenzhen Tenda Technology Co., Ltd.
Without the permission of Shenzhen Tenda Technology
Co., Ltd, any individual or party is not allowed to copy,
plagiarize, imitate or translate it into other languages.
All the photos and product specifications mentioned in
this guide are for references only. As the upgrade of
software and hardware, there will be changes. And if
there are changes, Tenda is not responsible for
informing in advance. If you want to know more about
our product information, please visit our website at
www.tenda.cn.
300Mbps Wireless PCI Adapter User Guide
-- 2 --
Table of Content
Chapter 1 Introduction........................................1
1.1 Product Feature .......................................2
1.2 Product Deployment.................................3
1.3 Indicator Description ................................4
1.4 Package Contents.....................................4
Chapter 2 Installation Guide.................................5
Chapter 3 Client Utility Interface.........................10
3.1 Station Mode.........................................11
3.1.1 Station Mode Topology......................11
3.1.2 Status ............................................12
3.1.3 Site Survey .....................................13
3.1.4 Profile Management..........................14
3.1.5 Statistics.........................................16
3.1.6 WPS Setting....................................16
3.2 AP Mode ...............................................18
3.2.1 AP Mode Topology ............................18
3.2.2 Basic Setting ...................................19
3.2.3 Security Setting...............................20
3.2.4 Access Control.................................21

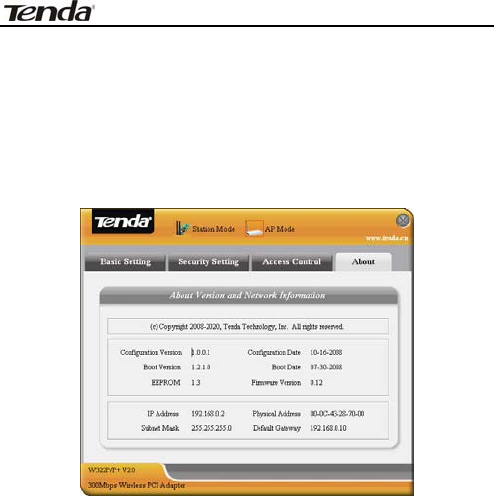

3.2.5 About.............................................23
Appendix One: Acronyms and Terms ...................24
Appendix Two: Product Specification....................27

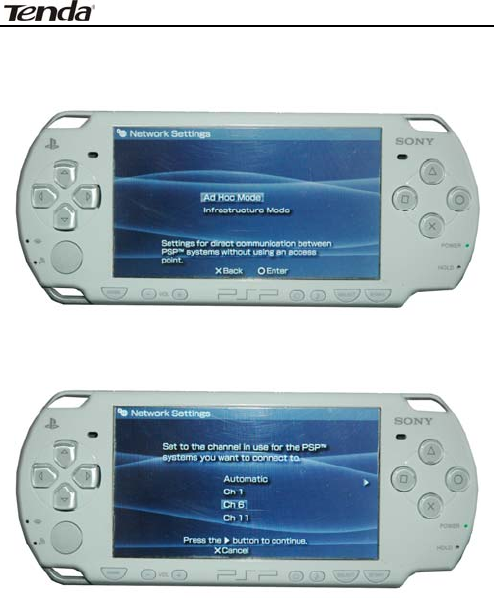

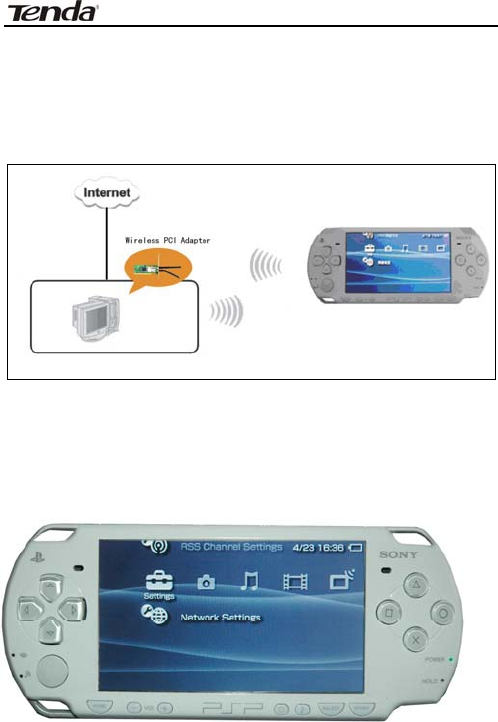

Appendix Three: How to connect with PSP............28
300Mbps Wireless PCI Adapter User Guide
-1-
Chapter 1 Introduction
W322P/P+ V2.0 is a Wireless PCI Adapter with up to
300Mbps transmitting rate. It adopts the very latest
wireless standard—IEEE802.11n, which perfectly
complies downward with IEEE802.11g/b standards,
efficiently reduces the “dead spots” in wireless area
and widely multiplies the wireless coverage area.
W322P/P+ V2.0 is suitable for desktop computer. Its
transmitting rate can reach up to 300Mbps when
connected to Tenda W306R 11N Wireless Router. The
high speed of wireless networking makes it ideal for
on-line applications like surfing, streaming video,
gaming, downloading and Voice over IP telephone, and
gives you much headroom to run movies and photos in
LAN.
In a word, W322P/P+ V2.0 is a 300Mbps Wireless PCI
Adapter with robust signal, farther transmitting
distance and stable performance.
300Mbps Wireless PCI Adapter User Guide
-2-
Note:
The only difference between W322P V2.0 and
W322P+ V2.0 is that W322P+ V2.0’s antenna
can be detachable.
1.1 Product Feature
• Supports 300Mbps wireless receiving and
transmitting rate
• Complies with the latest 802.11n and
802.11b/g standards
• Supports 32-bit PCI port
• Supports 20MHz/40MHz frequency width
• Detects wireless network and changes
transmitting rate automatically
• Provides two working modes: Infrastructure
and Ad-Hoc
• Supports 64/128-bit WEP and WPA/WPA2
encryption methods
• Supports WPS encryption method to free you
from memorizing long passwords
300Mbps Wireless PCI Adapter User Guide
-3-
• Complies with Windows Vista/XP/2000, Linux,
MAC OS, etc.
• Supports WMM to smooth your audio and
video

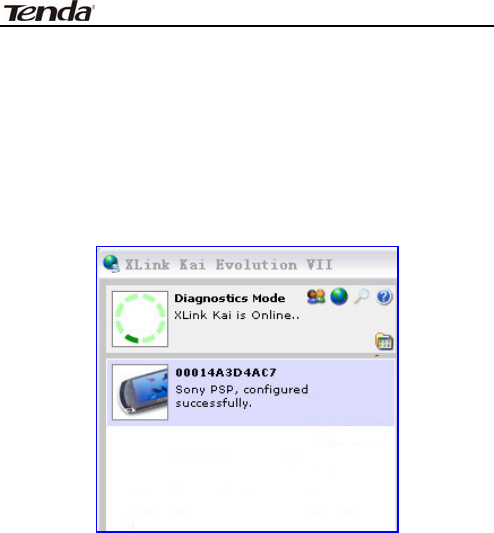

• Supports PSP, NDS and Wii connection with
Internet and Xlink Kai to enjoy on-line gaming
• Supports Soft AP to establish your wireless
LAN networking quickly
1.2 Product Deployment
W322P/P+ V2.0 Wireless PCI Adapter offers
fast, reliable and cost- effective solution for
wireless access. Deployment as follows;
• For staff who requires higher mobility in the
office, they want to have access to traditional
wired or wireless network in any place of the
company;
• Enterprise or individual who requires often
changes in lay out of network cables;
• Companies or places which are not suitable for
300Mbps Wireless PCI Adapter User Guide
-4-
LAN cable laying out because of budget or
objective building, including places of great
interests, rent places or places for short-term
usage;
• Company or individual who avoids using
expensive cables, renting cables or renting
rights for access.
1.3 Indicator Description
In the front panel of W322P/P+ V2.0, there is a LED
indicator blinking when data communication is going
on.
1.4 Package Contents
Unpack the packets, and please find the following
items:
¾ One W322P/P+ V2.0 Wireless PCI Adapter
¾ One CD-ROM
300Mbps Wireless PCI Adapter User Guide
-5-
Chapter 2 Installation Guide
This chapter is to assist you how to use the included
CD-ROM which comprises the Setup Wizard and the
Client Utility Interface.
The following steps on Setup Wizard are taken the
Windows XP as example.

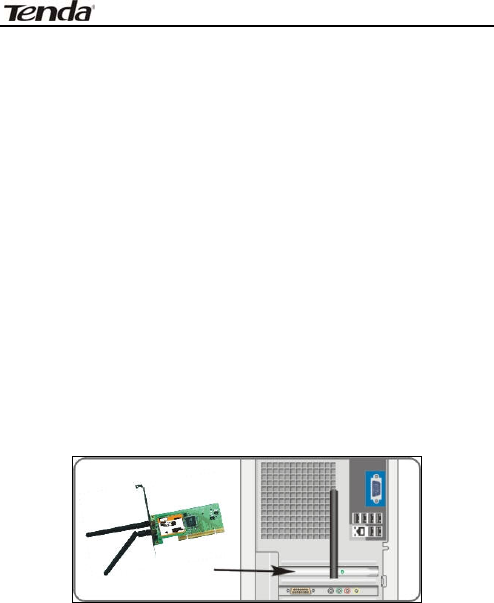

1. Please insert the Wireless PCI Adapter into the
PCI port of your computer.

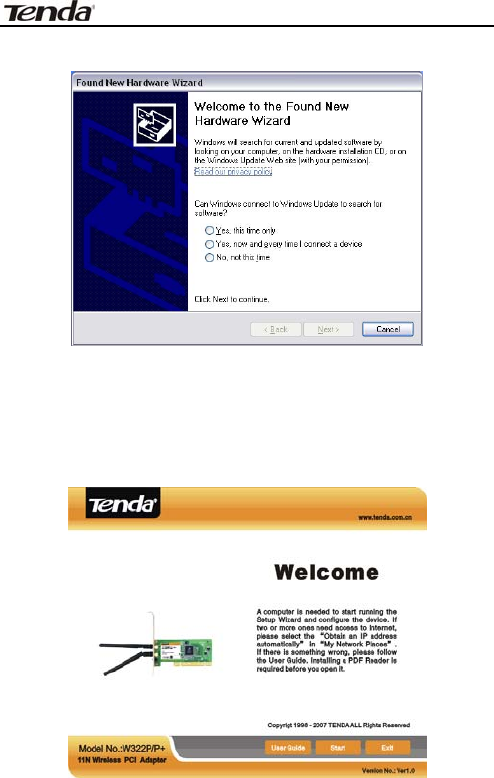

2. “Found New Hardware” system dialogue appears,
and selects “Cancel” to use the included Setup
Wizard for fast installation; of course, you also can
select “Next” to install by manual.
300Mbps Wireless PCI Adapter User Guide
-6-
3. Inert the included CD-ROM into the CD-ROM
drive of your computer, and the Welcome screen
appears. (If not appear, double click the “Setup”
icon.)
300Mbps Wireless PCI Adapter User Guide
-7-
4. Click “Enter”.
5. Click “Next” to start installing.
300Mbps Wireless PCI Adapter User Guide
-8-

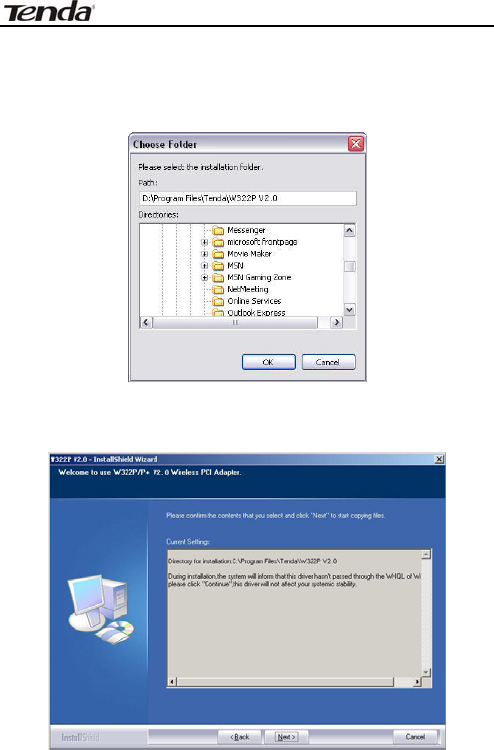

6. Click “Change…” to select the directory path, or
click “Next”.
7. Select “OK” and “Next” in the following window.
300Mbps Wireless PCI Adapter User Guide
-9-

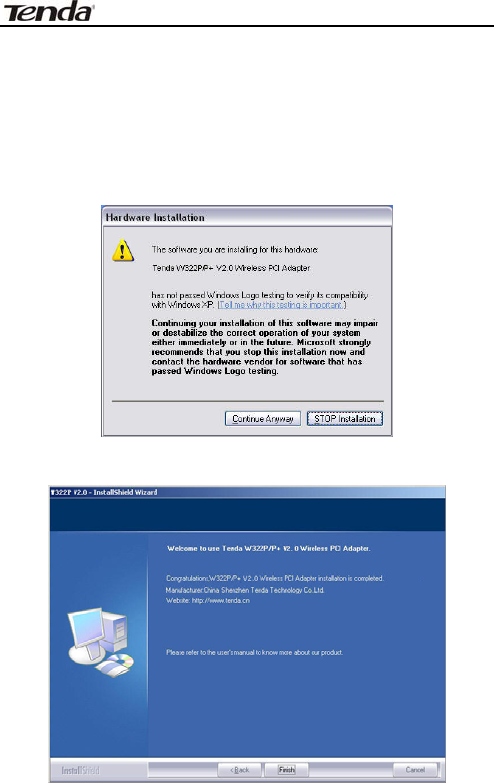

8. During the installation, the following dialogue
maybe appears. Click the “Continue Anyway” to
continue. There is no security threat to your
computer.
9. Click “Finish” to complete the installation.
300Mbps Wireless PCI Adapter User Guide
-10-
Chapter 3 Client Utility Interface
This software is for the W322P/P+ V2.0 Wireless PCI
Adapter management. If it does not appear, select
“Start”—“All Programs” —“Tenda”—“W322P V2.0”, or
click the shortcut on your PC’s desktop.
Note:
In the Windows XP, you can select the included
W322P/P+ V2.0 Client Utility Interface or the
Windows XP internal wireless application to
configure the device.
There are two client utility applications in W322P/P+
V2.0: Station mode and AP mode.
Note:
In this utility interface, Station Mode (Client Mode)
is the default access way.
300Mbps Wireless PCI Adapter User Guide
-11-
3.1 Station Mode

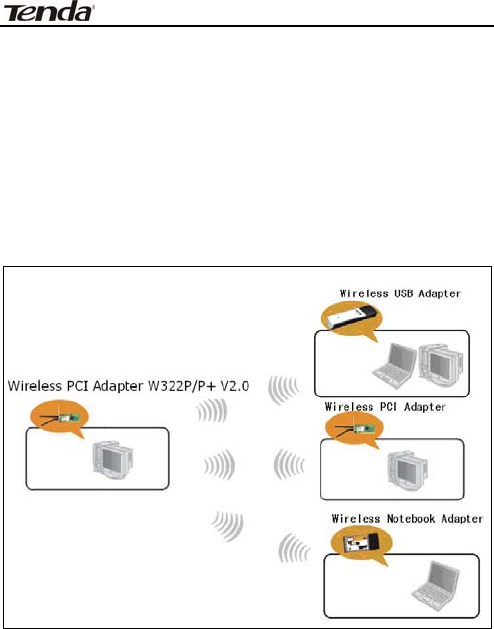

3.1.1 Station Mode Topology
In this mode, W322P/P+ V2.0 serves as a client to
receive the wireless signals to access the Internet.
300Mbps Wireless PCI Adapter User Guide
-12-

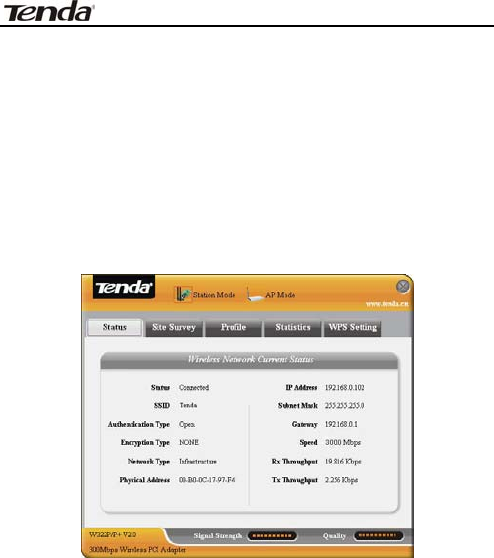

3.1.2 Status
In the Network Status window, it displays something
on wireless adapter and wireless network status,
including SSID, Authentication type, Encryption Type,
IP address, subnet mask and gateway and so on.
300Mbps Wireless PCI Adapter User Guide
-13-

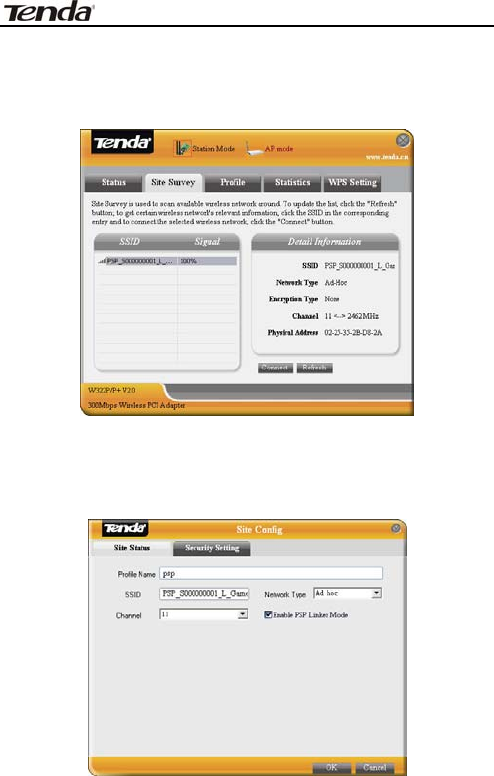

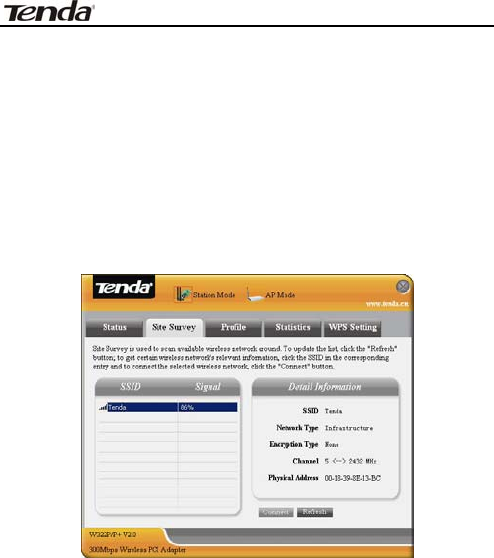

3.1.3 Site Survey
The Site Survey is used to scan the available wireless
network around, showing the wireless network’s signal
strength and other information which provides basis
for you to access which wireless network.
Connect: select one entry in the wireless network
list and click the button to connect the device with
the selected network.
Refresh: rescan the wireless network around.
300Mbps Wireless PCI Adapter User Guide
-14-

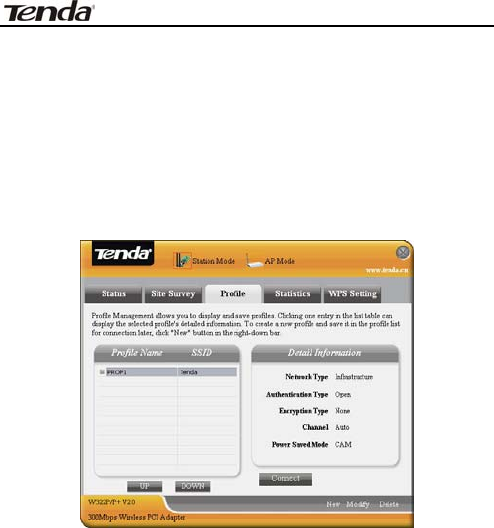

3.1.4 Profile Management
This window saves the general wireless parameters for
different profiles, which is used to fast connect the
wireless network you need.
UP/DOWN: To change the profile’s sequence in
the list.
Connect: To activate one profile.
New: To create a new profile and configure the
site status and security setting.
Modify: To modify one existing profile.
Delete: To delete one existing profile.
300Mbps Wireless PCI Adapter User Guide
-15-

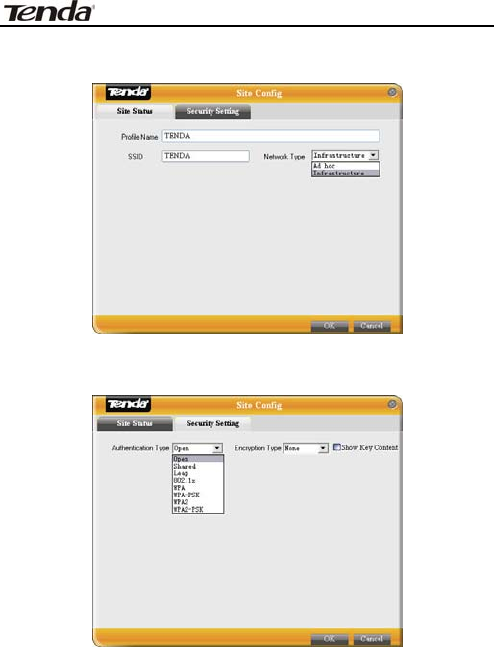

(Site Status)
(Security Setting)
300Mbps Wireless PCI Adapter User Guide
-16-

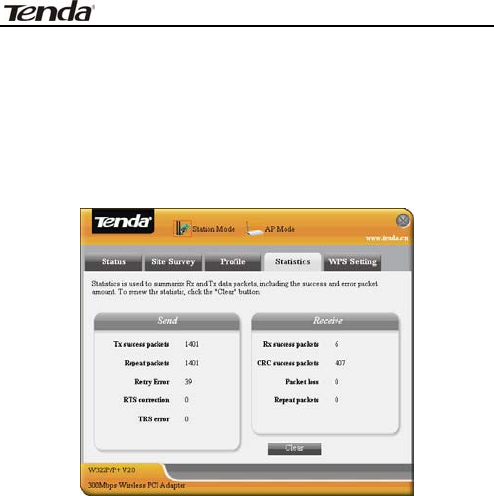

3.1.5 Statistics
Statistics is used to summarize Rx and Tx data packets,
including the success and error packet amount.
Clear: click this button to renew the statistics.

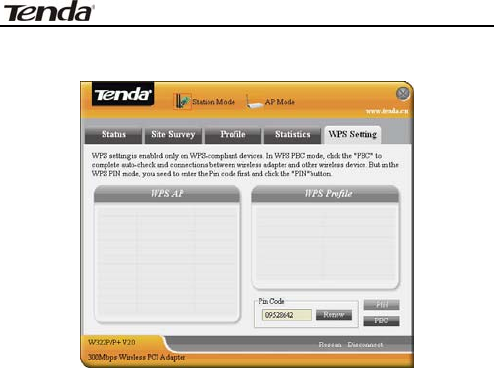

3.1.6 WPS Setting
WPS setting is enabled only on WPS-compliant
devices.
300Mbps Wireless PCI Adapter User Guide
-17-
PIN： Enter the Pin code and click the “PIN” to
automatically connect the wireless adapter with
wireless devices around.
PBC： Click the “PBC” to complete auto-check and
connections between wireless adapter and other
wireless device.
Refresh: to update the Pin code.
Rescan: to rescan the WPS-compliant wireless
network around.
Disconnect: to disconnect the connected wireless
network.
300Mbps Wireless PCI Adapter User Guide
-18-
3.2 AP Mode
3.2.1 AP Mode Topology
The device also can serve as an access point to
transmit wireless signals and create wireless network,
allowing other wireless clients to access the network.
Click the AP Mode icon to enter the AP Mode interface.
300Mbps Wireless PCI Adapter User Guide
-19-

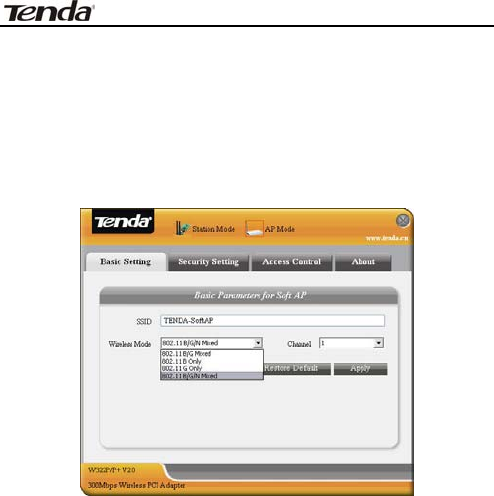

3.2.2 Basic Setting
This window is used to configure the AP’s basic para-
meters, including SSID, Wireless Mode and Channel.
SSID: Wireless network’s ID name scanned by
wireless adapter.
Wireless Mode: 802.11b/802.11g/802.11b/g
mixed.
Channel: 1~11 channels provided.
Restore Default: to restore the set parameters to
default factory default settings.
Apply: to make the changes made take effect.
300Mbps Wireless PCI Adapter User Guide
-20-
3.2.3 Security Setting
This window is used to configure the wireless
network’s security authentication, providing WEP,
WPA-PSK, WPA2-PSK, and WPA-PSK/WPA2-PSK
encryption methods.
WEP：10/26 bits Hex or 5/13 ASCII support.
WPA-PSK：8~32 bits ASCII support.
WPA2-PSK：8~32 bits ASCII support.
WPA-PSK/WPA2-PSK：8~32 bits ASCII support.
300Mbps Wireless PCI Adapter User Guide
-21-
Note:
1. The Hex characters include 0~9 numbers and
a~f letters.
2. ASCII characters include any numbers/letters
and characters.
3.2.4 Access Control
Access Control is based on the MAC address to decide
that the specified client connects to the wireless
network, or disables it to access the wireless network.
300Mbps Wireless PCI Adapter User Guide
-22-
Filter Policy:
Disabled: to disable the filter function.
All Permitted: to permit all clients in the list to
access the wireless network.
All Blocked: to refuse all clients in the list to
access the wireless network.
MAC Address：to input the client’s MAC address to
implement the corresponding filter policy. For
example: b0000a8cd702.
Add: to add the entered MAC address into the list.
Delete: to delete one existing MAC address in the
list.
Remove All: to delete all clients’ MAC address in
the list.
Apply: to make the changes made take effect.
300Mbps Wireless PCI Adapter User Guide
-23-
3.2.5 About
This window displays something about software
version and wireless adapter.
300Mbps Wireless PCI Adapter User Guide
-24-
Appendix One: Acronyms and Terms
WLAN Wireless Local Area Network
802.11 A family of specifications developed by
the IEEE for WLAN technology.
802.11a An extension to 802.11 WLAN standard
that provides up to 54 Mbps transmis
sion in the 5 GHz UNI radio band.
802.11b An extension to 802.11 WLAN standard
that provides up to 11 Mbps
transmission in the 2.4 GHz ISM radio
band. 802.11b uses DSSS modulation.
802.11g An extension to 802.11 WLAN standard
that provides up to 54 Mbps
transmission in the 2.4 GHz ISM radio
band. 802.11b uses OFDM modulation
and is backwards compatible with
802.11b.
Ad-Hoc A group of computers each with wireless
adapters, connected as an independent
WLAN.
AES Advanced Encryption Standard
300Mbps Wireless PCI Adapter User Guide
-25-
BSSID Basic Service Set ID
DHCP Dynamic Host Configuration Protocol
DSSS Direct Sequence Spread Spectrum.
DSSS is one of two types of spread
spectrum radio. The other is
frequency-hopping spread spectrum
(FHSS).
QoS Quality of Service
OFDM Orthogonal Frequency Division
Multiplexing
RADIUS Remote Authentication Dial In User
Service
RTS Request to Send
SSID Service Set Identifier. A 32-character
unique identifier attached to the header
of packets sent over a WLAN that acts as
a password when a mobile device tries
to connect to the BSS.
TCP/IP Transmission Control Protocol/Internet
Protocol
TKIP Temporal Key Integrity Protocol
WDS Wireless Distribution System
300Mbps Wireless PCI Adapter User Guide
-26-
WEP Wired Equivalent Privacy. A security
protocol for
WLANs defined in the IEEE 802.11
standard.
WPA Wi-Fi Protected Access
WPA2 Wi-Fi Protected Access 2. The next
generation of
Wi-Fi security, based on the 802.11i
standard.
WPA2-PSK Wi-Fi Protected Access 2-Pre-shared
Keys
WPA-PSK Wi-Fi Protected Access-Pre-shared Keys
Max. 19dbm
300Mbps Wireless PCI Adapter User Guide
-27-
Appendix Two: Product Specification
Standard IEEE802.11g, IEEE802.11b,
IEEE802.11n
Port 32-bit PCI 2.2 interface
Frequency Range 2.4～2.4835GHz
Antenna Gain 2T2R 2.2dBi antenna* 2
Transmission
Power
Modulation Method OFDM, CCK
Working Temper. 0℃～40℃
Storage Temper. -40℃～70℃
Working Humidity 10％～90％RH non-condensing
300Mbps Wireless PCI Adapter User Guide
-28-
Appendix Three: How to connect with PSP
1. Topology of PSP connecting with W322P/P+ V2.0
2. To configure PSP with Ad-Hoc mode
2.1 Select Network Settings
300Mbps Wireless PCI Adapter User Guide
-29-
2.2 Select Ad-Hoc mode
2.3 Select Channel
300Mbps Wireless PCI Adapter User Guide
-30-
3. In W322P/P+ V2.0 Utility Interface scan PSP and
double-click to connect the wireless network.
4. In Site Survey check “enable PSP connection mode”
box.
300Mbps Wireless PCI Adapter User Guide
-31-

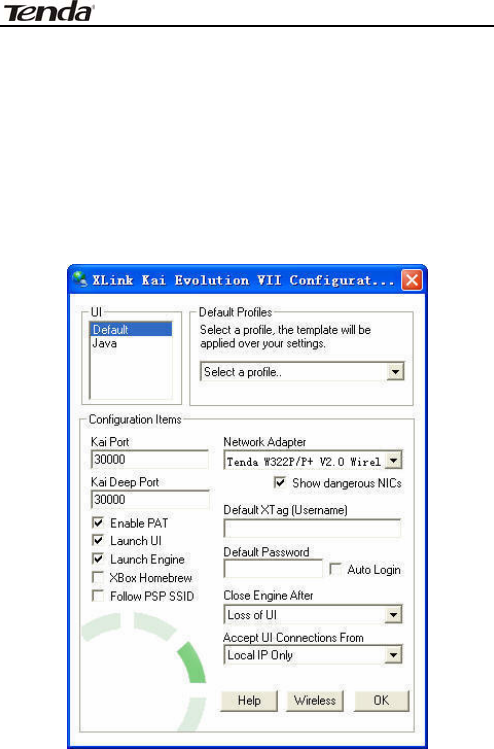

5. To configure Xlink Kai
Select “Start”→ “All programmers” → “Xlink Kai
Evolution VII” → “Start Kai Config” to configure the
user name, password and other parameters as
follows.
300Mbps Wireless PCI Adapter User Guide
-32-
6. Login Xlink Kai
Select “Start”→ “All programmers” → “Xlink Kai
Evolution VII” → “Start Kai”. PSP will connect with
Xlink Kai automatically. The following window will
indicate the connection is established well now.
300Mbps Wireless PCI Adapter User Guide
-34-
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits
set forth for an uncontrolled environment. This equipment
should be installed and operated with the minimum distance
of 20 cm.
This device complies with Part 15 of FCC, operation is subject to
the following two conditions:
1) This device may not cause interference and
2) This device must accept any interference, including interfence
that may cause undesired operation.
Any Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate
the equipment.
Rules.
Operation is subject to the following two conditions:
300Mbps Wireless PCI Adapter User Guide
-35-
Caution!
The manufacturer is not responsible for any radio or TV
interference caused by unauthorized
modifications to this equipment. Such modifications
could void the user authority to operate
the equipment.
