TEVII TECHNOLOGY G201TX wireless HDMI sender User Manual

TeVii Technology Co.,Ltd. wireless HDMI sender

User Manual

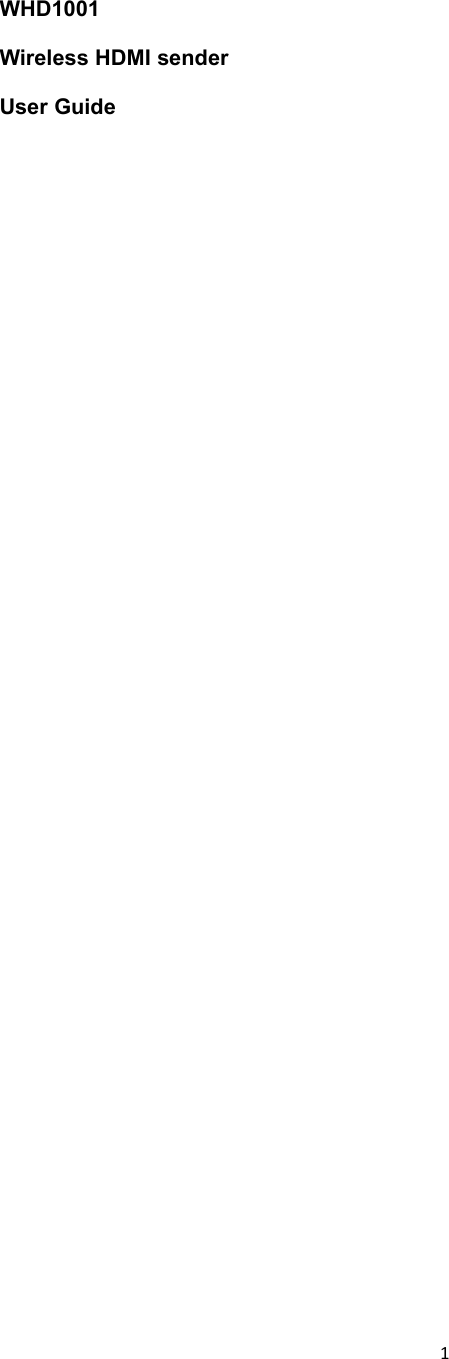

1WHD1001Wireless HDMI senderUser Guide

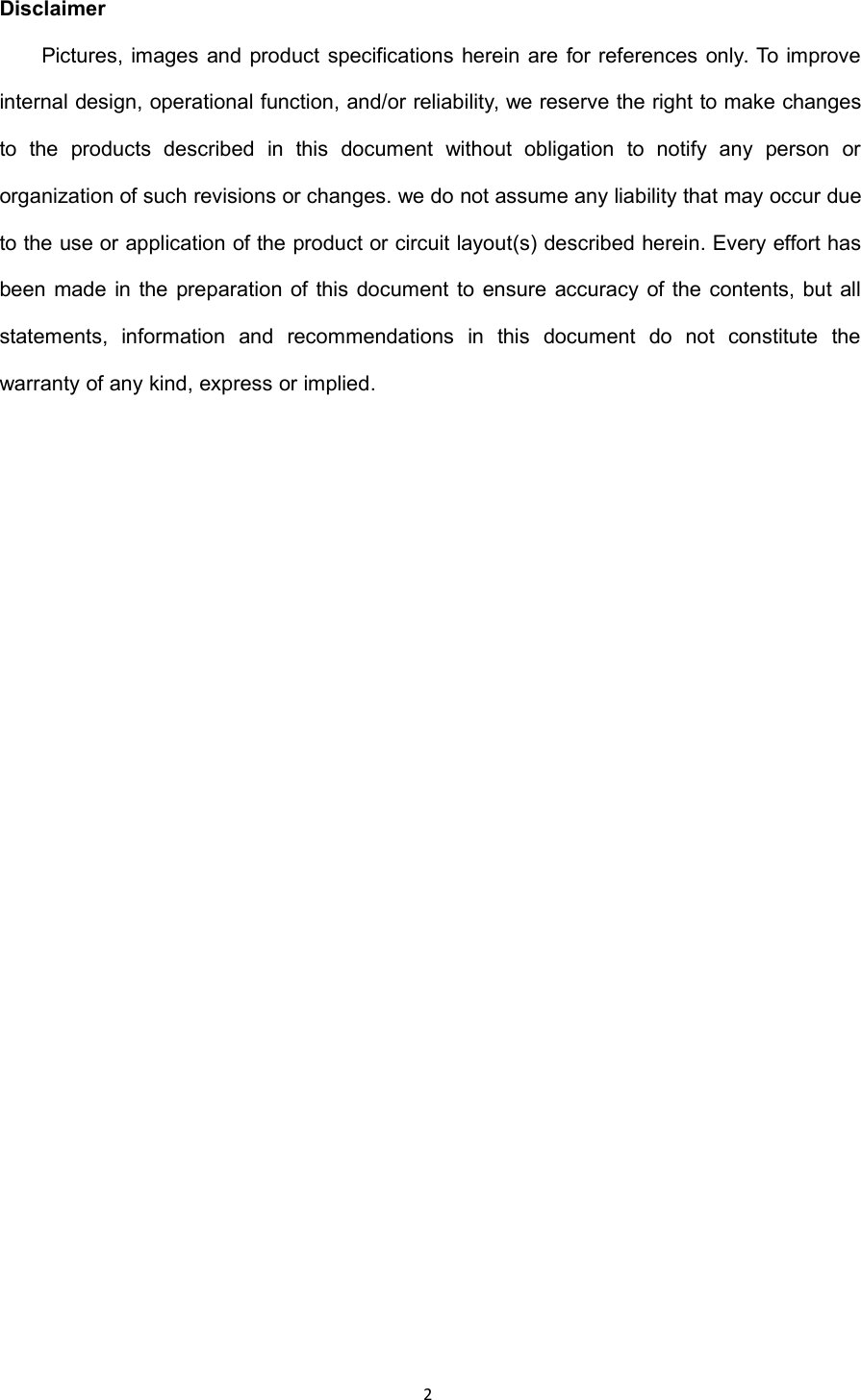

2DisclaimerPictures, images and product specifications herein are for references only. To improveinternal design, operational function, and/or reliability, we reserve the right to make changesto the products described in this document without obligation to notify any person ororganization of such revisions or changes. we do not assume any liability that may occur dueto the use or application of the product or circuit layout(s) described herein. Every effort hasbeen made in the preparation of this document to ensure accuracy of the contents, but allstatements, information and recommendations in this document do not constitute thewarranty of any kind, express or implied.

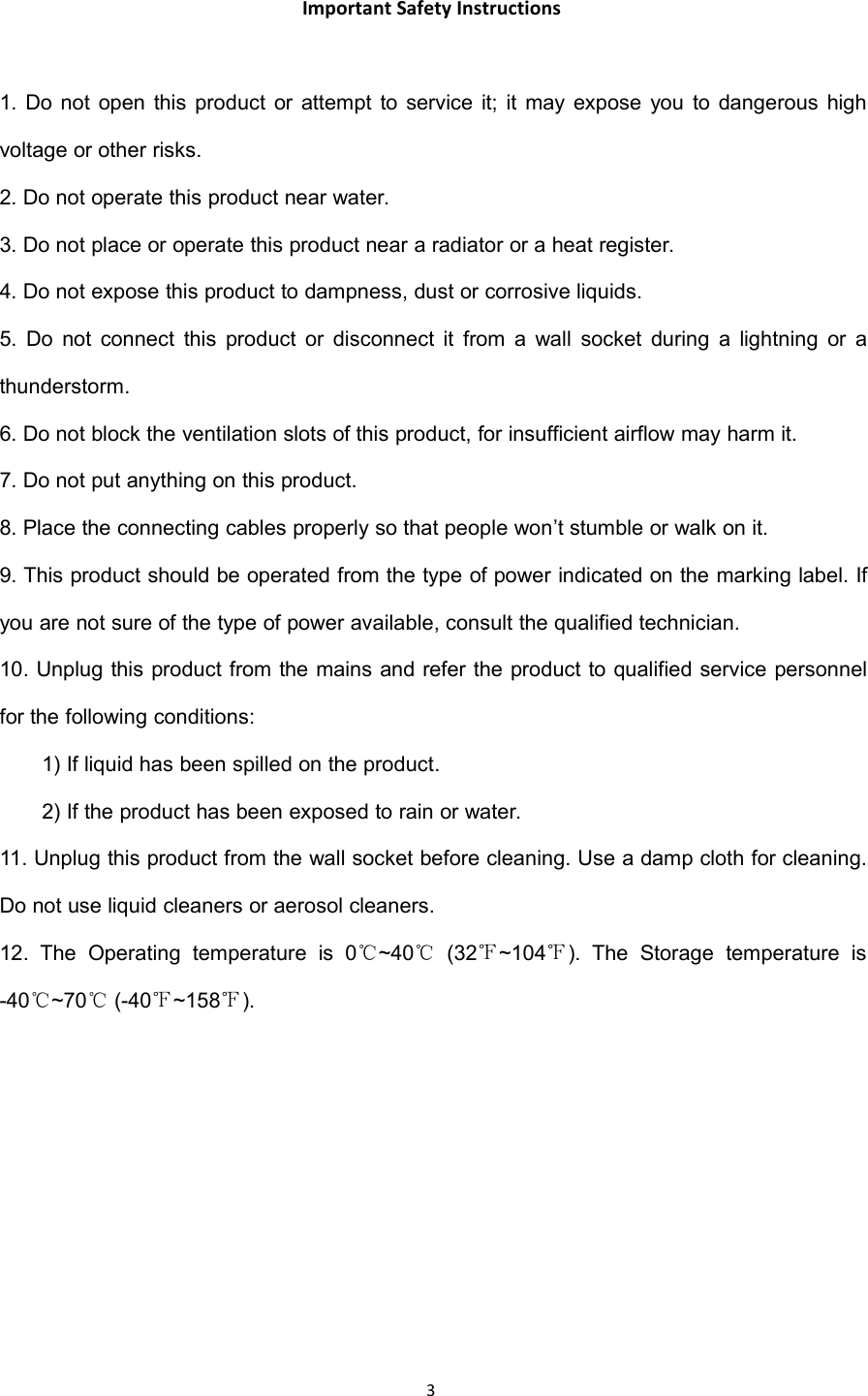

3Important Safety Instructions1. Do not open this product or attempt to service it; it may expose you to dangerous highvoltage or other risks.2. Do not operate this product near water.3. Do not place or operate this product near a radiator or a heat register.4. Do not expose this product to dampness, dust or corrosive liquids.5. Do not connect this product or disconnect it from a wall socket during a lightning or athunderstorm.6. Do not block the ventilation slots of this product, for insufficient airflow may harm it.7. Do not put anything on this product.8. Place the connecting cables properly so that people won’t stumble or walk on it.9. This product should be operated from the type of power indicated on the marking label. Ifyou are not sure of the type of power available, consult the qualified technician.10. Unplug this product from the mains and refer the product to qualified service personnelfor the following conditions:1) If liquid has been spilled on the product.2) If the product has been exposed to rain or water.11. Unplug this product from the wall socket before cleaning. Use a damp cloth for cleaning.Do not use liquid cleaners or aerosol cleaners.12. The Operating temperature is 0℃~40℃(32℉~104℉). The Storage temperature is-40℃~70℃(-40℉~158℉).

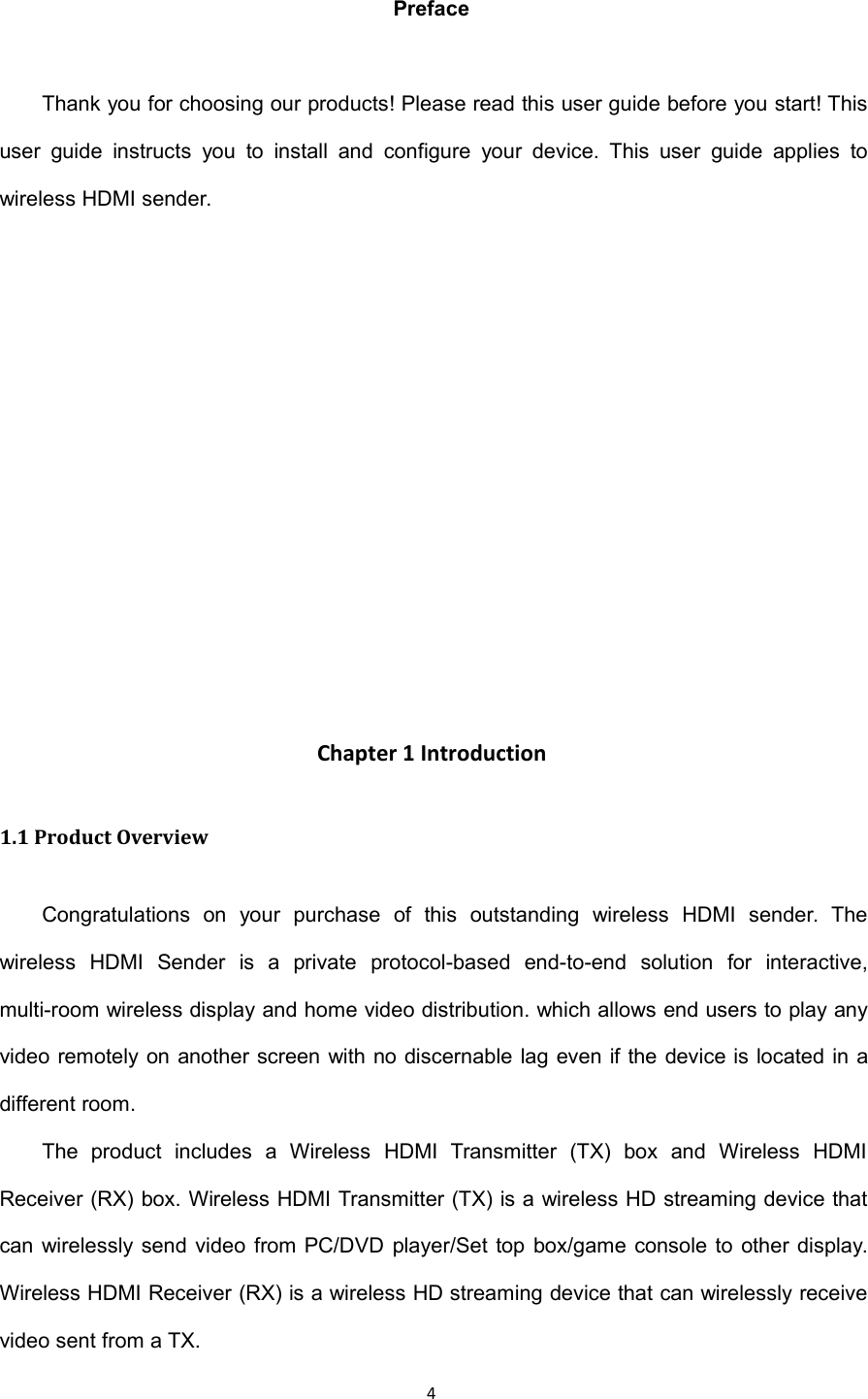

4PrefaceThank you for choosing our products! Please read this user guide before you start! Thisuser guide instructs you to install and configure your device. This user guide applies towireless HDMI sender.Chapter 1 Introduction1.1 Product OverviewCongratulations on your purchase of this outstanding wireless HDMI sender. Thewireless HDMI Sender is a private protocol-based end-to-end solution for interactive,multi-room wireless display and home video distribution. which allows end users to play anyvideo remotely on another screen with no discernable lag even if the device is located in adifferent room.The product includes a Wireless HDMI Transmitter (TX) box and Wireless HDMIReceiver (RX) box. Wireless HDMI Transmitter (TX) is a wireless HD streaming device thatcan wirelessly send video from PC/DVD player/Set top box/game console to other display.Wireless HDMI Receiver (RX) is a wireless HD streaming device that can wirelessly receivevideo sent from a TX.

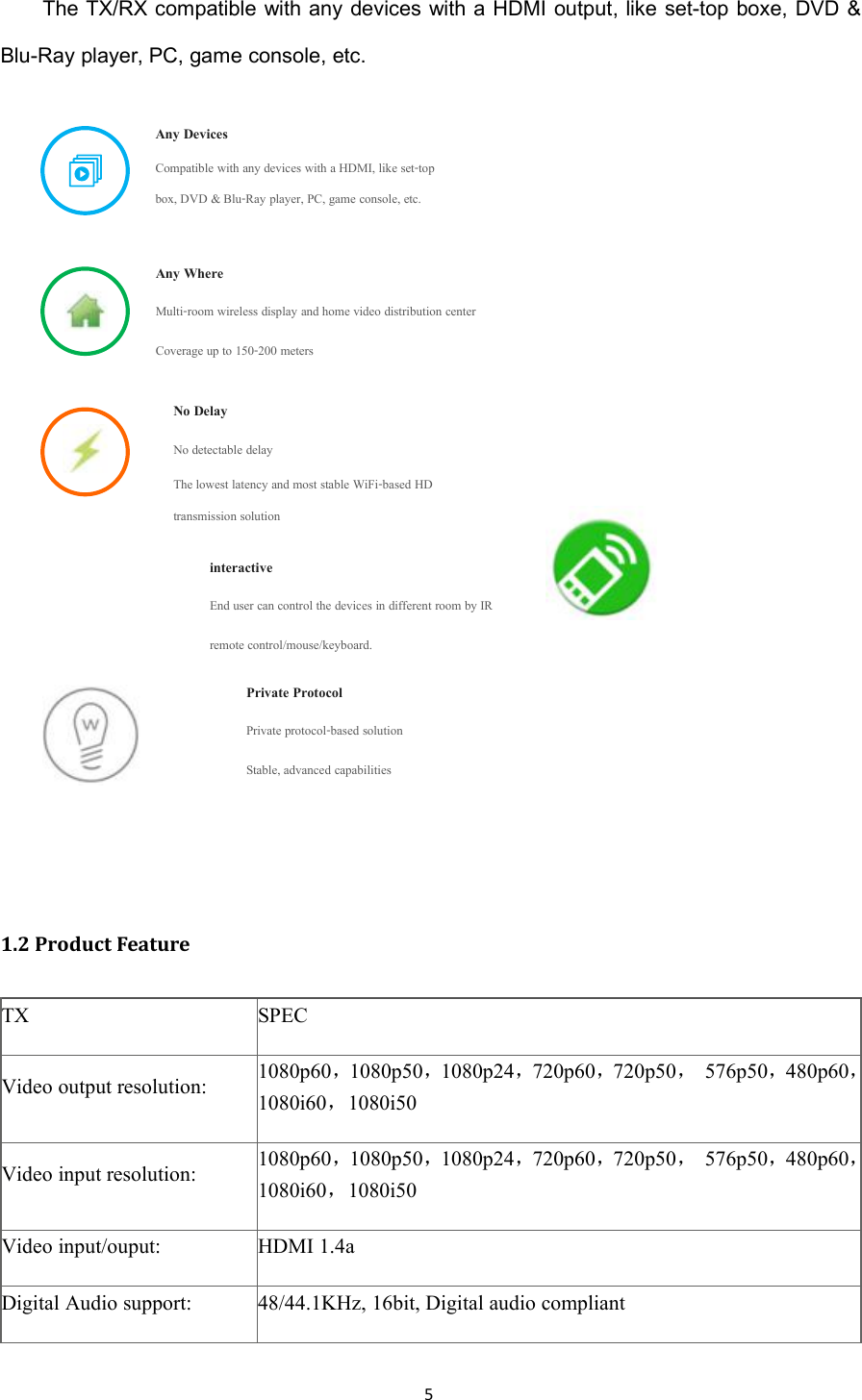

5The TX/RX compatible with any devices with a HDMI output, like set-top boxe, DVD &Blu-Ray player, PC, game console, etc.1.2 Product FeatureTXSPECVideo output resolution:1080p60，1080p50，1080p24，720p60，720p50，576p50，480p60，1080i60，1080i50Video input resolution:1080p60，1080p50，1080p24，720p60，720p50，576p50，480p60，1080i60，1080i50Video input/ouput:HDMI 1.4aDigital Audio support:48/44.1KHz, 16bit, Digital audio compliantAny DevicesCompatible with any devices with a HDMI, like set-topbox, DVD & Blu-Ray player, PC, game console, etc.Any WhereMulti-room wireless display and home video distribution centerCoverage up to 150-200 metersNo DelayNo detectable delayThe lowest latency and most stable WiFi-based HDtransmission solutioninteractiveEnd user can control the devices in different room by IRremote control/mouse/keyboard.Private ProtocolPrivate protocol-based solutionStable, advanced capabilities

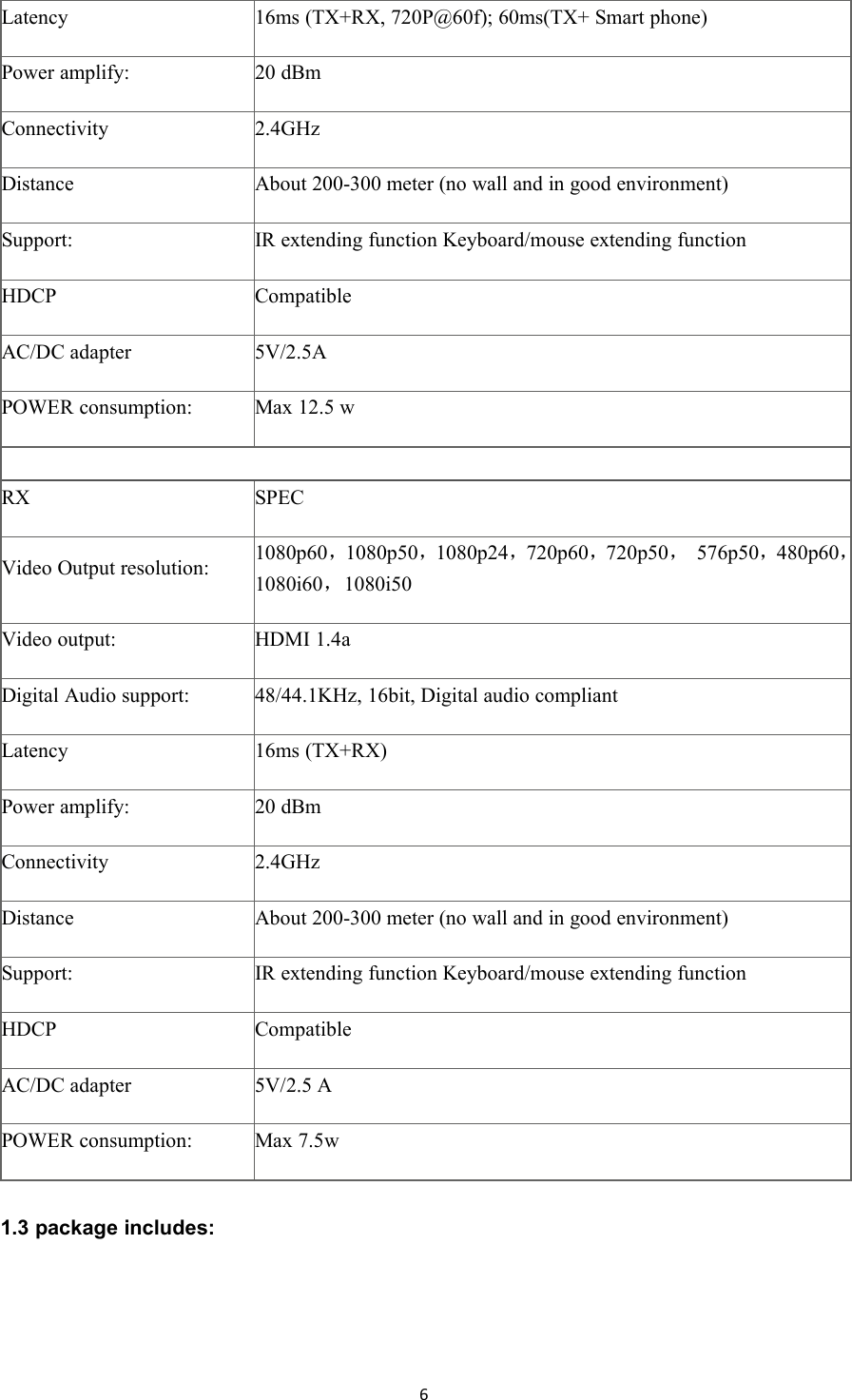

6Latency16ms (TX+RX, 720P@60f); 60ms(TX+ Smart phone)Power amplify:20 dBmConnectivity2.4GHzDistanceAbout 200-300 meter (no wall and in good environment)Support:IR extending function Keyboard/mouse extending functionHDCPCompatibleAC/DC adapter5V/2.5APOWER consumption:Max 12.5 wRXSPECVideo Output resolution:1080p60，1080p50，1080p24，720p60，720p50，576p50，480p60，1080i60，1080i50Video output:HDMI 1.4aDigital Audio support:48/44.1KHz, 16bit, Digital audio compliantLatency16ms (TX+RX)Power amplify:20 dBmConnectivity2.4GHzDistanceAbout 200-300 meter (no wall and in good environment)Support:IR extending function Keyboard/mouse extending functionHDCPCompatibleAC/DC adapter5V/2.5 APOWER consumption:Max 7.5w1.3 package includes:

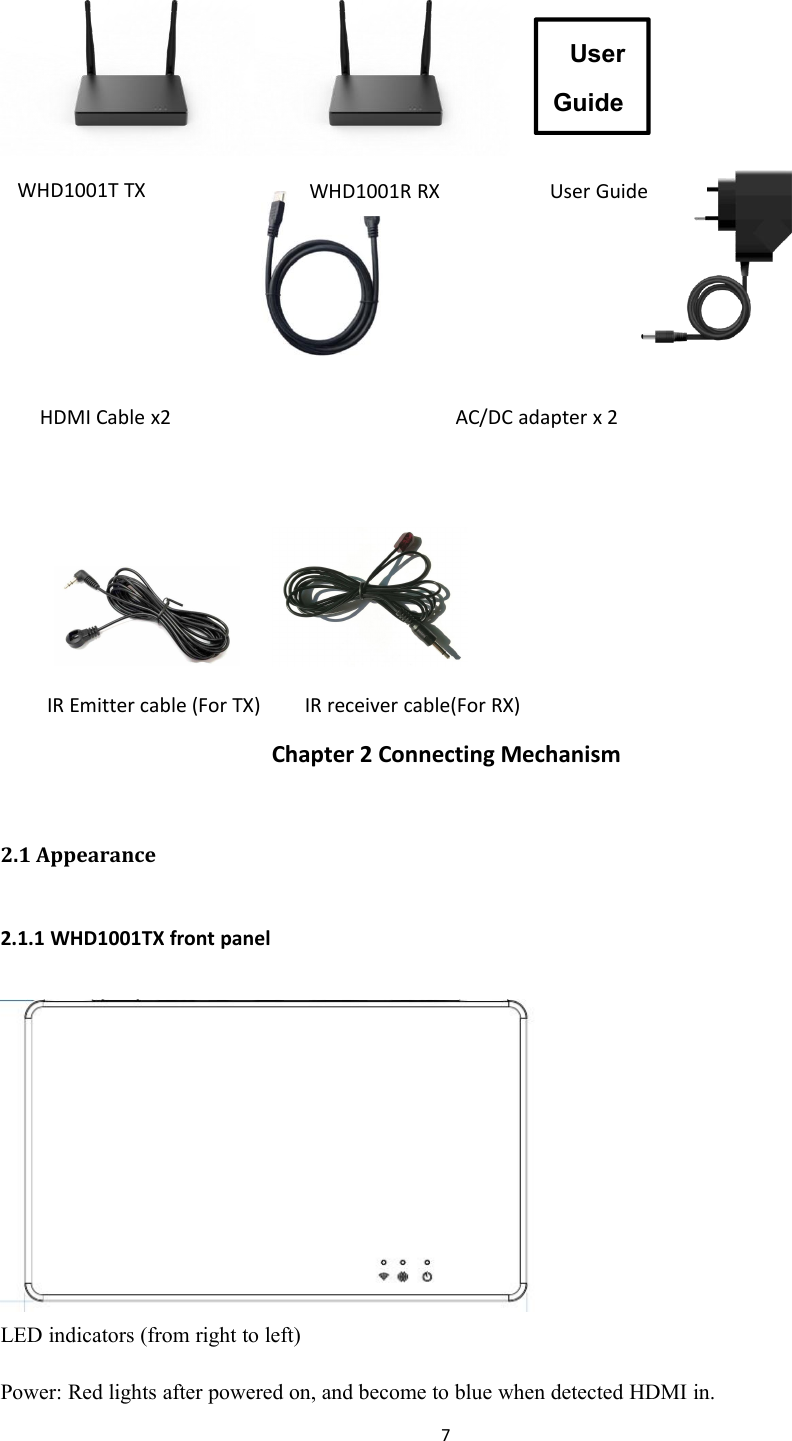

7Chapter 2 Connecting Mechanism2.1 Appearance2.1.1 WHD1001TX front panelLED indicators (from right to left)Power: Red lights after powered on, and become to blue when detected HDMI in.UserGuideWHD1001R RX User GuideWHD1001T TXHDMI Cable x2 AC/DC adapter x 2IR Emitter cable (For TX) IR receiver cable(For RX)

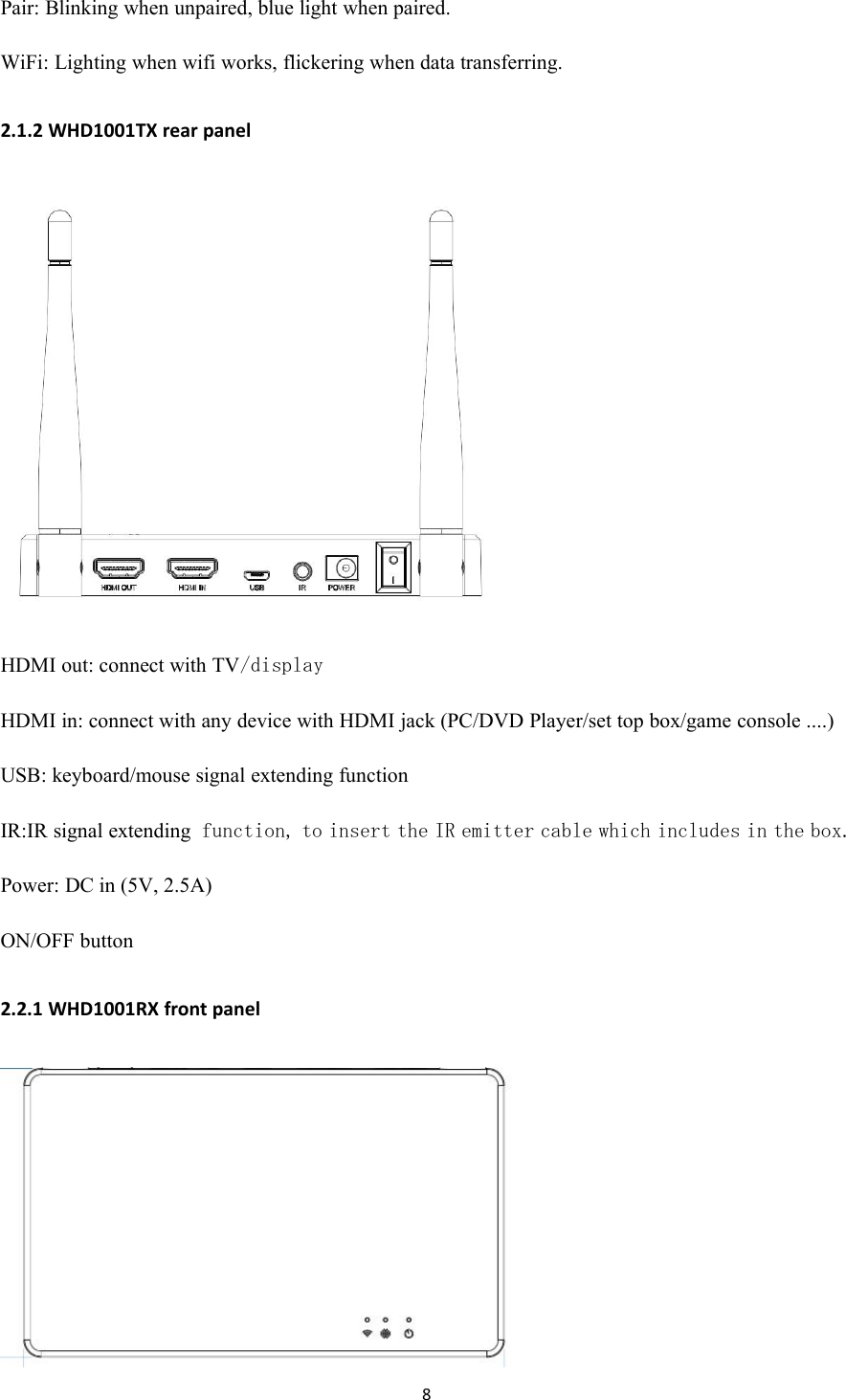

8Pair: Blinking when unpaired, blue light when paired.WiFi: Lighting when wifi works, flickering when data transferring.2.1.2 WHD1001TX rear panelHDMI out: connect with TV/displayHDMI in: connect with any device with HDMI jack (PC/DVD Player/set top box/game console ....)USB: keyboard/mouse signal extending functionIR:IR signal extendingfunction, to insert the IR emitter cable which includes in the box.Power: DC in (5V, 2.5A)ON/OFF button2.2.1 WHD1001RX front panel
9LED indicators (from right to left)Power: Red lights after powered on, and become to blue when detected HDMI in.Pair: Blinking when unpaired, blue light when paired.WiFi: Lighting when wifi works, flickering when data transferring.2.2.1 WHD1001RX rear panelHDMI out: connect with TV/displayUSB: keyboard/mouse signal extending functionIR:IR signal extendingfunction, to insert the IR receiver cable which includes in thebox.Power: DC in (5V, 2.5A)ON/OFF button2.3 Connection InstructionHow to transfer the video from TX to RX:2.31 install WHD1001T TX box:

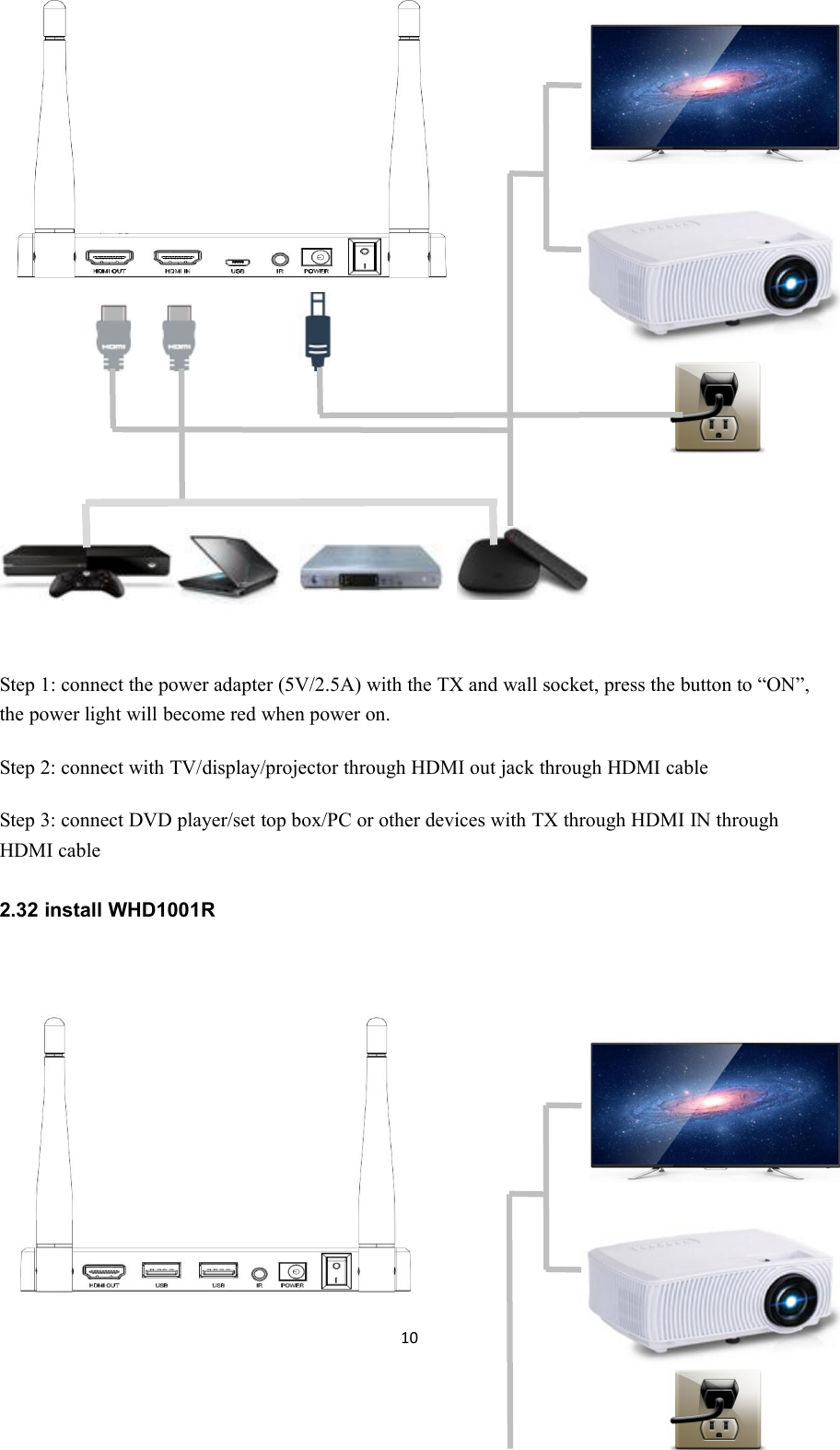

10Step 1: connect the power adapter (5V/2.5A) with the TX and wall socket, press the button to “ON”,the power light will become red when power on.Step 2: connect with TV/display/projector through HDMI out jack through HDMI cableStep 3: connect DVD player/set top box/PC or other devices with TX through HDMI IN throughHDMI cable2.32 install WHD1001R
11Step 1: connect the power adapter (5V/2.5A) with the RX and wall socket, press the button to “ON”,the power light will become red when power on.Step 2: connect with RV/display/projector through HDMI out jack through HDMI cable2.33 How to control the device in a different room by using remote control?1.Connect the IR emitter cable with the TX IR jack, and stick the IR probe in front of the IR windowof the source device.2.Connect the IR receiver cable with RX IR jack, and stick the IR probe in front of TV.3.Use the source device remote control point the IR receiver probe to control the source device, thedistance between this IR receiver probe and remote control should be within 5m.2.34 How to control the device in a different room by using mouse/keyboard?Step1: connect the PC usb jack and TX usb jack by using USB cable.Step2: connect the RX jack with a mouse or game controller.Step3: then you can use the mouse or game controller to control the PC in other room.

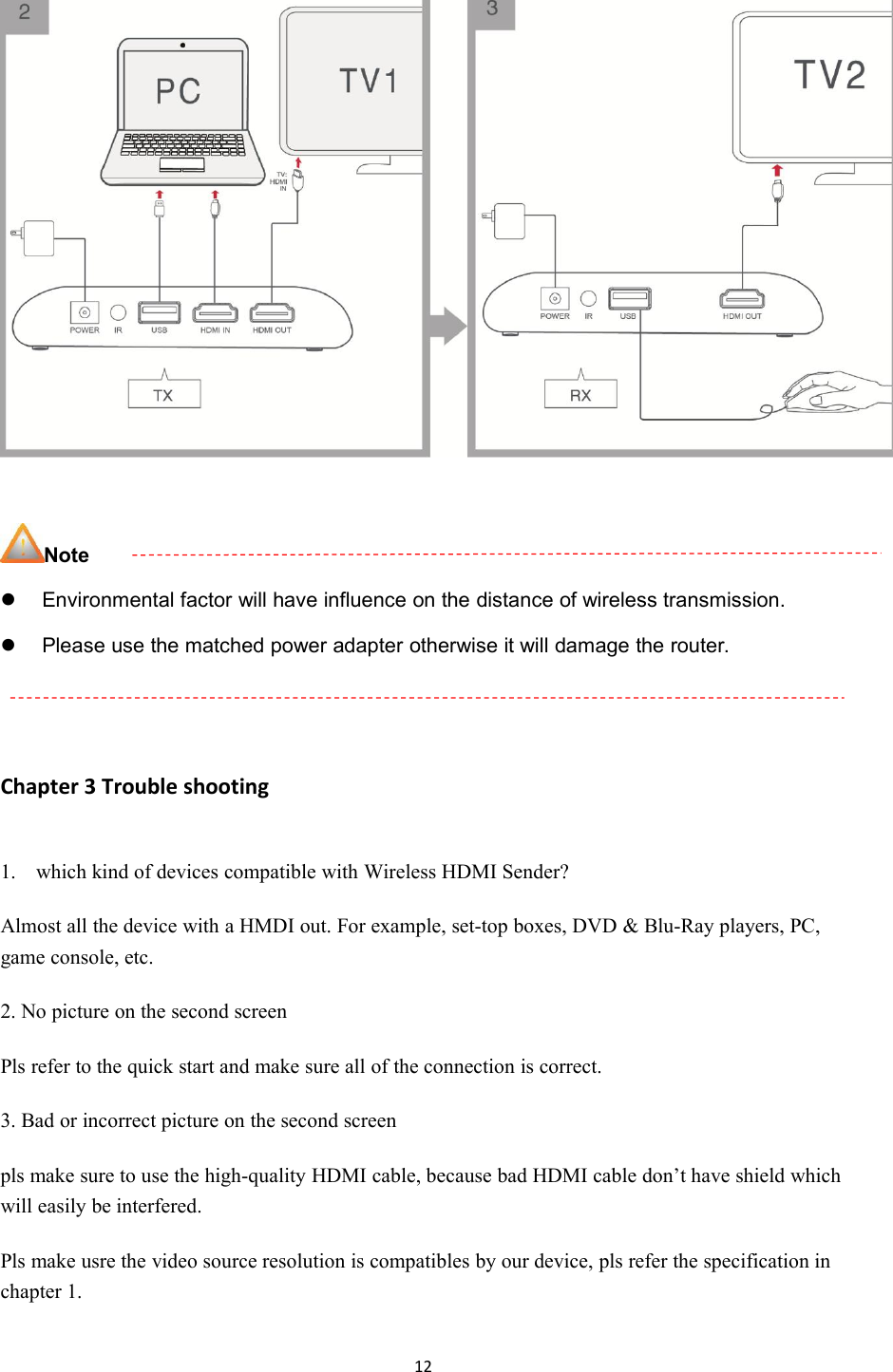

12NoteEnvironmental factor will have influence on the distance of wireless transmission.Please use the matched power adapter otherwise it will damage the router.Chapter 3 Trouble shooting1. which kind of devices compatible with Wireless HDMI Sender?Almost all the device with a HMDI out. For example, set-top boxes, DVD & Blu-Ray players, PC,game console, etc.2. No picture on the second screenPls refer to the quick start and make sure all of the connection is correct.3. Bad or incorrect picture on the second screenpls make sure to use the high-quality HDMI cable, because bad HDMI cable don’t have shield whichwill easily be interfered.Pls make usre the video source resolution is compatibles by our device, pls refer the specification inchapter 1.

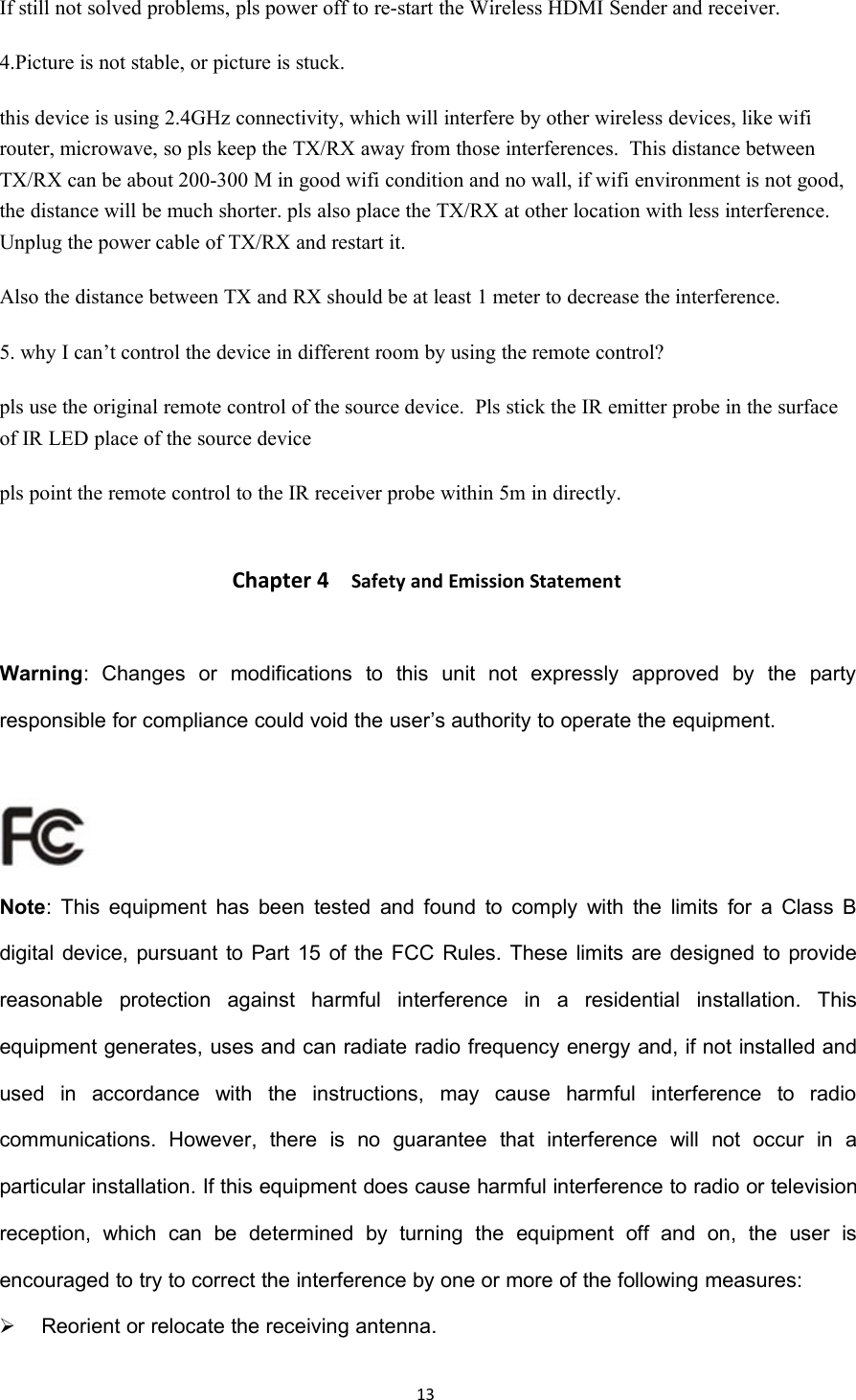

13If still not solved problems, pls power off to re-start the Wireless HDMI Sender and receiver.4.Picture is not stable, or picture is stuck.this device is using 2.4GHz connectivity, which will interfere by other wireless devices, like wifirouter, microwave, so pls keep the TX/RX away from those interferences.This distance betweenTX/RX can be about 200-300 M in good wifi condition and no wall, if wifi environment is not good,the distance will be much shorter. pls also place the TX/RX at other location with less interference.Unplug the power cable of TX/RX and restart it.Also the distance between TX and RX should be at least 1 meter to decrease the interference.5. why I can’t control the device in different room by using the remote control?pls use the original remote control of the source device.Pls stick the IR emitter probe in the surfaceof IR LED place of the source devicepls point the remote control to the IR receiver probe within 5m in directly.Chapter 4 Safety and Emission StatementWarning: Changes or modifications to this unit not expressly approved by the partyresponsible for compliance could void the user’s authority to operate the equipment.Note: This equipment has been tested and found to comply with the limits for a Class Bdigital device, pursuant to Part 15 of the FCC Rules. These limits are designed to providereasonable protection against harmful interference in a residential installation. Thisequipment generates, uses and can radiate radio frequency energy and, if not installed andused in accordance with the instructions, may cause harmful interference to radiocommunications. However, there is no guarantee that interference will not occur in aparticular installation. If this equipment does cause harmful interference to radio or televisionreception, which can be determined by turning the equipment off and on, the user isencouraged to try to correct the interference by one or more of the following measures:Reorient or relocate the receiving antenna.

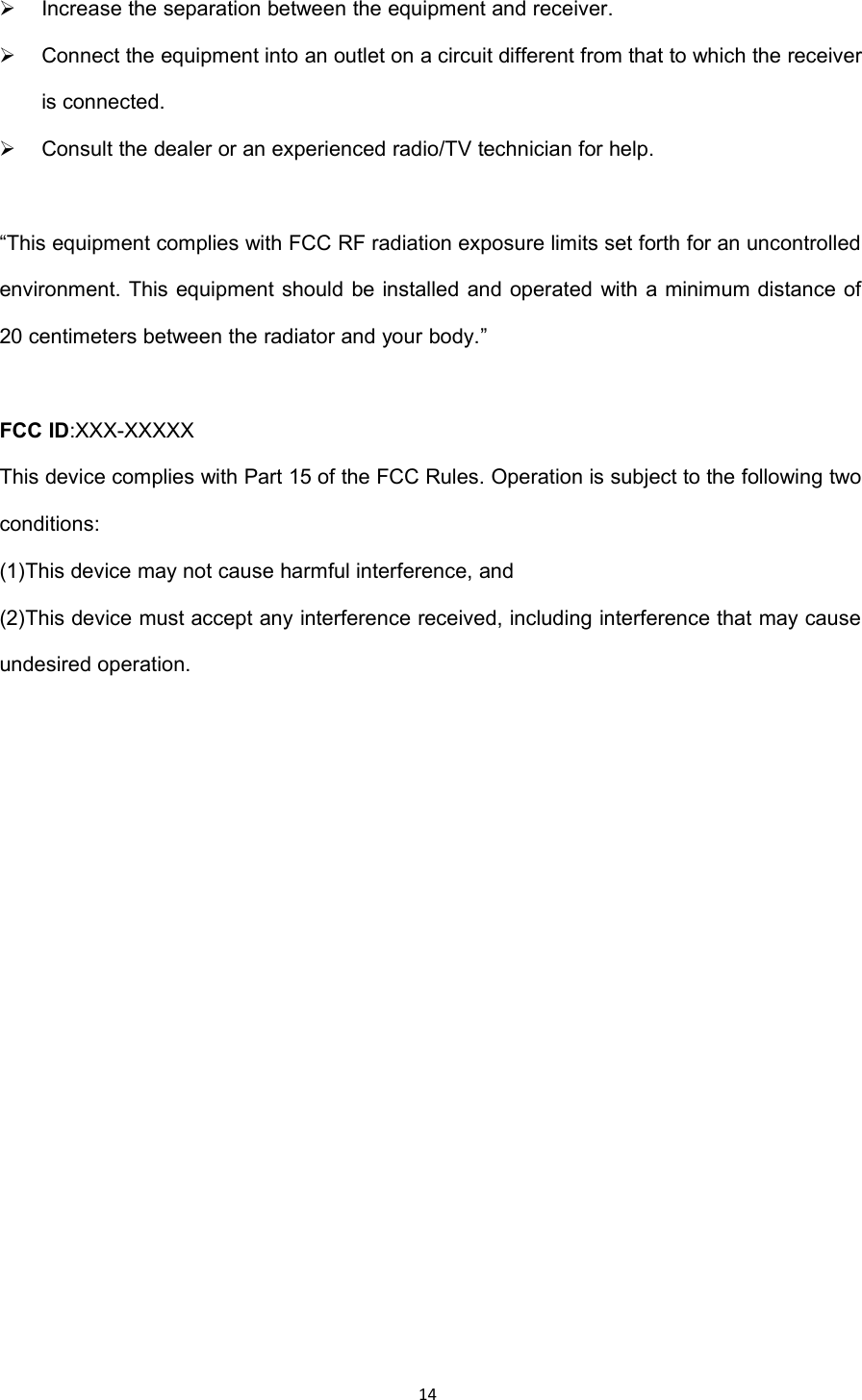

14Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the receiveris connected.Consult the dealer or an experienced radio/TV technician for help.“This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolledenvironment. This equipment should be installed and operated with a minimum distance of20 centimeters between the radiator and your body.”FCC ID:XXX-XXXXXThis device complies with Part 15 of the FCC Rules. Operation is subject to the following twoconditions:(1)This device may not cause harmful interference, and(2)This device must accept any interference received, including interference that may causeundesired operation.

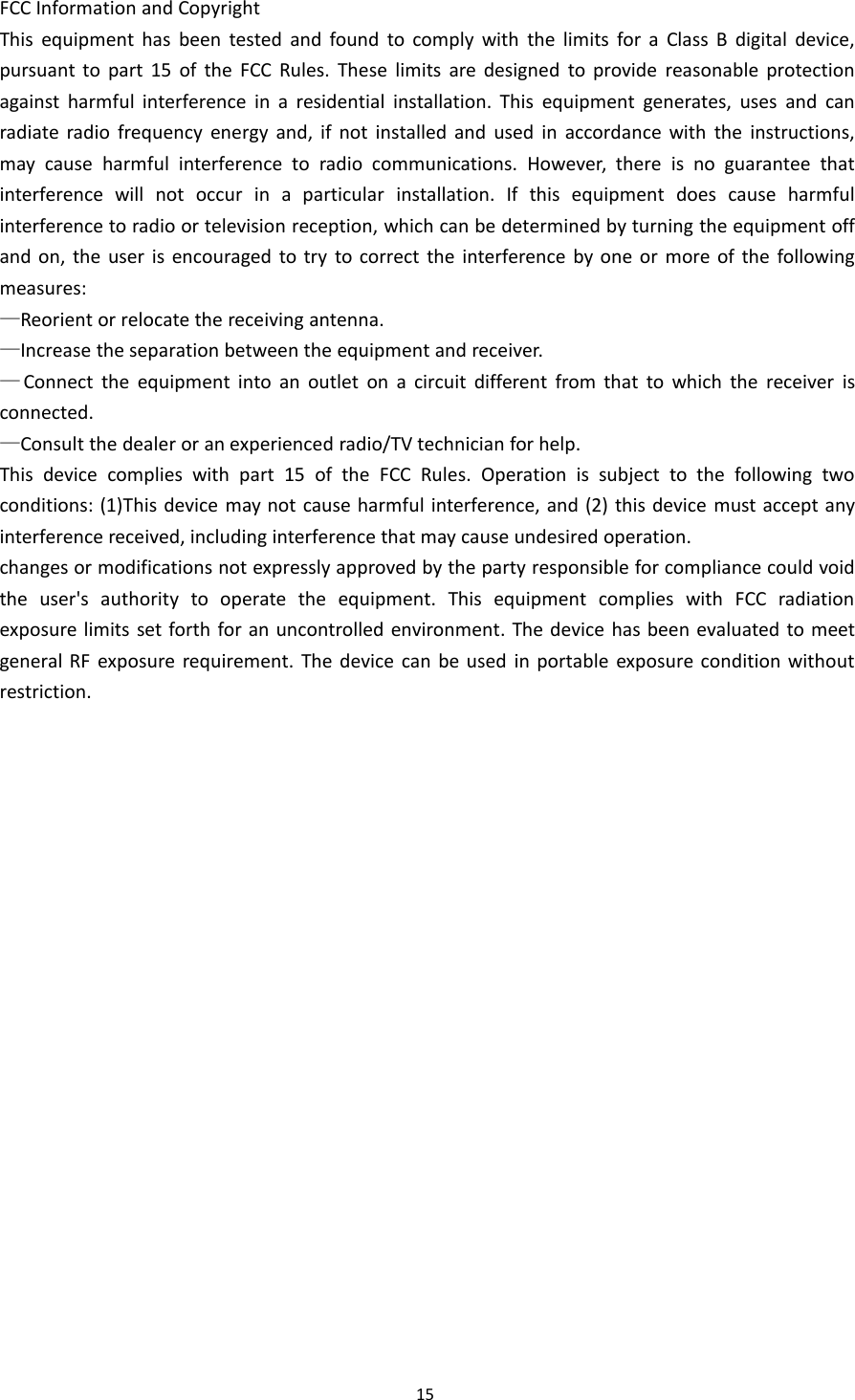

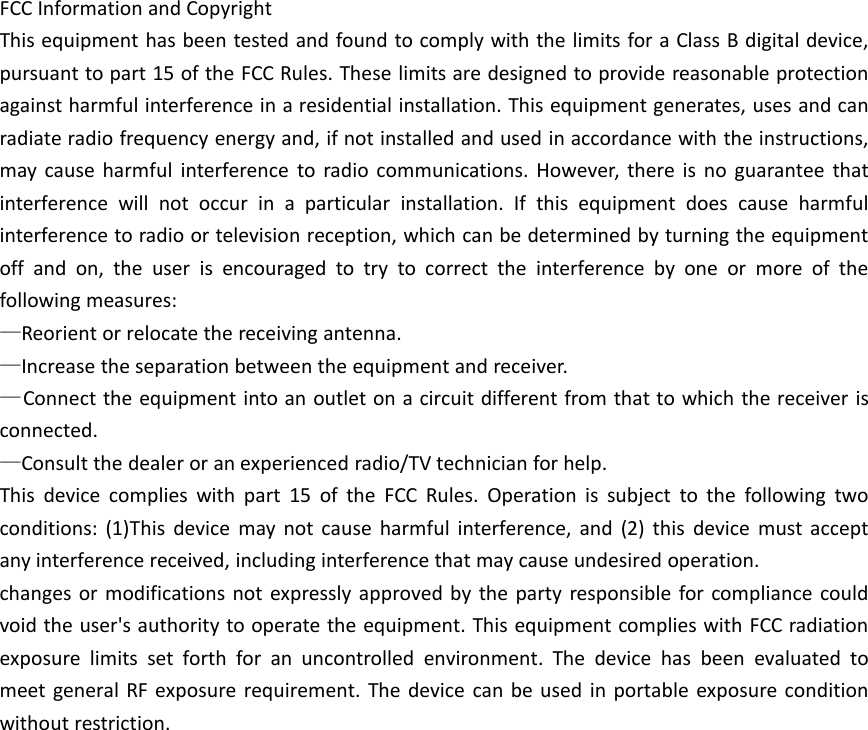

15FCC Information and CopyrightThis equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protectionagainst harmful interference in a residential installation. This equipment generates, uses and canradiate radio frequency energy and, if not installed and used in accordance with the instructions,may cause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipment offand on, the user is encouraged to try to correct the interference by one or more of the followingmeasures:—Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver.—Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.—Consult the dealer or an experienced radio/TV technician for help.This device complies with part 15 of the FCC Rules. Operation is subject to the following twoconditions: (1)This device may not cause harmful interference, and (2) this device must accept anyinterference received, including interference that may cause undesired operation.changes or modifications not expressly approved by the party responsible for compliance could voidthe user's authority to operate the equipment. This equipment complies with FCC radiationexposure limits set forth for an uncontrolled environment. The device has been evaluated to meetgeneral RF exposure requirement. The device can be used in portable exposure condition withoutrestriction.
FCC Information and CopyrightThis equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protectionagainst harmful interference in a residential installation. This equipment generates, uses and canradiate radio frequency energy and, if not installed and used in accordance with the instructions,may cause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures:—Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver.—Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.—Consult the dealer or an experienced radio/TV technician for help.This device complies with part 15 of the FCC Rules. Operation is subject to the following twoconditions: (1)This device may not cause harmful interference, and (2) this device must acceptany interference received, including interference that may cause undesired operation.changes or modifications not expressly approved by the party responsible for compliance couldvoid the user's authority to operate the equipment. This equipment complies with FCC radiationexposure limits set forth for an uncontrolled environment. The device has been evaluated tomeet general RF exposure requirement. The device can be used in portable exposure conditionwithout restriction.
