P[ C _ _ _5C 0_TM

INSTALLATION INSTRUCTIONS

PH SERIES WALL HOOD

APPROVED FOR ALL RESIDENTIAL APPLIANCES

FOR RESIDENTIAL USE ONLY

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING.

INSTALLATION MUST COMPLY WITH ALL LOCAL CODES.

IMPORTANT: Save these Instructions for the Local Electrical Inspector's use.

INSTALLER: Please leave these Instructions with this unit for the owner.

OWNER: Please retain these instructions for future reference.

SAFETY WARNING

Turn off power circuit at service panel and lock out panel

before wiring this appliance.

REQUIREMENT; 120 VAC, 60 Hz. 20A Branch Circuit

READ AND SAVE THESE INSTRUCTIONS

IMPO INSTRUCTIONS

• SAFETY WARNING

Turn off power circuit at service panel and

lock out panel, before wiring this appliance.

REQUIREMENT: 120 VAC, 60 Hz. 20A

CAUTION

FOR GENERAL VENTILATING USE

ONLY. DO NOT USE TO EXHAUST

HAZARDOUS OR

MATERIALS OR VAPORS.

WARNING

TO REDUCE THE RISK OF FIREr

ELECTRIC SHOCKr OR INJURY TO

PERSONS_ OBSERVE THE

FOLLOWING:

A. Use this unit only in the manner

intended by the manufacturer. If you

have questions, contact the

manufacturer. (Thermador Customer

Service at 800/735=4328.

B. Before servicing or cleaning the unit,

switch power off at service panel and

lock service panel. This will prevent

power from being switched on

accidentally. When the service panel

cannot be locked, securely fasten a

prominent warning device, such as a

tag, to the service panel.

Installation work and electrical wiring

must be done by qualified person(s) in

accordance with all applicable codes &

standards, including fireorated

construction.

Sufficient make=up air is needed for

proper combustion and exhausting of

gases through the flue (chimney) of fuel

burning equipment to prevent back=

drafting. Follow the heating equipment

manufacturers guideline and safety

standards such as those published by

the National Fire Protection Association

(NFPA), the American Society for

Heating, Refrigeration and Air

Conditioning Engineers (ASHRAE),

and the local code authorities.

Due to size and weight of this unit two

installers are recommended.

When cutting or drilling into wall or

ceiling, do not damage electrical wiring

and other hidden utilities.

To properly exhaust air, be sure to duct

air outside. Do not vent exhaust air into

spaces within walls, ceilings, attics,

crawl spaces, or garages.

WARNING

TO REDUCE THE RISK OF FIRE,

USE ONLY METAL DUCT WORK.

Install this hood in accordance with all

requirements specified.

CAUTION:

Vent Unit to the Outside.

Page 2

Parts Included with your Hood Parts Not Included with your Hood

Hood Canopy

12-Volt halogen bulbs, installed

• Duct Tape

• 1/2" Conduit

Care & Use/Installation instructions

Registration Card

• 2 175W PAR-38 Heat Lamps or

2 250W PAR-40 Heat Lamps

Filters (2, 3, or4 depending on model and size)

Metal Transition with Back draft damper installed

Fasteners

Remote Blower (*'pigtail") Adaptor

Wooden Strip for Hood Support

• Ventilator- The hood can be installed with

ventilator models VTN1000Q, VTR600R,

VTR1000Q, and VTR1400Q

• Optional duct cover, 6" DC**US or 12" DCT**US

height (available for purchase seperately)

•* = width of hood

• Optional Remote Control (available for purchase

separately)

Wire Nuts

CONSIDERATIONS BEFORE INSTALLING HOOD

For the most efficient air flow exhaust, use a

straight run or as few elbows as possible.

CAUTION:

Vent unit to outside of building, only,

2. Do not use flex ducting.

3. COLD WEATHER installations should have an

additional backdraft damper installed to

minimize backward cold air flow and a

nonmetallic thermal break to minimize

conduction of outside temperatures as part of

the ductwork. The damper should be on the cold

air side of the thermal break. The break should

be as close as possible to where the ducting

enters the heated portion of the house.

4. Hood installation height above cooktop is the

users preference. The lower the hood above the

cooktop, the more efficient the capturing of

cooking odors, grease, and smoke. This hood

has been approved for installations as low as 24

inches* above the cooktop. The lower height

may be inconvenient for tall people and large

cooking vessels. Consequently, Thermador

recommends the hood be installed 30-to-36

inches above the countertop.

* For indoor grill installations, Thermador

recommends a minimum of 30" clearance and

remote blowers only (VTR1000Q or VTR 1400Q)

5. Remote blowers require a five wire installation.

6. Make-UpAir: Local building codes may require

the use of make-up air systems when using

ducted ventilation systems greater than specified

CFM of air movement. The specified CFM varies

from locale to locale. Consult your HVAC

professional for specific requirements in your

area.

7. Refer to Remote Control Installation Instructions

if applicable.

Page 3

Appliance Installation

The hood can be mounted on a wall or suspended

from a cabinet. Both vertical and horizontal

discharge are possible with either mounting method.

Discharge Direction: The hood is shipped ready for

vertical discharge. To change to horizontal discharge

move the discharge cover shown in Figure la to the

top of the hood. The plate is held in place by four

screws.

Assembly of the Transition: The supplied

transition mounts to the top or rear of the hood

depending on the discharge direction.

1. Align mounting holes at base of transition with

mounting holes on 1/2" flange located at the

top or rear of the hood depending on direction

of discharge.

2. Fasten transition to hood using two (2)#8

sheetmetal screws (included with hood).

3. Seal connection between transition and hood

with duct tape.

4. Remove tape holding damper closed.

See Figure lb for overalt hood dimensions.

This opening is

covered for

horizontal

discharge

O O

This opening is

covered for vertical

discharge.

Figure la: Discharge Direction

Dimension A

Modet Number

PH30ZS

PH36ZS

PH42ZS

PH48ZS

PH54ZS

Dimension

30"

36"

42"

48"

54"

Figure lb: Overall Dimensions Page 4

Note: Read Remote Control installation

instructions before continuing if using this

accessory.

Wail Mount installation

The hood installation height is the user's prefer z

ence. Figure 2 shows a typical installation of the

hood with two duct covers. Accessory 6" and/or 12"

duct covers are used to fill the space between the

hood and ceiling.

The installation height shown in Figure 2 is 36

inches. One 6" duct cover has been used in this

installation. Add or subtract duct covers as

appropriate to accommodate ceiling height and

desired hood height. The duct cover structure is

supported by the hood.

1. After the hood installation height has been

determined, draw a horizontal line at a distance

above the cooktop equal to the desired hood

installation height plus 15.5". This line is the

mounting location of the wooden bracket

shipped with the hood.

2. Find the centedine of the cooktop. Draw a

vertical line along this centedine up to the

horizontal line drawn in step 1.

3. The hood is mounted to the wall using a wooden

bracket shipped with the hood. Remove the

bracket from the hood by removing two shipping

screws. Mark the center line of the bracket.

4. Locate one stud on either side of the cooktop

centedine to use for mounting the wooden

bracket as shown in Figure 3.

5. Align the top of the wood bracket along the

horizontal line drawn in Step 1. Align the

centedines of the bracket and cooktop.

6. Drill a 3" deep 1/8"tap hole through the wooden

bracket, drywall, and into the stud.

7. Use 2 or 3 (#14 x 3") screws to attach the

bracket to the wall as shown in Figure 3. For

support of longer hoods, use three studs.

Countersink the heads to prevent interference

with the hood.

8. On the wood bracket mark the locations used to

hang the hood according to Figure 4 (next page).

9. Drill a 1/8"tap hole through the wooden bracket

and drywall. These (#8 x 5/8") screws do not

need to go into the studs.

10. Drill a 1/16" tap hole for the 2 (#8 x 5/8") screws

into the wood bracket leaving 1/4"of each screw

exposed for hanging the hood.

Standard

8 ft Ceiling

(96")

A 6" I

Duct Cover

Hood Height (36")

Standard

36" high

Range

Figure 2

Drywall

Height

Above

Cooktop _',

Screws

EA.

Cooktop

Centerlne

)esired

Cooktop

Height

+151/2"

To Cooktop

Surface

Figure 3

Page 5

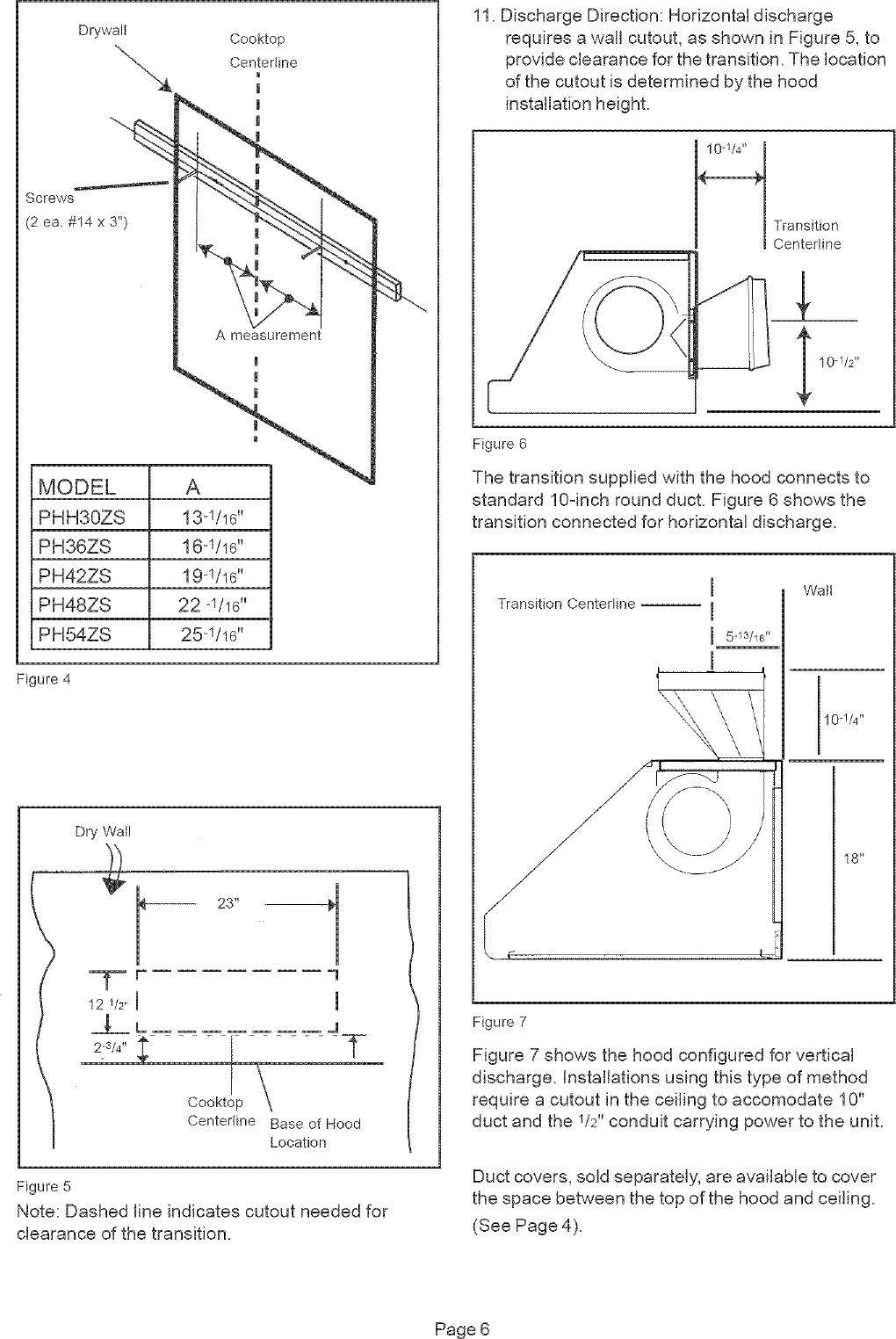

Drywall

Screws

(2 ea. #14 x 3")

Cooktop

Centertine

MODEL

PHH30ZS 13-1/16''

PH36ZS 16-1/16''

PH42ZS 19-1/16''

PH48ZS 22 -1/16"

PH54ZS 25-1/16"

Figure 4

Dry Watl

12 I/2" I

.A_L

2[ s/4,'

23" --t

Centertine Base of Hood

Location

Figure 5

Note: Dashed line indicates cutout needed for

clearance of the transition.

11. Discharge Direction: Horizontal discharge

requires a wall cutout, as shown in Figure 5, to

provide clearance for the transition. The location

of the cutout is determined by the hood

instaflation height.

Transition

Centerline

I 10-1/2"

Figure 6

The transition supplied with the hood connects to

standard 10zinch round duct. Figure 6 shows the

transition connected for horizontal discharge.

Transition Centedine -- Walt

18 _

Figure 7

Figure 7 shows the hood configured for vertical

discharge. InstalJations using this type of method

require a cutout in the ceiJing to accomodate 10"

duct and the 1/2"conduit carrying power to the unit.

Duct covers, sold separately, are available to cover

the space between the top of the hood and ceiling.

(See Page 4).

Page 6

12.Beforehanginghood,install

transitionperFig.6. Fasten

transitionwith2screws(#8x

3/8sheetmetal,supplied)

andtapepercode.Note:

screws must not hinder

damper operation.

13. Rest the hood on the screws

in the wood bracket. Use the

keyholes labeled "l" in Figure

8. Make sure the wood

bracket fits into the recess

on the back of the hood.

14. Remove knockouts.

15. Tighten the screws in

keyholes. Check hood for

level and adjust if necessary.

16. From inside the hood drive

screws (#8 x 5/8") through

holes in hood into wooden

bracket. See holes labeled J

in Figure 8.

Figure 8

installation Note: if wall studs are within 8" of the center line, cut stud

at an angle to avoid any interference.

17. Connect additional ducting.

Assembly and Installation of the Duct Covers

Optional duct covers shown in

Figure 9 may be used to fill the

space between the hood and

ceiling in wall mount installations.

6" and 12" high duct covers are

available and may be ordered

separately.

if multiple duct covers are

used, connect the pieces

together using sheetmetal

screws provided with duct

covers.

2. Attach the duct cover(s) to

the hood using sheetmetal

screws as shown in Figure 9.

.From inside of hood, insert

screws supplied (#8 x 5/8")

through holes L, one on each

side and four along the front,

into bottom of the cabinet.

x 3/8"

Screw

(numbers

depend on

hood size)

Figure 9

Page 7

Cabinet Mnstallation

The hood can be installed under

a cabinet by supporting the

hood from the top.

Note: The cabinet must be

structurally joined to the wall

studs to support the weight

of this hood.

Figure 10 shows the four screw

holes (K) used for mounting the

hood to the bottom of the

cabinet.

Make sure both knockouts have

been removed.

1. in the base of the cabinet

drill 1/8" tap holes (See

dimensionAin Figure 10

and in Table). Screw in four

#10 x 1" screws (provided

with hood)leaving 1/4"

exposed).

2. if the hood is installed for

vertical discharge, use

Figure 11 to create

clearance holes for passage

of the transition and conduit

(See dimension B in Figure

11and in Table).

3. For horizontaldischarge use

Figure 5 for the geometry of

the cutout required for

clearance of the transition.

4. Hang hood from screws and

tighten securely.

5. From inside of hood, insert

screws supplied. Drill

through holes (use #8 x 5/

8" screws supplied), one on

each side and four along the

front, into bottom of the

cabinet. See screws holes

labelled "L" in Figure 10.

1-9/16"

A:_ote Locations

23"

Note: This figure depicts tap hole and

screw hole locations only. See Figue lb,

page 4 for overall hood dimensions.

Figure 10: Tap Hote and Screw Hole Locations

Centerline Hole Dimensions for Figures 10 and 11

Model A (Fig 10) B (Fig 11)

Tap Holes ConduitHole

PH30ZS 29-1/1e" 13-7/16"

PH36ZS 35-1/1e" 187/16"

PH42ZS 41zl/le" 19-7/16"

PH48ZS 47-1/1e" 22-7/1e"

PH54ZS 53-1/16" 25-7/16"

Cooktop _,_

Centerline 5/8"DIAclearance

3-3/16" holesfor 1/2"conduit

to i-box,

Plan View of Cabinet Cutout

Note: This figure depicts transition and conduit locations only. See Figure lb,

page 4 for overall hood dimensions.

Figure 11: Transition and Conduit Locations

Page 8

an Integral

The hood can be installed with a VTN IO00Q

blower.

Blower preparation

Wire tie

___- Shipping brackets

Capacitor

Blower Front View

Figure 12a

1. Remove left and right shipping brackets

and discard.

2. Cut wire tie shown in Figure 12a. Locate the

wire harness with the Molex 6-pin connector.

Route wire harness out rear of blower, as shown

in figure 12 b. below.

3. Re-attach wire harnesses to capacitor with new

wire tie (supplied) in same location in front.

Blower 1

Install blower in hood

The blower is attached to the hood using weld

studs provided on the mounting plate.

Figure 12c shows the weld studs in location B

for horizontal (rear) discharge. Attach four #10-

24 nuts to the weld studs. For vertical

discharge, attach nuts to studs at the top of the

mounting plate.

Figure 12c

Figure 12b

\-,,. Add wire tie

\-. here

,,,.

"Wire

Harness

Blower Rear View

4. Attach wire harness with Mobx 6-pin connector

to housing as shown in Figure 12b with wire tie

(supplied).

3. Guide the motor mounting plate over the nuts

and tighten to secure the blower to the hood.

4. Attach two additional screws as shown in

Figure 12d.

Ventill_

Assembl

Figure 12d CAUTION

Verify that the two additional screws in

Figure 12d are installed and properly

tightened before continuing.

Page 9

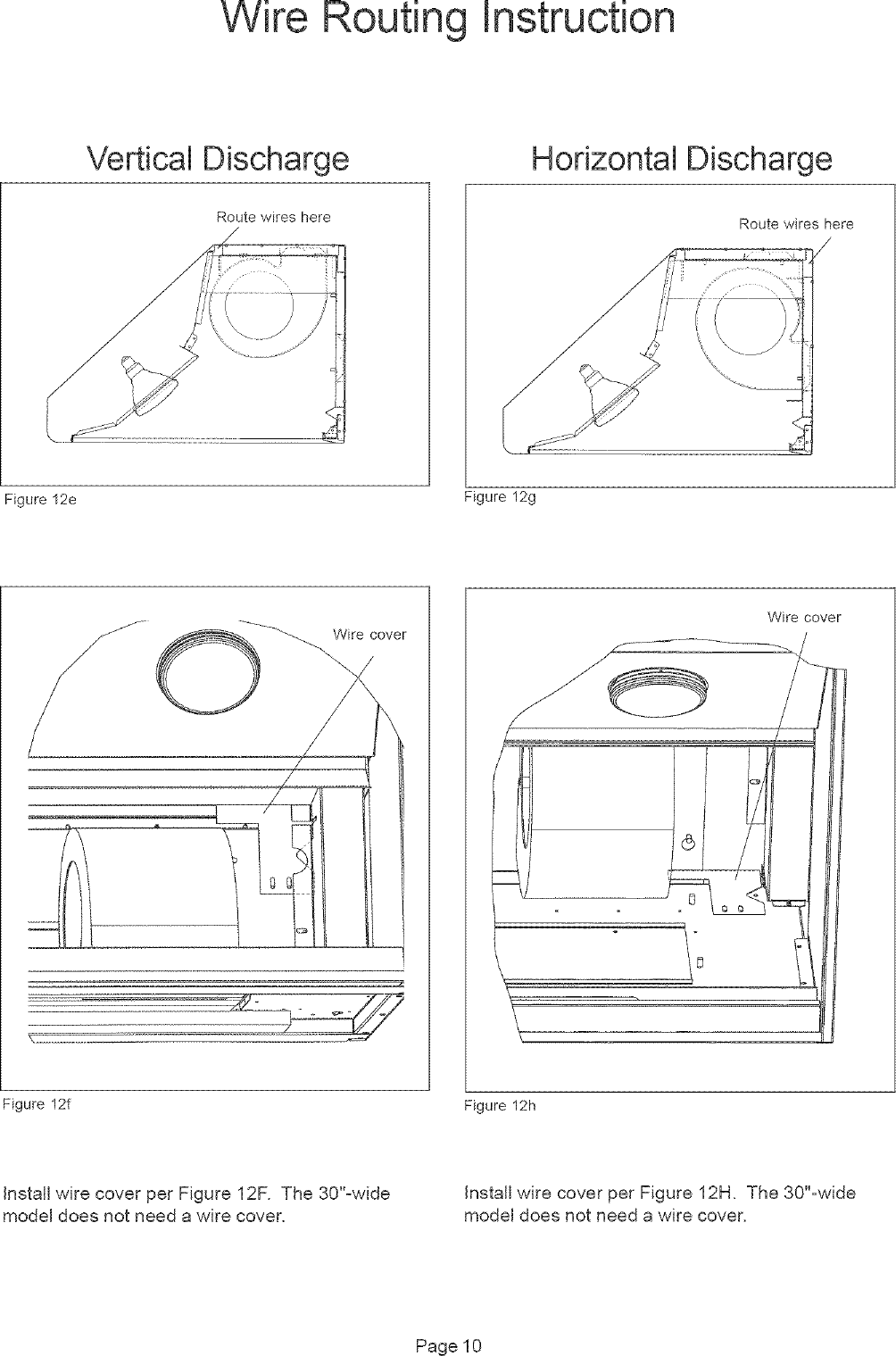

Wire Routing In _n

Vertical Discharge Horizontal Discharge

Route wires here Route wires here

Figure 12e Figure 129

Wire cover

Figure 12f Figure 12h

Install wire cover per Figure 12F. The 30"zwide

model does not need a wire cover. Install wire cover per Figure 12H. The 30'Lwide

model does not need a wire cover.

Page10

Wiring the Hood with an

Integral Motor

_i, WARNING

Turn off electricity at the service panel

before wiring the unit. (See Safety

Instructions, Page 2).

1. Remove the j-box cover.

2. Connect the VTN 1000Q molex plug connector to

the connector present inside the hood as shown

in Figure 13.

3. Install 1/2" conduit connector in j-box.

From Ventilator

From Control Panel

Figure 13

4. Run black, white, and green wires (#12AWG) in

1/2" conduit from power supply to J-box.

5. Connect the power supply wires to the hood

wires in the following order: black to black, white

to white, and green wire to green ground screw

on chasis. Use spring type wire nuts supplied.

(Lost or missing wire nuts should only be

replaced with: Spring type wire nuts, rated for a

minimum of (2) # 18ga wires and maximum of

(4) #14ga wires, UL & CSA rated to 600V and

302 deg. R/150 deg. C).

6. Close J-box cover. Check to see that light bulbs

are secure in their sockets. Replace filters as

described in the Care & Use Manual. Turn power

on at service panel. Check operation of the

hood.

Remote Blower Installation

The PHZ hood models are designed to work with

VTR600R, VTRI000Q, and VTR1400Q remote

blowers. For installation instructions see the

instructions supplied with the blower unit.

Wiring the Hood with a

Remote Blower:

PIG TAIL ASS'Y

(PROVIODw/HOOD)

BK_ _

ill: #

0 I,

Figure 14

1. Remove the J-box cover.

2. Install 1/2" conduit connectors.

3. Run black, white, and green wires (#12 AWG) in

1/2" conduit from power supply to j-box.

4. Connect the power supply wires to the hood

wires in the following order: black to black,

white to white, and greenwire to green ground

screw on chassis. Use spring type wire nuts

supplied. (Lost or missing wire nuts should

only be replaced with: Spring type wire nuts,

rated for a minimum of (2) # 18ga wires and

maximum of (4) #14ga wires, UL & CSA rated

to 600V and 302 deg. R/150 deg. C).

5. Connect the "pigtail" to the connector inside the

junction box.

6. Run five wires (#14 AWG) in 1/2" conduit from

the remote blower to the second conduit

connector.

7. Connect the remote ventilator to the pigtail

wires (Step 6) as per Figure 14. Connect the

remote blower green (ground) wire to the ground

screw in the junction box.

8. Close junction box cover. Check that all light

bulbs are secure in their sockets. Install filters.

Turn power on at service panel, and check

lights and blower operation per Care & Use

Manual.

Page11

Wereservetherighttochangespecificationsordesignwithoutnotice.Somemodelsarecertifiedforusein

Canada.ThermadorisnotresponsibleforproductswhicharetransportedfromtheU.S.foruseinCanada.

CheckwithyourlocalCanadiandistributorordealer.

Forthemostuptodatecriticaldimensionsbyfax,useyourfaxhandsetandcall775-833-3600.Usecode#

8030.

BSH Home Appliances Corp. 5551 McFadden Avenue, Huntington Beach, CA 92649 *800/735-4328

Page12

THERMADOR Range Hood Manual L0512045

Navigation menu

Versions of this User Manual:

Views

Navigation
