THINKWARE X350 THINKWARE DASH CAM User Manual

THINKWARE SYSTEMS CORPORATION THINKWARE DASH CAM

User Manual

U s e r M a n u a l

X350

This Dashboard Camera (dash cam) is a specialized onboard device that continuously records video while the vehicle is in use.

Some features may not be available depending on installation, driving conditions, and vehicle type. The video quality might vary

for each device as a result of installed rmware.

The device DOES NOT guarantee video recording of all accidents as built-in impact sensor may not be activated due to combination

of user settings and the level of impact during the collision.

X350_UM_ENG_Rev.02

C o n t e n t s

Before Using THINKWARE DASH CAMTM X350 2

FCC Statement 3

Information to user : RSS-247 3

Caution 4

Getting Started

1-1. In the Package 5

1-2. Optional Accessories 5

1-3. Product Overview 6

1-4. Inserting a Memory Card 7

1-5. Vehicle Installation 8

Basic Operations

2-1. Turning the Device Power On/O 10

2-2. Road Safety Warning (Optional Accessory) 11

2-3. Recorded Files 12

2-4. Recording Videos While Driving 13

2-5. Recording Videos While Parked (Optional Accessory) 14

2-6. Manual Recording 15

2-7. Formatting MicroSD Card 16

2-8. Upgrading Firmware 17

LCD Screen

3-1. Main Menu 17

3-2. Live View 18

3-3. File List 19

3-4. Memory Card Settings 21

3-5. Settings > Record settings 22

3-6. Settings > System Settings 23

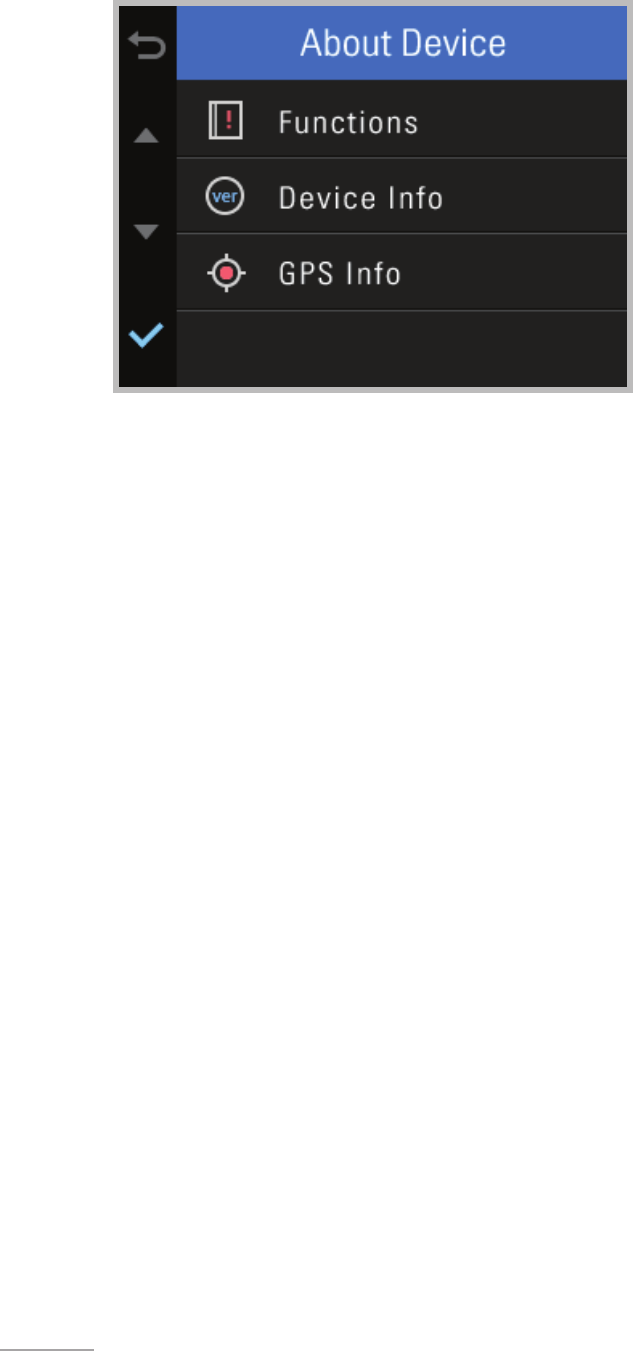

3-7. About Device 24

Mobile Viewer Application

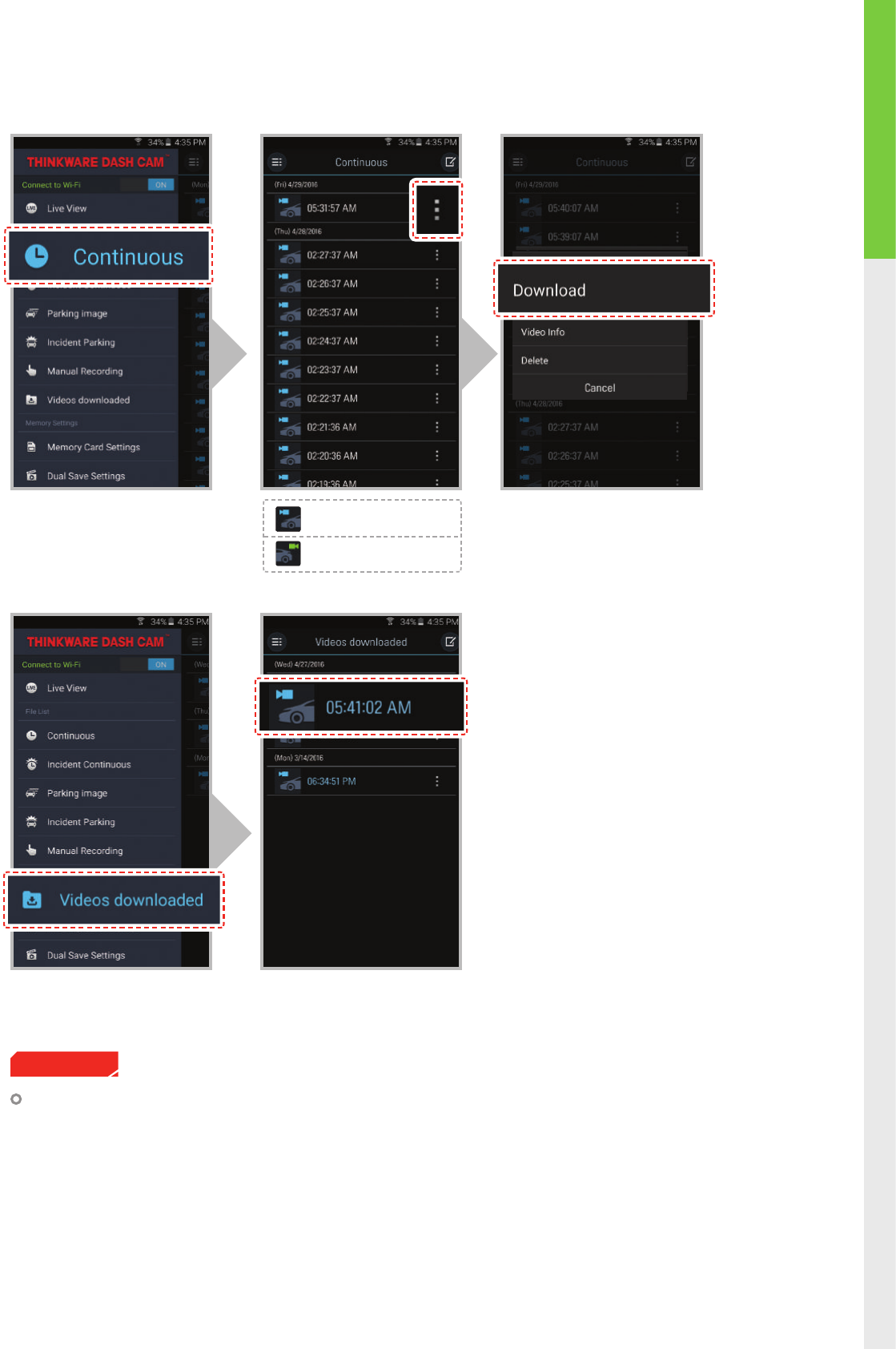

4-1. Thinkware Dash Cam Mobile Viewer 25

4-2. Thinkware Dash Cam Mobile Viewer Main Menu 27

PC Viewer Software

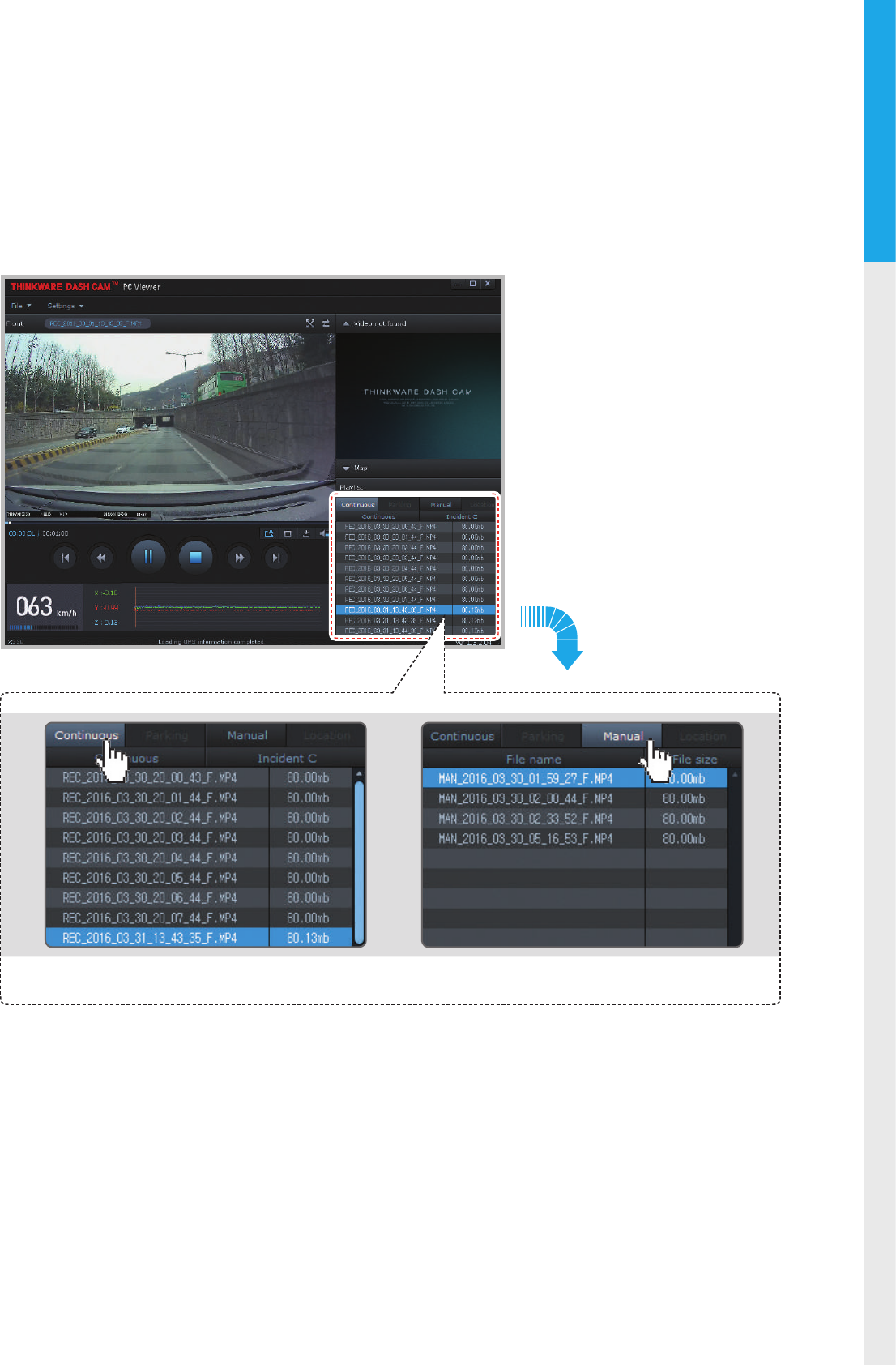

5-1. Thinkware Dash Cam PC Viewer 30

Device Information

6-1. Specications 34

Before Using THINKWARE DASH CAMTM X350

▶

Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent

of THINKWARE.

▶

Every eort has been made to ensure this Guide's accuracy. However, we cannot guarantee the accuracy of

the contents in this document as there may be technical errors, omissions, and/or future changes.

▶

THINKWARE reserves the right to change or modify the product and the content of this manual at any time

without prior notice for product improvements.

▶

Images contained in this user guide are illustrations for instructional purposes only and may dier from the

actual product.

▶

Users do not reserve the right to use the product for purposes other than as specied in this user guide.

According to the Personal Information Protection Act and other related regulations, the user/owner may

be held liable if the video and/or conversation recorded by the device are distributed without their con-

sent. Thus, special attention should be paid in using this product.

●

The MicroSD memory card should be tested for errors on a regular basis and as the memory card is a

consumable item, it will need to be replaced periodically.

●

THINKWARE shall NOT be responsible for any problems and/or damages that may occur from the use of

disingenuous, modied, or unauthorized parts and accessories.

●

The device and the recorded videos are intended for personal use and the recorded videos should be

used for reference only.

●

The device does NOT guarantee video recording of all accidents as built-in impact sensor may not be

activated due to combination of user settings and the level of impact during the collision.

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)

this device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter-

ference in a residential installation. This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of

the following measures:

▶

Reorient or relocate the receiving antenna.

▶

Increase the separation between the equipment and receiver.

▶

Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

▶

Consult the dealer or an experienced radio/TV technician for help.

▶

This appliance and its antenna must not be co-located or operation in conjunction with any other antenna

or transmitter.

▶

A minimum separation distance of 20cm must be maintained between the antenna and the person for this

appliance to satisfy the RF exposure requirements.

FCC CAUTION: Any changes or modications to the equipment not expressly approved by the party responsi-

ble for compliance could void your authority to operate the equipment.

FCC ID: 2ADTG-X350

Information to user : RSS-247

This device complies with Industry Canada’s licence-exempt RSSs.

Please be cautioned the changes or modications not expressly approved by the party responsible for compli-

ance could void the user’s authority to operate the equipment.

Notice: Operation is subject to the following two conditions : (1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation of the

device.

This Class B digital apparatus complies with Canadian ICES-003.

IC: 12594A-X350

Caution

Depending on the make and model of your car,

the power may be constantly supplied to the dash

cam even with the ignition turned o. Installation

of the device to a continuously powered 12V out-

let could result in vehicle battery drainage.

This device is designed to record video while the

vehicle is in operation. The quality of the video

might be aected by weather conditions and the

road environment such as day or night, presence

of street lighting, entering/exiting tunnels, and

the surrounding temperature.

THINKWARE is NOT responsible for the loss of any

recorded video during operation.

Although designed to withstand high impact of

car collision, THINKWARE does NOT guarantee re-

cording of accidents where the impact may cause

the device to be damaged.

Keep the windshield and camera lens clean for

optimal video quality. Particles and substances

on the camera lens or windshield may reduce the

quality of the recorded videos.

The specied operating temperature of this prod-

uct is 14°F to 140°F (-10°C to 60°C) and storage

temperature is -4°F to 158°F (-20°C to 70°C). En-

sure that the device is kept within these tempera-

ture ranges; otherwise, the device may not func-

tion as designed and at extreme temperatures,

permanent physical damage can result which is

not covered by warranty.

Avoid placing the device under direct sunlight.

Avoid using the device in extreme conditions

where the Product is exposed to high tempera-

ture and/or humidity.

Only use genuine accessories and peripherals from

THINKWARE or authorized THINKWARE dealer.

THINKWARE does not warrant the safety and

compatibility from use of peripherals from other

manufacturers. Use genuine parts supplied by

THINKWARE.

Do not apply excessive force when pushing the

buttons on the device.

Do not clean the Product using chemical cleaner

or solvents as it may damage plastic components.

Use soft, clean, dry fabric to gently wipe the Product.

Do not place or store the device where it can be

accessible by children and pets.

Do not disassemble the Product as it will void

product warranty and may also damage the prod-

uct.

Handle with care. Drop, shock, and mishandling

the Product may result in malfunction and/or

damage to the device.

Do not operate this device while driving.

Install this device in a location where it has unob-

structed view of the road but does not interfere

with the driver’s view. Check with your State and

Municipal laws before mounting to the wind-

shield.

The device and/or installation items have moving

parts and may shift in extreme road conditions

such as unpaved road. Check frequently to ensure

the device is positioned as instructed in this guide.

Do not operate or handle power cable with wet

hands.

Do not use a damaged power cable.

Keep the power cable away from heaters or other

hot objects.

Check that power cable with correct connector is

used and the connections are secure and rmly in

place.

Do not pull, insert, or bend the power cable using

excessive force.

Do not place heavy objects on the device and the

power cable.

Do not modify or cut the power cable.

THINKWARE does not guarantee that devices or

peripherals not authorized by THINKWARE will be

compatible with its Product.

Do not attempt to insert foreign objects into the

device or power cable.

Do not spill or spray liquid into the device as it

may cause malfunction, re, or electric shock.

This device is intended to be used inside the ve-

hicle only.

RISK OF EXPLOSION IF BATTERY IS REPLACED

BY AN INCORRECT TYPE. DISPOSE OF USED

BATTERIES ACCORDING TO THE INSTRUCTIONS.

Getting Started

Hardwiring Cable External GPS Antenna

MicroSD memory card with

adapter (consumable)

Quick Start Guide & Warranty / CS information /

User Manual (stored in the MicroSD card)

1. Getting Started

This unit was tested with shielded cables on the peripheral devices.

Shielded cables must be used with the unit to ensure compliance.

1-1. In the Package

1-2. Optional Accessories

Main Dash Cam Unit Mount with 3M tape

(1ea) Car Charger Adhesive Cable Holder

(5ea)

No. Name Description

1Security LED Operation indicator lights that are used to visually indicate that the

vehicle is equipped with a dash cam

2Mount Connector Connects to the windshield mount

3Camera Lens Front facing camera for video recording

4Wi-Fi ( ) Connection Button

Press briey : Connecting with Wi-Fi password

Press and Hold (5 seconds or longer) :

Connecting with WPS (Wi-Fi Protected Setup)

5Reset Press to force the device to restart

6Microphone Records audio along with video

7LCD Screen Provides Live View, video playback, and access to dash cam conguration

8Control Buttons Control Buttons to navigate through user menu on the screen

9Memory Card Slot Location for the memory card

10 Power Button Press and hold for 3 seconds to turn the device on/o

11 DC-IN Connects to power cable

12 External GPS Antenna Connect the external GPS antenna (Optional Accessory Required)

1-3. Product Overview

Front view

Right view

Rear view

Top view

72 3

5 6

11 12

Getting Started

1-4-2. Installing a MicroSD Card

Do not apply excessive force on the MicroSD card or attempt to insert it in the wrong direction as it may

cause damage to the MicroSD card and the card slot.

Inserting the memory card

Insert the MicroSD card into the

slot with the metal contacts facing

the back of the device, and push it

until locks into the place.

Removing the memory card

Gently apply force on the MicroSD

card until it is ejected from the

slot.

MicroSD card

1-4. Inserting a Memory Card

1-4-1. About Memory Cards

 MicroSD card must be used with a storage capacity of 8GB Class 10 or higher.

UHS MicroSD card must be used with a storage capacity of 16GB, 32GB, or 64GB.

 Device only supports MicroSD card with capacity of 8GB Class 10 or higher.

 The MicroSD card should be formatted every 2 weeks to maximize the lifetime of the memory card.

The MicroSD card should be tested for errors on a regular basis and as the memory card is a consumable

item, it should be replaced periodically.

THINKWARE shall NOT be responsible for any problems and/or damages that may occur from not using

genuine or authorized parts and accessories. It is strongly recommended that THINKWARE memory cards

are used to minimize memory card error.

Ensure that the device is completely o before removing the MicroSD card to avoid damages to the

memory card.

To prevent loss of important data, frequently copy recorded videos from MicroSD card to another storage

device such as personal computer for back up.

Cautions

1-5-1. Connecting the Device and the

Mount



①

Align the mount with the connector (A), and slide it

towards (B) until it clicks into place.



②

Remove the protective lm from the camera lens.

1-5. Vehicle Installation

1-5-2. Installing the Device

① Clean the area on the windshield where the

dash cam will be installed.

② With dash cam main unit still attached to the

mount, remove the protective tape from the

back of the mount.

③ Attach the adhesive side of the mount on the

windshield where it has an unobstructed view

of the road but does not interfere with the

driver’s view.

To ensure that the mount is safely secured, it is recommend-

ed that you separate the device from the mount after instal-

lation and press the mount towards windshield for 5 minutes

to maintain pressure. Allow 24 hours until the adhesive on

the mount has set before connecting the dash cam.

TIP

The camera is located on the left side of the main unit

so install the dash cam on the right of center behind the

rearview mirror.

TIP

Getting Started

1-5-3. Connecting to power

①



Connect the power cable to DC-IN socket of the

device.

②



Plug the car charger adapter end of the power

cable into a 12V DC vehicle power socket.

③

Arrange the wire by using the adhesive cable hold-

ers as shown below.

④

Adjust the camera so that the dash cam is facing

forward and is level with the road.

Before applying the mount, turn on the dash cam and use

the live view on the LCD Screen to adjust the camera angle.

TIP

Preventing Vehicle Battery Discharge

■ Depending on the make and model of your car, the power may be supplied to the dash cam

even with the ignition turned off. This may result in vehicle battery discharge.

■ Some vehicles with multiple power sockets might be equipped with at least 1 outlet that does

not shut off the power with the ignition. Test each power outlet to ensure you connect to an

outlet that shuts off with vehicle ignition.

For more information on the power cable routing instruction, please visit Thinkware homepage.

(www.thinkware.com)

Hide the power cable by placing (tucking)

it in the space between the windshield

and headliner.

Recommended locations for the adhesive

wire clips to arrange the power cable.

2. Basic Operations

2-1. Turning the Device Power On/O

 Once connected to the vehicle, the device will automatically turn on and o with vehicle ignition.

 To manually turn the device on/o, press and hold the Power button for 3 seconds.

Power cable for vehicle

Press and hold for 3

seconds

Basic Operations

This feature may not be available in some countries.

GPS may be aected by weather conditions, satellite signal, and/or surrounding geographical features.

Coated windshields can interfere with GPS signal which may result in poor or blocked GPS reception.

Other electronic devices and/or equipment may interfere with GPS signal if placed too close to the dash cam.

Cautions

Resetting GPS

┗GPS can be reset by selecting “Main Menu > About Device > GPS Info > Reset GPS”

Alert will be displayed on the LCD

screen when approaching nearby

points of interest.

2-2-1. Safety Camera Alert

 Safety Camera Alert: Using GPS and database, safety camera alert will warn the driver when approaching

trac enforcement zones such as red light camera, speed camera, average speed

camera, and mobile speed zones.

①

Enable the safety camera alert feature in "LCD Menu >

Settings > System Settings > Safety Camera Alert"

2-2. Road Safety Warning (Optional Accessory)

 Recorded video les are saved in the folder by date and hour in the MicroSD card.

┗Files are created based on the time when the videos are recorded.

As a loop-recording surveillance product, the dash cam will

automatically overwrite oldest le in the memory card once

the memory is full. However, event recording and manual

recording videos are stored in separate locations and will be

protected from le overwriting.

2-3. Recorded Files

Front view

recording

Do not use the MicroSD card as an external storage device.

Do not tamper with the system les within the in the MicroSD card.

This may result in unexpected behavior during operation.

Cautions

Year Month Day Hour

Minute

Second

Basic Operations

2-4. Recording Videos While Driving

Driving over speed bumps, manholes, or uneven roads at high speeds can also be detected as an impact

and may trigger incident recording.

The device can record up to 1 minute of incident recordings in the case of continuous impacts or

multiple accidents.

The duration of incident footage recorded may vary according to the device settings.

Cautions

2-4-2. Incident Recording During Continuous Recording Mode

 When the dash cam detects impact, it will immediately store

the 10 seconds prior and 10 seconds after impact.

 The 20-second impact recording is saved on the MicroSDcard

under the "evt_rec" folder.

Please note that the dash cam will only detect impact as an

incident if the level of impact is greater than the sensitivity

level of the G-Sensor. You can change these levels in the user conguration.

2-4-1. Continuous Recording Mode

 Videos are recorded in 1 minute segments and saved as les

in the MicroSD card under the folder named “cont_rec”.

2-5-1. Motion Detection Recording

The dash cam is equipped with motion detector which is used to detect motion that initiates video

recording while the vehicle is parked.

When the dash cam detects motion while parked, it will immediately store the previous 10 seconds

prior to the activation of motion detection start recording video for the next 10 seconds.

- The 20-second motion detection recording is then saved on the MicroSD card under the folder named

"motion_rec".

2-5-2. Parking Incident Recording

 When the dash cam detects impact while parked, it will imme-

diately store the 10 seconds prior and after the impact.

- The 20-second impact recording is saved on the MicroSD

card under the "parking_rec" folder.

2-5. Recording Videos While Parked (Optional Accessory)

This feature is available only when the dash cam has been hardwired directly to the vehicle battery.

Separate purchase for the hardwiring cable accessory and professional installation is required.

The device can record up to 1 minute for continuous impacts in the case of multiple collisions.

Cautions

Basic Operations

When the allocated storage for manual recording videos is full, oldest video le will be replaced by the

new recorded video.

Cautions

 Briey press the REC button to start recording. The

device will record video for 1 minute (10 seconds before and

50 seconds after) as of the time when the button is pressed.

The recorded video will be saved under the “manual_rec”

folder.

Note that when manual recording is initiated, the previous

10 seconds prior to pressing the button will be saved so

even if you just missed a scene, you can still capture and

safely store the video by initiating manual record within

10 seconds of the event.

2-6. Manual Recording

In addition to recording accidents, the dash cam allows the user to initiate manual recording mode to cap-

ture scenery and/or places while driving. This feature can also be used to save video as witness where the

installed vehicle is not directly involved in an accident. Video les saved during manual recording mode are

stored in a separate location on the memory card and will be protected from video overwriting in continuous

recording mode.

 Select “Memory Card Format” menu located at "Mem Card Settings >

Memory Format".

2-7. Formatting MicroSD Card

The system will automatically be updated if the MicroSD card contains the rmware upgrade le.

The device restarts automatically after the upgrade has been completed.

Make sure your device is always up to date with latest rmware. Please check back frequently at THINK-

WARE website (www.thinkware.com) for the latest rmware updates.

Do NOT disconnect your device from power while it is being updated. This will result in damage to the dash

cam.

2-8. Upgrading Firmware

The MicroSD card should be formatted every 2 weeks to maximize the lifetime of the memory card.

Cautions

LCD Screen

3. LCD Screen

3-1. Main Menu

Directional Keys

Change to Live View

Recording status

Data/Time

Select

3-2. Live View

LCD screen can be used to verify current recording view.

Audio recording status

Back to main menuWi-Fi On/O

Manual recording

status

Current speed / Voltage

LCD Screen

3-3. File List

Recording will suspend when browsing through video list and settings menu. Visual notication will

appear on the screen to conrm the suspension of recording prior to entering the menu.

3-3-1. File List - 1

The congured storage capacity may be dierent from the actual capacity by approximately 30 to 40MB.

Cautions

Continuous : Lists loop recording videos during continuous mode (in 1 minute segments)

Incident Continuous : Lists incident recording videos during continuous mode

Motion Detection : Lists motion detection recording videos during parking surveillance mode

Parking Incident : Lists incident recording videos during parking surveillance mode

Manual Recording : Lists manual recording videos initiated by selecting button

3-3-2. File List - 2

Video playback

progress bar

Enter zoom view

Exit zoom viewDirectional button

Total playing time

Video le name

Play/PauseMute on/o

Current

play time

Recording will stop when

accessing on-screen menu.

Video playback with 3X zoom

LCD Screen

3-4. Memory Card Settings

 Memory Partition : Sets how storage space on the memory card will be allotted for each recording mode

┗ Type A (recommended) : Optimized for continuous recording

┗ Type B : Optimized for incident and motion detection during parking surveillance

┗ Type C : Optimized for continuous and incident recording

 Memory Format : Formats the MicroSD card

┗Formatting will completely erase all video les stored in the memory card

 Video Overwrite : Sets the overwriting option which will allow new video les to overwrite oldest video in

storage reserved for each mode

It is recommended that you back up data before formatting the memory card.

Once you format the memory card, all data will be deleted and cannot be restored.

The method for formatting a MicroSD card might vary depending on the computer operating system.

Cautions

3-5. Settings > Record settings

Continuous Sensitivity : Sets the impact sensitivity level

Brightness-Front : Sets the video recording brightness for front camera

 Use Parking Mode : Monitors vehicle ignition status to automatically convert to parking mode when the

vehicle engine is turned o

Parking Sensitivity : Sets the impact sensitivity during parking recording mode

Motion Detection Sensitivity : Sets the motion detection sensitivity during parking recording mode

O Timer : Sets the timer for the dash cam to automatically shut down in parking mode to prevent from

draining the vehicle battery

O Voltage : Sets the voltage level for the dash cam to automatically shut down in order to prevent from

draining the vehicle battery

Tips on sensitivity

It is recommended that you set the sensitivity according to vehicle type. High sensitivity setting is rec-

ommended for cars with softer ride such as luxury sedans; while low sensitivity setting is recommended

for cars such as performance cars, trucks, or SUVs which tends to have stier suspension settings.

It is recommended to format the memory card when settings have been changed.

Backup important video les before formatting the memory card.

Cautions

LCD Screen

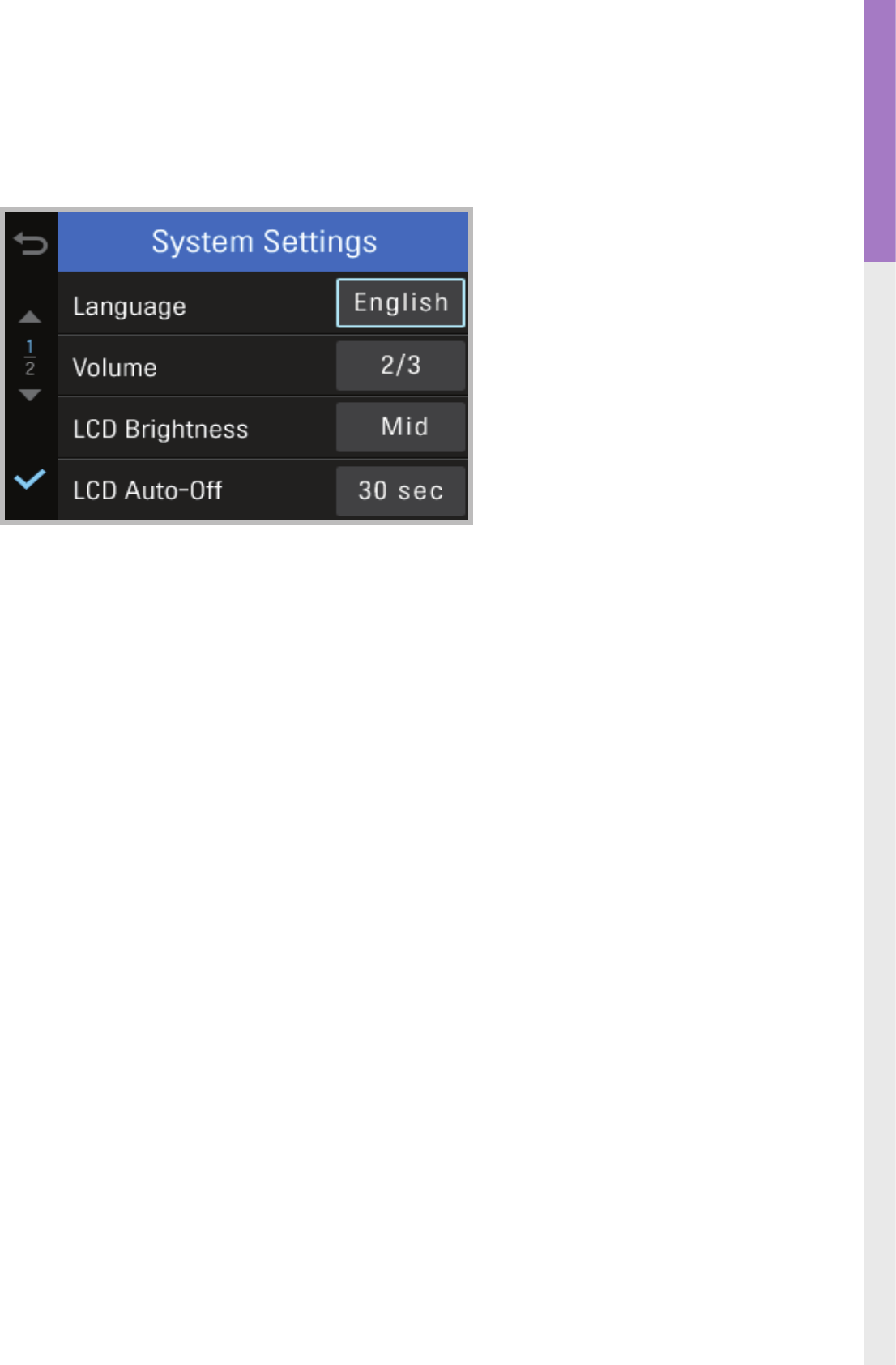

3-6. Settings > System Settings

Language : Sets dash cam system language

Voice Volume : Sets the volume level

LCD Brightness : Sets the brightness of the LCD screen

LCD Auto-O : Sets the time for LCD auto shut o

┗ When LCD is o, pressing any button will turn the LCD screen back on

Security LED : Sets the pattern for security LED

Date setting : Sets the year/month/data

Time setting : Sets the time

Time Zone : Sets the time zone

Daylight Saving Time (DST) : Sets the daylight saving time

Speed Unit : Sets the unit for the vehicle speed

Speed Stamp : Sets vehicle speed information (tracked by GPS) to be shown or hidden directly on video

Sefety Camera Alert : Sets audible notications for road safety warnings

3-7. About Device

Functions : Help for device features

Device Info : Information on device and rmware

┗ Factory Reset : Restores to factory setting

GPS Info : View GPS information

┗ GPS Initialization : Reset GPS

Mobile Viewer Application

4-1. Thinkware Dash Cam Mobile Viewer

4. Mobile Viewer Application

The distance range between the dash cam and connecting smart device is approximately 10 meters (33ft)

in an open eld environment

When device and mobile phone are connected over Wi-Fi, all control buttons of device will not be working,

except power button.

Cautions

4-1-1. Connect Wi-Fi with Password

①

Download and install Thinkware Dash Cam Mobile Viewer application

②

Press briey the Wi-Fi button on the dash cam to enter Wi-Fi connection mode

③

(Make sure to turn on the Wi-Fi in the device setting for iOS devices) In the Thinkware Dash Cam Mobile

Viewer application, turn on the Wi-Fi option, select “thinkware” from SSID list, and enter password as

“123456789”

Password is only required during rst time you try to connect.

The device will auto-connect in subsequent connections.

※ Dash cam will automatically turn o the Wi-Fi connection mode if not connected within 2 minute.

Thinkware Dash Cam Mobile Viewer App is available through Google Play and the App Store from iTunes.



Mobile App device OS version requirements: Android 4.0 (Ice Cream Sandwich) or higher, iOS 7.0 or higher.



You may disable Cellular data (Data networks) for using apps in some of devices operating Lollipop.

 For iOS devices, Wi-Fi settings can only be accessed using the smartphone or tablet settings.

Press Briey

 Connecting with WPS ( Only Android OS)

①

Download and install Thinkware Dash Cam Mobile Viewer application.

②

Press and hold Wi-Fi

button for more than 5 seconds on the dash cam to enter WPS connection mode.

③

Select "WPS" button on the Thinkware Dash Cam Mobile Viewer application to automatically connect to

the Thinkware dash cam using Wi-Fi. (takes approximately 20~30 seconds)

: Retry Wi-Fi search

Press and hold for 5 seconds

Mobile Viewer Application

4-2-1. Live View

 Live View : When using Live View, the continuous recording will be disabled.

Back

Switch to front/rear view

(appears only when

the rear view camera is

connected)

Live View

Current speed/voltage

Current date/time

GPS status

Audio recording

on/o

4-2. Thinkware Dash Cam Mobile Viewer Main Menu

Following section describing the Thinkware Dash Cam Mobile Viewer menu is based on Android devices.

Layouts and screen captures might be slightly dierent for iOS devices.

4-2-2. Video List

 Continuous Recording : Lists loop recording videos during continuous

mode (in 1 minute segments)

 Incident in Continuous Mode : Lists incident recording videos during

continuous mode

 Parking image : Lists motion detection recording videos during parking

surveillance mode

 Incident in Parking Mode : Lists incident recording videos during parking

surveillance mode

 Manual Recording : Lists manual recording videos initiated by selecting

manual recording button



Recording List Menu

Download : Copies selected video le to the device from the dash cam

MicroSD card (Wi-Fi must be connected)

Video Info : Displays date/time, le name, recording type, size, duration,

video quality for the selected video le

Delete : Removes the selected video le

Mobile Viewer Application



Video download

Rear view videos

Front view videos

Cautions

For Android OS devices, it may take a while until downloaded videos are displayed in the list.

Cautions

5. PC Viewer Software

5-1. Thinkware Dash Cam PC Viewer

Thinkware Dash Cam Viewer for Windows/MacOS is provided which can be used to watch videos recorded

with the dash cam. The video les recorded by the dash cam are in one minute segments and the PC viewer

allows the user to watch these segments as a single continuous video.

The setup le for the Thinkware Dash Cam PC Viewer is included in the MicroSD card within the package.

Please check THINKWARE homepage(www.thinkware.com) for the latest Dash Cam PC Viewer application.

Insert the MicroSD card into the PC.

5-1-1. Installing Thinkware Dash Cam Viewer

Windows

①

Double-click the Thinkware Dash Cam Viewer setup

le saved in the MicroSD card to initiate program

installation.

②

Double-click the application icon once PC Viewer

installation completes and the application main

screen will then appear.

System requirements :

Windows XP SP3 (32 bit), Windows 7 (32 /64 bit),

Windows 8.x (32/64 bit)

PC Viewer Software

Cautions

MAC

System requirements : MAC OS X 10.8 Mountain Lion or later (OS X 10.9 Mavericks, OS X 10.10 Yosemite)

①

Move the le named “Dashcam Viewer.zip” stored in the MicroSD card to the desktop.

②

 Right click on the mouse and select “Open With” > “Archive Utility” to launch the Thinkware Dash Cam

viewer application.

5-1-2. Select the Device Drive for X350

The MicroSD card will not be recognized by the PC

Viewer until it has been used in the dash cam.

It is recommended that the user record at least one

video clip on the MicroSD card with the dash cam

unit before accessing the Thinkware Dash Cam PC

Viewer.

①

Click File from menu and select the drive for

the portable storage drive for the connected

MicroSD card.

②

Select any le from the list to load entire video

playlist in the memory card.

Cautions

Dash cam setting / Information

Full screen

Switch between front/rear view

File open

Viewing screen

Playback

Progress

Current play time/

Total play time

Driving speed

Impact sensor value

Map

Checks the location

of the recorded

video (Enabled only

if video is captured

while connected

using GPS antenna

'optional in some

models' and must

also be connected

to the Internet)

Playlist

5-1-3. Thinkware Dash Cam Viewer Overview

No. Name Description

Play Previous Plays the previous le before the current le

Rewind by 10 Sec Rewinds the current le being played by 10 seconds

(If selected, it continues to rewind by 10 seconds)

Play/Pause Plays the recorded le / temporarily pauses playback

Stop Stops the le being played. The playback status resets to the starting point of

the video.

Fast-forward by 10 Sec Fast-forwards the current le being played by 10 seconds

(If selected, it continues to fast-forward by 10 seconds)

Play Next Plays the next le after the current le

Auto Play Automatically loops the video back to beginning once the end has reached

Zoom Sets the video expansion ratio (0.5x / 1.0x / 1.5x / 2.0x)

Screen Setting Sets brightness/speed of the video

Save Saves the video in play

Volume Sets the volume of the playback

PC Viewer Software

5-1-4. View Video Playlist

 Select appropriate folder (Continuous Recording, Incident Recording, Manual Recording, Parking Motion,

Parking Incident) to see the playlist for each recording mode.

Continuous Recording Playlist Manual Recording Playlist

6. Specications

6-1. Specications

The specications of this product may change without prior notice for product improvements.

Item Standard Note

Model X350

Size/weight 97 x 51.8 x 26.5 mm / 76g

3.81 x 2.02 x 1.04 inches / 0.16lbs

Display Panel 2.7"LCD (320 x 240)

Capacity

MicroSD card 8GB Class 10

UHS-I 16GB/32GB/64G

Recording mode

Continuous Recording Mode Records in 1 minute segments

Incident Recording Mode

Manual Recording Mode

Parking Surveillance Mode

Optional hardwiring cable and installa-

tion are required for continuous supply

of power when vehicle ignition is o.

Audio Recording

Camera 2.19 Megapixel, 1 / 2.9" CMOS

Viewing angle Approximately 140° (diagonally)

Video Full HD

(1920 x 1080 / H.264 / extension MP4)

Frame rate 1 channel : up to 30 fps

Audio PCM (Pulse code modulation)

Accelerometer 3-axis Accelerometer (3D, ±3G) Ad justable impact sensitivity (5 levels)

GPS External GPS Antenna Optional Accessories

Input power source DC 12 / 24V

Current consumption 2.5W (mean) Based on fully charged super capacitor /

LCD o

Auxiliary power unit Super Capacitor

Warning sound Embedded speaker Voice (buzzer sound) guidance

Operation/Storage

Temperature

-10°C to 60°C / -20°C to 70°C

14°F to 140°F / -4°F to 158°F

THINKWARE X350 THINKWARE DASH CAM User Manual

THINKWARE SYSTEMS CORPORATION THINKWARE DASH CAM

User Manual

Navigation menu

Namespaces

Views

Navigation
