TKR-320 MICROPHONE
MANUAL
WOW PREMIUM
TKR-320 MICROPHONE MANUAL
Declaration of Conformity
Trade Name : TJ media
Model : TKR-320
Responsible Party : TJ media co.,Ltd.
Address : 640-8 Deungchon-dong, Gangseo-gu,
Seoul 157-030, Korea
Telephone : 82-2-3663-4700
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
Notice for customers in the U.S.A.
Use of TJ media wireless devices is regulated
by the Federal Communications Commision
as described in Part 74 subpart
H of FCC regulations and users
authorized thereby are required to obtain an
appropriate license.
IMPORTANT NOTE :
To comply with the
FCC RF exposure compliance requirements,
no change to the antenna or the device is permitted,
Any changeto the antenna or the device
could result in the device exceeding the RF
exposure requirements and void user’s
authority to operate this device.
This device complies with FCC radiation
exposure limits set forth for uncontrolled
equipment and meets the FCC radio
frequency (RF) Exposure Guidelines in
Supplement C to OET65. This device has
very low levels of RF energy that it is
deemed to comply without testing of
specific absorption radio(SAR).
WOW Premium
www.wowvideoke.com

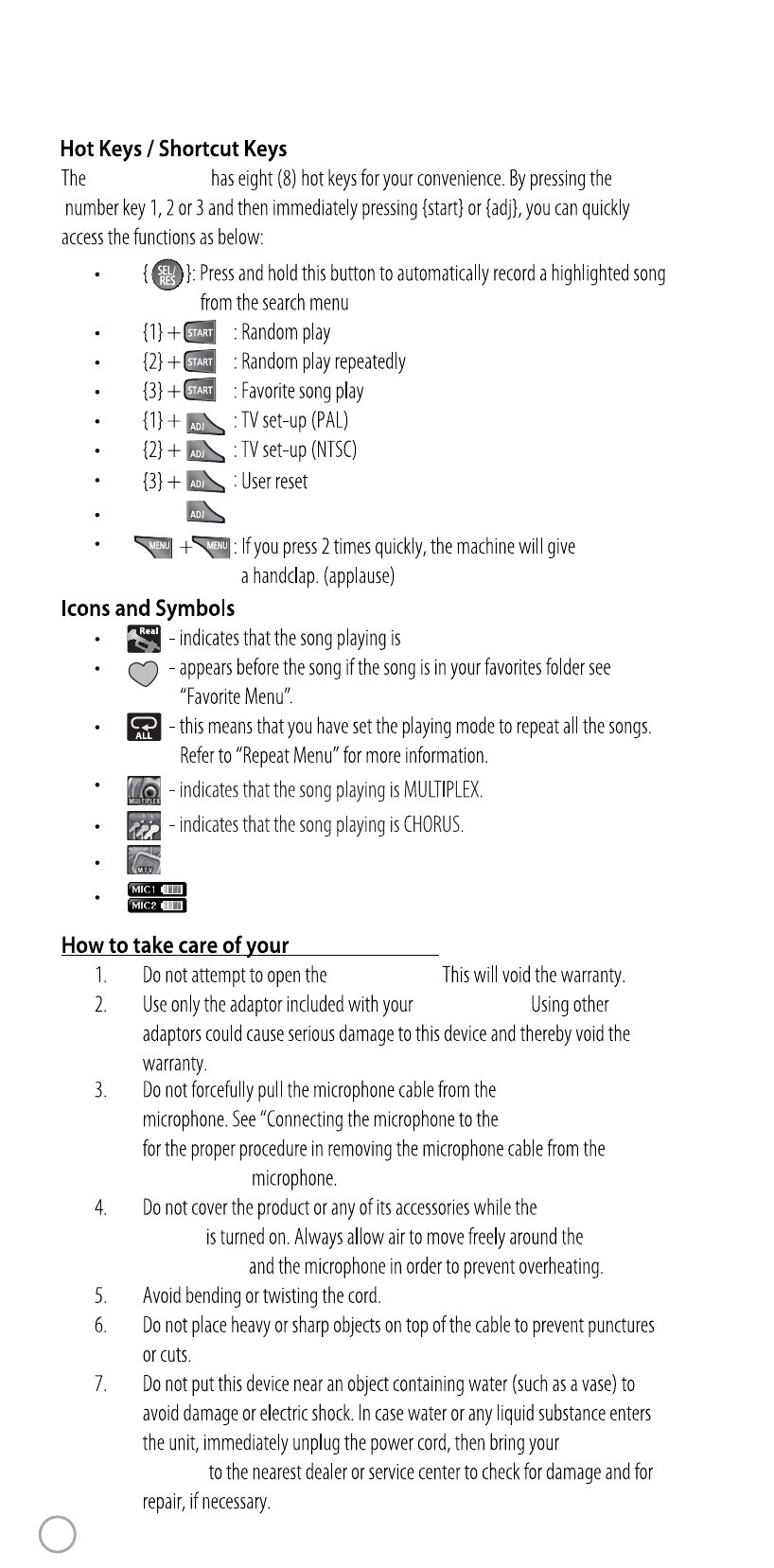

- indicates that the song playing is MTV.
- indicates of remaining battery.
{4} + : Lyric shadow(On/O)
Real Sound.
WOW Premium
WOW Premium.
WOW Premium.
WOW Premium
WOW Premium”
WOW Premium
WOW
Premium
WOW Premium
WOW
Premium
4
5

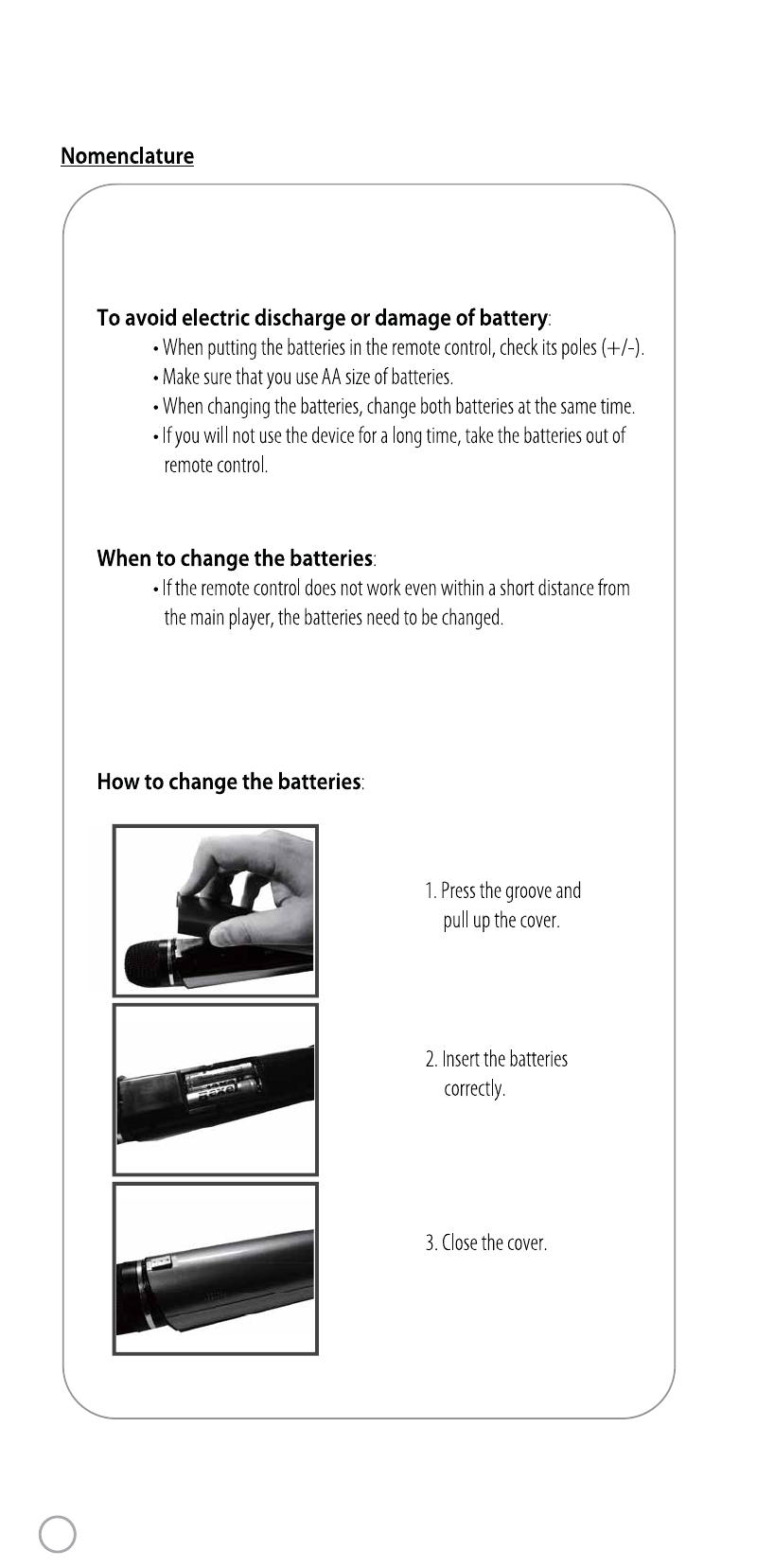

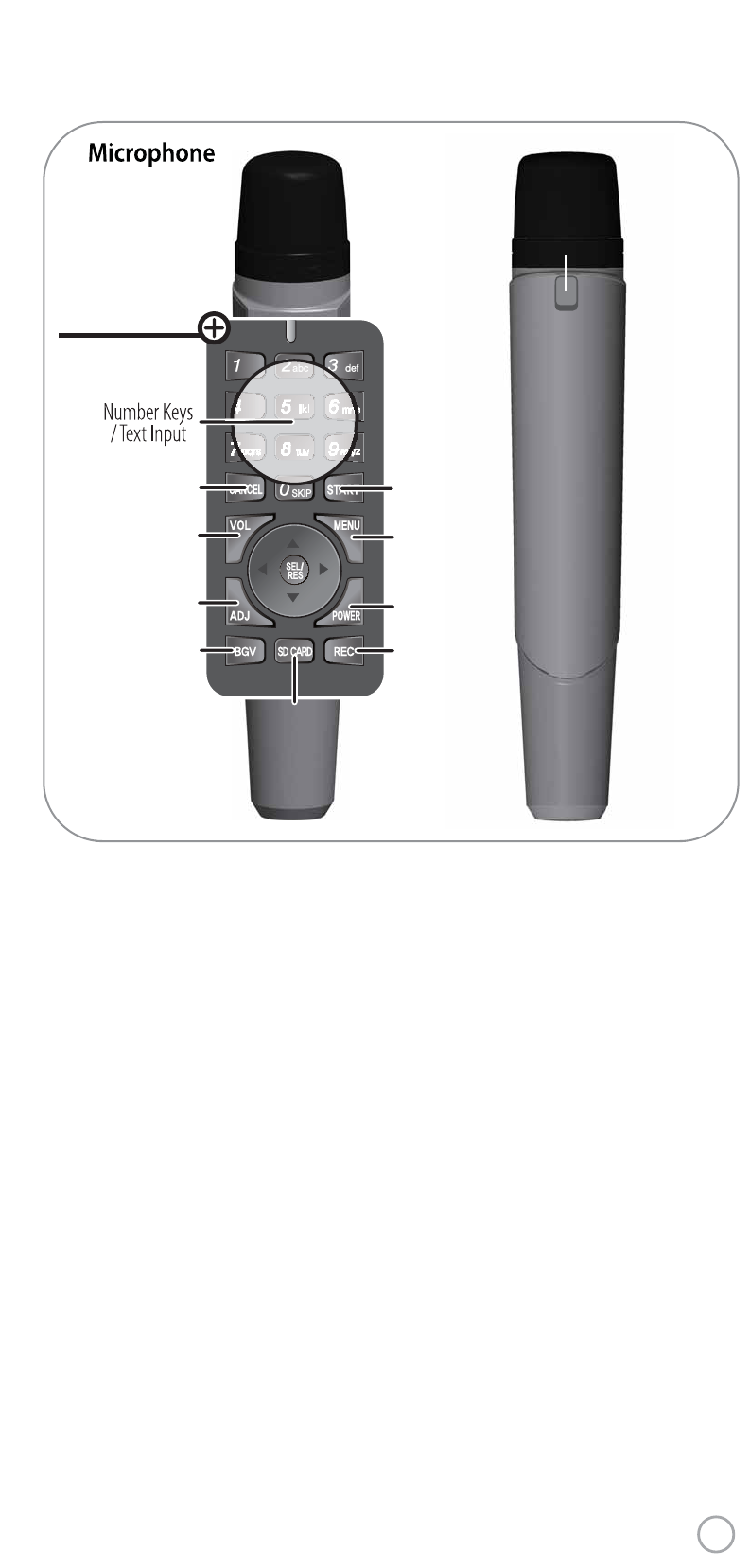

Battery Cover
Unit Grill
Cancel
Key Function Guide
Volume
(Music/Mic/Echo)
Adjustment
(melody/key/tempo)
BGV
(Video change)
SD Card
(SD card Function)
REC
(Recodier)
Microphone
Power
Start
Menu
(Detail Funtion)
Power Lamp
Battery Cover
Lock Botton
www.wowvideoke.com
Microphone
6
www.wowvideoke.com
WOW Premium

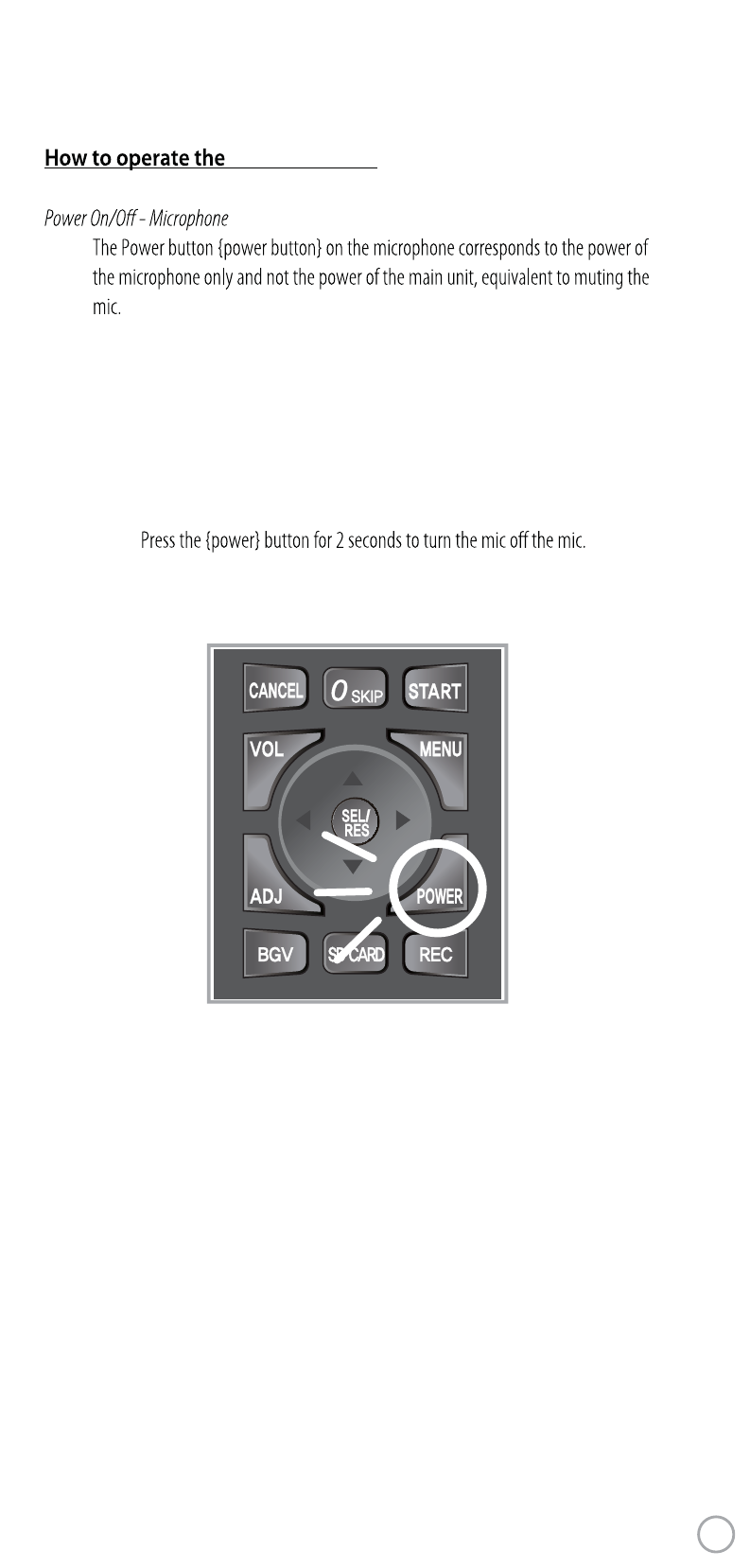

1. Press the {power} button for 2 seconds to turn the mic on the mic.
2. Wait for 2seconds to turn on wireless microphones.
3.
7
www.wowvideoke.com

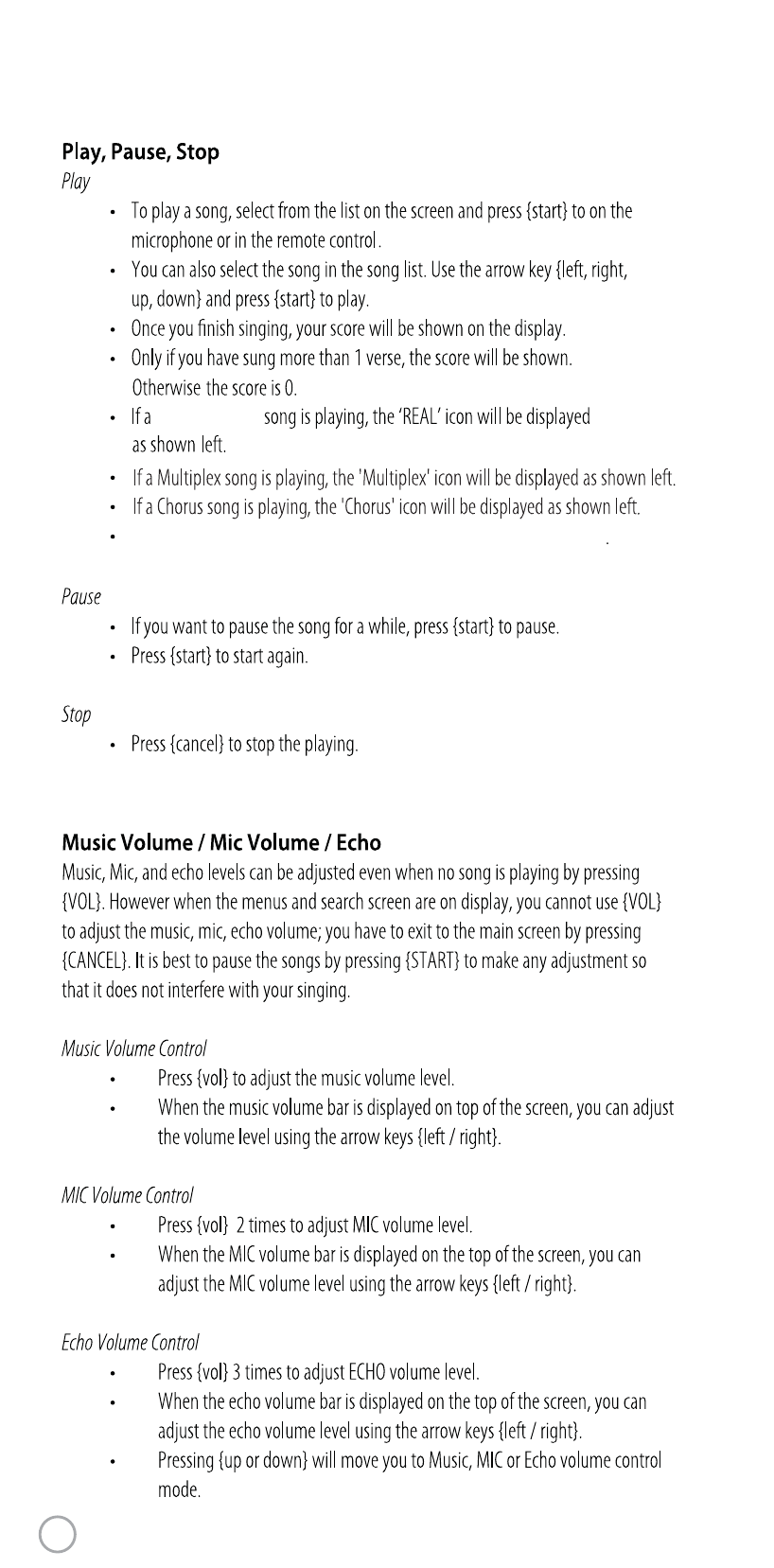

If a MTV song is playing, the 'MTV' icon will be displayed as shown left
WOW Premium
8
www.wowvideoke.com

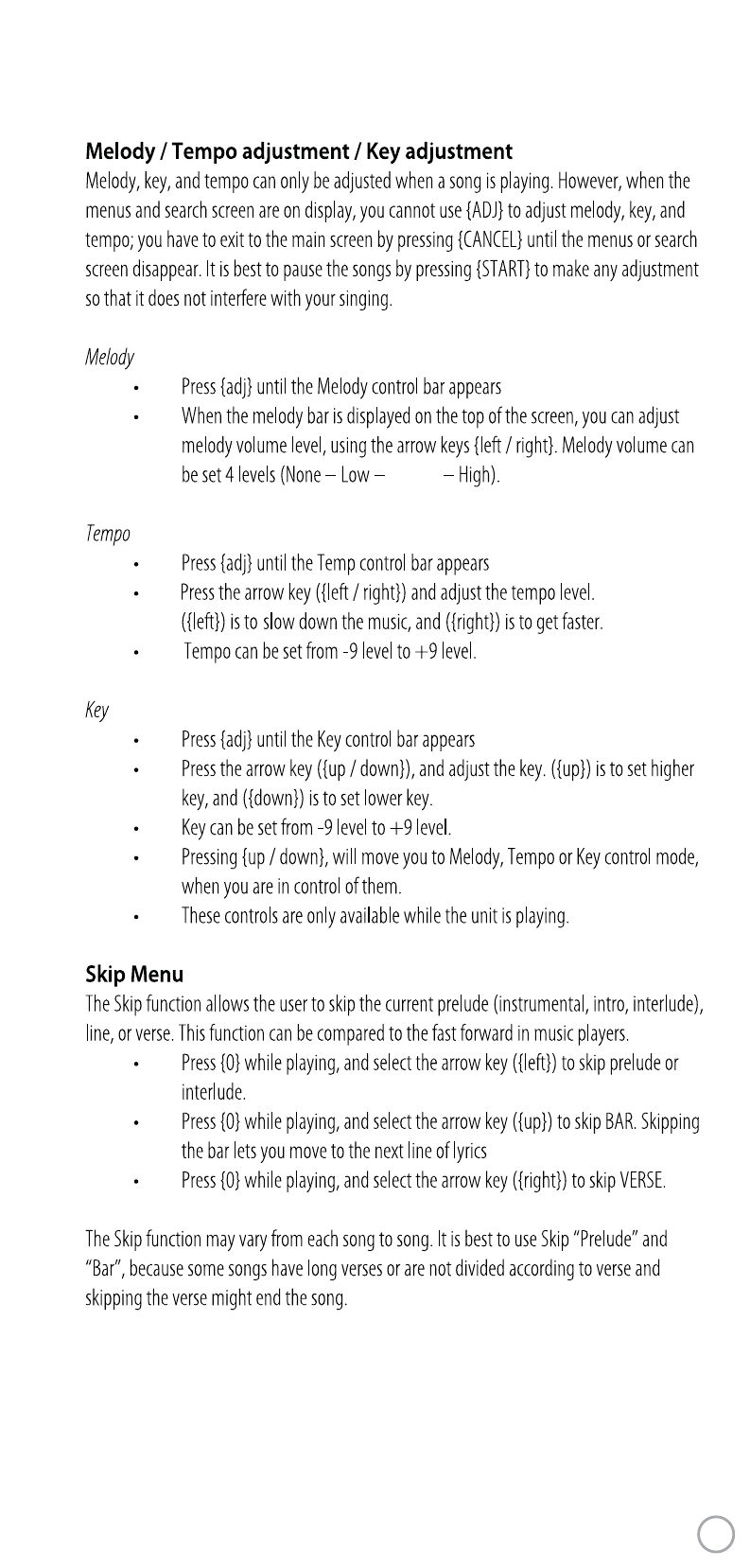

Middle
9
www.wowvideoke.com
How to change Channels (TKR-320)
1. Main Player (Receiver)
Enter into channel changing mode :
[MENU]- [CONFIG]- [System Setup] - [ VERSION ] - [ CANCEL ]
Select a Remote Key Number(1 ~8) of channel (1CH ~ 8CH)
Press ‘[Power O] →[Power On]’to save
2. Microphone (Transmitter)
Enter into channel changing mode : [BGV]-[ADJ]-[VOL]-[MENU]
(LED of the microphone ickers twice.)
Select a number of channel. (1CH ~ 8CH)
MIC1 / MIC2 SET UP
- MIC1 : Press [SD CARD]
- MIC2 : Press [REC]
Press [START] to save.
(LED of the microphone ickers 6 times.)
3. Channel Information
[MENU]-[CONFIG]-[SYSTEM SETUP]-[VERSION]-[CANCEL]
Change by Remote Control
Change by Microphones
Change by Remote & Microphones
10
www.wowvideoke.com
Analog Wireless Microphone
MicroPhone Type
494MHz~505.2MHz / F3E
RF Frequence / RF Type
Dynamic / 600Ω
Unit Type / Impedance
10M Less
RF Used Distance
1.5V(AA) x 2ea
Battery Spec
50Hz ~ 15kHz
Audio Frequency
0~40
Operating Temperature(L)
262 g
Weight (g)
46 x 46 x 270 (mm)
Dimension(WxDxH)
Microphone
2.2Vrms
Output
20Hz ~ 20kHz
Frequency
75Ω 1.0Vpp
Input
75Ω 1.0Vpp
Output
AC100~240V (50~60Hz)
Input
DC12V, 0.5A~1A
Output
Audio
Video
Adaptor
DC12V, 0.5A~1A
Input
4.7W
Consumption
486 g
Weight (g)
198 x 172 x 70 (mm)
Dimension(WxDxH)
Main Player
Product Specication
