TOMTOP Technology DA156 Wireless Touch Headset User Manual Manual

Shenzhen TOMTOP Technology Co., Ltd. Wireless Touch Headset Manual

User manual

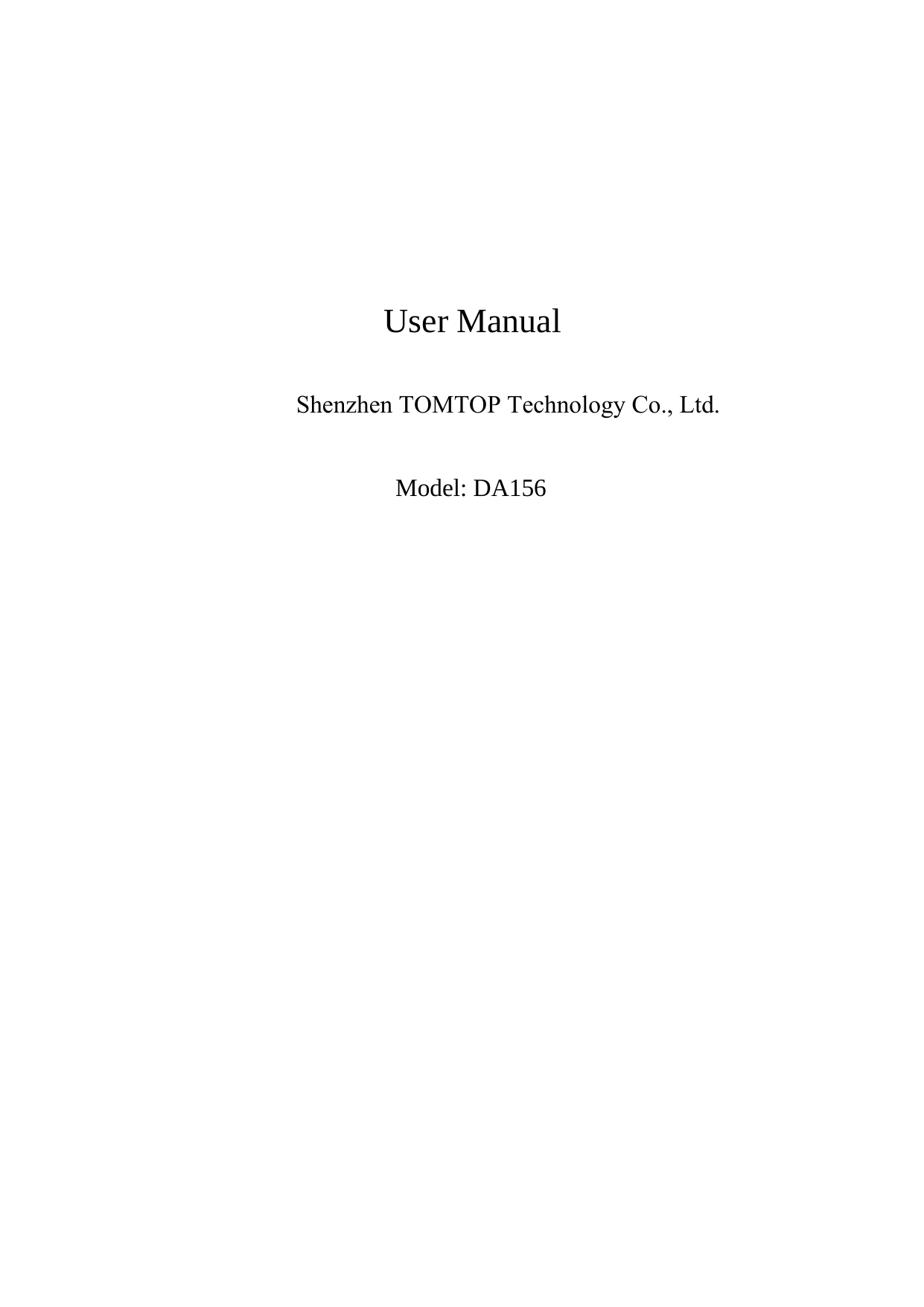

User Manual Shenzhen TOMTOP Technology Co., Ltd. Model: DA156

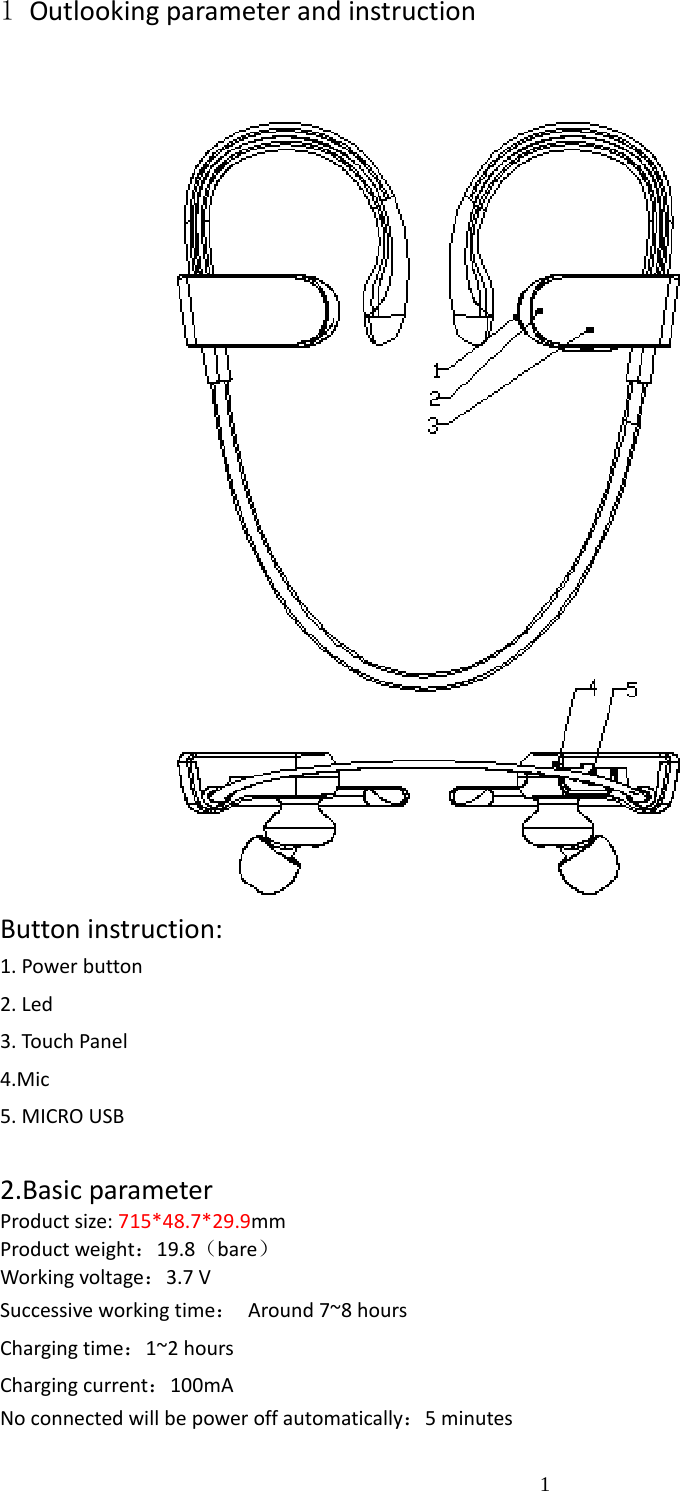

11 Outlooking parameter and instruction Button instruction: 1. Power button 2. Led 3. Touch Panel 4.Mic 5. MICRO USB 2.Basic parameter Product size: 715*48.7*29.9mm Product weight：19.8（bare） Working voltage：3.7 V Successive working time： Around 7~8 hours Charging time：1~2 hours Charging current：100mA No connected will be power off automatically：5 minutes
23.1 Bluetooth Bluetooth chipset IS2021S-203 Bluetooth version 4.1 Profile A2DP AVRCP HFP RF 2402~2480MHz Receiving distance 360° 10meter 3.2 MIC MIC SPEC: 3.7*2.2*1.1mm MEMS MIC Sensitivity：-42±3dB 3.3 Battery Battery Spec：3.7V 120mAh Capacitor type lithium ion battery Battery size：6.0*12*24mm Battery life：300 times 3.4 Speaker Speaker OD：Φ10mm Speaker impedance：16Ω Rated power：5mW (Max power: 10mW) Frequency response：100～10KHz； Sensitivity：95dB±3dB； Speaker curve：

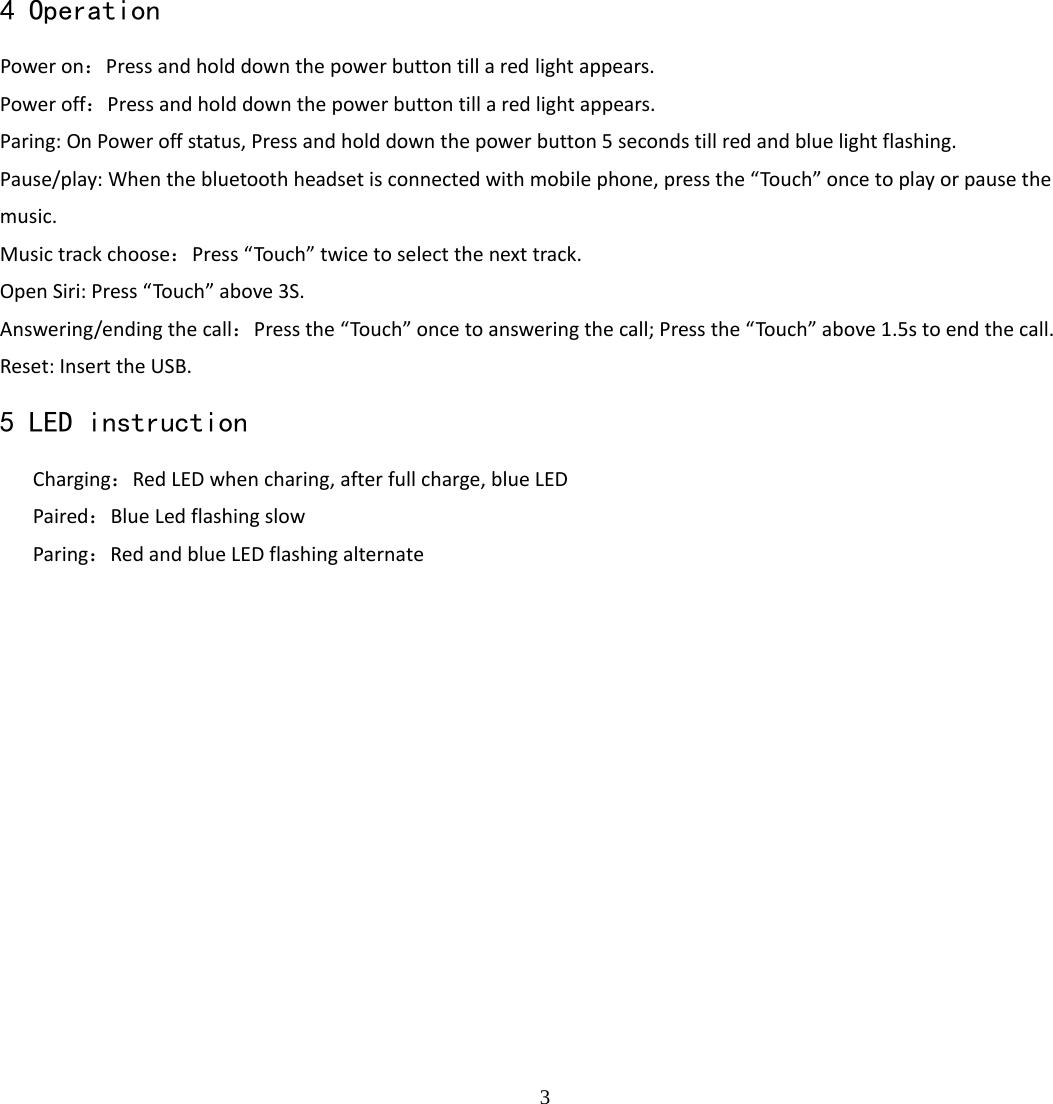

34 Operation Power on：Press and hold down the power button till a red light appears. Power off：Press and hold down the power button till a red light appears. Paring: On Power off status, Press and hold down the power button 5 seconds till red and blue light flashing. Pause/play: When the bluetooth headset is connected with mobile phone, press the “Touch” once to play or pause the music. Music track choose：Press “Touch” twice to select the next track. Open Siri: Press “Touch” above 3S. Answering/ending the call：Press the “Touch” once to answering the call; Press the “Touch” above 1.5s to end the call. Reset: Insert the USB. 5 LED instruction Charging：Red LED when charing, after full charge, blue LED Paired：Blue Led flashing slow Paring：Red and blue LED flashing alternate
Federal Communications Commission (FCC) Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ●Reorient or relocate the receiving antenna. ●Increase the separation between the equipment and receiver. ●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ●Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications made to this device not expressly approved by Shenzhen TOMTOP Technology Co., Ltd. may void the FCC authorization to operate this device. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.
