Shenzhen TOMTOP Technology Co., Ltd. Wood Wireless In-ear Sport Stereo Earphone Manual
User manual
User Manual
Model:DA164
1
1 Outlooking parameter and instruction
Button instruction:
1.Volume +
2.Multi-function
3. Volume -
4.LED
5. MICRO USB
6.MIC
2
2.Basic parameter
Product size: 620*25*30mm
Product weight：14.1g（bare）
Working voltage：3.7 V
Successive working time： Around 5~6 hours
Charging time：1~2 hours
Charging current：80mA
No connected will be power off automatically：5 minutes
Support 1pcs earbuds connect 2pcs smart phones
Support APTX
3.1 Bluetooth
Bluetooth chipset CSR8645A04
Bluetooth version 4.1
Profile A2DP AVRCP HSP HFP
RF 2402~2480MHz
Receiving distance 360° 10meter
3.2 MIC
MIC SPEC: 3.7*2.2*1.1mm MEMS MIC
Sensitivity：-42±3dB
3.3 Battery
Battery Spec：3.7V 60 mAh Capacitor type lithium ion battery * 2
Battery size：Φ10*12mm
Battery life：300 times
3.4 Speaker
Speaker OD：Φ6mm
Speaker impedance：16Ω
Rated power：10mW (Max power: 15mW)
Frequency response：200～100KHz；
Sensitivity：87dB±3dB；

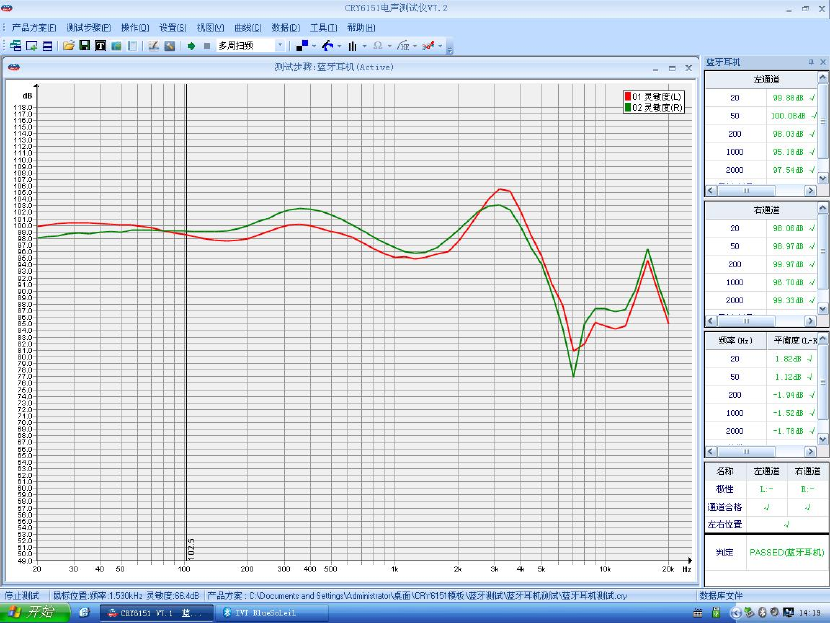

Speaker curve：
3
4 Operation
Power on：Press and hold down the power button till a blue light appears
Power off：Press and hold down the power button till a red light appears
Paring： Press and hold down the power button 6~8 seconds till red and blue light flashing
Volume adjust: Press and Hold down the volume + to increase volume or Volume - to decrease the volume
Music track choose：Press Volume - shortly to select previous track, and Volume + to select the next track.
Pause/play: When the bluetooth headset is connected with mobile phone, press the power button once to play music,
press power button quickly to pause the music.
Answering/ending the call：Press the power button once to answering or end the call
Reject calling：Press the power button 1~2 seconds
Redialing a call: Press the power button twice to redial the last dialed phone number on your mobile phone.
5 LED instruction
Charging： Red LED when charing, after full charge, blue LED
Paired：Blue Led flashing slow
Paring：Red and blue LED flashing alternate
4
Federal Communications Commission (FCC) Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
●Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications made to this device not expressly approved by Shenzhen TOMTOP
Technology Co., Ltd. may void the FCC authorization to operate this device.
Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to
this equipment. Such modifications could void the user’s authority to operate the equipment.
