TOMTOP Technology DH06 Alexa Voice Control Wifi Music Speaker User Manual DH06 IB
Shenzhen TOMTOP Technology Co., Ltd. Alexa Voice Control Wifi Music Speaker DH06 IB
User manual

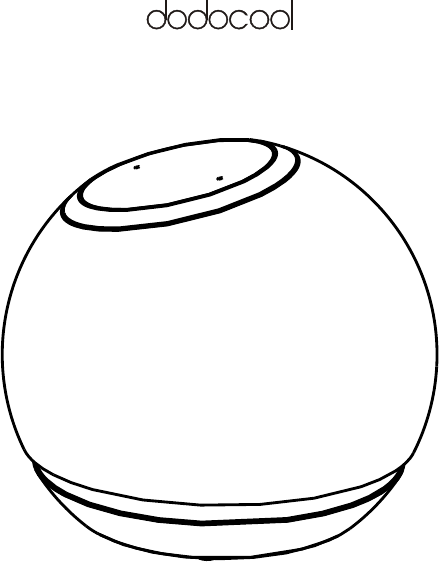

WIRELESS SPEAKER
INSTRUCTION MANUAL

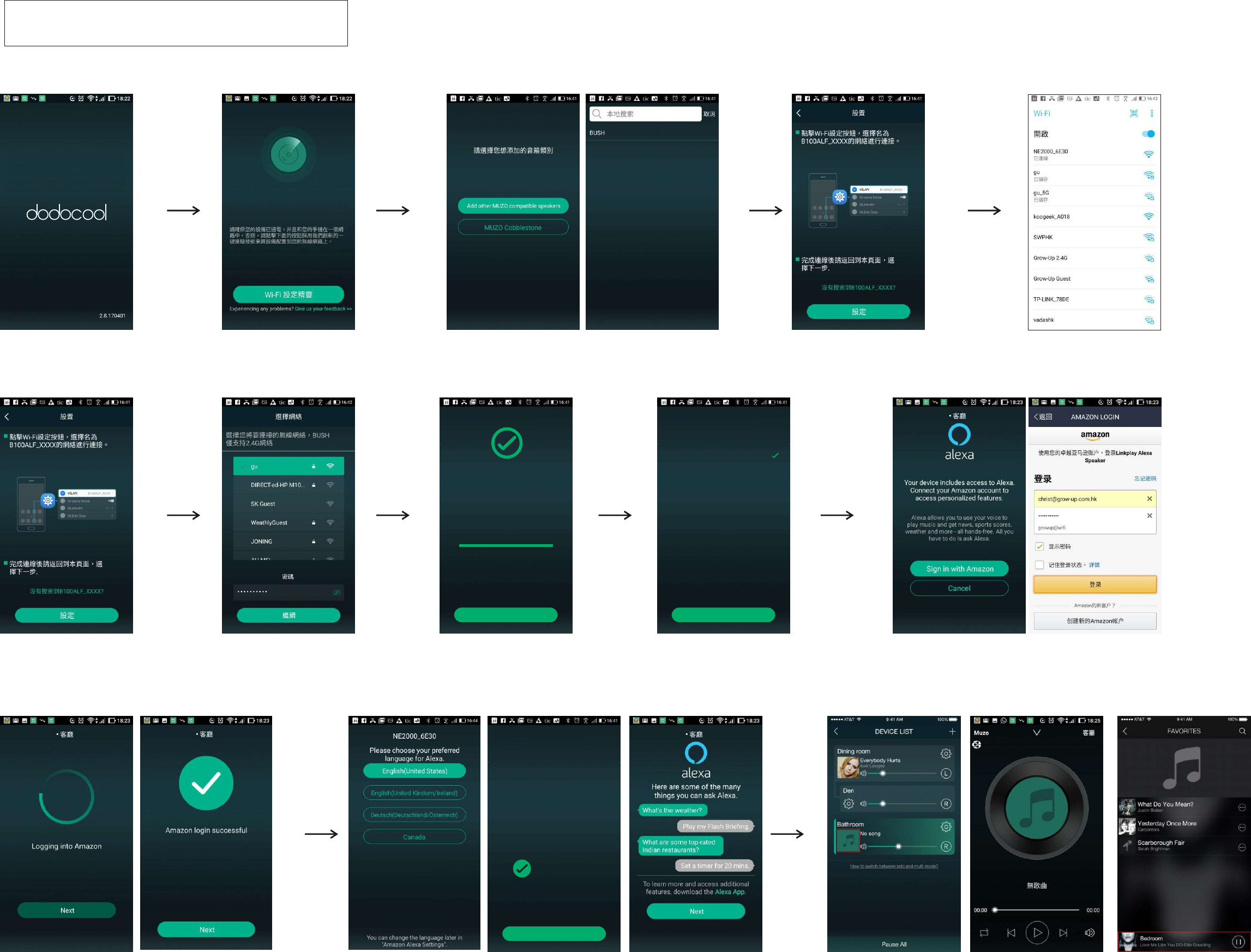

DH06 APP setup:
1.Download APP
from play store (Android)
or apple store ( Apple )
2.Connect a wireless speaker. 5. Select a correct Wi-Fi.
正 在 搜 尋 Dodocool無 線 Hi-Fi系 統
7. Enter a Wi-Fi passward.
6. After connected Wi-Fi
press “ back” button on
mobile phone.
9.logging into Amazon. 10. Sign in to Amazon.8. Please wait until Wi-Fi
network is connected.
11.Wait for a seconds and login to Amazon
successful.
12. Setup is finished.
User also can play a music from your mobile phone.
3.Select a wireless speaker. 4.Go to Wi-Fi setting.
Current Wi-Fi strength of device: 100%
CONNECTED
Next
Custom..
DH06_DE32
NAME DEVICE
Next
>
12. Select a preferred language for Alexa.
Alexa is ready
Next
Please press the Alexa button to start talking
to Alexa.
DH06 How to play:
<
<
1.Plug a power cord behind a wireless speaker. Then,setup a network and
access to Amazon account. ( Please refer a previous page )
1
Wireless Speaker
Mobile phone
2
WPS AUX-IN
DC12V
AUX
BT
MUTE
ALEXA
VOL VOL
Z
Z
Near field
OR
2.For Near field: Press “ ” button on wireless speaker. And talk to Alexa.
For Far field: Say “ Alexa! ” and ask a question to wireless speaker.
ALEXA MODE
Far field
Voice
Control
Question
Answer
Alexa! What time
is it?
The time is 1pm.
BLUETOOTH MODE
AUX
BT
MUTE
ALEXA
VOL VOL
Z
Z
Wireless Speaker Mobile phone
1.Press BT button to select bluetooth mode. ( Blue light indicator will flash )
2.Turn on mobile phone Bluetooth setting mode.
3.Search bluetooth device.
4.Select “ DH06”
5.After pairing, user can play music from mobile device.
DH06
AUX MODE
1.Press AUX button to select AUX mode. ( Yellow light indicator will display )
2.Connect an aduio cable with 3.5mm stereo plug from an auxiliary audio device
to the AUX-IN jack behind a wireless speaker.
3.Turn on the external auxiliary audio device and play music.
AUX
BT
MUTE
ALEXA
VOL VOL
Z
Z
Wireless Speaker
WPS AUX-IN
DC12V
BT AUX
MUTE
ALEXA
5
1
3
8
7
14
13
AUX
BT
MUTE
ALEXA
VOL VOL
Z
Z
1
23
4
5
6
7
8
9
10
11
12
2
4
6
WPS AUX-IN
DC12V
14
FUNCTION
Sleep function
Press to talk with Alexa.
1
Mic Button
2
3Mic mute Button
Sleep button
6
Volume Button Adjust volume level
4Mute Button
Press to mute Alexa
BT Button Connect to bluetooth device
5
Press to mute music
7ALEXA Button Connect to Alexa
8AUX Button Connect to AUX
9Light indicator Light indicator
10 WPS Button Connect to WiFi
11 DC-in Jack DC connect
12 AUX-in Jack Auxiliary audio singnal input
13
FF/FR Button
Play/pause Button BT music play/pause function.
14
Skip tr acks backward/f orward(BT).
Z
Z
SLEEP
Blueto oth mode
AUX
BT
MUTE
ALEXA
Alexa mo deAux mode
VOL VOL
Z
Z
LIGHT INDICATOR
AUX
BT
MUTE
ALEXA
VOL VOL
AUX
BT
MUTE
ALEXA
VOL VOL
AUX
BT
MUTE
ALEXA
VOL VOL
AUX
BT
MUTE
ALEXA
VOL VOL
AUX
BT
MUTE
ALEXA
VOL VOL
IDLE standby (White)
Talking( flash purple )
Notification (f lash wh ite+ pu rple )
MIC mute (Red)
AUX
BT
MUTE
ALEXA
VOL VOL
Listening (blue->yellow->white->purple )
Exception (100%Yellow)
Z
ZZ
ZZ
Z
Z
ZZ
Z
Z
Z
Thinking (flash blue->yellow->white->purple )
AUX
BT
MUTE
ALEXA
VOL VOL
Z
Z
Other function mo de
Feature List
Alexa Speaker LinkPlay Module
Far field 2 mic System
Hi-res Standard sample rate 96K for AUX
Wifi Audio Streaming Via the APP
Bluetooth function support A2Dp and AVRCP
Aux input by 3.5mm Jack ( Aux Cable not include )
Touch key function with backlight
Stereo Speaker System
Speaker Size 1 inch Tre, 2 inch Full Range
6W+6W+15W power output
Card Type remote Control
Power input by AC/DC Adaptor
Federal Communications Commission (FCC) Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
●Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications made to this device not expressly approved by Shenzhen
TOMTOP Technology Co., Ltd. may void the FCC authorization to operate this device.
Note: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s
authority to operate the equipment.
