User Manual



DW1

Door&WindowSensor



QUICKSTARTGUIDE

1. InserttheincludedlithiumbatteryCR2450,thenclosethecover.

2. DownloadandopentheKoogeekHomeappfromtheAppStore.

3. LoginorsignupforaKoogeekaccountorsimplytapSkip.

4. OpentheBluetoothonyouriOS9.0orabovedevice.Searchfor“Koogeek‐DW1‐XXXXXX”andpair.

XXXXXXarethelast6charactersofMAConyourDoor&WindowSensor.

5. Tap“+”onthetoprightcornerandfollowtheon‐screendirectionstocompletenetworksetup.

Note:Toaddmoredoor&windowsensors(orrepeattheDoor&WindowSensorsetupprocess),

tap“+”andyouwillseetheaccessorylist.Eachaccessoryhasanidentificationcode,e.g.

Koogeek‐DW1‐XXXXXX.Makesurethelast6charactersoftheidentificationcodeareconsistent

withthelast6charactersofMAConthebackofyourDoor&WindowSensor.Iftheaccessorylist

hasn’tbeenshowed,pleaseinsertthemetalpinintothepinholeofthesensorandholdfor10

secondstorestorethedevicetofactorysettings.

6. Whenprompted,scanthesetupcodeormanuallyenterthesetupcode,andthenfollowthestep

toaddthedevicetotheHomeandRoom.Pleasekeepthesetupcodeforfutureuse.

7. Youcanassignanametoyourdevice.Forexample,youcannameyourdevice“DoorSensor”.

8. SetupcustomizedscenestocontrolotherHomeKit‐enabledaccessorieswhenyouopenorclose

adoororwindow.Forexample,youcansetthe“Bedroom”sceneofturningonyourbedroom

lightwhenyourbedroomdoorisopened.

9. Fortroubleshootingvisitwww.koogeek.com



Note:

TheuseofaHomeKit‐enabledaccessoryneedthefollowpermission:

Settings>iCloud>iCloudDrive>TurnOn

Settings>iCloud>Keychain>Turnon

Settings>Privacy>HomeKit>KoogeekHome>TurnOn



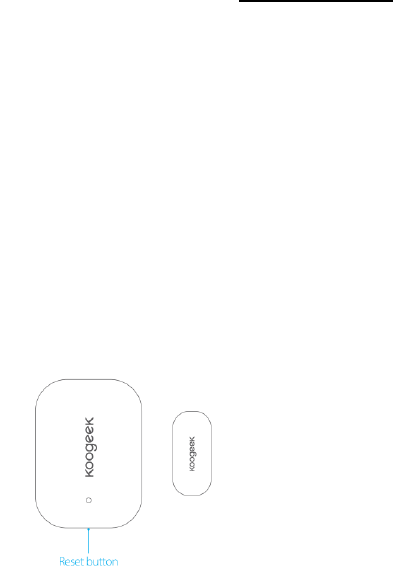

Door&WindowSensorOverview



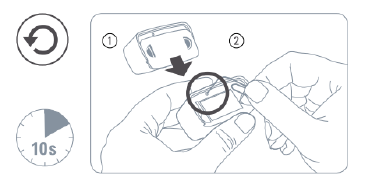

RestoreFactorySettings

Insertthemetalpinintothepinholeandholdfor10seconds.WhentheLEDflashesgreenonce,it

indicatesthatyouhaverestoredthedevicetofactorysettings.



Specification

Powersupply:3Vbuttoncell

Batterytype:LithiumbatteryCR2450

Wirelessconnection:BluetoothLowEnergy

Operatingtemperature:‐20℃~60℃

Color:White

Magnetdimensions:46*33*17.1mm/1.8*1.3*0.67in(L×W×H)

Sensordimensions:26*12*9.2mm/1.1*0.4*0.3in(L×W×H)



Tips:

1. Mountthesensoronthedoor/windowframeandthemagnetonthedoor/window.Ifthe

sensorisusedondoubledoors,mountthesensorontheleast‐useddoorandmagnetonthe

most‐useddoor.

2. Avoidmountingsensorinareaswheretheywillbeexposedtomoisture.

3. Avoidmountingsensorinareaswithalargequantityofmetalorelectricalwires.

4. Donotcleanwithliquid.

5. Theproducthasa1‐yearlimitedwarranty.



Legal



UseofWorkswithAppleHomeKitlogomeans…..



ControllingthisHomeKit‐enabledaccessory……



FCCWarning



ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwo

conditions:

(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterference

received,includinginterferencethatmaycauseundesiredoperation.



NOTE1:Anychangesormodificationstothisunitnotexpresslyapprovedbythepartyresponsiblefor

compliancecouldvoidtheuser'sauthoritytooperatetheequipment.
