WIFI Video module GX_W60_Specification
Tel：86-755-26066032 Fax:26002892 Web site：www.netopsun.com 1 / 8

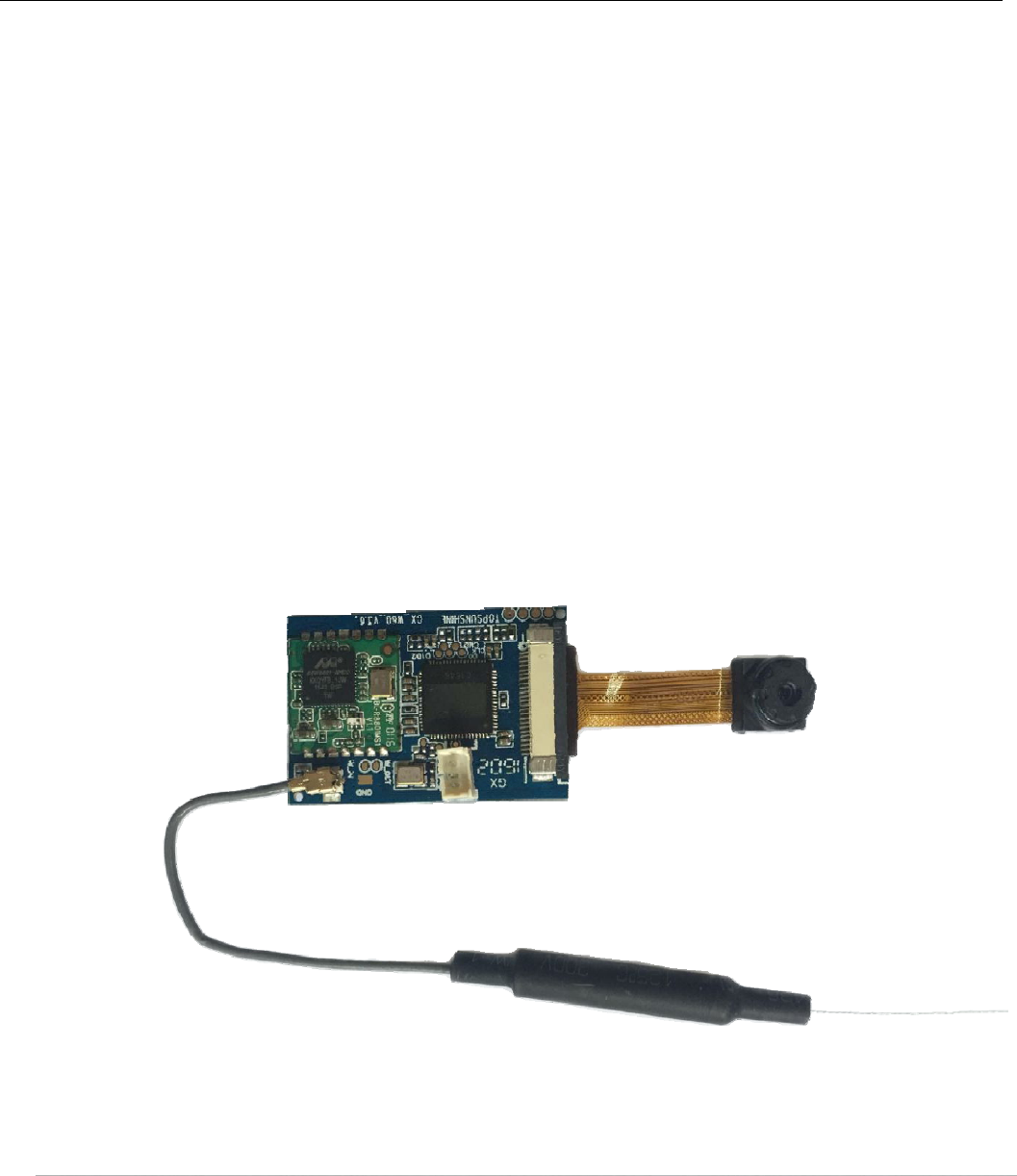

GX_W60_V3.5 WIFI Video module
Mnaual
W60
WIFI Video module GX_W60_Specification
Tel：86-755-26066032 Fax:26002892 Web site：www.netopsun.com 2 / 8
1 summary
1.1 overview of the whole
W60_WIFI module is the latest introduction of crown Asahi Technology Co., Ltd.
is a wireless video transmission and design of products. This module uses the most
popular video compression technology H.264, the technology has a high data compression
ratio, so that it can transmit the best video quality even in the least broadband
resources. So that the distance to the video transmission will be further.
On the basis of the transmission video, the output control signal and the audio function
can be extended simultaneously according to the requirement.
1）Use as WIFI mini camera
This module uses the advanced image compression technology to produce high
compression ratio of the video data stream, through the WIFI point to point,
Send to any display terminal (Android/iphone and other smart phones).
Smart phone needs to be installed in advance of the company's development of APP,
in order to complete the video display, storage, send instructions, such as the
application of the function of processing.
2）Application as WIFI to UART module
Support for serial transmission, support P2P communication, support Internet
remote control of the Internet, is very suitable for the field of smart home,
Users can remotely control all electrical appliances at home with a mobile phone
or a computer.
3）Use as IP camera
According to the customer request to add video monitoring function, speech function,
users to go out time can also be monitoring mobile phone home screen, voice intercom.
4）Can also be customized according to the actual needs of customers the corresponding
remote control products。
1.2 application area
Toy field video car, aircraft, flying saucer aerial etc.
Portable product area
Intelligent home field
Industrial sensor field
Point of sale terminal area
Logistics and freight management
Home security and automation
Medical field, such as patient monitoring, medical diagnosis
Metering (parking meters, measuring instruments, meters, etc.)
2 Module operation instructions
A) the module button on the antenna, according to the following requirements of the
power supply, power up, this time the red LED often bright, about 3 seconds to
WIFI Video module GX_W60_Specification
Tel：86-755-26066032 Fax:26002892 Web site：www.netopsun.com 3 / 8
wait about seconds to complete the initial。
B) Iphone/Android mobile phone WIFI function to open, search to the corresponding
WIFI video module name (name can be changed according to customer production
requirements), click the name of the WIFI and select the connection.
C) open application software (need to install the company's specific application
software development, application software interface can be customized according
to customer's product requirements), click on the interface to see the scene。
D) The antenna is dipole antenna, and is permanent connection antenna. the antenna
is 3.0dBi,This antenna is permanently paired with a product to sell. ( Only antennas
of the same type and with equal or less gains as shown below may be used with the
The WiFi video module. Other types of antennas and/or higher gain antennas may
require additional uthorization for operation)
3 main parameter
function Specifications
camera 30 Million pixels
Video coding format H.264
Video sampling rate Reach 25~30 frames per second
Image resolution VGA（640*480）
frequency range 2.412－2.462 GHz
WiFi 802.11 b/g/n
Transmission bit rate 135/54/48/36/24/18/12/9/6/1M（自适应）
throughput 90Mbps
Transmit power 135M: 15dBM
54M: 15dBM
11M: 19dBM
Receiving sensitivity 54/135M:‐72dBm@10%PER
11M: ‐85dBm@8%PER
6M: ‐88dBm@10%PER
1M: ‐90dBm@8%PER
Security standard WEP/WPA-PSK/WPA2-PSK.
transmission distance 30~150 meter
Antenna selection dipole antenna
PCB 33mm*22mm*0.8mm
power supply 3~5V
power waste 800mW左右
working temperature -10°C ~ +70°C
WIFI Video module GX_W60_Specification
Tel：86-755-26066032 Fax:26002892 Web site：www.netopsun.com 4 / 8
4. RF parameters
TX Power
(dBm)
Mode Rate(Mbps) CH1 CH7 CH13
11b
1 18.67 18.62 18.63
2 18.58 18.61 18.57
5.5 17.49 17.53 17.58
11 17.46 17.52 17.48
11g
6 16.25 16.1 16.3
9 16.39 16.52 16.42
12 15.26 15.24 15.38
18 14.47 14.56 14.54
24 13.34 13.46 13.31
36 12.2 12.45 12.05
48 12.46 12.34 12.56
54 12.64 12.16 12.23
TX Power
(dBm)
Mode Rate(Mbps) CH1 CH7 CH13
11n
HT20
MCS0 16.45 16.6 16.25
MCS1 15.35 15.64 15.51
MCS2 15.32 15.43 15.28
MCS3 15.55 15.3 15.5
MCS4 15.34 15.26 15.18
MCS5 14.35 14.55 14.45
MCS6 14.49 14.37 14.56
MCS7 14.6 14.8 14.65
Mode Rate(Mbps) CH3 CH7 CH11
11n
HT40
MCS0 15.2 15.05 15.75
MCS1 15.16 15.24 15.31
MCS2 15.54 15.37 15.17
MCS3 15.45 15.3 15.64
MCS4 15.41 15.28 15.42
MCS5 14.35 14.45 14.4
MCS6 14.25 14.36 14.47
MCS7 14.35 14.75 14.55
WIFI Video module GX_W60_Specification
Tel：86-755-26066032 Fax:26002892 Web site：www.netopsun.com 5 / 8
TX EVM
(dB)
Mode Rate(Mbps) CH1 CH7 CH13
11b
1 ‐38.5 ‐39.3 ‐38.8
2 ‐39.0 ‐39.4 ‐38.4
5.5 ‐39.3 ‐38.2 ‐39
11 ‐38.3 ‐39.6 ‐39.8
11g
6 ‐32.82 ‐32.2 ‐33.51
9 ‐32.71 ‐32.96 ‐32.58
12 ‐33.12 ‐32.82 ‐32.26
18 ‐32.4 ‐33.41 ‐33.37
24 ‐33.22 ‐33.14 ‐32.54
36 ‐33.91 ‐32.82 ‐32.4
48 ‐32.64 ‐32.63 ‐32.95
54 ‐32.02 ‐33.52 ‐32.55
TX EVM
(dB)
Mode Rate(Mbps) CH1 CH7 CH13
11n
HT20
MCS0 ‐25.55 ‐25.87 ‐25.45
MCS1 ‐26.84 ‐27.42 ‐26.53
MCS2 ‐27.92 ‐27.64 ‐28.02
MCS3 ‐28.85 ‐29.05 ‐28.95
MCS4 ‐29.34 ‐29.63 ‐29.82
MCS5 ‐29.85 ‐30.2 ‐29.9
MCS6 ‐29.71 ‐29.64 ‐29.73
MCS7 ‐30.15 ‐30.26 ‐30.42
Mode Rate(Mbps) CH3 CH7 CH11
11n
HT40
MCS0 ‐25.15 ‐25.35 ‐26.3
MCS1 ‐26.53 ‐26.84 ‐26.81
MCS2 ‐27.54 ‐28.32 ‐28.22
MCS3 ‐29.65 ‐29.75 ‐28.55
MCS4 ‐29.14 ‐29.64 ‐29.34
MCS5 ‐30.63 ‐30.05 ‐30.24
MCS6 ‐30.24 ‐30.33 ‐30.23
MCS7 ‐30.37 ‐31.21 ‐31.42
WIFI Video module GX_W60_Specification
Tel：86-755-26066032 Fax:26002892 Web site：www.netopsun.com 6 / 8
RX Sensitivity
(dBm)
Mode Rate(Mbps) CH1 CH7 CH13
11b
1 ‐94 ‐93 ‐93
2 ‐93 ‐93 ‐93
5.5 ‐91 ‐91 ‐91
11 ‐88 ‐88 ‐88
11g
6 ‐88 ‐88 ‐88
9 ‐87 ‐87 ‐87
12 ‐86 ‐86 ‐86
18 ‐85 ‐85 ‐85
24 ‐83 ‐83 ‐83
36 ‐80 ‐80 ‐80
48 ‐76 ‐76 ‐76
54 ‐72 ‐72 ‐72
RX Sensitivity
(dBm)
Mode Rate(Mbps) CH1 CH7 CH13
11n
HT20
MCS0 ‐88 ‐88 ‐88
MCS1 ‐86 ‐86 ‐86
MCS2 ‐84 ‐84 ‐84
MCS3 ‐82 ‐82 ‐82
MCS4 ‐77 ‐77 ‐77
MCS5 ‐73 ‐73 ‐73
MCS6 ‐72 ‐71 ‐71
MCS7 ‐71 ‐70 ‐70
Mode Rate(Mbps) CH3 CH7 CH11
11n
HT40
MCS0 ‐86 ‐86 ‐86
MCS1 ‐84 ‐84 ‐84
MCS2 ‐82 ‐82 ‐82
MCS3 ‐78 ‐78 ‐78
MCS4 ‐75 ‐75 ‐75
MCS5 ‐70 ‐70 ‐70
MCS6 ‐69 ‐69 ‐69
MCS7 ‐67 ‐67 ‐67
WIFI Video module GX_W60_Specification
Tel：86-755-26066032 Fax:26002892 Web site：www.netopsun.com 7 / 8

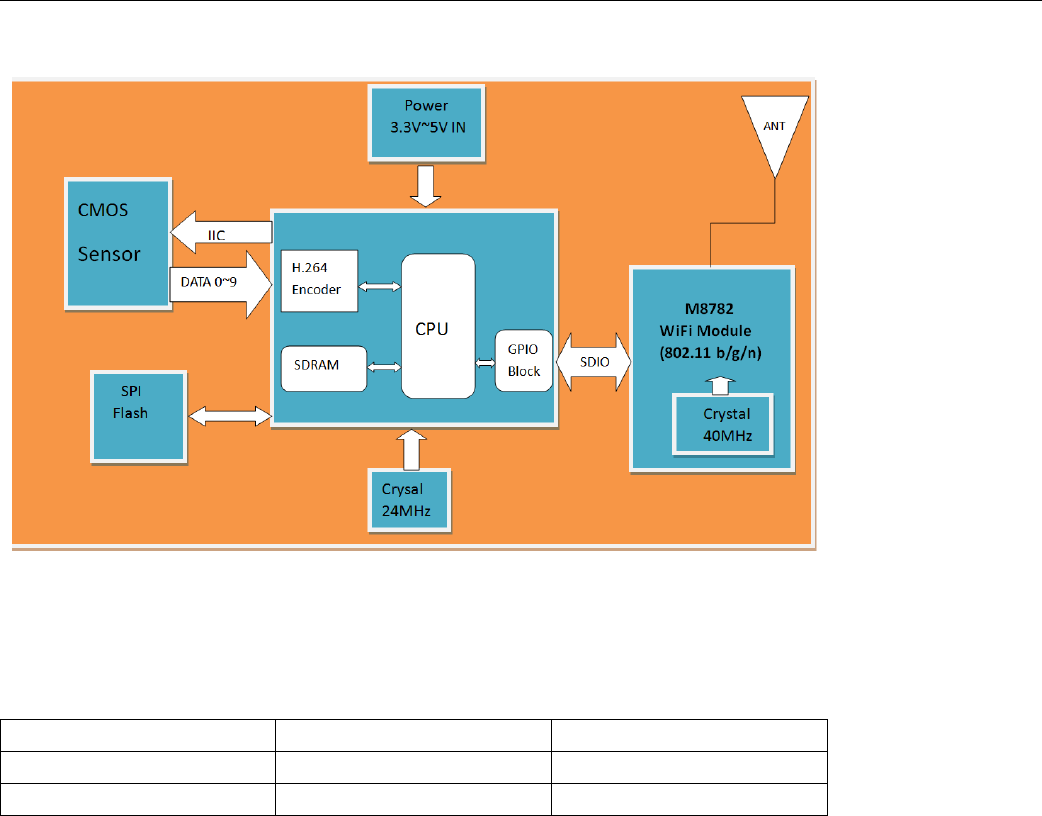

5．W60 Block system diagram
6．Limit characteristic
Rating Min Max
Storage temperature -50℃ +125℃
Power supply voltage -0.1V 5V
FCC Caution:
Any changes or modifications not expressly
approved by the party responsible for compliance could void the user's
authority to operate this equipment.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction
with any other antenna or transmitter.
15.105 Information to the user.
(b) For a Class B digital device or peripheral, the instructions furnished the
user shall include the following or similar statement, placed in a prominent
location in the text of the manual:
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
WIFI Video module GX_W60_Specification
Tel：86-755-26066032 Fax:26002892 Web site：www.netopsun.com 8 / 8
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncont
rolled environment. This equipment should be installed and operated with minimum
distance 20cm between the radiator and your body.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
The availability of some specific channels and/or operational frequency bands
are country dependent and are firmware programmed at the factory to match
the intended destination.
The firmware setting is not accessible by the end user.
The final end product must be labelled in a visible area with the following:
“Contains Transmitter Module 2AFOSWT8266”
In the event that these conditions can not be met (for example certain laptop configurations
or co-location with another transmitter), then the FCC authorization is no longer considered
valid and the FCC ID can not be used on the final product. In these circumstances, the OEM
integrator will be responsible for re-evaluating the end product (including the transmitter) and
obtaining a separate FCC authorization
