TOPPAN EDGE TR33MUE013 NFC Reader Module (FFC Type) User Manual

Toppan Forms Co., LTD NFC Reader Module (FFC Type)

User Manual

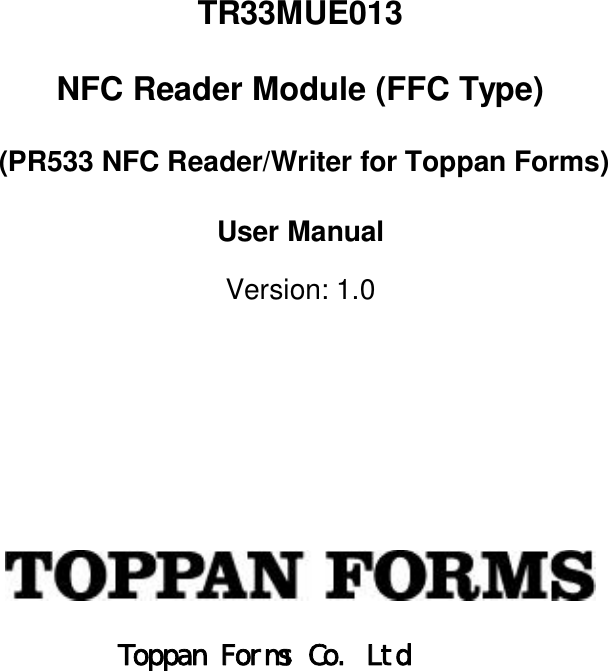

TR33MUE013NFC Reader Module (FFC Type) (PR533 NFC Reader/Writer for Toppan Forms)User ManualVersion: 1.0Toppan Forms Co. Ltd

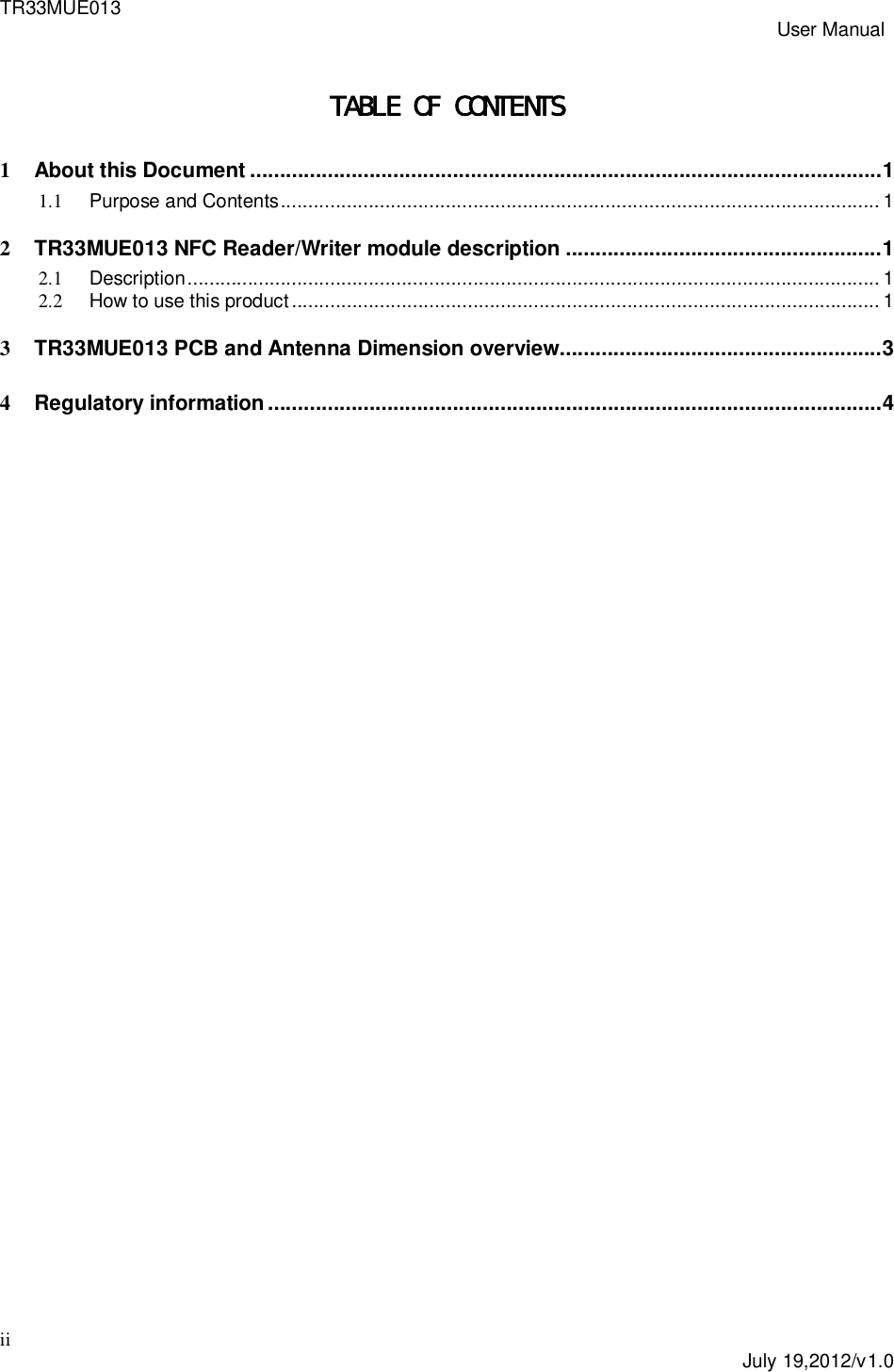

TR33MUE013 User Manualii July 19,2012/v1.0TABLE OF CONTENTS1About this Document .......................................................................................................... 11.1 Purpose and Contents ............................................................................................................. 12TR33MUE013 NFC Reader/Writer module description ..................................................... 12.1 Description .............................................................................................................................. 12.2 How to use this product ........................................................................................................... 13TR33MUE013 PCB and Antenna Dimension overview ...................................................... 34Regulatory information ....................................................................................................... 4

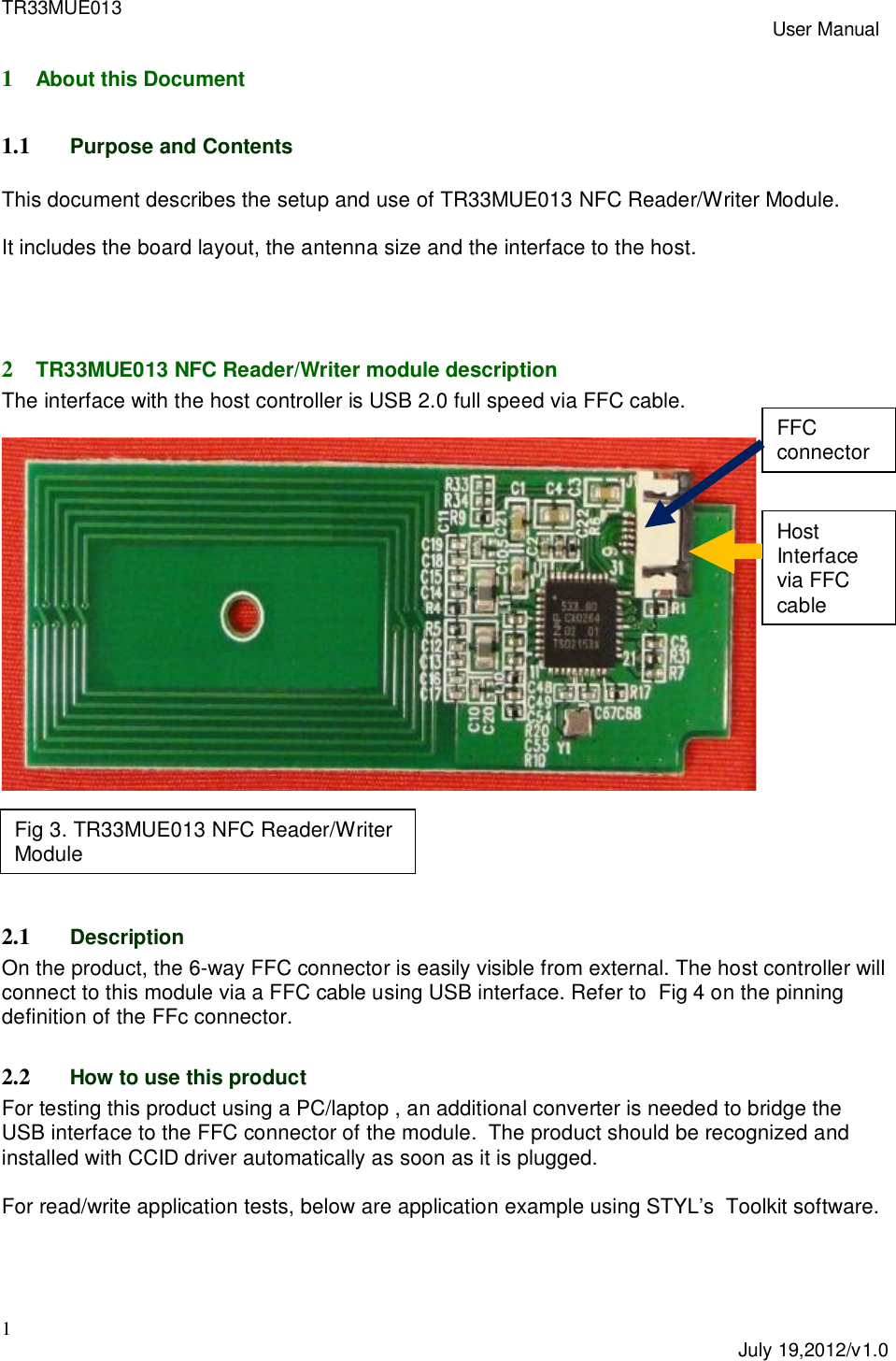

TR33MUE013 User Manual1July 19,2012/v1.01About this Document1.1 Purpose and ContentsThis document describes the setup and use of TR33MUE013 NFC Reader/Writer Module.It includes the board layout, the antenna size and the interface to the host.2TR33MUE013 NFC Reader/Writer module descriptionThe interface with the host controller is USB 2.0 full speed via FFC cable.2.1 DescriptionOn the product, the 6-way FFC connector is easily visible from external. The host controller willconnect to this module via a FFC cable using USB interface. Refer to Fig 4 on the pinningdefinition of the FFc connector.2.2 How to use this productFor testing this product using a PC/laptop , an additional converter is needed to bridge theUSB interface to the FFC connector of the module. The product should be recognized andinstalled with CCID driver automatically as soon as it is plugged.For read/write application tests, below are application example using STYL’s Toolkit software.Fig 3. TR33MUE013 NFC Reader/WriterModuleFFCconnectorHostInterfacevia FFCcable

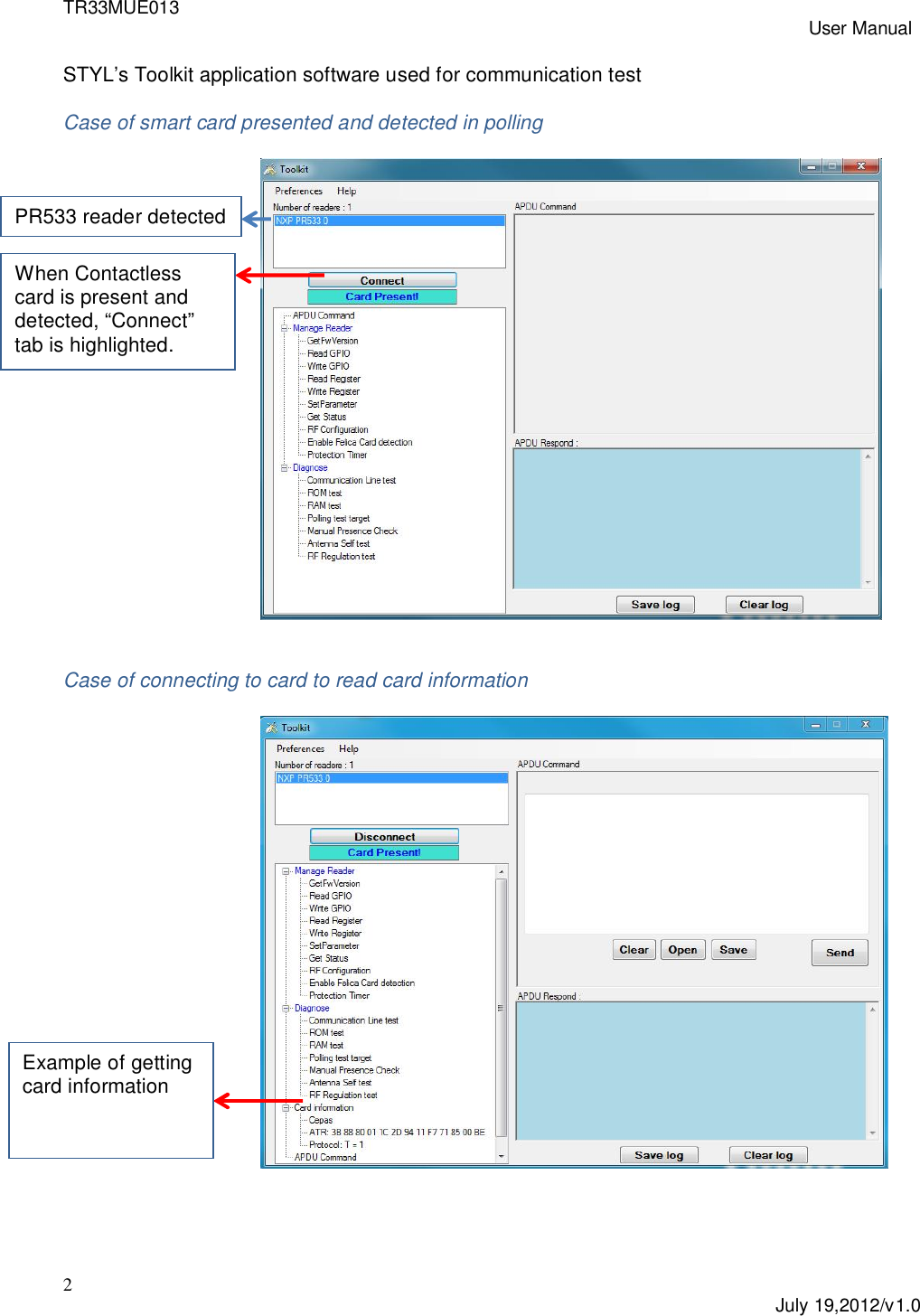

TR33MUE013 User Manual2July 19,2012/v1.0STYL’s Toolkit application software used for communication testCase of smart card presented and detected in pollingCase of connecting to card to read card informationWhen Contactlesscard is present anddetected, “Connect”tab is highlighted.PR533 reader detectedExample of gettingcard information

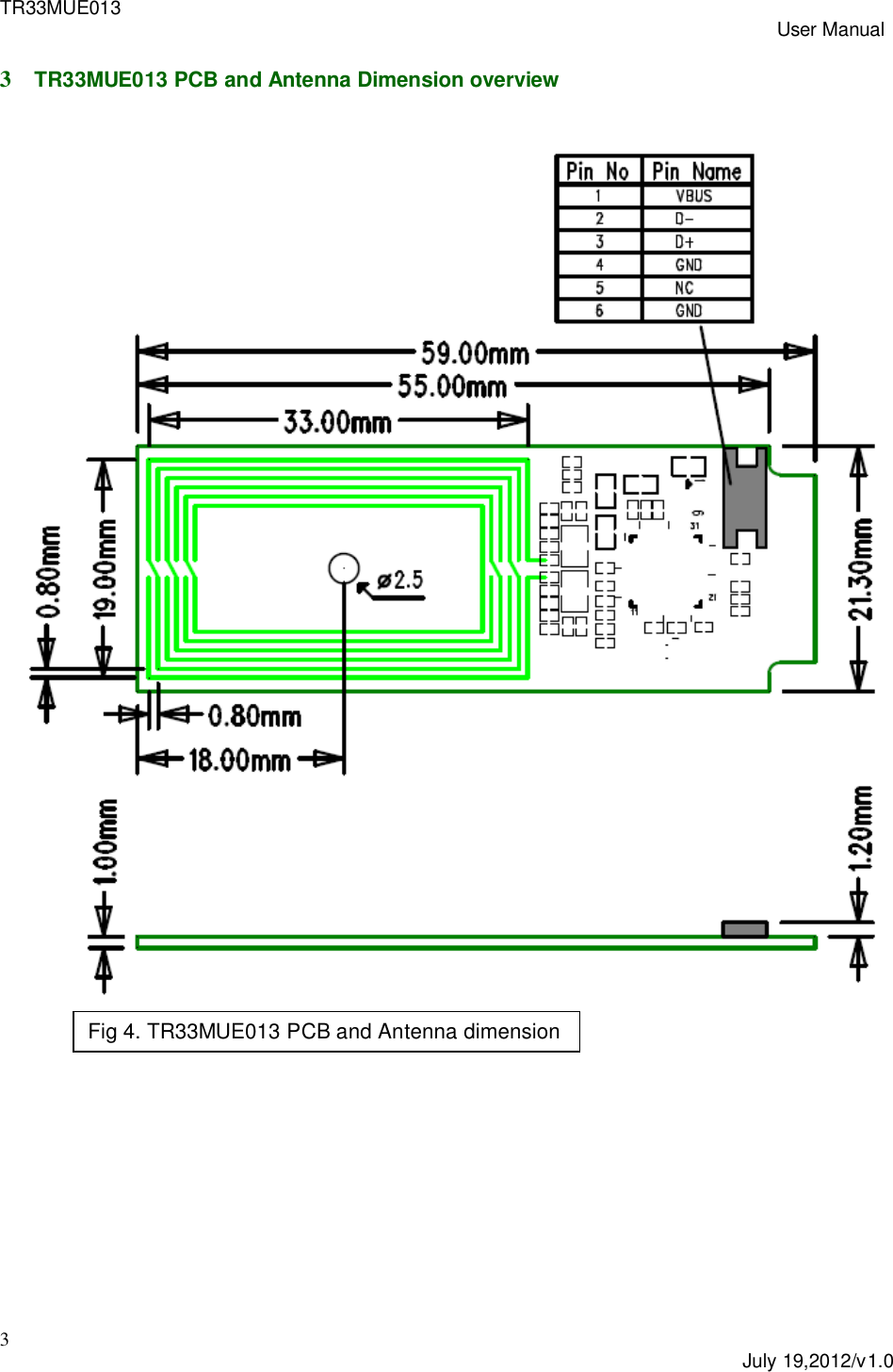

TR33MUE013 User Manual3July 19,2012/v1.03TR33MUE013 PCB and Antenna Dimension overviewFig 4. TR33MUE013 PCB and Antenna dimension

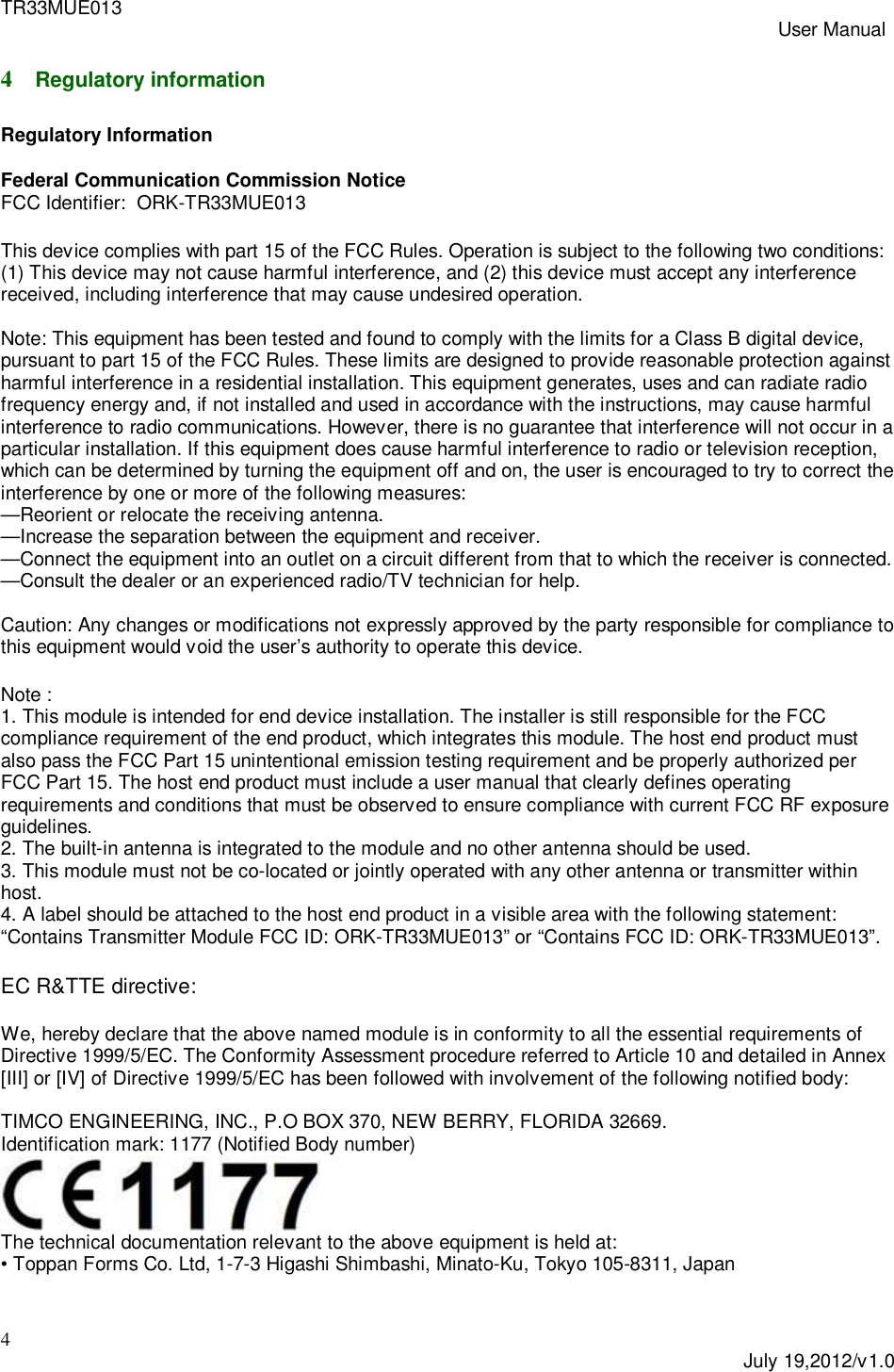

TR33MUE013 User Manual4July 19,2012/v1.04Regulatory informationRegulatory InformationFederal Communication Commission NoticeFCC Identifier: ORK-TR33MUE013This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interferencereceived, including interference that may cause undesired operation.Note: This equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiate radiofrequency energy and, if not installed and used in accordance with the instructions, may cause harmfulinterference to radio communications. However, there is no guarantee that interference will not occur in aparticular installation. If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user is encouraged to try to correct theinterference by one or more of the following measures:—Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver.—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.—Consult the dealer or an experienced radio/TV technician for help.Caution: Any changes or modifications not expressly approved by the party responsible for compliance tothis equipment would void the user’s authority to operate this device.Note :1. This module is intended for end device installation. The installer is still responsible for the FCCcompliance requirement of the end product, which integrates this module. The host end product mustalso pass the FCC Part 15 unintentional emission testing requirement and be properly authorized perFCC Part 15. The host end product must include a user manual that clearly defines operatingrequirements and conditions that must be observed to ensure compliance with current FCC RF exposureguidelines.2. The built-in antenna is integrated to the module and no other antenna should be used.3. This module must not be co-located or jointly operated with any other antenna or transmitter withinhost.4. A label should be attached to the host end product in a visible area with the following statement:“Contains Transmitter Module FCC ID: ORK-TR33MUE013” or “Contains FCC ID: ORK-TR33MUE013”.EC R&TTE directive:We, hereby declare that the above named module is in conformity to all the essential requirements ofDirective 1999/5/EC. The Conformity Assessment procedure referred to Article 10 and detailed in Annex[III] or [IV] of Directive 1999/5/EC has been followed with involvement of the following notified body:TIMCO ENGINEERING, INC., P.O BOX 370, NEW BERRY, FLORIDA 32669.Identification mark: 1177 (Notified Body number)The technical documentation relevant to the above equipment is held at:• Toppan Forms Co. Ltd, 1-7-3 Higashi Shimbashi, Minato-Ku, Tokyo 105-8311, Japan
