Contents
Mini PCI Card
Bluetooth™
SOFTWARE SUITE
BLUETOOTH MINI PCI CARD
INSTALLATION GUIDE
Rev. 01-06-12
Contents
About this guide, 3
System requirements, 3
Software installation, 4
Hardware installation, 4
Uninstalling software, 6
Operation, 6
Diagnostics, 7
Technical specifications, 7
Regulatory statements, 8
NOTE:
USERS ARE NOT PERMITTED TO MAKE CHANGES
OR MODIFY THE SYSTEM IN ANY WAY
About this guide
This Installation Guide will show you
how to install the Bluetooth™1 Mini
PCI Card and Software Suite.
In addition, users who have a
previous version of the Bluetooth
Software Suite will find information on
how to uninstall the old version before
installing the new one.
Note: We recommend that you install
the software before the hardware.
This does not apply to Windows NT,
where you must install the hardware
first; refer to the section on hardware
installation.
Note: When you have completed the
installation, you must restart your
computer before you can use the
program.
The information in this document is
furnished for information only, is
subject to change without notice, may
contain errors or inaccuracies, and
represents no commitment
whatsoever.
Additional documentation
In addition to this Installation Guide,
the Bluetooth Software Suite CD-
ROM includes the following
documents:
• Bluetooth Introduction providing a
general introduction to the
Bluetooth wireless technology
• User’s Manual covering all aspects
of operating the Bluetooth Software
Suite
1 The Bluetooth trademarks are owned by
their proprietor and used under license.
Adobe Acrobat Reader
The documents accompanying the
Bluetooth Software Suite are provided
in PDF format. To view these
documents, you will need Adobe
Acrobat Reader. If that program is not
already installed on your computer,
you can install it from the CD-ROM:
1. Click Start.
2. Click Run.
3. Type D:\Acrobat\ar405eng.exe
(substitute the appropriate letter
of your CD-ROM drive for D).
4. Follow the onscreen prompts to
complete the installation of Adobe
Acrobat Reader.
When Adobe Acrobat Reader is
installed on your computer, open a
PDF file by double-clicking on its icon.
System
Requirements
• One of the following operating
systems:
– Windows 95 OSR2
– Windows 98
– Windows Me
– Windows NT 4.0 Service Pack 5
or later
– Windows 2000
• One available Mini PCI slot
Note: The Mini PCI Card is designed
and approved by the relevant
authorities to be used exclusively with
approved antenna types (built into
laptop computer or external). Any
changes or modifications to this
equipment not expressly approved by
the manufacturer may void the
authorization to operate this
equipment.
4
Software
installation
Note: We recommend that you install
the software before the hardware.
This does not apply to Windows NT,
where you must install the hardware
first; refer to the section on hardware
installation.
Note: If a previous version of the
Bluetooth Software Suite is installed
on your computer, this must be
uninstalled before the installation of
the new version can take place. The
program will discover any previous
versions and prompt you; refer to the
section on uninstalling software.
To install the Bluetooth Software
Suite on your computer, perform the
following steps. (If Autorun is enabled
on your computer, in some cases
steps 3-5 may be skipped.)
1. Quit all programs.
2. Insert the Bluetooth Software Suite
CD-ROM in your CD-ROM drive.
3. Click Start.
4. Click Run.
5. Type D:\setup.exe (substitute the
appropriate letter of your CD-ROM
drive for D).
6. Follow the onscreen prompts to
complete the installation of the
software.
Adding new folders
During the installation, the program
will ask where to install the Bluetooth
Software Suite files. A destination
folder is suggested that should suit
most users: C:\...\... Bluetooth
Software Suite ... Alternatively, you
can browse for any destination you
prefer.
Furthermore, the program will ask
where to add the Bluetooth Software
Suite icons. A program folder is
suggested that should suit most
users: C:\...\... Bluetooth Software
Suite ... Alternatively, you can type a
new folder name in Program
Folders, or select one from Existing
Folders.
Do not remove CD-ROM
Do not remove the Bluetooth
Software Suite CD-ROM from the
computer until you have installed the
hardware.
Hardware
installation
Note: We recommend that you install
the software before the hardware.
This does not apply to Windows NT,
where you must install the hardware
first.
Note: During the installation, the
Bluetooth Software Suite CD-ROM
must be present in your CD-ROM
drive.
5
To install the hardware, first turn off
your computer. Then perform the
following steps:
1. Remove the Mini PCI door at the
back of your laptop computer.
On some computers, you may
need an appropriate screwdriver
for this.

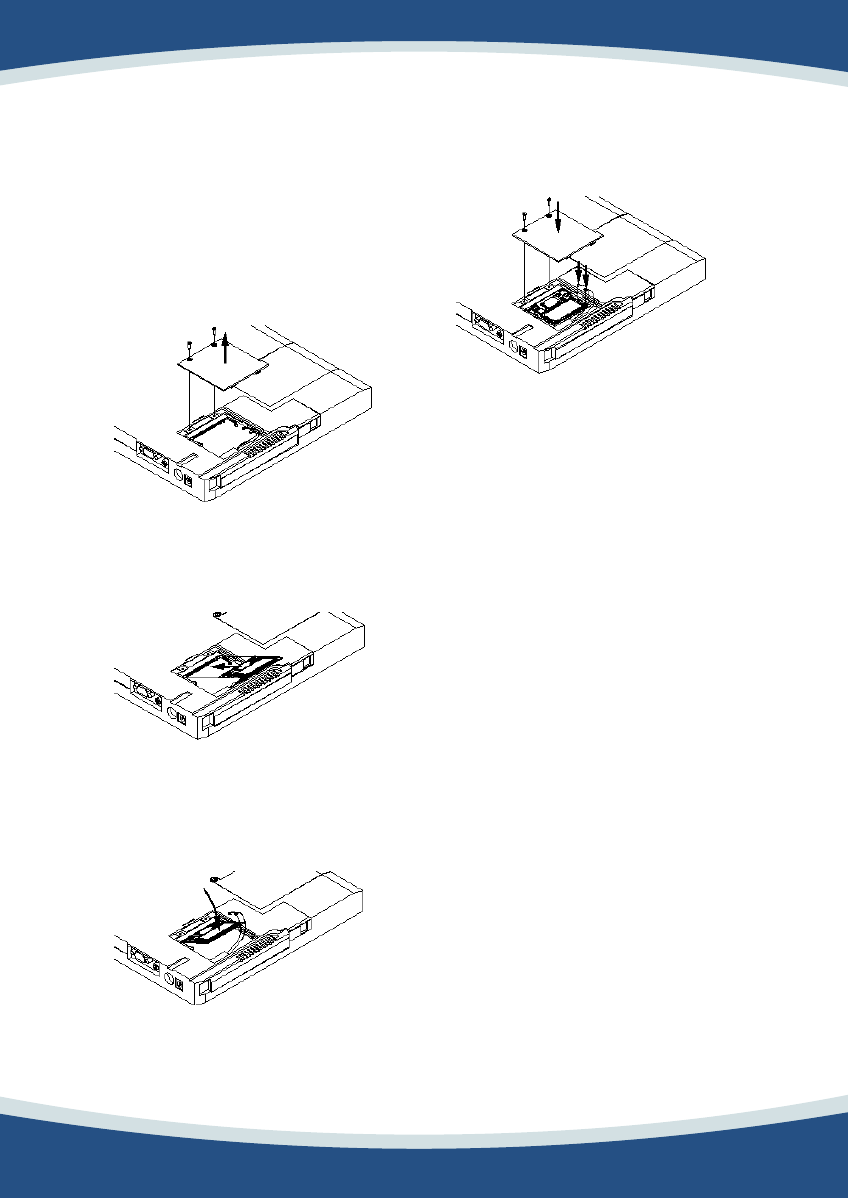

2. Insert the Bluetooth Mini PCI Card
in the slot. Make sure to position
the card as shown in the drawing
below.
3. Make sure the two antenna coax
connectors are not caught under
the Bluetooth Mini PCI Card. Then
press down the Bluetooth Mini PCI
Card until it clicks into place.
4. Connect the two antenna coax
connectors to the Mini PCI Card,
and fasten the Mini PCI door again.
5. Turn on your computer, and follow
the onscreen instructions to
complete the installation of the
hardware.
Driver installation
Note: This section does not apply to
Windows NT, where driver
installation takes place automatically.
The first time your computer
discovers the Bluetooth Mini PCI
card, Windows indicates that it needs
to find drivers for this new hardware.
A driver is a software program
needed for a piece of hardware to
work.
When Windows asks you to specify
the location of the drivers, type the
following (substitute the appropriate
letter of your CD-ROM drive for D):
• Windows 95, 98, and Me users:
D:\drivers\win9x
• Windows 2000 users:
D:\drivers\w2k
Found New Hardware Wizard
During the installation, the Found
New Hardware Wizard will appear.
The following drivers are found:
• Bluetooth Mini PCI Card
• Bluetooth Ethernet Adapter
6
Note: On Windows 2000, if told
Digital Signature Not Found
and asked whether you want to
continue, click Yes.
In addition on Windows 2000 the
following drivers are found:
• Bluetooth RFCOMM Protocol
• Bluetooth SDP Protocol
Uninstalling
software
If a previous version of the Bluetooth
Software Suite is installed on your
computer, this must be uninstalled
before the installation of the new
program can take place.
During the installation of the
Bluetooth Software Suite (as
described in the section on software
installation), the installation program
will discover any old versions of the
Bluetooth Software Suite on your
computer. The program will then ask
if you want to uninstall previous
versions automatically or manually.
Automatically uninstall
The program will suggest that you
have the old version of the Bluetooth
Software Suite uninstalled
automatically. To do so, follow the
onscreen instructions.
Note: When the old version of the
Bluetooth Software Suite has been
uninstalled automatically, the
installation program will ask if you
want to restart your computer.
Whether you answer yes or no, the
program will now begin installing the
new version of the Bluetooth Software
Suite.
Manually uninstall
Some users may prefer to uninstall
previous versions of the Bluetooth
Software Suite manually. To do so,
when the program asks, select the
manual procedure. Then, to uninstall:
1. Quit all programs.
2. Click Start.
3. Point to Programs.
4. Point to ... Bluetooth Software
Suite v...
5. Click Uninstall.
6. Click ... Bluetooth Software
Suite v...
7. Follow the onscreen instructions
to complete uninstalling the
program.
When you have uninstalled the
previous version of the Bluetooth
Software Suite, install the new
version as described in the section on
software installation.
Operation
When you have installed the
Bluetooth Software Suite and the
Bluetooth Mini PCI Card, you must
restart your computer before you can
use the program.
On finishing the installation, you can
remove the Bluetooth Software Suite
CD-ROM from your computer.
However, when operating the
Bluetooth Software Suite, the
Bluetooth Mini PCI card must always
be present in your computer. If the
card is removed, the Bluetooth radio
cannot communicate with other
Bluetooth devices.
7
For detailed information on how to
operate the Bluetooth Software Suite,
please refer to the User’s Manual or
online help accompanying the
program.
Diagnostics
After the installation, it is
recommendable to check that the
hardware has been properly installed.
This is done from the Diagnostics
dialog box, accessible from the
Bluetooth Configuration Tool
application. For detailed instructions,
refer to the section Diagnostics in
the Bluetooth Software Suite User’s
Manual or online help.
Technical
specifications
• Card type form factor IIIA
• Meets Mini PCI specification 1.0
• Power consumption:
Standby less than 40mA
Active less than 150mA
• Class II (0dBm/1mW) Bluetooth
radio designed in accordance
with Bluetooth specification 1.1
• Two antenna connectors
supporting diversity
• Working temperature range:
Recommended: 0° to +65° C
• Storage temperature –30 to
+85° C
• Condensation: Extreme
temperature changes may cause
condensation on the surface of
the Mini PCI Card. If so, the card
may not work properly until
completely dry again.
• Software is Bluetooth
specification 1.1 compliant
8
Regulatory
statements
General
This product complies with any
mandatory product specification in
any country where the product is sold.
In addition, the product complies with
the following.
European Union (EU) and
EFTA
This equipment complies with the
R&TTE directive 1999/5/EC and has
been provided with the CE mark
accordingly.
United States of America
and Canada
Tested to comply with FCC Standards
FOR HOME OR OFFICE USE. See
FCC 47CFR part 15.19(b)(2)
This device complies with part 15 of
the FCC rules and with RSS-210 /
RSS-139 of the Industry Canada.
Operation is subject to the following
two conditions: (1) This device may
not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation.
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to
part 15 of the FCC Rules. These
limits are designed to provide
reasonable protection against harmful
interference in a residential
installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the
instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a
particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be determined
by turning the equipment off and on,
the user is encouraged to try to
correct the interference by one or
more of the following measures:
• Reorient or relocate the
receiving antenna
• Increase the separation between
the equipment and receiver
• Connect the equipment into an
outlet on a circuit different from
that to which the receiver is
connected
• Consult the dealer or an
experienced radio/TV technician
for help
Note that any changes or
modifications to this equipment not
expressly approved by the
manufacturer may void the FCC
authorization to operate this
equipment.
Brazil
Este equipamento opera em caráter
secundário, isto é, não tem direito a
proteção contra interferência
prejudicial, mesmo de estações do
mesmo tipo, e não pode causar
interferência a sistemas operando
em caráter primário.
9
Canada
Industry Canada Notice
To prevent radio interference to the
licensed service, this device is
intended to be operated indoors and
away from windows to provide
maximum shielding. Equipment that is
installed outdoors is subject to
licensing.
<In French>
Pour empêcher un brouillage
radioélectrique au service faisant
l'objet d'une licence, cet appareil doit
être utilisé à l'interieur et loin des
fenêtres afin de founir un écran de
blindage maximal. Au cas aù un
installation en plain air, le materiel
doit faire l'objet d'une licence.
Singapore
This product complies with the
standard Infocomm Development
Authority of Singapore (IDA) TS SSS
amended by the Guidance notes on
Bluetooth Type Approval Framework
and has been approved by the IDA
under the Type Approval Certificate
(TAC) number: YYYYY-xxxx-200x
(OEM customer to insert correct
TAC number!)
The supplier of this equipment is
responsible that the equipment can
be used as described in the
accompanying documentation.
Furthermore, the supplier is
responsible for providing proper
installation and after-sales maintance
of the equipment to meet the user's
needs.
Under no circumstances is the IDA
liable for the use, installation, or after-
sales maintenance of the equipment.

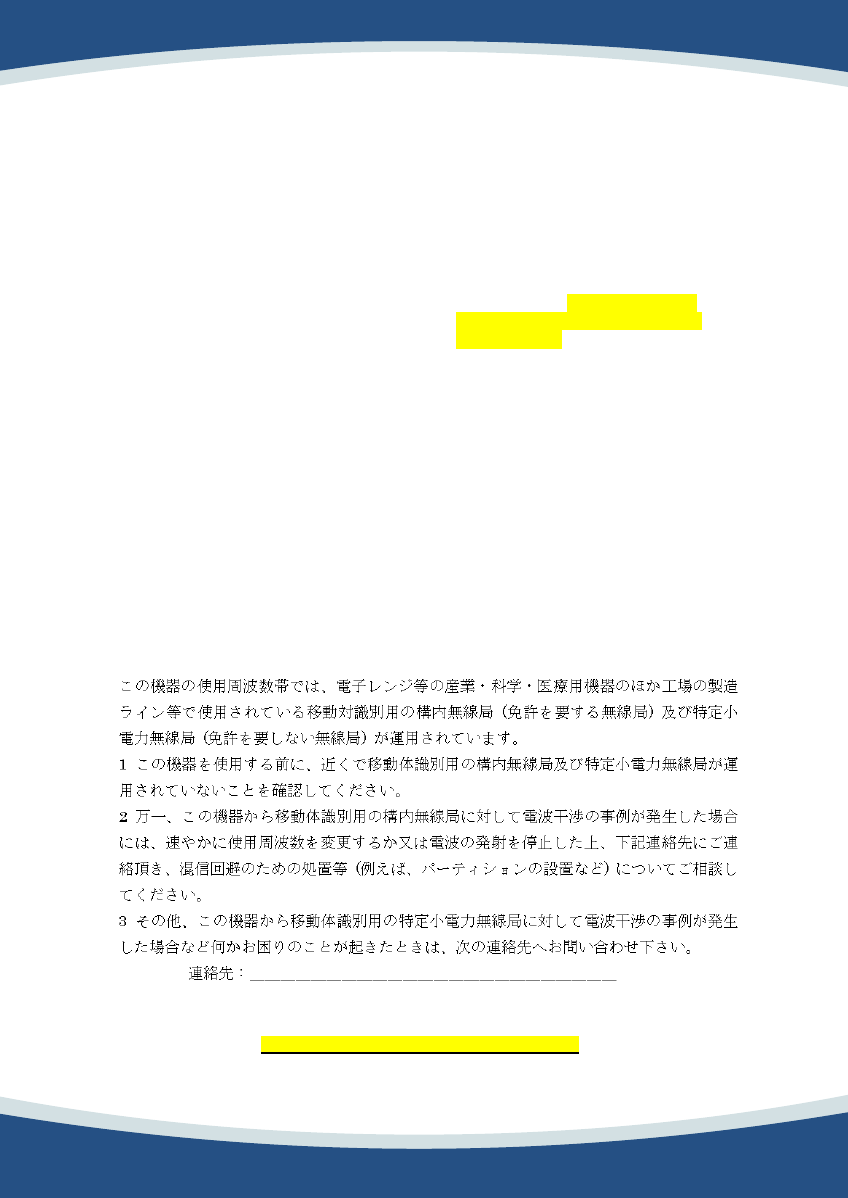

Japan
Company phone number in Japan:
(OEM customer to insert phone number!)
10
Taiwan
