TOSHIBA

DVD PLAYER

OWNER'S MANUAL

MODEL : SD-2715

VIDEO DIGITAL AUDIO

3DSurround

Sound

Before connecting, operating or adjusting this product,

please read this instruction booklet carefully and completely.

_2001 Toshiba Corporation

PAGE2 I INTRODUCTION

V.IIVj_ _]ii[._]_ iVll_ _iii RISQUE DE CHOC ELECTRIQUENEpAs OUVRIR

WARNING:TOREDUCETHERISKOFELECTRIC

SHOCK,DONOTREMOVECOVER(OR BACK).

NOUSER SERVICEABLEPARTSINSIDE.REFER

SERVICINGTOQUALIFIEDSERVICEPERSONNEL.

The lightning flash with arrowhead symbol, within an

equilateral triangle, is intended to alert the user to the

presence of uninsulated 'dangerous voltage' within the

product's enclosure that may be of sufficient magnitude to

constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the

literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT

TO RAIN OR MOISTURE.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY

INSERT.

ATTENTION: POUR EVITER LES CHOCS ELECTRIQUE, INTRODUIRE LA LAME LA PLUS LARGE DE LA

FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU'AU FOUD.

CAUTION: This Digital Video Disc Player employs a Laser System.

To ensure proper use of this product, please read this owner's manual carefully and retain for

future reference. Should the unit require maintenance, contact an authorized service location-see

service procedure.

Use of controls, adjustments or the performance of procedures other than those specified may

result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation

is present when the enclosure is opened. DO NOT STARE INTO BEAM.

FCC NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio communications.

There is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could

void the user's authority to operate the equipment.

INDUSTRY CANADA REQUIREMENT :

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing

Equipment Regulations.

Cet appareil numeruque de la classe B respecte toutes les exigences du Reglement sur le

materiel brouilleur du Canada.

RECORDYOURMODELNUMBER(Now,whileyoucanseeit) l

The model and serial number of your new DVD

player are located on the back of the DVD player cabinet. For your future conve-

nience, we suggest that you record these numbers here:

MODEL NO.

SERIAL NO.

INTRODUCTION I PAGE 3

Introduction

Safety Precautions ........................ 2

Table of Contents ......................... 3

_3 IMPORTANT SAFETY INSTRUCTIONS ...... 4-5

_3 Precautions ............................. 6

_3 Notes on Discs .......................... 7

_3 Identification of Controls ................. 8-11

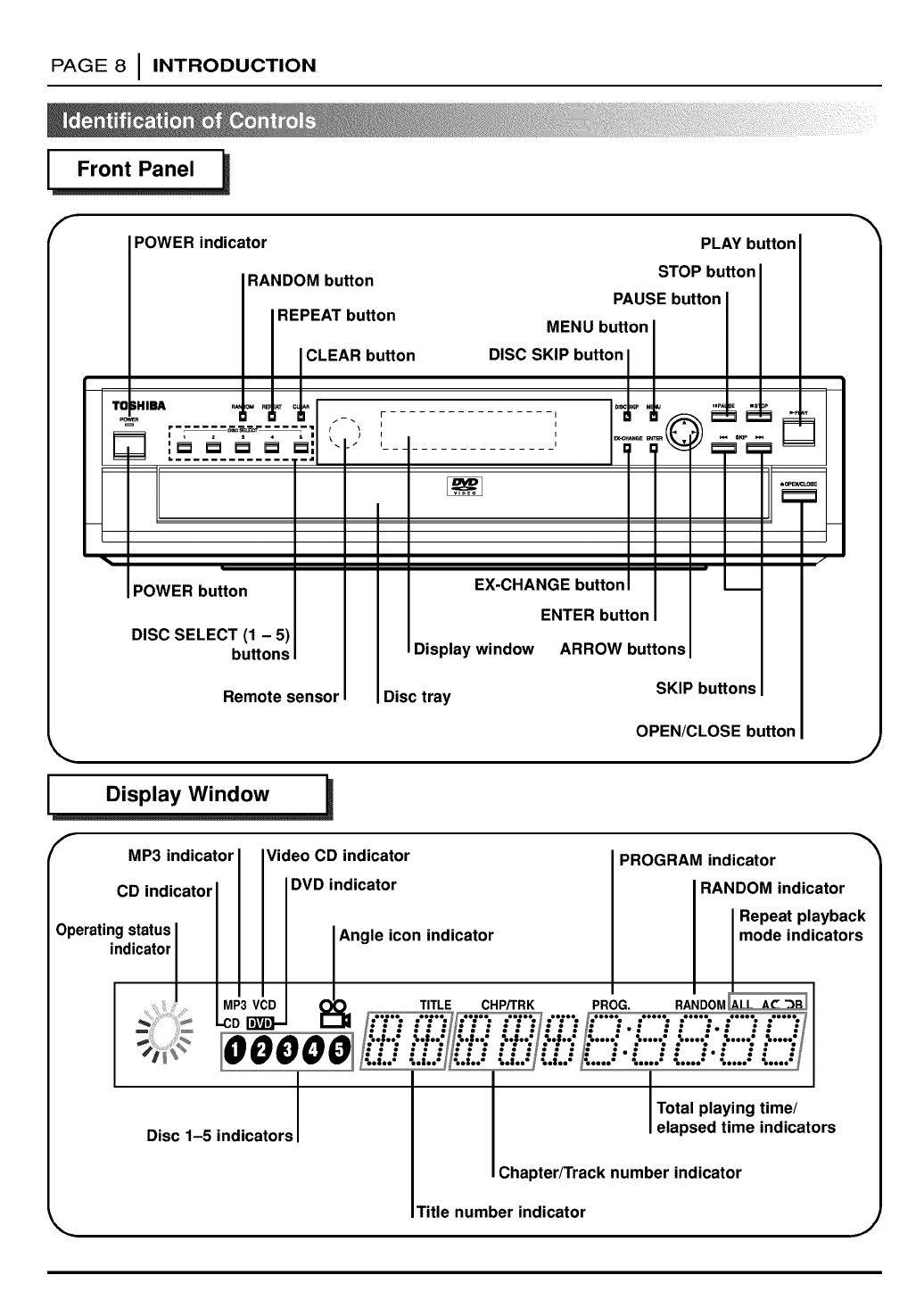

Front Panel/Display Window .................... 8

Rear Panel ................................. 9

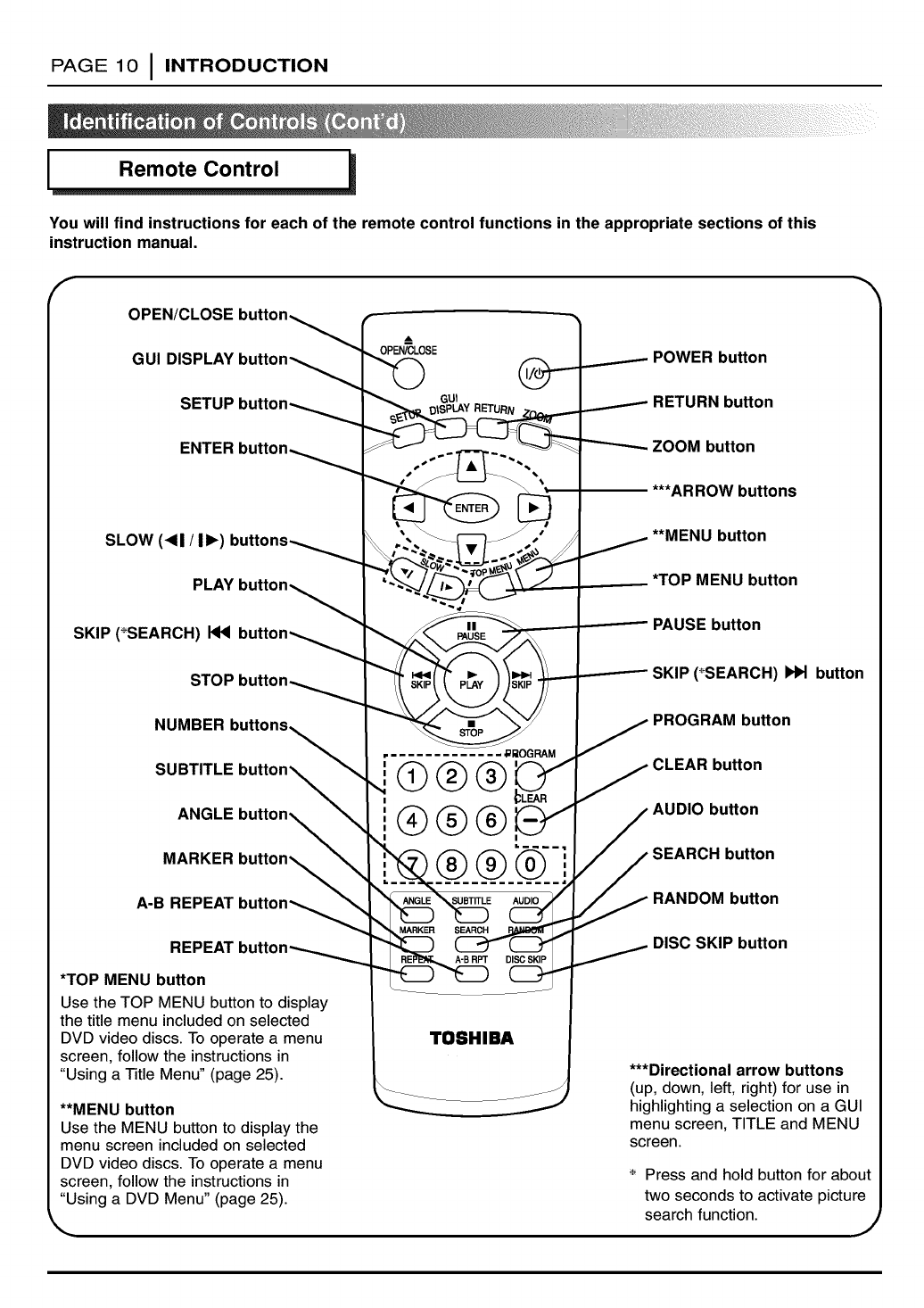

Remote Control............................. 10

Preparing the Remote Control .................. 11

Operating with the Remote Control .............. 11

Connections

_3 Connecting to a TV ...................... 12

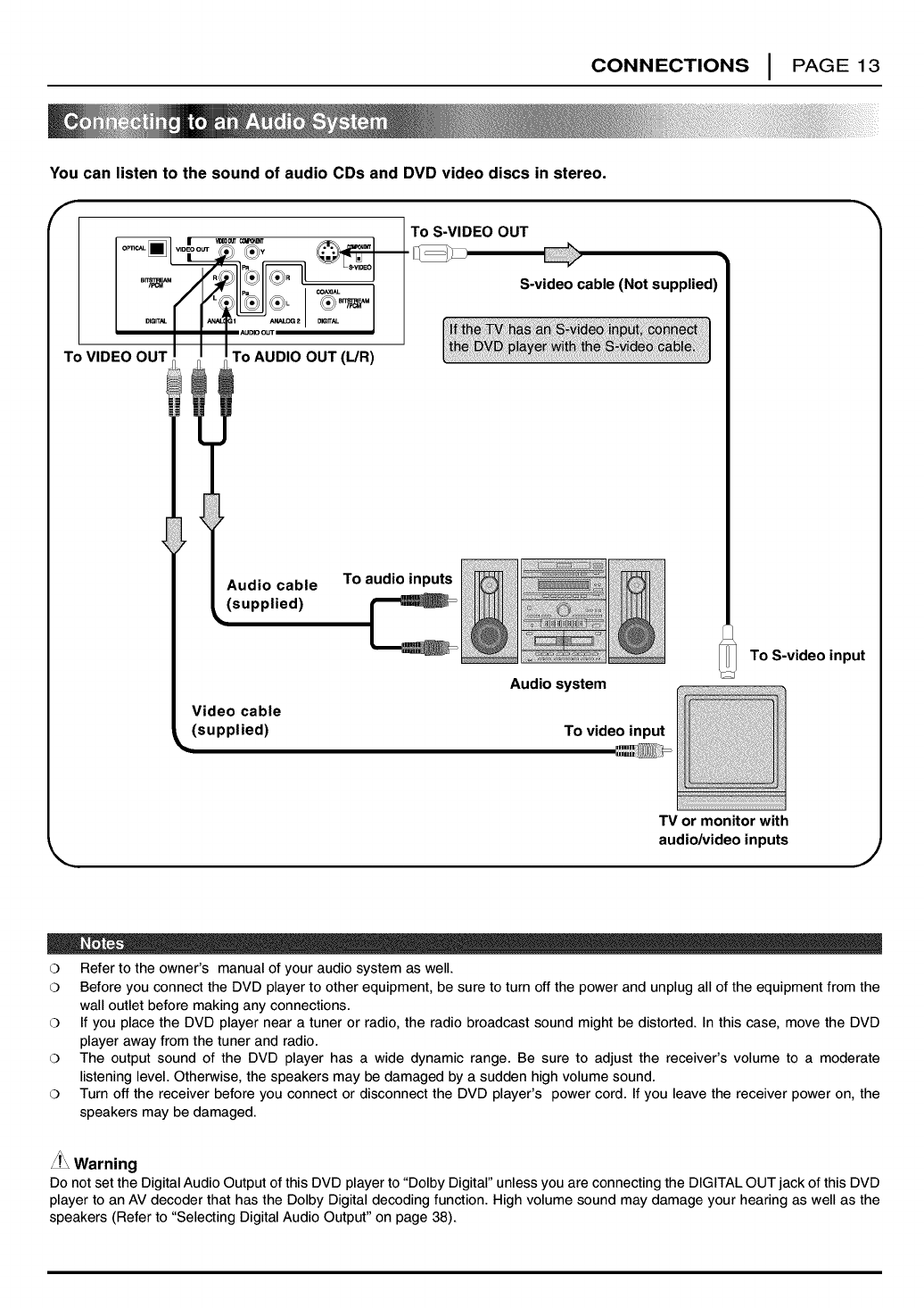

_3 Connecting to an Audio System ............. 13

_3 Connecting to Optional Audio System ...... 14-16

Enjoying Dolby Digital Sound................... 14

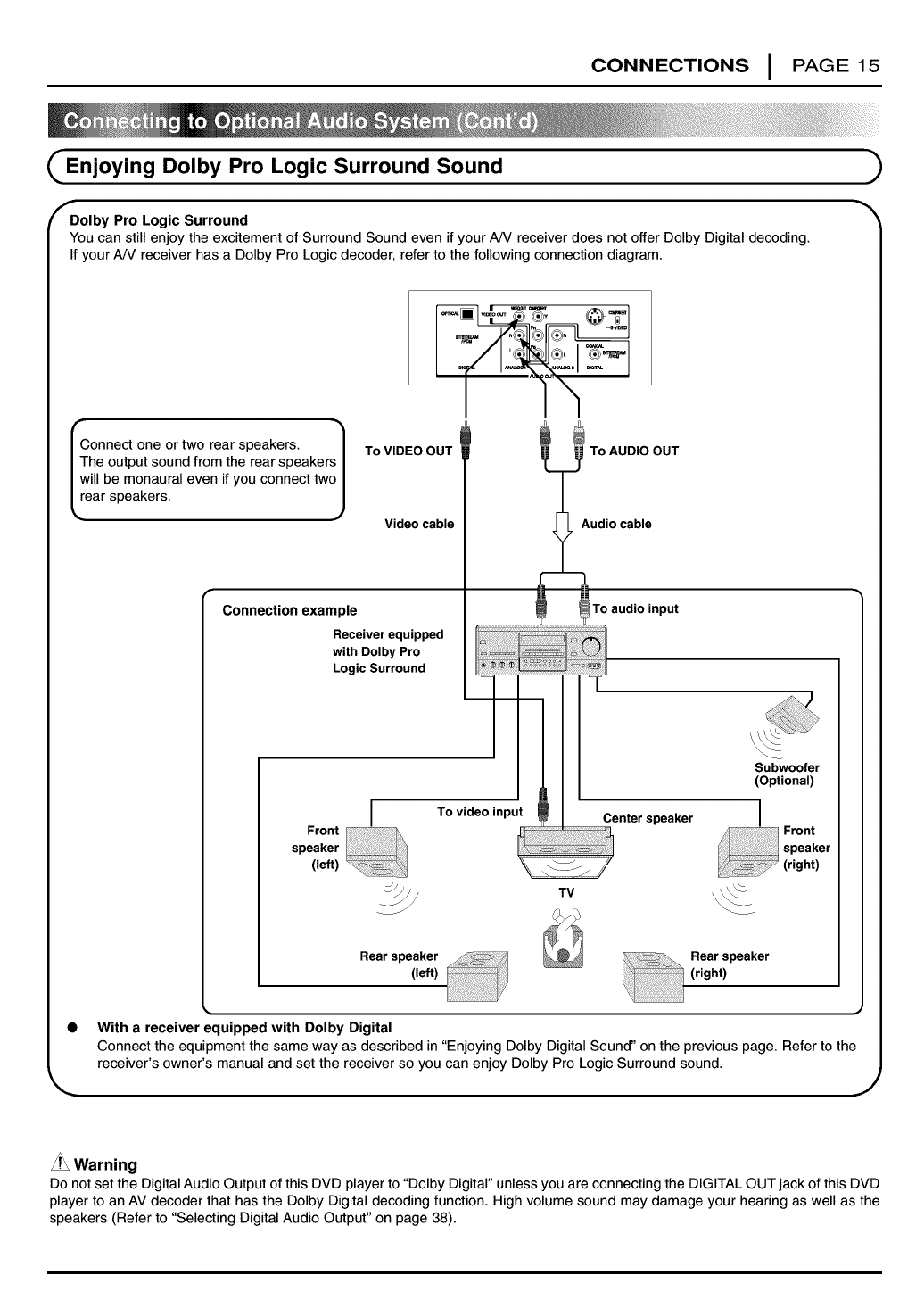

Enjoying Dolby Pro Logic Surround Sound ........ 15

Enjoying 2 Channel Digital Stereo Sound.......... 16

Enjoying DTS Sound ......................... 16

Basic Operations

_3 Basic Playback ....................... 17-20

Stopping Play .......................... 19

Resume Play .......................... 19

Last Scene Memory ..................... 19

Exchanging Discs during Playback .......... 20

Skipping Discs ......................... 20

Exchanging the Disc and Starting Playback .... 20

_3 Special Playback ...................... 21-22

Still Picture ........................... 21

Frame Advance ........................ 21

Skipping Chapters and Tracks Forward or Back.. 21

To Scan at Fast Forward or Fast Reverse Playback. 22

Playing in Slow-Motion ................... 22

Operation Using GUI Menu

_3 General Information about GUI Menu ......... 23

_3 Detailed Description of each GUI Menu Icon ... 24

Advanced Operation

Using a Title Menu ....................... 25

Using a DVD Menu ...................... 25

Changing Subtitle Language ............... 26

Changing Audio Soundtrack Language ........ 26

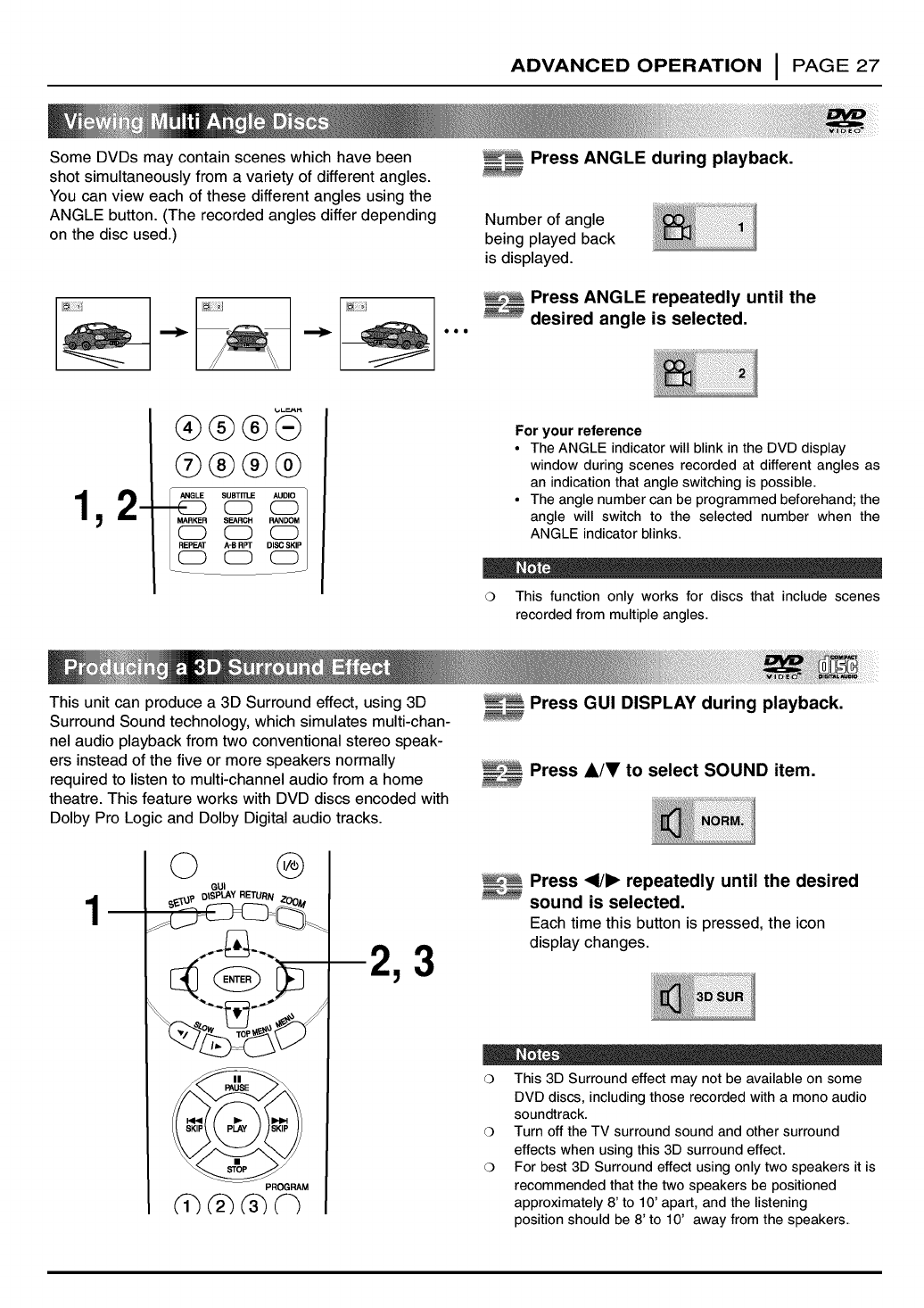

Viewing Multi Angle Discs ................. 27

Producing a 3D Surround Effect ............. 27

Repeat Play ............................ 28

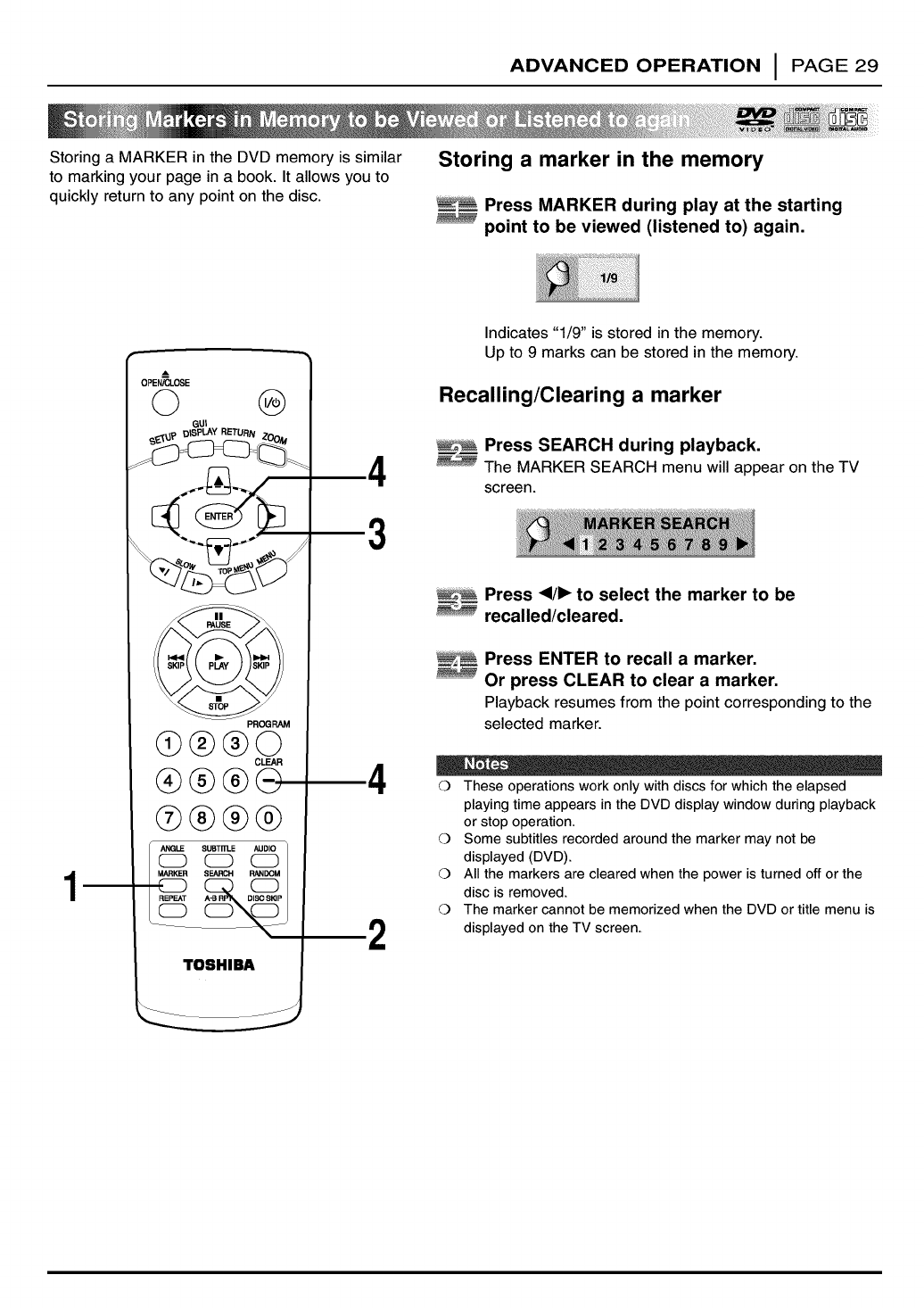

_3 Storing Markers in Memory to be Viewed or

Listened to again ........................ 29

_3 Zoom Feature .......................... 30

_3 Random Play ........................... 30

_3 Program Play ........................... 31

Initial Settings

_3 Selection of Initial Settings ................. 32

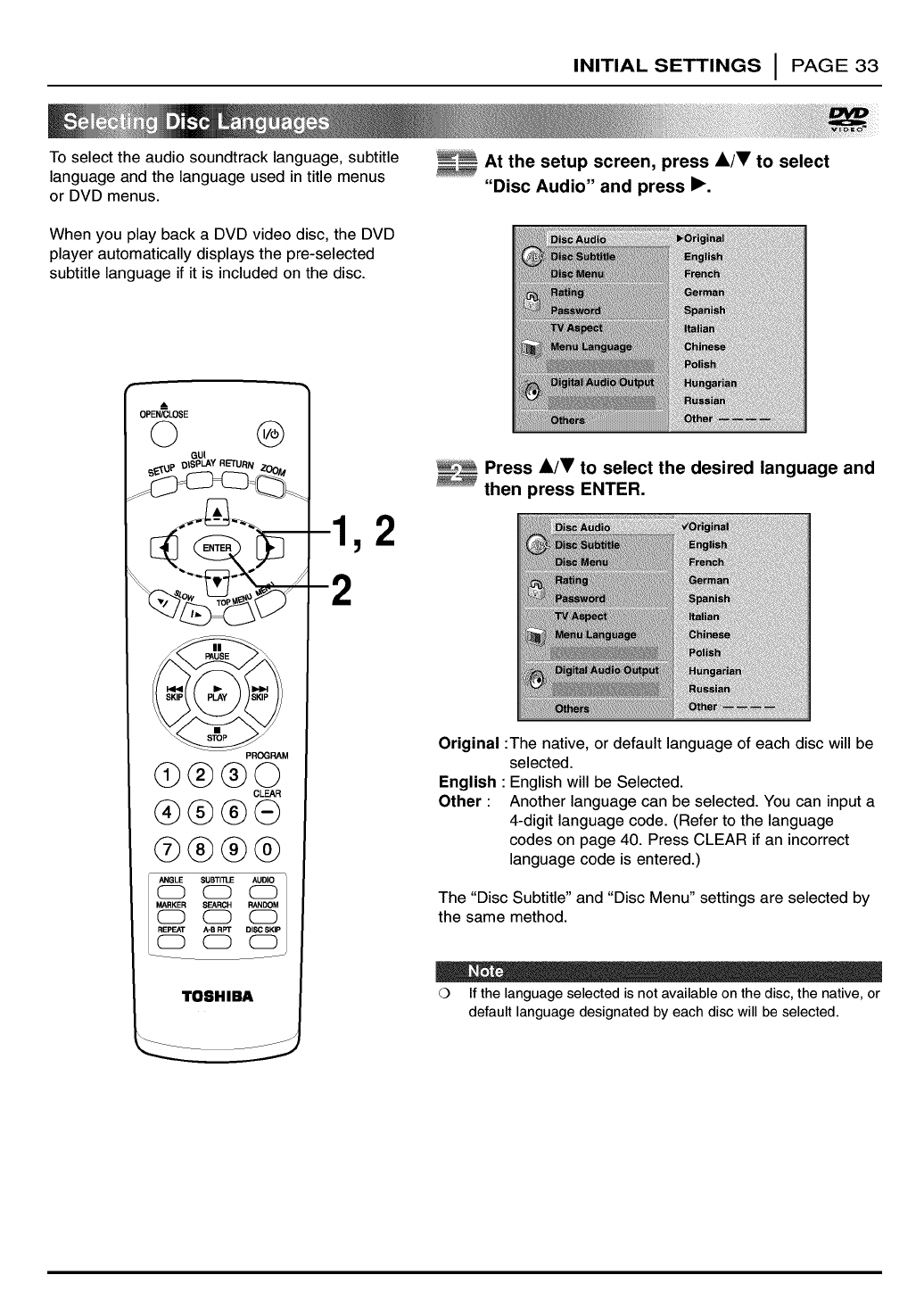

_3 Selecting Disc Languages ................. 33

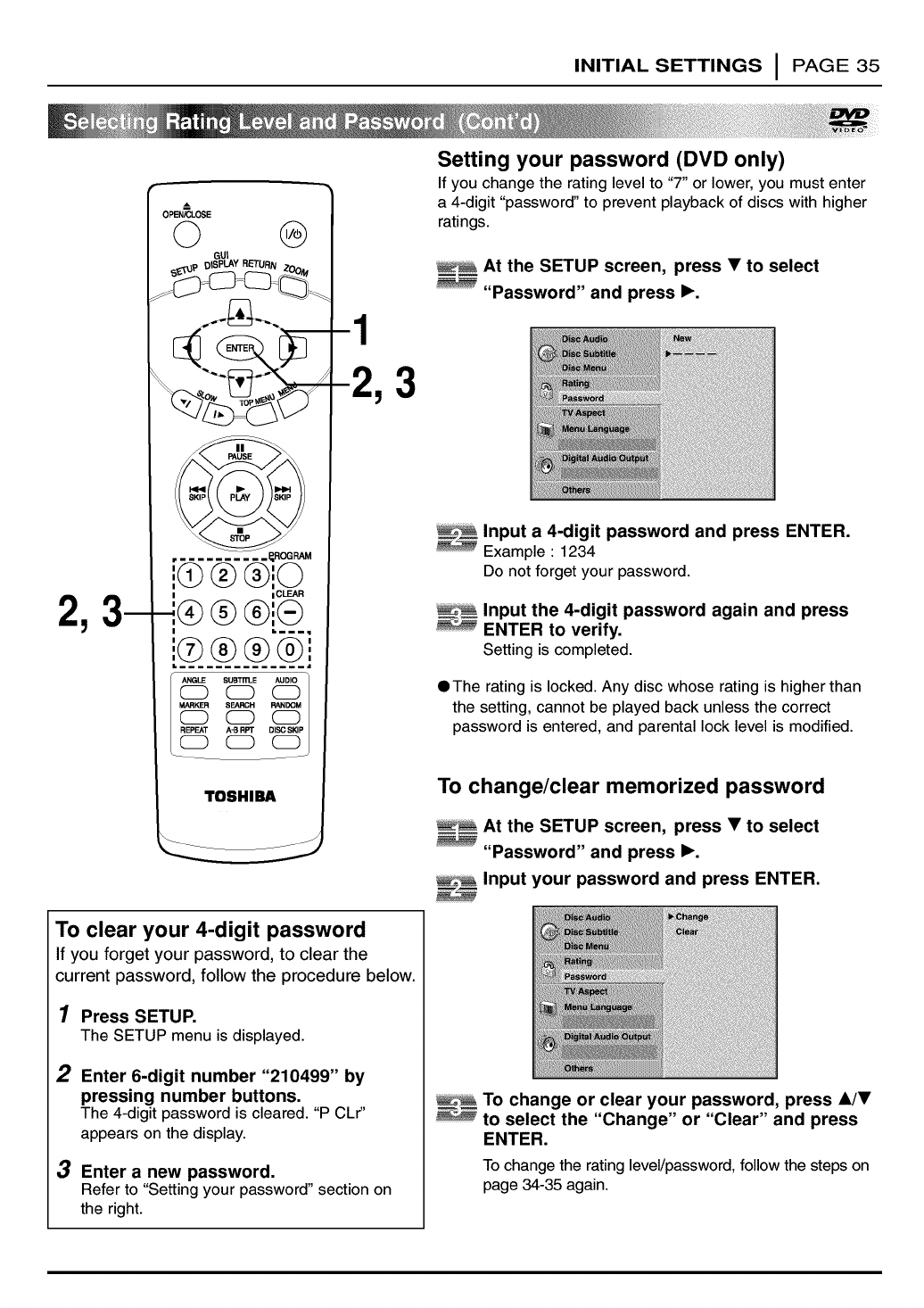

_3 Selecting Rating Level and Password ...... 34-35

_3 Selecting TV Aspect ...................... 36

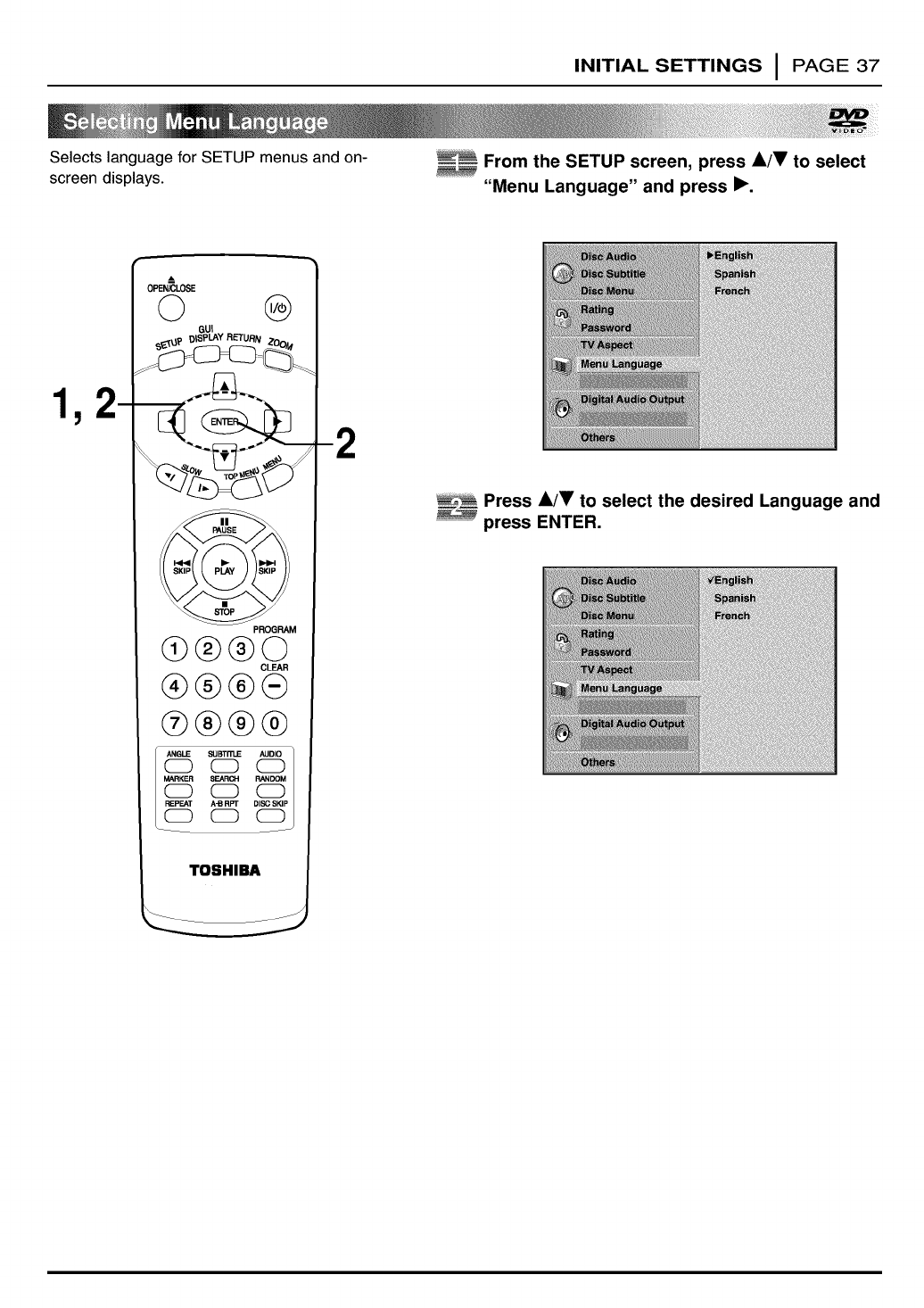

_3 Selecting Menu Language ................. 37

_3 Selecting Digital Audio Output .............. 38

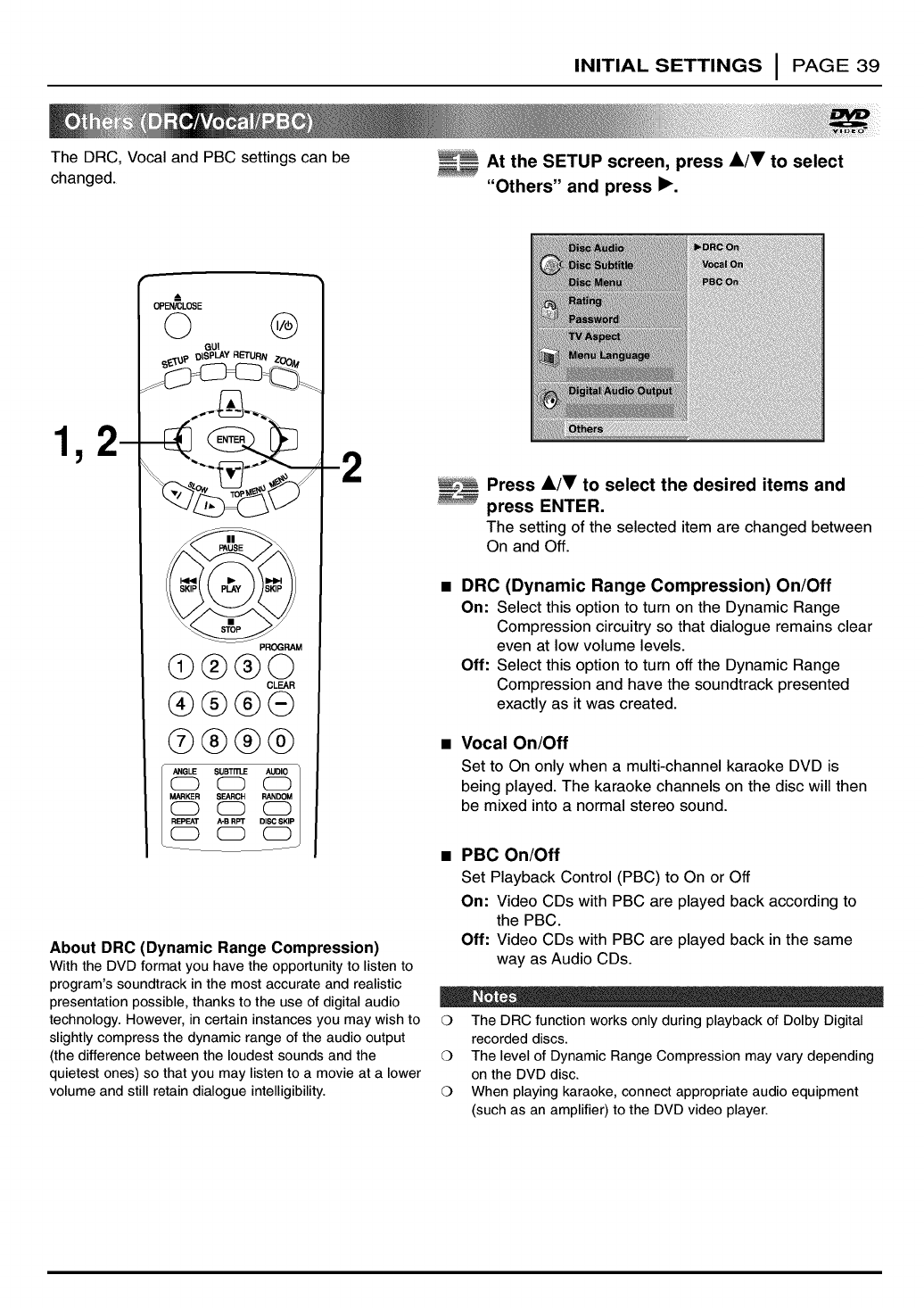

_3 Others (DRC/Vocal/PBC) .................. 39

_3 Table of Languages and Their Abbreviations ... 40

Reference

Disc Requirements/Copyright Information ...... 41

Before Calling Service Personnel ............ 42

_3 Specifications ........................... 43

Others

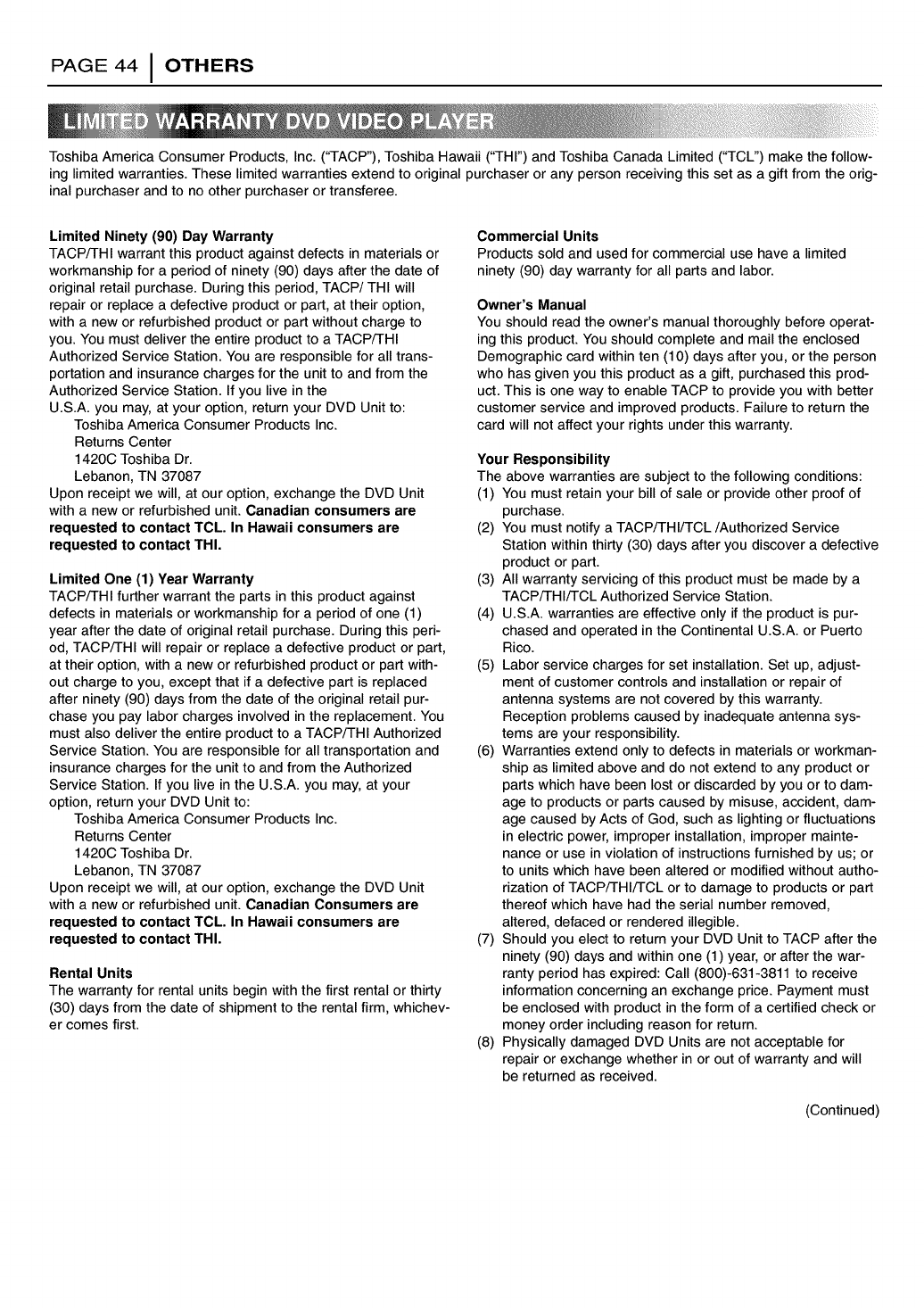

_3 LIMITED WARRANTY DVD VIDEO PLAYER .... 44-45

PAGE 4 I INTRODUCTION

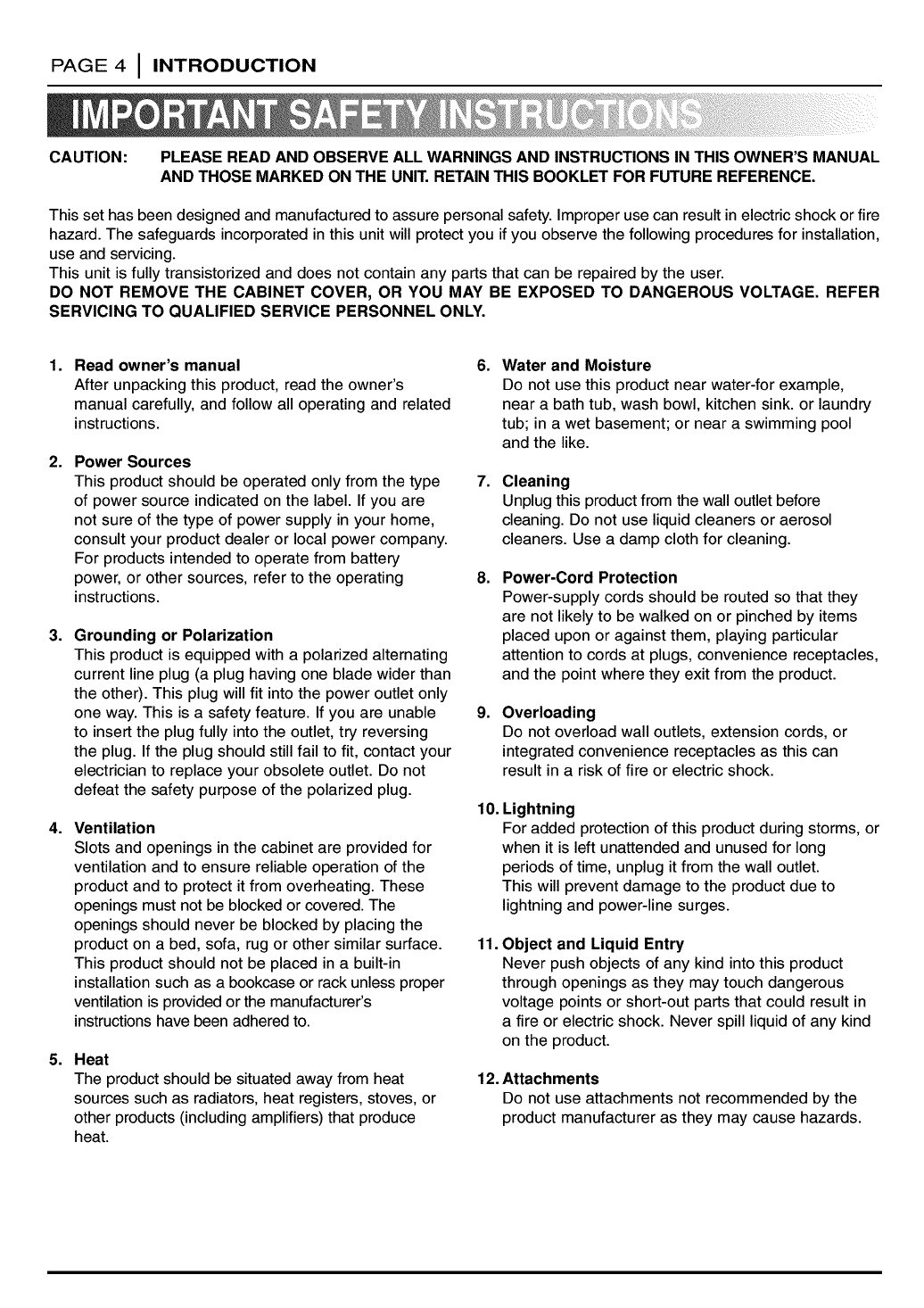

CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS OWNER'S MANUAL

AND THOSE MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE.

This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire

hazard. The safeguards incorporated in this unit will protect you if you observe the following procedures for installation,

use and servicing.

This unit is fully transistorized and does not contain any parts that can be repaired by the user.

DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.

1. Read owner's manual 6.

After unpacking this product, read the owner's

manual carefully, and follow all operating and related

instructions.

Power Sources

This product should be operated only from the type 7.

of power source indicated on the label. If you are

not sure of the type of power supply in your home,

consult your product dealer or local power company.

For products intended to operate from battery

power, or other sources, refer to the operating 8.

instructions.

Grounding or Polarization

This product is equipped with a polarized alternating

current line plug (a plug having one blade wider than

the other). This plug will fit into the power outlet only

one way. This is a safety feature. If you are unable

to insert the plug fully into the outlet, try reversing

the plug. If the plug should still fail to fit, contact your

electrician to replace your obsolete outlet. Do not

defeat the safety purpose of the polarized plug.

Ventilation

Slots and openings in the cabinet are provided for

ventilation and to ensure reliable operation of the

product and to protect it from overheating. These

openings must not be blocked or covered. The

openings should never be blocked by placing the

product on a bed, sofa, rug or other similar surface.

This product should not be placed in a built-in

installation such as a bookcase or rack unless proper

ventilation is provided or the manufacturer's

instructions have been adhered to.

Heat

The product should be situated away from heat

sources such as radiators, heat registers, stoves, or

other products (including amplifiers) that produce

heat.

Water and Moisture

Do not use this product near water-for example,

near a bath tub, wash bowl, kitchen sink. or laundry

tub; in a wet basement; or near a swimming pool

and the like.

Cleaning

Unplug this product from the wall outlet before

cleaning. Do not use liquid cleaners or aerosol

cleaners. Use a damp cloth for cleaning.

Power-Cord Protection

Power-supply cords should be routed so that they

are not likely to be walked on or pinched by items

placed upon or against them, playing particular

attention to cords at plugs, convenience receptacles,

and the point where they exit from the product.

9. Overloading

Do not overload wall outlets, extension cords, or

integrated convenience receptacles as this can

result in a risk of fire or electric shock.

10. Lightning

For added protection of this product during storms, or

when it is left unattended and unused for long

periods of time, unplug it from the wall outlet.

This will prevent damage to the product due to

lightning and power-line surges.

11. Object and Liquid Entry

Never push objects of any kind into this product

through openings as they may touch dangerous

voltage points or short-out parts that could result in

a fire or electric shock. Never spill liquid of any kind

on the product.

12. Attachments

Do not use attachments not recommended by the

product manufacturer as they may cause hazards.

INTRODUCTION I PAGE 5

13. Accessories

Do not place this product on

an unstable cart, stand, tripod,

bracket, or table. The product

may fall, causing serious

injury to a child or adult, and

serious damage to the

product. Use only with a cart,

stand, tripod, bracket, or table

recommended by the manufacturer, or sold with the

product. Any mounting of the product should follow

the manufacturer's instructions, and should use a

mounting accessory recommended by the

manufacturer. A product and cart combination should

be moved with care. Quick stops, excessive force,

and uneven surfaces may cause the product and

cart combination to overturn.

14. Disc Tray

Keep your fingers well clear of the disc tray as it is

closing. It may cause serious personal injury.

15. Burden

Do not place a heavy object on or step on the

product. The object may fall, causing serious

personal injury and serious damage to the product.

16. Connecting

When you connect the product to other equipment,

turn off the power and unplug all of the equipment

from the wall outlet. Failure to do so may cause an

electric shock and serious personal injury. Read the

owner's manual of the other equipment carefully and

follow the instructions when making any

connections.

17. Sound Volume

Reduce the volume to the minimum level before you

turn on the product. Otherwise, sudden high volume

sound may cause hearing or speaker damage.

18. Sound Distortion

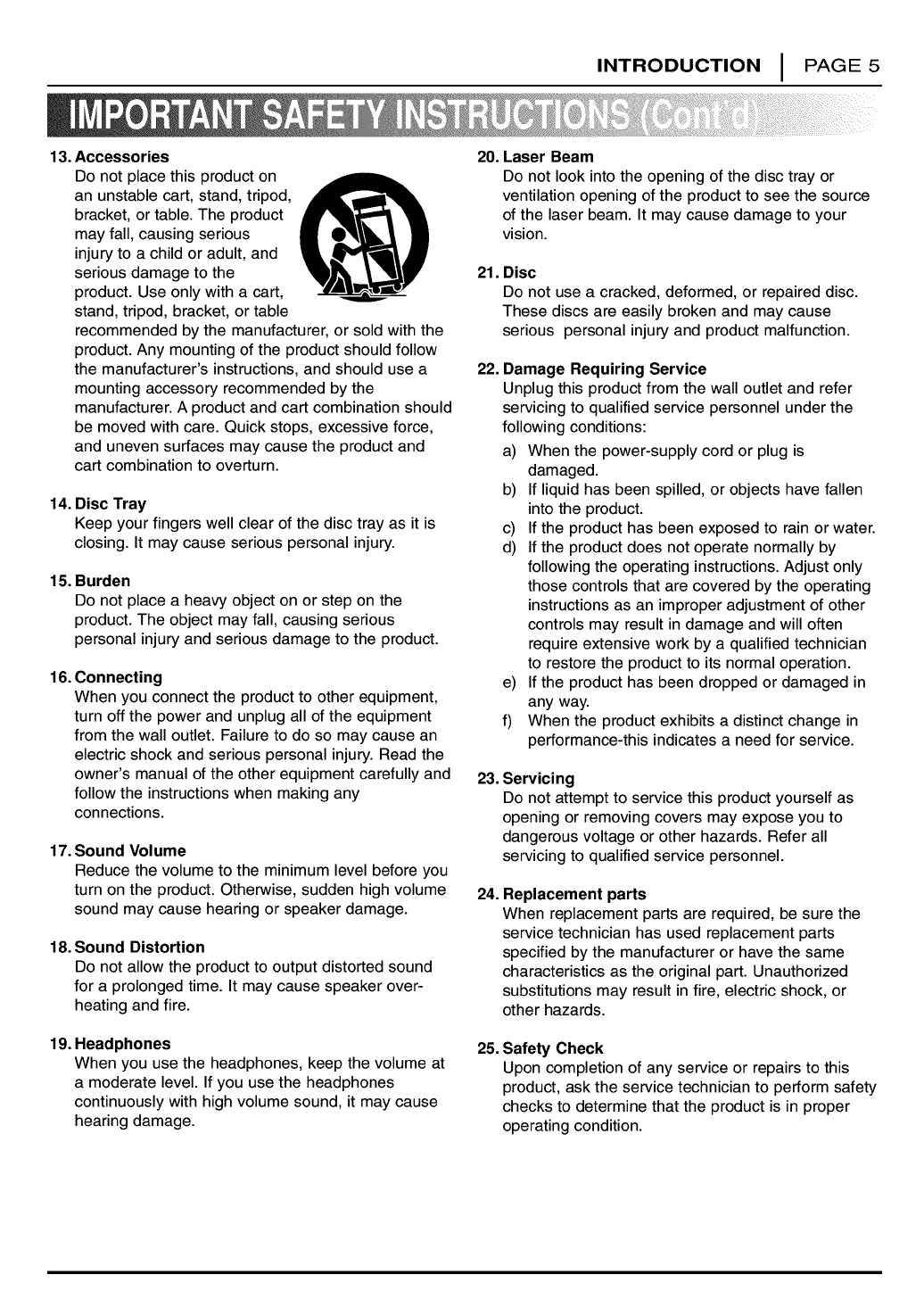

Do not allow the product to output distorted sound

for a prolonged time. It may cause speaker over-

heating and fire.

19. Headphones

When you use the headphones, keep the volume at

a moderate level. If you use the headphones

continuously with high volume sound, it may cause

hearing damage.

20. Laser Beam

Do not look into the opening of the disc tray or

ventilation opening of the product to see the source

of the laser beam. It may cause damage to your

vision.

21. Disc

Do not use a cracked, deformed, or repaired disc.

These discs are easily broken and may cause

serious personal injury and product malfunction.

22. Damage Requiring Service

Unplug this product from the wall outlet and refer

servicing to qualified service personnel under the

following conditions:

a) When the power-supply cord or plug is

damaged.

b) If liquid has been spilled, or objects have fallen

into the product.

c) If the product has been exposed to rain or water.

d) If the product does not operate normally by

following the operating instructions. Adjust only

those controls that are covered by the operating

instructions as an improper adjustment of other

controls may result in damage and will often

require extensive work by a qualified technician

to restore the product to its normal operation.

e) If the product has been dropped or damaged in

any way.

f) When the product exhibits a distinct change in

performance-this indicates a need for service.

23. Servicing

Do not attempt to service this product yourself as

opening or removing covers may expose you to

dangerous voltage or other hazards. Refer all

servicing to qualified service personnel.

24. Replacement parts

When replacement parts are required, be sure the

service technician has used replacement parts

specified by the manufacturer or have the same

characteristics as the original part. Unauthorized

substitutions may result in fire, electric shock, or

other hazards.

25. Safety Check

Upon completion of any service or repairs to this

product, ask the service technician to perform safety

checks to determine that the product is in proper

operating condition.

PAGE 6 IINTRODUCTION

Notes on handling )

When shipping the DVD player, always use the

original shipping carton and packing materials.

For maximum protection, repack the unit as it was

originally packed at the factory.

_1 Do not use volatile liquids, such as insect spray, near

the DVD player. Do not leave rubber or plastic

products in contact with the DVD player for a long

time. They will leave marks on the finish.

_1 The top and rear panels of the DVD player may

become warm after a long period of use. This is

normal and not a malfunction.

When the DVD player is not in use, be sure to

remove the disc and turn off the power.

_1 If you do not use the DVD player for a long period, the

unit may not function properly in the future. Turn on

and use the DVD player occasionally.

CNotes on Locating )

_1 When you place this DVD player near a TV, radio, or

VCR, the playback picture may become poor and the

sound may be distorted. In this case, move the DVD

player away from the TV, radio, or VCR.

CNotes on Cleaning )

Use a soft, dry cloth for cleaning.

_1 For stubborn dirt, soak the cloth in a weak detergent

solution, wring well and wipe. Use a dry cloth to wipe

it dry. Do not use any type of solvent, such as thinner

and benzine, as they may damage the surface of the

DVD player.

If you use a chemical saturated cloth to clean the

unit, follow that product's instructions.

Warning: Cleaning and adjustment of lenses

and/or other components of playback mechanism

should be performed by a qualified service

technician.

(To Obtain a Clear Picture )

The DVD player is a high technology, precision device. If

the optical pick-up lens and disc drive parts are dirty or

worn down, the picture quality becomes poor. To obtain

a clear picture, we recommend regular inspection and

maintenance (cleaning or parts replacement) every

1,000 hours of use depending on the operating

environment. For details, contact your nearest dealer.

CNotes on Moisture Condensation )

Moisture condensation damages the DVD player.

Please read the following carefully.

Moisture condensation occurs, for example, when

you pour a cold drink into a glass on a warm day.

Drops of water form on the outside of the glass. In

the same way, moisture may condense on the opti-

cal pick-up lens inside this unit, one of the most cru-

cial internal parts of the DVD player.

_,/,s_pleS of rnol_ter e

Gondensa tlotl.p

Moisture condensation occurs during the following

cases.

_1 When you bring the DVD player directly from a cold

place to a warm place.

_1 When you use the DVD player in a room where you

just turned on the heater, or a place where the cold

air from the air conditioner directly hits the unit.

In summer, when you use the DVD player in a hot

and humid place just after you move the unit from

an air conditioned room.

_1 When you use the DVD player in a humid place.

_3 Do not use the DVD player when moisture con-

densation may occur.

If you use the DVD player in such a situation, it may

damage discs and internal parts. Remove the disc,

connect the power cord of the DVD player to the wall

outlet, turn on the DVD player and leave it "ON" for

two or three hours. After two or three hours, the

DVD player will have warmed up and evaporated

any moisture. Keep the DVD player connected to

the wall outlet and moisture condensation will sel-

dom occur.

This section shows you how to handle, clean, and store discs.

INTRODUCTION I PAGE 7

On Handling Discs

Do not touch the playback side of the disc.

Do not attach paper or tape to discs.

On Storing Discs

o Do not store discs in a place subject to

direct sunlight or near heat sources.

o Do not store discs in places subject to

moisture and dust such as a bathroom or

near a humidifier.

o Store discs vertically in a case. Stacking or

placing objects on discs outside of their

case may cause warping.

_O n Cleaning Discs

I o Fingerprints and dust on the disc cause

| picture and sound deterioration. Wipe the

| disc from the center outward with a soft

| cloth. Always keep the disc clean.

I o If you cannot wipe off the dust with a soft

| cloth, wipe the disc lightly with a slightly

| moistened soft cloth and finish with a dry

| cloth.

I o Do not use any type of solvents such as

| thinner, benzine, commercially available

| cleaners or anti-static spray for vinyl LPs.

They may damage the disc.

About This Owner's Manual

o This owner's manual explains the basic

instructions of this DVD player.

o Some DVD video discs have functions that

may not be explained in this owner's manual.

Therefore, some instructions may differ from

this owner's manual, and there may be extra

instructions. In this case, follow the instructions

displayed on the TV screen or package.

o " _ " may appear on theTV screen

during operation. This icon means the

function explained in this owner's manual is

not available on that specific DVD video

disc.

PAGE8 I INTRODUCTION

POWER indicator PLAY button

RANDOM button STOP button

PAUSE button

IREPEAT button MENU button

POWERbut,o--'n'_ "'__-- ' m

ENTER button

DISC SELECT (1 - 5) _ , .

buttons uisplay winaow ARROW buttons

Remote sensor Disc tray SKIP buttons

OPEN/CLOSE button

/_ MP3 indicator Video CD indicator

CD indicator DVD indicator

Operating status

indicator

PROGRAM indicator

RANDOM indicator

Disc 1-5 indicators[

lTotal playing time/

/elapsed time indicators

Chapter/Track number indicator

Title number indicator

INTRODUCTION IPAGE 9

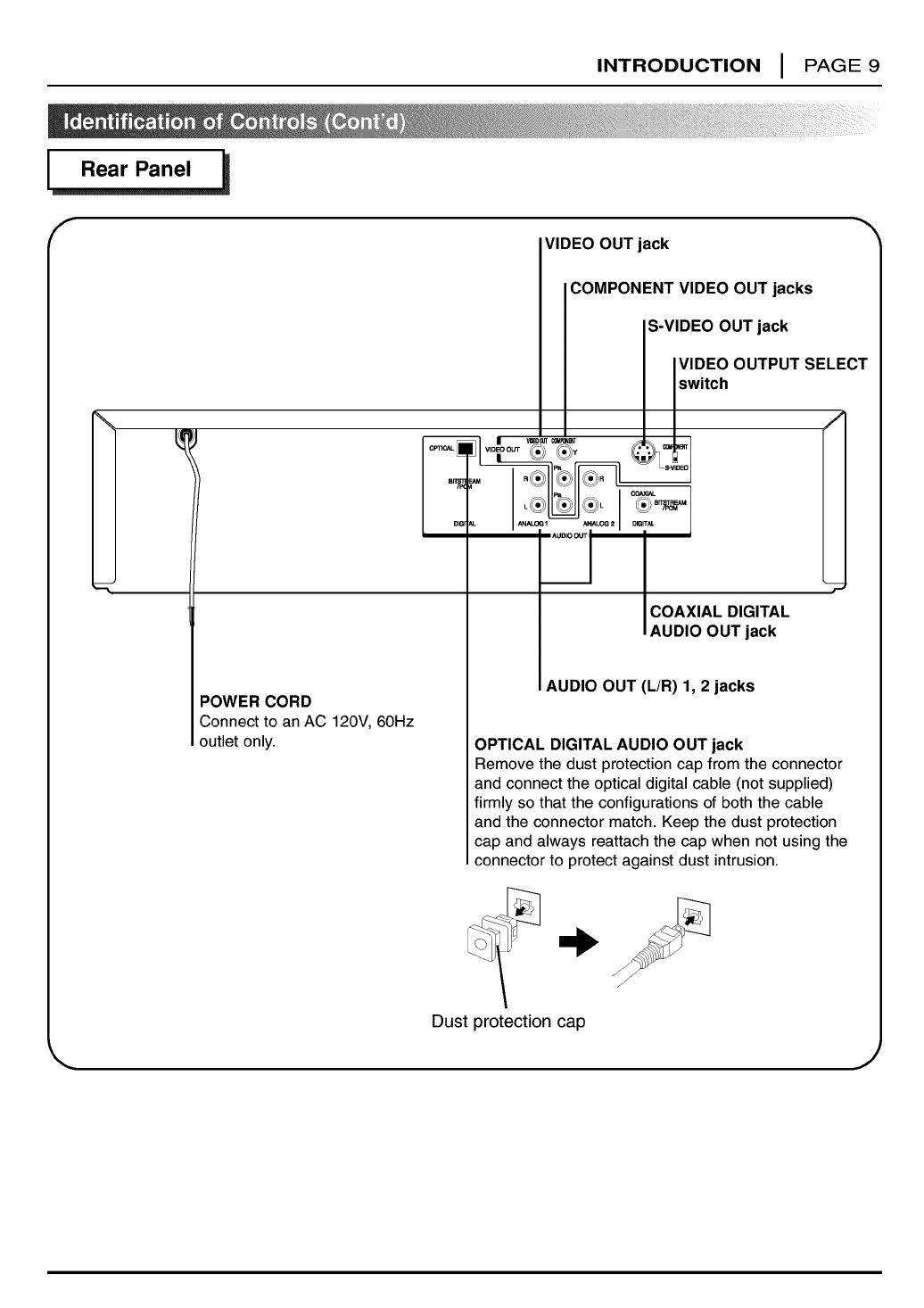

VIDEO OUT jack

DIGr

COMPONENT VIDEO OUT jacks

v,o-o

AL ANALOG 1 ANALOG 2 I

S-VIDEO OUT jack

[VIDEO OUTPUT SELECT

switch

s- EO

POWER CORD

Connect to an AC 120V, 60Hz

COAXIAL DIGITAL

AUDIO OUT jack

AUDIO OUT (L/R) 1, 2 jacks

outlet only. OPTICAL DIGITAL AUDIO OUT jack

Remove the dust protection cap from the connector

and connect the optical digital cable (not supplied)

firmly so that the configurations of both the cable

and the connector match. Keep the dust protection

cap and always reattach the cap when not using the

connector to protect against dust intrusion.

Dust protection cap

PAGE 10 I INTRODUCTION

You will find instructions for each of the remote control functions in the appropriate sections of this

instruction manual.

OPEN/CLOSE button_

GUI DISPLAY button_

SETUP button_

ENTER button_

SLOW (<1 /I1_)

PLAYI

SKIP (÷SEARCH) 144

NUMBER buttons_

SUBTITLE button_

ANGLE button_

MARKER button,_

A-B REPEAT button_

REPEATI

*TOP MENU button

Use the TOP MENU button to display

the title menu included on selected

DVD video discs. To operate a menu

screen, follow the instructions in

"Using a Title Menu" (page 25).

**MENU button

Use the MENU button to display the

menu screen included on selected

DVD video discs. To operate a menu

screen, follow the instructions in

"Using a DVD Menu" (page 25).

OPEN/CLOSE

GUt

DtsPLAY RETURN

PAUSE t

•

,_gI_OGRAM

L ....

, ®®®

SUBTITLE AUDIO

MARKER SEARCH

A-BRPT DISCSKIP

TOSHIBA

POWER button

RETURN button

ZOOM button

.... ARROW buttons

**MENU button

_ *TOP MENU button

-PAUSE button

SKIP (÷SEARCH) _button

jPROGRAM button

jCLEAR button

_UDIO button

SEARCH button

RANDOM button

DISC SKIP button

***Directional arrow buttons

(up, down, left, right) for use in

highlighting a selection on a GUI

menu screen, TITLE and MENU

screen.

÷ Press and hold button for about

two seconds to activate picture

search function. J

INTRODUCTION I PAGE 11

Preparing the Remote Control )

Insert the batteries into the remote control so you can

use it to operate the DVD player.

Open the battery cover.

_Insert batteries (AAA size).

• Make sure to match the + and -on the batteries to

the marks inside the battery compartment.

_Close the cover.

OImproper use of batteries may cause battery leakage and

corrosion.

OTo operate the remote control correctly, follow the

instructions.

ODo not insert the batteries into the remote control in the

wrong direction.

ODo not charge, heat, open, or short-circuit the batteries.

Do not throw the batteries into fire.

ODo not leave dead or exhausted batteries in the remote

control.

ODo not use different types of batteries together, or mix

old and new batteries.

OIf you do not use the remote control for a long period of

time, remove the batteries to avoid possible damage

from battery corrosion.

OIf the remote control does not function correctly or if the

operating range becomes reduced, replace all batteries

with new ones.

OIf battery leakage occurs, wipe the battery liquid from the

battery compartment, then insert new batteries.

OThe batteries should last about one year with normal

use.

Operating with the Remote Control )

This section shows you how to use the remote control.

Point the remote control at the

remote sensor and press the

buttons.

Within about 23 ft (about 7 m)

Distance: About 23 ft (7 m) from the front of the remote

sensor

Angle: About 30 ° in each direction of the front of the

remote sensor

* Do not expose the remote sensor of the DVD

player to a strong light source such as direct

sunlight or illumination. If you do so, you may not

be able to operate the DVD player with the remote

control.

O Point the remote control at the remote sensor on the

DVD player.

O Do not drop or give the remote control a shock.

O Do not leave the remote control in an extremely hot or

humid place.

O Do not spill water or put anything wet on the remote con-

trol.

O Do not disassemble the remote control.

PAGE 12 I CONNECTIONS

Connect the DVD player to your TV.

VIDEO OUTPUT SELECT switch

Video cable (Y, Pb, Pr)

(not supplied)

S-video cable

(Not supplied)

To S-video input

To audio inputs

To video input

TV or monitor with

audio/video inputs

Audio/Video cable

(supplied)

ORefer to the owner's manual of your TV as well.

OBefore you connect the DVD player to your TV, be sure to turn off the power and unplug both units from the wall outlet before

making any connections.

OConnect the DVD player to your TV directly. If you connect the DVD player to a VCR, the playback picture will be distorted

because DVD video discs are copy protected.

Warning

Do not set the Digital Audio Output of this DVD player to "Dolby Digital" unless you are connecting the DIGITAL OUT jack of this

DVD player to an AV decoder that has the Dolby Digital decoding function. High volume sound may damage your hearing as well

as the speakers (Refer to "Selecting Digital Audio Output" on page 38).

CONNECTIONS I PAGE 13

You can listen to the sound of audio CDs and DVD video discs in stereo.

To VIDEO OUT To AUDIO OUT (L/R)

To S-VIDEO OUT

S-video cable (Not supplied)

Audio cable

(supplied)

To audio inputs

Audio system

Video cable

(supplied) To video input

To S-video input

TV or monitor with

audio/video inputs

ORefer to the owner's manual of your audio system as well.

OBefore you connect the DVD player to other equipment, be sure to turn off the power and unplug all of the equipment from the

wall outlet before making any connections.

OIf you place the DVD player near a tuner or radio, the radio broadcast sound might be distorted. In this case, move the DVD

player away from the tuner and radio.

OThe output sound of the DVD player has a wide dynamic range. Be sure to adjust the receiver's volume to a moderate

listening level. Otherwise, the speakers may be damaged by a sudden high volume sound.

OTurn off the receiver before you connect or disconnect the DVD player's power cord. If you leave the receiver power on, the

speakers may be damaged.

Warning

Do not set the Digital Audio Output of this DVD player to "Dolby Digital" unless you are connecting the DIGITAL OUT jack of this DVD

player to an AV decoder that has the Dolby Digital decoding function. High volume sound may damage your hearing as well as the

speakers (Refer to "Selecting Digital Audio Output" on page 38).

PAGE 14 ICONNECTIONS

Enjoying Dolby Digital Sound

You can enjoy the high quality dynamic sound of Dolby Digital, Dolby Pro Logic, and 2 Channel Digital Stereo.

Dolby Digital

Dolby Digital is the surround sound technology used in theatres showing the latest movies, and is now available to

reproduce this realistic effect in the home. You can enjoy motion picture and live concert DVD video discs with this

dynamic realistic sound by connecting the DVD player to a 6 channel receiver equipped with a Dolby Digital decoder

or Dolby Digital processor.

To enjoy Dolby Digital sound

from this DVD player you need

the following:

• DVD recorded in Dolby Digital

•6 channel receiver equipped

with a Dolby Digital decoder,

or Dolby Digital processorand

power receiver

•5 speakers and 1 sub woofer

To enjoy Dolby Digital sound

You need to select "Dolby Digital'

from the SETUP menu.

I mOOUT_ENT _ I

IPR LS-VIDEO

! L BITSIREAM

I,_'o.... I_.Loo'_ ' I...... I

I:" I _ouT " l

TO DIGITAL OUT F_ ; /

(COAXIAL or OPTICAL)

To S-VIDEO OUT

or VIDEO OUT

75 ohm coaxial cable

or Optical cable S-Video cable

or Video cable

Receiver equipped

with a Dolby Digital To digital

decoder _audio input

Connection

example

Rear speaker

Subwoofer

@Rear speaker

_ (right surround)

* Manufactured under license from Dolby Laboratories.

"Dolby", "Pro Logic", and the double-D symbol are trademarks of Dolby

O Refer to the owner's manual of your audio equipment as well.

O Before you connect the DVD player to other equipment, be sure to turn off the power and unplug all of the equipment from

the wall outlet before making any connections.

O The output sound of the DVD player has a wide dynamic range. Be sure to adjust the receiver's volume to a moderate

listening level. Otherwise, the speakers may be damaged by a sudden high volume sound.

O Turn off the receiver before you connect or disconnect the DVD player's power cord. If you leave the receiver power on, the

speakers may be damaged.

CONNECTIONS I PAGE 15

Enjoying Dolby Pro Logic Surround Sound

Dolby Pro Logic Surround

You can still enjoy the excitement of Surround Sound even if your AN receiver does not offer Dolby Digital decoding.

If your AN receiver has a Dolby Pro Logic decoder, refer to the following connection diagram.

onnect one or two rear speakers. _

e output sound from the rear speakers I

ill be monaural even if you connect two I

ear speakers. J

To VIDEO OUT

Video cable

Connection example

Receiver equipped

with Dolby Pro

Logic Surround

ITo audio input

Subwoofer

(Optional)

Front

speaker

(left)

ITo video input Center speaker

Rear speaker Rear speaker

(left) (right)

With a receiver equipped with Dolby Digital

Connect the equipment the same way as described in "Enjoying Dolby Digital Sound" on the previous page. Refer to the

receiver's owner's manual and set the receiver so you can enjoy Dolby Pro Logic Surround sound.

Warning

Do not set the Digital Audio Output of this DVD player to "Dolby Digital" unless you are connecting the DIGITAL OUT jack of this DVD

player to an AV decoder that has the Dolby Digital decoding function. High volume sound may damage your hearing as well as the

speakers (Refer to "Selecting Digital Audio Output" on page 38).

PAGE 16 ICONNECTIONS

Enjoying 2 Channel Digital Stereo Sound

/f2 Channel Digital Stereo

You can enjoy the dynamic sound of 2 Channel Digital Stereo by connecting this DVD player to a receiver equipped with a

digital audio input and speaker system (right and left front speakers).

75 ohm coaxial cable or

Optical Cable

rTo S-video Input

or Video Inpu

J_ _S-Video cable

To DIGITAL OUT _ _ or Video cable

(COAXIAL or _To S-VIDEO OUT III

OPTICAL) Lor VIDEO OUT _'

Connection example Receiver equipped with a

digital audio input

To digital audio input

Front speaker

(right)

_Enjoying DTS Sound

Introducing DTS Digital SurroundT%..a high quality multi channel audio format that transforms existing "home theatre" sys-

tems into six discrete channels of exceptionally clear, better-than-compact disc, digital audio performance. And DTS Digital

Surround is the only 5.1 surround sound format that can deliver this revolutionary 3-dimensional experience through new music

recordings on compact discs, original 5.1 soundtracks on motion picture laserdiscs, and soon, a wide variety of products on

DVD.

75 ohm coaxial cable or

Optical Cable

To S-video Input

or Video Input

or Video cable

To DIGITAL OUT

(COAXIAL or To S-VIDEO OUT

OPTICAL) or VIDEO OUT

Receiver equipped

with a DTS decoder Connection example

Rear speaker

(left surround)

Front speaker

(right)

Rear speaker

(right surround)

Sub woofer

"DTS" and "DTS Digital Out" are trademarks of Digital Theater Systems, Inc. }

O Refer to the owner's manual of your receiver as well.

O Before you connect the DVD player to other equipment, be sure to turn off the power and unplug all of the equipment from the

wall outlet before making any connections.

O The output sound of the DVD player has a wide dynamic range. Be sure to adjust the receiver's volume to a moderate listen-

ing level. Otherwise, the speakers may be damaged by a sudden high volume sound.

O Turn off the receiver before you connect or disconnect the DVD player's power cord. If you leave the receiver power on, the

speakers may be damaged.

This section explains the basics on how to play back a DVD video disc.

BASIC OPERATION I PAGE 17

GUI

_jp otsPLAY RETURN ZOO

PROGRAM

CLEAR

®®®®

ANGLE SUB11TLE AUDIO

MARKER SEARCH RANDOM

REPEAT A'B RPT DISC SKIP

TOSHIBA

Preparations

When you want to play back DVD video discs, turn on the TV and

select the video input source connected to the DVD player.

When you want to enjoy the sound of DVD video discs or audio

CDs from the audio system, turn on the audio system and select

the input source connected to the DVD player.

For connection details, see pages 12 through 16.

Set the playback picture size according to the aspect ratio of the

connected TV via the SETUP menu (TV Aspect).

If you do not have the necessary equipment to enjoy Dolby Digital

sound, set the Digital Audio Output (via the SETUP menu) to

"PCM".

Press POWER.

The DVD player turns on and the power indicator

lights.

Press OPEN/CLOSE.

The disc tray opens.

You can open the disc tray by pressing this button even if the

DVD player is in standby mode.

Place a disc on the disc tray with the

playback side down.

There are two different disc sizes. Place the disc in the

correct guide on the disc tray. If the disc is out of the guide,

it may damage the disc and cause the DVD player to

malfunction.

Do not place anything except 3" discs or 5" discs on the disc

tray.

Discs can be loaded one at a time by pressing DISC SKIP or

DISC SELECT (1 - 5) to rotate the carousel.

Caution: Do not touch the loading drawer and carousel

while they are in motion, and do not attempt to rotate

the carousel by hand; doing so could result in incorrect

operation of the player and/or damage to the discs.

Press OPEN/CLOSE or PLAY to close the

loading drawer.

The disc on the tray 1 is ready to be played back.

Playback may begin automatically depending on the

disc.

If no disc is loaded on the disc tray 1, select another

disc by following step 5.

Do not close the loading drawer by hand.

If the disc is placed in upside down (and it is a single sided

disc), "NO DISC" or "DISC ERROR" appears on the TV

screen.

ioooee `

Operating status indicator

If you insert an audio CD, the CD indicator lights up on the

display. The title number does not appear.

After playing back all of the chapters in the title, the DVD player

automatically stops and returns to the menu screen.

PAGE 18 I BASIC OPERATION

OPEN/CLOSE

0 0

GUI

_lp DISPLAY RETURN ZC_,.

PROGRAM

CLEAR

TOSHIBA

If you want to select another disc, press DISC

SKIP on the remote control once or more, or

press DISC SELECT (1 - 5) on the front panel.

Alsoyoucan selecta discinthe DVD playerdirectly

by usingthe remotecontrol,pressDISC SKIP and

then pressa numberbutton(1-5) onthe remotecontrol

withinonesecond.

Press PLAY to begin playback.

Playbackbegins.

Youcan skipthisstep ifthe discis alreadyplaying

automatically.

The menu screen appears on the TV screen.

In the case of interactive DVDs with playback, a menu screen appears

on the TV screen. Perform the following steps:

Press A/T/,/I_ and press ENTER, or press

the numeric button(s), to select the desired

item.

Playbackof the selecteditem begins.

Example of interactive DVD On-Screen Menu

•For further information, refer to the disc jacket of the disc

you are playing.

After operation

When the unit is not in use, remove the disc and press

POWER to turn off the power.

Video CD

This contains recordings of pictures and sound

whose quality is on a par with that of video tape.

This player also supports Video CDs with

playback control (Version 2.0).

What is playback control (PBC)?

If a Video CD has "playback control" written on

its disc or jacket, it means that particular scenes

or information can be selected for viewing inter-

actively with the TV monitor using the menu

screen.

C) Do not move the DVD player during playback. Doing so may

damage the disc and the DVD player.

O Use the OPEN/CLOSE button on the remote control or DVD

player to open and close the disc tray. Do not push the disc tray

while it is moving. Doing so may cause the DVD player to

malfunction.

O Do not push up the disc tray or put any objects other than discs

on the disc tray. Doing so may cause the DVD video

player to malfunction.

O Keep your fingers well clear of the disc tray as it is closing. Be

especially careful with children's fingers around the

closing disc tray as there is a risk of personal injury.

O When "Q "appears on the TV screen while a button is

pressed, it means that this function is not available on the disc

you are playing.

O Depending on the DVD disc, some operations may be different

or restricted. Refer to the jacket or case of the disc you are

playing.

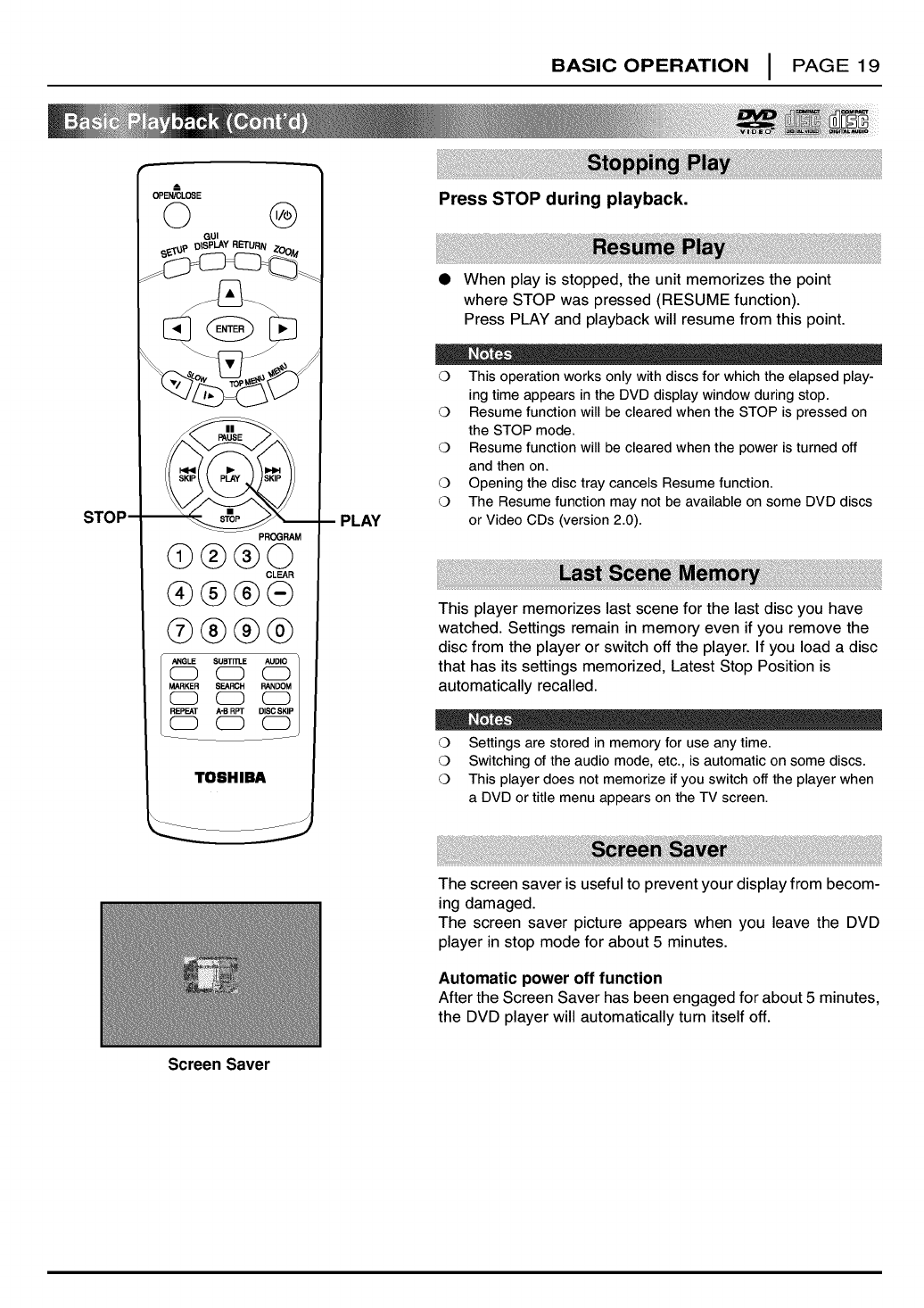

BASIC OPERATION I PAGE 19

STOP

OPEN/CLOSE

GUI

AL_ PDISPLAY RETURN ZOQ

PROGRAM

®®®© CLEAR

®®®®

ANGLE SUBTI]].E AUDIO

CD CD CD

MARKER SEARCH RANDOM

CD CD CD

REPEAT A'B RPT DISCSKIP

CD CD CD

TOEHIBA

Screen Saver

- PLAY

Press STOP during playback.

• When play is stopped, the unit memorizes the point

where STOP was pressed (RESUME function).

Press PLAY and playback will resume from this point.

C) This operation works only with discs for which the elapsed play-

ing time appears in the DVD display window during stop.

C) Resume function will be cleared when the STOP is pressed on

the STOP mode.

C) Resume function will be cleared when the power is turned off

and then on.

C) Opening the disc tray cancels Resume function.

C) The Resume function may not be available on some DVD discs

or Video CDs (version 2.0).

This player memorizes last scene for the last disc you have

watched. Settings remain in memory even if you remove the

disc from the player or switch off the player. If you load a disc

that has its settings memorized, Latest Stop Position is

automatically recalled.

C) Settings are stored in memory for use any time.

C) Switching of the audio mode, etc., is automatic on some discs.

C) This player does not memorize if you switch off the player when

a DVD or title menu appears on the TV screen.

The screen saver is useful to prevent your display from becom-

ing damaged.

The screen saver picture appears when you leave the DVD

player in stop mode for about 5 minutes.

Automatic power off function

After the Screen Saver has been engaged for about 5 minutes,

the DVD player will automatically turn itself off.

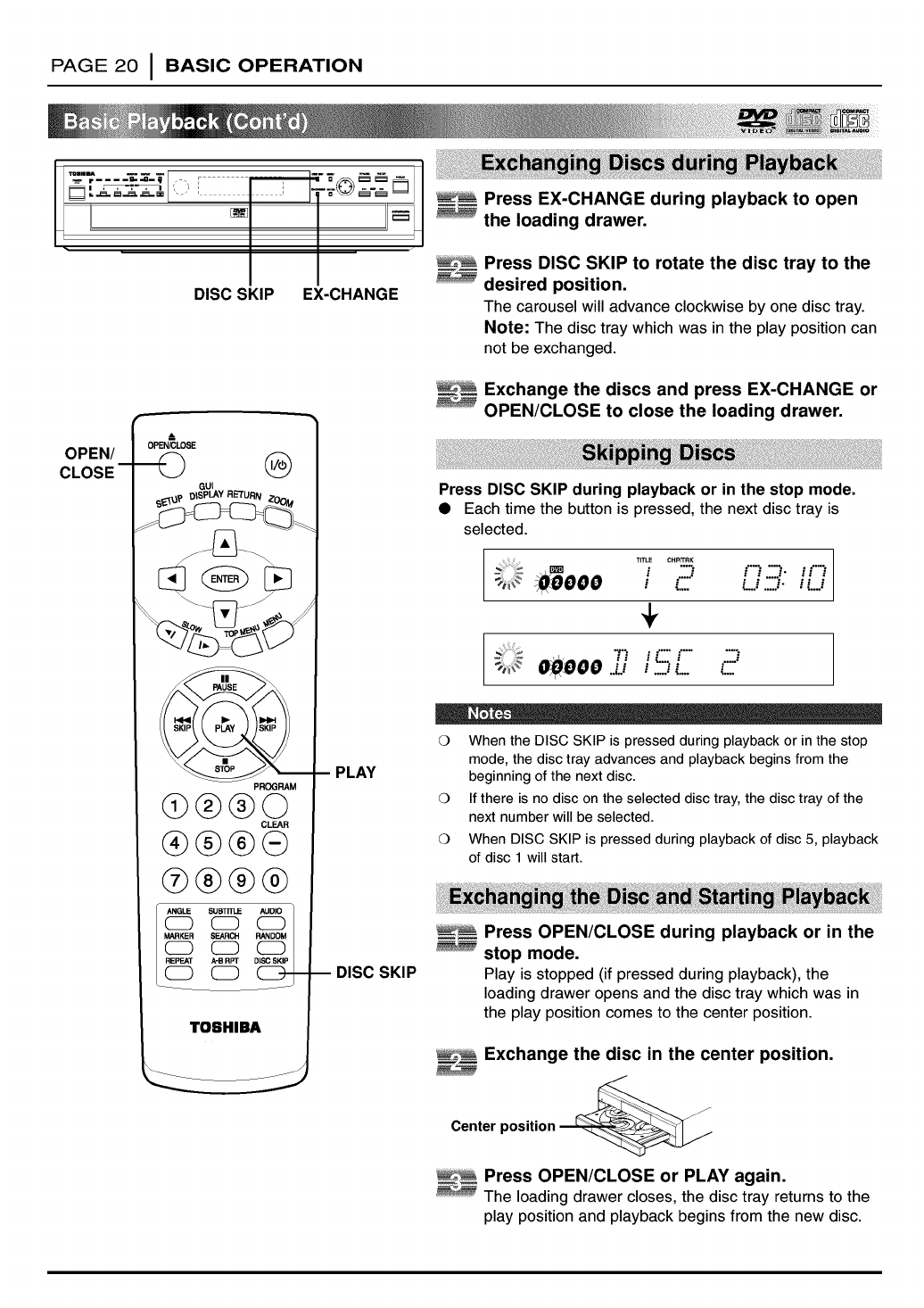

PAGE 20 I BASIC OPERATION

I TalHIR n _ w

=-"------""-._,' ',_ i

DISC SKIP

] °!°o

EX-CHANGE

OPEN/

CLOSE --

OPEN/CLOSE

--Q O

GUI

_p D_sPLAY RETURN ZOO

PROGRAM

CLEAR

®®®®

TOEHIBA

-- PLAY

-- DISC SKIP

Press EX-CHANGE during playback to open

the loading drawer.

Press DISC SKIP to rotate the disc tray to the

desired position.

The carousel will advance clockwise by one disc tray.

Note: The disc tray which was in the play position can

not be exchanged.

Exchange the discs and press EX-CHANGE or

OPEN/CLOSE to close the loading drawer.

Press DISC SKIP during playback or in the stop mode.

• Each time the button is pressed, the next disc tray is

selected.

TITLE CHP/TRK

_000 "-" .........

.....:i i .....;" ; r;

tti_ _ -.. ...... ....

•"!"= = ,.'_ ,-- ...... ...

o_0oo :: :"": ,-'..|.: :,....." -_.... { ....

OWhen the DISC SKIP is pressed during playback or in the stop

mode, the disc tray advances and playback begins from the

beginning of the next disc.

OIf there is no disc on the selected disc tray, the disc tray of the

next number will be selected.

OWhen DISC SKIP is pressed during playback of disc 5, playback

of disc 1 will start.

_ress OPEN/CLOSE during playback or in the

stop mode.

Play is stopped (if pressed during playback), the

loading drawer opens and the disc tray which was in

the play position comes to the center position.

_Exchange the disc in the center position.

Center position _

Press OPEN/CLOSE or PLAY again.

The loading drawer closes, the disc tray returns to the

play position and playback begins from the new disc.

BASIC OPERATION I PAGE 21

SKIP 144

STOP

OPEN/CLOSE

GUI

__p oISPLAY RETURN Z(P_

PROGRAM

G®®©CLEAR

®®®®

ANGLE SUBTI'R-E AUDIO

CD CD CD

MARKER SEARCH RANDOM

CD CD CD

REPEAT A-B RPT DISCSKIP

CD CD CD

TOSHIBA

PAUSE

SKIP b4H

PLAY

Press PAUSE during playback.

•DVD/Video CD

The player will be placed in the still picture mode.

• CD

Playback will be paused.

Press PAUSE during still playback.

(Each time you press PAUSE, the picture advances one

frame)

To resume normal playback, press PLAY.

Skipping forward

Press SKIP l_d during playback.

A chapter (DVD) or a track (CD/Video CD) is skipped each

time this button is pressed.

Skipping back

Press SKIP 144 during playback.

• When this button is pressed once midway through a

chapter/track, the player returns to the start of that

chapter/track. When it is pressed repeatedly, a

chapter/track is skipped each time the button is pressed.

For your reference:

• When 144 SKIP bH is pressed during menu play of

video CDs equipped with PBC (Version 2.0), a menu

screen may appear.

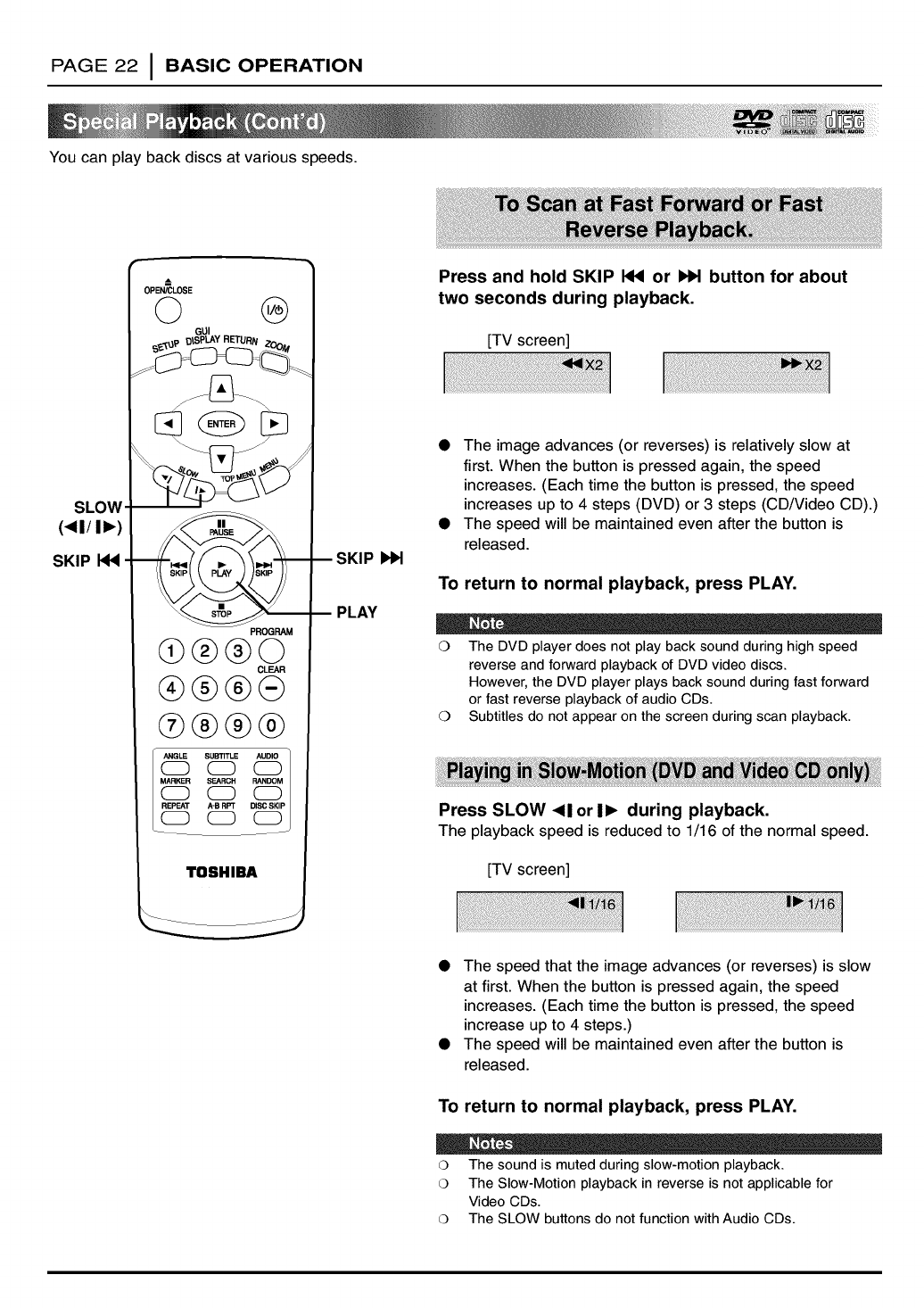

PAGE 22 I BASIC OPERATION

You can play back discs at various speeds.

OPEN/CLOSE

GUI

D_sPLAY RETURN

SLOW"

(11/11_)

SKIP 144

PROGRAM

CLEAR

®®®®

TOSHIBA

SKIP Phi

PLAY

Press and hold SKIP 1<4 or bbl button for about

two seconds during playback.

[TV screen]

•The image advances (or reverses) is relatively slow at

first. When the button is pressed again, the speed

increases. (Each time the button is pressed, the speed

increases up to 4 steps (DVD) or 3 steps (CD/Video CD).)

• The speed will be maintained even after the button is

released.

To return to normal playback, press PLAY.

O The DVD player does not play back sound during high speed

reverse and forward playback of DVD video discs.

However, the DVD player plays back sound during fast forward

or fast reverse playback of audio CDs.

O Subtitles do not appear on the screen during scan playback.

Press SLOW ,41 or liP"during playback.

The playback speed is reduced to 1/16 of the normal speed.

[TV screen]

• The speed that the image advances (or reverses) is slow

at first. When the button is pressed again, the speed

increases. (Each time the button is pressed, the speed

increase up to 4 steps.)

• The speed will be maintained even after the button is

released.

To return to normal playback, press PLAY.

O The sound is muted during slow-motion playback.

O The Slow-Motion playback in reverse is not applicable for

Video CDs.

O The SLOW buttons do not function with Audio CDs.

OPERATION USING GUI MENU I PAGE 23

This unit features an icon based GUI menu showing

disc information (title/chapter/track number, elapsed

playing time, audio/subtitle language, angle, and

sound) and player information (repeat play, play mode,

marker, etc.). Some icons only show the indicated

information. Other icons allow settings to be changed.

0PEN/CLOSE

Gill

._p DISPLAY RETURN ZOo

Common procedures

Press GUI DISPLAY during playback.

• Title function can be accessed from the stop mode.

_Press A/V to select the desired item.

•The current selected item is highlighted by a yellow

frame around its menu icon.

Press _1/1_ to select the desired setting.

•When numbers are displayed (e.g. title number),

the numeric buttons can also be used for setting

instead of </1_.

•For some functions, the setting will be registered

immediately; for others, ENTER must be pressed.

To clear the GUI Menu display, press GUI

DISPLAY again.

Examples of GUI Menu Icons.

(The screens may differ depending on the disc contents.)

(DVD GUI) (CD/Video CD GUI) (Video CD (Version 2.0)) (DVD and CD GUI)

PAGE 24 I OPERATION USING GUI MENU

You can view information about a disc and its operational status on the TV screen.

Press GUI DISPLAY during

playback.

FV screen] DVD GUI

FUNCTION

(Press A/V to select desired item)

Indicatesthe currenttitle number;

and to jump to a desired title number

SELECTION

METHOD

Indicates the current chapter number;

and to jump to a desired chapter number

Indicates the elapsed time;

and directly select scenes by the desired time.

Indicates the current audio soundtrack language,

encoding method, channel number;

and to change the settings.

Indicates the current subtitles language;

and to change the setting.

Indicates the current angle number;

and to change the angle.

Indicates the current sound enhancement (NORMAL or

3D SURROUND);

and to change the setting.

Press GUI DISPLAY during

playback.

[TV screen] CD/Video CD GUI

FUNCTION

(Press A/V to select desired item)

SELECTION

METHOD

Indicates the current track number;

and to jump to the desired track number

Indicates the elapsed time;

(Display only)

Indicates the current audio (STEREO, LEFT, RIGHT);

and to select a desired audio channel.

Indicates the current sound enhancement (NORMAL or

3D SURROUND);

and to change the setting (Audio CD only).

O Some DVD discs may not provide all of the above GUI menu icons.

ADVANCED OPERATION I PAGE 25

Some movie discs may contain two or more titles.

If the disc has a title menu recorded on it, the

TOP MENU button can be used to select the

movie title and related menu options. (The details

of operation differ depending on the disc used.)

•Selecting a title may not be possible on

certain DVD discs.

UUI

_ DISPLAY RETURN ZOO

PROGRAM

_Press TOP MENU.

A list of the titles on the disc is displayed.

Pressing TOP MENU again to resume play from the

location when TOP MENU was first pressed.

• Resume play may not be possible on certain discs.

Press A/V/_I/II_ and press ENTER or PLAY, or

press the numeric button(s), to select a

desired title.

The selected title now begins playback.

Some DVDs have unique menu structures called

DVD menus. For example, DVDs programmed

with complex contents may provide guide menus,

and those recorded with various languages may

provide menus for audio and subtitle language.

Although the DVD menu's contents and operation

differ from disc to disc, the following explains

basic operation when this feature is available.

Press MENU during playback.

The DVD menu encoded on the disc is displayed.

jUp D|sPLAY RETURN ZOO

PROGRAM

Pressing MENU again resumes playback from the

scene when MENU was first pressed.

• Resume playback may not be possible on certain

discs.

Press A/V/_I/II_ and press ENTER, or press

the numeric button(s), to select a desired

item.

The selected item is now displayed.

PAGE 26 I ADVANCED OPERATION

It is possible to change the subtitle language to a

different language from the one selected at the initial

setup. (See page 33 for further info.)

This operation functions only on discs that include

multiple subtitle languages.

®®®®

O In some cases, the subtitle language is not changed to

the selected one immediately.

O When a disc supporting closed captioned data is played,

the subtitle and the closed caption data may overlap

each other on the TV screen. In this case, turn the subti-

tle off.

O When a desired language can not be selected even after

pressing the button several times, the language is not

available on the disc.

O When the power is turned on or the disc is removed,

subtitles will appear in the language selected at the initial

setting. If this language is not recorded on the disc, the

disc's priority language appears.

Press SUBTITLE during playback.

When nosubtitles are available,"OFF" willbe

displayed insteadof the languagenumber.

_ress SUBTITLE repeatedly until the

desired language is selected.

The number corresponding to the subtitle

language being played back is displayed.

To eliminate the On Screen Subtitles.

Press SUBTITLE repeatedly to select OFF at step 2.

It is possible to change the audio soundtrack language

(or encoding method, channel number) to a different

language from the one selected at the initial setup.

(See page 33 for further info.) This operation works

only with discs on which multiple audio soundtrack

languages are included.

It may be possible to change the audio channel in

case of audio CD.

®®®®

O When the desired language is not selected even after

pressing the AUDIO button several times, the language

is not available on the disc.

O When the power is turned on or the disc is removed, the

language heard is the one selected at the initial setup.

If this language is not mastered on the disc, only the

language available on the disc will be heard.

O Some discs may not respond to Audio feature.

. DVD

Press AUDIO during play.

Numberof the audiosoundtrack languagebeing

played back.

_Press AUDIO repeatedly until the

desired language (or encoding method,

channel number) is selected.

, CD/Video CD

_Press AUDIO during playback.

_Press AUDIO until the

repeatedly

desired sound is selected.

ADVANCED OPERATION I PAGE 27

Some DVDs may contain scenes which have been

shot simultaneously from a variety of different angles.

You can view each of these different angles using the

ANGLE button. (The recorded angles differ depending

on the disc used.)

_Press ANGLE during playback.

Number of angle

being played back

is displayed.

_ress ANGLE repeatedly until the

desired angle is selected.

_L_n

®®®@

For your reference

• The ANGLE indicator will blink in the DVD display

window during scenes recorded at different angles as

an indication that angle switching is possible.

• The angle number can be programmed beforehand; the

angle will switch to the selected number when the

ANGLE indicator blinks.

OThis function only works for discs that include scenes

recorded from multiple angles.

This unit can produce a 3D Surround effect, using 3D

Surround Sound technology, which simulates multi-chan-

nel audio playback from two conventional stereo speak-

ers instead of the five or more speakers normally

required to listen to multi-channel audio from a home

theatre. This feature works with DVD discs encoded with

Dolby Pro Logic and Dolby Digital audio tracks.

1O O

GUI

_p DtSPLAY RETURN ZOO

PROGRAM

Press GUI DISPLAY during playback.

_Press A/V to select SOUND item.

Press <1/1_ repeatedly until the desired

sound is selected.

Each time this button is pressed, the icon

display changes.

O This 3D Surround effect may not be available on some

DVD discs, including those recorded with a mono audio

soundtrack.

O Turn off the TV surround sound and other surround

effects when using this 3D surround effect.

O For best 3D Surround effect using only two speakers it is

recommended that the two speakers be positioned

approximately 8' to 10' apart, and the listening

position should be 8' to 10' away from the speakers.

PAGE 28 I ADVANCED OPERATION

Repeating viewing (listening)

Press REPEAT during playback.

Each time this button is pressed, the icon display

changes as shown below and the disc will repeat a

chapter or title (DVD) or a track (CD/Video CD).

Repeating sections between two

specific points (A-B repeat)

While the disc is playing, press A-B RPT at

the point where repeat play is to start (A).

• DVD

Repeat of chapter

being played

Repeat of title

being played

Cancels repeat mode

(normal play)

•You can select "OFF" at this step by pressing

CLEAR.

_Press A-B RPT during playback at the

point where repeat play is to be

concluded (B).

•CD/Video CD

Repeat of track

being played

Repeat of entire

current disc contents

Repeat of entire

all disc contents

Cancels repeat mode

(normal play)

To enjoy program repeat play (CD/Video CD)

If REPEATis pressed during program play, repeat play

is operatedas below.

Repeat of the

current programmed

track

Repeat of all programs

Cancel repeat mode |

(Program play)

Repeat play of the selection between points A

and B starts.

To return to normal play

PressA-B RPT once"OFF" is displayed.

ORepeat play works only with discs for which the elapsed

playing time appears in the DVD display window during

playback.

ORepeat play may not work correctly with some DVDs and

some Video CDs.

OA-B repeat play works only within a DVD title or a

CD/Video CD track.

OSome subtitles proceeding point A or B may not be

displayed.

To return to normal play

Press REPEATseveral times until"OFF" is displayed.

ADVANCED OPERATION I PAGE 29

Storing a MARKER in the DVD memory is similar

to marking your page in a book. It allows you to

quickly return to any point on the disc.

Storing a marker in the memory

Press MARKER during play at the starting

point to be viewed (listened to) again.

•

0PEN_SE

GUI

_p DIsP_Y RETURN Z_=.

PROG_

CL_R

®®®®

TOSHIBA

Indicates "1/9" is stored in the memory.

Up to 9 marks can be stored in the memory.

Recalling/Clearing a marker

_ress SEARCH during playback.

The MARKER SEARCH menu willappear on the TV

screen.

Press </1_ to select the marker to be

recalled/cleared.

Press ENTER to recall a marker.

Or press CLEAR to clear a marker.

Playbackresumes from the point correspondingto the

selected marker.

O These operations work only with discs for which the elapsed

playing time appears in the DVD display window during playback

or stop operation.

O Some subtitles recorded around the marker may not be

displayed (DVD).

O All the markers are cleared when the power is turned off or the

disc is removed.

O The marker cannot be memorized when the DVD or title menu is

displayed on the TV screen.

PAGE 30 I ADVANCED OPERATION

The Zoom function allows you to magnify the video

image and to navigate through the enlarged image.

PROGRAM

@®®Q

CLEAR

®®®Q

Press ZOOM during playback or still

playback to activate the Zoom function.

If you press ZOOM repeatedly, the magnification level

increases (6 steps).

Press A/T/<I/I_ buttons to move through

the zoomed picture.

Press CLEAR to resume normal play-

back.

O Some discs may not respond to the Zoom feature.

O Zoom does not work on subtitles or menus included on

DVD video discs.

Note: This function only works with karaoke DVD,

Audio CD and Video CD. The random feature does not

work with DVD movies.

You can playback titles or tracks in random order.

(Random playback)

The DVD player automatically selects the titles on a

DVD video karaoke disc and plays them randomly.

®®®@

Random play (Karaoke DVD, Video CD or CD)

Press RANDOM repeatedly until desired

random mode is selected during

playback or stop mode.

The unit automatically begins Random Playback

and RANDOM (1-3) appears on the TV screen.

•RANDOM1 : Plays all the tracks on a single disc in

random order and then stops.

• RANDOM2: Plays all the tracks on current disc in

random order and then plays all the tracks on each

succeeding disc in random order and then stops.

• RANDOM3: Plays 2 tracks randomly from a disc and

then plays 2 tracks randomly from a different disc

until all tracks on all discs have been played.

To return to normal playback, press

RANDOM repeatedly until NORMAL

appears on the TV screen.

The RANDOM indicator in the DVD display

window disappears.

Random playback may not be possible on certain discs.

If you press the SKIP I_ or _ button during random

playback, the DVD player skips to another track and

starts random playback.

ADVANCED OPERATION I PAGE 31

The player plays the tracks on the disc in the

order you specify.

Note: Program play function is possible only

with audio CDs. It does not work with DVD

movie discs and Video CDs (Version 2.0).

_Press PROGRAM on the stop mode.

The program menu screen appearsonthe TV.

OPEN/CLOSE

GUI

A_p DISPLAY RETURN ZOO

PIROGP_M

ICLEAR

I L.----q

L I

MARKER SEARCH RANDOM

REPEAT A'B RPT DISC SKIP

(Z) (Z) (Z)

TOEHIBA

-1

• To exit the screen, press PROGRAM or RETURN.

Enter the disk number using the numerical

keys (1-5) and then press ENTER.

Enter the track number using the numerical

keys (0-9) and then press ENTER.

The nextarea is selected.

Repeat steps 2 to 3.

Up to 20 tracks can be programmed.

Press PLAY to exit the menu.

The selected tracks are stored in the player memory

and playback begins with the first programmed

sequence.

After playback of all programmed tracks is

completed, playback is stopped

Clearing the program

• To clear the programmed tracks one by one

Press &/V/_I/I_ to select the unwantedtrackand thenpress

CLEAR.

•To clear all the programmed tracks

Press &/V/_I/I_ to select "Clear All" and then press ENTER.

Press PROGRAM or RETURN to exitthe screen.

(The programs are alsocleared whenthe power is turnedoff

orthe disc is removed.)

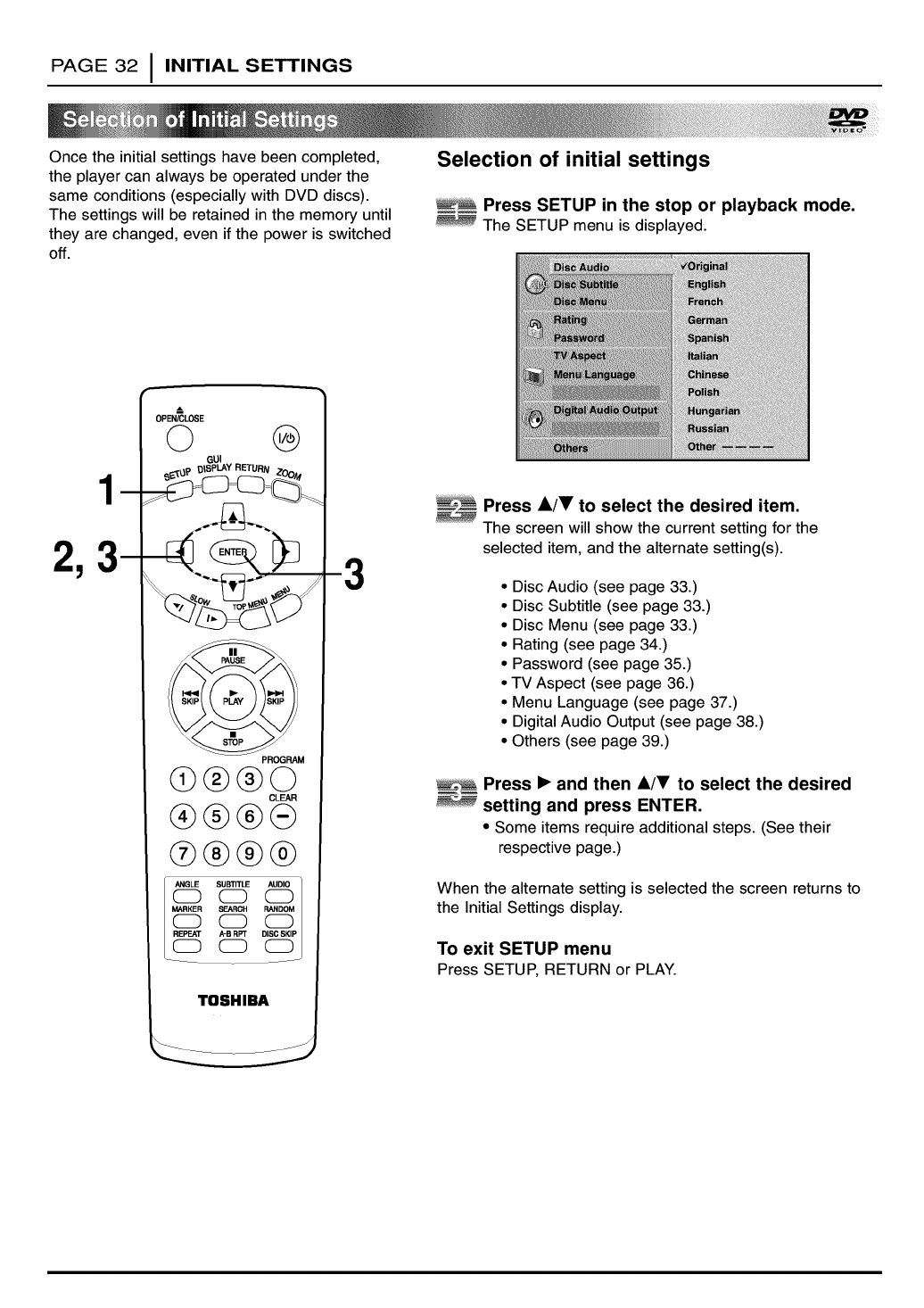

PAGE32 I INITIAL SETTINGS

Once the initial settings have been completed,

the player can always be operated under the

same conditions (especially with DVD discs).

The settings will be retained in the memory until

they are changed, even if the power is switched

off.

Selection of initial settings

Press SETUP in the stop or playback mode.

The SETUP menu is displayed.

OPEN.LOSE

GUl

Jt_P DISPLAY RETURN ZOo

PROGRAM

G®®©CLEAR

®®®®

ANGLE SUBTITLE AUDIO

CD CD CD

MARKER SEARCH RANDOM

CD CD CD

REPEAT A-B RPT DISC SKIP

CD CD CD

TOSHIBA

_ress A/V to select the desired item.

The screen will show the current setting for the

selected item, and the alternate setting(s).

•Disc Audio (see page 33.)

• Disc Subtitle (see page 33.)

• Disc Menu (see page 33.)

• Rating (see page 34.)

• Password (see page 35.)

• TV Aspect (see page 36.)

• Menu Language (see page 37.)

• Digital Audio Output (see page 38.)

• Others (see page 39.)

_ress •and then A/T to select the desired

setting and press ENTER.

• Some items require additional steps. (See their

respective page.)

When the alternate setting is selected the screen returns to

the Initial Settings display.

To exit SETUP menu

Press SETUP, RETURN or PLAY.

INITIAL SETTINGS IPAGE 33

To select the audio soundtrack language, subtitle

language and the language used in title menus

or DVD menus.

When you play back a DVD video disc, the DVD

player automatically displays the pre-selected

subtitle language if it is included on the disc.

At the setup screen, press A/V to select

"Disc Audio" and press I_.

OPEN/CLOSE

GUI

__p DISPLAY RETURN Zt'_

PROGRAM

G®®©CLEAR

®®®®

ANGLE SUBTI'II_ AUDIO

CD CD CD

MARKER SEARCH RANDOM

CD CD CD

REPEAT A'B RPT DISC SKIP

CD CD CD

TOSHIBA

1,2

_Press A/V to select the desired language and

then press ENTER.

Original :The native, or default language of each disc will be

selected.

English : English will be Selected.

Other : Another language can be selected. You can input a

4-digit language code. (Refer to the language

codes on page 40. Press CLEAR if an incorrect

language code is entered.)

The "Disc Subtitle" and "Disc Menu" settings are selected by

the same method.

C) If the language selected is not available on the disc, the native, or

default language designated by each disc will be selected.

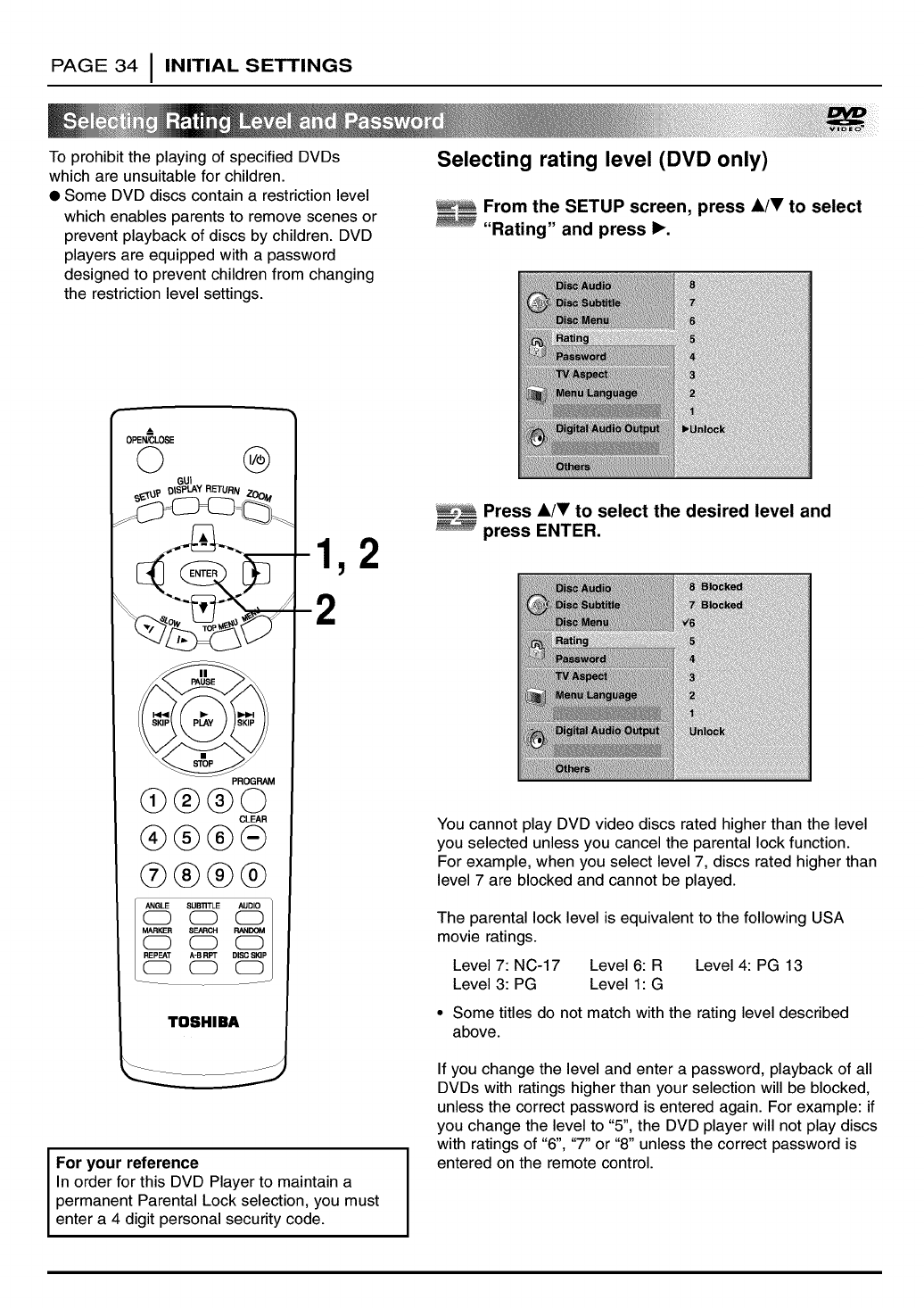

PAGE 34 I INITIAL SETTINGS

To prohibit the playing of specified DVDs

which are unsuitable for children.

• Some DVD discs contain a restriction level

which enables parents to remove scenes or

prevent playback of discs by children. DVD

players are equipped with a password

designed to prevent children from changing

the restriction level settings.

Selecting rating level (DVD only)

From the SETUP screen, press A/T to select

"Rating" and press I_.

OPEN/CLOSE

GUI

_,lp DISPLAY RETURN Zt),_,.

PROGRAM

@®®©CLEAR

®®®@

ANGLE SUBTITLE AUDIO

(Z) (Z) @

MARKER SEARCH RANDOM

(Z) (Z) @

REPEAT A-B RPT DISC SKIP

(Z) (Z) (Z)

TOSHIBA

For your reference

In order for this DVD Player to maintain a

permanent Parental Lock selection, you must

enter a 4 digit personal security code.

Press &/_r to select the desired level and

press ENTER.

You cannot play DVD video discs rated higher than the level

you selected unless you cancel the parental lock function.

For example, when you select level 7, discs rated higher than

level 7 are blocked and cannot be played.

The parental lock level is equivalent to the following USA

movie ratings.

Level 7:NC-17 Level 6: R Level 4: PG 13

Level 3: PG Level 1: G

• Some titles do not match with the rating level described

above.

If you change the level and enter a password, playback of all

DVDs with ratings higher than your selection will be blocked,

unless the correct password is entered again. For example: if

you change the level to "5", the DVD player will not play discs

with ratings of "6", "7" or "8" unless the correct password is

entered on the remote control.

INITIAL SETTINGS IPAGE 35

0PENiCLOSE

GUI

_p DISPLAY RETURN Z(Y_,.

..._ROG_

CLEAR

-® ®

I ...q

ANGLE SUBTm_E AUDIO

CD CD CD

MARKER SEARCH RANDOM

CD CD CD

REPEAT A-B RPT DISC SKIP

CD CD CD

TOSHIBA

To clear your 4-digit password

If you forget your password, to clear the

current password, follow the procedure below.

1Press SETUP.

The SETUP menu is displayed.

2Enter 6-digit number "210499" by

pressing number buttons.

The 4-digit password is cleared. "P CL¢'

appears on the display.

3Enter a new password.

Refer to "Setting your password" section on

the right.

Setting your password (DVD only)

Ifyou change the rating level to "7" or lower, you must enter

a 4-digit "password" to prevent playback of discs with higher

ratings.

At the SETUP screen, press •to select

"Password" and press I_.

_Input a 4-digit password and press ENTER.

Example • 1234

Do not forget your password.

Input the 4-digit password again and press

ENTER to verify.

Setting is completed.

eThe rating is locked. Any disc whose rating is higher than

the setting, cannot be played back unless the correct

password is entered, and parental lock level is modified.

To change/clear memorized password

At the SETUP screen, press •to select

"Password" and press I_.

Input your password and press ENTER.

To change or clear your password, press A/•

to select the "Change" or "Clear" and press

ENTER.

To change the rating level/password, follow the steps on

page 34-35 again.

PAGE 36 I INITIAL SETTINGS

Select the appropriate screen type according to

your TV set; conventional size screen (4:3) or

wide-screen (16:9).

_At the SETUP screen, press &/V to select "TV

Aspect" and press I_.

OPEN/CLOSE

Gill

___lp 0IsPLAY RETURN ZOo

PROGRAM

@®®©CLEAR

®®®®

4:3 Letterbox

r_Cut Off_

4:3 Panscan

-2

_Press A/V to select the desired Aspect and

press ENTER.

4:3 Letterbox : Select when a conventional TV set is

connected widescreen. Video material not formatted to the

Pan & Scan style is played back in the letterbox style (black

bands appear at top and bottom of screen).

4:3 Panscan : Select when a conventional TV set is

connected widescreen. Video material formatted in the Pan &

Scan style is played back in that style (Full screen display).

However, the left and right edges of the original theatrical

presentation will be cropped off.

16:9 Wide : Select when a wide-screen TV set is connected.

Played in "FULL" size. (Setting the wide-screen TV to "FULL"

mode is also necessary.) Displays a full widescreen picture or

slightly letterboxed picture depending upon the aspect ratio of

the original theatrical content.

* Each screen shows an example when the video material

for a wide-screen is played.

16:9 Wide

INITIAL SETTINGS IPAGE 37

Selects language for SETUP menus and on-

screen displays. From the SETUP screen, press A/_l' to select

"Menu Language" and press I_.

oP_,E O

GUI

(_®®©CLEAR

®®®®

TOSHIBA

-2

Press A/V to select the desired Language and

press ENTER.

PAGE 38 I INITIAL SETTINGS

Each DVD disc has a variety of audio output

options. Set the player's Digital Audio Output

according to the type of audio system you use.

_At the SETUP screen, press A/T to select

Digital Audio Output and press I_.

OPEN/CLOSE

Gill

_3P oISPLAY RETURN ZOO

PROGRAM

CLEAN

®®®®

-2

OUTPUT

Playback Stream/PCM Dolby Digital/ PCM only

Disc PCM

96 kHz PCM PCM PCM

Linear PCM

DVD

DTS DVD DTS bit Stream DTS bit Stream DTS bit Stream

Dolby Digital Dolby Digital Dolby Digital PCM

DVD bit Stream bit Stream

MPEG DVD MPEG bit Stream PCM PCM

Audio CD/ PCM PCM PCM

Video CD

DTS Audio CD DTS bit Stream DTS bit Stream DTS bit Stream

_Press A/T to select the desired and

output

press ENTER.

You can select Digital Audio Output or Sampling

Frequency item by pressing ENTER.

•Digital Audio Output

DOLBY DIGITAL/PCM: Select "DOLBY DIGITAL/PCM" if

an active digital output is supplied to a Dolby Digital decoder,

(or an amplifier or other equipment with Dolby Digital

decoder).

Stream/PCM: Select "Stream/PCM" if an active

digital output is supplied to an amplifier or other

equipment with DTS decoder, Dolby Digital decoder and

MPEG decoder.

PCM: Select "PCM" if an active digital output is

supplied to an amplifier or other equipment with linear PCM

only (or MD recorder or DAT deck).

•Sampling Frequency

To change the Sample Frequency setting, first select the

desired digital audio output type as indicated above.

If your A/V receiver or surround processor is NOT capable of

handling 96kHz signals, select the 48kHz option. When this

choice is made, this unit will automatically convert any 96kHz

signals to a 48kHz output so that your system is capable of

decoding them.

If your A/V receiver or surround processor is capable of

handling 96kHz signals, select the 96kHz option. When this

choice is made, this unit will pass each type of signal through

without any further processing.

0When you are not using the player's digital audio output, don't

select any of the options.

0If an active digital audio output signal is supplied to a receiver or

other equipment without a corresponding digital decoding capa-

bility, a very loud noise may be produced which could

permanently damage the speakers.

0The DTS DVD disc sound is played back only when the DVD

player is connected to a receiver with a DTS decoder.

INITIAL SETTINGS IPAGE 39

The DRC, Vocal and PBC settings can be

changed. _At the SETUP screen, press A/V to select

"Others" and press I_.

OPEN/CLOSE

GUI

___p DISPLAY RETURN ZOO

PROGRAM

G®®©CLEAR

®®®®

ANGLE SUBTnlJ_ AUDIO

CD CD CD

MARKER SEARCH RANDOM

CD CD CD

REPEAT A-B RPT DISC SKIP

CD CD CD

-2

About DRC (Dynamic Range Compression)

With the DVD format you have the opportunity to listen to

program's soundtrack in the most accurate and realistic

presentation possible, thanks to the use of digital audio

technology. However, in certain instances you may wish to

slightly compress the dynamic range of the audio output

(the difference between the loudest sounds and the

quietest ones) so that you may listen to a movie at a lower

volume and still retain dialogue intelligibility.

_ress A/V to select the desired items and

press ENTER.

The setting of the selected item are changed between

On and Off.

DRC (Dynamic Range Compression) On/Off

On: Select this option to turn on the Dynamic Range

Compression circuitry so that dialogue remains clear

even at low volume levels.

Off: Select this option to turn off the Dynamic Range

Compression and have the soundtrack presented

exactly as it was created.

Vocal On/Off

Set to On only when a multi-channel karaoke DVD is

being played. The karaoke channels on the disc will then

be mixed into a normal stereo sound.

PBC On/Off

Set Playback Control (PBC) to On or Off

On: Video CDs with PBC are played back according to

the PBC.

Off: Video CDs with PBC are played back in the same

way as Audio CDs.

0The DRC function works only during playback of Dolby Digital

recorded discs.

0The level of Dynamic Range Compression may vary depending

on the DVD disc.

0When playing karaoke, connect appropriate audio equipment

(such as an amplifier) to the DVD video player.

PAGE 40 I INITIAL SETTINGS

Enter the appropriate code number for the initial settings "Audio", "Subtitle" and/or "Menu" (See page 33).

Code

6565

6566

6570

6577

6582

6583

6588

6590

6665

6669

6671

6672

6678

6679

6682

6765

6779

6783

6789

6865

6869

6890

6976

6978

6979

6983

6984

6985

7065

7073

7074

Language

Afar

Abkhazian

Afrikaans

Ameharic

Arabic

Assamese

Aymara

Azerbaijani

Bashkir

Byelorussian

Bulgarian

Bihari

Bengali; Bangla

Tibetan

Breton

Catalan

Corsican

Czech

Welsh

Danish

German

Bhutani

Greek

English

Esperanto

Spanish

Estonian

Basque

Persian

Finnish

Fiji

Code

7079

7082

7089

7165

7168

7176

7178

7185

7265

7273

7282

7285

7289

7365

7378

7383

7384

7387

7465

7473

7487

7565

7575

7576

7577

7578

7579

7583

7585

7589

7665

Language

Faroese

French

Frisian

Irish

Scots Gaelic

Galician

Guarani

Gujarati

Hausa

Hindi

Croatian

Hungarian

Armenian

Interlingua

Indonesian

Icelandic

Italian

Hebrew

Japanese

Yiddish

Javanese

Georgian

Kazakh

Greenlandic

Cambodian

Kannada

Korean

Kashmiri

Kurdish

Kirghiz

Latin

Code

7678

7679

7684

7686

7771

7773

7775

7776

7778

7779

7782

7783

7784

7789

7865

7869

7876

7879

7982

8065

8076

8083

8084

8185

8277

8279

8285

8365

8368

8372

8373

Language

Lingala

Laothian

Lithuanian

Latvian, Lettish

Malagasy

Maori

Macedonian

Malayalam

Mongolian

Moldavian

Marathi

Malay

Maltese

Burmese

Nauru

Nepali

Dutch

Norwegian

Oriya

Panjabi

Polish

Pashto, Pushto

Portuguese

Quechua

Rhaeto-Romance

Rumanian

Russian

Sanskrit

Sindhi

Serbo-Croatian

Singhalese

Code

8375

8376

8377

8378

8379

8381

8382

8385

8386

8387

8465

8469

8471

8472

8473

8475

8476

8479

8482

8484

8487

8575

8582

8590

8673

8679

8779

8872

8979

9072

9085

Language

Slovak

Slovenian

Samoan

Shona

Somali

Albanian

Serbian

Sundanese

Swedish

Swahili

Tamil

Telugu

Tajik

Thai

Tigrinya

Turkmen

Tagalog

Tonga

Turkish

Tatar

Twi

Ukrainian

Urdu

Uzbek

Vietnamese

Volap(Jk

Wolof

Xhosa

Yoruba

Chinese

Zulu

REFERENCE I PAGE 41

This DVD player can play back the following discs.

DVD video discs

Video CDs

Audio CDs

Disc mark Contents

VIDEO

DIGITAL AUDIO

Audio+Video

(moving pictures)

Audio+Video

Audio

Disc size

12 cm

8 cm

12 cm

8 cm

12 cm

8 cm

Maximum playback time

Approx. 4 hours (single sided disc)

Approx. 8 hours (double sided disc)

Approx. 80 minutes (single sided disc)

Approx. 160 minutes (double sided disc)

74 minutes

20 minutes

74 minutes

20 minutes

CD-R/RW discs are also available.

You cannot playback discs other than those listed above. (CD-ROM, CD-Extra, CD-G, photo CD, and CD-i discs

can not be played on this DVD player.)

CD-R/RW discs recorded by CD-DA method can be played. Some CD-R/RW discs may be incompatible.

You cannot play discs of DVD-RAM, DVD-RW, etc., even if they may be labeled marks listed above.

Region Management Information: This DVD Player is designed and manufactured to respond to the Region

Management Information that is recorded on a DVD disc. If the Region number described on the DVD disc does

not correspond to the Region number of this DVD player, this DVD player cannot play that disc.

The Region number of this DVD player is 1.

You may not be able to play back some DVD video discs on this player if they were purchased from outside your

geographic area or made for business purposes.

When you try to play back an unauthorized disc, "Check Regional Code" appears on the TV screen.

It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public, and rent copyrighted material

without permission.

DVD video discs are copy protected, and any recordings made from these discs will be distorted.

This product incorporates copyright protection technology that is protected by method claims of certain U.S.

patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of

this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home

and other limited viewing uses only, unless otherwise authorized by Macrovision Corporation. Reverse

engineering or disassembly is prohibited.

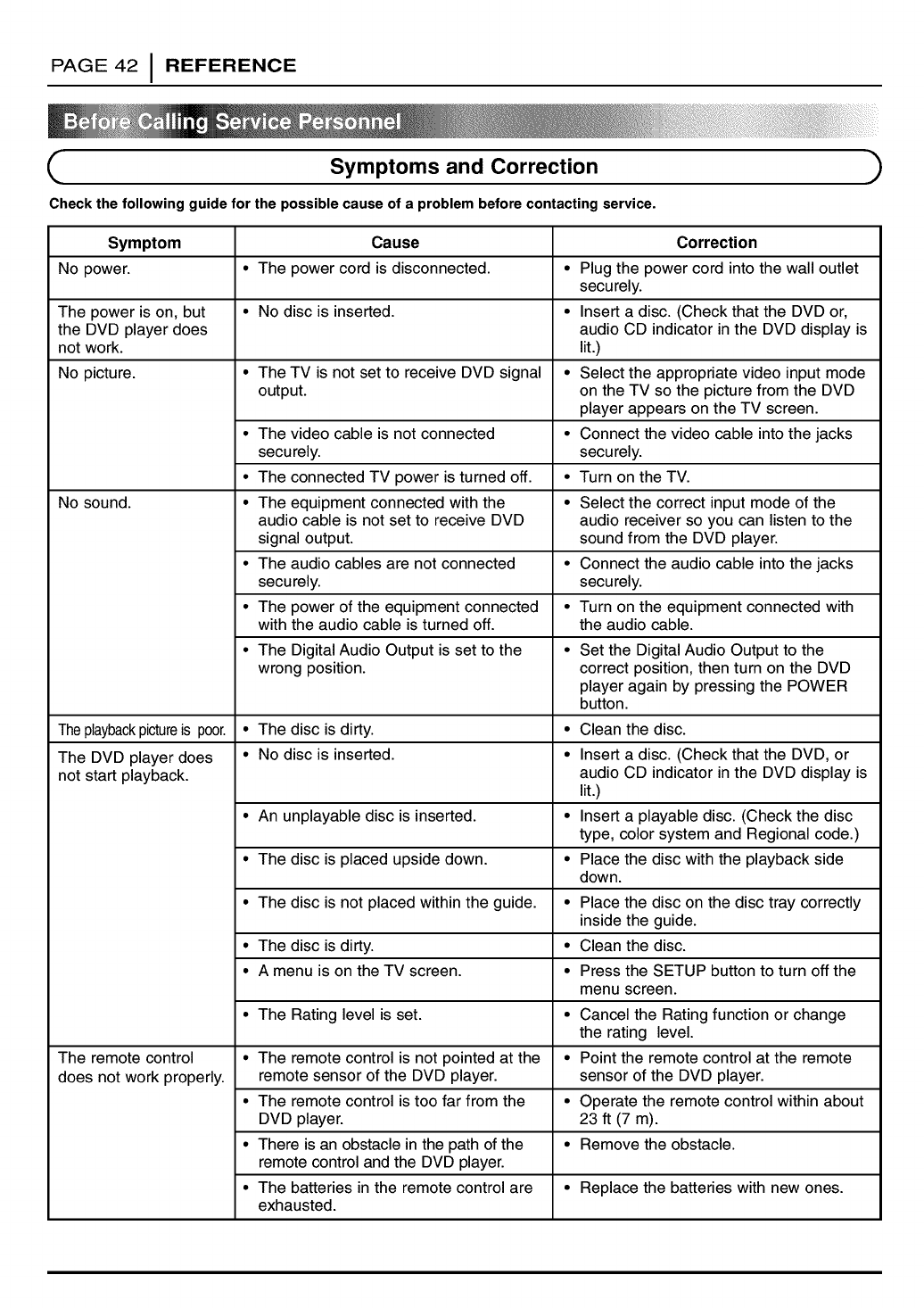

PAGE 42 I REFERENCE

Symptoms and Correction )

Check the following guide for the possible cause of a problem before contacting service.

Symptom Cause Correction

No power. •The power cord is disconnected. • Plug the power cord into the wall outlet

securely.

The power is on, but • No disc is inserted. • Insert a disc. (Check that the DVD or,

the DVD player does audio CD indicator in the DVD display is

not work. lit.)

No picture. • The TV is not set to receive DVD signal • Select the appropriate video input mode

output, on the TV so the picture from the DVD

player appears on the TV screen.

• The video cable is not connected • Connect the video cable into the jacks

securely, securely.

• The connected TV power is turned off. • Turn on the TV.

No sound. • The equipment connected with the • Select the correct input mode of the

audio cable is not set to receive DVD audio receiver so you can listen to the

signal output, sound from the DVD player.

• The audio cables are not connected • Connect the audio cable into the jacks

securely, securely.

• The power of the equipment connected • Turn on the equipment connected with

with the audio cable is turned off. the audio cable.

• The Digital Audio Output is set to the • Set the Digital Audio Output to the

wrong position, correct position, then turn on the DVD

player again by pressing the POWER

button.

Theplaybackpictureis poor. • The disc is dirty. • Clean the disc.

The DVD player does • No disc is inserted. • Insert a disc. (Check that the DVD, or

not start playback, audio CD indicator in the DVD display is

lit.)

• An unplayable disc is inserted. • Insert a playable disc. (Check the disc

type, color system and Regional code.)

• The disc is placed upside down. • Place the disc with the playback side

down.

• The disc is not placed within the guide. • Place the disc on the disc tray correctly

inside the guide.

• The disc is dirty. • Clean the disc.

• A menu is on the TV screen. • Press the SETUP button to turn off the

menu screen.

• The Rating level is set. • Cancel the Rating function or change

the rating level.

The remote control • The remote control is not pointed at the • Point the remote control at the remote

does not work properly, remote sensor of the DVD player, sensor of the DVD player.

• The remote control is too far from the • Operate the remote control within about

DVD player. 23 ft (7 m).

• There is an obstacle in the path of the • Remove the obstacle.

remote control and the DVD player.

• The batteries in the remote control are • Replace the batteries with new ones.

exhausted.

REFERENCE IPAGE 43

DVD player/Outputs/Supplied Accessories )

fPower supply AC 120V, 60 Hz

Power consumption 16 W

Weight 12.6 Ibs (5.7 kg)

External dimensions (W X H X D) 17" X 4.7" X 15.1" (430 x 118 x 381 mm)

,_ Signal system NTSC

>, Laser Semiconductor laser, wavelength 650 nm (DVD), 780 nm (CD)

c_ Frequency range (audio) 4 Hz to 20 kHz

Signal-to-noise ratio (audio) More than 100 dB (EIAJ)

Dynamic range (audio) More than 90 dB (EIAJ)

Harmonic distortion (audio) 0.008 %

Wow and flutter Below measurable level (less than + 0.001% (W.PEAK)) (EIAJ)

Operating conditions Temperature: 41°F to 95°F, Operation status: Horizontal

Video output 1.0 V (p-p), 75 _, negative sync., RCA jack x 1

S-video output (Y) 1.0 V (p-p), 75 _, negative sync., Mini DIN 4-pin x 1

_, (C) 0.286 V (p-p), 75

a. Component video output (Y) 1.0 V (p-p), 75 _, negative sync., RCA jack x 1

O. (Pb)/(Pr) 0.7 V (p-p), 75

Audio output (digital audio) 0.5 V (p-p), 75 _, RCA jack x 1

Audio output (analog audio) 2.0 Vrms(1 KHz, 0 dB), 330 _, RCA jack (L, R) x 2

•Video cable ................................................................................................ 1

• Audio cable ................................................................................................ 1

•Remote control........................................................................................... 1

•Batteries ..................................................................................................... 2

÷Designs and specifications are subject to change without notice.

PAGE 44 I OTHERS

Toshiba America Consumer Products, Inc. ("TACP"), Toshiba Hawaii ("THr') and Toshiba Canada Limited ("TCL") make the follow-

ing limited warranties. These limited warranties extend to original purchaser or any person receiving this set as a gift from the orig-

inal purchaser and to no other purchaser or transferee.

Limited Ninety (90) Day Warranty

TACP/THI warrant this product against defects in materials or

workmanship for a period of ninety (90) days after the date of

original retail purchase. During this period, TACP/THI will

repair or replace a defective product or part, at their option,

with a new or refurbished product or part without charge to

you. You must deliver the entire product to a TACP/THI

Authorized Service Station. You are responsible for all trans-

portation and insurance charges for the unit to and from the

Authorized Service Station. If you live in the

U.S.A. you may, at your option, return your DVD Unit to:

Toshiba America Consumer Products Inc.

Returns Center

1420C Toshiba Dr.

Lebanon, TN 37087

Upon receipt we will, at our option, exchange the DVD Unit

with a new or refurbished unit. Canadian consumers are

requested to contact TCL. In Hawaii consumers are

requested to contact THI.

Limited One (1) Year Warranty

TACP/THI further warrant the parts in this product against

defects in materials or workmanship for a period of one (1)

year after the date of original retail purchase. During this peri-

od, TACP/THI will repair or replace a defective product or part,

at their option, with a new or refurbished product or part with-

out charge to you, except that if a defective part is replaced

after ninety (90) days from the date of the original retail pur-

chase you pay labor charges involved in the replacement. You

must also deliver the entire product to a TACPiTHI Authorized

Service Station. You are responsible for all transportation and

insurance charges for the unit to and from the Authorized

Service Station. If you live in the U.S.A. you may, at your

option, return your DVD Unit to:

Toshiba America Consumer Products Inc.

Returns Center

1420C Toshiba Dr.

Lebanon, TN 37087

Upon receipt we will, at our option, exchange the DVD Unit

with a new or refurbished unit. Canadian Consumers are

requested to contact TCL. In Hawaii consumers are

requested to contact THI.

Rental Units

The warranty for rental units begin with the first rental or thirty

(30) days from the date of shipment to the rental firm, whichev-

er comes first.

Commercial Units

Products sold and used for commercial use have a limited

ninety (90) day warranty for all parts and labor.

Owner's Manual

You should read the owner's manual thoroughly before operat-

ing this product. You should complete and mail the enclosed

Demographic card within ten (10) days after you, or the person

who has given you this product as a gift, purchased this prod-

uct. This is one way to enable TACP to provide you with better

customer service and improved products. Failure to return the

card will not affect your rights under this warranty.

Your Responsibility

The above warranties are subject to the following conditions:

(1) You must retain your bill of sale or provide other proof of

purchase.

(2) You must notify a TACPiTHI/TCL/Authorized Service

Station within thirty (30) days after you discover a defective

product or part.

(3) All warranty servicing of this product must be made by a

TACP/THI/TCL Authorized Service Station.

(4) U.S.A. warranties are effective only if the product is pur-

chased and operated in the Continental U.S.A. or Puerto

Rico.

(5) Labor service charges for set installation. Set up, adjust-

ment of customer controls and installation or repair of

antenna systems are not covered by this warranty.

Reception problems caused by inadequate antenna sys-

tems are your responsibility.

(6) Warranties extend only to defects in materials or workman-

ship as limited above and do not extend to any product or

parts which have been lost or discarded by you or to dam-

age to products or parts caused by misuse, accident, dam-

age caused by Acts of God, such as lighting or fluctuations

in electric power, improper installation, improper mainte-

nance or use in violation of instructions furnished by us; or

to units which have been altered or modified without autho-

rization of TACP/THI/TCL or to damage to products or part

thereof which have had the serial number removed,

altered, defaced or rendered illegible.

(7) Should you elect to return your DVD Unit to TACP after the

ninety (90) days and within one (1) year, or after the war-

ranty period has expired: Call (800)-631-3811 to receive

information concerning an exchange price. Payment must

be enclosed with product in the form of a certified check or

money order including reason for return.

(8) Physically damaged DVD Units are not acceptable for

repair or exchange whether in or out of warranty and will

be returned as received.

(Continued)

How to Obtain Warranty Service

OTHERS IPAGE 45

(1) Refer to the troubleshooting guide in your owner's manual. This check list may solve your problem.

(2) In the U.S.A., only call the TACP toll free number 800-631-3811, or if in Hawaii or Canada see listing below within (30) days

after you find a defective product or part.

(3) Arrange for the delivery of the product to the TACPiTHIiTCL Authorized Service Station or TACP Return Center. Products

shipped to the Service Station must be insured and safely and securely packed, preferably in the original shipping carton,

and a letter explaining the defect and also a copy of the bill of sale or other proof of purchase must be enclosed.

Inthe Continental United States contact: In Hawaii contact:

Toshiba Hawaii Inc.

327 Kamakee Street

Honolulu, HA 96814

(808)-521-5377

In Canada contact:

Consumer Electronics Group

191 McNabb Street

Markham, Ontario L3R 8H2

(905)-470-5400

Consumer Electronics Group

22171 Fraserwood Way

Richmond, B.C. V6W 1J5

(604)-303-2500

Consumer Electronics Group

1643 North Service Road

Droval, QC H9P 1J1

(514)-856-4100

All warranties implied by state law, including the implied warranties of merchantability and fitness for a particular purpose, are

expressly limited to the duration of the limited warranties set forth above. With the exception of any warranties implied by state law

as hereby limited, the foregoing warranty is exclusive and in lieu of all other warranties, guarantees, agreements and similar oblig-

ations of manufacturer or seller with respect to the repair or replacement of any parts. In no event shall TACP/THI be liable for

consequential or incidental damages.

No person, agent, distributor, dealer or company is authorized to change, modify or extend the terms of these warranties in any

manner whatsoever. The time within which an action must be commenced to enforce any obligation of TACPiTHI arising under the

warranty or under any statute, or law of the United States or any state thereof, is hereby limited to ninety (90) days from the date

you discover or should have discovered, the defect. This limitation does not apply to implied warranties arising under state law.

This warranty gives you specific legal rights and you may also have other rights which may vary from state to state. Some states

do not allow limitation on how long an implied warranty lasts, when an action may be brought, or the exclusion or limitation of inci-

dental or consequential damages, so the above provisions may not apply to you.

ATTENTION CANADIAN CONSUMERS:

Canadian consumers are requested to complete the special Canadian "Warranty Registration Form" enclosed, and forward this

completed form with a copy of bill of sale to TOSHIBA OF CANADA to "Register and Validate" their warranty. Product must be

purchased from an Authorized Canadian Dealer. Products purchased in the U.S.A. and used in Canada are not covered by

these warranties.

IMPORTANT: PACKING AND SHIPPING INSTRUCTION

When you send the product to a Service Station, you must use the original carton box and packing material, then insert the

original carton box containing the unit into another carton using more packing material.

TOSHIBA

P/NO: 3834RS0020C Printed in Korea

TOSHIBA DVD Systems Manual L0209243

Navigation menu

Versions of this User Manual:

Views

Navigation
