OWNER'S MANUAL TOSHIBA

TELEVISION/VCR COMBINATION

MV13N3

0 oooo oooo@

ATTENTION

If you purchase a universal remote control from your local retailer, please

contact the remote manufacturer for the required programming code. ]

TV/CATV MODE SELECTION |

When shipped from the factory, the TV/CATV menu option is set to the "CATV"

(Cable Television) mode.

If not using CATV, set this menu option to the "TV" position.

_'gS Before operating the unit, please read this manual thoroughly.

CAUTION

CAUTION: TO REDUCETHE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER

(OR BACK). NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL. /k

The lightning flash with arrowhead

symbol, within an equilateral triangle is

intended to alert the user to the presence

of uninsulated dangerous voltage within

the product's enclosure that may be of

sufficient magnitude to constitute a risk of

electric shock.

The exclamation point within an equilateral

triangle is intended to alert the user to

the presence of important operating and

maintenance (servicing) instructions in

the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD. DO NOT EXPOSE THIS APPLIANCE TO RAIN OR

MOISTURE.

WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC (Federal Communications Commission) Rules. These limits are

designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined

by turning the equipment off and on, the user is encouraged to try to correct the interference by one

or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the distance between the equipment and receiver,

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

CAUTION:

WARNING:

Changes or modifications not expressly approved by the party responsible for compliance with the

FCC (Federal Communications Commission) Rules could void the user's authority to operate this

equipment.

It is permissible to record television programs, films, video tapes and other material only in the event

that third party copyrights and other rights are not violated.

Unauthorized recording of copyrighted television programs, films, video cassettes and other materials

may infringe the rights of copyright owners and be contrary to copyright laws.

IMPORTANT SAFEGUARDS

1. READ INSTRUCTIONS

All the safety and operating instructions should be read before the unit is operated.

2. RETAIN INSTRUCTIONS

The safety and operating instructions should be retained for future reference.

3. HEED WARNINGS

All warnings on the unit and in the operating instructions should be adhered to.

4. FOLLOW INSTRUCTIONS

All operating and use instructions should be followed.

5. CLEANING

Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.

Use a damp cloth for cleaning the exterior cabinet only.

6. ATTACHMENTS

The manufacturer of this unit does not make any recommendations for attachments, as they may cause haz-

ards.

7. WATER AND MOISTURE

Do not use this unit near water. For example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet

basement, or near a swimming pool. PORTABLECARTWARNING

8. ACCESSORIES (symbolprovidedby RETAC)

Do not place this unit on an unstable cart, stand, tripod, bracket, or table. ,_II_L.

The unit may fall, causing serious injury and serious damage to the unit.

8A. An appliance and cart combination should be moved with care. Quick stops.

excessive force, and uneven surfaces may cause the appliance and cart

combination to overturn.

9. VENTILATION $3126A

Slots and openings in the cabinet back or bottom are provided for ventilation, and to ensure reliable operation of

the unit, and to protect it from overheating. These openings must not be blocked or covered. The openings

should never be blocked by placing the unit on a bed, sofa, rug, or other similar surface.This unit should never

be placed near or over a radiator or heat source. This unit should not be placed in a built-in installation such as

a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

10. POWER SOURCE

This unit should be operated only from the type of power source indicated on the rating plate. If you are not sure

of the type of power supply to your home, consult your appliance dealer or local power company. For units

intended to operate from battery power, or other sources, refer to the respective pages on this Owner's Manual

for their operating instructions.

11. GROUNDING OR POLARIZATION

This unit is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other).

This plug will fit into the power outlet only one way. This is a safety feature, if you are unable to insert the plug

fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your

obsolete outlet. Instead of the polarized alternating-current line plug, your unit may be equipped with a 3-wire

grounding-type plug (a plug having a third (grounding) pin). This plug will only fit into a grounding-type power

outlet. This too, is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to

replace your obsolete outlet.

Do not defeat the safety purpose of the grounding-type plug.

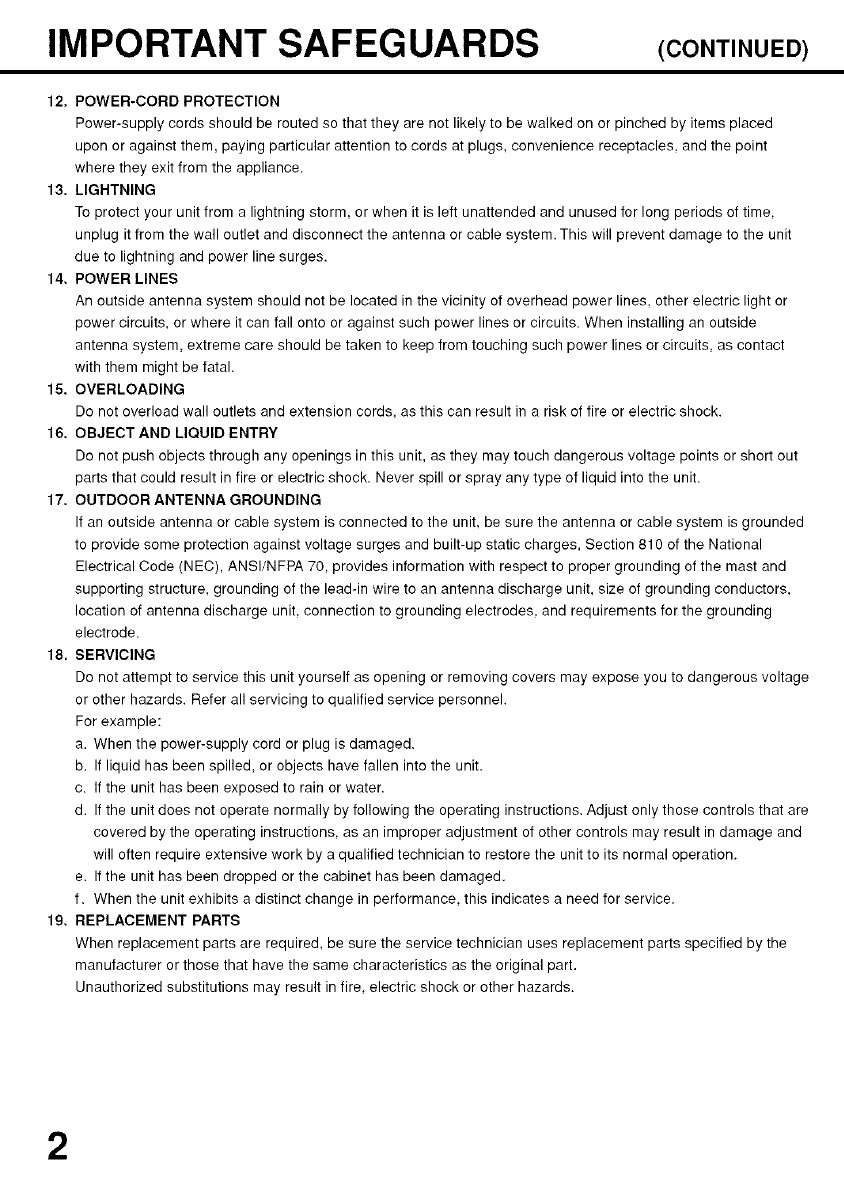

IMPORTANT SAFEGUARDS (CONTINUED)

12. POWER-CORD PROTECTION

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed

upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point

where they exit from the appliance.

13. LIGHTNING

To protect your unit from a lightning storm, or when it is left unattended and unused for long periods of time,

unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the unit

due to lightning and power line surges.

14. POWER LINES

An outside antenna system should not be located in the vicinity of overhead power lines, other electric light or

power circuits, or where it can fall onto or against such power lines or circuits. When installing an outside

antenna system, extreme care should be taken to keep from touching such power lines or circuits, as contact

with them might be fatal.

15. OVERLOADING

Do not overload wall outlets and extension cords, as this can result in a risk of fire or electric shock.

16. OBJECT AND LIQUID ENTRY

Do not push objects through any openings in this unit, as they may touch dangerous voltage points or short out

parts that could result in fire or electric shock. Never spill or spray any type of liquid into the unit.

17. OUTDOOR ANTENNA GROUNDING

If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is grounded

to provide some protection against voltage surges and built-up static charges, Section 810 of the National

Electrical Code (NEC), ANSI/NFPA 70, provides information with respect to proper grounding of the mast and

supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors,

location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding

electrode.

18. SERVICING

Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous voltage

or other hazards. Refer all servicing to qualified service personnel.

For example:

a. When the power-supply cord or plug is damaged.

b. If liquid has been spilled, or objects have fallen into the unit.

c. If the unit has been exposed to rain or water.

d. If the unit does not operate normally by following the operating instructions. Adjust only those controls that are

covered by the operating instructions, as an improper adjustment of other controls may result in damage and

will often require extensive work by a qualified technician to restore the unit to its normal operation.

e. If the unit has been dropped or the cabinet has been damaged.

f. When the unit exhibits a distinct change in performance, this indicates a need for service.

19. REPLACEMENT PARTS

When replacement parts are required, be sure the service technician uses replacement parts specified by the

manufacturer or those that have the same characteristics as the original part.

Unauthorized substitutions may result in fire, electric shock or other hazards.

20. SAFETY CHECK

Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to

determine that the unit is in proper operating condition.

21. HEAT

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other

products (including amplifiers) that produce heat.

22. NOTE TO CATV SYSTEM INSTALLER

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides

guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the

grounding system of the building, as close to the point of cable entry as practical.

EXAMPLE OF ANTENNA GROUNDING AS PER THE

NATIONAL ELECTRICAL CODE

ANTENNA LEAD IN WIRE

GROUND CLAMP

-ANTENNA DISCHARGE UNIT

(NEC SECTION 810-20)

NEC-NATIONAL ELECTRICAL CODE

S2898A

GROUNDING CONDUCTORS

(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING

ELECTRODE SYSTEM

(NEC ART 250, PART H)

FEATURES

Color TV With Video Cassette Recorder - Unique space saving design combines a color TV and a video cassette

recorder.

High Quality Picture Technology - This TV/VCR equipped "HQ" incorporates VHS High Quality technology. A built-in detail

enhancer is used to boost the recorded signal and provide picture quality during playback. It is compatible with other VHS

video cassette recorders.

181 Channel Tuner - Receives standard VHF and UHF broadcast channels and up to 113 cable channels. The actual

number of channels received depends upon channel reception in your area or your cable system.

Closed Caption Decoder With Full Text Mode - Displays text captions or full screen text on the screen for hearing

impaired viewers.

8-Programs/I-Month Programmable Timer With Everyday/Every Week Capability - The built-in timer allows automatic

absentee recording of up to 8 TV programs within 1 month. It is also possible to record a program which is broadcast at the

same time everyday or every week.

Automatic Clock Set - Once your TV/VCR is plugged into the AC outlet, it automatically sets the correct date and time.

On-Screen TV Display And VCR Programming - When you select a channel or make other changes, the TV will show an

indicator on the screen for a few seconds. Timer recording can be programmed and confirmed on the screen.

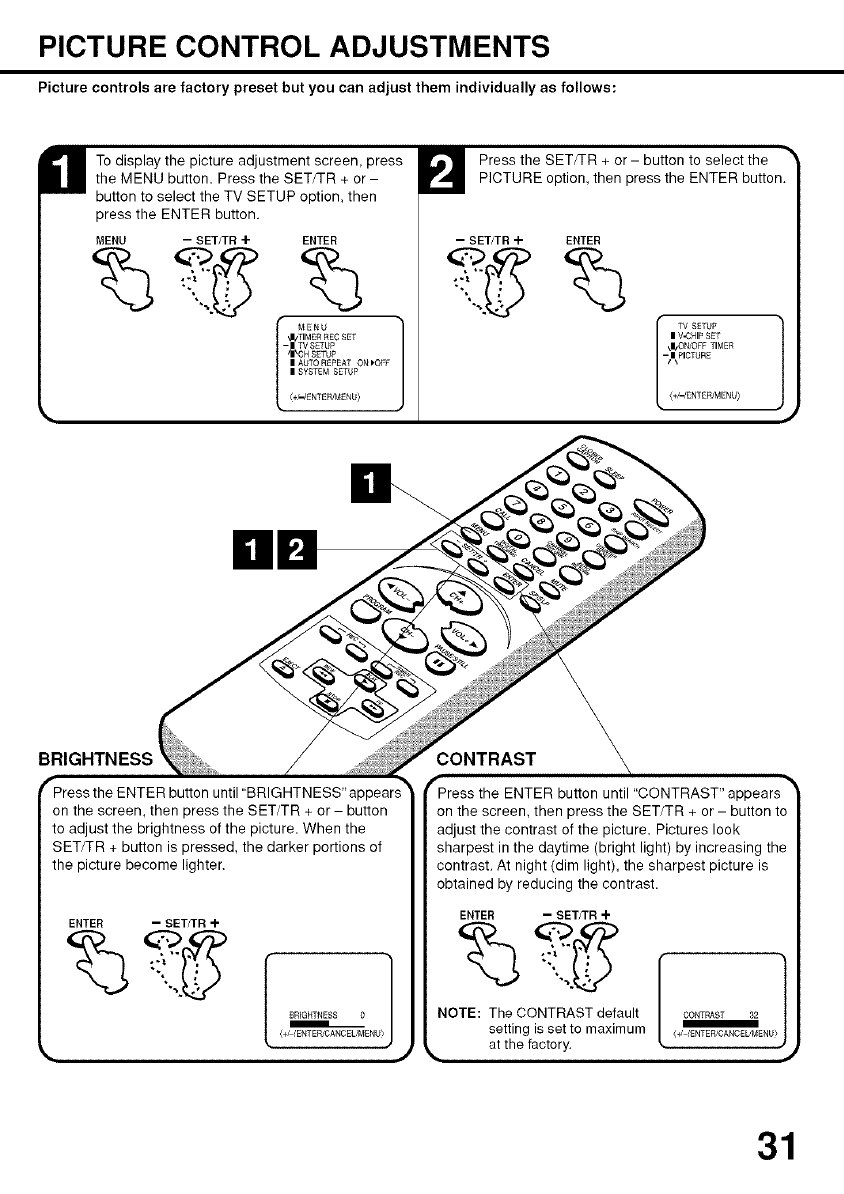

Picture Adjustments Using The Remote Control - The On-Screen display allows remote control adjustment of BRIGHT-

NESS, CONTRAST, COLOR, TINT and SHARPNESS.

Automatic Playback/Rewind-Stop-Eject - When loading a cassette tape without the erase prevention tab, this TV/VCR

will automatically play back the cassette tape at the correct speed. When a tape reaches its end during play-back, recording

(except during OTR and Timer Record) and fast forward, it will automatically stop, rewind, stop and eject the tape.

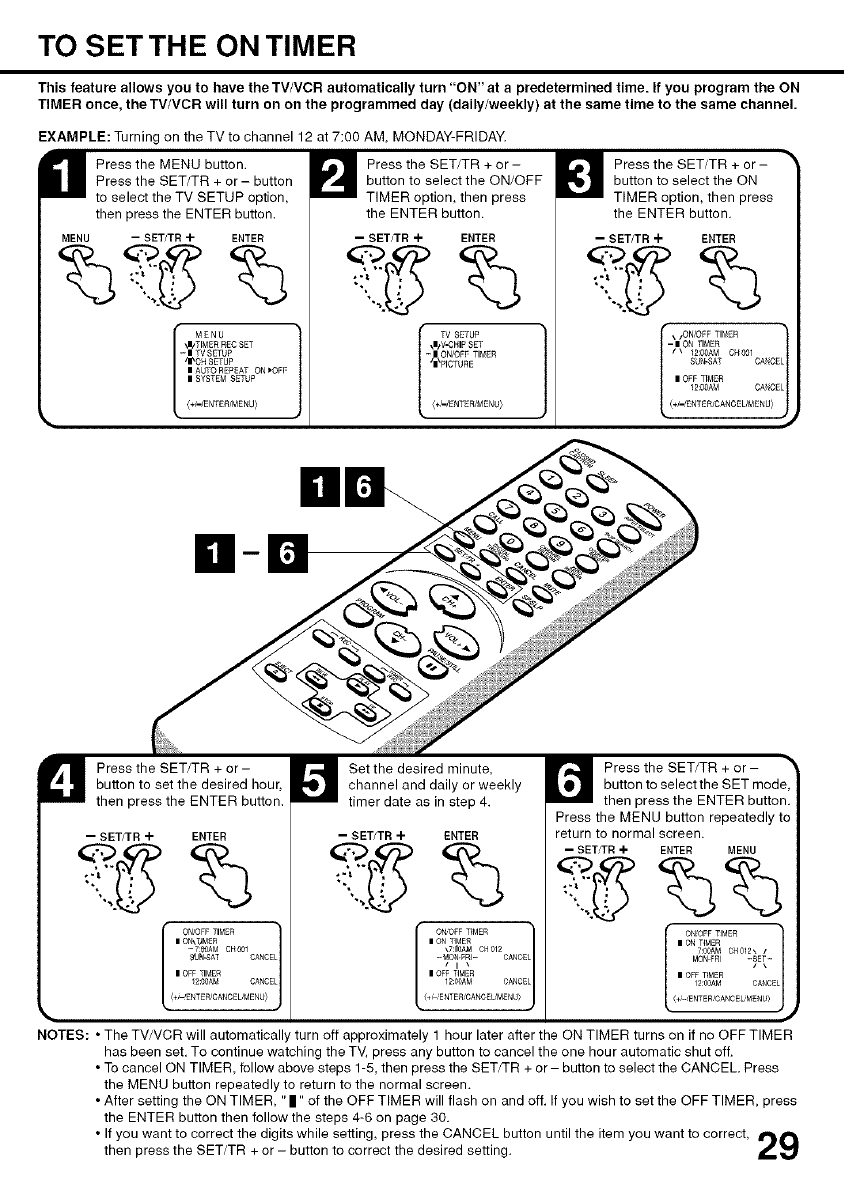

Programmable ON/OFFTimer - Allows you to automatically turn on or off the TV/VCR at a set time.

Programmable TV Sleep Timer - Operable from the remote control, the TV can be programmed up to 120 minutes to turn

off automatically.

Automatic Repeat Play System - When Auto Repeat option is turned on, the TV/VCR will automatically play back the

same cassette tape repeatedly.

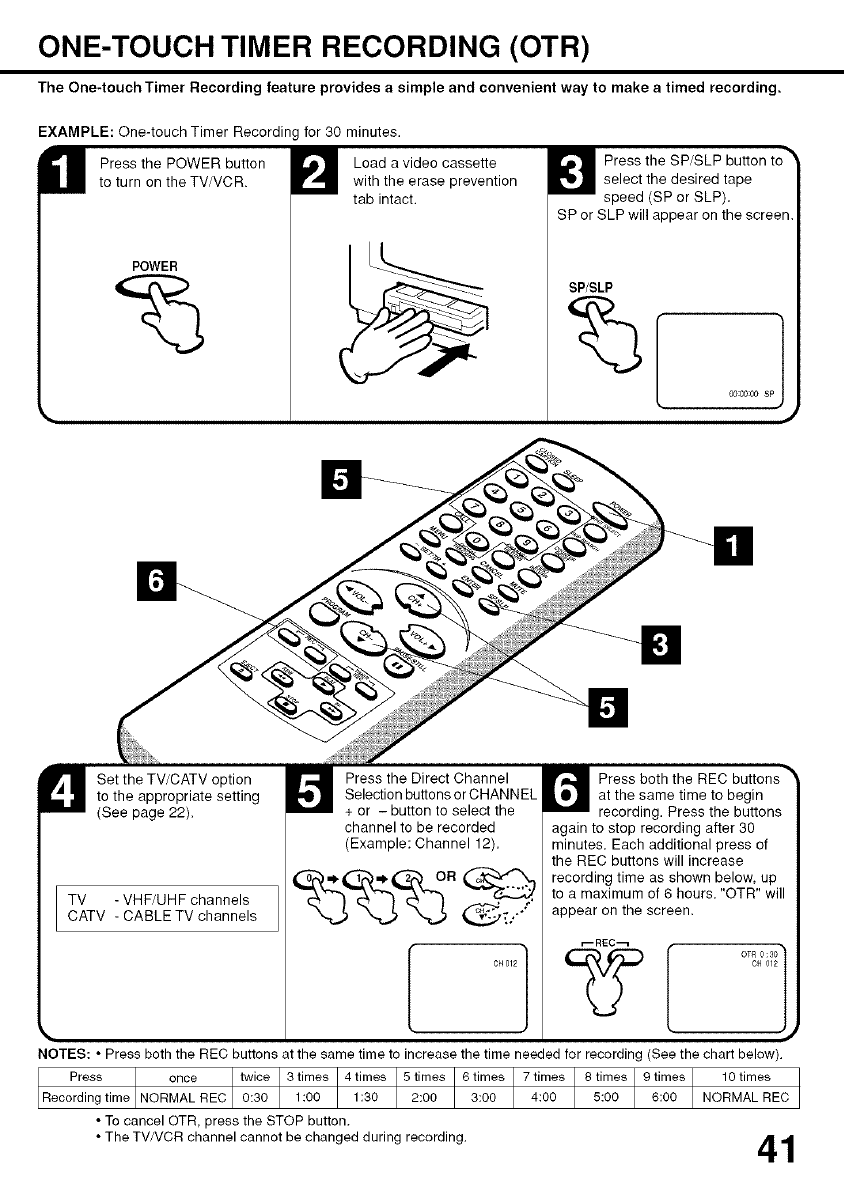

One-touch Timer Recording (OTR) - Simply by pressing the REC buttons, the TV/VCR can be programmed for up to 6

hours of recording with an immediate start.

Front Audio/Video Input Jacks - Input jacks for other video device or playback purpose.

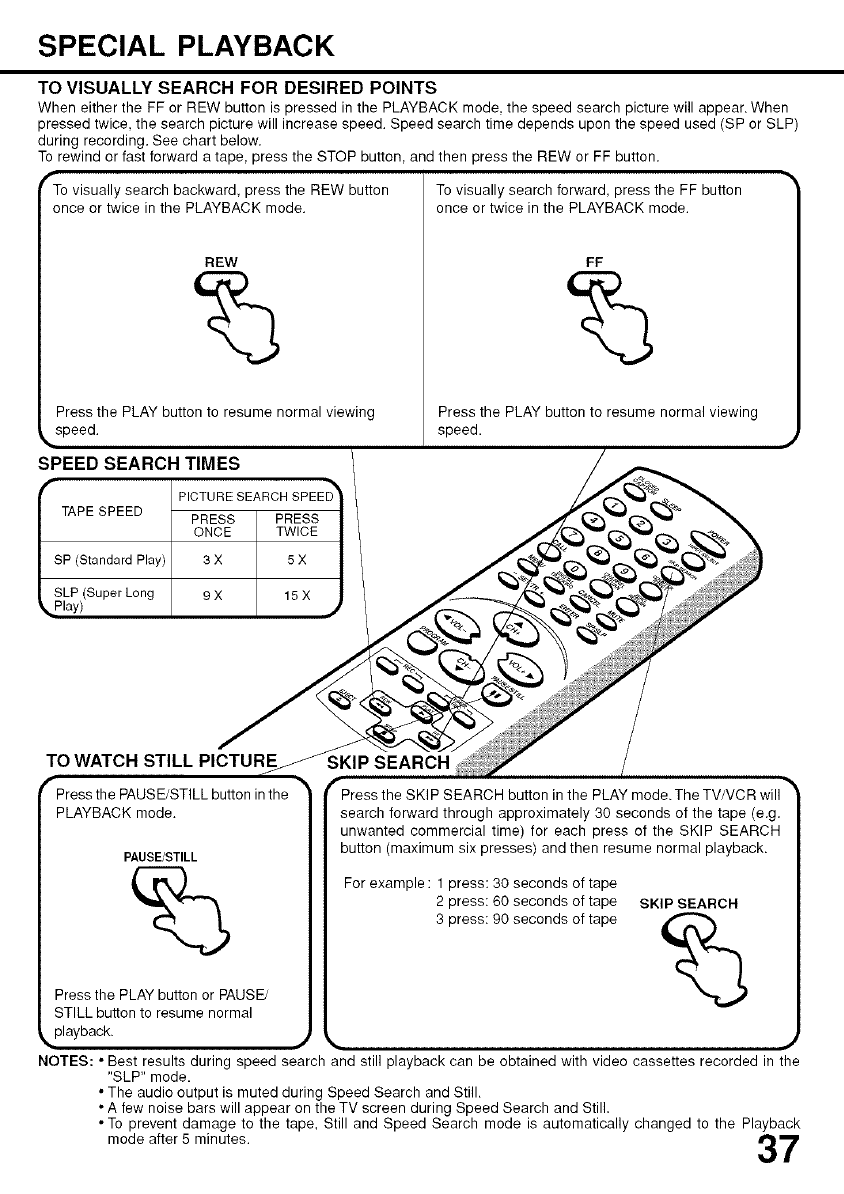

Skip Search - When the SKIP SEARCH button on the remote control is pressed during playback, the TV/VCR will auto-

matically search forward in 30 second increments to a maximum of 3 minutes with each press of the SKIP SEARCH button,

and then return to normal playback.

2 Speed Picture Search - 3 or 5 times normal speed in SP mode (gx or 15X in SLP).

2 Speed Record Playback - Records and plays two tape speeds (SE SLP).

Real Time Tape Counter With Zero Return - The counter displays the real tape time and the zero return can be used to

return the tape to a preselected position (00:00:00) while the counter can be used to locate programs.

Digital Auto Tracking - Automatically adjusts tracking during playback for the best possible picture.

On-Screen 3 Language Display -You can select one of 3 languages, English, Spanish or French for on-screen programming.

V-Chip - The V-Chip function can read the rating of a TV program or movie content if the program is encoded with this

information. V-Chip will allow you to set a restriction level.

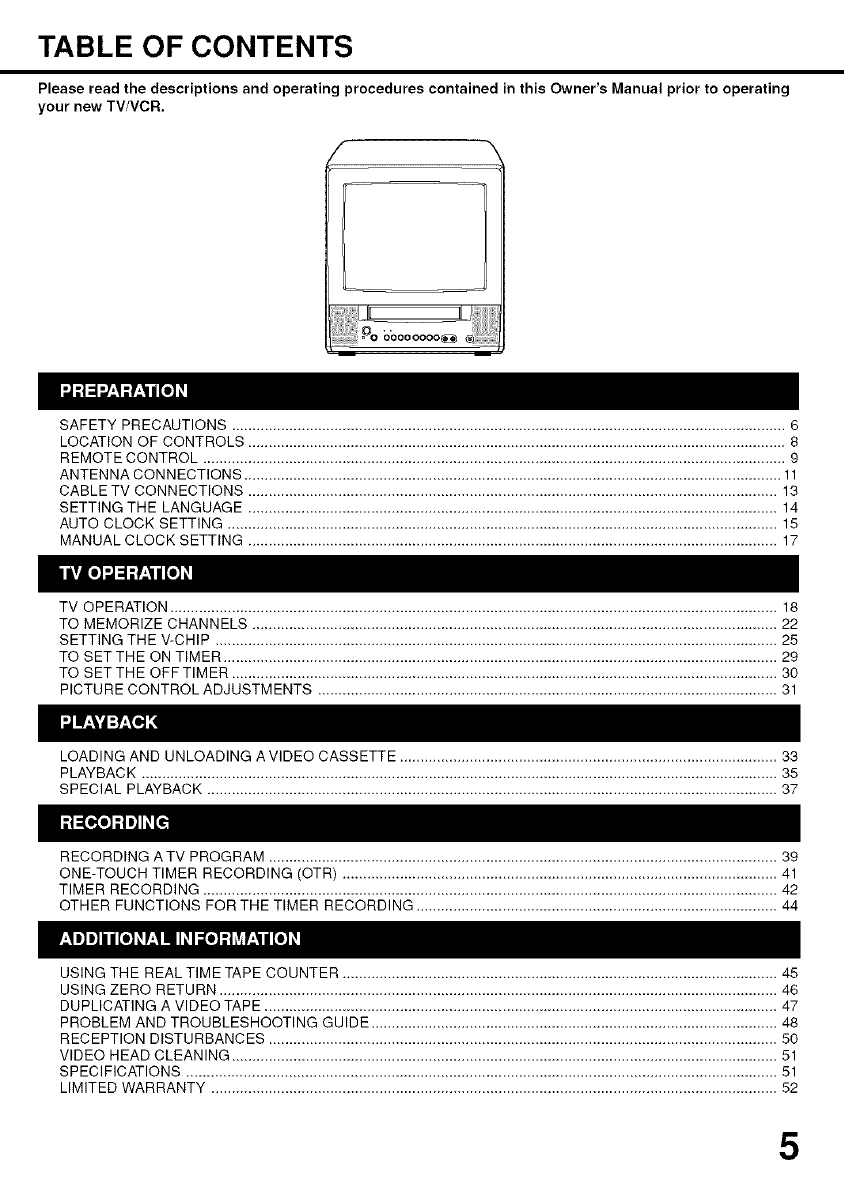

TABLE OF CONTENTS

Please read the descriptions and operating procedures contained in this Owner's Manual prior to operating

your new TV/VCR.

"I I_u ii liiiii!ii

......................bboooooo__!iiii!i;;;!i!i;;!

SAFETY PRECAUTIONS 6

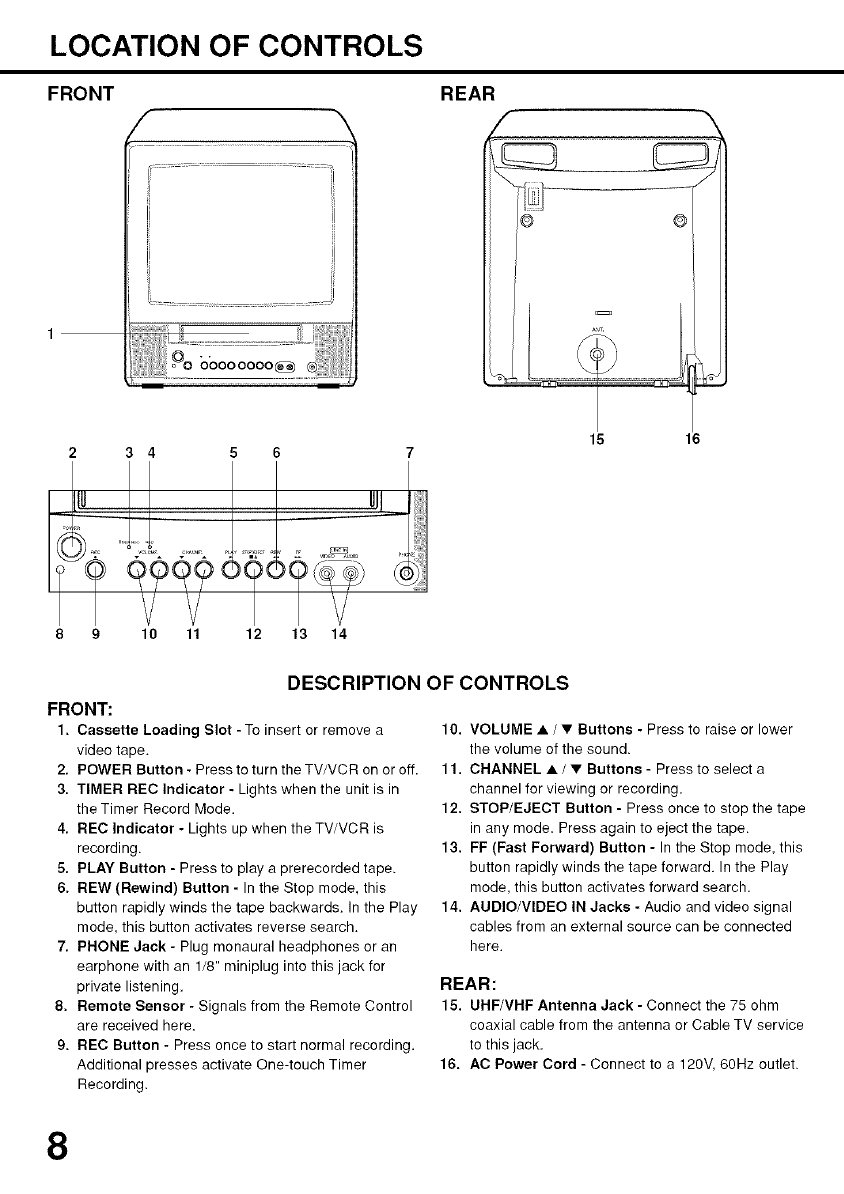

LOCATION OF CONTROLS ................................................................................................................................... 8

REMOTE CONTROL .............................................................................................................................................. 9

ANTENNA CONNECTIONS ................................................................................................................................... 11

CABLE TV CONNECTIONS ................................................................................................................................. 13

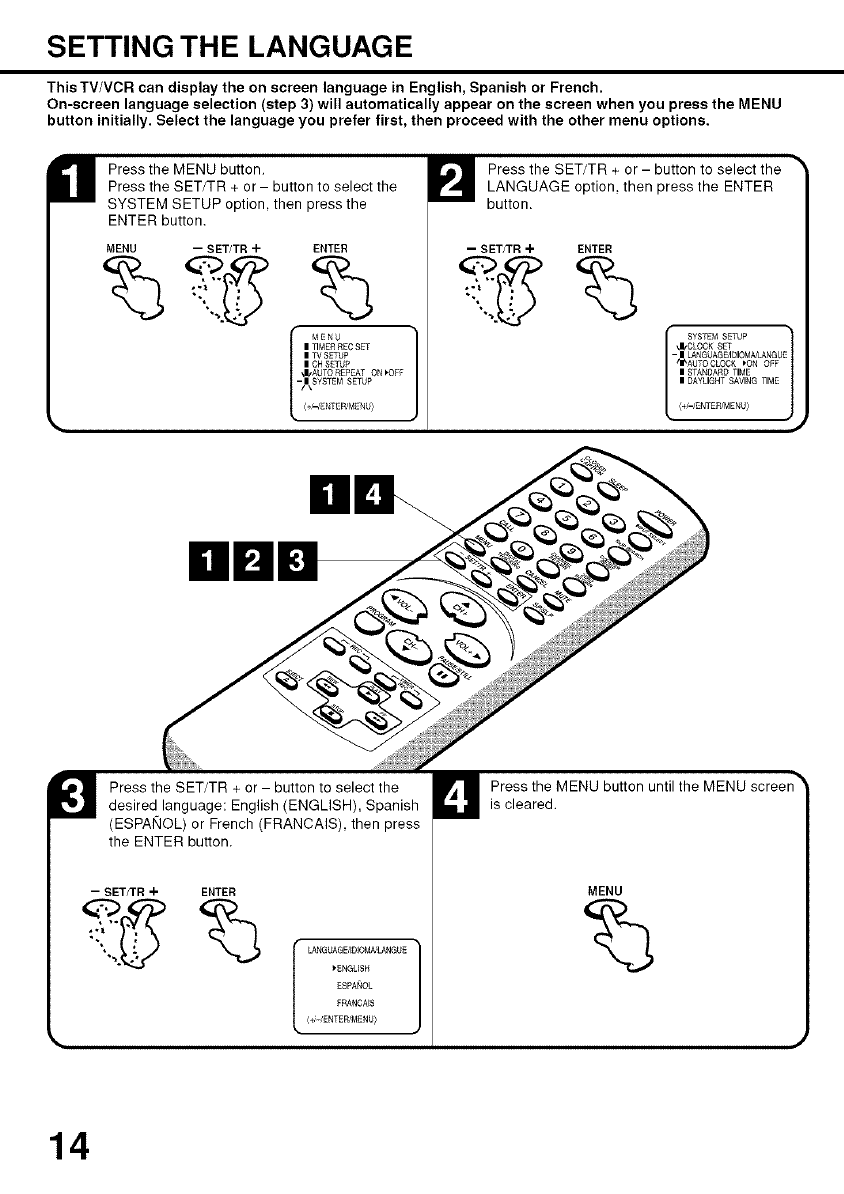

SETTING THE LANGUAGE ................................................................................................................................. 14

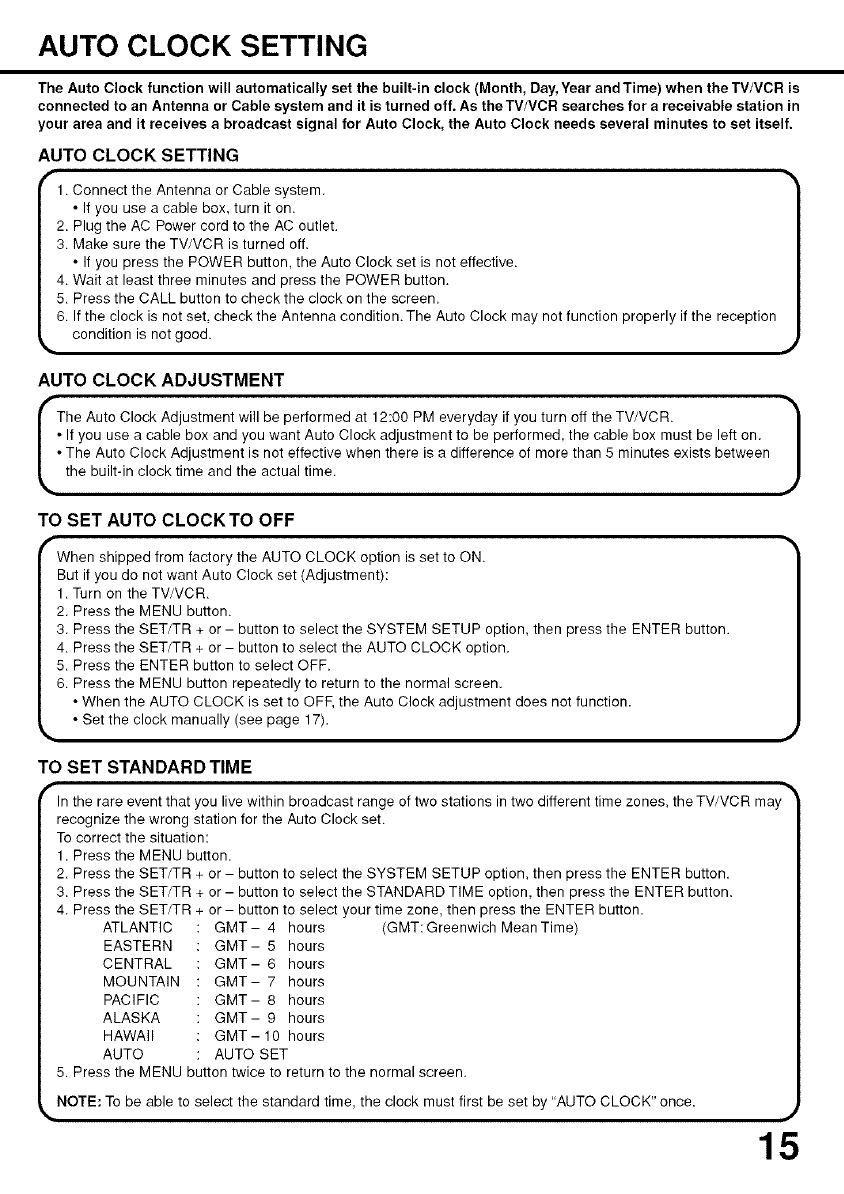

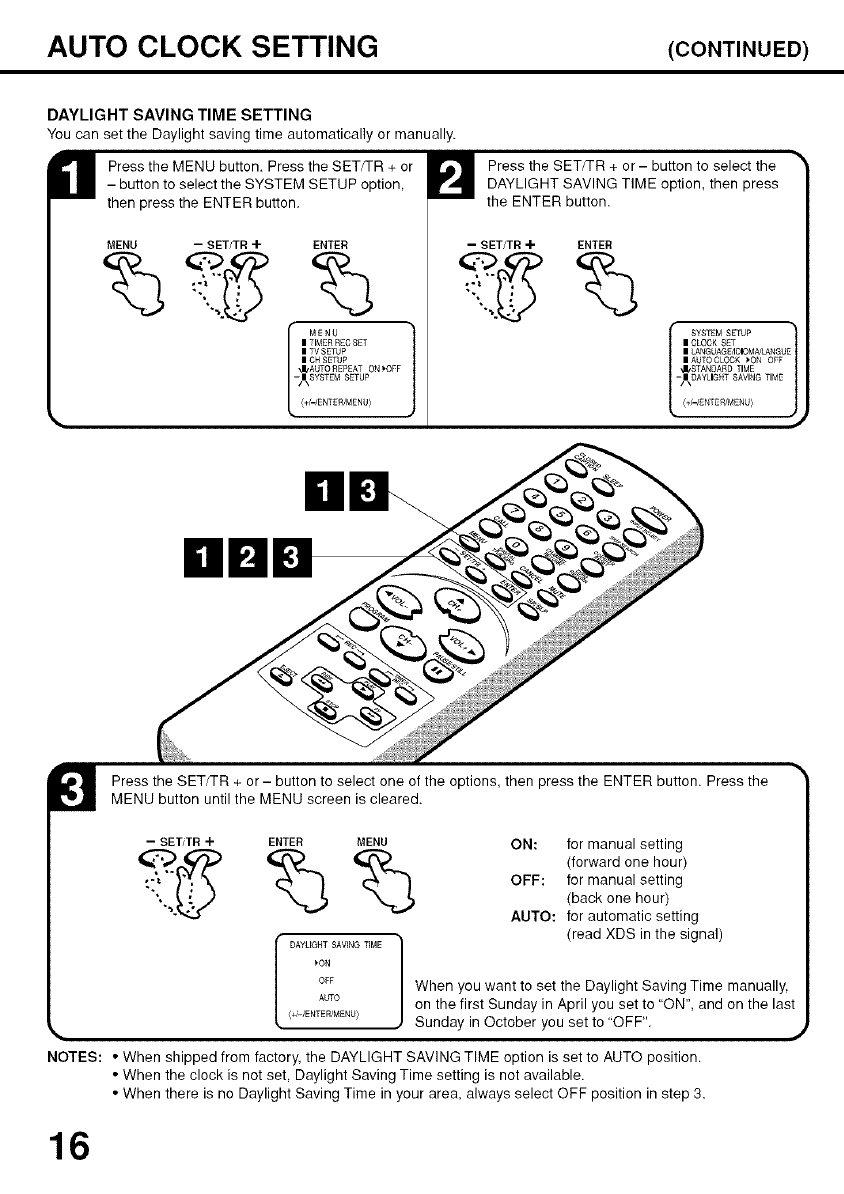

AUTO CLOCK SETTING ...................................................................................................................................... 15

MANUAL CLOCK SETTING ................................................................................................................................. 17

TV OPERATION .......................................................................................................................................... 18

TO MEMORIZE CHANNELS ................................................................................................................................ 22

SETTING THE V-CHIP ......................................................................................................................................... 25

TO SET THE ON TIMER ....................................................................................................................................... 29

TO SET THE OFF TIMER ..................................................................................................................................... 30

PICTURE CONTROL ADJUSTMENTS ................................................................................................................ 31

LOADING AND UNLOADING A VIDEO CASSETTE ............................................................................................ 33

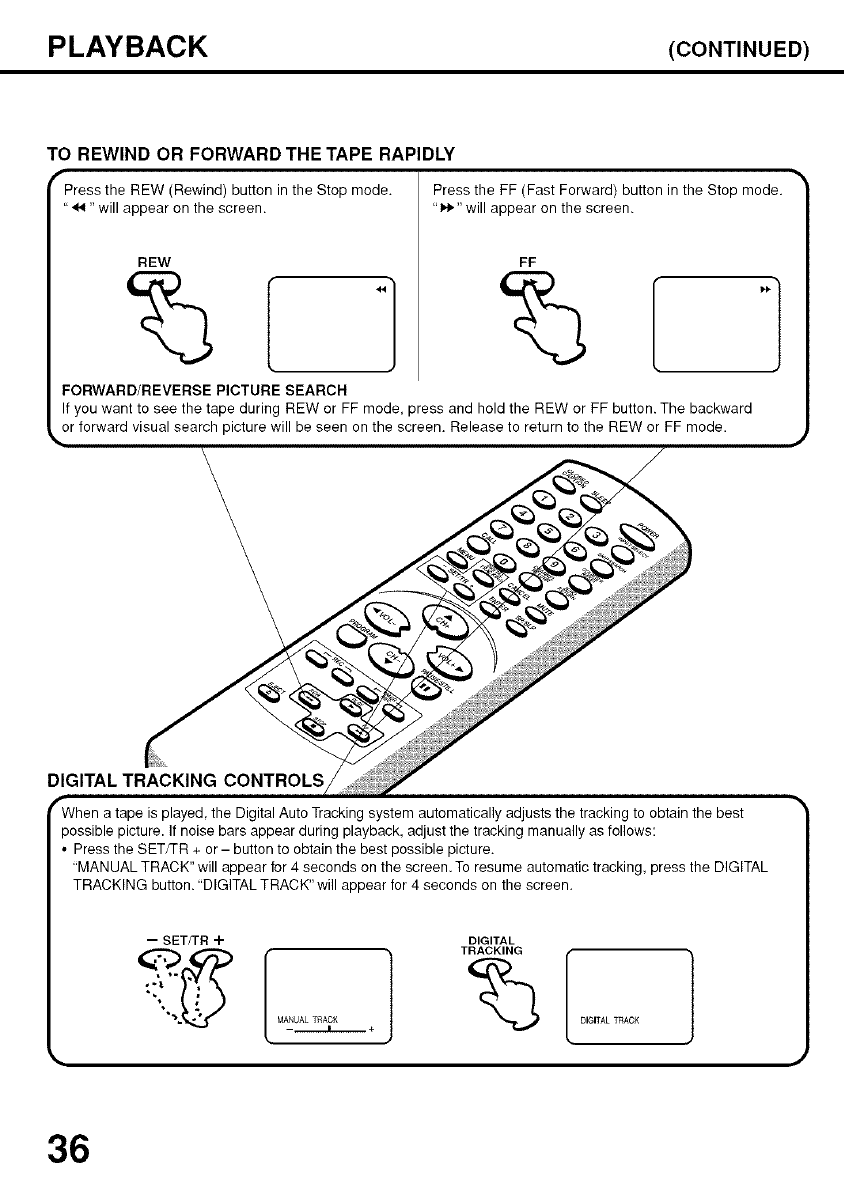

PLAYBACK ........................................................................................................................................................... 35

SPECIAL PLAYBACK ........................................................................................................................................... 37

RECORDING ATV PROGRAM .............................................................................................................. 39

ONE-TOUCH TIMER RECORDING (OTR) .......................................................................................................... 41

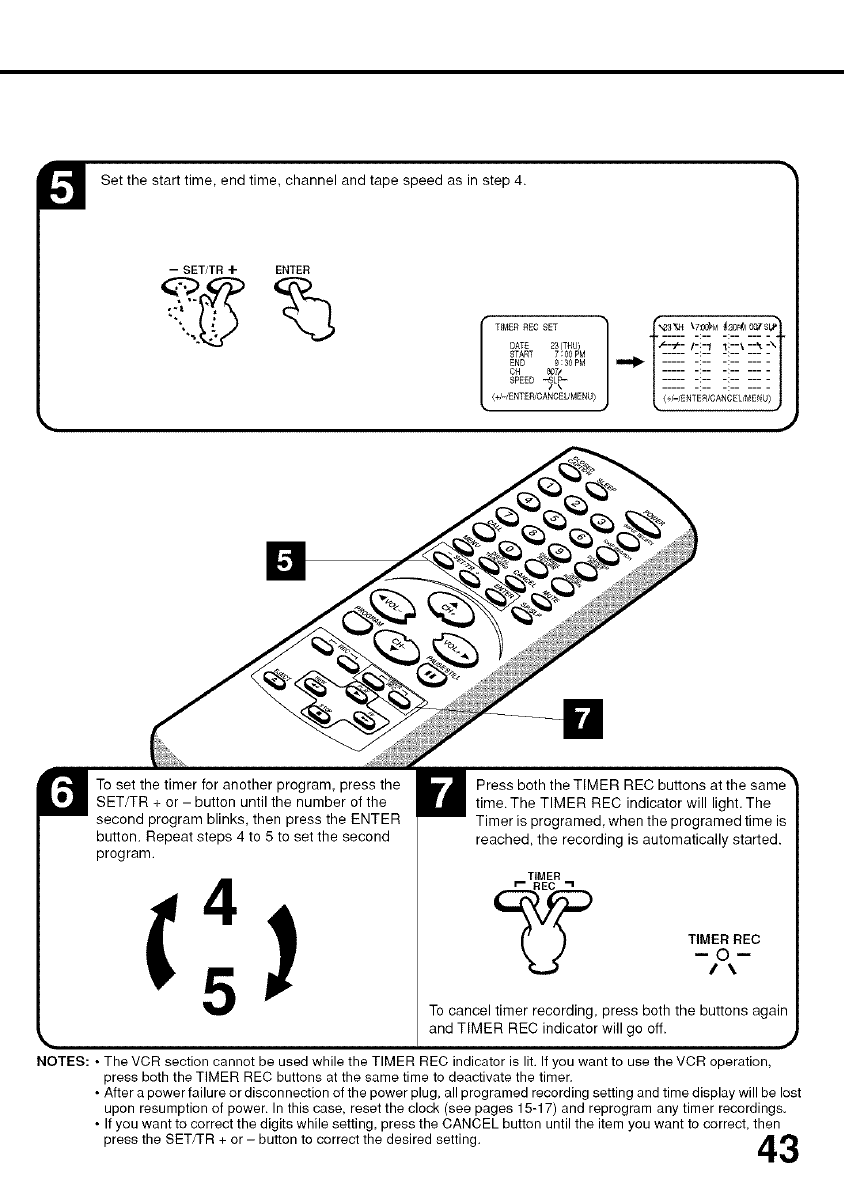

TIMER RECORDING ............................................................................................................................................ 42

OTHER FUNCTIONS FOR THE TIMER RECORDING ........................................................................................ 44

USING THE REAL TIME TAPE COUNTER .................................................................................................. 45

USING ZERO RETURN ........................................................................................................................................ 46

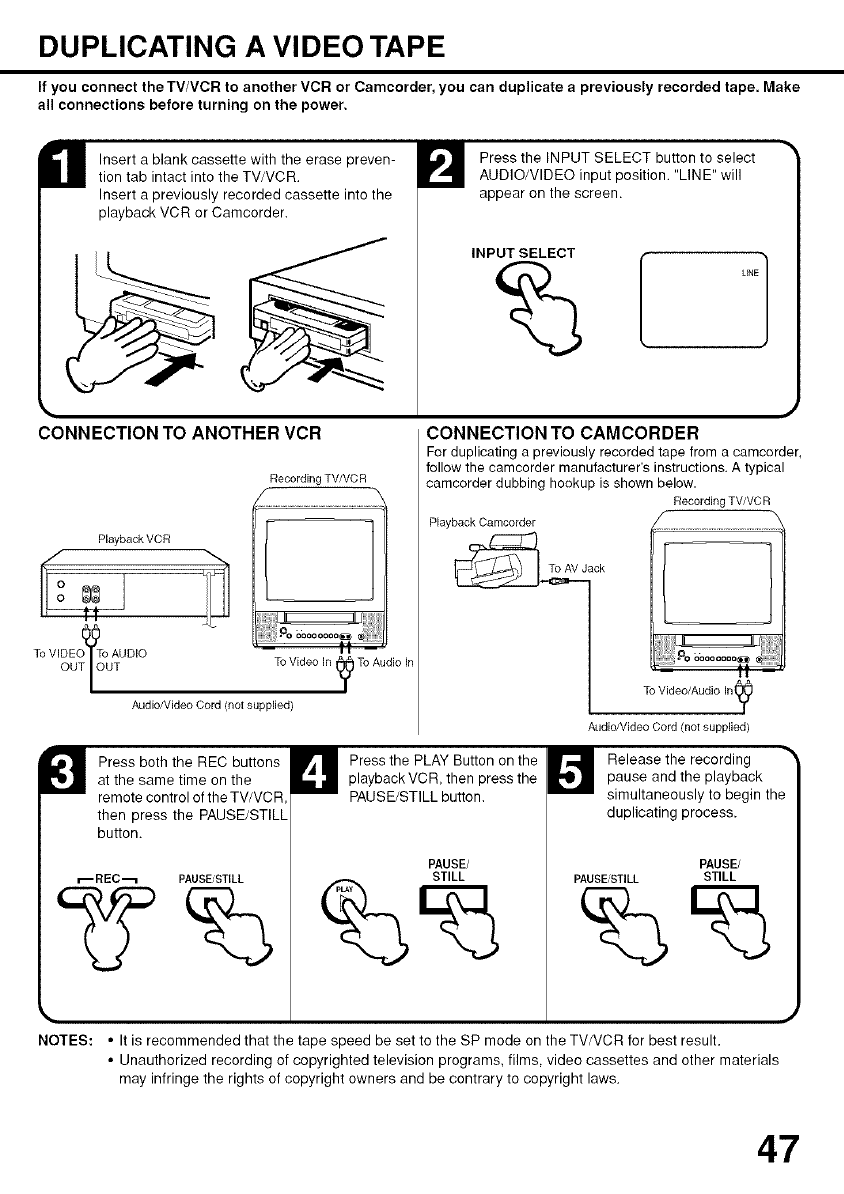

DUPLICATING A VIDEO TAPE ............................................................................................................................. 47

PROBLEM AND TROUBLESHOOTING GUIDE ................................................................................................... 48

RECEPTION DISTURBANCES ............................................................................................................................ 50

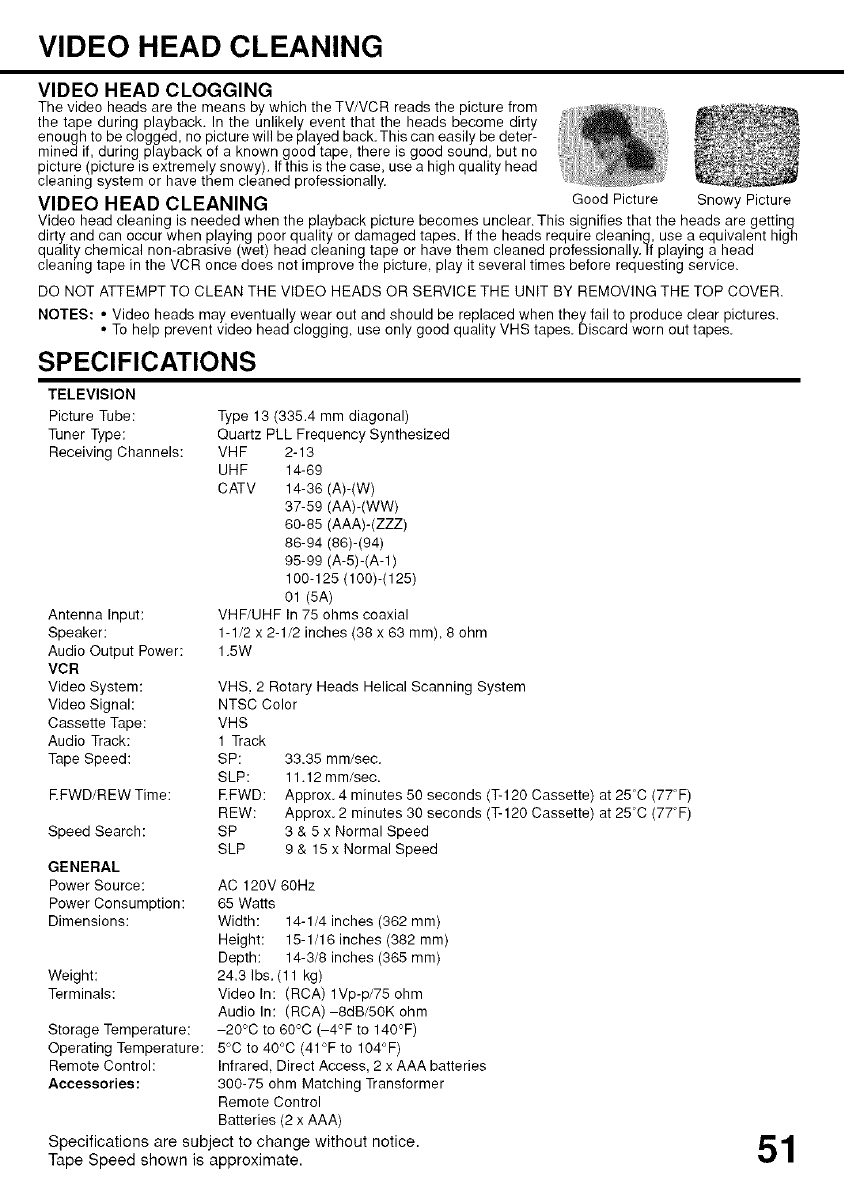

VIDEO HEAD CLEANING ..................................................................................................................................... 51

SPECIFICATIONS ................................................................................................................................................ 51

LIMITED WARRANTY .......................................................................................................................................... 52

SAFETY PRECAUTIONS

fMOISTURE CONDENSATION

DO NOT OPERATE ANY FUNCTIONS ON THIS UNIT FOR AT LEAST THREE HOURS WHEN MOISTURE IN

THE AIR CONDENSES ON IT. LET THE UNIT STAND WITH POWER ON (SEE BELOW),

•WHAT IS MOISTURE CONDENSATION?

When a cold liquid is poured into a glass, for example, water vapor in the air will condense on the surface of

the glass. This is called moisture condensation.

•MOISTURE WILL CONDENSE ON THE UNIT IN THE FOLLOWING CASES; Head Drum

• When you move the unit from a cold to a warm place.

• After heating a cold room or under extremely humid conditions.

• WHEN YOU EXPERIENCE THE ABOVE CONDITIONS,

Plug the power cord into an AC outlet, press the POWER button to turn on

and leave the unit at room temperature until moisture condensation disappears. Video Tape

_,l', Depending on the surrounding conditions, this may take about three hours.

rlf you cause a static discharge when touching the

unit, and the unit fails to function, simply unplug the

unit from the wall outlet, wait a few minutes and

plug it back in.The unit should return to normal

operation. _"

"<\// o

_Avoid extreme heat.

#"-Do not place the unit on or near appliances which may

cause electromagnetic interference (e.g. speakers,

etc). Doing so may cause erratic operation of the unit

including picture and/or sound distortion or noise.

"Avoid extreme cold.

(5c)

41F

",,- ,!,

fAvoid extreme moisture and dust.

fThe ventilation holes prevent overheating. Do not _'

block or cover these holes. Especially avoid

covering the holes with soft materials such as cloth

or paper.

f-Do not insert fingers or any other objects into the "_

cassette loading slot. Do not spray cleaner or wax

directly on the unit or use forced air to remove dust.

f-Avoid places subject to strong vibration. Use in

a horizontal (flat) position only.

Keep the unit away from flower vases, sinks, etc.

If liquids should be spilled into the unit, serious

damage will result. If you spill any liquids into the

unit, unplug the AC power cord immediately and

consult qualified service personnel before attempt-

ing to use it again. ,_

"-When you finish operating the unit. always unload

the cassette and turn off the power.

_When you leave your home for a long time, unplug

the AC power cord.

"-To protect the unit from a lightning storm, unplug the •

AC power cord from the wall outlet and disconnect

the antenna.

POWER SOURCE

TO USE AC POWER

Use the AC polarized line cord provided for operation on AC. Insert

the AC cord plug into a standard 120V 60Hz polarized AC outlet.

NOTES:

•Never connect the AC line cord plug to anything other than the

specified voltage (120V 60Hz). Use the attached power cord only.

• If the polarized AC cord does not fit into a nonpolarized AC outlet,

do not attempt to file or cut the blade. It is the user's responsibility

to have an electrician replace the obsolete outlet.

• If you cause a static discharge when touching the unit, and the

unit fails to function, simply unplug the unit from the AC outlet, wait

a few minutes, and plug it back in. The unit should return to

normal operation.

• If the AC cord plug is plugged in for the first time, wait for about 5

seconds before pressing the POWER button.

AC Outlet

Wider Hole

and B_I

Polarized AC Cord Plug

(One blade is wider than the other) 7

LOCATION OF CONTROLS

FRONT REAR

Co oooooooo_

2 3 4 5 6 7

uJl

8 9 10 11 12 13 14

DESCRIPTION OF CONTROLS

FRONT:

1. Cassette Loading Slot -To insert or remove a 10.

video tape.

2. POWER Button - Press to turn the TV/VCR on or off. 11.

3. TIMER REC Indicator - Lights when the unit is in

the Timer Record Mode. 12.

4. REC Indicator - Lights up when the TV/VCR is

recording. 13.

5. PLAY Button - Press to play a prerecorded tape.

6. REW (Rewind) Button - In the Stop mode, this

button rapidly winds the tape backwards, in the Play 14.

mode, this button activates reverse search.

7. PHONE Jack - Plug monaural headphones or an

earphone with an 1/8" miniplug into this jack for

private listening.

8. Remote Sensor - Signals from the Remote Control

are received here.

9. REC Button - Press once to start normal recording.

Additional presses activate One-touch Timer

Recording.

15 16

VOLUME • /•Buttons - Press to raise or lower

the volume of the sound.

CHANNEL • /• Buttons - Press to select a

channel for viewing or recording.

STOP/EJECT Button - Press once to stop the tape

in any mode. Press again to eject the tape.

FF (Fast Forward) Button - In the Stop mode, this

button rapidly winds the tape forward. In the Play

mode, this button activates forward search.

AUDIO/VIDEO IN Jacks - Audio and video signal

cables from an external source can be connected

here.

REAR:

15. UHF/VHF Antenna Jack - Connect the 75 ohm

coaxial cable from the antenna or Cable TV service

to this jack.

16. AC Power Cord - Connect to a 120V, 60Hz outlet.

REMOTE CONTROL

4--

5--

6 /

7 j

000_ --

_- 10

_13

16_

17_

20--

_14

_15 21

_qbO0

(Z) (Z) (_ _ _23

C) (D CCH_ --24

......... _ 25

_@__26

_ 27

_ 28

DESCRIPTION OF CONTROLS

1, CLOSED CAPTION Button - Switches between Caption, 16, SLEEP Button - Sets the TV to turn off automatically

Text and TV modes for Closed-Captioned programs.

2, Direct Channel Selection Buttons (0-9) - Allows direct

access to any channel.

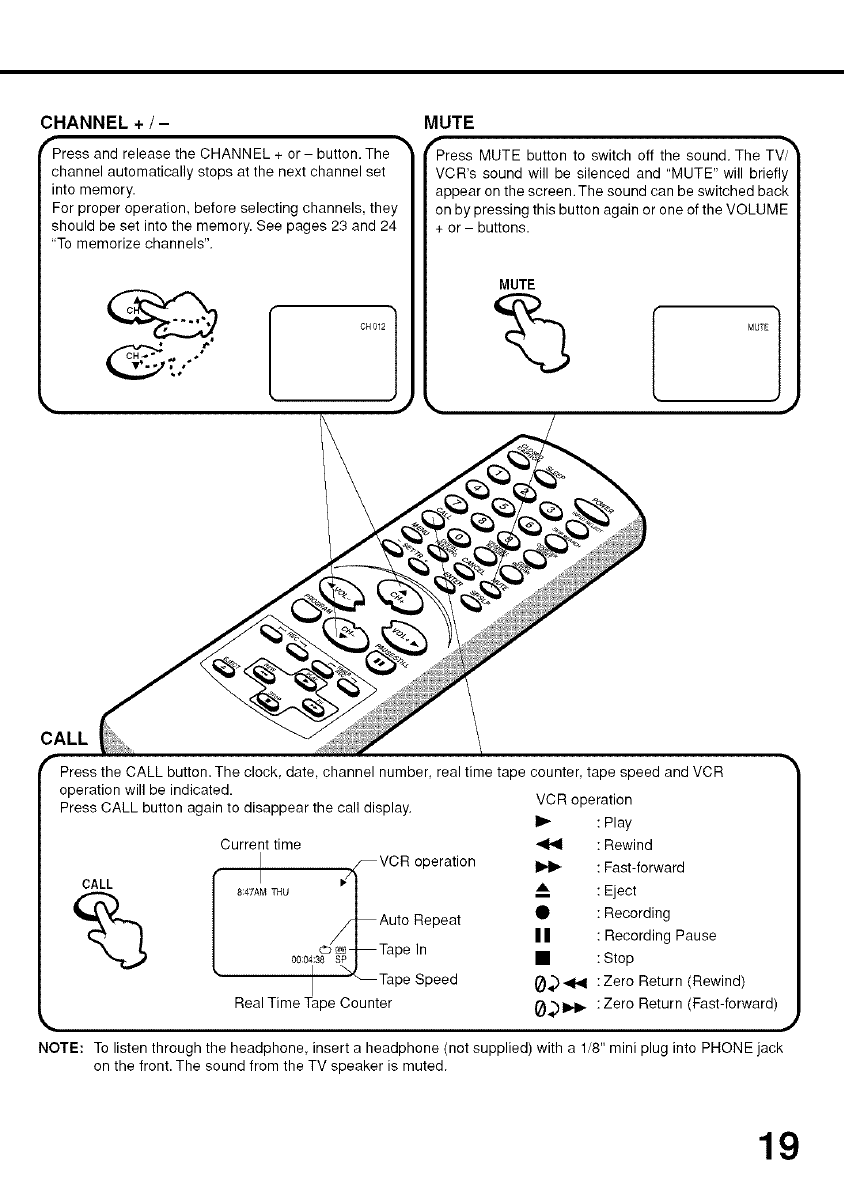

3, CALL Button - Displays the present time/day of the

week. channel, counter, speed selection (and VCR

mode if VCR is operating) on the TV screen.

4, MENU Button - Press to display the On-Screen menu

function.

5, PROGRAM Button - Press to confirm the programmed

timer recording and ON/OFF timer.

6, PLAY Button - Press to play a prerecorded tape.

7. EJECT Button - Press to eject the tape.

8, POWER Button - Press to turn the TV/VCR on. Press

again to turn the TV/VCR off.

9. SKIP SEARCH Button -Press in the playback mode to

search forward in 30 second increments to a maximum

of 3 minutes.

10, ZERO RETURN Button - Use to stop the tape when

the counter reaches 00:00:00.

11, CANCEL Button - Used to clear the selected program

and to move the cursor backward.

12. SP/SLP Button - Sets the tape speed for recording.

13, CHANNEL + /- Buttons - Press the + button to

change to a higher numbered channel set into memory.

Press the - button to change to a lower numbered

channel set into memory.

14, TIMER REC Buttons - Used to set the TV/VCR to start

recording at a preset time.

15. FF (Fast Forward) Button - In the Stop mode, this

button rapidly winds the tape forward. In the Play mode,

this button activates forward search.

after up to 120 minutes.

17, DIGITALTRACKING Button - Allows automatic

adjustment of tracking to minimize picture noise during

playback.

18, SET/TR + /- Buttons - Used to set or adjust in the

menu mode. During playback, they are used to adjust

tracking manually.

19, VOLUME + /- Buttons - Press the + button to in-

crease, or the - button to decrease the volume level.

20, REC Buttons - Press both buttons at the same time

once to start normal recording. Additional presses

activate One-touch Timer Recording.

21, REW (Rewind) Button - In the Stop mode. this button

rapidly winds the tape backwards. In the Play mode,

this button activates reverse search.

22. INPUT SELECT Button - Switches the program for

viewing between the TV/VCR and external input

sources.

23, COUNTER RESET Button - Used to reset the counter

to go:go:go.

24, CHANNEL RETURN Button - Switches between the

present channel and the last channel selected.

25, MUTE Button - Press to turn off the sound. Press

again to turn the sound back on.

26, ENTER Button - Press to enter or select information

for on-screen operations.

27, PAUSE/STILL Button - During recording, this button

temporarily stops the tape. During playback, it stops the

tape and displays a still image on the TV screen.

28, STOP Button - Press once to stop the tape. 9

REMOTE CONTROL (CONTINUED)

BATTERY INSTALLATION

H Slide the battery compart-

ment cover in the direction

of the arrow.

Install two "AAA" batteries,paying attention to the

polarity diagram in the

battery compartment.

Replace the compartment

cover.

BATTERY PRECAUTIONS

The precautions below should be followed when using batteries in this device:

1. Use only the size and type of batteries specified.

2. Be sure to follow the correct polarity when installing the batteries as indicated in the battery compartment.

Reversed batteries may cause damage to the device.

3. Do not mix different types of batteries together (e.g. Alkaline and Carbon-zinc) or old batteries with fresh ones.

4. If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury

from possible battery leakage.

5. Do not try to recharge batteries not intended to be recharged; they can overheat and rupture (Follow battery

manufacturer's directions).

EFFECTIVE DISTANCE OFTHE REMOTE CONTROL

NOTES: • When there is an obstacle between the TV/VCR and the remote control, the remote control may not

operate.

• When direct sunlight, an incandescent lamp, fluorescent lamp or any other strong light shines on the

Remote sensor of the TV/VCR, the remote operation may be unstable.

• When using the remote control, press the button at intervals of about 1 second to ensure the correct

mode of operation.

ANTENNA CONNECTIONS

If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your antenna

system. If you are using a cable TV service (CATV), see page 13 for Cable TV connections.

Combination VHF/UHF Antenna (Single 75 ohm cable or 300 ohm twin-lead wire)

f -_ Connect the 75 ohm cable from the combination VHF/

UHF antenna to the Antenna Jack.

ANT,

Antenna

Jack

75 ohm

Coaxial

Cable

\J_ Antenna

IU Jack

300-75 ohm

Matching

Transformer

if your combination VHF/UHF antenna has a 300 ohm

twin-lead wire, the use of the 300-75 ohm Matching

Transformer may be necessary.

Combination VHF/UHF Antenna (Separate VHF and UHF 300 ohm twin-lead wires)

f "_ Connect the UHF 300 ohm twin-lead wire to the

Combiner (not supplied). Connect the VHF 300 ohm

twin-lead wire to the 300-75 ohm Matching Trans-

300-75 ohm

Matching former. Attach the Transformer to the Combiner, then

ANT. Transformer attach the Combiner to the Antenna Jack.

c°° i°er

UHF 300 ohmiC, f

VHF 300 ohm

Separate VHF/UHF Antennas (75 ohm VHF cable and 300 ohm UHF twin-lead wires)

ANT-

Ant/nna _,_. VHF 75 ohm

C° m bin: rHF _.C'_0[op_m__1'

Connect the VHF 75 ohm cable and UHF 300 ohm

twin-lead wire to the Combiner (not supplied). Attach

the Combiner to the Antenna Jack.

ANTENNA CONNECTIONS (CONTINUED)

INDOOR ANTENNA (NOT SUPPLIED)

f -,,

Insert a twin-lead telescopic antenna (not supplied) into the mounting hole on the back of the cabinet until it

locks into place. Attach the antenna plug to the antenna jack. Adjust the length and angle of the antenna rods to

receive the best possible picture.

CABLE TV CONNECTIONS

This TV/VCR has an extended tuning range and can tune most cable channels without using a Cable TV

converter box. Some cable companies offer "premium pay channels" in which the signal is scrambled,

Descrambling these signals for normal viewing requires the use of a descrambler device which is gener-

ally provided by the cable company.

FOR SUBSCRIBERSTO BASIC CABLETV SERVICE

I ANT. 1

75 ohm Antenna

Coaxial Cable Jack

For basic cable service not requiring a Converter/Descrambler box,

connect the CATV 75 ohm Coaxial Cable directly to the Antenna Jack

on the back of the TV/VCR.

FOR SUBSCRIBERS TO SCRAMBLED CABLE TV SERVICE

If you subscribe to a cable TV service which requires the use of a Converter/Descrambler box, connect the incoming

75 ohm Coaxial Cable to the Converter/Descrambler box. Using another 75 ohm Coaxial Cable, connect the output jack

of the Converter/Descrambler box to the Antenna Jack on the TV/VCR. Follow the connections shown below. Set the

TV/VCR to the output channel of the Converter/Descrambler box (usually channel 3 or 4) and use the Converter/

Descrambler box to select channels.

Incoming

75 ohm

CATV cable 75 ohm Cable to ANT.

,J Converter/ ,

Descrambler I TV/VCR

Antenna

Jack

FOR SUBSCRIBERSTO UNSCRAMBLED BASIC CABLETV SERVICE WITH

SCRAMBLED PREMIUM CHANNELS

If you subscribe to a cable TV service in which basic channels are unscrambled and premium channels require the

use of a Converter/Descrambler box, you may wish to use a signal splitter and an A/B Switch box (available from the

Cable company or an electronics supply store). Follow the connections shown below. With the switch in the "B"

position, you can directly tune any nonscrambled channels on your TV/VCR. With the switch in the "A" position, tune

your TV/VCR to the output of the Converter/Descrambler box (usually channel 3 or 4) and use the Converter/

Descrambler box to tune scrambled channels.

_Sp Converter/ _

Incoming Descrambler

75 ohm 75 ohm cable

CATV cable to TV/VCR AN].

litter A/B Switch D

Antenna

Jack

SETTING THE LANGUAGE

This TV/VCR can display the on screen language in English, Spanish or French.

On-screen language selection (step 3) will automatically appear on the screen when you press the MENU

button initially. Select the language you prefer first, then proceed with the other menu options.

Uress the MENU button.

Press the SET/TR + or - button to select the

SYSTEM SETUP option, then press the

ENTER button.

MENU -- SET/TR+ ENTER

I TIMER REC SET

I TVSE-UP

I OH SETUP

_I/AUTO REPEAT ON _OFF

-/I SYSTEM SETUP

Press the SET/TR + or -button to select theLANGUAGE option, then press the ENTER

button.

-- SET/TR+ ENTER

I SYSTEM SETUP

_IICLOCK SET

- I LANGUAG_DIOMA/_NGUi

/I_AUTOCLOCK PON OFF

I STANDARD TIME

I DAYLIGHT SAVING TIME

{+/-IENTER/MENU_

UPress the SET/TR + or -button to select the

desired language: English (ENGLISH), Spanish

(ESPANOL) or French (FRANCAIS), then press

the ENTER button.

-- SET/TR+ ENTER

•<_-/ENTE_MENU )LANGUAGEtIDIOMALN_GUE_ENGUSHFRANCAISESPANOL]

Press the MENU button until the MENU screen

is cleared.

AUTO CLOCK SETTING

The Auto Clock function will automatically set the built-in clock (Month, Day, Year and Time) when the TV/VCR is

connected to an Antenna or Cable system and it is turned off. As the TV/VCR searches for a receivable station in

your area and it receives a broadcast signal for Auto Clock, the Auto Clock needs several minutes to set itself.

AUTO CLOCK SETTING

1. Connect the Antenna or Cable system

• If you use a cable box, turn it on.

2. Plug the AC Power cord to the AC outlet.

3. Make sure the TV/VCR is turned off.

• If you press the POWER button, the Auto Clock set is not effective.

4. Wait at least three minutes and press the POWER button.

5. Press the CALL button to check the clock on the screen.

6. If the clock is not set, check the Antenna condition. The Auto Clock may not function properly if the reception

condition is not good.

AUTO CLOCK ADJUSTMENT

The Auto Clock Adjustment will be performed at 12:00 PM everyday if you turn off the TV/VCR.

• If you use a cable box and you want Auto Clock adjustment to be performed, the cable box must be left on.

• The Auto Clock Adjustment is not effective when there is a difference of more than 5 minutes exists between

the built-in clock time and the actual time.

TO SET AUTO CLOCKTO OFF

fWhen shipped from factory the AUTO CLOCK option is set to ON.

But if you do not want Auto Clock set (Adjustment):

1. Turn on the TV/VCR.

2. Press the MENU button.

3. Press the SET/TR + or - button to select the SYSTEM SETUP option, then press the ENTER button.

4. Press the SET/TR + or - button to select the AUTO CLOCK option.

5. Press the ENTER button to select OFF.

6. Press the MENU button repeatedly to return to the normal screen.

• When the AUTO CLOCK is set to OFF, the Auto Clock adjustment does not function.

• Set the clock manually (see page 17).

TO SET STANDARD TIME

In the rare event that you live within broadcast range of two stations in two different time zones, the TV/VCR may

recognize the wrong station for the Auto Clock set.

To correct the situation:

1. Press the MENU button.

2. Press the SET/TR + or - button to select the SYSTEM SETUP option, then press the ENTER button.

3. Press the SET/TR + or - button to select the STANDARD TIME option, then press the ENTER button.

4. Press the SET/TR + or - button to select your time zone, then press the ENTER button.

ATLANTIC : GMT- 4 hours (GMT:Greenwich Mean Time)

EASTERN : GMT- 5 hours

CENTRAL : GMT- 6 hours

MOUNTAIN : GMT- 7 hours

PACIFIC : GMT- 8 hours

ALASKA : GMT- 9 hours

HAWAII : GMT- 10 hours

AUTO : AUTO SET

5. Press the MENU button twice to return to the normal screen.

NOTE: To be able to select the standard time, the clock must first be set by "AUTO CLOCK" once.

)

AUTO CLOCK SETTING (CONTINUED)

DAYLIGHT SAVING TIME SETTING

You can set the Daylight saving time automatically or manually.

H ress the MENU button. Press the SET/TR + or if.llll

- button to select the SYSTEM SETUP option,

then press the ENTER button.

MENU -- SET/TR"1"

%% ENTER

I TIMERREC SET

| TV SETUP

| CH SETUP

gI_AUTOREPEAT ON_*OFF

-/ISYSTEM SETUP

_+I-IENTER/MENU

Press the SET/TR + or - button to select the

DAYLIGHT SAVING TIME option, then press

the ENTER button.

-- SET/TR-I- ENTER

f SYSTEM SETUP

l CLOCK SET

ILANGUAGE4DIOMMU_NGU}

lAUTO CLOCK _ON OFF

"J_'STANDARD TIME

-oR DAYLIGHT SAVING TIME

(+/_ENTER/MENU}

Press the SET/TR + or - button to select one of the options, then press the ENTER button. Press theMENU button until the MENU screen is cleared.

-- SET/TR+ ENTER MENU ON: for manual setting

_ % _ (forward one hour)

OFF: for manual setting

(back one hour)

AUTO: for automatic setting

(read XDS in the signal)

DAYLIGHT SAVING TIME /

_ON

OFF When you want to set the Daylight Saving Time manually,

AUTO on the first Sunday in April you set to "ON", and on the last

{+J-JENTER/MENU)

_,, ,, Sunday in October you set to "OFF". J

NOTES: • When shipped from factory, the DAYLIGHT SAVING TIME option is set to AUTO position.

• When the clock is not set, Daylight Saving Time setting is not available.

• When there is no Daylight Saving Time in your area, always select OFF position in step 3.

MANUAL CLOCK SETTING

You must set the date and time manually for Timer Recordings, ON/OFF Timer and Daylight Saving Time if

the Auto Clock process did not set them correctly.

EXAMPLE: Setting the clock to "8:30 AM", 29th (SAT) March, 2003.

Press the MENU button.

Press the SET/TR + or - button to select the

SYSTEM SETUP option, then press the ENTER

button.

MENU -- SET/TR "1" ENTER

|TIMER REC SET

I TV SETUP

I CHSETUP

,JfALrl"O REPEAT ON _OFF

-zI\SYSTEM SETUP

<+/_[NTER/MENU)

Press the SET/TR + or -button to select the

CLOCK SET option, then press the ENTER

button.

-- SET/TR"1" ENTER

\/SYSTEM SETUP 1

-I CLOCK SET

/I_LANGUAGBDIOMNLANGUE

| AUTOCLOCK _ON OFF

| STANDARDTIME

| DAYLIGHTSAVING TIME

/+/_ENTER/MENU)

O0012

Press the SET/TR + or -

button to set the month,

then press the ENTER button.

Set the day, year and time

as in step 3.

-- SET/TR-E ENTER

CLOCK SET

MONTH 3

DAY 29 (SAT)

YEAR 200_ /

TIME _3o*_

<+I-/ENTERICANCELA_ENU}

After setting the clock, date and time

starts functioning automatically.

8:30 AM SAT

NOTES: • After a power failure or disconnection of the power plug, the time display will be lost. In this case, set the

present time again if the Auto Clock did not set correctly.

• To move cursor backward, press the CANCEL button.

TV OPERATION

H To turn on the TV/VCR,

press the POWER button.

POWER

Adjust the volume level by

pressing the VOLUME + or-

button. The volume level

will be indicated on the screen by

green bars. As the volume level

increases, so do the number of bars.

If the volume decreases, the number

of green bars also decreases.

Set the TV/CATV menu

option to the appropriate

position (See page 22).

TV - VHF/UHF Channels

CATV - CABLE TV Channels

VHF/UHF/CATV CHANNELS

TV CATV

VHF VHF

2-13 2-13

UHF STD/HRC/IRC

14-69 14-38

(A) (W)

37-59

(AA) (WW)

60-85

(AAA) (ZZZ)

86-94

(88) (94)

95-99

(A-5) (A-l)

100-125

(100) (125)

(5A)

Press the Direct Channel selection buttons to select the channel.

TV mode direct channel selection

When the TV/CATV menu option is in the TV position, all channels can be instantly selected by using two

buttons (for example, to select channel 2, press "0", then "2". If you press only "2", channel selection will be delayed for

a few seco nds). For channels 10 and above, press the 2 digits in order, w(_.t.t._ _ (_.t._ _ i_',-_

CATV mode direct channel selection =]_ =!,

When the TV/CATV menu option is in the CATV position, channels can be selected as folio

TO SELECT CATV CHANNELS:

1-9 Press "0" twice, then 1-9 as needed. Example, to select channel 2, press "002".

10-12 Press "0", then the remaining 2 digits. Example, to select channel 12, press "012".

13-99 Press the 2 digits in order. Example, to select channel 36, press "36". f"

100-125 Press the 3 digits in order. Example, to select channel 120, press "120". l cH0_2

NOTE FOR CHANNELS 1-12:

If only 1 or 2 buttons are pressed, the corresponding channel will be selected in 2 seconds.

_,,, •

NOTES: • If a channel with no broadcast is selected, the sound will automatically be muted.

• If a station being viewed stops broadcasting, the TV will automatically shut itself off after 15 minutes.

CHANNEL + /-

_Press and release the CHANNEL + or - button. The _

channel automatically stops at the next channel set

into memory.

For proper operation, before selecting channels, they

should be set into the memory. See pages 23 and 24

"To memorize channels".

CH012 )_, o°°°

MUTE

#'Press MUTE button to switch off the sound. The TV_

VCR's sound will be silenced and "MUTE" will briefly

appear on the screen. The sound can be switched back

on by pressing this button again or one of the VOLUME

+ or - buttons.

MUTE

CALL

Press the CALL button. The clock, date, channel number, real time tape counter, tape speed and VCR

operation will be indicated. VCR operation

Press CALL button again to disappear the call display. I_ Play

Current time _ Rewind

operation 11_ Fast-forward

CALL _ Eject

• : Recording

I I : Recording Pause

In • : Stop

--Tape Speed _ _ :Zero Return (Rewind)

RealTime Tape Counter _}_1_1,,- :Zero Return (Fast-forward)

NOTE: To listen through the headphone, insert a headphone (not supplied) with a 1/8" mini plug into PHONE jack

on the front.The sound from the TV speaker is muted.

TV OPERATION (CONTINUED)

SLEEP

f To set the TV/VCR to turn off after a preset amount of time. press the SLEEP button on the remote control.

The clock will count down 10 minutes for each press of the SLEEP button (120, 11O, _.1 O, 0). After the sleep

time is programmed, the display will appear briefly every ten minutes to remind you that the sleep timer is

operating. To confirm the sleep timer setting press the SLEEP button and the remaining time will be displayed

for a few seconds. To cancel the sleep timer, press the SLEEP button repeatedly until the display turns to 0.

SLEEP

CLOSED CAPTION

button to switch between normal TV and

the two closed caption modes (captions and full

screen text). Closed captioning will display text on the

screen for hearing impaired viewers.

CLOSED

CAPTION

%I CAPTION CH 1

CHANNEL RETURN

fThis button allows you to go back to the last channel

selected by pressing the CHANNEL RETURN button.

Press this button again to return to the last channel

you were watching.

CHANNEL

RETURN

%0H012 1

NOTES: • If using an indoor antenna or if TV reception is very poor, the Closed Caption Decoder text may not appear.

In this case, adjust the antenna for better reception or use an outdoor antenna.

• When activating the Closed Captioned Decoder, there will be a short delay before the Closed Captioned text

appears on the screen.

• Closed Captioned TV programs can be recorded and played back on a VCR with the Closed Captioned text intact.

The Closed Captioning text will disappear during Cue, Rewind and Pause modes or if the VCR tracking is not

adjusted properly.

0• Closed Captioned text is only displayed in locations where it is available.

• If the Call display is on, the Closed Captioning text will not appear.

WHATISCLOSEDCAPTIONING'?.

Thistelevisionhasthecapabilitytodecodeanddisplay

ClosedCaptionedtelevisionprograms.Closed

Captioningwilldisplaytextonthescreenforhearing

impairedviewersoritwilltranslateanddisplaytextin

anotherlanguage.

CLOSEDCAPTIONINGWITHAVCR

ClosedCaptionedprogramscanberecordedandplayed

backonaVCRwiththeClosedCaptionedtextintact.

TheClosedCaptionedtextwilldisappearduringCue

(FastForwardSearch),Review(RewindSearch)and

PauseModesoriftheVCRtrackingisnotadjusted

properly.

TO VIEW CLOSED CAPTIONS

Press the CLOSED CAPTION button on the remote

control to switch between normal TV and the two Closed

Caption Modes (Captions and Full Screen Text).

Captions: This Closed Caption Mode will display text

on the screen in English or another language (depend-

ing on the setting of the Closed Captions CH. 1 or 2).

Generally, Closed Captions in English are transmitted

on Captions Channel 1 and Closed Captions in other

languages are transmitted on Captions Channel 2.

Text: The Text Closed Caption Mode will usually fill the

screen with a programming schedule or other information.

After selecting a Closed Caption Mode, it will stay in

effect until it is changed, even if the channel is changed.

If the Captions signal is lost due to a commercial or a

break in the signal, the Captions will reappear when the

signal is received again.

If the channels are changed, the Captions will be delayed

approximately 10 seconds.

The Captions will appear in places on the screen where

they will least interfere with the picture, usually on the

bottom of the screen. News programs will usually show

three-line Closed Captions which scroll onto the screen.

Most other shows provide two or three lined Captions

placed near the character who is speaking so the viewer

can follow the dialogue.

Words in italics or underlined describe titles words in

foreign languages or words requiring emphasis. Words

that are sung usually appear enclosed by musical notes.

For television programs broadcasting with Closed Cap-

tions look in your TV guide for the Closed Captions

symbol (CC).

•When selecting Closed Captions, the captioning will be delayed approximately 10 seconds.

• If no caption signal is received no captions will appear, but the television will remain in the Caption Mode.

• Misspellings or unusual characters may occasionally appear during Closed Captioning.This is normal with

Closed Captioning, especially with live programs. This is because during live programs, captions are also

entered live. These transmissions do not allow time for editing.

• When Captions are being displayed, on-screen displays, such as volume and mute may not be seen or may

interfere with Closed Captions.

• Some cable systems and copy protection systems may interfere with the Closed Captioned signal.

• If using an indoor antenna or ifTV reception is very poor the Closed Caption Decoder may not appear or

may appear with strange characters or misspelled words. In this case, adjust the antenna for better reception

or use an outdoor antenna.

TO MEMORIZE CHANNELS

This TV/VCR is equipped with achannel memory feature which allows channels to skip up or down to the

next channel set into memory, skipping over unwanted channels. Before selecting channels, they must be

programmed into theTV/VCR's memory. In addition to normal VHF and UHF channels, this TV/VCR can

receive up to 113 Cable TV channels.To use this TV/VCR with an antenna, set the TV/CATV menu option to

theTV mode.When shipped from the factory, this menu option is in the CATV mode.

TV/CATV SELECTION

Press the MENU button. _11"_ Press the SET/TR + or - button to select the

CH SETUP mode, then press the ENTER

button.

-- SET/TR"I" ENTER

I MENU l

ITIMERREC SET

_IzTVSETUP

-IOH SETUP

41_AUTOREPEAT ON _*OFF

ISYSTEM SETUP

(+/-_£NTER/MENU_

CATV CHART

The chart below is typical of many cable system channel allocations.

Number on this TV: 14 15 16 17 18 19 20 21 22

Corresponding CATV channel: A B C D E F G H I

23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

J K L M N O P Q R S T U V W AA BB CC DD

41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58

EE FF GG HH II JJ KK LL MM NN OO PP QQ RR SS TT UU VV

59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76

AAA BBB COO DDD EEE FFF GGG HHH Ill JJJ KKK LLL MMM NNN OOO PPP QQQ

77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94

RRR SSS TTT UUU VVVWWWXXX YYY ZZZ 86 87 88 89 90 91 92 93 94

95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112

A-5 A-4 A-3 A-2 A-1 100 101 102 103 104 105 106 107 108 109 110 111 112

113 114 115 116 117 118 119 120 121 122 123 124 125 01

113 114 115 116 117 118 119 120 121 122 123 124 125 5A

Press the SET/TR + or -

button to select the TV/CATV

mode.

Press the ENTER buttonto select the TV or CATV

mode. The arrow indicates

the selected mode.

ENTER

-- SET/TR +

_1 TV *CATV

/I_AUTO CH MEMORY

IADD/DELETE

{+I-f ENTER/MEN!!

Press the MENU button until"

the MENU screen is cleared.

AUTOMATIC MEMORY TUNING

Press the MENU button.

ill

Press the SET/TR + or - button to select the

CH SETUP mode, then press the ENTER

button.

-- SET/TR 4- ENTER

MENU 1

I TIMERREC SET

,J_TVSETUP

- l CHSETUP

_II_AUTOREPEAT ON _'OFF

| SYSTEMSETUP

(+_-/ENTER/MENU)

Press the SET/TR + or - button to select theAUTO CH MEMORY mode, then press the

ENTER button. The TV/VCR will begin

memorizing all the channels available in your area.

Channel numbers will remain red until auto memorizing

is complete.

-- SET/TR 4- ENTER

_1_ TV_CATV

-| AUTO OH MEMORY

41_ADD/DELETE

(+I-/ENTER/MENU}

Press the MENU button until the MENU

screen is cleared.

TO MEMORIZE CHANNELS (CONTINUED)

TO ADD/DELETE CHANNELS

Press the MENU button, lit=! Press the SET/TR + or -

r_.dl

button to select the CH

SETUP mode, then press the

ENTER button.

MENU - SET/TR -I- ENTER

% %%

| TIMERRECSET

,JzTVSET P

- | CHSETUP

/I_AUTO REPEAT ON _*OFF

| SYSTEM SETUP

{+/4ENTER/MENU)

Press the SET/TR + or -

button to select the ADD/

DELETE mode then press

the ENTER button.

-SET/TR -I- ENTER

ITV _'CATV

,I/AUTO CH MEMORY

-/|\ADD/DELETE

/+_ENTER/M£NU)

Select the desired channel

to be memorized or deleted

using SET/TR + or - button,

or using the Direct Channel

Selection buttons (1O keys, 0-9),

or CHANNEL + or - button.

-- SET/TR -I-

Press the ENTER button to

select the ADD or DELETE.

If you select an unmemorized

channel, the Channel indication will be

red. If you select the ADD mode, the

Channel indication changes from red to

green and the channel will be memorized.

If you select a memorized channel, the

Channel indication will be green. If you

select the DELETE mode, the Channel

indication changes from green to red

and the channel will be deleted from the

mem°ry" I 1

ENTER A00 OH003

<0_9 +t_tENTE_ MENU)

_O 1 Press the MENU button until"the MENU screen is cleared.

SETTING THE V-CHIP

An age limitation can be set to forbid children to watch programs according to "TV RATING" and "MOVIE

RATING" level set.To use the V-Chip function, you must register a password.

TO REGISTER PASSWORD

Press the MENU button.

Press the SET/TR + or -button to select the TVSETUP option, then press the ENTER button.

-- SET/TR4" ENTER

MENU 1

_IIzTIMER REC SET

-I TV SETUP

41_C SETUP

IAUTO REPEAT ON;'OFT

|SYSTEM SETUP

(+/-/ENTER/MENU)

Press the SET/TR + or -button to select the V-CHIP

SET then press the ENTER

button.

-- SETJTR4" ENTER

', tTV SETUP

- V-CHIP SET

/+/__ENTER/MENU)

Enter the password (4 digits)

using the Direct Channel

Selection buttons (0-9), then

press the ENTER button.

ENTER [V CHIP SET l

NEW

PASSWORD:****

(0-9 ENTE P_CANC EUMEN U)

"*"appears instead of the number.

_1 Enter the same password

again for safety then press

the ENTER button.

%%%%

CONFIRM

PASSWORD: ****

(_9/ENTER_CANCE//MENU)

V-CHIP SET menu appears. •

I If you forget the password, you cannot set the V-Chip.To avoid forgetting the password, write it down andkeep in a safe place.

SETTING THE V-CHIP (CONTINUED)

TO SET THE V-CHIP

In the V-CHIP SET menu, press the SET/TR +

or - button to select the TV RATING, then

press the ENTER button.

-SET/TR-I- ENTER

I V,,C IP SET 1

_i/V"C IP :OFF

- i TV RATING :OFF

/I_MOVIE RATING :OFF

|CHANGE PASSWOR[_

(+f-/ENTER/MENU/

Press the SET/TR + or - button to display the

desired setting, then press the ENTER button.

-SET/TR-I- ENTER

iCANGE PASSWORD J

(+/-/ENTER/MENU)

OFF : TV RATING is not set

TV-Y : All children

TV-Y7 : 7 years old and above

TV-G : General Audience

TV-PG: Parental guidance

TV-14 : 14 years old and above

TV-MA: 17 years old and above

When you select TV- Y7, TV-PG, TV-14 or TV-MA, press

the CALL button to explain the rating. Press the SET/TR

+ or- button to select the desired rating you want. Press

_the ENTER button to select the setting ON or OFE

Press the SET/TR + or - button to select theMOVIE RATING, then press the ENTER

button.

-- SET/TR-I" ENTER

V-CHIPSET 1

IV'CHIP OFF

"JIzTVRATING TV-PG

-MOVIE RATING OFF

_CHANGE PASSWORO

• _+/_ENTER/MENU/ J

NOTE: The V-Chip function is activated only on programs and tapes that have the rating signal.

Press the SET/TR + or - button to select desired rating, then press the ENTER button.

--SET/TR"1" ENTER

V-CHIP SCT t

I V-CHIP :OFF

I _V RATING :{V-P_

I MOVIE RATING _PG-13

| CHANGE PASSWOR[_ \

<+/- ENTER MENU)

OFF : MOVIE RATING is not set

G : All ages

PG : Parental guidance

PG-13 : Parental guidance

less than 13 years old

R : Under 17 years old

Parental guidance suggested

NC-17 : 17 years old and above

X : Adult only

Press the SET/TR + or -

button to select

V-CHIR

- SET/TR +

-| V-CHI£ :OFF

/l_TV RATING : TWPG

I CHANGE PASSWO£D

<+/-JENTER/MENU>

To use the TV after the TV is protected.

Press the ENTER button to

display ON.

ENTER

f V CHIP SET 1

-'*II/V-C HIP :ON

| MOVIERATING _PG-_ 3

| CHANGEPASSWORD

<+_-_ENTEPJMENU>

H ress the MENU button until"

the MENU screen is cleared.

When the program applied to the V-Chip setting is received, enter the password, then press the ENTER button.

When the password is entered correctly the protection will be temporarily overridden.

SETTING THE V-CHIP (CONTINUED)

TO CHANGE PASSWORD

1. Press the MENU button.

2. Press the SET/TR + or -button to select the TV SETUP, then press

the ENTER button.

I MENU 1

\I_TIMER REC SET

- I TV SETUP

/ll_C H SETUP

I AUTO REPEAT ON _'O_'F

| SYSTEM SETUP

{+/-_ENTER/MENU}

3. Press the SET/TR + or - button to select the V-CHIP SET, then press

the ENTER button. \/TV SETUP

{+_-/ENTER/MENU} ]

4. Enter the Password using the Direct Channel Selection buttons (0-9),

then press the ENTER button.

IV-CHIPSET >1

PASSWORB!_-/..- -

(O,-,9/ENTER/CANCEL/MEN

5. Press the SET/TR + or - button to select CHANGE PASSWORD,

then press the ENTER button.

f V,,CHIP SET 1

I V'CHIP :ON

I TV RATING :TV-PG

'I/MOVIE RATING : PC_I 3

-/|\CHANGE PASSWORD

{+I-/ENTERIMENU)

6. Enter the new password using the Direct Channel Selection buttons

(0-9), then press the ENTER button.

V CHIPSET ]

| V CHIP :ON

| TV RATING :TV-PG

II MOVIERATING : PG 13

| CHANGEPASSWORD

NEW \ t

_ASSWOR%----

<(_9_ENTER,CANCEL_MENU}

7. Enter the same password again to confirm, then press the ENTER

button.

8. Press the MENU button repeatedly to return to the normal screen.

I V CHIPSET ]

II V CHIP :ON

II TV RATING :TWPG

II MOVIERATING : PG-13

II CHANGEPASSWORD

CONFIRM _ /

PASSWOR_-_

(_9_ENTEP_CANCEL_MENU)

TO SETTHE ON TIMER

This feature allows you to have the TV/VCR automatically turn "ON" at a predetermined time. If you program the ON

TIMER once, the TV/VCR will turn on on the programmed day (daily/weekly) at the same time to the same channel.

EXAMPLE: Turning on the TV to channel 12 at 7:00 AM, MONDAY-FRIDAY.

Press the SET/TR + or - button

to select the TV SETUP option,

then press the ENTER button.

MENU -- SET/TR "1" ENTER

MENU 1

_IzTIMER REC SET

- I TV SETUP

41_CH SETUP

I AUTO REPEAT ON _*OFF

I SYSTEM SFUP

{+I-lENTEn/MENU)

Press the SET/TR + or -

button to select the ON/OFF

TIMER option, then press

the ENTER button.

-- SET/TR"1" ENTER

r_i TV sETuP

\l/v-o HIP SET

- ON/OFF TIMER

"PICTURE

{+/_/ENTER/MENU}

I_! ress the SET/TR + or-

button to select the ON

TIMER option, then press

the ENTER button.

-- SET/TR+ ENTER

,,ON,OFFTl_n )

IION TIMER I

/\ 12;00AM CN001

SUN-SAT CANCEL

IOFF TIMES

12;00AM CANCEL

(+/IZENTER/CANCEL/MENU)

Press the SET/TR + or -

button to set the desired hour,

then press the ENTER button.

--SET/TR4" ENTER

ON'OFFTIMER }

iOt&SMER

-7:_AM CHCel

SUN.AT CANCEL

I OFFTIMER

12:00AM CANCEL

{+_NTER/CANOEL_ENU!

Set the desired minute,

channel and daily er weekly

timer date as in step 4. I_ ress the SET/TR + or- •

button to select the SET mode,

then press the ENTER button.

Press the MENU button repeatedly te

return to normal screen.

ISET/TR-I- ENTER MENU

NOTES: • The TV/VCR will automatically turn off approximately 1 hour later after the ON TIMER turns on if no OFF TIMER

has been set. To continue watching the TV, press any button to cancel the one hour automatic shut off.

• To cancel ON TIMER, follow above steps 1-5, then press the SET/TR + or - button to select the CANCEL. Press

the MENU button repeatedly to return to the normal screen.

• After setting the ON TIMER, "I" of the OFF TIMER will flash on and off. If you wish to set the OFF TIMER, press

the ENTER button then follow the steps 4-6 on page 30.

• If you want to correct the digits while setting, press the CANCEL button until the item you want to correct, I1"_t_

then press the SET/TR + or - button to correct the desired setting.

I ON TIMER

_Tr@0A_ 0H012

-MON-FR]- CANOEL

I OFF TIMER

12:00AM CANCEL

e_ENTER/OANOEL MENU)

ISET/TR 4" ENTER

TO SET THE OFF TIMER

This feature allows you to have the TV/VCR turn "OFF" automatically at a predetermined time. If you program the

OFF TIMER once, the TV/VCR will automatically turn off at the same time everyday,

EXAMPLE: Turning off the TV at 11:30 PM.

U ress the MENU button.

Press the SET/TR + or - button

to select the TV SETUP option,

then press the ENTER button.

MENU -- SETPi-R "P ENTER

I MENU ]

"J/TIMER REC SET

- II TV SETUP

_I_CH SETUP

II AUTO REPEAT ON _'OFF

II SYSTEM SETUP

{+/-_ENTER/MENU}

Press the SET/TR + or-

button to select the ON/OFF

TIMER option, then press

the ENTER button.

--SET/TR"1" ENTER

TV SETUP

_I/V-CHIP SET

-I ON/OFF TIMER

t|_PICTUR[

{+/-/ENTER/MENU}

Press the SET/TR + or -

button to select the OFF

TIMER option, then press

the ENTER button.

--SET/TR-t" ENTER

IONTIMER

7:00AM 0H012

\/MONFR] SET

-| OFF TIMER

/\ 12:00AM CANCEL

<44-_ENTEP_CANCEUMENU}

Press the SET/TR + or -

button to set the desired hour,

then press the ENTER button.

--SET/TR+ ENTER

ION T_MER

7:00AM 0H012

f_N FRI SET

IOFEzT_MER

_)I_00PM CANCEL

<+/-JENTER_CANCEUM ENU)

-- SET/TR + ENTER

ON€OFF TIMER

| ON T]MER

7:00AM CH012

MON-FR_ SET

| OFF {I_ER

11_ CANCEL

{+/-JENTER,'CA_EL'MENU)

Press the SET/TR + or - m"_ Press the SET/TR + or -

button to set the desired minute, _ button to select the SET mode

then press the ENTER button, then press the MENU button

repeatedly to return to the normal

screen. - SET/TR-I- MENU

NOTES: • If a station being viewed stops broadcasting the TV will automatically shut itself off after 15 minutes.

• To cancel OFFTIMER, follow above steps 1-5 then press the SET/TR + or - button to select the CANCEL.

Press the MENU button to return to the normal screen.

• To confirm the ON/OFF TIMER:

Press the PROGRAM button twice to indicate the programs on the screen.

PICTURE CONTROL ADJUSTMENTS

Picture controls are factory preset but you can adjust them individually as follows:

To display the picture adjustment screen, press

the MENU button. Press the SET/TR + or -

button to select the TV SETUP option, then

press the ENTER button.

ENTER

",I/TIMER REC SET

- m TVSETUP

_IXCHSETUP

m AUTO REPEAT ON *OFF

m SYSTEM SETP

!+I_ENTER/MEt_U)

Press the SET/TR + or- button to select the •PICTURE option, then press the ENTER button.

I TV SETUP 1

IV"CHIP SET

\I/ON/OFF TIMER

/|\PICTURE

{+/-/ENTER/MENU_

BRIGHTNESS

"-Press the ENTER button until "BRIGHTNESS'appears

on the screen, then press the SET/TR + or - button

to adjust the brightness of the picture. When the

SET/TR + button is pressed, the darker portions of

the picture become lighter.

ENTER -- SET/TR 4-

CONTRAST

fPress the ENTER button until "CONTRAST" appears

on the screen, then press the SET/TR + or - button to

adjust the contrast of the picture. Pictures look

sharpest in the daytime (bright light) by increasing the

contrast. At night (dim light), the sharpest picture is

obtained by reducing the contrast.

ENTER -- SET/TR+

NOTE: The CONTRAST default

setting is set to maximum

at the factory. [

PICTURE CONTROL ADJUSTMENTS (CONTINUED)

COLOR

fPress the ENTER button until "COLOR" appears on

the screen, then press the SET/TR + or - button to

adjust the color intensity of the picture. The control

should be set when colors appear normal in intensity

and brilliance.

ENTER -- SET/TR"1"

TINT

rPress the ENTER button until "TINT" appears on the

screen, then press the SET/TR + or -button to adjust

the tint of the picture. This determines how accurately

the colors are reproduced by the TV. Adjusting the tint

for natural facial tone is the best method of obtaining

accurate color reproduction of the entire picture.

_Press the ENTER button until "SHARPNESS" appears

on the screen, then press the SET/TR + or - button

to adjust the sharpness of the picture.

ENTER -- SET/TR+

Pressing the CANCEL button while making picture

adjustments will return all adjustments to the factory

preset levels.

CANCEL

NOTE: The On-screen display will disappear 6 seconds after finishing an adjustment or by pressing the MENU

button three times. The settings can only be adjusted when they are displayed on the TV screen.

LOADING AND UNLOADING A VIDEO CASSETTE

Use only video cassette tapes marked _.

f"-Push the center of the tape until it is automatically retracted into the TV/VCR. _'

AUTOMATIC POWER ON AND PLAY

When loading a cassette tape without the erase prevention tab intact, the TV/VCR will turn on automatically

and playback will start immediately.

Insert the cassette with its labeled side facing you. I I_

An inverted video cassette cannot be inserted.

UNLOADING

H o unload a video cassette, press the EJECT

button on the remote control, or press the

STOP/EJECT button on the TV/VCR twice.

The first press will stop the tape in any mode. The

second press will eject the tape.

EJECT STOP/EJECT

m_ :]

AUTOMATIC EJECT

If the TV/VCR automatically rewinds the tape to the

beginning (AUTO REWIND FEATURE), the tape will

_be ejected automatically (See NOTE on page 40).

NOTES: • Always eject the tape when not in use.

• The cassette tape can be ejected even if the POWER is "OFF".

Pull the cassette out.

LOADING AND UNLOADING A VIDEO CASSETTE (CONTINUED)

TO PREVENT ACCIDENTAL ERASURE TO RECORD AGAIN

rAfter recording, break off the erase prevention tab if Cover the hole with adhesive tape.

Be careful the tape does not extend past the edges of

the video cassette housing.

.oo@

Adhesive tape

you do not wish to record over the tape.

Screwdriver

Erase prevention tab

TAPE SPEED AND MAXIMUM PLAYBACK/RECORDING TIME

VIDEO CASSETTE TAPE

I_KIC bKLEU

T-160 T-120 T-90 T-60 T-30

SP (Standard Play) 2-2/3 hours 2 hours 1-1/2 hours 1 hour 30 minutes

SLP (Super Long Play) 8 hours 6 hours 4-1/2 hours 3 hours 1-1/2 hours

k. •

PLAYBACK

To play a prerecorded tape.

TO START PLAYBACK

H Toturn on the TV/VCR, press the POWER button.

POWER

Load a prerecorded tape (When loading a

cassette tape without the erase prevention tab,

playback will start automatically).

Press the PLAY button to begin playback.

" _ "will appear on the screen.

PLAY

STOP PLAYBACK

_"-Press the STOP button once.The tape will stop, but "_

remain fully loaded and ready to play. "•" will

appear on the screen.

STOP

NOTE: This TV/VCR selects the playback tape speed SP or SLP automatically.

PLAYBACK (CONTINUED)

TO REWIND OR FORWARD THE TAPE RAPIDLY

Press the REW (Rewind) button in the Stop mode.

"_" will appear on the screen.

REW

FORWARD/REVERSEPICTURESEARCH

Press the FF (Fast Forward) button in the Stop mode.

"_." will appear on the screen.

If you want to see the tape during REW or FF mode, press and hold the REW or FF button. The backward

or forward visual search picture will be seen on the screen. Release to return to the REW or FF mode.

DIGITAL TRACKING CONTROLS

When a tape is played, the Digital Auto Tracking system automatically adjusts the tracking to obtain the best

possible picture. If noise bars appear during playback, adjust the tracking manually as follows:

• Press the SETFFR + or - button to obtain the best possible picture.

"MANUAL TRACK" will appear for 4 seconds on the screen. To resume automatic tracking, press the DIGITAL

TRACKING button. "DIGITAL TRACK" will appear for 4 seconds on the screen.

-- SET/TR + DIGITAL

MANUALT_AC_ + DIGITAL TRACK

SPECIAL PLAYBACK

TO VISUALLY SEARCH FOR DESIRED POINTS

When either the FF or REW button is pressed in the PLAYBACK mode, the speed search picture will appear. When

pressed twice, the search picture will increase speed. Speed search time depends upon the speed used (SP or SLP)

during recording. See chart below.

To rewind or fast forward a tape, press the STOP button, and then press the REW or FF button.

fTo visually search backward, press the REW I To visually search forward, press the FF button

once or twice in the PLAYBACK mode. once or twice in the PLAYBACK mode.

REW FF

Press the PLAY button to resume normal viev 'ig

_speed.

SPEED SEARCH TIMES

f •

PICTURE SEARCH SPEED

TAPE SPEED PRESS PRESS

ONCE TWICE

SP (Standard Play) 3 X 5 X

SLP (Super Long 9 X 15 X

_Play)

Press the PLAY button to resume normal viewing

speed,

1OWATC.ST,LLP,CTUR p.SEARC.

Press the PAUSE/STILL button in the rpress the SKIP SEARCH button in the PLAY mode. The TV/VCR will

PLAYBACK mode. search forward through approximately 30 seconds of the tape (e.g.

unwanted commercial time) for each press of the SKIP SEARCH

PAUSE/STILL button (maximum six presses) and then resume normal playback.

For example : 1 press: 30 seconds of tape

2 press: 60 seconds of tape SKIP SEARCH

3 press: 90 seconds of tape qJ

Press the PLAY button or PAUSE/

STILL button to resume normal

playback.

• • _ ,J

NOTES: • Best results during speed search and still playback can be obtained with video cassettes recorded in the

"SLP" mode.

• The audio output is muted during Speed Search and Still.

• A few noise bars will appear on the TV screen during Speed Search and Still.

• To prevent damage to the tape, Still and Speed Search mode is automatically changed to the Playback

mode after 5 minutes. #"_'--J

SPECIAL PLAYBACK (CONTINUED)

TO WATCH A TAPE REPEATEDLY

MPress the MENU button.

Press the SET/TR + or - button to select the

AUTO REPEAT option.

MENU 1

I TIMER REC SET

I TV SETUP

_IzCH SETUP

- I AUTO REPEAT ON _'OFF

ZI_SYSTEM S£TUP

I+#-/ENTER/MENU)

Press the ENTER button to select the ON

position.

ENTER

MENU l

ITIMER REC SET

I TV SETUP

_I,'CH SETUP

_I AUTOREPEATI'ON OFF

*'I_SYSTEM SETUP

(+/-/ENTER/MENU/

Press the MENU button. If you press the PLAY

button, the tape will play over and over until the

repeat mode is canceled.

NOTE: To cancel repeat mode, follow above steps 1 and 2, then press the ENTER button to select the OFF position.

Press the MENU button to return to the TV.

The repeat function is canceled automatically when the unit is switched off or the tape is ejected.

RECORDING A TV PROGRAM

RECORDING AND VIEWING THE SAME TV PROGRAM

H o turn on the TV/VCR, press the POWERbutton.

POWER

Load a cassette tape with the erase prevention

tab intact.

Press the SP/SLP button to select the desired

tape speed SP or SLE The counter and SP or

SLP will appear on the screen about 4 seconds.

SP/SLP

Set the TV/CATV option to the appropriate

position (See page 22).

TV - VHF/UHF channels

CATV - CABLE TV channels

00:00:00 $P]

NOTES: ° If power is switched off during recording, the TV set goes off and the VCR continues to record. Press the

STOP button to halt the recording and turn off the VCR.

• The TV/VCR Channel cannot be changed during recording.

RECORDING A TV PROGRAM (CONTINUED)

_1 ress the Direct Channel Selection buttons or

CHANNEL + or- button to select the channel to

be recorded (Example: Channel 12).

%%%

CH012 ]

_1 Press both the REC buttons at the same time." • "and the channel number will appear on the

screen and the REC indicator will light.

="_ REC "--=

TO STOP RECORDING

Press the STOP button to stop

recording.

"• "will appear on the screen.

STOP

I 1

NOTES: • AUTO REWIND FEATURE

TO STOP RECORDING TEMPORARILY

r Press the PAUSE/STILL button to avoid recording unwanted material "_

"I!" and the channel number will appear on the screen and the REC

indicator will blink on and off. Press the PAUSE/STILL button or both

the REC buttons to continue the recording.

PAUSE,STILL

I \

NOTE:

The PAUSE mode will be changed to STOP mode after five minutes to

%prevent damage to the tape. ,_

This TV/VCR will automatically rewind the video cassette when the tape has ended (except during OTR and

Timer Record). It will also eject the video cassette.

• If the erase prevention tab is removed, the tape will eject when both the REC buttons are pressed for recording.

ONE-TOUCH TIMER RECORDING (OTR)

The One-touch Timer Recording feature provides a simple and convenient way to make a timed recording.

Press the POWER button

to turn on the TV/VCR.

EXAMPLE: One-touch Timer Recording for 30 minutes.

Load a video cassettewith the erase prevention

tab intact.

POWER

_/_ ress the SP/SLP button to •select the desired tape

speed (SP or SLP).

SP or SLP will appear on the screen.

SP/SLP

option

to the appropriate setting

(See page 22).

TV - VHF/UHF channels

CATV - CABLE TV channels

Press the Direct Channel m"_ Press both the REC buttons •

Selection buttons or CHANNEL _ at the same time to begin

+ or - button to select the recording. Press the buttons

channel to be recorded

(Example: Channel 12).

@.-:;-°:

[l.....

again to stop recording after 30

minutes. Each additional press of

the REC buttons will increase

recording time as shown below, up

to a maximum of 6 hours. "OTR" will

appear on the screen.

_REC_

OH 012

NOTES: • Press both the REC buttons at the same time to increase the time needed for recording (See the chart below).

Press once twice 3 times 4 times 5 times 6 times 7 times 8 times 9 times 10 times

Record ng t me NORMAL REC 0:30 1:00 1:30 2:00 3:00 4:00 5:00 6:00 NORMAL REC

• To cancel OTR, press the STOP button.

• The TV/VCR channel cannot be changed during recording. AI ,,4

TIMER RECORDING

Timer recording can be programmed on-screen with the remote control. The built-in timer allows automatic

unattended recording of up to 8 programs within 1month.

EXAMPLE: Program a timer recording for 23rd day, channel 007 (CATV), 7:00 - 9:30 PM (Tape speed : SLP).

• Load a video cassette with the erase prevention tab intact. The TV/VCR will automatically turn on.

• Set the TV/CATV selection to the appropriate position (See page 22).

gress the MENU button. _1t]_ Check the TIMER REC SET option is selected,"

then press the ENTER button.

%ENTER

( \/_._ENU l

-I TIMER REC SET

¢I_TV SETUP

I CH SETP

I AUTO REPEAT ON )OFF

| SYSTEM SETUP

<+/-/ENTERfMENU)

Illi

1111

Press the SET/TR + or- button to select theprogram position, then press the ENTER

button.

-- SET/TR +ENTER

Press the SET/TR + or - button to select the

date, then press the ENTER button.

- SET/TR 4- ENTER

_ "_ \ '_ \ _ tJz' TIMER REC S_T /

i lI-<ii-;-E _-E-.!I] ,.Ao.....0_,,

END -:-

CH 012

N A /(+/-_ENTER/CANCEUM£NU)

NOTES: • If programming is performed without a tape in the TV/VCR, or with a tape without an erase prevention

tab, the Timer Recording is not possible. If a tape without an erase prevention tab is in the TV/VCR the

tape will be ejected.

• To record from the external equipment press the SET/TR + or - button repeatedly until "LINE (from AUDIO/

VIDEO IN jacks on the front)" appears when setting the channel in step 5.

U Setthestarttime.endtime,channelandtapespeedasinstep4.

-- SET/TR + ENTER

I TIMER REC SETDATE 23(THU'

START 7:00_M

END 9:30PM

OH 007/

SPEED -_/LkP-

<+/-JENTE_CANCEUMENU> I, i;Z_.G;oA&G;_u>)

U o set the timer for another program, press the

SET/TR + or - button until the number of the

second program blinks, then press the ENTER

button. Repeat steps 4 to 5 to set the second

program. 4

Press both the TIMER REC buttons at the same

time. The TIMER REC indicator will light. The

Timer is programed, when the programed time is

reached, the recording is automatically started.

TIMER

TIMER REC

JOJ

To cancel timer recording, press both the buttons again

and TIMER REC indicator will go off.

NOTES: • The VCR section cannot be used while the TIMER REC indicator is lit. If you want to use the VCR operation,

press both the TIMER REC buttons at the same time to deactivate the timer.

• After a power failure or disconnection of the power plug, all programed recording setting and time display will be lost

upon resumption of power. In this case, reset the clock (see pages 15-17) and reprogram any timer recordings.

• If you want to correct the digits while setting, press the CANCEL button until the item you want to correct, then

press the SET/TR + or -button to correct the desired setting. Adr_

OTHER FUNCTIONS FOR THE TIMER RECORDING

TO CONFIRM THE SETTINGS

minus one day

WKL-WED

(Weekly Wednesday)

TO SET DAILY/WEEKLY TIMER

f-When setting the date in the step 4 on page 42 press

the SET/TR -button repeatedly when the current day

is displayed.

The setting changes as follows:

Exarnple

The current day (Friday) --> SUN-SAT (Sunday to Saturday)

MON-SAT (Monday to Saturday)

One month later

MON-FRI (Monday 1oFriday)

<.-- WKL-THU (Weekly Thursday)

Press the PROGRAM button once. The TV screen

displays the timer program list.

Press the PROGRAM button again. The TV screen

displays the ON/OFF timer setting.

(once) (twice)

PROGRAM . ,_ *, _ _ ; _, , % f

%I ' Jl

MON-Ff{I SET

11:30PM SET

(÷I-JENTERJCANCEL/MENU> (+/-, E NTE R/CANC E L,'MEN U>

Press the PROGRAM button 3 times. The screen

returns to the normal screen.

TO CANCEL A PROGRAM

Press the SET/TR + or - button to select the TIMER

REC SET option in the MENU, then press the

ENTER button. Press the SET/TR + or - button to

select the unnecessary program, and press the

CANCEL button to cancel the program.

CANCEL

%;-:_::/-::-;;::::_:::,:\"

IF THE PROGRAM OVERLAPS ANOTHER

NOTE: Do not overlap programs as portions of the

conflicting programs will be lost. The first

recording time has priority over the next

recording time as shown in the diagram.

8:00

Program 1

Program 2 ,_

Program 3 ,_

Recording Prog.l

Control Settings ,_

9:00 10:00 11:00

Deleted Parts-,,,_

Non RecordedPo_ionPa_s

Prog.2 Prog.3

NOTES: • The everyday/every week recording can be made continuously until the recording is canceled or the tape

reaches the end.

• During timer recording, the automatic rewinding mechanism does not function.

• You can correct or cancel the programmed setting in program confirm mode.

USING THE REAL TIME TAPE COUNTER

The On-Screen Real Time Tape Counter shows the tape running time in Hours, Minutes and Seconds,

You can easily determine how long the tape has been running or how much time is left on the tape.

TO VIEW THE COUNTER DISPLAY

H Press the CALL button.

CALL

8;40AM THU CHO I

Press the COUNTER RESET button to set thecounter to "00:00:00".

COUNTER

RESET

Playback or Recording to start the tape,

the counter will display the elapsed time.

When you wish to make the counter disappear,

press the CALL button once again.

CALL

NOTES: • If you rewind the tape from "00:00:00", a minus sign ("-") will be displayed in front of the time.

• When you load a tape, the counter will reset to "00:00:00".

• The counter does not function on nonrecorded (blank) sections of the tape. When you rewind,

fast forward or play tapes through blank sections, the counter stops.

USING ZERO RETURN

The zero return function provides a convenient method of rapidly returning to the starting point of recording

or playback. The starting point can be indexed for any location on the tape by pressing the COUNTER

RESET button and ZERO RETURN button.

IL!Press the CALL button.

CALL

%8:40AM THU CH 012

00:30:50

Before playback or recording, press the

COUNTER RESET button to set the counter

to "00:00:00".

COUNTER

RESET

[ "]

8:40AM THU CH 012

oo:o0:oo sP

Begin playback or recording.

PLAY _REC_

Press the STOP button.

STOP

0020:00 SP

_1 ress the ZERO RETURN "'

button. The tape will rewind

and automatically stop at

the "00:00:00" position.

ZERO

RETURN

OOAMTHU01

0,'_:00:00SP

DUPLICATING A VIDEO TAPE

If you connect the TV/VCR to another VCR or Camcorder, you can duplicate a previously recorded tape. Make

all connections before turning on the power.

H nsert a blank cassette with the erase preven-

tion tab intact into the TV/VCR.

Insert a previously recorded cassette into the

playback VCR or Camcorder.

CONNECTION TO ANOTHER VCR

RecordingTV/VCR

f %

PlaybackVCR

To VIDEOi_l_)lALIDIO

OU UT ToVideo In To Audio In

Audio/Video Cord (not supplied)

Press both the REC buttons

at the same time on the

remote control of the TV/VCR

then press the PAUSE/STILL

button.

pREC_ PAUSE,STILL

Press the INPUT SELECT button to select

AUDIO/VIDEO input position. "LINE" will

appear on the screen.

NOTES:

CONNECTION TO CAMCORDER

For duplicating a previously recorded tape from a camcorder,

follow the camcorder manufacturer's instructions. A typical

camcorder dubbing hookup is shown below.

RecordingTV/VCR

PlaybackCamcorder

Press the PLAY Button on theplayback VCR, then press the

PAUSE/STILL button.

PAUSE/

STILL

To Video/AudioIn(_)

Audio/Video Cord (not supplied)

Release the recording

pause and the playback

simultaneously to begin the

duplicating process.

PAUSE/

PAUSE_'STILL STILL

• It is recommended that the tape speed be set to the SP mode on the TV/VCR for best result.

• Unauthorized recording of copyrighted television programs, films, video cassettes and other materials

may infringe the rights of copyright owners and be contrary to copyright laws.

PROBLEM AND TROUBLESHOOTING GUIDE

Check the following chart before requesting service.

fSYMPTOM CAUSE POSSIBLE SOLUTION IPAGP

POWER

Connect the AC power cord to the

AC outlet.

Insert a video cassette.

No power.

Although the power is on,

the TV/VCR does not

operate.

The AC power cord is not connected.

Cassette is not inserted.

TIMER REC buttons is depressed.

TV BROADCAST RECEPTION

Press the TIMER REC buttons.

Poor or no picture.

Poor or no color.

Picture wobbles or drifts.

No CATV reception.

No reception above

channel 13.

Poor or no sound.

TV station experiencing problems. 18

Picture control is not adjusted. 31,32

Possible local interference. 50

Antenna (CATV) connector is not

connected or possible local

interference.

TV station experiencing problems.

Picture control is not adjusted.

Possible local interference.

Antenna (CATV) connector is not

connected or possible local

interference.

TV station experiencing problems.

Antenna (CATV) connector is not

connected or possible local

interference.

Cable TV channel is scrambled.

CATV connector is not connected.

TV/CATV Mode menu option is set to

the TV mode.

Cable TV service interrupted.

TV/CATV Mode menu option is not

set to the appropriate mode.

UHF antenna is not connected.

TV station experiencing problems.

Antenna (CATV) connector is not

connected or possible local

interference.

Possible local interference.

Try another channel.

Check picture control adjustments.

Check for source of reception

disturbance.

Check CATV connection or VHF/

UHF antenna, reposition or rotate 11,13

antenna.

Try another channel. 18

Check picture control adjustments. 31,32

Check for source of reception 50

disturbance.

Check CATV connection or VHF/

UHF antenna, reposition or rotate 11,13

antenna.

Try another channel. 18

Check CATV connection or VHF/

UHF antenna, reposition or rotate 11,13

antenna.

Try another channel. 18

Check all CATV connections. 13

Set the TV/CATV Menu option to 22

the CATV mode.

Contact your Cable TV company. 13

Make sure TV/CATV menu option is 22

in the appropriate mode.

Check UHF antenna. 11

Try another channel. 18

Check CATV connection or VHF/

UHF antenna, reposition or rotate 11,13

antenna.

Check for source of reception 50

disturbance.

Check that MUTE button has not 19

been pressed, j

MUTE button is depressed.

fSYMPTOM

TV shuts off.

Closed caption is not

activated.

RECORDING

TV recording does not work.

Timer recording does not

work.

PLAYBACK

Noise bars appear on the

screen.

REMOTE CONTROL

Remote control does not

operate.

CAUSE

TV station stopped broadcasting.

Sleep timer is set.

OFF timer is set.

TV station experiencing problems or

program tuned is not closed captions.

TV signal is weak.

POSSIBLE SOLUTION PAGE

Tune new channel. 18

Set Sleep Timer to "0". 20

Set OFF TIMER to "CANCEL" 30

Try another channel. 18, 19

Check CATV connection of VHF/

UHF antenna, reposition or rotate 11, 13

antenna.

The CLOSED CAPTION button is not Press the CLOSED CAPTION button

depressed, to turn on the closed caption. 20, 21

The video cassette's erase prevention

tab is broken off.

The time is not set correctly.

The recording start/end time is not

set correctly.

The TIMER REC buttons has not

been pressed (The TIMER REC

indicator is not lit).

Place a piece of vinyl tape over the 34

hole.

Reset the present time. 17

Reset the start/end time. 42, 43

Press the TIMER REC buttons (The 43

TIMER REC indicator is lit).

Tape is old or worn. Replace the tape. --

Tracking adjustment is beyond range Adjust tracking manually using the

of automatic tracking circuit. SET/TR +/- buttons on the remote 36

control.

Video heads are dirty. Clean the video heads. 51

The remote control is not aimed at

the sensor.

Distance is too far or too much light in

the room.

There is an obstacle in the path of

the beam.

The batteries are weak.

The batteries are not inserted

correctly.

Aim the remote control at the 10

remote sensor.

Operate within 15 feet or reduce the 10

light of the room.

Clear the path of the beam. 10

Replace the batteries. 10

Insert correctly. 10

RECEPTION DISTURBANCES

Most types of television interference can be remedied by adjusting the height and position of the VHF/UHF

antenna. Outdoor antennas are recommended for best results.The most common types of television interfer-

ence are shown below, If one of these symptoms appear when theTV/VCR is connected to a CableTV system,

the disturbance may be caused by the local CableTV company broadcast.

IGNITION

Black spots or horizontal streaks may appear, the picture may flutter or

drift. Usually caused by interference from automobile ignition systems,

neon lamps or AC powered tools and appliances such as drills or hair

dryers.

GHOSTS

Ghosts are caused by the television signal following two paths. One is the

direct path and the other is reflected by tall buildings, hills or other large

objects. Changing the direction or position of the antenna may improve the

reception.

SNOW

If the TV/VCR is located far from the TV station, in a fringe reception

area where the signal is weak, small dots may appear in the picture.

If the signal is extremely weak, the installation of a larger external

antenna may be necessary.

RADIO FREQUENCY INTERFERENCE (RFI)

Caused by two-way radios, this type of interference produces moving

ripples or diagonal streaks in the picture. Some cases may cause a loss of

contrast in the picture. Changing the direction and position of the antenna

or installing an RFI filter may improve the picture.

PICTURE SIZE VARIATION

A slight picture size variation is normal when you adjust the CONTRAST or

BRIGHTNESS settings.

CARE AND MAINTENANCE

To prevent fire or shock hazard, disconnect the TV/VCR from the AC power sources before cleaning.

The finish on the cabinet may be cleaned with mild soap and a soft, damp cloth and cared for as other furniture. Use

caution when cleaning or wiping the plastic parts.

VIDEO HEAD CLEANING

VIDEO HEAD CLOGGING

The video heads are the means by which the TV/VCR reads the picture from

the tape during playback. In the unlikely event that the heads become dirty

enough to be clogged, no picture will be played back. This can easily be deter-

mined if, during playback of a known good tape, there is good sound, but no

picture (picture is extremely snowy). If this is the case, use a high quality head

cleaning system or have them cleaned professionally.

VIDEO HEAD CLEANING

Video head cleaning is needed when the playback picture becomes unclear. This signifies that the heads are getting

dirty and can occur when playing poor quality or damaged tapes. If the heads require cleaning, use a equivalent high

quality chemical non-abrasive (wet) head cleaning tape or have them cleaned professionally.If playing a head

cleaning tape in the VCR once does not improve the picture, play it several times before requesting service.

DO NOT ATTEMPT TO CLEAN THE VIDEO HEADS OR SERVICE THE UNIT BY REMOVING THE TOP COVER.

NOTES: ° Video heads may eventually wear out and should be replaced when they fail to produce clear pictures.

• To help prevent video head clogging, use only good quality VHS tapes. Discard worn out tapes.

SPECIFICATIONS

TELEVISION

Picture Tube:

Tuner Type:

Receiving Channels:

Antenna Input:

Speaker:

Audio Output Power:

VCR

Video System:

Video Signal:

Cassette Tape:

Audio Track:

Tape Speed:

EFWD/REW Time:

Speed Search:

GENERAL

Power Source:

Power Consumption:

Dimensions:

Snowy Picture

Good Picture

Type 13 (335.4 mm diagonal)

Quartz PLL Frequency Synthesized

VHF 2-13

UHF 14-69

CATV 14-36 (A)-(W)

37-59 (AA)-(WW)

60-85 (AAA)-(ZZZ)

86-94 (86)-(94)

95-99 (A-5)-(A-1)

100-125 (100)-(125)

01 (5A)

VHF/UHF In 75 ohms coaxial

1-1/2 x 2-1/2 inches (38 x 63 mm), 8 ohm

1.5W

VHS, 2 Rotary Heads Helical Scanning System

NTSC Color

VHS

1 Track

SP:

SLP:

EFWD:

REW:

SLP

33.35 mm/sec.

11.12 mm/sec.

Approx. 4 minutes 50 seconds (T-120 Cassette) at 25°C (77°F)

Approx. 2 minutes 30 seconds (T-120 Cassette) at 25°C (77°F)

3 & 5 x Normal Speed

9 & 15 x Normal Speed

AC 120V 60Hz

65 Watts

Width: 14-1/4 inches (362 mm)

Height: 15-1/16 inches (382 mm)

Depth: 14-3/8 inches (365 mm)

Weight: 24.3 Ibs. (11 kg)

Terminals: Video In: (RCA) 1Vp-p/75 ohm

Audio In: (RCA) -8dB/50K ohm

Storage Temperature: -20°C to 60°C (-4°F to 140°F)

Operating Temperature: 5°C to 40°C (41°F to 104°F)

Remote Control: Infrared, Direct Access, 2 x AAA batteries

Accessories: 300-75 ohm Matching Transformer

Remote Control

Batteries (2 x AAA)

Specifications are subject to change without notice.

Tape Speed shown is approximate. 51

LIMITED WARRANTY TOSHIBA COMBINATION TELEVISION

AND VIDEO CASSETTE RECORDER

Toshiba America Consumer Products, Inc. ("TACP") and Toshiba Hawaii Inc. ("THI") make the following limited

warranties. These limited warranties extend to the original consumer purchaser or any person receiving this set as a

gift from the original consumer purchaser and to no other purchaser or transferee.

Limited Ninety (90) Day Warranty

TACP and THI warrant this product and its parts against defects in materials or workmanship for a period of ninety

(90) days after the date of original retail purchase. During this period, TACP and THI will repair a defective product or

part, without charge to you. You must deliver the entire set to an Authorized TACP/THI Service Station. You pay for

all transportation and insurance charges for the set to and from the Service Station.

Limited One (1) Year Warranty

TACP/THI further warrant the parts in this product against defects in materials or workmanship for a period of one

year after the date of original retail purchase. During this period TACP/THI will replace a defective part without

charge to you, except that if a defective part is replaced after ninety (90) days from the date of original retail purchase

you pay labor charges involved in the replacement. You must also deliver the entire product to a TACP/THI Autho-

rized Service Station. You are responsible for all transportation for the set to and from the Service Station.

Limited Two (2) Year Warranty of Picture Tube

TACP and THI further warrant the picture tube in this product against defects in materials or workmanship for a

period of two (2) years after the date of original retail purchase. During this period, TACP/THI will replace a defective

picture tube without charge to you except that if a defective picture tube is replaced after ninety (90) days from the

date of the original retail purchase, you pay labor charges involved in the replacement. You are responsible for all

charges involved in the replacement, you are responsible for all transportation and insurance charges for the set to

and from the Service Station.

Rental Units

The warranty for rental units begins with the first rental or thirty (30) days from the date of shipment to the rental firm,

whichever comes first.

Commercial Units

Products sold and used for commercial use have a limited ninety (90) day warranty for all parts, labor and picture tube.

Owner's Manual and Demographic Card

You should read this owner's manual thoroughly before operating this product. You should complete and mail the

enclosed Demographic card within ten days after you, or the person who has given you this product as a gift,

purchased this product. This is one way to enable TACP/THI to provide you with better customer service and

improved products. Failure to return the Demographic card will not affect your rights under this warranty.

Your Responsibility

The above warranties are subject to the following conditions:

( 1 ) You must retain your bill of sale or provide other proof of purchase.

( 2 ) All warranty servicing of this product must be made by an Authorized TACP/THI Service Station.

( 3 ) These warranties are effective only if the product is purchased and operated in the U.S.A. or Puerto Rico.

( 4 ) Labor service charges for set installation, set up, adjustment of customer controls and installation or repair of

antenna systems are not covered by this warranty. Reception problems caused by inadequate antenna systems

are your responsibility.

( 5 ) Warranties extend only to defects in materials or workmanship as limited above and do not extend to any

product or parts which have been lost or discarded by you or to damage to products or parts caused by

misuse, accident, damage caused by Acts of God, such as lightning or fluctuations in electric power, improper

installation, improper maintenance or use in violation of instructions furnished by us; or to units which have

been altered or modified without authorization of TACP/THI.

How to Obtain Warranty Service

If after following all of the operating instructions in this manual and checking the section "PROBLEM AND TROUBLE-

SHOOTING GUIDE" and you still find that service is needed;

( 1 ) Call the TACP toll free number 1-800-631-3811 after you find a defective product or part to find the

nearest Toshiba Authorized Service Station.

( 2 ) Please present your bill of sale or other proof to the Authorized Service Station.

"TACP/THI Authorized Service Station personnel will come to your home when warranty service is required.

Depending on the type of repair required, the service will either be performed in your home or the set will be

taken to the TACP/THI Authorized Service Station for repair and returned to your home at no cost to you"

In the Continental United States contact: In Hawaii Contact:

Toshiba Hawaii, Inc

327 Kamakee Street,

Honolulu, Hawaii 96814

(808) 591-8377

All warranties implied by state law, including the implied warranties of merchantability and fitness for a particular

purpose, are expressly limited to the duration of the limited warranties set forth above. With the exception of any

warranties implied by state law as hereby limited, the foregoing warranty is exclusive and in lieu of all other warranties,

guarantees, agreements and similar obligations of manufacturer or seller with respect to the repair or replacement of

any parts. In no event shall TACP or THI be liable for consequential or incidental damages.

No person, agent, distributor, dealer or company is authorized to change, modify or extend the terms of these

warranties in any manner whatsoever. The time within which action must be commenced to enforce any obligation of

TACP or THI arising under this warranty or under any statute, or law of the United States or any state thereof, is here

by limited to 90 days from the date you discover or should have discovered, the defect. This limitation does not apply

to implied warranties arising under state law.

This warranty gives you specific legal rights and you may also have other rights which may vary from state to state.

Some states do not allow limitation on how long an implied warranty lasts, when an action may be brought, or the

exclusion or limitation of incidental or consequential damages, so the above provisions may not apply to you.

__ ATTENTION CANADIAN CONSUMERS:

Canadian consumers are requested to complete the special Canadian "Warranty Registration Form"

enclosed, and forward this completed form with a copy of bill of sale to TOSHIBA OF CANADA to

"Register and Validate" their warranty.

Products purchased in the U.S.A. and used in Canada are not covered by these warranties.

Products purchased in Canada and used in the U.S.A. are not covered by these warranties.

Rev. 09-01-98

TOSHIBA

TOSHIBA AMERICA CONSUMER PRODUCTS, INC.

J5E20201A []

02/12 PRINTED IN THAILAND

TOSHIBA TV/VCR Or DVD Combo Manual L0802449

Television/Vcr Combination MV13N3 L0802449

Navigation menu

Versions of this User Manual:

Views

Navigation
