TOYO ELECTRIC MFG TY-R-433-1 REMOTE TRANSMITTER User Manual

User Manual

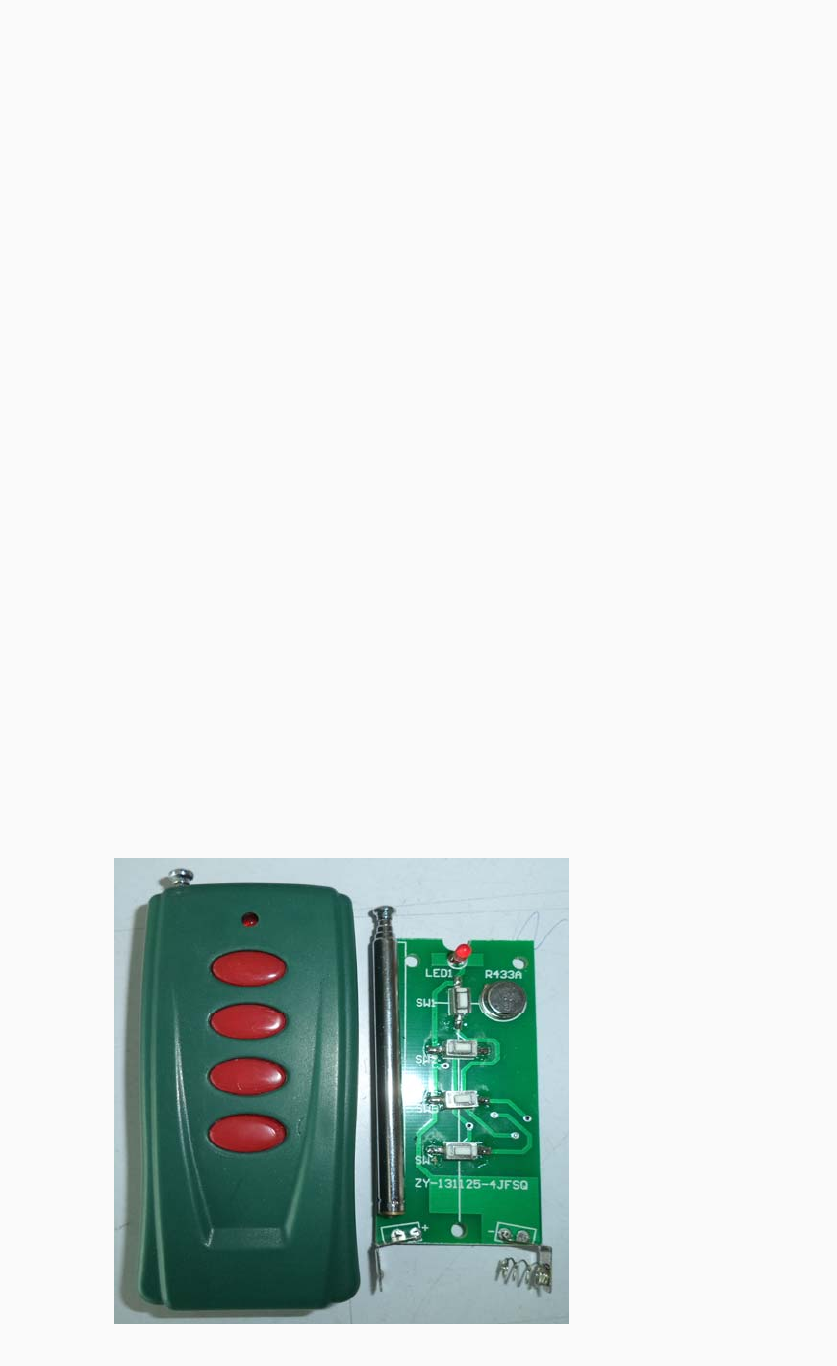

TY-R-433 remote control

Product features

MCU control data launch working frequency for 433 MHZ, by

using sound table resonator SAW frequency stability, high

frequency stability, suitable for multiple a wireless remote

control and collect data transmission system.

The product specification

1. Communication: ASK radio frequency

2. Working frequency: 433.9 MHZ

3. Frequency stability: + 75 KHZ

4. Static current: than 0

5. Emission current: 10 MA

6. Working voltage: DC8-12 V

7. The transmission distance; 50 m

FCC Statement

1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including interference that may

cause undesired operation.

2. Changes or modifications not expressly approved by the party responsible for compliance

could void the user's authority to operate the equipment.
