TP Link Technologies C9V2 AC1900 Wireless Dual Band Gigabit Router User Manual
TP-Link Technologies Co., Ltd. AC1900 Wireless Dual Band Gigabit Router Users Manual
Users Manual
Archer C9
AC1900 Wireless Dual Band Gigabit Router
REV2.0.0
1910011382
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. is a registered trademark of
TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or
registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from TP-LINK
TECHNOLOGIES CO., LTD. Copyright © 2015 TP-LINK TECHNOLOGIES CO., LTD. All rights
reserved.
http://www.tp-link.com
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1） This device may not cause harmful interference.
2） This device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s authority to
operate the equipment.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This device and its antenna must not be co-located or operating in conjunction with
any other antenna or transmitter.
“To comply with FCC RF exposure compliance requirements, this grant is applicable to only
Mobile Configurations. The antennas used for this transmitter must be installed to provide a
separation distance of at least 21 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter.”
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference, in
which case the user may be required to take adequate measures.
National Restrictions
This device is intended for home and office use in all EU countries (and other countries following
the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:
Country Restriction Reason/remark
Bulgaria None General authorization required for outdoor use and
public service
France
Outdoor use limited to
10 mW e.i.r.p. within
the band 2454-2483.5
MHz
Military Radiolocation use. Refarming of the 2.4 GHz
band has been ongoing in recent years to allow current
relaxed regulation. Full implementation planned 2012
Italy None If used outside of own premises, general authorization is
required
Luxembourg None General authorization required for network and service
supply(not for spectrum)
Norway Implemented
This subsection does not apply for the geographical area
within a radius of 20 km from the centre of Ny-Ålesund
Russian Federation None Only for indoor applications
5150-5250 MHz
Country Restriction Reason/remark
Bulgaria Not implemented Planned
Croatia License required
Italy General authorization required if used outside own
premises
Luxembourg None General authorization required for network and service
supply (not for spectrum)
Russian Federation No info
5250-5350 MHz
Country Restriction Reason/remark
Bulgaria Not
implemented
Planned
Croatia License required
Italy General authorization required if used outside own
premises
Luxembourg None General authorization required for network and service
supply (not for spectrum)
Russian Federation No info
5470-5725 MHz
Country Restriction Reason/remark
Bulgaria Not
implemented
Planned
France
Relevant+ provisions for the implementation of DFS
mechanism described in ETSI standard EN 301 893
V1.3.1 and subsequent versions
Italy General authorization required if used outside own
premises
Luxembourg None General authorization required for network and service
supply (not for spectrum)
Russian Federation No info
Turkey Not implemented Defence systems
Note: Please don’t use the product outdoors in France.
Canadian Compliance Statement
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject
to the following two conditions:
(1) This device may not cause interference, and
(2)This device must accept any interference, including interference that may cause undesired
operation of the device.
Cet appareil est conforme aux norms CNR exemptes de licence d’Industrie Canada. Le
fonctionnement est soumis aux deux conditions suivantes:
(1) cet appareil ne doit pas provoquer d’interférences et
(2) cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer un
fonctionnement non souhaité de l’appareil.
To reduce potential radio interference to other users, the antenna type and its gain should be so
chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for
successful communication.
Industry Canada Statement
Complies with the Canadian ICES-003 Class B specifications.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
This device complies with RSS 210 of Industry Canada. This Class B device meets all the
requirements of the Canadian interference-causing equipment regulations.
Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
Korea Warning Statements
당해 무선설비는 운용중 전파혼신 가능성이 있음.
NCC Notice & BSMI Notice
注意！
依據 低功率電波輻射性電機管理辦法
第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、
加大功率或變更原設計之特性或功能。
第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通行；經發現有干擾現象時，應立即
停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信規定作業之無線電信。低功率射
頻電機需忍受合法通信或工業、科學以及醫療用電波輻射性電機設備之干擾。
減少電磁波影響，請妥適使用。
安全諮詢及注意事項
●請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。
●清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。
●注意防潮，請勿將水或其他液體潑灑到本產品上。
●插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。
●請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。
●請不要私自打開機殼，不要嘗試自行維修本產品，請由授權的專業人士進行此項工作。
Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам
нормативних документів та вимогам, що передбачені чинними законодавчими актами
України.
Safety Information
When product has power button, the power button is one of the way to shut off the product;
when there is no power button, the only way to completely shut off power is to disconnect the
product or the power adapter from the power source.
Don’t disassemble the product, or make repairs yourself. You run the risk of electric shock and
voiding the limited warranty. If you need service, please contact us.
Avoid water and wet locations.
This product can be used in the following countries:
AT BG BY CA CZ DE DK EE
ES FI FR GB GR HU IE IT
LT LV MT NL NO PL PT RO
RU SE SK TR UA US
TP-LINK TECHNOLOGIES CO., LTD
TP-LINK TECHNOLOGIES CO., LTD.
Building 24 (floors 1, 3, 4, 5), and 28 (floors 1-4) Central Science and Technology Park, Shennan Rd,
Nanshan, Shenzhen, China
DECLARATION OF CONFORMITY
For the following equipment:
Product Description: AC1900 Wireless Dual Band Gigabit Router
Model No.: Archer C9
Trademark: TP-LINK
We declare under our own responsibility that the above products satisfy all the technical
regulations applicable to the product within the scope of Council Directives:
Directives 1999/5/EC, Directives 2004/108/EC, Directives 2006/95/EC, Directives 1999/519/EC,
Directives 2011/65/EU
The above product is in conformity with the following standards or other normative documents
EN 300 328 V1.8.1
EN 301 489-1 V1.9.2 & EN 301 489-17 V2.2.1
EN 55022: 2010 + AC: 2011
EN 55024: 2010
EN 61000-3-2: 2006 + A1: 2009 + A2: 2009
EN 61000-3-3: 2013
EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011
EN 50385: 2002
EN 301 893 V1.7.1
The product carries the CE Mark:
Person responsible for making this declaration:
Yang Hongliang
Product Manager of International Business
Date of issue: 2015
CONTENTS
Package Contents.....................................................................................................1
Chapter 1. Introduction.........................................................................................2
1.1 Overview of the router................................................................................................2
1.2 Conventions ...............................................................................................................2
1.3 Main Features ............................................................................................................2
1.4 Panel Layout ..............................................................................................................3
1.4.1 The Front Panel..............................................................................................3
1.4.2 The Rear Panel ..............................................................................................5
Chapter 2. Connecting the router ........................................................................6
2.1 System Requirements................................................................................................6
2.2 Installation Environment Requirements......................................................................6

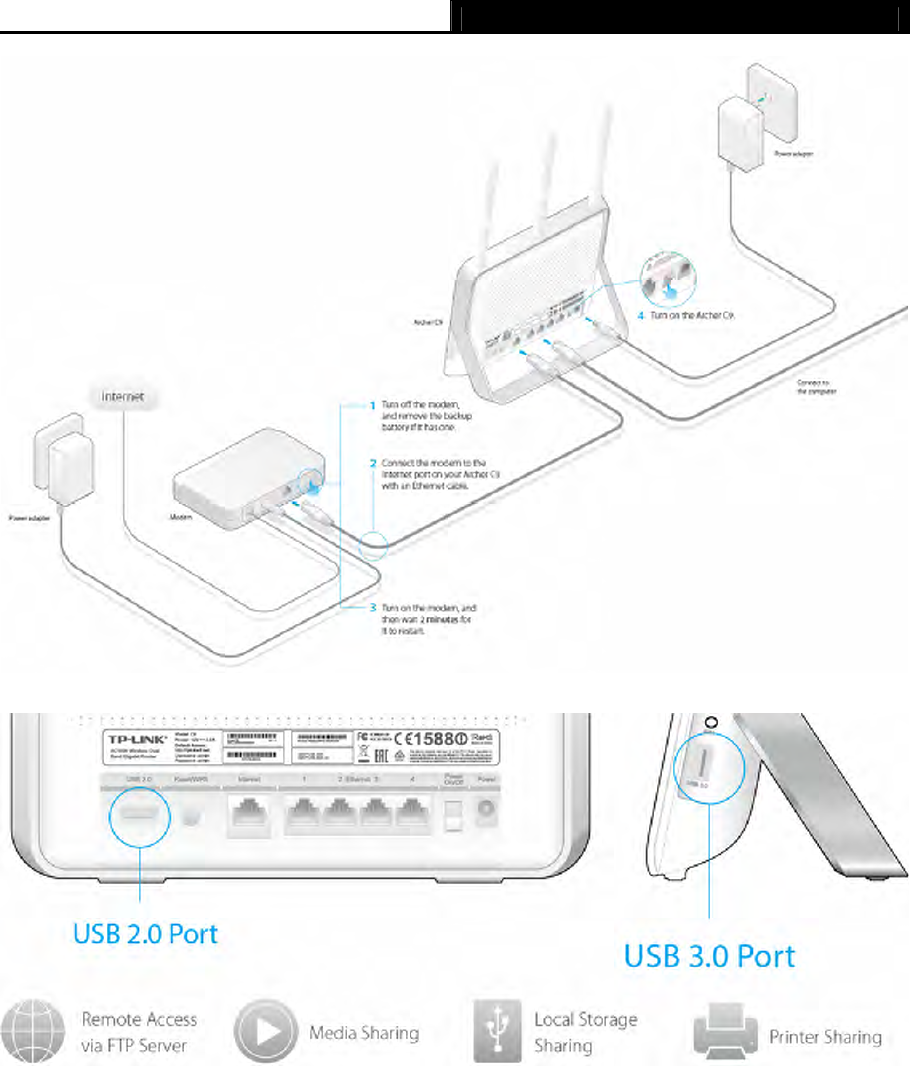

2.3 Connecting the router.................................................................................................6

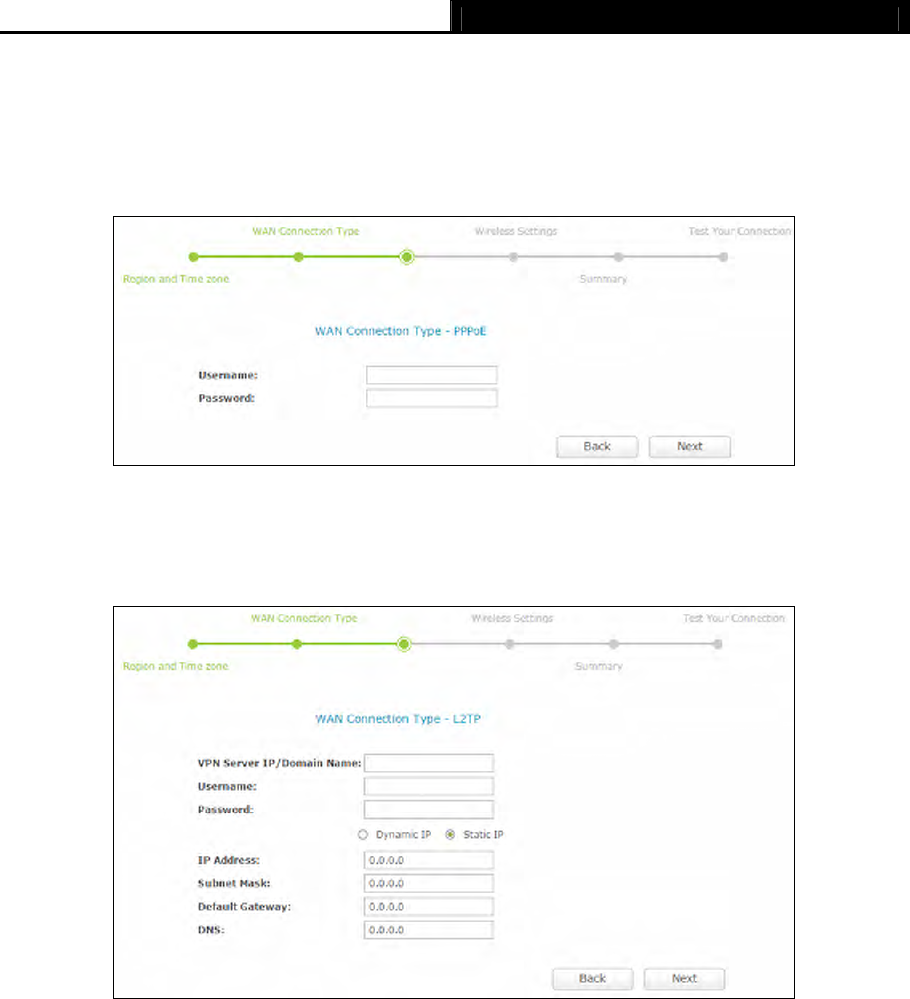

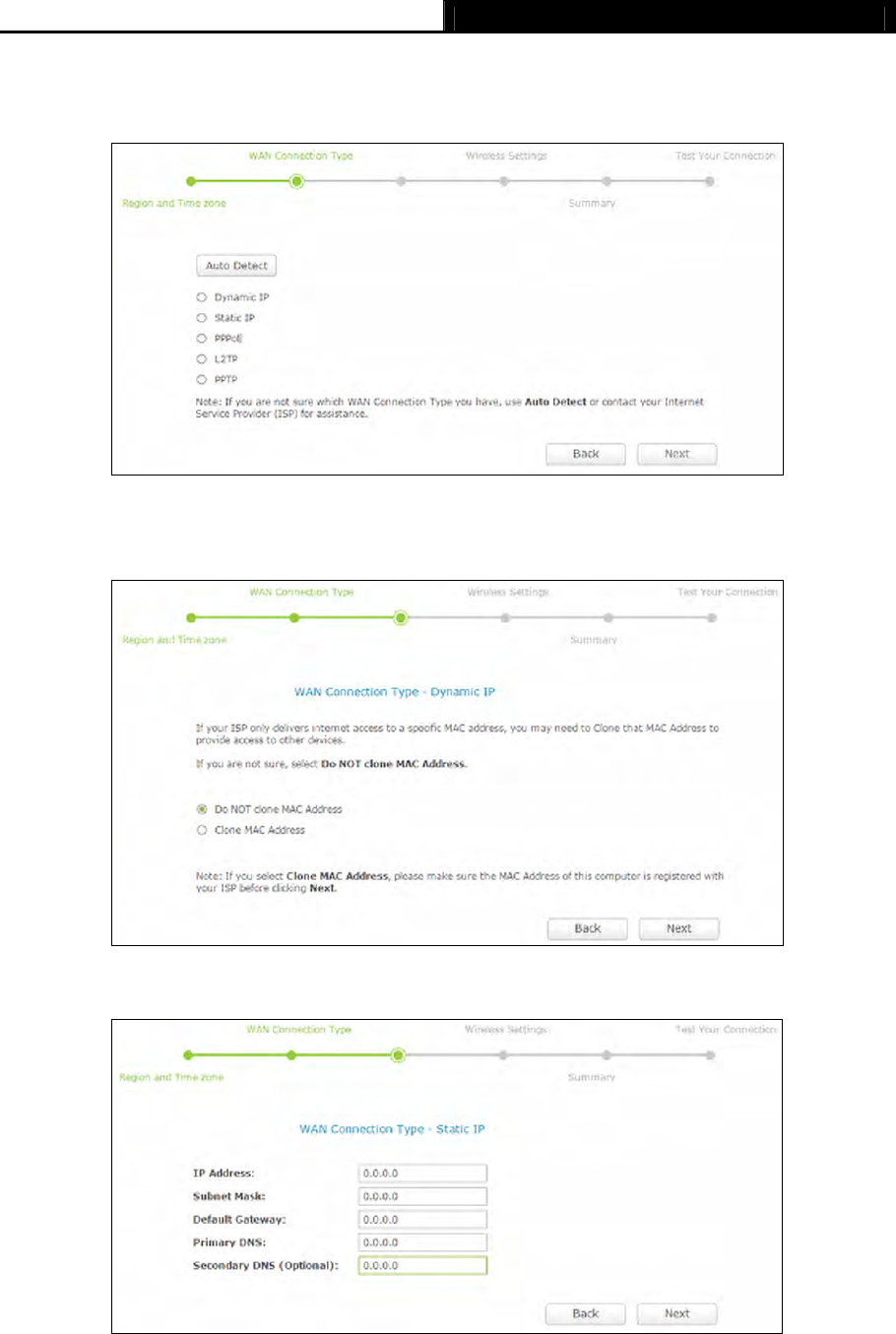

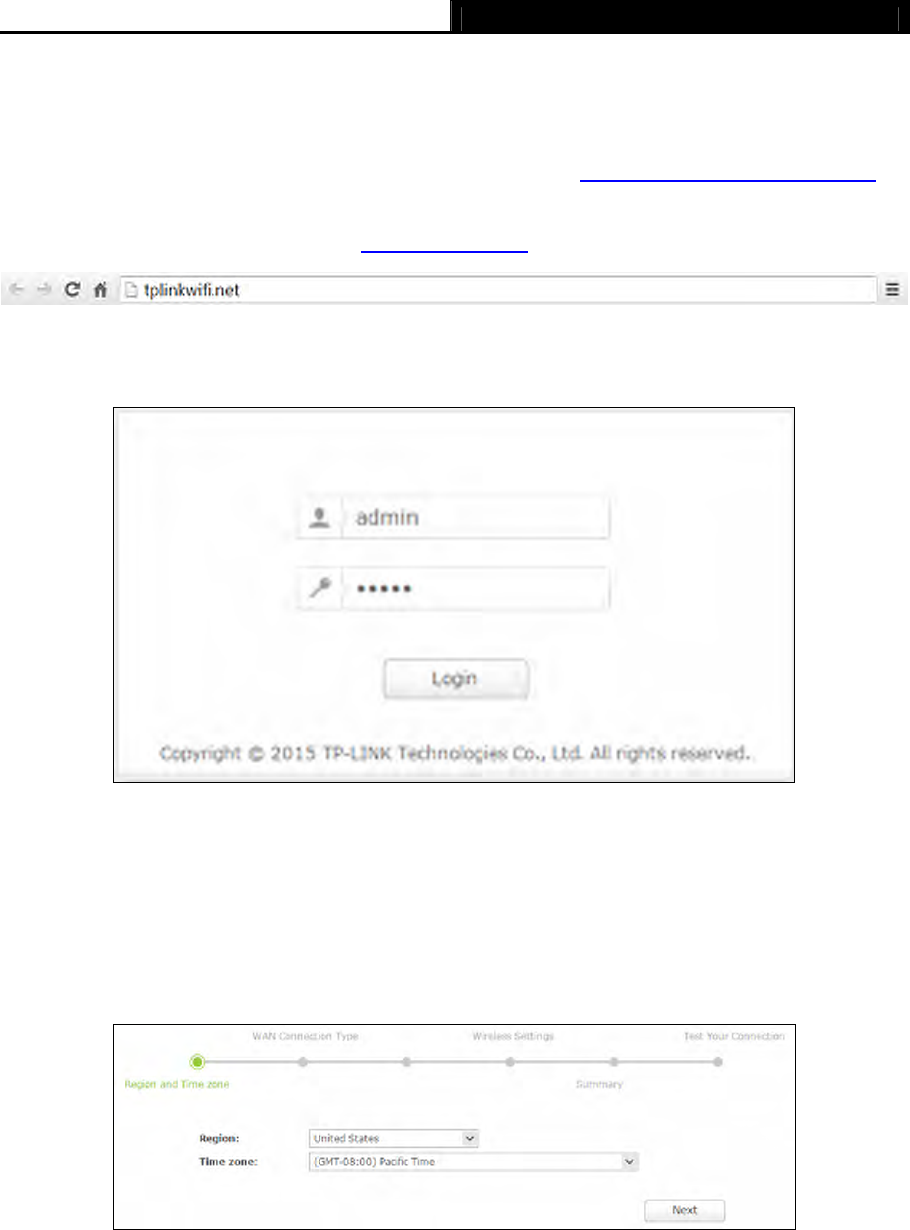

Chapter 3. Quick Setup.........................................................................................8
Chapter 4. Basic..................................................................................................12

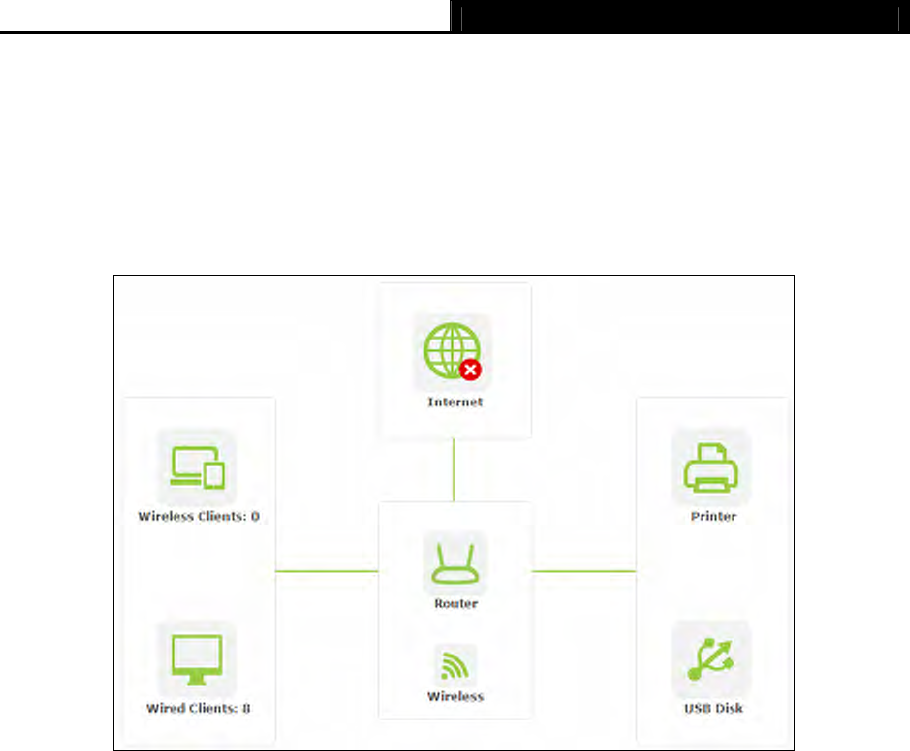

4.1 Network Map ............................................................................................................12

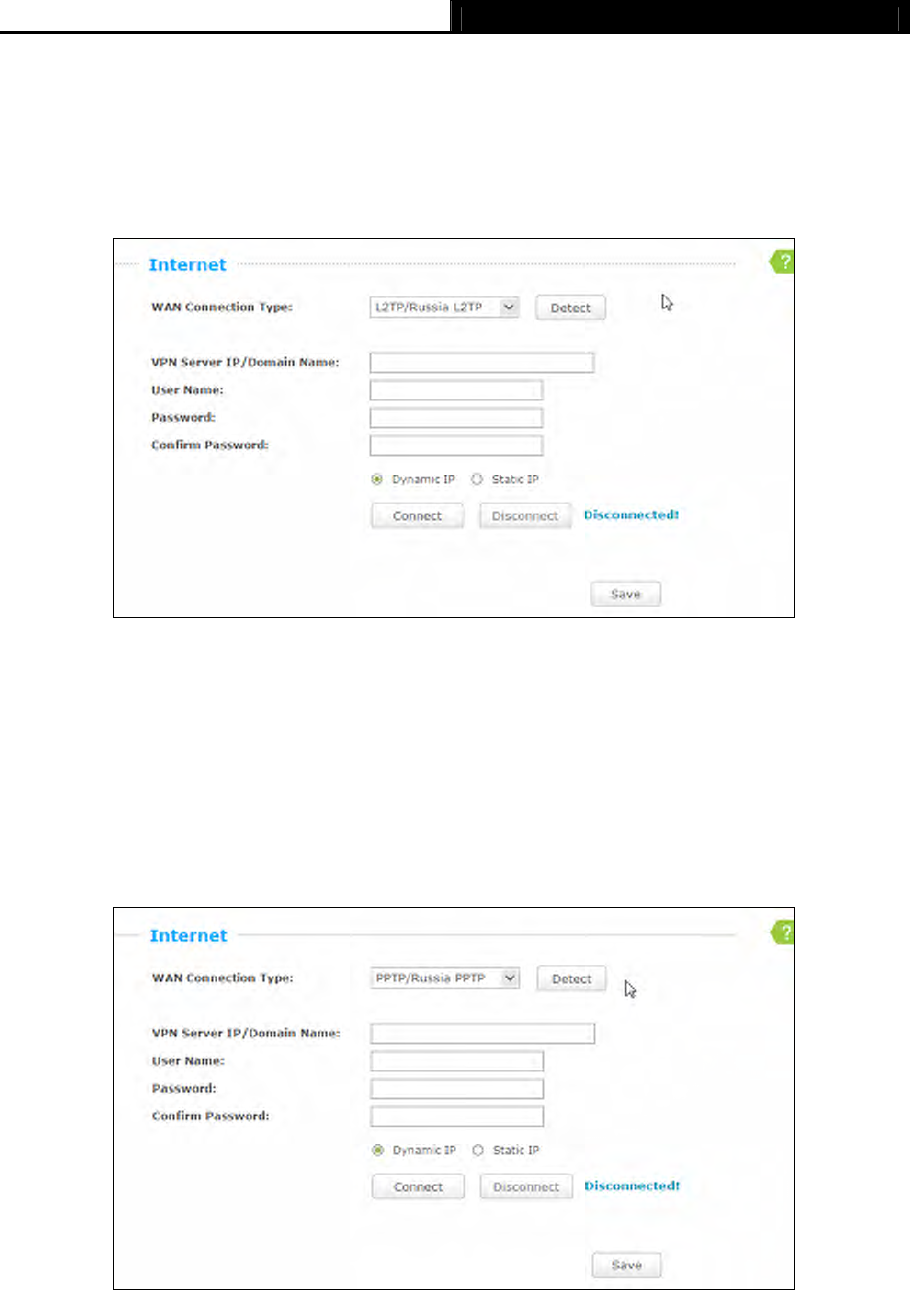

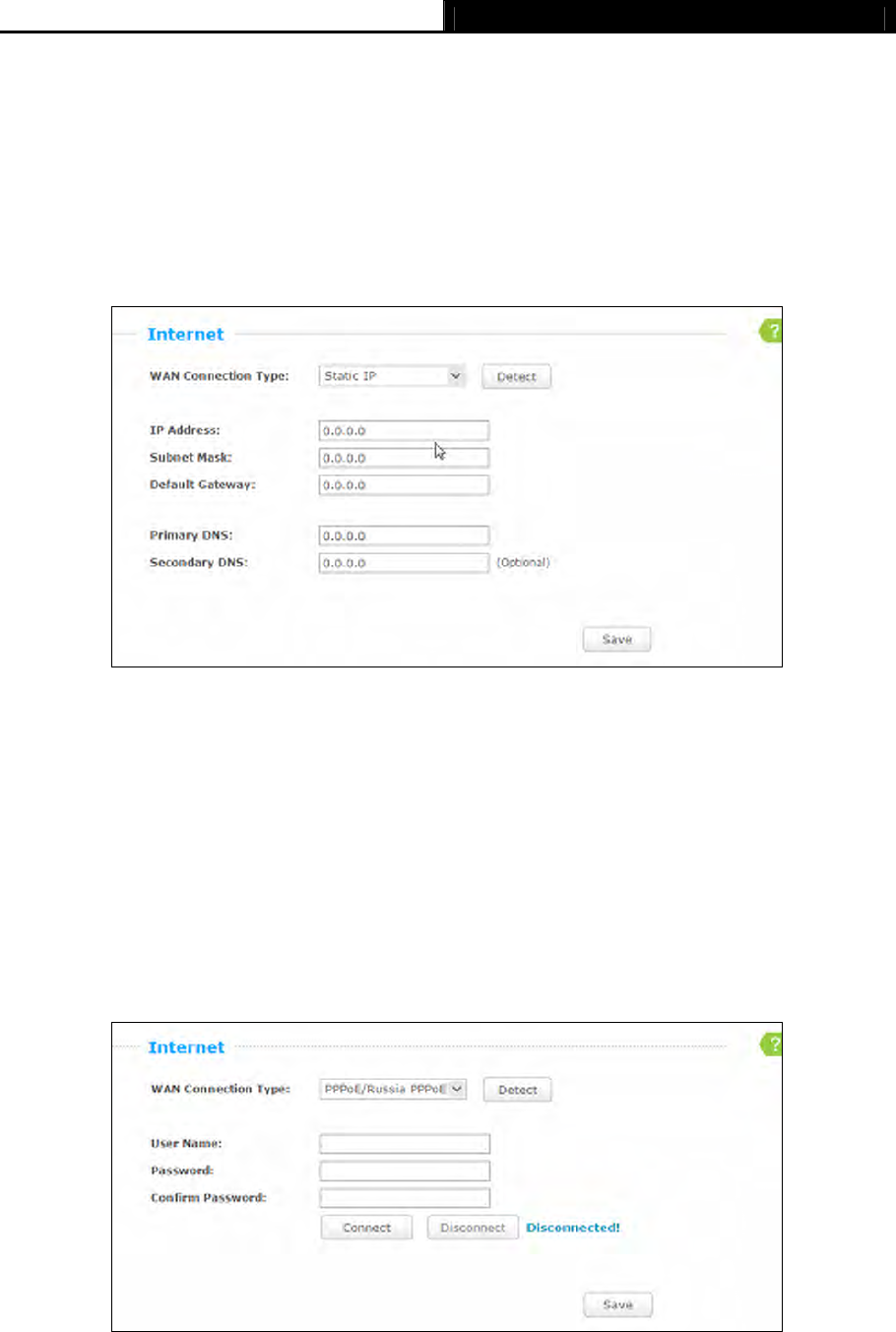

4.2 Internet.....................................................................................................................12
4.3 Wireless ...................................................................................................................16

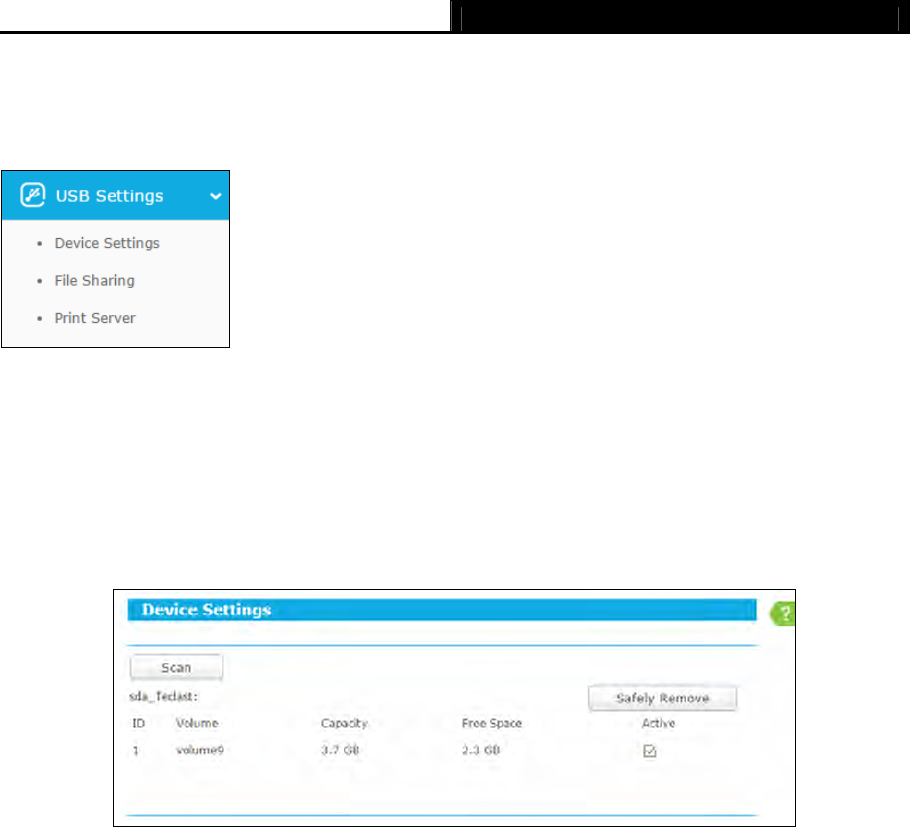

4.4 USB Settings............................................................................................................17

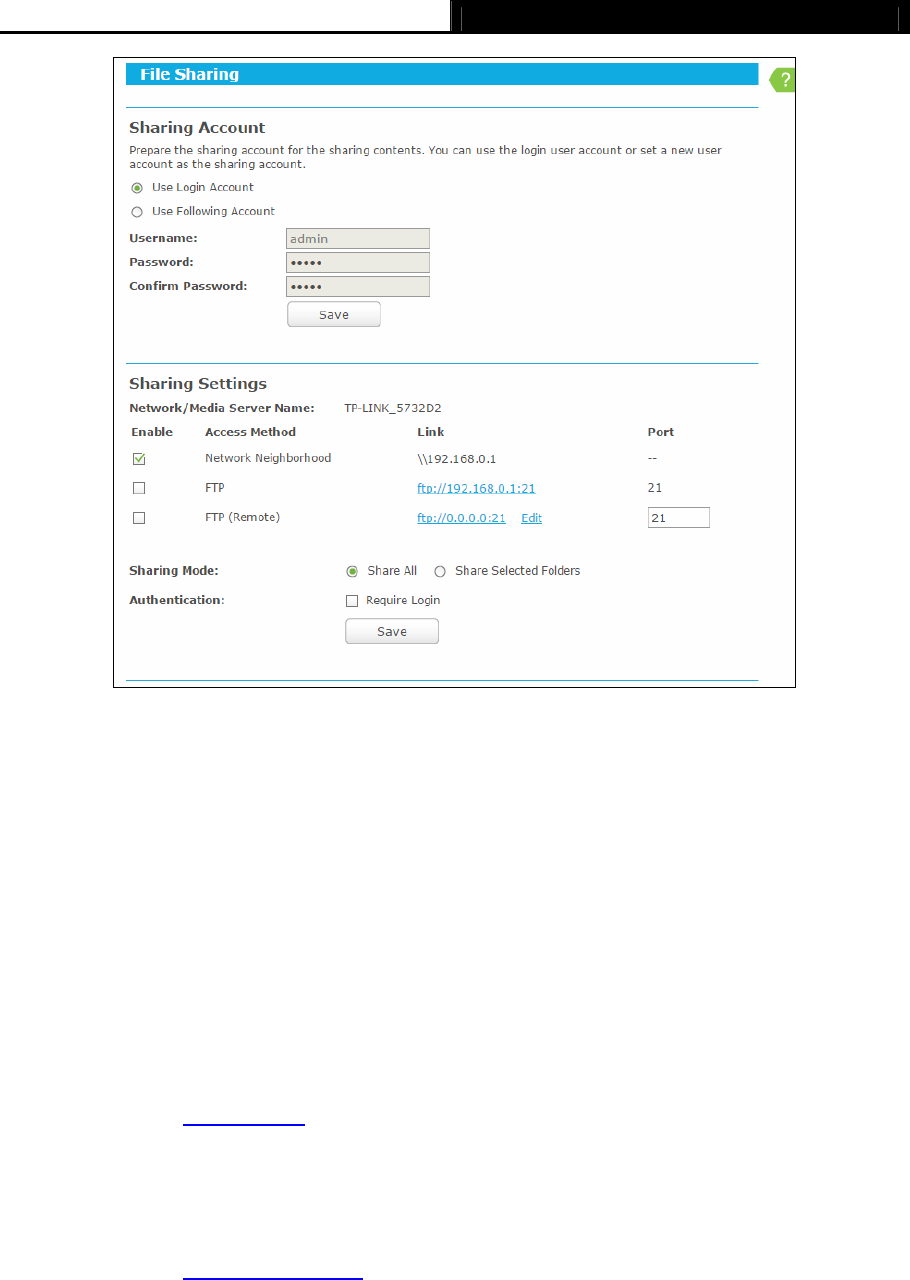

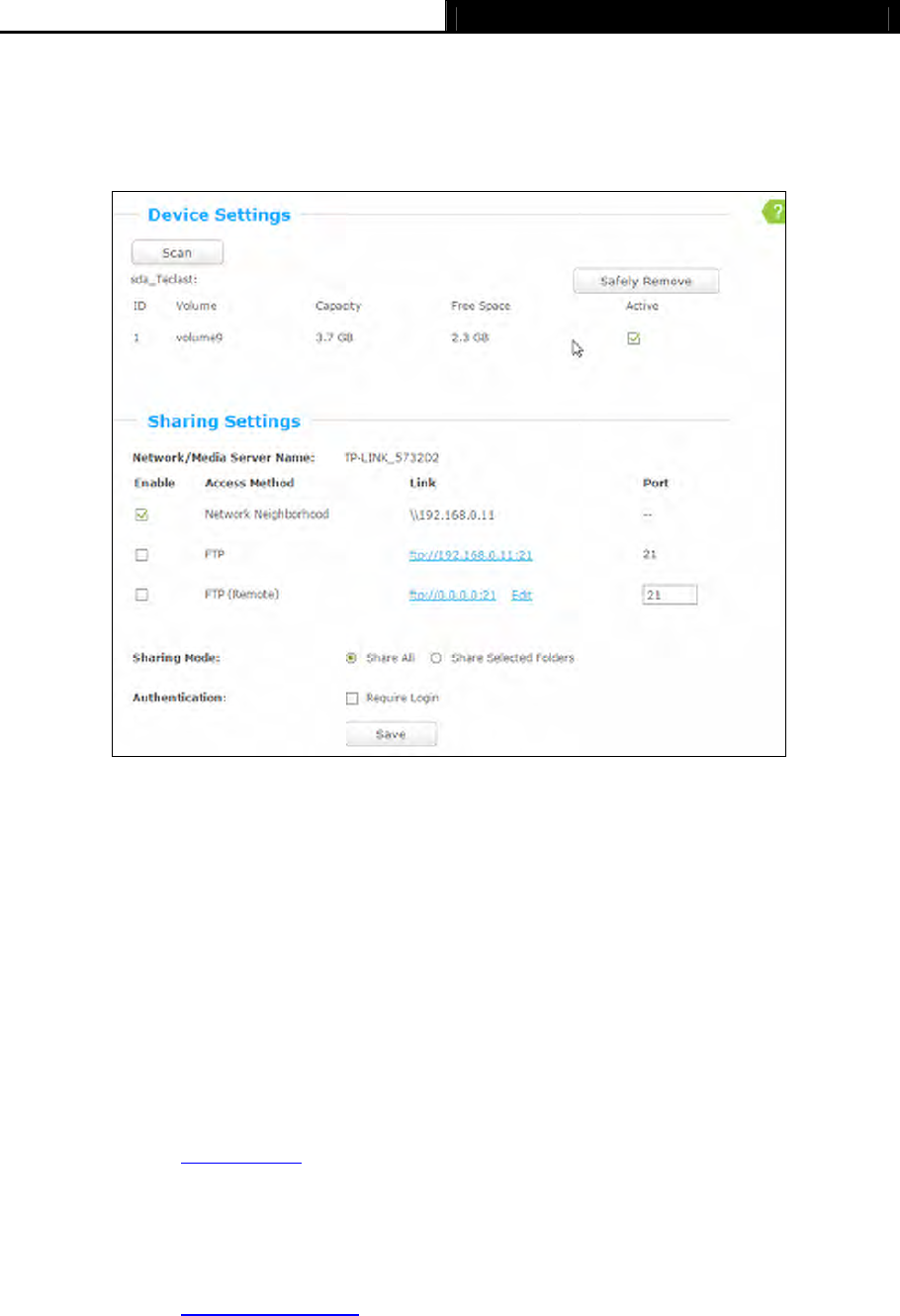

4.4.1 File Sharing ..................................................................................................17
4.4.2 Print Server...................................................................................................18
4.5 Guest Network .........................................................................................................18
Chapter 5. Advanced ..........................................................................................20

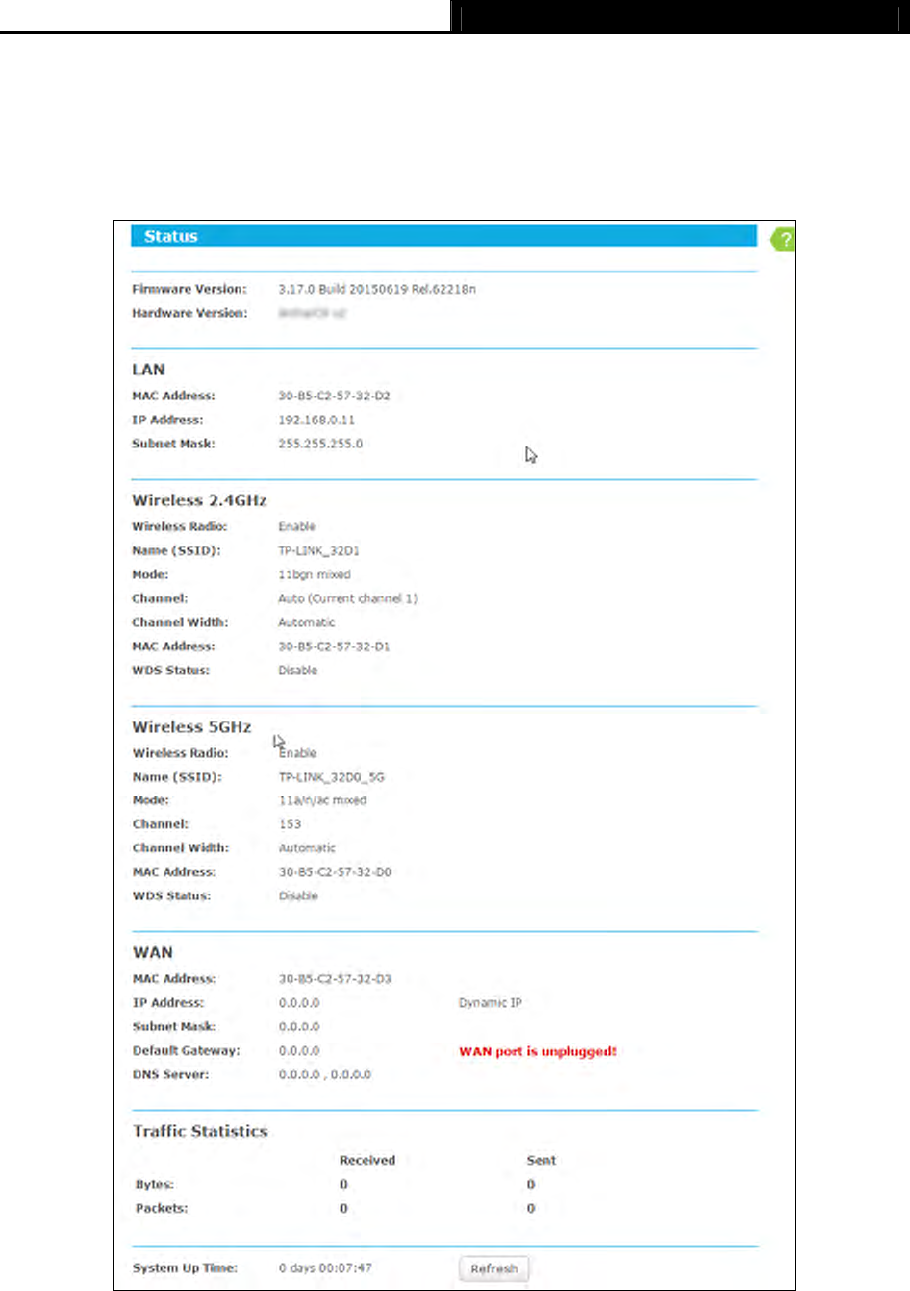

5.1 Status .......................................................................................................................20
5.2 Network....................................................................................................................21

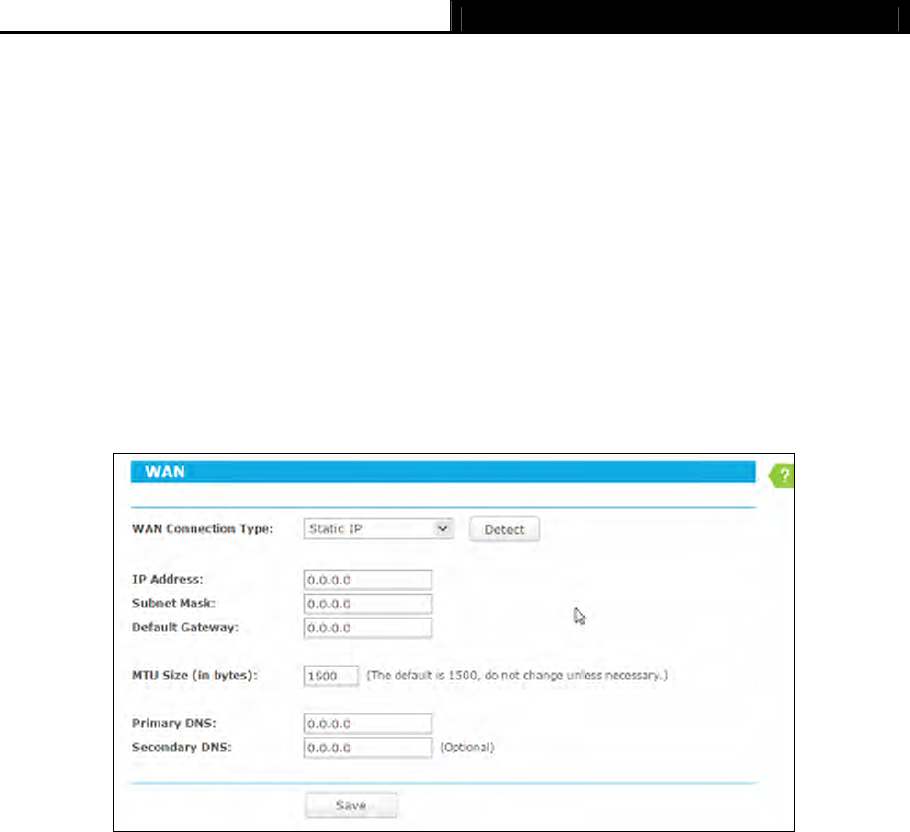

5.2.1 WAN .............................................................................................................21

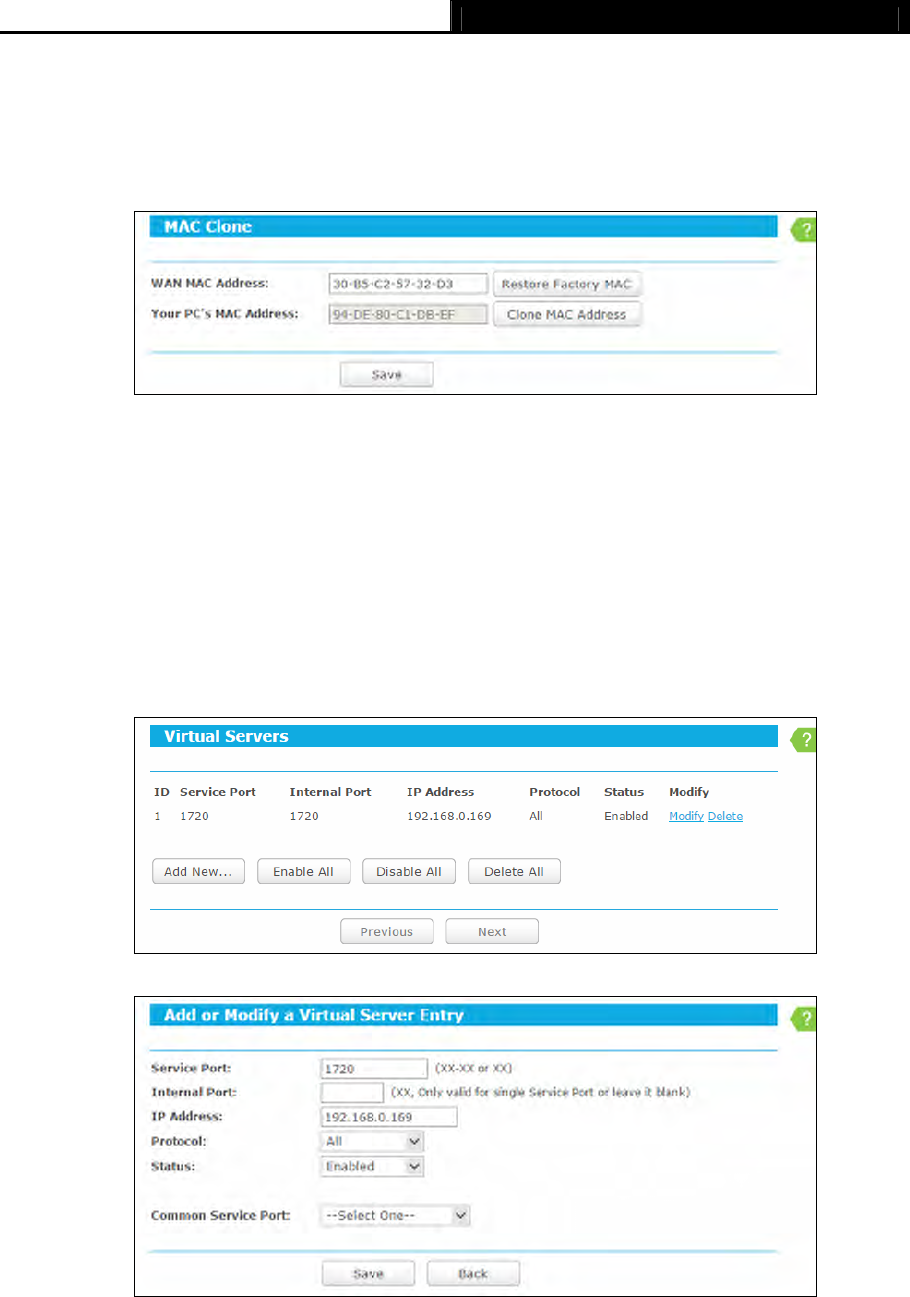

5.2.2 MAC Clone ...................................................................................................27

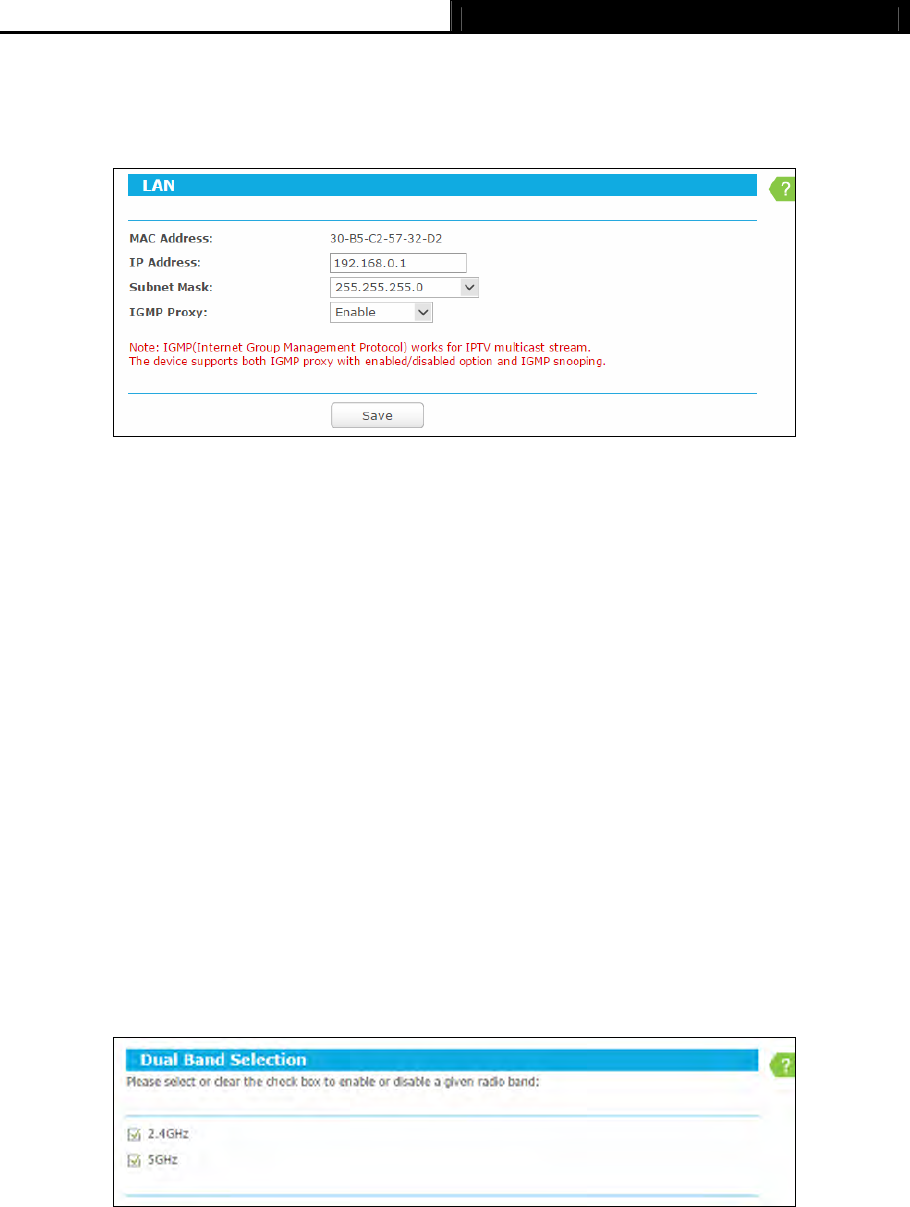

5.2.3 LAN ..............................................................................................................28
5.3 Dual Band Selection.................................................................................................28
5.4 Wireless 2.4GHz ......................................................................................................29

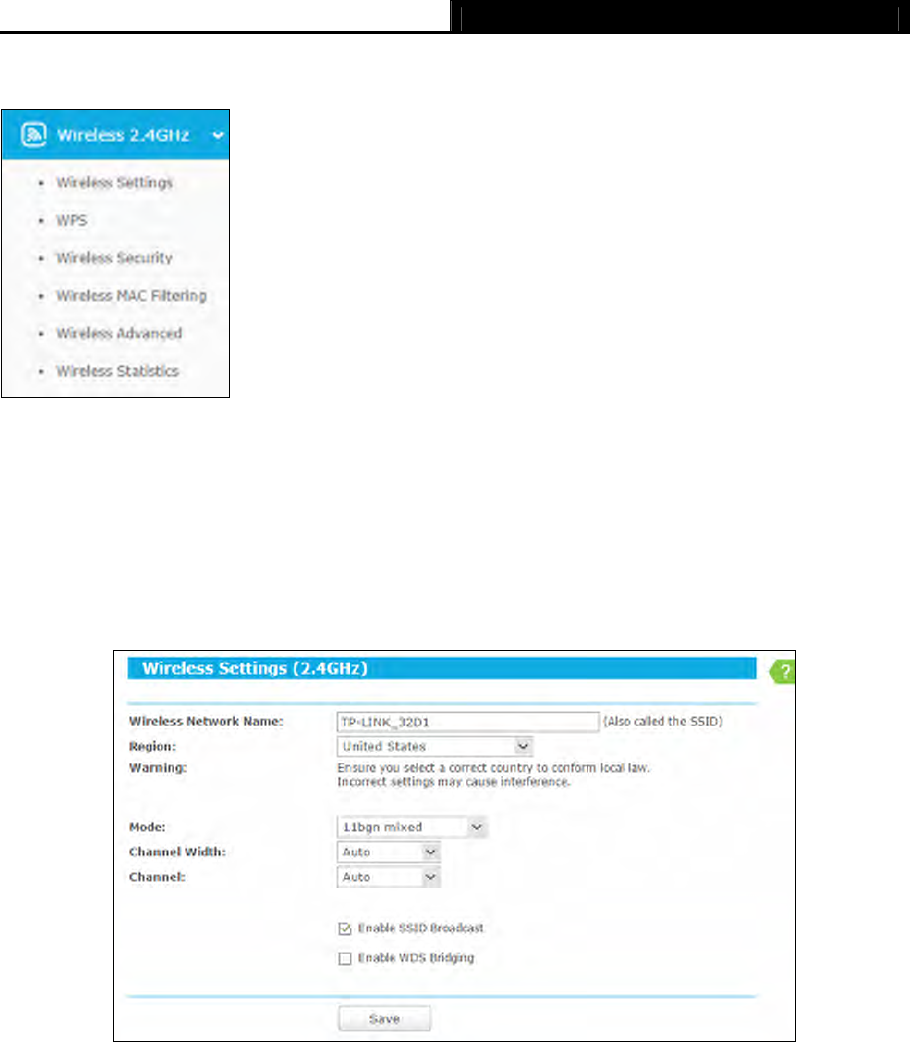

5.4.1 Wireless Settings..........................................................................................29

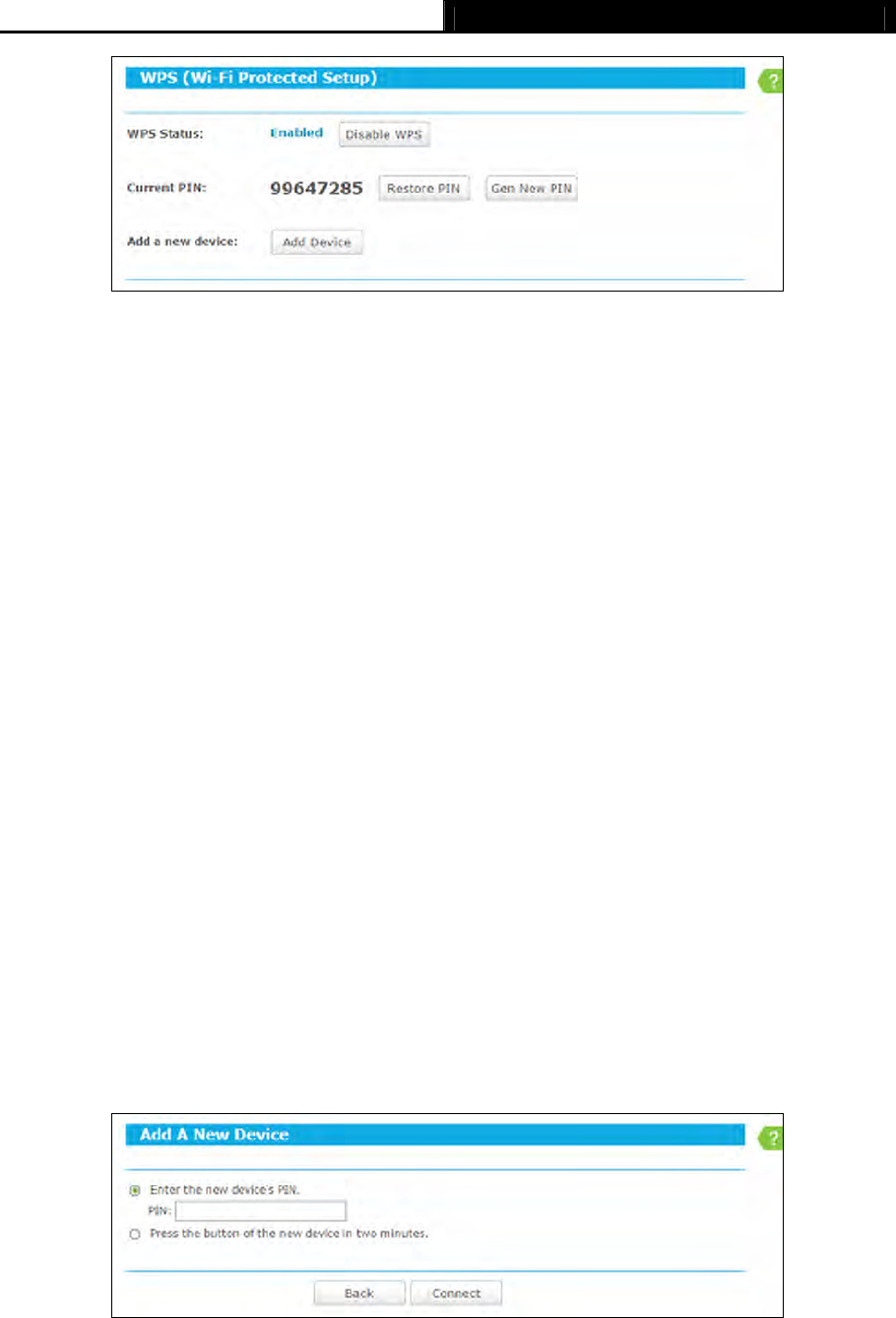

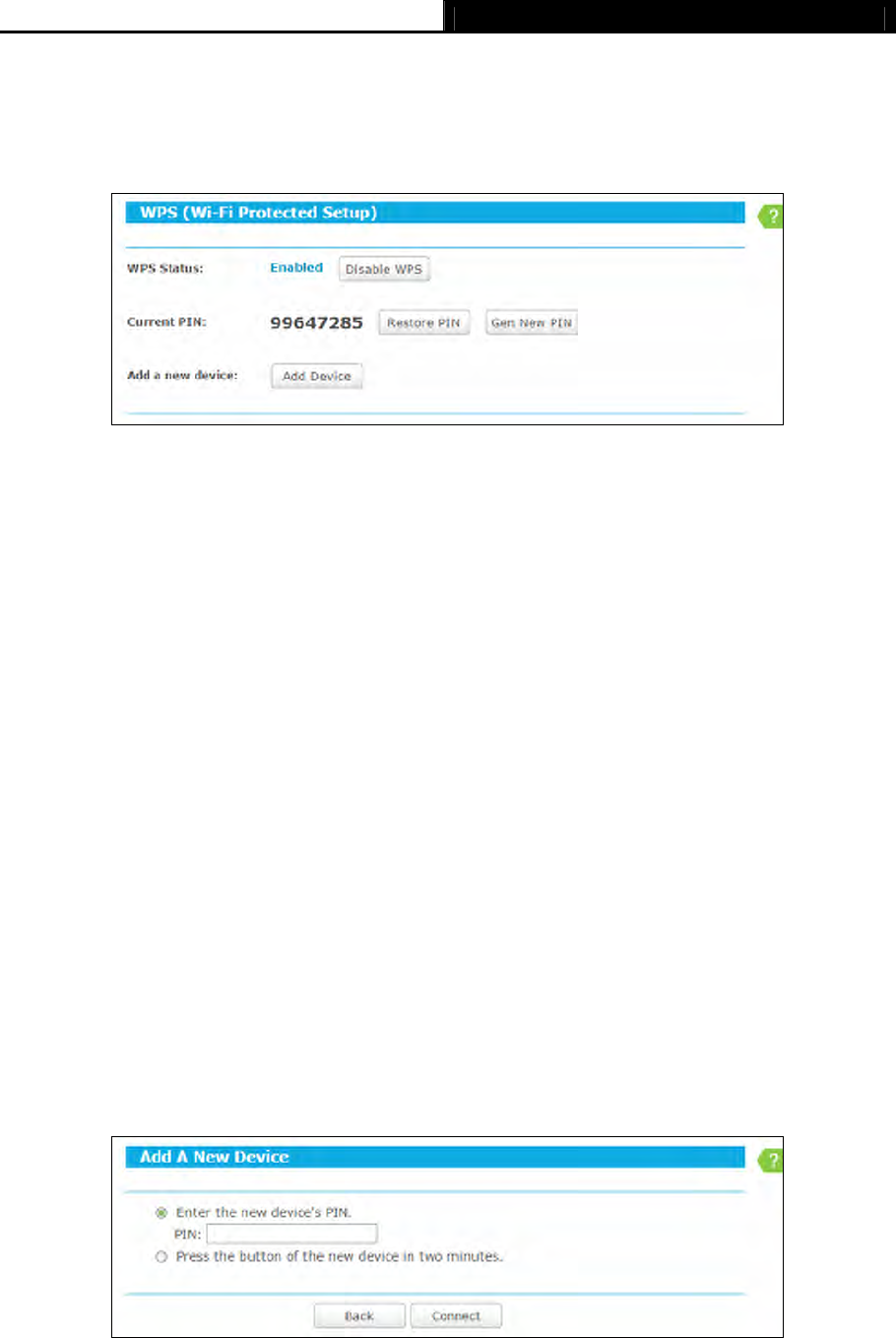

5.4.2 WPS .............................................................................................................31

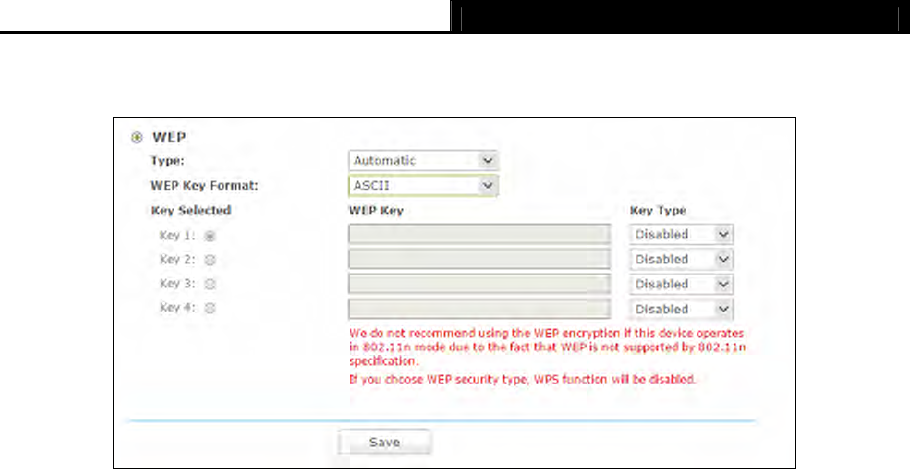

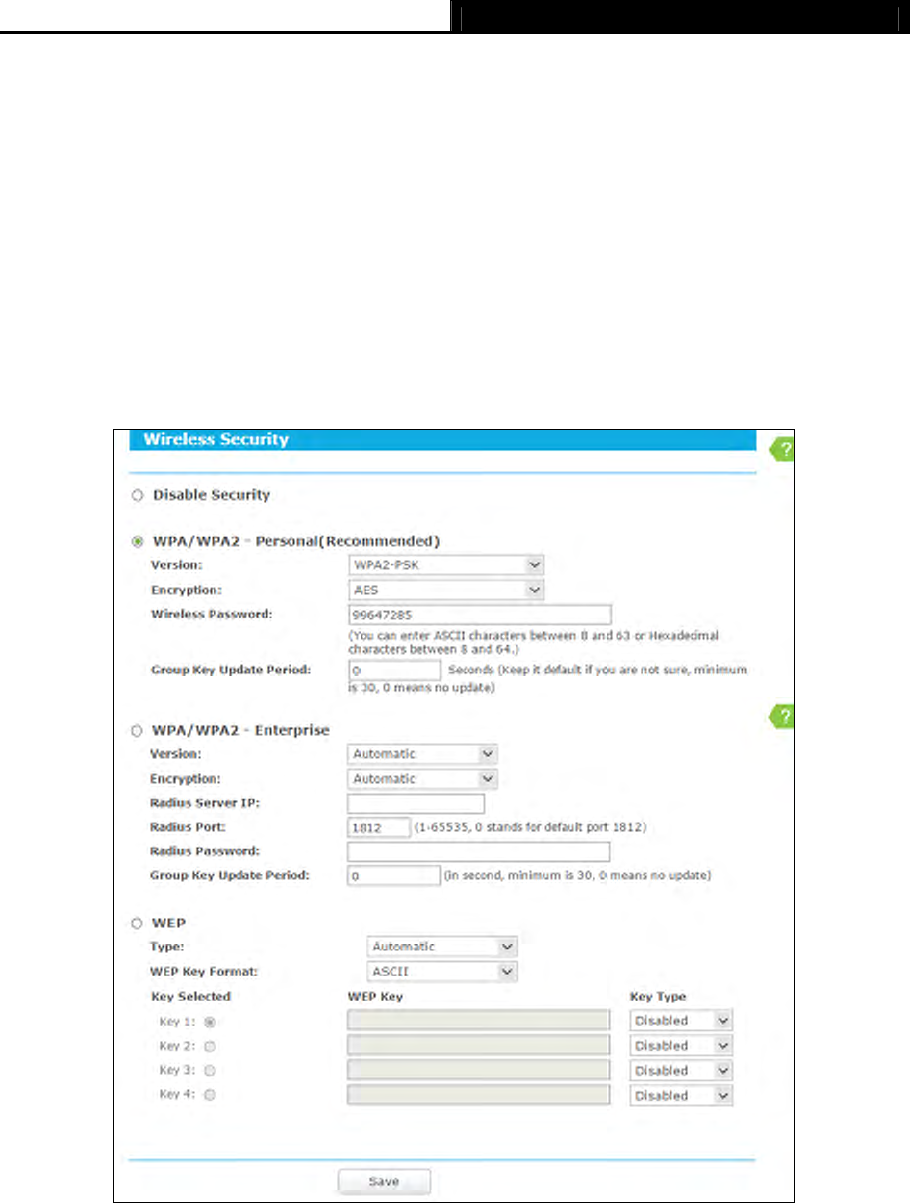

5.4.3 Wireless Security..........................................................................................32

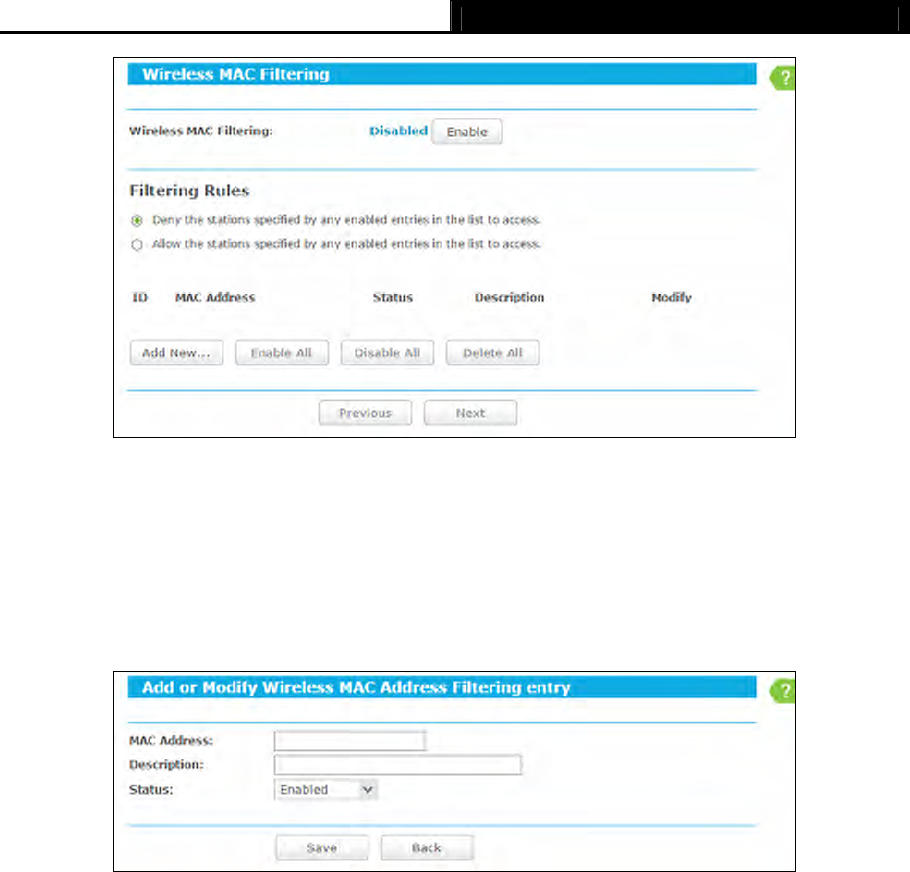

5.4.4 Wireless MAC Filtering .................................................................................34
5.4.5 Wireless Advanced .......................................................................................36

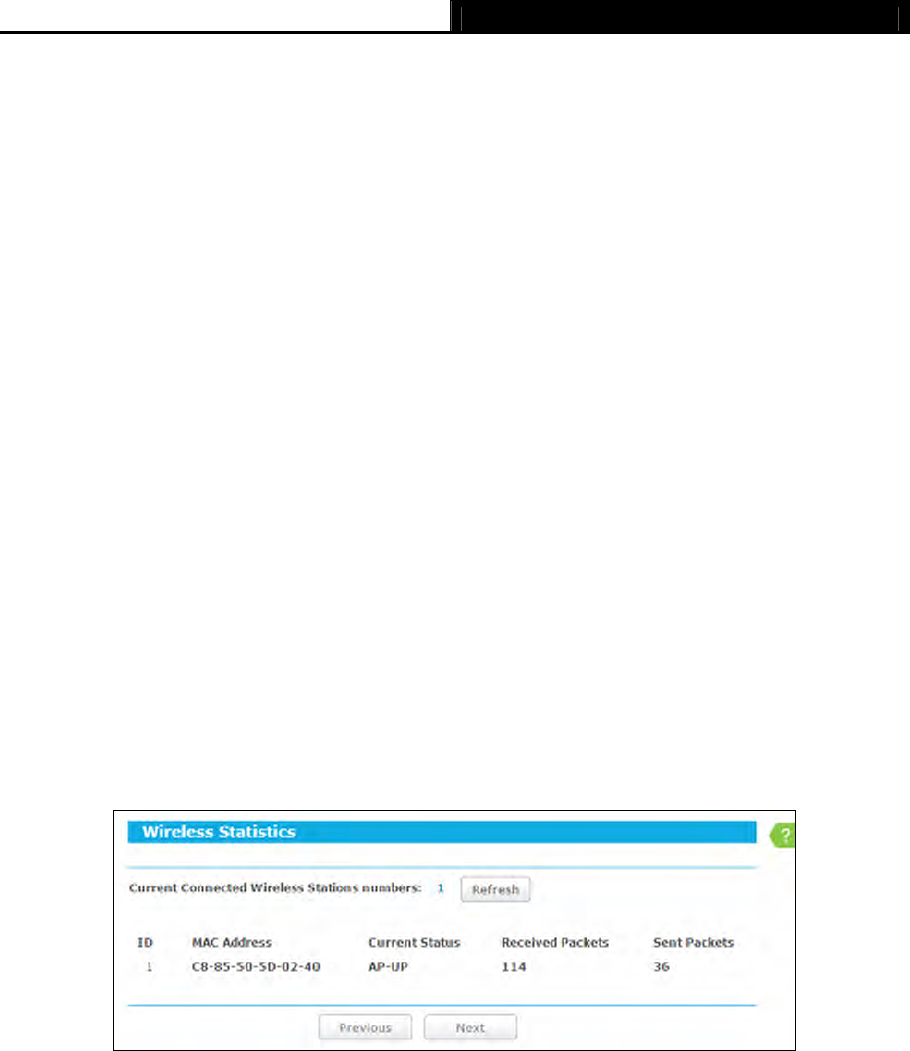

5.4.6 Wireless Statistics.........................................................................................37

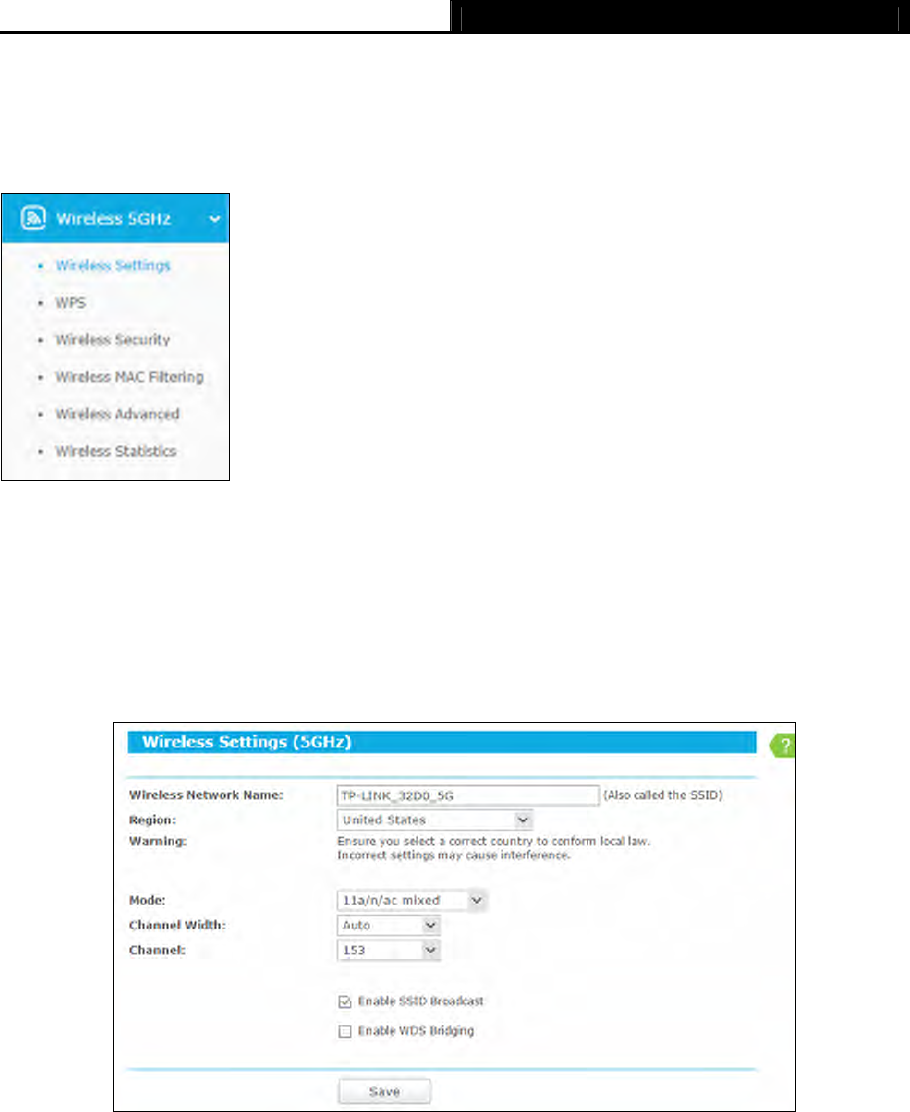

5.5 Wireless 5GHz .........................................................................................................38
5.5.1 Wireless Settings..........................................................................................38
5.5.2 WPS .............................................................................................................39
5.5.3 Wireless Security..........................................................................................41
5.5.4 Wireless MAC Filtering .................................................................................43
5.5.5 Wireless Advanced .......................................................................................45
5.5.6 Wireless Statistics.........................................................................................46
5.6 Guest Network .........................................................................................................47

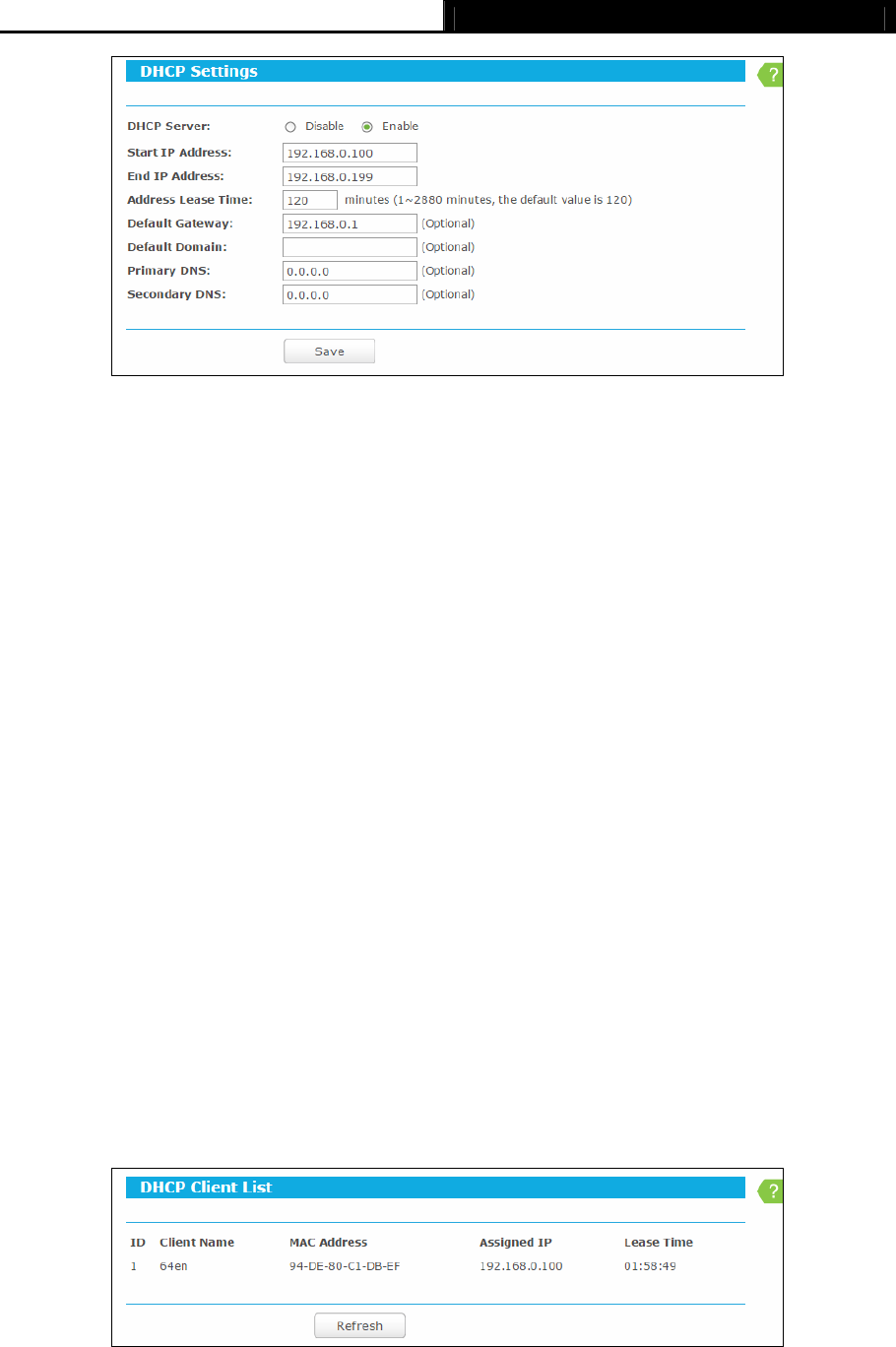

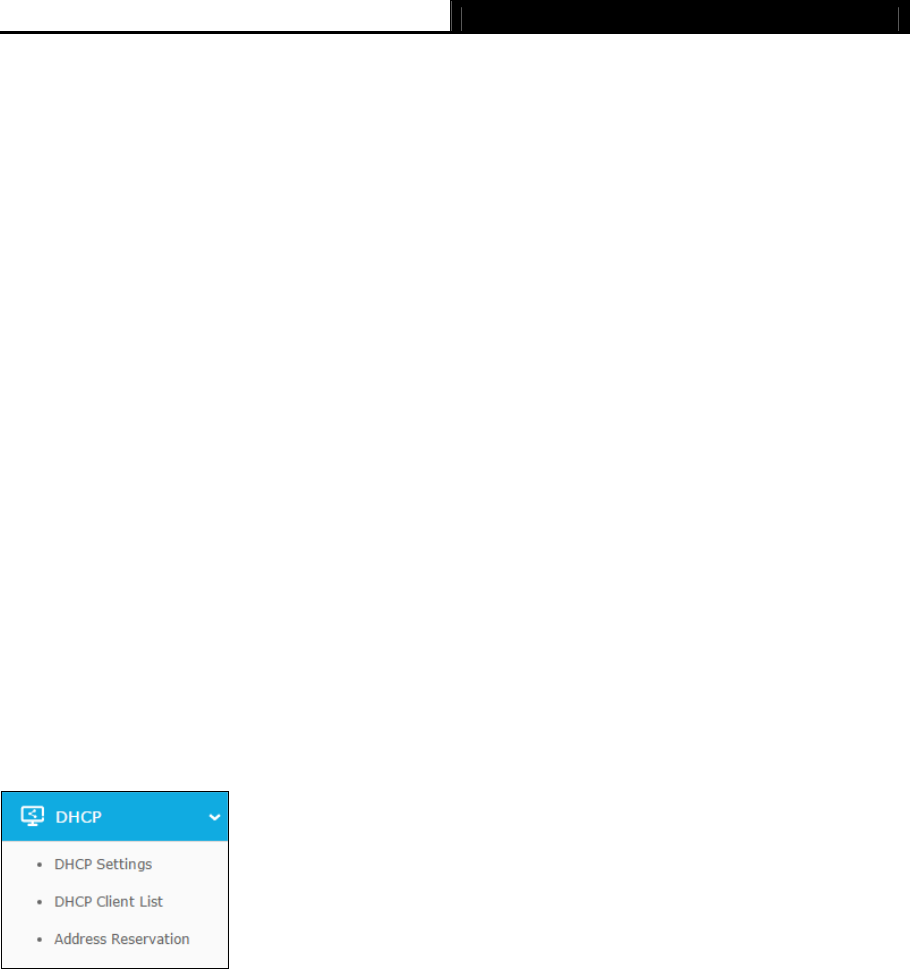

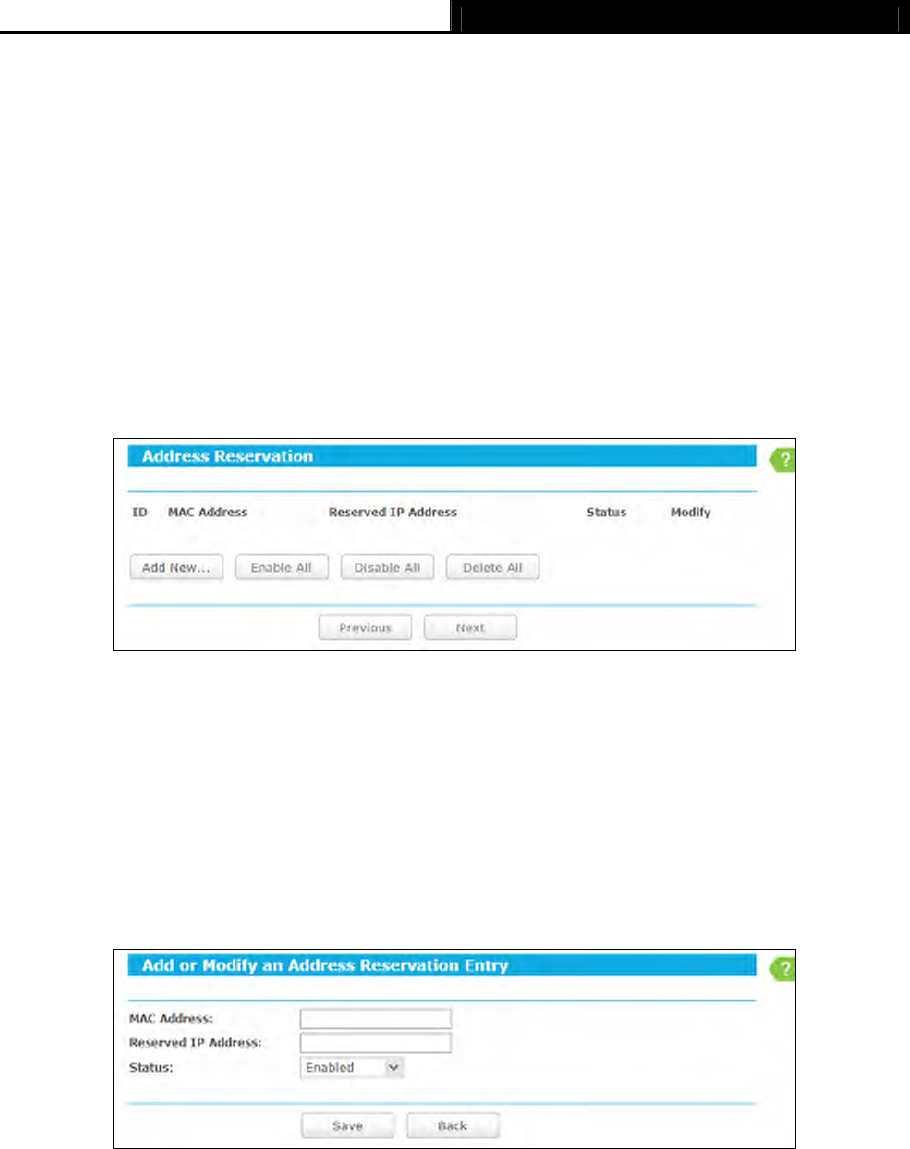

5.7 DHCP.......................................................................................................................48
5.7.1 DHCP Settings .............................................................................................48
5.7.2 DHCP Clients List.........................................................................................49
5.7.3 Address Reservation ....................................................................................50
5.8 USB Settings............................................................................................................51
5.8.1 Device Settings.............................................................................................51
5.8.2 File Sharing ..................................................................................................51

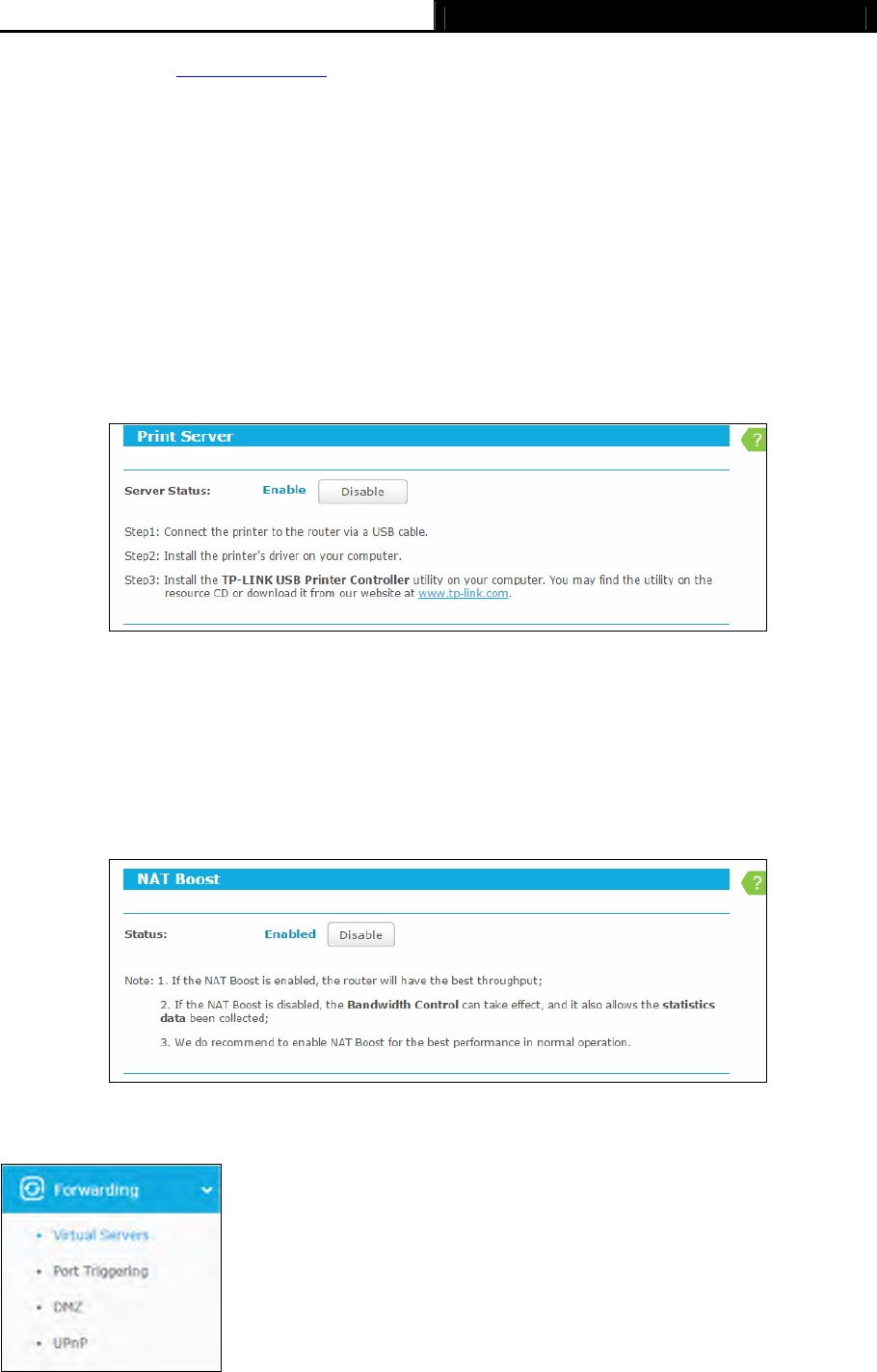

5.8.3 Print Server...................................................................................................53
5.9 NAT Boost ................................................................................................................53
5.10 Forwarding ...............................................................................................................53

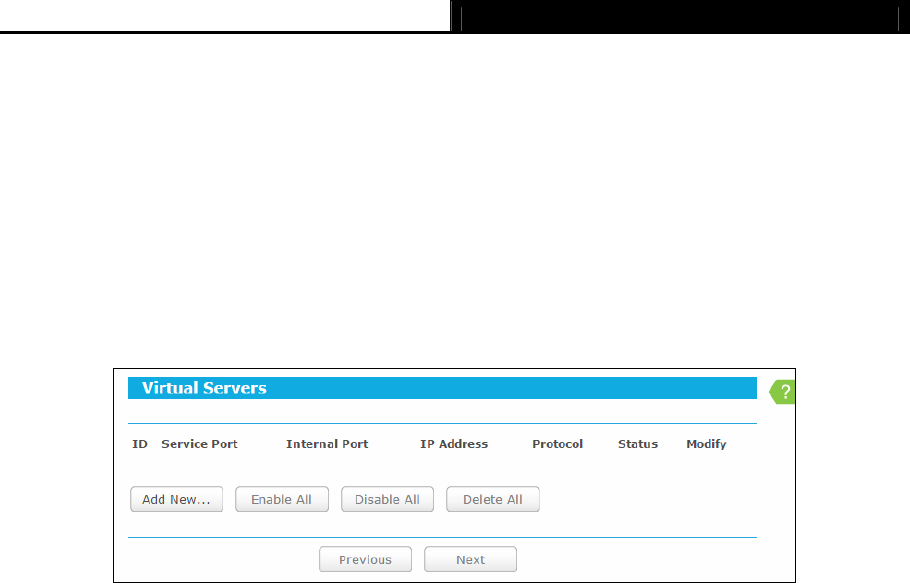

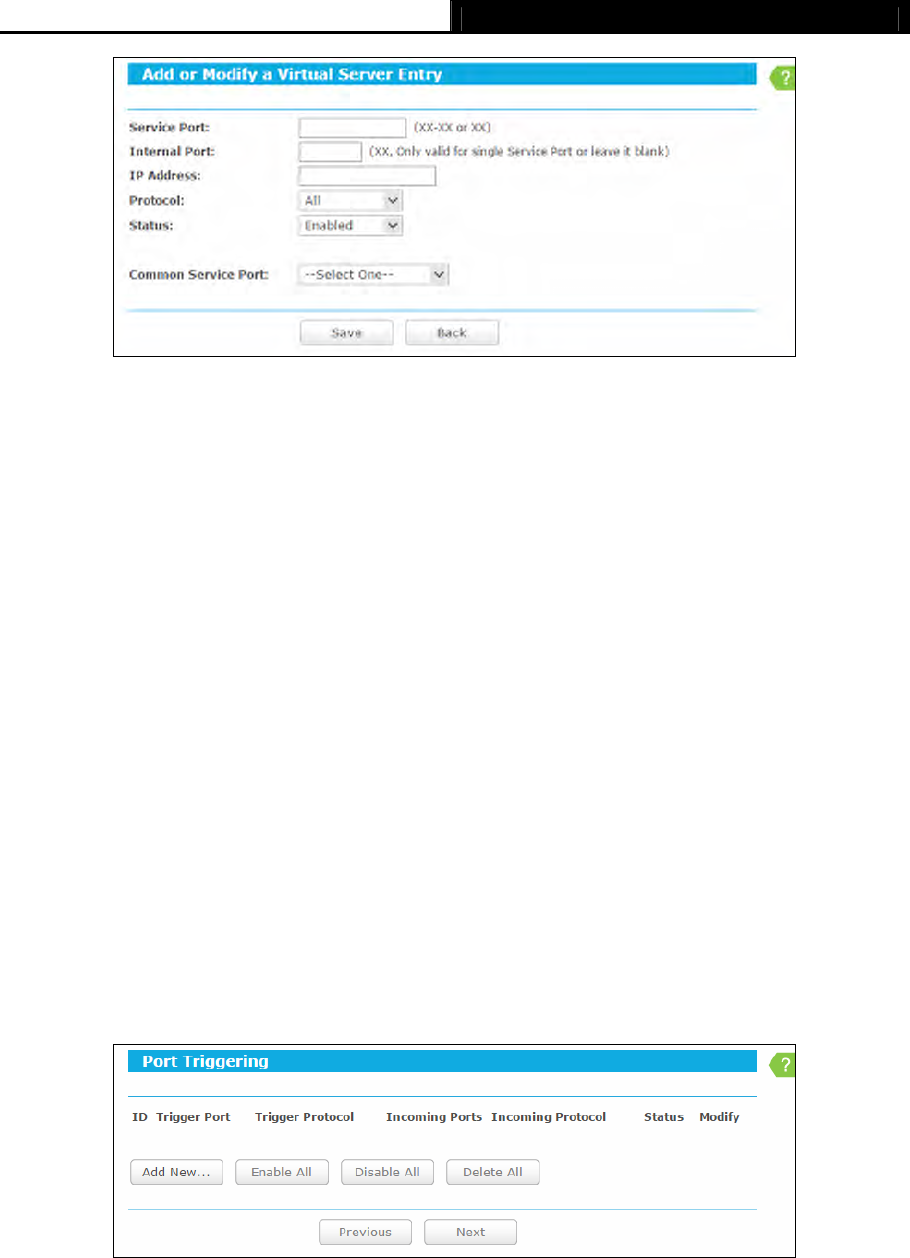

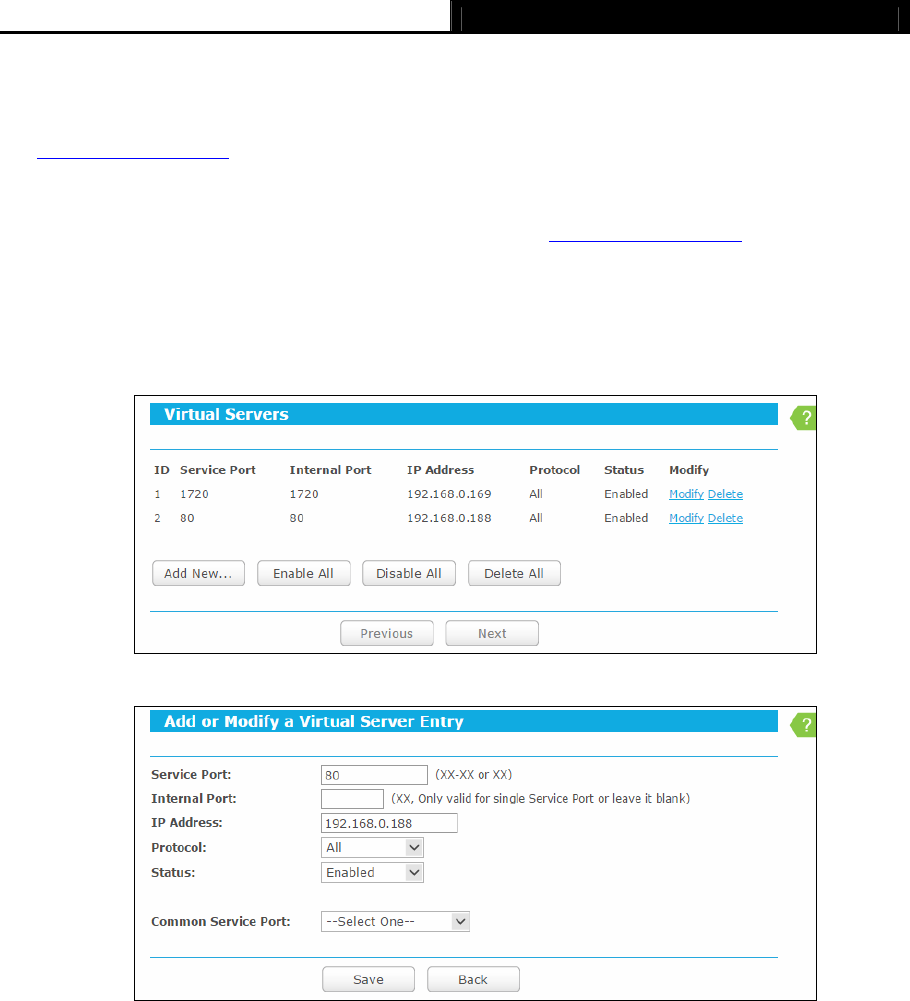

5.10.1 Virtual Servers ..............................................................................................54
5.10.2 Port Triggering..............................................................................................55

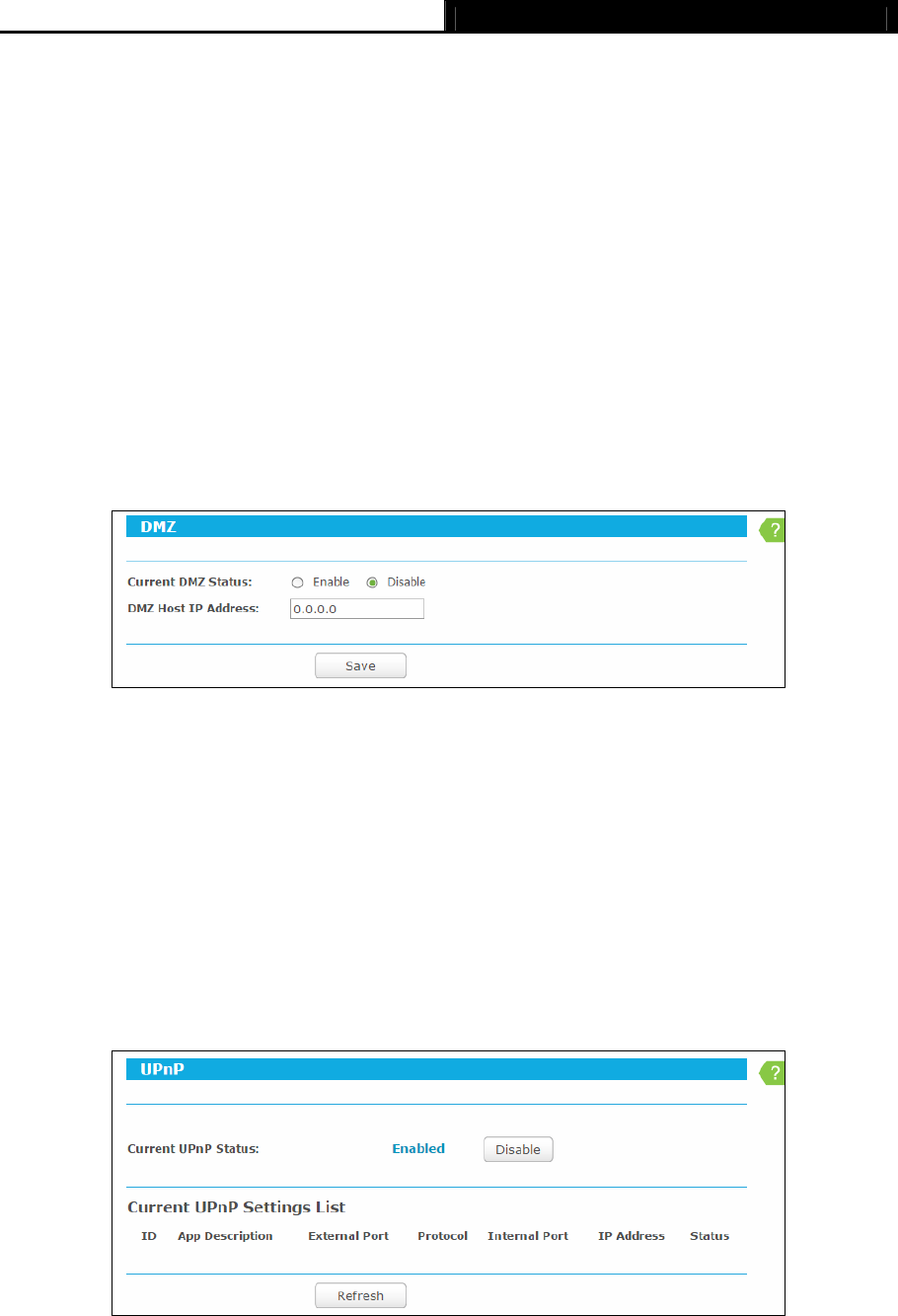

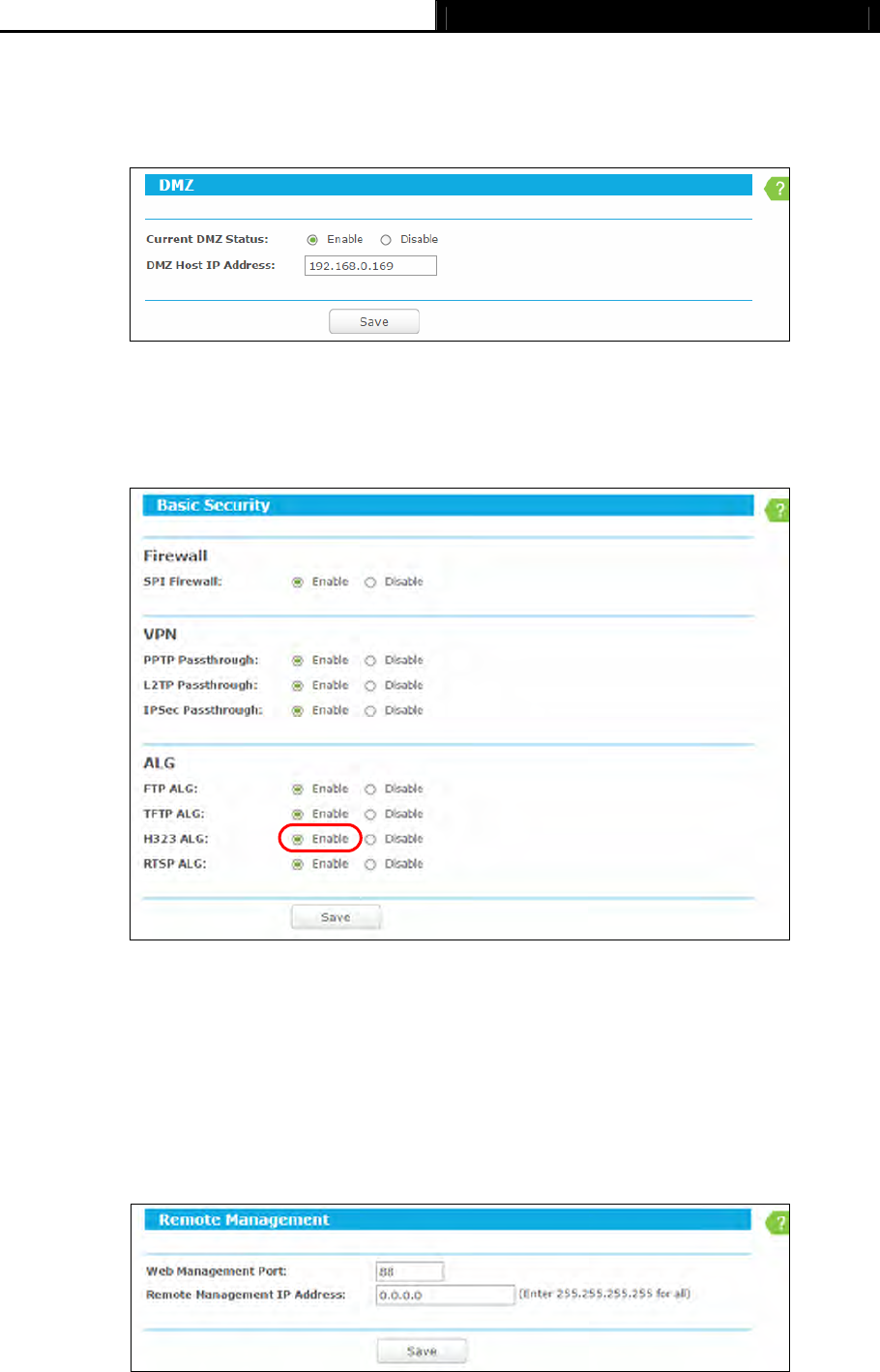

5.10.3 DMZ..............................................................................................................57
5.10.4 UPnP ............................................................................................................57
5.11 Security ....................................................................................................................58
5.11.1 Basic Security...............................................................................................58

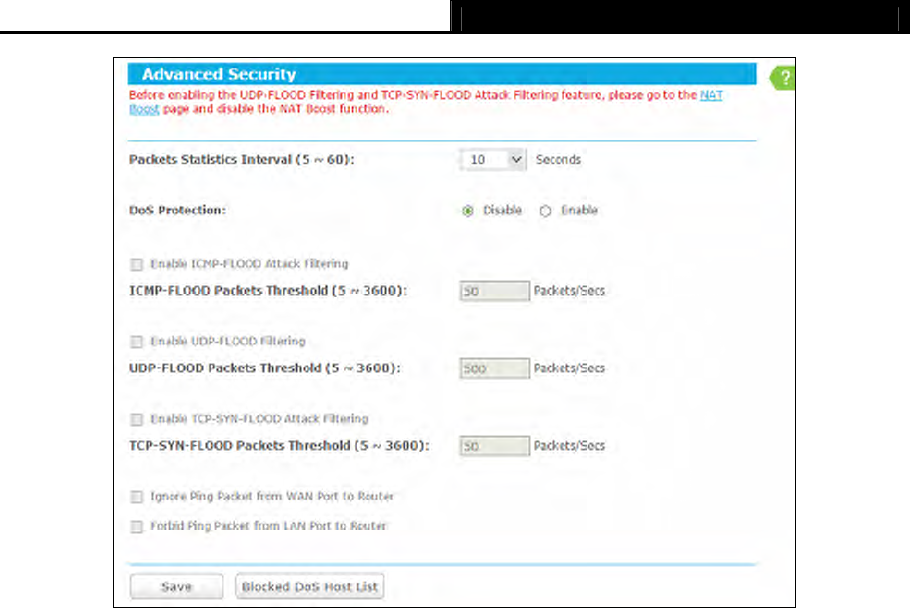

5.11.2 Advanced Security........................................................................................59
5.11.3 Local Management .......................................................................................61

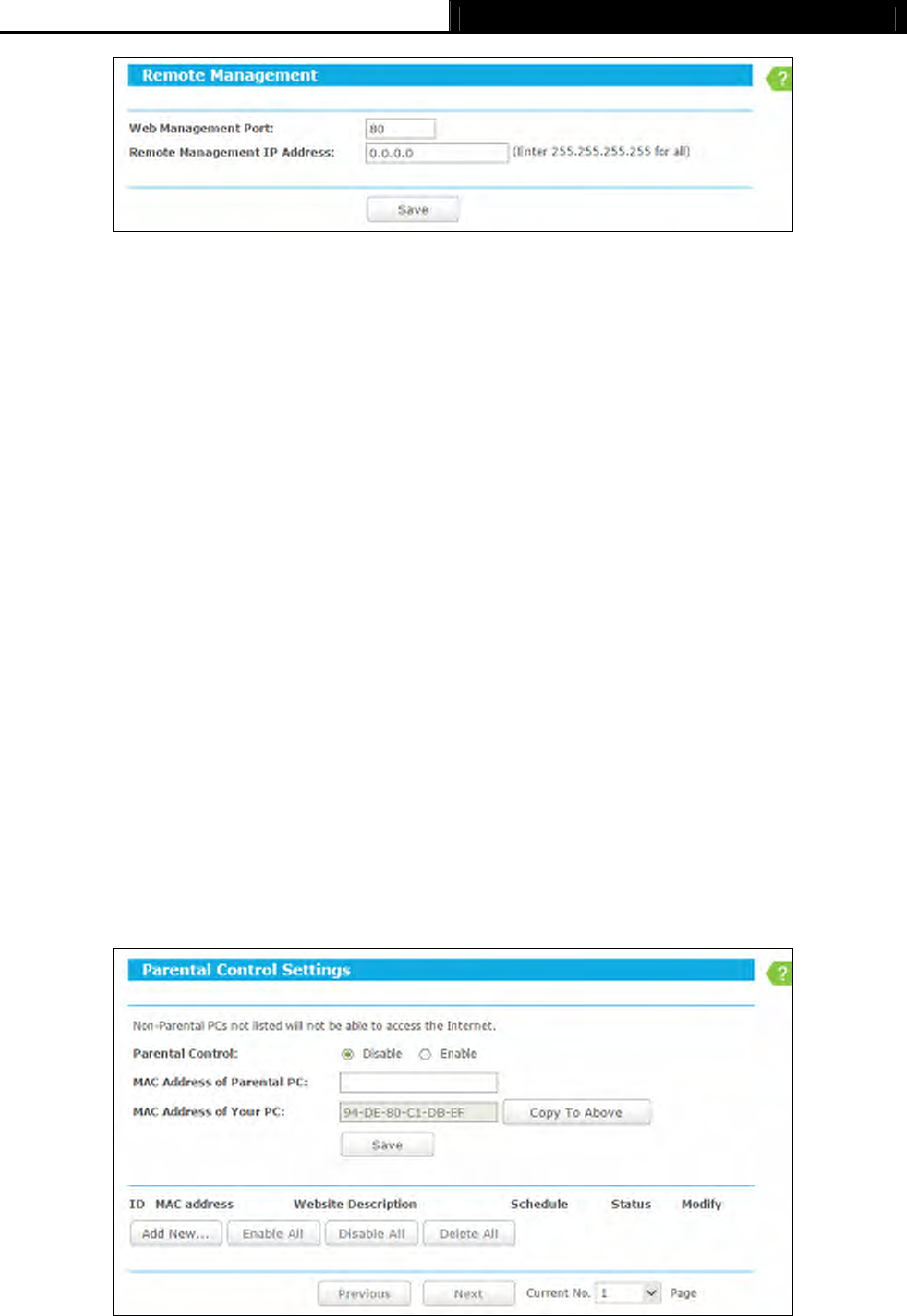

5.11.4 Remote Management ...................................................................................61

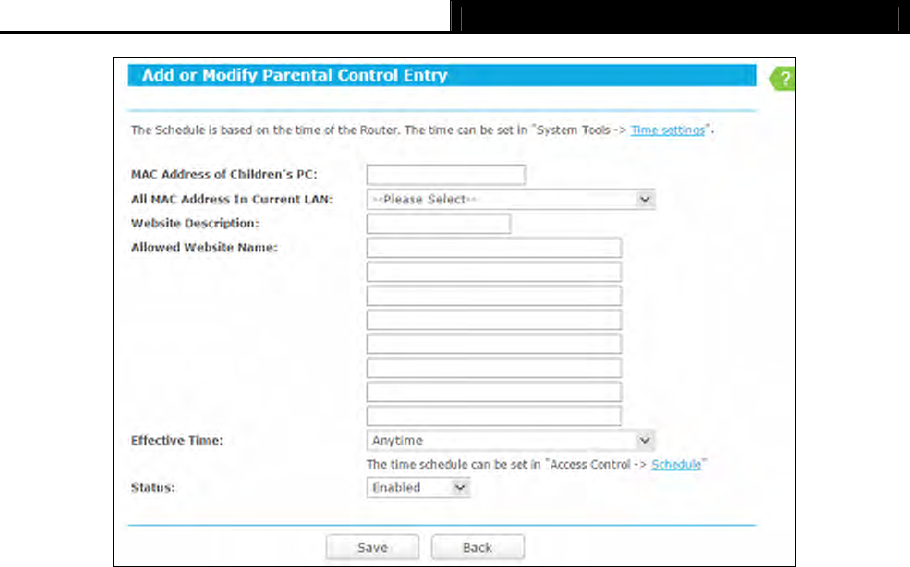

5.12 Parental Control .......................................................................................................62

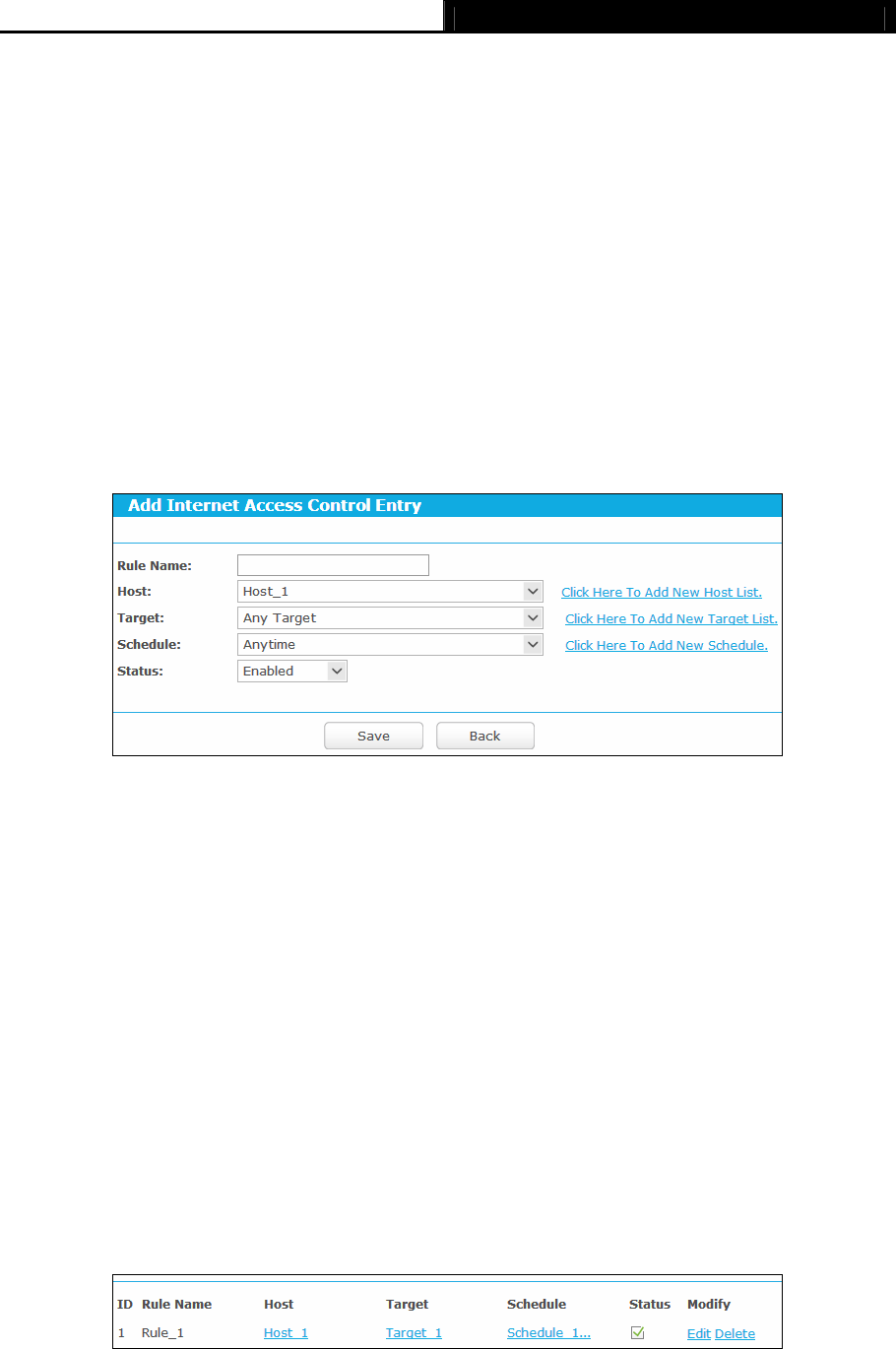

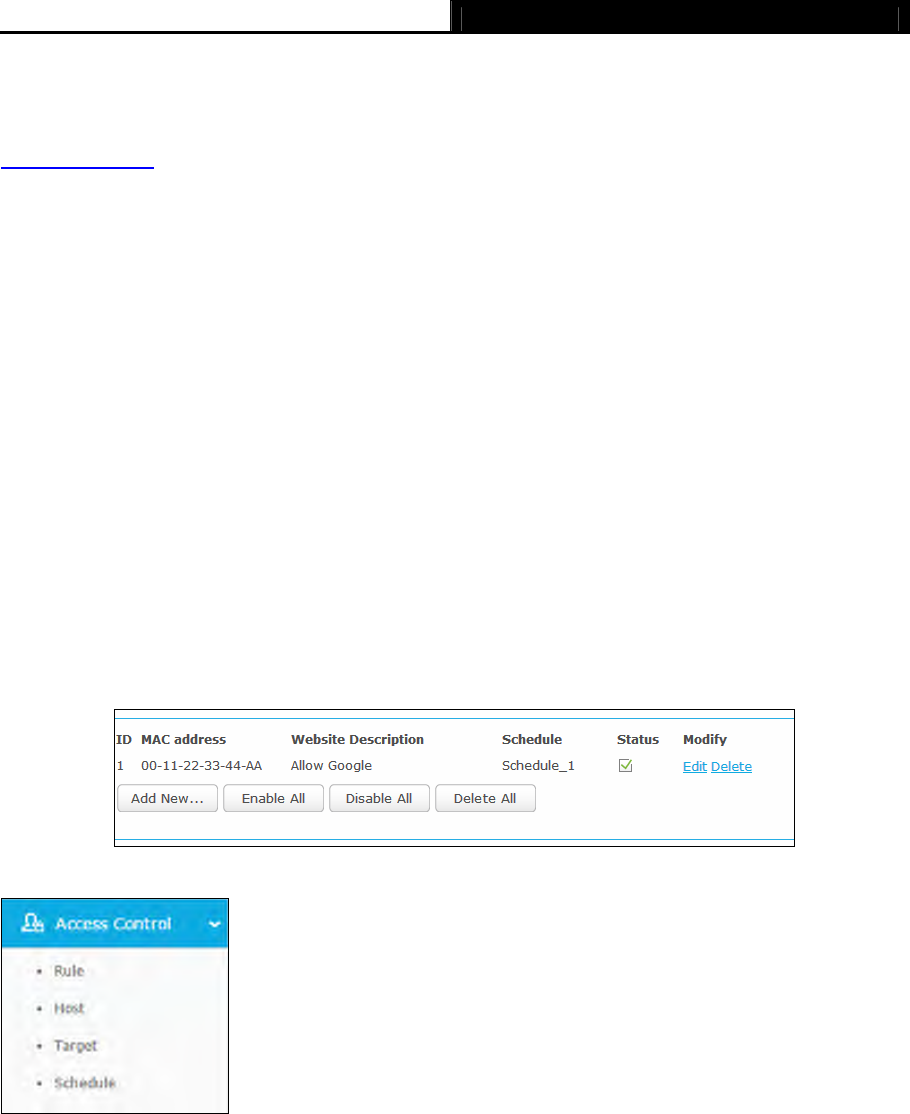

5.13 Access Control .........................................................................................................64
5.13.1 Rule ..............................................................................................................64

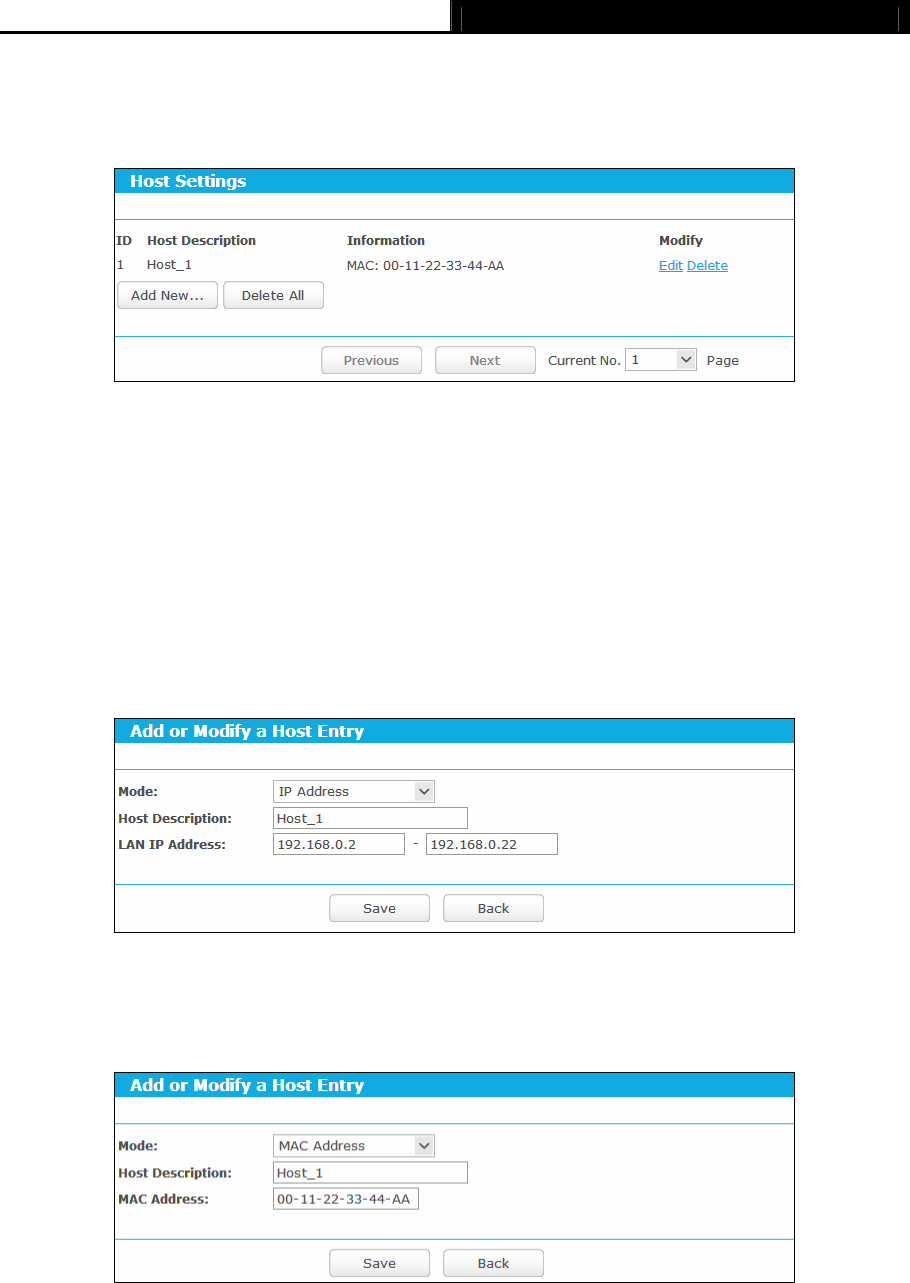

5.13.2 Host ..............................................................................................................69

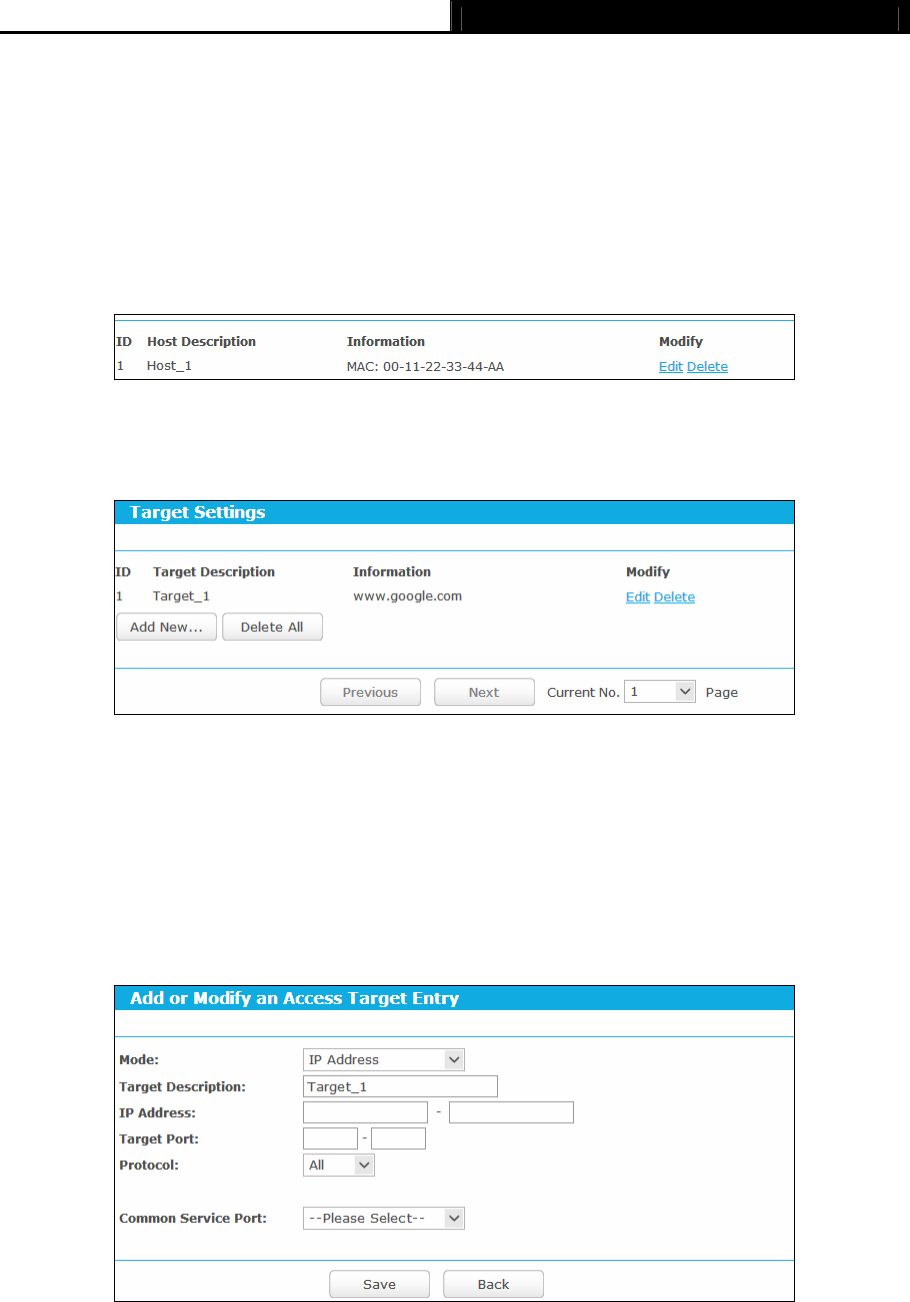

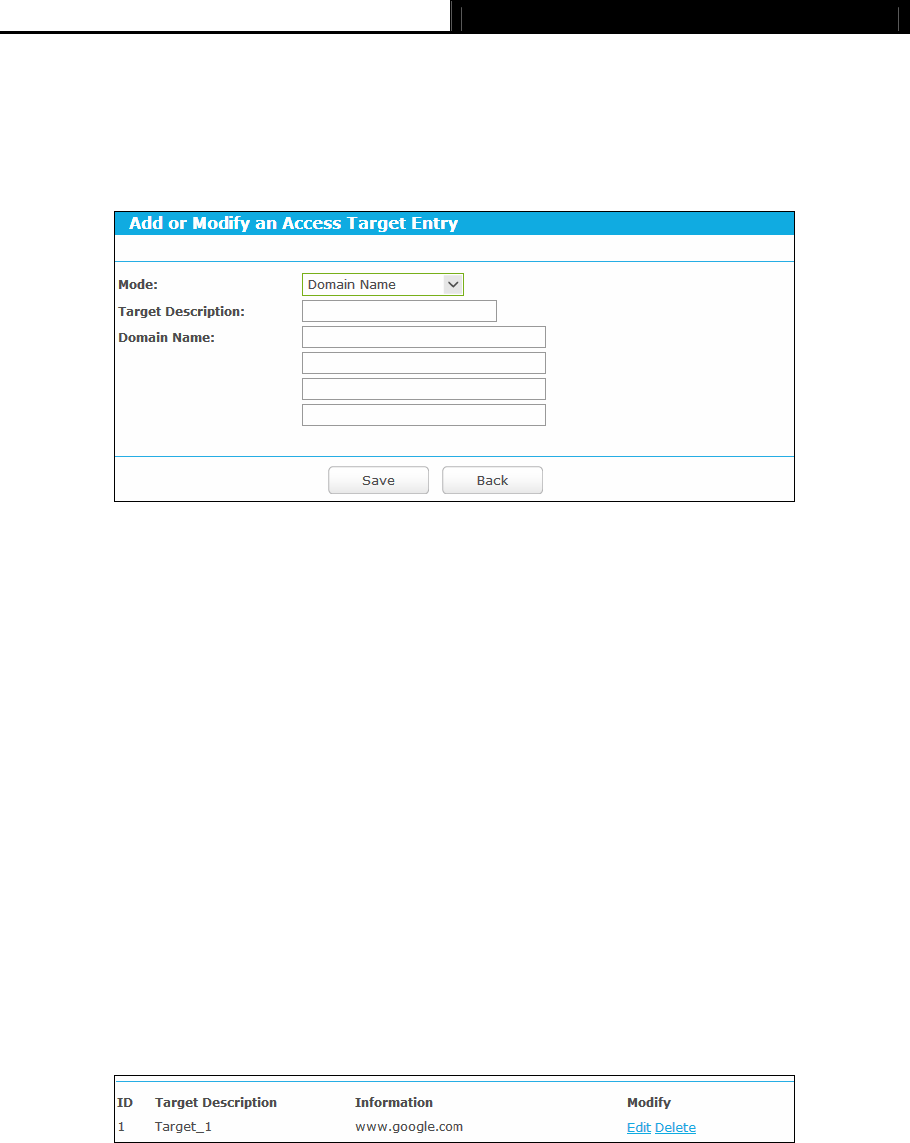

5.13.3 Target............................................................................................................70

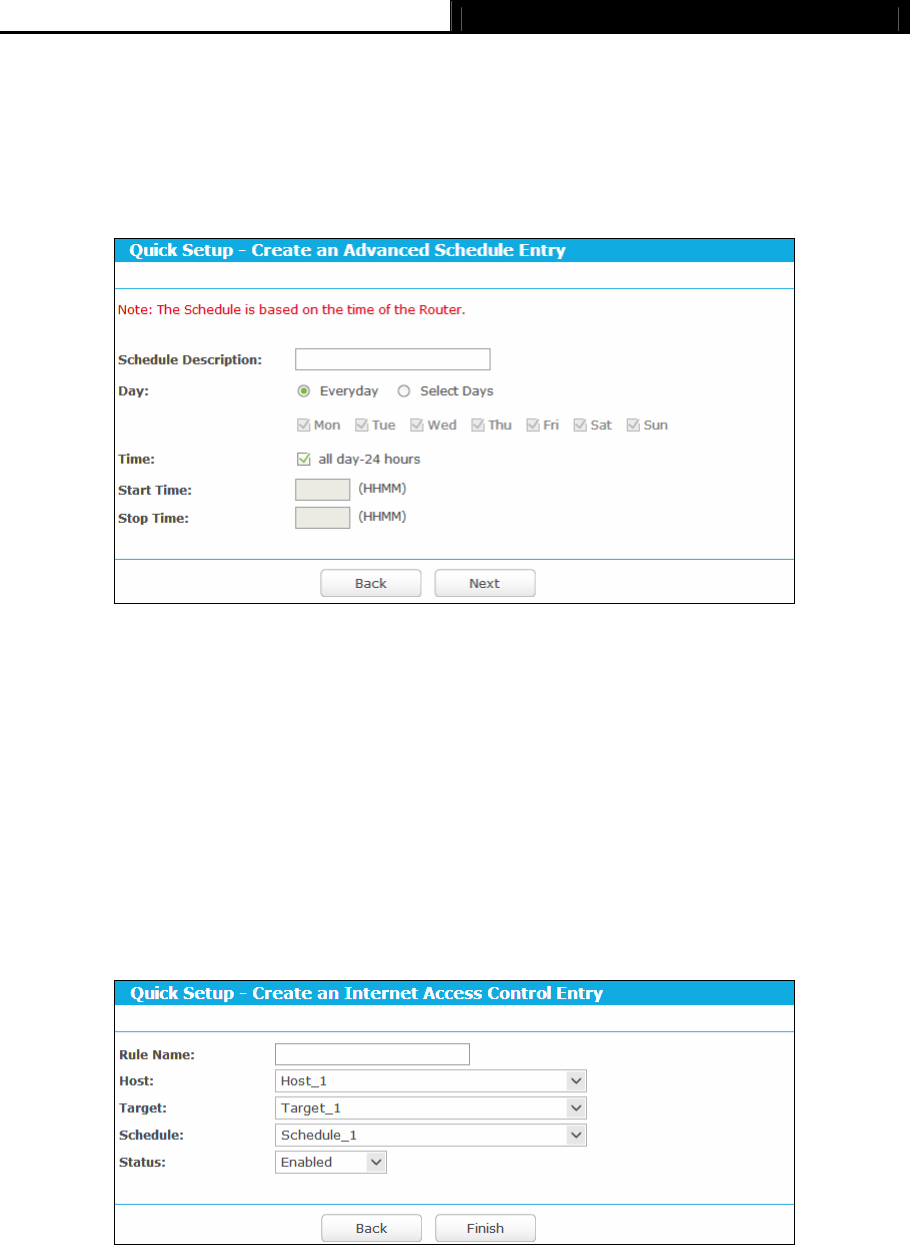

5.13.4 Schedule.......................................................................................................71
5.14 Advanced Routing....................................................................................................73
5.14.1 Static Routing List.........................................................................................73
5.14.2 System Routing Table...................................................................................74

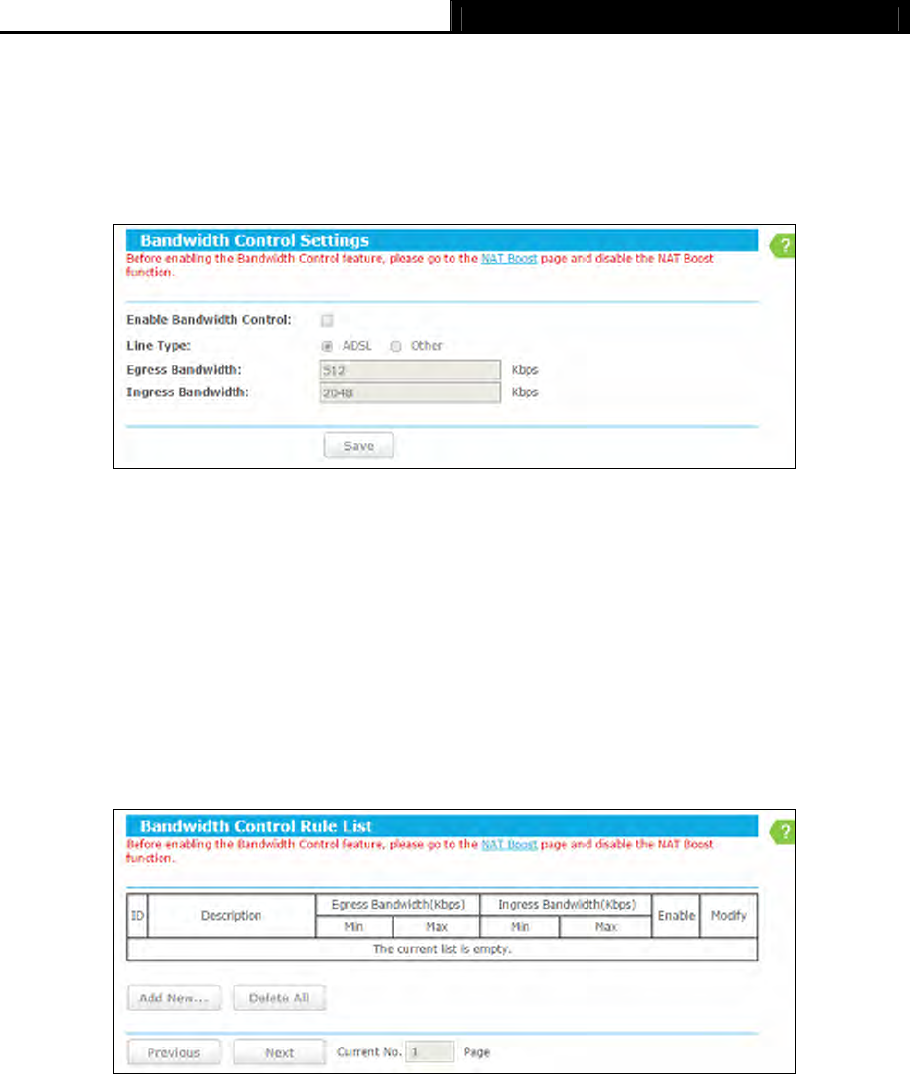

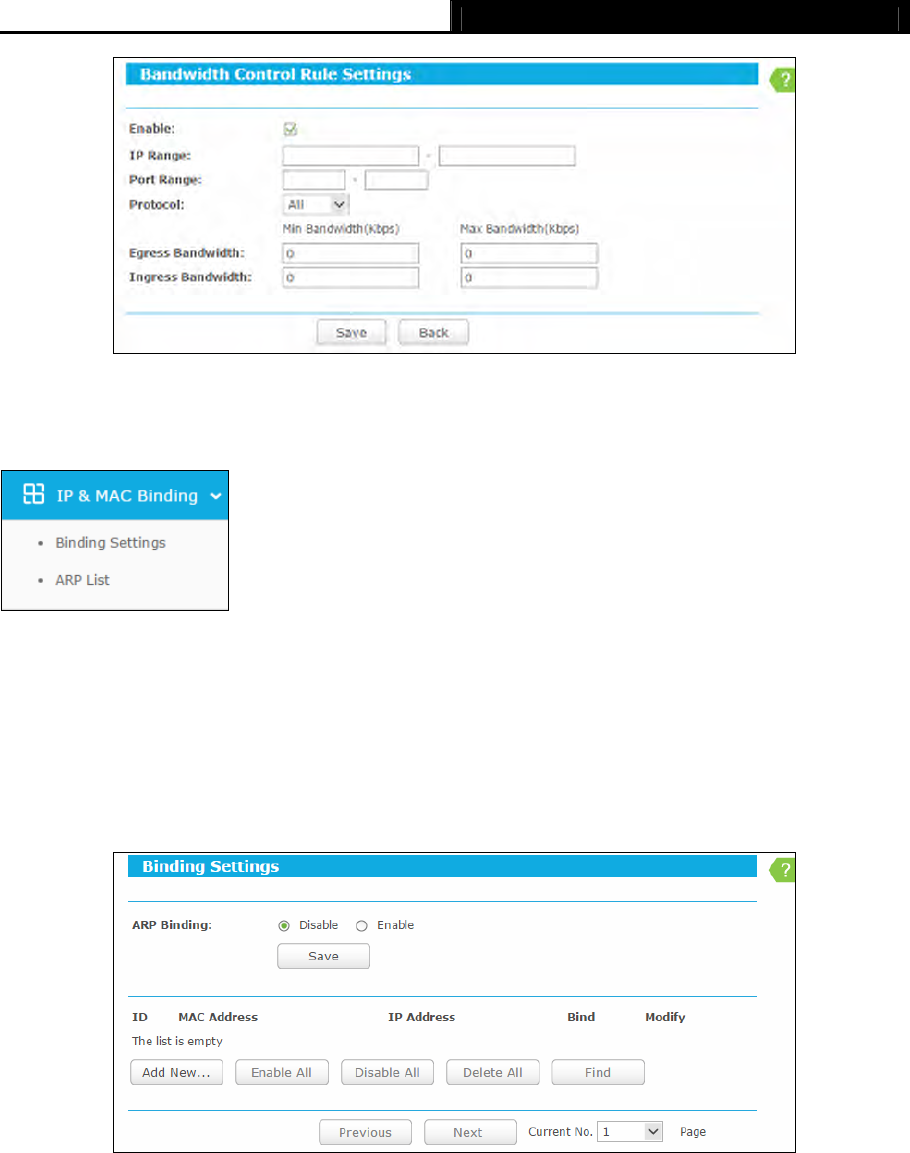

5.15 Bandwidth Control....................................................................................................74
5.15.1 Control Settings............................................................................................75
5.15.2 Rules List......................................................................................................75
5.16 IP & MAC Binding.....................................................................................................76
5.16.1 Binding Settings............................................................................................76
5.16.2 ARP List........................................................................................................77

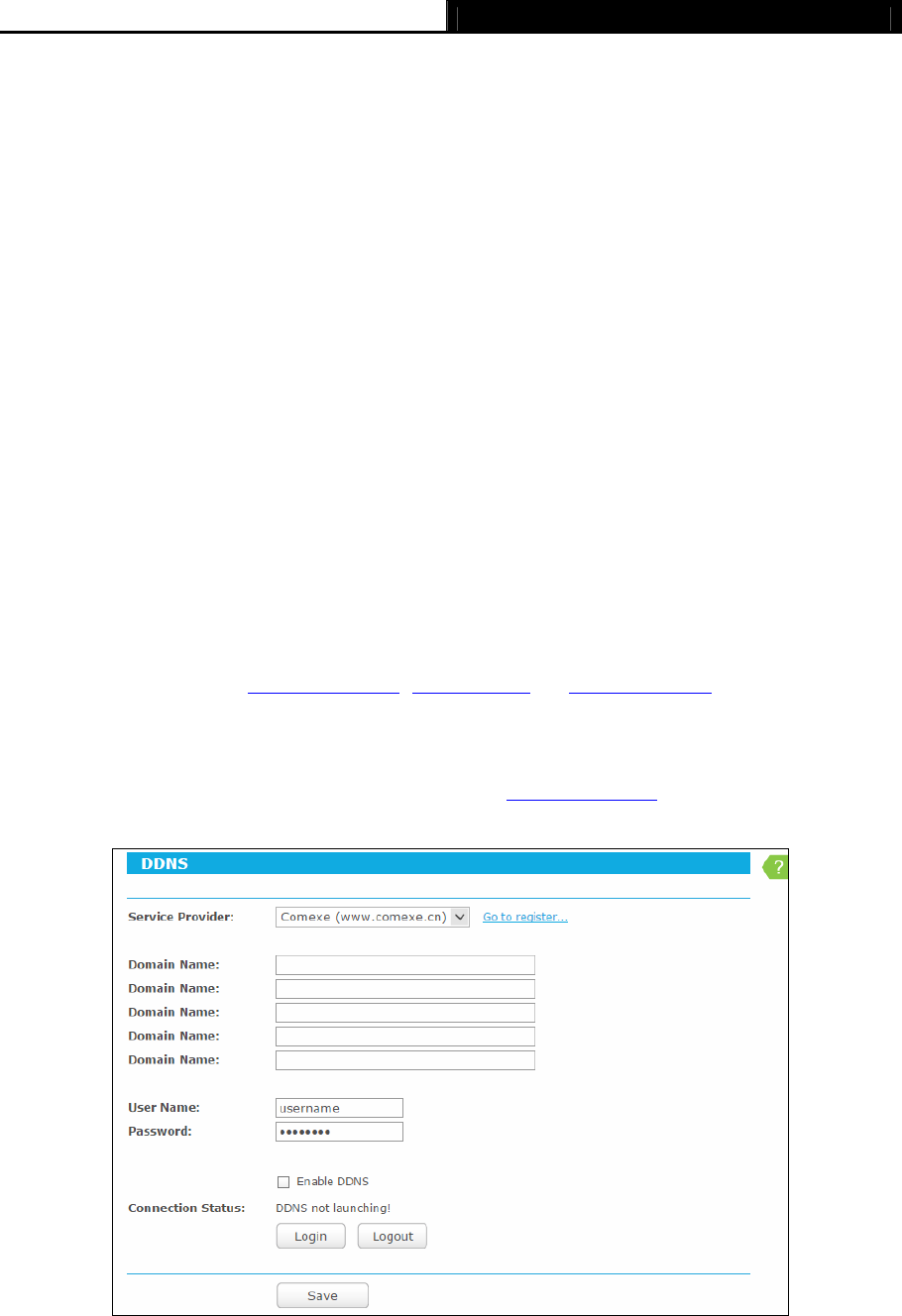

5.17 Dynamic DNS...........................................................................................................78
5.17.1 Comexe.cn DDNS ........................................................................................78
5.17.2 Dyn.com/dns DDNS .....................................................................................79
5.17.3 No-ip.com DDNS ..........................................................................................79
5.18 IPv6 Support ............................................................................................................80
5.18.1 IPv6 Status ...................................................................................................81

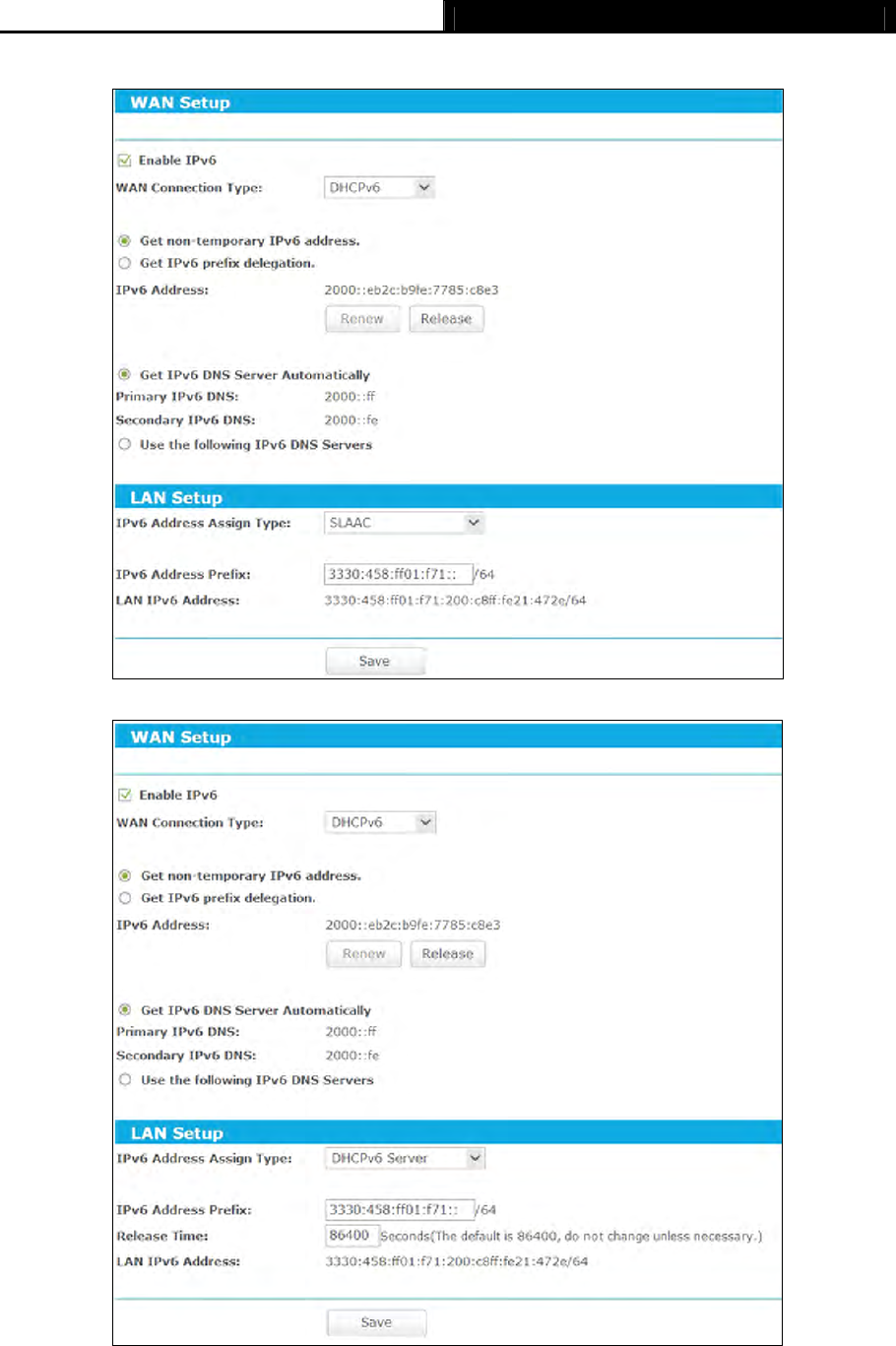

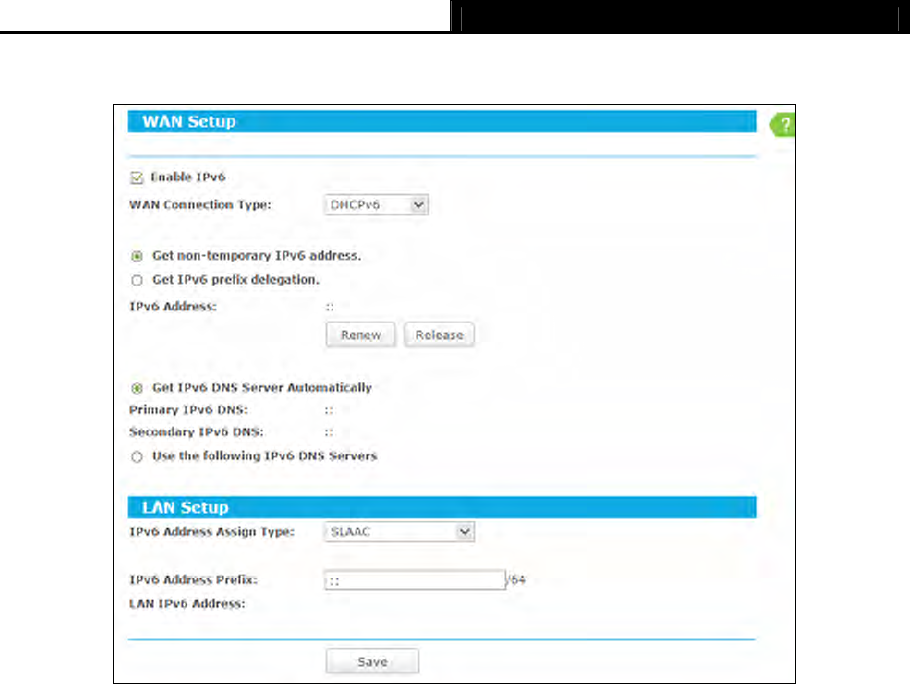

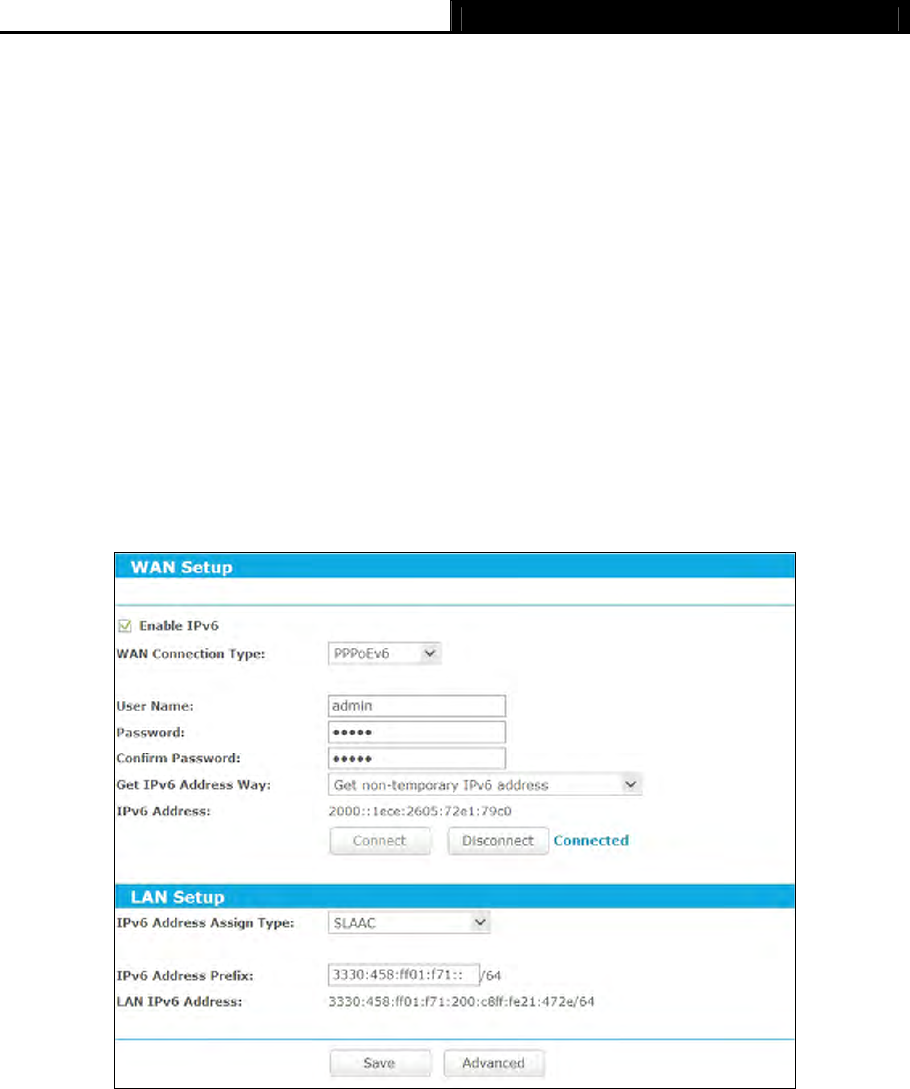

5.18.2 IPv6 Setup....................................................................................................82
5.19 System Tools............................................................................................................89

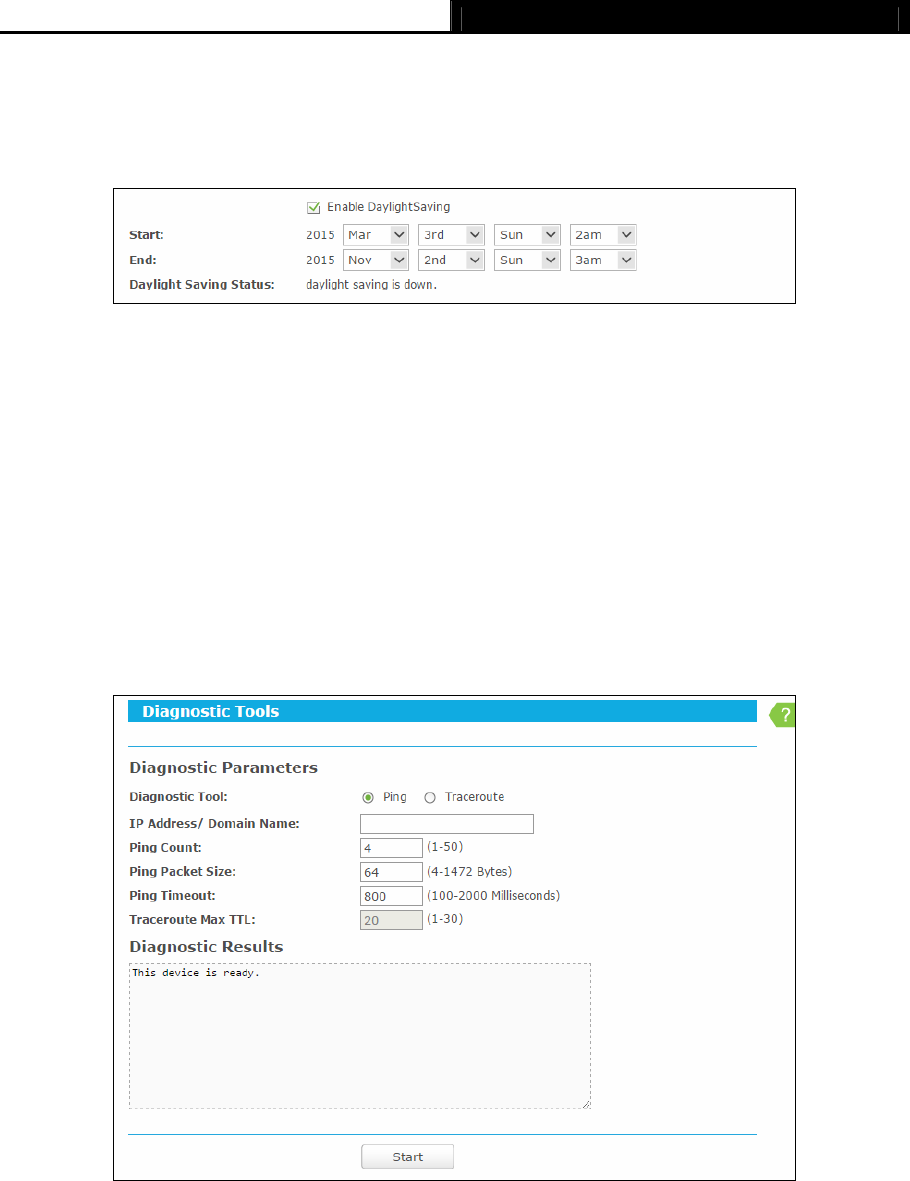

5.19.1 Time Settings................................................................................................90

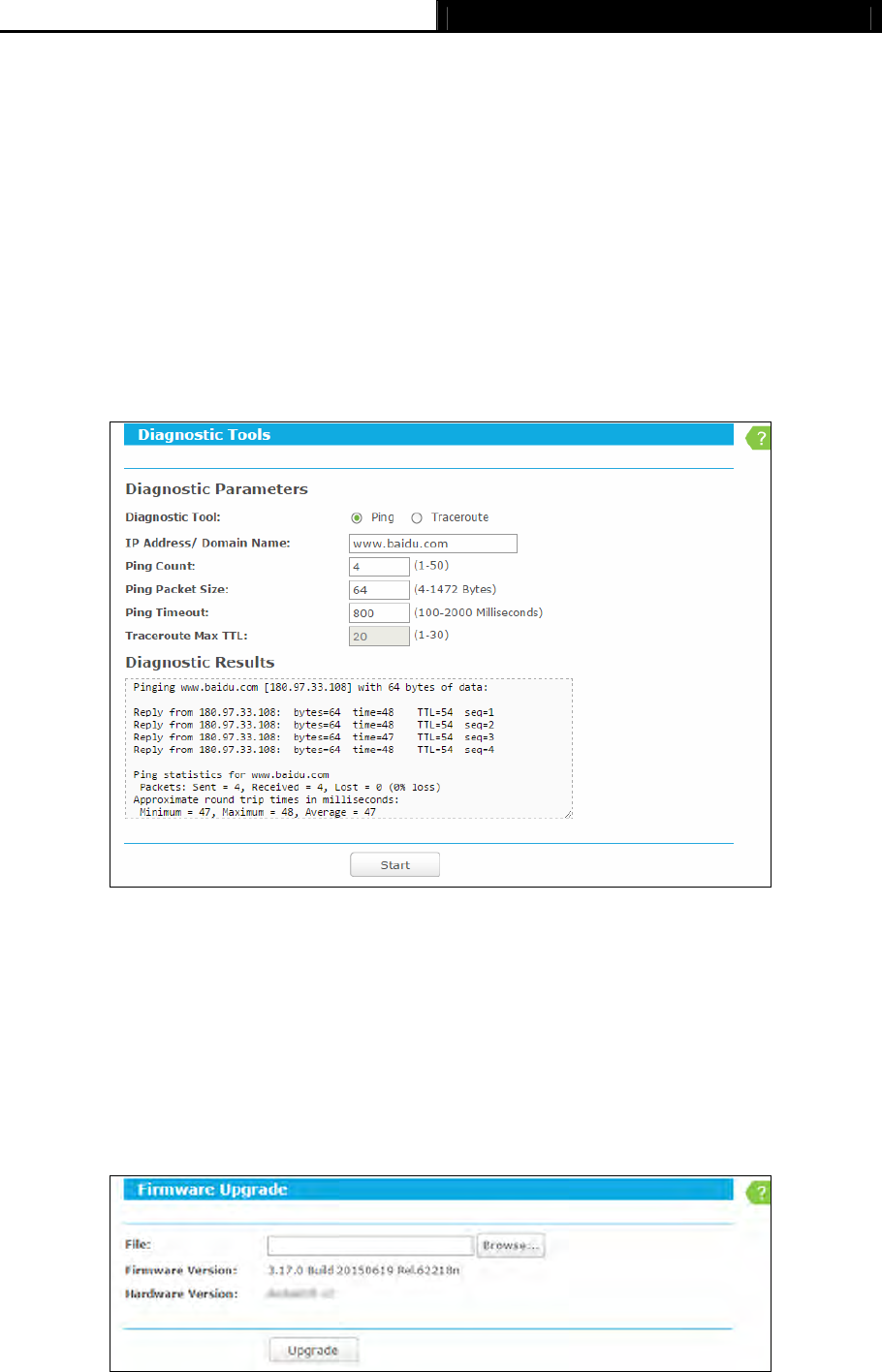

5.19.2 Diagnostic.....................................................................................................91
5.19.3 Firmware Upgrade........................................................................................92

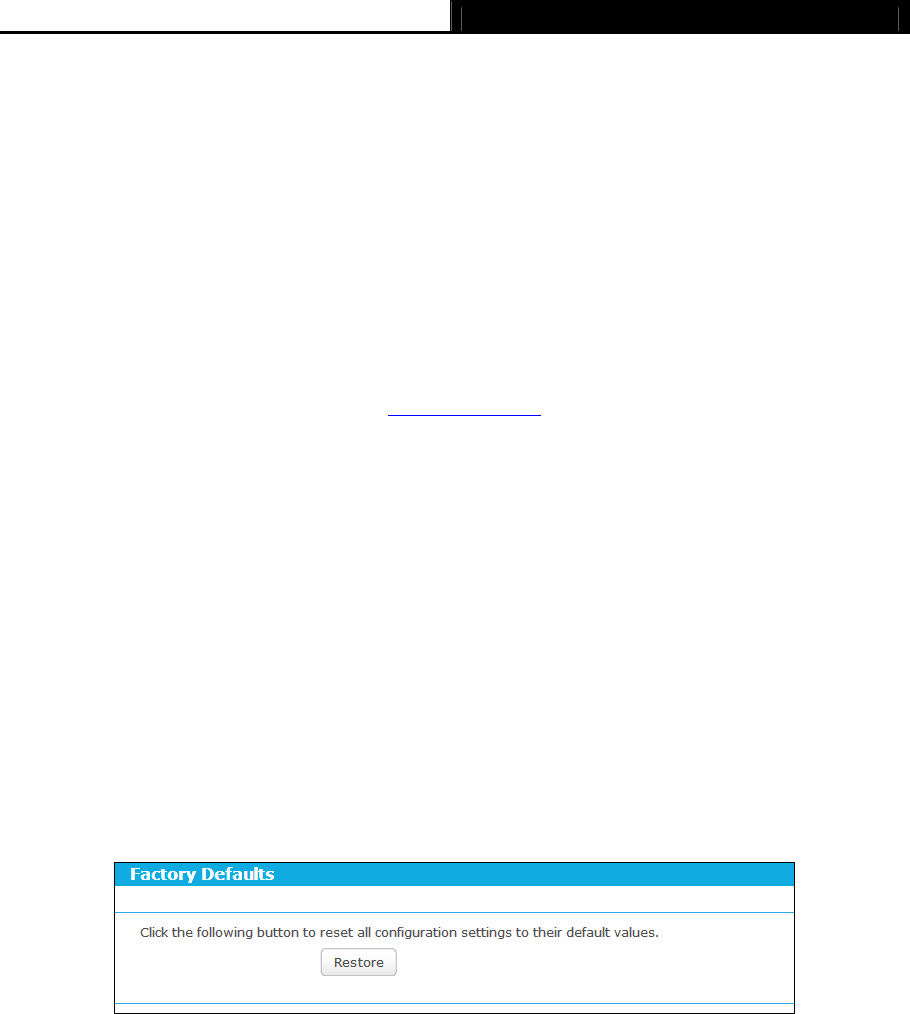

5.19.4 Factory Defaults ...........................................................................................93
5.19.5 Backup & Restore.........................................................................................93
5.19.6 Reboot..........................................................................................................94

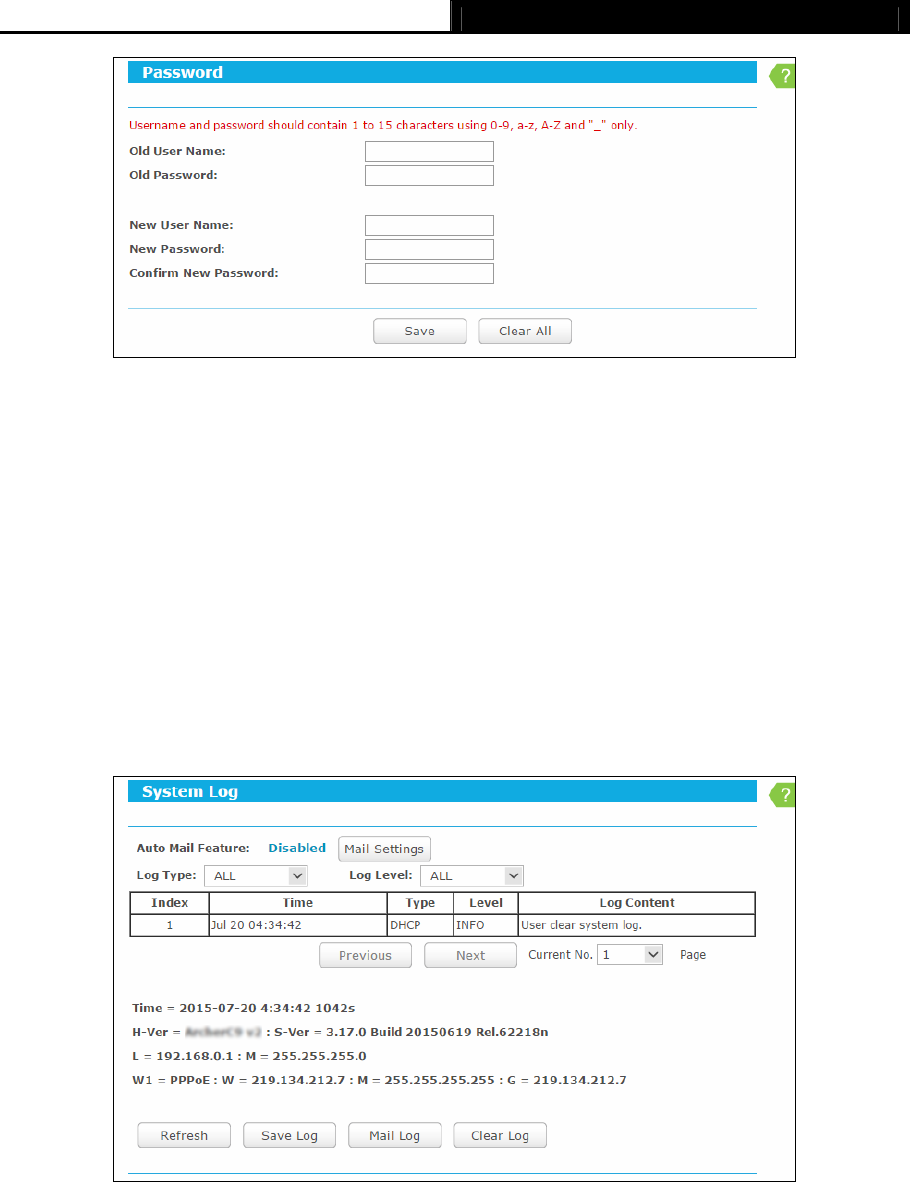

5.19.7 Password......................................................................................................94
5.19.8 System Log...................................................................................................95
5.19.9 Statistics .......................................................................................................97
Appendix A: FAQ ....................................................................................................99
Appendix B: Configuring the PC.........................................................................104
Appendix C: Specifications .................................................................................107
Appendix D: Glossary..........................................................................................109
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 1 -
Package Contents
The following items should be found in your package:
Archer C9 AC1900 Wireless Dual Band Gigabit Router
DC Power Adapter for Archer C9 AC1900 Wireless Dual Band Gigabit Router
Quick Installation Guide
Resource CD for Archer C9 AC1900 Wireless Dual Band Gigabit Router, including:
This Guide
Other Helpful Information
Note:
Make sure that the package contains the above items. If any of the listed items are damaged or
missing, please contact your distributor.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 2 -
Chapter 1. Introduction
1.1 Overview of the router
The Archer C9 AC1900 Wireless Dual Band Gigabit Router integrates 4-port Switch, Firewall,
NAT-router and Wireless AP. Powered by 3x3 MIMO technology, the AC1900 Wireless Dual Band
Gigabit Router delivers exceptional range and speed, which can fully meet the need of Small
Office/Home Office (SOHO) networks and the users demanding higher networking performance.
Your wireless connections are radio band selectable to avoid interference in your area, and the four
built-in Gigabit ports supply high-speed connection to your wired devices.
The Archer C9 AC1900 Wireless Dual Band Gigabit Router provides up to 1900Mbps wireless
connection with other wireless clients. The incredible speed makes it ideal for handling multiple data
streams at the same time, which ensures your network stable and smooth. The performance of this
802.11ac wireless router will give you the unexpected networking experience at speed much faster
than 802.11n. It is also compatible with all IEEE 802.11n, IEEE 802.11a, IEEE 802.11b and IEEE
802.11g products.
With multiple protection measures, including SSID broadcast control and wireless LAN
64/128/152-bit WEP encryption, Wi-Fi Protected Access (WPA2- PSK, WPA- PSK), as well as
advanced Firewall protections, the Archer C9 AC1900 Wireless Dual Band Gigabit Router
provides complete data privacy.
The Archer C9 AC1900 Wireless Dual Band Gigabit Router provides flexible access control, so that
parents or network administrators can establish restricted access policies for children or staff. It also
supports Virtual Server and DMZ host for Port Triggering, and then the network administrators can
manage and monitor the network in real time with the remote management function.
Since the router is compatible with virtually all the major operating systems, it is very easy to
manage. Quick Setup Wizard is supported and detailed instructions are provided step by step in
this user guide. Before installing the router, please look through this guide to know all the router’s
functions.
1.2 Conventions
The router or Archer C9 mentioned in this guide stands for Archer C9 AC1900 Wireless Dual Band
Gigabit Router without any explanation.
1.3 Main Features
Complies with IEEE 802.11ac.
One 10/100/1000M Auto-Negotiation RJ45 Internet port, four 10/100/1000M Auto-Negotiation
RJ45 Ethernet ports, supporting Auto MDI/MDIX.
Provides a USB 3.0 port and a USB 2.0 port supporting file sharing and print server.
Simple Installation
Flexible Access Control
Multiple Security Protections
Incredible Speed
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 3 -
Provides WPA/WPA2, WPA-PSK/WPA2-PSK authentication, TKIP/AES encryption security.
Shares data and Internet access for users, supporting Dynamic IP/Static IP/PPPoE/PPTP/
L2TP Internet access.
Supports simultaneous 2.4GHz and 5GHz connections for 1900Mbps of total available
bandwidth.
Supports Virtual Server, Special Application and DMZ host.
Supports UPnP, Dynamic DNS, Static Routing.
Provides Automatic-connection and Scheduled Connection on certain time to the Internet.
Built-in NAT and DHCP server supporting static IP address distributing.
Supports Parental Control and Access Control.
Connects Internet on demand and disconnects from the Internet when idle for PPPoE.
Provides WEP encryption security and wireless LAN ACL (Access Control List).
Supports Flow Statistics.
Supports IPv6.
Supports firmware upgrade and Web management.
1.4 Panel Layout
1.4.1 The Front Panel
The router’s LEDs are located on the front panel (View from left to right).
Name Status Indication
Flashing The router is booting or upgrading.
(Power)
On The router has booted.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 4 -
Off Power is off.
On 2.4G wireless is working properly.
(2.4G Wireless) Off 2.4G wireless is disabled.
On 5G wireless is working properly.
(5G Wireless) Off 5G wireless is disabled.
On There is device(s) connected to the Ethernet (1/2/3/4) port(s).
(Ethernet) Off No any device is connected to the Ethernet (1/2/3/4) port.
Blue The Internet port is connected, and the Internet is accessible.
Orange The Internet port is connected, but the Internet is inaccessible.
(Internet)
Off The Internet port isn’t connected, and the Internet is
inaccessible.
Flashing WPS button on the router is pressed, and the router is trying to
connect a wireless device to its network via WPS.
On The connection via WPS is successful.
(WPS)
Off The connection via WPS fails.
Flashing The router is identifying the device connected to the USB 2.0
port.
On The device is identified successfully.
(USB 1)
Off No device is connected to the USB 2.0 port.
Flashing The router is identifying the device connected to the USB 3.0
port.
On The device is identified successfully.
(USB 2)
Off No device is connected to the USB 3.0 port.
Note:
After a device is successfully added to the network by WPS function, the WPS LED will keep on
for about 5 minutes and then turn off.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 5 -
1.4.2 The Rear Panel

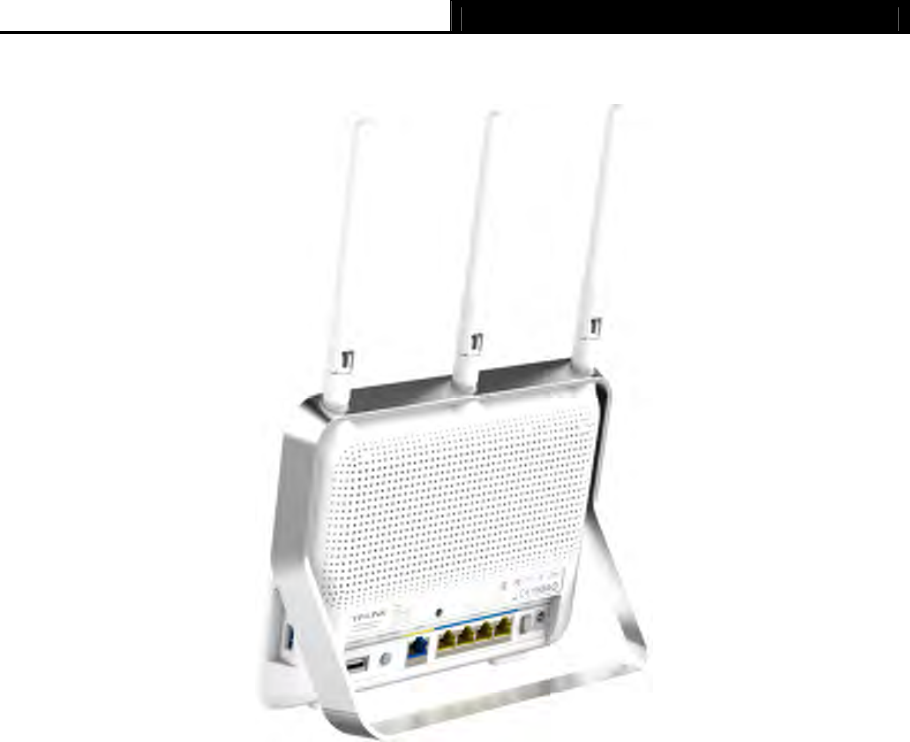

Figure 1-1 Rear Panel sketch
The following parts are located on the rear panel (View from left to right).
USB 2.0: The USB 2.0 port connects to a USB 2.0 storage device or a USB 2.0 printer.
Reset/WPS:
Pressing this button for less than 5 seconds enables the WPS function. If your client devices,
such as wireless adapters, that support Wi-Fi Protected Setup, then you can press this
button to quickly establish a connection between the router and client devices and
automatically configure wireless security for your wireless network.
Pressing this button for more than 5 seconds enables the Reset function. With the router
powered on, press and hold the Reset/WPS button for approximately 8 seconds. And then
release the button and wait the router to reboot to its factory default settings.
Internet: This port is where you will connect the DSL/cable Modem, or Ethernet.
Ethernet (1, 2, 3, 4): These ports (1, 2, 3, 4) connect the router to the local PC(s).
Power On/Off: The switch for the power.
Power: The Power socket is where you will connect the power adapter. Please use the
power adapter provided.
The following parts are located on the side panel (View from top to bottom).
WiFi: The button for the wireless function.
USB 3.0: The USB 3.0 port connects to a USB 3.0 storage device or a USB 3.0 printer.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 6 -
Chapter 2. Connecting the router
2.1 System Requirements
Broadband Internet Access Service (DSL/Cable/Ethernet)
One DSL/Cable Modem that has an RJ45 connector (which is not necessary if the router is
connected directly to the Ethernet)
PCs with a working Ethernet Adapter and an Ethernet cable with RJ45 connectors
TCP/IP protocol on each PC
Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari
2.2 Installation Environment Requirements
Place the router in a well-ventilated place far from any heater or heating vent
Avoid direct irradiation of any strong light (such as sunlight)
Keep at least 2 inches (5 cm) of clear space around the router
Operating Temperature: 0℃~40℃ (32℉~104℉)
Operating Humidity: 10%~90%RH, Non-condensing
2.3 Connecting the router
Before installing the router, make sure your PC is connected to the Internet through the broadband
service successfully. If there is any problem, please contact your ISP. After that, please install the
router according to the following steps. Don't forget to pull out the power plug and keep your hands
dry.
1. Install the antennas.
2. Turn off the modem, and remove the backup battery if it has one.
3. Connect the modem to the Internet port on your router with an Ethernet cable.
4. Turn on the modem, and then wait about 2 minutes for it to restart.
5. Turn on the router.
6. Verify that the following LEDs are on and solid before continuing with the configuration.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 7 -
Figure 2-1 Hardware Installation
Figure 2-2 USB Installation
Note:
If you want to use the router to share files or printer, plug the USB storage device to the USB port
or connect the printer to the router with a matching cable.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 8 -
Chapter 3. Quick Setup
1. Set up the TCP/IP Protocol in "Obtain an IP address automatically" mode on your PC. If
you need instructions as to how to do this, please refer to Appendix B: Configuring the PC.
2. Open a web-browser (such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari),
and type in the default IP address http://tplinkwifi.net in the address field.
Figure 3-1 Log in the router
After a moment, a login window will appear. Enter admin for the User Name and Password,
both in lower case letters. Then click the Login button or press the Enter key.
Figure 3-2 Login Windows
Note:
If the above screen does not pop up, it means that your Web-browser has been set to a proxy.
Go to Tools menu>Internet Options>Connections>LAN Settings, in the screen that appears,
cancel the Using Proxy checkbox, and click OK to finish it.
3. After successful login, the Quick Setup page will appear for you to select your Region and
Time zone. After finishing the selection, click Next.
Figure 3-3 Quick Setup
4. Then WAN Connection Type page will appear as shown below. Select your connection type
if you know what it is or click Auto Detect button; then follow the instructions to continue.
Note:
1) It's likely that you will skip Step 3 and jump to Step 4 in some situations, which is normal.
2) Make sure the cable is securely plugged into the Internet port before using Auto-Detect.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 9 -
3) Auto-Detect supports only three popular connection types, PPPoE, Dynamic IP, and
Static IP. If your connection type is L2TP or PPTP, you need to manually select the very
type and click Next to go on configuring.
Figure 3-4 WAN Connection Type
Dynamic IP
Choose to clone MAC address or not and then click Next to continue.
Figure 3-5 WAN Connection Type
Static IP
Figure 3-6 WAN Connection Type
IP Address - Enter the IP address into this field.
Subnet Mask - Enter the subnet mask into this field. It is usually 255.255.255.0.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 10 -
Default Gateway - Enter the gateway IP address into this field.
Primary DNS - Enter the DNS Server IP address into this field.
Secondary DNS (Optional) - If your ISP provides another DNS server IP address, enter it
into this field.
PPPoE/Russian PPPoE
Figure 3-7 WAN Connection Type
Username - Enter the username provided by your ISP. This field is case-sensitive.
Password - Enter the password provided by your ISP. This field is case-sensitive.
L2TP
Figure 3-8 WAN Connection Type
VPN Server IP/ Domain Name - Enter the server IP address/name provided by your ISP.
Username - Enter the username provided by your ISP. This field is case-sensitive.
Password - Enter the Password provided by your ISP. This field is case-sensitive.
Dynamic IP/Static IP - Select Static IP if the IP Address, Subnet Mask, Default Gateway, and
Primary DNS server address have been provided by your ISP. Otherwise, please select
Dynamic IP.
IP Address - Enter the IP address provided by your ISP.
Subnet Mask - Enter the subnet mask provided by your ISP.
Default Gateway- Enter the default gateway provided by your ISP.
Primary DNS - Enter the primary DNS provided by your ISP.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 11 -
PPTP

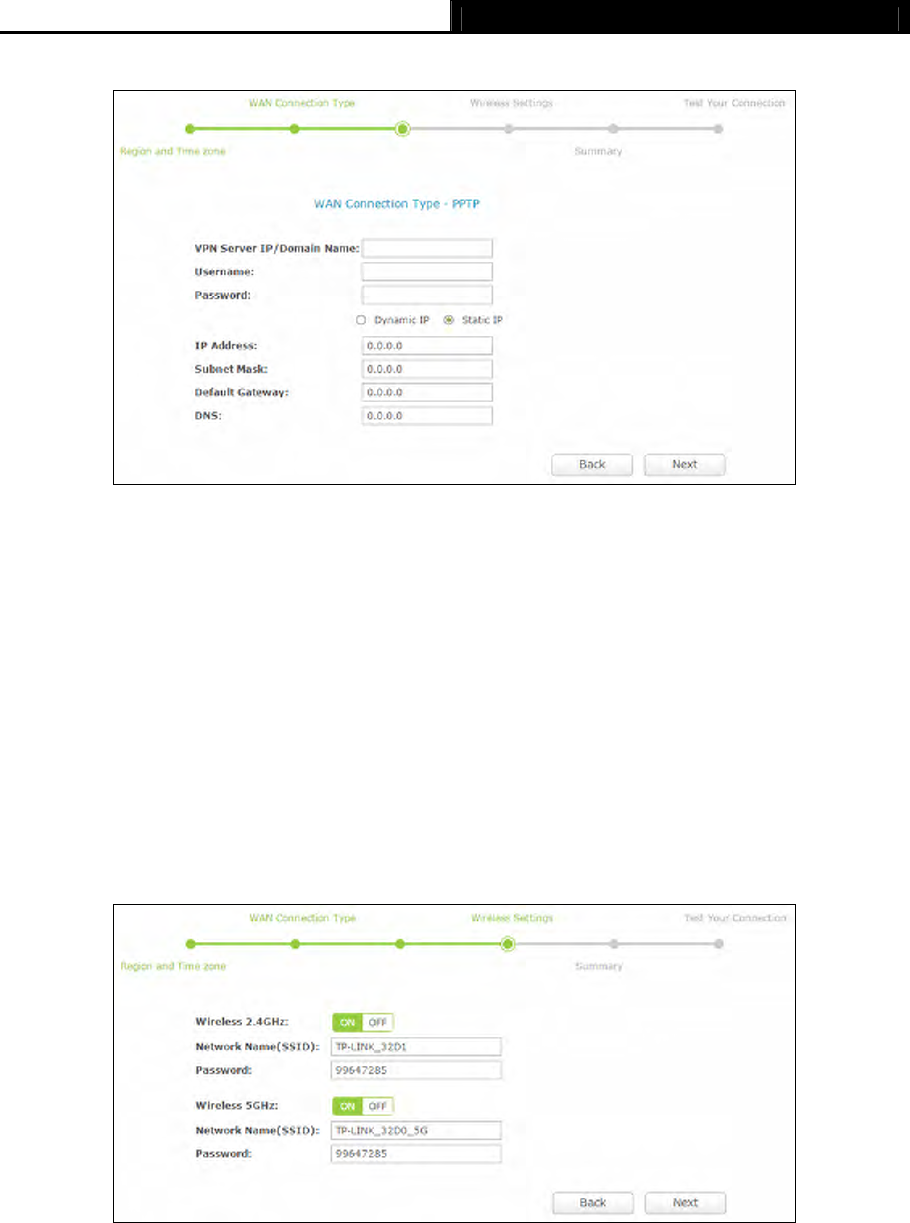

Figure 3-9 WAN Connection Type
VPN Server IP/Domain Name - Enter the server IP address/name provided by your ISP.
Username - Enter the username provided by your ISP. This field is case-sensitive.
Password - Enter the Password provided by your ISP. This field is case-sensitive.
Dynamic IP/Static IP - Select Static IP if the IP Address, Subnet Mask, Default Gateway, and
Primary DNS server address have been provided by your ISP. Otherwise, please select
Dynamic IP.
IP Address - Enter the IP address provided by your ISP.
Subnet Mask - Enter the subnet mask provided by your ISP.
Default Gateway- Enter the default gateway provided by your ISP.
Primary DNS - Enter the primary DNS provided by your ISP.
5. After finishing WAN Connection Type selection, you need to configure the basic parameters
for your wireless network, including 2.4GHz and 5GHz, and then click Next.
Figure 3-10 Wireless Settings
Wireless 2.4GHz/5GHz - Displays whether the wireless function is enabled or not.
Network Name (SSID) - Also called the SSID (Service Set Identification). Enter a value of up
to 32 characters. The same name must be assigned to all wireless devices in your network.
This value is case-sensitive. For example, TEST is NOT the same as test.
Password - Create a password for your 2.4GHz and 5GHz wireless network.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 12 -
Chapter 4. Basic
4.1 Network Map
Network Map provides a router-centered dashboard that lets you see the status of your
Internet connection and network at a glance. You can click any of the six sections of the
dashboard to view the detail information. All the information is read-only.
Figure 4-1 Network Map
Internet - Click to view the ISP settings of your router.
Wireless Clients - Click to view the wireless devices connected to your network.
Wired Clients - Click to view the wired devices connected to your network.
Wireless - Click to view or change the wireless settings for your router.
Printer - Click to view the information of the printer connected to your network.
USB Disk - Click to view the information of the USB storage device connected to your
network.
4.2 Internet
Choose menu “Basic→Internet”, and you can view or change the basic ISP information for your
router.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 13 -

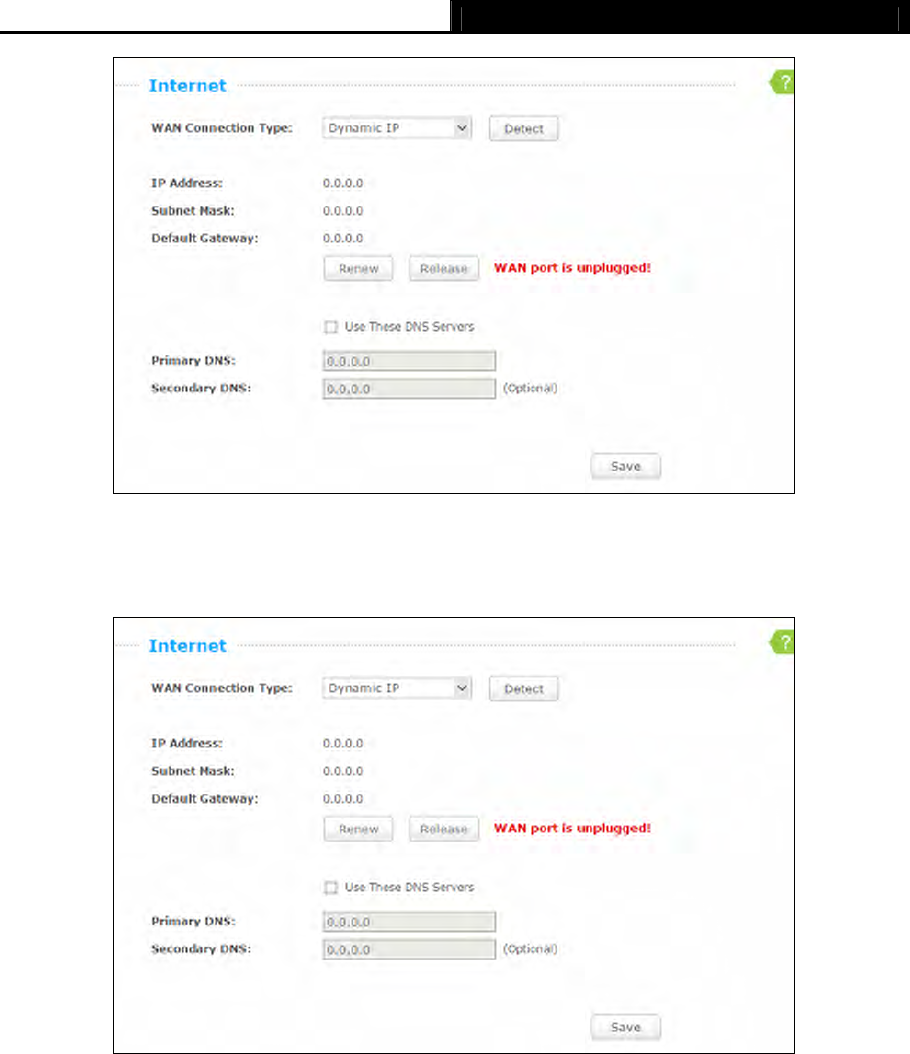

Figure 4-2 Internet
1. If your ISP provides the DHCP service, please choose Dynamic IP type, and the router will
automatically get IP parameters from your ISP. You can see the page as shown below.
Figure 4-3 Dynamic IP
IP Address - Assigned dynamically by your ISP.
Subnet Mask - Assigned dynamically by your ISP.
Default Gateway - Assigned dynamically by your ISP.
Click the Renew button to renew the IP parameters from your ISP. Click the Release button to
release the IP parameters.
Primary/Secondary DNS - If your ISP gives you one or two DNS addresses, select Use
These DNS Servers and enter the primary and secondary addresses into the correct fields.
Otherwise, the DNS servers will be assigned dynamically from your ISP.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 14 -
Note:
If you find error when you go to a website after entering the DNS addresses, it is likely that
your DNS servers are set up improperly. You should contact your ISP to get DNS server
addresses.
Click the Save button to save your settings.
2. If your ISP provides a static or fixed IP Address, Subnet Mask, Gateway and DNS setting,
select Static IP. The Static IP settings page will appear as shown below.
Figure 4-4 Static IP
IP Address - Enter the IP address in dotted-decimal notation provided by your ISP.
Subnet Mask - Enter the subnet Mask in dotted-decimal notation provided by your ISP,
usually is 255.255.255.0.
Default Gateway - Enter the gateway IP address in dotted-decimal notation provided by your
ISP.
Primary/Secondary DNS - Enter one or two DNS addresses in dotted-decimal notation
provided by your ISP.
Click the Save button to save your settings.

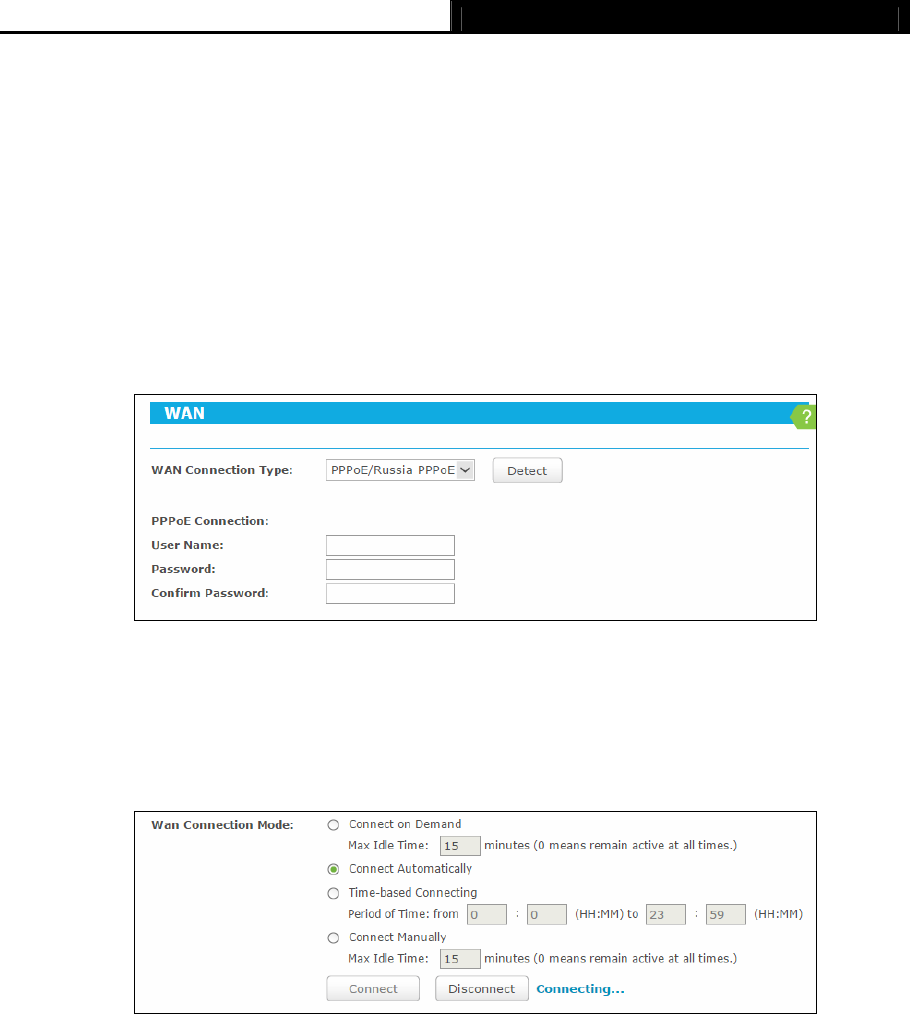

3. If your ISP provides a PPPoE connection, select PPPoE/Russia PPPoE option. And you
should enter the following parameters in the screen below.
Figure 4-5 PPPoE
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 15 -
User Name/Password - Enter the User Name and Password provided by your ISP. These
fields are case-sensitive. Click the Connect button to connect immediately. Click the
Disconnect button to disconnect immediately.
Click the Save button to save your settings.

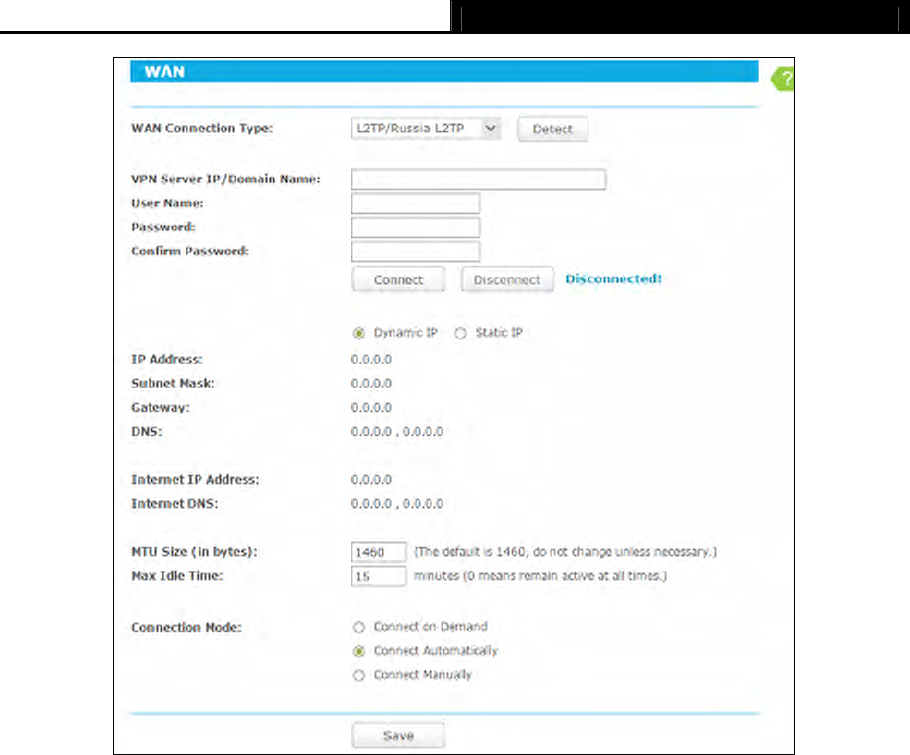

4. If your ISP provides L2TP connection, please select L2TP/Russia L2TP option. And you
should enter the following parameters in the screen below.
Figure 4-6 L2TP/Russia L2TP
VPN Server IP/Domain Name - Enter the IP address or domain name of your VPN server.
User Name/Password - Enter the User Name and Password provided by your ISP. These
fields are case-sensitive.
Dynamic IP/Static IP - Choose either as you are given by your ISP. Click the Connect button
to connect immediately. Click the Disconnect button to disconnect immediately.
Click the Save button to save your settings.

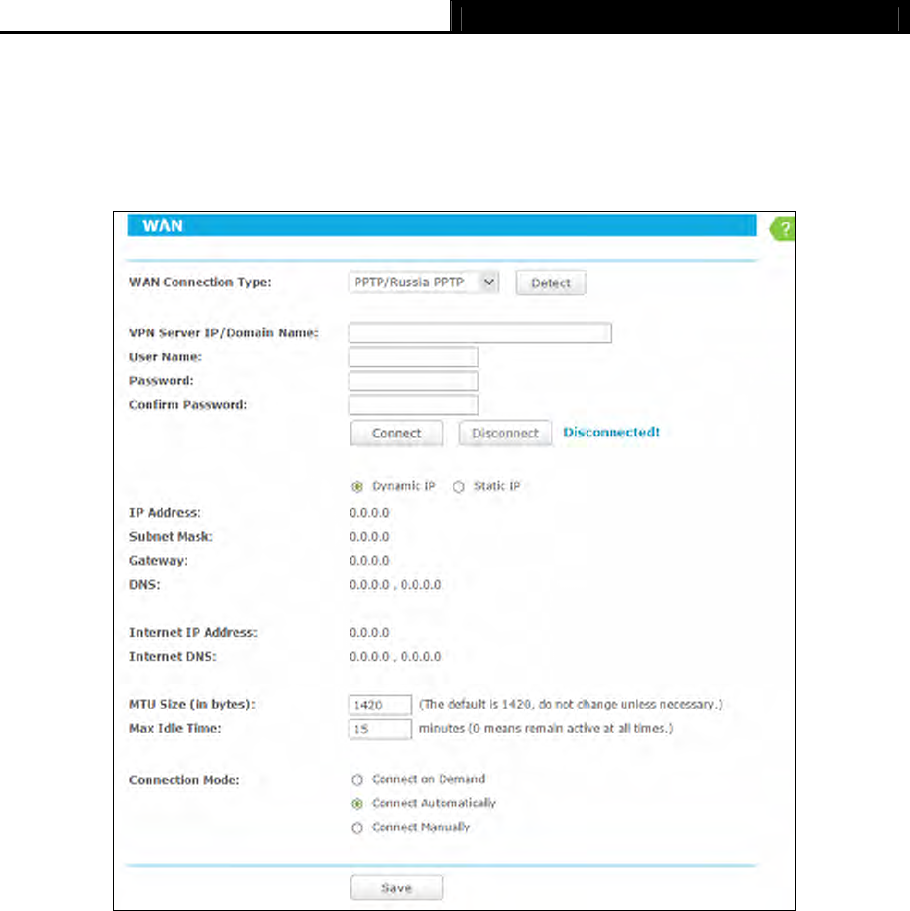

5. If your ISP provides PPTP connection, please select PPTP/Russia PPTP option. And you
should enter the following parameters (Figure 5-8).
Figure 4-7 PPTP/Russia PPTP
VPN Server IP/Domain Name - Enter the IP address or domain name of your VPN server.
User Name/Password - Enter the User Name and Password provided by your ISP. These
fields are case-sensitive.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 16 -
Dynamic IP/ Static IP - Choose either as you are given by your ISP and enter the ISP’s IP
address or the domain name. If you choose static IP and enter the domain name, you should
also enter the DNS assigned by your ISP. And click the Save button. Click the Connect
button to connect immediately. Click the Disconnect button to disconnect immediately.
Click the Save button to save your settings.
Note:
If you don't know how to choose the appropriate connection type, click the Detect button to allow
the router to automatically search your Internet connection for servers and protocols. The
connection type will be reported when an active Internet service is successfully detected by the
router. This report is for your reference only. To make sure the connection type your ISP provides,
please refer to the ISP. The various types of Internet connections that the router can detect are as
follows:
PPPoE - Connections which use PPPoE that requires a user name and password.
Dynamic IP - Connections which use dynamic IP address assignment.
Static IP - Connections which use static IP address assignment.
The router cannot detect PPTP and L2TP connections with your ISP. If your ISP uses one of
these protocols, then you must configure your connection manually.
4.3 Wireless
Choosing menu “Basic→Wireless”, you can configure the basic settings for the wireless network
including 2.4GHz and 5GHz.

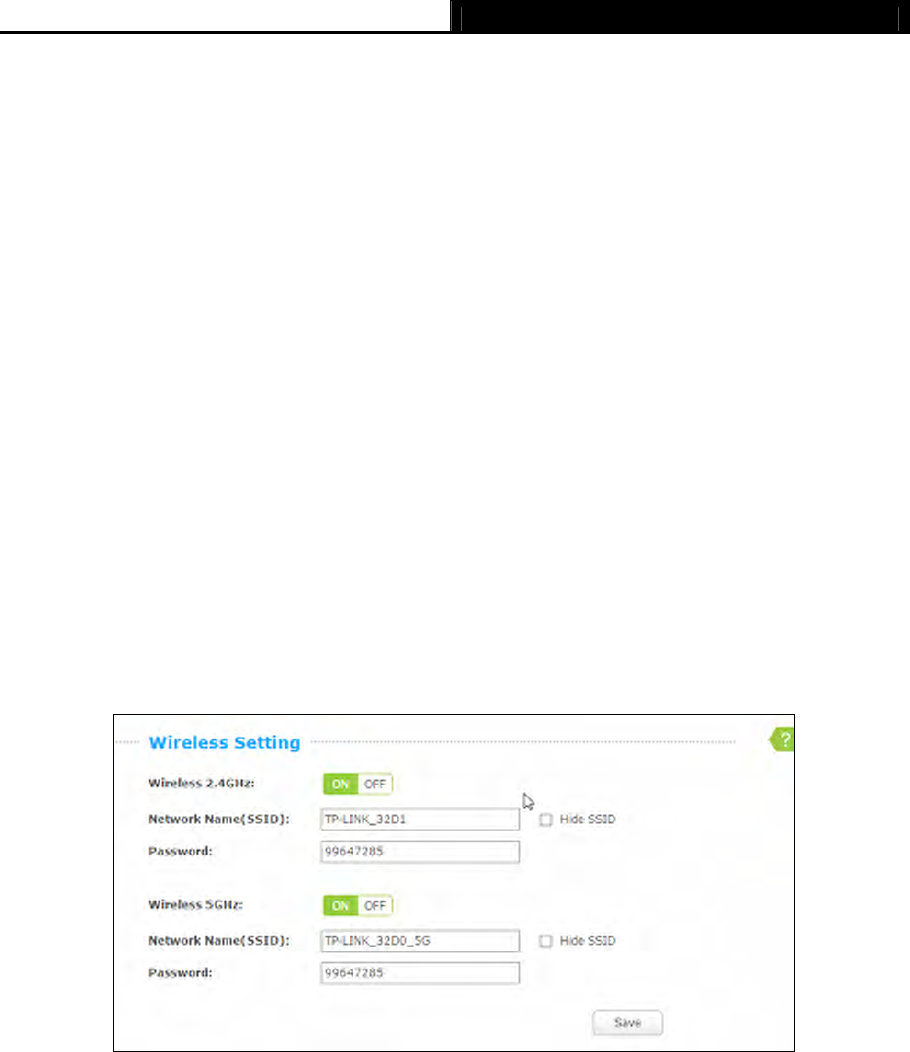

Figure 4-8 Wireless Setting
Wireless 2.4GHz/5GHz - Select ON to enable your wireless 2.4GHz/5GHz network, and
select OFF to disable your wireless 2.4GHz/5GHz network.
Network Name (SSID) - Create a name (up to 32 characters) for your wireless 2.4GHz/5GHz
network. If the Hide SSID checkbox is selected, the SSID of your wireless network will be
hidden from the Wi-Fi network.
Password - Create a password for your wireless network. The password must have a
minimum of 8 characters in length.
Click the Save button to save your settings.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 17 -
4.4 USB Settings
4.4.1 File Sharing
Choose menu “Basic→USB Settings→File Sharing”, you can configure the sharing settings.
Figure 4-9 File Sharing
Device Setting - Click the Scan button to display the information of the USB storage device
connected to the router. Click the Safely Remove button to remove the USB storage device
safely from the router. Select the Active checkbox, and then the corresponding USB storage
device is active.
Sharing Settings
Network/Media Server Name - Show the name of the network/media server. This is the
name used to access the USB device connected to the router.
Access Method - Select the check boxes for the access methods that you want.
1) Network Neighborhood: This method is enabled by default. To access the USB drive for
example from a Windows computer:
i. Select Start > Run.
ii. Enter \\192.168.0.1 in the dialog box and click the OK button.
2) FTP: This method is disabled by default. If you select this check box and click the Save
button, the LAN users can access the USB drive through FTP. To access the USB drive
for example from a Windows computer:
i. Select Start > Run.
ii. Enter ftp://192.168.0.1:21 in the dialog box and click the OK button.
3) FTP (Remote): This method is disabled by default. If you select this check box, remote
users can access the USB drive through FTP over the Internet. This feature supports
both downloading and uploading of files. To change the FPT (Remote) port, modify the
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 18 -
port and then click the Save button. To access the USB drive for example from a
Windows computer:
i. Select Start > Run.
ii. Enter ftp://WAN IP:port in the dialog box and click the OK button.
Note:
If the port for FTP (Remote) is changed, the port for FTP will be changed to the same
port.
Sharing Mode
1) If Share All is selected, all the folders in the USB drive will be shared. Besides
Authentication will appear for you to choose or not.
2) If Share Selected Folders is selected, only the folders you specified will be shared.
Authentication
If Require Login is selected, you should use the username and password to log in.
4.4.2 Print Server
Choose menu “Basic→USB Settings→Print Server”, you can enable or disable the print server.

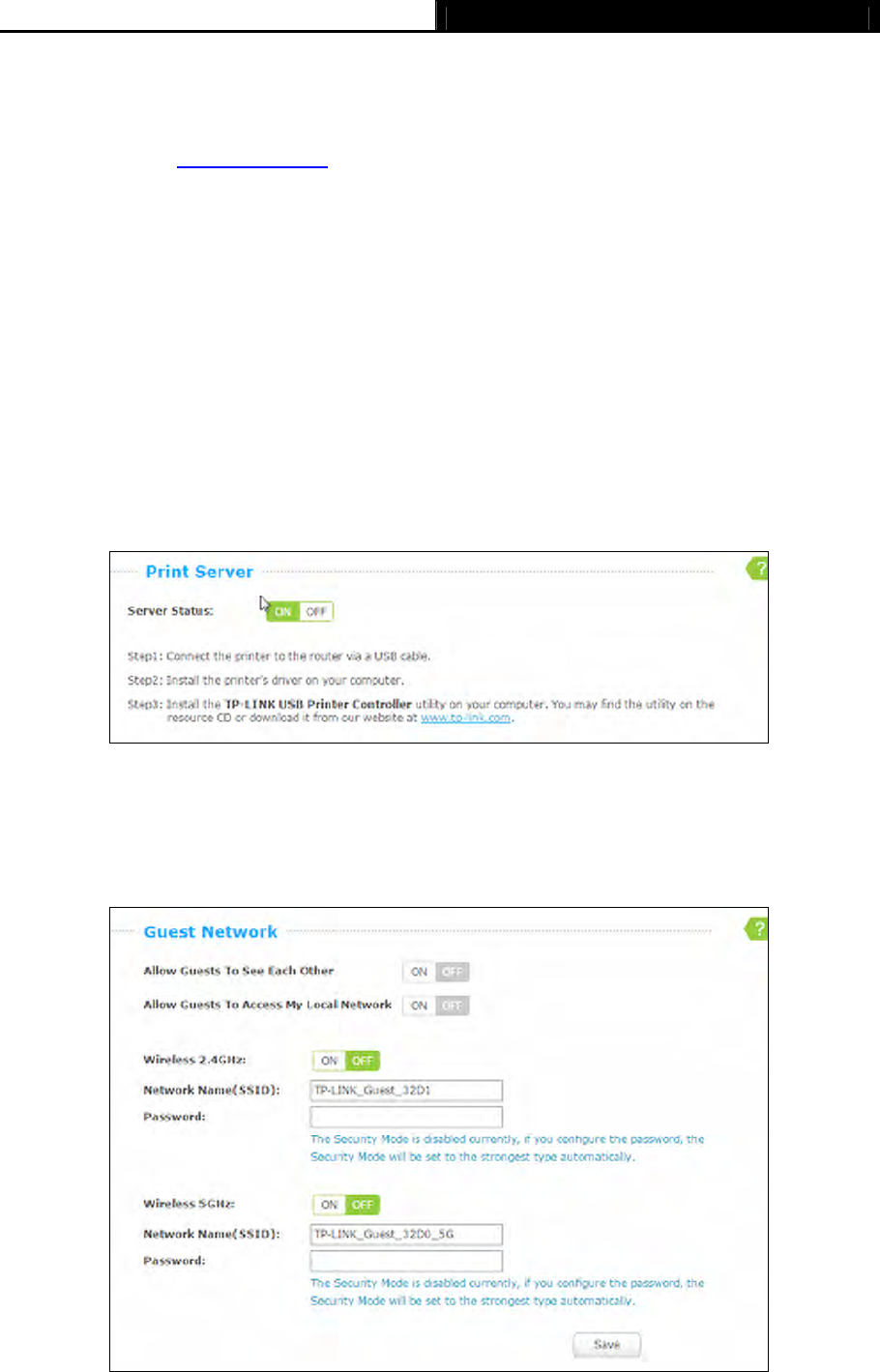

Figure 4-11 Print Server
4.5 Guest Network
Choose menu “Basic→Guest Network”, you can configure a wireless network for the guest,
including 2.4GHz and 5GHz.

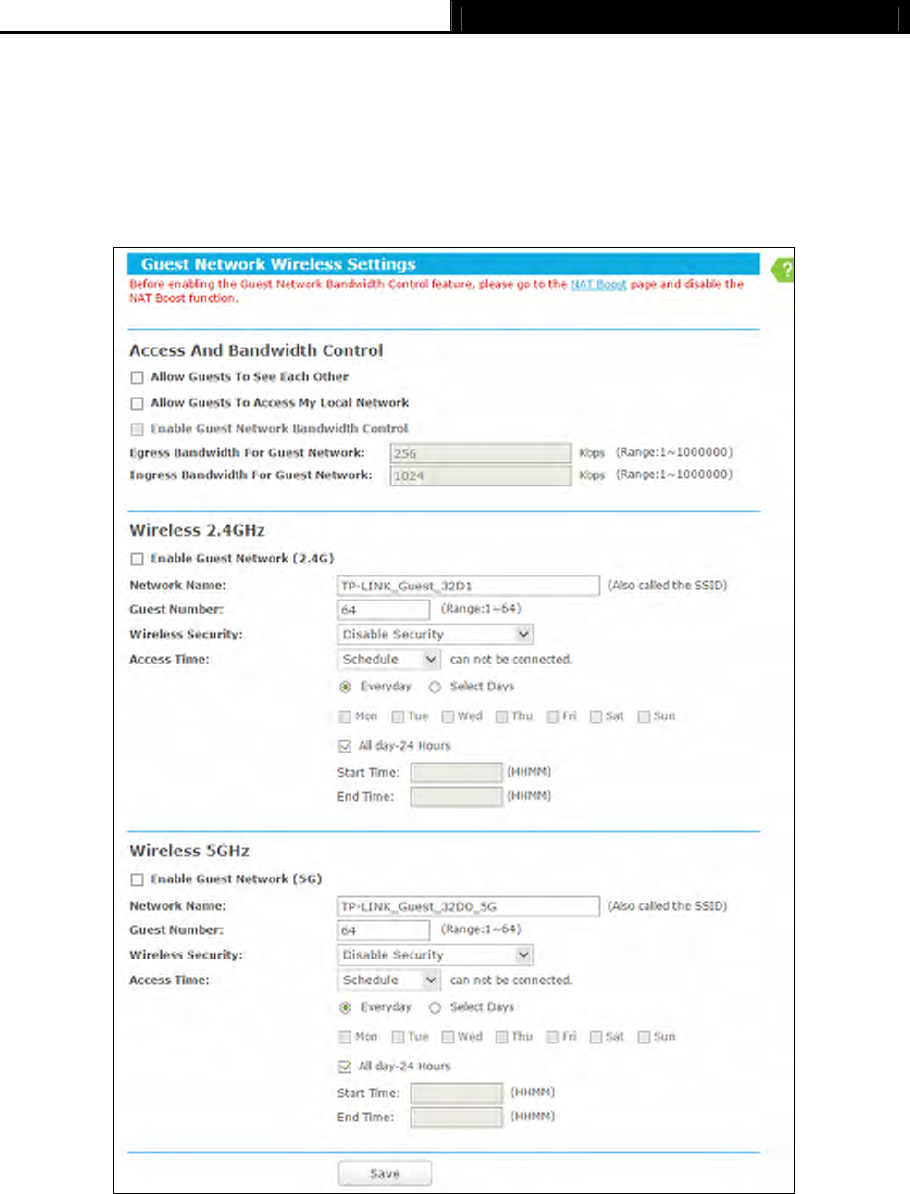

Figure 4-12 Guest Network
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 19 -
Allow Guests To See Each Other - If ON is selected, anyone who connects to the guest
network can access each other.
Allow Guests To Access My Local Network - If ON is selected, anyone who connects to the
guest network has access to your local network, not just Internet access.
Wireless 2.4GHz/5GHz - Select ON to enable guest wireless 2.4GHz/5GHz network, and
select OFF to disable guest wireless 2.4GHz/5GHz network.
Network Name(SSID) - create a value of up to 32 characters. The same Name(SSID) must
be assigned to all wireless devices in your guest network.
Password - Create a password for the guest network. The password must have a minimum of
8 characters in length.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 20 -
Chapter 5. Advanced
5.1 Status
Choose menu “Advanced→Status”, you can see the current status information about the router.
Figure 5-1 Status
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 21 -
5.2 Network
Figure 5-2 Network menu
There are three submenus under the Network menu as shown in Figure 5-2: WAN, MAC Clone,
and LAN. Click any of them, and you will be able to configure the corresponding function.
5.2.1 WAN
Choose menu “Advanced→Network→WAN”, you can configure the IP parameters of the WAN
on the screen below.
1. If your ISP provides the DHCP service, please choose Dynamic IP type, and the router will
automatically get IP parameters from your ISP. You can see the page, shown in Figure 5-3.
Figure 5-3 WAN – Dynamic IP
This page displays the WAN IP parameters assigned dynamically by your ISP, including IP
address, Subnet Mask, Default Gateway, etc. Click the Renew button to renew the IP
parameters from your ISP. Click the Release button to release the IP parameters.
MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet networks
is 1500 Bytes. It is not recommended that you change the default MTU Size unless required
by your ISP.
Use These DNS Servers - If your ISP gives you one or two DNS addresses, select Use
These DNS Servers and enter the primary and secondary addresses into the correct fields.
Otherwise, the DNS servers will be assigned dynamically from your ISP.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 22 -
Note:
If you find error when you go to a website after entering the DNS addresses, it is likely that
your DNS servers are set up improperly. You should contact your ISP to get DNS server
addresses.
Host Name - This option specifies the Host Name of the router.
Get IP with Unicast DHCP - A few ISPs' DHCP servers do not support the broadcast
applications. If you cannot get the IP Address normally, you can choose this option. (It is rarely
required.)
Click the Save button to save your settings.
2. If your ISP provides a static or fixed IP Address, Subnet Mask, Gateway and DNS setting,
select Static IP. The Static IP settings page will appear, shown in Figure 5-4.
Figure 5-4 WAN - Static IP
IP Address - Enter the IP address in dotted-decimal notation provided by your ISP.
Subnet Mask - Enter the subnet Mask in dotted-decimal notation provided by your ISP,
usually is 255.255.255.0.
Default Gateway - Enter the gateway IP address in dotted-decimal notation provided by your
ISP.
MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet networks
is 1500 Bytes. It is not recommended that you change the default MTU Size unless required
by your ISP.
Primary/Secondary DNS - (Optional) Enter one or two DNS addresses in dotted-decimal
notation provided by your ISP.
Click the Save button to save your settings.
3. If your ISP provides a PPPoE connection, select PPPoE/Russia PPPoE option. And you
should enter the following parameters (Figure 5-5).
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 23 -
Figure 5-5 WAN - PPPoE
User Name/Password - Enter the User Name and Password provided by your ISP. These
fields are case-sensitive.
Secondary Connection - It’s available only for PPPoE Connection. If your ISP provides an
extra Connection type such as Dynamic/Static IP to connect to a local area network, then you
can check the radio button of Dynamic/Static IP to activate this secondary connection.
Disabled - The Secondary Connection is disabled by default, so there is PPPoE
connection only. This is recommended.
Dynamic IP - You can check this radio button to use Dynamic IP as the secondary
connection to connect to the local area network provided by ISP.
Static IP - You can check this radio button to use Static IP as the secondary connection
to connect to the local area network provided by ISP.
Connect on Demand - In this mode, the Internet connection can be terminated automatically
after a specified inactivity period (Max Idle Time) and be re-established when you attempt to
access the Internet again. If you want your Internet connection keeps active all the time,
please enter “0” in the Max Idle Time field. Otherwise, enter the number of minutes you want
to have elapsed before your Internet access disconnects.
Connect Automatically - The connection can be re-established automatically when it was
down.
Time-based Connecting - The connection will only be established in the period from the start
time to the end time (both are in HH:MM format).
Note:
Only when you have configured the system time on “Advanced→System Tools→Time
Settings” page, will the Time-based Connecting function can take effect.
Connect Manually - You can click the Connect/Disconnect button to connect/disconnect
immediately. This mode also supports the Max Idle Time function as Connect on Demand
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 24 -
mode. The Internet connection can be disconnected automatically after a specified inactivity
period and re-established when you attempt to access the Internet again.
Click the Connect button to connect immediately. Click the Disconnect button to disconnect
immediately.
Caution: Sometimes the connection cannot be terminated although you specify a time to Max Idle
Time because some applications are visiting the Internet continually in the background.
If you want to do some advanced configurations, please click the Advanced button, and the page
shown in Figure 5-6 will then appear.

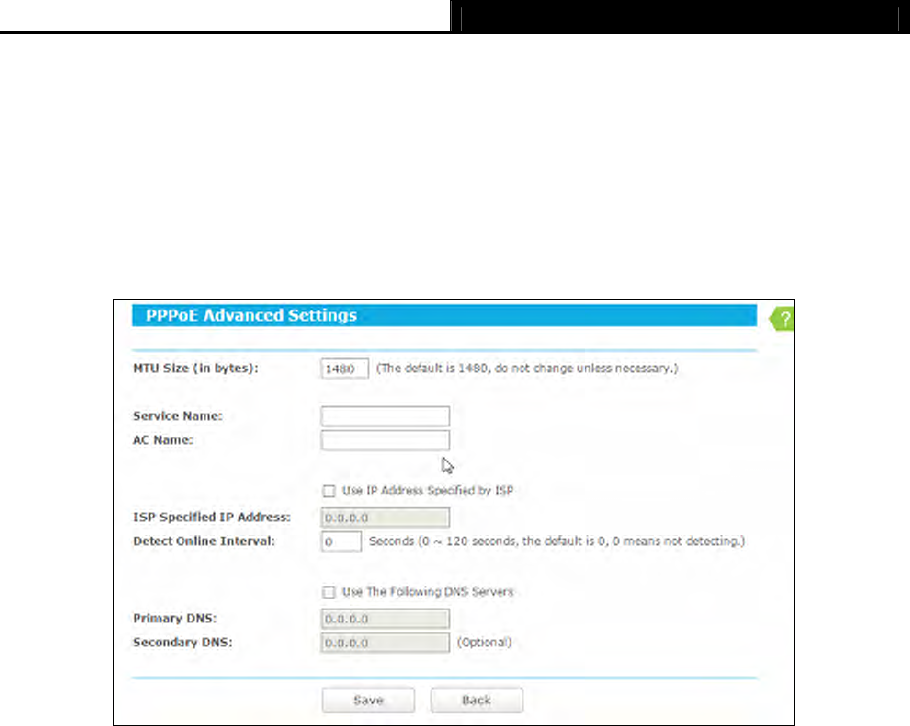

Figure 5-6 PPPoE Advanced Settings
MTU Size - The default MTU size is “1480” bytes, which is usually fine. It is not recommended
that you change the default MTU Size unless required by your ISP.
Service Name/AC Name - The service name and AC (Access Concentrator) name should
not be configured unless you are sure it is necessary for your ISP. In most cases, leaving
these fields blank will work.
ISP Specified IP Address - If your ISP does not automatically assign IP addresses to the
router during login, please click “Use IP address specified by ISP” check box and enter the
IP address provided by your ISP in dotted-decimal notation.
Detect Online Interval - The router will detect Access Concentrator online at every interval.
The default value is “0”. You can input the value between “0” and “120”. The value “0” means
no detect.
Primary DNS/Secondary DNS - If your ISP does not automatically assign DNS addresses to
the router during login, please click “Use the following DNS servers” check box and enter
the IP address in dotted-decimal notation of your ISP’s primary DNS server. If a secondary
DNS server address is available, enter it as well.
Click the Save button to save your settings.
4. If your ISP provides L2TP connection, please select L2TP/Russia L2TP option. And you
should enter the following parameters (Figure 5-7).
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 25 -
Figure 5-7 WAN - L2TP/Russia L2TP
VPN Server IP/Domain Name - Enter the IP address or domain name of the VPN server
provided by your ISP.
User Name/Password - Enter the User Name and Password provided by your ISP. These
fields are case-sensitive.
Dynamic IP/ Static IP - Select Static IP if IP address, subnet mask, gateway and DNS server
address have been provided by your ISP. Otherwise, please select Dynamic IP.
Connect on Demand - You can configure the router to disconnect from your Internet
connection after a specified period of inactivity (Max Idle Time). If your Internet connection
has been terminated due to inactivity, Connect on Demand enables the router to
automatically re-establish your connection as soon as you attempt to access the Internet
again. If you wish to activate Connect on Demand, check the radio button. If you want your
Internet connection to remain active at all times, enter 0 in the Max Idle Time field. Otherwise,
enter the number of minutes you want to have elapsed before your Internet connection
terminates.
Connect Automatically - Connect automatically after the router is disconnected. To use this
option, check the radio button.
Connect Manually - You can configure the router to make it connect or disconnect manually.
After a specified period of inactivity (Max Idle Time), the router will disconnect from your
Internet connection, and you will not be able to re-establish your connection automatically as
soon as you attempt to access the Internet again. To use this option, check the radio button. If
you want your Internet connection to remain active at all times, enter "0" in the Max Idle Time
field. Otherwise, enter the number of minutes that you wish to have the Internet connecting
last unless a new link is requested.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 26 -
Caution: Sometimes the connection cannot be disconnected although you specify a time to Max
Idle Time, because some applications are visiting the Internet continually in the background.
Click the Save button to save your settings.
5. If your ISP provides PPTP connection, please select PPTP/Russia PPTP option. And you
should enter the following parameters (Figure 5-8).
Figure 5-8 PPTP Settings
VPN Server IP/Domain Name - Enter the IP address or domain name of the VPN server
provided by your ISP.
User Name/Password - Enter the User Name and Password provided by your ISP. These
fields are case-sensitive.
Dynamic IP/ Static IP – Select Static IP if IP address, subnet mask, gateway and DNS server
address have been provided by your ISP. Otherwise, please select Dynamic IP.
Connect on Demand - You can configure the router to disconnect from your Internet
connection after a specified period of inactivity (Max Idle Time). If your Internet connection
has been terminated due to inactivity, Connect on Demand enables the router to
automatically re-establish your connection as soon as you attempt to access the Internet
again. If you wish to activate Connect on Demand, check the radio button. If you want your
Internet connection to remain active at all times, enter “0” in the Max Idle Time field.
Otherwise, enter the number of minutes you want to have elapsed before your Internet
connection terminates.
Connect Automatically - Connect automatically after the router is disconnected. To use this
option, check the radio button.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 27 -
Connect Manually - You can configure the router to make it connect or disconnect manually.
After a specified period of inactivity (Max Idle Time), the router will disconnect from your
Internet connection, and you will not be able to re-establish your connection automatically as
soon as you attempt to access the Internet again. To use this option, click the radio button. If
you want your Internet connection to remain active at all times, enter "0" in the Max Idle Time
field. Otherwise, enter the number in minutes that you wish to have the Internet connecting
last unless a new link is requested.
Caution: Sometimes the connection cannot be disconnected although you specify a time to Max
Idle Time because some applications are visiting the Internet continually in the background.
Click the Save button to save your settings.
Note:
If you don't know how to choose the appropriate connection type, click the Detect button to allow
the router to automatically search your Internet connection for servers and protocols. The
connection type will be reported when an active Internet service is successfully detected by the
router. This report is for your reference only. To make sure the connection type your ISP provides,
please refer to the ISP. The various types of Internet connections that the router can detect are as
follows:
PPPoE - Connections which use PPPoE that requires a user name and password.
Dynamic IP - Connections which use dynamic IP address assignment.
Static IP - Connections which use static IP address assignment.
The router cannot detect PPTP/L2TP connections with your ISP. If your ISP uses one of these
protocols, then you must configure your connection manually.
5.2.2 MAC Clone
Choose menu “Advanced→Network→MAC Clone”, you can configure the MAC address of the
WAN on the screen below, Figure 5-9.

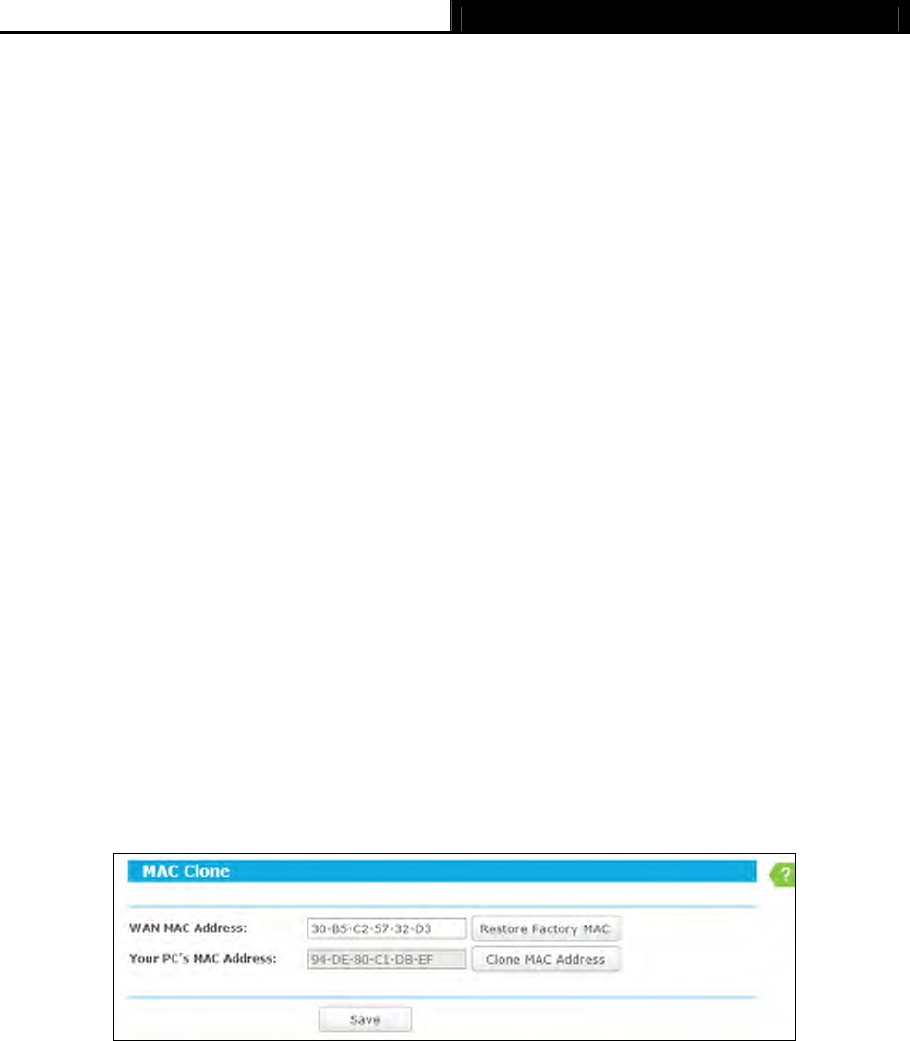

Figure 5-9 MAC Address Clone
Some ISPs require that you register the MAC Address of your adapter. Changes are rarely needed
here.
WAN MAC Address - This field displays the current MAC address of the Internet port. If your
ISP requires you to register the MAC address, please enter the correct MAC address into
this field in XX-XX-XX-XX-XX-XX format (X is any hexadecimal digit).
Your PC's MAC Address - This field displays the MAC address of the PC that is managing
the router. If the MAC address is required, you can click the Clone MAC Address button and
this MAC address will fill in the WAN MAC Address field.
Click Restore Factory MAC to restore the MAC address of Internet port to the factory default
value. Click the Save button to save your settings.
Note:
Only the PC on your LAN can use the MAC Address Clone function.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 28 -
5.2.3 LAN
Choose menu “Advanced→Network→LAN”, you can configure the IP parameters of the LAN on
the screen as below.
Figure 5-10 LAN
MAC Address - The physical address of the router, as seen from the LAN. The value can't
be changed.
IP Address - Enter the IP address of your router or reset it in dotted-decimal notation (factory
default: 192.168.0.1).
Subnet Mask - An address code that determines the size of the network. Normally use
255.255.255.0 as the subnet mask.
IGMP Proxy - If you want to watch TV through IGMP, please enable it.
Note:
1) If you change the IP Address of LAN, you must use the new IP Address to log in the router.
2) If the new LAN IP Address you set is not in the same subnet, the IP Address pool of the DHCP
server will change accordingly at the same time, while the Virtual Server and DMZ Host will
not take effect until they are re-configured.
5.3 Dual Band Selection
Choose menu “Advanced→Dual Band Selection”, and you can choose the working frequency
for your router. It is recommended that your computers and devices running video and voice
applications use the 5GHz band, while your guest access and computers that are only browsing
the web use the 2.4GHz band.
Figure 5-11 Dual Band Selection
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 29 -
5.4 Wireless 2.4GHz
Figure 5-12 Wireless menu
There are six submenus under the Wireless menu, shown in Figure 5-12: Wireless Settings,
WPS, Wireless Security, Wireless MAC Filtering, Wireless Advanced and Wireless Statistics.
Click any of them, and you will be able to configure the corresponding functions.
5.4.1 Wireless Settings
Choose menu “Advanced→Wireless 2.4GHz→Wireless Settings”, you can configure the basic
settings for the wireless network of 2.4GHz on this page.
Figure 5-13 Wireless Settings (2.4GHz)
Wireless Network Name - The wireless network name (SSID) that the router uses. You can
create a new one with up to 32 characters. The default SSID is set to be TP-LINK_XXXX.
This value is case-sensitive. For example, TEST is NOT the same as test.
Region - The geographic region where the router is being used. This field specifies the
region where the wireless function of the router can be used. It might be illegal to use the
wireless features of the router in some parts of the world. If your country or region is not
listed, please contact your local government agency for assistance.
Mode - Select the desired mode.
11n only - Select if you are using 802.11n wireless clients.
11bg mixed - Select if you are using both 802.11b and 802.11g wireless clients.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 30 -
11bgn mixed - Select if you are using a mix of 802.11b, 11g, and 11n wireless clients. It
is strongly recommended that you set the Mode to 802.11bgn mixed, and all of 802.11b,
802.11g, and 802.11n wireless stations can connect to the router.
Channel Width - Select the channel width from the drop-down list, including Auto, 20MHz,
40MHz. The default setting is Auto.
Note:
If 11bg mixed is selected in the Mode field, the Channel Width selecting field will turn grey
and the value will become 20MHz, which is unable to be changed.
Channel - This field determines which operating frequency will be used. The default channel
is set to Auto, so the router will choose the best channel automatically. It is not necessary to
change the wireless channel unless you notice interference problems with another nearby
access point.
Enable SSID Broadcast - When wireless clients survey the local area for wireless networks
to associate with, they will detect the SSID broadcast by the router. If you select the Enable
SSID Broadcast checkbox, the Wireless router will broadcast its name (SSID) on the air.
Enable WDS Bridging - Check this box to enable WDS. With this function, the router can
bridge two or more WLANs. If this checkbox is selected, you will have to set the following
parameters as shown in Figure 5-14. Make sure the following settings are correct.

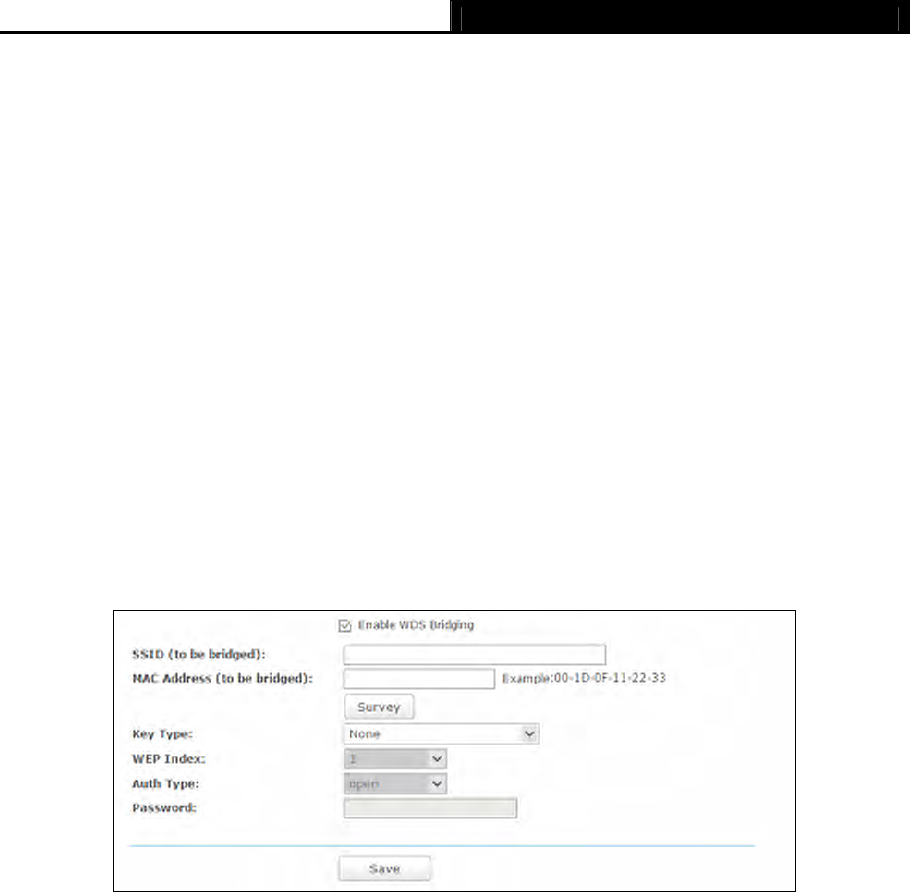

Figure 5-14 WDS Settings
SSID (to be bridged) - The SSID of the AP your router is going to connect to as a client.
You can also use the Survey function to select the SSID to join.
MAC Address (to be bridged) - The MAC address (BSSID) of the AP your router is
going to connect to as a client. You can also use the Survey function to select the MAC
address (BSSID) to join.
Survey - Click this button, you can search the APs that run in all channels.
Key type - This option should be chosen according to the AP's security configuration.
WEP Index - This option should be chosen if the key type is WEP. It indicates the index
of the WEP key.
Auth Type - This option should be chosen if the key type is WEP. It indicates the
authorization type of the Root AP.
Password - If the AP your router is going to connect needs password, you need to fill
the password in this blank.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 31 -
5.4.2 WPS
Choose menu “Advanced→Wireless 2.4GHz→WPS”, you can see the screen as shown in
Figure 5-15. This section will guide you to add a new wireless device to an existing network quickly
by WPS (Wi-Fi Protected Setup) function.
Figure 5-15 WPS
WPS Status - Enable or disable the WPS function here.
Current PIN - Displays the current value of the router's PIN. The default PIN of the router
can be found in the label or User Guide.
Restore PIN - Restore the PIN of the router to its default value.
Gen New PIN - Click this button, and then you can get a new random value for the router's
PIN. You can ensure the network security by generating a new PIN.
Add Device - You can add a new device to the existing network manually by clicking this
button.
If the wireless adapter supports Wi-Fi Protected Setup (WPS), you can establish a wireless
connection between wireless adapter and the router using either Push Button Configuration (PBC)
method or PIN method.
I. Use the Wi-Fi Protected Setup Button
Use this method if your client device has a WPS button.
Step 1: Press the WPS/Reset button on the back panel of the router.
Step 2: Press and hold the WPS button of the client device. The WPS LED flashes for two
minutes during the Wi-Fi Protected Setup process.
Step 3: When the WPS LED is on, the client device has successfully connected to the router.
II. Enter the client device’s PIN on the router
Use this method if your client device does not have the WPS button, but has a Wi-Fi Protected
Setup PIN number.
Step 1: Enable WPS. The default is enabled. Click the Add device button in Figure 5-15, then
Figure 5-16 will appear.
Figure 5-16 Add A New Device
Step 2: Enter the PIN number from the client device in the field on the WPS screen above. Then
click Connect button.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 32 -
Step 3: “Connect successfully” will appear on the screen of Figure 5-16, which means the
client device has successfully connected to the router.
Note:
1) The WPS LED on the router will light blue for five minutes if the device has been successfully
added to the network.
2) The WPS function cannot be configured if the wireless function of the router is disabled.
Please make sure the wireless function is enabled before configuring the WPS.
5.4.3 Wireless Security
Choose menu “Advanced→Wireless 2.4GHz→Wireless Security”, you can configure the
security settings of your wireless network. There are five wireless security modes supported by the
router: WPA-Personal, WPA2-Personal, WPA-Enterprise, WPA2-Enterprise, and WEP.

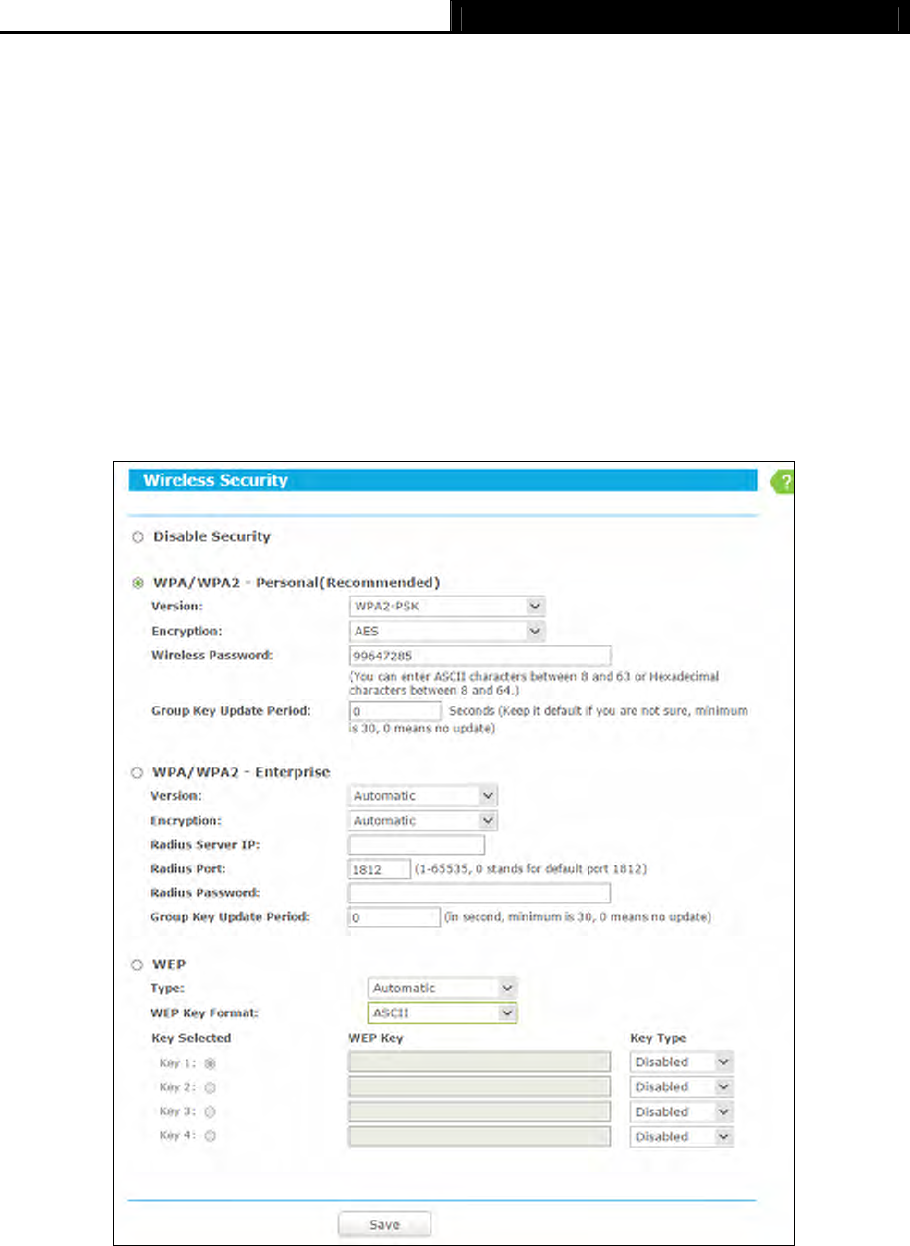

Figure 5-17 Wireless Security
Disable Security - If you do not want to use wireless security, check this radio button. But it’s
strongly recommended to choose one of the following modes to enable security.
WPA/WPA2-Personal - It’s the WPA/WPA2 authentication type based on pre-shared
passphrase. The router is configured by this security type by default.
Version - You can choose the version of the WPA-PSK or WPA2-PSK security on the
drop-down list. The default setting is WPA2-PSK.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 33 -
Encryption - You can select either TKIP or AES as Encryption. The default setting is
AES.
Note:
If you check the WPA/WPA2-Personal radio button and choose TKIP encryption, you will
find a notice in red as shown in Figure 5-18.

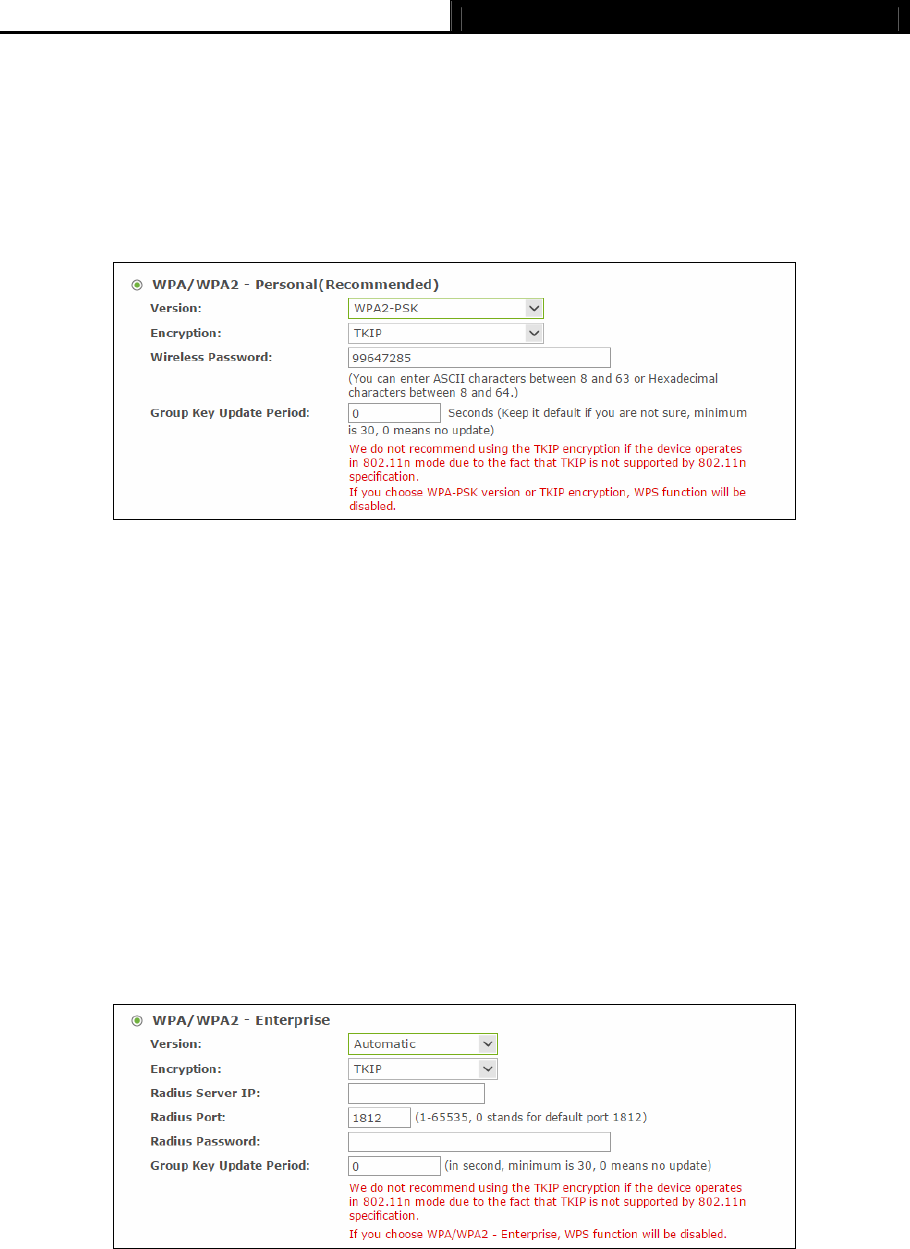

Figure 5-18 WPA/WPA2 – Personal
Wireless Password - You can enter ASCII characters between 8 and 63 characters or 8
to 64 Hexadecimal characters. The default password is the same with the default PIN
code, which is labeled on the router or can be found in Figure 5-15.
Group Key Update Period - Specify the group key update interval in seconds. The value
should be 30 or above. Enter 0 to disable the update.
WPA/WPA2- Enterprise - It’s based on Radius Server. If you choose WPA/WPA2 -
Enterprise, WPS function will be disabled.
Version - you can choose the version of the WPA security on the drop-down list. The
default setting is Automatic, which can select WPA (Wi-Fi Protected Access) or WPA2
(WPA version 2) automatically based on the wireless station's capability and request.
Encryption - You can select either Automatic, or TKIP or AES.
Note:
If you check the WPA/WPA2-Enterprise radio button and choose TKIP encryption, you will
find a notice in red as shown in Figure 5-19.
Figure 5-19 WPA/WPA2 - Enterprise
Radius Server IP - Enter the IP address of the Radius server.
Radius Port - Enter the port number of the Radius server.
Radius Password - Enter the password for the Radius server.
Group Key Update Period - Specify the group key update interval in seconds. The value
should be 30 or above. Enter 0 to disable the update.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 34 -
WEP - It is based on the IEEE 802.11 standard. If you check this radio button, you will find a
notice in red as shown in Figure 5-20.

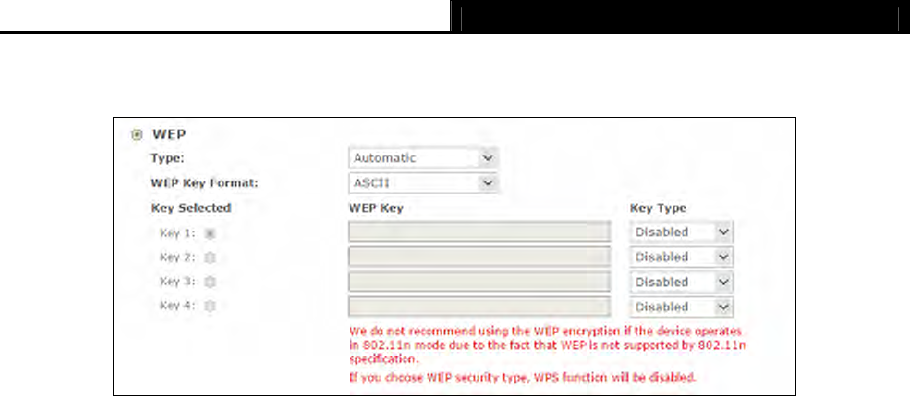

Figure 5-20 WEP
Type - you can choose the type for the WEP security on the drop-down list. The default
setting is Automatic, which can select Shared Key or Open System authentication type
automatically based on the wireless station's capability and request.
WEP Key Format - Hexadecimal and ASCII formats are provided here. Hexadecimal
format stands for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified
length. ASCII format stands for any combination of keyboard characters in the specified
length.
WEP Key - Select which of the four keys will be used and enter the matching WEP key
that you create. Make sure these values are identical on all wireless stations in your
network.
Key Type - You can select the WEP key length (64-bit or 128-bit) for encryption.
"Disabled" means this WEP key entry is invalid.
64-bit - You can enter 10 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key
is not promoted) or 5 ASCII characters.
128-bit - You can enter 26 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key
is not promoted) or 13 ASCII characters.
Note:
If you do not set the key, the wireless security function is still disabled even if you have
selected Shared Key as Authentication Type.
Be sure to click the Save button to save your settings on this page.
5.4.4 Wireless MAC Filtering
Choose menu “Advanced→Wireless 2.4GHz→Wireless MAC Filtering”, you can control the
wireless access by configuring the Wireless MAC Filtering function, shown in Figure 5-21.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 35 -

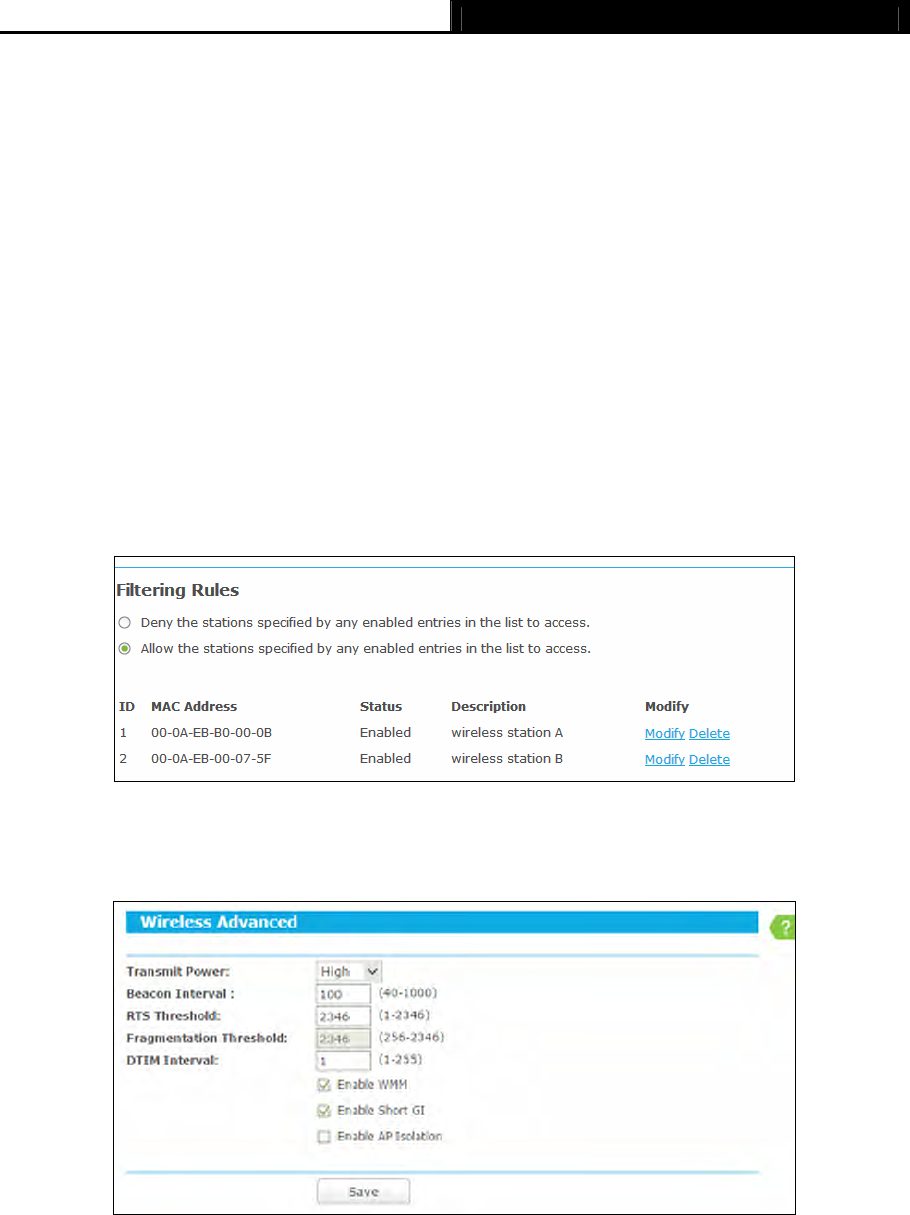

Figure 5-21 Wireless MAC Filtering
To filter wireless users by MAC Address, click Enable. The default setting is Disabled.
MAC Address - The wireless station's MAC address that you want to filter.
Status - The status of this entry, either Enabled or Disabled.
Description - A simple description of the wireless station.
To Add a Wireless MAC Address filtering entry, click the Add New… button. The "Add or Modify
Wireless MAC Address Filtering entry" page will appear, shown in Figure 5-22.
Figure 5-22 Add or Modify Wireless MAC Address Filtering entry
To add or modify a MAC Address Filtering entry, follow these instructions:
1. Enter the appropriate MAC Address into the MAC Address field. The format of the MAC
Address is XX-XX-XX-XX-XX-XX (X is any hexadecimal digit). For example:
00-0A-EB-B0-00-0B.
2. Give a simple description for the wireless station in the Description field. For example:
Wireless station A.
3. Select Enabled or Disabled for this entry on the Status drop-down list.
4. Click the Save button to save this entry.
To modify or delete an existing entry:
1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the
Delete.
2. Modify the information.
3. Click the Save button.
Click the Enable All button to make all entries enabled
Click the Disable All button to make all entries disabled.
Click the Delete All button to delete all entries.
Click the Next button to go to the next page.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 36 -
Click the Previous button to return to the previous page.
For example: If you desire that the wireless station A with MAC address 00-0A-EB-B0-00-0B and
the wireless station B with MAC address 00-0A-EB-00-07-5F are able to access the router, but all
the other wireless stations cannot access the router, you can configure the Wireless MAC Address
Filtering list by following these steps:
1. Click the Enable button to enable this function.
2. Select the radio button “Allow the stations specified by any enabled entries in the list to
access” for Filtering Rules.
3. Delete all or disable all entries if there are any entries already.
4. Click the
Add New...
button.
1) Enter the MAC address 00-0A-EB-B0-00-0B/00-0A-EB-00-07-5F in the MAC Address
field.
2) Enter wireless station A/B in the Description field.
3) Select Enabled in the Status drop-down list.
4) Click the Save button.
The filtering rules that configured should be similar to the following list:
5.4.5 Wireless Advanced
Choose menu “Advanced→Wireless 2.4GHz→Wireless Advanced”, you can configure the
advanced settings of your wireless network.
Figure 5-23 Wireless Advanced
Transmit Power - Here you can specify the transmit power of router. You can select High,
Middle or Low which you would like. High is the default setting and is recommended.
Beacon Interval - Enter a value between 40-1000 milliseconds for Beacon Interval here.
The beacons are the packets sent by the router to synchronize a wireless network. Beacon
Interval value determines the time interval of the beacons. The default value is 100.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 37 -
RTS Threshold - Here you can specify the RTS (Request to Send) Threshold. If the packet
is larger than the specified RTS Threshold size, the router will send RTS frames to a
particular receiving station and negotiate the sending of a data frame. The default value is
2346.
Fragmentation Threshold - This value is the maximum size determining whether packets
will be fragmented. Setting the Fragmentation Threshold too low may result in poor network
performance because of excessive packets. 2346 is the default setting and is recommended.
DTIM Interval - This value determines the interval of the Delivery Traffic Indication Message
(DTIM). A DTIM field is a countdown field informing clients of the next window for listening to
broadcast and multicast messages. When the router has buffered broadcast or multicast
messages for associated clients, it sends the next DTIM with a DTIM Interval value. You can
specify the value between 1-255 Beacon Intervals. The default value is 1, which indicates the
DTIM Interval is the same as Beacon Interval.
Enable WMM - WMM function can guarantee the packets with high-priority messages being
transmitted preferentially. It is strongly recommended.
Enable Short GI - This function is recommended for it will increase the data capacity by
reducing the guard interval time.
Enabled AP Isolation - This function can isolate wireless stations on your network from
each other. Wireless devices will be able to communicate with the router but not with each
other. To use this function, check this box. AP Isolation is disabled by default.
Note:
If you are not familiar with the setting items in this page, it's strongly recommended to keep the
provided default values; otherwise it may result in lower wireless network performance.
5.4.6 Wireless Statistics
Choose menu “Advanced→Wireless 2.4GHz→Wireless Statistics”, you can see the MAC
Address, Current Status, Received Packets and Sent Packets for each connected wireless station.
Figure 5-24 Wireless Statistics
MAC Address - The connected wireless station's MAC address
Current Status - The connected wireless station's running status, one of STA-AUTH/
STA-ASSOC/ STA-JOINED/ WPA/ WPA-PSK/ WPA2/ WPA2-PSK/ AP-UP/ AP-DOWN/
Disconnected
Received Packets - Packets received by the station
Sent Packets - Packets sent by the station
You cannot change any of the values on this page. To update this page and to show the current
connected wireless stations, click on the Refresh button.
If the numbers of connected wireless stations go beyond one page, click the Next button to go to
the next page and click the Previous button to return the previous page.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 38 -
Note:
This page will be refreshed automatically every 5 seconds.
5.5 Wireless 5GHz
Figure 5-25 Wireless menu
There are six submenus under the Wireless menu (shown in Figure 5-12): Wireless Settings,
WPS, Wireless Security, Wireless MAC Filtering, Wireless Advanced and Wireless Statistics.
Click any of them, and you will be able to configure the corresponding functions.
5.5.1 Wireless Settings
Choose menu “Advanced→Wireless 5GHz→Wireless Settings”, you can configure the basic
settings for the wireless network of 5GHz on this page.
Figure 5-26 Wireless Settings (5GHz)
Wireless Network Name - The wireless network name (SSID) that the router uses. You can
create a new one with up to 32 characters. The default SSID is set to be TP-LINK_XXXX_5G.
This value is case-sensitive. For example, TEST is NOT the same as test.
Region - The geographic region where the router is being used. This field specifies the
region where the wireless function of the router can be used. It might be illegal to use the
wireless features of the router in some parts of the world. If your country or region is not
listed, please contact your local government agency for assistance.
Mode - Select the desired mode.
11ac only - Select if you are using 802.11ac wireless clients.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 39 -
11a/n/ac mixed - Select if you are using a mix of 802.11a, 11n, and 11ac wireless
clients. This is the default mode, where all of 802.11a, 802.11n, and 802.11ac wireless
stations can connect to the router.
Channel Width - Select the channel width from the drop-down list, including Auto, 20MHz,
40MHz, 80MHz. The default setting is Auto.
Channel - This field determines which operating frequency will be used. The default channel
is set to Auto, so the router will choose the best channel automatically. It is not necessary to
change the wireless channel unless you notice interference problems with another nearby
access point.
Enable SSID Broadcast - When wireless clients survey the local area for wireless networks
to associate with, they will detect the SSID broadcast by the router. If you select the Enable
SSID Broadcast checkbox, the Wireless router will broadcast its name (SSID) on the air.
Enable WDS Bridging - Check this box to enable WDS. With this function, the router can
bridge two or more WLANs. If this checkbox is selected, you will have to set the following
parameters as shown in Figure 5-27. Make sure the following settings are correct.
Figure 5-27 WDS Settings
SSID (to be bridged) - The SSID of the AP your router is going to connect to as a client.
You can also use the search function to select the SSID to join.
MAC Address (to be bridged) - The MAC address (BSSID) of the AP your router is
going to connect to as a client. You can also use the Survey function to select the MAC
address (BSSID) to join.
Survey - Click this button, you can search the APs that run in all channels.
Key type - This option should be chosen according to the AP's security configuration. It
is recommended that the security type is the same as your AP's security type
WEP Index - This option should be chosen if the key type is WEP. It indicates the index
of the WEP key.
Auth Type - This option should be chosen if the key type is WEP. It indicates the
authorization type of the Root AP.
Password - If the AP your router is going to connect needs password, you need to fill the
password in this blank.
5.5.2 WPS
Choose menu “Advanced→Wireless 5GHz→WPS”, you can see the screen as shown in Figure
5-28. This section will guide you to add a new wireless device to an existing network quickly by
WPS (Wi-Fi Protected Setup) function.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 40 -
Figure 5-28 WPS
WPS Status - Enable or disable the WPS function here.
Current PIN - The current value of the router's PIN is displayed here. The default PIN of the
router can be found in the label or User Guide.
Restore PIN - Restore the PIN of the router to its default.
Gen New PIN - Click this button, and then you can get a new random value for the router's
PIN. You can ensure the network security by generating a new PIN.
Add Device - You can add a new device to the existing network manually by clicking this
button.
If the wireless adapter supports Wi-Fi Protected Setup (WPS), you can establish a wireless
connection between wireless adapter and router using either Push Button Configuration (PBC)
method or PIN method.
Note:
To build a successful connection by WPS, you should also do the corresponding configuration of
the new device for WPS function meanwhile.
I. Use the Wi-Fi Protected Setup Button
Use this method if your client device has a Wi-Fi Protected Setup button.
Step 1: Press the WPS/Reset button on the back panel of the router
Step 2: Press and hold the WPS button of the client device directly. The Wi-Fi Protected Setup
LED flashes for two minutes during the Wi-Fi Protected Setup process.
Step 3: When the WPS LED is on, the client device has successfully connected to the router.
II. Enter the client device’s PIN on the router
Use this method if your client device does not have the WPS button, but has a Wi-Fi Protected
Setup PIN number.
Step 1: Enable WPS. The default is enabled. Click the Add device button in Figure 5-28, then
Figure 5-29 will appear.
Figure 5-29 Add A New Device
Step 2: Enter the PIN number from the client device in the above PIN field. Then click Connect
button.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 41 -
Step 3: “Connect successfully” will appear on the screen of Figure 5-29, which means the client
device has successfully connected to the router.
Note:
1) The WPS LED on the router will light blue for five minutes if the device has been successfully
added to the network.
2) The WPS function cannot be configured if the wireless function of the router is disabled.
Please make sure the wireless function is enabled before configuring the WPS.
5.5.3 Wireless Security
Choose menu “Advanced→Wireless 5GHz→Wireless Security”, you can configure the security
settings of your wireless network.
There are five wireless security modes supported by the router: WPA-Personal, WPA2-Personal,
WPA-Enterprise, WPA2-Enterprise, and WEP.
Figure 5-30 Wireless Security
Disable Security - If you do not want to use wireless security, check this radio button. But it’s
strongly recommended to choose one of the following modes to enable security.
WPA/WPA2-Personal - It’s the WPA/WPA2 authentication type based on pre-shared
passphrase. The router is configured by this security type by default.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 42 -
Version - You can choose the version of the WPA-PSK or WPA2-PSK security on the
drop-down list. The default setting is WPA2-PSK.
Encryption - You can select either TKIP or AES as Encryption. The default setting is AES.
Note:
If you check the WPA/WPA2-Personal radio button and choose TKIP encryption, you will find
a notice in red as shown in Figure 5-31.
Figure 5-31 WPA/WPA2 – Personal
Wireless Password - You can enter ASCII characters between 8 and 63 characters or 8
to 64 Hexadecimal characters. The default password is the same with the default PIN
code, which is labeled on the bottom of the router or can be found in Figure 5-28.
Group Key Update Period - Specify the group key update interval in seconds. The value
should be 30 or above. Enter 0 to disable the update.
WPA/WPA2- Enterprise - It’s based on Radius Server. If you choose WPA/WPA2 -
Enterprise, WPS function will be disabled.
Version - you can choose the version of the WPA security on the drop-down list. The
default setting is Automatic, which can select WPA (Wi-Fi Protected Access) or WPA2
(WPA version 2) automatically based on the wireless station's capability and request.
Encryption - You can select either Automatic, or TKIP or AES.
Note:
If you check the WPA/WPA2-Enterprise radio button and choose TKIP encryption, you will
find a notice in red as shown in Figure 5-32.
Figure 5-32 WPA/WPA2 - Enterprise
Radius Server IP - Enter the IP address of the Radius server.
Radius Port - Enter the port number of the Radius server.
Radius Password - Enter the password for the Radius server.
Group Key Update Period - Specify the group key update interval in seconds. The value
should be 30 or above. Enter 0 to disable the update.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 43 -
WEP - It is based on the IEEE 802.11 standard. If you check this radio button, you will find a
notice in red as shown in Figure 5-33.
Figure 5-33 WEP
Type - you can choose the type for the WEP security on the drop-down list. The default
setting is Automatic, which can select Shared Key or Open System authentication type
automatically based on the wireless station's capability and request.
WEP Key Format - Hexadecimal and ASCII formats are provided here. Hexadecimal
format stands for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified
length. ASCII format stands for any combination of keyboard characters in the specified
length.
WEP Key - Select which of the four keys will be used and enter the matching WEP key
that you create. Make sure these values are identical on all wireless stations in your
network.
Key Type - You can select the WEP key length (64-bit or 128-bit) for encryption.
"Disabled" means this WEP key entry is invalid.
64-bit - You can enter 10 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key
is not promoted) or 5 ASCII characters.
128-bit - You can enter 26 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key
is not promoted) or 13 ASCII characters.
Note:
If you do not set the key, the wireless security function is still disabled even if you have
selected Shared Key as Authentication Type.
Be sure to click the Save button to save your settings on this page.
5.5.4 Wireless MAC Filtering
Choose menu “Advanced→Wireless→MAC Filtering”, you can control the wireless access by
configuring the Wireless MAC Filtering function, shown in Figure 5-34.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 44 -
Figure 5-34 Wireless MAC Filtering
To filter wireless users by MAC Address, click Enable. The default setting is Disabled.
MAC Address - The wireless station's MAC address that you want to filter.
Status - The status of this entry, either Enabled or Disabled.
Description - A simple description of the wireless station.
To Add a Wireless MAC Address filtering entry, click the Add New… button. The "Add or Modify
Wireless MAC Address Filtering entry" page will appear, shown in Figure 5-35.
Figure 5-35 Add or Modify Wireless MAC Address Filtering entry
To add or modify a MAC Address Filtering entry, follow these instructions:
1. Enter the appropriate MAC Address into the MAC Address field. The format of the MAC
Address is XX-XX-XX-XX-XX-XX (X is any hexadecimal digit). For example:
00-0A-EB-B0-00-0B.
2. Give a simple description for the wireless station in the Description field. For example:
Wireless station A.
3. Select Enabled or Disabled for this entry on the Status drop-down list.
4. Click the Save button to save this entry.
To modify or delete an existing entry:
1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the
Delete.
2. Modify the information.
3. Click the Save button.
Click the Enable All button to make all entries enabled
Click the Disable All button to make all entries disabled.
Click the Delete All button to delete all entries.
Click the Next button to go to the next page.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 45 -
Click the Previous button to return to the previous page.
For example: If you desire that the wireless station A with MAC address 00-0A-EB-B0-00-0B and
the wireless station B with MAC address 00-0A-EB-00-07-5F are able to access the router, but all
the other wireless stations cannot access the router, you can configure the Wireless MAC Address
Filtering list by following these steps:
1. Click the Enable button to enable this function.
2. Select the radio button “Allow the stations specified by any enabled entries in the list to
access” for Filtering Rules.
3. Delete all or disable all entries if there are any entries already.
4. Click the
Add New... button.
5. Enter the MAC address 00-0A-EB-B0-00-0B/00-0A-EB-00-07-5F
in the MAC Address field.
6. Enter wireless station A/B in the Description field.
7. Select Enabled in the Status drop-down list.
8. Click the Save button.
The filtering rules that configured should be similar to the following list:
5.5.5 Wireless Advanced
Choose menu “Advanced→Wireless→Wireless Advanced”, you can configure the advanced
settings of your wireless network.
Figure 5-36 Wireless Advanced
Transmit Power - Here you can specify the transmit power of router. You can select High,
Middle or Low which you would like. High is the default setting and is recommended.
Beacon Interval - Enter a value between 40-1000 milliseconds for Beacon Interval here.
The beacons are the packets sent by the router to synchronize a wireless network. Beacon
Interval value determines the time interval of the beacons. The default value is 100.
RTS Threshold - Here you can specify the RTS (Request to Send) Threshold. If the packet
is larger than the specified RTS Threshold size, the router will send RTS frames to a
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 46 -
particular receiving station and negotiate the sending of a data frame. The default value is
2346.
Fragmentation Threshold - This value is the maximum size determining whether packets
will be fragmented. Setting the Fragmentation Threshold too low may result in poor network
performance because of excessive packets. 2346 is the default setting and is recommended.
DTIM Interval - This value determines the interval of the Delivery Traffic Indication Message
(DTIM). A DTIM field is a countdown field informing clients of the next window for listening to
broadcast and multicast messages. When the router has buffered broadcast or multicast
messages for associated clients, it sends the next DTIM with a DTIM Interval value. You can
specify the value between 1-255 Beacon Intervals. The default value is 1, which indicates the
DTIM Interval is the same as Beacon Interval.
Enable WMM - WMM function can guarantee the packets with high-priority messages being
transmitted preferentially. It is strongly recommended.
Enable Short GI - This function is recommended for it will increase the data capacity by
reducing the guard interval time.
Enable AP Isolation - This function can isolate wireless stations on your network from each
other. Wireless devices will be able to communicate with the router but not with each other.
To use this function, check this box. AP Isolation is disabled by default.
Note:
If you are not familiar with the setting items in this page, it's strongly recommended to keep
the provided default values; otherwise it may result in lower wireless network performance.
5.5.6 Wireless Statistics
Choose menu “Advanced→Wireless→Wireless Statistics”, you can see the MAC Address,
Current Status, Received Packets and Sent Packets for each connected wireless station.
Figure 5-37 Wireless Statistics
MAC Address - The connected wireless station's MAC address
Current Status - The connected wireless station's running status, one of STA-AUTH/
STA-ASSOC/ STA-JOINED/ WPA/ WPA-PSK/ WPA2/ WPA2-PSK/ AP-UP/ AP-DOWN/
Disconnected
Received Packets - Packets received by the station
Sent Packets - Packets sent by the station
You cannot change any of the values on this page. To update this page and to show the current
connected wireless stations, click on the Refresh button.
If the numbers of connected wireless stations go beyond one page, click the Next button to go to
the next page and click the Previous button to return the previous page.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 47 -
Note:
This page will be refreshed automatically every 5 seconds.
5.6 Guest Network
Choose menu “Advanced→Guest Network”, you can configure the Guest Network Wireless
Settings on the page as shown in Figure 5-38.
Figure 5-38 Guest Network Wireless Settings
Access And Bandwidth Control
Allow Guests to See Each Other - If this checkbox is selected, anyone who connects to
the guest network can communicate with each other.
Allow Guests To Access My Local Network - If this checkbox is selected, anyone who
connects to the guest network has access to your local network, not just Internet access.
Enable Guest Network Bandwidth Control - If this checkbox is selected, the Guest
Network Bandwidth Control rules will take effect.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 48 -
1) Egress Bandwidth For Guest Network - Specify the upload speed through the
WAN port for Guest Network.
2) Ingress Bandwidth For Guest Network - Specify the download speed through the
WAN port for Guest Network.
Wireless 2.4GHz
Enable Guest Network (2.4G) - Select this checkbox to enable 2.4GHz guest network.
Network Name - Enter a value of up to 32 characters. The same Name (SSID) must be
assigned to all wireless devices in your Guest Network.
Guest Number - Limit the number of the guest.
Wireless Security - You can configure the security of Guest Network here.
Access Time - During this time the wireless stations could access the AP.
Wireless 5GHz
Enable Guest Network (5G) - Select this checkbox to enable 5GHz guest network.
Network Name - Enter a value of up to 32 characters. The same Name (SSID) must be
assigned to all wireless devices in your Guest Network.
Guest Number - Limit the number of the guest.
Wireless Security - You can configure the security of Guest Network here.
Access Time - During this time the wireless stations could accessing the AP.
Note:
The range of bandwidth for Guest Network is calculated according to the setting of Bandwidth
Control on the page “Bandwidth Control->Control Settings”.
5.7 DHCP
Figure 5-39 DHCP menu
There are three submenus under the DHCP menu, shown in Figure 5-39: DHCP Settings, DHCP
Clients List and Address Reservation. Click any of them, and you will be able to configure the
corresponding functions.
5.7.1 DHCP Settings
Choose menu “Advanced→DHCP→DHCP Settings”, you can configure the DHCP Server on the
page as shown in Figure 5-40.The router is set up by default as a DHCP (Dynamic Host
Configuration Protocol) server, which provides the TCP/IP configuration for all the PC(s) that are
connected to the router on the LAN.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 49 -
Figure 5-40 DHCP Settings
DHCP Server - Enable or Disable the DHCP server. If you disable the Server, you must
have another DHCP server within your network or else you must configure the computer
manually.
Start IP Address - Specify an IP address for the DHCP Server to start with when assigning
IP addresses. 192.168.0.100 is the default start address.
End IP Address - Specify an IP address for the DHCP Server to end with when assigning IP
addresses. 192.168.0.199 is the default end address.
Address Lease Time - The Address Lease Time is the amount of time a network user will
be allowed connection to the router with their current dynamic IP Address. Enter the amount
of time in minutes and the user will be "leased" this dynamic IP Address. After the time is up,
the user will be automatically assigned a new dynamic IP address. The range of the time is 1
~ 2880 minutes. The default value is 120 minutes.
Default Gateway - (Optional.) It is suggested to input the IP address of the Ethernet port of
the router. The default value is 192.168.0.1.
Default Domain - (Optional) Input the domain name of your network.
Primary DNS - (Optional) Input the DNS IP address provided by your ISP or consult your ISP.
Secondary DNS - (Optional.) Input the IP address of another DNS server if your ISP
provides two DNS servers.
Note:
To use the DHCP server function of the router, you must configure all computers on the LAN as
"Obtain an IP Address automatically".
5.7.2 DHCP Clients List
Choose menu “Advanced→DHCP→DHCP Clients List”, you can view the information about the
clients attached to the router in the screen as shown in Figure 5-41.
Figure 5-41 DHCP Clients List
Client Name - The name of the DHCP client
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 50 -
MAC Address - The MAC address of the DHCP client
Assigned IP - The IP address that the router has allocated to the DHCP client
Lease Time - The time of the DHCP client leased. After the dynamic IP address has expired,
a new dynamic IP address will be automatically assigned to the user.
You cannot change any of the values on this page. To update this page and to show the current
attached devices, click the Refresh button.
5.7.3 Address Reservation
Choose menu “Advanced→DHCP→Address Reservation”, you can view and add a reserved
address for clients via the next screen, shown in Figure 5-42. When you specify a reserved IP
address for a PC on the LAN, that PC will always receive the same IP address each time when it
accesses the DHCP server. Reserved IP addresses should be assigned to the servers that require
permanent IP settings.
Figure 5-42 Address Reservation
MAC Address - The MAC address of the PC for which you want to reserve an IP address.
Reserved IP Address - The IP address reserved for the PC by the router.
Status - The status of this entry, either Enabled or Disabled.
To Reserve an IP address:
1. Click the Add New… button. Then Figure 5-43 will pop up.
2. Enter the MAC address (in XX-XX-XX-XX-XX-XX format.) and IP address (in dotted-decimal
notation) of the computer for which you want to reserve an IP address.
3. Click the Save button.
Figure 5-43 Add or Modify an Address Reservation Entry
To modify or delete an existing entry:
1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the
Delete.
2. Modify the information.
3. Click the Save button.
Click the Enable/Disable All button to make all entries enabled/disabled
Click the Delete All button to delete all entries.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 51 -
Click the Next button to go to the next page and Click the Previous button to return the previous
page.
5.8 USB Settings
Figure 5-44 USB Settings menu
There are three submenus under the USB Settings menu (shown in Figure 5-44): Device Settings,
File Sharing, and Print Server. Click any of them, and you will be able to configure the
corresponding functions.
5.8.1 Device Settings
Choose menu “Advanced→USB Settings→Device Settings”, you can configure the USB disk
drive attached to the router and view the information.
Figure 5-45 Device Settings
Click the Scan button to scan the USB drive connected to the router.
Volume - The volume name of the USB drive the users have access to. Volume 1-8 is
mapping to USB port1, and Volume 9-16 is mapping to USB port2.
Capacity - The storage capacity of the USB driver.
Free Space- The available space of the USB driver.
Active - Select the checkbox to active the USB driver.
Click the Safely Remove button to safely remove the USB storage device that is connected to
USB port. This takes the drive offline.
5.8.2 File Sharing
Choose menu “Advanced→USB Settings→File Sharing”, you can configure the sharing
account and sharing settings.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 52 -
Figure 5-46 File Sharing
Sharing Account
Use Login Account - Select this radio button, and the sharing account is the same with
the login account.
Use Following Account - Select this radio button, then you have to specify the new
username and password in the Username and Password fields for sharing account.
Sharing Settings
Network/Media Server Name - Show the name of the network/media server. This is the
name used to access the USB device connected to the router.
Access Method - Select the check boxes for the access methods that you want.
1) Network Neighborhood: This method is enabled by default. To access the USB drive for
example from a Windows computer:
i. Select Start > Run.
ii. Enter \\192.168.0.1 in the dialog box and click the OK button.
2) FTP: This method is disabled by default. If you select this check box and click the Save
button, the LAN users can access the USB drive through FTP. To access the USB drive
for example from a Windows computer:
i. Select Start > Run.
ii. Enter ftp://192.168.0.1:21 in the dialog box and click the OK button.
3) FTP (Remote): This method is disabled by default. If you select this check box, remote
users can access the USB drive through FTP over the Internet. This feature supports
both downloading and uploading of files. To access the USB drive for example from a
Windows computer:
i. Select Start > Run.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 53 -
ii. Enter ftp://WAN IP:port in the dialog box and click the OK button.
Note:
If the port for FTP (Remote) is changed, the port for FTP will be changed to the same
port.
Sharing Mode
1) If Share All is selected, all the folders in the USB drive will be shared. Besides
Authentication will appear for you to choose or not.
2) If Share Selected Folders is selected, only the folders you specified will be shared.
5.8.3 Print Server
Choose menu “Advanced→USB Settings→Print Server”, you can enable or disable print server
on the screen below.
Figure 5-48 Pint Server Setting
5.9 NAT Boost
Choose “Advanced→NAT Boost”, and you can enable or disable the NAT boost. It is enabled by
default.
If NAT boost is enabled, the router will have the best throughout. If NAT boost if disabled, the
Bandwidth Control can take effect and it also allows the statistics data to be collected. We do
recommend to enable NAT Boost for the best performance in normal operation.
Figure 5-49 NAT Boost
5.10 Forwarding
Figure 5-50 Forwarding menu
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 54 -
There are four submenus under the Forwarding menu: Virtual Servers, Port Triggering, DMZ
and UPnP. Click any of them, and you will be able to configure the corresponding function.
5.10.1 Virtual Servers
Choose menu “Advanced→Forwarding→Virtual Servers”, and then you can view and add
virtual servers in the next screen shown in Figure 5-51. Virtual servers can be used for setting up
public services on your LAN. A virtual server is defined as a service port, and all requests from
Internet to this service port will be redirected to the computer specified by the server IP. Any PC
that was used for a virtual server must have a static or reserved IP address because its IP
address may change when using the DHCP function. If you want the Virtual Servers configuration
take effect, please make sure the NAT is enabled.
Figure 5-51 Virtual Servers
Service Port - The numbers of External Service Ports. You can enter a service port or a
range of service ports (the format is XXX – YYY; XXX is the Start port and YYY is the End
port).
Internal Port - The Internal Service Port number of the PC running the service application.
You can leave it blank if the Internal Port is the same as the Service Port, or enter a specific
port number when Service Port is a single one.
IP Address - The IP address of the PC running the service application.
Protocol - The protocol used for this application, either TCP, UDP, or All (all protocols
supported by the router).
Status - The status of this entry, "Enabled" means the virtual server entry is enabled.
Common Service Port - Some common services already exist in the drop-down list.
Modify - To modify or delete an existing entry.
To setup a virtual server entry:
1. Click the Add New... button.
2. Select the service you want to use from the Common Service Port list. If the Common
Service Port menu does not list the service that you want to use, enter the number of the
service port or service port range in the Service Port field.
3. Enter the IP address of the computer running the service application in the IP Address field.
4. Select the protocol used for this application in the Protocol drop-down list, either TCP, UDP,
or All.
5. Select the Enabled option in the Status drop-down list.
6. Click the Save button.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 55 -
Figure 5-52 Add or Modify a Virtual Server Entry
Note:
It is possible that you have a computer or server that has more than one type of available service.
If so, select another service, and type the same IP address for that computer or server.
To modify or delete an existing entry:
1. Find the desired entry in the table.
2. Click Modify or Delete as desired on the Modify column.
Click the Enable/ Disable All button to make all entries enabled/ disabled.
Click the Delete All button to delete all entries.
Click the Next button to go to the next page and click the Previous button to return to the
previous page.
Note:
If you set the service port of the virtual server as 80, you must set the Web management port on
Advanced→Security→Remote Management page to be any other value except 80 such as
8080. Otherwise there will be a conflict to disable the virtual server.
5.10.2 Port Triggering
Choose menu “Advanced→Forwarding→Port Triggering”, you can view and add port triggering
in the next screen shown in Figure 5-53. Some applications require multiple connections, like
Internet games, video conferencing, Internet telephoning and so on. Port Triggering is used for
some of these applications that cannot work with a pure NAT router.
Figure 5-53 Port Triggering
To add a new rule, follow the steps below.
1. Click the Add New… button, the next screen will pop-up as shown in Figure 5-54.
2. Select a common application from the Common Applications drop-down list, then the
Trigger Port field and the Incoming Ports field will be automatically filled. If the Common
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 56 -
Applications do not have the application you need, enter the Trigger Port and the
Incoming Ports manually.
3. Select the protocol used for Trigger Port from the Trigger Protocol drop-down list, either
TCP, UDP, or All.
4. Select the protocol used for Incoming Ports from the Incoming Protocol drop-down list,
either TCP or UDP, or All.
5. Select Enabled in Status field.
6. Click the Save button to save the new rule.
Figure 5-54 Add or Modify a Triggering Entry
Trigger Port - The port for outgoing traffic. An outgoing connection using this port will trigger
this rule.
Trigger Protocol - The protocol used for Trigger Ports, either TCP, UDP, or All (all protocols
supported by the router).
Incoming Port - The port or port range used by the remote system when it responds to the
outgoing request. A response using one of these ports will be forwarded to the PC which
triggered this rule. You can input at most 5 groups of ports (or port sections). Every group of
ports must be separated with ",", for example, 2000-2038, 2046, 2050-2051, 2085,
3010-3030.
Incoming Protocol - The protocol used for Incoming Port, either TCP, UDP, or ALL (all
protocols supported by the router).
Status - The status of this entry, Enabled means the Port Triggering entry is enabled.
Modify - To modify or delete an existing entry.
Common Applications - Some popular applications already listed in the drop-down list of
Incoming Protocol.
To modify or delete an existing entry:
1. Find the desired entry in the table.
2. Click Modify or Delete as desired on the Modify column.
Click the Enable All button to make all entries enabled.
Click the Disable All button to make all entries disabled.
Click the Delete All button to delete all entries
Once the router is configured, the operation is as follows:
1. A local host makes an outgoing connection to an external host using a destination port
number defined in the Trigger Port field.
2. The router records this connection, opens the incoming port or ports associated with this
entry in the Port Triggering table, and associates them with the local host.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 57 -
3. When necessary, the external host will be able to connect to the local host using one of the
ports defined in the Incoming Ports field.
Note:
1. When the trigger connection is released, the corresponding opened ports will be closed.
2. Each rule can only be used by one host on the LAN at a time. The trigger connection of other
hosts on the LAN will be refused.
3. Incoming Ports ranges cannot overlap each other.
5.10.3 DMZ
Choose menu “Advanced→Forwarding→DMZ”, and then you can view and configure DMZ host
in the screen shown in Figure 5-55. The DMZ host feature allows one local host to be exposed to
the Internet for a special-purpose service such as Internet gaming or videoconferencing. The
router forwards packets of all services to the DMZ host. Any PC whose port is being forwarded
must have its DHCP client function disabled and should have a new static IP Address assigned to
it because its IP Address may be changed when using the DHCP function.
Figure 5-55 DMZ
To assign a computer or server to be a DMZ server:
1. Select the Enable radio button.
2. Enter the IP address of a local PC that is set to be DMZ host in the DMZ Host IP Address
field.
3. Click the Save button.
5.10.4 UPnP
Choose menu “Advanced→Forwarding→UPnP”, and then you can view the information about
UPnP in the screen shown in Figure 5-56. The Universal Plug and Play (UPnP) feature allows
the devices, such as Internet computers, to access the local host resources or devices as needed.
UPnP devices can be automatically discovered by the UPnP service application on the LAN.
Figure 5-56 UPnP Setting
Current UPnP Status - UPnP can be enabled or disabled by clicking the Enable or Disable
button. This feature is enabled by default.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 58 -
Current UPnP Settings List - This table displays the current UPnP information.
App Description - The description about the application which initiates the UPnP
request.
External Port - The port which the router opened for the application.
Protocol - The type of protocol which is opened.
Internal Port - The port which the router opened for local host.
IP Address - The IP address of the local host which initiates the UPnP request.
Status - Either Enabled or Disabled. "Enabled" means that the port is still active;
otherwise, the port is inactive.
Click the Enable button to enable UPnP.
Click the Disable button to disable UPnP.
Click the Refresh button to update the Current UPnP Settings List.
5.11 Security

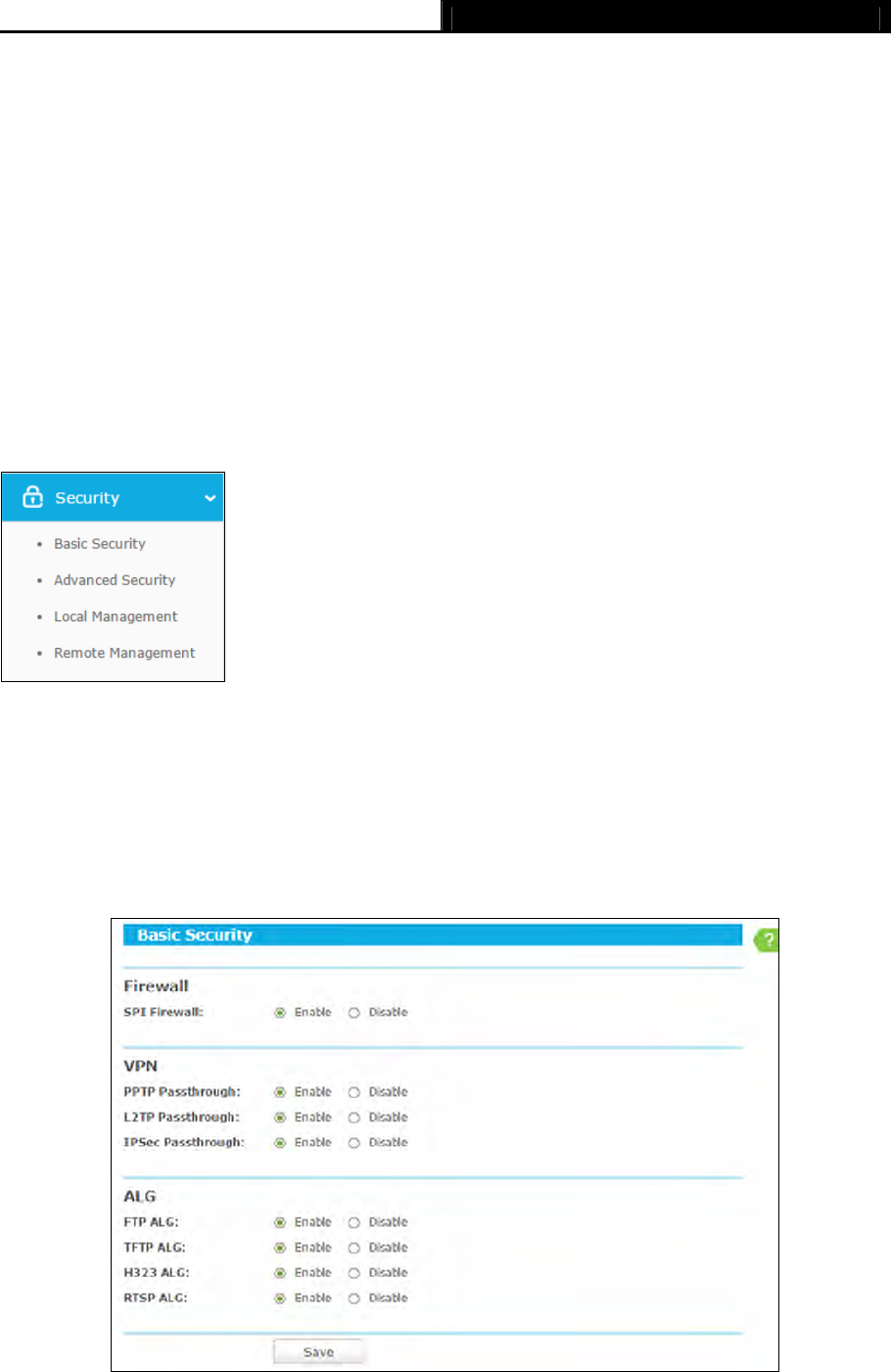

Figure 5-57 Security menu
There are four submenus under the Security menu: Basic Security, Advanced Security, Local
Management and Remote Management. Click any of them, and you will be able to configure the
corresponding functions.
5.11.1 Basic Security
Choose menu “Advanced→Security→Basic Security”, and then you can configure the basic
security in the screen as shown in Figure 5-58.
Figure 5-58 Basic Security
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 59 -
Firewall - A firewall protects your network from the outside world. Here you can enable or
disable the router’s firewall.
SPI Firewall - SPI (Stateful Packet Inspection, also known as dynamic packet filtering)
helps to prevent cyber attacks by tracking more state per session. It validates that the
traffic passing through the session conforms to the protocol. SPI Firewall is enabled by
factory default. If you want all the computers on the LAN exposed to the outside world,
you can disable it.
VPN - VPN Passthrough must be enabled if you want to allow VPN tunnels using VPN
protocols to pass through the router.
PPTP Passthrough - Point-to-Point Tunneling Protocol (PPTP) allows the
Point-to-Point Protocol (PPP) to be tunneled through an IP network. To allow PPTP
tunnels to pass through the router, click Enable.
L2TP Passthrough - Layer Two Tunneling Protocol (L2TP) is the method used to
enable Point-to-Point sessions via the Internet on the Layer Two level. To allow L2TP
tunnels to pass through the router, click Enable.
IPSec Passthrough - Internet Protocol security (IPSec) is a suite of protocols for
ensuring private, secure communications over Internet Protocol (IP) networks, through
the use of cryptographic security services. To allow IPSec tunnels to pass through the
router, click Enable.
ALG - It is recommended to enable Application Layer Gateway (ALG) because ALG allows
customized Network Address Translation (NAT) traversal filters to be plugged into the
gateway to support address and port translation for certain application layer "control/data"
protocols such as FTP, TFTP, H323 etc.
FTP ALG - To allow FTP clients and servers to transfer data across NAT, click Enable.
TFTP ALG - To allow TFTP clients and servers to transfer data across NAT, click
Enable.
H323 ALG - To allow Microsoft NetMeeting clients to communicate across NAT, click
Enable.
RTSP ALG - To allow some media player clients to communicate with some streaming
media servers across NAT, click Enable.
Click the Save button to save your settings.
5.11.2 Advanced Security
Choose menu “Advanced→Security→Advanced Security”, and then you can protect the router
from being attacked by TCP-SYN Flood, UDP Flood and ICMP-Flood in the screen as shown in
Figure 5-59.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 60 -
Figure 5-59 Advanced Security
Packets Statistics Interval (5~60) - The default value is 10. Select a value between 5 and
60 seconds from the drop-down list. The Packets Statistics Interval value indicates the time
section of the packets statistics. The result of the statistics is used for analysis by SYN Flood,
UDP Flood and ICMP-Flood.
DoS Protection - Denial of Service protection. Check the Enable or Disable button to enable
or disable the DoS protection function. Only when it is enabled, will the flood filters be
enabled.
Note:
Dos Protection will take effect only when the Traffic Statistics in “Advanced→System Tools
→Statistics” is enabled.
Enable ICMP-FLOOD Attack Filtering - Enable or Disable the ICMP-FLOOD Attack
Filtering.
ICMP-FLOOD Packets Threshold (5~3600) - The default value is 50. Enter a value
between 5 ~ 3600. When the current ICMP-FLOOD Packets number is beyond the set value,
the router will startup the blocking function immediately.
Enable UDP-FLOOD Filtering - Enable or Disable the UDP-FLOOD Filtering.
UDP-FLOOD Packets Threshold (5~3600) - The default value is 500. Enter a value between
5 ~ 3600. When the current UPD-FLOOD Packets number is beyond the set value, the router
will startup the blocking function immediately.
Enable TCP-SYN-FLOOD Attack Filtering - Enable or Disable the TCP-SYN-FLOOD Attack
Filtering.
TCP-SYN-FLOOD Packets Threshold (5~3600) - The default value is 50. Enter a value
between 5 ~ 3600. When the current TCP-SYN-FLOOD Packets numbers is beyond the set
value, the router will startup the blocking function immediately.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 61 -
Ignore Ping Packet From WAN Port - Enable or Disable Ignore Ping Packet From WAN Port.
The default setting is disabled. If enabled, the ping packet from the Internet cannot access the
router.
Forbid Ping Packet From LAN Port - Enable or Disable Forbid Ping Packet From LAN Port.
The default setting is disabled. If enabled, the ping packet from LAN cannot access the router.
This function can be used to defend against some viruses.
Click the Save button to save the settings.
Click the Blocked DoS Host List button to display the DoS host table by blocking.
5.11.3 Local Management
Choose menu “Advanced→Security→Local Management”, and then you can configure the
management rule in the screen as shown in Figure 5-60. The management feature allows you to
deny computers in LAN from accessing the router.

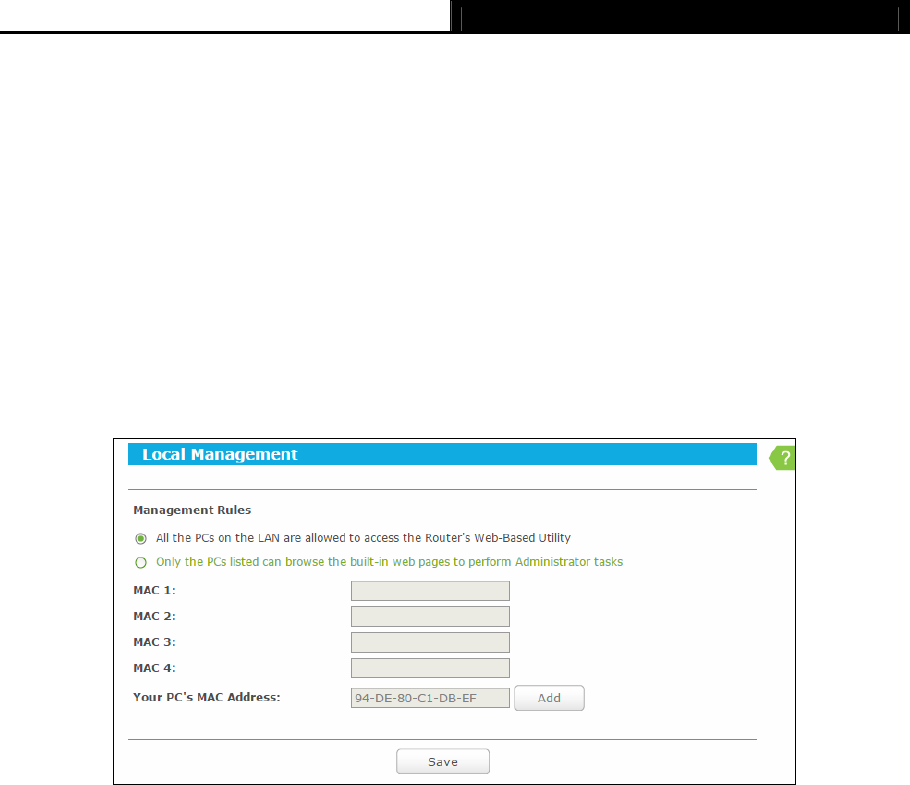

Figure 5-60 Local Management
By default, the radio button “All the PCs on the LAN are allowed to access the router's
Web-Based Utility” is checked. If you want to allow PCs with specific MAC Addresses to access
the Setup page of the router's Web-Based Utility locally from inside the network, check the radio
button “Only the PCs listed can browse the built-in web pages to perform Administrator
tasks”, and then enter each MAC Address in a separate field. The format for the MAC Address is
XX-XX-XX-XX-XX-XX (X is any hexadecimal digit). Only the PCs with MAC address listed can use
the password to browse the built-in web pages to perform Administrator tasks while all the others
will be blocked.
After click the Add button, your PC's MAC Address will be placed in the list above.
Click the Save button to save your settings.
Note:
If your PC is blocked but you want to access the router again, use a pin to press and hold the
WPS/Reset button (hole) on the back panel for about 5 seconds to reset the router’s factory
defaults on the router’s Web-Based Utility.
5.11.4 Remote Management
Choose menu “Advanced→Security→Remote Management”, and then you can configure the
Remote Management function in the screen as shown in Figure 5-61. This feature allows you to
manage your router from a remote location via the Internet.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 62 -
Figure 5-61 Remote Management
Web Management Port - Web browser access normally uses the standard HTTP service
port 80. This router's default remote management web port number is 80. For greater security,
you can change the remote management web port to a custom port by entering that number
in the box provided. Choose a number between 1 and 65534 but do not use the number of
any common service port.
Remote Management IP Address - This is the current address you will use when accessing
your router from the Internet. This function is disabled when the IP address is set to the
default value of 0.0.0.0. To enable this function change 0.0.0.0 to a valid IP address. If set to
255.255.255.255, then all the hosts can access the router from internet.
Note:
1. To access the router, you should type your router's WAN IP address into your browser's
address (in IE) or Location (in Navigator) box, followed by a colon and the custom port
number. For example, if your router's WAN address is 202.96.12.8, and the port number used
is 8080, please enter http://202.96.12.8:8080 in your browser. Later, you may be asked for
the router's password. After successfully entering the username and password, you will be
able to access the router's web-based utility.
2. Be sure to change the router's default password to a very secure password.
5.12 Parental Control
Choose menu “Advanced→Parental Control”, and then you can configure the parental control in
the screen as shown in Figure 5-62. The Parental Control function can be used to control the
internet activities of the child, limit the child to access certain websites and restrict the time of
surfing.
Figure 5-62 Parental Control Settings
Parental Control - Check Enable if you want this function to take effect; otherwise, check
Disable.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 63 -
MAC Address of Parental PC - In this field, enter the MAC address of the controlling PC, or
you can make use of the Copy To Above button below.
MAC Address of Your PC - This field displays the MAC address of the PC that is managing
this router. If the MAC Address of your adapter is registered, you can click the Copy To
Above button to fill this address to the MAC Address of Parental PC field above.
Website Description - Description of the allowed website for the PC controlled.
Schedule - The time period allowed for the PC controlled to access the Internet. For detailed
information, please go to “Advanced→Access Control→Schedule”.
Status - Check to enable the corresponding entry.
Modify - Here you can edit or delete an existing entry.
To add a new entry, please follow the steps below.

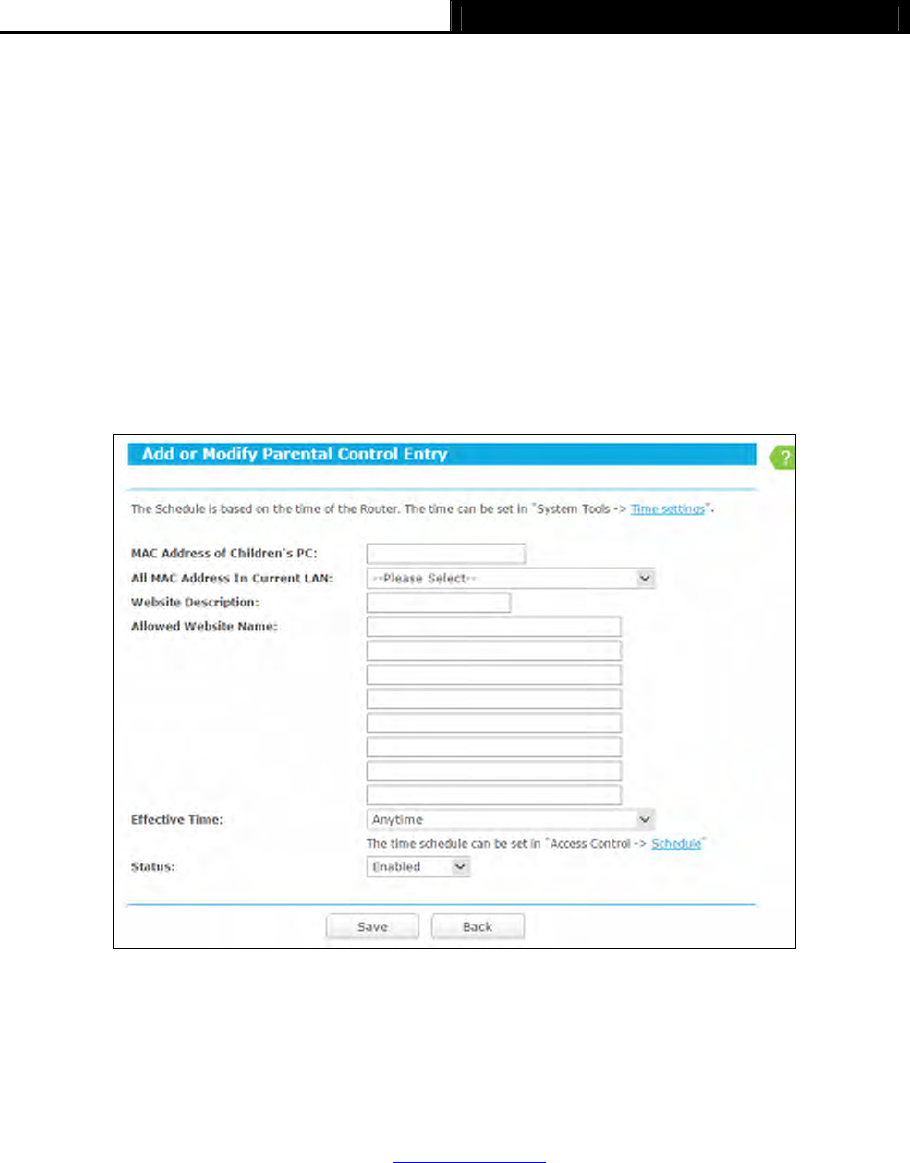

1. Click the Add New… button and the next screen will pop-up as shown in Figure 5-63.
Figure 5-63 Add or Modify Parental Control Entry
2. Enter the MAC address of the PC (e.g. 00-11-22-33-44-AA) you’d like to control in the MAC
Address of Child PC field, or you can choose the MAC address from the All Address in
Current LAN drop-down list.
3. Give a description (e.g. Allow TP-LINK) for the website allowed to be accessed in the
Website Description field.
4. Enter the allowed website name, e.g. www.tp-link.com.
5. Select the schedule (e.g. Schedule_1) you want from the Effective Time drop-down list. If
there are not suitable schedules for you, please go to “Access Control->Schedule” page to
create the schedule you need.
6. In the Status field, you can select Enabled or Disabled to enable or disable your entry.
7. Click the Save button.
Click the Enable All button to enable all the rules in the list.
Click the Disable All button to disable all the rules in the list.
Click the Delete All button to delete all the entries in the table.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 64 -
Click the Next button to go to the next page, or click the Previous button to return to the previous
page.
For example: If you desire that the child PC with MAC address 00-11-22-33-44-AA can access
www.tp-link.com on Saturday only, while the parent PC with MAC address 00-11-22-33-44-BB is
without any restriction, you should follow the settings below.
1. Click “Parental Control” menu on the left to enter the Parental Control Settings page. Check
Enable and enter the MAC address 00-11-22-33-44-BB in the MAC Address of Parental PC
field.
2. Click “Advanced→Access Control→Schedule” on the left to enter the Schedule Settings
page. Click Add New... button to create a new schedule with Schedule Description is
Schedule_1, Day is Sat and Time is all day-24 hours.
3. Click “Parental Control” menu on the left to go back to the Add or Modify Parental Control
Entry page:
1) Click Add New... button.
2) Enter 00-11-22-33-44-AA in the MAC Address of Child PC field.
3) Enter “Allow TP-LINK” in the Website Description field.
4) Enter “www.tp-link.com” in the Allowed Website Name field.
5) Select “Schedule_1” you create just now from the Effective Time drop-down list.
6) In Status field, select Enable.
4. Click Save to complete the settings.
Then you will go back to the Parental Control Settings page and see the following list.
5.13 Access Control
Figure 5-64 Access Control
There are four submenus under the Access Control menu as shown in Figure 5-64: Rule, Host,
Target and Schedule. Click any of them, and you will be able to configure the corresponding
function.
5.13.1 Rule
Choose menu “Advanced→Access Control→Rule”, and then you can view and set Access
Control rules in the screen as shown in Figure 5-65.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 65 -
Figure 5-65 Access Control Rule Management
Enable Internet Access Control - Select the checkbox to enable the Internet Access Control
function, so the Default Filter Policy can take effect.
Rule Name - Displays the name of the rule and this name is unique.
Host - Displays the host selected in the corresponding rule.
Target - Displays the target selected in the corresponding rule.
Schedule - Displays the schedule selected in the corresponding rule.
Status - Displays the status of the rule, enabled or not. Select the corresponding checkbox to
enable the entry.
Modify - Here you can edit or delete an existing rule.
Setup Wizard - Click the Setup Wizard button to create a new rule entry.
Add New... - Click the Add New... button to add a new rule entry.
Enable All - Click the Enable All button to enable all the rules in the list.
Disable All - Click the Disable All button to disable all the rules in the list.
Delete All - Click the Delete All button to delete all the entries in the table.
Move - You can change the entry’s order as desired. Enter in the first box the ID number of the
entry you want to move and in the second box another ID number, and then click the Move
button to change the entries’ order.
Click the Next button to go to the next page.
Click the Previous button to return to the previous page.
There are two methods to add a new rule.
Method One:
1. Click Setup Wizard button and the next screen will appear as shown in Figure 5-66.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 66 -
Figure 5-66 Quick Setup – Create a Host Entry
Host Description - In this field, create a unique description for the host (e.g. Host_1).
Mode - Here are two options, IP Address and MAC Address. You can select either of
them from the drop-down list.
If the IP Address is selected, you can see the following item:
LAN IP Address - Enter the IP address or address range of the host in dotted-decimal
format (e.g. 192.168.0.23).
If the MAC Address is selected, you can see the following item:
MAC Address - Enter the MAC address of the host in XX-XX-XX-XX-XX-XX format (e.g.
00-11-22-33-44-AA).
2. Click Next when finishing creating the host entry. The next screen will appear as shown in
Figure 5-67.
Figure 5-67 Quick Setup – Create an Access Target Entry
Target Description - In this field, create a description for the target. Note that this
description should be unique (e.g. Target_1).
Mode - Here are two options, IP Address and Domain Name. You can choose either of
them from the drop-down list.
If the IP Address is selected, you will see the following items:
IP Address - Enter the IP address (or address range) of the target (targets) in
dotted-decimal format (e.g. 192.168.0.33).
Target Port - Specify the port or port range for the target. For some common service
ports, you can make use of the Common Service Port item below.
Protocol - Here are four options, All, TCP, UDP, and ICMP. Select one of them from the
drop-down list for the target.
Common Service Port - Lists some common service ports. Select one from the
drop-down list and the corresponding port number will be filled in the Target Port field
automatically. For example, if you select "FTP", "21" will be filled in the Target Port
automatically.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 67 -
If the Domain Name is selected, you will see the following items:
Domain Name - Here you can enter 4 domain names, either the full name or the
keywords (for example, TP-LINK). Any domain name with keywords in it
(www.tp-link.com) will be blocked or allowed.
3. Click Next when finishing creating the access target entry, and the next screen will appear as
shown in Figure 5-68.

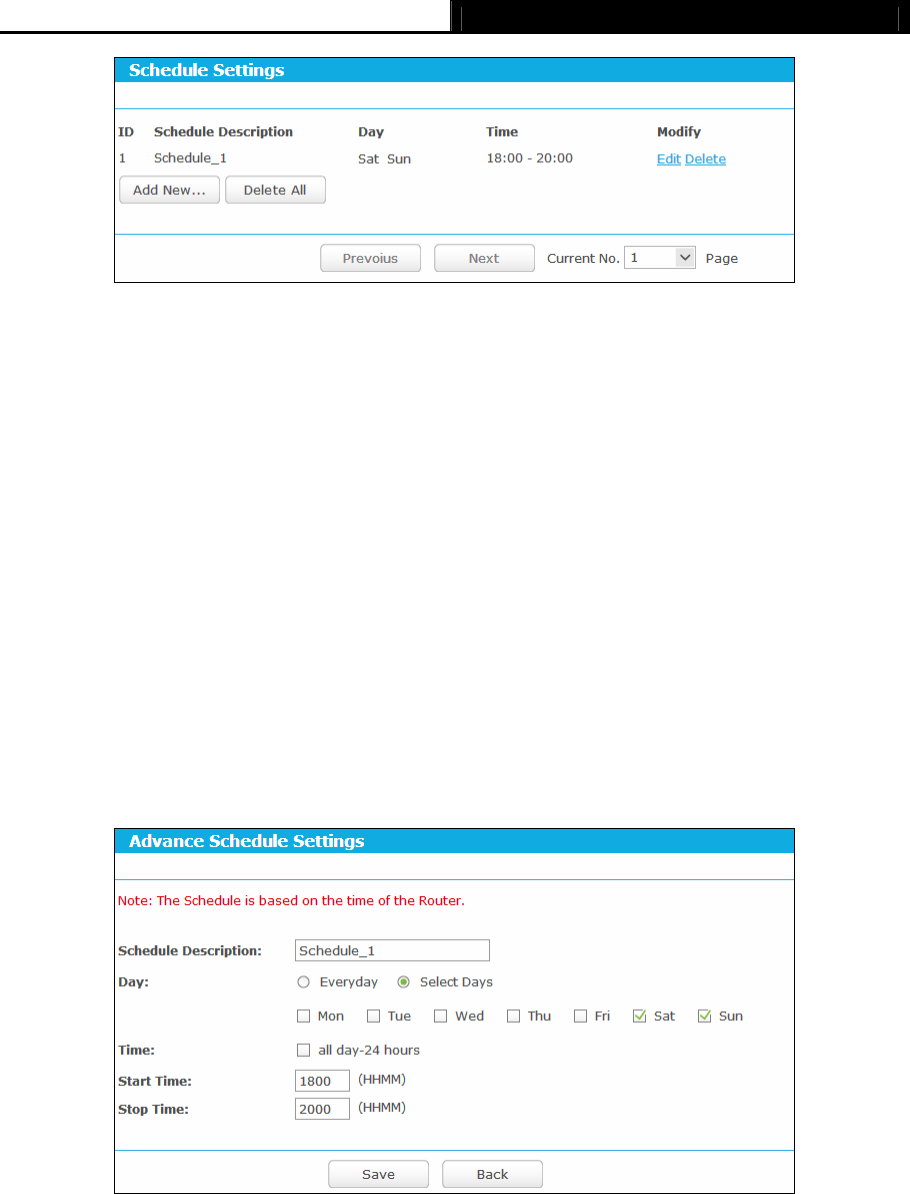

Figure 5-68 Quick Setup – Create an Advanced Schedule Entry
Schedule Description - In this field, create a description for the schedule. Note that this
description should be unique (e.g. Schedule_1).
Day - Choose Select Days and select the certain day (days), or choose Everyday.
Time - Select "all day-24 hours" checkbox, or deselect the checkbox and specify the
Start Time and Stop Time manually.
Start Time - Enter the start time in HHMM format (HHMM are 4 numbers). For example
0800 is 8:00.
Stop Time - Enter the stop time in HHMM format (HHMM are 4 numbers). For example
2000 is 20:00.
4. Click Next when finishing creating the advanced schedule entry. The next screen will appear
as shown in Figure 5-69.
Figure 5-69 Quick Setup – Create an Internet Access Control Entry
Rule Name - In this field, create a name for the rule. Note that this name should be
unique (e.g. Rule_1).
Host - In this field, select a host from the drop-down list for the rule. The default value is
the Host Description you set just now.
Target - In this filed, select a target from the drop-down list for the rule.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 68 -
Schedule - In this field, select a schedule from the drop-down list for the rule.
Status - In this field, there are two options, Enabled or Disabled. Select Enabled so that
the rule will take effect. Select Disabled so that the rule won't take effect.
5. Click Finish to complete adding a new rule.
Method Two:
1. Click the Add New… button and the next screen will pop up as shown in Figure 5-70.
2. Give a name (e.g. Rule_1) for the rule in the Rule Name field.
3. Select a host from the Host drop-down list or choose “Click Here To Add New Host List”.
4. Select a target from the Target drop-sown list or choose “Click Here To Add New Target
List”.
5. Select a schedule from the Schedule drop-down list or choose “Click Here To Add New
Schedule”.
6. In the Status field, select Enabled or Disabled to enable or disable your entry.
7. Click the Save button.
Figure 5-70 Add Internet Access Control Entry
For example: If you desire to allow the host with MAC address 00-11-22-33-44-AA to access
www.tp-link.com only from 18:00 to 20:00 on Saturday and Sunday, and forbid other hosts in the
LAN to access the Internet, you should follow the settings below:
1. Click the menu Access Control on the left. Select Enable Internet Access Control and
choose "Allow the packets specified by any enabled access control policy to pass
through the router".
2. Click Setup Wizard button.
3. Add a new host with the Host Description is Host_1 and MAC Address is 00-11-22-33-44-AA,
and click Next.
4. Add a new target with the Target Description is Target_1 and Domain Name is
www.tp-link.com, and click Next.
5. Add a new schedule with the Schedule Description is Schedule_1, Day is Sat and Sun, Start
Time is 1800 and Stop Time is 2000, and click Next.
6. Add a new rule with the Rule Description is Rule_1, Host is Host_1, Target is Target_1,
Schedule is Schedule_1, Status is Enabled, and click Finish.
Then you will go back to the Access Control Rule Management page and see the following list.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 69 -
5.13.2 Host
Choose menu “Advanced→Access Control→Host”, and then you can view and set a Host list in
the screen as shown in Figure 5-71. The host list is necessary for the Access Control Rule.
Figure 5-71 Host Settings
Host Description - Displays the description of the host and this description is unique.
Information - Displays the information about the host. It can be IP or MAC.
Modify - To modify or delete an existing entry.
To add a new entry, please follow the steps below.
1. Click the Add New… button.
2. In the Mode field, select IP Address or MAC Address.
1) If you select IP Address, the screen is shown as Figure 5-72.
In Host Description field, create a unique description for the host, e.g. Host_1.
In LAN IP Address field, enter the IP address.
Figure 5-72 Add or Modify a Host Entry
2) If you select MAC Address, the screen is shown as Figure 5-73.
In Host Description field, create a unique description for the host, e.g. Host_1.
In MAC Address field, enter the MAC address.
Figure 5-73 Add or Modify a Host Entry
3. Click the Save button to complete the settings.
Click the Delete All button to delete all the entries in the table.
Click the Next button to go to the next page, or click the Previous button to return to the previous
page.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 70 -
For example: If you desire to restrict the internet activities of host with MAC address
00-11-22-33-44-AA, you should first follow the settings below:
1. Click Add New... button in Figure 5-71 to enter the Add or Modify a Host Entry page.
2. In Mode field, select MAC Address from the drop-down list.
3. In Host Description field, create a unique description for the host (e.g. Host_1).
4. In MAC Address field, enter 00-11-22-33-44-AA.
5. Click Save to complete the settings.
Then you will go back to the Host Settings page and see the following list.
5.13.3 Target
Choose menu “Advanced→Access Control→Target”, and then you can view and set a Target
list in the screen as shown in Figure 5-74. The target list is necessary for the Access Control Rule.
Figure 5-74 Target Settings
Target Description - Displays the description about the target and this description is unique.
Information - The target can be IP address, port, or domain name.
Modify - To modify or delete an existing entry.
To add a new entry, please follow the steps below.
1. Click the Add New… button.
2. In Mode field, select IP Address or Domain Name.
3. If you select IP Address, the screen is shown as Figure 5-75.
Figure 5-75 Add or Modify an Access Target Entry
1) In Target Description field, create a unique description for the target, e.g. Target_1.
2) In IP Address field, enter the IP address of the target.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 71 -
3) Select a common service from Common Service Port drop-down list, so that the Target
Port will be automatically filled. If the Common Service Port drop-down list doesn’t have
the service you want, specify the Target Port manually.
4) In Protocol field, select TCP, UDP, ICMP or ALL from the drop-down list.
4. If you select Domain Name, the screen is shown as Figure 5-76.
Figure 5-76 Add or Modify an Access Target Entry
1) In Target Description field, create a unique description for the target, e.g. Target_1.
2) In Domain Name field, enter the domain name, either the full name or the keywords (e.g.
TP-LINK) in the blank. Any domain name with keywords in it (www.tp-link.com) will be
blocked or allowed. You can enter 4 domain names.
5. Click the Save button.
Click the Delete All button to delete all the entries in the table.
Click the Next button to go to the next page, or click the Previous button to return to the previous
page.
For example: If you desire to restrict the internet activities of host with MAC address
00-11-22-33-44-AA in the LAN to access www.tp-link.com only, you should first follow the
settings below:
1. Click Add New… button in Figure 5-74.
2. In Mode field, select Domain Name from the drop-down list.
3. In Target Description field, create a unique description for the target, e.g. Target_1.
4. In Domain Name field, enter www.tp-link.com.
5. Click Save to complete the settings.
Then you will go back to the Target Settings page and see the following list.
5.13.4 Schedule
Choose menu “Advanced→Access Control→Schedule”, and then you can view and set a
schedule in the next screen as shown in Figure 5-77. The schedule is necessary for the Access
Control Rule.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 72 -
Figure 5-77 Schedule Settings
Schedule Description - Displays the description of the schedule and this description is
unique.
Day - Displays the day(s) in a week.
Time - Displays the time period in a day.
Modify - Here you can edit or delete an existing schedule.
To add a new schedule, follow the steps below:
1. Click Add New... button shown in Figure 5-77 and the next screen will pop-up as shown in
Figure 5-78.
2. In Schedule Description field, create a unique description for the schedule, e.g. Schedule_1.
3. In Day field, select the day or days you need.
4. In Time field, you can select all day-24 hours or you may enter the Start Time and Stop Time
in the corresponding field.
5. Click Save to complete the settings.
Click the Delete All button to delete all the entries in the table.
Click the Next button to go to the next page, or click the Previous button to return to the previous
page.
Figure 5-78 Advanced Schedule Settings
For example: If you desire to restrict the internet activities of host with MAC address
00-11-22-33-44-AA to access www.tp-link.com only from 18:00 to 20:00 on Saturday and
Sunday, you should first follow the settings below:
1. Click Add New... button shown in Figure 5-77 to enter the Advanced Schedule Settings page.
2. In Schedule Description field, create a unique description for the schedule, e.g. Schedule_1.
3. In Day field, check the Select Days radio button and then select Sat and Sun.
4. In Time field, enter 1800 in Start Time field and 2000 in Stop Time field.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 73 -
5. Click Save to complete the settings.

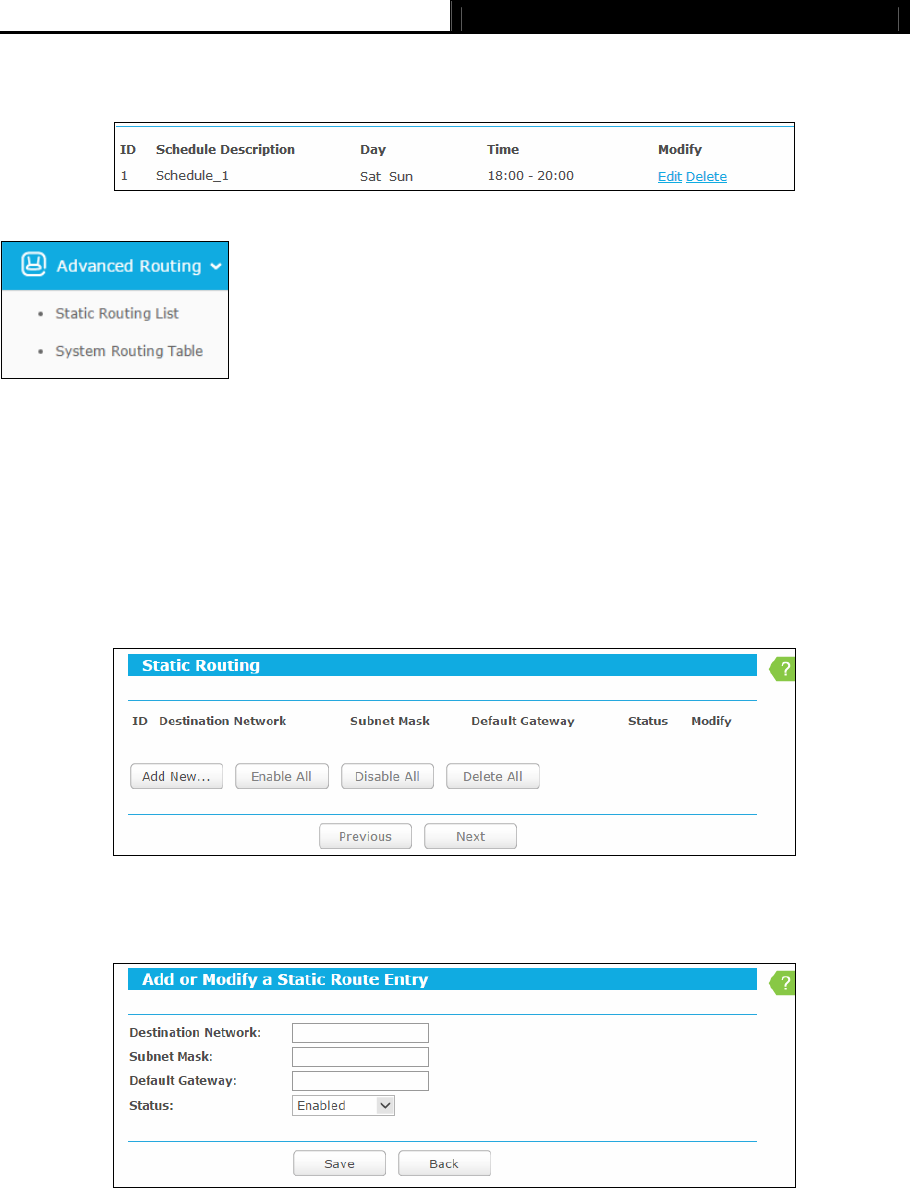

Then you will go back to the Schedule Settings page and see the following list.
5.14 Advanced Routing
Figure 5-79 Advanced Routing
There are two submenus under the Advanced Routing menu as shown in Figure 5-79: Static
Routing List and System Routing Table. Click any of them, and you will be able to configure the
corresponding function.
5.14.1 Static Routing List
Choose menu “Advanced→Advanced Routing→Static Routing List”, and then you can
configure the static route in the next screen (shown in Figure 5-80). A static route is a
pre-determined path that network information must travel to reach a specific host or network.
Figure 5-80 Static Routing
To add static routing entries:
1. Click Add New… shown in Figure 5-80, you will see the following screen.
Figure 5-81 Add or Modify a Static Route Entry
2. Enter the following data:
Destination Network - The Destination Network is the address of the network or host that
you want to assign to a static route.
Subnet Mask - The Subnet Mask determines which portion of an IP Address is the
network portion, and which portion is the host portion.
Default Gateway - This is the IP Address of the gateway device that allows for contact
between the router and the network or host.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 74 -
3. Select Enabled or Disabled for this entry on the Status drop-down list.
4. Click the Save button to make the entry take effect.
Other configurations for the entries:
Click the Delete button to delete the entry.
Click the Enable All button to enable all the entries.
Click the Disable All button to disable all the entries.
Click the Delete All button to delete all the entries.
Click the Previous button to view the information in the previous screen, click the Next button to
view the information in the next screen.
5.14.2 System Routing Table
Choose menu “Advanced→Advanced Routing→System Routing Table”, and then you can
view the System Routing Table in the next screen (shown in Figure 5-82). System routing table
views all of the valid route entries in use. The Destination IP address, Subnet Mask, Gateway, and
Interface will be displayed for each entry.

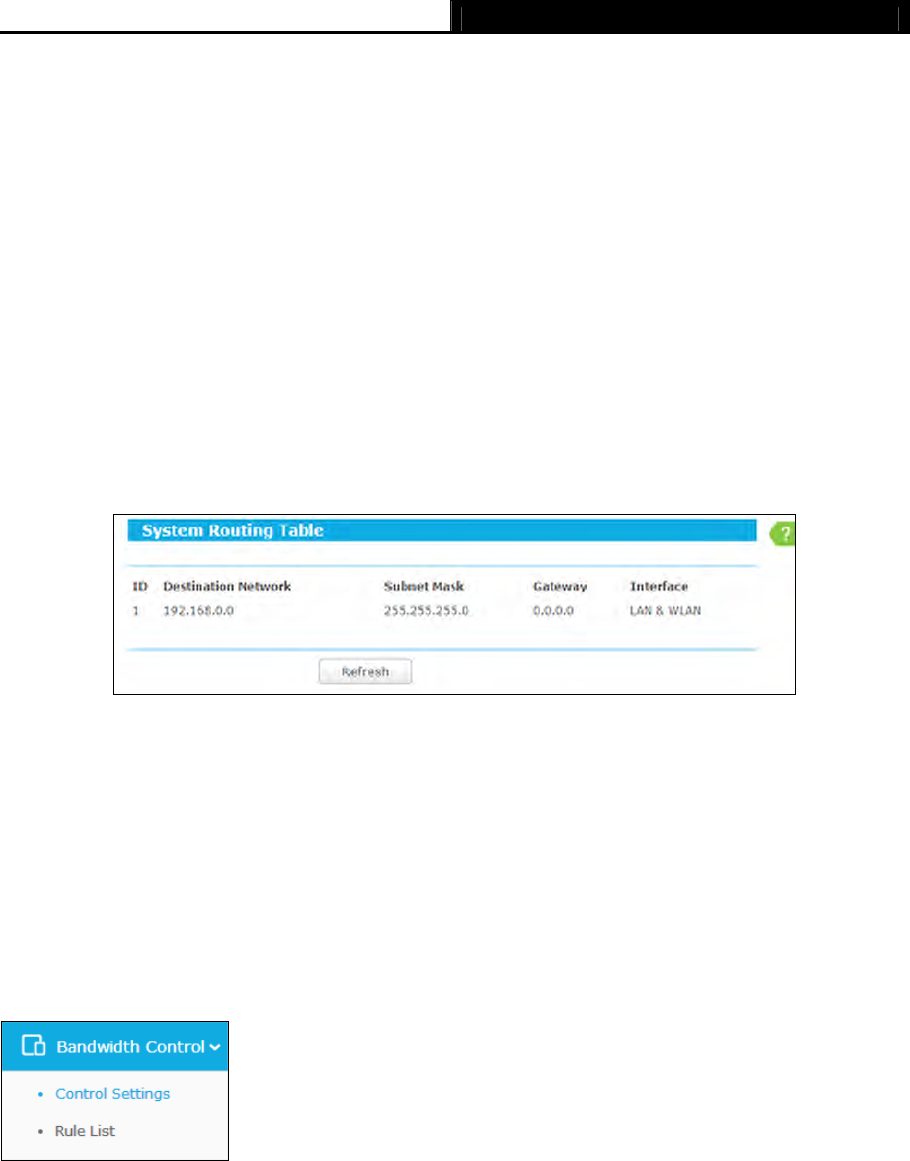

Figure 5-82 System Routing Table
Destination Network - The Destination Network is the address of the network or host to
which the static route is assigned.
Subnet Mask - The Subnet Mask determines which portion of an IP address is the network
portion, and which portion is the host portion.
Gateway - This is the IP address of the gateway device that allows for contact between the
router and the network or host.
Interface - This interface tells you either the Destination IP Address is on the LAN & WLAN
(internal wired and wireless networks), or on the WAN (Internet).
5.15 Bandwidth Control
Figure 5-83 Bandwidth Control
There are two submenus under the Bandwidth Control menu as shown in Figure 5-83: Control
Settings and Rules List. Click any of them, and you will be able to configure the corresponding
function. The detailed explanations for each submenu are provided below.
Note:
Bandwidth Control will become invalid if NAT Boost is enabled. If you want to enable Bandwidth
Control, please go to “Advanced→NAT Boost” to disable NAT Boost first.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 75 -
5.15.1 Control Settings
Choose menu “Advanced→Bandwidth Control→Control Settings”, and then you can configure
the Egress Bandwidth and Ingress Bandwidth in the next screen. For optimal control of the
bandwidth, please select the right Line Type and ask your ISP for the total bandwidth of the egress
and ingress.
Figure 5-84 Bandwidth Control Settings
Enable Bandwidth Control - Select this checkbox so that the Bandwidth Control settings can
take effect.
Line Type - Select the right type for you network connection. If you don’t know how to choose,
please ask your ISP for the information.
Egress Bandwidth - The upload speed through the Internet port.
Ingress Bandwidth - The download speed through the Internet port.
5.15.2 Rules List
Choose menu “Advanced→Bandwidth Control→Rules List”, and then you can view and
configure the Bandwidth Control rules in the screen below.
Figure 5-85 Bandwidth Control Rules List
Description - This is the information about the rules such as address range.
Egress bandwidth - This field displays the max and mix upload bandwidth through the
Internet port, the default is 0.
Ingress bandwidth - This field displays the max and mix download bandwidth through the
Internet port, the default is 0.
Enable - This displays the status of the rule.
Modify - Click Modify to edit the rule. Click Delete to delete the rule.
To add/modify a Bandwidth Control rule, follow the steps below.
1. Click Add New… shown in Figure 5-85, you will see a new screen shown in Figure 5-86.
2. Enter the information like the screen shown below.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 76 -
Figure 5-86 Bandwidth Control Rule Settings
3. Click the Save button.
5.16 IP & MAC Binding
Figure 5-87 IP & MAC Binding menu
There are two submenus under the IP &MAC Binding menu, shown in Figure 5-87: Binding
Settings and ARP List. Click any of them, and you will be able to scan or configure the
corresponding function. The detailed explanations for each submenu are provided below.
5.16.1 Binding Settings
Choose menu “Advanced→Bandwidth Control→Binding Setting”, you can configure the IP &
MAC binding rules in the screen as shown in Figure 5-88.
Figure 5-88 Binding Setting
MAC Address - The MAC address of the controlled computer in the LAN.
IP Address - The assigned IP address of the controlled computer in the LAN.
Bind - Check this option to enable ARP binding for a specific device.
Modify - To modify or delete an existing entry.
When you want to add or modify an IP & MAC Binding entry, you can click the Add New… button
or Modify button, and then you will go to the next page. This page is used for adding or modifying
an IP & MAC Binding entry, shown in Figure 5-89.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 77 -

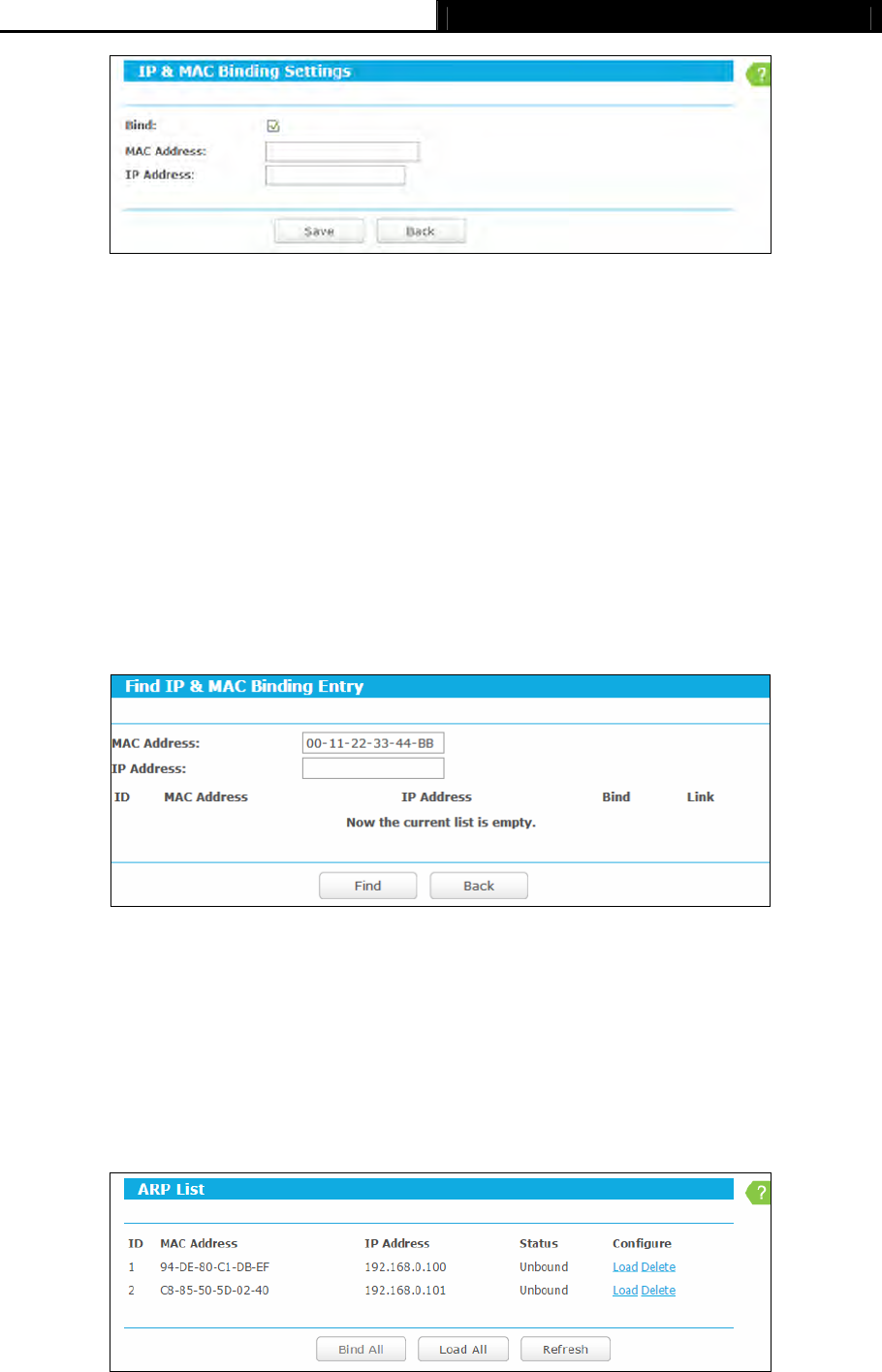

Figure 5-89 IP & MAC Binding Setting (Add & Modify)
To add IP & MAC Binding entries, follow the steps below.
1. Click the Add New... button as shown in Figure 5-88.
2. Enter the MAC Address and IP Address.
3. Select the Bind checkbox.
4. Click the Save button to save it.
To modify or delete an existing entry, follow the steps below.
1. Find the desired entry in the table.
2. Click Modify or Delete as desired on the Modify column.
To find an existing entry, follow the steps below.
1. Click the Find button in Figure 5-88.
2. Enter the MAC Address or IP Address.
3. Click the Find button in Figure 5-90.
Figure 5-90 Find IP & MAC Binding Entry
Click the Enable All button to make all entries enabled.
Click the Delete All button to delete all entries.
5.16.2 ARP List
Choose menu “Advanced→Bandwidth Control→ARP List”, you can see the ARP List, showing
all the existing IP & MAC Binding entries as shown in Figure 5-91. To manage the computer, you
could observe the computers in the LAN by checking the relationship of MAC address and IP
address on the ARP list, and you could also configure the items on the ARP list.
Figure 5-91 ARP List
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 78 -
1. MAC Address - The MAC address of the controlled computer in the LAN.
2. IP Address - The assigned IP address of the controlled computer in the LAN.
3. Status - Indicates whether or not the MAC and IP addresses are bound.
4. Configure - Load or delete an item.
Load - Load the item to the IP & MAC Binding list.
Delete - Delete the item.
Click the Bind All button to bind all the current items, available after enable.
Click the Load All button to load all items to the IP & MAC Binding list.
Click the Refresh button to refresh all items.
Note:
An item could not be loaded to the IP & MAC Binding list if the IP address of the item has been
loaded before. Error warning will prompt as well. Likewise, "Load All" only loads the items without
interference to the IP & MAC Binding list.
5.17 Dynamic DNS

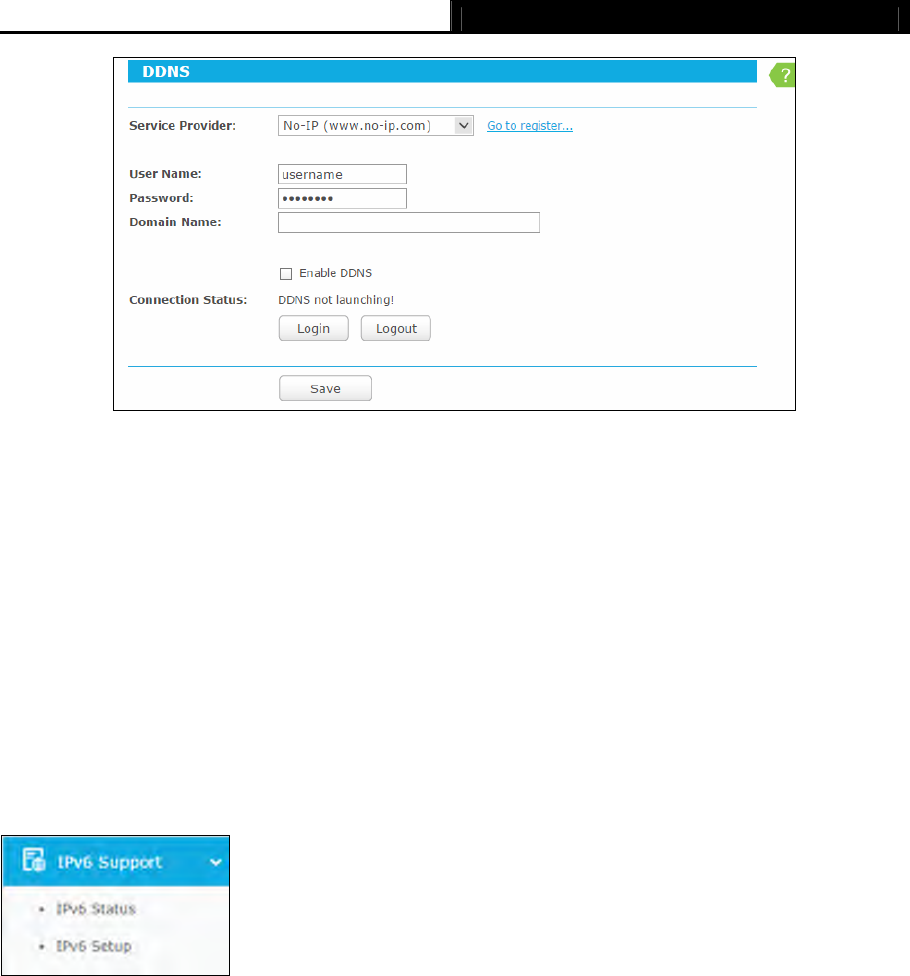

Choose menu “Dynamic DNS”, and you can configure the Dynamic DNS function.
The router offers the DDNS (Dynamic Domain Name System) feature, which allows the hosting of
a website, FTP server, or e-mail server with a fixed domain name (named by yourself) and a
dynamic IP address, and then your friends can connect to your server by entering your domain
name no matter what your IP address is. Before using this feature, you need to sign up for DDNS
service providers such as www.comexe.cn, dyn.com/dns, or www.no-ip.com. The Dynamic DNS
client service provider will give you a password or key.
5.17.1 Comexe.cn DDNS
If the dynamic DNS Service Provider you select is www.comexe.cn, the page will appear as
shown in Figure 5-92.
Figure 5-92 Comexe.cn DDNS Settings
To set up for DDNS, follow these instructions:
1. Enter the Domain Name your dynamic DNS service provider gave.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 79 -
2. Enter the User Name for your DDNS account.
3. Enter the Password for your DDNS account.
4. Click the Login button to login the DDNS service.
Connection Status -The status of the DDNS service connection is displayed here.
Click Logout to log out of the DDNS service.
Note:
If you want to login again with another account after a successful login, please click the Logout
button, then input your new username and password and click the Login button.
5.17.2 Dyn.com/dns DDNS
If the dynamic DNS Service Provider you select is dyn.com/dns, the page will appear as shown in
Figure 5-93.
Figure 5-93 Dyndns.org DDNS Settings
To set up for DDNS, follow these instructions:
1. Enter the User Name for your DDNS account.
2. Enter the Password for your DDNS account.
3. Enter the Domain Name you received from dynamic DNS service provider.
4. Click the Login button to login to the DDNS service.
Connection Status -The status of the DDNS service connection is displayed here.
Click Logout to logout of the DDNS service.
Note:
If you want to login again with another account after a successful login, please click the Logout
button, then input your new username and password and click the Login button.
5.17.3 No-ip.com DDNS
If the dynamic DNS Service Provider you select is www.no-ip.com, the page will appear as
shown in Figure 5-94.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 80 -
Figure 5-94 No-ip.com DDNS Settings
To set up for DDNS, follow these instructions:
1. Enter the User Name for your DDNS account.
2. Enter the Password for your DDNS account.
3. Enter the Domain Name you received from dynamic DNS service provider.
4. Click the Login button to login to the DDNS service.
Connection Status - The status of the DDNS service connection is displayed here.
Click Logout to log out the DDNS service.
Note:
If you want to login again with another account after a successful login, please click the Logout
button, then input your new username and password and click the Login button.
5.18 IPv6 Support
Figure 5-95 IPv6 Support
There are two submenus under the IPv6 Support menu (shown in Figure 5-95): IPv6 Status and
IPv6 Setup. Click either of them, and you will be able to scan or configure the corresponding
function. The detailed explanations for each submenu are provided below.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 81 -
5.18.1 IPv6 Status
Figure 5-96 IPv6 Status
The IPv6 Status page displays the router's current IPv6 status and configuration. All information is
read-only.
WAN
Connection Type - The IPv6 connection way for WAN
IPv6 Address - The WAN IPv6 address
IPv6 Default Gateway - The router's default gateway
Primary IPv6 DNS - The primary IPv6 DNS address
Secondary IPv6 DNS - The secondary IPv6 DNS address
LAN
IPv6 Address Assign Type - There are two types of assignation for IPv6 address:
SLAAC (Stateless address auto-configuration) and DHCPv6 (Dynamic Host
Configuration Protocol for IPv6) Server.
1) SLAAC
IPv6 Address Prefix -The Prefix of IPv6 Address
2) DHCPv6 Server
Release Time - the length of time a network user will be allowed to keep connecting
to the router with the current DHCPv6 Address. Enter the amount of time (in seconds)
that the DHCPv6 address will be leased. The time range is 1~691200 seconds. The
default value is 86400 seconds.
IPv6 Address - Displays the LAN IPv6 Address.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 82 -
5.18.2 IPv6 Setup
Figure 5-97 Enable/Disable IPv6
Enable IPv6 - Tick the checkbox to enable the IPv6 function. It’s enabled by default.
WAN Connection Type - Choose the correct WAN connection type based on your ISP
network topology.
DHCPv6 - Connections which use dynamic IPv6 address assignment.
Static IPv6 - Connections which use static IPv6 address assignment.
PPPoEv6 - Connections which use PPPoEV6 that requires a user name and password.
Tunnel 6to4 - Connections which use 6to4 address assignment.
Different types of WAN connection require you to do different settings. Below are the detailed
explanations for the respective type.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 83 -
1) DHCPv6
Figure 5-98 DHCPv6 - SLAAC
Figure 5-99 DHCPv6 – DHCPv6 Server
Get non-temporary IPv6 address - Get a non-temporary IPv6 address from the ISP.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 84 -
Get IPv6 prefix delegation - Get a temporary IPv6 address and IPv6 prefix from the ISP, the
temporary IPv6 address is set to the WAN port, and the LAN port advertise IPv6 address by
RADVD or DHCPs.
IPv6 Address - The IPv6 address assigned by your ISP dynamically.
Click the Renew button to renew the IPv6 parameters from your ISP.
Click the Release button to release the IPv6 parameters from your ISP.
If your ISP gives you one or two DNS IPv6 addresses, select Use the following IPv6 DNS
Servers and enter the Primary IPv6 DNS and Secondary IPv6 DNS into the correct fields.
Otherwise, the DNS servers will be assigned from ISP dynamically.
Primary IPv6 DNS - Enter the DNS IPv6 address in dotted-decimal notation provided by your ISP.
Secondary IPv6 DNS - Enter another DNS IPv6 address in dotted-decimal notation provided
by your ISP.
Note:
If you get Address not found error when you access a Web site, it is likely that your DNS servers
are set up improperly. You should contact your ISP to get DNS server addresses.
IPv6 Address Assign Type - There are two types of assignation for IPv6 address: SLAAC
(Stateless address auto-configuration) and DHCPv6 (Dynamic Host Configuration Protocol
for IPv6) Server.
SLAAC
IPv6 Address Prefix -The Prefix of IPv6 Address.
DHCPv6 Server
IPv6 Address Prefix -The Prefix of IPv6 Address.
Release Time - the length of time a network user will be allowed to keep connecting to the
router with the current DHCPv6 Address. Enter the amount of time (in seconds) that the
DHCPv6 address will be leased. The time range is 1~691200 seconds. The default value
is 86400 seconds.
LAN IPv6 Address - Displays the LAN IPv6 Address.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 85 -
2) Static IPv6
Figure 5-100 Static IPv6 - SLAAC
Figure 5-101 Static IPv6 – DHCPv6 Server
IPv6 Address - Enter the IPv6 address in dotted-decimal notation provided by your ISP.
Default Gateway - Enter the default gateway in dotted-decimal notation provided by your ISP.
MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet networks
is 1500 Bytes. For some ISPs, you may need to modify the MTU. But this is rarely required, and
should not be done unless you are sure it is necessary for your ISP connection.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 86 -
Primary DNS - Enter the DNS IPv6 address in dotted-decimal notation provided by your ISP.
Secondary DNS - Enter another DNS IPv6 address in dotted-decimal notation provided by
your ISP.
IPv6 Address Assign Type - There are two types of assignation for IPv6 address: SLAAC
(Stateless address auto-configuration) and DHCPv6 (Dynamic Host Configuration Protocol for
IPv6) Server.
SLAAC
IPv6 Address Prefix -The Prefix of IPv6 Address
DHCPv6 Server
IPv6 Address Prefix -The Prefix of IPv6 Address
Release Time - the length of time a network user will be allowed to keep connecting to
the router with the current DHCPv6 Address. Enter the amount of time (in seconds) that
the DHCPv6 address will be leased. The time range is 1~691200 seconds. The default
value is 86400 seconds.
LAN IPv6 Address - Displays the LAN IPv6 Address.
3) PPPoEv6
Figure 5-102 PPPoEv6 - SLAAC
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 87 -

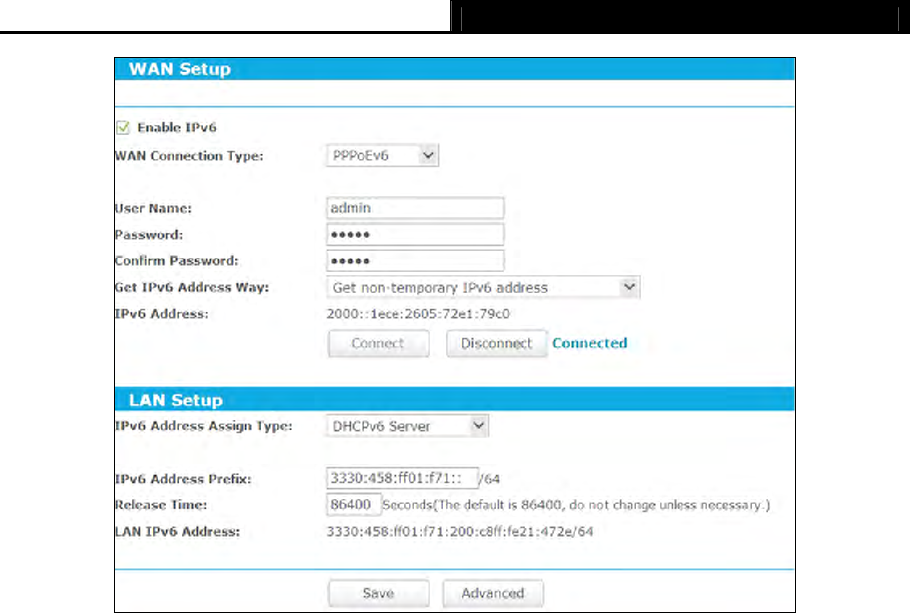

Figure 5-103 PPPoEv6 – DHCPv6 Server
User Name/Password - Enter the User Name and Password provided by your ISP. These
fields are case-sensitive.
Get IPv6 Address Way
Get non-temporary IPv6 address - Get a non-temporary IPv6 address by DHCPv6 from
the ISP.
Get IPv6 prefix delegation - Get a prefix delegation IPv6 address by DHCPv6 from the
ISP, and the clients in LAN create IPv6 address with the delegation.
Use IP address specified by ISP - Input a static IPv6 address from the ISP
Click the Connect button to connect immediately.
Click the Disconnect button to disconnect immediately.
IPv6 Address Assign Type - There are two types of assignation for IPv6 address: SLAAC
(Stateless address auto-configuration) and DHCPv6 (Dynamic Host Configuration Protocol
for IPv6) Server.
SLAAC
IPv6 Address Prefix -The Prefix of IPv6 Address
DHCPv6 Server
IPv6 Address Prefix -The Prefix of IPv6 Address
Release Time - the length of time a network user will be allowed to keep connecting to the
router with the current DHCPv6 Address. Enter the amount of time (in seconds) that the
DHCPv6 address will be leased. The time range is 1~691200 seconds. The default value
is 86400 seconds.
LAN IPv6 Address - Displays the LAN IPv6 Address.
4) Tunnel 6to4
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 88 -

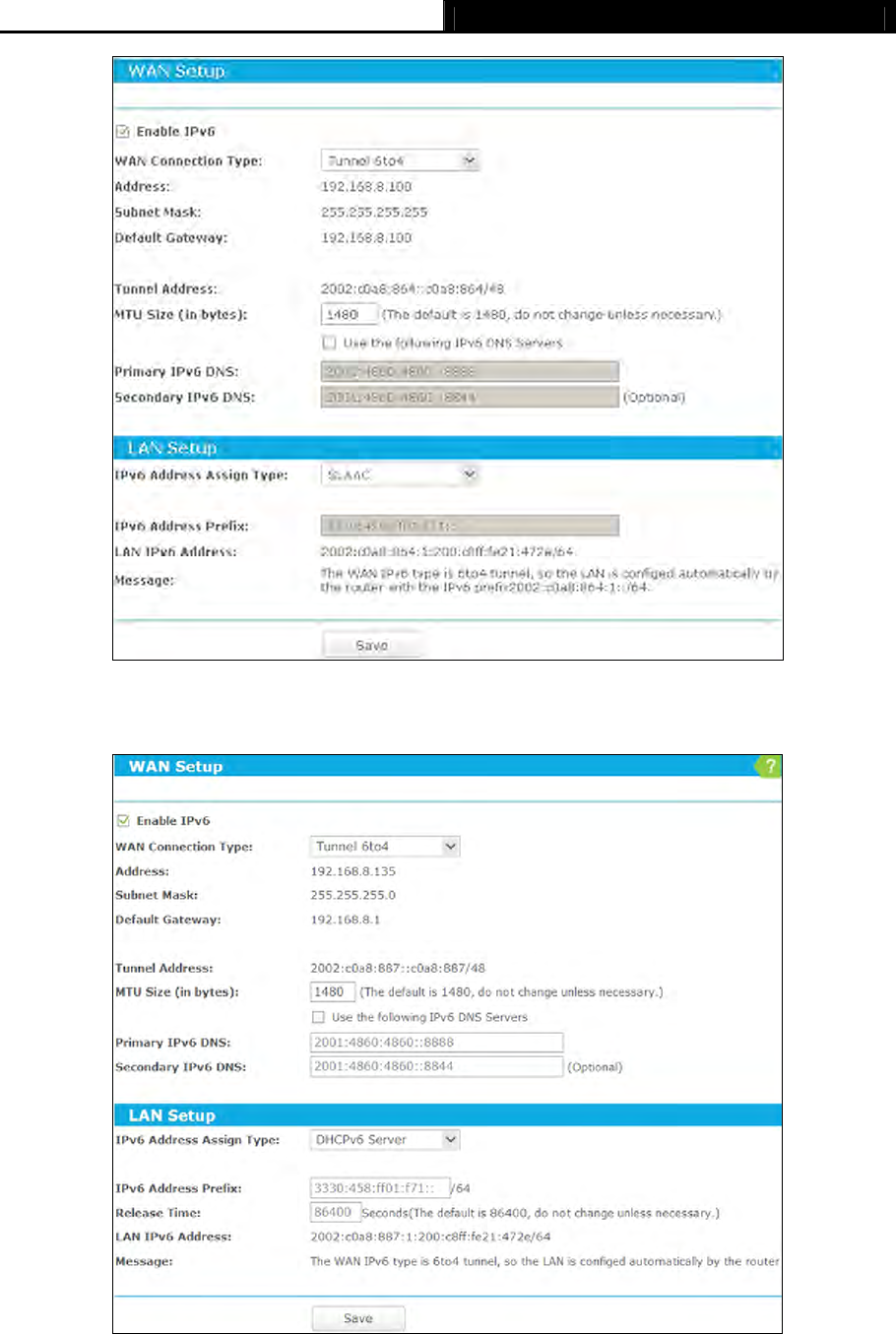

Figure 5-104 Tunnel 6to4 - SLAAC
Figure 5-105 Tunnel 6to4 – DHCPv6 Server
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 89 -
Address/Subnet Mask/Default Gateway - the IPv4 address/ subnet mask/ default gateway
assigned, in dotted-decimal notation.
MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet networks
is 1480 Bytes. For some ISPs, you may need to modify the MTU. But this is rarely required, and
should not be done unless you are sure it is necessary for your ISP connection.
If your ISP gives you one or two DNS IPv6 addresses, select Use the following IPv6 DNS
Servers and enter the Primary IPv6 DNS and Secondary IPv6 DNS into the correct fields.
Otherwise, the DNS servers will be assigned from ISP dynamically.
Primary IPv6 DNS - Enter the DNS IPv6 address in dotted-decimal notation provided by your
ISP.
Secondary IPv6 DNS - Enter another DNS IPv6 address in dotted-decimal notation provided
by your ISP.
IPv6 Address Assign Type - There are two types of assignation for IPv6 address: SLAAC
(Stateless address auto-configuration) and DHCPv6 (Dynamic Host Configuration Protocol
for IPv6) Server.
SLAAC
IPv6 Address Prefix -The Prefix of IPv6 Address
DHCPv6 Server
IPv6 Address Prefix -The Prefix of IPv6 Address
Release Time - the length of time a network user will be allowed to keep connecting to the
router with the current DHCPv6 Address. Enter the amount of time (in seconds) that the
DHCPv6 address will be leased. The time range is 1~691200 seconds. The default value
is 86400 seconds.
IPv6 Address - Displays the LAN IPv6 Address.
5.19 System Tools

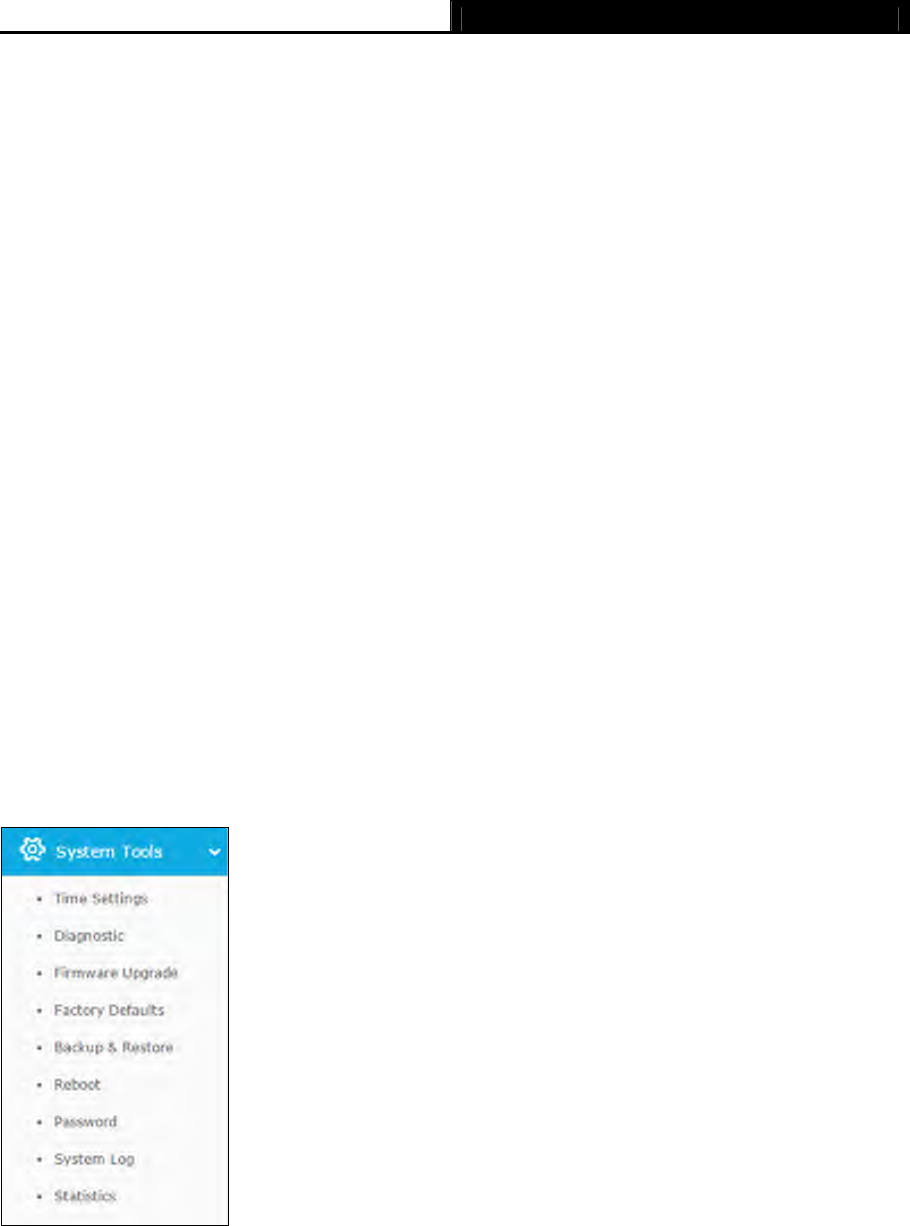

Figure 5-106 System Tools menu
Choose menu “System Tools”, and you can see the submenus under the main menu: Time
Settings, Diagnostic, Firmware Upgrade, Factory Defaults, Backup & Restore, Reboot,
Password, System Log and Statistics. Click any of them, and you will be able to configure the
corresponding functions. The detailed explanations for each submenu are provided below.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 90 -
5.19.1 Time Settings
Choose menu “Advanced→System Tools→Time Settings”, and then you can configure the time
on the following screen.
Figure 5-107 Time settings
Time Zone - Select your local time zone from this pull down list.
Date - Enter your local date in MM/DD/YY into the right blanks.
Time - Enter your local time in HH/MM/SS into the right blanks.
NTP Server I / NTP Server II - Enter the address or domain of the NTP Server I or NTP
Server II, and then the router will get the time from the NTP Server preferentially. In addition,
the router built-in some common NTP Servers, so it can get time automatically once it
connects the Internet.
Enable Daylight Saving - Check the box to enable the Daylight Saving function.
Start - The time to start the Daylight Saving. Select the month in the first field, the week in the
second field, the day in the third field and the time in the last field.
End - The time to end the Daylight Saving. Select the month in the first field, the week in the
second field, the day in the third field and the time in the last field.
Daylight Saving Status - Displays the status whether the Daylight Saving is in use.
To set time manually:
1. Select your local time zone.
2. Enter the Date in Month/Day/Year format.
3. Enter the Time in Hour/Minute/Second format.
4. Click Save.
To set time automatically:
1. Select your local time zone.
2. Enter the address or domain of the NTP Server I or NTP Server II.
3. Click the Get GMT button to get system time from Internet if you have connected to the
Internet.
To set Daylight Saving:
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 91 -
1. Check the box to enable Daylight Saving.
2. Select the start time from the drop-down lists in the Start field.
3. Select the end time from the drop-down lists in the End field.
4. Click the Save button to save the settings.
Figure 5-108 Time settings
Note:
1. This setting will be used for some time-based functions such as firewall. You must specify
your time zone once you login to the router successfully; otherwise, these functions will not
take effect.
2. The time will be lost if the router is turned off.
3. The router will automatically obtain GMT from the Internet if it is configured accordingly.
4. The Daylight Saving will take effect one minute after the configurations are completed.
5.19.2 Diagnostic
Choose menu “Advanced→System Tools→Diagnostic”, and then you can transact Ping or
Traceroute function to check connectivity of your network in the following screen.
Figure 5-109 Diagnostic Tools
Diagnostic Tool - Check the radio button to select one diagnostic too.
Ping - This diagnostic tool troubleshoots connectivity, reachability, and name resolution
to a given host or gateway.
Traceroute - This diagnostic tool tests the performance of a connection.
Note:
You can use ping/traceroute to test both numeric IP address or domain name. If
pinging/tracerouting the IP address is successful, but pinging/tracerouting the domain name is
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 92 -
not, you might have a name resolution problem. In this case, ensure that the domain name
you are specifying can be resolved by using Domain Name System (DNS) queries.
IP Address/Domain Name - Enter the IP Address or Domain Name of the PC whose
connection you wish to diagnose.
Pings Count - Specifies the number of Echo Request messages sent. The default is 4.
Ping Packet Size - Specifies the number of data bytes to be sent. The default is 64.
Ping Timeout - Time to wait for a response, in milliseconds. The default is 800.
Traceroute Max TTL - Set the maximum number of hops (max TTL to be reached) in the path
to search for the target (destination). The default is 20.
Click Start to check the connectivity of the Internet.
The Diagnostic Results page displays the result of diagnosis.
If the result is similar to the following screen, the connectivity of the Internet is fine.
Figure 5-110 Diagnostic Results
Note:
1. Only one user can use the diagnostic tools at one time.
2. "Ping Count", "Ping Packet Size" and "Ping Timeout" are Ping Parameters, and "Traceroute
Max TTL" is Traceroute Parameter.
5.19.3 Firmware Upgrade
Choose menu “Advanced→System Tools→Firmware Upgrade”, and then you can update the
latest version of firmware for the router on the following screen.
Figure 5-111 Firmware Upgrade
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 93 -
Firmware Version - Displays the current firmware version.
Hardware Version - Displays the current hardware version. The hardware version of the
upgrade file must accord with the router’s current hardware version.
To upgrade the router's firmware, follow these instructions below:
1. Download a most recent firmware upgrade file from our website (www.tp-link.com).
2. Enter or select the path name where you save the downloaded file on the computer into the
File blank.
3. Click the Upgrade button.
4. The router will reboot while the upgrading has been finished.
Note:
1) New firmware versions are posted at www.tp-link.com and can be downloaded for free. There
is no need to upgrade the firmware unless the new firmware has a new feature you want to
use. However, when experiencing problems caused by the router rather than the
configuration, you can try to upgrade the firmware.
2) When you upgrade the router's firmware, you may lose its current configurations, so before
upgrading the firmware please write down some of your customized settings to avoid losing
important settings.
3) Do not turn off the router or press the Reset button while the firmware is being upgraded. Loss
of power during the upgrade could damage the router.
4) The firmware version must correspond to the hardware.
5) The upgrade process takes a few moments and the router restarts automatically when the
upgrade is complete.
5.19.4 Factory Defaults
Choose menu “Advanced→System Tools→Factory Defaults”, and then and you can restore the
configurations of the router to factory defaults on the following screen
Figure 5-112 Restore Factory Default
Click the Restore button to reset all configuration settings to their default values.
The default User Name: admin
The default Password: admin
The default Subnet Mask: 255.255.255.0
Note:
All changed settings will be lost when defaults are restored.
5.19.5 Backup & Restore
Choose menu “Advanced→System Tools→Backup & Restore”, and then you can save the
current configuration of the router as a backup file and restore the configuration via a backup file
as shown in Figure 5-113.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 94 -

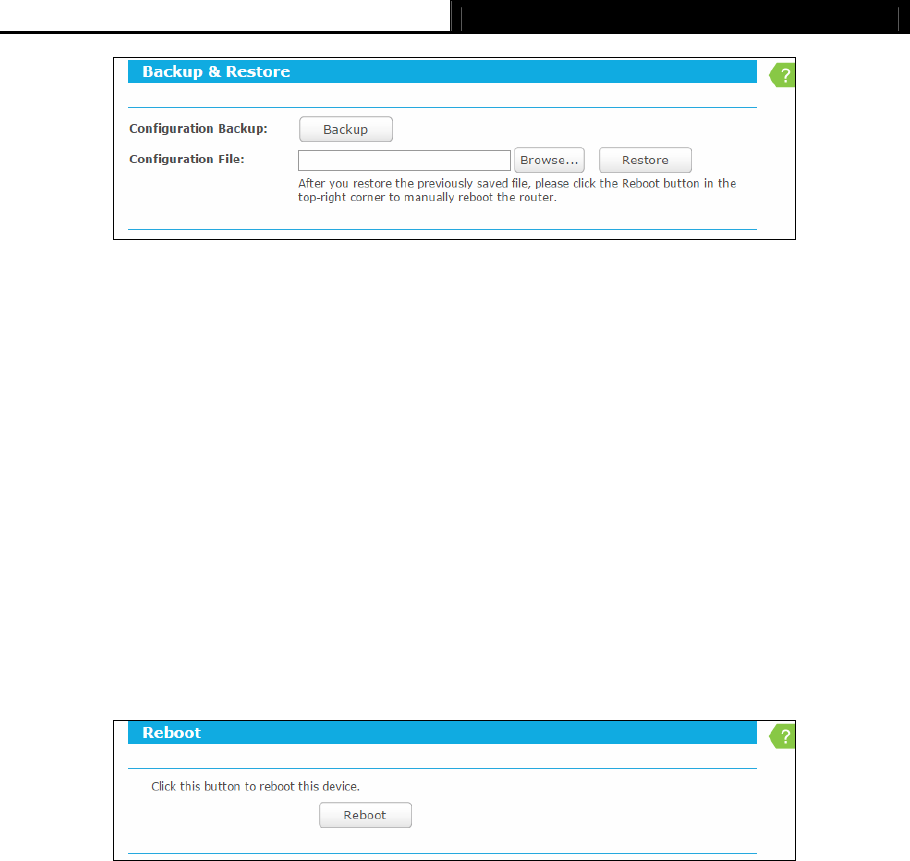

Figure 5-113 Backup & Restore Configuration
Click the Backup button to save all configuration settings as a backup file in your local
computer.
To upgrade the router's configuration, follow these instructions.
Click the Browse button to find the configuration file which you want to restore.
Click the Restore button to update the configuration with the file whose path is the one
you have input or selected in the blank.
Note:
The current configuration will be covered with the uploading configuration file. Wrong process will
lead the device unmanaged. The restoring process lasts for 20 seconds and the router will restart
automatically then. Keep the power of the router on during the process, in case of any damage.
5.19.6 Reboot
Choose menu “Advanced→System Tools→Reboot”, and then you can click the Reboot button
to reboot the router via the next screen.
Figure 5-114 Reboot the router
Some settings of the router will take effect only after rebooting, which include
Change the LAN IP Address (system will reboot automatically).
Change the DHCP Settings.
Change the Wireless configurations.
Change the Web Management Port.
Upgrade the firmware of the router (system will reboot automatically).
Restore the router's settings to factory defaults (system will reboot automatically).
Update the configuration with the file (system will reboot automatically.
5.19.7 Password
Choose menu “Advanced→System Tools→Password”, and then you can change the factory
default user name and password of the router in the next screen as shown in Figure 5-115.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 95 -
Figure 5-115 Password
It is strongly recommended that you should change the factory default user name and password of
the router, because all users who try to access the router's Web-based utility or Quick Setup will
be prompted for the router's default user name and password.
Note:
The new user name and password must not exceed 15 characters in length and not include any
spaces. Enter the new Password twice to confirm it.
Click the Save button when finished.
Click the Clear All button to clear all.
5.19.8 System Log
Choose menu “Advanced→System Tools→System Log”, and then you can view the logs of the
router.
Figure 5-116 System Log
Auto Mail Feature - Indicates whether auto mail feature is enabled or not.
Mail Settings - Set the receiving and sending mailbox address, server address, validation
information as well as the timetable for Auto Mail Feature, as shown in Figure 5-117.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 96 -

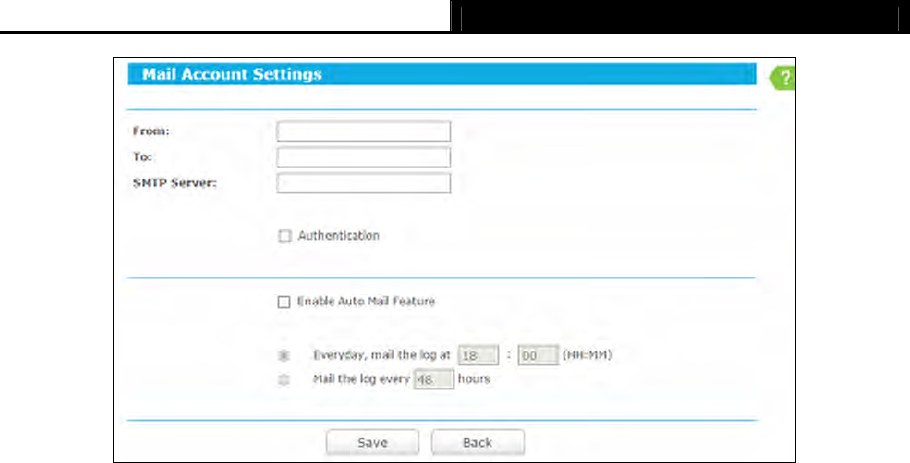

Figure 5-117 Mail Account Settings
From - Your mail box address. The router would connect it to send logs.
To - Recipient’s address. The destination mailbox where the logs would be received.
SMTP Server - Your smtp server. It corresponds with the mailbox filled in the From field.
You can log on the relevant website for help if you are not clear with the address.
Authentication - Most SMTP Server requires Authentication. It is required by most
mailboxes that need User Name and Password to log in.
Note:
Only when you select Authentication, do you have to enter the User Name and Password in
the following fields.
User Name - Your mail account name filled in the From field. The part behind @ is
included.
Password - Your mail account password.
Confirm The Password - Enter the password again to confirm.
Enable Auto Mail Feature - Select it to mail logs automatically. You could mail the
current logs either at a specified time every day or by intervals, but only one could be the
current effective rule. Enter the desired time or intervals in the corresponding field as
shown in Figure 5-117.
Click Save to keep your settings.
Click Back to return to the previous page.
Log Type - By selecting the log type, only logs of this type will be shown.
Log Level - By selecting the log level, only logs of this level will be shown.
Refresh - Refresh the page to show the latest log list.
Save Log - Click to save all the logs in a txt file.
Mail Log - Click to send an email of current logs manually according to the address and
validation information set in Mail Settings.
Clear Log - All the logs will be deleted from the router permanently, not just from the page.
Click the Next button to go to the next page, or click the Previous button to return to the previous
page.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 97 -
5.19.9 Statistics
Choose menu “Advanced→System Tools→Statistics”, and then you can view the statistics of
the router, including total traffic and current traffic of the last Packets Statistic Interval.
Note:
Statistics will become invalid if NAT Boost is enabled. If you want to enable Statistics, please go to
“Advanced→NAT Boost” to disable NAT Boost first.

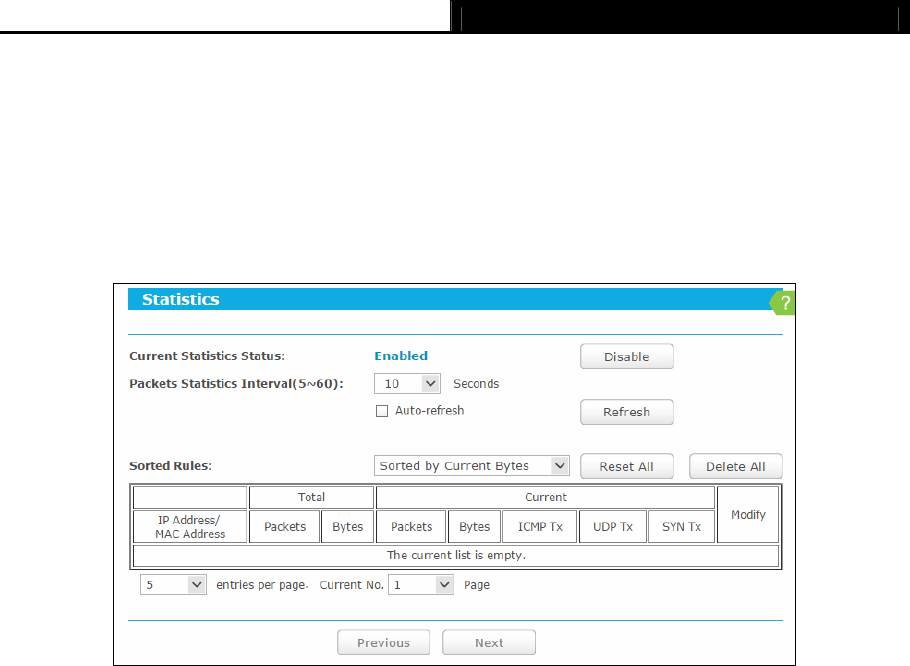

Figure 5-118 Statistics
Current Statistics Status - Enable or Disable. The default value is disabled. To enable it,
click the Enable button. If it is disabled, the function of DoS protection in Security settings will
be disabled.
Packets Statistics Interval （5-60） - The default value is 10. Select a value between 5 and
60 seconds in the drop-down list. The Packets Statistic interval indicates the time section of
the packets statistic.
Sorted Rules - Choose how the displayed statistics are sorted.
Select the Auto-refresh checkbox to refresh automatically.
Click the Refresh button to refresh immediately.
Click Reset All to reset the values of all the entries to zero.
Click Delete All to delete all entries in the table.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 98 -
Statistics Table:
IP/MAC Address The IP and MAC address are displayed with related statistics.
Packets The total number of packets received and transmitted by the
router.
Total
Bytes The total number of bytes received and transmitted by the router.
Packets The total number of packets received and transmitted in the last
Packets Statistic interval seconds.
Bytes The total number of bytes received and transmitted in the last
Packets Statistic interval seconds.
ICMP
Tx
The number of the ICMP packets transmitted to WAN per second
at the specified Packets Statistics interval. It is shown like
“current transmitting rate / Max transmitting rate”.
UDP Tx The number of UDP packets transmitted to the WAN per second
at the specified Packets Statistics interval. It is shown like
“current transmitting rate / Max transmitting rate”.
Current
TCP
SYN Tx
The number of TCP SYN packets transmitted to the WAN per
second at the specified Packets Statistics interval. It is shown like
“current transmitting rate / Max transmitting rate”.
Reset Reset the value of the entry to zero.
Modify Delete Delete the existing entry in the table.
There would be 5 entries on each page. Click Previous to return to the previous page and Next to
the next page.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 99 -
Appendix A: FAQ
1. How do I configure the router to access Internet by ADSL users?
1) First, configure the ADSL Modem configured in RFC1483 bridge model.
2) Connect the Ethernet cable from your ADSL Modem to the Internet port on the router.
The telephone cord plugs into the Line port of the ADSL Modem.
3) Login to the router, click the “Network” menu on the left of your browser, and click "WAN"
submenu. On the WAN page, select “PPPoE/Russia PPPoE” for WAN Connection Type.
Type user name in the “User Name” field and password in the “Password” field, type
password in the “Confirm Password” field again, finish by clicking “Connect”.
Figure A-1 PPPoE Connection Type
4) If your ADSL lease is in “pay-according-time” mode, select “Connect on Demand” or
“Connect Manually” for Internet connection mode. Type an appropriate number for “Max
Idle Time” to avoid wasting paid time. Otherwise, you can select “Connect Automatically”
for Internet connection mode.
Figure A-2 PPPoE Connection Mode
Note:
1. Sometimes the connection cannot be disconnected although you specify a time to Max
Idle Time, since some applications is visiting the Internet continually in the background.
2. If you are a Cable user, please configure the router following the above steps.
2. How do I configure the router to access Internet by Ethernet users?
1) Login to the router, click the “Network” menu on the left of your browser, and click "WAN"
submenu. On the WAN page, select “Dynamic IP” for "WAN Connection Type", finish by
clicking “Save”.
2) Some ISPs require that you register the MAC Address of your adapter, which is
connected to your cable/DSL Modem during installation. If your ISP requires MAC
register, login to the router and click the "Network" menu link on the left of your browser,
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 100 -
and then click "MAC Clone" submenu link. On the "MAC Clone" page, if your PC’s MAC
address is proper MAC address, click the "Clone MAC Address" button and your PC’s
MAC address will fill in the "WAN MAC Address" field. Or else, type the MAC Address
into the "WAN MAC Address" field. The format for the MAC Address is
XX-XX-XX-XX-XX-XX. Then click the "Save" button. It will take effect after rebooting.
Figure A-3 MAC Clone
3. I want to use Netmeeting, what do I need to do?
1) If you start Netmeeting as a host, you don’t need to do anything with the router.
2) If you start as a response, you need to configure Virtual Server or DMZ Host and make
sure the H323 ALG is enabled.
3) How to configure Virtual Server: Log in to the router, click the “Forwarding” menu on the
left of your browser, and click "Virtual Servers" submenu. On the "Virtual Servers" page,
click Add New…. Then on the “Add or Modify a Virtual Server Entry” page, enter
“1720” for the “Service Port” blank, and your IP address for the “IP Address” blank, taking
192.168.0.169 for an example, remember to Enable and Save.
Figure A-4 Virtual Servers
Figure A-5 Add or Modify a Virtual server Entry
Note:
Your opposite side should call your WAN IP, which is displayed on the “Status” page.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 101 -
4) How to enable DMZ Host: Log in to the router, click the “Forwarding” menu on the left of
your browser, and click "DMZ" submenu. On the "DMZ" page, click Enable radio button
and type your IP address into the “DMZ Host IP Address” field, using 192.168.0.169 as
an example, remember to click the Save button.
Figure A-6 DMZ
5) How to enable H323 ALG: Log in to the router, click the “Security” menu on the left of
your browser, and click “Basic Security” submenu. On the “Basic Security” page, check
the Enable radio button next to H323 ALG. Remember to click the Save button.
Figure A-7 Basic Security
4. I want to build a WEB Server on the LAN, what should I do?
1) Because the WEB Server port 80 will interfere with the WEB management port 80 on the
router, you must change the WEB management port number to avoid interference.
2) To change the WEB management port number: Log in to the router, click the “Security”
menu on the left of your browser, and click "Remote Management" submenu. On the
"Remote Management" page, type a port number except 80, such as 88, into the "Web
Management Port" field. Click Save and reboot the router.
Figure A-8 Remote Management
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 102 -
Note:
If the above configuration takes effect, you can visit and configure the router by typing
http://192.168.0.1:88 (the router’s LAN IP address: Web Management Port) in the address
field of the Web browser. If the LAN IP of the modem connected with your router is
192.168.0.x, the default LAN IP of the router will automatically switch from 192.168.0.1 to
192.168.1.1 to avoid IP conflict; in this case, please try http://192.168.1.1:88.
3) Log in to the router, click the “Forwarding” menu on the left of your browser, and click the
"Virtual Servers" submenu. On the "Virtual Servers" page, click Add New…, then on
the “Add or Modify a Virtual Server” page, enter “80” into the blank next to the “Service
Port”, and your IP address next to the “IP Address”, assuming 192.168.0.188 for an
example, remember to Enable and Save.
Figure A-9 Virtual Servers
Figure A-10 Add or Modify a Virtual server Entry
5. The wireless stations cannot connect to the router.
1) Make sure the "Wireless router Radio" is enabled.
2) Make sure that the wireless stations' SSID accord with the router's SSID.
3) Make sure the wireless stations have right KEY for encryption when the router is
encrypted.
4) If the wireless connection is ready, but you can’t access the router, check the IP Address
of your wireless stations.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 103 -
Appendix B: Configuring the PC
In this section, we’ll introduce how to install and configure the TCP/IP correctly in Windows XP.
First make sure your Ethernet Adapter is working, refer to the adapter’s manual if needed.
1. Install TCP/IP component
1) On the Windows taskbar, click the Start button, point to Settings, and then click Control
Panel.
2) Click the Network and Internet Connections icon, and then click on the Network
Connections tab in the appearing window.
3) Right click the icon that showed below, select Properties on the prompt page.

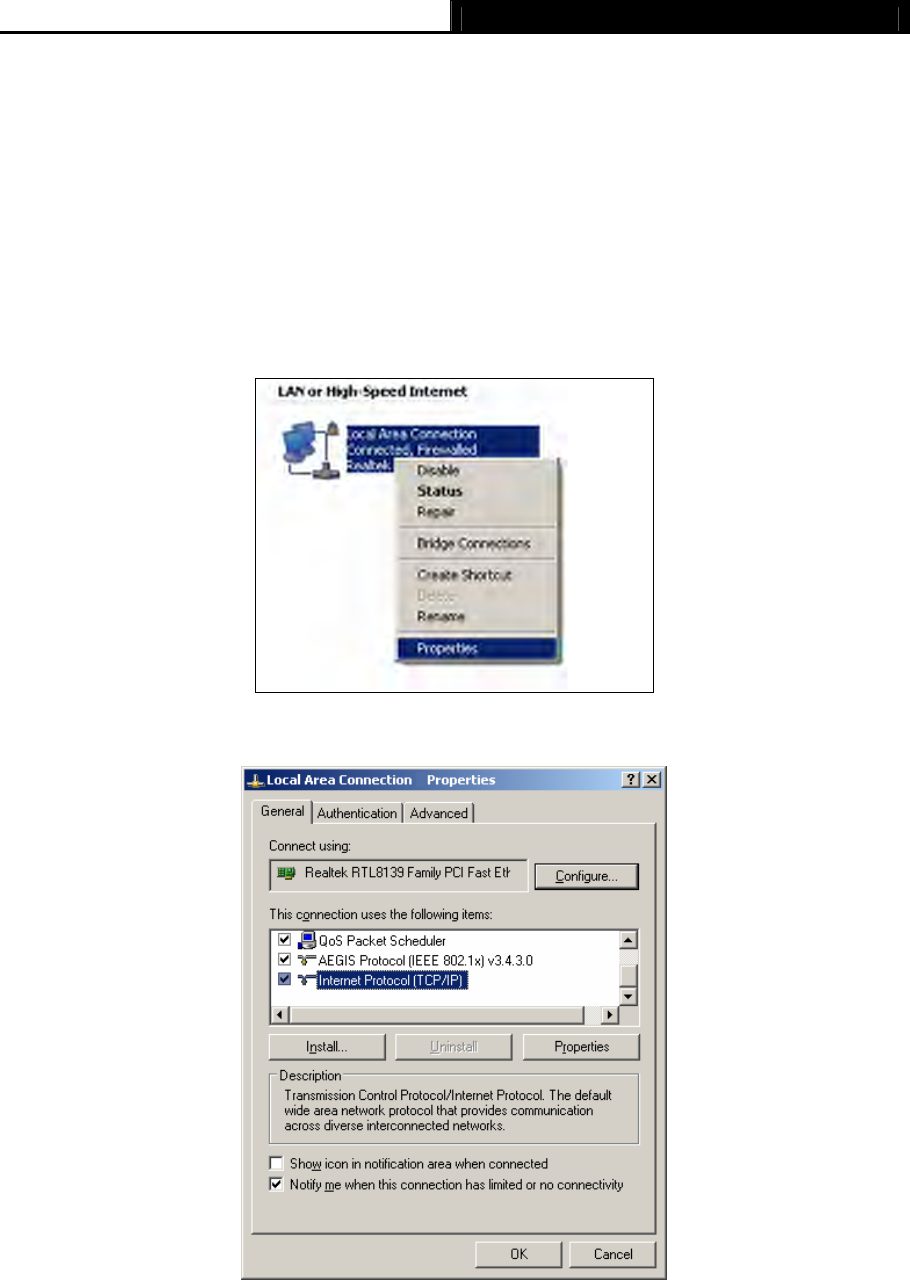

Figure B-1
4) In the prompt page that showed below, double click on the Internet Protocol (TCP/IP).
Figure B-2
5) The following TCP/IP Properties window will display and the IP Address tab is open on
this window by default.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 104 -
6) Select Obtain an IP address automatically and Obtain DNS server automatically, as
shown in the Figure below:

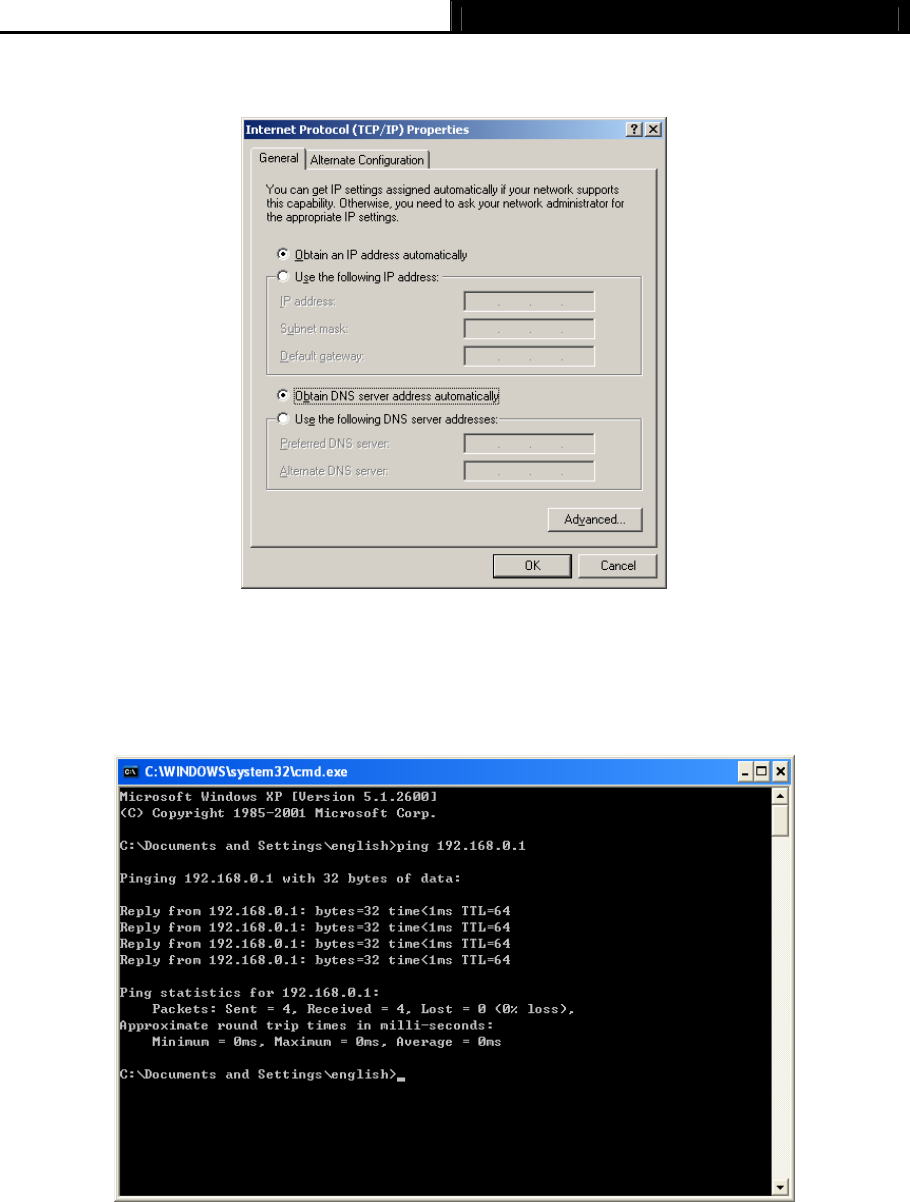

Figure B-3
2. Verify the network connection between your PC and the router
Open a command prompt, and type ping 192.168.0.1, and then press Enter.
If the result displayed is similar to the Figure B-4, it means the connection between your PC
and the router has been established well.
Figure B-4 Success result of Ping command
If the result displayed is similar to Figure B-5, it means the connection between your PC and
the router failed.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 105 -

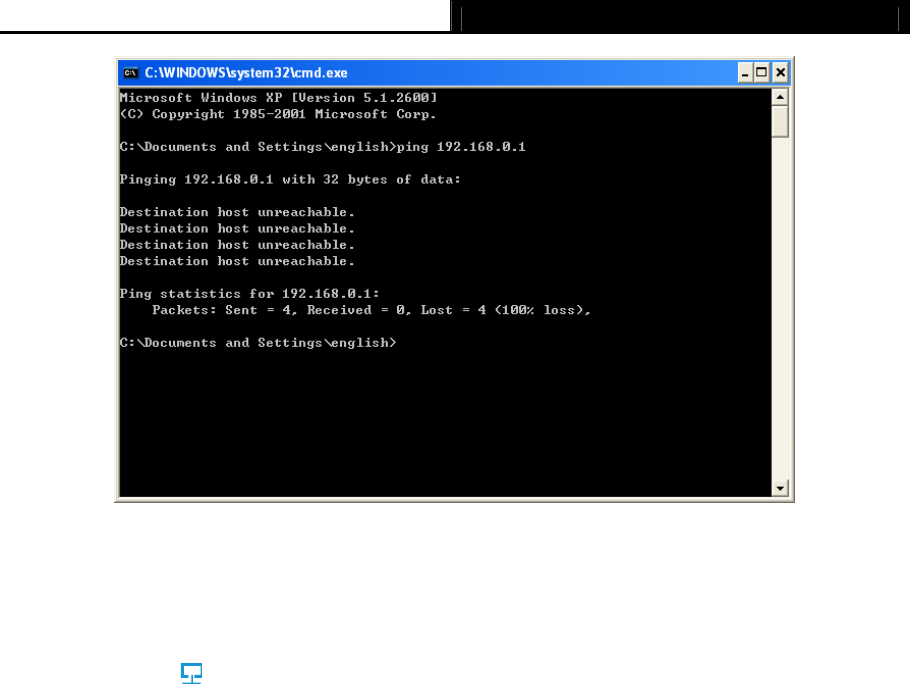

Figure B-5 Failure result of Ping command
Please check the connection following these steps:
1. Is the connection between your PC and the router correct?
Note:
The Ethernet LED on the router and LEDs on your PC's adapter should be lit.
2. Is the TCP/IP configuration for your PC correct?
Note:
If the router's IP address is 192.168.0.1, your PC's IP address must be within the range of
192.168.0.2 ~ 192.168.0.254.
3. Is the default LAN IP of the router correct?
Note:
If the LAN IP of the modem connected with your router is 192.168.0.x, the default LAN IP of the
router will automatically switch from 192.168.0.1 to 192.168.1.1 to avoid IP conflict. Therefore, in
order to verify the network connection between your PC and the router, you can open a command
prompt, and type ping 192.168.1.1, and then press Enter.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 106 -
Appendix C: Specifications
General
Standards
IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE
802.11a, IEEE 802.11e, IEEE 802.11i, IEEE 802.1X, IEEE 802.3X,
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Protocols TCP/IP, PPPoE, DHCP, ICMP, NAT, SNTP
1 10/100/1000M Auto-Negotiation Internet RJ45 port;
4 10/100/1000M Auto-Negotiation Ethernet RJ45 ports supporting
Auto MDI/MDIX;
Ports
2 USB ports supporting storage/FTP/Media/Print Server;
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Cabling Type
1000BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
LEDs (Power), (Wireless-2.4G), (Wireless-5G), (Ethernet),
(Internet), (USB), (USB), (WPS)
Safety & Emissions FCC, CE
Wireless
Frequency Band* 2.4GHz, 5GHz
Radio Data Rate
11b: 1/2/5.5/11Mbps
11a/g: 6/9/12/18/24/36/48/54Mbps
11n: up to 450Mbps
11ac: up to 1.3Gbps
Frequency Expansion DSSS (Direct Sequence Spread Spectrum)
Modulation
11ac: 256-QAM for OFDM
11n/g/a: QPSK,BPSK,16-QAM, 64-QAM for OFDM
11b: CCK,DQPSK,DBPSK
Security WEP, WPA/WPA2, WPA2-PSK/WPA-PSK
Sensitivity
5G:
11a 6Mbps: -92dBm
11a 54Mbps: -74dBm
11ac HT20: -66dBm
11ac HT40: -62dBm
11ac HT80: -59dBm
2.4G:
11b 1M: -96dBm
11g 54M: -73dBm
11n HT20: -70dBm
11n HT40: -67dBm
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 107 -
Environmental and Physical
Operating: 0℃ to 40℃ (32℉ to 104℉)
Temperature Storage: -40℃ to 70℃ (-40℉ to 158℉)
Operating: 10% to 90% RH, Non-condensing
Humidity Storage: 5% to 90% RH, Non-condensing
* Only 2.412GHz~2.462GHz is allowed to be used in USA, which means only channel 1~11 is available for
American users to choose.
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 108 -
Appendix D: Glossary
802.11ac - IEEE 802.11ac is a wireless computer networking standard of 802.11.This
specification will enable multi-station WLAN throughput of at least 1 gigabit per second .This
is accomplished by extending the air interface concepts embraced by 802.11n: wider RF
bandwidth, more MIMO spatial streams, multi-user MIMO, and high-density modulation (up to
256 QAM).
802.11n - 802.11n builds upon previous 802.11 standards by adding MIMO (multiple-input
multiple-output). MIMO uses multiple transmitter and receiver antennas to allow for increased
data throughput via spatial multiplexing and increased range by exploiting the spatial diversity,
perhaps through coding schemes like Alamouti coding. The Enhanced Wireless Consortium
(EWC) [3] was formed to help accelerate the IEEE 802.11n development process and
promote a technology specification for interoperability of next-generation wireless local area
networking (WLAN) products.
802.11b - The 802.11b standard specifies a wireless networking at 11 Mbps using
direct-sequence spread-spectrum (DSSS) technology and operating in the unlicensed radio
spectrum at 2.4GHz, and WEP encryption for security. 802.11b networks are also referred to
as Wi-Fi networks.
802.11g - specification for wireless networking at 54 Mbps using direct-sequence
spread-spectrum (DSSS) technology, using OFDM modulation and operating in the
unlicensed radio spectrum at 2.4GHz, and backward compatibility with IEEE 802.11b devices,
and WEP encryption for security.
DDNS (Dynamic Domain Name System) - The capability of assigning a fixed host and domain
name to a dynamic Internet IP Address.
DHCP (Dynamic Host Configuration Protocol) - A protocol that automatically configure the
TCP/IP parameters for the all the PC(s) that are connected to a DHCP server.
DMZ (Demilitarized Zone) - A Demilitarized Zone allows one local host to be exposed to the
Internet for a special-purpose service such as Internet gaming or videoconferencing.
DNS (Domain Name System) - An Internet Service that translates the names of websites into
IP addresses.
Domain Name - A descriptive name for an address or group of addresses on the Internet.
DSL (Digital Subscriber Line) - A technology that allows data to be sent or received over
existing traditional phone lines.
ISP (Internet Service Provider) - A company that provides access to the Internet.
MTU (Maximum Transmission Unit) - The size in bytes of the largest packet that can be
transmitted.
NAT (Network Address Translation) - NAT technology translates IP addresses of a local area
network to a different IP address for the Internet.
PPPoE (Point to Point Protocol over Ethernet) - PPPoE is a protocol for connecting remote
hosts to the Internet over an always-on connection by simulating a dial-up connection.
SSID - A Service Set Identification is a thirty-two character (maximum) alphanumeric key
identifying a wireless local area network. For the wireless devices in a network to
Archer C9 AC1900 Wireless Dual Band Gigabit Router
- 109 -
communicate with each other, all devices must be configured with the same SSID. This is
typically the configuration parameter for a wireless PC card. It corresponds to the ESSID in
the wireless Access Point and to the wireless network name.
WEP (Wired Equivalent Privacy) - A data privacy mechanism based on a 64-bit or 128-bit or
152-bit shared key algorithm, as described in the IEEE 802.11 standard.
Wi-Fi - A trade name for the 802.11b wireless networking standard, given by the Wireless
Ethernet Compatibility Alliance (WECA, see http://www.wi-fi.net), an industry standards group
promoting interoperability among 802.11b devices.
WLAN (Wireless Local Area Network) - A group of computers and associated devices
communicate with each other wirelessly, which network serving users are limited in a local
area.
