CR700V2 User Manual HTML Version

Users Manual

Archer CR700

AC1750 Wireless Dual Band DOCSIS 3.0 Cable

Modem Router

Rev: 1.0.1

1910011

488

Specifications are subject to change without notice. is a registered trademark

of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or

registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any

derivative such as translation, transformation, or adaptation without permission from TP-LINK

reserved.

http://www.tp-link.com

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B dig

ital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not inst

alled and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to r

adio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separati

on between the equipment and receiver.

•

Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

•

Consult the dealer or an experienced radio/ TV technician for help.

This device complies with part 15 of the F

CC Rules. Operation is subject to the following two

conditions:

This device may not cause harmful interference.

This device must accept any interference received, including interference that may cause

undesired operation.

Any changes or modifications not e

xpressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

ote:

he manufacturer is not responsible for any radio or

interference caused by

unauthorized modifications to this equipment.

uch modi

fications could void the user’s authority to

operate the equipment.

FCC RF Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled

environment. This device and its antenna must not be co

loca

ted or operating in conjunction with

any other antenna or transmitter.

“To comply with FCC RF exposure compliance requirements, this grant is applicable to only

Mobile Configurations. The antennas used for this transmitter must be installed to provide a

paration distance of at least 20 cm from all persons and must not be co

located or operating in

conjunction with any other antenna or transmitter.”

This device is restricted in indoor environment only.

Canadian Compliance Statement

This device complies wit

h Industry Canada license

exempt RSS

. Operation is subject to the

following two conditions:

）

This device may not cause interference, and

paration distance of at least 28 cm from all persons and must not be co

2） This device must accept any interference, including interference that may cause undesired

operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio

exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :

1） l’appareil ne doit pas produire de brouillage;

2） l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, meme si le

brouillage est susceptible d’en compromettre le fonctionnement.

Caution:

The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential

for harmful interference to co-channel mobile satellite systems;

The high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350

MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to

LE-LAN devices.

Avertissement:

Le dispositif fonctionnant dans la bande 5150-5250 MHz est réservé uniquement pour une

utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de

satellites mobiles utilisant les mêmes canaux;

En outre, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute

puissance sont désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour les bandes

5250-5350 MHz et 5650-5850 MHz et que ces radars pourraient causer du brouillage et/ou des

dommages aux dispositifs LAN-EL.

Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance 20cm

between the radiator & your body.

Déclaration d'exposition aux radiations:

Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un

environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20

cm de distance entre la source de rayonnement et votre corps.

Industry Canada Statement

CAN ICES-3 (B)/NMB-3(B)

NCC Notice& BSMI Notice:

注意！

依據低功率電波輻射性電機管理辦法

第十二條經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、

加大功率或變更原設計之特性或功能。

第十四條低功率射頻電機之使用不得影響飛航安全及干擾合法通行；經發現有干擾現象時，應立即

停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信規定作業之無線電信。低功率射

頻電機需忍受合法通信或工業、科學以及醫療用電波輻射性電機設備之干擾。

減少電磁波影響，請妥適使用。

安全諮詢及注意事項

●請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。

●清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。

●注意防潮，請勿將水或其他液體潑灑到本產品上。

●插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。

●請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。

●請不要私自打開機殼，不要嘗試自行維修本產品，請由授權的專業人士進行此項工作。

Safety Information

 When product has power button, the power button is one of the way to shut off the product;

when there is no power button, the only way to completely shut off power is to disconnect the

product or the power adapter from the power source.

 Don’t disassemble the product, or make repairs yourself. You run the risk of electric shock

and voiding the limited warranty. If you need service, please contact us.

 Avoid water and wet locations.

 Adapter shall be installed near the equipment and shall be easily accessible.

 The plug considered as disconnect device of adapter.

 Use only power supplies which are provided by manufacturer and in the original

packing of this product.

Explanation of the symbols on the product label

Symbol Explanation

DC voltage

RECYCLING

This product bears the selective sorting symbol for Waste electrical and electronic

equipment (WEEE). This means that this product must be handled pursuant to

European directive 2012/19/EU in order to be recycled or dismantled to minimize

its impact on the environment.

User has the choice to give his product to a competent recycling organization or to

the retailer when he buys a new electrical or electronic equipment.

CONTENTS

Package Contents .................................................................................................... 1

Chapter 1. Product Overview ................................................................................... 2

1.1 Overview of the Modem Router ..................................................................................... 2

1.2 Main Features ............................................................................................................... 2

1.3 Panel Layout ................................................................................................................. 4

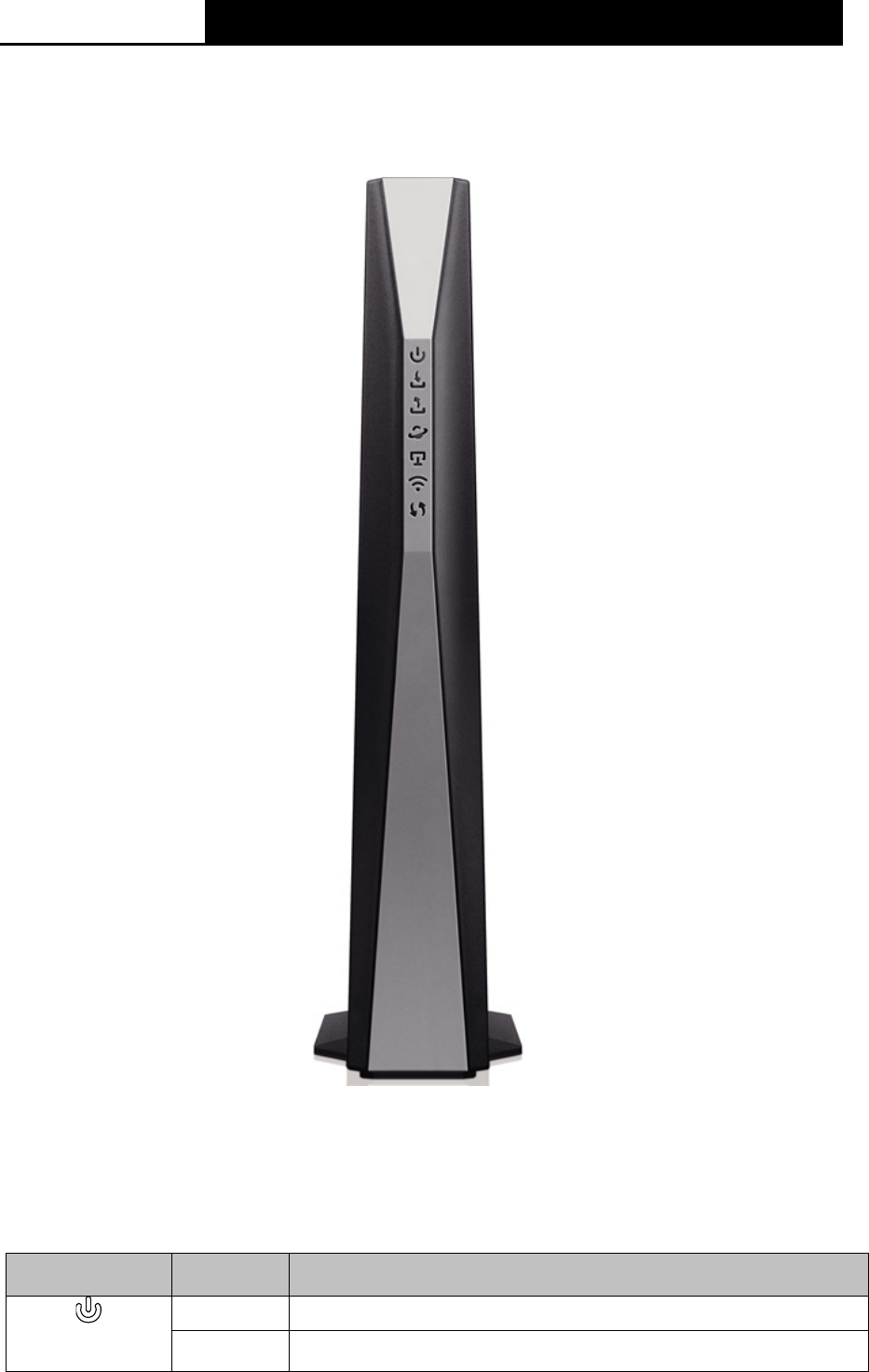

1.3.1 The Front Panel ................................................................................................................... 4

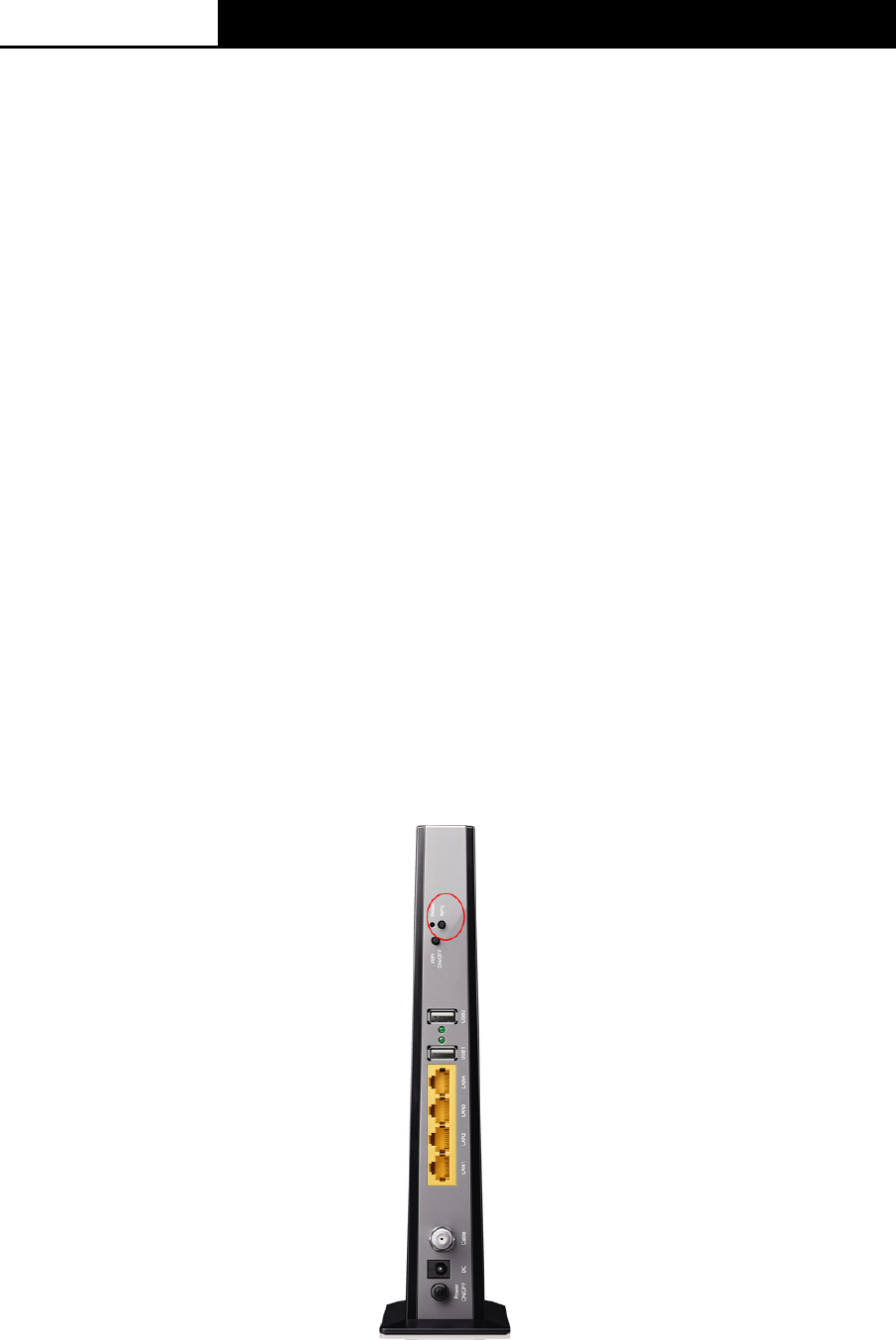

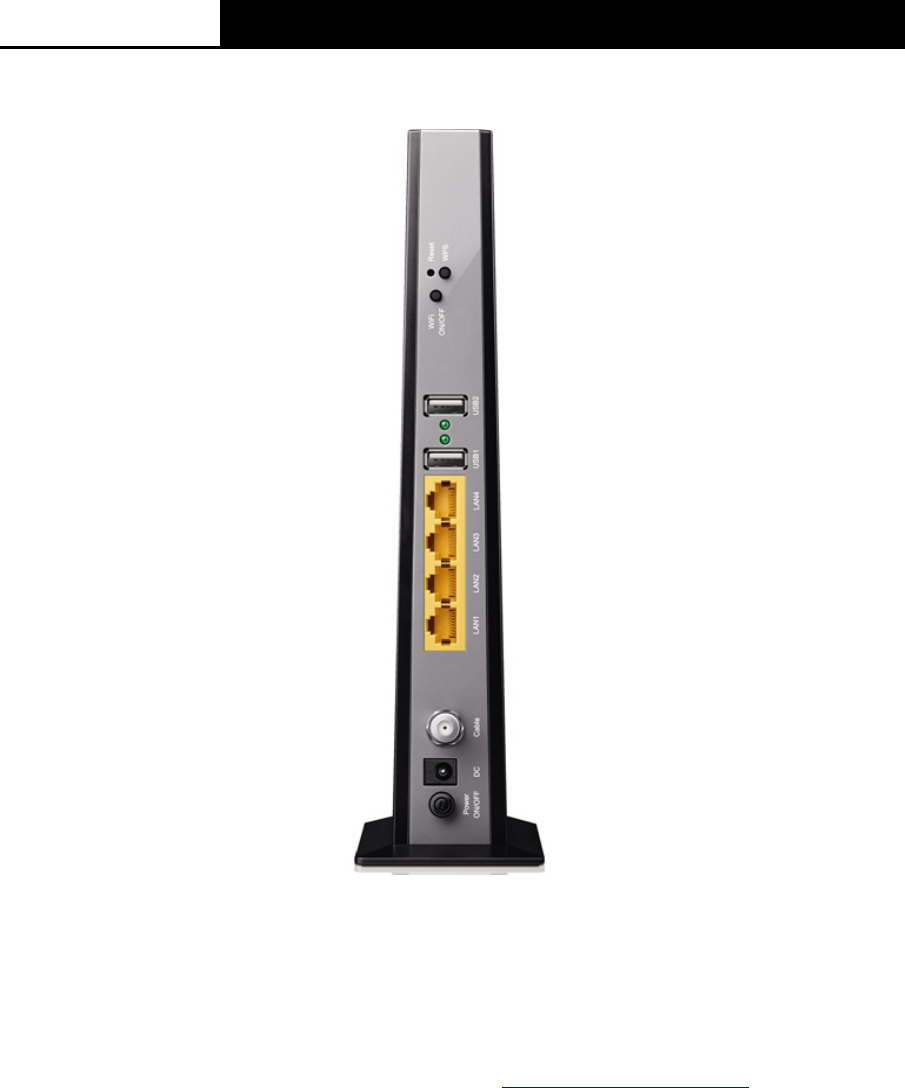

1.3.2 The Back Panel .................................................................................................................... 6

Chapter 2. Install the Modem Router ...................................................................... 7

2.1 System Requirements ................................................................................................... 7

2.2 Installation Environment Requirements ......................................................................... 7

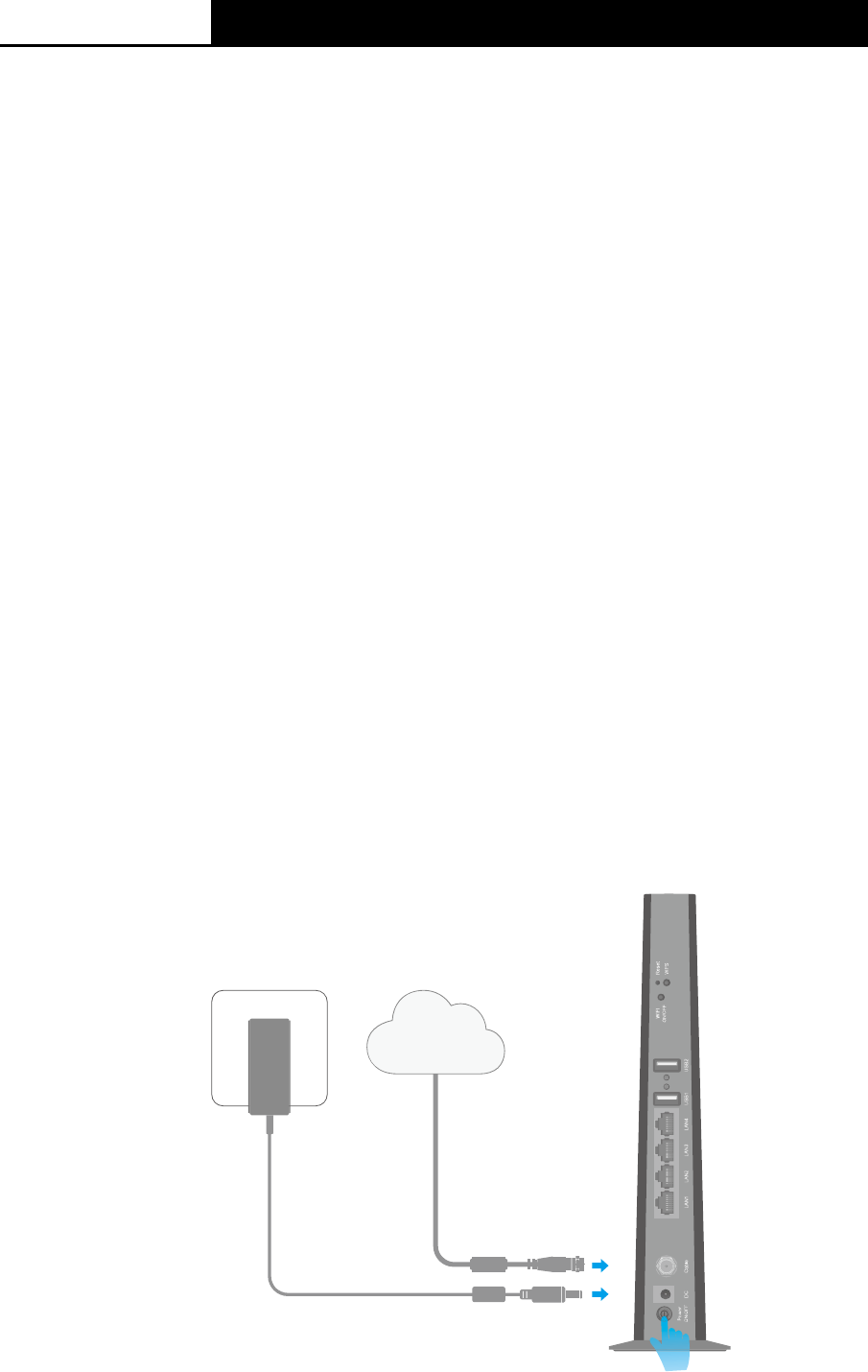

2.3 Connect the Hardware .................................................................................................. 7

2.4 Activate the Modem Router ........................................................................................... 8

2.5 Enjoy the Internet .......................................................................................................... 8

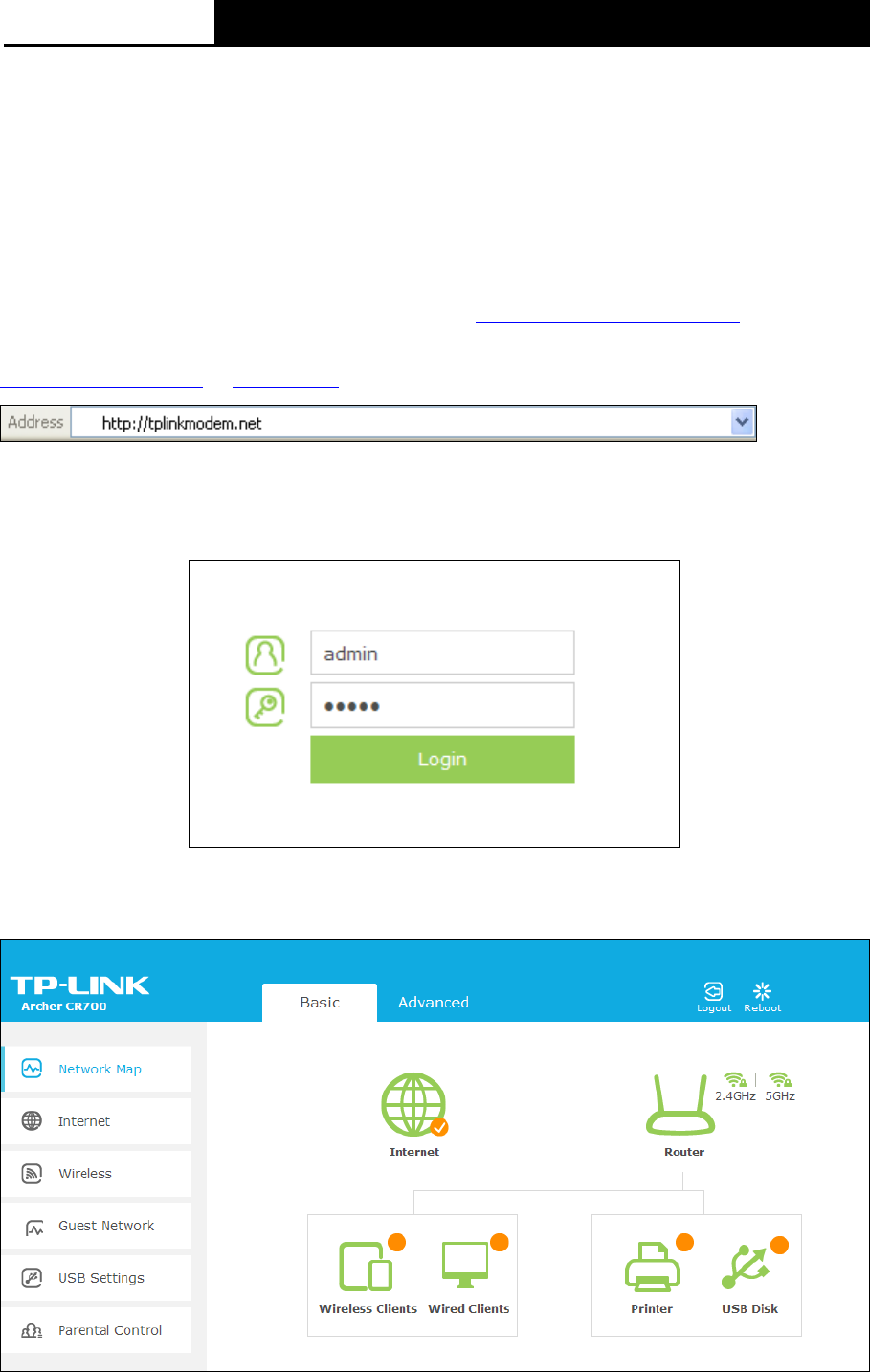

Chapter 3. Log into the Modem Router ................................................................. 10

Chapter 4. Basic ...................................................................................................... 11

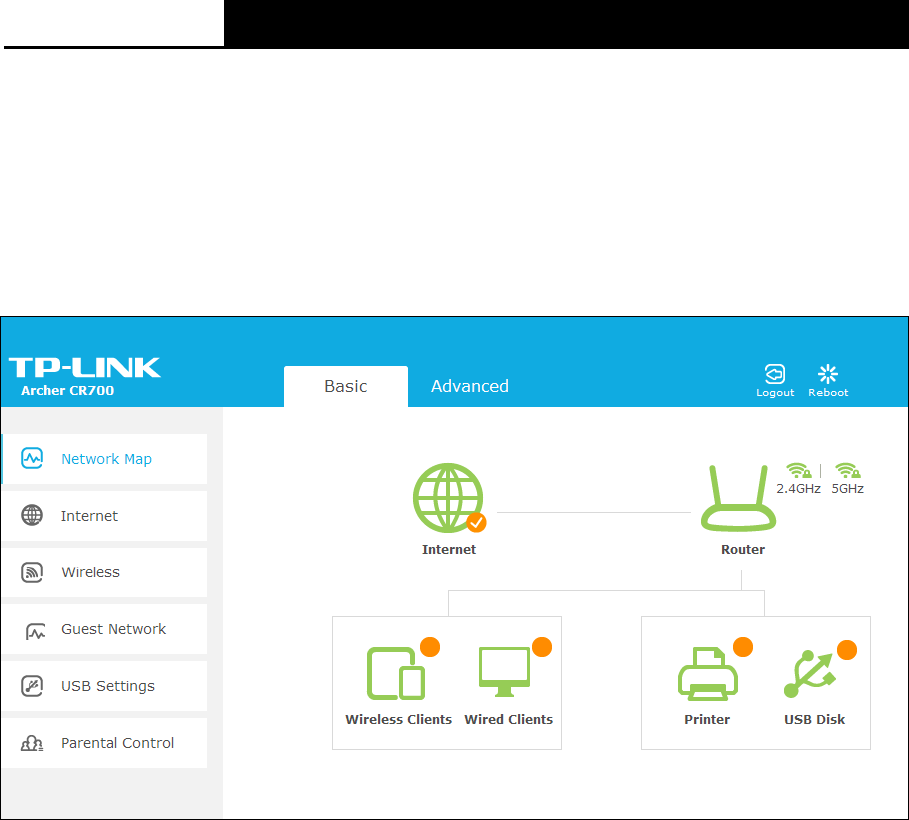

4.1 Network Map ............................................................................................................... 11

4.2 Internet ....................................................................................................................... 11

4.3 Wireless ...................................................................................................................... 14

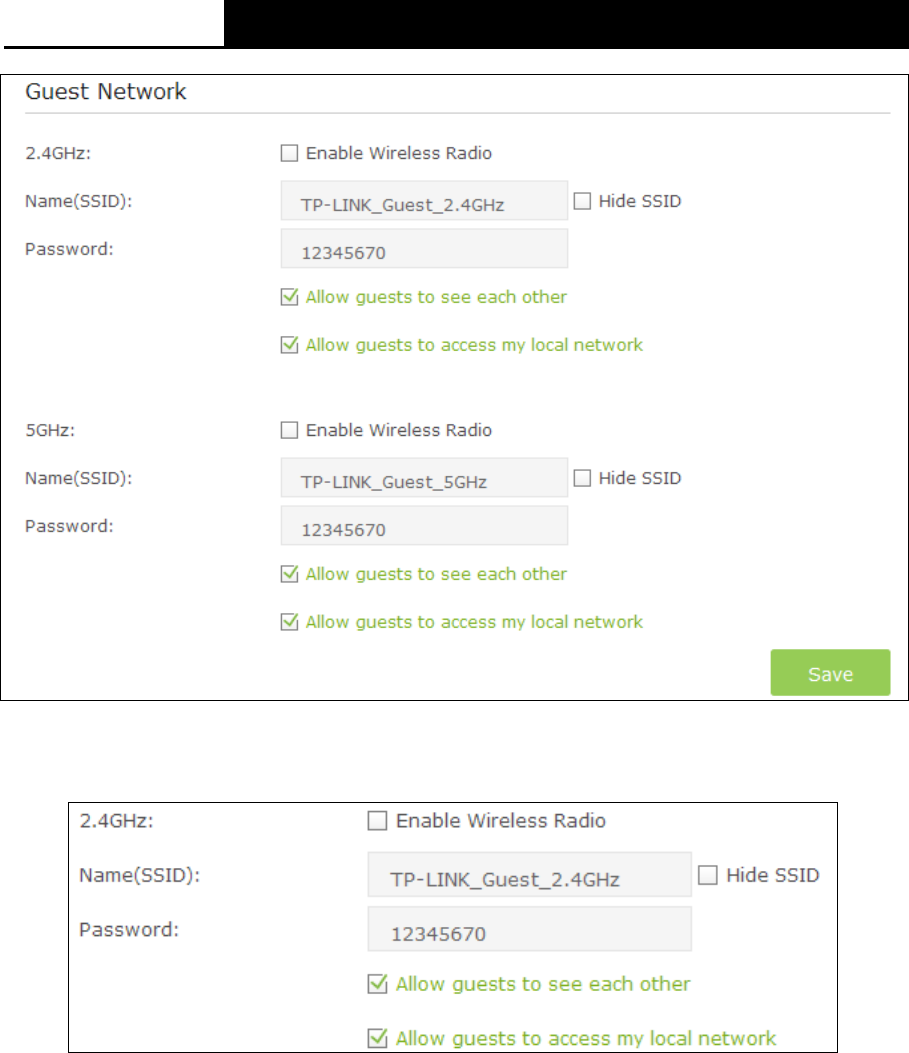

4.4 Guest Network ............................................................................................................ 15

4.5 USB Settings .............................................................................................................. 17

4.5.1 Folder Sharing.................................................................................................................... 17

4.5.2 Print Server ........................................................................................................................ 20

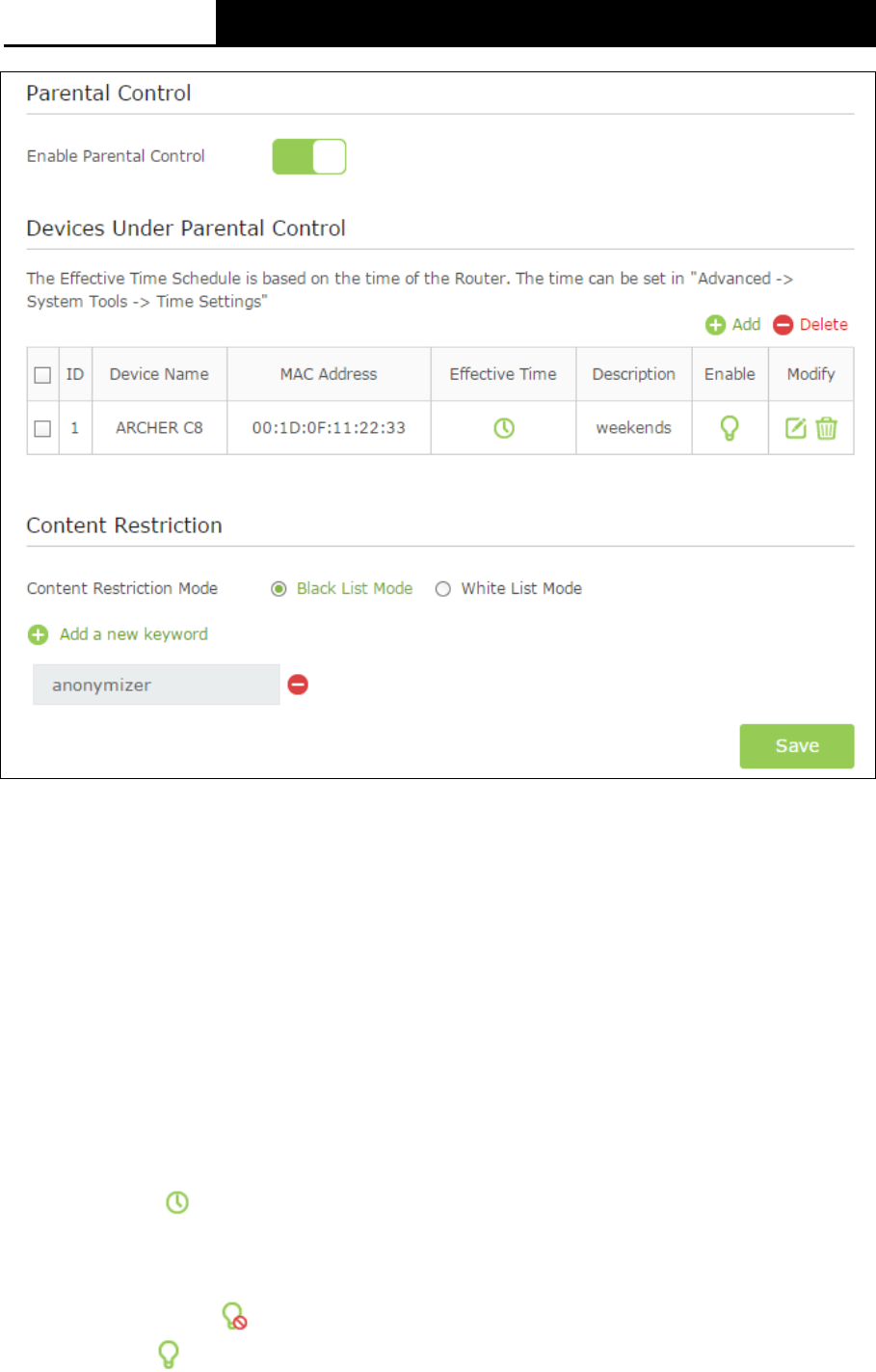

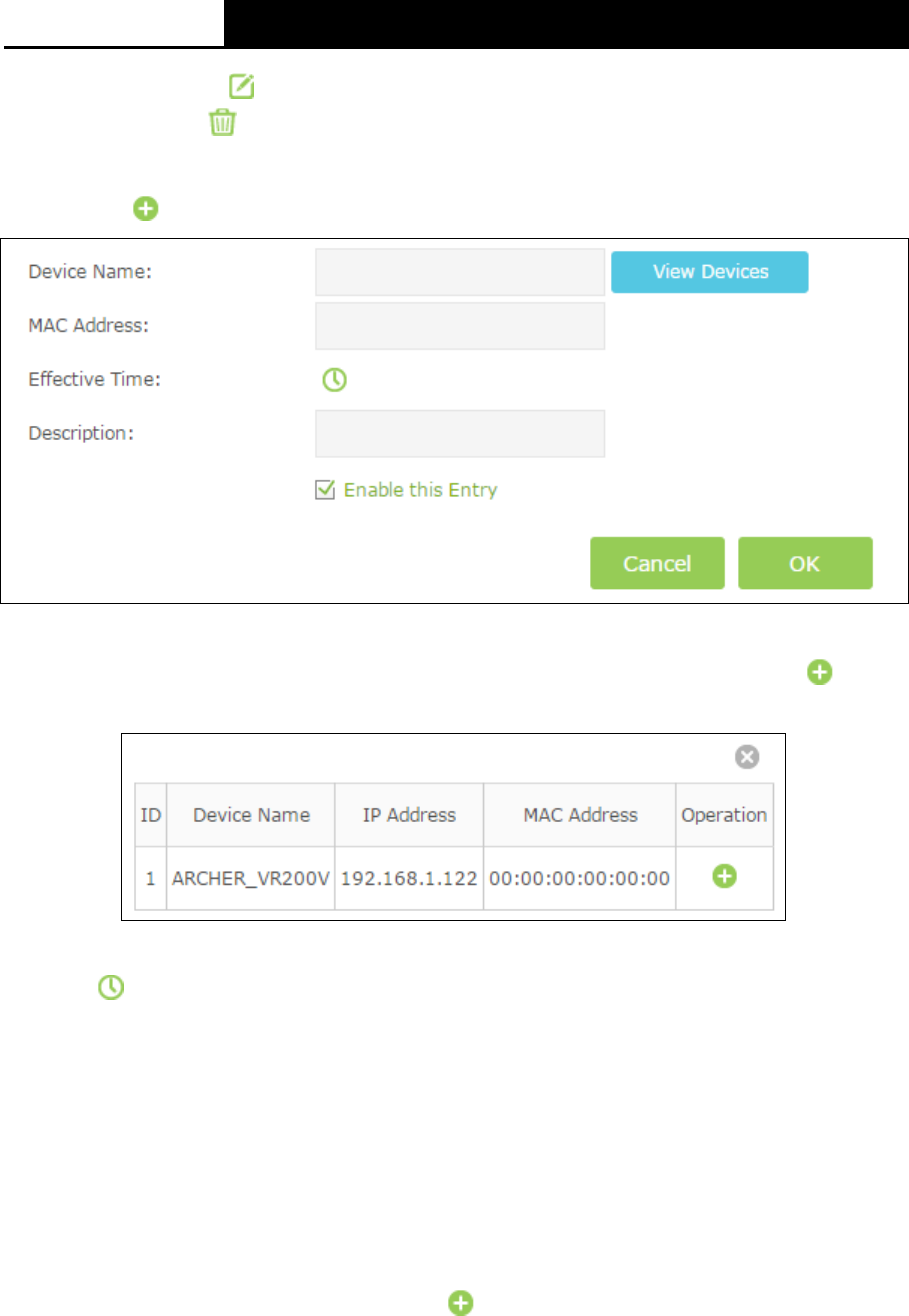

4.6 Parental Control .......................................................................................................... 20

Chapter 5. Advanced .............................................................................................. 24

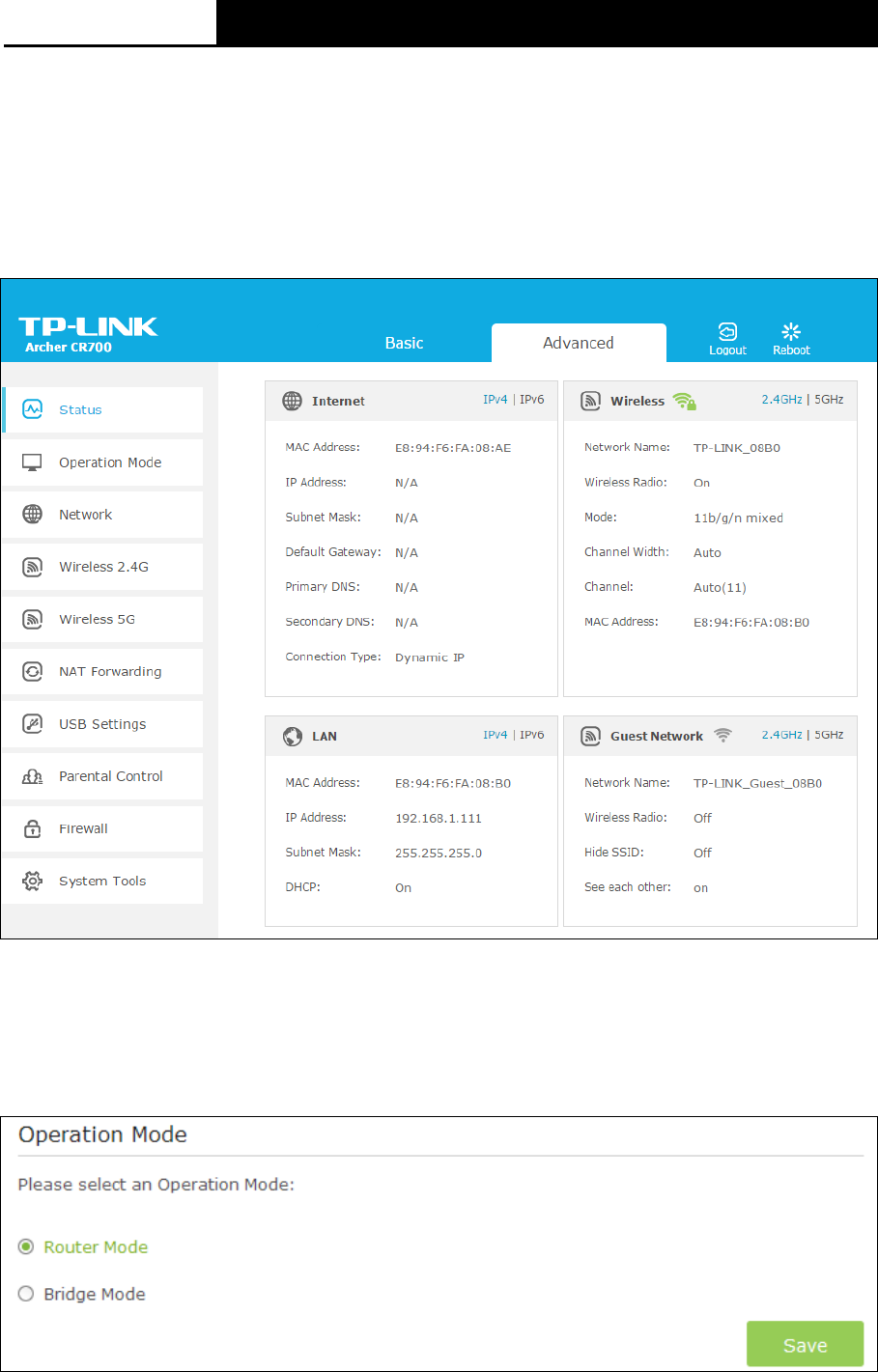

5.1 Status ......................................................................................................................... 24

5.2 Operation Mode .......................................................................................................... 24

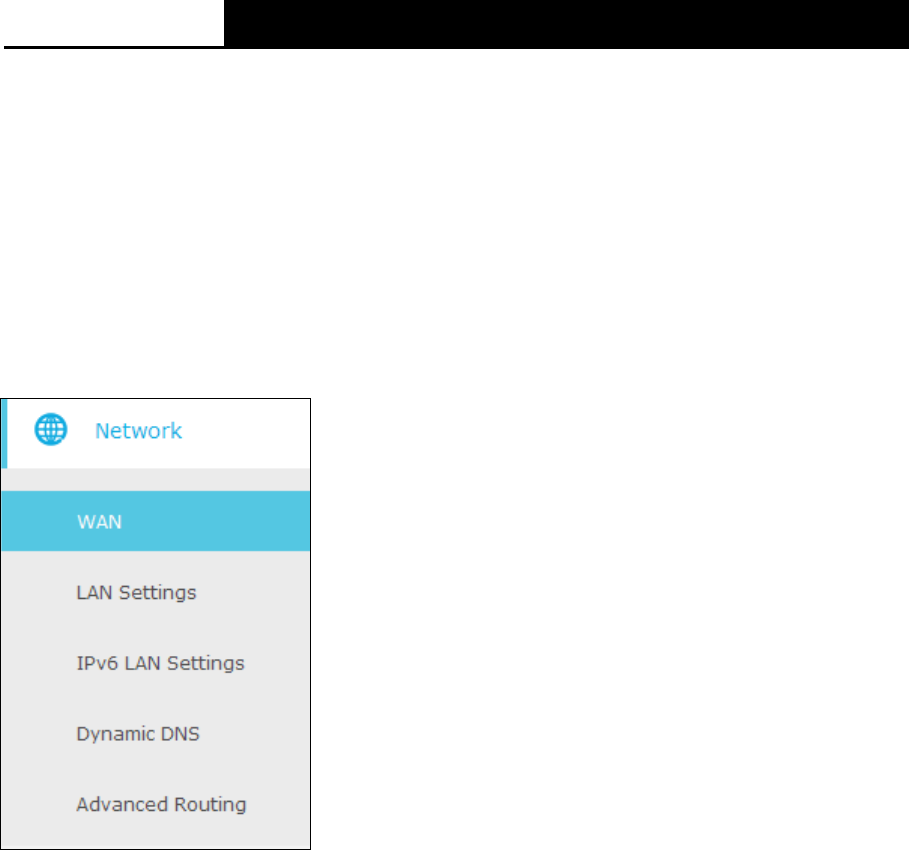

5.3 Network ...................................................................................................................... 25

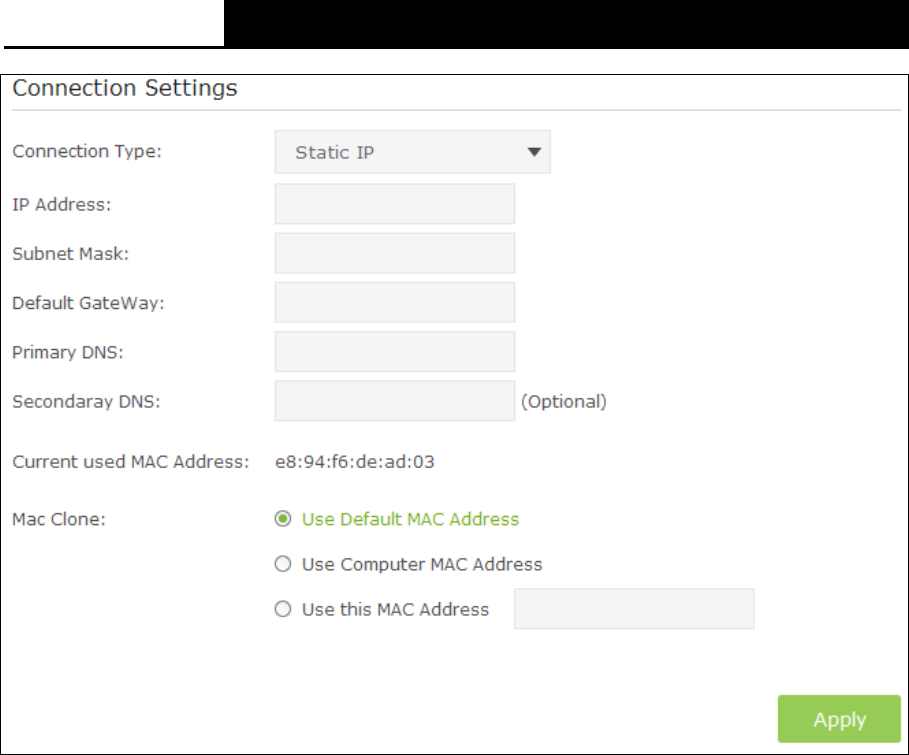

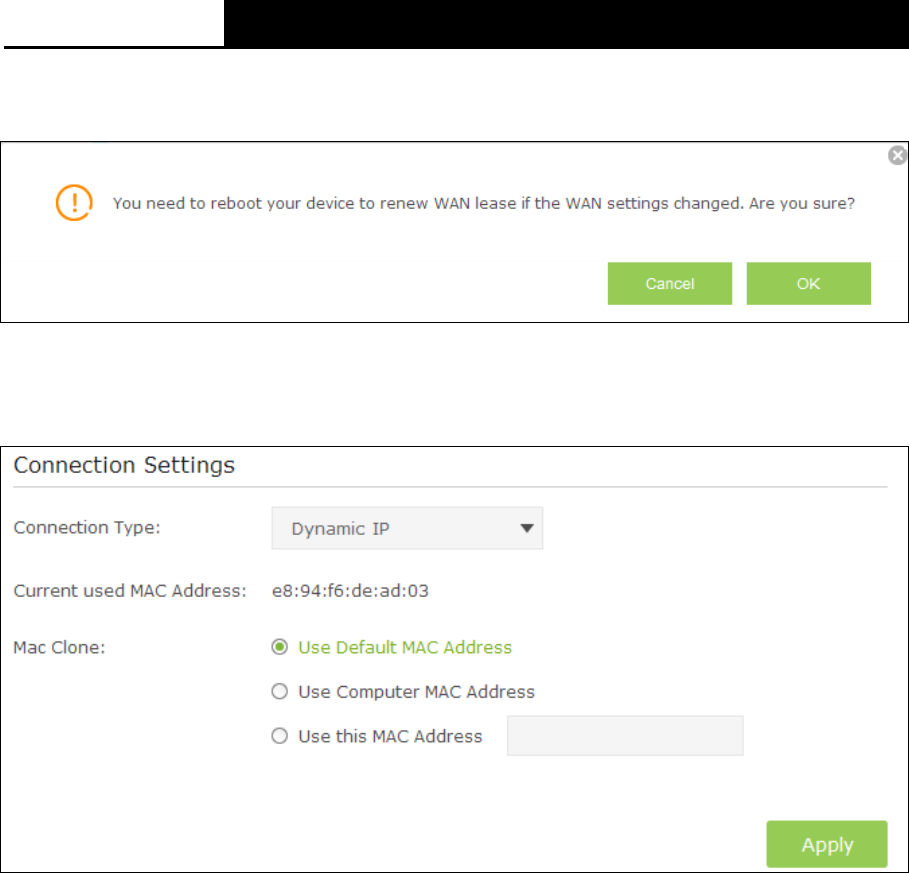

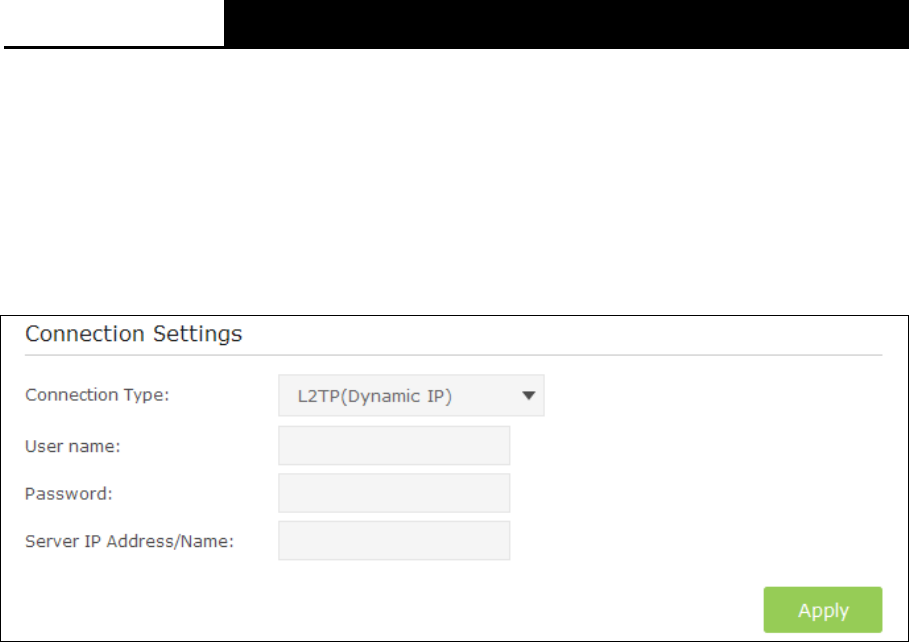

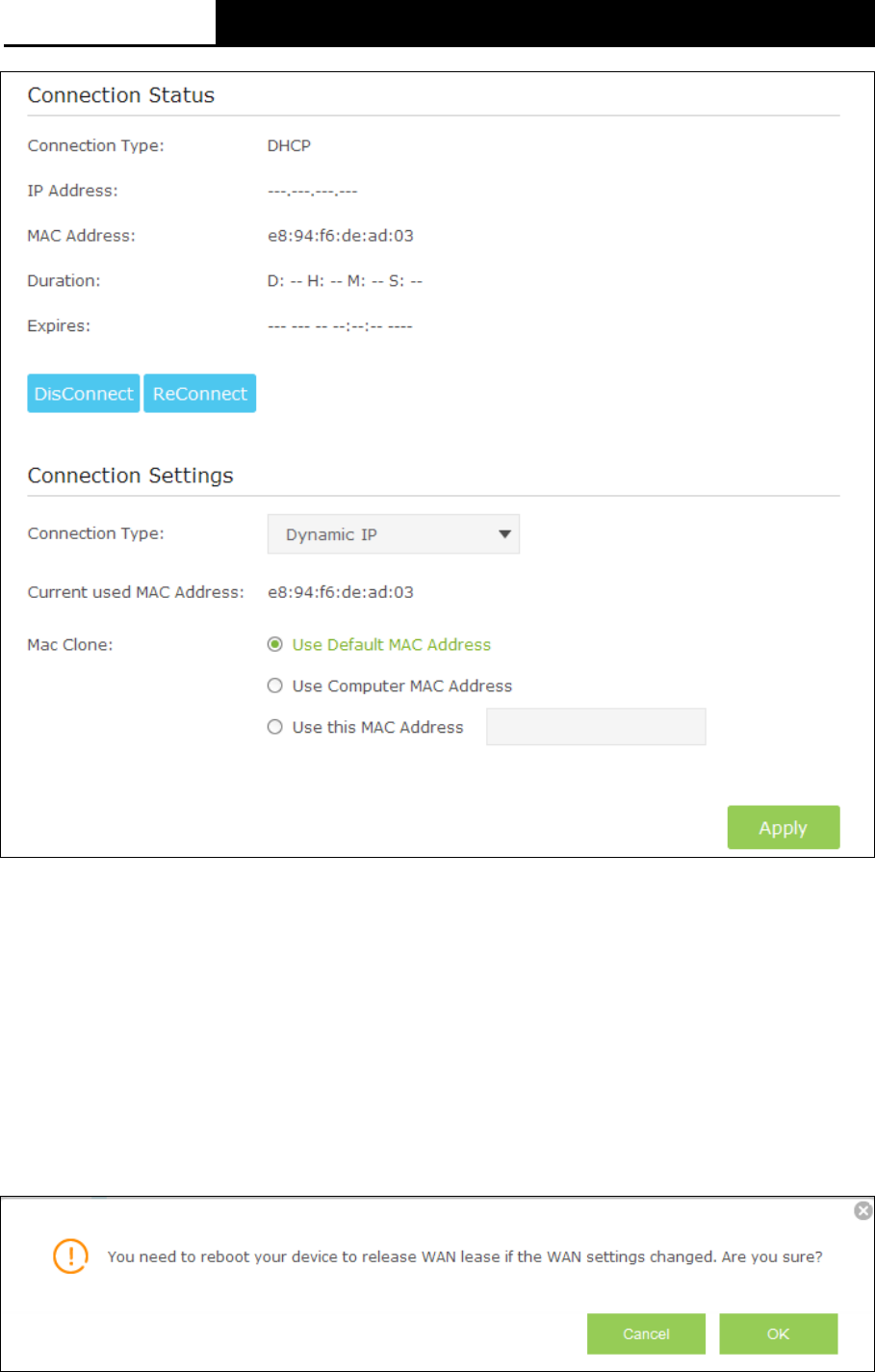

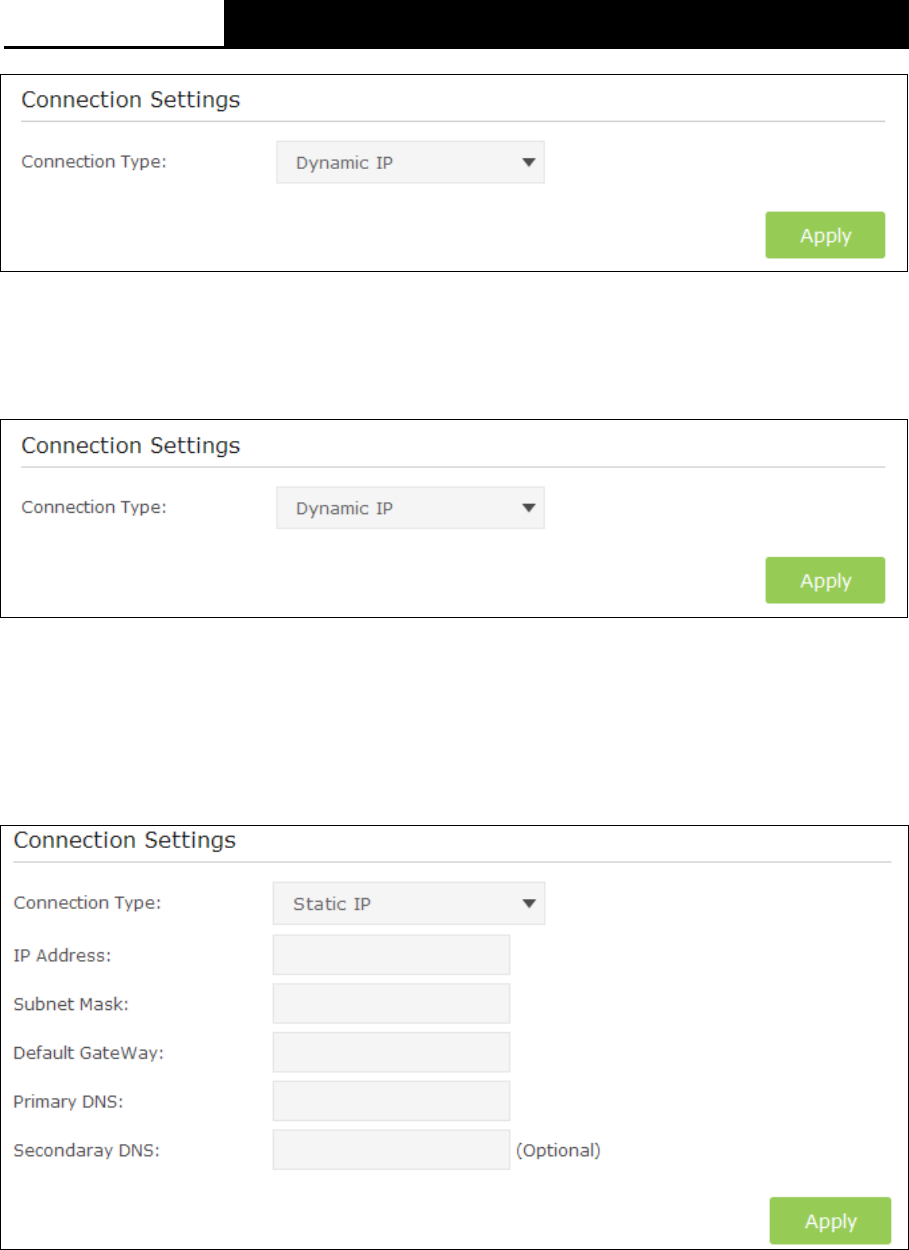

5.3.1 WAN ................................................................................................................................... 25

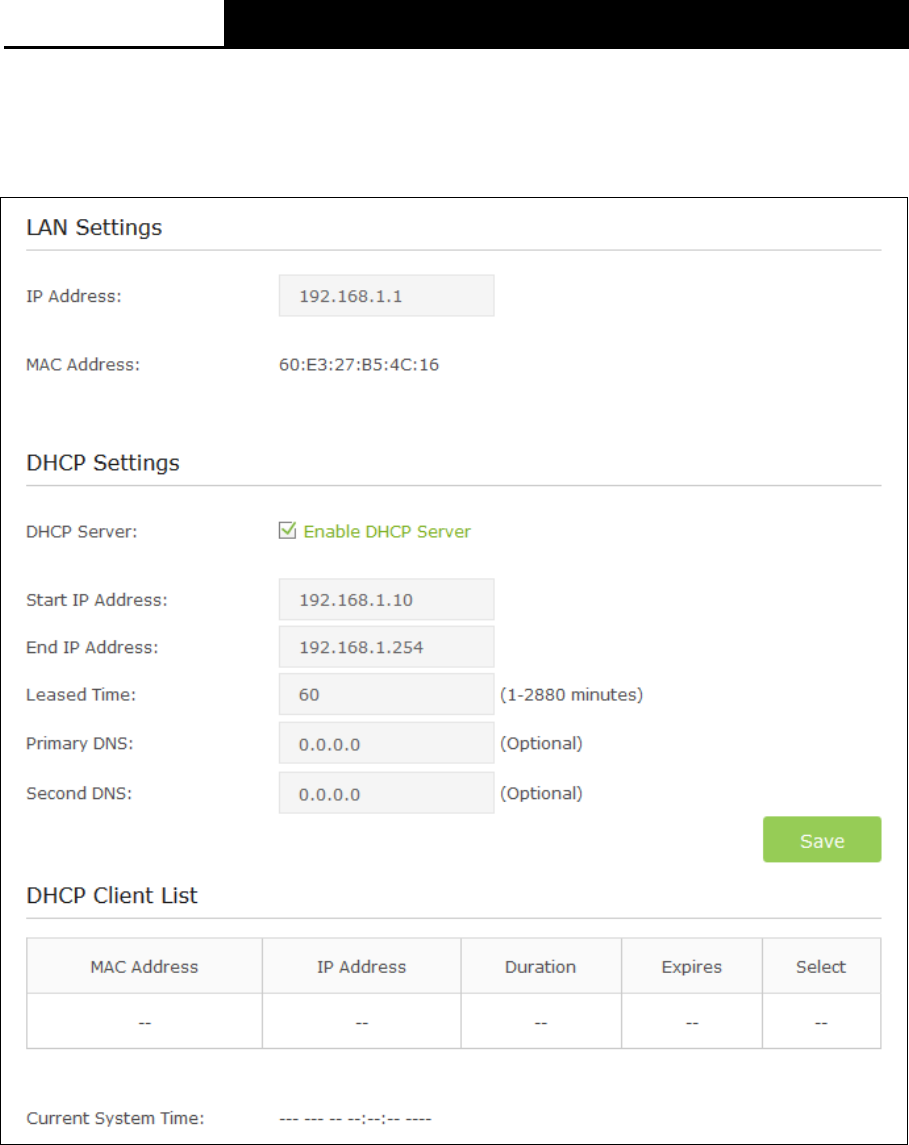

5.3.2 LAN Settings ...................................................................................................................... 32

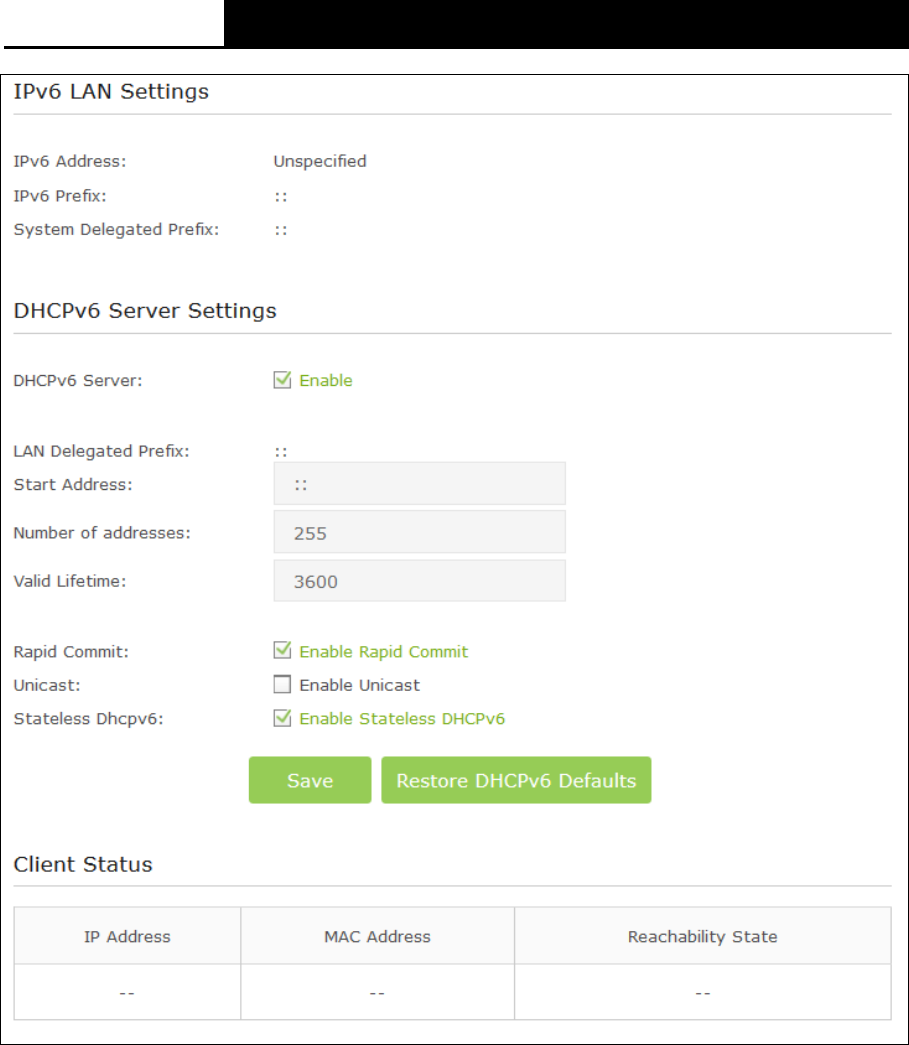

5.3.3 IPv6 LAN Settings .............................................................................................................. 33

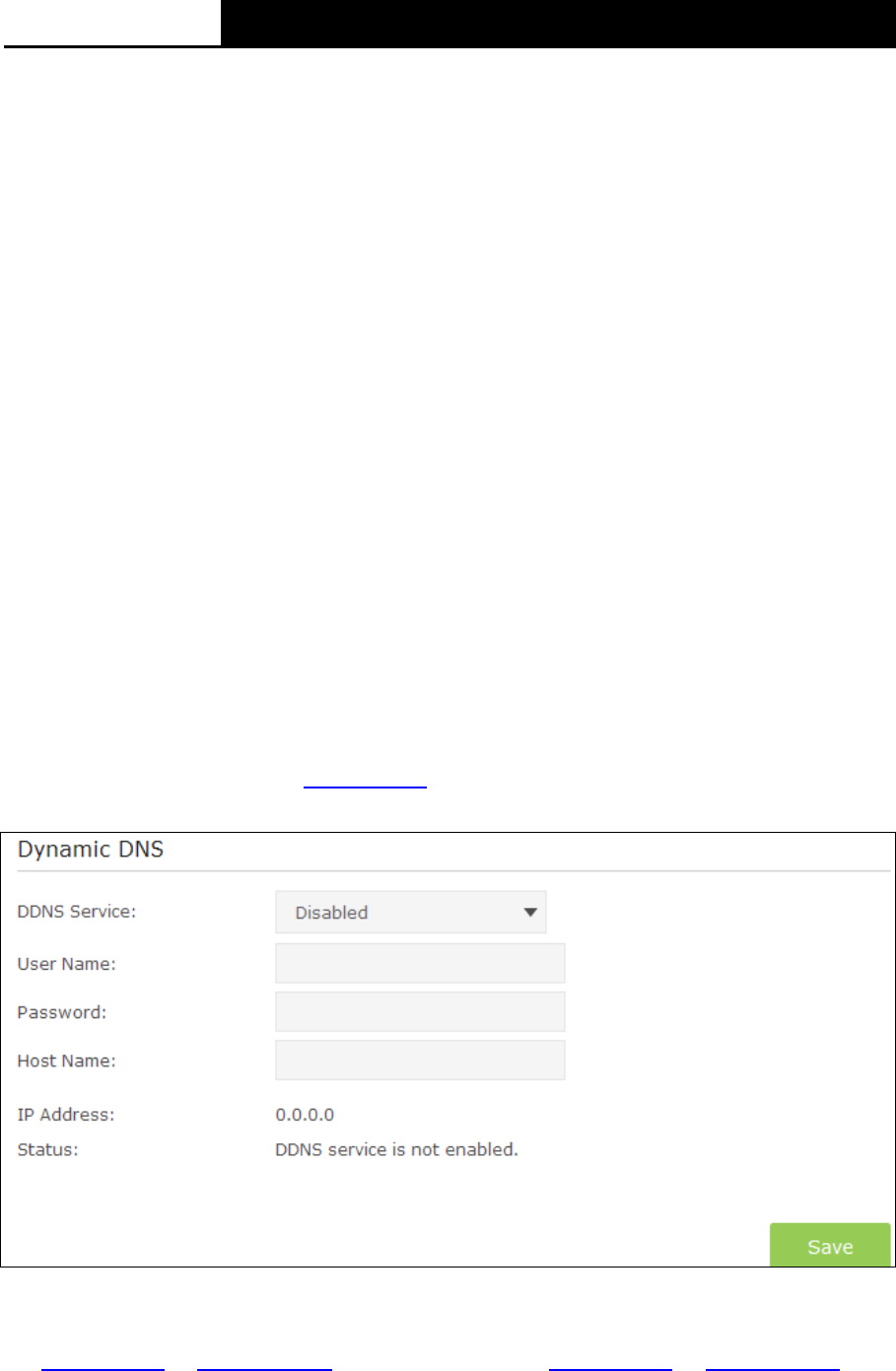

5.3.4 Dynamic DNS ..................................................................................................................... 35

5.3.5 Advanced Routing .............................................................................................................. 36

5.4 Wireless 2.4G ............................................................................................................. 37

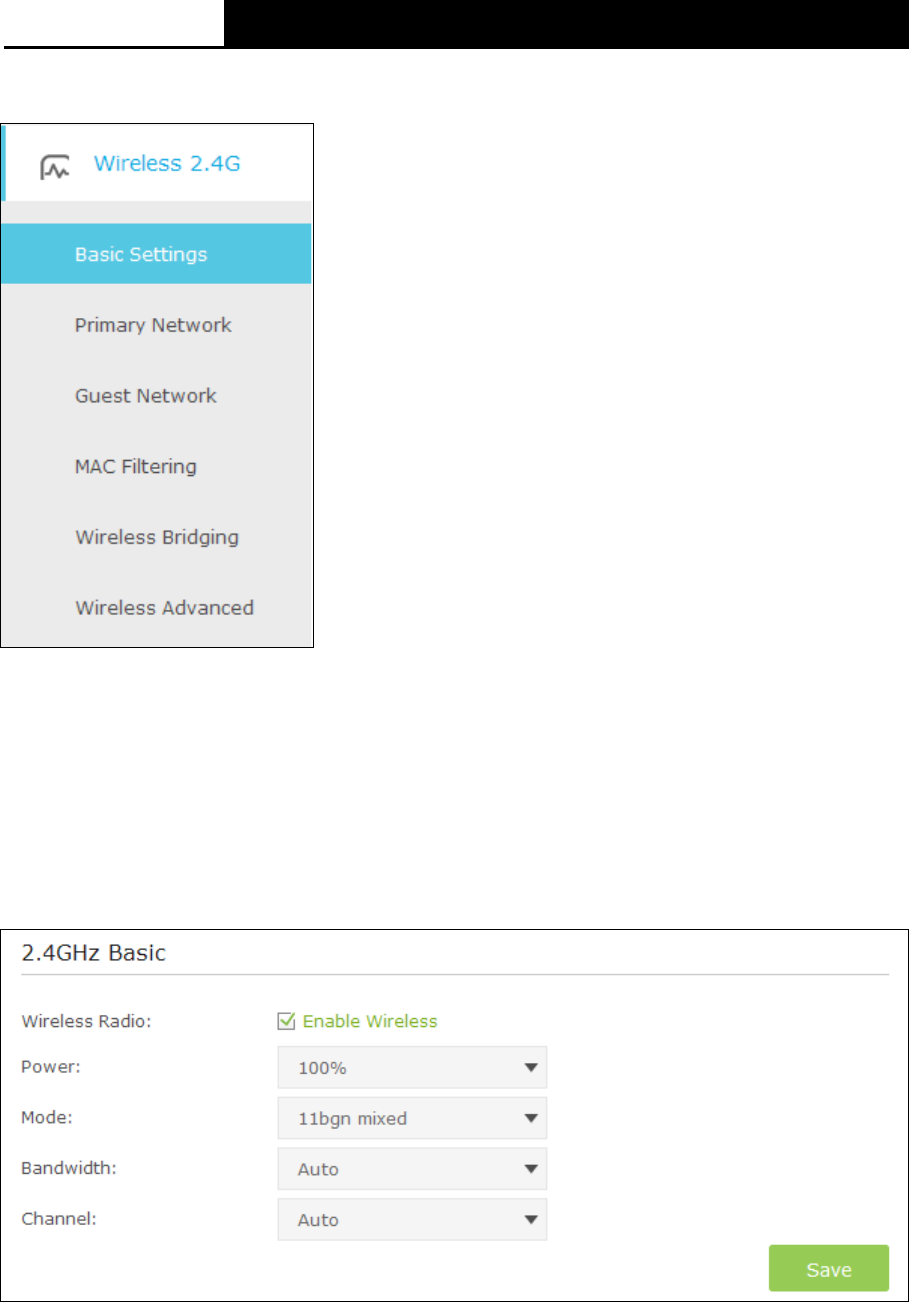

5.4.1 Basic Settings .................................................................................................................... 37

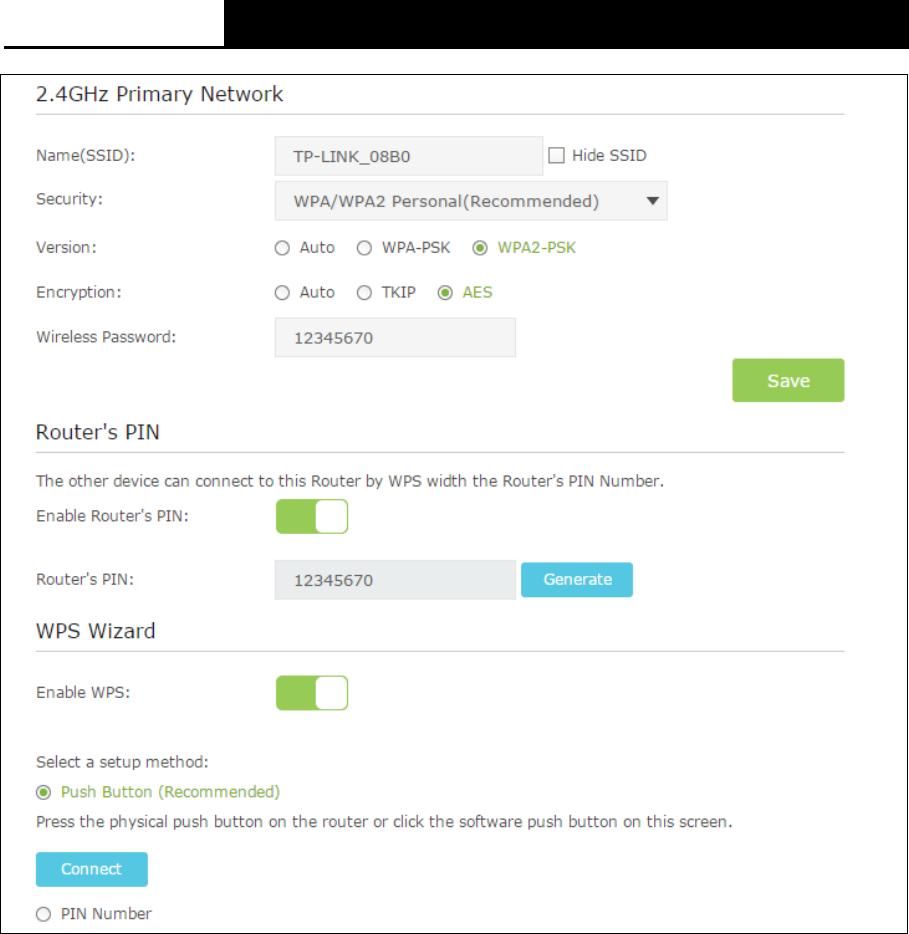

5.4.2 Primary Network................................................................................................................. 38

5.4.3 Guest Network ................................................................................................................... 42

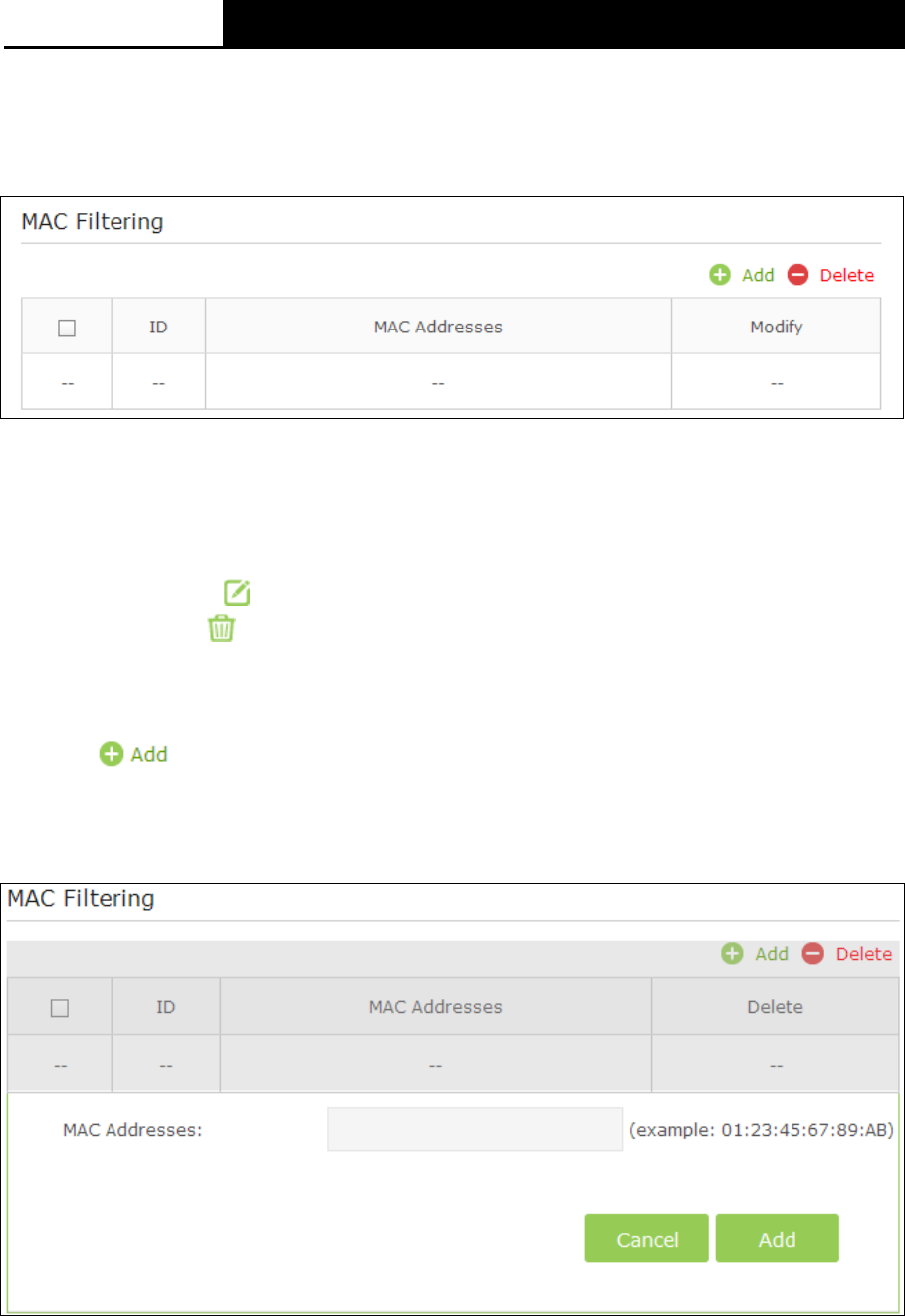

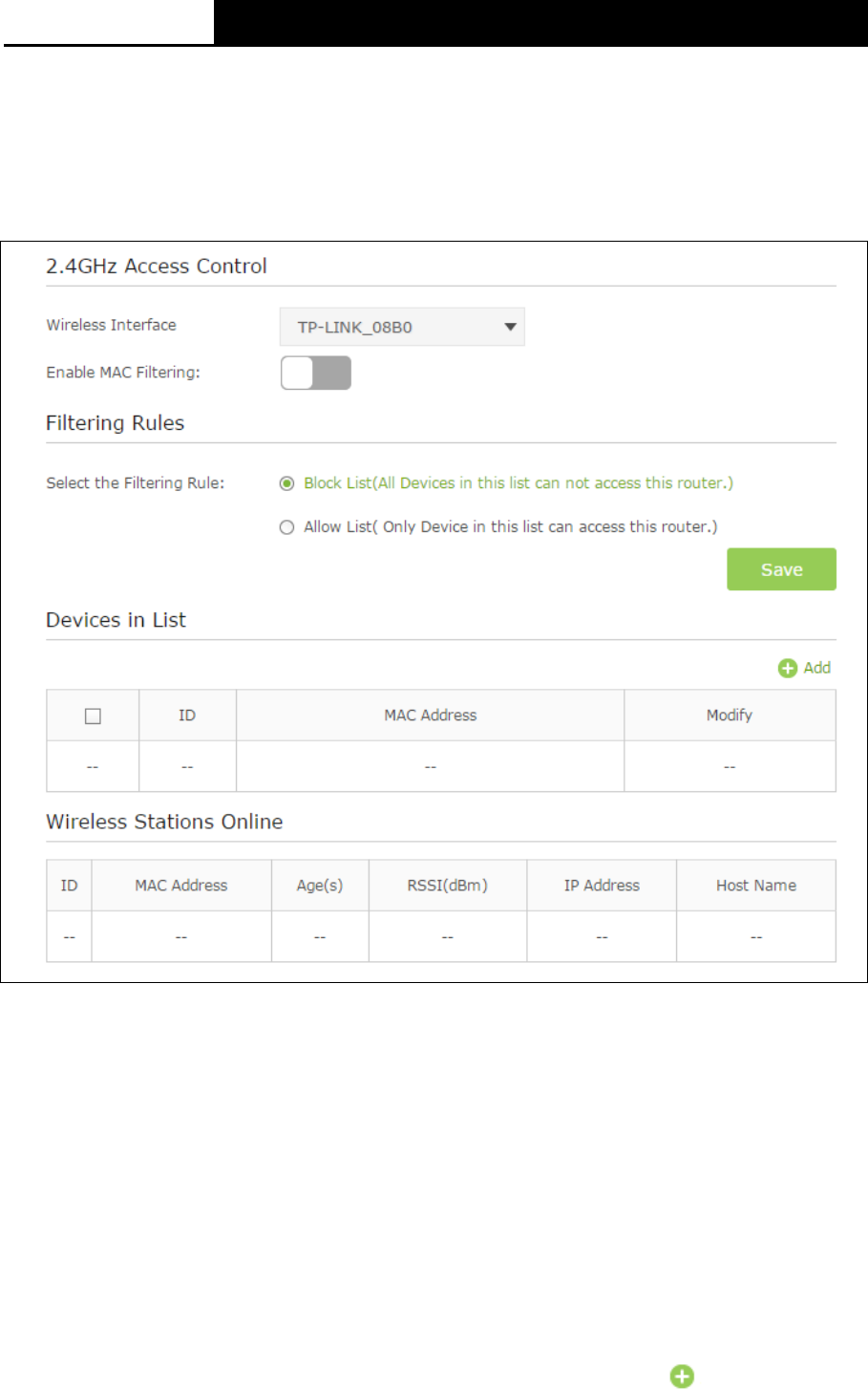

5.4.4 MAC Filtering ..................................................................................................................... 44

5.4.5 Wireless Bridging ............................................................................................................... 46

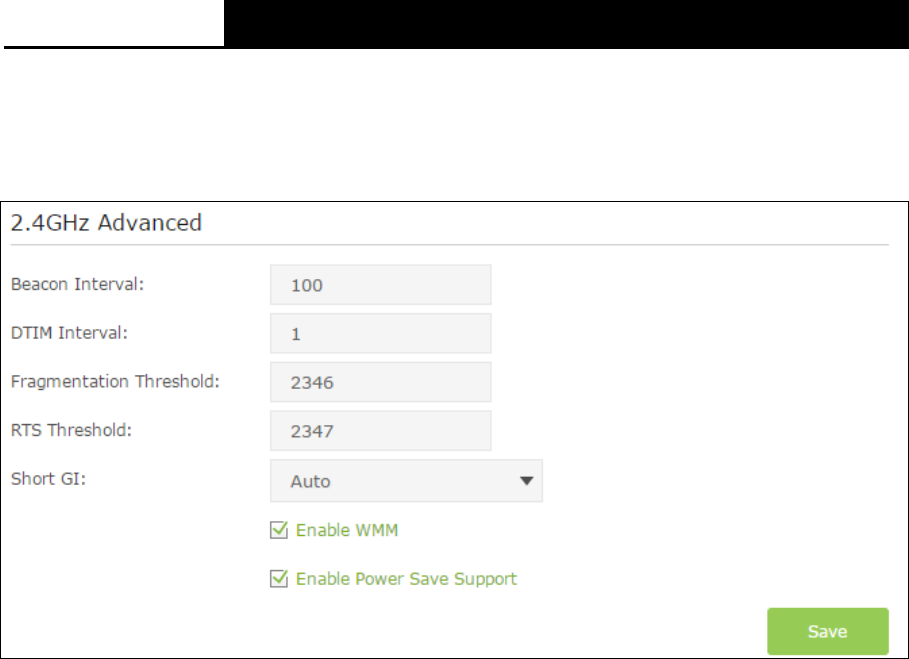

5.4.6 Wireless Advanced ............................................................................................................ 47

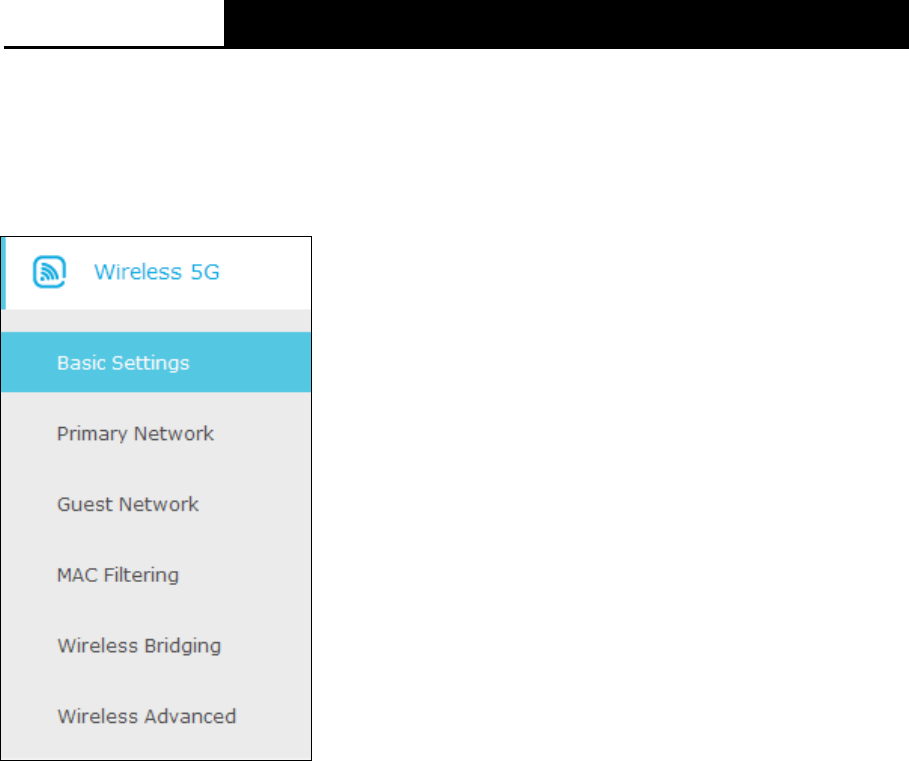

5.5 Wireless 5G ................................................................................................................ 48

5.5.1 Basic Settings .................................................................................................................... 48

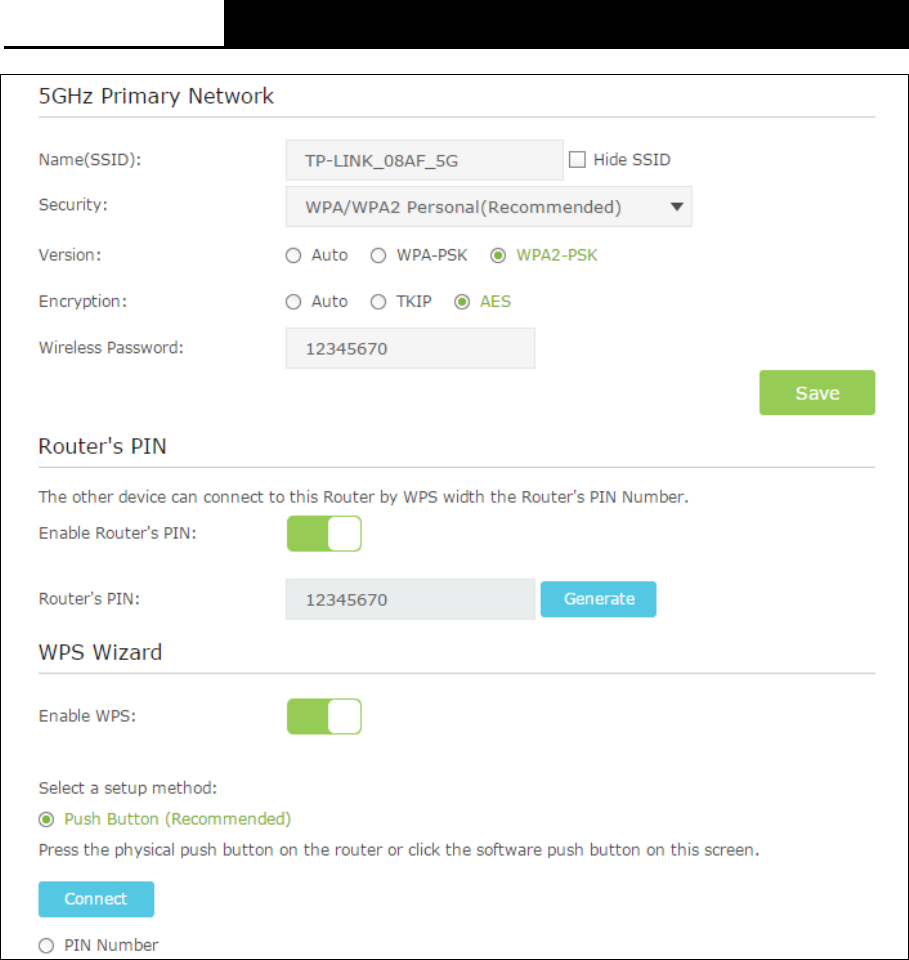

5.5.2 Primary Network................................................................................................................. 49

5.5.3 Guest Network ................................................................................................................... 54

5.5.4 MAC Filtering ..................................................................................................................... 56

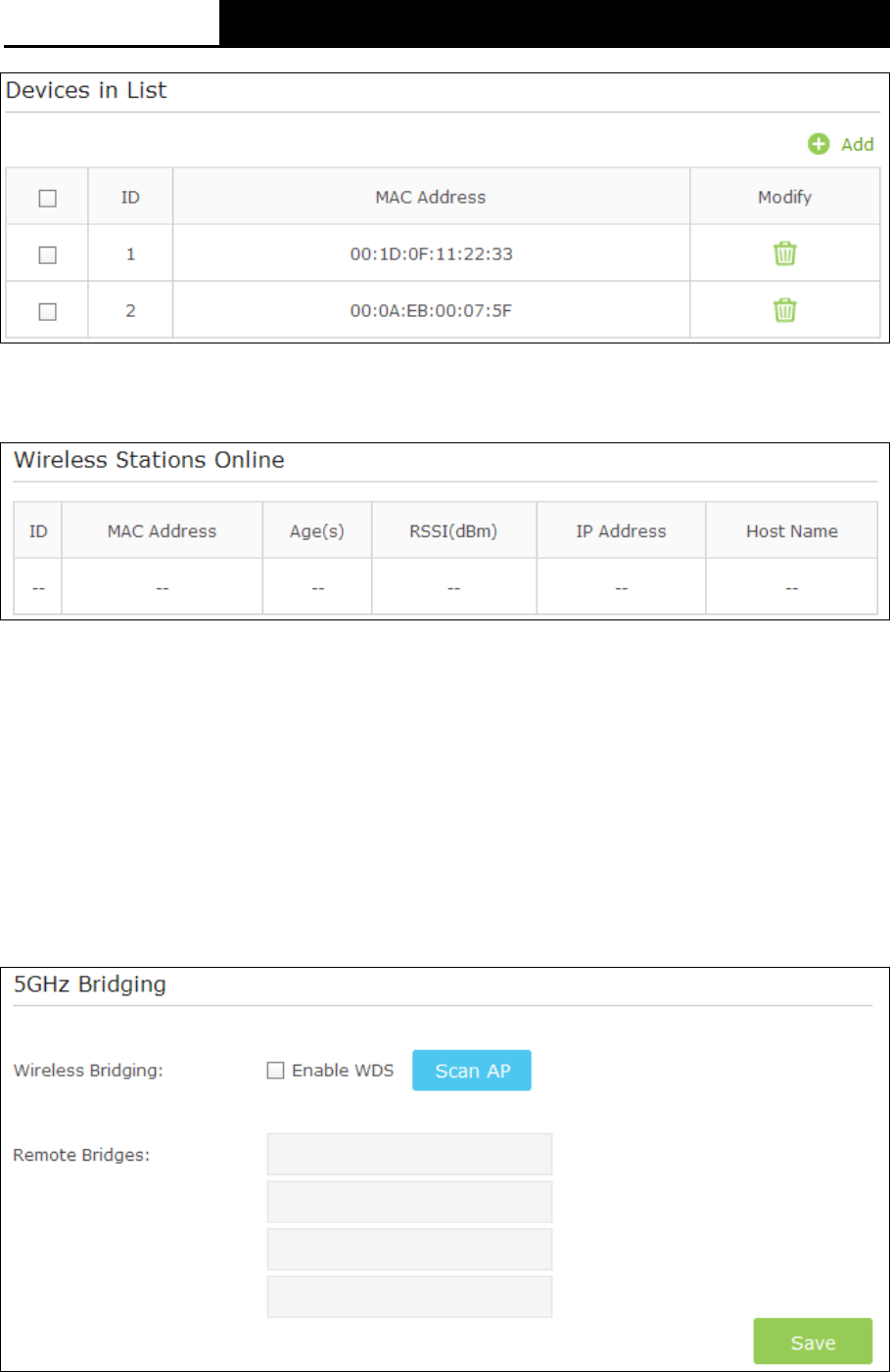

5.5.5 Wireless Bridging ............................................................................................................... 58

5.5.6 Wireless Advanced ............................................................................................................ 59

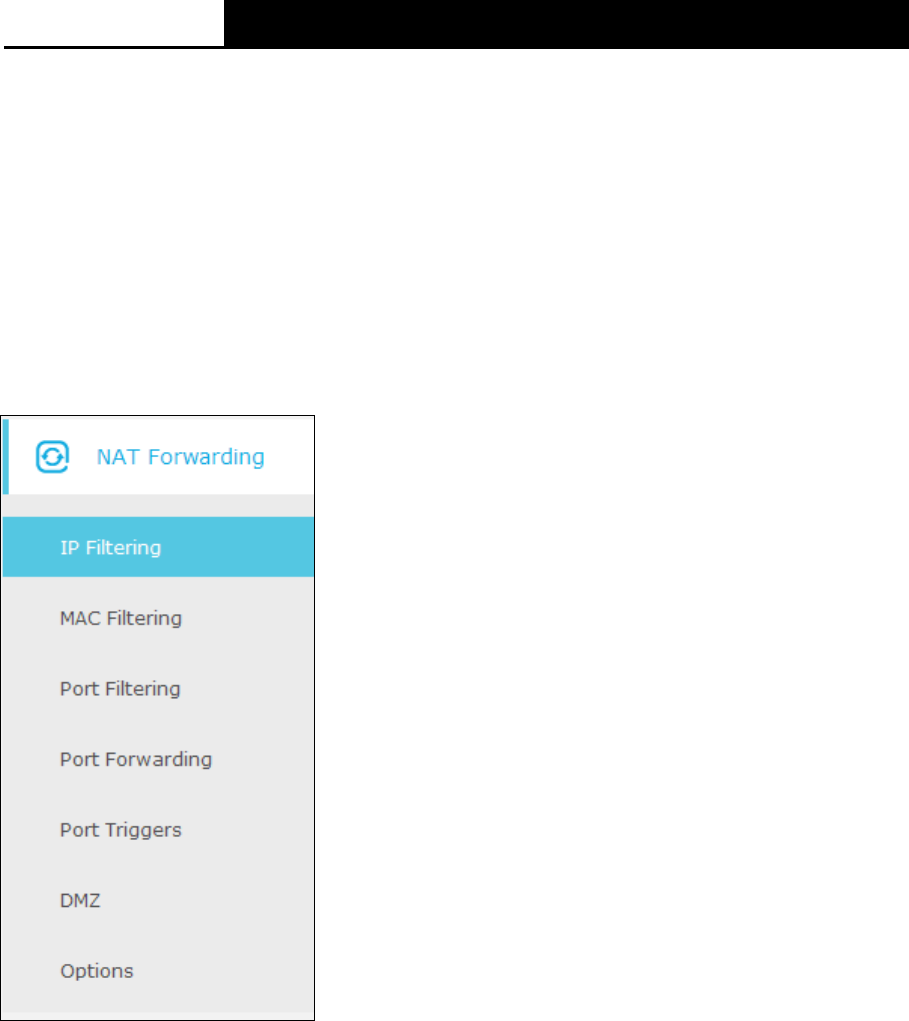

5.6 NAT Forwarding .......................................................................................................... 60

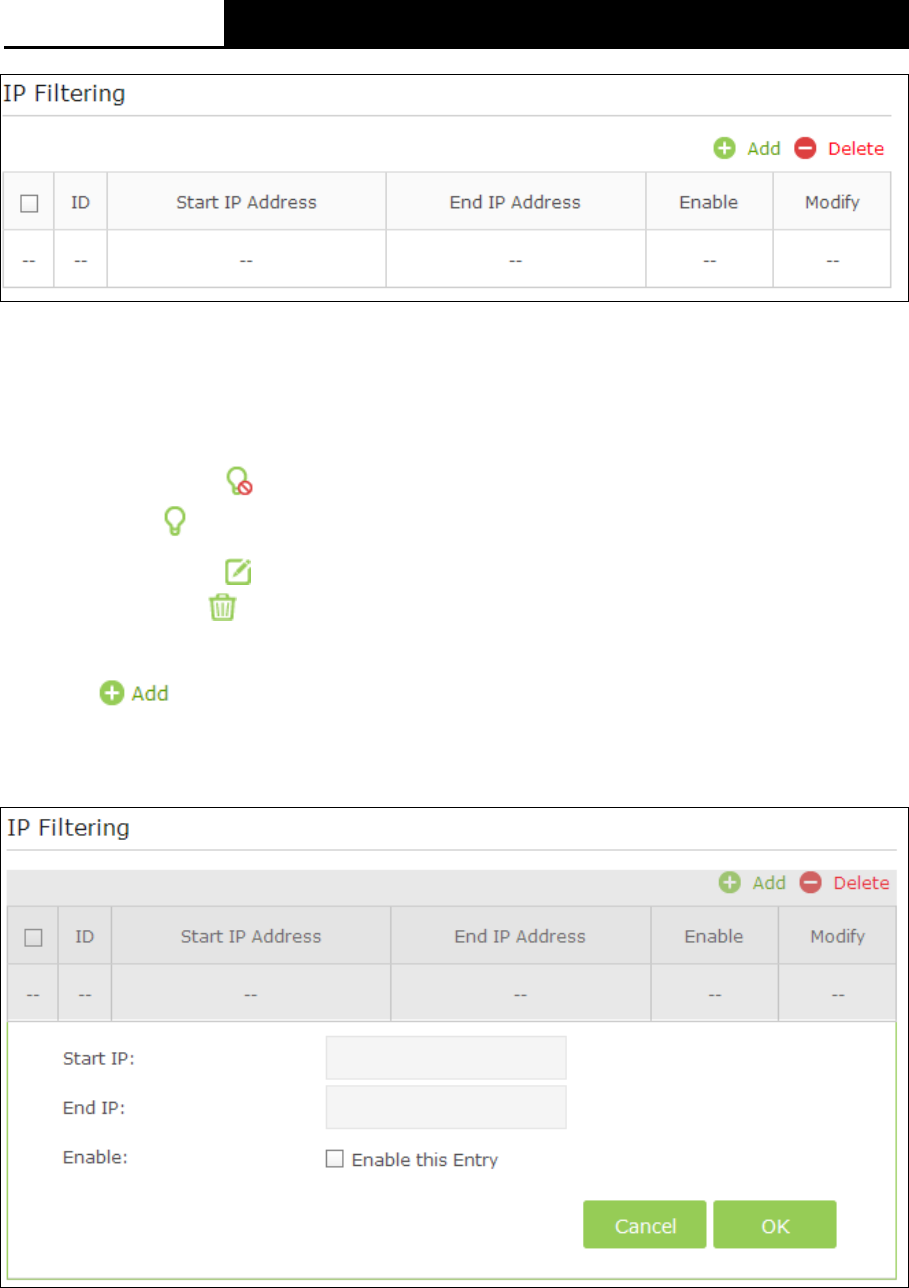

5.6.1 IP Filtering .......................................................................................................................... 60

5.6.2 MAC Filtering ..................................................................................................................... 62

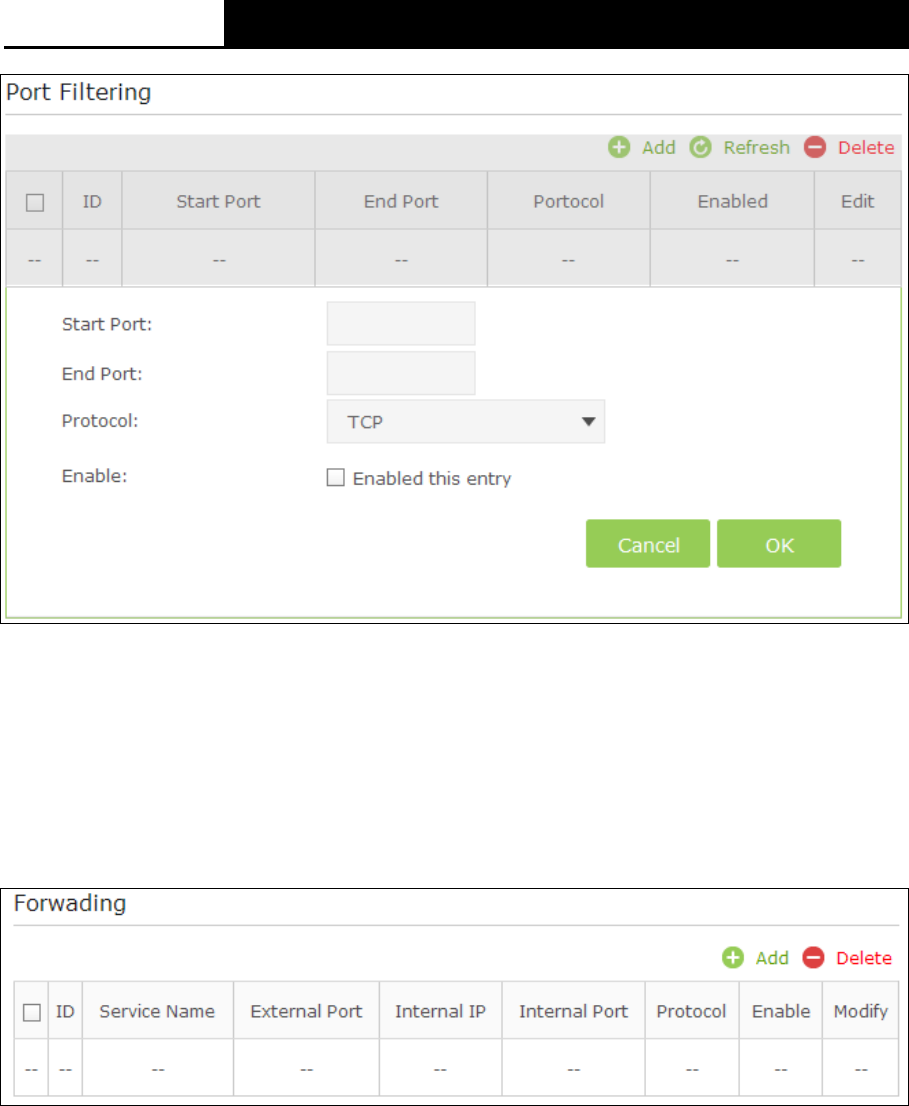

5.6.3 Port Filtering ....................................................................................................................... 63

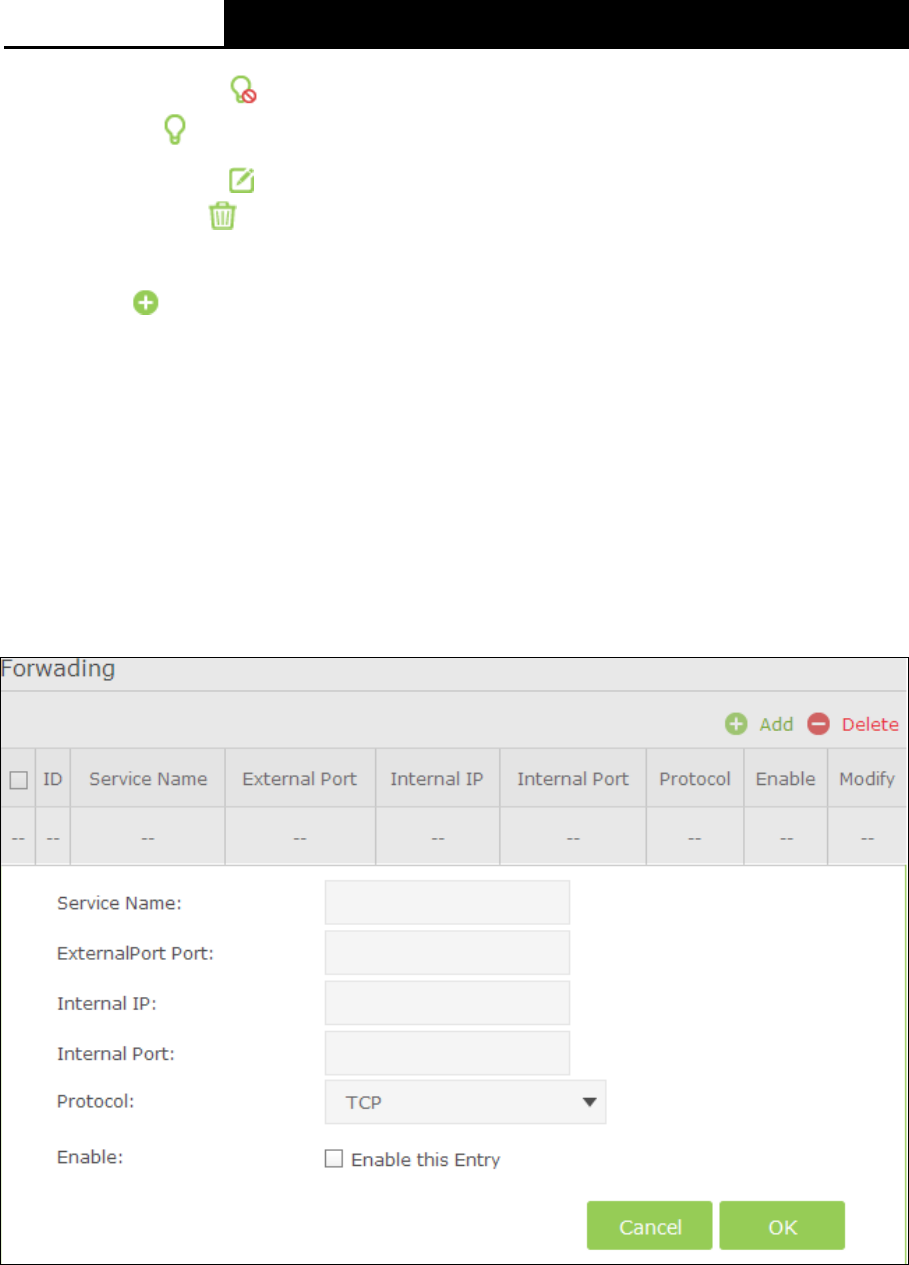

5.6.4 Port Forwarding.................................................................................................................. 64

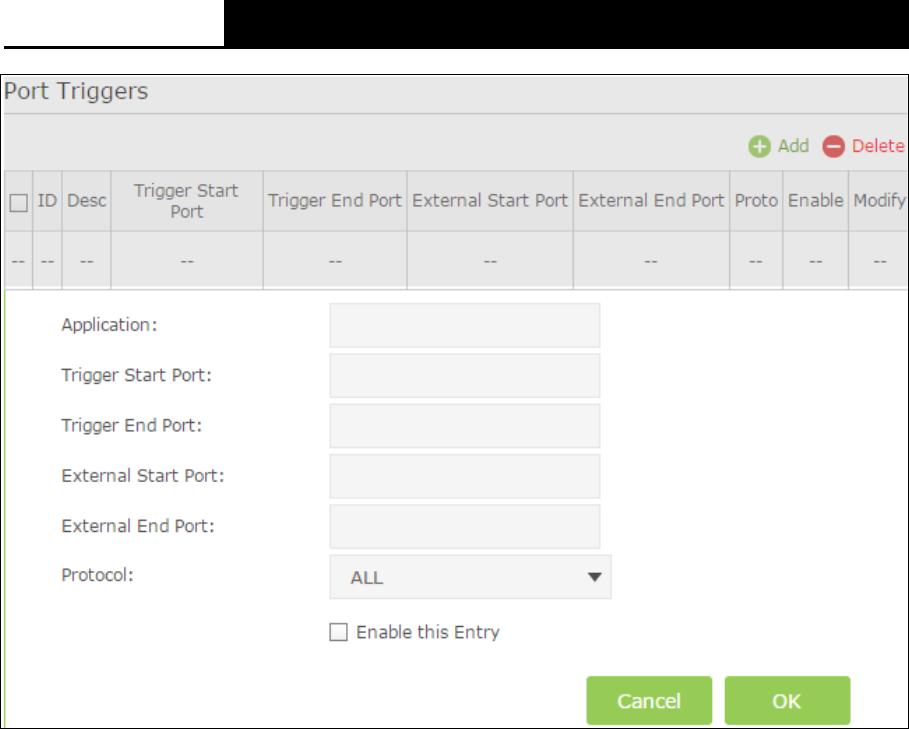

5.6.5 Port Triggers ...................................................................................................................... 65

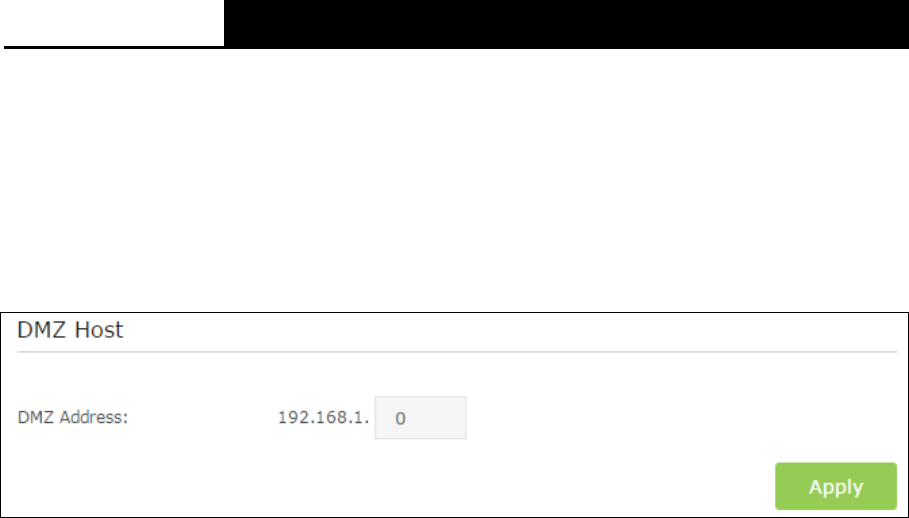

5.6.6 DMZ ................................................................................................................................... 68

5.6.7 Options ............................................................................................................................... 68

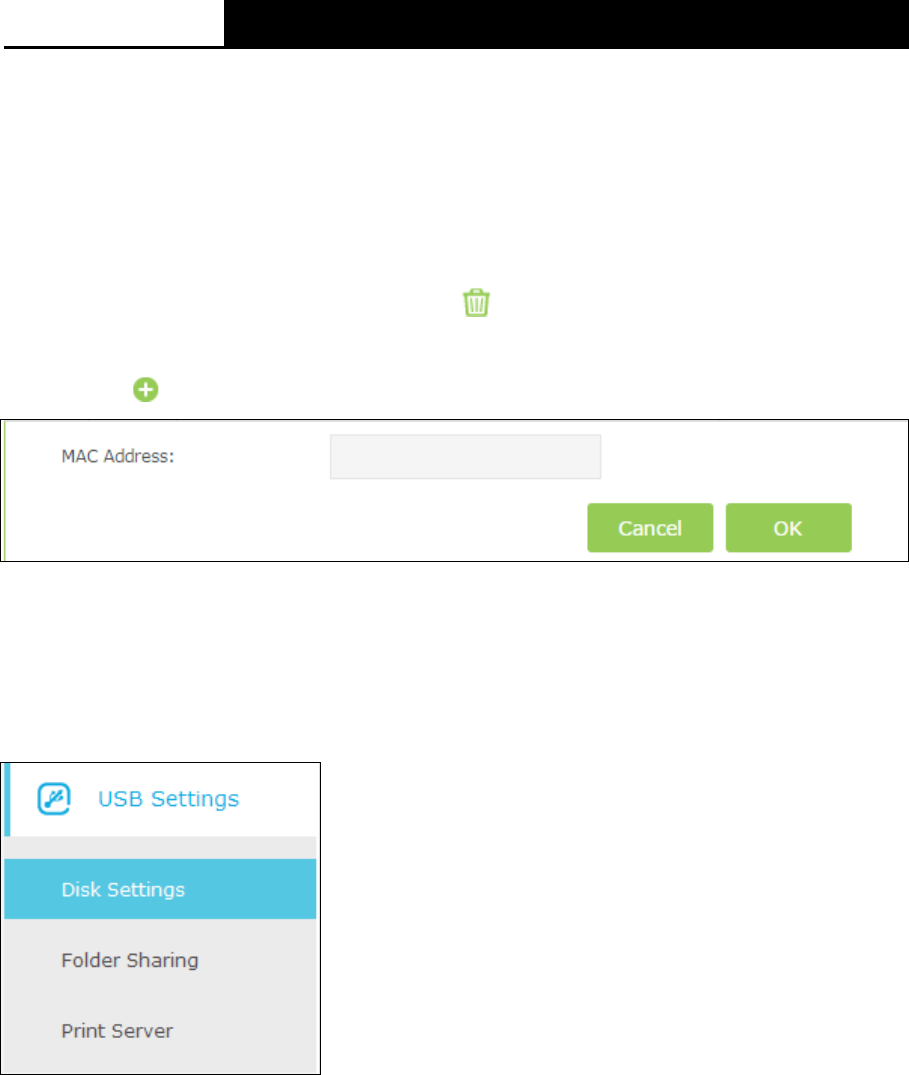

5.7 USB Settings .............................................................................................................. 70

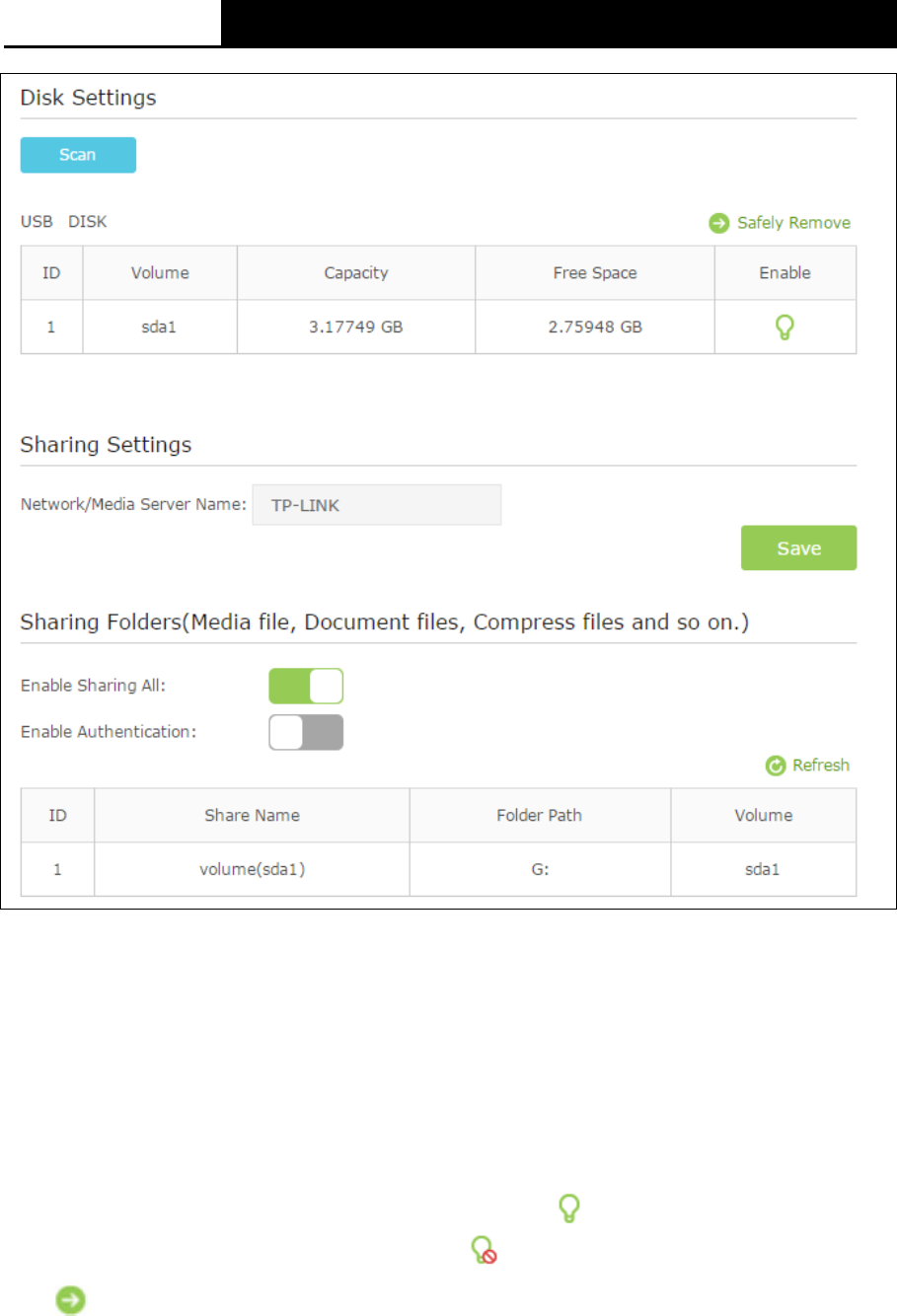

5.7.1 Disk Settings ...................................................................................................................... 70

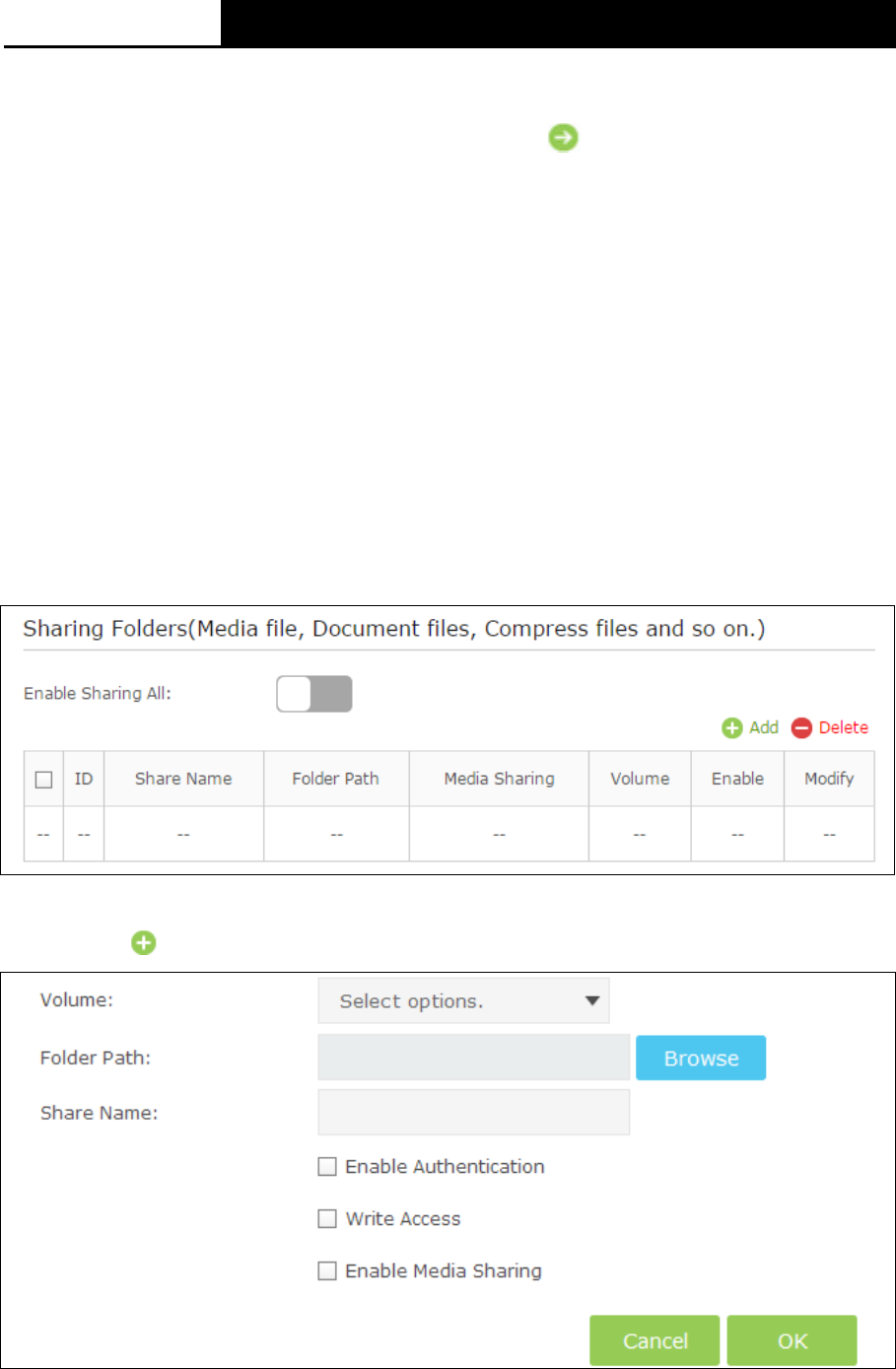

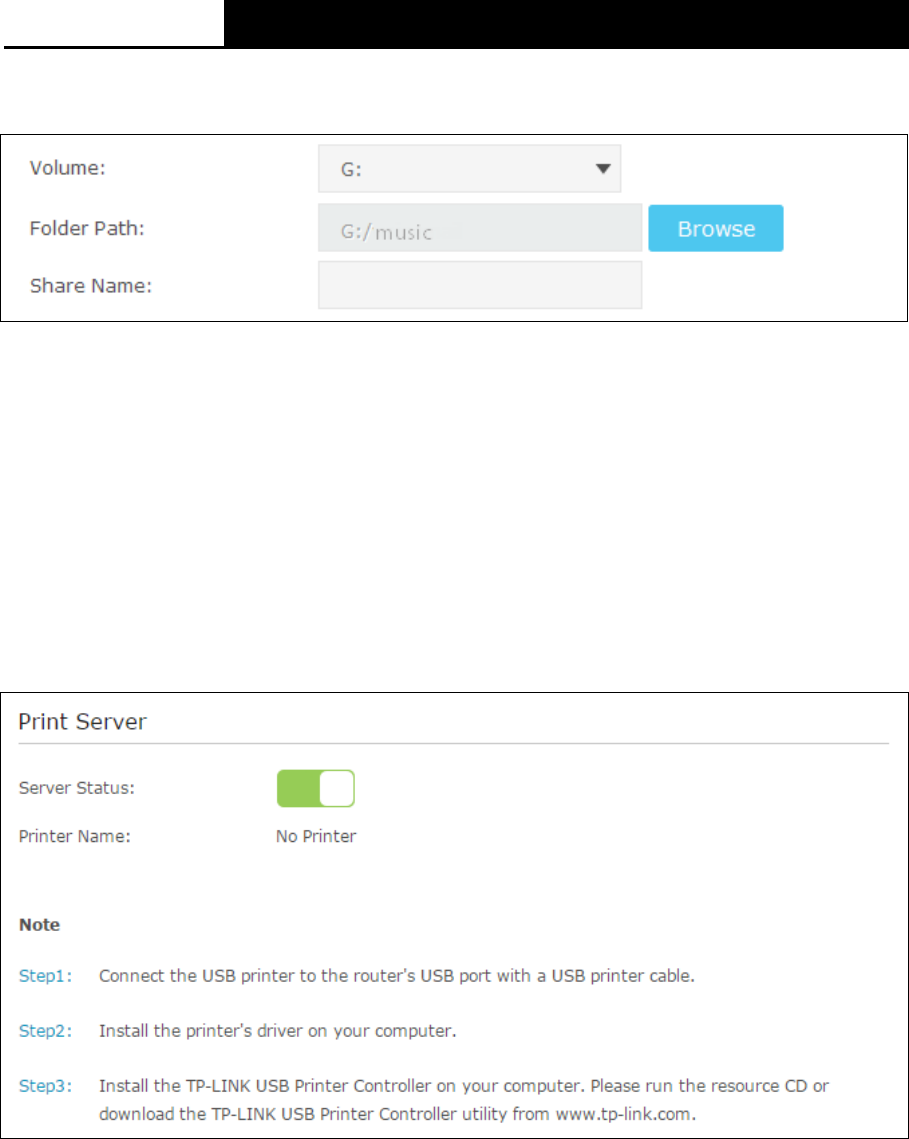

5.7.2 Folder Sharing.................................................................................................................... 71

5.7.3 Print Server ........................................................................................................................ 74

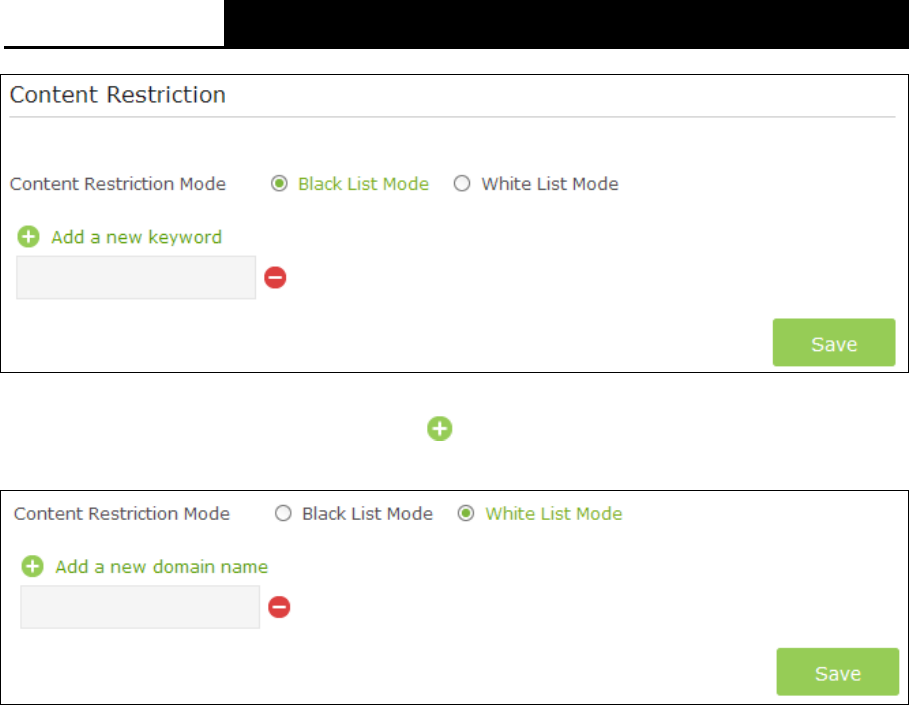

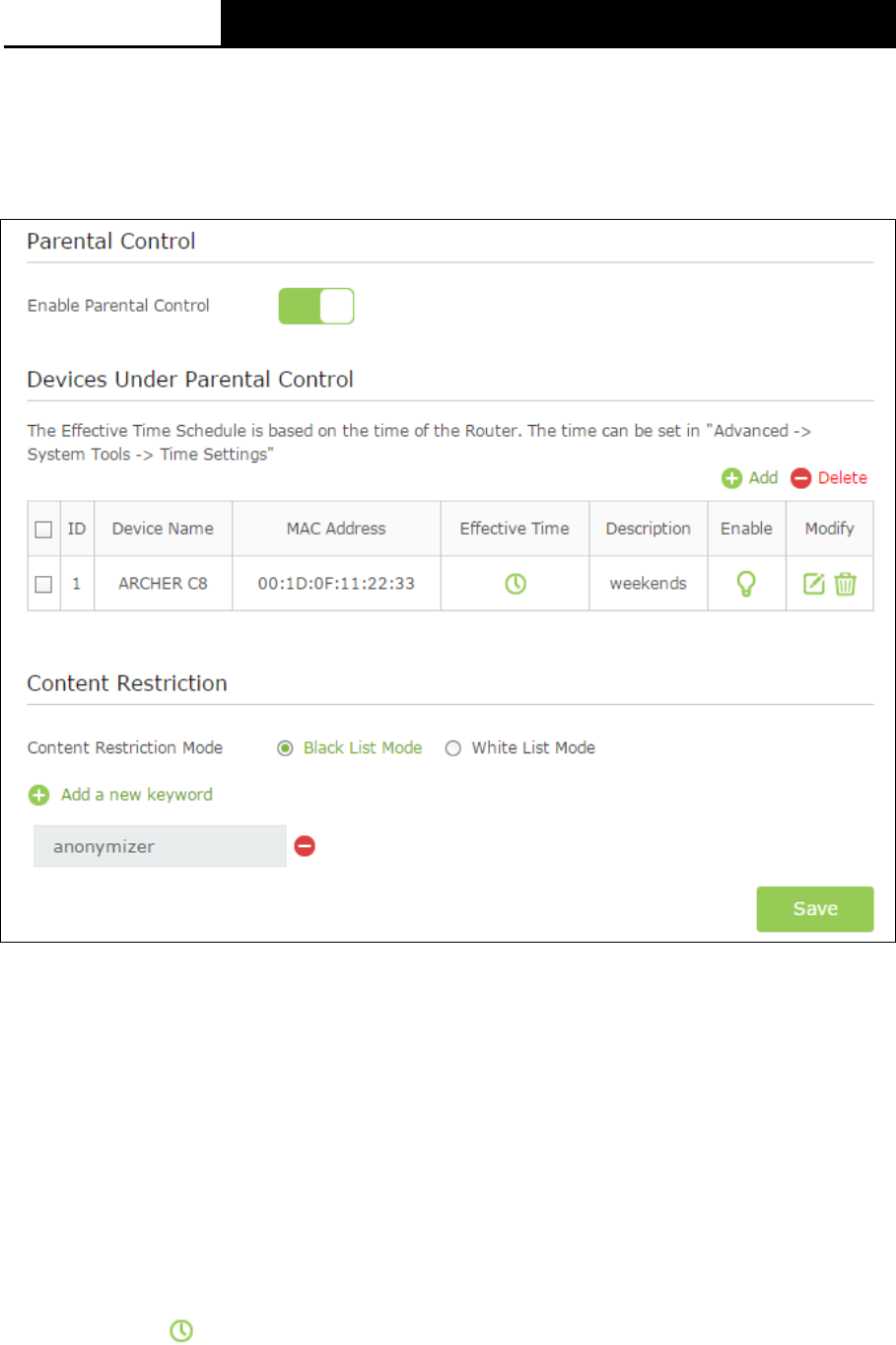

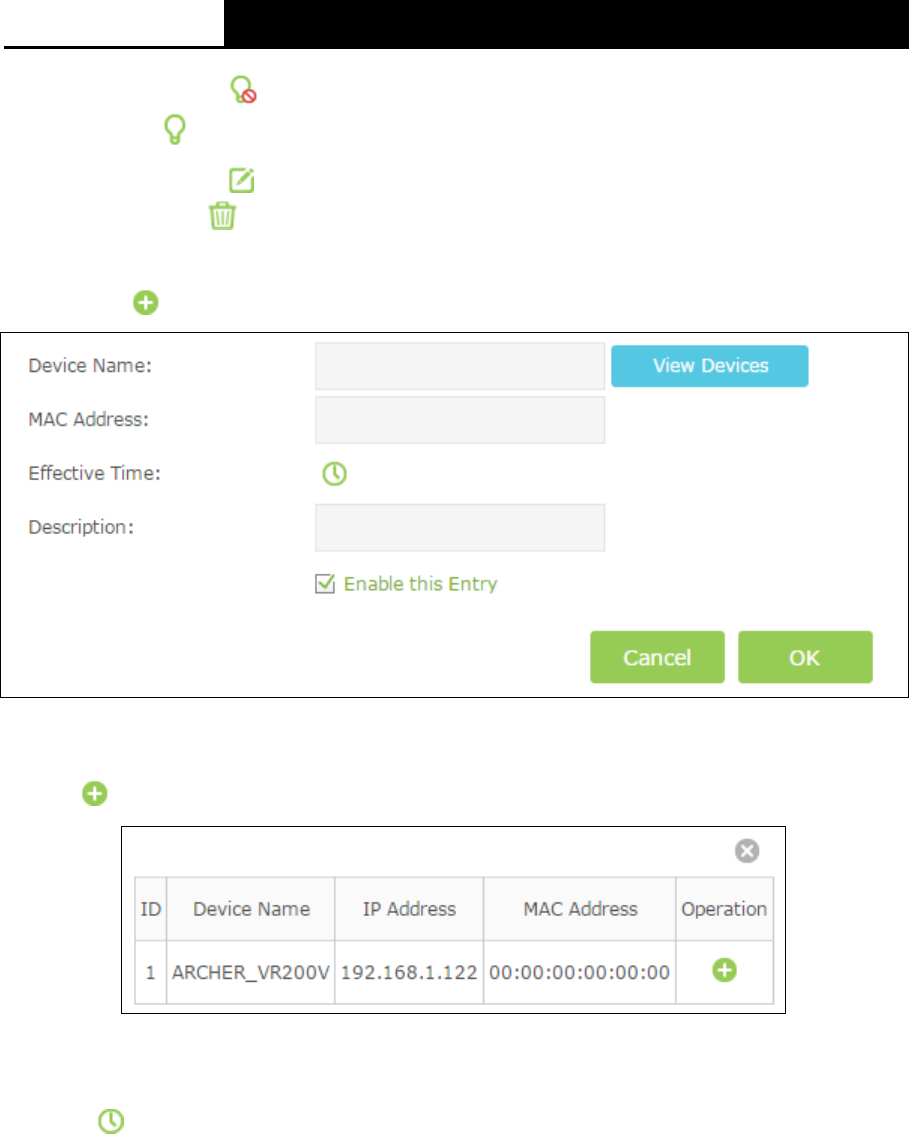

5.8 Parental Control .......................................................................................................... 75

5.9 Firewall ....................................................................................................................... 77

5.9.1 Basic .................................................................................................................................. 77

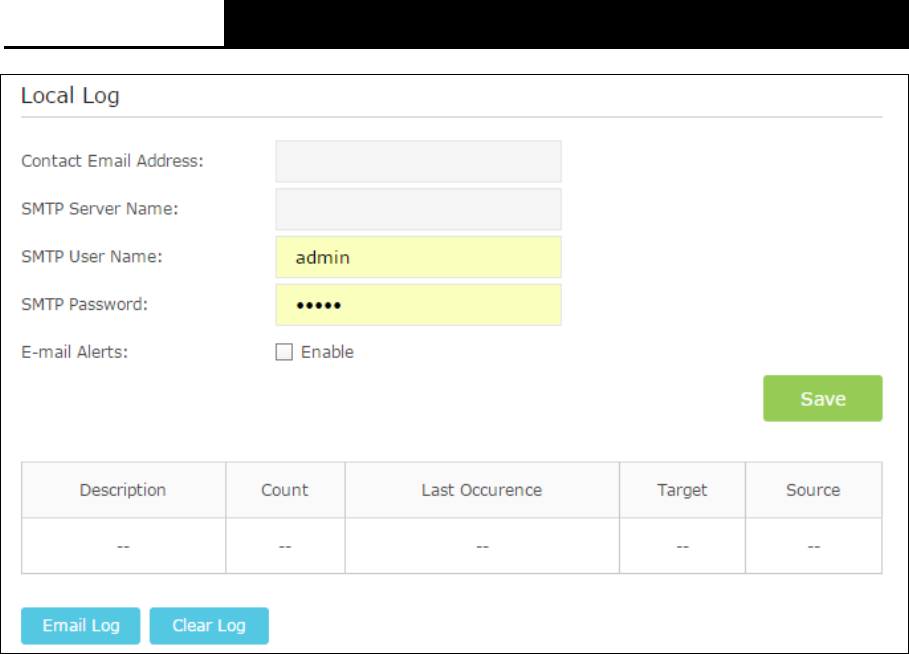

5.9.2 Local Log ............................................................................................................................ 78

5.9.3 Remote Log ........................................................................................................................ 79

5.10 System Tools .............................................................................................................. 81

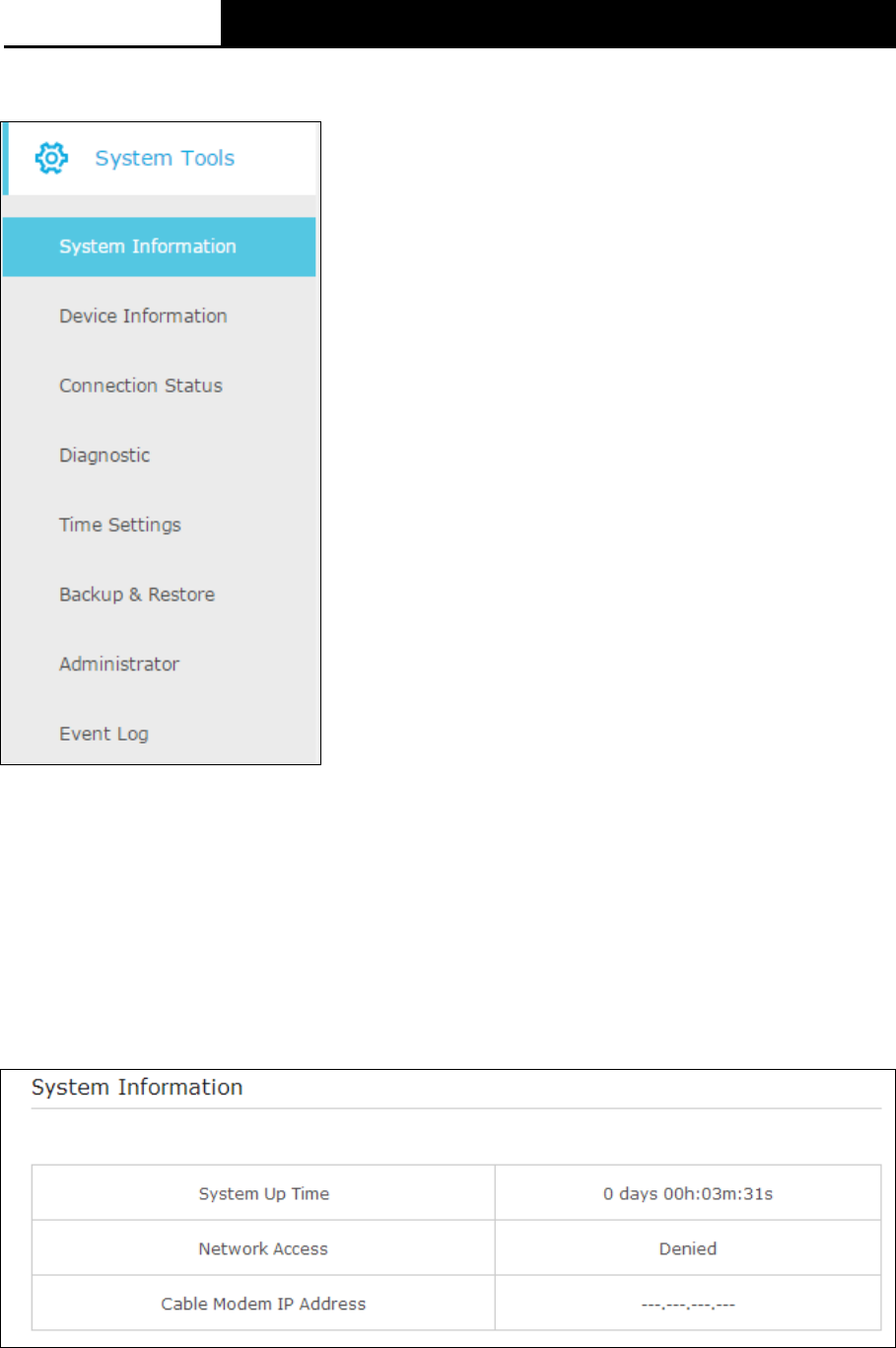

5.10.1 System Information ........................................................................................................... 81

5.10.2 Device Information ............................................................................................................ 82

5.10.3 Connection Status ............................................................................................................ 82

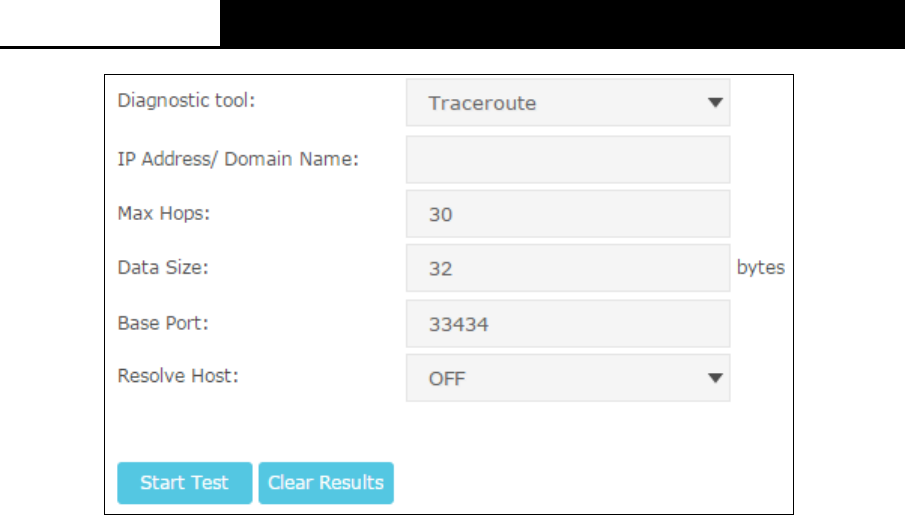

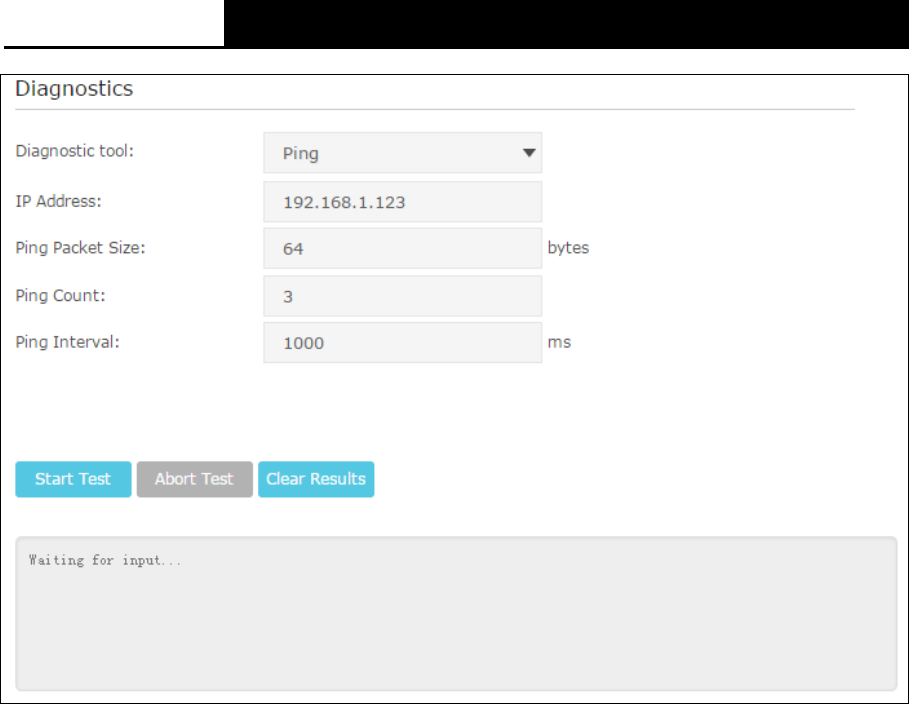

5.10.4 Diagnostic ......................................................................................................................... 84

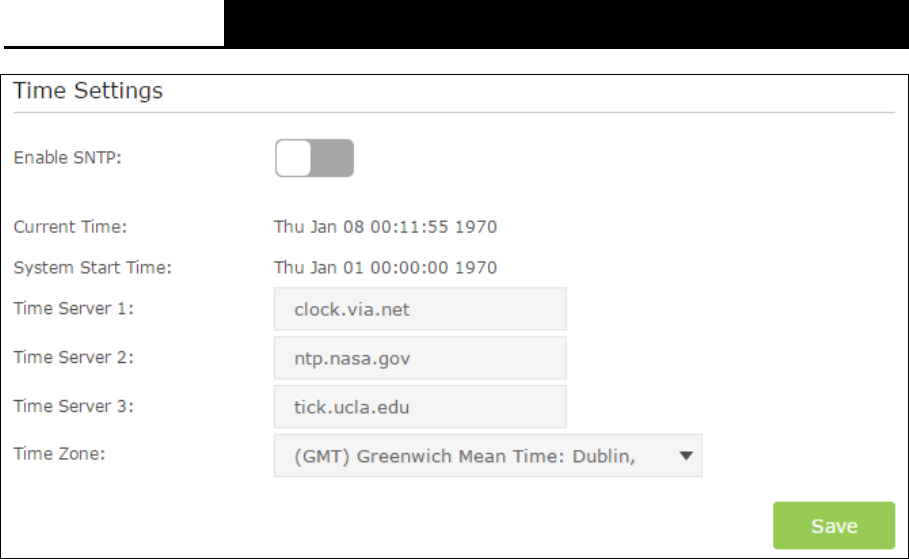

5.10.5 Time Settings .................................................................................................................... 86

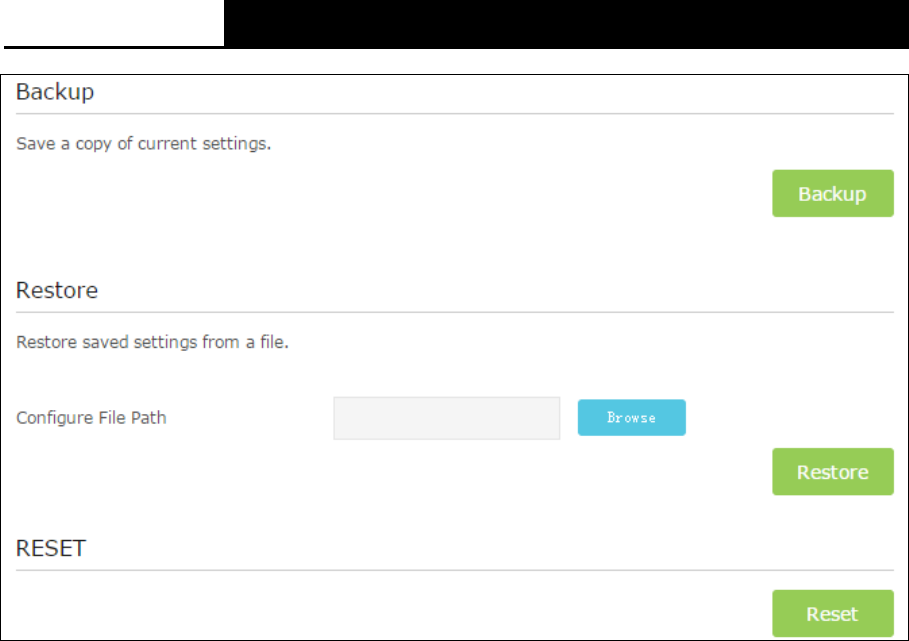

5.10.6 Backup & Restore ............................................................................................................. 87

5.10.7 Administrator ..................................................................................................................... 88

5.10.8 Event Log .......................................................................................................................... 90

Appendix A: Specifications ................................................................................... 91

Appendix B: Troubleshooting ............................................................................... 95

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Package Contents

The following contents should be found in your package:

 One Archer CR700 AC1750 Wireless Dual Band DOCSIS 3.0 Cable Modem Router

 One Power Adapter for Archer CR700 AC1750 Wireless Dual Band DOCSIS 3.0 Cable

Modem Router

 Quick Installation Guide

 One RJ45 cable



Note:

Make sure that the package contains the above items. If any of the listed items are damaged or

missing, please contact your distributor.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Chapter 1. Product Overview

Thank you for choosing the Archer CR700 AC1750 Wireless Dual Band DOCSIS 3.0 Cable

Modem Router.

1.1 Overview of the Modem Router

The Archer CR700 AC1750 Wireless Dual Band DOCSIS 3.0 Cable Modem Router integrates

DOCSIS 3.0 modem, NAT router, 4-port switch and wireless access point in one device provides a

one-stop networking solution.

The modem router provides up to 450Mbps (2.4GHz) + 1300Mbps (5GHz) wireless connection with

other wireless clients. The incredible speed makes it ideal for handling multiple data streams at the

same time, which ensures your network stable and smooth. The performance of this 802.11ac

wireless modem router will give you the unexpected networking experience at speed much faster than

802.11n. It is also compatible with all IEEE 802.11a, IEEE 802.11b, IEEE 802.11g and IEEE 802.11n,

products.

With multiple protection measures, including SSID broadcast control and wireless LAN 64/128

WEP encryption, Wi-Fi protected Access (WPA2-PSK, WPA-PSK), as well as advanced Firewall

protections, the Archer CR700 AC1750 Wireless Dual Band DOCSIS 3.0 Cable Modem Router

provides complete data privacy.

The modem router provides flexible access control, so that parents or network administrators can

establish restricted access policies for children or staffs. It also supports Virtual Server and DMZ

host for Port Triggering, and then the network administrators can manage and monitor the network

in real time with the remote management function.

Since the modem router is compatible with virtually all the major operating systems, it is very easy

to manage. Detailed instructions are provided step by step in this user guide. Before installing the

modem router, please look through this guide to know all the modem router’s functions.

1.2 Main Features

 Supports 802.11ac - The next generation of Wi-Fi

 Dual band – for combined wireless speeds of up to 1.75Gbps at 2.4GHz and 5GHz band

concurrently

 DOCSIS 3.0, Compatible with DOCSIS 2.0/1.1/1.0

 16 Downstream Channel bonding, Up to 680Mbps Downstream for DOCSIS

 4 Upstream Channel bonding, Up to 143Mbps Upstream

 Full Band Capture windows - Utilize any channels in the downstream spectrum.

 Dual-core processor –for wonderful performance with Internet, Wi-Fi, Ethernet and USB

devices

 6 internal antennas provide maximum Omni-directional wireless coverage and reliability

 Full gigabit ports ensure ultra fast data transfer speeds

 Dual USB Ports - easily share printers, files or media with your friends or family locally or over

the Internet

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 Guest Network Access provides secure Wi-Fi access for guests sharing your home or office

network

 IPv6 supported, meeting the demands for the next generation of Internet

 Wi-Fi On/Off Button allows users to turn their wireless radio on or off

 Easy one-touch WPA wireless security encryption with the WPS button

 WPA-PSK/WPA2-PSK encryptions provide user networks with active defense against

security threats

 Parental Controls allow parents or administrators to establish restricted access policies for

children or staff

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

1.3 Panel Layout

1.3.1 The Front Panel

Figure 1-1

The modem router’s LEDs are located on the side panel (View from top to bottom). They indicate

the device’s working status. For details, please refer to LED Explanation.

LED Explanation:

Name Status Indication

(Power)

Power is on.

Off

Power is off.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

(Downstream)

Green

The modem router is synchronized with more than one channel.

White

The modem router is synchronized with one channel.

Flashing

The modem router is scanning for downstream channels.

Off

The initialization is not started, or has failed.

(Upstream)

Green

The modem router is synchronized with more than one channel.

White

The modem router is synchronized with one channel.

Flashing

The modem router is ranging or registering for upstream

channels.

Off

The initialization is not started, or has failed.

(Internet)

Internet service is available.

Off

Internet service is not available.

Flashing

The modem router is initializing.

(LAN)

At least one LAN port is connected.

Off

No LAN port is connected.

(Wireless)

On The wireless network is enabled.

Off The wireless network is disabled.

(WPS)

On/Off

The LED stays on for 5 minutes when a WPS connection is

established before it turns off.

Flashing

WPS connection is in progress. This may take up to 2 minutes.

(USB on the

back panel)

Off

No USB device is plugged in to the USB port.

The USB device is detected and ready to use.

Flashing

A USB device is being detected.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

1.3.2 The Back Panel

Figure 1-2

 RESET: There are two ways to reset the modem router's factory defaults.

Method one: With the modem router powered on, use a pin to press and hold the Reset

button for at least 8-10 seconds. And the modem router will reboot to its factory default

settings.

Method two: Restore the default setting from “5.10.6 Backup & Restore” of the modem

router's Web-based Management.

 WPS: The switch for the WPS function.

 WiFi ON/OFF: The switch for the WiFi function. Press it to enable/disable the WiFi function.

 USB2, USB1: The USB port connects to a USB storage device or a USB printer.

 LAN4, LAN3, LAN2, LAN1: Through these ports, you can connect the modem router to your

PC or the other Ethernet network devices.

 Cable: Through this port, you can connect the modem router to coaxial cable.

 DC: The power plug where you will connect the power adapter.

 Power ON/OFF: The switch for the power.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Chapter 2. Install the Modem Router

2.1 System Requirements

 Broadband Internet Access Service (Cable).

 PCs with a working Ethernet Adapter and an Ethernet cable with RJ45 connectors.

 TCP/IP protocol on each PC.

 Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari.

2.2 Installation Environment Requirements

 The Product should not be located where it will be exposed to moisture or excessive heat.

 Place the Router in a location where it can be connected to the various devices as well as to a

power source.

 Make sure the cables and power cord are safely placed out of the way so they do not create a

tripping hazard.

 The Router can be placed on a shelf or desktop.

 Keep away from the strong electromagnetic radiation and the device of electromagnetic

sensitive.

2.3 Connect the Hardware

Before installing the device, please make sure your broadband cable service provided by your ISP

is available. If there is any problem, please contact your ISP. Before cable connection, cut off the

power supply and keep your hands dry. You can follow the steps below to install it.

Step 1: Connect the coaxial cable and power adapter to the modem router, then power on your

modem router.

Internet

Coaxial cablePower adapter

Figure 2-1

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Step 2: Wait for about 1 minute until the following LEDs are solid on.

Step 3: Connect your computer to the modem router via a wired or wireless connection.

Wired: Connect the computer to the modem router’s LAN port via an Ethernet cable.

Wireless: On your computer, select and connect to the modem router’s wireless network.

The default wireless network name (SSID) and password are printed on the product label

at the bottom of the modem router.

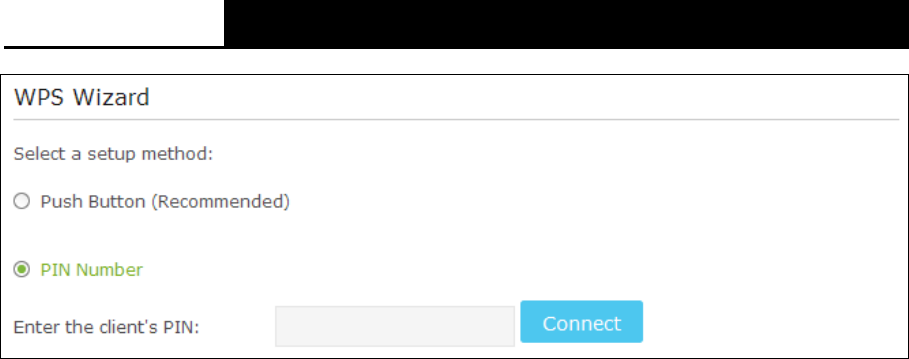

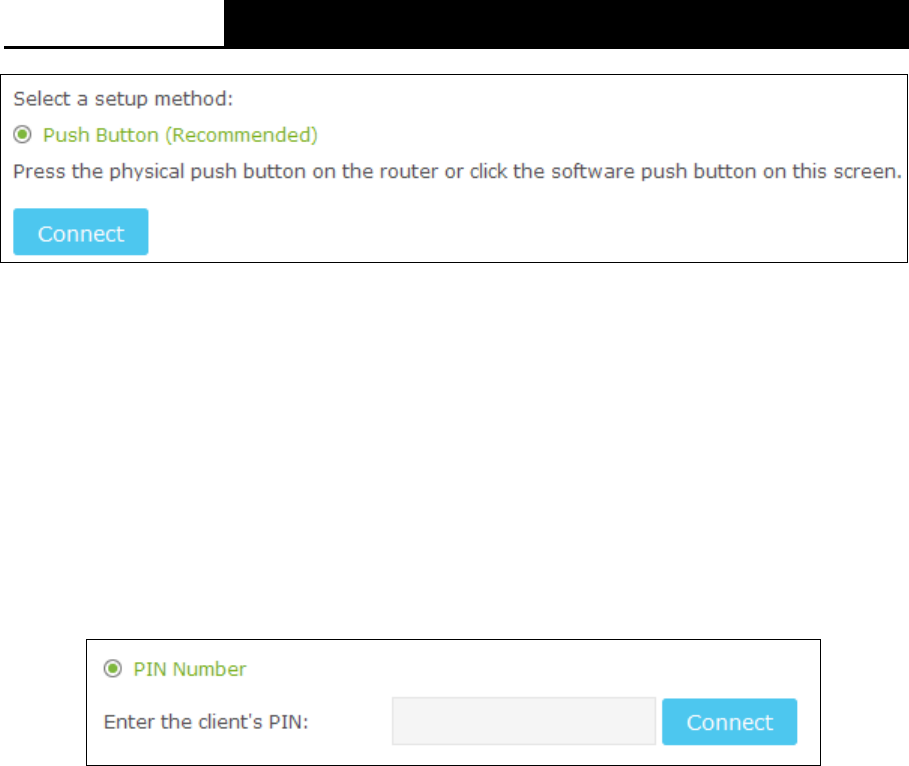

Or you can set up a connection via the WPS button, which is on the back panel of the

modem router. For more information about WPS, refer to 5.4.2 Primary Network.

2.4 Activate the Modem Router

Step 1: Get your Internet service account information and the modem router’s product label ready

for activating your modem router. To access the Internet, the modem router needs to be

activated.

MAC:XX-XX-XX-XX-XX-XX

Wireless Password/PIN:XXXXXXXXX

SSID:TP-LINK_XXXX

SSID:TP-LINK_XXXX_5G

Model:Archer CR700 ver:1.0

S/N:XXXXXXXXXXXXX

Serial Number

MAC Address

SSID

Wi-Fi Password/PIN

Figure 2-2

Step 2: If your computer is configured with a fixed IP, change it to “obtain an IP address

dynamically”.

Launch a web browser, and visit any website. You will be automatically redirected to your

service provider’s self-activation page.

Follow the on-screen self-activation instructions to activate the modem router. If the

self-activation page does not show up, please call your service provider’s customer

service to activate the modem router.



Note:

For Comcast and Time Warner Cable (TWC):

Comcast Xfinity 1-800-934-6489 www.comcast.com

Time Warner Cable 1-855-704-4503 www.timewarnercable.com

The contact information listed might change. You can also find the contact number in your monthly

Internet service billing statement.

2.5 Enjoy the Internet

After activating your modem router successfully, wait for about 10 minutes till these LEDs

become solid on, then you can enjoy the Internet.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide



Note:

If the Internet is not accessible, contact your Internet service provider and make sure that the

modem router is activated.

Safety Information

The product should be connected to cable distribution system that grounded (earthed) in accordance

with ANSI/NFPA 70, the National Electrical Code (NEC), in particular Section 820.93 - Grounding of

Outer Conductive Shield of a Coaxial Cable.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Chapter 3. Log into the Modem Router

With a Web-based management page, it is easy to configure and manage the Archer CR700

AC1750 Wireless Dual Band DOCSIS 3.0 Cable Modem Router. The Web-based management

page can be used on any Windows, Macintosh or UNIX OS with a Web browser, such as Microsoft

Internet Explorer, Mozilla Firefox or Apple Safari.

Set up the TCP/IP Protocol in "Obtain an IP address automatically" mode on your PC. If you

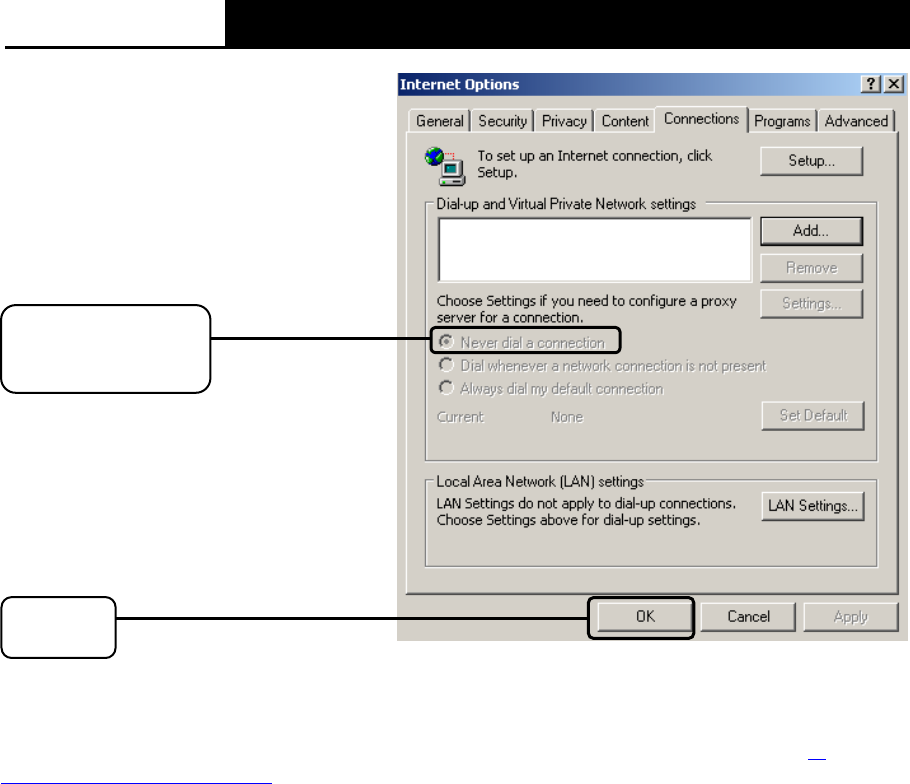

need instructions as to how to do this, please refer to Appendix B: Trouble shooting.

To access the configuration utility, open a web-browser and type the default address

http://tplinkmodem.net/ or 192.168.1.1 in the address field of the browser.

Figure 3-1

After a moment, a login window will appear. Enter admin for the Username and Password, both in

lower case letters. Then click the Login button or press the Enter key.

Figure 3-2

After your successful login, you will see the screen as shown below.

Figure 3-3

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Chapter 4. Basic

4.1 Network Map

Network Map provides a dashboard that lets you see the status of your Internet connection

and network at a glance. You can click any of the eight sections of the dashboard to view the

detail information. All the information is read-only.

Figure 4-1

 Internet - View Check the ISP settings of your modem router.

 Router - View Check the Wireless and Guest Network settings.

 Wireless Clients - Click to view the wireless devices connected to your network.

 Wired Clients - Click to view the wired devices connected to your network.

 Printer - Click to view the information of the printer connected to your network.

 USB Disk - Click to view the information of the USB storage device connected to your

network.

4.2 Internet

Choose “Basic  Internet”, and you can configure the basic settings of the ISP Configuration and

the Internet on this page.

There are four different connection types, Dynamic IP, Static IP, L2TP(Dynamic IP) and

L2TP(Static). You can select the corresponding type according to your needs.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 4-2

1) Dynamic IP

Choose Dynamic IP in the drop-down list, the modem router will be able to obtain IP network

information dynamically from a DHCP server provided by your ISP.

Figure 4-3

Click the Apply button to save the settings.

2) Static IP

Choose Static IP in the drop-down list if your ISP provides static IP information to you. You should

set static IP address, Subnet mask, and gateway address in the screen below.

Figure 4-4

 IP Address - Enter the IP address in dotted-decimal notation provided by your ISP.

 Subnet Mask - Enter the subnet Mask in dotted-decimal notation provided by your ISP,

usually is 255.255.255.0.

 Default Gateway - Enter the gateway IP address in dotted-decimal notation provided by your

ISP.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 Primary DNS/ Secondary DNS - Here you can set DNS Server (at least one) manually. The

Route will use this DNS Server for priority.

Click the Apply button to save the settings.

3) L2TP(Dynamic IP)

Choose L2TP (Dynamic IP) in the drop-down list if your ISP provides L2TP (Dynamic IP)

information to you. You should set User name, Password and Server IP Address/Name in the

screen below.

Figure 4-5

 User name/Password - Enter the User name and Password provided by your ISP. These

fields are case-sensitive. If you have difficulty with this process, please contact your ISP.

 Server IP Address/Name - Enter the server IP address or domain name provided by your

ISP. If you have difficulty with this process, please contact your ISP.

Click the Apply button to save the settings.

4) L2TP(Static)

Choose L2TP (Static) in the drop-down list if your ISP provides L2TP (Static) information to you.

You should set User name, Password, Server IP Address/Name, IP Address, Subnet Mask and

Default Gateway in the screen below.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 4-6

 User name/Password - Enter the User name and Password provided by your ISP. These

fields are case-sensitive. If you have difficulty with this process, please contact your ISP.

 Server IP Address/Name - Enter the server IP address or domain name provided by your

ISP. If you have difficulty with this process, please contact your ISP.

 IP Address - Enter the IP address in dotted-decimal notation provided by your ISP.

 Subnet Mask - Enter the subnet Mask in dotted-decimal notation provided by your ISP,

usually is 255.255.255.0.

 Default Gateway - Enter the gateway IP address in dotted-decimal notation provided by your

ISP.

Click the Apply button to save the settings.

4.3 Wireless

Choose menu “Basic”

→

“Wireless”, you can configure the basic settings for the wireless

networks of 2.4GHz and 5GHz on this page.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 4-7

 Enable Wireless Radio – Check the box to enable the Wireless Radio.

 Name (SSID) – Create a name (up to 32 characters) for your 2.4GHz/5GHz wireless network.

The default SSID is set to be TP-LINK_XXXX for the wireless network of 2.4GHz and

TP-LINK_XXXX _5G for the wireless network of 5GHz.

 Hide SSID – If you want to hide the SSID of your wireless network from the Wi-Fi network,

you should check the box.

 Password –You can enter ASCII characters between 8 and 63 characters or 8 to 64

Hexadecimal characters. The default password is the same with the default PIN code, which

is labeled on the bottom of the modem router.

Click the Save button to save the settings.

4.4 Guest Network

Choose menu “Basic

→

Guest Network”, and you will see the screen as shown below. This

feature allows you to create a separate network for your guests without allowing them to access

your main network and the computers connected to it.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 4-8

 2.4GHz - If Enable Wireless Radio is selected, please complete the following parameters.

Figure 4-9

 Name (SSID) - Create a name for the guest network. When setting up a Guest network, it

is strongly recommended to use a name that easily distinguishes it from your primary

network. The default name is TP-LINK_Guest_2.4GHz. If you want to hide the guest

network from the Wi-Fi network, check the Hide SSID.

 Password - Create a password for the guest network. The password must have a

minimum of 8 characters in length.

 Allow guests to see each other - If Allow guests to see each other is selected,

anyone who connects to the guest network can access each other.

 Allow guests to access my local network - If Allow guests to access my local

network is selected, anyone who connects to the guest network has access to your local

network, not just Internet access.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 5GHz - If Enable Wireless Radio is selected, please complete the following parameters.

Figure 4-10

 Name (SSID) - Create a name for the guest network. When setting up a Guest network, it

is strongly recommended to use a name that easily distinguishes it from your primary

network. The default name is TP-LINK_Guest_XXXX_5G. If you want to hide the guest

network from the Wi-Fi network, check the Hide SSID.

 Password - Create a password for the guest network. The password must have a

minimum of 8 characters in length.

 Allow guests to see each other - If Allow guests to see each other is selected,

anyone who connects to the guest network can access each other.

 Allow guests to access my local network - If Allow guests to access my local

network is selected, anyone who connects to the guest network has access to your local

network, not just Internet access.

Click the Save button to save the settings.

4.5 USB Settings

There are two submenus under the USB Settings menu, Folder Sharing and Print Server. Click

any of them, and you will be able to configure the corresponding function.

4.5.1 Folder Sharing

Choose menu “Basic

→

USB Settings

→

Folder Sharing”, you can view the basic information

about the connected USB mass storage, and configure Sharing Folders(Media file, Document files,

Compress files and so on.)

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 4-11

Disk Settings:

 Scan - Click the button to display the information of the USB storage device connected to the

modem router.

 Volume - The volume name of the USB drive the users have access to.

 Capacity - The storage capacity of the USB driver.

 Free Space - The available capacity of the USB driver.

 Enable - When the volume is shared, you can click the icon to stop sharing the volume;

when volume is non-shared, you can click the icon to share the volume.

Click Safely Remove button to remove the USB storage device that is connected to USB port.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide



Note:

Before removing the USB storage device, you should click “Safely Remove” to make sure that

all your data have been saved completely. Removing device directly may cause your USB storage

device crashed.

Sharing Settings:

 Network/Media Server Name - Show the name of the network/media server. This is the

name used to access the USB device connected to the modem router.

Sharing Folders (Media file, Document files, Compress files and so on.):

 Enable Sharing All - The switch for sharing all the folders. If turn on the switch, the field will

become green and all the folders in the USB drive will be shared.

 Enable Authentication - If turn on this switch, the folder sharing is need authentication. The

default setting is off.

To share the folders you specified, please follow the steps below.

1. Turn off the Enable Sharing All switch and the next screen will pop-up as shown in Figure

4-12.

Figure 4-12

2. Click the Add button and the next screen will pop-up as shown in Figure 4-13.

Figure 4-13

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

3. Select the volume desired to share from the Volume drop-down list. Then click the Browse

button to select the folder path. You can create a share name, e.g. music.

4. Select the checkboxes in Figure 4-13.according to your needs.

 Enable Authentication - If this checkbox is selected, then the folder sharing is need

authentication.

 Write Access - If this checkbox is selected, then the sharing folder is allowed write

access.

 Enable Media Sharing - Select this checkbox to enable media sharing.

Click OK to complete the settings.

4.5.2 Print Server

Choose menu “Basic

→

USB Settings

→

Print Server”, you can enable or disable the print server.

Figure 4-14

4.6 Parental Control

Choose menu “Basic

→

Parental Control”, and then you can configure the parental control. The

Parental Control function can be used to control the internet activities of the child, limit the child to

access certain websites and restrict the time of surfing.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 4-15

Parental Control:

 Enable Parental Control - The switch for the parental control. If turn on the switch, the field

will become green.

Devices Under Parental Control:

 Add - You can add a new device for the parental control by clicking this button.

 Delete - You can click the button to delete the selected entries.

 Device Name -The name used for identifying a device.

 MAC Address - This field displays the MAC address of the PC that is managing this modem

router.

 Effective Time - The time period allowed for the PC controlled to access the Internet. You

can click the icon to configure the time period.

 Description - Here displays the description about the parental control and this description is

unique.

 Enable – Click the icon to enable the function. If this function has taken effect, the icon

will become .

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 Modify – Click the icon to edit the corresponding entry. If you want to delete this entry,

you can click the icon.

To add a new entry, please follow the steps below.

1. Click the Add button and the next screen will pop-up.

Figure 4-16

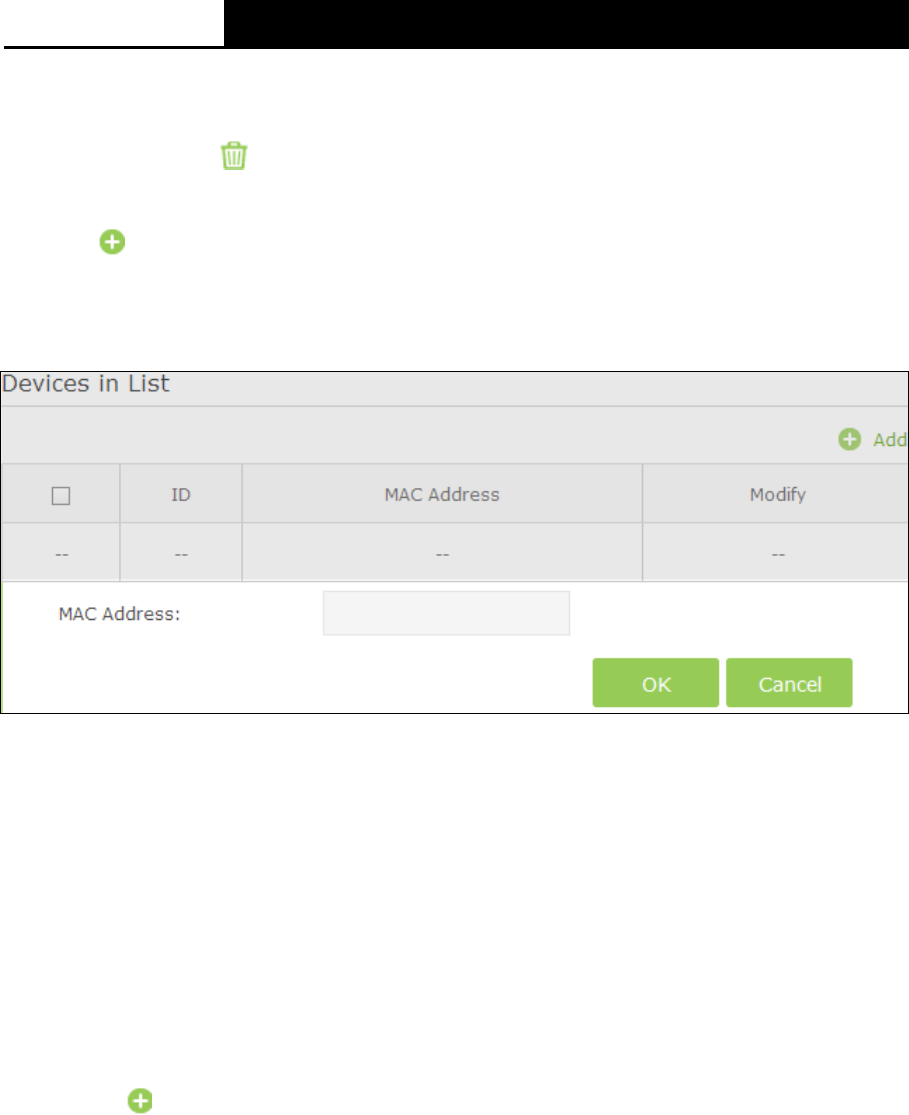

2. Click View Device button and the next screen will pop-up. You’d like to click the icon to

select a device.

Figure 4-17

3. Click to create a new schedule. You’d like to click the Schedule in green below to go to

the Advance Schedule Settings page and create the schedule you need. Then enter the

Description.

4. Check the box Enable this Entry to enable this function.

5. Click OK to complete the settings.

Content Restriction:

 Content Restriction Mode – Select the Black List Mode or White List Mode for this

account.

 Black List Mode - All webs entered within the Black List will be denied to access. Check the

box to enable this mode. You’d like to click Add a new keyword button and input the net

addresses which the child is denied to access.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 White List Mode - Only the web entered within the White List will be allowed. Check the box

to enable this mode. You’d like to click Add a new keyword button and input the net

addresses which the child is allowed to access.

Click Save to complete the settings.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Chapter 5. Advanced

5.1 Status

Choose menu “Advanced

→

Status”, you can see the current status information about the modem

router.

Figure 5-1

5.2 Operation Mode

Choose menu “Advanced

→

Operation Mode”, and you will see the screen as shown in Figure

5-2.Select your desired mode and then click Save.

Figure 5-2

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 Router Mode - The device enables multi-users to share Internet via cable using its Cable port

and share it wirelessly at 450Mbps wireless speeds over the crystal clear 5GHz band and

1300Mbps over the 2.4GHz band.

 Bridge Mode – In this mode, the modem router can be configured to act as a bridging device

between your LAN and your ISP. Bridges are devices that enable two or more networks to

communicate as if they are two segments of the same physical LAN. If you were in Bridge

Mode, you could log in the web-based management at 192.168.100.1, and then change the

setting to obtain an IP address automatically.

After you click the Save button, the modem router will reboot. Please wait.

5.3 Network

Figure 5-3

There are five submenus under the Network menu: WAN, LAN Settings, IPv6 LAN Settings,

Dynamic DNS and Advanced Routing. Click any of them, and you will be able to configure the

corresponding function.

5.3.1 WAN

Choose “Advanced



Network



WAN”, you can configure the IP parameters of the WAN on the

screen below.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-4

Connection Status:

 Connection Type – Display the connection type for WAN.

 IP/MAC Address - This field displays the current IP/MAC address of the Internet port.

 Duration – Display the total connection time.

 Expires – Display the expiration time of the DHCP servers leases an IP address to a new

device.

 DisConnect - Click the DisConnect button to release WAN lease, then the Note Dialog will

appear. You can click the OK button to disconnect immediately.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 ReConnect –Click the ReConnect button to renew WAN lease, then the Note Dialog will

appear. You can click the OK button to disconnect immediately.

Connection settings:

There are four different connection types, Dynamic IP, Static IP, L2TP(Dynamic IP) and

L2TP(Static). You can select the corresponding type according to your needs.

Figure 5-5

1) Dynamic IP

Choose Dynamic IP in the drop-down list, the modem router will be able to obtain IP network

information dynamically from a DHCP server provided by your ISP.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-6

 Current used MAC Address - This field displays the current MAC address of the Internet

port.

 MAC Clone - You can select one of below methods to change MAC address for this WAN

Interface depend on your needs. If you select Use this MAC Address, you can enter the

MAC Address you want to change.

Click the Apply button to save the settings.

2) Static IP

Choose Static IP in the drop-down list if your ISP provides static IP information to you. You should

set static IP address, Subnet mask, and gateway address in the screen below.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-7

 IP Address - Enter the IP address in dotted-decimal notation provided by your ISP.

 Subnet Mask - Enter the subnet Mask in dotted-decimal notation provided by your ISP,

usually is 255.255.255.0.

 Default Gateway - Enter the gateway IP address in dotted-decimal notation provided by your

ISP.

 Primary DNS/ Secondary DNS - Here you can set DNS Server (at least one) manually. The

Route will use this DNS Server for priority.

 Current used MAC Address - This field displays the current MAC address of the Internet

port.

 MAC Clone - You can select one of below methods to change MAC address for this WAN

Interface depend on your needs. If you select Use this MAC Address, you can enter the

MAC Address you want to change.

Click the Apply button to save the settings.

3) L2TP(Dynamic IP)

Choose L2TP(Dynamic IP) in the drop-down list if your ISP provides L2TP(Dynamic IP)

information to you. You should set User name, Password and Server IP Address/Name in the

screen below.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-8

 User name/Password - Enter the User name and Password provided by your ISP. These

fields are case-sensitive. If you have difficulty with this process, please contact your ISP.

 Server IP Address/Name - Enter the server IP address or domain name provided by your

ISP. If you have difficulty with this process, please contact your ISP.

 Current used MAC Address - This field displays the current MAC address of the Internet

port.

 MAC Clone - You can select one of below methods to change MAC address for this WAN

Interface depend on your needs. If you select Use this MAC Address, you can enter the

MAC Address you want to change.

Click the Apply button to save the settings.

4) L2TP(Static)

Choose L2TP (Static) in the drop-down list if your ISP provides L2TP (Static IP) information to you.

You should set User name, Password, Server IP Address/Name, IP Address, Subnet Mask and

Default Gateway in the screen below.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-9

 User name/Password - Enter the User name and Password provided by your ISP. These

fields are case-sensitive. If you have difficulty with this process, please contact your ISP.

 Server IP Address/Name - Enter the server IP address or domain name provided by your

ISP. If you have difficulty with this process, please contact your ISP.

 IP Address - Enter the IP address in dotted-decimal notation provided by your ISP.

 Subnet Mask - Enter the subnet Mask in dotted-decimal notation provided by your ISP,

usually is 255.255.255.0.

 Default Gateway - Enter the gateway IP address in dotted-decimal notation provided by your

ISP.

 Current used MAC Address - This field displays the current MAC address of the Internet

port.

 MAC Clone - You can select one of below methods to change MAC address for this WAN

Interface depend on your needs. If you select Use this MAC Address, you can enter the

MAC Address you want to change.

Click the Apply button to save the settings.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

5.3.2 LAN Settings

Choose “AdvancedNetworkLAN Settings” menu, and you will see the LAN screen shown

below. Please configure the parameters for LAN ports according to the descriptions below.

Figure 5-10

LAN Settings:

 IP Address - Enter the modem router’s local IP Address, then you can access to the

Web-based management page via the IP Address, the default value is 192.168.1.1.

 MAC Address - The physical address of the modem router, as seen from the LAN. The

value can't be changed.

DHCP Settings:

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 DHCP Sever – Check the box to enable this function. If DHCP Server is enabled, the modem

router will work as a DHCP server, which provides the TCP/IP configuration for all the PC(s)

that are connected to it on the LAN.

 MAC Address - The MAC address of the DHCP client

 Start IP Address - Enter a value for the DHCP server to start with when issuing IP addresses.

 End IP Address - Enter a value for the DHCP server to end with when issuing IP addresses.

 Leased Time - The Leased Time is the amount of time in which a network user will be allowed

connection to the modem router with their current dynamic IP address. Enter the amount of

time, in hours, then the user will be “leased” this dynamic IP address. After the dynamic IP

address has expired, the user will be automatically assigned a new dynamic IP address. The

default is 60 minutes.

 Primary DNS/Second DNS - The Domain Name System (DNS) translates host names and

Internet domains to IP addresses. The information of these DNS servers is assigned by the

Internet Service Provider (ISP). Enter the DNS server address(es) in dotted decimal notation

provided by your ISP.

Click the Save button to save the settings.

DHCP Client List:

 MAC Address - The MAC address of the DHCP client

 IP Address - The IP address that the modem router has allocated to the DHCP client

 Duration - Display the total connection time.

 Expires- Display the expiration time of the DHCP client leased.

 Select – Click the icon to delete this entry.

5.3.3 IPv6 LAN Settings

Choose “AdvancedNetworkIPv6 LAN Settings” menu, and you will see the IPv6 LAN

screen. Please configure the parameters for IPv6 LAN ports according to the descriptions below.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-11

IPv6 LAN Settings:

 IPv6 Address - Display the modem router’s local IPv6 Address.

 IPv6 Prefix – Display the IPv6 prefix address.

 System Delegated Prefix – Display the prefix address used for the tunnel.

DHCPv6 Server Settings:

 DHCPv6 Server – Check the box to enable DHCPv6 server.

 LAN Delegated Prefix – Display the LAN prefix address.

 Start address - Enter a value for the DHCPv6 server to start with when issuing IP addresses.

 Number of addresses – Enter a value between 0-255 for DHCPv6 server preference. The

default value is 255.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 Valid Lifetime - The Valid Lifetime is the amount of time in which a network user will be

allowed connection to the modem router with their current dynamic IP address. Enter the

amount of time, in seconds, then the user will be assigned this dynamic IP address. After the

dynamic IP address has expired, the user will be automatically assigned a new dynamic IP

address. The default is 3600 seconds.

 Rapid Commit – Check the box to enable prefix fast distribution function.

 Unicast – Select the checkbox to enable unicast function. The default setting is disabled.

 Stateless Dhcpv6 - Stateless DHCPv6 is a combination of “stateless Address

Autoconfiguration” and “Dynamic Host Configuration Protocol for IPv6” and is specified by

RFC3736. Check the box to enable this function.

Client Status:

 IP Address - The IP address of the DHCP client

 MAC Address - The MAC address of the DHCP client

 Reachability State – Display the reachability of network.

5.3.4 Dynamic DNS

Choose menu “Advanced



Network



Dynamic DNS”, and you can configure the Dynamic

DNS function.

The modem router offers the DDNS (Dynamic Domain Name System) feature, which allows the

hosting of a website, FTP server, or e-mail server with a fixed domain name (named by yourself)

and a dynamic IP address, and then your friends can connect to your server by entering your

domain name no matter what your IP address is. Before using this feature, you need to sign up for

DDNS service providers such as dyn.com/dns/. The Dynamic DNS client service provider will give

you a password or key.

Figure 5-12

 DDNS Service - The service provider of DDNS. In this field you could select Disabled,

dyn.com/dns/ or www.noip.com . If you have selected dyn.com/dns/ or www.noip.com , you

need to sign up for DDNS service providers.

 User Name & Password - Type the “User Name” and “Password” for your DDNS account.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 Host Name - Enter the Domain name you want to set.

 IP Address – Display the WAN IP address.

Click the Save button to save your settings.

5.3.5 Advanced Routing

Choose “Advanced  Network  Advanced Routing”, you can view all the current groups on

this page.

Figure 5-13

 RIP Authentication – Check the box to enable the RIP Authentication function.

 Authentication Key – Create a key（up to 16 characters）for the RIP authentication.

 Authentication Key ID - Create a ID（up to 3 characters） for identity a authentication key.

 Reporting Interval – Refer to the update interval for routing information.

 Destination IP Address –The Destination IP Address is the address of the network or host

that you want to assign to a static route.

 Destination IP Subnet Mask –The Destination IP Subnet Mask determines which portion

of an IP Address is the network portion, and which portion is the host portion.

Click Save button to save the settings.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

5.4 Wireless 2.4G

Choose menu “Advanced

→

Wireless 2.4G”, you will see six submenus under the Wireless menu:

Basic Settings, Primary Network, Guest Network, MAC Filtering, Wireless Bridging and

Wireless Advanced. Click any of them, and you will be able to configure the corresponding

function.

5.4.1 Basic Settings

Choose menu “Advanced

→

Wireless 2.4G

→

Basic Settings”, you can configure the

advanced wireless settings for the wireless 2.4G network.

Figure 5-14

 Wireless Radio – Check the box to enable the Wireless Radio.

 Power – Here you can specify the transmit power of the modem router. You can select 25%,

50%, 75% and 100% which you would like. 100% is the default setting and is recommended.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 Mode – Select the desired mode.

11bgn mixed: Select if you are using a mix of 802.11b, 11g, and 11n wireless clients.

11gn mixed: Select if you are using both 802.11g and 802.11n wireless clients.

11n only: Select if you are using 802.11n wireless clients only.

Select the desired wireless mode. It is strongly recommended that you set the Mode to 11bgn

mixed, and all of 802.11b, 802.11g, and 802.11n wireless stations can connect to the modem

router.

 BandWidth - Select the channel width from the drop-down list. The default setting is Auto,

which can adjust the channel width for your clients automatically.

 Channel - Select the channel you want to use from the drop-down list of Channel. This field

determines which operating frequency will be used. It is not necessary to change the wireless

channel unless you notice interference problems with another nearby access point.

Click the Save button to save the settings.

5.4.2 Primary Network

Choose menu “Advanced

→

Wireless 2.4G

→

Primary Network”, You can configure the

wireless 2.4GHz primary network.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-15

2.4GHz Primary Network:

 Name (SSID) – Create a name (up to 32 characters) for your 2.4GHz wireless network. The

default SSID is set to be TP-LINK_XXXX.

 Hide SSID – If you want to hide the SSID of your wireless network from the Wi-Fi network,

you should check the box.

 Security – There are four wireless security modes supported by the modem router: No

Security, WPA/WPA2 Personal (Recommended), WPA/WPA2 Enterprise, WEP. You can

choose one of them from the drop-down list.

1) No Security: If you do not want to use wireless security, choose No Security. But it’s

recommended to use wireless security.

2) WPA-PSK/WPA2-PSK Personal(Recommended):

 Version –You can choose the version of the WPA-PSK/WPA2-PSK security by selecting

Auto, WPA-PSK or WPA2-PSK. The default setting is WPA2-PSK.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 Encryption – You can choose the encryption by selecting Auto, TKIP or AES. The default

setting is AES.

 Wireless Password – You can enter ASCII characters between 8 and 63 characters or 8 to

64 Hexadecimal characters. The default password is the same with the default PIN code,

which is labeled on the bottom of the modem router.

3) WPA/WPA2 Enterprise:

 Version –You can choose the version of the WPA/WPA2 Enterprise security by selecting

Auto, WPA or WPA2. The default setting is WPA2.

 Encryption – You can select Auto, TKIP or AES as Encryption. The default setting is AES.

 RADIUS Server IP: Enter the IP address of the Radius Server.

 RADIUS Port: Enter the port that radius service used.

 RADIUS Password: Enter the password for the Radius Server.

4) WEP:

 Key Selected – Select one of the four keys from the drop-down list.

 Key Type –You can select the WEP key length (64-bit, or 128-bit.) for encryption.

64-bit: You can enter 10 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not

promoted) or 5 ASCII characters.

128-bit: You can enter 26 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not

promoted) or 13 ASCII characters.

 Key Format – ASCII and Hexadecimal formats are provided here. ASCII format stands for

any combination of keyboard characters in the specified length. Hexadecimal format stands

for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified length.

 Key Value - Enter the WEP key that you create. Make sure these values are identical on all

wireless stations in your network.



Note:

If you do not set the key, the wireless security function is still disabled even if you have

selected Shared Key.

Router’s PIN:

 Enable Router’s PIN - The switch for the Router’s PIN. If you turn on this button, the field will

become green and other device can connect to this Router by WPS with the Router's PIN

Number.

 Router’s PIN - The current value of the modem router's PIN is displayed here. The default

PIN of the modem router can be found in the label.

 Generate - Click this button, and then you can get a new random value for the modem

router's PIN. You can ensure the network security by generating a new PIN.



Note:

You cannot connect other device to this modem router by entering the router’s PIN on your client

device if you haven’t switch on Enable Router’s PIN.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

WPS Wizard:

 Enable WPS - The switch for the WPS. If you turn on this button, the field will become green

and you can add a new wireless device to an existing network quickly by WPS (also called

QSS) function.

 Select a setup method – You can select either of Push Button (Recommended) or PIN

Number as the WPS setup method.

 Push Button (Recommended) – When you select this method, you can add a new device by

pressing the physical button on the router or by clicking the software push Connect button on

this screen.

 PIN Number - When you select this method, you can add a new device by entering the

client’s PIN in the field and then click Connect button.

To add a new device:

If the wireless adapter supports Wi-Fi Protected Setup (WPS), you can establish a wireless

connection between wireless adapter and modem router using either Push Button method or PIN

Number method.



Note:

To build a successful connection by WPS, you should also do the corresponding configuration of

the new device for WPS function meanwhile.

I. Use the WPS Button

Use this method if your client device has a Wi-Fi Protected Setup (WPS) button.

Step 1: Press the physical button on the router (as shown in Figure 5-16) or click the software

push button: Connect (as shown in Figure 5-17).

Figure 5-16

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-17

Step 2: Press and hold the WPS button of the client device directly.

Step 3: The WPS LED flashes for two minutes during the Wi-Fi Protected Setup process.

Step 4: When the WPS LED is on, the client device has successfully connected to the modem

router.

Refer back to your client device or its documentation for further instructions.

II. Enter the client device’s PIN on the modem router

Use this method if your client device has a Wi-Fi Protected Setup PIN number.

Step 1: Enter the PIN number from the client device in the field, as shown in the following figure.

Then click Connect button.

Figure 5-18

Step 2: “Device has been added successfully!” will appear on the screen, which means the

client device has successfully connected to the modem router.



Note:

1) The WPS LED on the modem router will light green for five minutes if the device has been

successfully added to the network.

2) The WPS function cannot be configured if the Enable Router’s PIN switch is off. Please

make sure the Enable Router’s PIN switch is on before configuring the WPS.

5.4.3 Guest Network

Choose menu “Advanced

→

Wireless 2.4G

→

Guest Network”, you can configure the

advanced settings of your guest network.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-19

Settings:

 See each other - If Allow guests to see each other is selected, anyone who connects to the

guest network can access each other.

 Access my local network - If Allow guests to access my local network is selected,

anyone who connects to the guest network has access to your local network, not just Internet

access.

Wireless:

 Wireless radio – Check the box to enable this function. The guest network function is

disabled by default.

 Name (SSID) - Create a name for the guest network. When setting up a Guest network, it is

strongly recommended to use a name that easily distinguishes it from your primary network.

The default name is TP-LINK_Guest_2.4GHz. If you want to hide the guest network from the

Wi-Fi network, check the Hide SSID.

 Security - It’s strongly recommended to select WPA/WPA2 Personal. If you do not want to

use wireless security, choose No Security.

 Version -You can choose the version of the WPA-PSK/WPA2-PSK security by selecting

Auto, WPA-PSK or WPA2-PSK. The default setting is WPA2-PSK.

 Encryption - You can choose the encryption by selecting Auto, TKIP or AES.

 Wireless Password - Create a password for the guest network. The password must have a

minimum of 8 characters in length.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Click Save button to save the settings.

5.4.4 MAC Filtering

Choose menu “Advanced

→

Wireless 2.4GHz

→

MAC Filtering”, you can control the wireless

access by configuring the MAC Filtering function.

Figure 5-20

2.4GHz Access Control:

 Wireless Interface - Select an available wireless interface from the drop-down list.

 Enable MAC Filtering- The switch for the MAC Filtering. If you turn on this button, the field

will become green and you can filter wireless users by MAC Address.

Filtering Rules:

 Select the Filtering Rule - You can select either of Block List or Allow List as the MAC

filtering rule.

Click the Save button to save the settings.

Devices in List:

 Add - You can add a new device for the MAC Filtering rule by clicking Add button.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 MAC Address - This field displays the MAC address of the wireless station that cannot

access this router/can access this router.

 Modify - Click the icon to delete this entry.

To add a MAC Address Filtering entry:

1. Click Add button, then you will see a setting page.

2. Enter the appropriate MAC Address into the MAC Address field. The format of the MAC

Address is XX-XX-XX-XX-XX-XX (X is any hexadecimal digit). For example:

00-1D-0F-11-22-33.

Figure 5-21

3. Click the OK button to save this entry. If you do not want to save this entry, click the Cancel

button.

For example: If you desire that the wireless station A with MAC address 00-1D-0F-11-22-33 and

the wireless station B with MAC address 00-0A-EB-00-07-5F are able to access the modem router,

but all the other wireless stations cannot access the modem router, you can configure the MAC

Filtering settings by following these steps:

1. Switch on the Enable MAC Filtering button to enable this function.

2. Select the White List for Filtering Rules.

3. Delete all or disable all entries if there are any entries already.

4. Click the

Add

button.

1) Enter the MAC address

00-1D-0F-11-22-33

00-0A-EB-00-07-5F

in the MAC Address

field.

2) Click the OK button.

The filtering rules that configured should be similar to the following figure:

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-22

Wireless Stations Online:

 MAC Address - The MAC address of the wireless station online.

 Age(s) – Display the duration time of wireless station online.

 RSSI(dBm) – Refers to the Received Signal Strength Indication.

 IP Address- The IP address of the wireless station online.

 Host Name – Display the host name of the wireless station.

5.4.5 Wireless Bridging

Choose menu “Advanced

→

Wireless 2.4G

→

Wireless Bridging”. With this function, the

modem router can bridge more WLANs.

Figure 5-23

 WDS Bridging - With this function, the modem router can bridge more WLANs. If you check

the Enable WDS, you can click the Scan AP button to scan the nearby wireless access

points.

 Remote Bridges – Enter the MAC address of the access point which you choose to be

bridged.

Click the Save button to save the settings.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

5.4.6 Wireless Advanced

Choose menu “Advanced

→

Wireless 2.4G

→

Wireless Advanced”, you can configure the

advanced settings of your wireless network.

Figure 5-24

2.4GHz Advanced:

 Beacon Interval - Enter a value between 25-1000 milliseconds for Beacon Interval here.

The beacons are the packets sent by the modem router to synchronize a wireless network.

Beacon Interval value determines the time interval of the beacons. The default value is 100.

 DTIM Interval - This value determines the interval of the Delivery Traffic Indication Message

(DTIM). A DTIM field is a countdown field informing clients of the next window for listening to

broadcast and multicast messages. When the modem router has buffered broadcast or

multicast messages for associated clients, it sends the next DTIM with a DTIM Interval value.

You can specify the value between 1-255 Beacon Intervals. The default value is 1, which

indicates the DTIM Interval is the same as Beacon Interval.

 Fragmentation Threshold - This value is the maximum size determining whether packets

will be fragmented. Setting the Fragmentation Threshold too low may result in poor network

performance because of excessive packets. 2346 is the default setting and is recommended.

 RTS Threshold - Here you can specify the RTS (Request to Send) Threshold. If the packet

is larger than the specified RTS Threshold size, the modem router will send RTS frames to a

particular receiving station and negotiate the sending of a data frame. The default value is

2347.

 Short GI - This function is recommended for it will increase the data capacity by reducing the

guard interval time. Short GI is enabled by default.

 Enable WMM – Check the box to enable this function. WMM function can guarantee the

packets with high-priority messages being transmitted preferentially, which is strongly

recommended. It is enabled by default.

 Enable Power Save Support - Check the box to enable this function. This function can

make the wireless client has only antenna is in working condition, and the remaining

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

antennas are dormant, so as to achieve the purpose of saving power.

Click the Save button to save the settings.

5.5 Wireless 5G

Choose menu “Advanced

→

Wireless 5G”, you will see six submenus under the Wireless menu:

Basic Settings, Primary Network, Guest Network, MAC Filtering, Wireless Bridging and

Wireless Advanced. Click any of them, and you will be able to configure the corresponding

function.

5.5.1 Basic Settings

Choose menu “Advanced

→

Wireless 5G

→

Basic Settings”, you can configure the advanced

wireless settings for the wireless 5G network.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-25

 Wireless Radio – Check the box to enable the Wireless Radio.

 Power – Here you can specify the transmit power of the modem router. You can select 25%,

50%, 75% and 100% which you would like. 100% is the default setting and is recommended.

 Mode – Select the desired mode.

11a/n/ac mixed: Select if you are using a mix of 802.11a, 11n and 11ac wireless clients.

11ac/n mixed: Select if you are using a mix of 802.11ac and 11n wireless clients.

11ac only: Select if you are using 802.11a wireless clients.

Select the desired wireless mode. It is strongly recommended that you set the Mode to

11a/n/ac mixed, and all of 802.11a, 802.11n, and 802.11ac wireless stations can connect to

the modem router.

 BandWidth - Select the channel width from the drop-down list. The default setting is Auto,

which can adjust the channel width for your clients automatically.

 Channel - Select the channel you want to use from the drop-down list of Channel. This field

determines which operating frequency will be used. It is not necessary to change the wireless

channel unless you notice interference problems with another nearby access point.

Click the Save button to save the settings.

5.5.2 Primary Network

Choose menu “Advanced

→

Wireless 5G

→

Primary Network”, You can configure the

wireless 5G primary network.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-26

2.4GHz Primary Network:

 Wireless Radio – Check the box to enable the Wireless Radio.

 Name (SSID) – Create a name (up to 32 characters) for your 5GHz wireless network. The

default SSID is set to be TP-LINK_XXXX _5GHz.

 Hide SSID – If you want to hide the SSID of your wireless network from the Wi-Fi network,

you should check the box.

 Security – There are four wireless security modes supported by the modem router: No

Security, WPA/WPA2 Personal (Recommended), WPA/WPA2 Enterprise, WEP. You can

choose one of them from the drop-down list.

5) No Security: If you do not want to use wireless security, choose No Security. But it’s

recommended to use wireless security.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

6) WPA-PSK/WPA2-PSK Personal(Recommended):

 Version –You can choose the version of the WPA-PSK/WPA2-PSK security by selecting

Auto, WPA-PSK or WPA2-PSK. The default setting is WPA2-PSK.

 Encryption – You can choose the encryption by selecting Auto, TKIP or AES. The default

setting is AES.

 Wireless Password – You can enter ASCII characters between 8 and 63 characters or 8 to

64 Hexadecimal characters. The default password is the same with the default PIN code,

which is labeled on the bottom of the modem router.

7) WPA/WPA2 Enterprise:

 Version –You can choose the version of the WPA/WPA2 Enterprise security by selecting

Auto, WPA or WPA2. The default setting is WPA2.

 Encryption – You can select Auto, TKIP or AES as Encryption. The default setting is AES.

 RADIUS Server IP: Enter the IP address of the Radius Server.

 RADIUS Port: Enter the port that radius service used.

 RADIUS Password: Enter the password for the Radius Server.

8) WEP:

 Key Selected – Select one of the four keys from the drop-down list.

 Key Type –You can select the WEP key length (64-bit, or 128-bit.) for encryption.

64-bit: You can enter 10 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not

promoted) or 5 ASCII characters.

128-bit: You can enter 26 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not

promoted) or 13 ASCII characters.

 Key Format – ASCII and Hexadecimal formats are provided here. ASCII format stands for

any combination of keyboard characters in the specified length. Hexadecimal format stands

for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified length.

 Key Value - Enter the WEP key that you create. Make sure these values are identical on all

wireless stations in your network.



Note:

If you do not set the key, the wireless security function is still disabled even if you have

selected Shared Key.

Router’s PIN:

 Enable Router’s PIN - The switch for the Router’s PIN. If you turn on this button, the field will

become green and other device can connect to this Router by WPS with the Router's PIN

Number.

 Router’s PIN - The current value of the modem router's PIN is displayed here. The default

PIN of the modem router can be found in the label.

 Generate - Click this button, and then you can get a new random value for the modem

router's PIN. You can ensure the network security by generating a new PIN.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide



Note:

You cannot connect other device to this modem router by entering the router’s PIN on your client

device if you haven’t switch on Enable Router’s PIN.

WPS Wizard:

 Enable WPS - The switch for the WPS. If you turn on this button, the field will become green

and you can add a new wireless device to an existing network quickly by WPS (also called

QSS) function.

 Select a setup method – You can select either of Push Button (Recommended) or PIN

Number as the WPS setup method.

 Push Button (Recommended) – When you select this method, you can add a new device by

pressing the physical button on the router or by clicking the software push Connect button on

this screen.

 PIN Number - When you select this method, you can add a new device by entering the

client’s PIN in the field and then click Connect button.

To add a new device:

If the wireless adapter supports Wi-Fi Protected Setup (WPS), you can establish a wireless

connection between wireless adapter and modem router using either Push Button method or PIN

Number method.



Note:

To build a successful connection by WPS, you should also do the corresponding configuration of

the new device for WPS function meanwhile.

III. Use the WPS Button

Use this method if your client device has a Wi-Fi Protected Setup (WPS) button.

Step 5: Press the physical button on the router (as shown in Figure 5-27) or click the software

push button: Connect (as shown in Figure 5-28).

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-27

Figure 5-28

Step 6: Press and hold the WPS button of the client device directly.

Step 7: The WPS LED flashes for two minutes during the Wi-Fi Protected Setup process.

Step 8: When the WPS LED is on, the client device has successfully connected to the modem

router.

Refer back to your client device or its documentation for further instructions.

IV. Enter the client device’s PIN on the modem router

Use this method if your client device has a Wi-Fi Protected Setup PIN number.

Step 3: Enter the PIN number from the client device in the field, as shown in the following figure.

Then click Connect button.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-29

Step 4: “Device has been added successfully!” will appear on the screen, which means the

client device has successfully connected to the modem router.



Note:

1) The WPS LED on the modem router will light green for five minutes if the device has been

successfully added to the network.

2) The WPS function cannot be configured if the Enable Router’s PIN switch is off. Please

make sure the Enable Router’s PIN switch is on before configuring the WPS.

5.5.3 Guest Network

Choose menu “Advanced

→

Wireless 5G

→

Guest Network”, you can configure the advanced

settings of your guest network.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-30

Settings:

 See each other - If Allow guests to see each other is selected, anyone who connects to the

guest network can access each other.

 Access my local network - If Allow guests to access my local network is selected,

anyone who connects to the guest network has access to your local network, not just Internet

access.

Wireless:

 Wireless radio – Check the box to enable this function. The guest network function is

disabled by default.

 Name (SSID) - Create a name for the guest network. When setting up a Guest network, it is

strongly recommended to use a name that easily distinguishes it from your primary network.

The default name is TP-LINK_Guest_5GHz. If you want to hide the guest network from the

Wi-Fi network, check the Hide SSID.

 Security - It’s strongly recommended to select WPA/WPA2 Personal. If you do not want to

use wireless security, choose No Security.

 Version -You can choose the version of the WPA-PSK/WPA2-PSK security by selecting

Auto, WPA-PSK or WPA2-PSK. The default setting is WPA2-PSK.

 Encryption - You can choose the encryption by selecting Auto, TKIP or AES.

 Wireless Password - Create a password for the guest network. The password must have a

minimum of 8 characters in length.

Click Save button to save the settings.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

5.5.4 MAC Filtering

Choose menu “Advanced

→

Wireless 5GHz

→

MAC Filtering”, you can control the wireless

access by configuring the MAC Filtering function.

Figure 5-31

5GHz Access Control:

 Wireless Interface - Select an available wireless interface from the drop-down list.

 Enable MAC Filtering- The switch for the MAC Filtering. If you turn on this button, the field

will become green and you can filter wireless users by MAC Address.

Filtering Rules:

 Select the Filtering Rule - You can select either of White List or Black List as the MAC

filtering rule.

Click the Save button to save the settings.

Devices in List:

 Add - You can add a new device for the MAC Filtering rule by clicking Add button.

 MAC Address - This field displays the MAC address of the wireless station that cannot

access this router/can access this router.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 Modify - Click the icon to delete this entry.

To add a MAC Address Filtering entry:

1. Click Add button, then you will see a setting page.

2. Enter the appropriate MAC Address into the MAC Address field. The format of the MAC

Address is XX-XX-XX-XX-XX-XX (X is any hexadecimal digit). For example:

00-1D-0F-11-22-33.

Figure 5-32

3. Click the OK button to save this entry. If you do not want to save this entry, click the Cancel

button.

For example: If you desire that the wireless station A with MAC address 00-1D-0F-11-22-33 and

the wireless station B with MAC address 00-0A-EB-00-07-5F are able to access the modem router,

but all the other wireless stations cannot access the modem router, you can configure the MAC

Filtering settings by following these steps:

1. Switch on the Enable MAC Filtering button to enable this function.

2. Select the White List for Filtering Rules.

3. Delete all or disable all entries if there are any entries already.

4. Click the

Add

button.

1) Enter the MAC address

00-1D-0F-11-22-33

00-0A-EB-00-07-5F

in the MAC Address

field.

2) Click the OK button.

The filtering rules that configured should be similar to the following figure:

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-33

Wireless Stations Online:

 MAC Address - The MAC address of the wireless station online.

 Age(s) – Display the duration time of wireless station online.

 RSSI(dBm) – Refers to the Received Signal Strength Indication.

 IP Address- The IP address of the wireless station online.

 Host Name – Display the host name of the wireless station.

5.5.5 Wireless Bridging

Choose menu “Advanced

→

Wireless 5G

→

Wireless Bridging”. With this function, the

modem router can bridge more WLANs.

Figure 5-34

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 WDS Bridging - With this function, the modem router can bridge more WLANs. If you check

the Enable WDS, you can click the Scan AP button to scan the nearby wireless access

points.

 Remote Bridges – Enter the MAC address of the access point which you choose to be

bridged.

Click the Save button to save the settings.

5.5.6 Wireless Advanced

Choose menu “Advanced

→

Wireless 5G

→

Wireless Advanced”, you can configure the

advanced settings of your wireless network.

Figure 5-35

5GHz Advanced:
