M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide
Package Contents
The following items should be found in your package:
¾ M5360 3G Mobile WiFi, 5200mAh Power Bank
¾ One power adapter
¾ One micro USB cable
¾ Quick Installation Guide
¾ Micro/Nano to Standard SIM Card Adapter
) Note:
Make sure that the package contains the above items. If any of the listed items is damaged or
missing, please contact your distributor.
Conventions
The Device or M5360 mentioned in this guide stands for M5360 3G Mobile WiFi, 5200mAh
Power Bank without any explanation.
-1-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide
Chapter 1. Introduction
1.1 Product Overview
TP-LINK’s M5360 is at the forefront of wireless 3G sharing. Equipped with a built-in 3G modem,
you can instantly establish your own Wi-Fi hotspot simply by inserting a 3G SIM card at the
interior of the device. With up to 21.6Mbps download and 5.76Mbps upload speeds, M5360 is
able to provide 3G wireless sharing to up to 10 users simultaneously. Its pocket-sized design
and powerful 5200mAh internal battery make it an ideal travel companion, allowing users to
work or play for hours on end. Besides, with its innovative OLED display, users can have a
much more intuitive view of the device’s working status, such as signal strength, network type
(2G/3G), Wi-Fi status, message, internet status and battery meter.
1.2 Main Features
¾ Equipped with a built-in 3G modem - No other bulky devices required
¾ HSPA+ supported with up to 21.6Mbps download and 5.76Mbps upload speeds
¾ Supports up to 10 users simultaneously
¾ Power Bank for charging smart phones and tablets
¾ 5200mAh internal battery for extended hours of outdoor use
¾ Micro USB port for versatile recharging
¾ OLED display provides an intuitive view of the device’s working status
¾ Equipped with a micro SD card slot for up to 32GB of optional storage
1.3 Physical Description

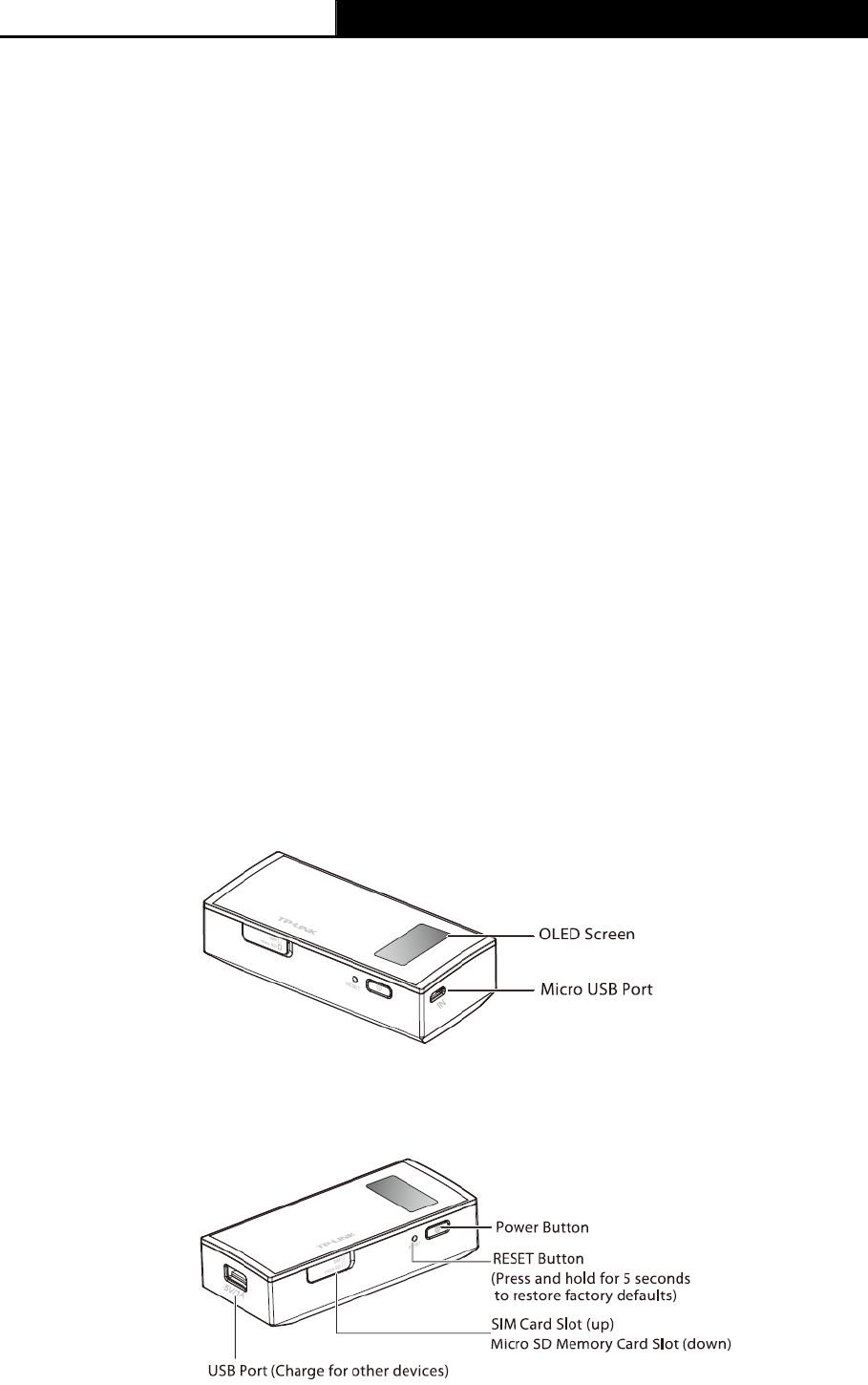

Figure 1-1 the Exterior
-2-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide
The details about the Exterior are explained as below.
¾ OLED Screen:

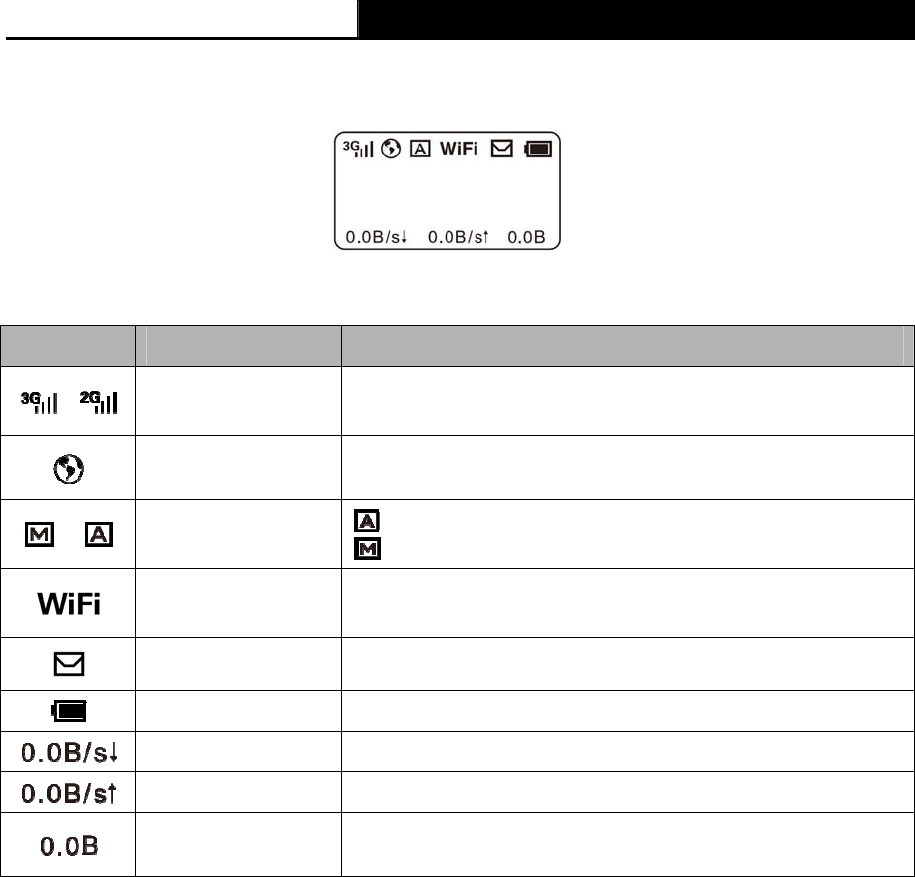

Figure 1-2 LED Screen
The OLED Indication:
Item Description Indication
/ Network type &
Signal strength
Indicates the current network option: 2G or 3G, and signal
strength of current network.
Network status Indicates the successful network connection.
/ Dial-up type Means the automatic mode of Internet connection;
Means the manual mode of Internet connection.
Wi-Fi connection Displays the Wi-Fi status and the amount of current
wireless clients.
SMS Indicates that there is un-read short message(s) and the
amount of un-read messages.
Battery Displays the remaining battery power.
Download speed Indicates the download speed of current data transmission.
Upload speed Indicates the upload speed of current data transmission.
Data statistics Indicates the data used in total. The data statistics will be
cleared after resetting the Device.
Table 1-1 The OLED Screen details
) Note:
When you leave alone the buttons on the device, the OLED screen will light on for 60 seconds
and then turn off. Pressing the power button will light up or turn off the OLED screen.
¾ Micro USB Port: It’s for you to connect the Device with the power adapter (attached in the
package) via the USB cable.
¾ Power Button: When the Device is successfully installed, and it’s powered (either by
battery or electricity); press this button for about 3 seconds to turn on the Device, and if you
want to turn it off, please press this button for another 3 seconds. Double-pressing the
power button will switch the work mode to the power bank mode.
¾ RESET Button (hole): It’s the button to restore the Device to its factory defaults. With the
Device powered on, use a pin to press and hold the RESET button (hole) for about 5
seconds, until the LED screen is off and later displays “TP-LINK”; then release the button
and wait the Device to reboot and restore its factory default settings.
¾ SIM Card Slot: It’s where to insert your SIM card.
¾ Micro SD Memory Card Slot: It’s where to insert your micro SD memory card.
¾ USB Port: It can charge for other devices via the USB cable.
-3-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide
1.4 Daily Use

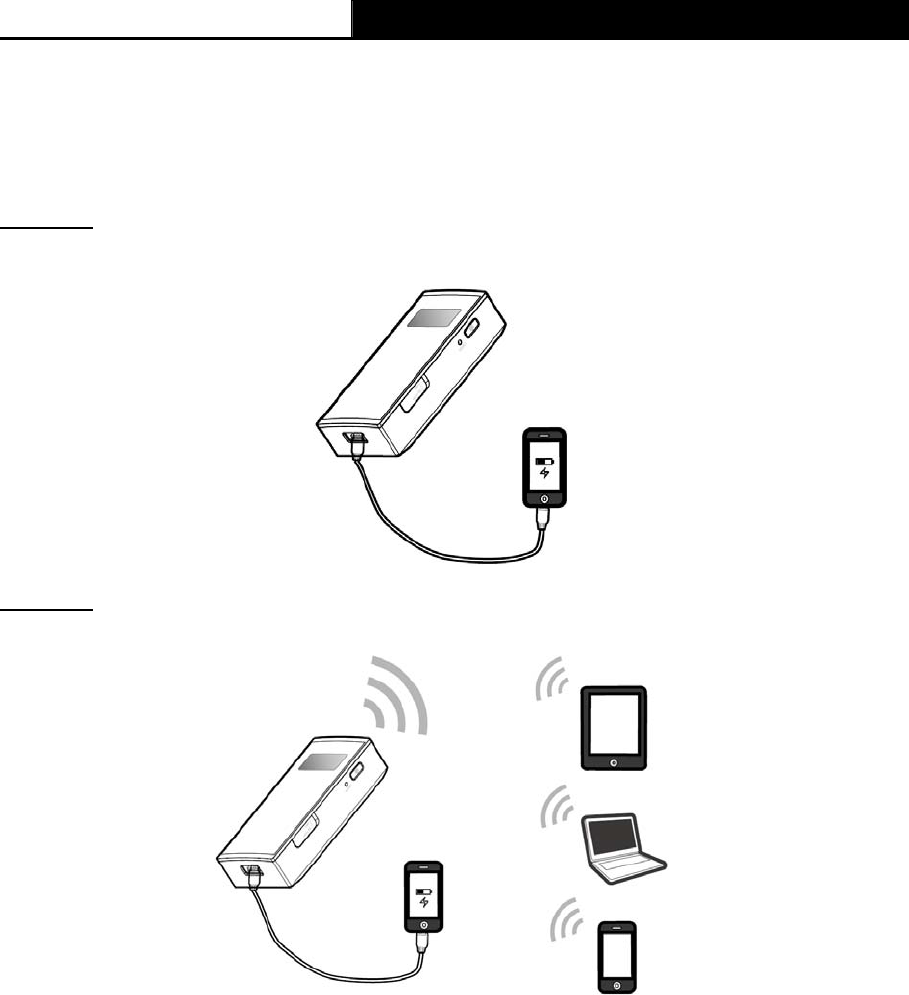

¾ Working as Power Bank
M5360 can be used as a 5200mAh power bank to charge smart phones and tablets by using
one of the follwing two modes.
Method 1:
Charging only (Strongly recommended to save power.)
Method 2:
Simultaneous 3G sharing and charging.
¾ Accessing the Micro SD Card
If M5360 is connected to a computer with an USB cable, you can access its micro SD memory
card just as access a hard disk.
1) Connect one end of the USB cable to the micro USB port of M5360 and the other end to
the USB port of your PC.
2) If there appears the Found New Hardware Wizard window, please click Cancel to ignore it.
3) Double click Computer icon on your desktop. The inserted micro SD card is displayed as
removable disk in file explorer (Here we use Removable Disk (F:) as an example). Double click
to access the micro SD card just as access a hard disk.
-4-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide
Chapter 2. Hardware Installation
2.1 Environment Requirements
¾ Place the Device in a well-ventilated place far from any heater or heating vent
¾ Avoid direct irradiation of any strong light (such as sunlight)
¾ Keep at least 2 inches (5 cm) of clear space around the Device
¾ Operating Temperature: 0℃~35℃ (32℉~104℉)
¾ Operating Humidity: 10%~90%RH, Non-condensing
2.2 Hardware Installation
Install SIM card and memory card.

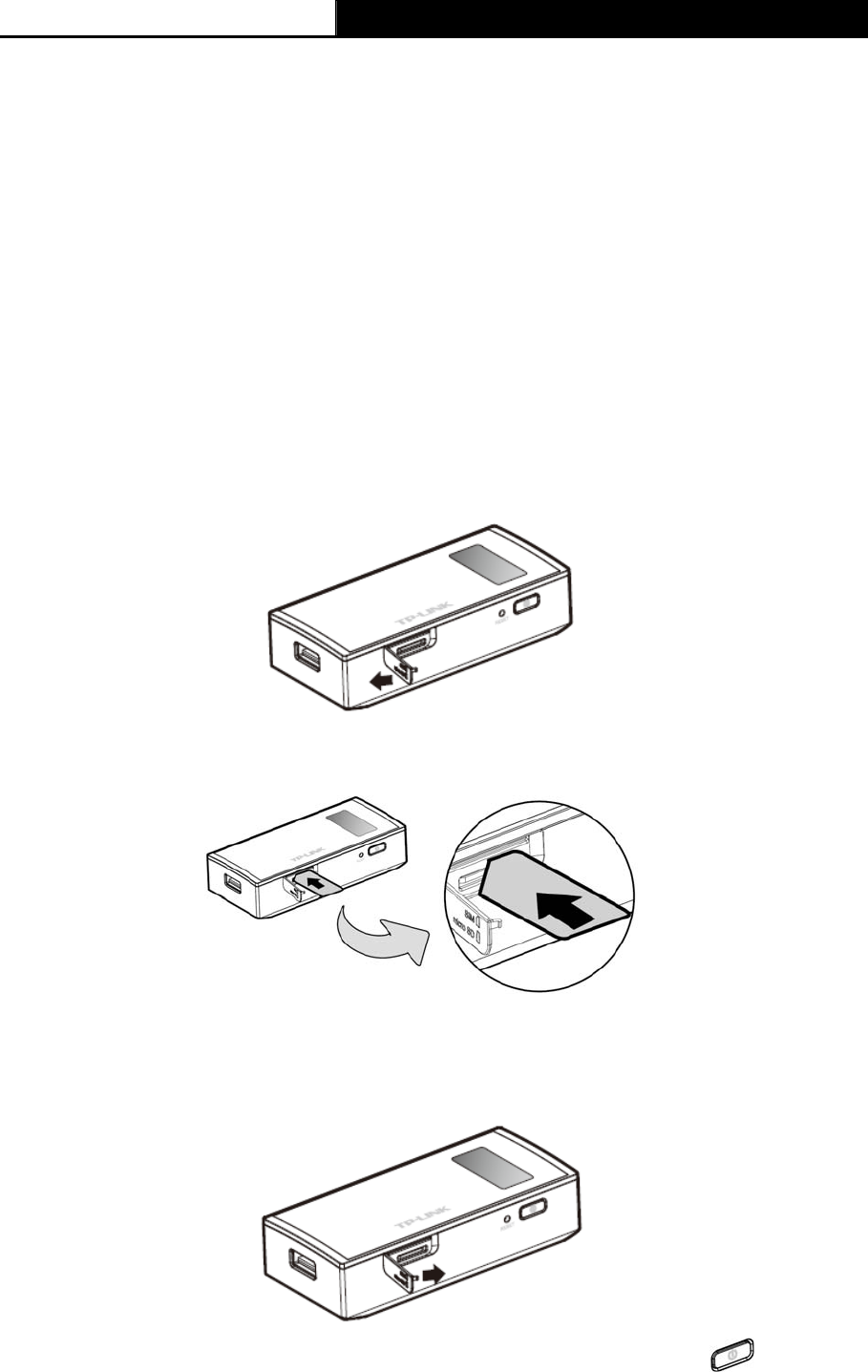

1) Open the cover (as the arrow shows).
2) Make sure to have the SIM card’s metal chip downwards and the triangle notch inwards,
and then slide the card into its slot (in the direction as the arrow shows).
) Note:
Micro or Nano SIM cards should be converted using included adapter.
3) Close the cover by pressing it.
When finishing the above two-step installation, you can press the power button for about
3 seconds to turn on M5360.
-5-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide
# Tips:
You are supported to charge the battery in two ways:
Method 1:
Use the power adapter to charge the M5360.
Method 2:
Charge the M5360 through a computer connection.
-6-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide
Chapter 3. Quick Installation Guide
This chapter will guide you to quickly set up the basic functions for your M5360.
3.1 System Requirements
¾ SIM card with Internet access enabled.
¾ Computer supports only the 2.4GHz wireless band.
¾ Web browser, such as Mozilla Firefox, Internet Explorer, Google Chrome, Apple Safari, etc.
3.2 TCP/IP Configuration
The default IP address of the M5360 is 192.168.0.1, and the default Subnet Mask is
255.255.255.0, which values can be changed as you desire. In this guide, we use all the default
values for description, and take the configuration in Windows 7 for example. While, Pads or
Wi-Fi cellphones by default obtain IP address and DNS server address automatically, so you
can just skip this step and continue with the 3.3 Wireless Connection.
) Note:
Before configuration, please make sure your computer has been equipped with a wireless
network adapter.
¾ Obtain an IP address automatically

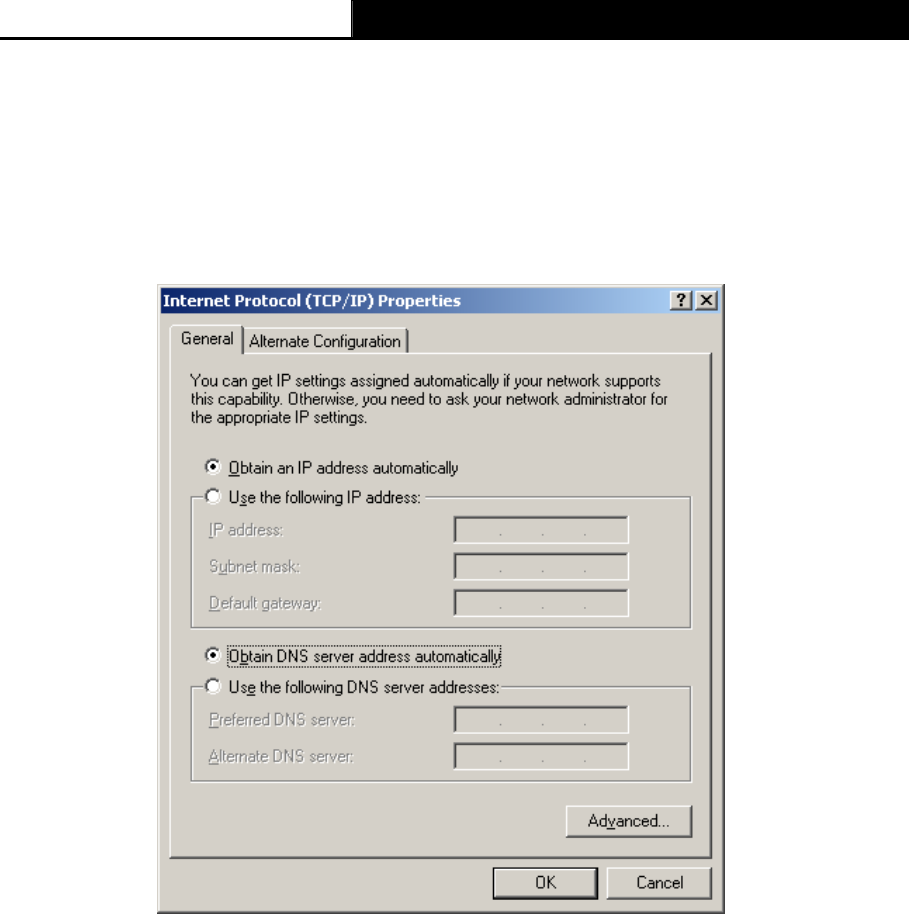

1) Set up the TCP/IP Protocol in "Obtain an IP address automatically" mode on your PC.
Please refer to Appendix B: Configuring the PC for the detailed instructions.
2) Then the built-in DHCP server will assign an IP address for the PC.
¾ Configure the IP address manually

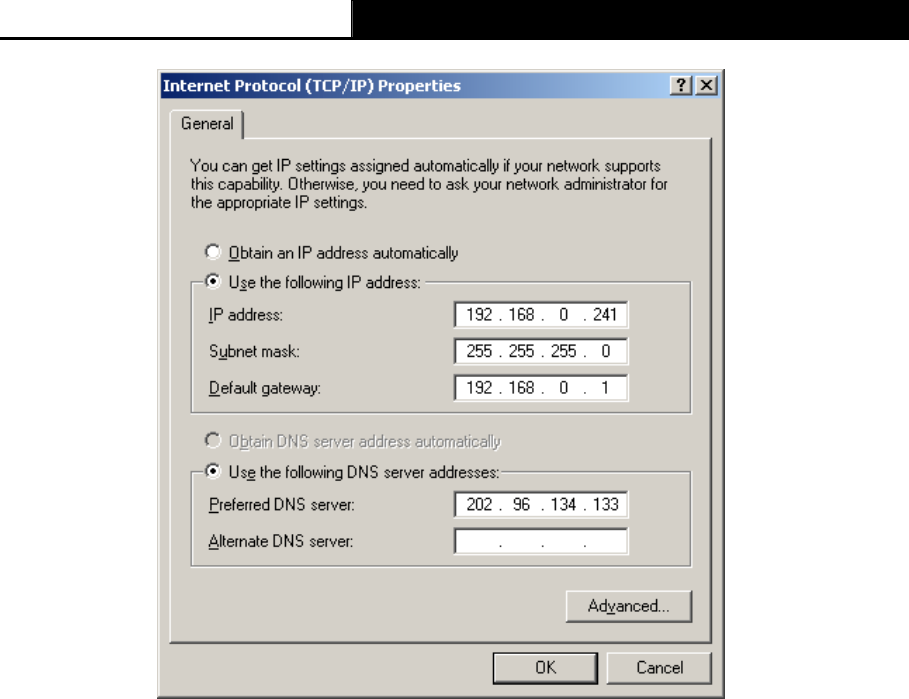

1) Set up the TCP/IP Protocol for your PC. Please refer to Appendix B: Configuring the PC for
the detailed instructions.
2) Configure the network parameters. The IP address is 192.168.0.X ( X stands for any
number from 2 to 254), Subnet Mask is 255.255.255.0, and Gateway is 192.168.0.1 (the
device's default IP address).
3.3 Connect to the Internet
) Note:
To log in the Device’s web-based management page, you need to first connect to the wireless
network of the Device.
1. Click the icon at the bottom of your desktop.

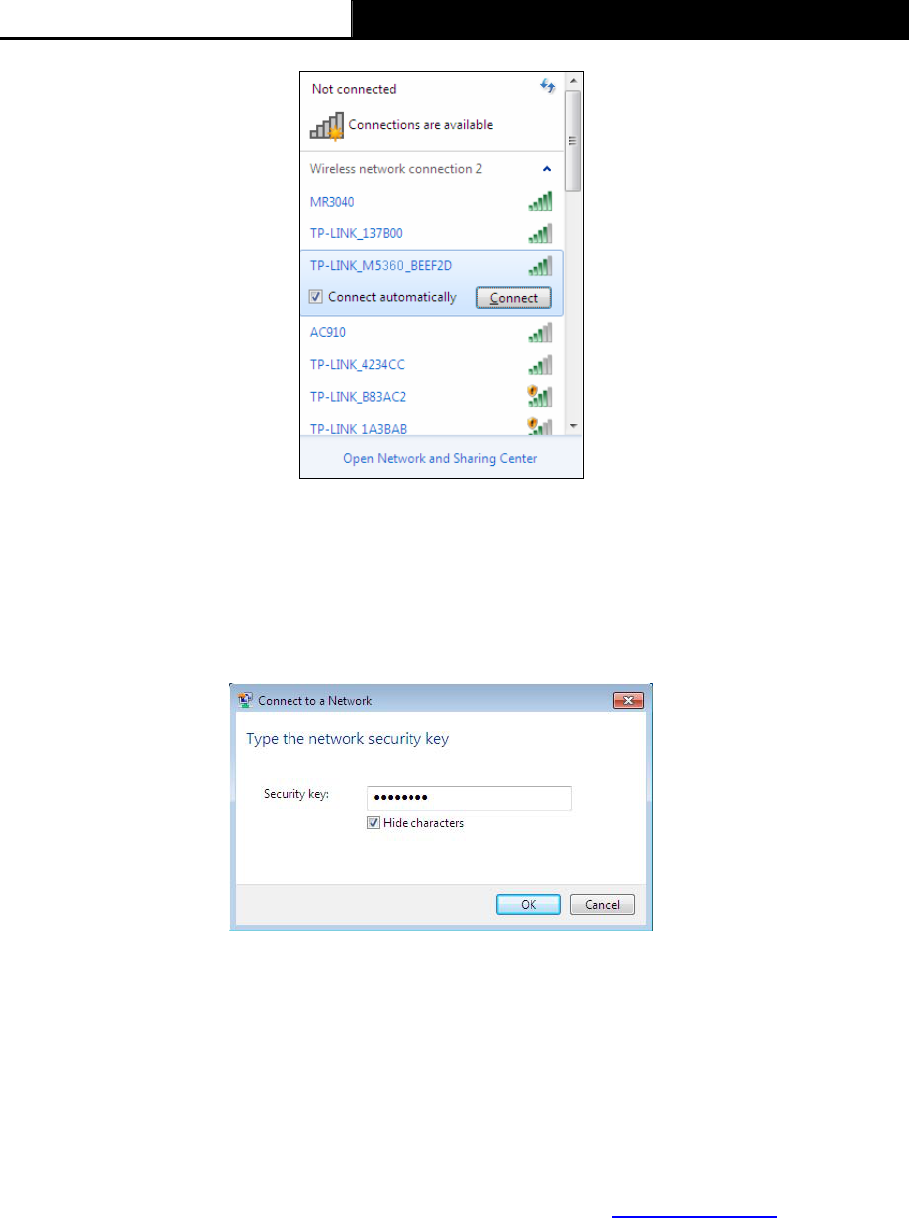

2. Click the refresh button , and then select the SSID of M5360 and then click Connect.
-7-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide
) Note:
The default SSID (also called Wireless Network Name) of the device is
TP-LINK_M5360_XXXXXX. (XXXXXX is the last 6 characters of the device’s MAC address.)
3. Enter the wireless password you’ve noted down in the Security Key field, and then click
OK.
) Note:
You can refer to the label on the rear cover for the default SSID and wireless password of
M5360.
4. When Connected appears behind the SSID of M5360, you’ve successfully connected to
its wireless network.
) Note:
After successful connection to M5360 (with a SIM card inserted), you can enjoy the 3G mobile
connection instantaneously. Otherwise, please continue with 3.4 Quick Setup to further
configure your device.
3.4 Quick Setup
1. Open a web-browser, enter the default address 192.168.0.1 in the address field and then
press Enter. When the login window appears, enter admin (in lower case letters) for
Password, and then click the Log in button or press the Enter.
-8-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide

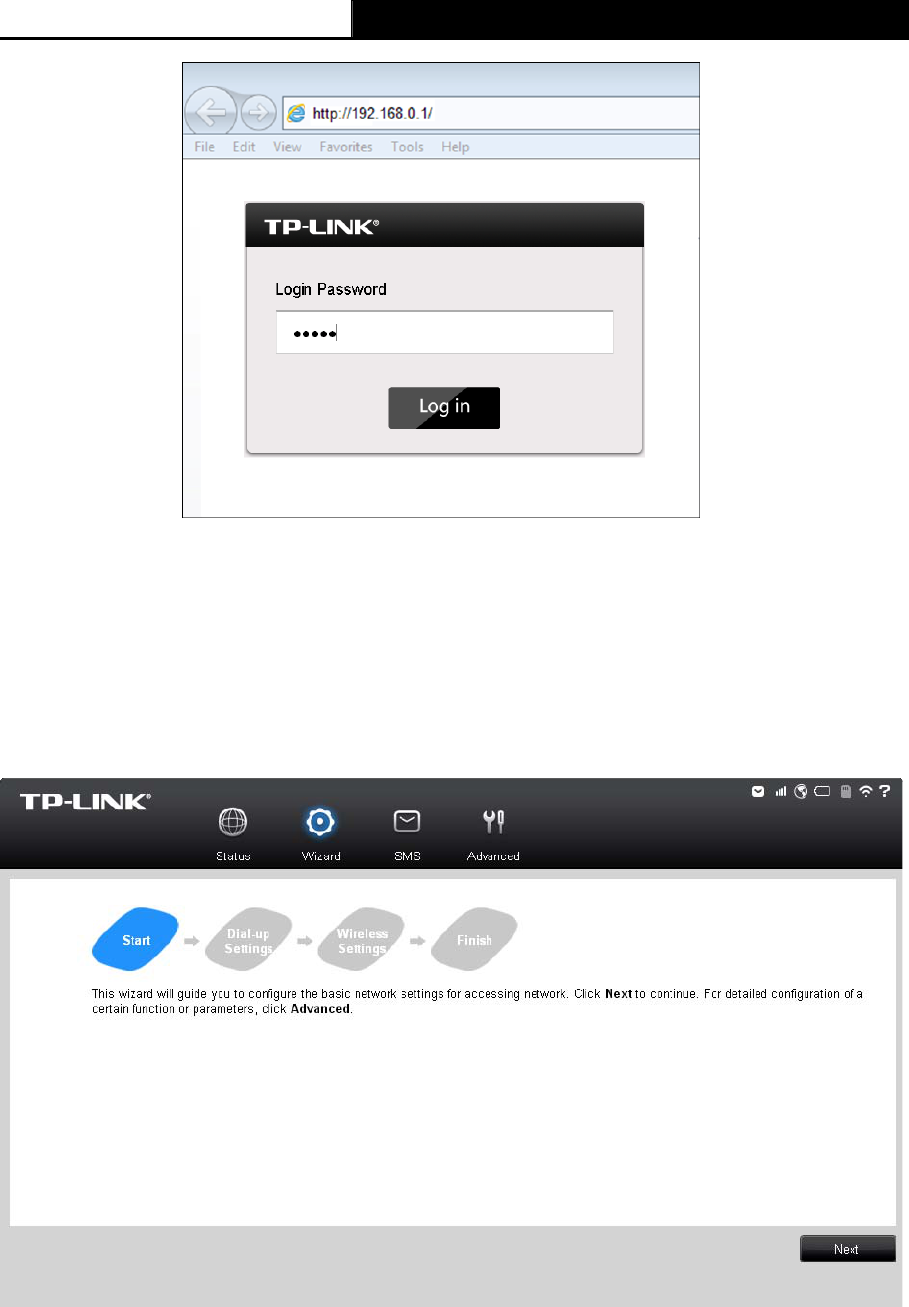

Figure 3-1 Login Windows
) Note:
If the above screen does not pop-up, it means that your Web-browser has been set to a proxy.
Go to Tools menu > Internet Options > Connections > LAN Settings, in the screen that
appears, cancel the Using Proxy checkbox, and click OK to finish it.
2. After successful login, there will appear the Status page. Click Wizard to configure the
basic network settings for accessing network. Click Next to continue.
Figure 3-2 Wizard – Start
3. On the Dial-up Settings page shows the ISP information of the SIM card inserted. Click
Next to continue, if you are sure the information is correct. You can also click Create to

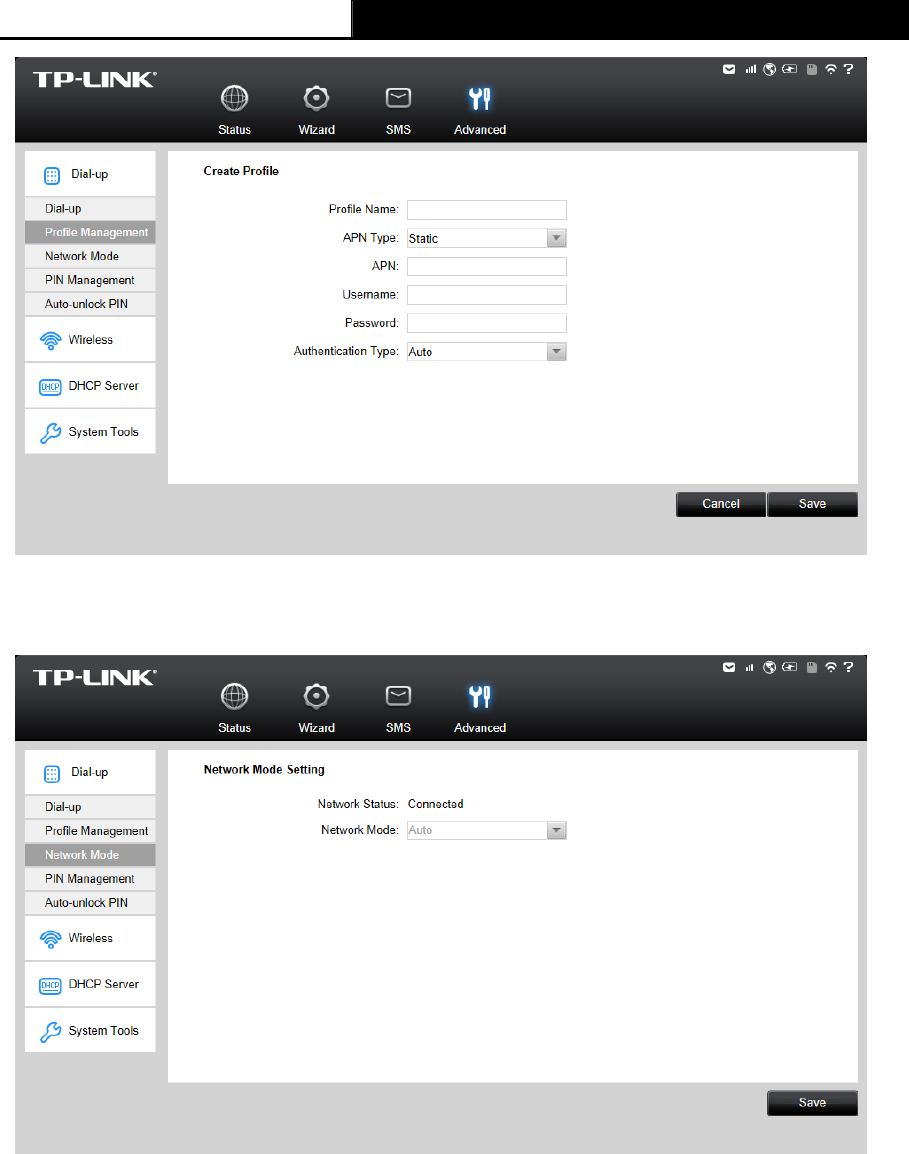

create a new profile.
-9-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide
Figure 3-3 Wizard – Dial-up Settings
4. On the Wireless Settings page, you can create a unique and easy-to-remember wireless
network name (SSID) as well as Wireless Password, or you can keep it default. Then click
Next to continue.
Figure 3-4 Wizard – Wireless Settings
5. On the Finish page, please double-check your settings. If all the parameters are verified,
click Finish to complete the Wizard; if there is anything wrong, you can click Back to
re-configure it.
-10-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide

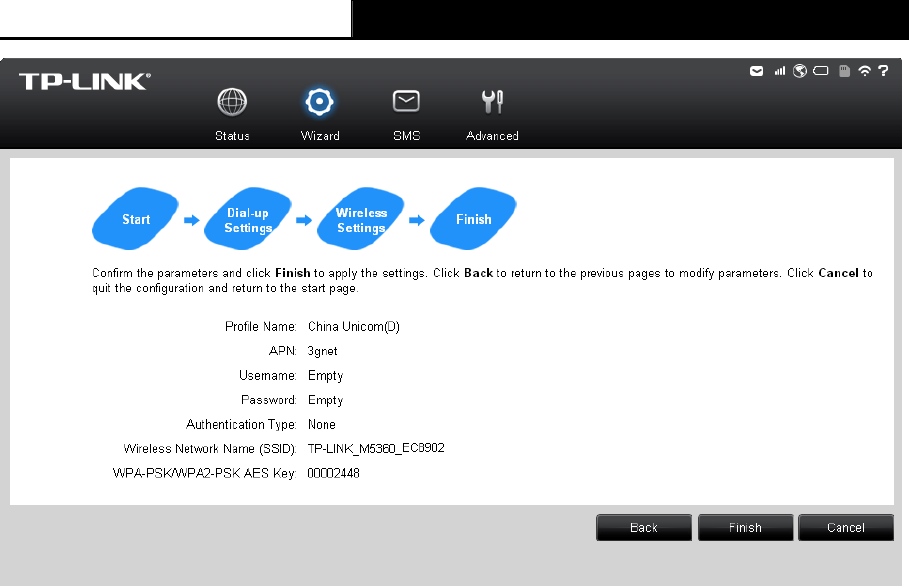

Figure 3-5 Wizard – Finish
-11-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide
Chapter 4. Device Configuration
After the successful login to the web-based management page of M5360, you will see the main
menu listing Status, Wizard, SMS and Advanced on the top. In the following parts, these items
will be explained in details, about their respective functions and configurations.
Figure 4-1 Main Menu
4.1 Status
The Status page displays the current status information about the device. All information is
read-only.

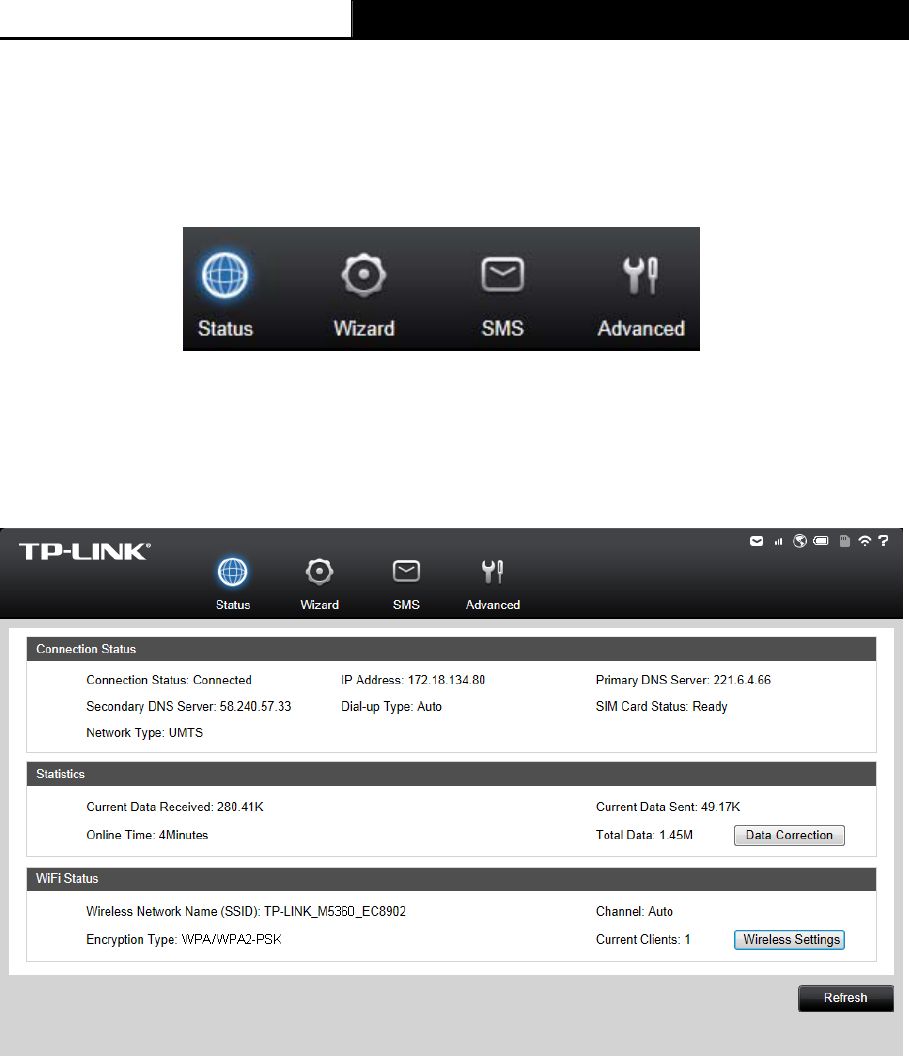

Figure 4-2 Status
¾ Connection Status: Displays the device’s current connection status, including the
connection and SIM card status, Dial-up and network type, IP address, primary and
secondary DNS server.
¾ Statistic: Displays the device’s statistics, including current received and sent data, online
time and total data used.
¾ WiFi Status: Displays the device’s current wireless settings, including SSID, channel,
encryption type and current Wireless clients.
Click Data Correction to correct the accumulate data used. If the data statistics is different from
that your ISP provided, please click Data Correction button, and input the data statistics your
ISP provided to correct the accumulate data used.
Click Wireless Settings to head for the Wireless Basic Settings page and configure it.
-12-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide
Click Refresh to get the status information updated.
4.2 Wizard
Please refer to 3.4 Quick Setup.
4.3 SMS

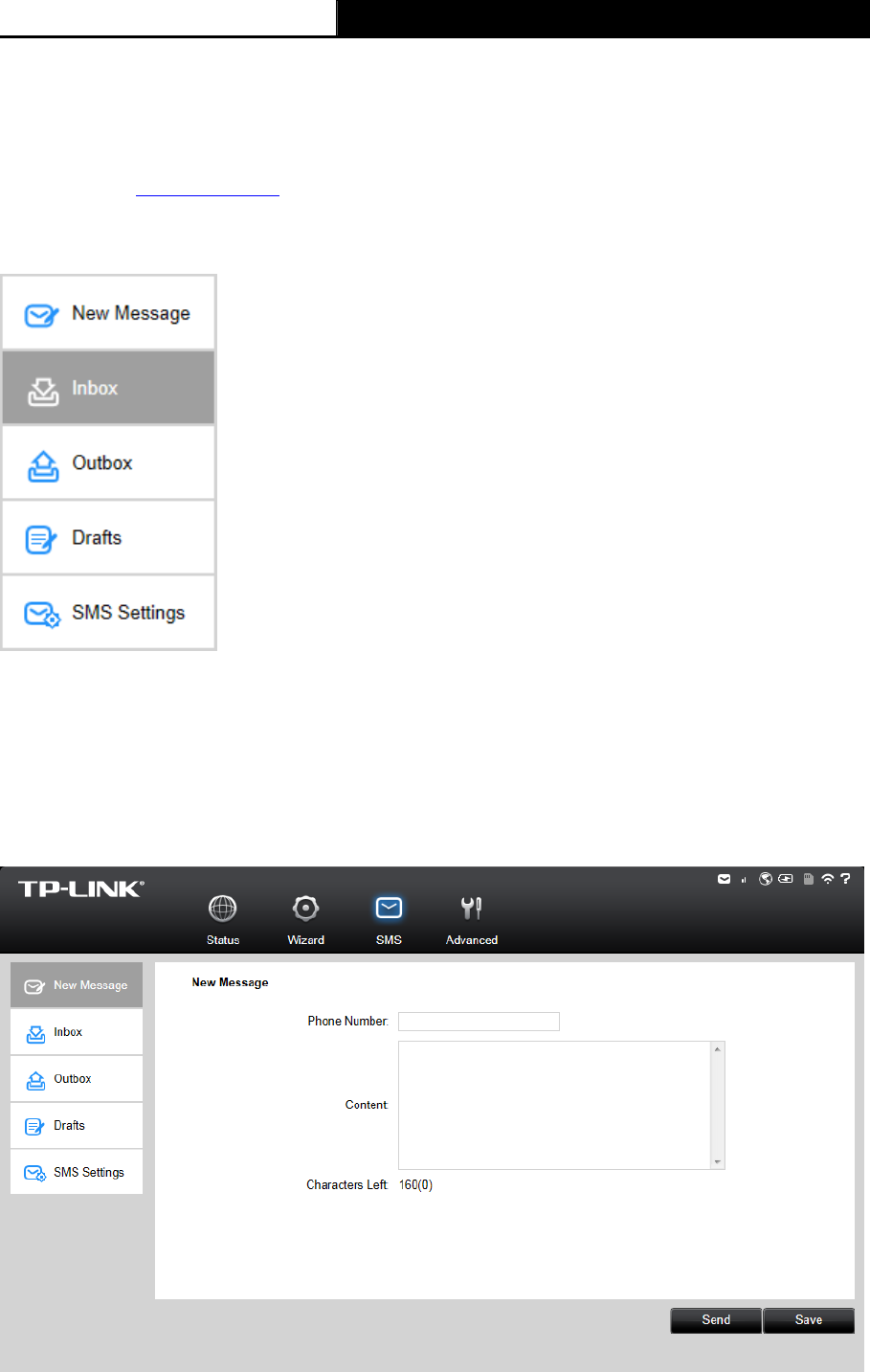

Figure 4-3 SMS Menu
There are five submenus under the SMS tab (as shown in Figure 4-3): New Message, Inbox,
Outbox, Drafts and SMS Settings. Click any of them, and you will be able to configure the
corresponding functions.
4.3.1 New Message
Figure 4-4 New Message
-13-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide
¾ Phone Number: Enter the receiver’s cellphone number.
¾ Content: Text your message in this box.
Click Send to send the message.
Click Save to save the message in the Drafts box.

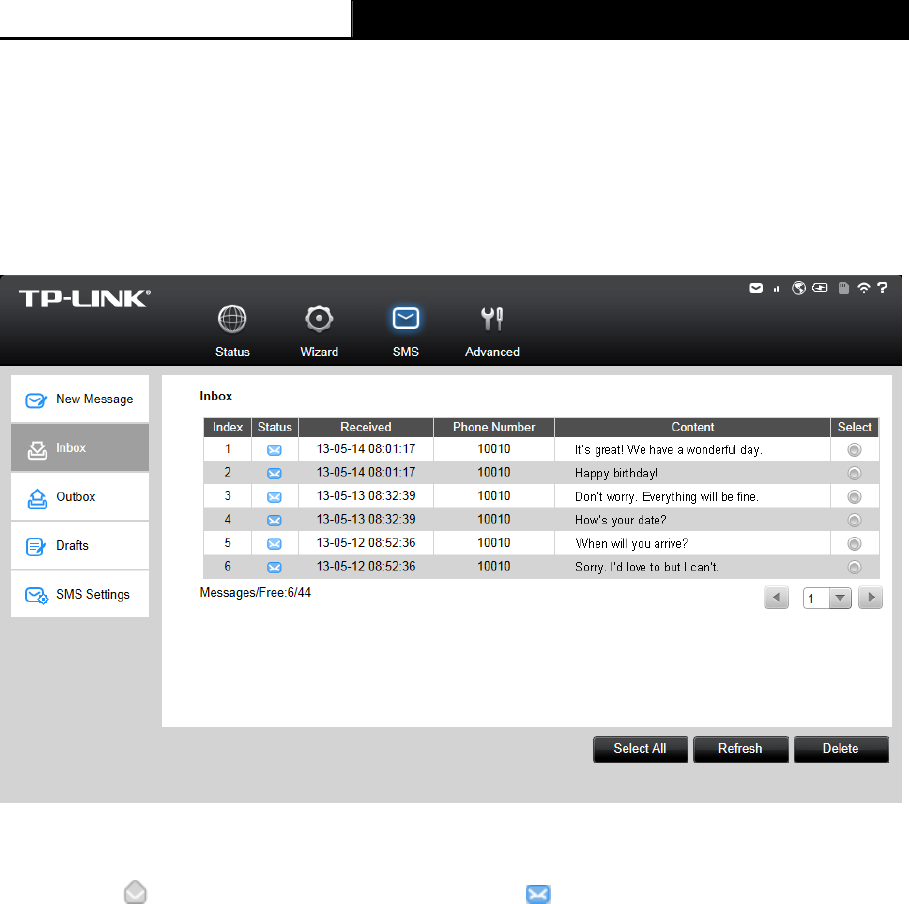

4.3.2 Inbox
Figure 4-5 Inbox
¾ Index: The index of the message.
¾ Status: means the message has been read. means the message hasn't been
read yet.
¾ Received: Shows the date and time when the message was received.
¾ Phone Number: Shows the cellphone number that sent this message.
¾ Content: Click to unfold and read the detailed content of the message.
¾ Select: Select the message(s) for deletion.
Click Select All to select all of the messages.
Click Refresh to refresh the inbox, and get any new message(s).
Click Delete to delete the message(s) selected.
-14-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide
4.3.3 Outbox
Figure 4-6 Outbox
¾ Index: The index of the message.
¾ Delivered: Shows the date and time when the message was sent.
¾ Phone Number: Shows the cellphone number that the message was planned to be sent
to.
¾ Content: Click to unfold and read the detailed content of the message.
¾ Select: Select the message(s) for deletion.
Click Select All to select all of the messages.
Click Refresh to refresh the inbox.
Click Delete to delete the message(s) selected.
4.3.4 Drafts
You can review the unsent saved message(s) on this page.
-15-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide

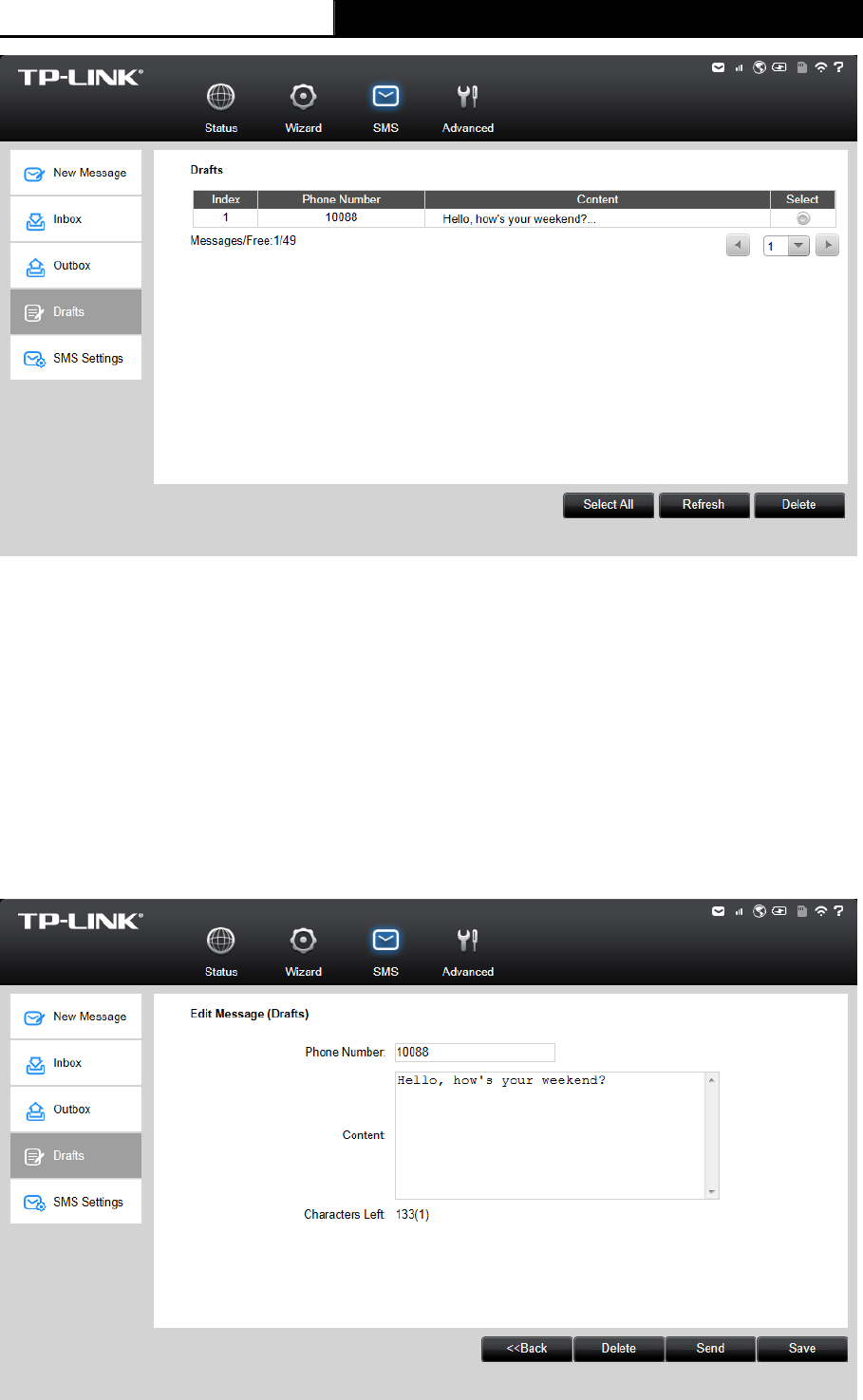

Figure 4-7 Drafts
¾ Index: The index of the message.
¾ Phone Number: Shows the cellphone number that this message was planned to be sent
to.
¾ Content: Click to unfold and read the detailed content of the message(s), or for further
edition and delivery (as shown in Figure 4-8).
¾ Select: Select the message(s) for deletion.
Click Select All to select all of the messages.
Click Refresh to refresh the drafts.
Click Delete to delete the message(s) selected.
Figure 4-8 Edit Message (Drafts)
-16-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide
4.3.5 SMS Settings
On this page, you can do the following settings:

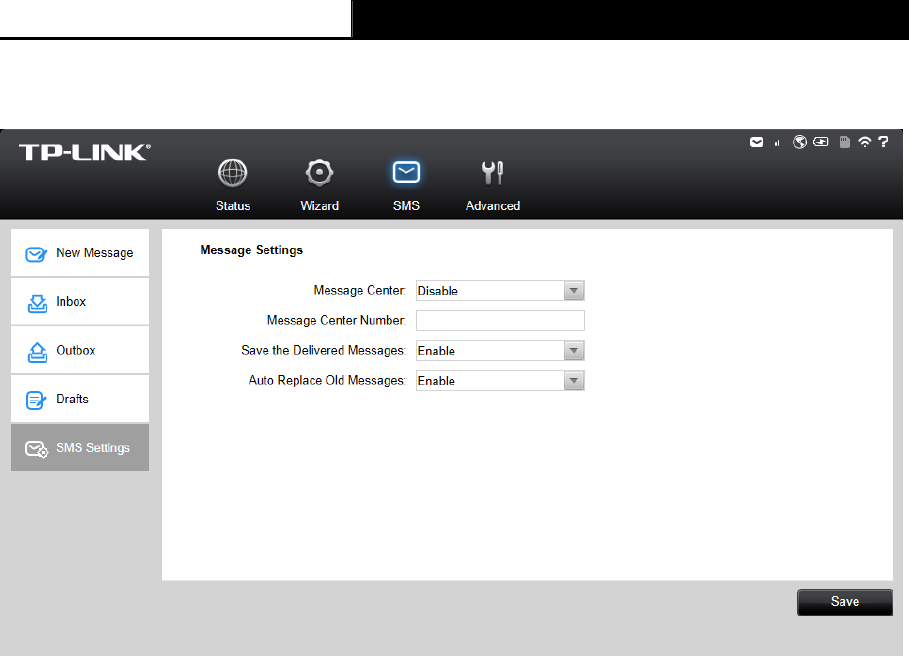

Figure 4-9 Settings
¾ Message Center: Disabled by default. It's recommended to keep the default setting. If you
want to manually set the Message Center Number, please select Enable.
¾ Message Center Number: When the Message Center is enabled, you can enter the
Message Center Number of the local ISP. If you enter a wrong number, the SMS would be
affected and not properly used.
¾ Save the Delivered Messages: Enable it to automatically save the delivered messages in
the Outbox.
¾ Auto Replace Old Messages: If enabled, it will automatically delete the oldest message
and save the new one when the Outbox or Drafts box is full. If disabled, you need to
manually delete the old messages to save the new ones when the Outbox or Drafts box is
full.
Click Save to make your settings take effect.
-17-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide

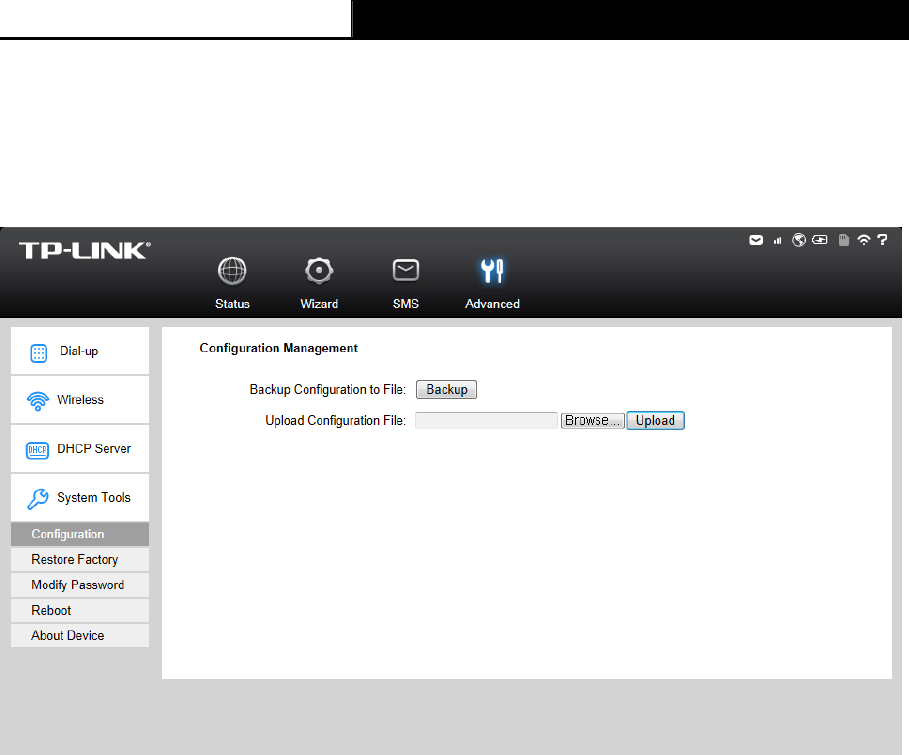

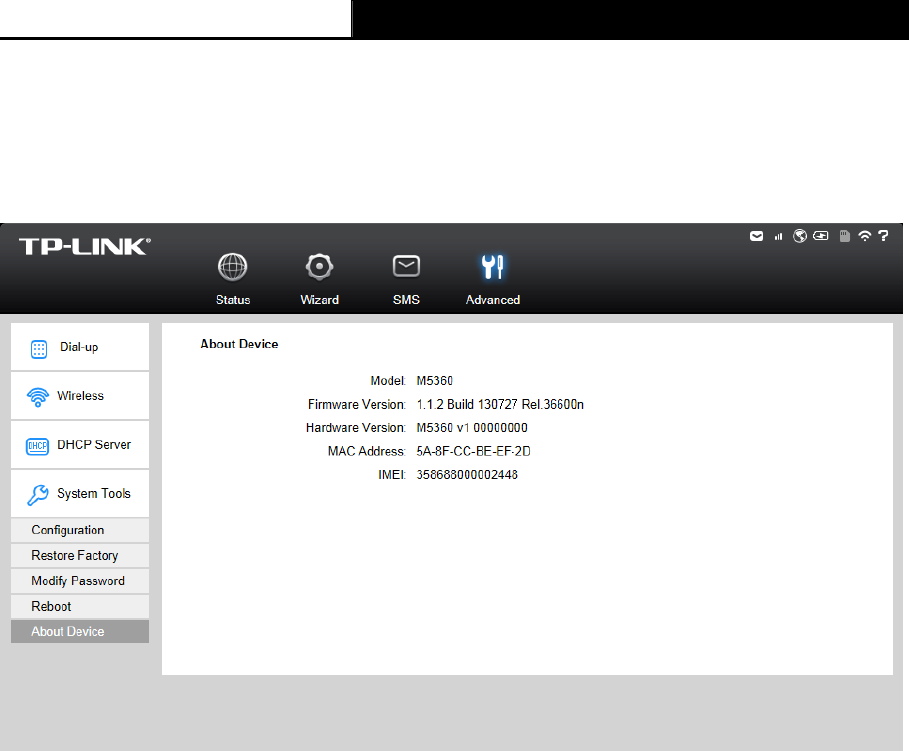

4.4 Advanced
Figure 4-10 Advanced Menu

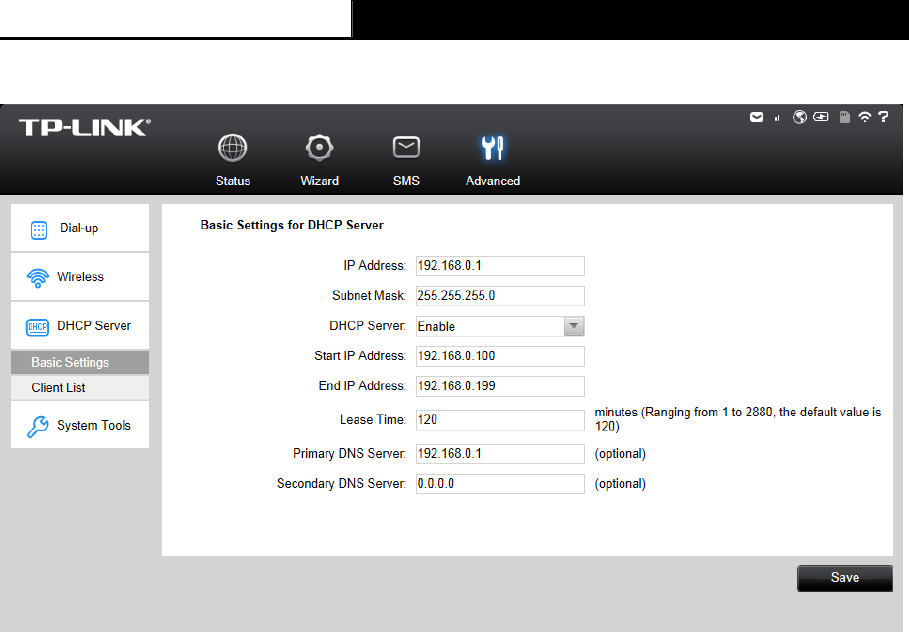

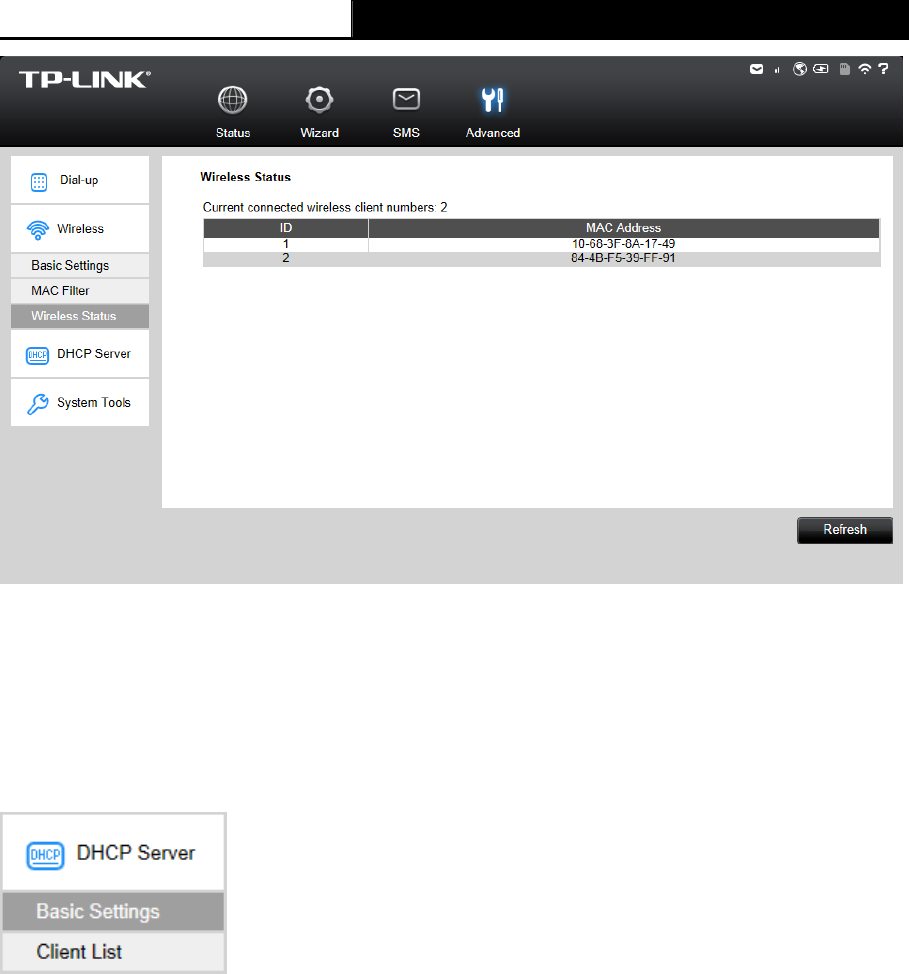

There are four submenus under the Advanced tab (as shown in Figure 4-10): Dial-up,
Wireless, DHCP Server and System Tools. Click any of them, and you will be able to
configure the corresponding functions.
4.4.1 Dial-up

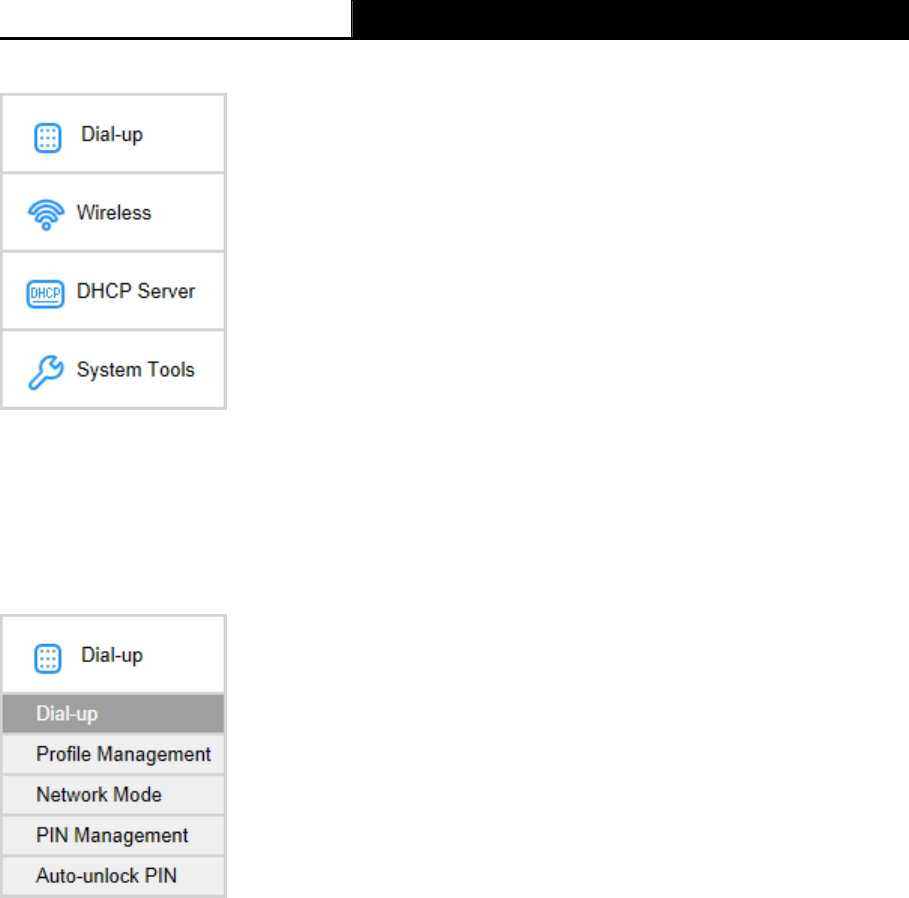

Figure 4-11 Dial-up Menu
-18-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide
4.4.1.1. Dial-up
Dial-up Settings page allows you to do the following configurations.

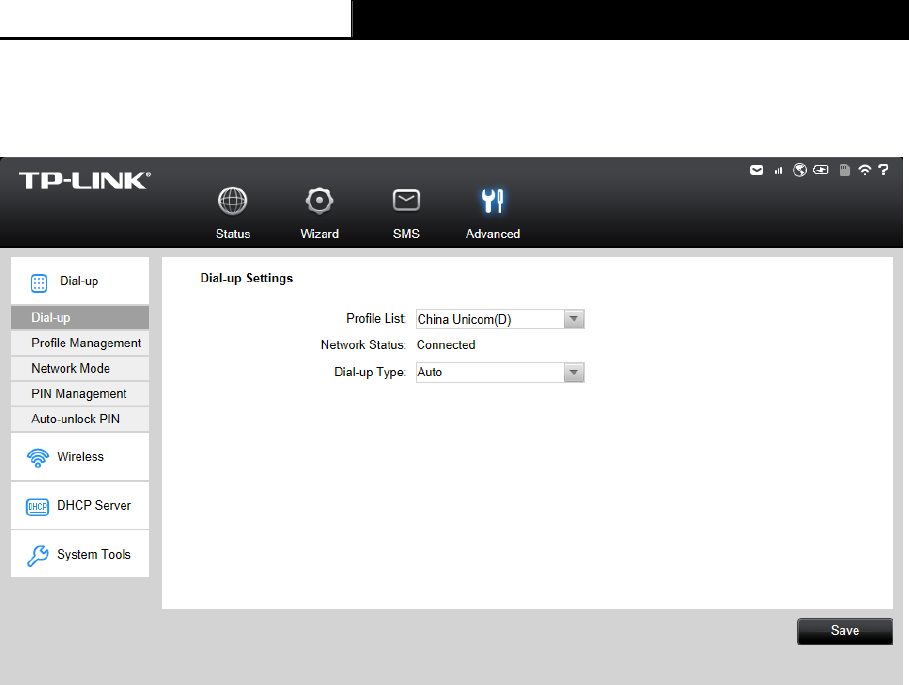

Figure 4-12 Dial-up Settings
¾ Profile List: A list of profile(s). Select the profile of your SIM card currently inserted in the
device.
¾ Network Status: Shows whether the Internet is connected or disconnected at present.
¾ Dial-up type: The device provides two types of dial-up – Auto and Manual. Please select
the dial-up type as you need.
z Auto: The device will automatically establish connection once it’s started. During the
process, if your Internet connection is terminated due to some exterior reasons, the
device would automatically attempt connection until it’s successful. This option is
suggested, if you have the network service paid by month.
z Manual: When you start the device and your computer, or when the connection is
terminated during the process, you need to manually dial up for connection in here.
When you select Manual as your dial-up type, you need to specify a MAX Idle Time (5
minutes by default), namely a period of inactivity, after which the device will disconnect
your Internet connection, and not be able to re-establish your connection automatically
as soon as you attempt to access the Internet again. If you have the network service
paid by hour, this option is suggested.
Click Save to save the above settings and have them take effect.
4.4.1.2. Profile Management
You can manage your profile on this page.
-19-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide
Figure 4-13 Profile Management
¾ Profile List: A list of profile(s). Select the profile of your SIM card currently inserted in the
device, and then you can view the related information of it. If you find any parameters
wrong, you can click Create to create a new profile with the right settings (as shown in
Figure 4-14).
¾ Profile Name: Displays the name of the profile you’ve selected.
¾ APN Type: Displays the type of your APN, either Dynamic or Static. Dynamic means the
device have dynamic APN, which needs not to be specified. Static means you specify your
APN manually.
¾ APN: Displays the Access Point Name provided by your ISP.
¾ Username/Password: Displays the User Name and Password provided by your ISP.
¾ Authentication Type: Displays the specific authentication type your ISP required.
z None: Means no authentication is required.
z CHAP: Means your ISP required Challenge Handshake Authentication Protocol,
which allows the device to establish authentication with the peer using three
handshakes and checking the peer identity periodically.
z PAP: Means your ISP required Password Authentication Protocol, which allows the
device to establish authentication with the peer using two handshakes.
z Auto: Means the device have dynamic negotiation with the dialing server and the
Authentication Type needs not to be specified.
-20-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide
Figure 4-14 New Profile
4.4.1.3. Network Mode
Figure 4-15 Network Mode Settings
¾ Network Status: Shows whether the Internet is connected or disconnected at present.
¾ Network Mode: The device supports three modes of network connection – Auto, 2G only
and 3G only. You can choose the appropriate mode after disconnecting the network. If
your SIM card supports GSM, please select 2G only; if your SIM card supports WCDMA,
please select 3G only; if you are not very sure about it, please select Auto and then the
device will detect it automatically.
Click Save to save your settings.
-21-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide
4.4.1.4. PIN Management
You can manage your PIN code on this page.

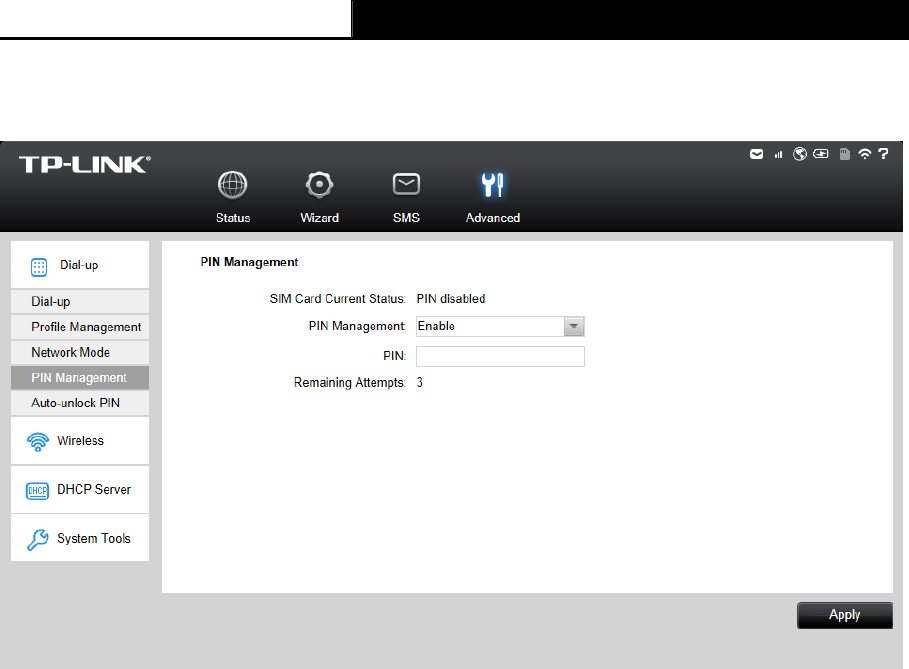

Figure 4-16 PIN Management
¾ SIM Card Current Status: Shows whether your PIN function is enabled or disabled.
¾ PIN Management: You can select whether to enable PIN function or not. Once the PIN
function is enabled, every time you start the device with this SIM card inserted, you need to
enter the PIN code; while if you go to enable the Auto-unlock PIN function, it could save
you this trouble.
¾ PIN: You can set a PIN code, which requires 4-8 digits.
¾ Remaining Attempts: Shows how many attempts there are left for you to try entering the
PIN code after you failed to enter the right one. You have 3 attempts at most. If you
accidentally fail in three attempts, the PIN will be locked and you will be required to enter
the PUK code that is written on your SIM card (as shown in Figure 4-17).
If the current status of PIN is disabled, you can select Enable and set a PIN code, and then
click Apply to make your settings take effect. While, if the SIM card’s current status is PIN
enabled and verified, you can select Disable and enter the current PIN code, or select Modify
and enter the required parameters to set a new PIN code, and then click Apply to make your
settings take effect.
-22-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide
Figure 4-17 PIN Configuration - PUK Decode
A PUK (PIN Unlocked Key), also known as Personal Unlock Code (PUC), is used in 3GPP
mobile phones to reset a personal identification number (PIN) that has been lost or forgotten.
The PUK is a SIM-specific code assigned by the service provider. If a user does not know his or
her PUK and is prompted for it, it should be obtained from the service provider.
On the page as shown in Figure 4-17, first enter the PUK code and then set a new PIN code to
unlock your SIM card as well as any device with it inserted.
4.4.1.5. Auto-unlock PIN
Figure 4-18 PIN Code Auto unlock
-23-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide
¾ Auto-unlock PIN on Powering On: Select to enable or disable this function.
¾ PIN: If you enable the Auto-unlock PIN on Powering ON function above, please enter the
appropriate PIN code of your SIM card in this field. When the PIN code is required upon
device restarting, it will be validated automatically once. If validation failed, please go to
PIN Management page to input another PIN code.
Click Save to save your settings.
4.4.2 Wireless
Figure 4-19 Wireless Menu
Wireless Settings can prevent any intruders from connecting your wireless network, occupying
your network resources, hacker-overhearing and hacker-attacking, and thus enhance the
security of your wireless network.
4.4.2.1. Basic Settings
Wireless basic settings enable you to configure your wireless parameters.

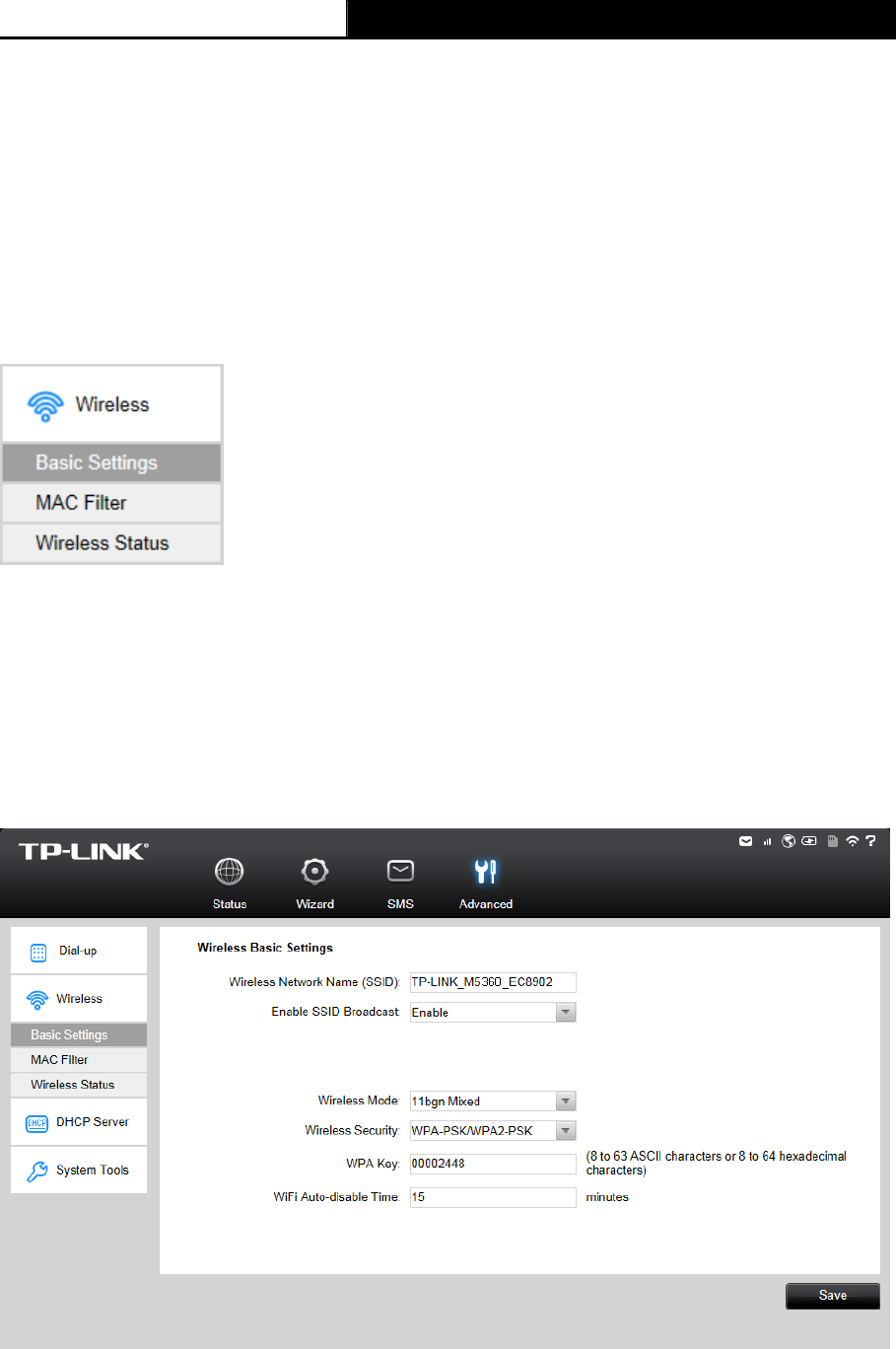

Figure 4-20 Wireless Basic Settings
¾ Wireless Network Name (SSID): SSID is short for Service Set Identification, which is for
you to distinguish the different wireless network. The default SSID of this device is
TP-LINK_M5360_XXXXXX (XXXXXX stand for the last 6 characters of the MAC address of
-24-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide
the device.) You can rename it as your preference, but the value is limited to 32 characters
at most and also it is case-sensitive (For example, TEST is NOT the same as test.). Later
on it will displays in the wireless network list searched by your devices.
¾ Enable SSID Broadcast: Select to enable or disable this function. When wireless clients
search the local area for wireless networks to associate with, they will detect the SSID
broadcast by the device. If you Enable SSID Broadcast, the Wireless device will broadcast
its name (SSID) on the air; otherwise, you have to manually type in the SSID and then you
can join its network.
¾ Wireless Mode: You are provided with five wireless modes here: 11b Only, 11g Only, 11n
Only, 11bg Mixed and 11bgn Mixed. The default wireless mode is 11bgn Mixed. If your
wireless network card didn’t work well in 11bgn Mixed mode, try 11bg Mixed mode.
¾ Wireless Security: You are provided with two modes of wireless security here: Not
Secured, WPA-PSK/WPA2-PSK.
z WPA-PSK/WPA2-PSK: It’s the WPA/WPA2 authentication type based on pre-shared
pass phrase. It’s easy to set and secure to use. So it’s perfect for SOHO users.
WPA Key: The default WPA key is the last 8 characters of IMEI. You can keep it
default or enter 8~63 ASCII characters or 8~64 hexadecimal characters as your new
WPA key.
¾ WiFi Auto-disable Time: If no clients connect to the device’s wireless network in a period
of time (15 minutes by default), the Wi-Fi will be shut down. You can press the power
button to resume the Wi-Fi.
Click Save to save your settings.
4.4.2.2. MAC Filter
The Wireless MAC Address Filtering feature allows you to control the wireless stations
accessing the device, which depends on the station's MAC addresses. MAC Address is the
physical address of the wireless stations, usually in the format of XX-XX-XX-XX-XX-XX format
(X is any hexadecimal digit).
-25-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide
Figure 4-21 Wireless MAC Filter
¾ Wireless MAC Address Filter: Select to Enable or Disable the MAC filter function of the
device. The below settings will take effect only when you select Enable.
¾ MAC Address List: A List of MAC addresses will be allowed to access the device.
¾ Your MAC Address: Displays the MAC address of your client(s) currently wirelessly
connected to the device.
Click Save to save your settings.
4.4.2.3. Wireless Status
The Wireless Status page displays the basic information about the Wireless client(s) that are
currently connected to the device.
-26-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide
Figure 4-22 Wireless Status
¾ ID: The index of the Wireless Client.
¾ MAC Address: The MAC address of the Wireless client.
Click Refresh to update the amount of the Wireless clients and their information.
4.4.3 DHCP Server
Figure 4-23 DHCP menu
The device is set up by default as a DHCP (Dynamic Host Configuration Protocol) server, which
provides the TCP/IP configuration for all the wireless clients that are connected to the device in
the LAN.
-27-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide
4.4.3.1. Basic Settings
Figure 4-24 Basic Settings
¾ IP Address: The IP address of the device, which is used to log in its web-based
management page. The default value is 192.168.0.1.
¾ Subnet Mask: An address code that determines the size of the network. Normally use
255.255.255.0 as the subnet mask.
¾ DHCP Server: You can select to enable or disable the DHCP server. If you disable the
server, you must have another DHCP server within your network, or else you must
configure the IP address of the host(s) manually.
¾ Start IP Address: This field specifies the first address in the IP address pool.
192.168.0.100 is the default start IP address.
¾ End IP Address: This field specifies the last address in the IP Address pool.
192.168.0.199 is the default end IP address.
¾ Lease Time: It is the length of time a network user will be allowed to keep connecting to
the device with the current IP address (that is assigned by the DHCP server). Enter the
amount of time, in minutes, that the IP address will be "leased". The time range is 1~2880
minutes. The default value is 120 minutes.
¾ Primary DNS Server: Input the DNS IP address provided by your ISP. It is optional. The
default primary DNS server IP is 192.168.0.100.
¾ Secondary DNS Server: Input the IP address of another DNS server if your ISP provides
two DNS servers. It is optional. The default secondary DNS server IP is 192.168.0.199.
Click Save to save the changes.
) Note:
To use the DHCP server function of the Device, you should configure all the clients in the LAN
as "Obtain an IP Address automatically" mode.
-28-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide
4.4.3.2. Client List
On this page, you can view the information about the clients attached to the device. All the
information is read-only. You cannot change any of the values on this page.

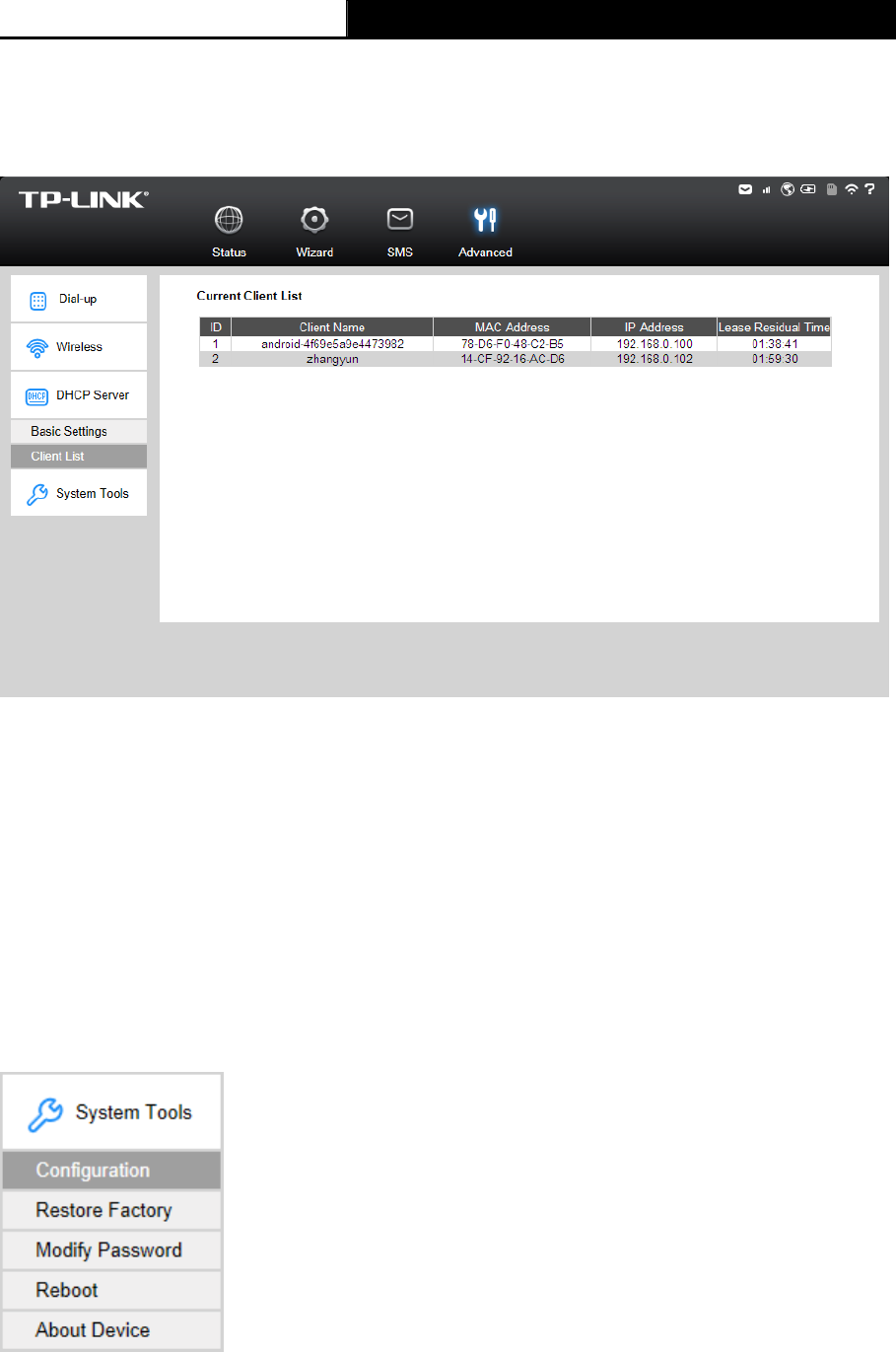

Figure 4-25 Clients List
¾ ID: The index of the DHCP Client.
¾ Client Name: The name of the DHCP client.
¾ MAC Address: The MAC address of the DHCP client.
¾ IP Address: The IP address the device has assigned to the DHCP client.
¾ Lease Residual Time: The rest lease time for the IP address assigned to the DHCP client.
The DHCP client will automatically apply to lengthen the lease time before the dynamic IP
address expires.
4.4.4 System Tools
Figure 4-26 System Tools menu
Under System Tools menu, you can do such configurations as backing up or uploading a
configuration file of the device, restoring all the settings of the device to its factory defaults,
modifying the password for your login, rebooting the device, and checking some information
-29-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide
about the device. As follows, we will explain them in details.
4.4.4.1. Configuration
On this page, you can back up the configuration of the device to file, or upload a configuration
file to the device.
Figure 4-27 Configuration Management
¾ Backup Configuration to File: Click Backup to save the configuration file in your
computer, for later necessary use. It’s strongly recommended to back up the old
configuration file before firmware upgrade or new configuration file upload, in case that
during those process it might get the original configuration lost.
¾ Upload Configuration File: Click Browse… to locate the config.bin file or directly enter its
location file, and then click Upload to upload the configuration file.
4.4.4.2. Restore Factory
You can restore the device to its factory default settings, when necessary.
-30-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide

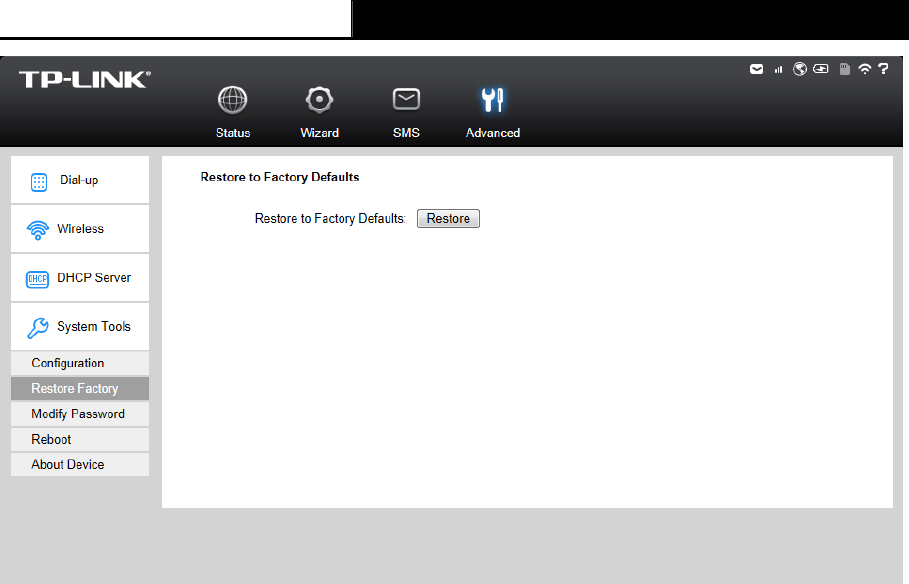

Figure 4-28 Restore to factory defaults
¾ Restore to Factory Defaults: Click Restore to reset all configuration settings to their
default values. All of the settings you have saved will be lost when the default settings are
restored.
You can restore the following factory default values:
• The default login Password: admin
• The default IP Address: 192.168.0.1
• The default Subnet Mask: 255.255.255.0
• The default SSID: TP-LINK_M5360_XXXXXX (XXXXXX is the last 6 characters of the
device’s MAC address). Please refer to the label on the rear cover of the device for the
default SSID.
• The default Wireless Password: Please refer to the label on the rear cover of the device for
the default wireless password.
4.4.4.3. Modify Password
It is strongly recommended that you change the factory default login password of the device.
-31-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide
Figure 4-29 Modify Login Password
¾ Old Password: The old password that is used to log in of the device.
¾ New Password: The new password you want to set for the login of the device.
¾ Confirm New Password: Enter the new password again for confirmation.
Click Save when you finish the setting.
Click Clear to clear all the values you have already set, and then you can reset it.
) Note:
The new password must not exceed 14 characters in length and not include any spaces.
4.4.4.4. Reboot
Figure 4-30 Reboot the Device
-32-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide
¾ Reboot the Device: Click Reboot to get the device rebooted and the saved settings to
take effect.
4.4.4.5. About Device
This page displays the related information about this device, including Model, Firmware Version,
Hardware Version, MAC Address, and IMEI.
Figure 4-31 Device Information
¾ Model: The Model of the device.
¾ Firmware Version: The current firmware version
¾ Hardware Version: The current hardware version.
¾ MAC Address: The physical address of the device. The value is read-only thus could not
be changed.
¾ IMEI: International Mobile Equipment Identity. Composed of 15 digits, it is unique and thus
used to identify individual mobile equipment.
-33-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide
Appendix A: FAQ
T1. What should I do if I cannot access the Internet?
Method 1: Check the ISP parameters.
1) Type http://192.168.0.1 in a Web browser, and press Enter. Then enter the default login
password: admin.
2) Choose “Advanced -> Dial-up -> Profile Management” to check the ISP parameters.
3) If the ISP parameters are incorrect, create a new profile with correct ISP parameters.
Method 2: If the “PIN REQUIRED” is displayed on the screen, please try to verify the PIN code.
1) Type http://192.168.0.1 in a Web browser, and press Enter. Then enter the default login
password: admin.
2) Choose “Advanced -> Dial-up -> PIN Management”, and enter the correct PIN code
according to your operator.
Method 3: If the “NO SERVICE” is displayed on the screen, please verify the following
situations.
1) Please verify your card is a WCDMA or GSM SIM card.
2) Please verify you are in the service area of the ISP.
Method 4: Please verify your SIM card has enough tariff.
Method 5: Please verify your computer or phone obtains the IP address automatically.
Method 6: If the above methods fail, please feel free to contact our technical support.
T2. What should I do if I cannot log into the web-management page of M5360?
Method 1: Please verify your computer or phone obtains the IP address automatically.
Method 2: Please verify you type the right IP address (http://192.168.0.1) in a Web browser.
T3. What if I forget my login password?
1) Restore M5360 to its factory defaults;
2) Log into M5360 with the default user name and password: admin. And then reconfigure
M5360 following the QIG.
T4. How could I restore M5360 to its factory defaults?
Method 1:
With M5360 powered on, use a pin to press the RESET button in the interior panel.
Method 2:
Get logged in to the web-based management page of M5360, and then go to Advanced ->
Tools -> Restore Factory and click Restore.
) Note:
Once M5360 is reset, all the current configurations will be lost and you need to reconfigure it.
-34-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide
Appendix B: Configuring the PC
In this section, we’ll introduce how to install and configure the TCP/IP correctly in Windows XP.
First make sure your Ethernet Adapter is working, refer to the adapter’s manual if needed.
1. Install TCP/IP component
1) On the Windows taskbar, click the Start button, point to Settings, and then click Control
Panel.
2) Click the Network and Internet Connections icon, and then click on the Network
Connections tab in the appearing window.
3) Right click the icon that showed below, select Properties on the prompt page.
Figure B-1
4) In the prompt page that showed below, double click on the Internet Protocol (TCP/IP).
Figure B-2
-35-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide
5) The following TCP/IP Properties window will display and the IP Address tab is open on
this window by default.
You have two ways to configure the TCP/IP protocol below:
¾ Setting IP address automatically
Select Obtain an IP address automatically, Choose Obtain DNS server automatically,
as shown in the Figure below:
Figure B-3
¾ Setting IP address manually
a. Select Use the following IP address radio button. And the following items available
b. If the Device's LAN IP address is 192.168.0.1, type IP address is 192.168.0.x (x is
from 2 to 254), and Subnet mask is 255.255.255.0.
c. Type the Device’s LAN IP address (the default IP is 192.168.0.1) into the Default
gateway field.
d. Select Use the following DNS server addresses radio button. In the Preferred DNS
Server field you can type the DNS server IP address, which has been provided by
your ISP.
-36-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide
Figure B-4
6) Now click OK to keep your settings.
-37-
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide
Appendix C: Specifications
General
Standards IEEE 802.11n, IEEE 802.11b, IEEE 802.11g
Network Type 3G: HSPA+/HSPA/UMTS
2G: EDGE/GRPS/GSM
Certification CE, FCC, RoHS
Dimension 100mm×44.3mm×28.5mm (W x D x H)
Interface One Micro USB port, One USB 2.0 port, One SIM card slot, One Micro
SD Memory card slot
Button Power button, RESET button
OLED Display
Indicates the current network option: 2G or 3G, and signal
strength of current network.
Indicates the successful network connection.
Means the automatic mode of Internet connection.
Means the manual mode of Internet connection.
Displays the Wi-Fi status and the amount of current wireless
clients.
Indicates that there is un-read short message(s) and the amount of
un-read messages.
Displays the remaining battery power.
Indicates the download speed of current data transmission.
Indicates the upload speed of current data transmission.
Indicates the data used in total.
Power Supply 5200m Internal Rechargeable Battery
5VDC/1.0A External Power Adapter
Wireless
Band WCDMA: 900/2100Mhz
GSM: 850/900/1800/1900Mhz( WWAN)
Data Rate Download: 21.6Mbps
Upload: 5.76Mbps
Frequency(WIFI)
2.4-2.4835GHz(WLAN)
EIRP WIFI<20dBm;WCDMA(2100/900):NA;GSM(850/900)<38.5dBm;
Security 64/128-bit WEP, WPA-PSK/WPA2-PSK
Antenna Internal Antenna
Environment
Operating : 0℃~35℃
Temperature Storage: -20℃~60℃
Operating: 0% ~ 75% RH, Non-condensing
Humidity Storage: 0% ~ 75% RH, Non-condensing
-38-
GSM(1800/1900)<33dBm
WIFI<20dBm;WCDMA(2100/900):N/A;GSM(850/900)<38.5dBm;
M5360 3G Mobile WiFi, 5200mAh Power Bank User Guide
Appendix D: Glossary
¾ 802.11n - 802.11n builds upon previous 802.11 standards by adding MIMO (multiple-input
multiple-output). MIMO uses multiple transmitter and receiver antennas to allow for increased
data throughput via spatial multiplexing and increased range by exploiting the spatial diversity,
perhaps through coding schemes like Alamouti coding. The Enhanced Wireless Consortium
(EWC) [3] was formed to help accelerate the IEEE 802.11n development process and
promote a technology specification for interoperability of next-generation wireless local area
networking (WLAN) products.
¾ 802.11b - The 802.11b standard specifies a wireless networking at 11 Mbps using
direct-sequence spread-spectrum (DSSS) technology and operating in the unlicensed radio
spectrum at 2.4GHz, and WEP encryption for security. 802.11b networks are also referred to
as Wi-Fi networks.
¾ 802.11g - specification for wireless networking at 54 Mbps using direct-sequence
spread-spectrum (DSSS) technology, using OFDM modulation and operating in the
unlicensed radio spectrum at 2.4GHz, and backward compatibility with IEEE 802.11b devices,
and WEP encryption for security.
¾ DHCP (Dynamic Host Configuration Protocol) - A protocol that automatically configure the
TCP/IP parameters for the all the PC(s) that are connected to a DHCP server.
¾ ISP (Internet Service Provider) - A company that provides access to the Internet.
¾ SSID - A Service Set Identification is a thirty-two character (maximum) alphanumeric key
identifying a wireless local area network. For the wireless devices in a network to
communicate with each other, all devices must be configured with the same SSID. This is
typically the configuration parameter for a wireless PC card. It corresponds to the ESSID in
the wireless Access Point and to the wireless network name.
¾ WEP (Wired Equivalent Privacy) - A data privacy mechanism based on a 64-bit or 128-bit
shared key algorithm, as described in the IEEE 802.11 standard.
¾ Wi-Fi - A trade name for the 802.11b wireless networking standard, given by the Wireless
Ethernet Compatibility Alliance (WECA, see http://www.wi-fi.net), an industry standards
group promoting interoperability among 802.11b devices.
¾ WLAN (Wireless Local Area Network) - A group of computers and associated devices
communicate with each other wirelessly, which network serving users are limited in a local
area.
-39-
