TP Link Technologies NC260 Digital Transmission System User Manual NC260
TP-Link Technologies Co., Ltd. Digital Transmission System NC260
NC260_User Manual
NC260
HD Day/Night Wi-Fi Cloud Camera
1910011847
REV1.0.0
CONTENTS
Chapter 1About This Guide................................................................................... 1
1.1Conventions.................................................................................................................1
1.2Overview of This Guide................................................................................................1
1.3More Info......................................................................................................................1
Chapter 2Get to Know About Your Camera.......................................................... 2
2.1Product Overview ........................................................................................................2
2.2Panel Appearance .......................................................................................................2
2.2.1Front Panel .......................................................................................................2
2.2.2Rear Panel........................................................................................................3
Chapter 3Set Up Your Camera .............................................................................. 5
3.1Set up the Camera with the tpCamera APP.................................................................5
3.2Position Your Camera ..................................................................................................6
Chapter 4Configure Your Camera ......................................................................... 8
4.1Log in to Your Camera .................................................................................................8
4.2Live View ...................................................................................................................10
4.3Basic.......................................................................................................................... 11

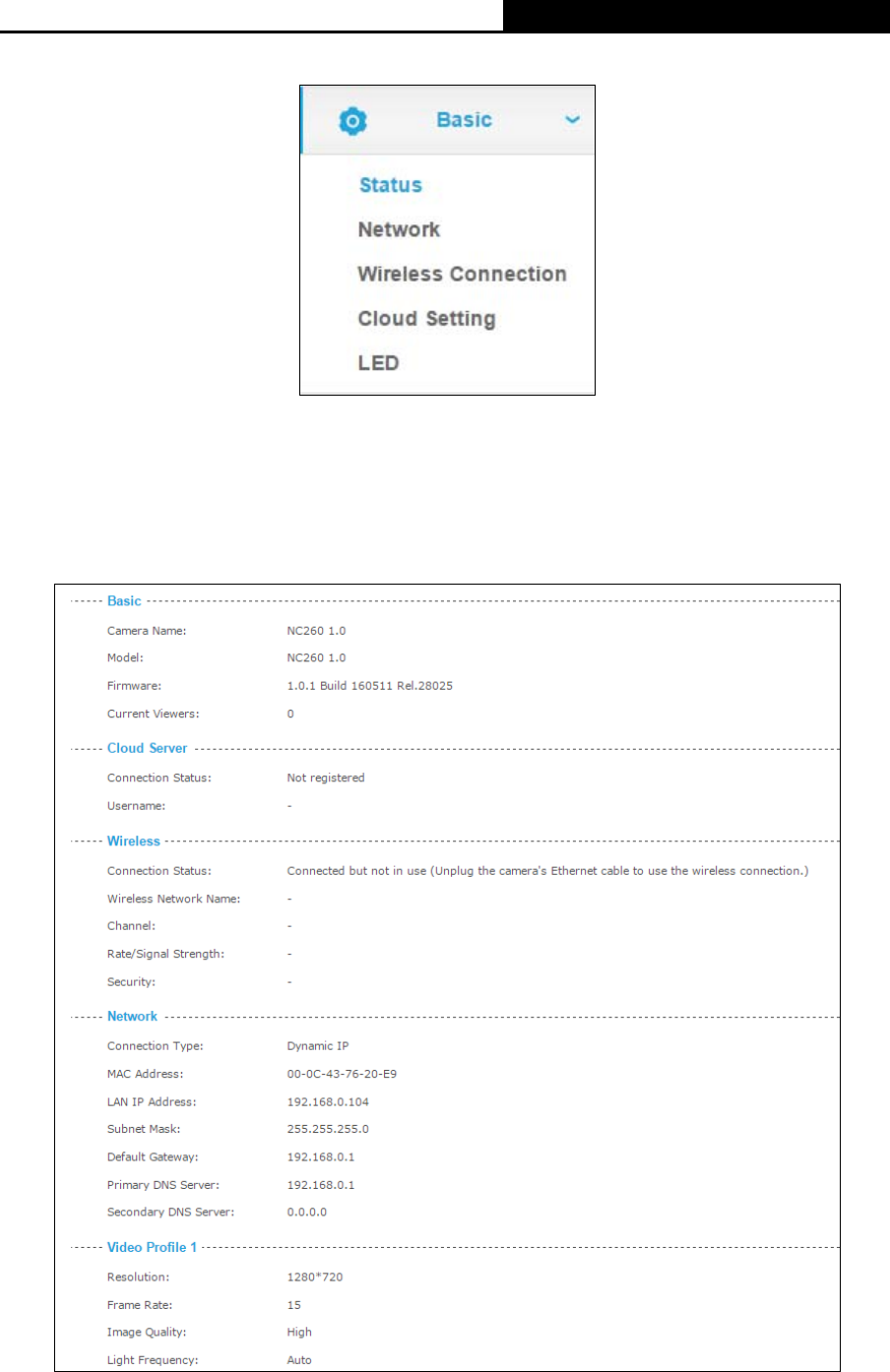

4.3.1Basic > Status.................................................................................................12

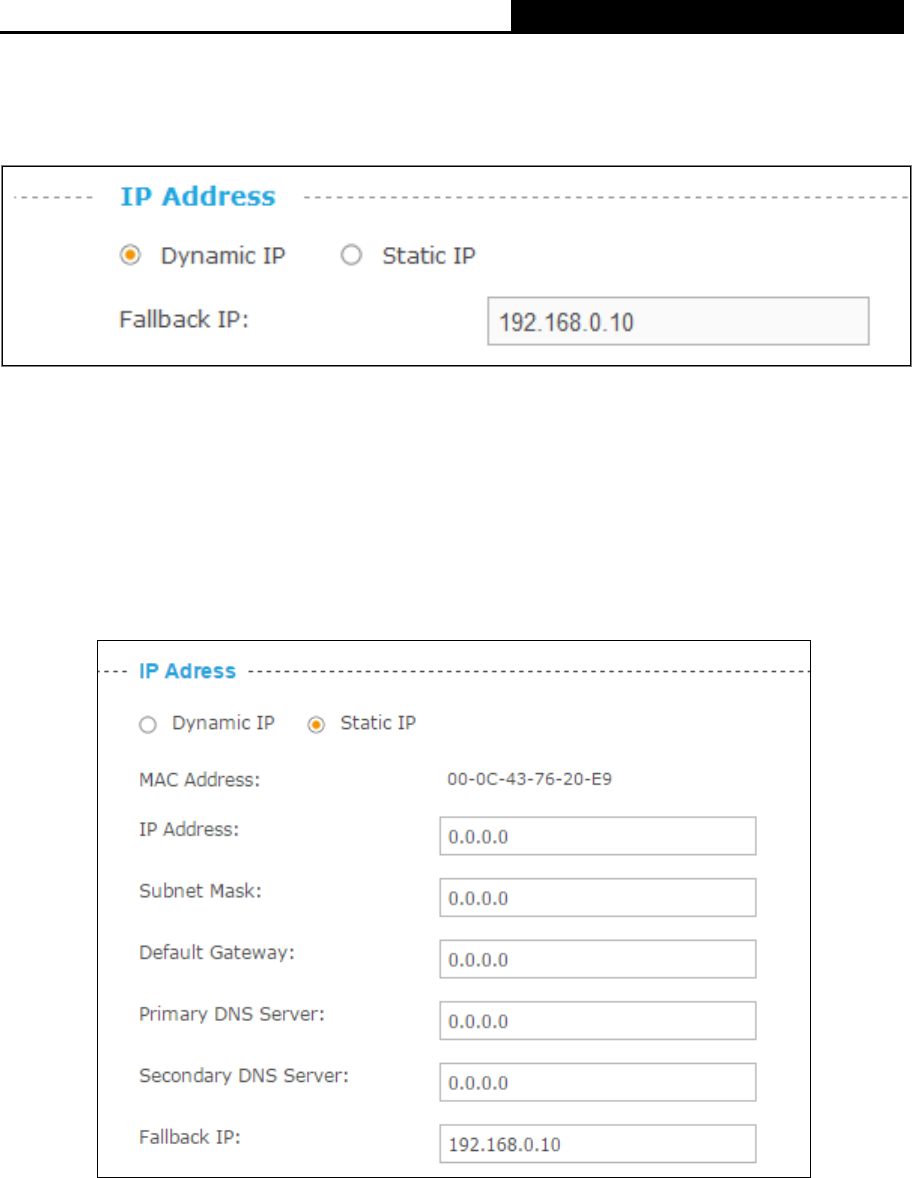

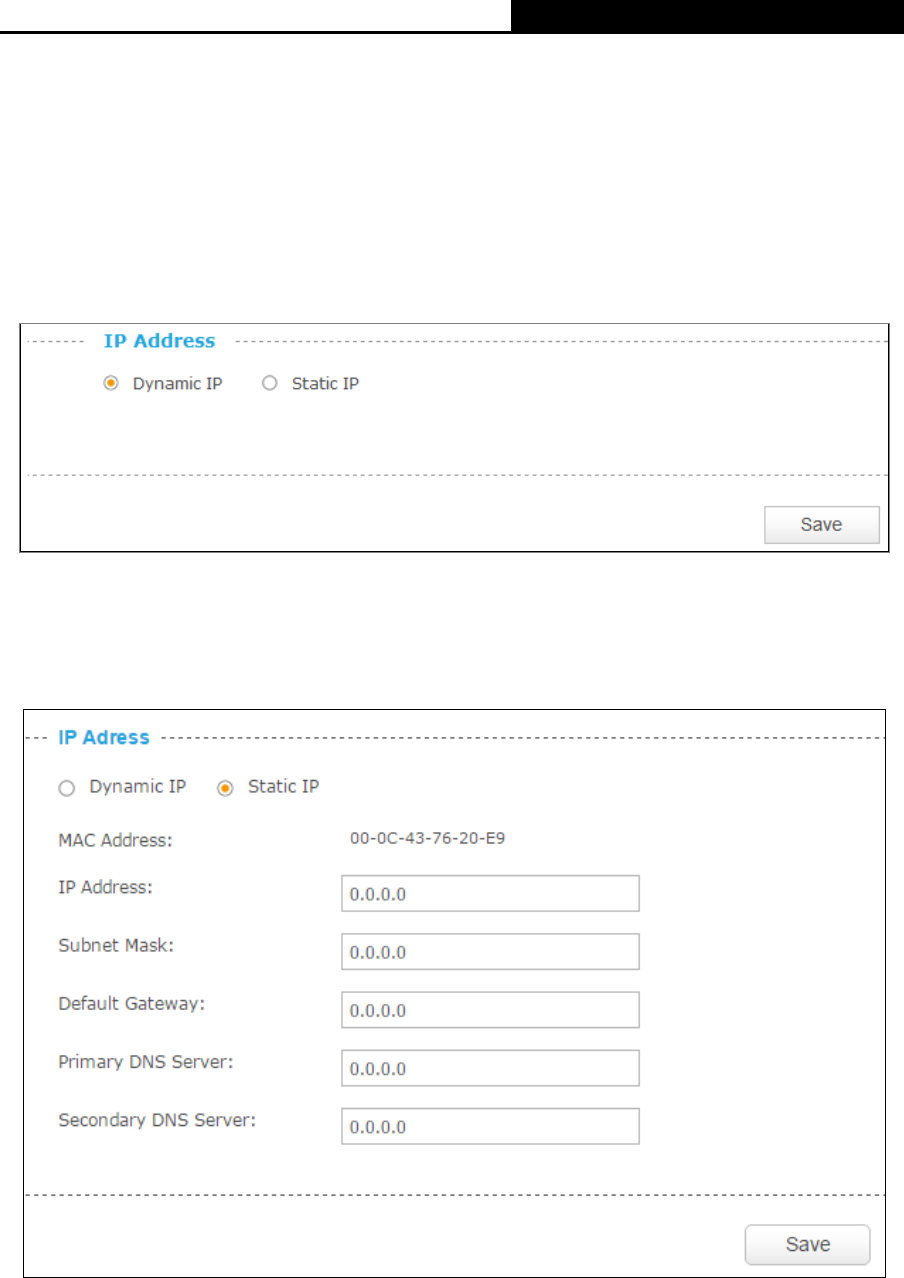

4.3.2Basic > Network..............................................................................................13

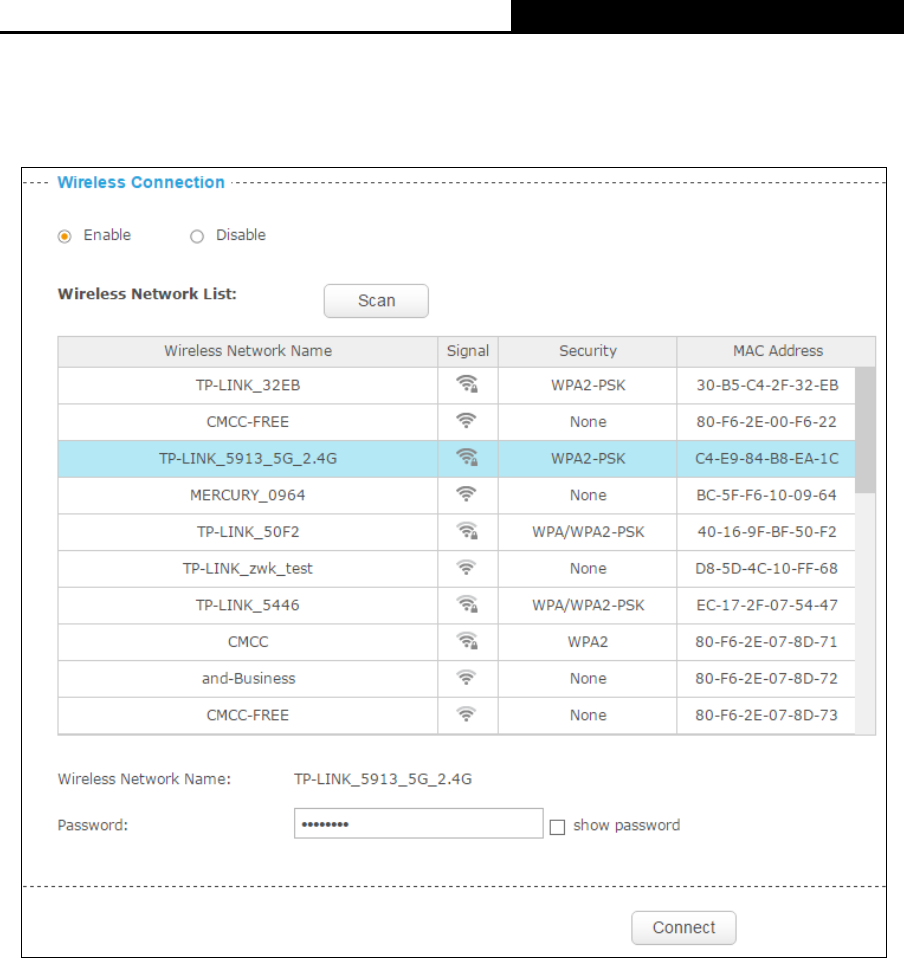

4.3.3Basic > Wireless Connection..........................................................................14

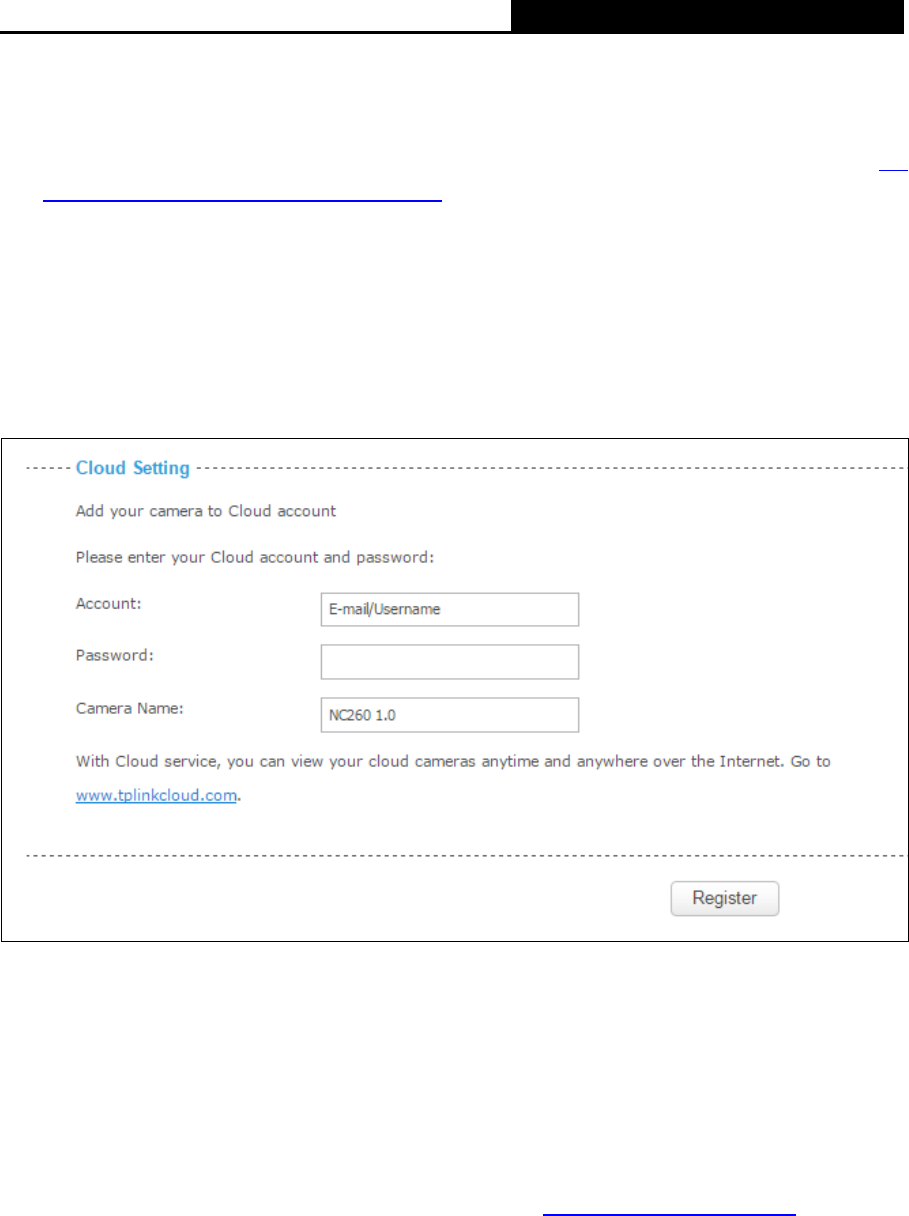

4.3.4Basic > Cloud Setting .....................................................................................16
4.3.5Basic > LED....................................................................................................17
4.4Advanced...................................................................................................................18
4.4.1Advanced > Status..........................................................................................18
4.4.2Advanced > Network ......................................................................................18
4.4.3Advanced > Wireless Connection...................................................................21
4.4.4Advanced > Cloud Setting ..............................................................................22
4.4.5Advanced > Video ..........................................................................................22

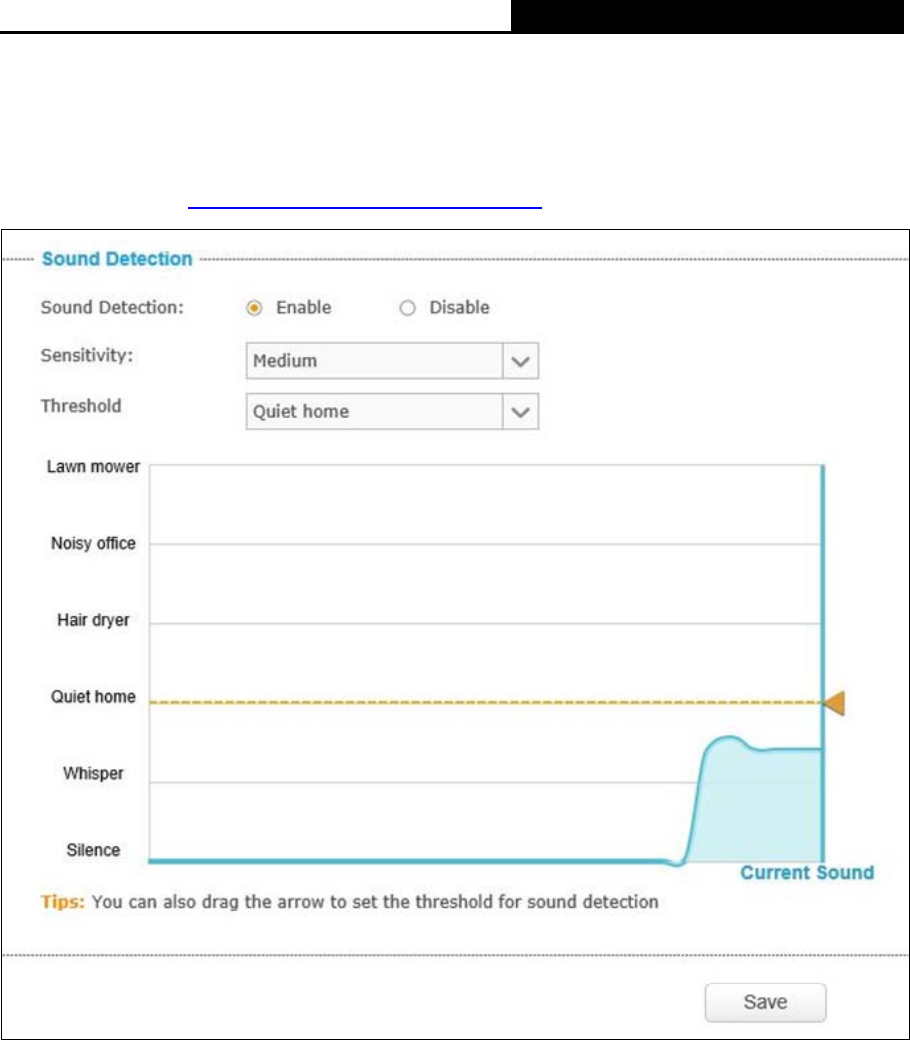

4.4.6Advanced > Sound Detection .........................................................................25

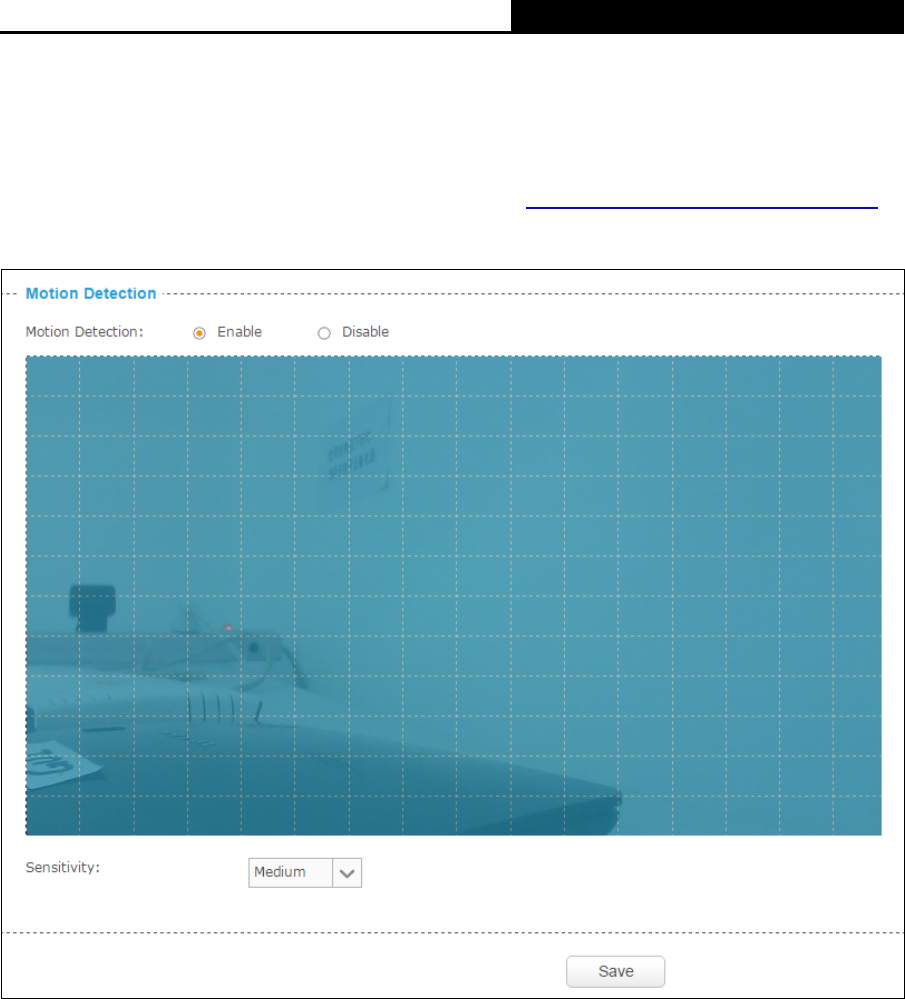

4.4.7Advanced > Motion Detection.........................................................................26

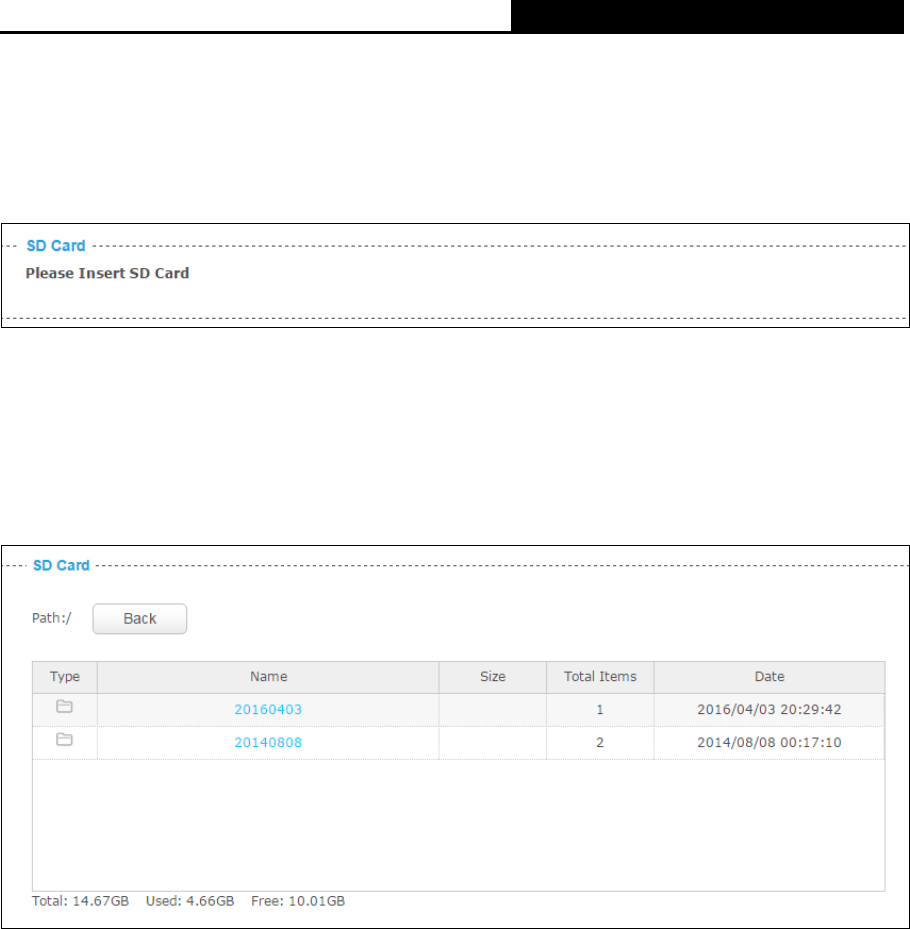

4.4.8Advanced > SD Card......................................................................................27

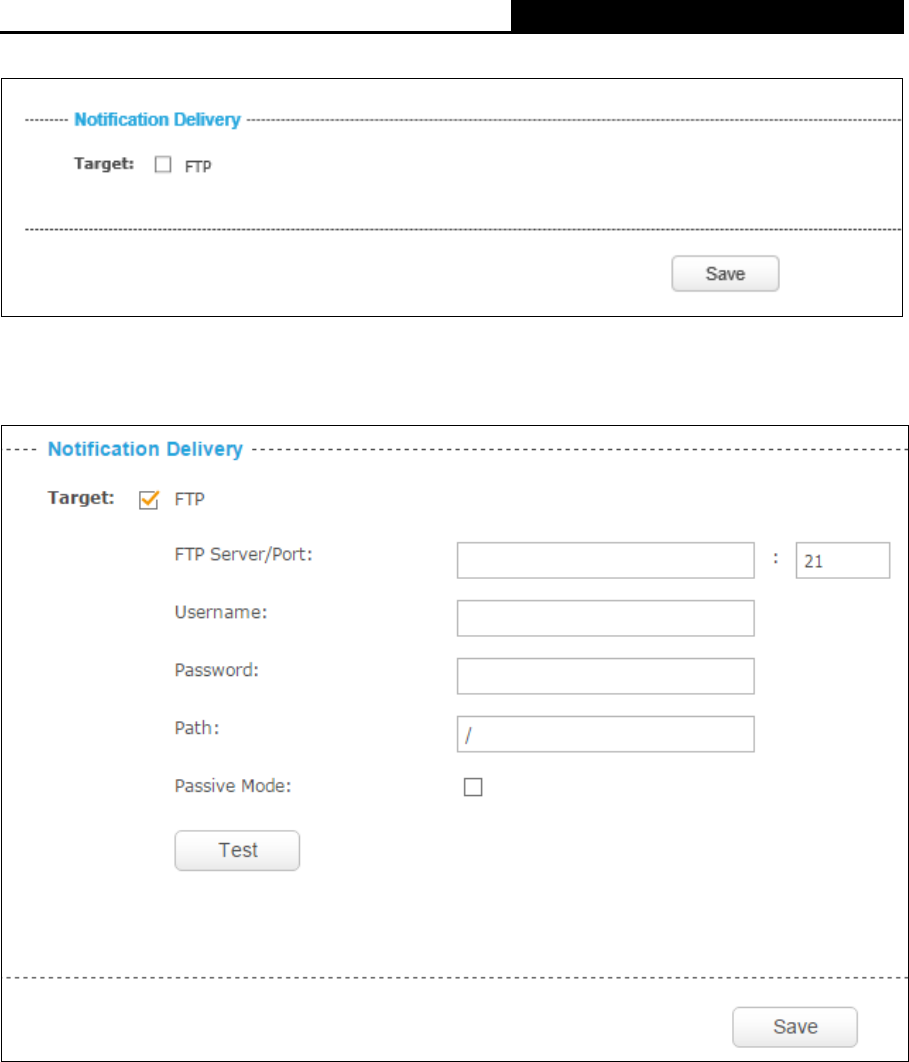

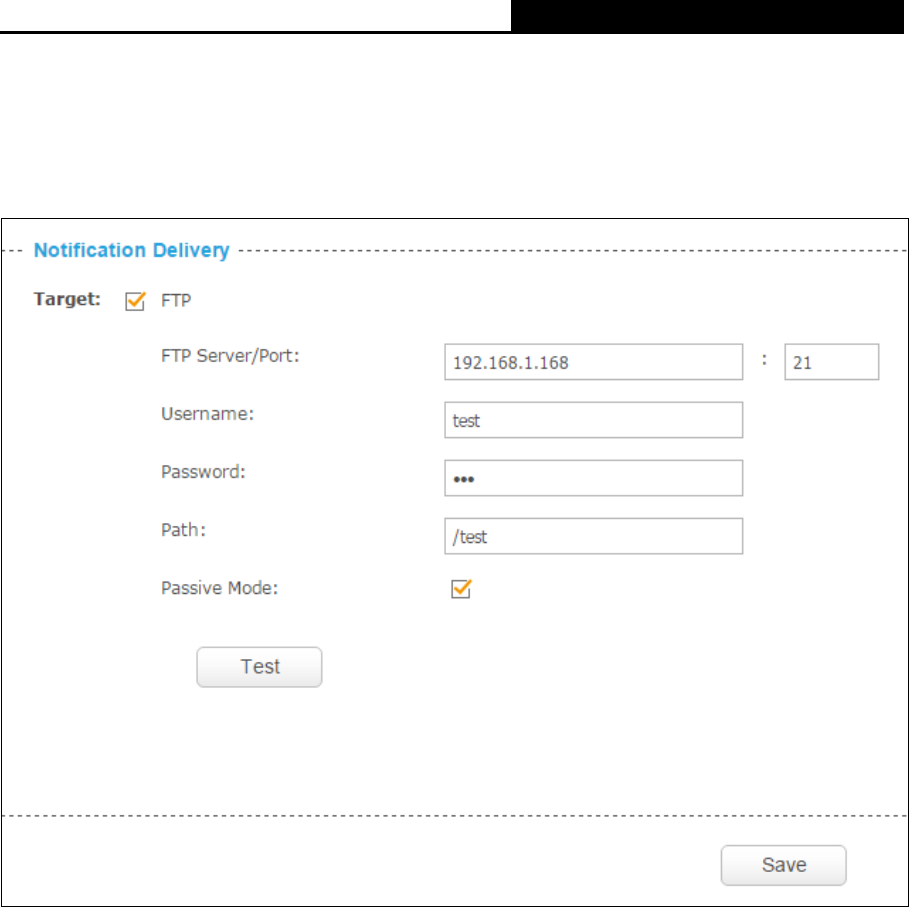

4.4.9Advanced > Notification Delivery ....................................................................27
4.4.10Advanced > LED.............................................................................................30
4.5System.......................................................................................................................30

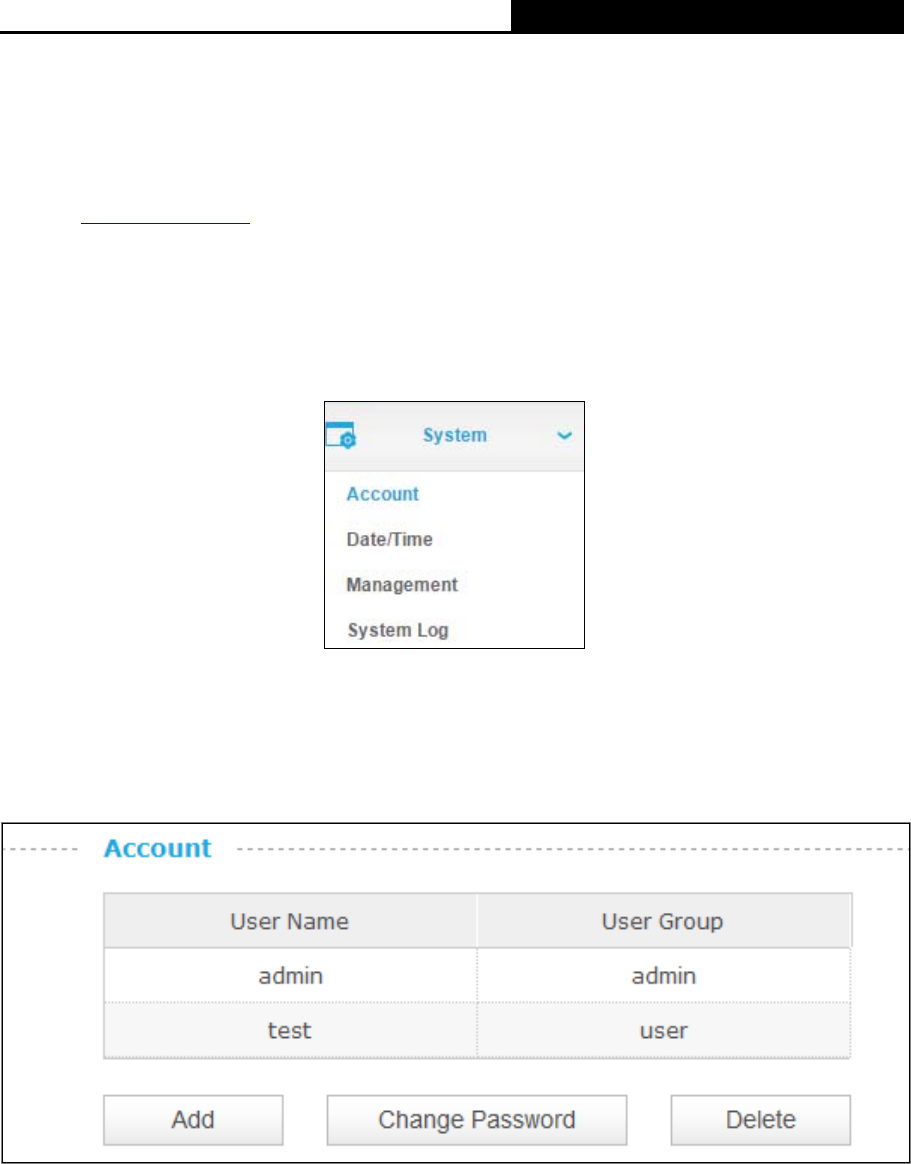

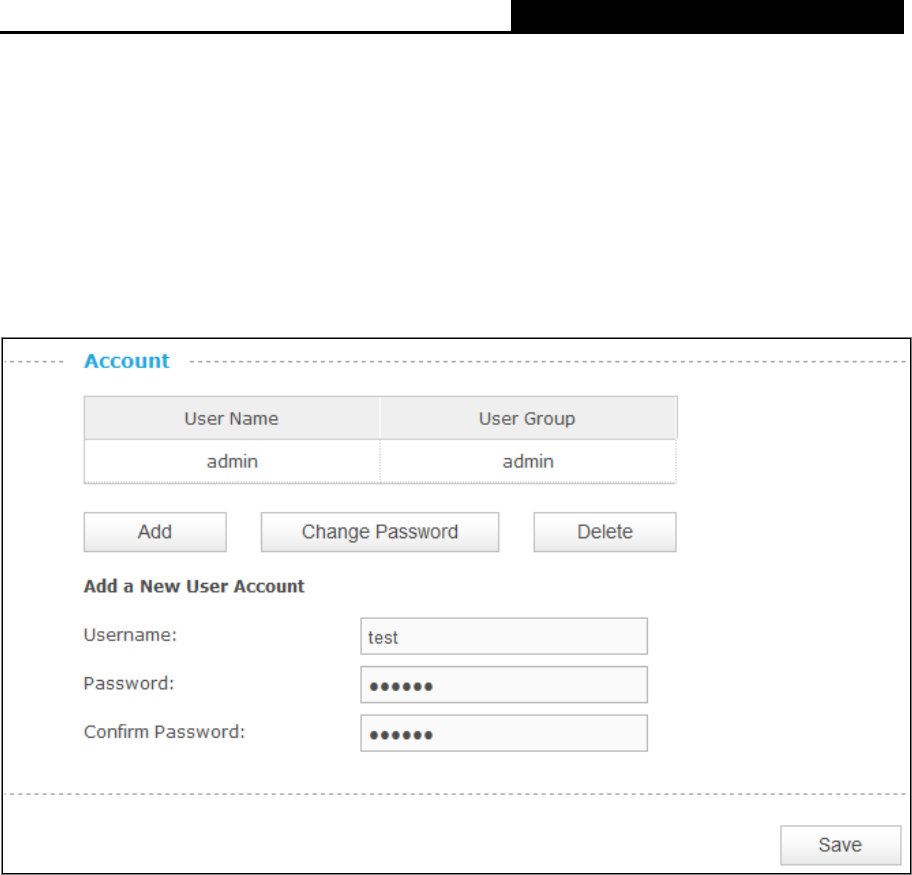

4.5.1Account...........................................................................................................30

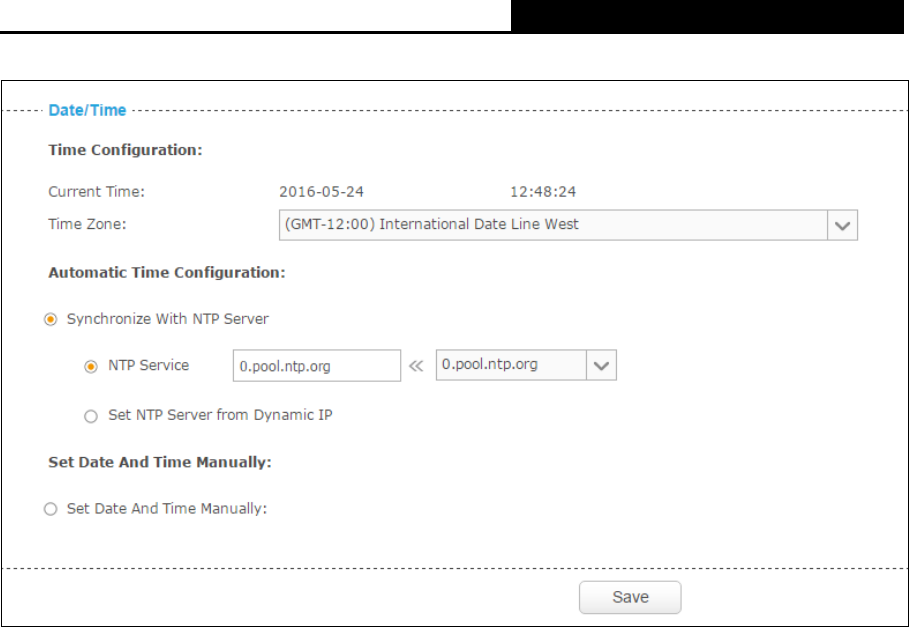

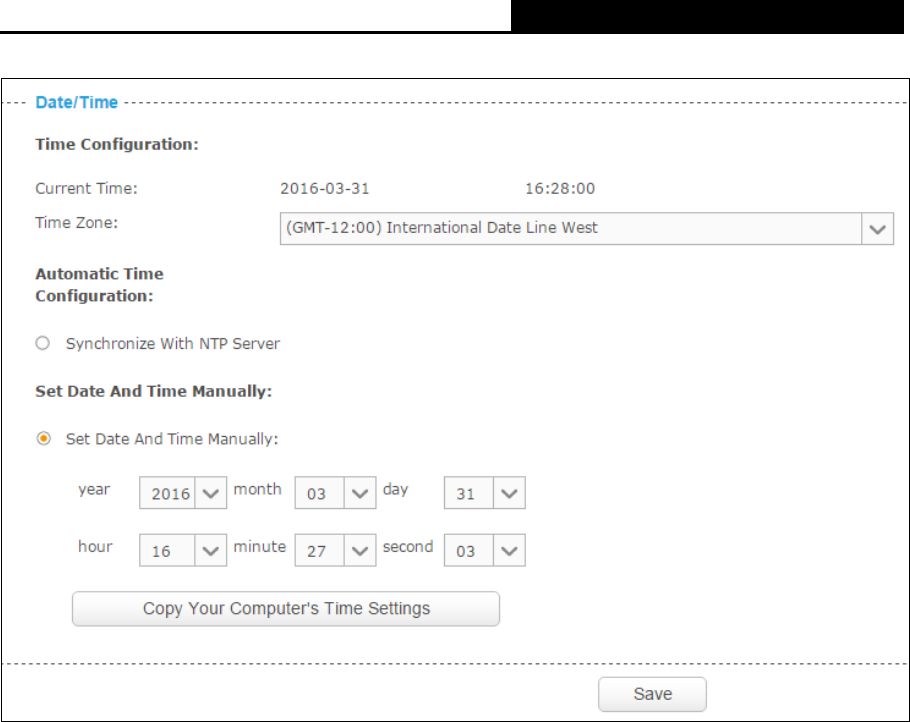

4.5.2Date/Time .......................................................................................................32

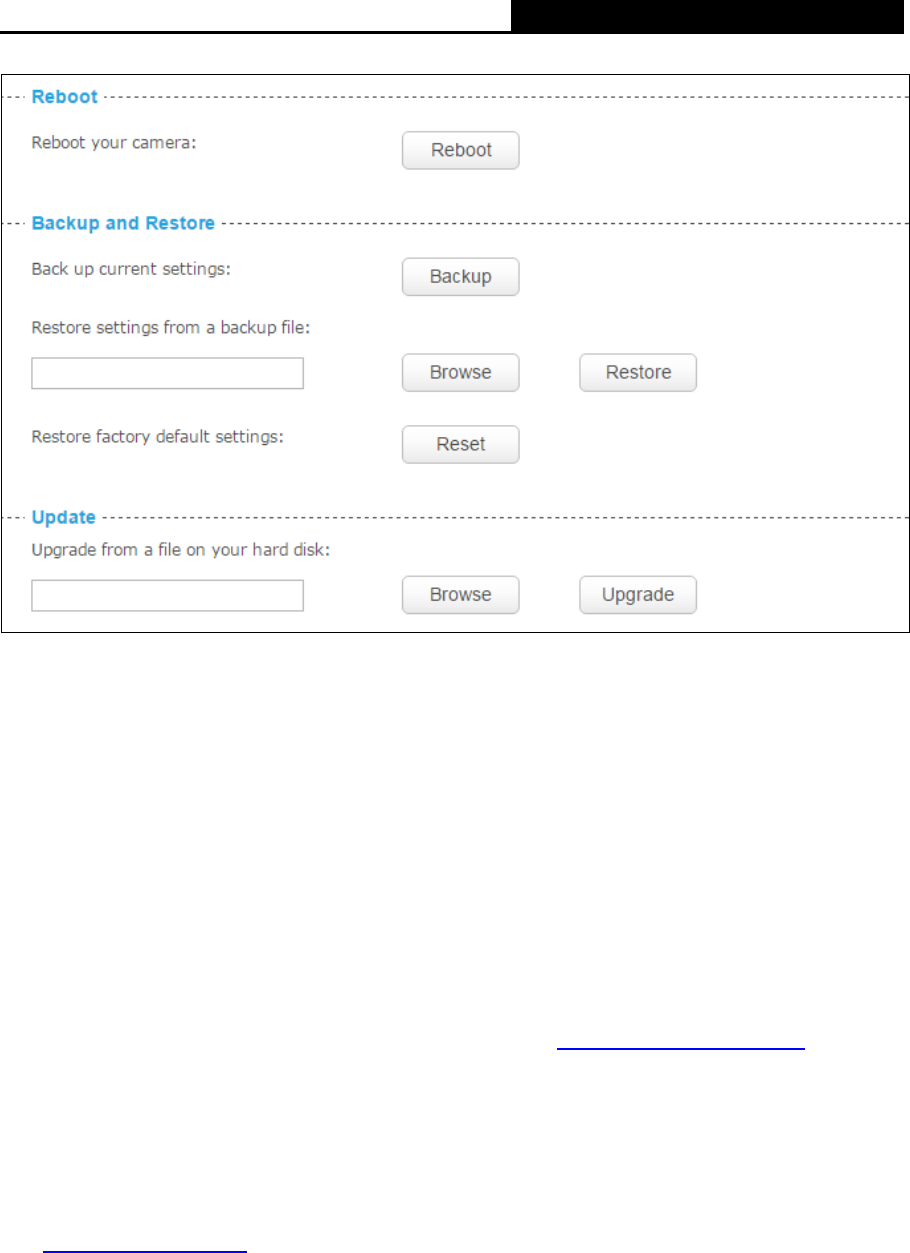

4.5.3Management...................................................................................................34

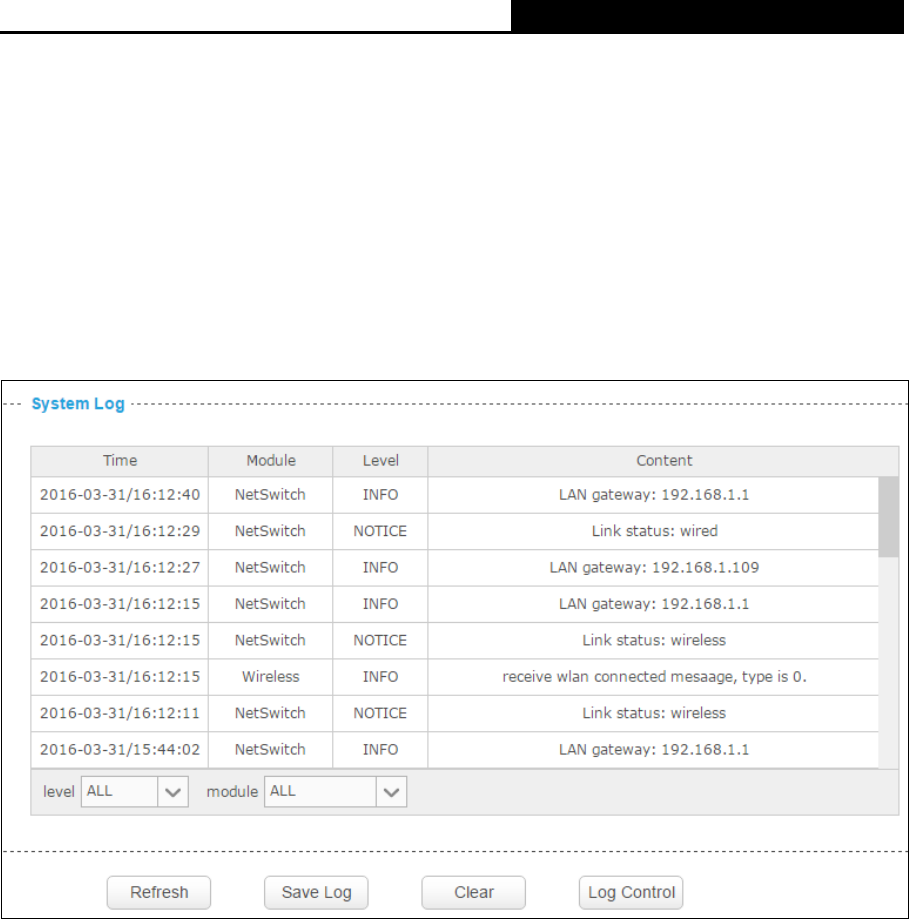

4.5.4System Log.....................................................................................................36
NC260 HD Day/Night Wi-Fi Cloud Camera
1
Chapter 1 About This Guide
This guide is a complementation of Quick Installation Guide. The Quick Installation Guide instructs
you on quick setup, and this guide provides details of each function and shows you the way to
configure these functions appropriate to your needs.
When using this guide, please notice that features of the TP-LINK Cloud Camera may vary slightly
depending on the model and software version you have, and on your location, and language. All
images, parameters and descriptions documented in this guide are used for demonstration only.
1.1 Conventions
In this Guide, the following conventions are used:
Symbol Description
Note:
Ignoring this type of note might result in a malfunction or damage to the
device.
1.2 Overview of This Guide
Chapter Introduction
Chapter 1 About This Guide Introduces the guide structure and conventions.
Chapter 2 Get to know about
your camera
Introduces the features, application and appearance of the
camera.
Chapter 3 Set up your camera Introduces how to quickly set up the camera using the
tpCamera app and how to position your camera.
Chapter 4 Configure the
Camera
Introduces how to configure the camera using the built-in web
management page.
1.3 More Info
The latest software, management app and utility can be found at Download Center at
http://www.tp-link.com/support.
The Quick Installation Guide can be found where you find this guide or inside the product package.
Specifications can be found on the product page at http://www.tp-link.com.
A Technical Support Forum is provided for you to discuss our products at http://forum.tp-link.com.
Our Technical Support contact information can be found at the Contact Technical Support page at
http://www.tp-link.com/support.
NC260 HD Day/Night Wi-Fi Cloud Camera
2
Chapter 2 Get to Know About Your Camera
2.1 Product Overview
TP-LINK NC260 HD Day/Night Wi-Fi Cloud Camera is a cloud-based Wi-Fi video monitoring
device with live streaming and remote viewing, which makes it easy to stay connected with what
you care most.
Easy to install with tpCamera app
Remote monitoring via TP-LINK Cloud website or tpCamera app
Get notifications when motion or sound is detected, and view alerts history
View clearer images with HD resolution
View clearly in the dark with Night vision
Stay in touch with 2-way audio
Save the image and video in the Micro SD card
2.2 Panel Appearance
2.2.1 Front Panel
Figure 2-1 Front Panel
NC260 HD Day/Night Wi-Fi Cloud Camera
3
System LED:
Status Indication
Flashing Red The camera starts booting up.
Solid Red The camera has boot up, but is not connected to any
network.
The camera is in firmware upgrade procedure.
Flashing Green The camera is connecting to a network.
The camera is connected to a network.
Solid Green The camera is transferring data.
Microphone: The camera has a built-in internal microphone. This microphone is hidden in
the pinhole located on the front panel.
Micro SD Card Slot: For holding the micro SD card.
2.2.2 Rear Panel
Figure 2-2 Rear Panel
Power Jack: For connecting the camera to power socket via the provided power adapter.
Internet Port: For connecting the camera to your router via an Ethernet cable.
Speaker: For audio output.
NC260 HD Day/Night Wi-Fi Cloud Camera
4
WPS/Reset Button: The switch for the WPS and Reset function. To use the WPS function,
press it for about 2 seconds. To use the Reset function, press and hold for more than 5
seconds.
Used as the WPS button:
If your wireless router supports WPS (Wi-Fi Protected Setup), you can connect the
camera to your Wi-Fi network using WPS. Press the WPS or QSS button on your router.
Within 2 minutes, press the WPS/Reset button on the camera for about 2 seconds, then
the LED above this button will start flashing quickly. When this LED becomes solid on,
the WPS is successful.
Used as the Reset button:
With the camera powered on, press and hold the WPS/Reset button (for more than 5
seconds) until the System LED turns off. Then release the button and wait the camera to
reset to its factory default settings.
WPS LED:
Status Indication
The camera starts booting up.
Flashing Green The camera is connecting to a network by WPS function.
The camera has boot up.
Off The camera failed to be added to a network by WPS function.
Solid Green The camera has been successfully added to a network by WPS
function. This process will last in the first two minutes.
NC260 HD Day/Night Wi-Fi Cloud Camera
5
Chapter 3 Set Up Your Camera
3.1 Set up the Camera with the tpCamera APP

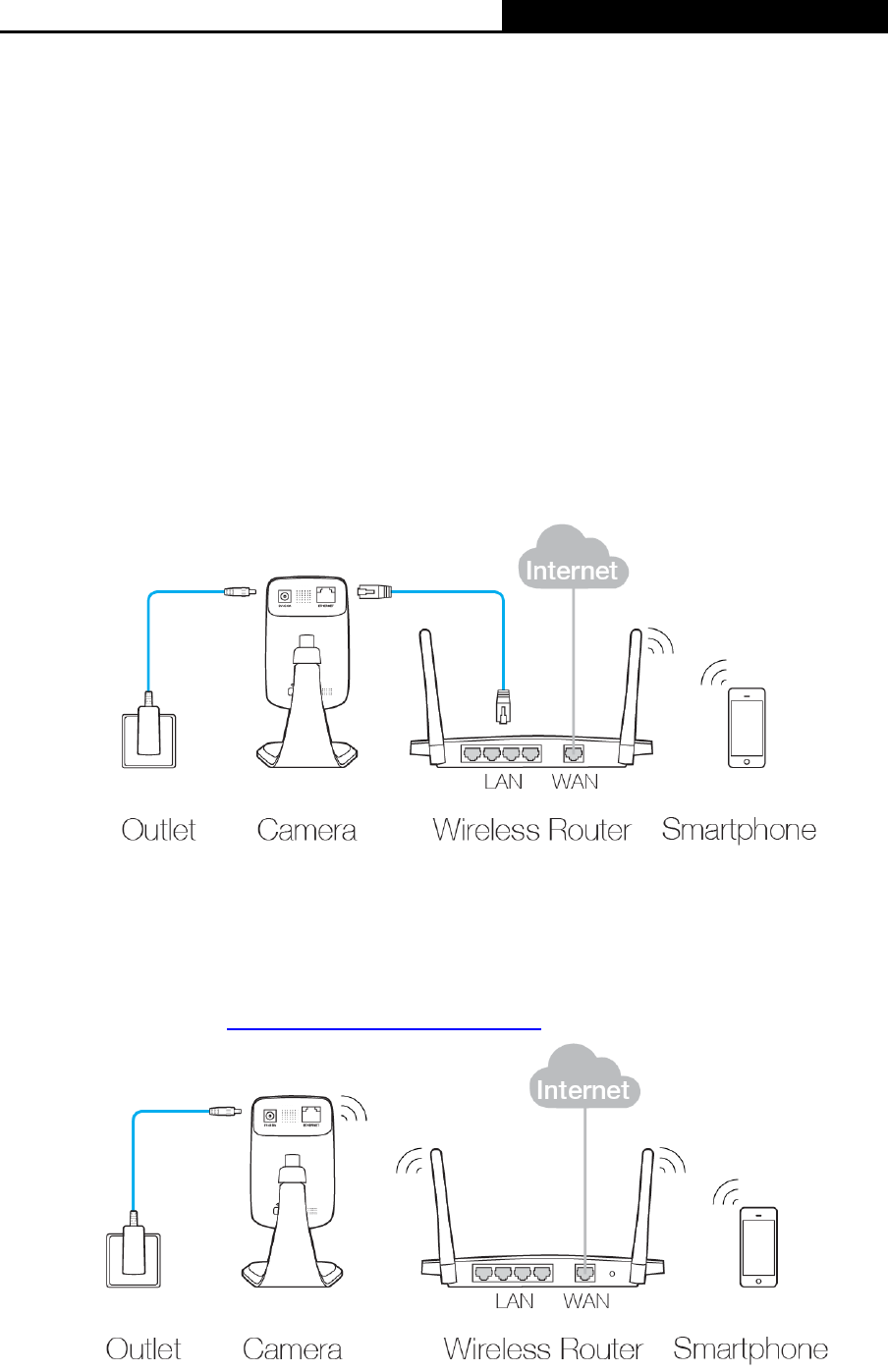

Step 1. Connect the camera to the network your smartphone is on.
1) Power on the camera using the provided power adapter as shown.
2) Connect a smartphone to the router as shown.
3) Connect the camera to the router via wired or wireless connection, and then wait till the
camera’s system LED become solid green.
Wired: Connect the camera to the router’s LAN port via an Ethernet cable.
Wireless:
Via web management page

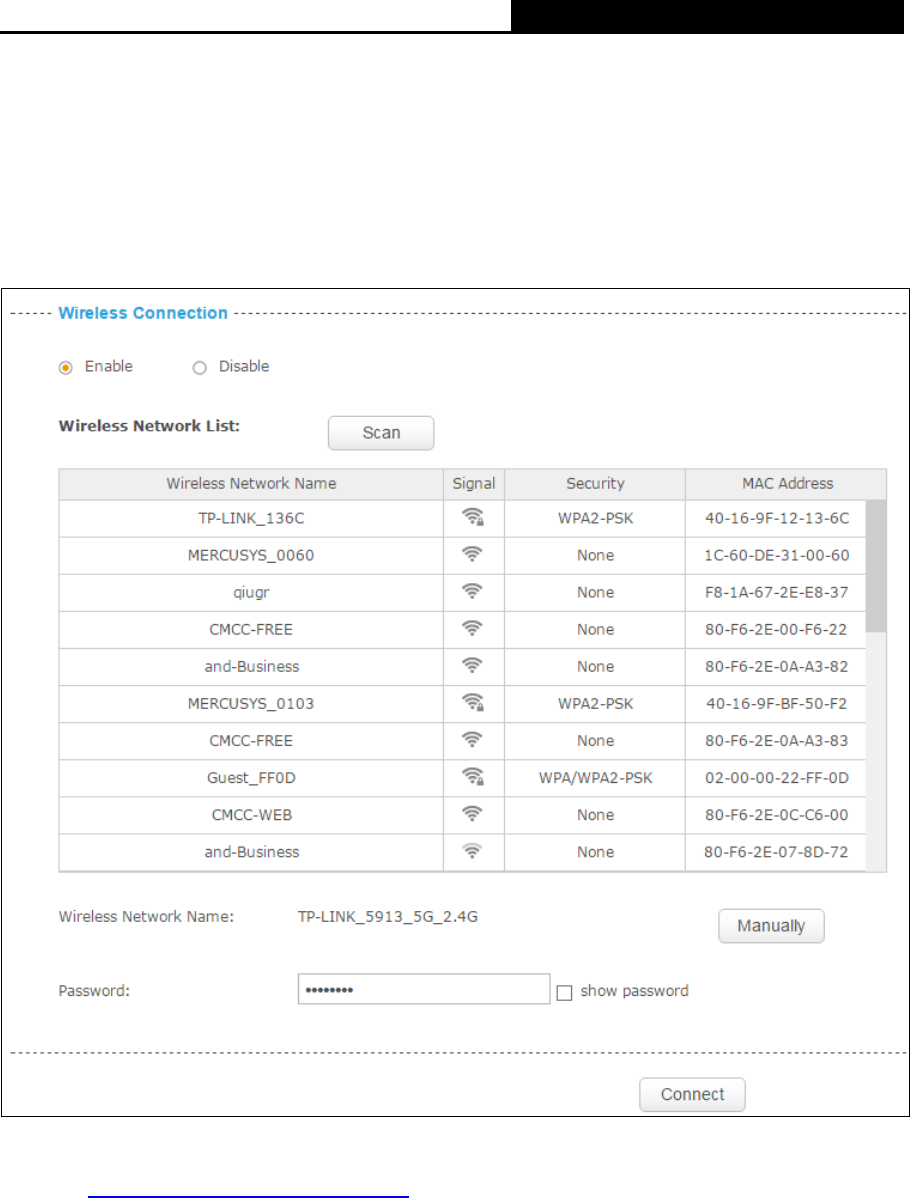

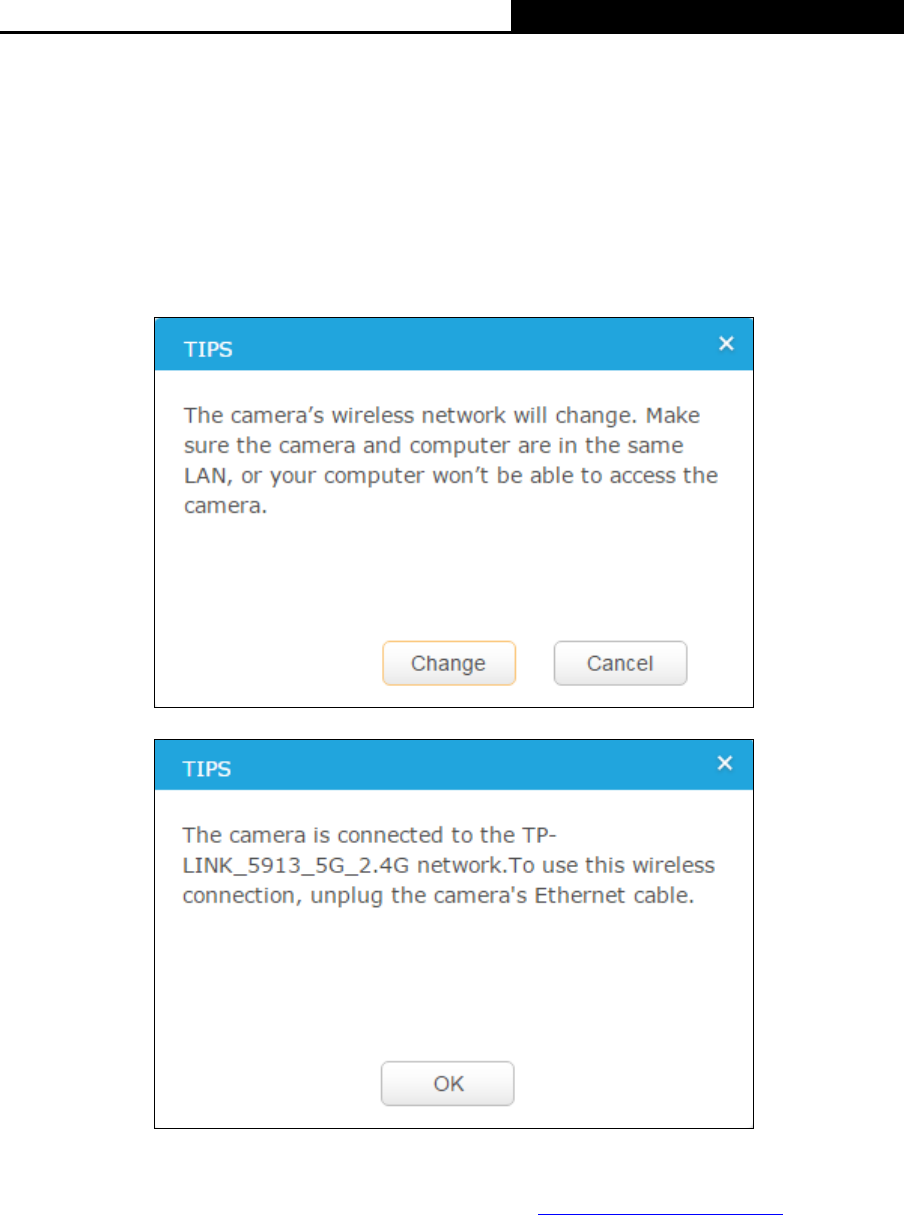

You can set the wireless connection using the basic settings on the web management

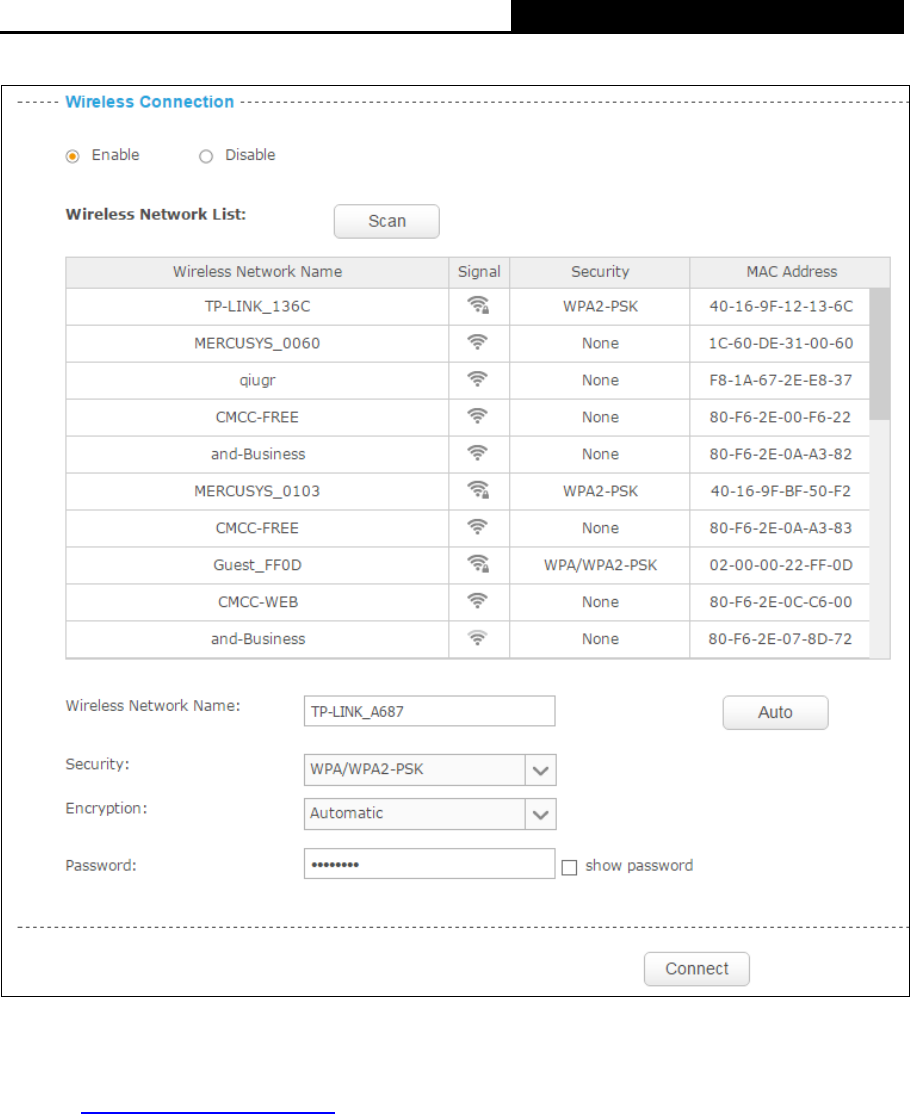

page. (Refer to 4.3.3 Basic > Wireless Connection).
NC260 HD Day/Night Wi-Fi Cloud Camera
6
Via WPS/QSS button
If your wireless router supports WPS, you can connect the camera to your Wi-Fi network
using WPS. Press the WPS or QSS button on your router. Within 2 minutes, press the
WPS/Reset button on the back of the camera for about 2 seconds, then the LED above
this button will start flashing quickly. When this LED becomes solid on, the WPS is
successful and the camera is connected to the router wirelessly.
Step 2. Download and install the tpCamera app.
You can download the free tpCamera app from the App Store or Google play. You can also scan
the QR code below to download the tpCamera app.
OR
Step 3. Add the camera to your TP-LINK Cloud account.
Launch the tpCamera app, log into your TP-LINK Cloud account or create one if you do not have
an account. Then follow the app instructions to add your new camera to your account.
When you reach the My Cam screen, you have successfully added your camera and can start to
use your camera.
3.2 Position Your Camera
Before positioning your camera, please keep these safety guidelines in mind:
Keep your camera out of reach of children and pets.
Use your camera only indoors, and keep it out of direct sunlight. Make sure its operating
temperature is in the range of 0-40°C (32-104°F).
NC260 HD Day/Night Wi-Fi Cloud Camera
7
Pick a location which is close enough to a wall outlet.
Use only the power adapter that comes with this camera in the package.
You can place your camera to your desired location. Just unplug and replug it without having to go
through the app’s setup again. Place the camera within the coverage of your wireless network.
You can place the camera in various ways:
Place it on a flat surface
Mount it on the wall or ceiling
Detailed instructions on mounting your camera to a wall or ceiling are shown as follows.
When you finish positioning your camera, use the tpCamera app to check that your camera can
see what you want to keep an eye on. Adjust its position if needed.
NC260 HD Day/Night Wi-Fi Cloud Camera
8
Chapter 4 Configure Your Camera
This chapter shows how to use the camera’s web management page to configure the camera
locally. In addition to the web management page, you can use the tpCamera app and TP-LINK
Cloud (http://www.tplinkcloud.com) to view and manage your camera remotely.
4.1 Log in to Your Camera
1. Connect a computer to the router that your camera is connected to. You can connect the
computer to the router using an Ethernet cable or via the wireless connection.

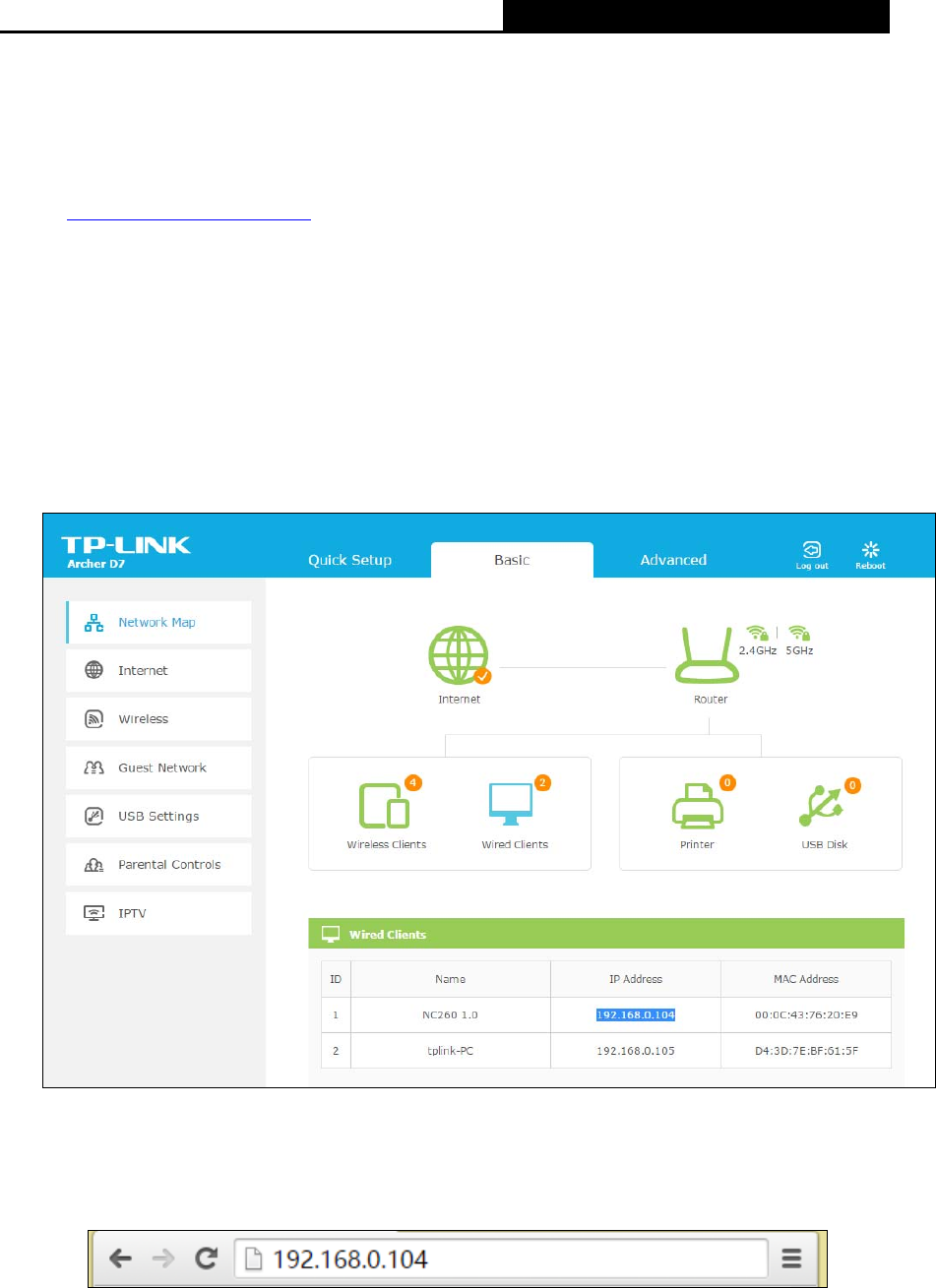

2. Find the management IP address of the camera from the web management page of the
connected router. Here we use the web management page of TP-LINK Archer D7 for
demonstration.
3. On a computer that connects to the same router as the camera does, open a web browser,
type in the camera’s IP address in the address field, and press Enter. Here we use
http://192.168.0.104 for demonstration.

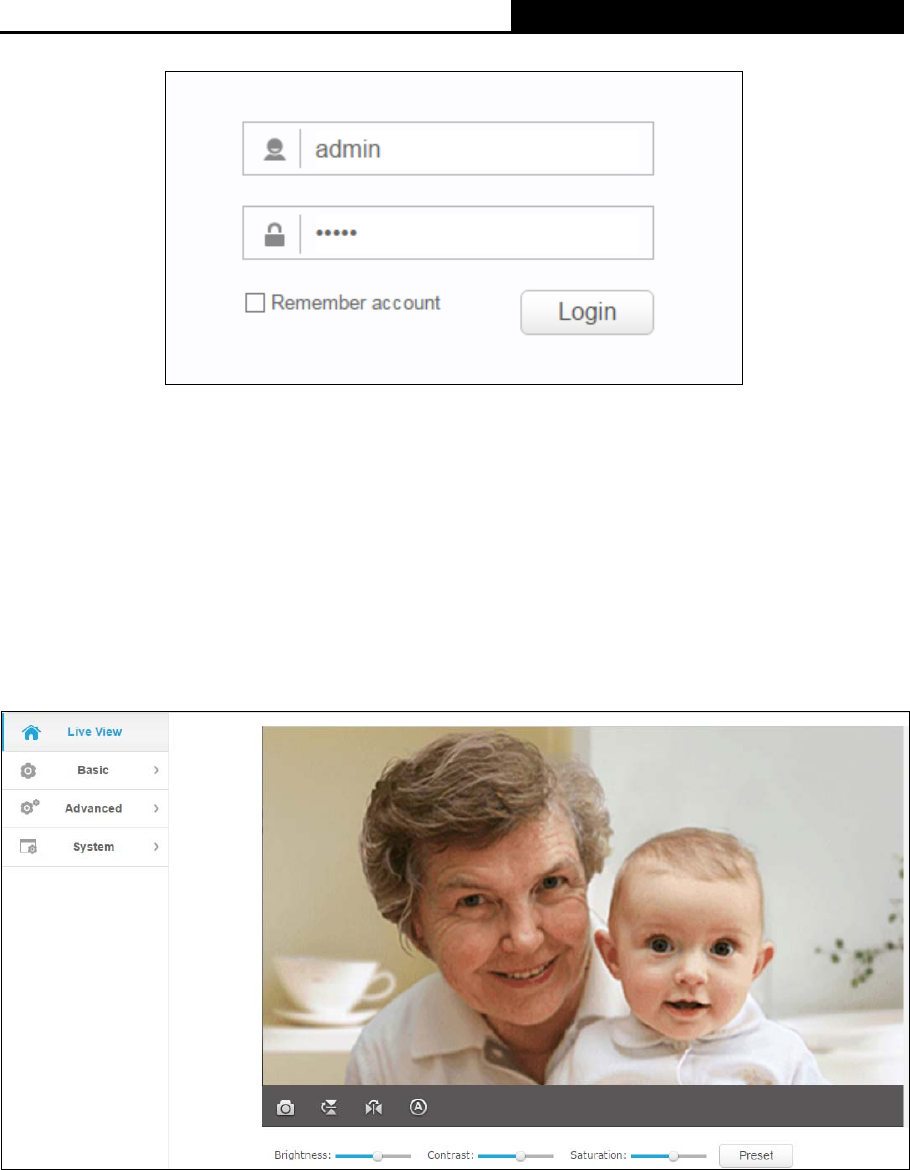

4. Enter the default username and password (admin/admin). Click Login.
NC260 HD Day/Night Wi-Fi Cloud Camera
9
Note:
For the administrator, the default password is “admin”. We recommend that you change it in the
Account menu (Go to “System > Account”).
If you log in to the camera as an administrator, you can perform all the settings provided by the
camera.
If you log in to the camera as a common user, you can only view the Live View. After logging as
administrator, you can add up to five user accounts in the Account menu (Go to “System >
Account”).
NC260 HD Day/Night Wi-Fi Cloud Camera
10
4.2 Live View
The Live View screen shows you the live video feed from your camera. On this screen, you can
capture a picture.
Symbols Meaning Note
Click to capture a
still image shot by
the camera.
The image file will be automatically saved to
your computer.
NC260 HD Day/Night Wi-Fi Cloud Camera
11
Click to vertically flip
the current image.
Click to horizontally
flip the current
image.
If the camera is installed upside down, Flip
Image and Mirror should both be checked.
Click to select the
Auto/Day/Night
mode.
Auto: This mode will automatically switch
between Day and Night modes based on the
amount of available lighting.
Day: This sets the camera to always be in
the Day mode.
Night: This sets the camera to always be
in the Night mode.
Brightness: Drag the slider to adjust the brightness level of
camera. Large value will brighten the current displayed screen.
Contrast: Drag the slider to adjust the contrast level of the
camera. Large value will contrast the current displayed screen heavily.
Saturation: Drag the slider to adjust the saturation level of the
camera. Large value will saturate the current displayed screen to be more colorful.
Preset: Click the Preset button to restore to factory image settings.
4.3 Basic
Click the Basic menu to display the submenus including Status, Network, Wireless Connection,
Cloud Setting, and LED.
NC260 HD Day/Night Wi-Fi Cloud Camera
12
4.3.1 Basic > Status
The Status page displays the current configuration information of the camera. All the information
is read-only.
NC260 HD Day/Night Wi-Fi Cloud Camera
13
4.3.2 Basic > Network
On this page, you can configure your camera’s IP address which is used to access and configure
the camera.
Dynamic IP: Select this option when a DHCP server is installed on the network to issue IP
address assignment. With this setting, the IP address of the camera is assigned automatically.
Static IP: Select this option when a static or fixed IP address is obtained for the camera. A
static IP address will ease your access to the camera in the future. Add your camera’s static
IP information to your router to avoid IP conflicts.
MAC Address: Displays the Ethernet MAC address of the camera. The MAC address is
read-only.
NC260 HD Day/Night Wi-Fi Cloud Camera
14
IP Address: Enter a fixed IP address for the camera in dotted-decimal notation.
Subnet Mask: Enter the subnet mask in dotted-decimal notation. The default value is
“0.0.0.0.”
Default Gateway: Enter the default gateway in dotted-decimal notation.
Primary DNS Server: Enter a DNS address in dotted-decimal notation.
Secondary DNS Server: Enter a DNS address in dotted-decimal notation.
Click Save to save and enable the settings.
4.3.3 Basic > Wireless Connection
The camera’s wireless function is enabled by default. This function helps to connect your camera
to a wireless network wirelessly. If you don’t want to use this function, just select the Disable
option.
NC260 HD Day/Night Wi-Fi Cloud Camera
15
Scan: Click to scan the available wireless network. You will get or refresh the Wireless
Network List as shown below.
Wireless Network Name: Displays the wireless network’s name. Make sure the camera and
your PC connect to the same wireless network; otherwise your PC can't access the camera.
Signal: Displays the strength of the wireless signal.
Security: Displays the wireless network’s security mode.
MAC Address: Displays the MAC address of the router.
To connect your camera to a wireless network, follow the steps below:
1. Click Scan to get and refresh the Wireless Network List.
2. Select a wireless network from the wireless network list.
NC260 HD Day/Night Wi-Fi Cloud Camera
16
3. If the wireless network’s security mode is None, simply click Connect. If the security mode
requires a password, enter the wireless network’s password and then click Connect. You can
select show password to display what you’ve entered.
4. A pop-up screen will prompt you for the wireless network modification. Click Change, and
then click OK on the next pop-up screen. The camera will connect to the wireless network that
you have selected.
5. To log into the web management page of the camera, you need to connect your computer to
the router that your camera is connected to. Refer to 4.1 Log in to Your Camera to find the IP
address of your camera and log into the camera again.
4.3.4 Basic > Cloud Setting
A Cloud Camera can be viewed anytime and anywhere over the Internet with TP-LINK Cloud
service. On this page, you can add the camera to your TP-LINK Cloud account.
NC260 HD Day/Night Wi-Fi Cloud Camera
17
Note:
1. You can register a TP-LINK Cloud account in the tpCamera app only. If you do not get the
tpCamera app, please refer to the Step 2 Download and install the tpCamera app in 3.1
Set up the Camera with the tpCamera APP to register a TP-LINK Cloud account.
2. To add a camera to your TP-LINK Cloud account, make sure that the camera is connected to
the Internet.
Add Your Camera to TP-LINK Cloud Account
If you already have a TP-LINK Cloud account, to add your camera to your account, just enter the
TP-LINK Cloud account and password, and then click Register.
Account: Enter your TP-LINK Cloud account. Either E-mail address or username is allowed.
Password: Enter your TP-LINK Cloud account’s password.
Camera Name: The default value is the camera model. You can change it to an
easy-to-remember one. Camera name can contain up to 31 characters. It cannot contain the
following characters: \ / : = & ‘ “ < > { }.
After your camera is registered successfully, you can go to http://www.tplinkcloud.com to view it.
4.3.5 Basic > LED
The camera’s LED is on by default. If you want to turn it off, select Off and click Save.
NC260 HD Day/Night Wi-Fi Cloud Camera
18
4.4 Advanced
Click the Advanced menu to display the submenus including Status, Network, Wireless
Connection, Cloud Setting, Video, Sound Detection, Motion Detection, SD Card,
Notification Delivery and LED.
4.4.1 Advanced > Status
Refer to 4.3.1 Basic > Status.
4.4.2 Advanced > Network
On this page, you can configure the network settings of the camera.
IP Address
On this section, you can configure your camera’s IP address which is used to access and
configure the camera.
NC260 HD Day/Night Wi-Fi Cloud Camera
19
Dynamic IP: Select this option when a DHCP server is installed on the network to issue IP
address assignment. With this setting, the IP address of the camera is assigned automatically.
Fallback IP: If the camera cannot get a dynamic IP address from a DHCP server within
limited tries, the camera will assign a default IP address, 192.168.0.10, by itself as the
Fallback IP address.
Static IP: Select this option when a static or fixed IP address is obtained for the camera. A
static IP address will ease your access to the camera in the future. Add your camera’s static
IP information to your router to avoid IP conflicts.
MAC Address: Displays the Ethernet MAC address of the camera. The MAC address is
read-only.
IP Address: Enter a fixed IP address for the camera in dotted-decimal notation.
Subnet Mask: Enter the subnet mask in dotted-decimal notation. The default value is
“0.0.0.0.”
NC260 HD Day/Night Wi-Fi Cloud Camera
20
Default Gateway: Enter the default gateway in dotted-decimal notation.
Primary DNS Server: Enter a DNS address in dotted-decimal notation.
Secondary DNS Server: Enter a DNS address in dotted-decimal notation.
Fallback IP: If the camera cannot get a valid static IP address, the camera will assign a
default IP address, 192.168.0.10, by itself as the Fallback IP address.

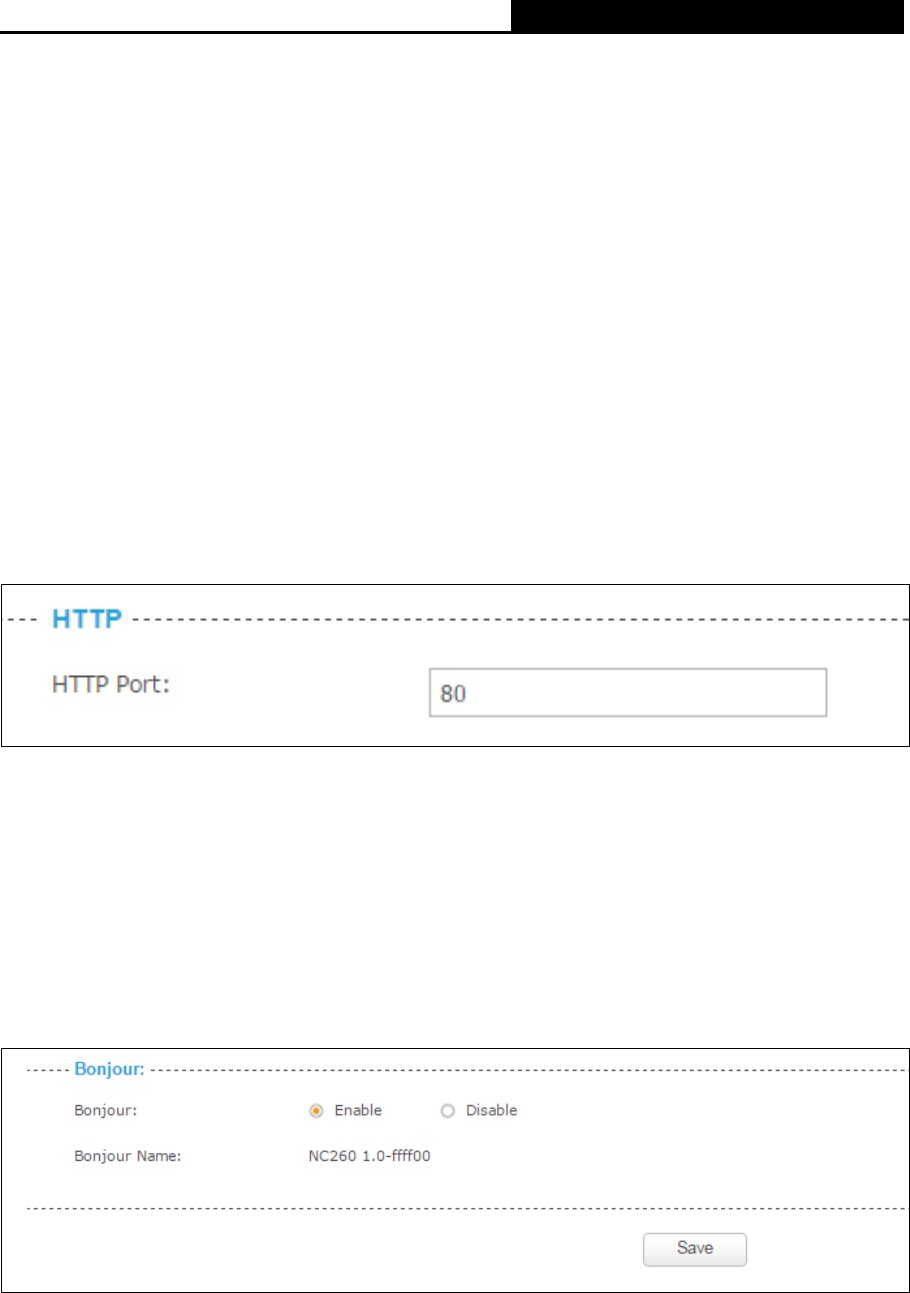

HTTP (Hypertext Transfer Protocol)
This feature allows you to access and manage your camera via its IP address. Web browser
access normally uses the standard HTTP service port 80. The camera uses HTTP port 80 by
default. For greater security, you can change the port to a custom one.
When HTTP port is set to 80, you can access the camera by typing its IP address (for example,
http://192.168.1.100) on a web browser. When HTTP port is set to another value (for example,
2000), you need to enter http://192.168.1.100:2000 instead.
HTTP Port: The default value is 80. If you want to use a port number other than 80, enter a
port number between 1 and 65535.
Bonjour
Bonjour, also known as zero-configuration networking, enables automatic discovery of computers,
devices, and services on IP networks. Bonjour uses industry standard IP protocols to allow
devices to automatically discover each other without the need to enter IP addresses or configure
DNS servers.
Bonjour: To enable or disable the Bonjour service.
NC260 HD Day/Night Wi-Fi Cloud Camera
21
Bonjour Name: Displays the Bonjour name. By default, it is a combination of device name
and the last six characters of the camera’s MAC address.
Click Save to save and enable the settings.
4.4.3 Advanced > Wireless Connection
You can set the wireless connection manually besides the basic settings for wireless connection
(Refer to 4.3.3 Basic > Wireless Connection).
For example, a hidden wireless network does not broadcast its SSID, and you cannot find it from
the Wireless Network List. If you want to connect the camera to a hidden wireless network, you
need to make it manually. Click the Manually button. Then enter the wireless network name,
select the security type and encryption type of the wireless network, enter the password if needed,
and click Connect.
NC260 HD Day/Night Wi-Fi Cloud Camera
23
Coding Format: Displays the video coding format of the camera.
Resolution: Displays the video resolution of the camera. Higher resolution offers better
quality, but will require more bandwidth to stream.
Frame Rate: Select the frame rate to use for the video stream from the drop-down list. Higher
settings offer smoother video streams, but will require more bandwidth.
Mode: Displays the bit rate mode of the camera. This camera uses the VBR (variable bit rate)
mode. In this mode, the bit rate varies to keep consistent video quality. It allows a higher bit
rate (and therefore requires more bandwidth) to be allocated to dynamic scenes while less bit
rate to be allocated to static scenes.
Image Quality: Select the image quality from the drop-down list: High, medium and Low. High
settings offer better quality, but it may require more bandwidth to stream.

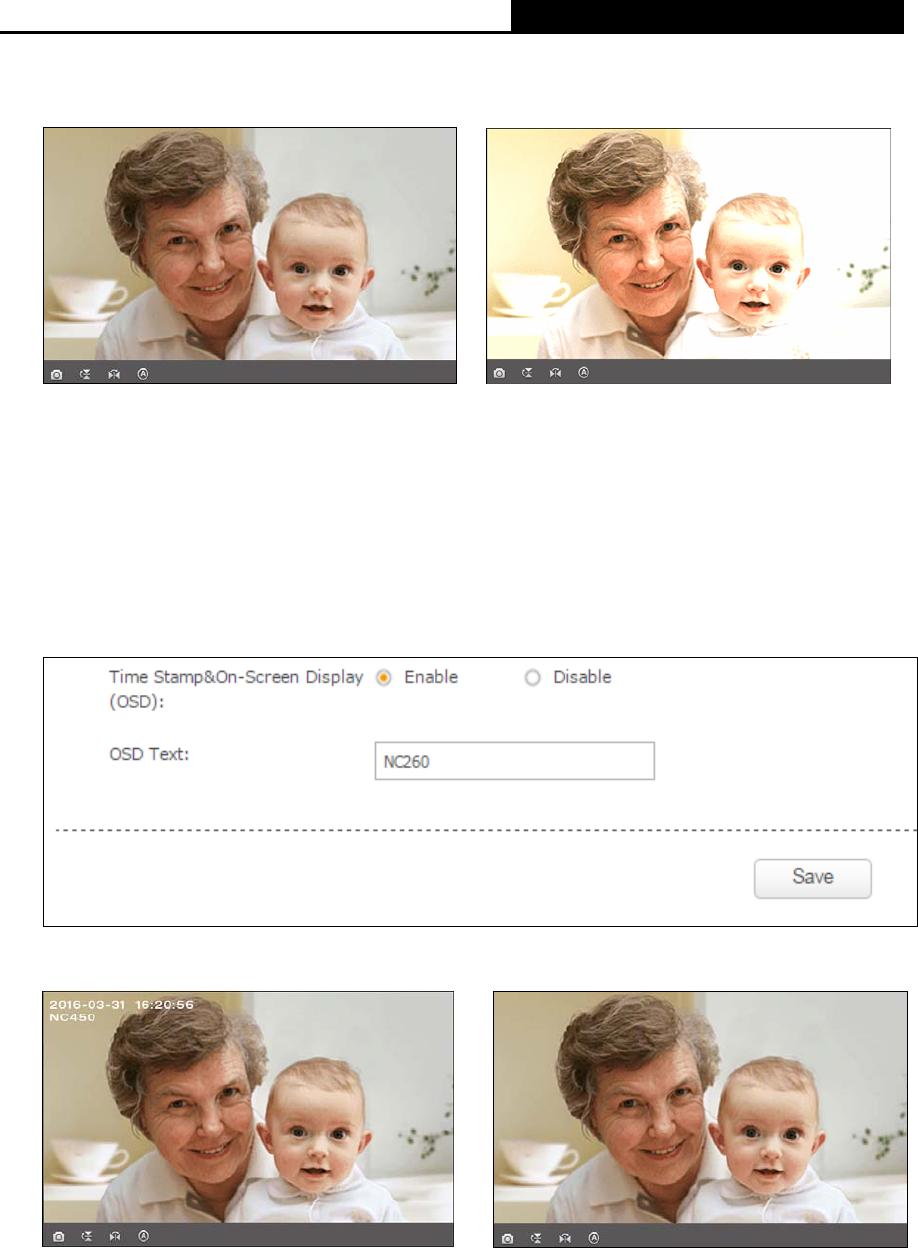

Backlight Compensation: If enabled, this feature will compensate for bright backgrounds so
foreground objects aren't silhouetted.
NC260 HD Day/Night Wi-Fi Cloud Camera
24
Enabled Disabled
Light Frequency: Select the frequency used by your lighting and power to help reduce image
flicker. The default setting is Auto, which is recommended.
Time Stamp&On-Screen Display (OSD): If enabled, the current time of your camera, which
can be set on the System > Date/Time page, will be displayed on the Live View screen.
Meanwhile, you can set the OSD text to be displayed with the time stamp. We use “NC260” as
the OSD text for demonstration here.
Enabled Disabled
Click Save to save and enable the settings.
NC260 HD Day/Night Wi-Fi Cloud Camera
25
4.4.6 Advanced > Sound Detection
Sound detection allows your camera to detect a loud sound, which can be used to trigger
snapshots. Refer to 4.4.9 Advanced > Notification Delivery for more details.
Sound Detection: To enable or disable the sound detection function.
Sensitivity: Specify the level of difference between current sound and the threshold you set.
Select one of the three levels of sensitivity from the drop-down list: High, Medium, and Low.
Threshold: Select the threshold of sound level. You can also drag the arrow in the diagram to
set the threshold. Snapshots will be triggered and sent to FTP server when current sound
exceeds the threshold. And notification messages will be sent to the tpCamera app in your
smartphone.
Click Save to save and enable the settings.
NC260 HD Day/Night Wi-Fi Cloud Camera
26
4.4.7 Advanced > Motion Detection
Motion detection allows you to specify areas and sensitivity of your camera’s video to monitor for
motion, which can be used to trigger snapshots. Refer to 4.4.9 Advanced > Notification Delivery for
more details.
Motion Detection: To enable or disable the motion detection function. The area with blue
mask indicates that it is the area with motion detection on. All areas are selected by default.
You can drag your mouse to draw specific areas that you want to monitor.
Sensitivity: Select one of the three levels of sensitivity from the drop-down list: High, Medium,
and Low. Snapshots will be triggered and sent to FTP when the motion meets the level of
sensitivity. And notification messages will be sent to the tpCamera app in your smartphone.
Click Save to save and enable the settings.
NC260 HD Day/Night Wi-Fi Cloud Camera
27
4.4.8 Advanced > SD Card
SD Card function allows you to save snapshots and videos in your SD card. The SD card is not
provided, and you need to insert a micro SD card into the SD card slot on the back of the camera.
After inserting a micro SD card, go to Advanced > Sound Detection or Advanced > Motion
Detection to set the detections according to your needs. Then when an event occurs, the
corresponding snapshot and video will be saved in the micro SD card automatically.
Note:
If the micro SD card capacity is insufficient, it will overwriting the oldest data.
Back: Click to go back to the previous path of the folder.
Type: Displays the type of the file or folder, such as the photo, video, and file.
Name: Displays the name of the file or folder.
Size: Displays the size of the file.
Total Items: Displays the number of the files in the folder.
Date: Displays the recording time of the file or folder.
The micro SD card capacity is displayed at the bottom of the table.
4.4.9 Advanced > Notification Delivery
Notification Delivery settings are available only after the motion detection or sound detection
function is enabled. It is used to inform you immediately by sending the snapshots triggered by a
detected motion or sound to the specified FTP server.
NC260 HD Day/Night Wi-Fi Cloud Camera
28
Select FTP, you can configure your camera to send snapshots to a specified FTP server on the
following screen:
FTP Server/ Port: Enter the IP or the domain (IP/domain without prefix ftp://) and the port of
the FTP server that you will be connecting to. The port is 21 by default.
Note:
The FTP server you set and the camera should be in the same LAN.
Username: Enter the username that is used to log in to your FTP server.
Password: Enter the password that is used to log in to your FTP server.
Path: Enter the path to the destination on the FTP server.
NC260 HD Day/Night Wi-Fi Cloud Camera
29
Passive Mode: Enabling passive mode may help you reach your FTP server if your camera is
behind a router protected by a firewall.
To set up a FTP to receive notification, follow the steps below:
1. Enter an IP address or domain of your FTP server, e.g. 192.168.1.168
2. Remain the FTP port number as the default value: 21.
3. Enter your username to log in to the FTP server, e.g. test.
4. Enter your password to log in to the FTP server.
5. Enter the path to the destination on the FTP server, e.g. /test
6. Enable Passive Mode.
7. Click Save to save and enable the settings.
Click Test, and a test JPEG snapshot will be sent to the specified FTP server to check whether
your settings are correct.
If the settings are tested correct, click OK.
NC260 HD Day/Night Wi-Fi Cloud Camera
30
If the settings are tested incorrect, check your network and FTP settings and try again later.
4.4.10 Advanced > LED
Refer to 4.3.5 Basic > LED.
4.5 System
Click the System menu to display the submenus including Account, Date/Time, Management,
and System Log.
4.5.1 Account
On this page, you can change the administrator’s password and manage the user account(s) that
are allowed to access to your camera.
User Name: Displays the name of the user account.
User Group: Displays the group that the user account is in. Different user group has different
limits of authority.
admin: This group has all authority of configuration. It can only have one account: admin.
user: This group can only view the Live View. It can have up to five accounts.
NC260 HD Day/Night Wi-Fi Cloud Camera
31
Add a New User Account
You can create a new user account to provide viewing access for your camera’s video. User
accounts will only be able to access the Live View section of the web configuration page, but
cannot access any other parts or change any settings.
To add a new user account, follow the steps below:
1. Click Add, and you will see the following screen.
2. Enter a username for your new account.
3. Enter a password for your new account. The password should contain 5 to 20 characters.
4. Enter the password again to confirm it.
5. Click Save to save and enable the settings.
Change Password
You can change the password of all the accounts here.
Note:
The default account and password are both admin. Everyone who knows the camera’s IP address
can access the device with all configuration authority. It is necessary to change the default
password if the device is intended to be accessed only by administrator.
NC260 HD Day/Night Wi-Fi Cloud Camera
32
To change password, follow the steps below:
1. Select a user account in the list whose password you want to change
2. Click Change Password, and you will see the following screen.
3. Enter the current password in the Old Password textbox.
4. Enter a new password.
5. Enter the new password again to confirm it.
6. Click Save to save and enable the settings.
Delete a User Account
You can delete a user account except admin here. Click a user entry in the list and click Delete.
4.5.2 Date/Time
On this page, you can configure the settings of the internal system clocks for your camera.
NC260 HD Day/Night Wi-Fi Cloud Camera
33
Current Time: Displays the current date and time of the camera.
Time Zone: Select the time zone for the region where the camera is installed from the
drop-down list.
Synchronize With NTP Server: Select this option to specify the NTP server name to
synchronize the date and time of the camera with those of the time server, known as the NTP
(Network Time Protocol) server.
NTP Service: You can either enter a domain name of the NTP server or select one which
will be filled in automatically from the drop-down list.
Set NTP Server from Dynamic IP: You can use the NTP server applied in the DHCP
server on the network.
Set Date and Time Manually: Select this option to set the date and time of the camera
manually. If enabled, you will see the following screen:
NC260 HD Day/Night Wi-Fi Cloud Camera
34
Copy Your Computer’s Time Settings: Click this button to copy your computer’s current
time settings.
Click Save to save and enable the settings.
4.5.3 Management
On this page, you can reboot the camera, backup and restore the camera’s current settings, reset
factory settings, and update the camera’s software.
NC260 HD Day/Night Wi-Fi Cloud Camera
35
Reboot: Click Reboot and then click Reboot on the pop-up screen to confirm. The reboot will
not change the camera’s setting. After rebooting, you need to log in to this page again.
Backup: Click Backup and follow the instructions on the browser to save the setting data file
to your specified location.
Browse: Click Browse to locate the saved backup file.
Restore: Click Restore, and then the camera will start rebooting. The settings will be restored
to the previous configuration.
Reset: Click Reset to restore the camera to its factory defaults. Don't turn off the camera
while resetting. After resetting, you need to add the camera to your TP-LINK Cloud account
again, find out the IP address of your camera (refer to 4.1 Log in to Your Camera), and then
use the default username and password (admin/admin) to log in to this web management
page.
Browse: Click Browse to locate the saved upgrade file.
Upgrade: Before update, download the latest firmware from the product page at
http://www.tp-link.com, and then use decompression software to extract the file. Click Browse
and select the downloaded firmware upgrade file. Then click Upgrade to update the camera’s
software to the latest version. Wait for the upgrading process to complete, and the camera will
reboot automatically.
NC260 HD Day/Night Wi-Fi Cloud Camera
36
Note:
The firmware upgrade procedure must not be interrupted, or the camera may be damaged. When
upgrading firmware, do not unplug the camera or your computer, or close the web management
page until the process is complete.
4.5.4 System Log
On this page, you can review any changes and events happened to your camera. The system
starts logging automatically after startup.
Time: Displays the time when the log event occurs. The log can get the correct time after you
configure on the Date/Time page. (Go to Advanced > Date/Time)
Module: Displays the module to which the log information belongs. You can specify the
module by selecting one from the Module drop-down list at the bottom.
Level: Displays the severity level of the log information. You can specify the level by selecting
one from the Level drop-down list at the bottom.
Content: Displays the details of the log information.
Refresh: Click Refresh to refresh the log information.
Save Log: You may be asked to use this function when contacting our technical support for
troubleshooting.
Clear: Click Clear to clear all the log information.
NC260 HD Day/Night Wi-Fi Cloud Camera
37
Log Control: You may be asked to use this function when contacting our technical support for
troubleshooting.
38
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. is a registered trademark of
TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or
registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from TP-LINK
TECHNOLOGIES CO., LTD. Copyright © 2016 TP-LINK TECHNOLOGIES CO., LTD. All rights
reserved.
http://www.tp-link.com
39
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not in-stalled and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment. Such modifications could void the user’s authority to operate the
equipment.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This device and its antenna must not be co-located or operating in conjunction with
any other antenna or transmitter.
40
“To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile
Configurations. The antennas used for this transmitter must be installed to provide a separation
distance of at least 20 cm from all persons and must not be co-located or operating in conjunction
with any other antenna or transmitter.”
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference, in
which case the user may be required to take adequate measures.
Adapter shall be installed near the equipment and shall be easily accessible.
Caution
Please make sure the temperature for adapter will be from 0 ˚C to 40 ˚C.
RF Exposure Information
This device meets the EU requirements (1999/5/EC Article 3.1a) on the limitation of exposure of
the general public to electromagnetic fields by way of health protection.
The device complies with RF specifications when the device used at 20 cm from your body.
Canadian Compliance Statement
This device complies with Industry Canada license-exempt RSSs. Operation is subject to the
following two conditions:
1） This device may not cause interference, and
2） This device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
1） l’appareil ne doit pas produire de brouillage;
2） l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, meme si le
brouillage est susceptible d’en compromettre le fonctionnement.
41
This radio transmitter (IC: 8853A-NC260/ Model: NC260) has been approved by Industry Canada
to operate with the antenna types listed below with the maximum permissible gain indicated.
Antenna types not included in this list (Appendix A), having a gain greater than the maximum gain
indicated for that type, are strictly prohibited for use with this device.
Le présent émetteur radio (IC: 8853A-NC260/ Model: NC260) a été approuvé par Industrie
Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain
admissible maximal. Les types d'antenne non inclus dans cette liste (Annexe A), et dont le gain est
supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20
cm de distance entre la source de rayonnement et votre corps.
Industry Canada Statement
CAN ICES-3 (B)/NMB-3(B)
Korea Warning Statements:
당해 무선설비는 운용중 전파혼신 가능성이 있음.
NCC Notice
注意！
依據 低功率電波輻射性電機管理辦法
第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、
加大功率或變更原設計之特性或功能。
第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通行；經發現有干擾現象時，應立即
停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信規定作業之無線電信。低功率射
頻電機需忍受合法通信或工業、科學以及醫療用電波輻射性電機設備之干擾。
42
BSMI Notice
安全諮詢及注意事項
請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。
清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。
注意防潮，請勿將水或其他液體潑灑到本產品上。
插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。
請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。
請不要私自打開機殼，不要嘗試自行維修本產品，請由授權的專業人士進行此項工作。
Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам
нормативних документів та вимогам, що передбачені чинними законодавчими актами
України.
Safety Information
When product has power button, the power button is one of the way to shut off the product;
when there is no power button, the only way to completely shut off power is to disconnect the
product or the power adapter from the power source.
Don’t disassemble the product, or make repairs yourself. You run the risk of electric shock and
voiding the limited warranty. If you need service, please contact us.
Avoid water and wet locations.
Adapter shall be installed near the equipment and shall be easily accessible.
The plug considered as disconnect device of adapter.
Use only power supplies which are provided by manufacturer and in the original
packing of this product. If you have any questions, please don't hesitate to contact us.
43
Explanation of the symbols on the product label
Symbol Explanation
DC voltage
RECYCLING
This product bears the selective sorting symbol for Waste electrical and electronic
equipment (WEEE). This means that this product must be handled pursuant to
European directive 2012/19/EU in order to be recycled or dismantled to minimize its
impact on the environment.
User has the choice to give his product to a competent recycling organization or to
the retailer when he buys a new electrical or electronic equipment.
