User Manual
Archer T4UH
AC1200 High Gain Wireless Dual Band USB Adapter
REV1.0.0
1910011097
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. is a registered trademark of
TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or
registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make
any derivative such as translation, transformation, or adaptation without permission from
TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2014 TP-LINK TECHNOLOGIES CO., LTD.
All rights reserved.
http://www.tp-link.com
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1） This device may not cause harmful interference.
2） This device must accept any interference received, including interference that may
cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s authority
to operate the equipment.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF
exposure compliance. This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter. SAR measurements are based on a 10mm spacing from the
body and that compliance is achieved at that distance.This device is restricted to indoor use
only
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference,
in which case the user may be required to take adequate measures.
National Restrictions
This device is intended for home and office use in all EU countries (and other countries
following the EU directive 1999/5/EC) without any limitation except for the countries mentioned
below:
Country Restriction Reason/remark
Bulgaria None General authorization required for outdoor use and
public service
France
Outdoor use limited to
10 mW e.i.r.p. within
the band 2454-2483.5
MHz
Military Radiolocation use. Refarming of the 2.4 GHz
band has been ongoing in recent years to allow current
relaxed regulation. Full implementation planned 2012
Italy None If used outside of own premises, general authorization is
required
Luxembourg None General authorization required for network and service
supply(not for spectrum)
Norway Implemented
This subsection does not apply for the geographical area
within a radius of 20 km from the centre of Ny-Ålesund
Russian Federation None Only for indoor applications
Note: Please don’t use the product outdoors in France.
Canadian Compliance Statement
This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions:
(1) This device may not cause interference, and
(2)This device must accept any interference, including interference that may cause undesired
operation of the device.
Cet appareil est conforme aux norms CNR exemptes de licence d’Industrie Canada. Le
fonctionnement est soumis aux deux conditions suivantes:
(1) cet appareil ne doit pas provoquer d’interférences et
(2) cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer un
fonctionnement non souhaité de l’appareil.
This device has been designed to operate with the antennas listed below, It can’t be
disassembled. The required antenna impedance is 50 ohms.
To reduce potential radio interference to other users, the antenna type and its gain should be so
chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted
for successful communication.
Industry Canada Statement
Complies with the Canadian ICES-003 Class B specifications.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
This device complies with RSS 210 of Industry Canada. This Class B device meets all the
requirements of the Canadian interference-causing equipment regulations.
Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
Korea Warning Statements
당해 무선설비는 운용중 전파혼신 가능성이 있음.
NCC Notice & BSMI Notice
注意！
依據 率電波輻射性電機管理辦法
第條 經型式認證合格之率射頻電機，非經許可，公司商號或使用者均不得擅自變更頻
率大率或變更原設計之特性或能
第四條 率射頻電機之使用不得影響飛航安及干擾合法通行經發現有干擾現象時，應立
即停用，並改善至無干擾時方得繼續使用前項合法通信，指依電信規定作業之無線電信
率射頻電機需忍受合法通信或工業科學以及醫療用電波輻射性電機設備之干擾
減少電磁波影響，請妥適使用
於5.25GHz 至5.35GHz 域操作之無線設備的警告聲明
工作頻率 5.250~5.350GHz 該頻段限於室使用
安諮詢及注意項
●請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品
●清潔本產品之前請先拔電源線請勿使用液體噴霧清潔劑或濕布進行清潔
●注意防潮，請勿水或其他液體潑灑到本產品上
●插槽與開口供通風使用，以確保本產品的操作可靠並防過熱，請勿堵塞或覆蓋開口
●請勿本產品置放於靠近熱源的地方除非有常的通風，否則不可放在密閉置中
●請不要私自打開機殼，不要嘗試自行維修本產品，請由權的業人士進行項工作
УЕ ь
, щ ч ч ч
У.
Safety Information
When product has power button, the power button is one of the way to shut off the product;
when there is no power button, the only way to completely shut off power is to disconnect the
product or the power adapter from the power source.
Don’t disassemble the product, or make repairs yourself. You run the risk of electric shock
and voiding the limited warranty. If you need service, please contact us.
Avoid water and wet locations.
This product can be used in the following countries:
AT BG BY CA CZ DE DK EE
ES FI FR GB GR HU IE IT
LT LV MT NL NO PL PT RO
RU SE SK TR UA US
TP-LINK TECHNOLOGIES CO., LTD
TP-LINK TECHNOLOGIES CO., LTD.
Building 24 (floors 1, 3, 4, 5), and 28 (floors 1-4) Central Science and Technology Park,
Shennan Rd, Nanshan, Shenzhen, China
DECLARATION OF CONFORMITY
For the following equipment:
Product Description: AC1200 High Gain Wireless Dual Band USB Adapter
Model No.: Archer T4UH
Trademark: TP-LINK
We declare under our own responsibility that the above products satisfy all the technical
regulations applicable to the product within the scope of Council Directives:
Directives 1999/5/EC, Directives 2006/95/EC, Directives 1999/519/EC, Directives 2011/65/EU
The above product is in conformity with the following standards or other normative documents:
EN 300 328 V1.8.1
EN 301 489-1 V1.9.2 & EN 301 489-17 V2.2.1
EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011
EN 50566: 2013/AC:2014
EN 301 893 V1.7.1
The product carries the CE Mark:
Person responsible for making this declaration:
Yang Hongliang
Product Manager of International Business
Date of issue: 2014
CONTENTS
Package Contents .................................................................................................... 0
Chapter 1Product Overview ................................................................................. 1
1.1Introduction ............................................................................................................. 1
1.2Features .................................................................................................................. 1
1.3Hardware Overview ................................................................................................. 1
Chapter 2Installation ............................................................................................. 2
2.1Hardware Installation .............................................................................................. 2

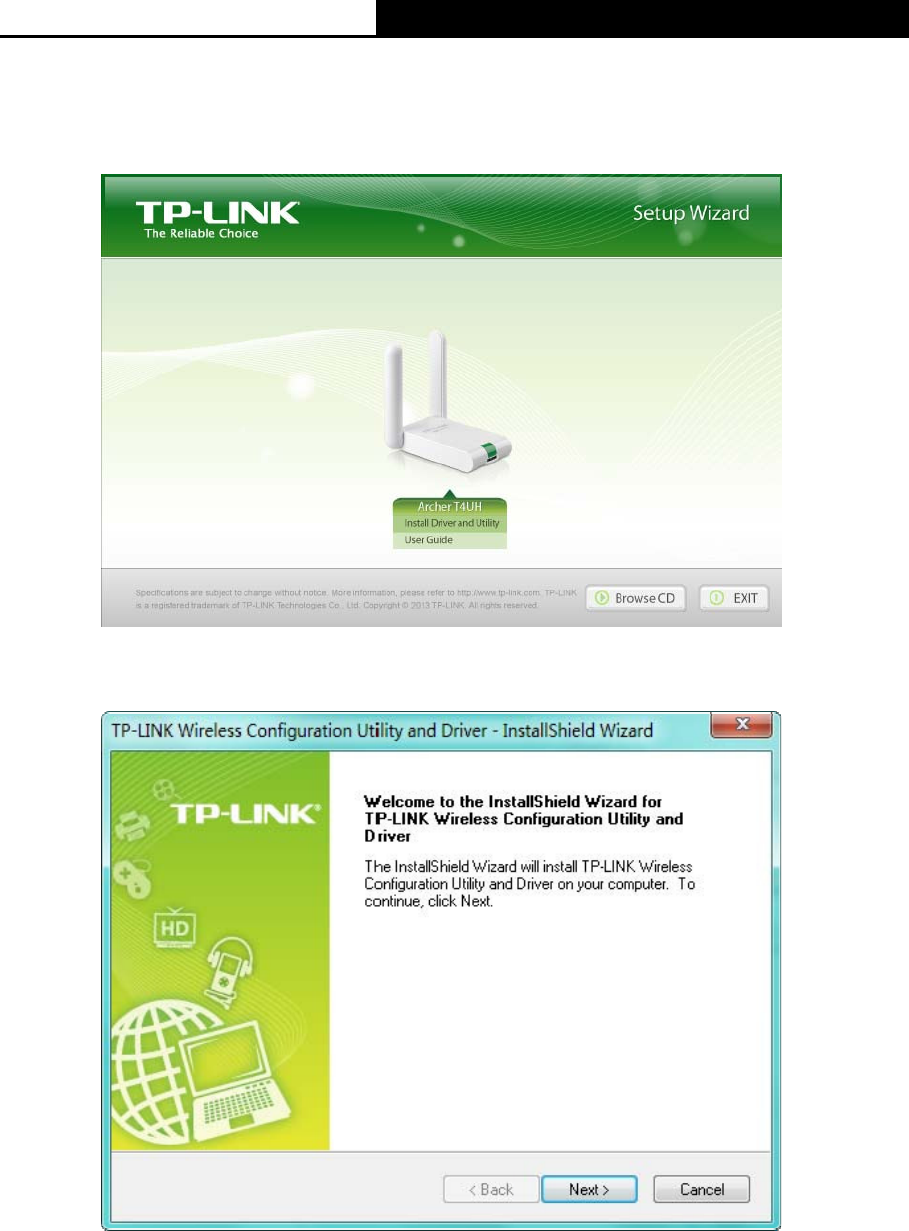

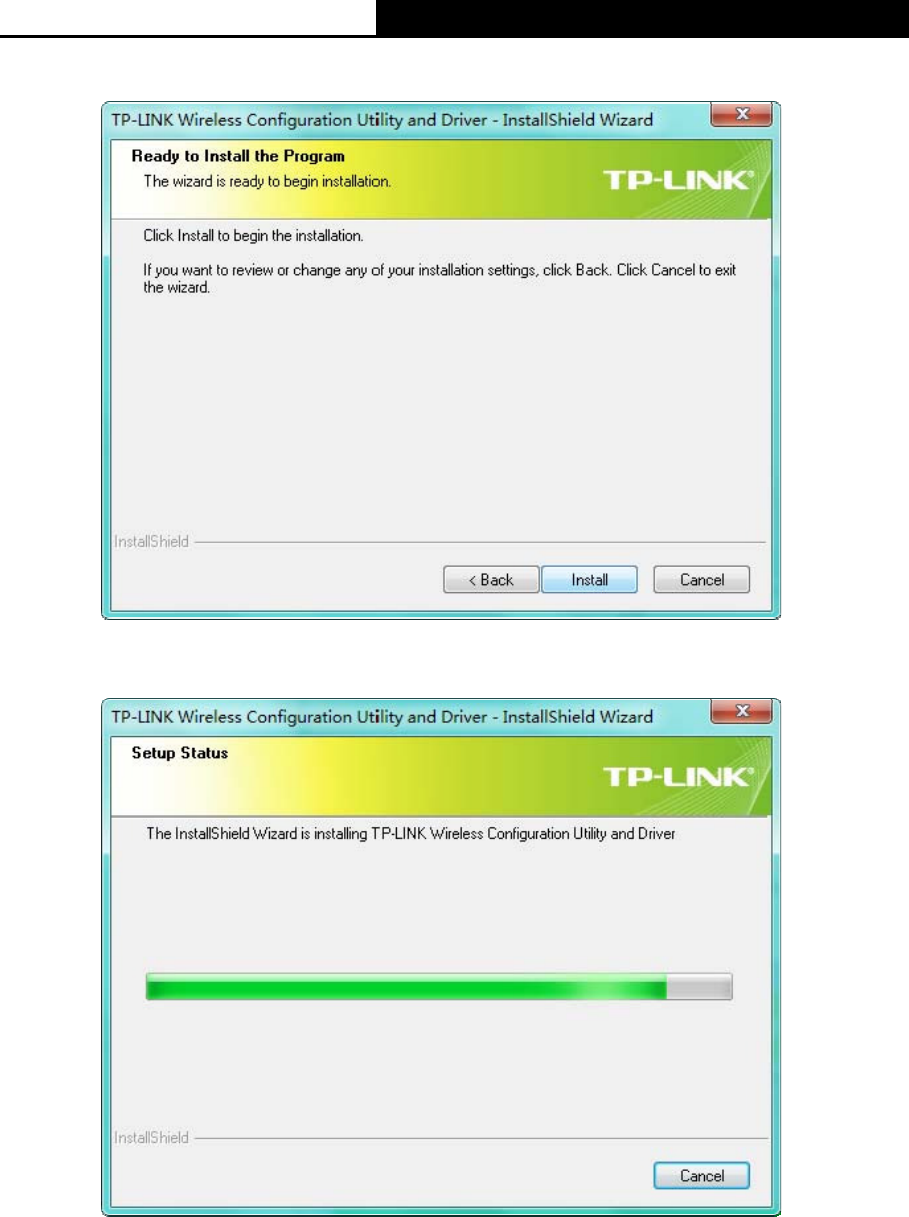

2.2Software Installation ................................................................................................ 2
Chapter 3Connect to a Wireless Network ........................................................... 7

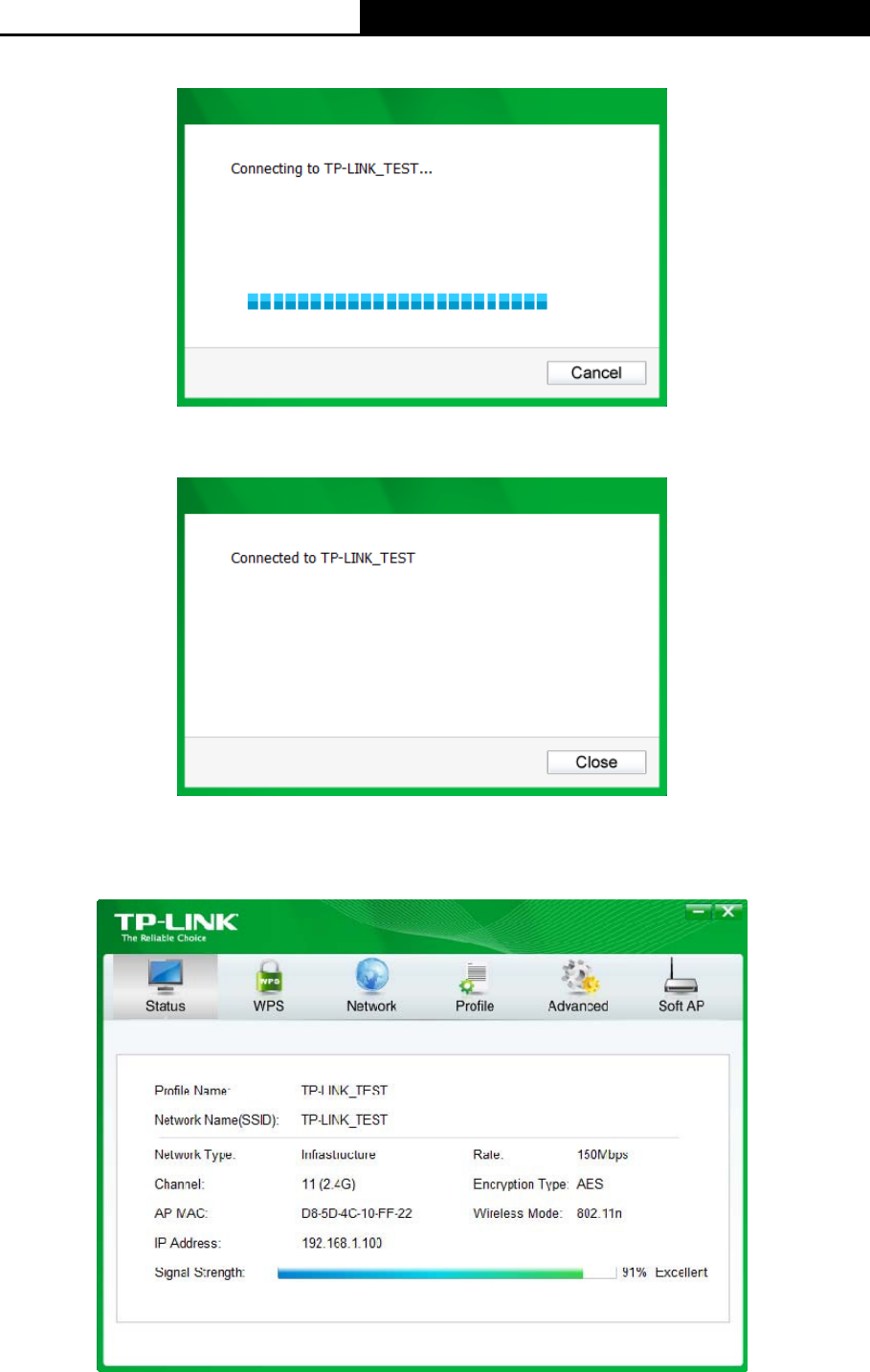

3.1To connect using TWCU ......................................................................................... 7

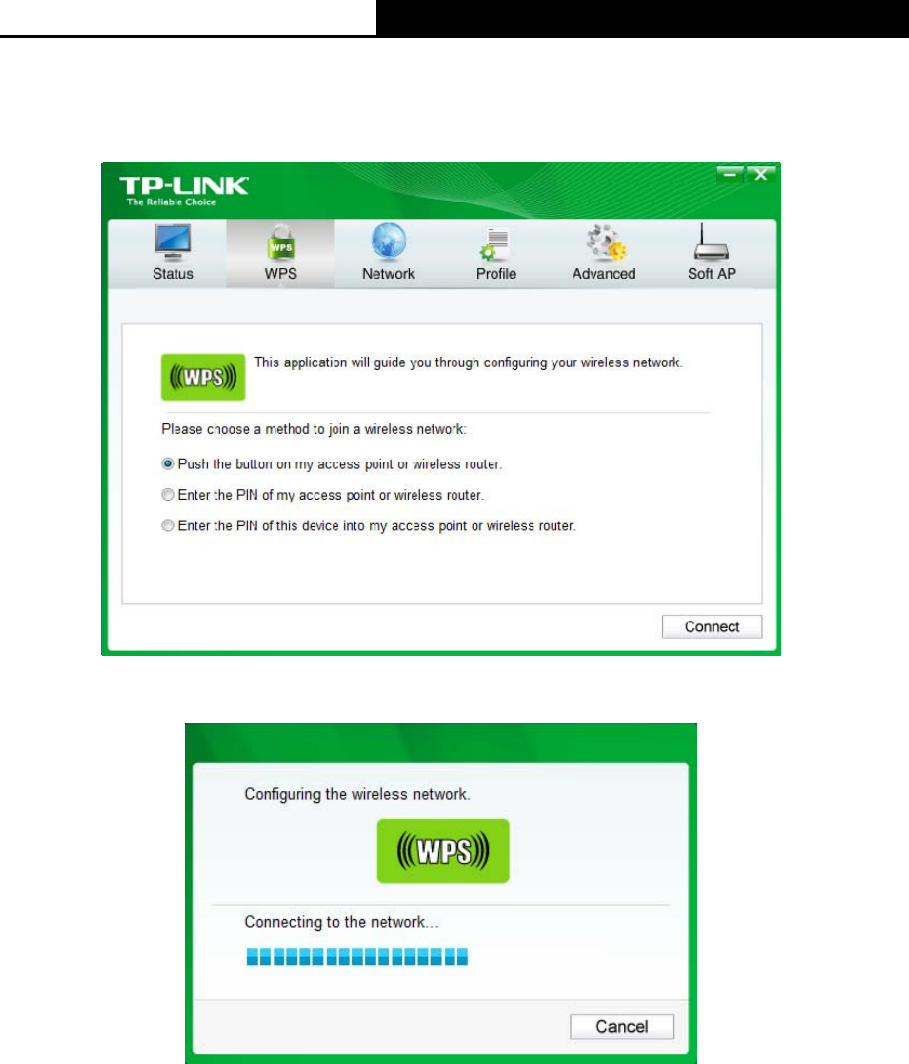

3.2To connect using WPS .......................................................................................... 11
3.2.1PBC (Push Button Configuration) method ................................................ 11
3.2.2PIN method .............................................................................................. 13
3.3To connect using Windows built-in wireless utility ................................................. 15

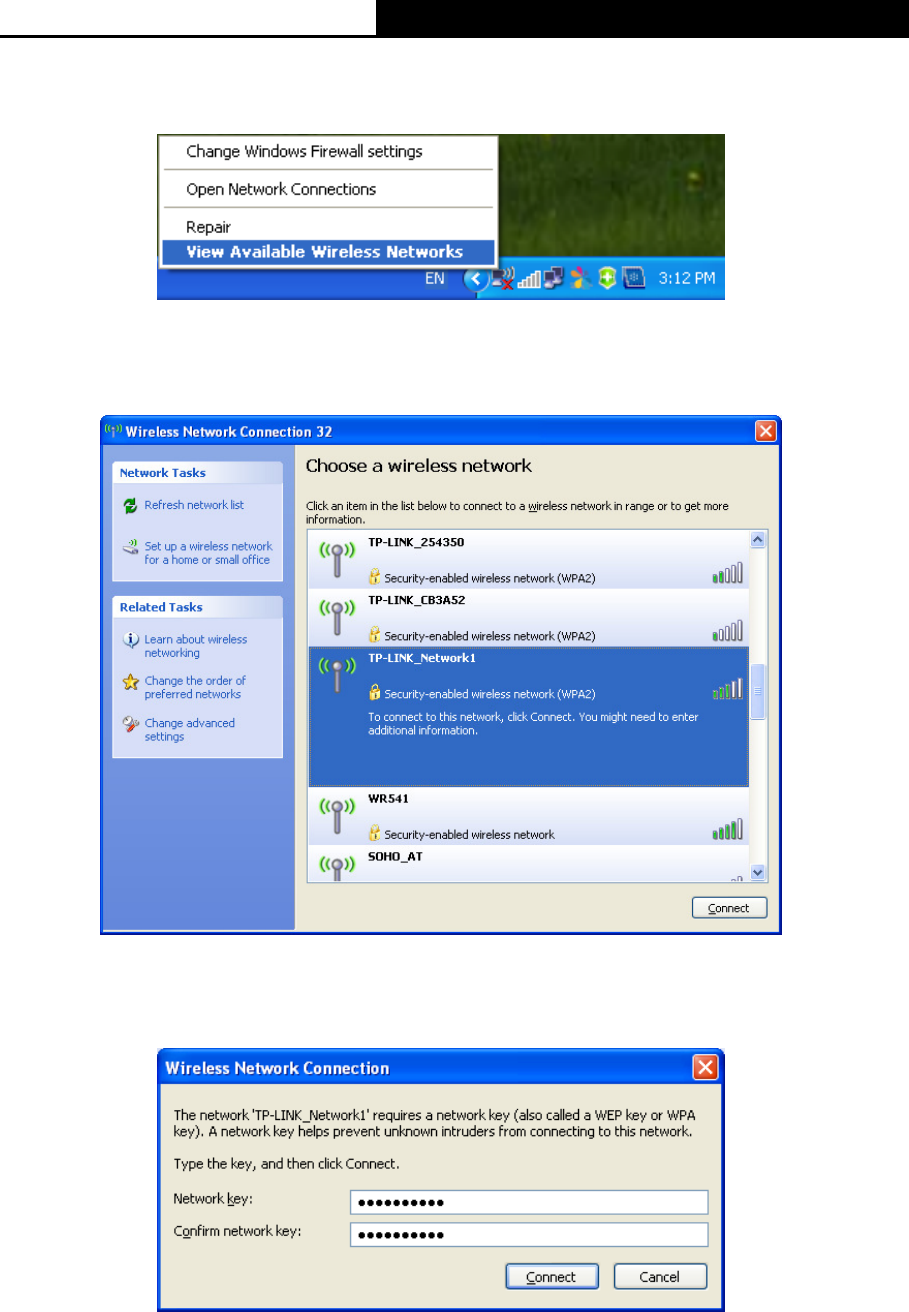

3.3.1In Windows XP ......................................................................................... 15

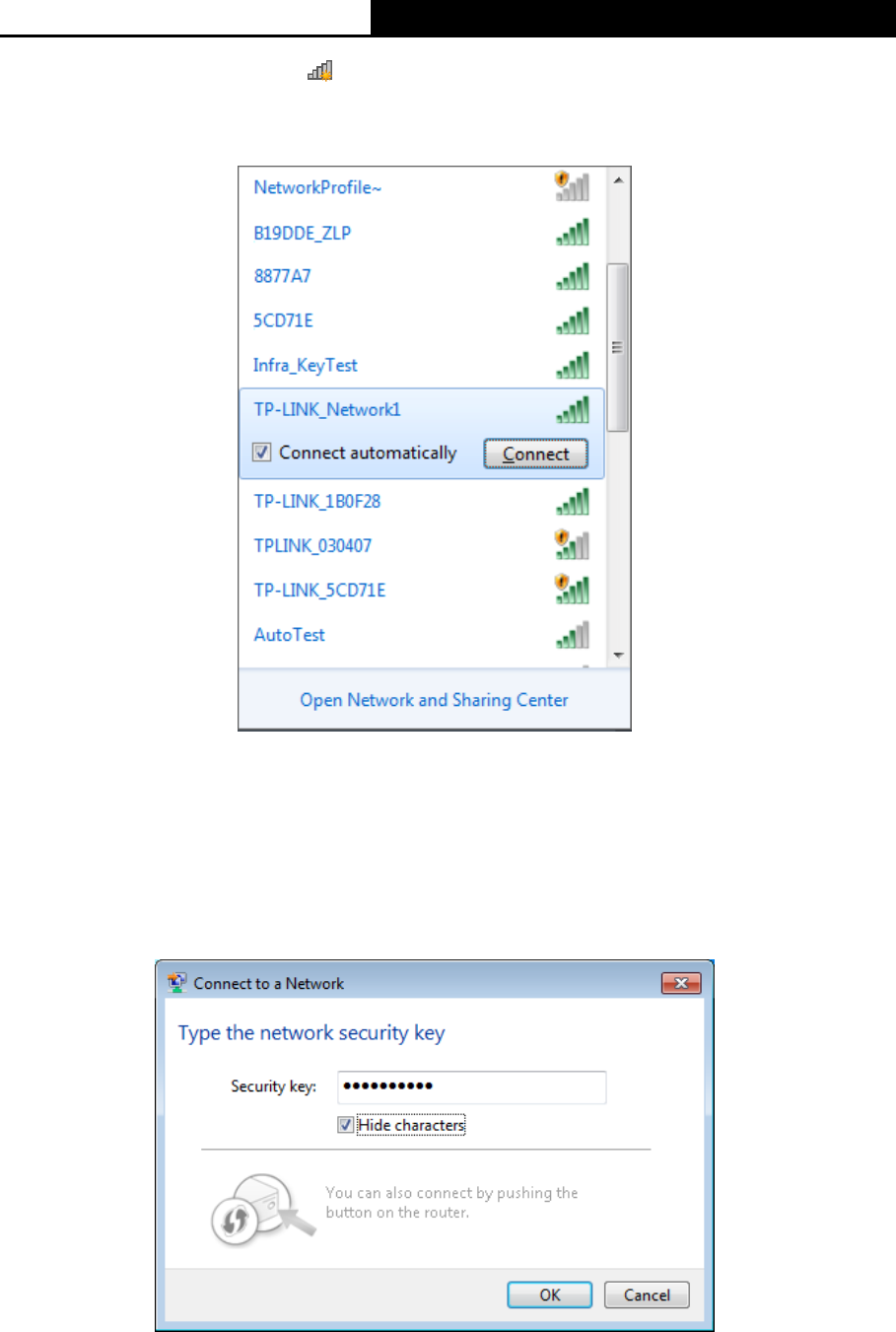

3.3.2In Windows 7 ............................................................................................ 17

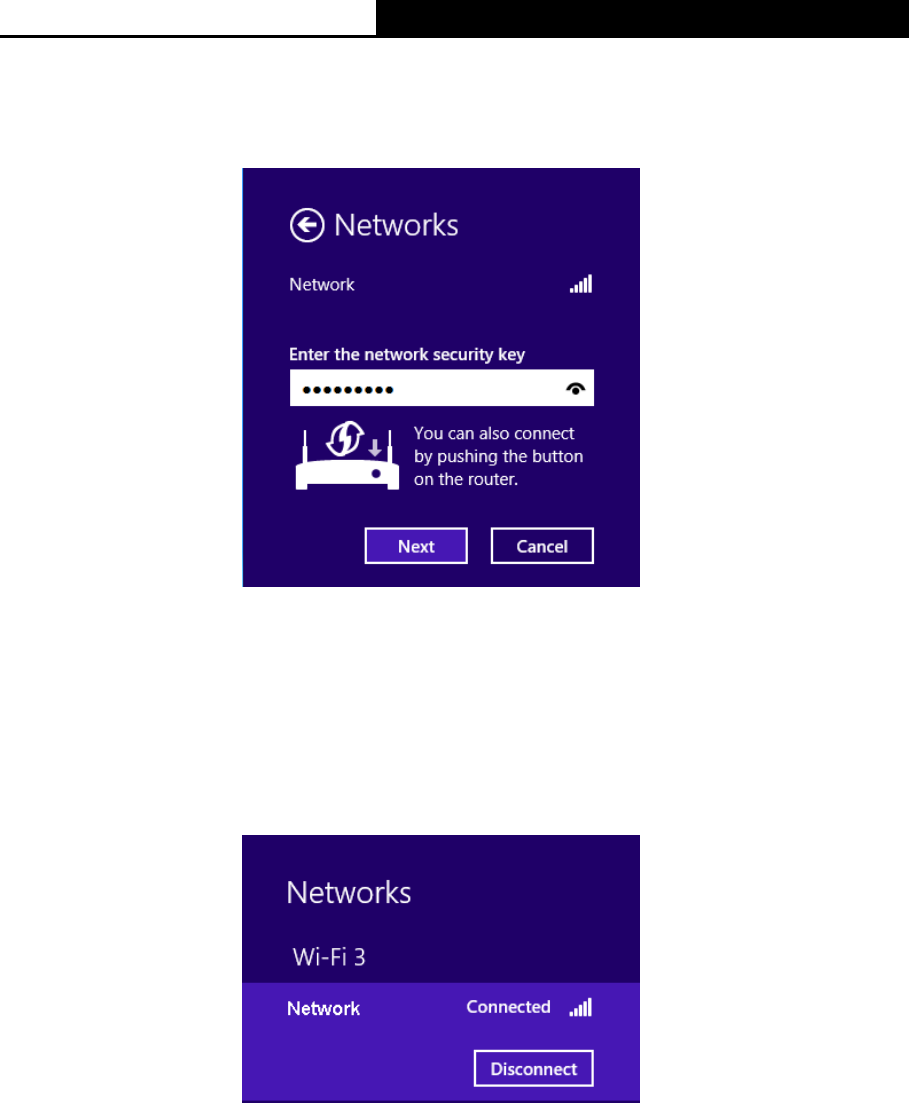

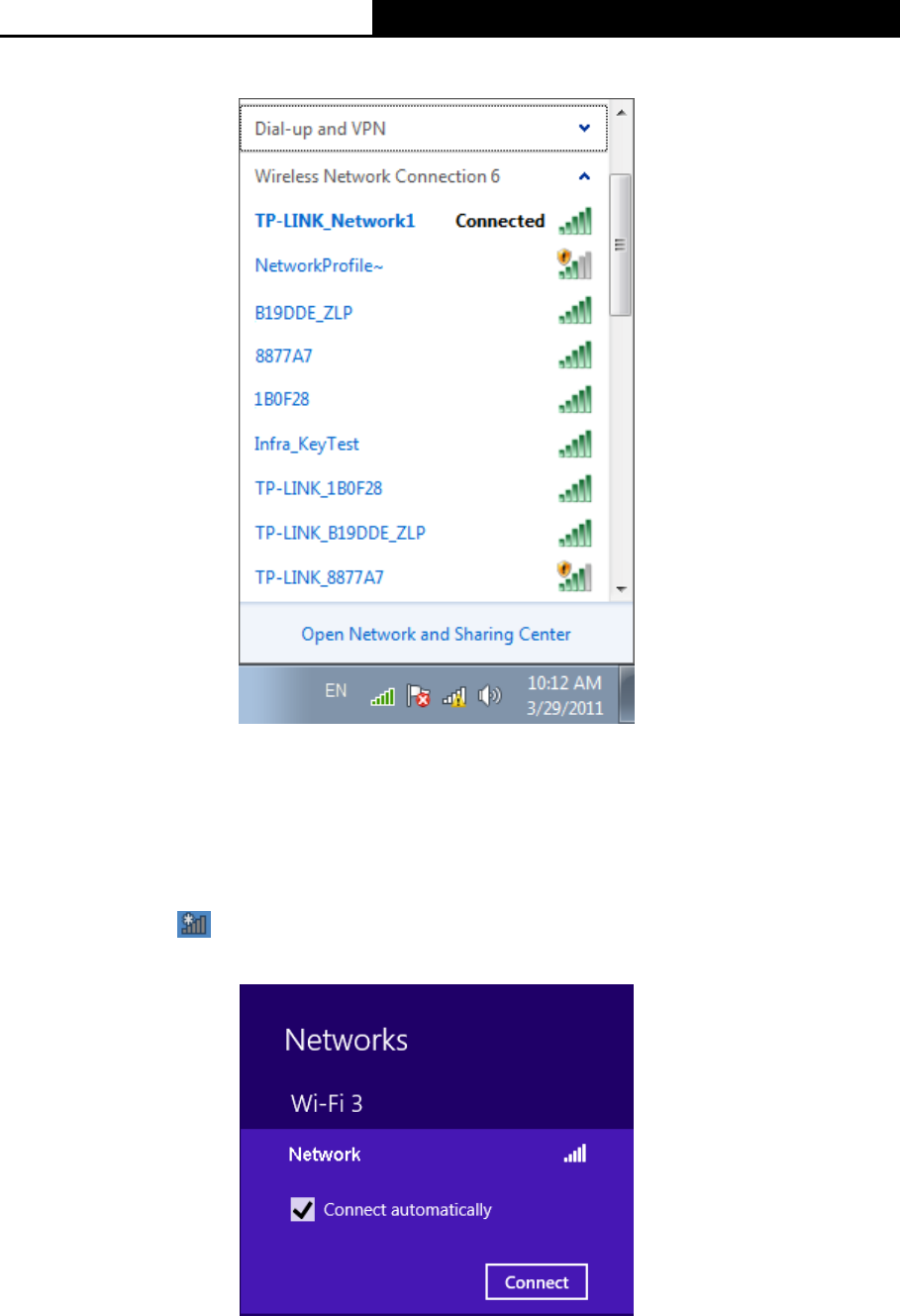

3.3.3In Windows 8/8.1 ...................................................................................... 19
Chapter 4Management ........................................................................................ 22

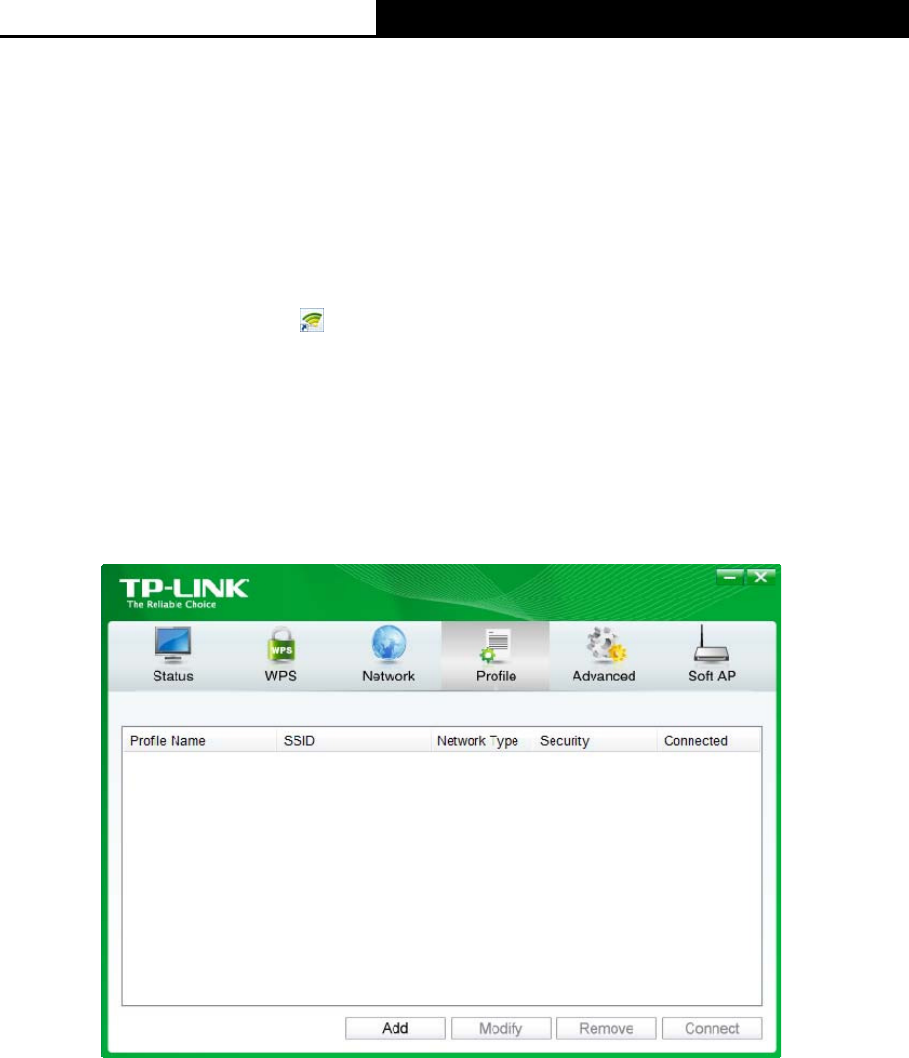

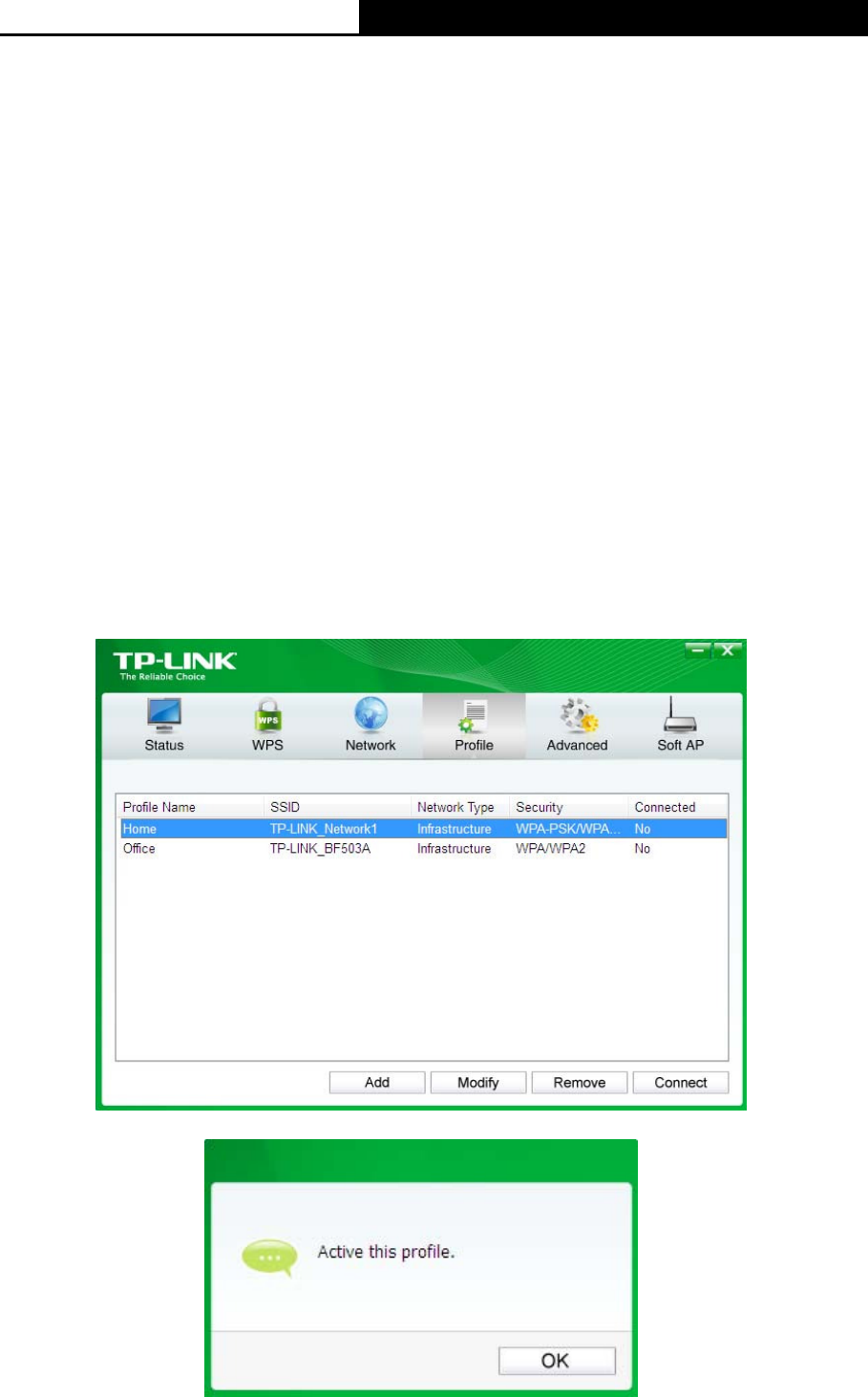

4.1Profile .................................................................................................................... 22

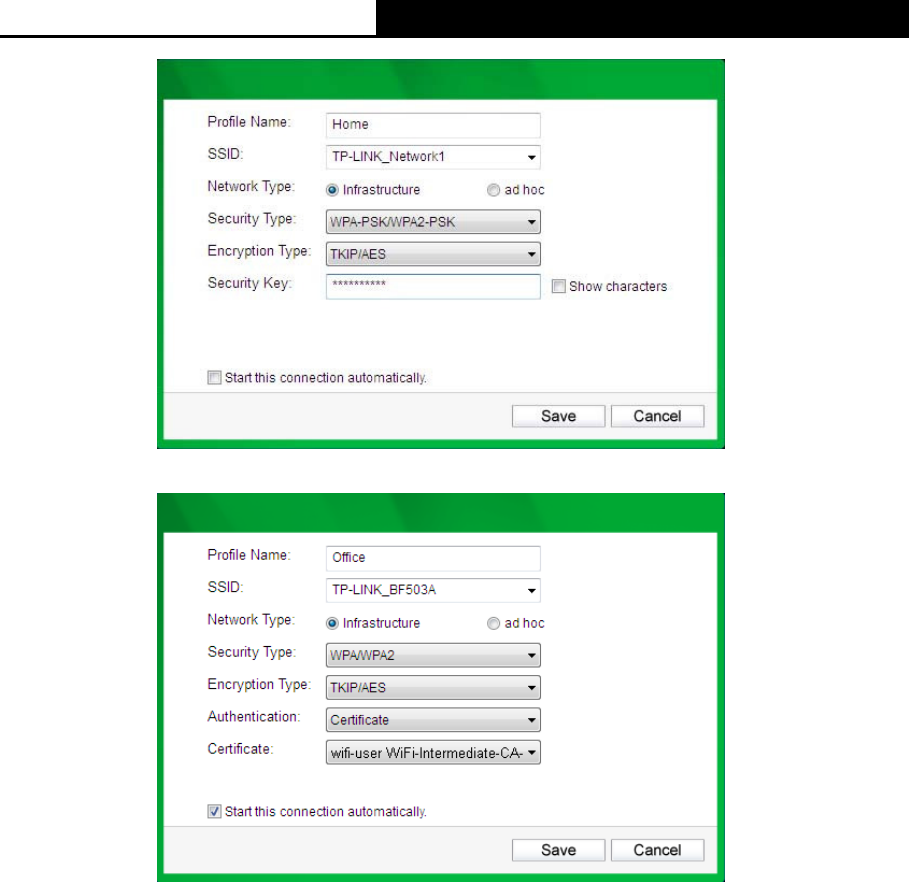

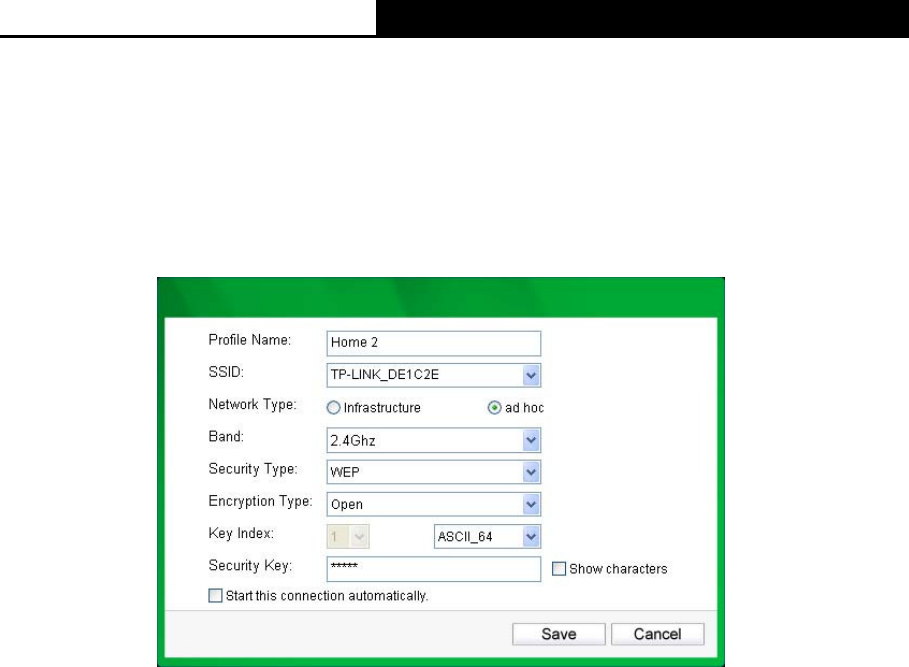

4.1.1Add a profile ............................................................................................. 22

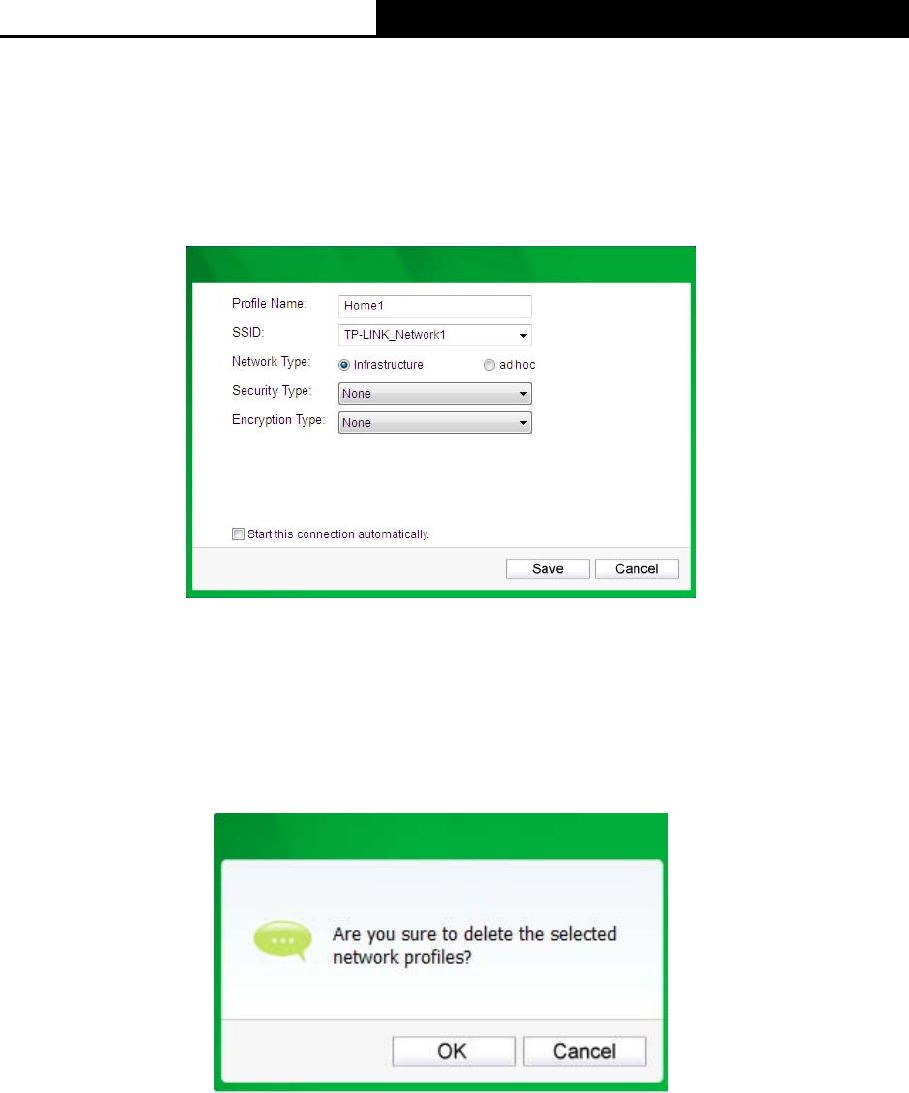

4.1.2Modify a profile ......................................................................................... 27
4.1.3Delete a profile ......................................................................................... 27

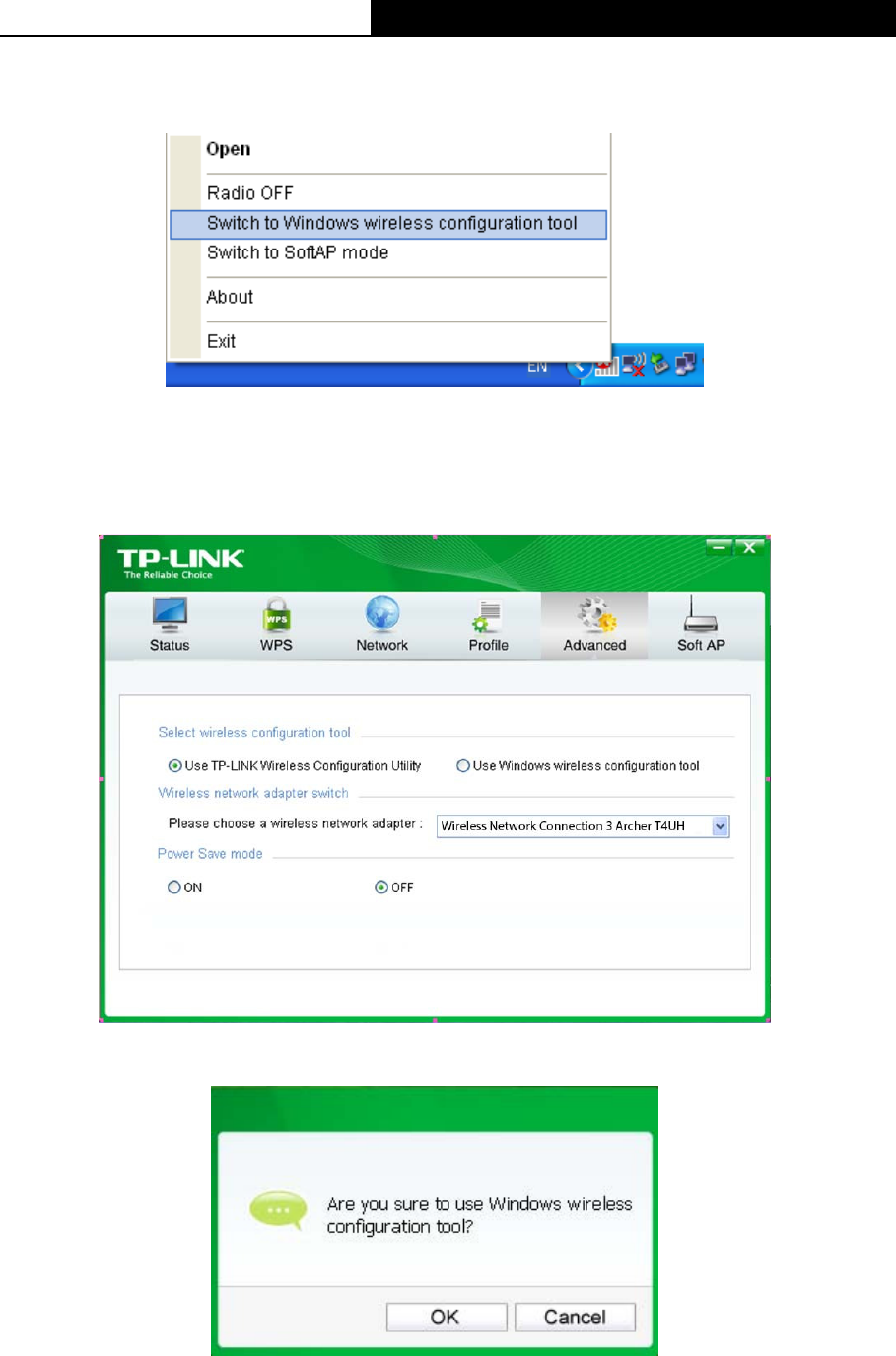

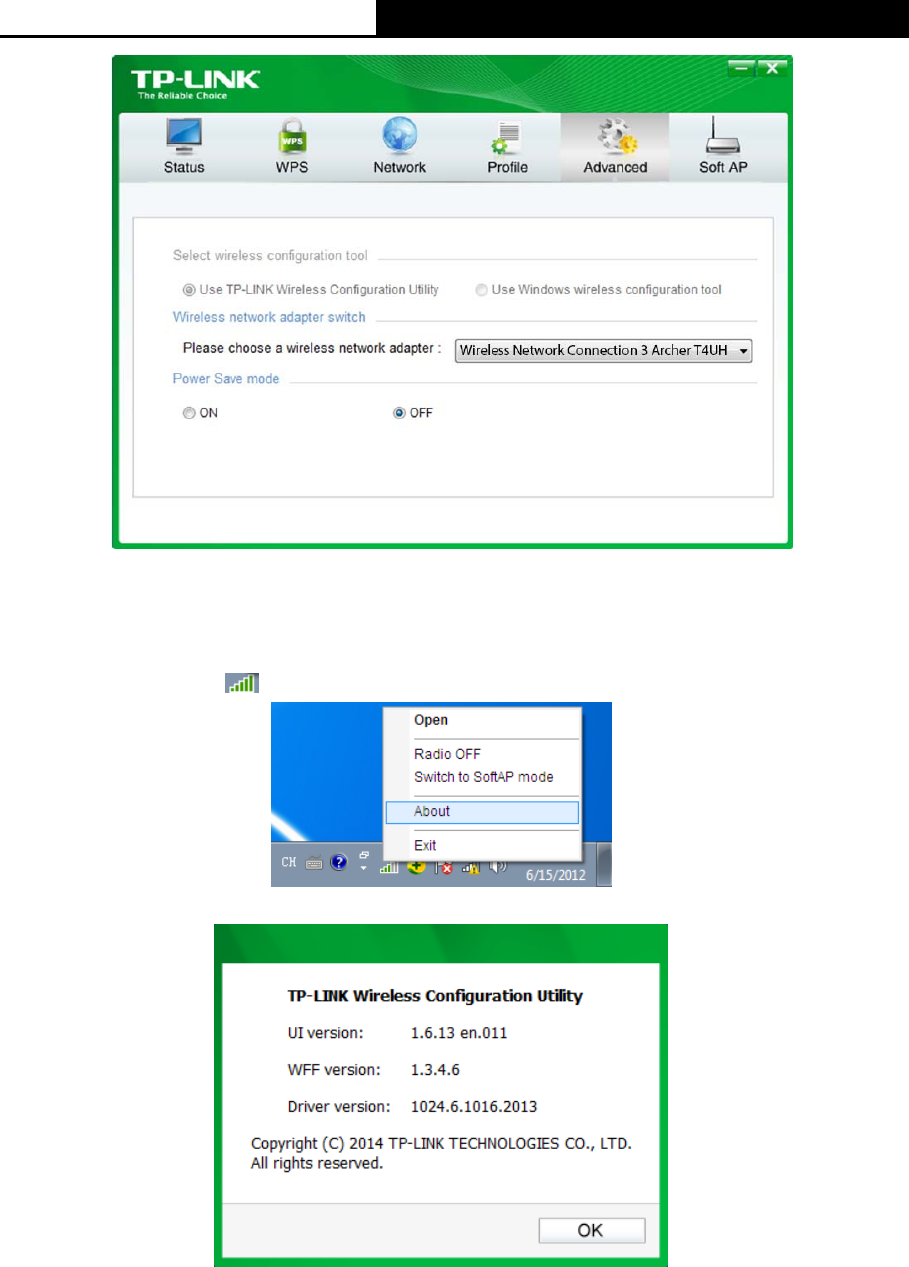

4.2Advanced .............................................................................................................. 27
4.3About ..................................................................................................................... 28

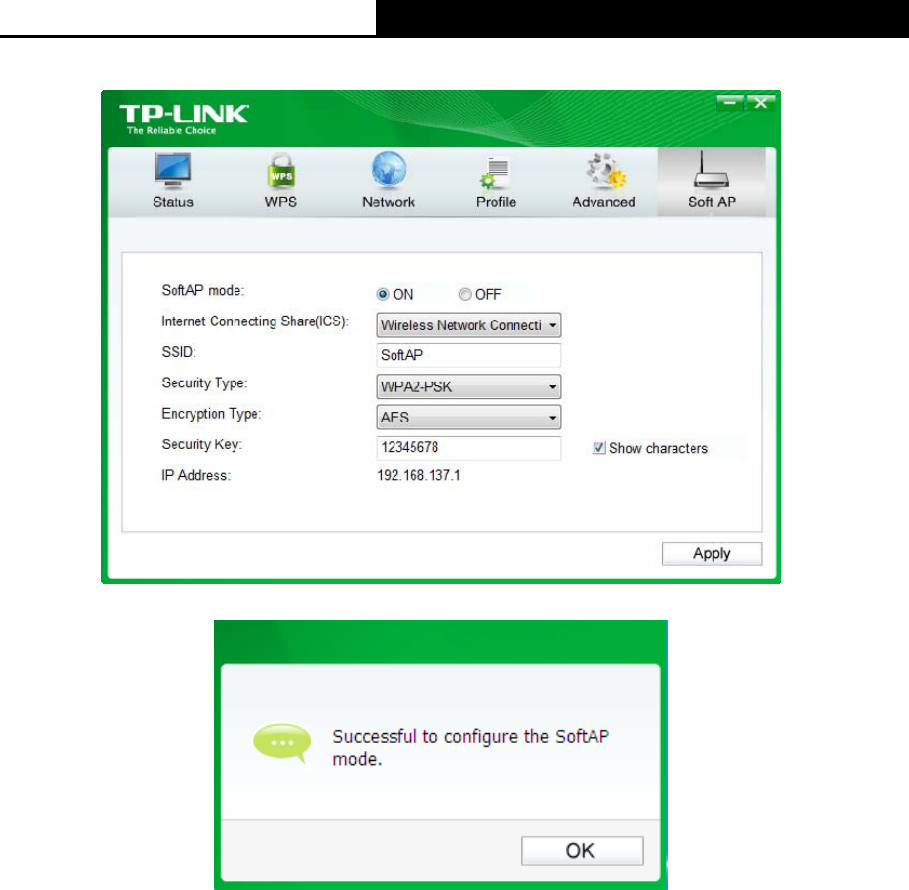

Chapter 5AP Mode .............................................................................................. 29

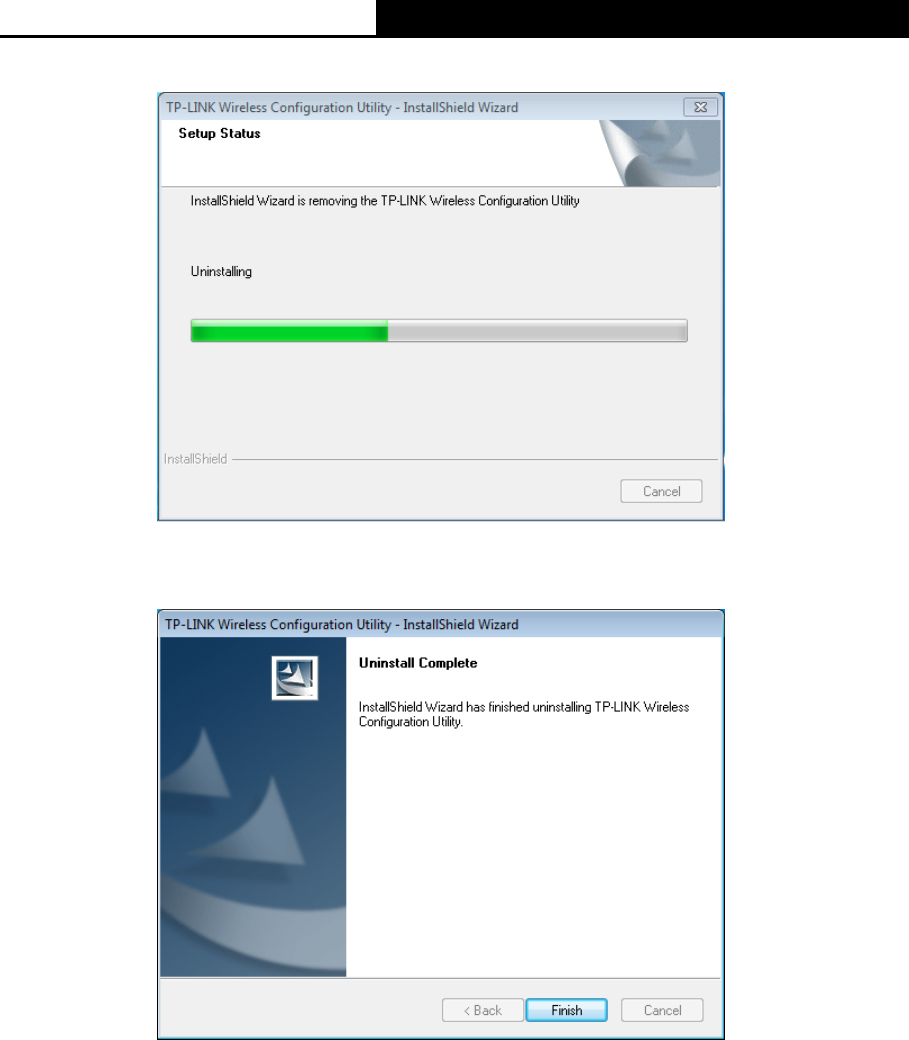

Chapter 6Uninstall Software ............................................................................... 32

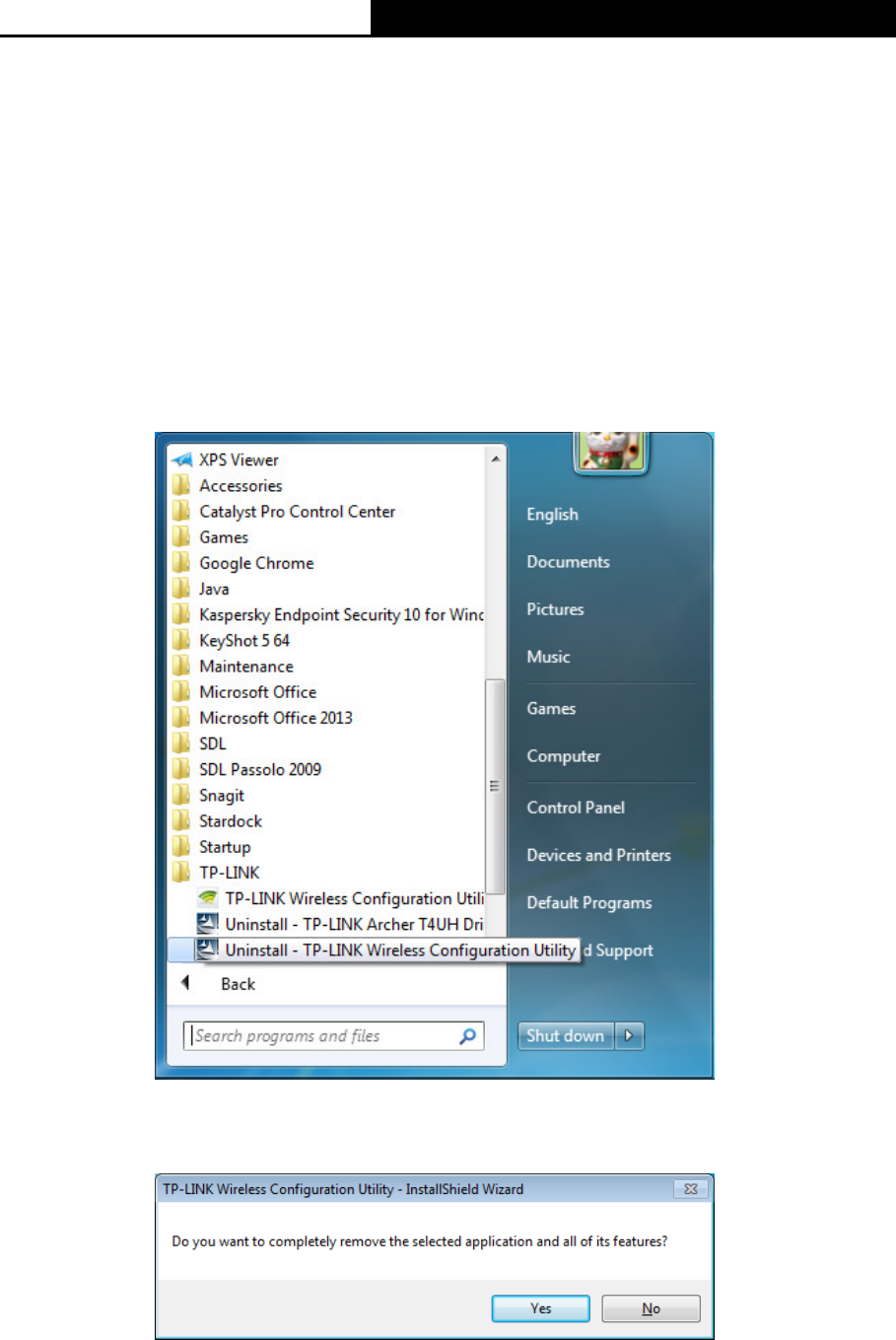

6.1In Windows XP/7 ................................................................................................... 32

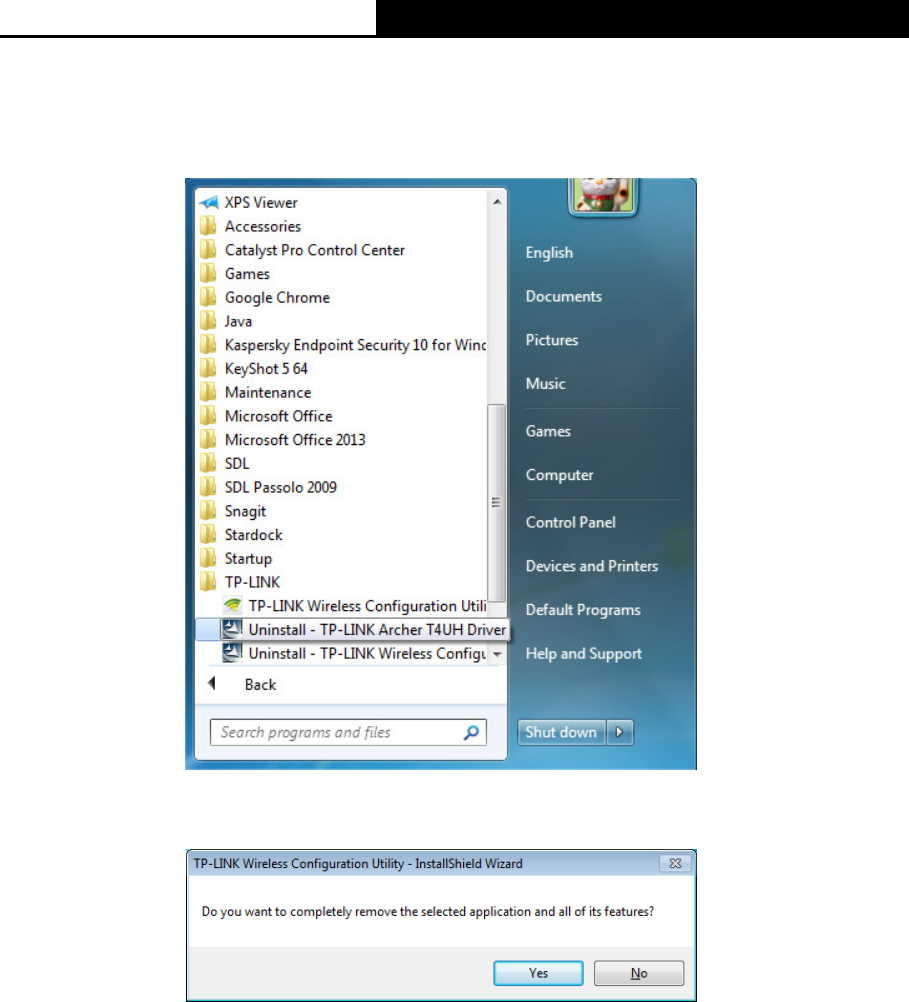

6.1.1Uninstall the utility software from your PC ................................................ 32
6.1.2Uninstall the driver software from your PC ............................................... 34

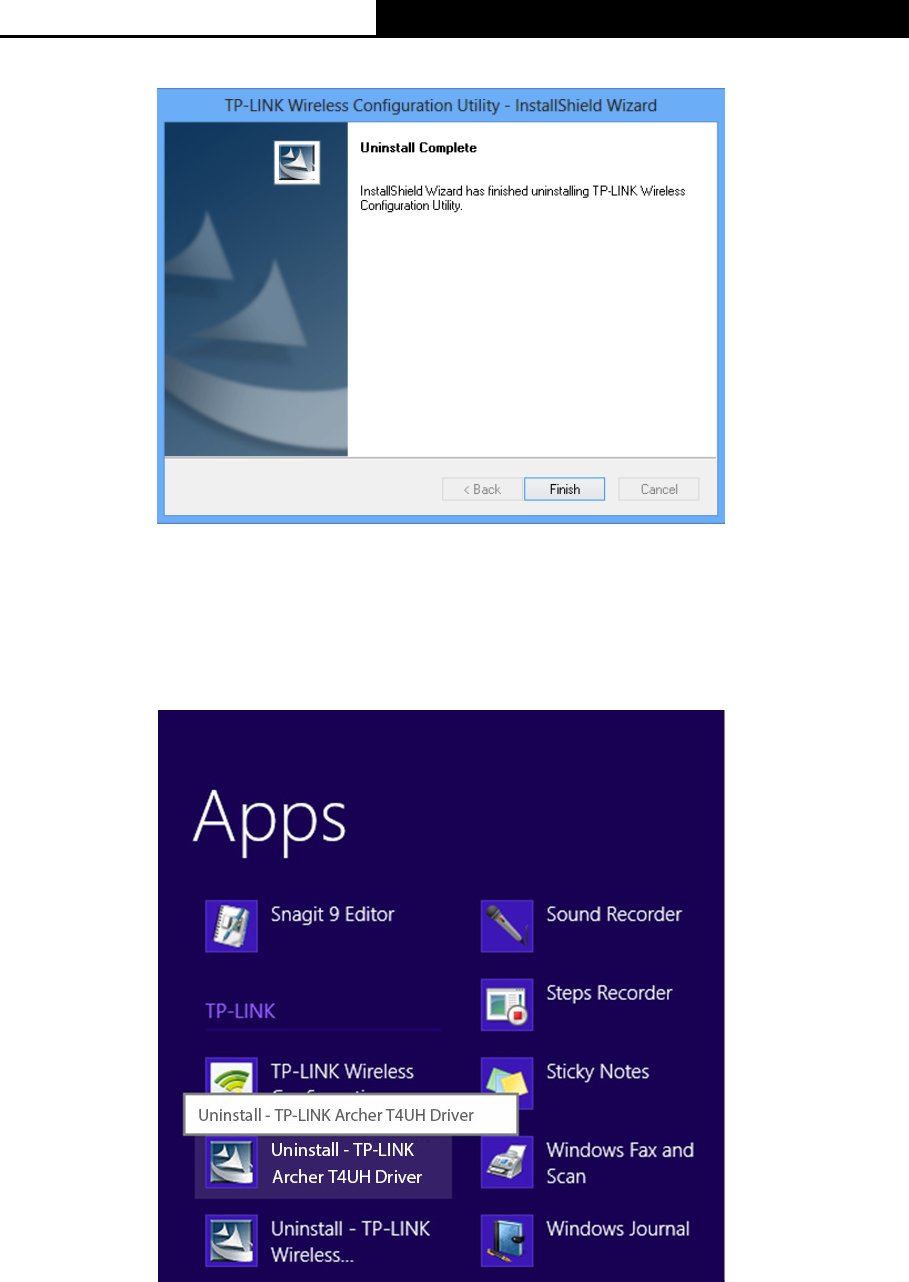

6.2In Windows 8/8.1 ................................................................................................... 35

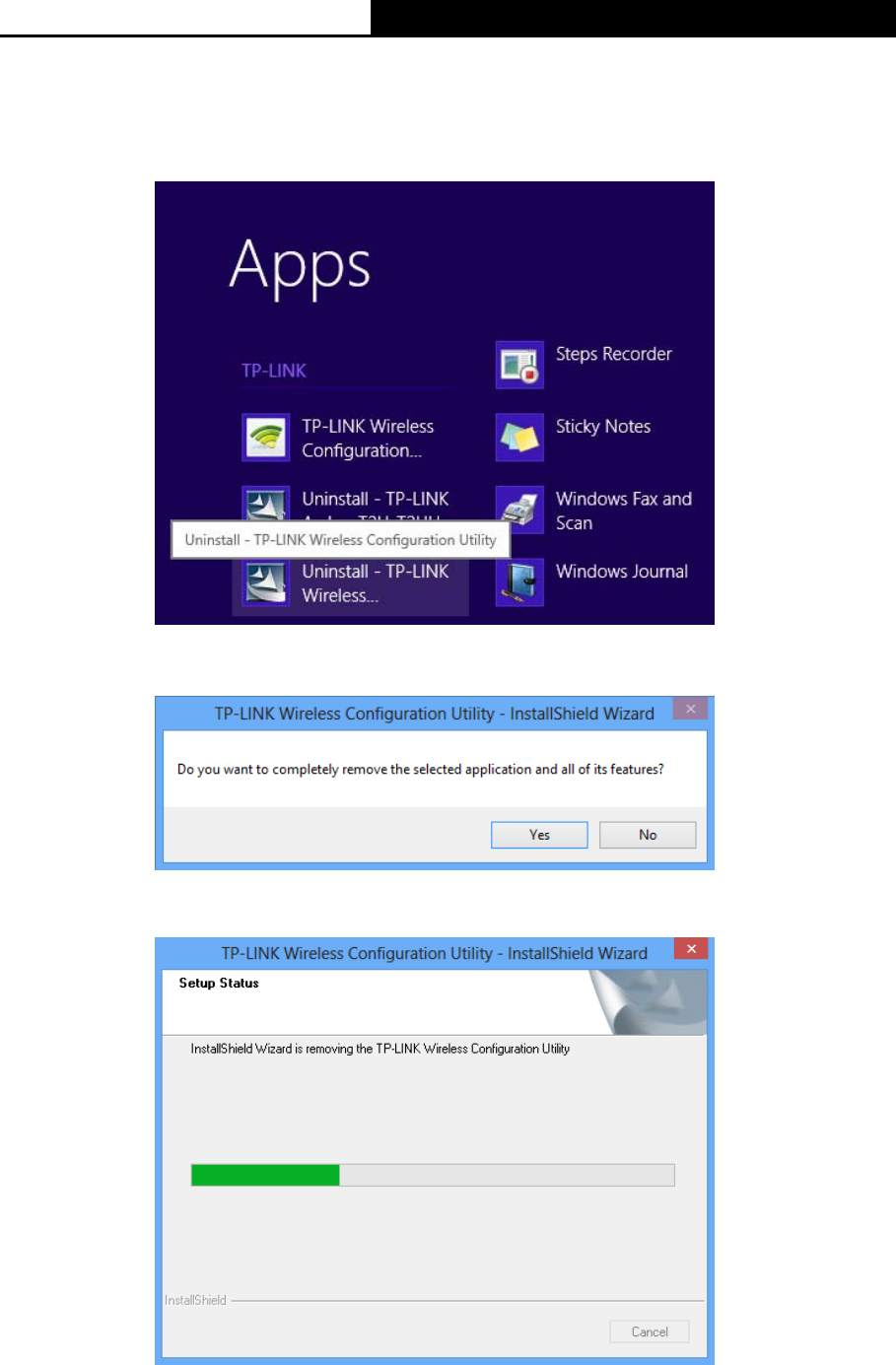

6.2.1Uninstall the utility software from your PC ................................................ 36
6.2.2Uninstall the driver software from your PC ............................................... 37
Appendix A: Specifications ................................................................................... 39
Appendix B: Glossary ............................................................................................ 40
错误!未定义自动图文集词条 错误!未定义自动图文集词条
Package Contents
Please verify that all the package contents below are available.
One Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapter
Quick Installation Guide
USB Cable
One Resource CD for Archer T4UH, including:
TP-LINK Wireless Configuration Utility (TWCU) and Drivers
User Guide
Other helpful information
Make sure that the above items are contained in the package. If any of the above items is
damaged or missing, please contact your distributor.
Note:
The ‘adapter’ mentioned in this User Guide stands for Archer T4UH AC1200 High Gain
Wireless Dual Band USB Adapter without any explanation.
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
1
Chapter 1 Product Overview
1.1 Introduction
The adapter is a dual band 802.11ac client device designed to deliver a high-speed wireless
performance for your desktop. With a faster wireless connection, you can get a better Internet
experience, such as downloading, gaming, and video streaming.
With the 802.11ac technology, higher throughput improvements using 1T1R, the Archer T4UH’s
auto-sensing capability allows high packet transfer rate of up to 433Mbps for maximum
throughput. It has good capability on anti-jamming, and it can also interoperate with other wireless
(802.11a/b/g/n/ac) products. The adapter supports WEP, WPA-PSK/WPA2-PSK and WPA/WPA2
encryption to prevent outside intrusion and protect your personal information from being exposed.
The adapter is easy to install and manage. The Quick Setup Wizard will guide you step-by-step
through the installation process and the TP-LINK Wireless Configuration Utility (TWCU) will
instruct you to quickly set up a wireless connection.
With unmatched wireless performance, reception, and security protection, the Archer T4UH is the
best choice for easily adding or upgrading wireless connectivity to your desktop.
1.2 Features
Complies with IEEE 802.11ac.
Provides USB 2.0 interface
Supports dual-band, 2.4GHz or 5GHz
Seamlessly compatible with 802.11a/b/g/n/ac products
Experience smoother video streaming and online gaming by choosing the clearer 5GHz band
for wireless connections
Supports 64/128 WEP, WPA/WPA2, WPA-PSK/WPA2-PSK(TKIP/AES), supports IEEE
802.1x
Supports Windows XP 32/64bit, Windows 7 32/64bit, Windows 8 32/64bit
Supports ad-hoc and infrastructure mode
Bundled utility provides quick & hassle-free installation
1.3 Hardware Overview
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
2
Chapter 2 Installation
Please install the adapter into your computer before installing the driver and utility software from
the Resource CD.
2.1 Hardware Installation
Note:
When the hardware has been successfully installed on your computer, you may be prompted
'Found New Hardware Wizard' (as shown in Figure 2-1); please click Cancel, and then follow
the Software Installation steps to install driver and utility for your adapter.
Figure 2-1 Found New Hardware Wizard in Windows XP
2.2 Software Installation
The adapter’s Setup Wizard will guide you through the installation procedures for Windows XP,
Windows 7, Windows 8 and Windows 8.1. The procedures in different systems are quite similar,
therefore here we use the procedures in Windows 7 as an example.
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
3
1. Insert the Resource CD into your CD-ROM drive and then select model Archer T4UH on
the window that pops up (as shown in the below Figure 2-2). There will be a menu including:
Install Driver&Utility and User Guide. Click Install Driver&Utility to begin.
Figure 2-2
2. The InstallShield Wizard window will appear. Click Next to continue.
Figure 2-3
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
4
3. Choose a setup type. It is recommended to select Install TP-LINK Wireless
Configuration Utility and Driver. Selecting Install Driver Only can only install driver.
Click Next to continue.
Figure 2-4
4. Click Change to specify the destination location for the software or you can leave it default.
Click Next in the screen below to continue.
Figure 2-5
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
5
5. Click Install to continue the setup.
Figure 2-6
6. The utility and drivers will install. It may take 1~2 minutes.
Figure 2-7
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
6
7. After all the steps above, you will see the screen below. Click Finish to complete the setup.
Figure 2-8
8. After installation, the utility configuration page will automatically pop up as shown in the
following figure and the icon will appear in your system tray. To connect to a network,
please refer to Chapter 3 Connect to a Wireless Network.
Figure 2-9
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
7
Chapter 3 Connect to a Wireless Network
With both the hardware and software successfully installed into your computer, you can quickly
connect to a wireless network using one of the following methods.
Method One: To connect using TWCU (TP-LINK Wireless Configuration Utility)
Archer T4UH uses the TWCU as the management software. The utility provides you an easy
interface to connect to a network and to change any settings related to the wireless adapter.
Method Two: To connect using WPS
By this method, you can connect to your network quickly on the condition that your Router or
access point supports WPS or QSS as is called by some other products.
Method Three: To connect using Windows built-in wireless utility
Windows users may use the built-in wireless utility to connect to a wireless network. For specific
operations, please go to Section 3.3 To connect using Windows built-in wireless utility.
3.1 To connect using TWCU
1. After installation, the utility configuration page will automatically pop up on the screen. If the
utility page does not pop up, you can also launch the utility by double-clicking the icon
on your desktop.
Figure 3-1
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
8
2. The Network page will display all wireless networks that are available in your area. To
connect to a network, simply highlight the wireless network name (SSID) and click
Connect. If you tick Connect automatically, the adapter will automatically connect to your
target network next time.
Figure 3-2
3. You will be prompted different windows when you choose wireless network of different
security types.
1) Wireless network of WPA/WPA2-Personal
If you selected a wireless network of the security type WPA/WPA2-Personal, you will be
prompted to enter the password in the security key field, as shown in Figure 3-3. Or you
can push the WPS/QSS button on your Router (if it features the WPS/QSS function) to
quickly build a connection without entering the security key (password).
Figure 3-3
Note:
The security key (password) can be found on the configuration page of your Router or Access
Point.
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
9
2) Wireless network of WPA/WPA2-Enterprise
If you selected a wireless network of the security type WPA/WPA2-Enterprise, you will be
prompted to choose a type of authentication, either Certificate or Password. With
Certificate as your authentication, you need to select one specific certificate from the
drop-down list, as shown in Figure 3-4. With Password as your authentication, you should
enter the right user name and password in the corresponding field, as shown in Figure 3-5.
Figure 3-4
Figure 3-5
3) Wireless network of None
If you selected a wireless network of None (that is, no security is set.), you can get directly
connected to this network without any further configuration.
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
10
4. Please wait a few minutes for the connection process.
Figure 3-6
5. You have now successfully connected to your network. Click Close to enjoy the Internet.
Figure 3-7
6. To view more information about the network currently connected, click Status in the tools
section and the page will display information such as the network type, channel, rate, etc.
Figure 3-8
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
11
3.2 To connect using WPS
WPS (Wi-Fi Protected Setup) function allows you to add a new wireless device to an existing
network quickly.
If your wireless Router supports WPS or QSS (Quick Security Setup), you can establish a
wireless connection between wireless card and Router using either Push Button Configuration
(PBC) method or PIN method. Three WPS connection methods are listed in the following parts.
3.2.1 PBC (Push Button Configuration) method
1. Press the WPS or QSS button on the Router. Here we use Router Archer C7 as an
example. Press the WPS/Reset button for 2~3 seconds.
2. Press the WPS button on the adapter. There are two ways:
Method One
Press and hold the WPS button on the adapter directly for 3 seconds until Figure 3-9 appears.
Figure 3-9
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
12
Method Two:
Open TWCU and click WPS tab. Select Push the button on my access point or wireless
router and then click Connect.
Figure 3-10
3. The adapter will be connecting to the target network.
Figure 3-11
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
13
4. When the following window appears, you have successfully connected to the network.
Figure 3-12
3.2.2 PIN method
There are two ways to configure the WPS by PIN method:
1) Enter the PIN from your Router or AP device.
2) Enter a PIN into your Router or AP device.
Following are the detailed configuration procedures of each way.
3.2.2.1. Enter the PIN from your Router or AP device
1. Open TWCU and click WPS tab. Select Enter the PIN of my access point or wireless
Router. In the empty field beside PIN, enter the PIN labeled on the bottom of the Router
(here we use 13492564 as an example). If you have generated a new PIN code for your
Router, please enter the new one instead. Click Connect to continue.
Figure 3-13
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
14
2. The adapter will be connecting to the target network.
Figure 3-14
3. When Figure 3-12 appears, you have successfully connected to the network.
3.2.2.2. Enter a PIN into your AP device
1. Open TWCU and click WPS tab. Select Enter the PIN of this device into my access
point or wireless Router. In the field beside PIN, you will see the PIN value of the adapter
which is randomly generated. Click Connect to continue.
Figure 3-15
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
15
2. Open your Router’s Web-based Utility and click WPS link on the left of the main menu.
Then click Add device and the following figure will appear. Enter the PIN value of the
adapter in the empty field beside PIN and then click Connect.
Figure 3-16
3. When Connect successfully appears on the screen (as shown in Figure 3-17), the WPS
configuration is completed. Or you can view the adapter’s utility page to see whether the
connection has been successful (as shown in Figure 3-18).
Figure 3-17
Figure 3-18
3.3 To connect using Windows built-in wireless utility
3.3.1 In Windows XP
Windows XP users may use the built-in wireless utility. Follow the steps below.
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
16
1. Right-click on the utility icon in your system tray (lower-right corner). Select Switch to
Windows wireless configuration tool.
Figure 3-19
Or double-click the utility icon to load the utility configuration page. Click Advanced in the
tools section and then select Use Windows wireless configuration tool in the figure
shown below. Click OK when Figure 3-21 appears to continue.
Figure 3-20
Figure 3-21
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
17
2. Right-click on the wireless computer icon in your system tray (lower-right corner). Select
View Available Wireless Networks.
Figure 3-22
3. The utility will display any available wireless networks in your area. Click on a network
(displayed using the SSID) and click the Connect button.
Figure 3-23
4. If the network is security-enabled, you will be prompted to enter the key as shown below. If
not, you will connect to the network directly without entering a key.
Figure 3-24
3.3.2 In Windows 7
Windows 7 users may use the built-in wireless utility. Follow the steps below.
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
18
1. Left-click the wireless icon in your system tray (lower-right corner). The utility will
display any available wireless networks in your area. Highlight the wireless network
(displayed using the SSID) to be connected and then click Connect.
Figure 3-25
2. If the network you would like to connect is encrypted, enter the same security key or
passphrase that is on your Router. Or push the WPS/QSS button on the Router or access
point (You will be prompted to push the button on the window if WPS function is supported
as shown in the figure below). If the network to be connected is not secure, the connection
will be built without entering a key.
Figure 3-26
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
19
3. You have now successfully connected to the network.
Figure 3-27
3.3.3 In Windows 8/8.1
The built-in wireless utility in Windows 8 and Windows 8.1 are quite similar, here we use
Windows 8 as an example, please follow the steps below.
1. Click the icon at the bottom of your screen, and a network list will appear at the right
side of your screen. Select your target network, and then click Connect.
Figure 3-28
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
20
2. If the network is unencrypted, you will directly connect to it.
If the network is encrypted, enter the password (network security key) and then click Next
to continue.
Figure 3-29
Note:
You can also push the WPS/QSS button on your router as hinted “You can also connect by
pushing the button on the router”. Then click Next to continue.
3. When Connected appears behind the SSID (as shown below), you have successfully
connected to the target network.
Figure 3-30
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
21
Note:
If the adapter is connected to the network for the first time, you will be asked whether to turn on
sharing or connect to devices. Please select “Yes, ...”or “No, ...” according to your Internet
environment.
Figure 3-31
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
22
Chapter 4 Management
This section will show you how to configure your Archer T4UH adapter using the TP-LINK
Wireless Configuration Utility (TWCU).
The Archer T4UH adapter uses the TP-LINK Wireless Configuration Utility as the management
software. The utility provides users with an easy interface to change any settings related to the
adapter. Double-clicking on the icon on your desktop will start the utility.
4.1 Profile
Your wireless networks may vary in different places like home, office or coffee shop. With
Profile management, you can easily save and manage various networks to be connected,
saving you the trouble of having to repeat the same configurations. Click Profile in the tools
section, the following page will appear.
Figure 4-1
4.1.1 Add a profile
To add a profile, click the Add button on the bottom of the screen. Then the configuration
window will appear.
4.1.1.1. Add a profile in Infrastructure mode
If you are connecting to a wireless router or access point, select Infrastructure as the Network
Type in the screen that appears and follow the instructions below to finish the setting.
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
23
Figure 4-2
Figure 4-3
The following items can be found on the screen.
Profile Name: Enter a name for your profile (e.g. Home, Office, Coffee Shop). The same
name is not allowed. Please also note that no space is allowed between words.
SSID: Select the target network from the drop-down list.
Network Type: Select the network type. If you are connecting to a wireless Router or
access point, select Infrastructure. If you are connecting to another wireless client such as
an adapter, select ad-hoc.
Security Type: Select the security type from the list. Four options are available:
WPA-PSK/WPA2-PSK, WPA/WPA2, WEP and None. The security type should be the
same as on your Router or access point, otherwise, you will not be able to build a
successful connection. WPA-PSK/WPA2-PSK uses a passphrase or key to authenticate
your wireless connection. The key must be the exact same key entered on your wireless
Router or access point. None stands for no security. It’s recommended to enable
WPA-PSK/WPA2-PSK on your wireless Router or access point before configuring your
wireless adapter.
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
24
Note:
You will see Figure 4-2 if you selected the security type WPA-PSK/WPA2-PSK; while, if
you selected the security type WPA/WPA2, Figure 4-3 will be displayed.
Encryption Type: From the drop-down menu, select the encryption type that is the same
as on your Router or access point.
Security Key: Enter the passphrase exactly as it is on your wireless Router or access
point. Click the Show characters box to see the passphrase, or uncheck this box to hide it.
Authentication: Select a type of authentication, either certificate or password.
Certificate: If you select certificate as your Authentication, then you need to specify your
certificate from the drop-down list here.
Start this connection automatically: Check this box to automatically connect to this
network next time.
Save: Click Save to save your settings.
Having completed the above settings, the Profile page should look like the following figure. To
connect to a desired network, just highlight the network you would like to connect to and click
the Connect button on the bottom of the window. Then click OK in Figure 4-5 to activate the
profile.
Figure 4-4
Figure 4-5
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
25
4.1.1.2. Add a profile in ad hoc mode
Note:
Ad hoc mode is not suitable in Windows 8 or Windows 8.1.
If you are connecting to another wireless client such as an adapter, select ad hoc as the
Network Type in the screen that appears and follow the instructions below to finish the setting.
Figure 4-6
The following items can be found on the screen.
Profile Name: Enter a name for your profile e.g. Home, Office, Coffee Shop. The same
name is not allowed. Please also note that no space is allowed between words.
SSID: Select the target network from the drop-down list.
Network Type: Select the network type. If you are connecting to a wireless router or
access point, select Infrastructure. If you are connecting to another wireless client such as
an adapter, select ad hoc.
Band: This item determines which operating frequency will be used. Two options are
available: 2.4GHz and 5GHz. It is recommended that your computers and devices running
video and voice applications use the 5GHz band, while your guest access and computers
that are only browsing the web use the 2.4GHz band.
2.4GHz - You can use the 2.4GHz band to connect to many classic wireless devices
like gaming consoles, laptops, DVRs, ect.
5GHz - This band is less crowded and is used for time-sensitive music, video
streaming or gaming. Using this band can avoid interference with 2.4GHz networks or
noisy devices like cordless phones and microwave ovens.
Security Type: Select the security type from the list. Two options are available: WEP and
None. None stands for no security. It is recommended that you select WEP to secure your
wireless network.
Encryption Type: If you select None as the Security Type, the Encryption Type will be
None accordingly. If you select WEP as the Security Type, the Encryption Type will be
Open.
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
26
Key Index: You can select ASCII or Hexadecimal format on the right. ASCII format stands
for any combination of keyboard characters in the specified length. Hexadecimal format
stands for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified length.
For 64-bit encryption - You can enter 10 hexadecimal digits (any combination of 0-9,
a-f, A-F, zero key is not permitted) or 5 ASCII characters.
For 128-bit encryption - You can enter 26 hexadecimal digits (any combination of 0-9,
a-f, A-F, zero key is not permitted) or 13 ASCII characters.
Security Key: Enter the passphrase. Click the Show characters box to see the
passphrase. Unchecking it will hide it.
Start this connection automatically: Check this box to automatically connect to this
network next time.
Save: Click Save to save your settings.
Having completed the above settings, the Profile page should looks like the following figure. To
connect to a desired network, just highlight the network you would like to connect to and click
the Connect button on the bottom of the window. Then click OK in Figure 4-8 to activate the
profile.
Figure 4-7
Figure 4-8
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
27
4.1.2 Modify a profile
You may edit an existing profile by clicking the Modify button from the Profile page. For
instance, you may like to change the profile name from Home to Home1 or you may want to
specify another SSID for profile Home. After all the changes, click Save to make the changes
take effect.
Figure 4-9
4.1.3 Delete a profile
To delete an existing profile, highlight the profile name and click Remove on the bottom of the
screen or press the Delete button on your keyboard. When the following figure appears, click
OK to continue.
Figure 4-10
4.2 Advanced
The following configurations can be made on the Advanced page:
1) To select wireless configuration tool.
Here you can decide which tool to use, either the TP-LINK Configuration Utility or the
Windows wireless configuration tool. (This option is available only in Windows XP.)
2) To switch to another wireless network adapter.
Here you can switch to another adapter installed in your computer. The adapters
successfully installed in your computer will be listed in the drop-down list if the adapters are
supported by this utility.
3) To change the power save mode. The default option is OFF.
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
28
Figure 4-11
4.3 About
The About screen gives you some information about the Driver and Utility versions of the
adapter. Right-click the icon in your system tray and select About from the list.
Figure 4-12
Figure 4-13
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
29
Chapter 5 AP Mode
In Soft AP mode, the adapter will work as an AP.
Suppose that only one computer in your house can access the Internet for various reasons like
only one WLAN port is available on your wired broadband Router, however, other
wireless-capable devices also want to share the Internet. Then the adapter can be configured
as an AP under the Soft AP mode, saving you the trouble of having to get a separate access
point or a Router.
With this feature, a computer can use a single physical wireless adapter to connect as a client
to a hardware access point while at the same time acting as a software AP allowing other
wireless-capable devices to connect to it.
To switch to this mode, right-click on the utility icon in your system tray and select Switch to
SoftAP mode.
Figure 5-1
Or from the Soft AP page of the utility, tick ON under the SoftAP mode as shown in the
following figure. Click OK when prompted to confirm the setting.
Figure 5-2
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
30
The Soft AP icon then will appear beside Advanced icon in the utility.
Figure 5-3
Figure 5-4
SoftAP mode: Select to enable or disable the function.
Internet Connecting Share (ICS): Specify a connection through which devices connected
to your AP can access the Internet.
SSID: Enter the name for your soft AP (for example, Jone) so that others can know which
AP is yours when trying to connect to it.
Band: This item determines which operating frequency will be used. Two options are
available: 2.4GHz and 5Ghz. It is recommended that your computers and devices running
video and voice applications use the 5GHz band, while your guest access and computers
that are only browsing the web use the 2.4Ghz band.
2.4GHz - You can use the 2.4GHz band to connect to many classic wireless devices
like gaming consoles, laptops, DVRs, ect.
5GHz - This band is less crowded and is used for time-sensitive music, video
streaming or gaming. Using this band can avoid interference with 2.4GHz networks or
noisy devices like cordless phones and microwave ovens.
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
31
Note:
The choice for Band is only available in Windows XP; while in Windows 7, Windows 8 and
Windows 8.1, by default it only supports 2.4 GHz network.
Security Type: The security type here is set to be WPA2-PSK which is based on 802.11i
and uses AES (Advanced Encryption Standard) instead of TKIP. It was designed to
improve the security features of WEP. WPA2-PSK uses a passphrase or key to
authenticate your wireless connection. You needn’t make any configuration here.
Encryption Type: The encryption type here is set to be AES.
Security Key: Enter the Key in the field to make your AP security enabled. It is
recommended that you specify another key instead of the default key 12345678. Only by
entering the corresponding key can other computers establish a successful connection with
your AP.
IP Address: Here displays the IP address of the SoftAP.
Having completed the above settings, click Apply; then Figure 5-4 will pop up, where you click
OK to make Soft AP mode take effect.
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
32
Chapter 6 Uninstall Software
6.1 In Windows XP/7
The software uninstall steps are similar in Windows XP and Windows 7, here we just use
Windows 7 as an example.
6.1.1 Uninstall the utility software from your PC
1. On the Windows taskbar, click the Start button, click All programsTP-LINK, and then
click Uninstall-TP-LINK Wireless Configuration Utility.
Figure 6-1 Uninstall Utility
2. Click Yes to start uninstalling the utility software from your PC.
Figure 6-2
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
33
3. It may take a few minutes to undergo the whole un-installation process.
Figure 6-3
4. Click Finish when the figure below appears.
Figure 6-4
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
34
6.1.2 Uninstall the driver software from your PC
1. On the Windows taskbar, click the Start button, click All programsTP-LINK, and then
click Uninstall-TP-LINK Archer T4UH Driver.
Figure 6-5 Uninstall Driver
2. Click Yes to start uninstalling the driver software from your PC.
Figure 6-6
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
35
3. It may take a few minutes to undergo the whole un-installation process.
Figure 6-7
4. Click Finish when the figure below appears.
Figure 6-8
6.2 In Windows 8/8.1
The software uninstall steps are similar in Windows 8 and Windows 8.1, here we just use
Windows 8 as an example.
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
36
6.2.1 Uninstall the utility software from your PC
1. Enter the Apps interface, and find the TP-LINK application, then click Uninstall- TP-LINK
Wireless Configuration Utility.
Figure 6-9
2. Click Yes to start uninstalling the utility software from your PC.
Figure 6-10
3. It may take a few minutes to undergo the whole un-installation process.
Figure 6-11
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
37
4. Click Finish when the figure below appears.
Figure 6-12
6.2.2 Uninstall the driver software from your PC
1. Enter the Apps interface, and find the TP-LINK application, then click Uninstall-TP-LINK
Archer T4UH Driver.
Figure 6-13
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
38
2. Click Yes to start uninstalling the driver software from your PC.
Figure 6-14
3. It may take a few minutes to undergo the whole un-installation process.
Figure 6-15
4. Click Finish when the figure below appears.
Figure 6-16
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
39
Appendix A: Specifications
Normal
Interface USB 2.0 Interface
Standards IEEE802.11a; IEEE802.11b; IEEE802.11g; IEEE802.11n;
IEEE802.1x, IEEE802.11ac
Operating System Windows XP, Windows 7, Windows 8, Windows 8.1
Throughput 2.4GHz:150Mbps (Maximal)
5GHz: 433Mbps (Maximal)
Data Security WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Frequency* 2.4 ~ 2.4835 GHz, 5.15~5.25GHz,
5.25~5.35GHz, 5.475~5.725GHz, 5.745~5.825GHz
Safety & Emissions FCC, CE, WIFI, IC, NCC, WHQL
Environmental and Physical
Working Temperature 0℃~40℃ (32℉~104℉)
Storage Temperature -40℃~70℃(-40℉~158℉)
Working Humidity 10% ~ 90% RH, Non-condensing
Storage Humidity 5% ~ 90% RH, Non-condensing
* 1. Only 2.412GHz~ 2.462GHz is allowed t o be used in USA, which m eans only channel 1~ 11 is
available for Am erican users t o choose.
* 2. Rules on the use of 5GHz band channels m ay vary according t o different nat ional laws.
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
40
Appendix B: Glossary
802.11ac - IEEE 802.11ac is a wireless computer networking standard of 802.11.This
specification will enable multi-station WLAN throughput of at least 1 gigabit per
second .This is accomplished by extending the air interface concepts embraced by
802.11n: wider RF bandwidth, more MIMO spatial streams, multi-user MIMO, and
high-density modulation (up to 256 QAM).
802.11n - 802.11n builds upon previous 802.11 standards by adding MIMO (multiple-input
multiple-output). MIMO uses multiple transmitter and receiver antennas to allow for increased
data throughput via spatial multiplexing and increased range by exploiting the spatial diversity,
perhaps through coding schemes like Alamouti coding. The Enhanced Wireless Consortium
(EWC) was formed to help accelerate the IEEE 802.11n development process and promote a
technology specification for interoperability of next-generation wireless local area networking
(WLAN) products.
802.11g - specification for wireless networking at 54 Mbps using direct-sequence
spread-spectrum (DSSS) technology, using OFDM modulation and operating in the
unlicensed radio spectrum at 2.4GHz, and backward compatibility with IEEE 802.11b devices,
and WEP encryption for security.
802.11b - The 802.11b standard specifies a wireless product networking at 11 Mbps using
direct-sequence spread-spectrum (DSSS) technology and operating in the unlicensed radio
spectrum at 2.4GHz, and WEP encryption for security. 802.11b networks are also referred to
as Wi-Fi networks.
802.11a - specification for wireless networking at 54 Mbps using OFDM modulation and
operating in radio band at 5GHz.
Ad hoc Network - An ad hoc network is a group of computers, each with a Wireless Adapter,
connected as an independent 802.11 wireless LAN. Ad hoc wireless computers operate on a
peer-to-peer basis, communicating directly with each other without the use of an access point.
Ad hoc mode is also referred to as an Independent Basic Service Set (IBSS) or as
peer-to-peer mode, and is useful at a departmental scale or SOHO operation.
DSSS - (Direct-Sequence Spread Spectrum) - DSSS generates a redundant bit pattern for all
data transmitted. This bit pattern is called a chip (or chipping code). Even if one or more bits
in the chip are damaged during transmission, statistical techniques embedded in the receiver
can recover the original data without the need of retransmission. To an unintended receiver,
DSSS appears as low power wideband noise and is rejected (ignored) by most narrowband
receivers. However, to an intended receiver (i.e. another wireless LAN endpoint), the DSSS
signal is recognized as the only valid signal, and interference is inherently rejected (ignored).
FHSS - (Frequency Hopping Spread Spectrum) - FHSS continuously changes (hops) the
carrier frequency of a conventional carrier several times per second according to a
pseudo-random set of channels. Because a fixed frequency is not used, and only the
transmitter and receiver know the hop patterns, interception of FHSS is extremely difficult.
Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapte
r
41
Infrastructure Network - An infrastructure network is a group of computers or other devices,
each with a Wireless Adapter, connected as an 802.11 wireless LAN. In infrastructure mode,
the wireless devices communicate with each other and to a wired network by first going
through an access point. An infrastructure wireless network connected to a wired network is
referred to as a Basic Service Set (BSS). A set of two or more BSS in a single network is
referred to as an Extended Service Set (ESS). Infrastructure mode is useful at a corporation
scale, or when it is necessary to connect the wired and wireless networks.
Spread Spectrum - Spread Spectrum technology is a wideband radio frequency technique
developed by the military for use in reliable, secure, mission-critical communications systems.
It is designed to trade off bandwidth efficiency for reliability, integrity, and security. In other
words, more bandwidth is consumed than in the case of narrowband transmission, but the
trade off produces a signal that is, in effect, louder and thus easier to detect, provided that the
receiver knows the parameters of the spread-spectrum signal being broadcast. If a receiver is
not tuned to the right frequency, a spread-spectrum signal looks like background noise.
There are two main alternatives, Direct Sequence Spread Spectrum (DSSS) and Frequency
Hopping Spread Spectrum (FHSS).
SSID - A Service Set Identification is a thirty-two character (maximum) alphanumeric key
identifying a wireless local area network. For the wireless devices in a network to
communicate with each other, all devices must be configured with the same SSID. This is
typically the configuration parameter for a wireless PC card. It corresponds to the ESSID in
the wireless Access Point and to the wireless network name. See also Wireless Network
Name and ESSID.
WEP - (Wired Equivalent Privacy) - A data privacy mechanism based on a 64-bit or 128-bit or
152-bit shared key algorithm, as described in the IEEE 802.11 standard. To gain access to a
WEP network, you must know the key. The key is a string of characters that you create.
When using WEP, you must determine the level of encryption. The type of encryption
determines the key length. 128-bit encryption requires a longer key than 64-bit encryption.
Keys are defined by entering in a string in HEX (hexadecimal - using characters 0-9, A-F) or
ASCII (American Standard Code for Information Interchange – alphanumeric characters)
format. ASCII format is provided so you can enter a string that is easier to remember. The
ASCII string is converted to HEX for use over the network. Four keys can be defined so that
you can change keys easily.
Wi-Fi - A trade name for the 802.11b wireless networking standard, given by the Wireless
Ethernet Compatibility Alliance (WECA, see http://www.wi-fi.net), an industry standards
group promoting interoperability among 802.11b devices.
WLAN - (Wireless Local Area Network) - A group of computers and associated devices
communicate with each other wirelessly, which network serving users are limited in a local
area.
WPA - (Wi-Fi Protected Access) - A wireless security protocol uses TKIP (Temporal Key
Integrity Protocol) encryption, which can be used in conjunction with a RADIUS server.
