TP Link Technologies WA801NDV4 300Mbps Wireless N Access Point User Manual TL WA801ND
TP-Link Technologies Co., Ltd. 300Mbps Wireless N Access Point TL WA801ND
TL-WA801ND User Manual
TL-WA701ND
150Mbps Wireless N Access Point
TL-WA801ND
300Mbps Wireless N Access Point
TL-WA901ND
450Mbps Wireless N Access Point
REV3.1.0
1910011618
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. is a registered trademark of
TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or
registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from TP-LINK
TECHNOLOGIES CO., LTD. Copyright © 2016 TP-LINK TECHNOLOGIES CO., LTD.
All rights reserved.
http://www.tp-link.com
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1） This device may not cause harmful interference.
2） This device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s authority
to operate the equipment.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This device and its antenna must not be co-located or operating in conjunction with
any other antenna or transmitter.
“To comply with FCC RF exposure compliance requirements, this grant is applicable to only
Mobile Configurations. The antennas used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter.”
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference, in
which case the user may be required to take adequate measures.
RF Exposure Information
This device meets the EU requirements (1999/5/EC Article 3.1a) on the limitation of
exposure of the general public to electromagnetic fields by way of health protection.
The device complies with RF specifications when the device used at 20 cm from your body
Canadian Compliance Statement
This device complies with Industry Canada license-exempt RSSs. Operation is subject to
the following two conditions:
1） This device may not cause interference, and
2） This device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
1） l’appareil ne doit pas produire de brouillage;
2） l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, meme si le
brouillage est susceptible d’en compromettre le fonctionnement.
This radio transmitter (IC: 8853A-WA801NDV4) has been approved by Industry Canada
to operate with the antenna types listed below with the maximum permissible gain indicated.
Antenna types not included in this list below, having a gain greater than the maximum gain
indicated for that type, are strictly prohibited for use with this device.
Le présent émetteur radio (IC: 8853A-WA801NDV4) a été approuvé par Industrie
Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain
admissible maximal. Les types d'antenne non inclus dans cette liste ci-dessous et dont le
gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation
de l'émetteur.
Antenna
Two 2.4GHz 2dBi detachable antennas
Radiation Exposure Statement:
This equipment complies with ISED radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements ISED établies
pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un
minimum de 20 cm de distance entre la source de rayonnement et votre corps.
Industry Canada Statement
CAN ICES-3 (B)/NMB-3(B)
Safety Information
When product has power button, the power button is one of the way to shut off the
product; when there is no power button, the only way to completely shut off power is
to disconnect the product or the power adapter from the power source.
Don’t disassemble the product, or make repairs yourself. You run the risk of electric
shock and voiding the limited warranty. If you need service, please contact us.
Avoid water and wet locations.
Adapter shall be installed near the equipment and shall be easily accessible. The plug
considered as disconnect device of adapter.
Explanation of the symbols on the product label
Symbol Explanation
DC voltage
RECYCLING
This product bears the selective sorting symbol for Waste electrical and electronic
equipment (WEEE). This means that this product must be handled pursuant to
European directive 2012/19/EU in order to be recycled or dismantled to minimize
its impact on the environment.
User has the choice to give his product to a competent recycling organization or to
the retailer when he buys a new electrical or electronic equipment.
CONTENTS
Package Contents .................................................................................................... 1
Chapter 1 Introduction ........................................................................................... 2
1.1 Product Overview ............................................................................................ 2
1.2 Conventions .................................................................................................... 2
1.3 Main Features ................................................................................................. 3
1.4 Appearance ..................................................................................................... 3
1.4.1 The Front Panel ................................................................................................. 3

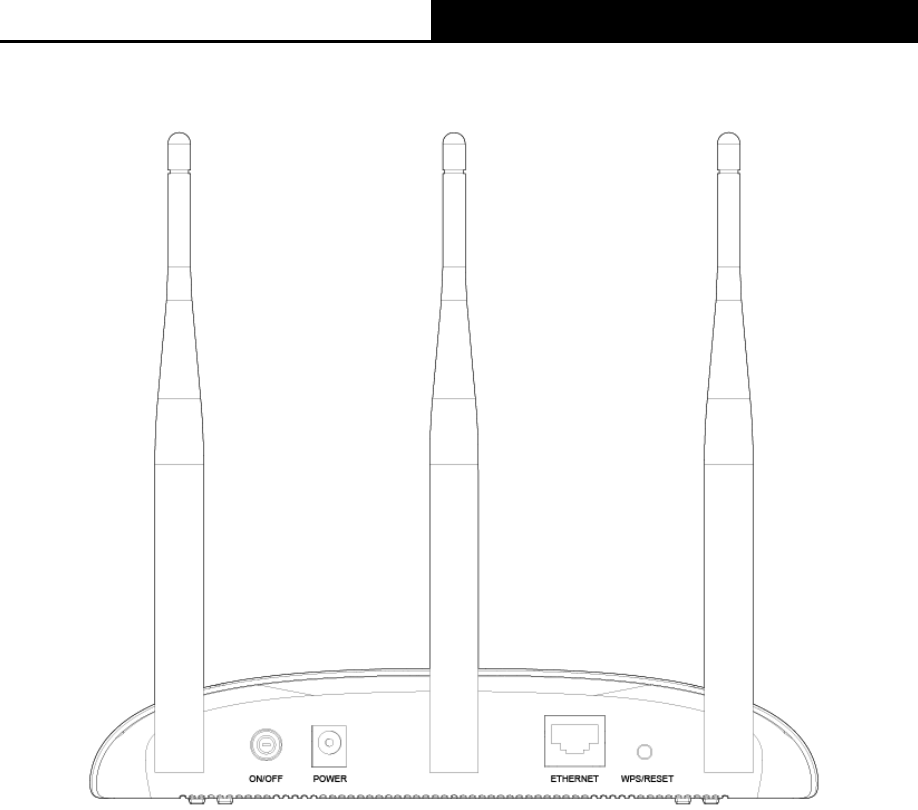

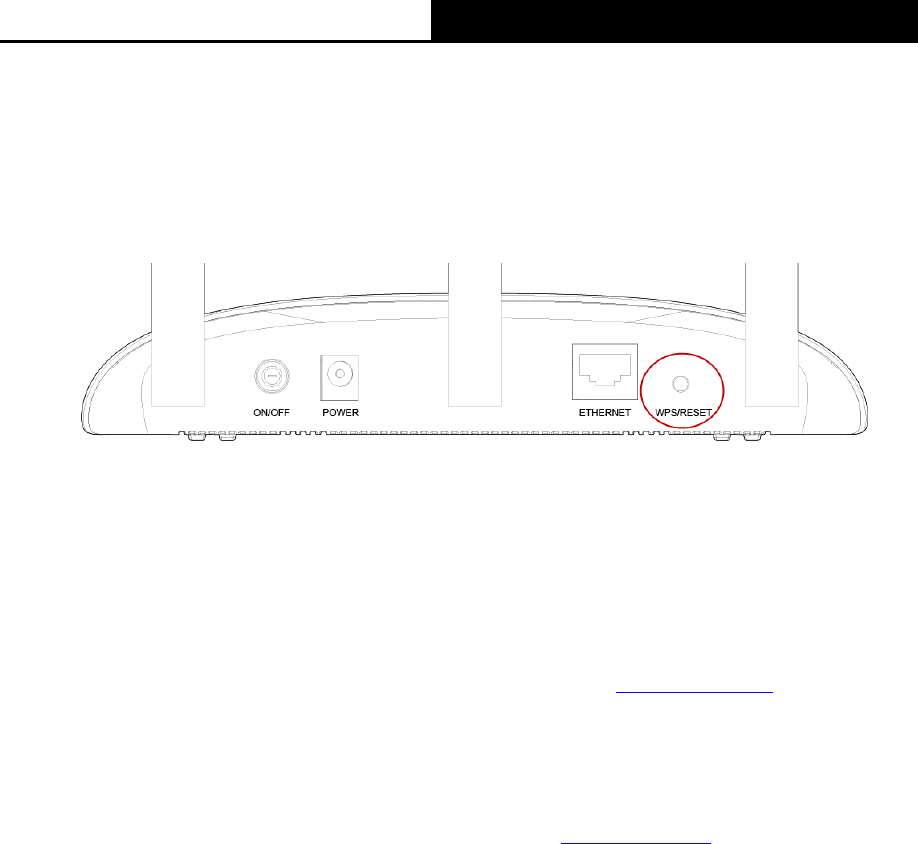

1.4.2 The Rear Panel.................................................................................................. 4
Chapter 2 Hardware Installation ........................................................................... 6
2.1 Before You Begin ............................................................................................ 6
2.2 Basic Requirements ........................................................................................ 6
2.3 Connecting the Device .................................................................................... 6
Chapter 3 Quick Installation Guide ....................................................................... 9

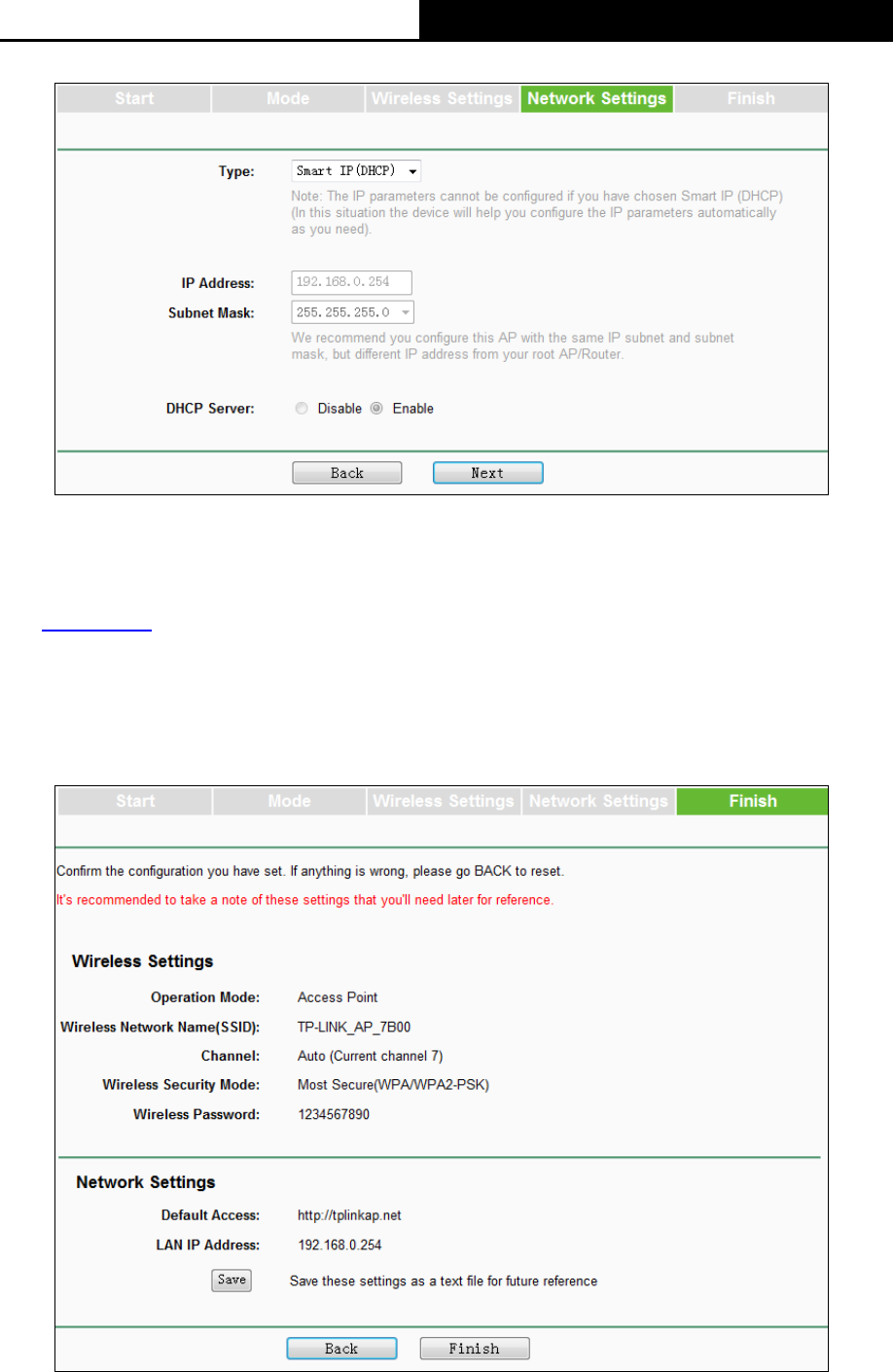

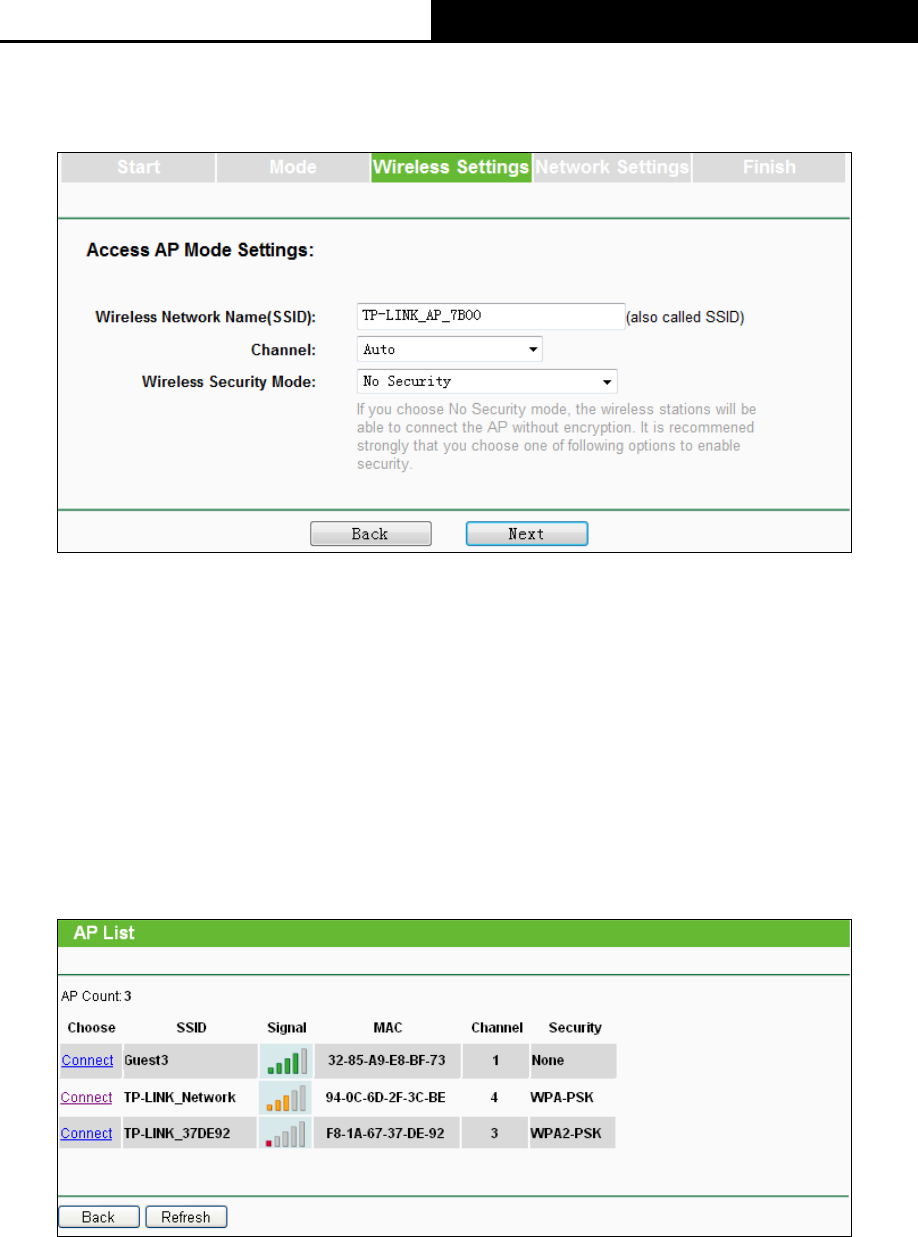

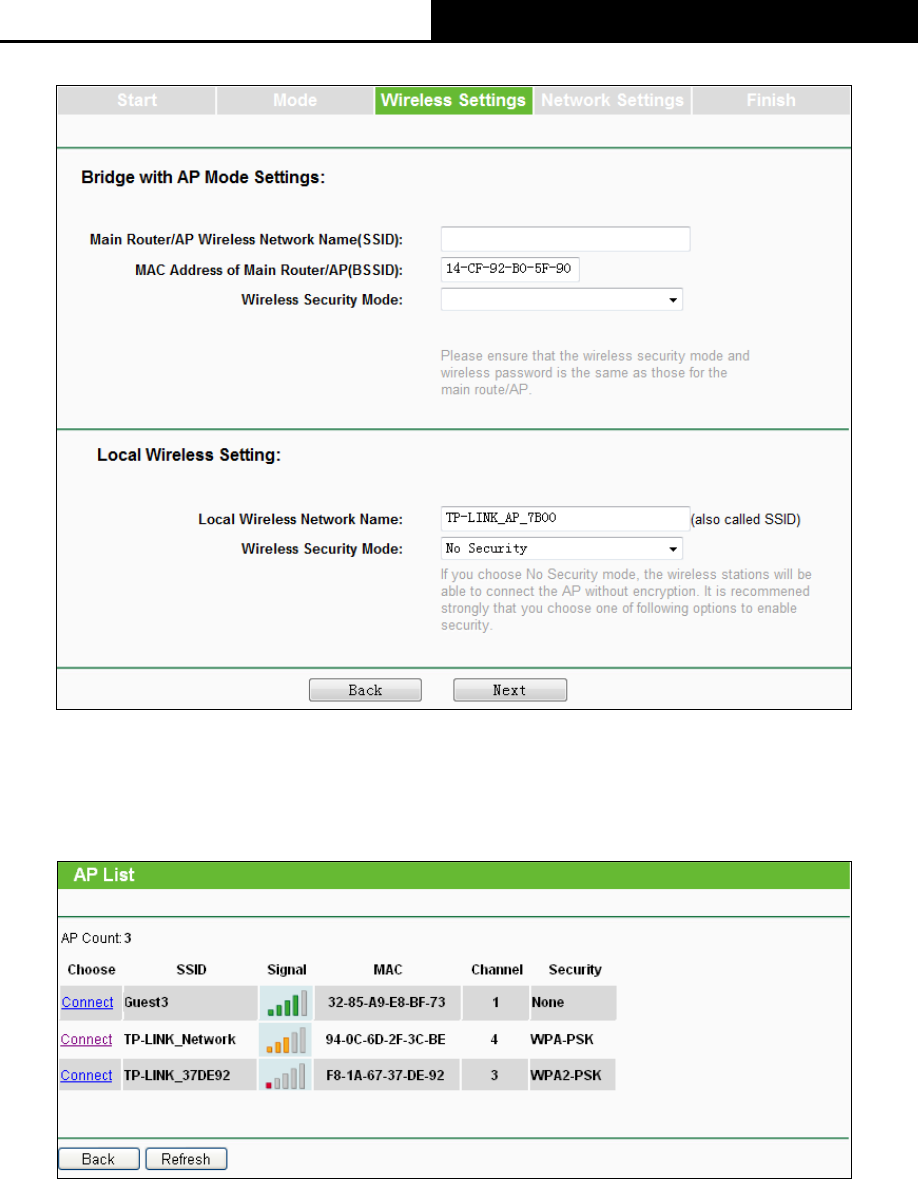

3.1 Quick Setup ..................................................................................................... 9
Chapter 4 Configure the Device .......................................................................... 16

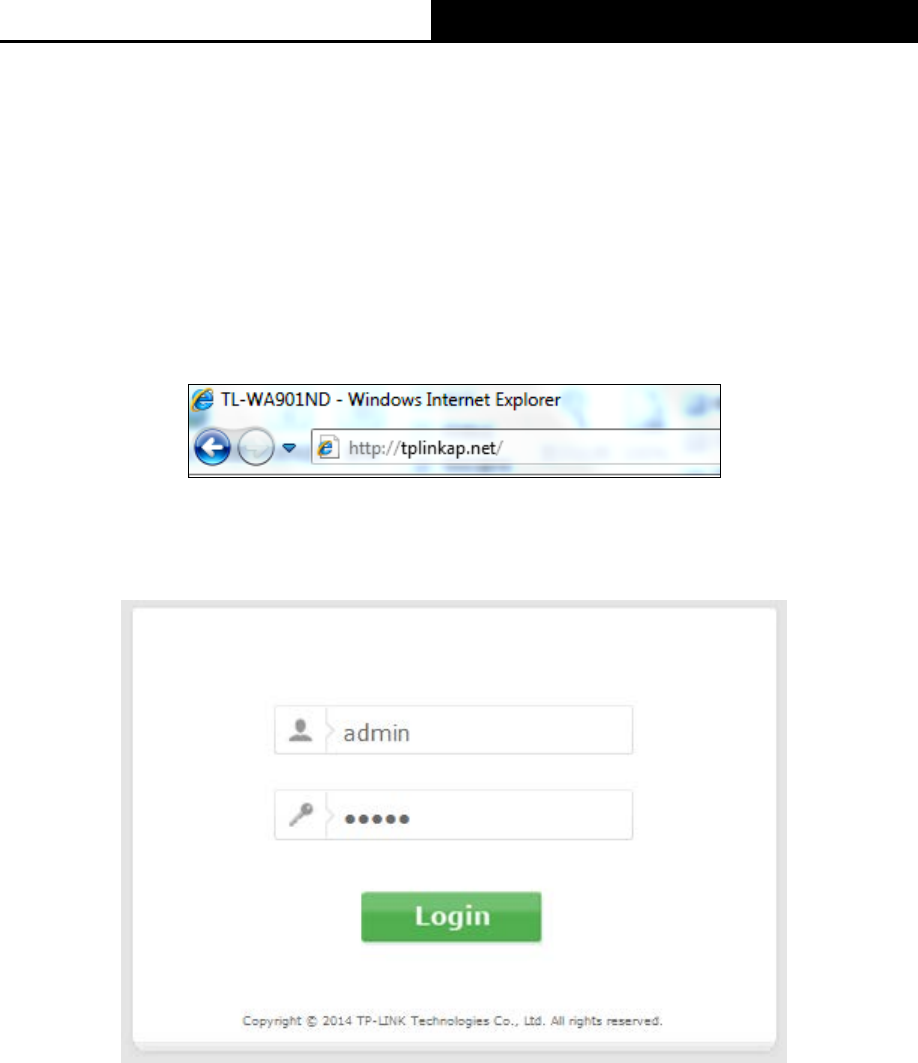

4.1 Login ............................................................................................................. 16
4.2 Status ............................................................................................................ 17
4.3 Quick Setup ................................................................................................... 18

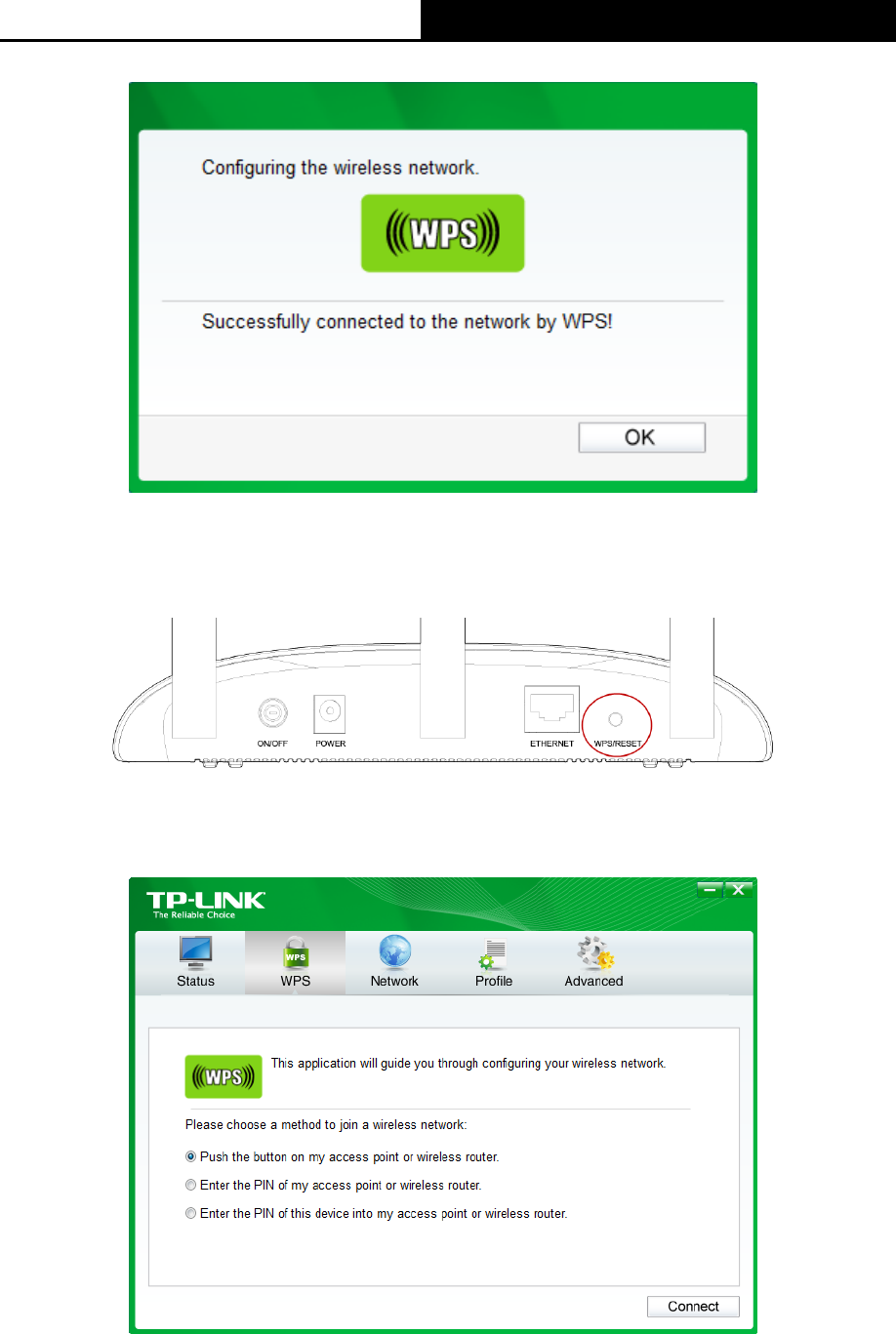

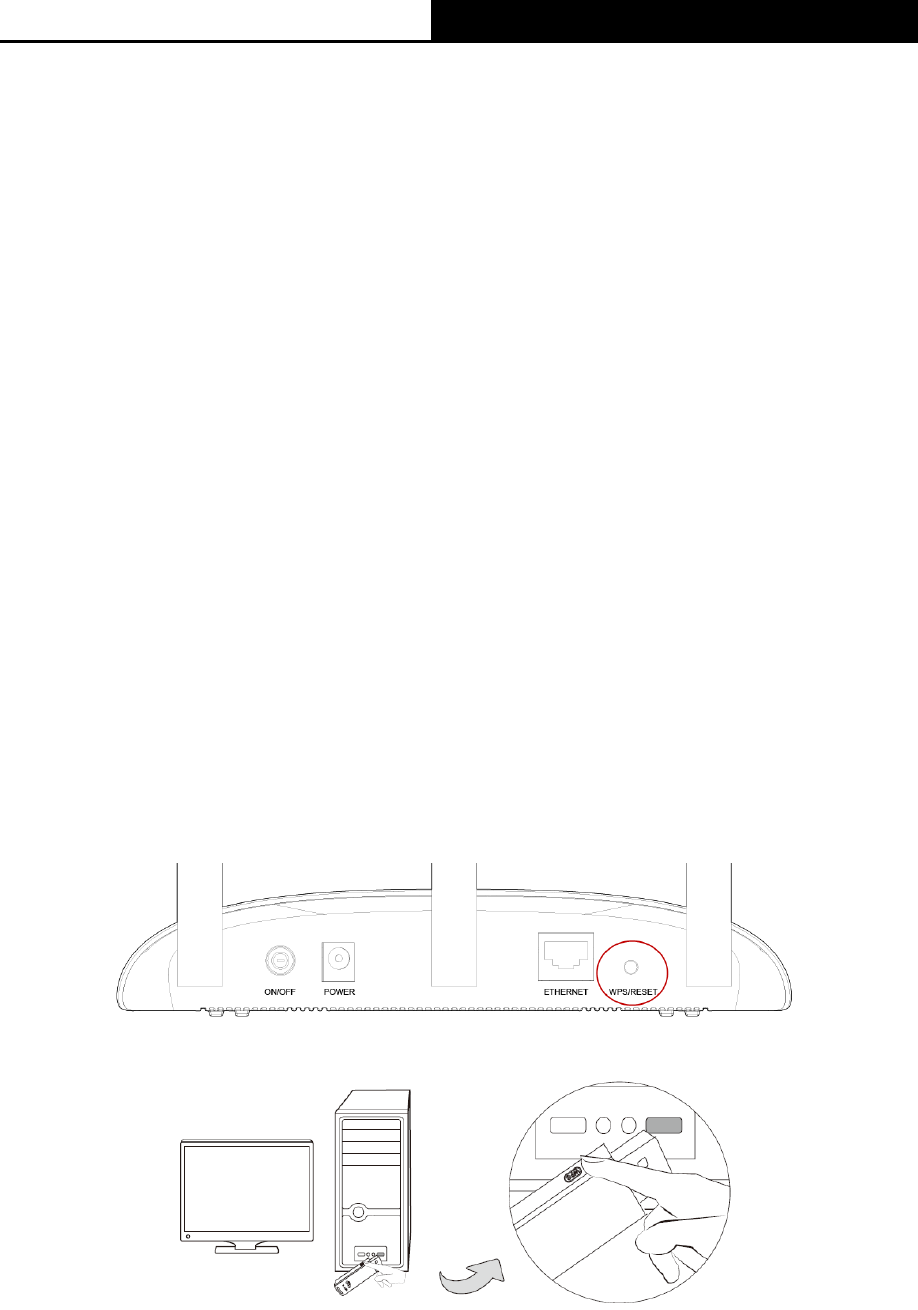

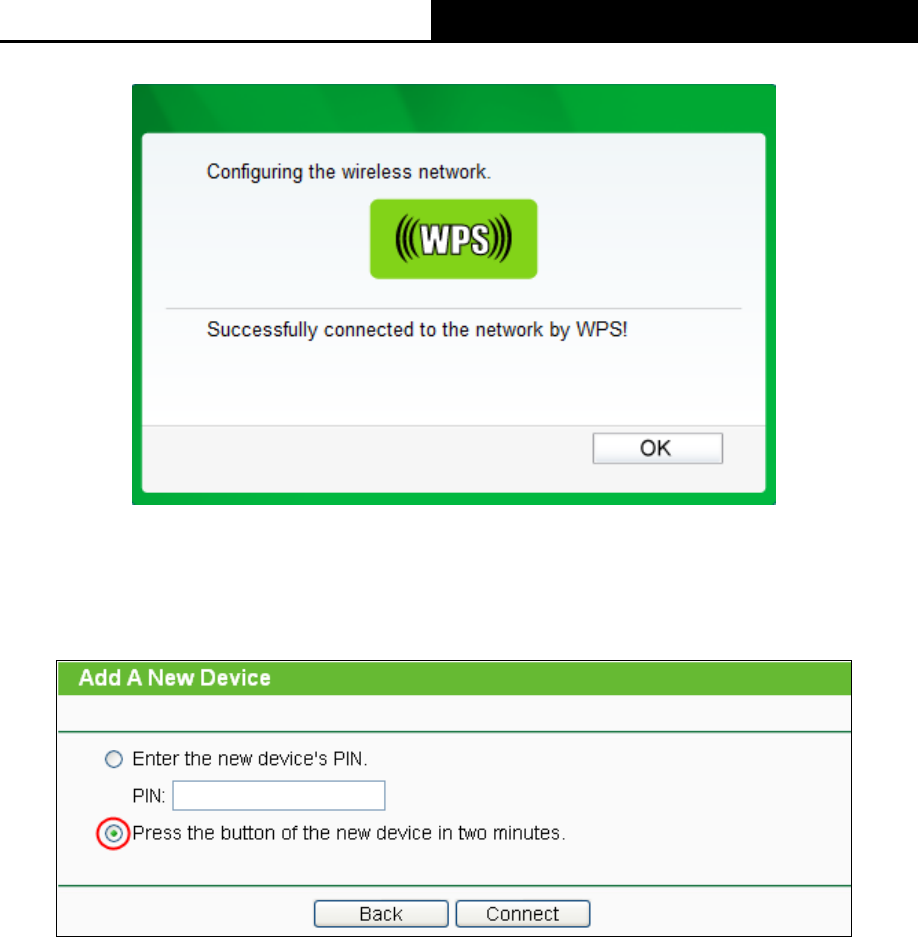

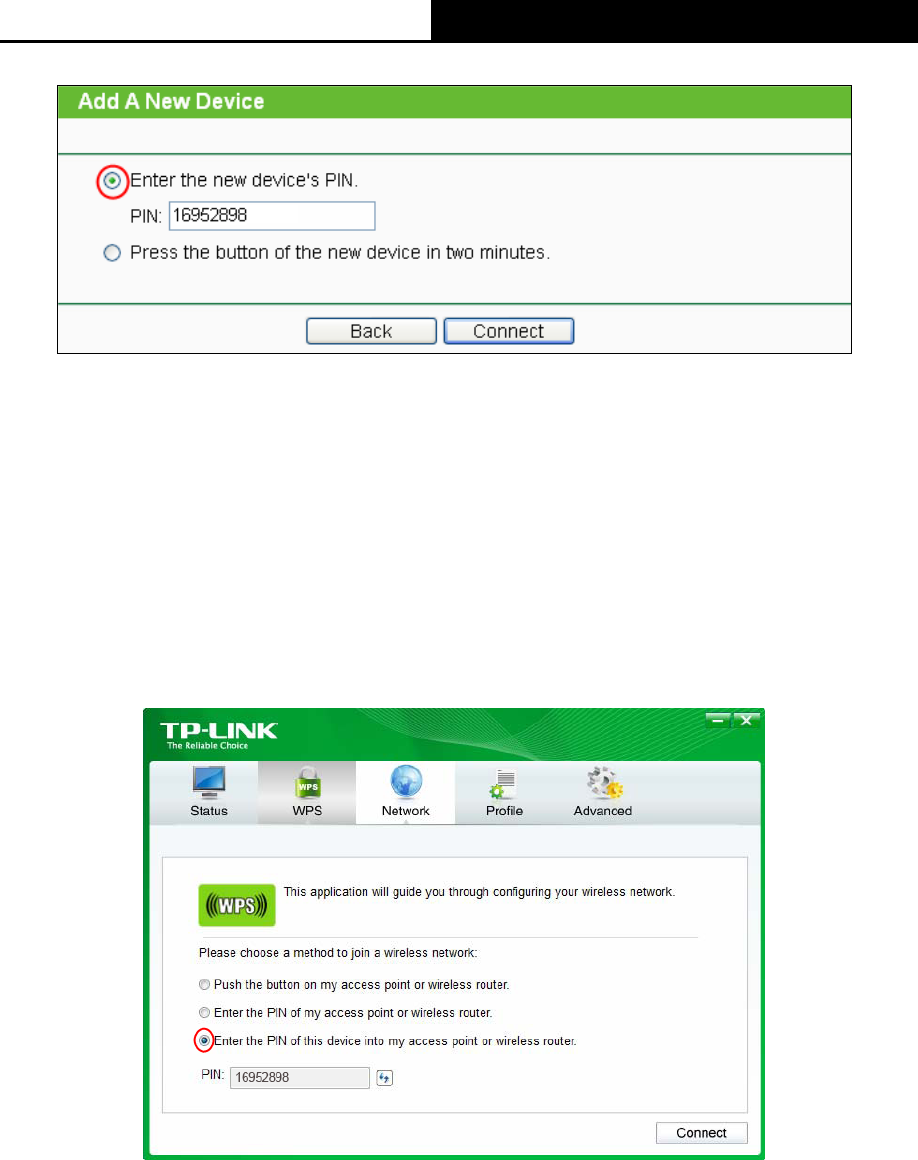

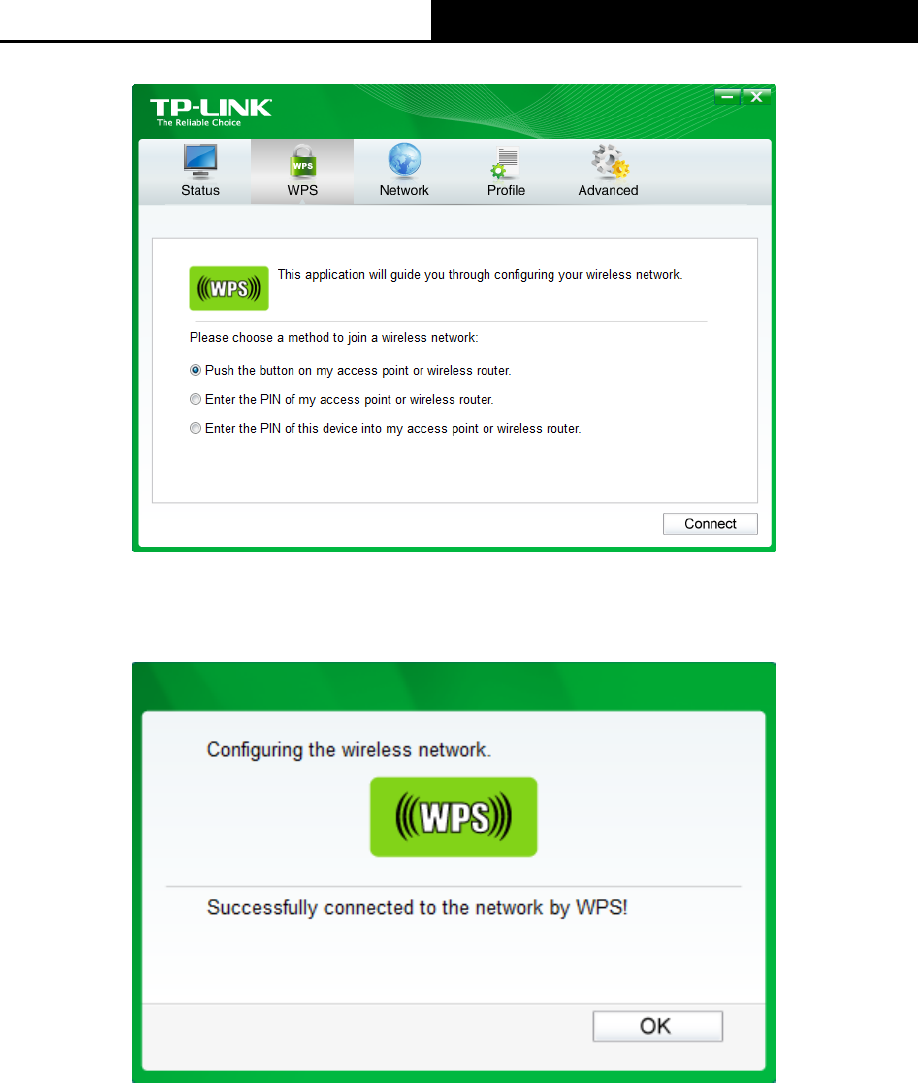

4.4 WPS .............................................................................................................. 18
4.5 Network ......................................................................................................... 24
4.5.1 LAN .................................................................................................................. 25

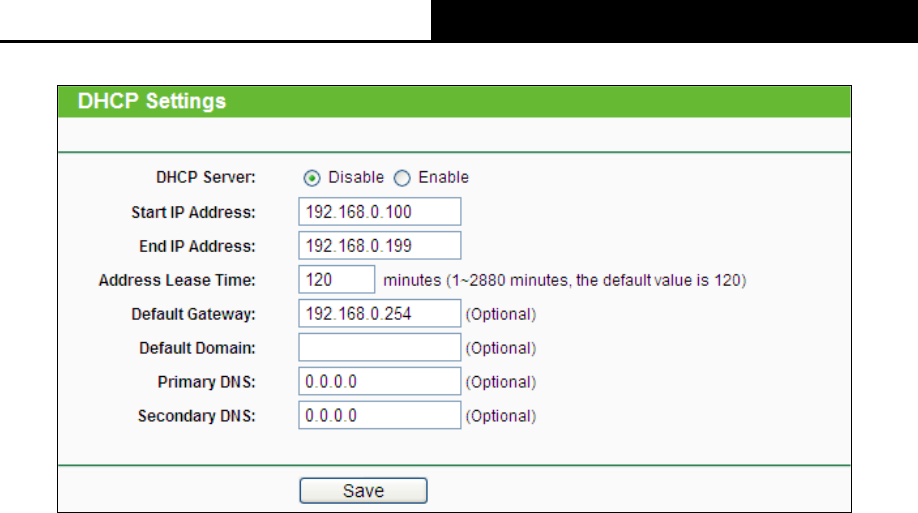

4.5.2 DHCP Settings ................................................................................................. 25
4.5.3 DHCP Client List .............................................................................................. 27
4.6 Wireless ........................................................................................................ 27

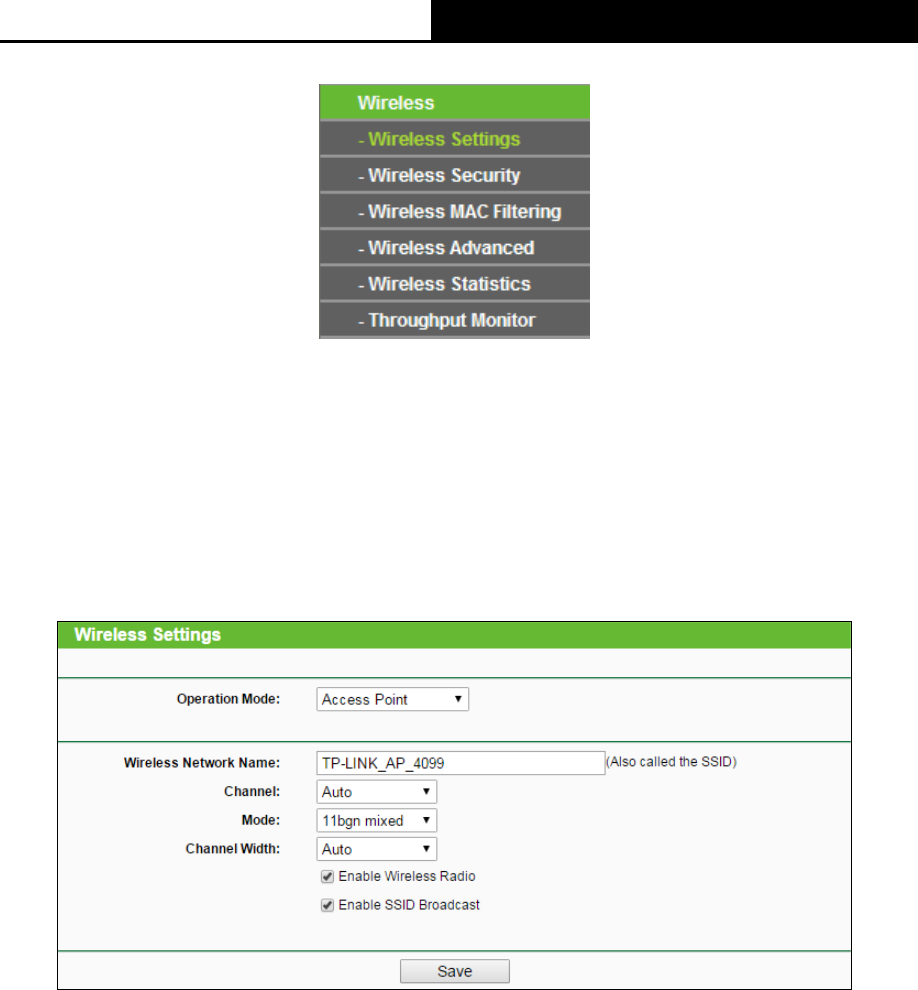

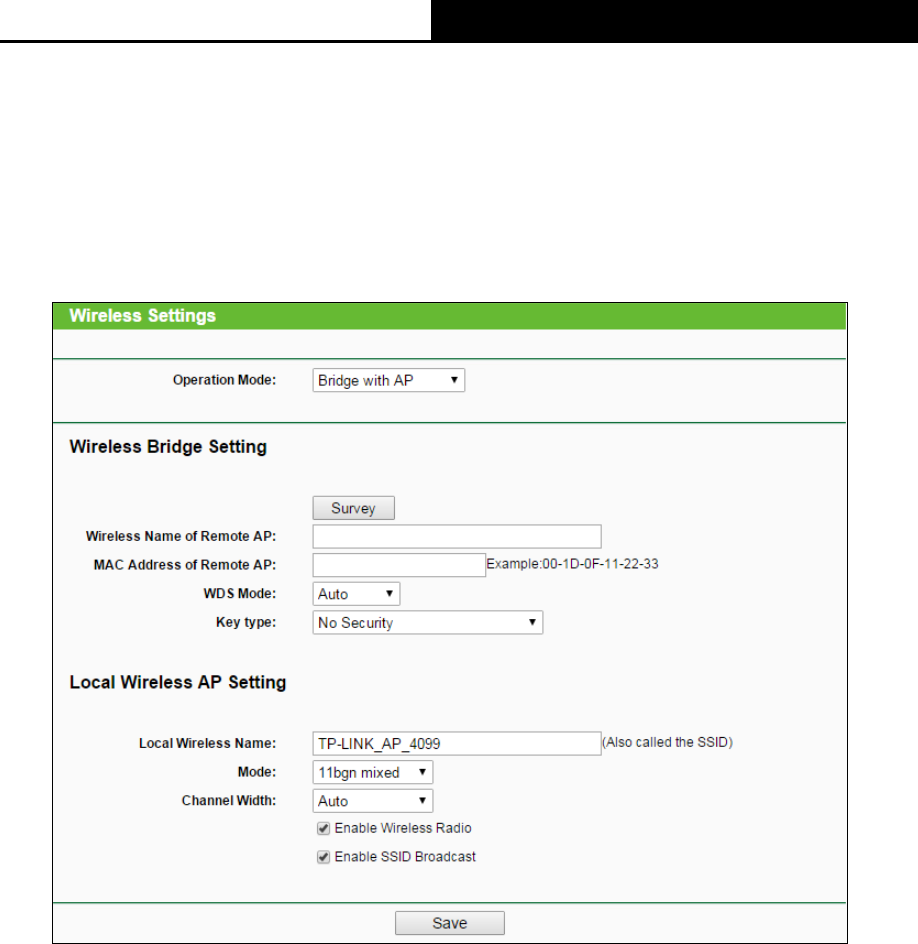

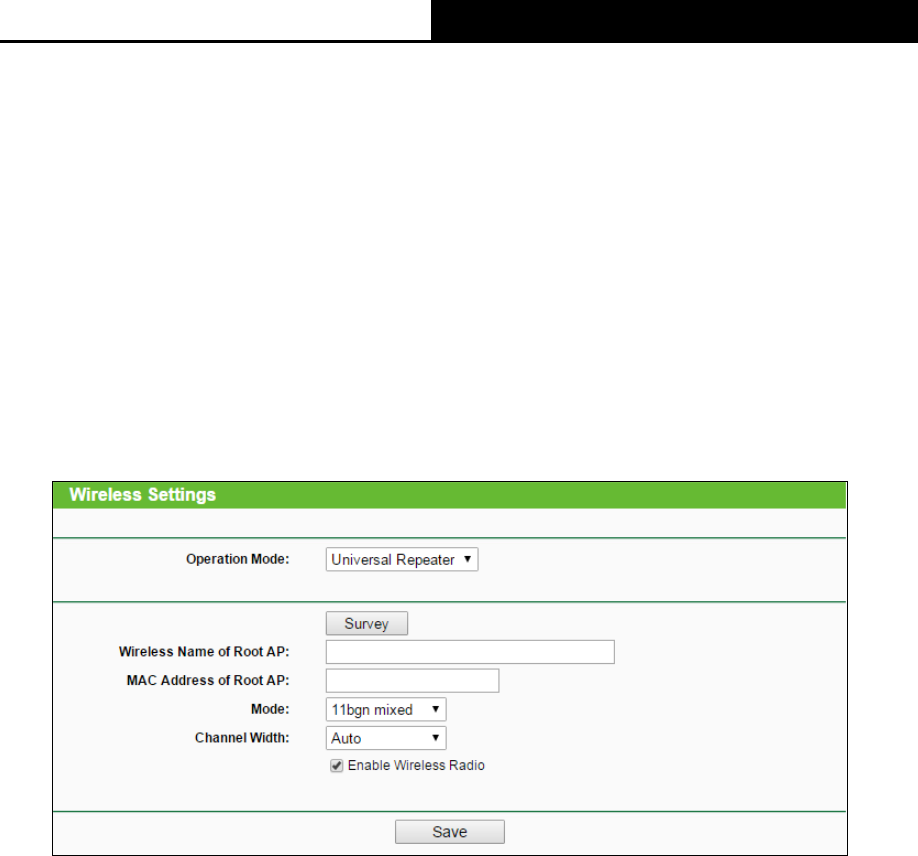

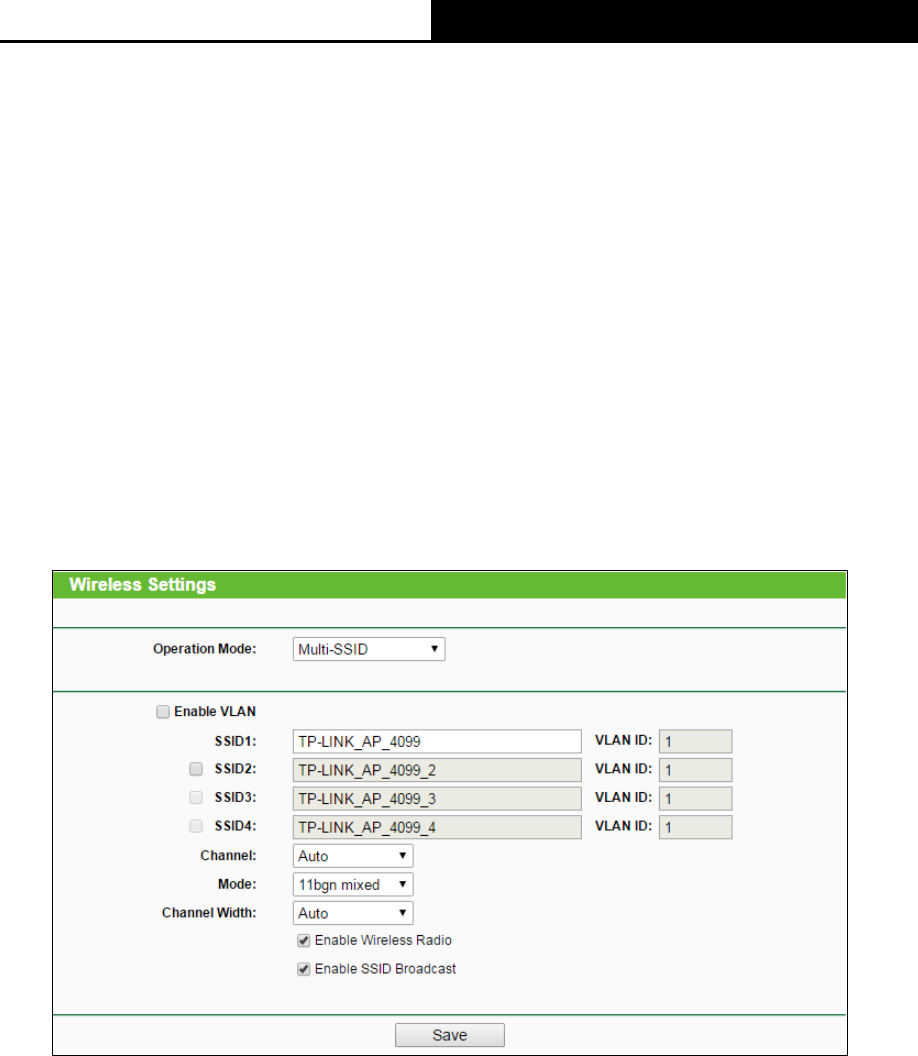

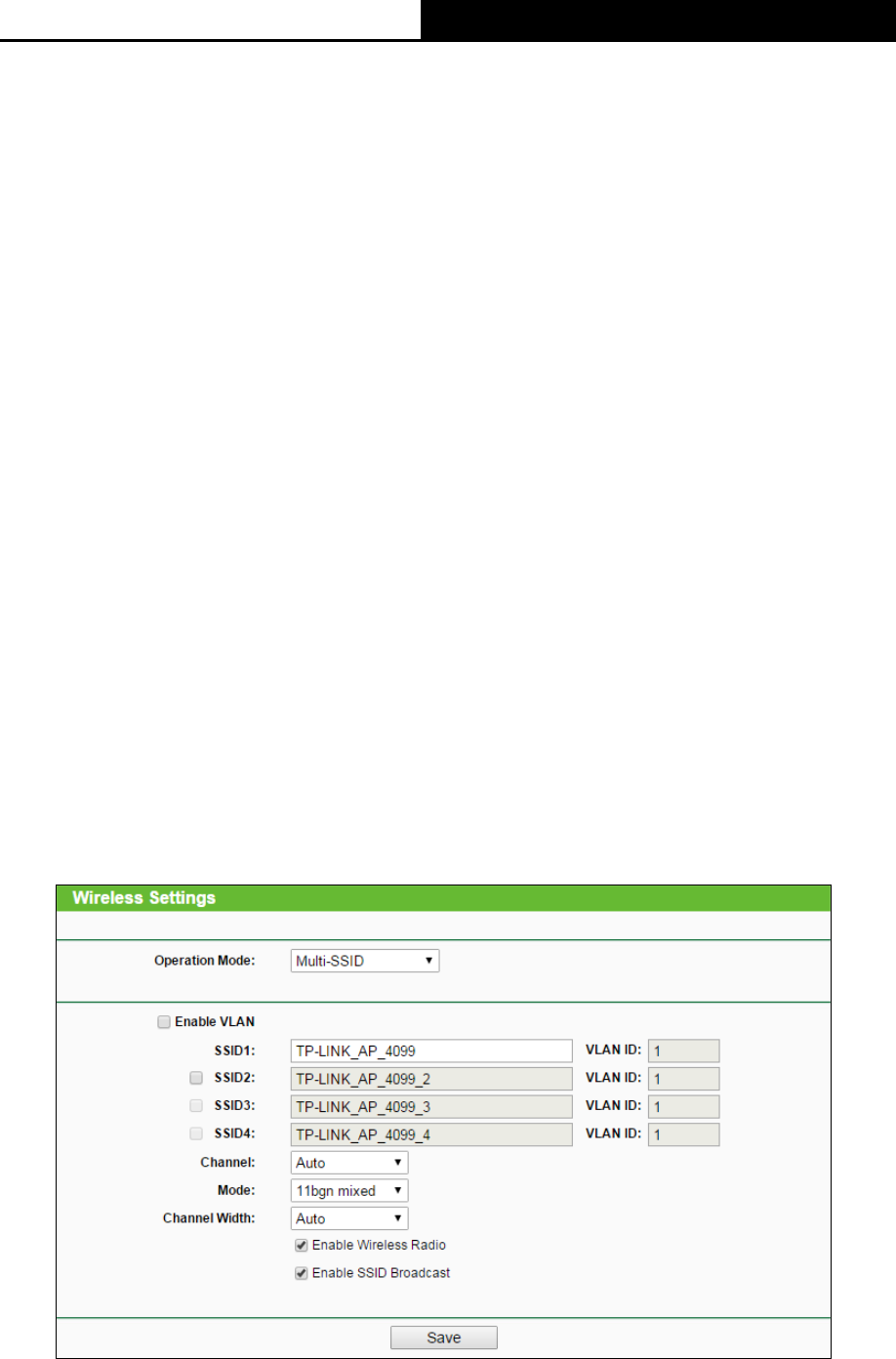

4.6.1 Wireless Settings ............................................................................................. 28

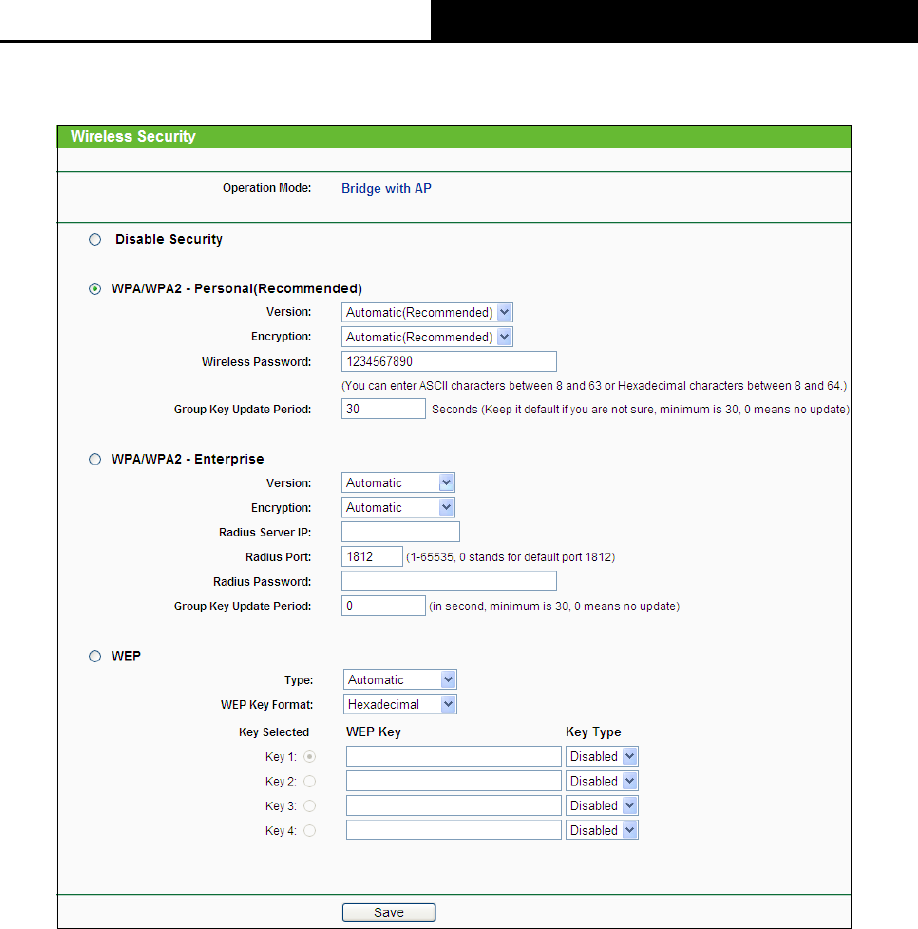

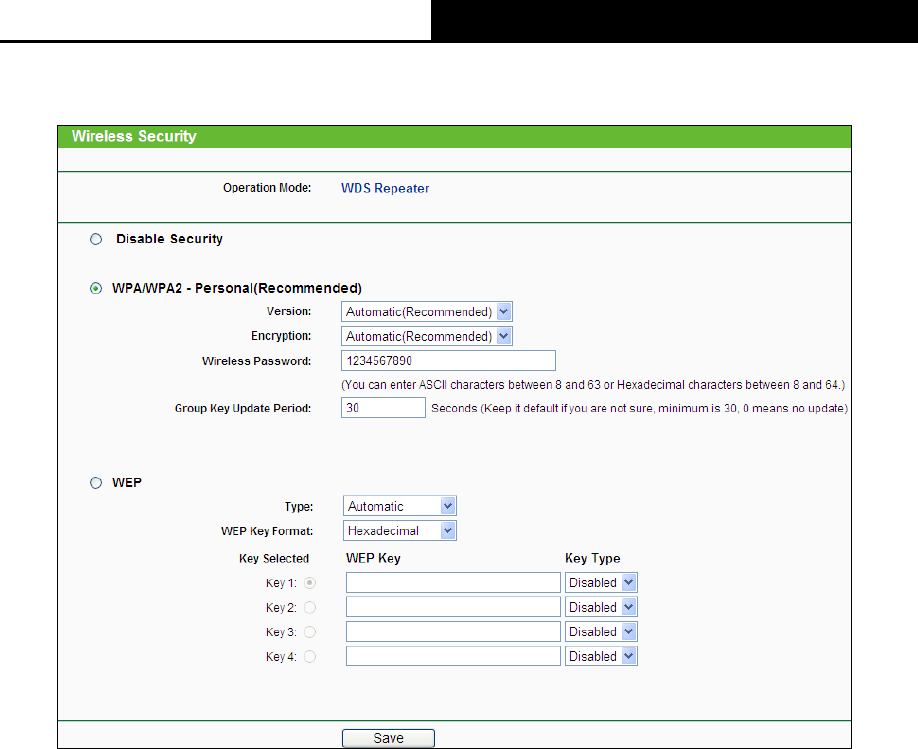

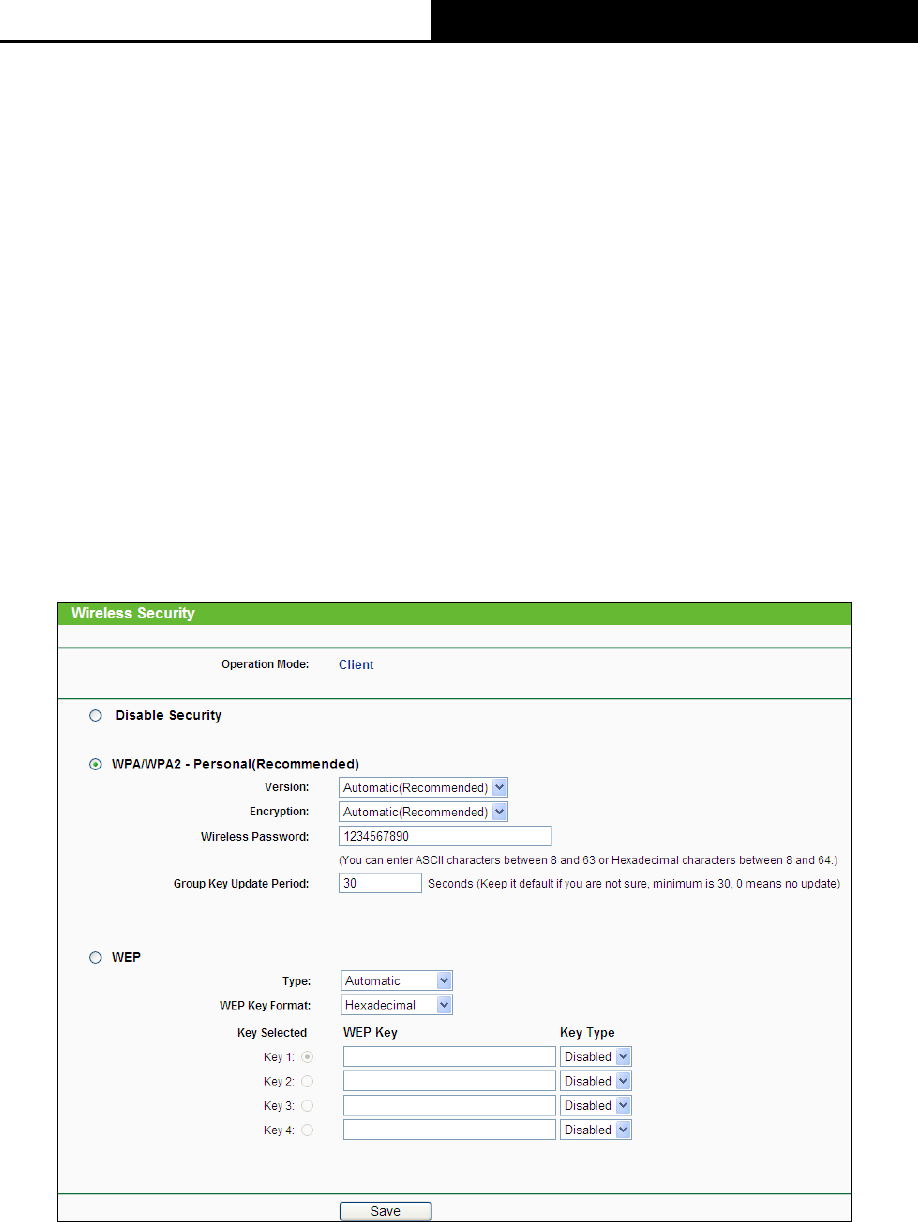

4.6.2 Wireless Security ............................................................................................. 36

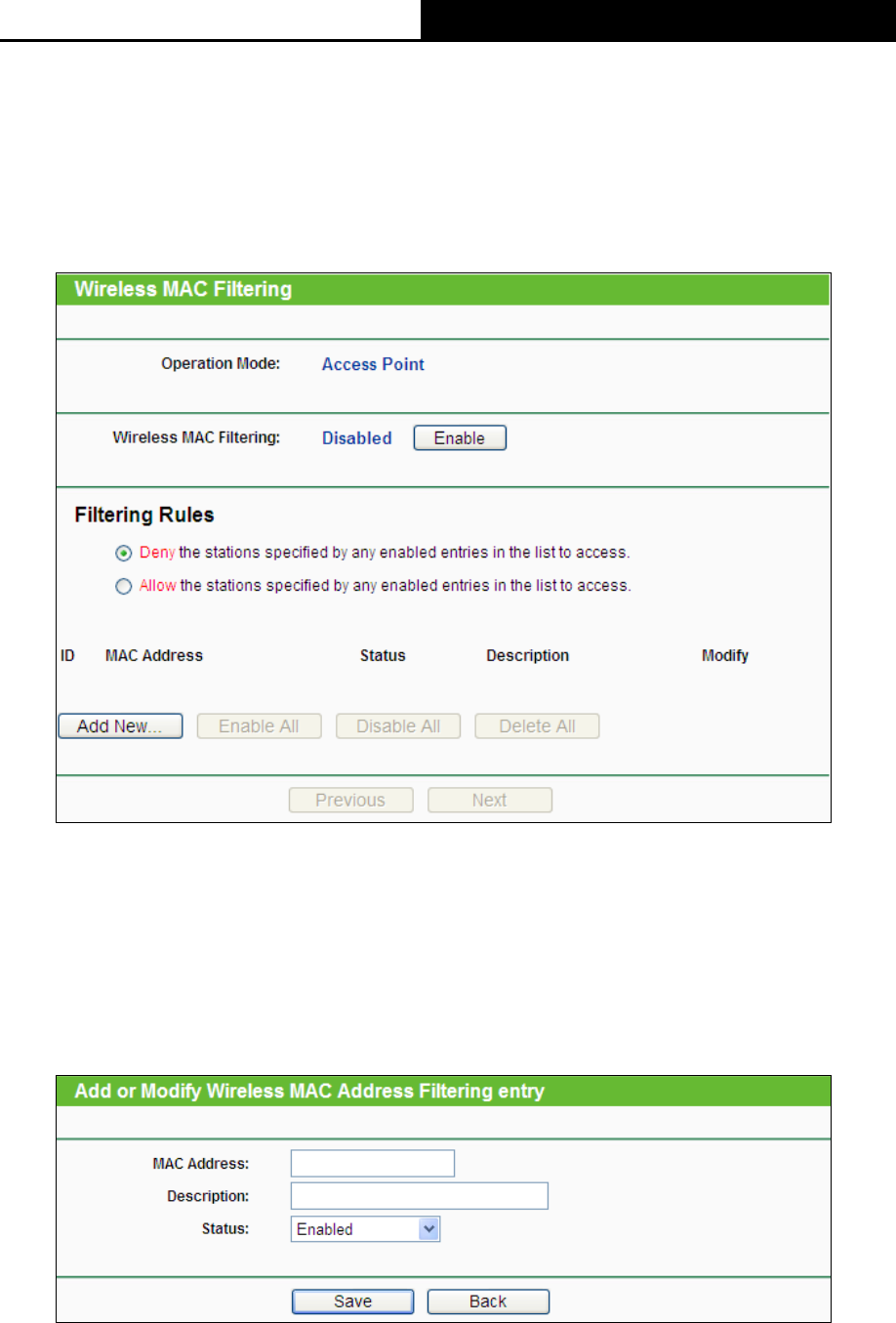

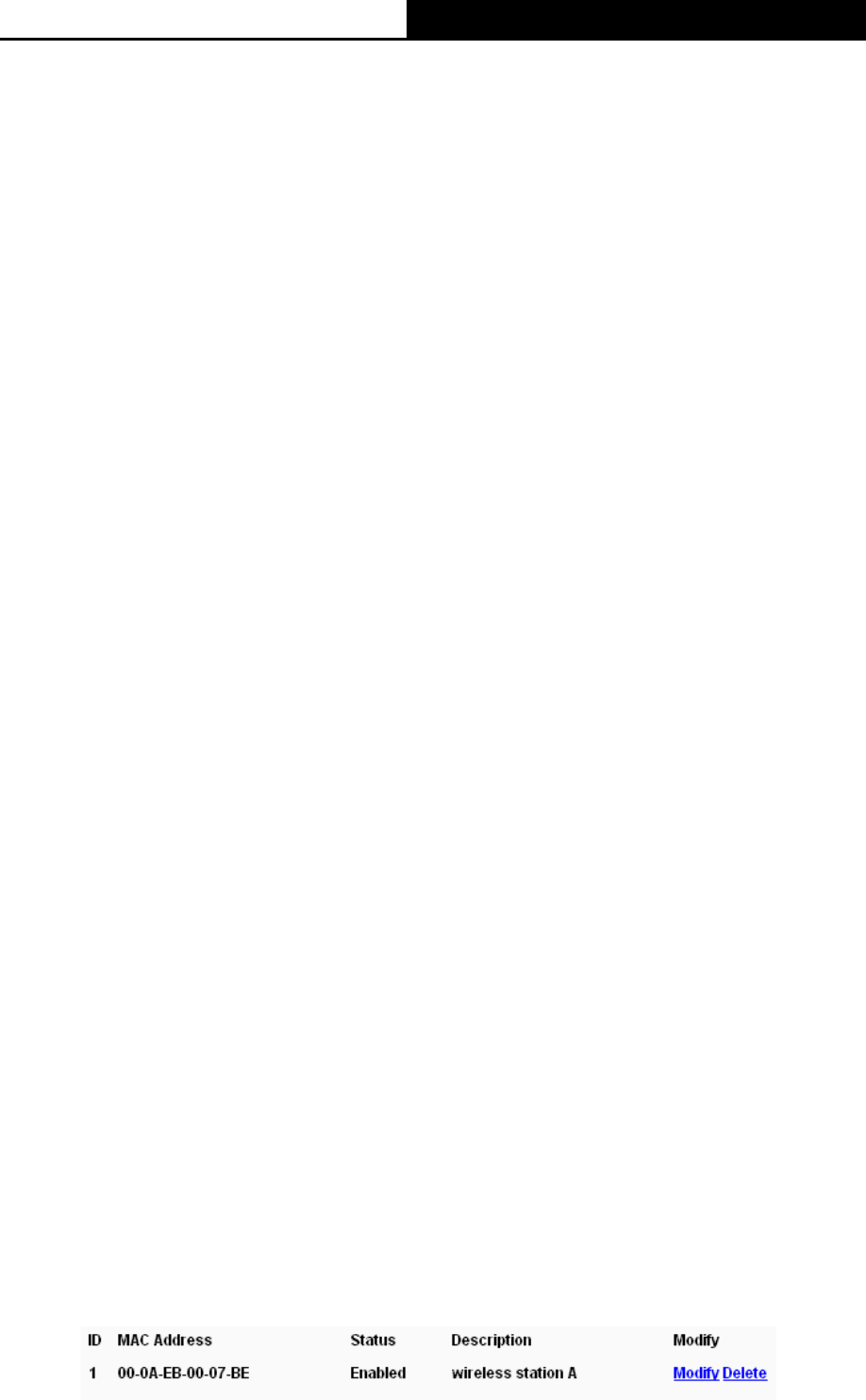

4.6.3 Wireless MAC Filtering .................................................................................... 48

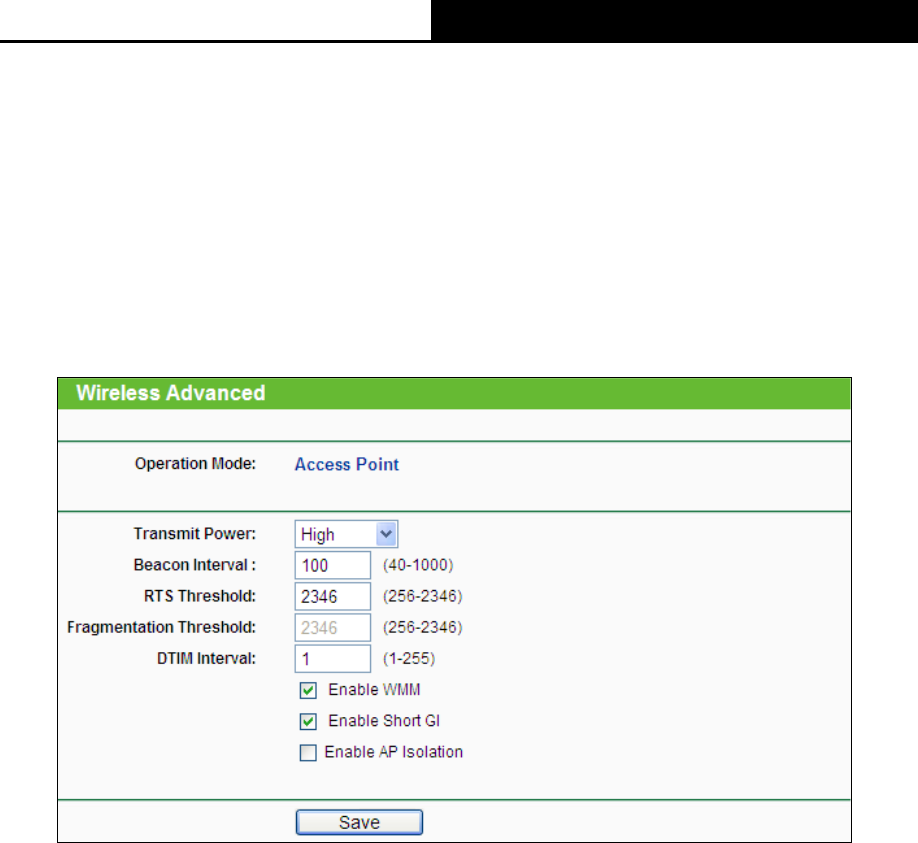

4.6.4 Wireless Advanced .......................................................................................... 50

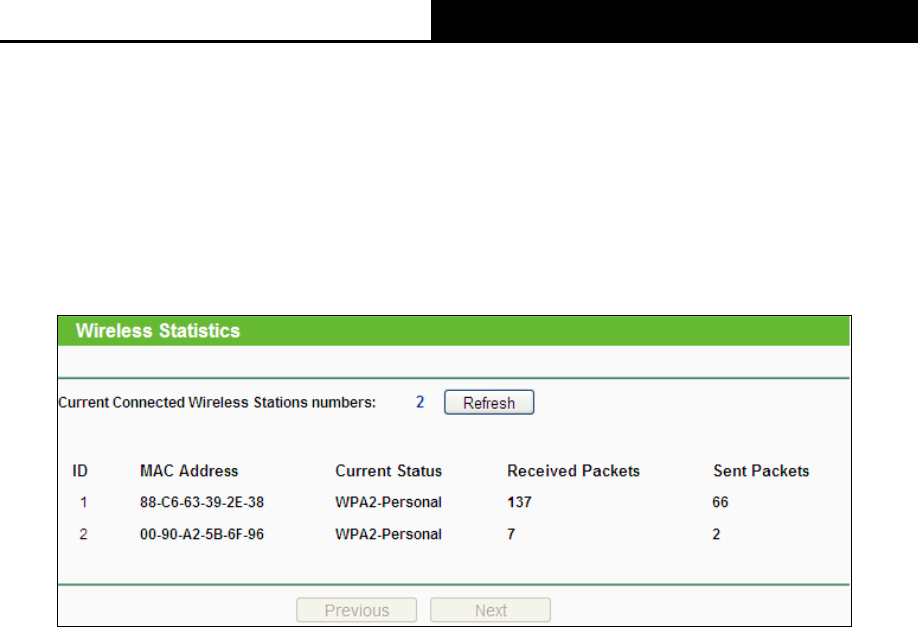

4.6.5 Wireless Statistics............................................................................................ 51

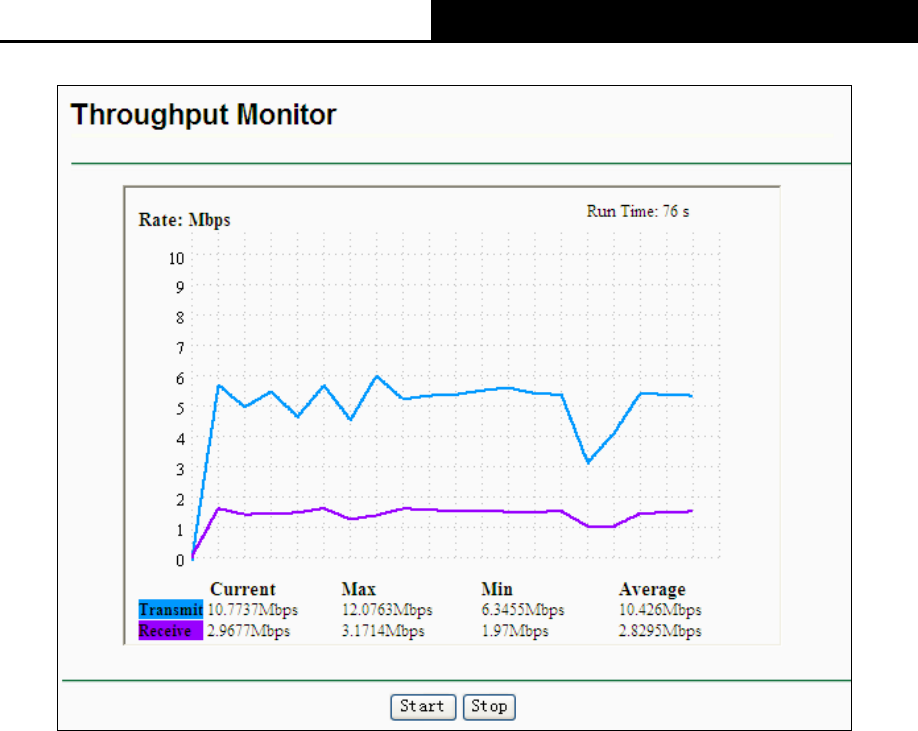

4.6.6 Throughput Monitor ......................................................................................... 51
4.7 System Tools ................................................................................................. 52

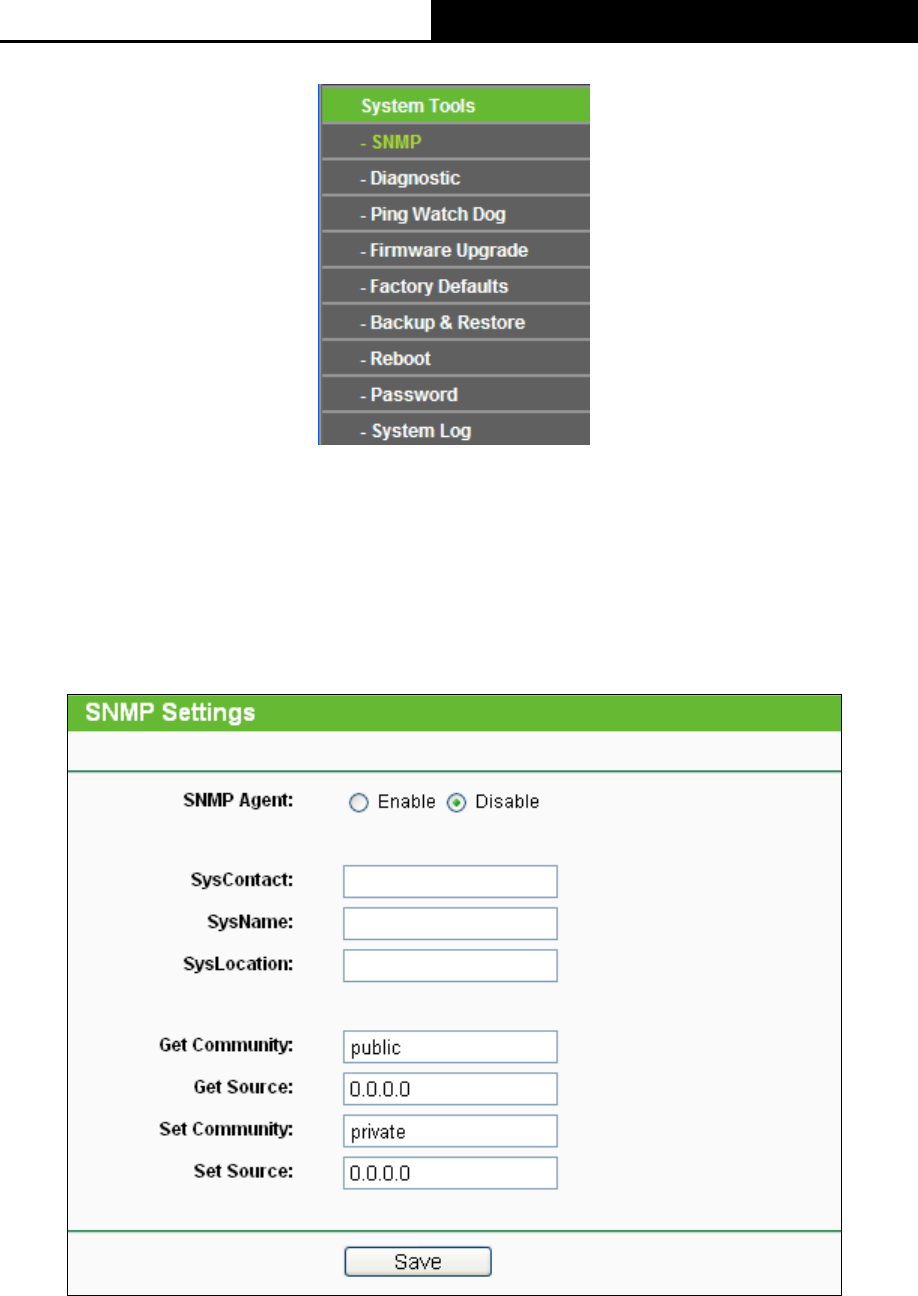

4.7.1 SNMP .............................................................................................................. 53

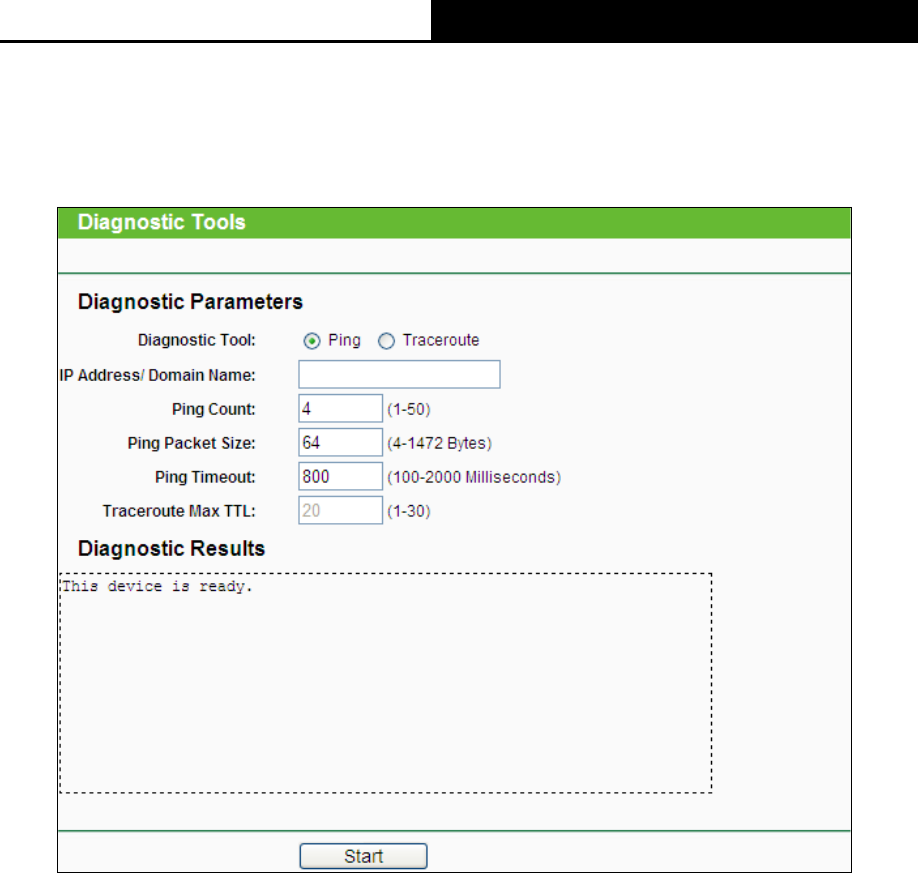

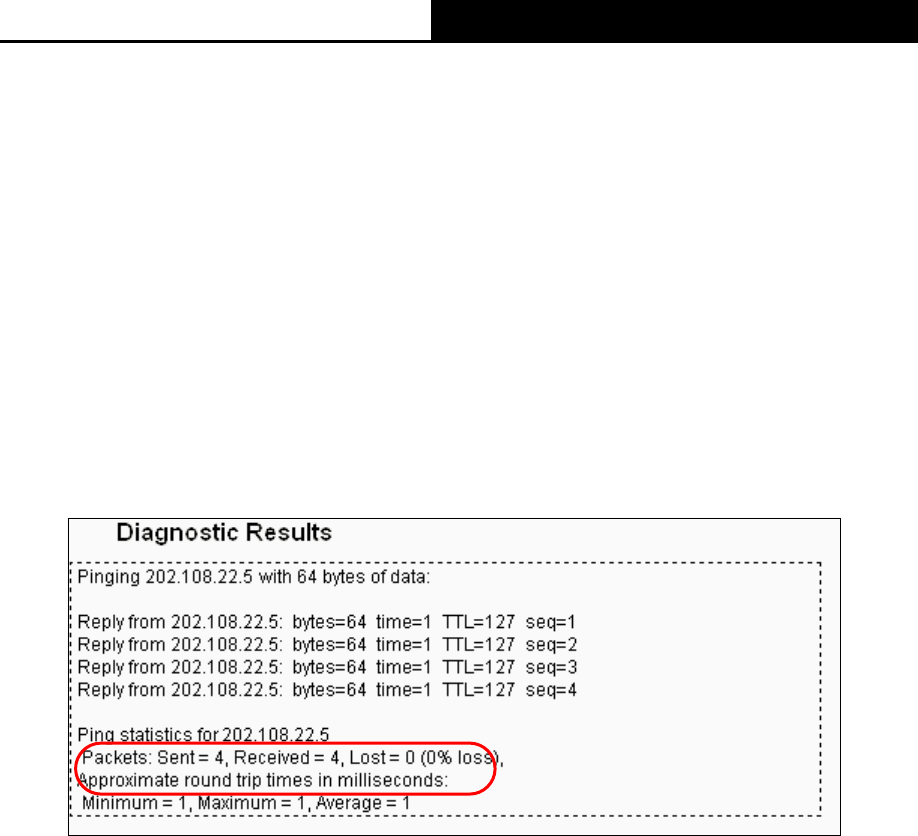

4.7.2 Diagnostic ........................................................................................................ 55

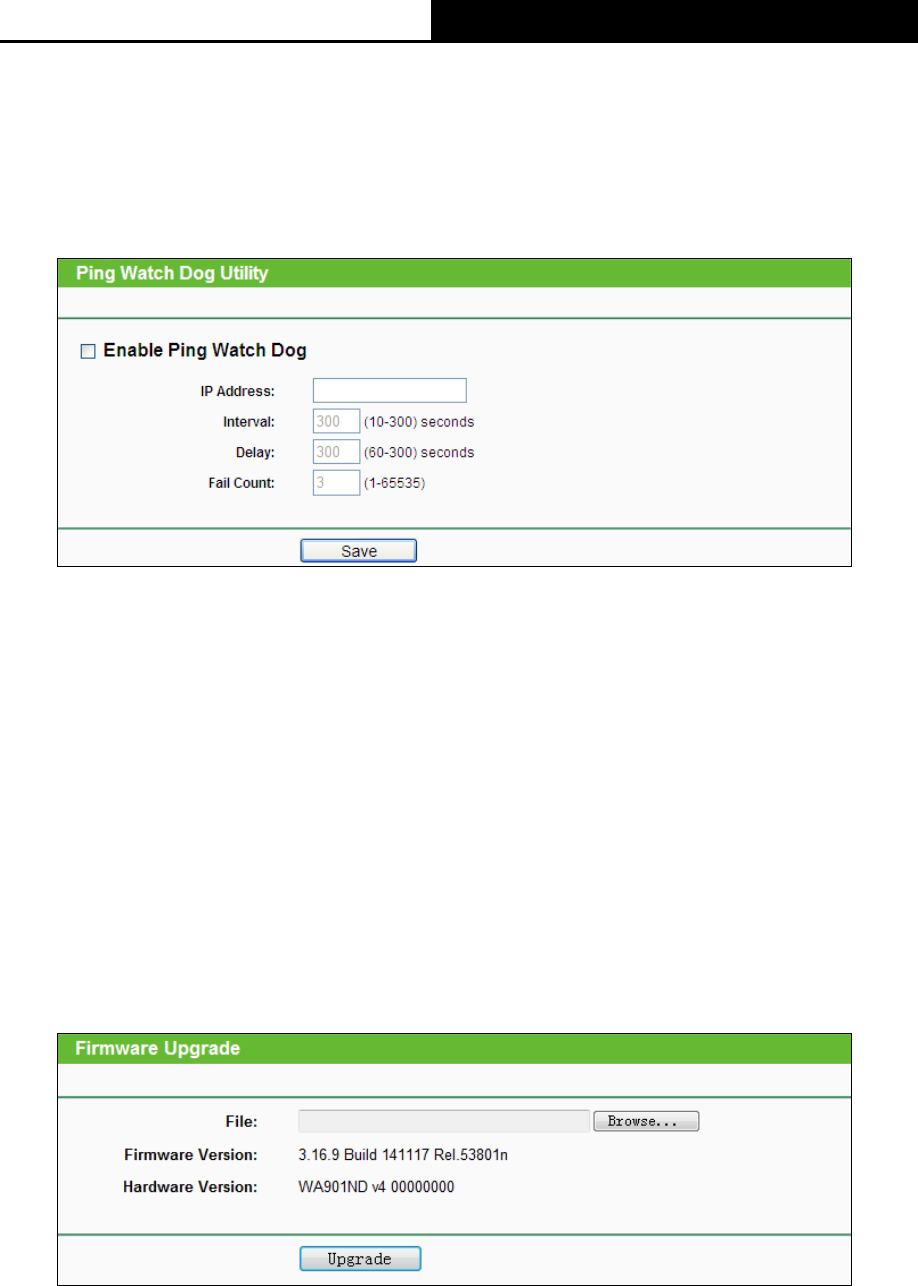

4.7.3 Ping Watch Dog ............................................................................................... 57
4.7.4 Firmware Upgrade ........................................................................................... 57

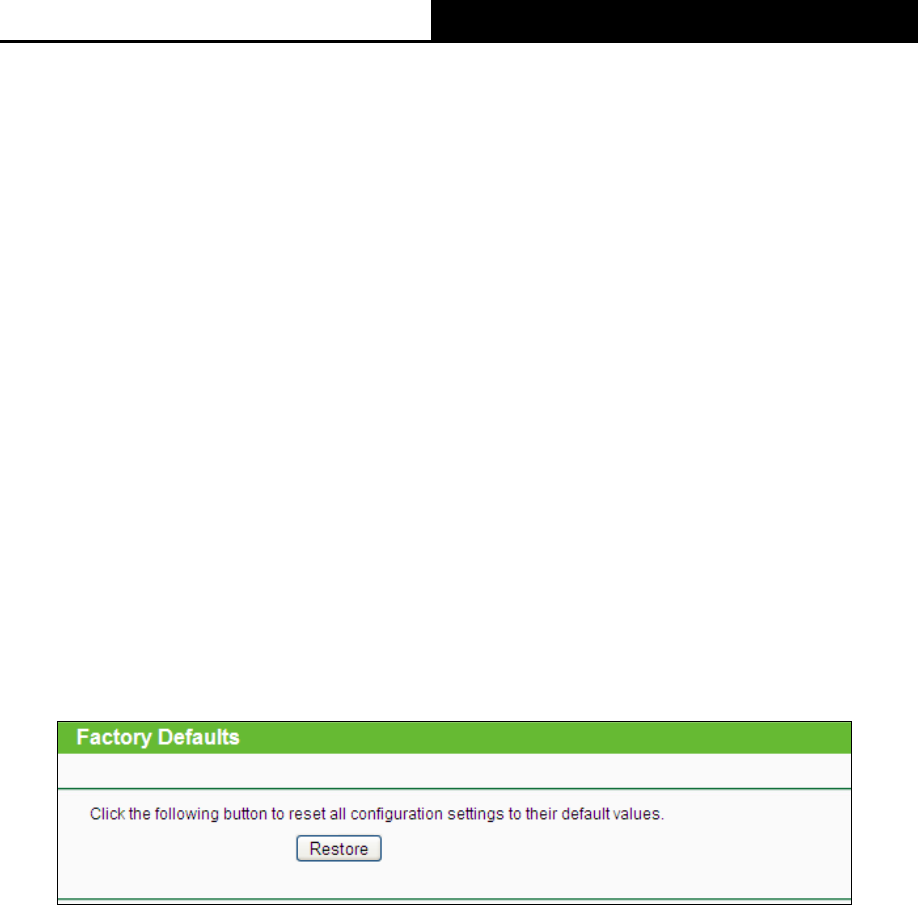

4.7.5 Factory Defaults............................................................................................... 58

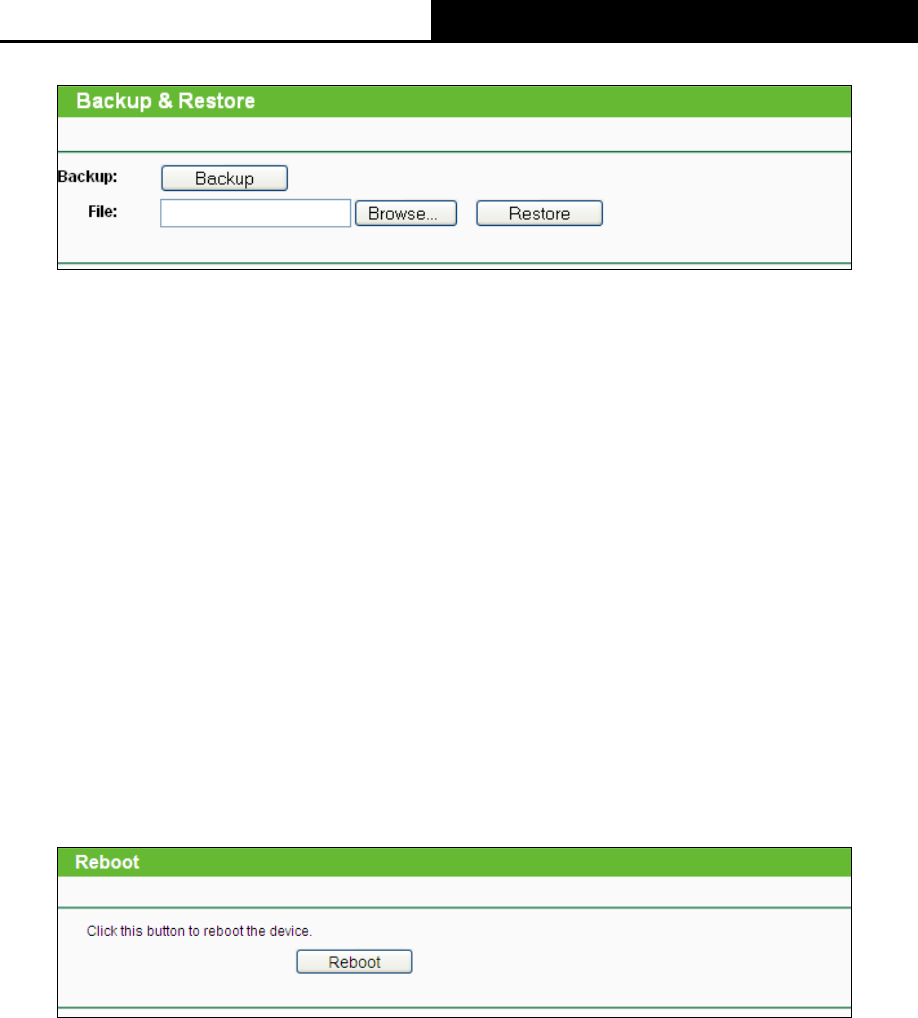

4.7.6 Backup & Restore ............................................................................................ 58
4.7.7 Reboot ............................................................................................................. 59

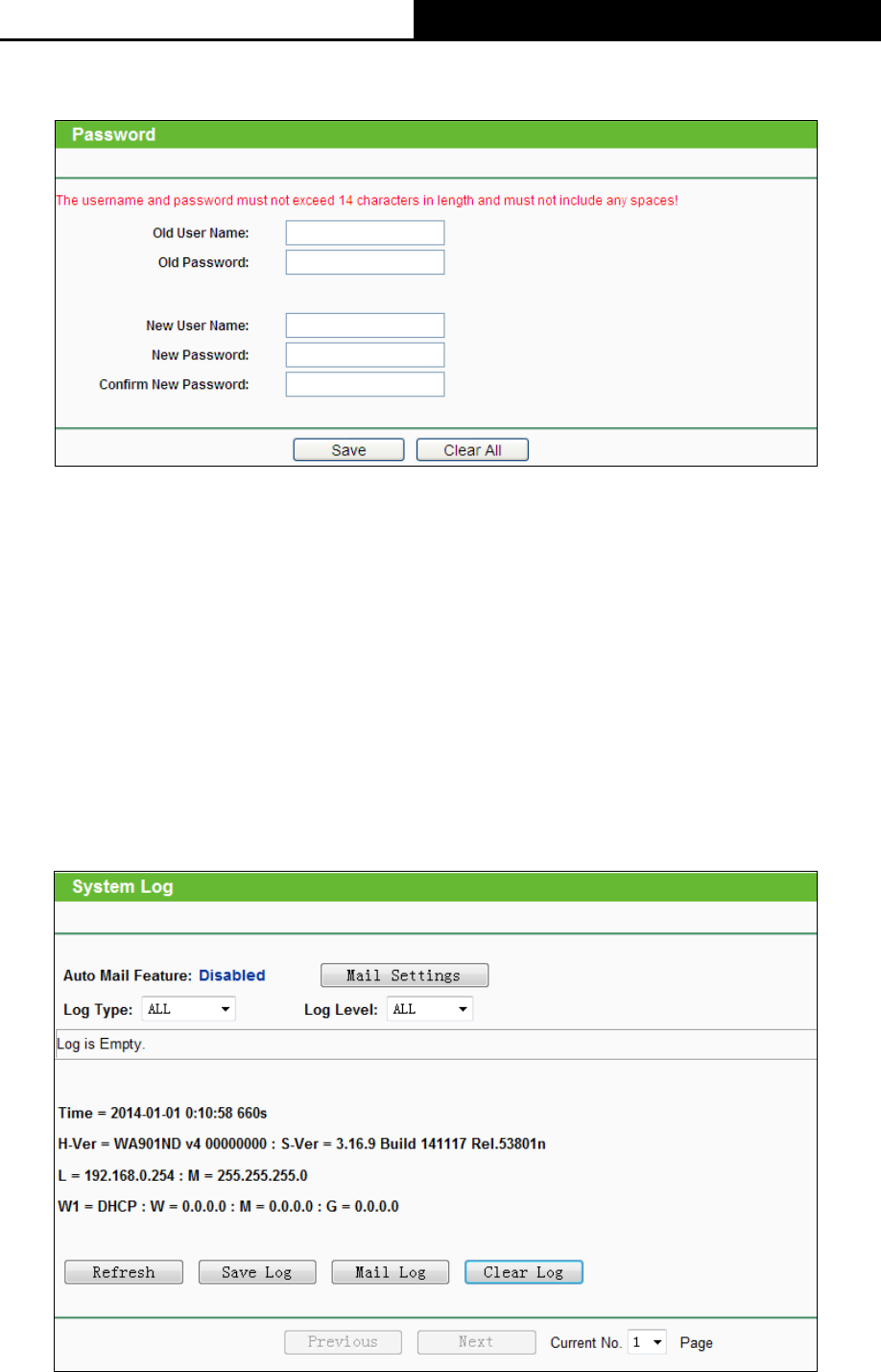

4.7.8 Password ......................................................................................................... 59
4.7.9 System Log ...................................................................................................... 60

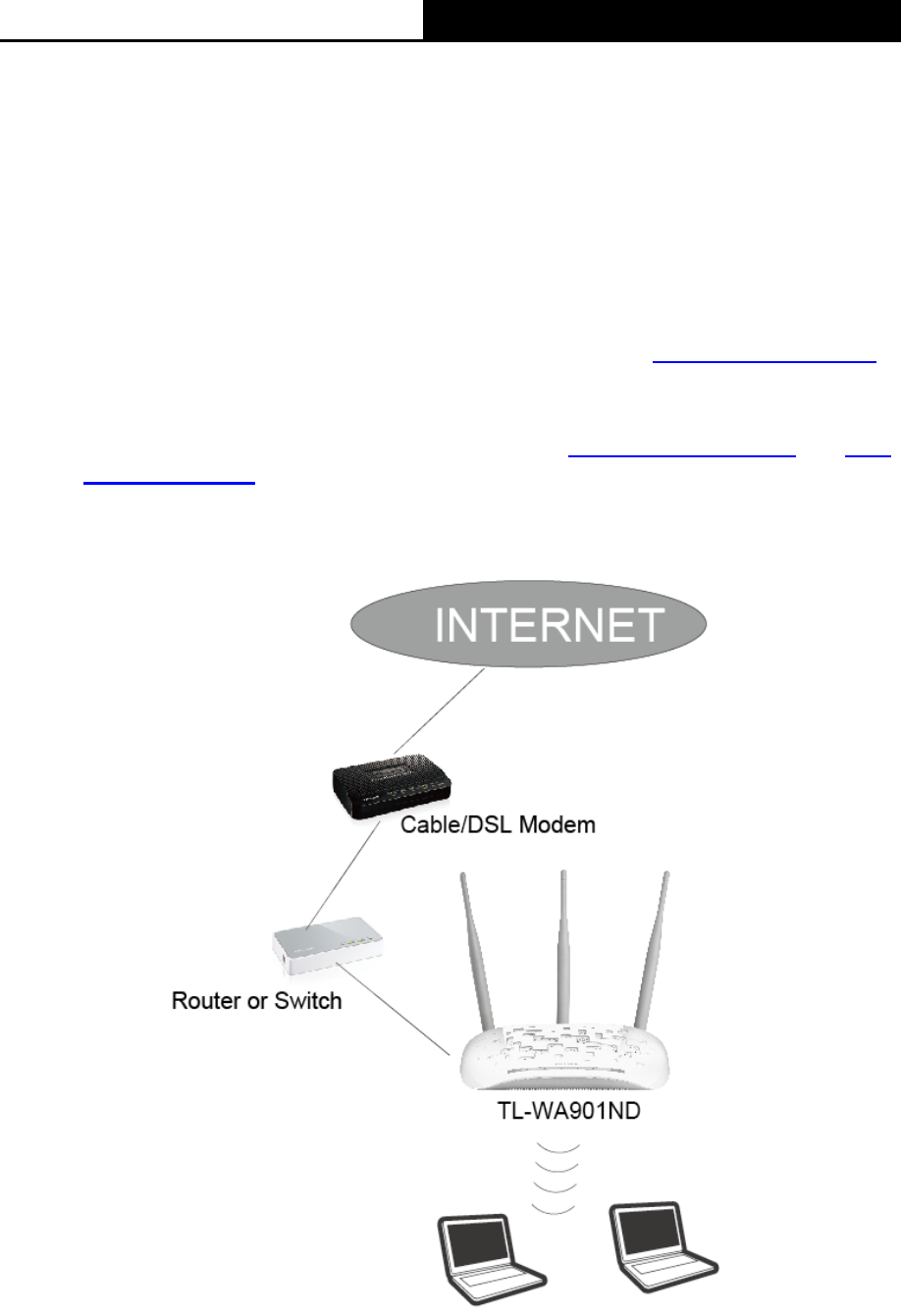

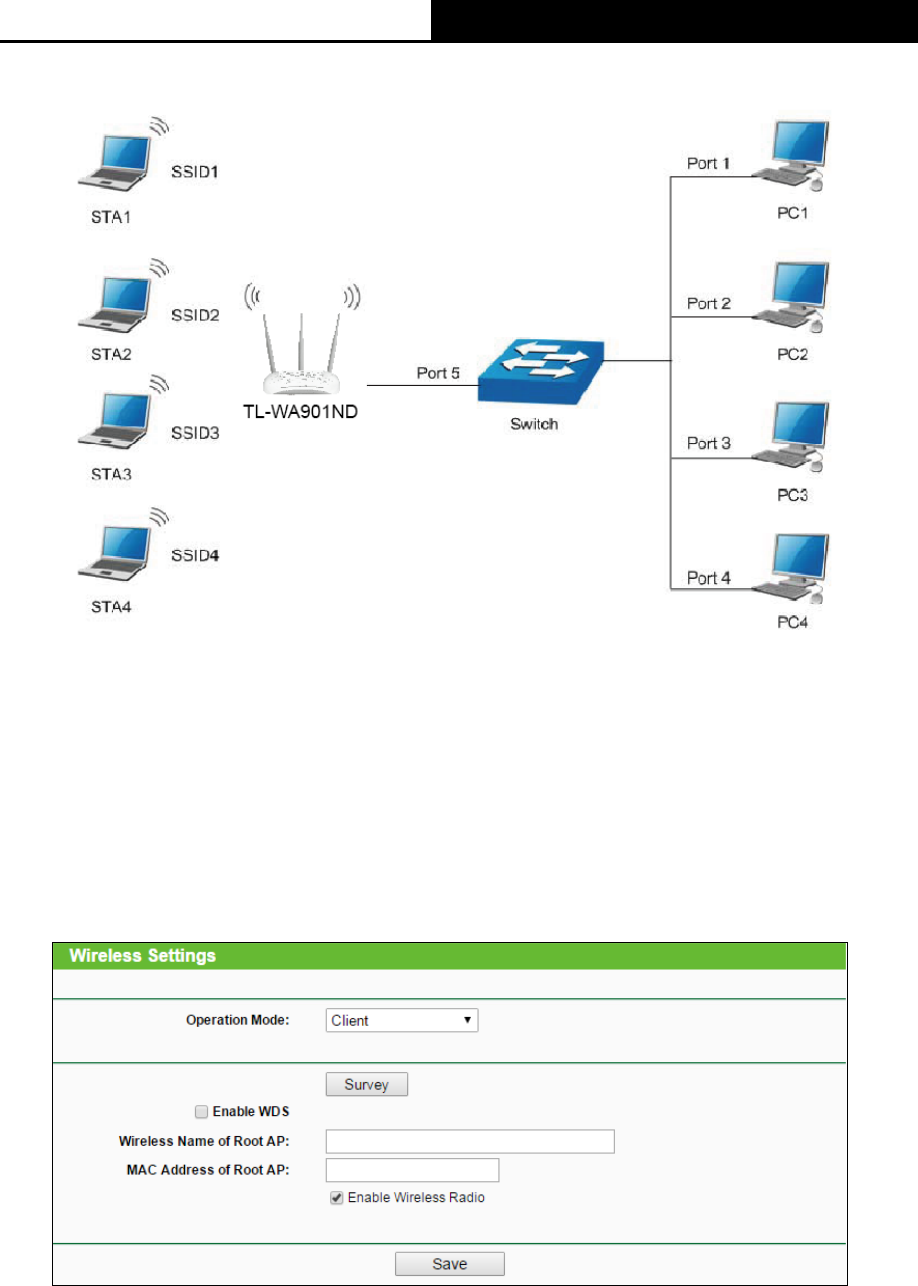

Appendix A: Application Example ........................................................................ 62
Appendix B: Factory Defaults ............................................................................... 65
Appendix C: Troubleshooting ............................................................................... 66
Appendix D: Specifications ................................................................................... 67
Appendix E: Glossary ............................................................................................ 69
TL-WA901ND
450Mbps Wireless N Access Point User Guide
1
Package Contents
The following items should be found in your package:
One TL-WA701ND/TL-WA801ND/TL-WA901ND Wireless N Access Point
One Power Injector
Ethernet Cable
One Power Adapter for TL-WA701ND/TL-WA801ND/TL-WA901ND Wireless N Access Point
Quick Installation Guide
Note:
Make sure that the package contains the above items. If any of the listed items are damaged or
missing, please contact with your distributor.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
2
Chapter 1 Introduction
1.1 Product Overview
This Wireless N Access Point is dedicated to Small Office/Home Office (SOHO) wireless network
solutions. It allows for greater range and mobility within your wireless network while also allowing
you to connect the wireless devices to a wired environment. Increased mobility and the absence of
cabling will be beneficial for your network.
With using IEEE 802.11n wireless technology, your device can transmit wireless data at the rate of
up to 150/300/450Mbps. With multiple protection measures, including SSID broadcast control and
wireless LAN 64/128/152-bit WEP encryption, WiFi protected Access (WPA2- PSK, WPA- PSK),
the Wireless N Access Point delivers complete data privacy. This device leverages some 802.11n
features to provide improved performance and coverage compared to 802.11a/g devices, and fully
interoperates with 802.11n products if they are Wi-Fi CERTIFIED.
It supports an easy, web-based setup for installation and management. Even though you may not
be familiar with the Access Point, you can easily configure it with the help of this Guide. Before
installing the AP, please look through this Guide to get the full information of the
TL-WA701ND/TL-WA801ND/TL-WA901ND Wireless N Access Point.
1.2 Conventions
Here in this Guide we use TL-WA901ND for example.
When using this guide, please notice that features of the AP may vary slightly depending on the
model and software version you have, and on your location, language, and Internet service
provider. All screenshots, images, parameters and descriptions documented in this guide are used
for demonstration only.
The information in this document is subject to change without notice. Every effort has been made
in the preparation of this document to ensure accuracy of the contents, but all statements,
information, and recommendations in this document do not constitute the warranty of any kind,
express or implied. Users must take full responsibility for their application of any products.
More Info:
The latest software, management app and utility can be found at Download Center at
http://www.tp-link.com/support.
The Installation Guide (IG) can be found where you find this guide or inside the package of
the AP.
Specifications can be found on the product page at http://www.tp-link.com.
A Technical Support Forum is provided for you to discuss our products at http://forum.tp-link.com.
Our Technical Support contact information can be found at the Contact Technical Support
page at http://www.tp-link.com/support.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
3
1.3 Main Features
Supports Access Point, Multi-SSID, Client, Repeater（Universal Repeater）and Bridge with AP
modes
Up to 4 SSIDs and VLAN support
Up to 30 meters (100 feet) of flexible deployment with included Power over Ethernet Injector
Easily setup a WPA encrypted secure connection at a push of the WPS button
Supports Remote and Web management
Backward compatible with 802.11b/g products
1.4 Appearance
1.4.1 The Front Panel
Figure 1-1
The front panel of the AP consists of several LED indicators, which is designed to indicate
connections. View from left to right, Table 1-1 , 1-2describes the LEDs.
Name Status Indication
On The device is on.
Off The device is off.
Flashing The device is initializing or upgrading.
On A device is connected to the Ethernet port.
Off No device is connected to the Ethernet port.
On The Wireless is working properly.
Off The Wireless is disabled.
On
A wireless device has been successfully added to the network by
WPS function.
Off The WPS function
is disabled or a wireless device failed to be added
to the network in 2 minutes after WPS function is enabled.
Flashing A wireless device is connecting to the network by WPS function. This
process will last in first 2 minutes.
Table 1-1
Note: For TL-WA701ND, there is another System LED:
Name
Status
Indication
Off The device has a system error.
On The device is initialising.
Flashing
The device is working properly.
Table 1-2
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
4
1.4.2 The Rear Panel
Figure 1-2
Viewed from left to right, the following parts are located on the rear panel of AP device.
ON/OFF: The switch for the power.
POWER: The power port connects to the power adapter provided with the AP device.
Ethernet: One LAN 10/100Mbps RJ45 port connects to a network device, such as a switch or a
router.
WPS/RESET: This button is used for both WPS and Reset function. To use the WPS function,
press it for less than five seconds; to use the RESET function, press it for more than five seconds.
Note: For TL-WA701ND/TL-WA801ND, there is one WPS button and one RESET button.
Used as RESET button:
There are two ways to reset to the device's factory defaults:
1) Use the Factory Defaults function on System Tools -> Factory Defaults page in the
device's Web-based Utility.
2) Use the WPS/RESET button: With the device powered on, press and hold the
WPS/RESET button (more than 5 seconds) until the SYS LED becomes quick-flash from
slow-flash. Then release the button and wait the Access Point to reboot to its factory
default settings.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
5
Used as WPS button:
If you have client devices, such as wireless adapters, that support Wi-Fi Protected Setup,
then you can press this button to quickly establish a connection between the Access Point
and client devices and automatically configure wireless security for your wireless network.
Wireless antenna: The external antenna is used to transmit and receive wireless data.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
6
Chapter 2 Hardware Installation
2.1 Before You Begin
Please read this User Guide carefully before installing and using the equipment. The operating
distance range of your wireless connection can vary significantly depending on the physical
position of the wireless devices. Factors that can weaken signals by getting in the way of your
network’s radio waves are metal appliances or obstructions, and walls. Typical ranges vary base
on the types of materials and background RF (radio frequency) noise in your home or office.
For best performance of your wireless network, you are suggested to:
1). Avoid redundant obstacles and interference between the wireless devices.
2). Keep your AP away from appliances with a strong electric field or magnetic field, such as a
microwave oven or refrigerator.
3). Place the AP near the center of the area in which your computers operates.
2.2 Basic Requirements
Use only the power adapter provided with your AP
Place your AP in a well ventilated place far from direct sunlight, any heater or heating vent
Leave at least 2 inches (5cm) space around the device for heat dissipation
Turn off your AP and unplug the power adapter in a lighting storm to avoid damage
Web browser, such as Microsoft Internet Explorer 5.0 or above, Netscape Navigator 6.0 or
above
Operating temperature: 0℃~40℃ (32℉~104℉)
Operating Humidity: 10%~90%RH, Non-condensing
2.3 Connecting the Device
Figure 2-1 is an example of the typical application of TL-WA901ND in the infrastructure network.
An Infrastructure network contains an access point or a wireless router.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
7

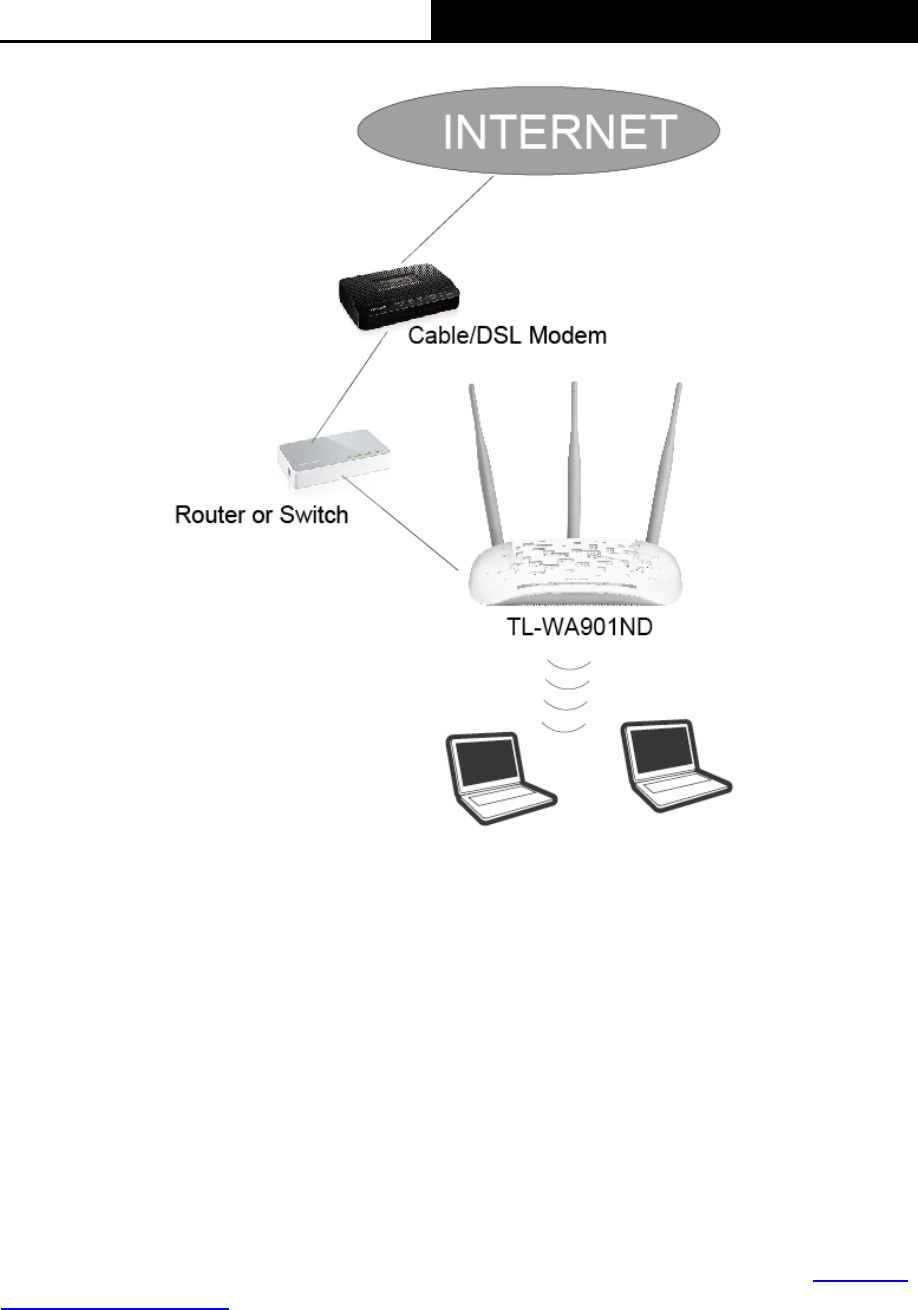

Figure 2-1 The Example of Infrastructure Network Incorporating the TL-WA901ND
To establish a typical connection of the AP, please take the following steps:
1. Connect the Cable or DSL modem to a Router.
2. Locate an optimum location for the AP. The best place is usually near the center of the area in
which your wireless devices like PCs, smart phones will wirelessly connect.
3. Adjust the direction of the antenna. Normally, upright is a good direction.
4. Connect the Ethernet Broadband Router to the TL-WA901ND Access Point. Power on the AP.
5. Then you can connect a desktop PC or laptop to your network. (Make sure your computer or
laptop is equipped with a Wireless Adapter and the IP address is configured as obtain an IP
address automatically.)
Note:
If you are not so clear about how to connect your devices to the network, please refer to Appendix
A Application Example.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
8
Note:

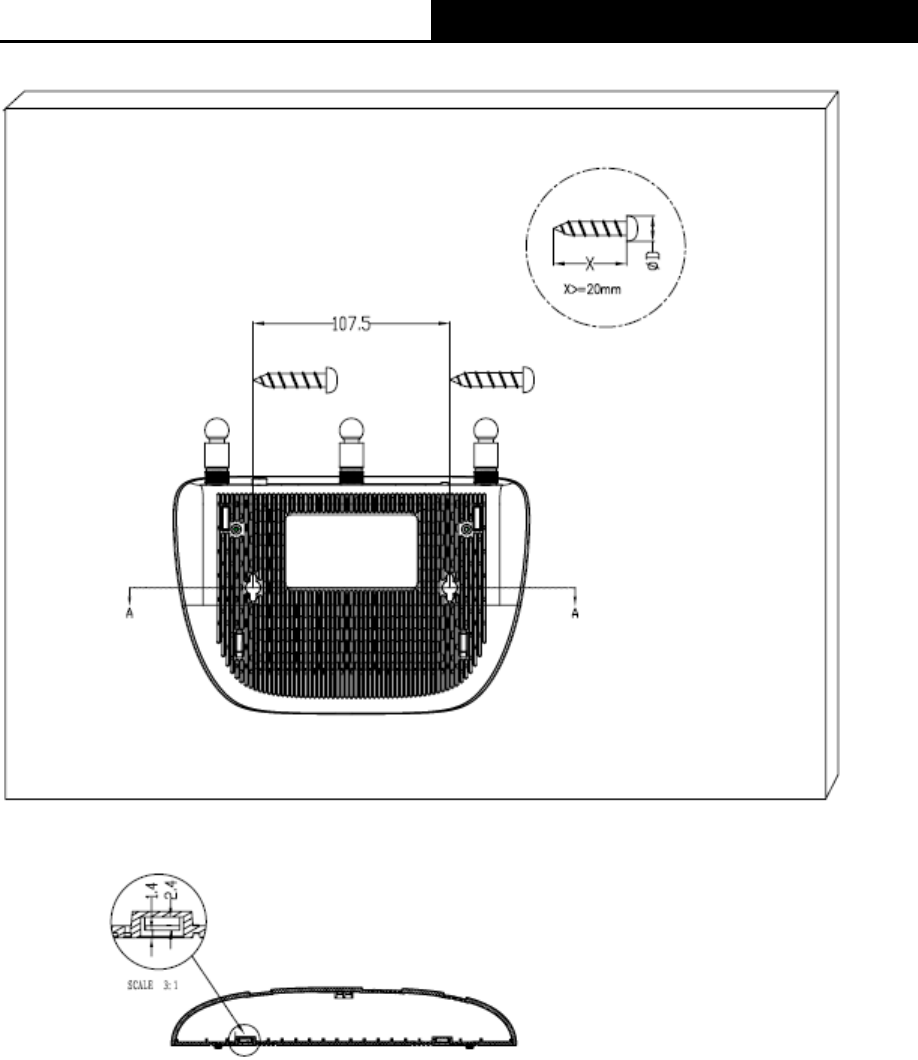

The diameter of the screw, 3.5mm<D<7.8mm, and the distance of two screws is 107.5mm. The
screw that project from the wall need around 4mm based, and the length of the screw need to be
at least 20mm to withstand the weight of the product.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
9
Chapter 3 Quick Installation Guide
This chapter will guide you to configure your PC to communicate with the AP and to configure and
manage the AP easily with a Web-based utility.
3.1 Quick Setup
With a Web-based utility, it is easy to configure and manage the AP device. The Web-based utility
can be used on any Windows, Macintosh or UNIX OS with a Web browser, such as Microsoft
Internet Explorer, Mozilla Firefox or Apple Safari.
Note:
If you cannot access the web-based configuration page, please refer to T3 in Appendix C:
Troubleshooting for help.
1. To access the configuration utility, open a web-browser and type in the default address
http://tplinkap.net in the address field of the browser and press Enter.
Figure 3-1 Login to the AP
After a moment, a login window will appear, similar to the Figure 3-2. Enter the default values
for the User Name and Password (both are admin in lower case letters). Then click OK or
press Enter.
Enter the default values for the User Name and Password (both are admin in lower case
letters) in Figure 3-2 below. Then click Login or press Enter.
Figure 3-2 Login Windows
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
10
Note:
If the above screen does not prompt, it means that your web-browser has been set to a proxy.
Go to Tools menu>Internet Options>Connections>LAN Settings, in the screen that
appears, cancel the Using Proxy checkbox, and click OK to finish it.
2. After successfully logging in, the Quick Setup page will display. Click Next to continue.
Figure 3-3 Quick Setup
3. The Quick Setup Start page will display. Click Next to continue.
4. The Operation Mode page will appear then, shown in Figure 3-4. The TL-WA901ND
supports up to five operation modes.
Figure 3-4 Operation Mode
In Access Point mode, the product will act as a wireless central hub for your wireless
LAN clients, giving a wireless extension for your current wired network.
In Repeater(Range Extender) mode, the product can extend the coverage of your main
Router/AP.
In Bridge with AP mode, the product can wirelessly connect two or more remote LANs
together.
In Client mode, the product will act as a wireless adapter to connect your wired devices
(e.g. IPTV Set-top-box, Smart TVs, Game Consoles, DVD and Blu-ray Players, etc.) to a
wireless network.
In Multi-SSID mode, the product can be assigned up to four SSIDs to work with your
VLAN.
5. Select the operation mode based on your need.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
11
A. When you choose Access Point mode, the Wireless Settings page will be shown in Figure
3-5.
Figure 3-5 Wireless Setting - Access Point mode
1) Create an easy-to-remember and distinguish name for your wireless network, write it into
Wireless Network Name(SSID).
2) Select Channel for your device.
3) It's recommended select Most Secure (WPA/WPA2-PSK) encryption mode and enter a
password below to prevent unauthorized access to your AP.
4) Click Next, you will then come to Network Setting page for furthers configuration.
B. When you choose Repeater (Range Extender) mode, the AP will detect the wireless
networks in your neighborhood, and then the window displaying a list of available SSIDs will
appear in Figure 3-6.
Figure 3-6 AP List
1) Find the SSID of the Access Point / Router or WISP which you want you to connect to, and
click Connect in the corresponding row. You will then see the page shown in Figure 3-7.
2) Select the security mode and enter the password that is the same as on your router or
access point in Figure 3-7.
3) Click Next, you will then come to Network Settings page for furthers configuration.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
12

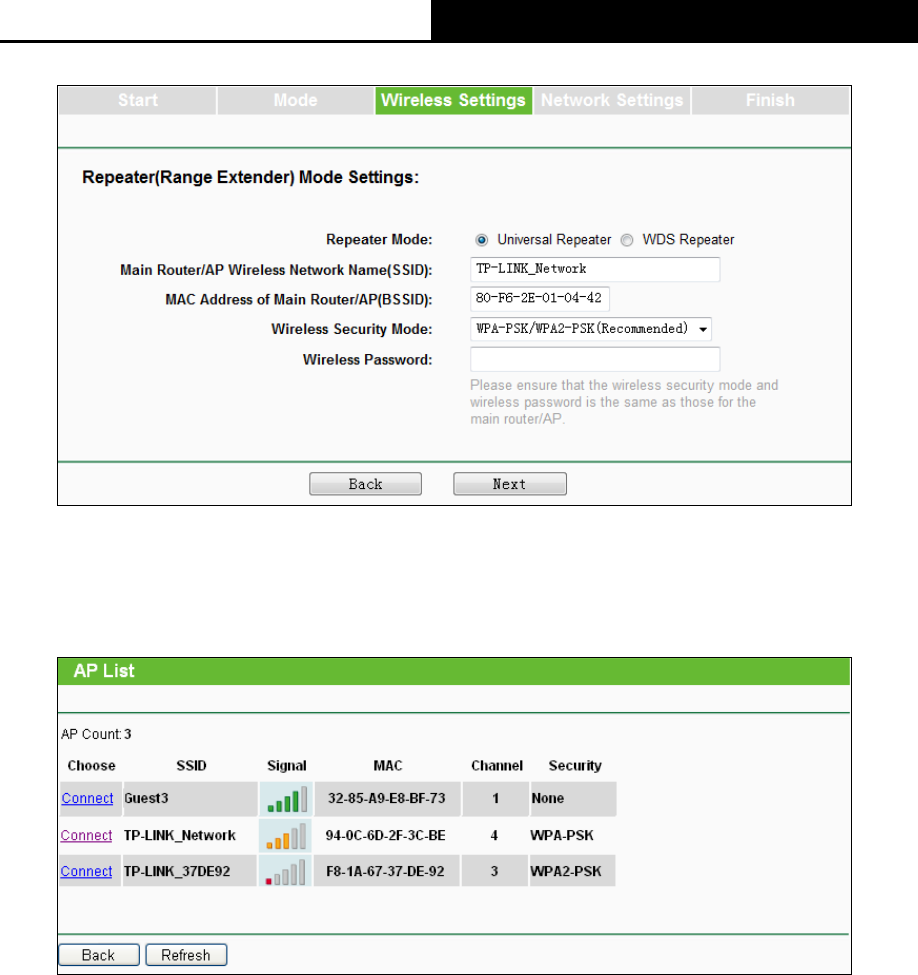

Figure 3-7 Wireless Setting – Repeater (Range Extender) mode
C. When you choose Bridge with AP mode, the AP will detect the wireless networks in your
neighborhood, and then the window displaying a list of available SSIDs will appear in Figure
3-8.
Figure 3-8 AP List
1) Find the SSID of the Access Point / Router or WISP which you want you to connect to, and
click Connect in the corresponding row. You will then see the page shown in Figure 3-9.
2) Select the security mode and enter the password that is the same as on your router or
access point in Wireless Bridge Setting.
3) You can name the bridge AP in Local Wireless Name, and configure the Local
Wireless Setting for the bridge AP.
4) Click Next in Figure 3-9, and you will come to Network Settings page for furthers
configuration.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
13
Figure 3-9 Wireless Setting – Bridge with AP mode
D. When you choose Client mode, the AP will detect the wireless networks in your
neighborhood, and then the window displaying a list of available SSIDs will appear in Figure
3-10.
Figure 3-10 AP List
1) Find the SSID of the Access Point / Router or WISP which you want you to connect to, and
click Connect in the corresponding row. You will then see the page shown in Figure 3-11.
2) Select the security mode and enter the password that is the same as on the main
Router/AP.
3) Click Next, you will then come to Network Settings page for further configuration.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
14
Figure 3-11 Wireless Setting – Client mode
E. When you choose Multi-SSID mode, the Wireless Settings page will be shown in Figure
3-12.
Figure 3-12 Wireless Setting – Multi-SSID mode
You are suggested to implement Multi-SSID function with a switch that supports Tag VLAN
feature.
For advanced configuration of this step, please refer to explanations of this mode in 4.6.1
Wireless Settings.
6. When you have configured Wireless Settings in step 4, The Network Settings page will
appear then, shown in Figure 3-13. It is recommended that you keep the default settings on
this page.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
15
Figure 3-13 Network Setting
Note:
These settings are only for basic wireless parameters, for advanced settings, please refer to
4.5 Network.
7. Click the Next button. You will then see the Finish page. Here takes the settings for Access
Point mode for example.
Check your settings and click Save to save your settings for future reference.
Click the Finish button to finish the configuration of the Access Point.
Figure 3-14 Quick Setup – Finish
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
16
Chapter 4 Configure the Device
This Chapter describes how to configure your Access Point via the web-based management page.
The AP is easy to configure and manage with the Web-based (Internet Explorer, Netscape®
Navigator, Firefox, Safari, Opera or Chrome) management page, which can be launched on any
windows, Macintosh or UNIX OS with a web browser.
4.1 Login
Open your web browser. Type in http://tplinkap.net in the address field of web browser and press
Enter.
Figure 4-1 Login to the AP
Enter the default values for the User Name and Password (both are admin in lower case letters) in
Figure 4-2 below. Then click Login or press Enter.
Figure 4-2 Login Windows
Note:
If the above screen does not prompt, it means that your web-browser has been set to a proxy. Go
to Tools menu>Internet Options>Connections>LAN Settings, in the screen that appears,
cancel the Using Proxy checkbox, and click OK to finish it.
After a successful login, you can configure and manage the device. There are five main menus on
the leftmost column of the web-based management page: Status, WPS, Network, Wireless and
System Tools. Submenus will be available after clicking one of the main menus. On the right of
the web-based management page lies the detailed explanations and instructions for the
corresponding page.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
17
4.2 Status
Selecting Status will enable you to view the AP’s current status and configuration, all of which is
read-only.
Figure 4-3 Device Status
Firmware Version - This field displays the current firmware version of the AP.
Hardware Version - This field displays the current hardware version of the AP
Wired - This field displays the current settings or information for the Network, including the
MAC address, IP address and Subnet Mask.
Wireless - This field displays basic information or status for wireless function, including
Operating Mode, Wireless Network Name, Channel, Mode, Channel Width, Max Tx Rate
and MAC Address.
Traffic Statistics - This field displays the AP's traffic statistics.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
18
System Up Time - This filed displays the run time of the AP since it’s powered on or reset.
Note:
If you select Client mode in Figure 4-14, the wireless status in Figure 4-3 will change, similar to the
figure below:
Figure 4-4 Device Status - Client
4.3 Quick Setup
Please refer to Section 3.1 Quick Setup for more details.
4.4 WPS
WPS (Wi-Fi Protected Setup) can help you to quickly and securely connect to a network. This
section will guide you to add a new wireless device to an existing network quickly by function. The
WPS function is only available when the Operation Mode is set to Access Point and Multi-SSID.
Here we take the Access Point mode for example. Select menu “WPS”, you will see the next
screen shown in Figure 4-5.
Figure 4-5 WPS
WPS Status - To enable or disable the WPS function here.
Current PIN - The current value of the device's PIN is displayed here. The default PIN of the
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
19
device can be found in the label or User Guide.
Restore PIN - Restore the PIN of the device to its default.
Gen New PIN - Click this button, and then you can get a new random value for the device's
PIN. You can ensure the network security by generating a new PIN.
Disable PIN of this device - WPS external register of entering the device’s PIN can be
disabled or enabled manually. If the device receives multiple failed attempts to authenticate
an external Register, this function will be disabled automatically.
Add Device - You can add a new device to the existing network manually by clicking this
button.
To add a new device:
If the wireless adapter supports Wi-Fi Protected Setup (WPS), you can establish a wireless
connection between wireless adapter and device using either Push Button Configuration (PBC)
method or PIN method.
Note:
To build a successful connection by WPS, you should also do the corresponding configuration of
the new device for WPS function meanwhile.
For the configuration of the new device, here takes the Wireless Adapter of our company for
example.
I. By PBC
If the wireless adapter supports Wi-Fi Protected Setup and the Push Button Configuration (PBC)
method, you can add it to the network by PBC with the following two methods.
Method One:
Step 1: Press the WPS/RESET button on the rear panel of the device.
Step 2: Press and hold the WPS button of the adapter directly for 2 or 3 seconds.
Step 3: Wait for a while until the next screen appears. Click OK to complete the WPS
configuration.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
20
The WPS Configuration Screen of Wireless Adapter
Method Two:
Step 1: Press the WPS/RESET button on the rear panel of the device.
Step 2: For the configuration of the wireless adapter, please choose “Push the button on my
access point or wireless router.” in the configuration utility of the WPS as below, and
click Next.
The WPS Configuration Screen of Wireless Adapter
Step 3: Wait for a while until the next screen appears. Click OK to complete the WPS
configuration.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
21
The WPS Configuration Screen of Wireless Adapter
Method Three:
Step 1: Keep the default WPS Status as Enabled and click the Add device button in Figure 4-5,
then the following screen will appear.
Figure 4-6 Add A New Device
Step 2: Choose “Press the button of the new device in two minutes” and click Connect.
Step 3: For the configuration of the wireless adapter, please choose “Push the button on my
access point or wireless router” in the configuration utility of the WPS as below, and
click Next.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
22
The WPS Configuration Screen of Wireless Adapter
Step 4: Wait for a while until the next screen appears. Click OK to complete the WPS
configuration.
The WPS Configuration Screen of Wireless Adapter
II. By PIN
If the new device supports Wi-Fi Protected Setup and the PIN method, you can add it to the
network by PIN with the following two methods.
Method One: Enter the PIN into my AP
Step 1: Keep the default WPS Status as Enabled and click the Add device button in Figure 4-5,
then the following screen will appear.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
23
Figure 4-7 Enter the PIN
Step 2: Choose “Enter the new device's PIN” and enter the PIN code （take 16952898 for
example） of the wireless adapter in the field after PIN as shown in the figure above. Then
click Connect.
Note:
The PIN code of the adapter is always displayed on the WPS configuration screen as shown in the
following figure.
Step 3: For the configuration of the wireless adapter, please choose “Enter the PIN of this
device into my access point or wireless router.” in the configuration utility of the WPS
as below, and click Next.
The WPS Configuration Screen of Wireless Adapter
Note:
In this example, the default PIN code of this adapter is 16952898 as the above figure shown.
Method Two: Enter the PIN from my AP
Step 1: Get the Current PIN code of the AP in Figure 4-5 (each AP has its unique PIN code. Here
takes the PIN code 12345670 of this AP for example).
Step 2: For the configuration of the wireless adapter, please choose “Enter the PIN of my
access point or wireless router.” in the configuration utility of the WPS as below, and
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
24
enter the PIN code of the AP into the field after “Access Point PIN”. Then click Next.
The WPS Configuration Screen of Wireless Adapter
Note:
The default PIN code of the AP can be found in its label or the WPS configuration screen as Figure
4-5 .
You will see the following screen when the new device has successfully connected to the network.
Note:
1. The WPS LED on the AP will light green for five minutes if the device has been successfully
added to the network.
2. The WPS function cannot be configured if the Wireless function of the AP is disabled. Please
make sure the Wireless function is enabled before configuring the WPS.
4.5 Network
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
25
4.5.1 LAN
The Network option allows you to customize your local network manually by changing the default
settings of the AP.
Selecting Network will enable you to configure the IP parameters of Network on this page.
Figure 4-8 Network
MAC Address - The physical address of the AP. The value can't be changed.
Type - Select Dynamic IP(DHCP) to get IP address from DHCP server or select Static IP to
configure IP address manually from the drop-down list.
IP Address - Enter the IP address of your AP in dotted-decimal notation (factory default
setting is 192.168.0.254).
Subnet Mask - An address code that determines the size of the network. Normally use
255.255.255.0 as the subnet mask.
Gateway - The gateway should be in the same subnet as your IP address.
Note:
1. If you change the IP Address, you must use the new IP Address to log in the AP.
2. If the new LAN IP Address you set is not in the same subnet with the IP Address pool of DHCP
sever, the IP Address pool will not take effect until it is re-configured accordingly.
4.5.2 DHCP Settings
Selecting DHCP > DHCP Settings will enable you to set up the AP as a DHCP (Dynamic Host
Configuration Protocol) server, which provides the TCP/IP configuration for all the PCs that are
connected to the system on the LAN. The DHCP Server can be configured on the page (shown as
Figure 4-9):
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
26
Figure 4-9 DHCP Settings
DHCP Server - Selecting the radio button before Disable/Enable will disable/enable the
DHCP server on your AP. The default setting is Enable. If you disable the Server, you must
have another DHCP server within your network or else you must manually configure the
computer.
Start IP Address - This field specifies the first address in the IP Address pool. 192.168.0.100
is the default start IP address.
End IP Address - This field specifies the last address in the IP Address pool. 192.168.0.199
is the default end IP address.
Address Lease Time - Enter the amount of time for the PC to connect to the AP with its
current assigned dynamic IP address. The time is measured in minutes. After the time is up,
the PC will be automatically assigned a new dynamic IP address. The range of the time is 1 ~
2880 minutes. The default value is 120 minutes.
Default Gateway (optional) - Enter the IP address of the gateway for your LAN. The factory
default setting is 0.0.0.0.
Default Domain (optional) - Enter the domain name of the your DHCP server. You can leave
the field blank.
Primary DNS (optional) - Enter the DNS IP address provided by your ISP. Consult your ISP
if you don’t know the DNS value. The factory default setting is 0.0.0.0.
Secondary DNS (optional) - Enter the IP address of another DNS server if your ISP provides
two DNS servers. The factory default setting is 0.0.0.0.
Click Save to save the changes.
Note:
1. When the device is working on Dynamic IP mode, the DHCP Server function will be
disabled.
2. To use the DHCP server function of the device, you should configure all computers in the
LAN as "Obtain an IP Address automatically" mode. This function will not take effect until
the device reboots.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
27
4.5.3 DHCP Client List
Selecting DHCP > DHCP Client List will enable you to view the Client Name, MAC Address,
Assigned IP and Lease Time for each DHCP Client attached to the device (Figure 4-10).
Figure 4-10 DHCP Clients List
ID - Here displays the index of the DHCP client.
Client Name - Here displays the name of the DHCP client.
MAC Address - Here displays the MAC address of the DHCP client.
Assigned IP - Here displays the IP address that the AP has allocated to the DHCP client.
Lease Time - Here displays the time of the DHCP client leased. Before the time is up, DHCP
client will request to renew the lease automatically.
You cannot change any of the values on this page. To update this page and to show the current
attached devices, click on the Refresh button.
4.6 Wireless
The Wireless option, improving functionality and performance for wireless network, can help you
make the AP an ideal solution for your wireless network. Here you can create a wireless local area
network just through a few settings. Wireless Settings is used for the configuration of some basic
parameters of the AP. Wireless Security provides three different security types to secure your data
and thus provide greater security for your wireless network. MAC filtering allows you to control the
access of wireless stations to the AP. Wireless Advanced allows you to configure some advanced
parameters for the AP. Throughput Monitor helps to watch wireless throughput information
Wireless statistics enables you to get detailed information about the current connected wireless
stations.
There are six submenus under the Wireless menu (shown in Figure 4-11): Wireless Settings,
Wireless Security, Wireless MAC Filtering, Wireless Advanced, Wireless Statistics and
Throughput Monitor. Click any of them, and you will be able to configure the corresponding
function. The detailed explanations for each submenu are provided below.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
28
Figure 4-11 Wireless menu
4.6.1 Wireless Settings
Selecting Wireless > Wireless Settings will enable you to configure the basic settings for your
wireless network on the screen below (Figure 4-12).This page allows you to configure the wireless
mode for your device. Six operation modes are supported here, including Access Point,
Multi-SSID, Client, WDS Repeater, Universal Repeater and Bridge with AP. The available
setting options for each operation mode are different from those of the other.
1) Access Point: This mode allows wireless stations to access this device.
Figure 4-12 Wireless Settings in Access Point mode
Wireless Network Name - Identifies your wireless network name. Create a name up to 32
characters and make sure all wireless points in the wireless network with the same SSID. The
default SSID is TP-LINK_AP_XXXX (XXXX indicates the last unique four characters of each
device’s MAC address). This value is case-sensitive. For example, TEST is NOT the same as
test.
Channel - Determines the operating frequency to be used. It is not necessary to change the
wireless channel unless you notice interference problems with another nearby access point.
Mode - Select the desired wireless mode. The options are:
• 11b only - Only 802.11b wireless stations can connect to the device.
• 11g only - Only 802.11g wireless stations can connect to the device.
• 11n only - Only 802.11n wireless stations can connect to the device.
• 11bg mixed - Both 802.11b and 802.11g wireless stations can connect to the device.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
29
• 11bgn mixed - All 802.11b, 802.11g and 802.11n wireless stations can connect to the
device.
Channel Width - Determines the channel width to be used. It is unnecessary to change the
default value unless required.
Enable Wireless Radio - Select or deselect this check box to allow or deny wireless stations
to access the device.
Enable SSID Broadcast - Select or deselect this check box to allow or deny the device to
broadcast its name (SSID) on the air. If it’s allowed, when wireless clients survey the local
area for wireless networks to associate with, they will detect the SSID broadcast by the
device.
Note:
To apply any settings you have altered on the page, please click the Save button, and then you
will be reminded to reboot the device.
2) Multi-SSID: This mode allows the device to support up to four SSIDs.
Figure 4-13 Wireless Settings in Multi-SSID mode
Enable VLAN - Check this box and then you can change the VLAN ID of each SSID. If you
want to configure the Guest and Internal networks on VLAN, the switch you are using must
support VLAN. As a prerequisite step, configure a port on the switch for handling VLAN
tagged packets as described in the IEEE802.1Q standard, and enable this field.
SSID (1-4) - Up to four SSIDs for each BSS (Basic Service Set) can be entered in the filed
SSID1 ~ SSID4. The name can be up to 32 characters. The same name (SSID) must be
assigned to all wireless devices in your network. If Enable VLAN is checked, the wireless
stations connecting to SSID of different VLANID can not communicate with each other.
VLAN ID (1-4) - Provide a number between 1 and 4095 for VLAN. This will cause the device
to send packets with VLAN tags. The switch connecting with the device must support VLAN
IEEE802.1Q frames. The wireless stations connecting to the SSID of a specified VLAN ID
can communicate with the PC connecting to the port with the same VLAN ID on the Switch.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
30
Channel - Determines the operating frequency to be used. It is not necessary to change the
wireless channel unless you notice interference problems with another nearby access point.
Mode - This field determines the wireless mode which the device works on.
• 11b only - Only 802.11b wireless stations can connect to the device.
• 11g only - Only 802.11g wireless stations can connect to the device.
• 11n only - Only 802.11n wireless stations can connect to the device.
• 11bg mixed - Both 802.11b and 802.11g wireless stations can connect to the device.
• 11bgn mixed - All 802.11b, 802.11g and 802.11n wireless stations can connect to the
device.
Channel Width - Determines the channel width to be used. It is unnecessary to change the
default value unless required.
Enable Wireless Radio - Select or deselect this check box to allow or deny wireless stations
to access the device.
Enable SSID Broadcast - Select or deselect this check box to allow or deny the device to
broadcast its name (SSID) on the air. If it’s allowed, when wireless clients survey the local
area for wireless networks to associate with, they will detect the SSID broadcast by the
device.
Note:
To apply any settings you have altered on the page, please click the Save button, and then you
will be reminded to reboot the device.
You are suggested to implement Multi-SSID function with a switch that supports Tag VLAN feature.
Here is an example of how to configure Multi-SSID. Please take the following steps:
1. Configure the Access Point
Configure the Access Point
Select Multi-SSID as the operation mode of TL-WA901ND.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
31
Select the checkbox before Enable VLAN to enable VLAN function for this access point.
Configure the SSID and its corresponding VLAN ID. The detailed parameters are shown as
the above figure.
STA1, STA2, STA3 and STA4 join to the wireless network with SSID1, SSID2, SSID3 and
SSID4 respectively.
Click Save to apply the current security settings for the selected SSID.
Note:
1. The wireless STAs join to the network with different VLAN IDs cannot communicate with each
other, for example, STA1 and STA2.
2. The wireless STAs join to the network with the same VLAN ID can communicate with each
other, for example, STA1 and STA3.
3. All wireless STAs can log on to the Web management page of TL-WA901ND and manage the
access point, for example, STA1, STA2, STA3 and STA4.
4. All the packets received in the wired network from the wireless STA will be added a
corresponding VLAN Tag of the wireless STA, unless the VLAN ID of the wireless network is
set to 1.
2. Configure the Switch.
Enable 802.1Q Tag VLAN function on the switch.
Make sure the Untag frames are forwarded.
The following table shows the detailed configuration for the switch
Port VLAN ID PVID Egress Rule
Processing mode of Utag
Frames
1 1 1 Untag Forwarding
2 2 2 Untag Forwarding
3 3 3 Untag Forwarding
4 4 4 Untag Forwarding
5
Port5 belongs to all
VLANs
1 Tag Forwarding
Table 4-1 Configure the Tag VLAN Switch
Connect PC1, PC2, PC3 and PC4 to port1, port2, port3 and port4 of the switch respectively.
The corresponding VLAN IDs of the four ports are 1, 2, 3 and 4.
Configure port5 of the switch to be the member of VLAN1, VLAN2, VLAN3 and VLAN4 and
connect it to the LAN port of TL-WA901ND.
Configure the VLAN ID of the PC that can log on to the Web management page of
TL-WA901ND via the LAN port equal to the PVID of port 5.
3. Verify the communication status after the above configuration is completed.
If VLAN ID of the PC connected to the switch is different from the VLAN ID of the wireless
STA, the two cannot communicate with each other, for example, PC1 and STA2.
If the PC connected to the switch and the wireless STA have the same VLAN ID, the two can
communicate with each other, for example PC2 and STA2.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
32
Multi-SSID+VLAN
Note:
If the LAN port of AP is not connected to a switch but directly to a PC,
1. The PC can directly log on to the Web management page of AP and manage the access point.
2. Only the wireless STA with its VLAN ID set to 1 can communicate with the wired PC.
3) Client: This mode allows the device to act as a wireless station to enable wired host(s) to
access an AP.
Figure 4-14 Wireless Settings in Client mode
Enable WDS - The AP client can connect to AP with WDS enabled or disabled. If WDS is
enabled, all traffic from wired networks will be forwarded in the format of WDS frames
consisting of four address fields. If WDS is disabled, three address frames are used. If your
AP supports WDS well, please enable this option.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
33
Wireless Name of Root AP - If you select the radio button before Wireless Name of Root
AP, the AP client will connect to the AP according to SSID. Enter the SSID of AP that you
want to access.
MAC Address of Root AP - If you select the radio button before MAC Address of Root AP,
the AP client will connect to the AP according MAC address. Enter the MAC address of AP
that you want to access.
Enable Wireless Radio - Select or deselect this check box to allow or deny wireless stations
to access the device.
Click the Survey button to detect the SSIDs in the local area.
Note:
To apply any settings you have altered on the page, please click the Save button, and then you
will be reminded to reboot the device.
4) WDS Repeater: In WDS Repeater mode, the AP with WDS enabled will relay data to an
associated root AP. AP function is enabled meanwhile. The wireless repeater relays signal
between its stations and the root AP for greater wireless range.

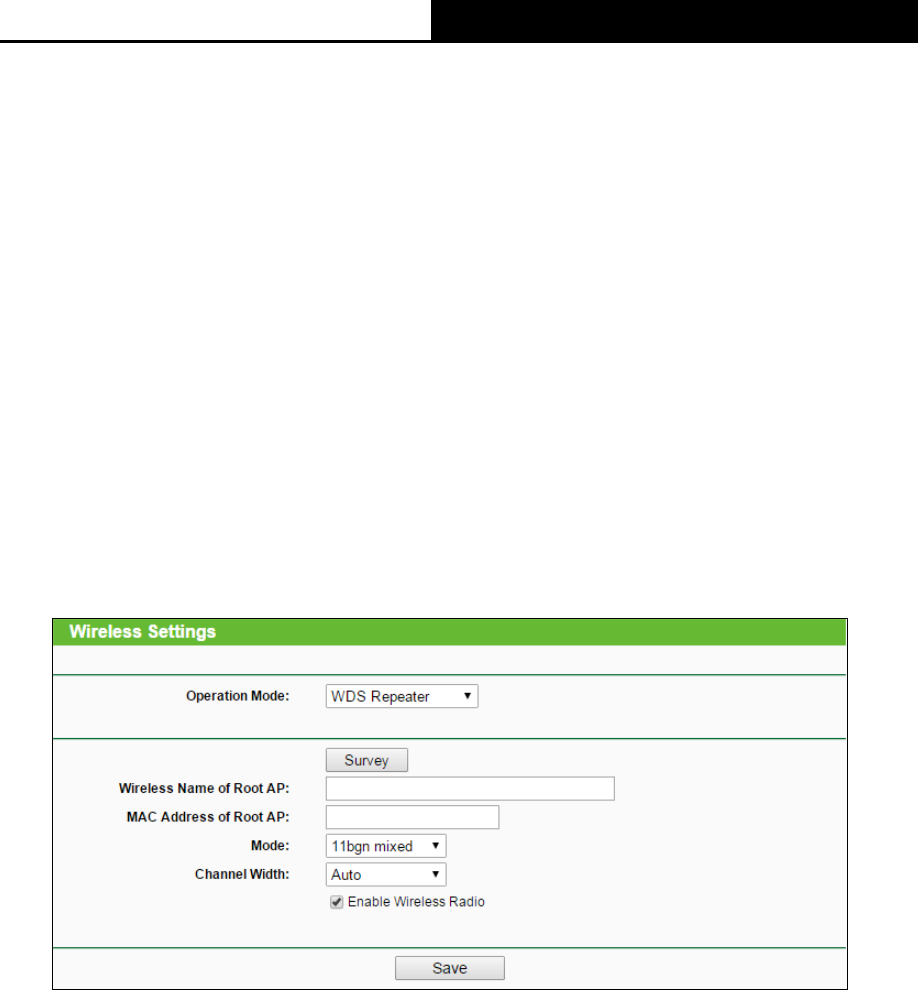

Figure 4-15 Wireless Settings in Repeater mode
Wireless Name of Root AP - If you select the radio button before Wireless Name of Root
AP, the AP client will connect to the AP according to SSID. Enter the SSID of AP that you
want to access.
MAC Address of Root AP - If you select the radio button before MAC Address of Root AP,
the AP client will connect to the AP according MAC address. Enter the MAC address of AP
that you want to access.
Mode - Select the desired wireless mode. The options are:
• 11b only - Only 802.11b wireless stations can connect to the device.
• 11g only - Only 802.11g wireless stations can connect to the device.
• 11n only - Only 802.11n wireless stations can connect to the device.
• 11bg mixed - Both 802.11b and 802.11g wireless stations can connect to the device.
• 11bgn mixed - All 802.11b, 802.11g and 802.11n wireless stations can connect to the
device.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
34
Channel Width - Determines the channel width to be used. It is unnecessary to change the
default value unless required.
Enable Wireless Radio - Select or deselect this check box to allow or deny wireless stations
to access the device.
Click the Survey button to detect the SSIDs in the local area.
Note:
To apply any settings you have altered on the page, please click the Save button, and then you
will be reminded to reboot the device.
5) Universal Repeater: In Universal Repeater mode, the AP with WDS disabled will relay data
to an associated root AP. AP function is enabled meanwhile. The wireless repeater relays
signal between its stations and the root AP for greater wireless range.
Figure 4-16 Wireless Settings in Repeater mode
Wireless Name of Root AP - If you select the radio button before Wireless Name of Root
AP, the AP client will connect to the AP according to SSID. Enter the SSID of AP that you
want to access.
MAC Address of Root AP - If you select the radio button before MAC Address of Root AP,
the AP client will connect to the AP according MAC address. Enter the MAC address of AP
that you want to access.
Mode - Select the desired wireless mode. The options are:
• 11b only - Only 802.11b wireless stations can connect to the device.
• 11g only - Only 802.11g wireless stations can connect to the device.
• 11n only - Only 802.11n wireless stations can connect to the device.
• 11bg mixed - Both 802.11b and 802.11g wireless stations can connect to the device.
• 11bgn mixed - All 802.11b, 802.11g and 802.11n wireless stations can connect to the
device.
Channel Width - Determines the channel width to be used. It is unnecessary to change the
default value unless required.
Enable Wireless Radio - Select or deselect this check box to allow or deny wireless stations
to access the device.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
35
Click the Survey button to detect the SSIDs in the local area.
Note:
To apply any settings you have altered on the page, please click the Save button, and then you
will be reminded to reboot the device.
6) Bridge with AP: This mode can bridge the AP and up to 4 APs also in bridge mode to
connect two or more wired LANs.
Figure 4-17 Wireless Settings in Bridge with AP mode
Wireless Bridge Settting
Wireless Name of Remote AP - If you select the radio button before Wireless Name of
Remote AP, the AP client will connect to the AP according to SSID. Enter the SSID of AP
that you want to access.
MAC Address of Remote AP - If you select the radio button before MAC Address of
Remote AP, the AP client will connect to the AP according MAC address. Enter the MAC
address of AP that you want to access.
Click the Survey button to detect the SSIDs in the local area.
Key type - This option should be chosen according to the AP's security configuration. It is
recommended that the security type is the same as your AP's security type.
Password - If the Remote AP that your device is going to connect needs password, you
need to fill the password in this blank.
Local Wireless AP Setting
Local Wireless Name - Name for the AP.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
36
Mode - This field determines the wireless mode which the device works on.
• 11b only - Only 802.11b wireless stations can connect to the device.
• 11g only - Only 802.11g wireless stations can connect to the device.
• 11n only - Only 802.11n wireless stations can connect to the device.
• 11bg mixed - Both 802.11b and 802.11g wireless stations can connect to the device.
• 11bgn mixed - All 802.11b, 802.11g and 802.11n wireless stations can connect to the
device.
Channel Width - Determines the channel width to be used. It is unnecessary to change the
default value unless required.
Enable Wireless Radio - Select or deselect this check box to allow or deny wireless stations
to access the device.
Enable SSID Broadcast - Select or deselect this check box to allow or deny the device to
broadcast its name (SSID) on the air. If it’s allowed, when wireless clients survey the local
area for wireless networks to associate with, they will detect the SSID broadcast by the
device.
Note:
To apply any settings you have altered on the page, please click the Save button, and then you
will be reminded to reboot the device.
4.6.2 Wireless Security
Selecting Wireless > Wireless Security will enable you to configure wireless security for your
wireless network to protect your data from intruders. The AP provides three security types: WEP,
WPA/WPA2 and WPA-PSK/WPA2-PSK. Wireless security can be set on the following screen
shown as Figure 4-18. The security options are different for different operation mode.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
37
1) Access Point
Figure 4-18 Wireless Security - Access Point
Disable Security - Check this box radio button to disable wireless security. If disabled, the
wireless stations will be able to connect this device without encryption. It is strongly
recommended that you choose one of the security types to enable security.
WPA/WPA2-Personal(Recommended) - Select WPA/WPA2 based on Radius Server.
• Version - You can select one of following versions.
1) Automatic(Recommended) - Select WPA-Personal or WPA2-Personal automatically
based on the wireless station's capability and request.
2) WPA-PSK - Pre-shared key of WPA.
3) WPA2-PSK - Pre-shared key of WPA2.
• Encryption - You can select either Automatic(Recommended), TKIP or AES.
• Wireless Password - You can enter ASCII or Hexadecimal characters. For
Hexadecimal, the length should be between 8 and 64 characters; for ASCII, the length
should be between 8 and 63 characters.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
38
• Group Key Update Period - Specify the group key update interval in seconds. The value
can be either 0 or at least 30. Enter 0 to disable the update.
WPA/WPA2-Enterprise - Select WPA/WPA2 based on Radius Server.
• Version - You can select one of following versions.
1) Automatic - Select WPA or WPA2 automatically based on the wireless station's
capability and request.
2) WPA - Wi-Fi Protected Access.
3) WPA2 - WPA version 2.
• Encryption - You can select either Automatic, TKIP or AES.
• Radius Server IP - Enter the IP address of the Radius Server.
• Radius Port - Enter the port used by radius service.
• Radius Password - Enter the password for the Radius Server.
• Group Key Update Period - Specify the group key update interval in seconds. The value
can be either 0 or at least 30. Enter 0 to disable the update.
WEP - Select 802.11 WEP security.
• Type - You can select one of following types.
1) Automatic - Select Shared Key or Open System authentication type automatically
based on the wireless station's capability and request.
2) Shared Key - Select 802.11 Shared Key authentication type.
3) Open System - Select 802.11 Open System authentication.
• WEP Key Format - You can select ASCII or Hexadecimal format. ASCII format stands
for any combination of keyboard characters in the specified length. Hexadecimal format
stands for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified length.
• WEP Key - Select which of the four keys will be used and enter the matching WEP key
information for your network in the selected key radio button. These values must be
identical on all wireless stations in your network.
• Key Type - You can select the WEP key length (64-bit, or 128-bit, or 152-bit.) for
encryption. "Disabled" means this WEP key entry is invalid.
1) For 64-bit encryption - You can enter 10 hexadecimal digits (any combination of 0-9, a-f,
A-F, zero key is not permitted) or 5 ASCII characters.
2) For 128-bit encryption - You can enter 26 hexadecimal digits (any combination of 0-9, a-f,
A-F, zero key is not permitted) or 13 ASCII characters.
3) For 152-bit encryption - You can enter 32 hexadecimal digits (any combination of 0-9, a-f,
A-F, zero key is not permitted) or 16 ASCII characters.
Note:
1. If you do not set the key, the wireless security function is still disabled even if you have
selected Shared Key as Authentication Type.
2. You will be reminded to reboot the device after clicking the Save button.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
39
2) Multi-SSID
Figure 4-19 Wireless Security – Multi-SSID
You can choose which SSID to configure wireless security settings for in the blank behind
Operation Mode.
Disable Security - Check this box radio button to disable wireless security. If disabled, the
wireless stations will be able to connect this device without encryption. It is strongly
recommended that you choose one of the security types to enable security.
WPA/WPA2-Personal(Recommended) - Select WPA/WPA2 based on Radius Server.
• Version - You can select one of following versions.
1) Automatic(Recommended) - Select WPA-Personal or WPA2-Personal automatically
based on the wireless station's capability and request.
2) WPA-PSK - Pre-shared key of WPA.
3) WPA2-PSK - Pre-shared key of WPA2.
• Encryption - You can select either Automatic(Recommended), TKIP or AES.
• Wireless Password - You can enter ASCII or Hexadecimal characters. For
Hexadecimal, the length should be between 8 and 64 characters; for ASCII, the length
should be between 8 and 63 characters.
• Group Key Update Period - Specify the group key update interval in seconds. The value
can be either 0 or at least 30. Enter 0 to disable the update.
WPA/WPA2-Enterprise - Select WPA/WPA2 based on Radius Server.
• Version - You can select one of following versions.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
40
1) Automatic - Select WPA or WPA2 automatically based on the wireless station's
capability and request.
2) WPA - Wi-Fi Protected Access.
3) WPA2 - WPA version 2.
• Encryption - You can select either Automatic, TKIP or AES.
• Radius Server IP - Enter the IP address of the Radius Server.
• Radius Port - Enter the port used by radius service.
• Radius Password - Enter the password for the Radius Server.
Group Key Update Period - Specify the group key update interval in seconds. The value can be
either 0 or at least 30. Enter 0 to disable the update.
Note:
You will be reminded to reboot the device after clicking the Save button.
3) Client
Figure 4-20 Wireless Security – Client
Disable Security - Check this box radio button to disable wireless security. If disabled, the
wireless stations will be able to connect this device without encryption. It is strongly
recommended that you choose one of the security types to enable security.
WPA/WPA2-Personal(Recommended) - Select WPA/WPA2 based on Radius Server.
• Version - You can select one of following versions.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
41
1) Automatic(Recommended) - Select WPA-Personal or WPA2-Personal automatically
based on the wireless station's capability and request.
2) WPA-PSK - Pre-shared key of WPA.
3) WPA2-PSK - Pre-shared key of WPA2.
• Encryption - You can select either Automatic(Recommended), TKIP or AES.
• Wireless Password - You can enter ASCII or Hexadecimal characters. For
Hexadecimal, the length should be between 8 and 64 characters; for ASCII, the length
should be between 8 and 63 characters.
• Group Key Update Period - Specify the group key update interval in seconds. The value
can be either 0 or at least 30. Enter 0 to disable the update.
WEP - Select 802.11 WEP security.
• Type - You can select one of following types.
1) Automatic - Select Shared Key or Open System authentication type automatically
based on the wireless station's capability and request.
2) Shared Key - Select 802.11 Shared Key authentication type.
3) Open System - Select 802.11 Open System authentication.
• WEP Key Format - You can select ASCII or Hexadecimal format. ASCII format stands
for any combination of keyboard characters in the specified length. Hexadecimal format
stands for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified length.
• WEP Key - Select which of the four keys will be used and enter the matching WEP key
information for your network in the selected key radio button. These values must be
identical on all wireless stations in your network.
• Key Type - You can select the WEP key length (64-bit, or 128-bit, or 152-bit.) for
encryption. "Disabled" means this WEP key entry is invalid.
1) For 64-bit encryption - You can enter 10 hexadecimal digits (any combination of 0-9, a-f,
A-F, zero key is not permitted) or 5 ASCII characters.
2) For 128-bit encryption - You can enter 26 hexadecimal digits (any combination of 0-9, a-f,
A-F, zero key is not permitted) or 13 ASCII characters.
3) For 152-bit encryption - You can enter 32 hexadecimal digits (any combination of 0-9, a-f,
A-F, zero key is not permitted) or 16 ASCII characters.
Note:
1. If you do not set the key, the wireless security function is still disabled even if you have
selected Shared Key as Authentication Type.
2. You will be reminded to reboot the device after clicking the Save button.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
42
4) WDS Repeater
Figure 4-21 Wireless Security – Repeater
Disable Security - Check this box radio button to disable wireless security. If disabled, the
wireless stations will be able to connect this device without encryption. It is strongly
recommended that you choose one of the security types to enable security.
WPA/WPA2-Personal(Recommended) - Select WPA/WPA2 based on Radius Server.
• Version - You can select one of following versions.
1) Automatic(Recommended) - Select WPA-Personal or WPA2-Personal automatically
based on the wireless station's capability and request.
2) WPA-PSK - Pre-shared key of WPA.
3) WPA2-PSK - Pre-shared key of WPA2.
• Encryption - You can select either Automatic(Recommended), TKIP or AES.
• Wireless Password - You can enter ASCII or Hexadecimal characters. For
Hexadecimal, the length should be between 8 and 64 characters; for ASCII, the length
should be between 8 and 63 characters.
• Group Key Update Period - Specify the group key update interval in seconds. The value
can be either 0 or at least 30. Enter 0 to disable the update.
WEP - Select 802.11 WEP security.
• Type - You can select one of following types.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
43
1) Automatic - Select Shared Key or Open System authentication type automatically
based on the wireless station's capability and request.
2) Shared Key - Select 802.11 Shared Key authentication type.
3) Open System - Select 802.11 Open System authentication.
• WEP Key Format - You can select ASCII or Hexadecimal format. ASCII format stands
for any combination of keyboard characters in the specified length. Hexadecimal format
stands for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified length.
• WEP Key - Select which of the four keys will be used and enter the matching WEP key
information for your network in the selected key radio button. These values must be
identical on all wireless stations in your network.
• Key Type - You can select the WEP key length (64-bit, or 128-bit, or 152-bit.) for
encryption. "Disabled" means this WEP key entry is invalid.
1) For 64-bit encryption - You can enter 10 hexadecimal digits (any combination of 0-9, a-f,
A-F, zero key is not permitted) or 5 ASCII characters.
2) For 128-bit encryption - You can enter 26 hexadecimal digits (any combination of 0-9, a-f,
A-F, zero key is not permitted) or 13 ASCII characters.
3) For 152-bit encryption - You can enter 32 hexadecimal digits (any combination of 0-9, a-f,
A-F, zero key is not permitted) or 16 ASCII characters.
Note:
1. If you do not set the key, the wireless security function is still disabled even if you have
selected Shared Key as Authentication Type.
2. You will be reminded to reboot the device after clicking the Save button.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
44
5) Universal Repeater
Figure 4-22 Wireless Security – Repeater
Disable Security - Check this box radio button to disable wireless security. If disabled, the
wireless stations will be able to connect this device without encryption. It is strongly
recommended that you choose one of the security types to enable security.
WPA/WPA2-Personal(Recommended) - Select WPA/WPA2 based on Radius Server.
• Version - You can select one of following versions.
1) Automatic(Recommended) - Select WPA-Personal or WPA2-Personal automatically
based on the wireless station's capability and request.
2) WPA-PSK - Pre-shared key of WPA.
3) WPA2-PSK - Pre-shared key of WPA2.
• Encryption - You can select either Automatic(Recommended), TKIP or AES.
• Wireless Password - You can enter ASCII or Hexadecimal characters. For
Hexadecimal, the length should be between 8 and 64 characters; for ASCII, the length
should be between 8 and 63 characters.
• Group Key Update Period - Specify the group key update interval in seconds. The value
can be either 0 or at least 30. Enter 0 to disable the update.
WEP - Select 802.11 WEP security.
• Type - You can select one of following types.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
45
1) Automatic - Select Shared Key or Open System authentication type automatically
based on the wireless station's capability and request.
2) Shared Key - Select 802.11 Shared Key authentication type.
3) Open System - Select 802.11 Open System authentication.
• WEP Key Format - You can select ASCII or Hexadecimal format. ASCII format stands
for any combination of keyboard characters in the specified length. Hexadecimal format
stands for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified length.
• WEP Key - Select which of the four keys will be used and enter the matching WEP key
information for your network in the selected key radio button. These values must be
identical on all wireless stations in your network.
• Key Type - You can select the WEP key length (64-bit, or 128-bit, or 152-bit.) for
encryption. "Disabled" means this WEP key entry is invalid.
1) For 64-bit encryption - You can enter 10 hexadecimal digits (any combination of 0-9, a-f,
A-F, zero key is not permitted) or 5 ASCII characters.
2) For 128-bit encryption - You can enter 26 hexadecimal digits (any combination of 0-9, a-f,
A-F, zero key is not permitted) or 13 ASCII characters.
3) For 152-bit encryption - You can enter 32 hexadecimal digits (any combination of 0-9, a-f,
A-F, zero key is not permitted) or 16 ASCII characters.
Note:
1. If you do not set the key, the wireless security function is still disabled even if you have
selected Shared Key as Authentication Type.
2. You will be reminded to reboot the device after clicking the Save button.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
46
6) Bridge with AP
Figure 4-23 Wireless Security – Bridge with AP
Disable Security - Check this box radio button to disable wireless security. If disabled, the
wireless stations will be able to connect this device without encryption. It is strongly
recommended that you choose one of the security types to enable security.
WPA/WPA2-Personal(Recommended) - Select WPA/WPA2 based on Radius Server.
• Version - You can select one of following versions.
1) Automatic(Recommended) - Select WPA-Personal or WPA2-Personal automatically
based on the wireless station's capability and request.
2) WPA-PSK - Pre-shared key of WPA.
3) WPA2-PSK - Pre-shared key of WPA2.
• Encryption - You can select either Automatic(Recommended), TKIP or AES.
• Wireless Password - You can enter ASCII or Hexadecimal characters. For
Hexadecimal, the length should be between 8 and 64 characters; for ASCII, the length
should be between 8 and 63 characters.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
47
• Group Key Update Period - Specify the group key update interval in seconds. The value
can be either 0 or at least 30. Enter 0 to disable the update.
WPA/WPA2-Enterprise - Select WPA/WPA2 based on Radius Server.
• Version - You can select one of following versions.
1) Automatic - Select WPA or WPA2 automatically based on the wireless station's
capability and request.
2) WPA - Wi-Fi Protected Access.
3) WPA2 - WPA version 2.
• Encryption - You can select either Automatic, TKIP or AES.
• Radius Server IP - Enter the IP address of the Radius Server.
• Radius Port - Enter the port used by radius service.
• Radius Password - Enter the password for the Radius Server.
• Group Key Update Period - Specify the group key update interval in seconds. The value
can be either 0 or at least 30. Enter 0 to disable the update.
WEP - Select 802.11 WEP security.
• Type - You can select one of following types.
1) Automatic - Select Shared Key or Open System authentication type automatically
based on the wireless station's capability and request.
2) Shared Key - Select 802.11 Shared Key authentication type.
3) Open System - Select 802.11 Open System authentication.
• WEP Key Format - You can select ASCII or Hexadecimal format. ASCII format stands
for any combination of keyboard characters in the specified length. Hexadecimal format
stands for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified length.
• WEP Key - Select which of the four keys will be used and enter the matching WEP key
information for your network in the selected key radio button. These values must be
identical on all wireless stations in your network.
• Key Type - You can select the WEP key length (64-bit, or 128-bit, or 152-bit.) for
encryption. "Disabled" means this WEP key entry is invalid.
1) For 64-bit encryption - You can enter 10 hexadecimal digits (any combination of 0-9, a-f,
A-F, zero key is not permitted) or 5 ASCII characters.
2) For 128-bit encryption - You can enter 26 hexadecimal digits (any combination of 0-9, a-f,
A-F, zero key is not permitted) or 13 ASCII characters.
3) For 152-bit encryption - You can enter 32 hexadecimal digits (any combination of 0-9, a-f,
A-F, zero key is not permitted) or 16 ASCII characters.
Note:
1. If you do not set the key, the wireless security function is still disabled even if you have
selected Shared Key as Authentication Type.
2. You will be reminded to reboot the device after clicking the Save button.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
48
4.6.3 Wireless MAC Filtering
Selecting Wireless > Wireless MAC Filtering will allow you to set up some filtering rules to
control wireless stations accessing the device, which depend on the station’s MAC address on the
following screen as shown Figure 4-24. This function is not available when the operation is set to
Client. As the configuration is the same in each operation mode, here we just take the Access
Point for example.
Figure 4-24 Wireless MAC address Filtering
The Wireless MAC Address Filtering feature allows you to control wireless stations accessing the
device, which depend on the station's MAC addresses.
Wireless MAC Filtering - Click the Enable button to enable the Wireless MAC Address
Filtering. The default setting is disabled.
To Add a Wireless MAC Address filtering entry, click the Add New… button. The “Add or Modify
Wireless MAC Address Filtering entry" page will appear, shown in Figure 4-25
Figure 4-25 Add or Modify Wireless MAC Address Filtering entry
MAC Address - Enter the wireless station's MAC address that you want to control.
Description - Give a simple description of the wireless station.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
49
Status - Select a status for this entry, either Enabled or Disabled.
To set up an entry, follow these instructions:
First, you must decide whether the unspecified wireless stations can access the device or not. If
you desire that the unspecified wireless stations can access the device, please select the radio
button Deny the stations specified by any enabled entries in the list to access, otherwise,
select the radio button Allow the stations specified by any enabled entries in the list to
access.
To add a MAC Address Filtering entry, follow these instructions:
1. Enter the appropriate MAC Address into the MAC Address field. The format of the MAC
Address is XX-XX-XX-XX-XX-XX (X is any hexadecimal digit). For example:
00-0A-EB-B0-00-0B.
2. Enter a simple description of the wireless station in the Description field. For example:
Wireless station A.
3. Select Enabled or Disabled for this entry on the Status pull-down list.
4. Click the Save button to save this entry.
To add additional entries, repeat steps 1-4.
To modify or delete an existing entry:
1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the
Delete.
2. Modify the information.
3. Click the Save button.
Click the Enable All button to make all entries enabled.
Click the Disabled All button to make all entries disabled.
Click the Delete All button to delete all entries.
Click the Next button to go to the next page and click the Previous button to return to the previous
page.
For example: If you desire that the wireless station A with MAC address 00-0A-EB-00- 07-BE is
able to access the device, while all other wireless stations cannot access the device, you should
configure the Wireless MAC Address Filtering list by following these steps:
1. Click the Enable button to enable this function.
2. Select the radio button: Allow the stations specified by any enabled entries in the list to
access for Filtering Rules.
3. Delete all or disable all entries if there are any entries already.
4. Click the Add New... button and enter the MAC address 00-0A-EB-00-07-BE in the MAC
Address field, enter Wireless Station A in the Description field and select Enabled in the
Status pull-down list. Click the Save button.
The filtering rules that configured should be similar to the following list:
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
50
Note:
If you enable the function and select the “Allow the stations specified by any enabled entries
in the list to access” for Filtering Rules, and there are not any enabled entries in the list, thus,
no wireless stations can access the device.
4.6.4 Wireless Advanced
Selecting Wireless > Wireless Advanced will allow you to do some advanced settings for the
device in the following screen shown in Figure 4-26. As the configuration for each operation mode
is almost the same, we take Access Point mode for example here.
Figure 4-26 Wireless Advanced
Beacon Interval - Specifies a value between 20-1000 milliseconds. The beacons are the
packets sent by the device to synchronize a wireless network. Beacon Interval value
determines the time interval of the beacons. The default value is 100.
RTS Threshold - Specifies the RTS (Request to Send) Threshold. If the packet is larger
than the specified RTS Threshold size, the device will send RTS frames to a particular
receiving station and negotiate the sending of a data frame. The default value is 2346.
Fragmentation Threshold - This value is the maximum size determining whether packets
will be fragmented. Setting the Fragmentation Threshold too low may result in poor network
performance since excessive packets. 2346 is the default setting and is recommended.
DTIM Interval - Determines the interval of the Delivery Traffic Indication Message (DTIM).
You can specify the value between 1-255 Beacon Intervals. The default value is 1, which
indicates the DTIM Interval is the same as Beacon Interval.
Enable WMM - WMM function can guarantee the packets with high- priority messages being
transmitted preferentially. It is strongly recommended enabled.
Enable Short GI - This function is recommended for it will increase the data capacity by
reducing the guard interval time.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
51
Enable AP Isolation - Isolates all connected wireless stations so that wireless stations
cannot access each other through WLAN. This function will be disabled if WDS/Bridge is
enabled.
4.6.5 Wireless Statistics
Selecting Wireless > Wireless Statistics will allow you to see the wireless transmission
information in the following screen shown in Figure 4-27.
Figure 4-27 Statistics of the device attached wireless stations
MAC Address - Shows the connected wireless station's MAC address
Current Status - The connected wireless station's running status, one of STA-AUTH /
STA-ASSOC / STA-JOINED / WPA / WPA-PSK / WPA2 / WPA2-PSK / AP-UP / AP-DOWN /
Disconnected
Received Packets - packets received by the station
Sent Packets - packets sent by the station
You cannot change any of the values on this page. To update this page and to show the current
connected wireless stations, click the Refresh button.
If the numbers of connected wireless stations go beyond one page, click the Next button to go to
the next page and click the Previous button to return the previous page.
Note:
This page will be refreshed automatically every 5 seconds.
4.6.6 Throughput Monitor
Selecting Wireless > Throughput Monitor will helps to watch wireless throughput information in
the following screen shown in Figure 4-28.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
52
Figure 4-28 Throughput Monitor
Rate - The Throughput unit.
Run Time - How long this function is running.
Transmit - Wireless transmit rate information.
Receive - Wireless receive rate information.
Click the Start button to start wireless throughput monitor.
Click the Stop button to stop wireless throughput monitor.
4.7 System Tools
System Tools option helps you to optimize the configuration of your device. SNMP can help you
to manage the device locally or remotely with specified software. The diagnostic tools (Ping and
Traceroute) allow you to check the connections of your network components. You can upgrade
the AP to the latest version of firmware as well as backup or restore the AP’s configuration files.
Ping Watch Dog can help to continuously monitor a particular connection to a remote host. It’s
suggested that you change the default password to a more secure one because it controls access
to the device’s web-based management page. Besides, you can find out what happened to the
system in System Log.
There are nine submenus under the System Tools menu (shown as Figure 4-29): Time Settings,
Diagnostic, Ping Watch Dog, Firmware Upgrade, Factory Defaults, Backup & Restore,
Reboot, Password, System Log and Statistics. Clicking any of them will enable you to configure
the corresponding function. The detailed explanations for each submenu are provided below.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
53
Figure 4-29 The System Tools menu
4.7.1 SNMP
Selecting System Tools > SNMP to enable this function will allow the network management
station to retrieve statistics and status from the SNMP agent in this device. Simple Network
Management Protocol (SNMP) is a popular network monitoring and management protocol, used to
refer to a collection of specifications for network management that include the protocol itself. To
use this function, select Enable and enter the following parameters in Figure 4-30.
Figure 4-30 SNMP Settings
SNMP Agent - Select the radio button before Enable will enable this function if you want to
have remote control through SNMPv1/v2 agent with MIB-II. Select the radio button before
Disable will disable this function. The default setting is Disable.
SysContact - The textual identification of the contact person for this managed node.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
54
SysName - An administratively-assigned name for this managed node.
SysLocation - The physical location of this node.
Note:
Specifying one of these values via the Device's Web-Based Utility makes the corresponding object
read-only. If there isn't such a config setting, then the write request will succeed (assuming
suitable access control settings), but the new value would be forgotten the next time the agent was
restarted.
Get Community - Enter the community name that allows Read-Only access to the Device's
SNMP information. The community name can be considered a group password. The default
setting is “public”.
Get Source - Get source defines the IP address or subnet for management systems that can
read information from this 'get' community device.
Set Community - Enter the community name that allows Read/Write access to the Device's
SNMP information. The community name can be considered a group password. The default
setting is “private”.
Set Source - Set source defines the IP address or subnet for management systems that can
control this 'set' community device.
Note:
A restricted source can be a specific IP address (e.g. 10.10.10.1), or a subnet - represented as
IP/BITS (e.g. 10.10.10.0/24). If an IP Address of 0.0.0.0 is specified, the agent will accept all
requests under the corresponding community name.
Click the Save button to save your settings.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
55
4.7.2 Diagnostic
Selecting System Tools > Diagnostic allow you to check the connections of your network
components on the screen shown in Figure 4-31.
Figure 4-31 Diagnostic
Diagnostic Tools - Click the radio button to select one diagnostic tool
• Ping - This diagnostic tool troubleshoots connectivity, reachability, and name resolution
to a given host or gateway by using the Internet Control Message Protocol (ICMP)
protocol's mandatory Echo Request datagram to elicit an ICMP Echo Response from a
host or gateway. You can use ping to test both numeric IP address or domain name. If
pinging the IP address is successful, but pinging the domain name is not, you might have
a name resolution problem. In this case, ensure that the domain name you are specifying
can be resolved by using Domain Name System (DNS) queries.
• Traceroute - This diagnostic tool determines the path taken to a given host by sending
Internet Control Message Protocol (ICMP) Echo Request messages with varying Time to
Live (TTL) values to the destination. Each gateway along the path is required to
decrement the TTL in an IP packet by at least 1 before forwarding it. Effectively, the TTL
is a maximum link counter. When the TTL on a packet reaches 0, the gateway is
expected to return an ICMP Time Exceeded response to your device. Traceroute
determines the path by sending the first Echo Request message with a TTL of 1 and
incrementing the TTL by 1 on each subsequent transmission until the target responds or
the maximum number of hops is reached. The maximum number of hops is 20 by default
and can be specified in the field "Traceroute Max TTL". The path is determined by
examining the ICMP Time Exceeded messages returned by intermediate gateways and
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
56
the Echo Reply message returned by the destination. However, some gateways do not
return Time Exceeded messages for packets with expired TTL values and are invisible to
the traceroute tool. In this case, a row of asterisks (*) is displayed for that hop.
IP Address - Enter the IP Address (such as 202.108.22.5) of the PC whose connection you wish
to diagnose.
Ping Count - Specifies the number of Echo Request messages sent. The default is 4.
Ping Packet Size - Specifies the number of data bytes to be sent. The default is 64.
Ping Timeout - Specifies the time to wait for a response in milliseconds. The default is 800.
Traceroute Max TTL - Set the maximum number of hops (max TTL to be reached) in the path to
Survey for the target (destination). The default is 20.
Click the Start button to start the diagnostic procedure.
The Diagnostic Results page displays the result of diagnosis.
If the result is similar to the following screen, the connectivity of the Internet is fine.
Figure 4-32 Diagnostic Results
Note:
1. Only one user can use this tool at one time.
2. Options “Number of Pings”, “Ping Size” and “Ping Timeout” are only available for Ping function.
Option “Tracert Hops” is available only for Tracert function.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
57
4.7.3 Ping Watch Dog
Selecting System Tools > Ping Watch Dog allows you to continuously monitor the particular
connection between the device to a remote host. It makes this device continuously ping a user
defined IP address (it can be the internet gateway for example). If it is unable to ping under the
user defined constraints, this device will automatically reboot.
Figure 4-33 Ping Watch Dog Utility
Enable - Turn on/off Ping Watch Dog.
IP Address - The IP address of the target host where the Ping Watch Dog Utility is sending
ping packets.
Interval - Time internal between two ping packets which are sent out continuously.
Delay - Time delay before first ping packet is sent out when the device is restarted.
Fail Count - Upper limit of the ping packet the device can drop continuously. If this value is
overrun, the device will restart automatically.
Be sure to click the Submit button to make your settings in operation.
4.7.4 Firmware Upgrade
Selecting System Tools > Firmware Upgrade allows you to upgrade the latest version of
firmware for the device on the screen shown in Figure 4-34.
Figure 4-34 Firmware Upgrade
New firmware versions are posted at www.tp-link.com and can be downloaded for free.
Firmware Version - Here displays the current firmware version.
Hardware Version - Here displays the current hardware version. The hardware version of the
upgrade file must accord with the current hardware version.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
58
Note:
1. There is no need to upgrade the firmware unless the new firmware has a new feature you want
to use. However, when experiencing problems caused by the device itself, you can try to
upgrade the firmware.
2. Before upgrading the device’s firmware, you should write down some of your customized
settings to avoid losing important configuration settings of device.
To upgrade the device's firmware, follow these instructions:
1. Download a more recent firmware upgrade file from the TP-LINK website
(http://www.tp-link.com).
2. Enter the path name or click Browse… to select the downloaded file on the computer into the
File blank.
3. Click Upgrade.
Note:
Do not turn off the device or press the Reset button while the firmware is being upgraded. The
device will reboot after the Upgrading has been finished.
4.7.5 Factory Defaults
Selecting System Tools > Factory Defaults allows you to restore the factory default settings for
the device on the screen shown in Figure 4-35.
Figure 4-35 Restore Factory Defaults
Click Restore to reset all configuration settings to their default values.
• Default User Name: admin
• Default Password: admin
• Default IP Address: 192.168.0.254
• Default Subnet Mask: 255.255.255.0
Note:
Any settings you have saved will be lost when the default settings are restored.
4.7.6 Backup & Restore
Selecting System Tools > Backup & Restore allows you to save all configuration settings to your
local computer as a file or restore the device's configuration on the screen shown in Figure 4-36.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
59
Figure 4-36 Save or Restore the Configuration
Click Backup to save all configuration settings to your local computer as a file.
To restore the device's configuration, follow these instructions:
• Click Browse… to find the configuration file which you want to restore.
• Click Restore to update the configuration with the file whose path is the one you have
input or selected in the blank.
Note:
1. The current configuration will be covered with the uploading configuration file.
2. Wrong process will lead the device unmanaged.
3. The restoring process lasts for 20 seconds and restart automatically. Do not power off the
device during the process to avoid any damage.
4.7.7 Reboot
Selecting System Tools > Reboot allows you to reboot the device on the screen shown in Figure
4-37.
Figure 4-37 Reboot the device
Click the Reboot button to reboot the device.
Some settings of the device will take effect only after rebooting, which include:
• Change LAN IP Address (System will reboot automatically).
• Change the Wireless configurations.
• Change the Web Management Port.
• Upgrade the firmware of the device (system will reboot automatically).
• Restore the device's settings to factory defaults (system will reboot automatically).
• Update the configuration with a file (system will reboot automatically).
4.7.8 Password
Selecting System Tools > Password allows you to change the factory default user name and
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
60
password of the device on the screen shown in Figure 4-38.
Figure 4-38 Password
It is strongly recommended that you change the factory default user name and password of the
device. All users who try to access the device's web-based management page or Quick Setup will
be prompted for the device's user name and password.
Note:
The new user name and password must not exceed 14 characters in length and must not include
any spaces. Enter the new Password twice to confirm it.
Click Save when finished. Click Clear All to clear all.
4.7.9 System Log
Selecting System Tools > System Log allows you to query the Logs of the device on the screen
shown in Figure 4-39.
Figure 4-39 System Log
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
61
The device can keep logs of all traffic. You can query the logs to find what happened to the device.
Log Type - By selecting the log type, only logs of this type will be shown.
Log Level - By selecting the log level, only logs of this level will be shown.
Click the Refresh button to show the latest log list..
Click the Save Log button to save all the logs in a txt file.
Click the Clear Log button to delete all the logs from the system permanently, not just from the
page.
Click the Next button to go to the next page, or click the Previous button return to the previous
page.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
62
Appendix A: Application Example
The AP device allows you to connect a wireless device to the wired network. Providing that you
want to connect your computer equipped with wireless adapter to a wired network wirelessly, you
can take the following instructions.
1. Configure the AP via a wired connection.
1) Connect your AP to your PC with an Ethernet cable.
2) Log on to the web-based management page. Configure your AP in the Access Point
mode and check the Enable SSID Broadcast box referring to 4.6.1 Wireless Settings.
3) View the Wireless > Wireless Settings page and keep the SSID of the AP in mind.
(Here we choose TP-LINK as the SSID for example.) You are suggested to change the
SSID and secure your wireless network referring to 4.6.1 Wireless Settings and 4.6.2
Wireless Security.
4) Remove the Ethernet cable between the AP and your PC.
2. Connect your AP to the LAN port on the Router with an Ethernet cable.
3. Configure your PC to connect to the network wirelessly.
1) Click start (in the lower left corner of the PC’s screen), right-click My Network
Connections and choose Properties.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
63
2) On the My Network Connections window, right-click Wireless Network and choose
Enable to enable wireless network function.
3) Right-click the wireless connection icon “ ” on the screen of the PC and then select
View Available Wireless Networks.

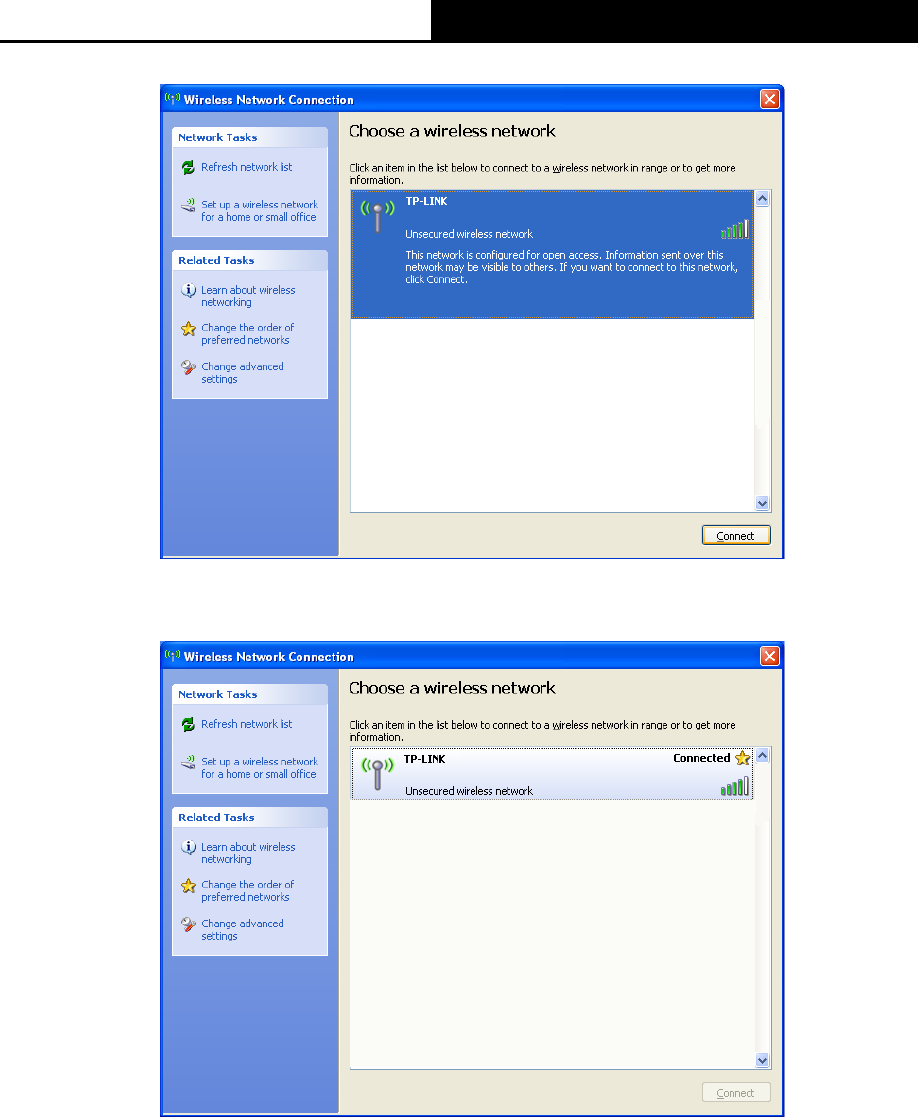

4) Highlight the SSID of the AP (Here is TP-LINK) and click Connect to add to the network.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
64
5) Then the following page will display, which indicates you have been successfully added
to the network wirelessly.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
65
Appendix B: Factory Defaults
Item Default Value
Common Default Settings
Login Username admin
Login Password admin
IP Address 192.168.0.254
Subnet Mask 255.255.255.0
Wireless
SSID TP-LINK_AP_XXXX
Wireless Security Disable
Wireless MAC Address Filtering
Disable
DHCP
DHCP Server Enable
Start IP Address 192.168.0.100
End IP Address 192.168.0.199
Domain Name http://tplinkap.net
Default Gateway (optional) 0.0.0.0
Primary DNS (optional) 0.0.0.0
Secondary DNS (optional) 0.0.0.0
Note:
The default SSID is TP-LINK_AP_XXXX (XXXX indicates the last unique four characters of each
device’s MAC address). This value is case-sensitive.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
66
Appendix C: Troubleshooting
T1. How do I restore my Access Point’s configuration to its factory default settings?
With the Access Point powered on, use a pin to press and hold the WPS/RESET button on
the rear panel for more than 8 seconds before releasing it.
Note:
Once the Access Point is reset, the current configuration settings will be lost and you will need
to reconfigure the Access Point.
T2. What can I do if I forget my password?
1) Try to use the default user name and password: admin, admin;
2) Referring to the file that you have saved in step 6 of 3.1 Quick Setup last time you
configured the device, the file will show you the user name and password that you have
configured.
3) If the password is still not the correct one, then you can try to restore the Access Point’s
configuration to its factory default settings referring to previous section T1 and try to
reconfigure your AP by following the instructions in 3.1 Quick Setup.
T3. What can I do if I cannot access the web-based configuration page?
1) Please check to see if you have input the correct address http://tplinkap.net in the
address bar of your browser.
2) Please make sure your hardware connection is OK. You can confirm this by the LAN LED
on the front panel of AP device. If the LED of the LAN port, which your Ethernet cable is
connected to, is lighting green, your hardware connection is OK; otherwise, please check
your hardware connection carefully.
3) Make sure your wired device’s IP address is set as “Obtain an IP address automatically”.
4) If the problem still persists, please feel free to contact our technical support.
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
67
Appendix D: Specifications
General
Standards and Protocols IEEE 802.3, 802.3u, 802.11n, 802.11b and 802.11g, TCP/IP, DHCP
Safety & Emission FCC, CE
Ports One 10/100M Auto-Negotiation LAN RJ45 port, supporting passive
PoE
Cabling Type
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Wireless
Frequency Band 2.4~2.4835GHz
Radio Data Rate
11n：
For TL-WA701ND: up to 150Mbps（Automatic）
For TL-WA801ND: up to 300Mbps（Automatic）
For TL-WA901ND: up to 450Mbps（Automatic）
11g：54/48/36/24/18/12/9/6M（Automatic）
11b：11/5.5/2/1M（Automatic）
Frequency Expansion DSSS(Direct Sequence Spread Spectrum)
Modulation DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
Security WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK
Sensitivity @PER
For TL-WA701ND:
130M: -68dBm@10% PER
108M: -68dBm@10% PER;
54M: -68dBm@10% PER
11M: -85dBm@8% PER;
6M: -88dBm@10% PER
1M: -90dBm@8% PER
For TL-WA801ND/TL-WA901ND:
270M: -68dBm@10% PER
108M: -68dBm@10% PER;
54M: -68dBm@10% PER
11M: -85dBm@8% PER;
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Antenna Gain 5dBi
Physical and Environment
Working Temperature 0℃~40℃ (32℉~104℉)
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
68
Working Humidity 10% ~ 90% RH, Non-condensing
Storage Temperature -40℃~70℃(-40℉~158℉)
Storage Humidity 5% ~ 90% RH, Non-condensing
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
69
Appendix E: Glossary
802.11n - 802.11n builds upon previous 802.11 standards by adding MIMO (multiple-input
multiple-output). MIMO uses multiple transmitter and receiver antennas to allow for increased data
throughput via spatial multiplexing and increased range by exploiting the spatial diversity, perhaps
through coding schemes like Alamouti coding. The Enhanced Wireless Consortium (EWC) [3] was
formed to help accelerate the IEEE 802.11n development process and promote a technology
specification for interoperability of next-generation wireless local area networking (WLAN)
products.
802.11b - The 802.11b standard specifies a wireless networking at 11 Mbps using
direct-sequence spread-spectrum (DSSS) technology and operating in the unlicensed radio
spectrum at 2.4GHz, and WEP encryption for security. 802.11b networks are also referred to as
Wi-Fi networks.
802.11g - specification for wireless networking at 54 Mbps using direct-sequence
spread-spectrum (DSSS) technology, using OFDM modulation and operating in the unlicensed
radio spectrum at 2.4GHz, and backward compatibility with IEEE 802.11b devices, and WEP
encryption for security.
Access Point (AP) - A wireless LAN transceiver or "base station" that can connect a wired LAN to
one or many wireless devices. Access points can also bridge to each other.
DNS (Domain Name System) – An Internet Service that translates the names of websites into IP
addresses.
Domain Name - A descriptive name for an address or group of addresses on the Internet.
DoS (Denial of Service) - A hacker attack designed to prevent your computer or network from
operating or communicating.
DSL (Digital Subscriber Line) - A technology that allows data to be sent or received over existing
traditional phone lines.
ISP (Internet Service Provider) - A company that provides access to the Internet.
MTU (Maximum Transmission Unit) - The size in bytes of the largest packet that can be
transmitted.
SSID - A Service Set Identification is a thirty-two character (maximum) alphanumeric key
identifying a wireless local area network. For the wireless devices in a network to communicate
with each other, all devices must be configured with the same SSID. This is typically the
configuration parameter for a wireless PC card. It corresponds to the ESSID in the wireless
Access Point and to the wireless network name.
WEP (Wired Equivalent Privacy) - A data privacy mechanism based on a 64-bit or 128-bit or
152-bit shared key algorithm, as described in the IEEE 802.11 standard.
Wi-Fi - A trade name for the 802.11b wireless networking standard, given by the Wireless
Ethernet Compatibility Alliance (WECA, see http://www.wi-fi.net), an industry standards group
promoting interoperability among 802.11b devices.
WLAN (Wireless Local Area Network) - A group of computers and associated devices
communicate with each other wirelessly, which network serving users are limited in a local area.
WPA (Wi-Fi Protected Access) - WPA is a security technology for wireless networks that improves
on the authentication and encryption features of WEP (Wired Equivalent Privacy). In fact, WPA
was developed by the networking industry in response to the shortcomings of WEP. One of the
TL-WA701ND/TL-WA801ND/TL-WA901ND
Wireless N Access Point User Guide
70
key technologies behind WPA is the Temporal Key Integrity Protocol (TKIP). TKIP addresses the
encryption weaknesses of WEP. Another key component of WPA is built-in authentication that
WEP does not offer. With this feature, WPA provides roughly comparable security to VPN
tunneling with WEP, with the benefit of easier administration and use. This is similar to 802.1x
support and requires a RADIUS server in order to implement. The Wi-Fi Alliance will call this,
WPA-Enterprise. One variation of WPA is called WPA Pre Shared Key or WPA-PSK for short - this
provides an authentication alternative to an expensive RADIUS server. WPA-PSK is a simplified
but still powerful form of WPA most suitable for home Wi-Fi networking. To use WPA-PSK, a
person sets a static key or "passphrase" as with WEP. But, using TKIP, WPA-PSK automatically
changes the keys at a preset time interval, making it much more difficult for hackers to find and
exploit them. The Wi-Fi Alliance will call this, WPA-Personal.
