TL-WCS200_user manual
1
Using TL-WCS200
Connect to Power
Standby
Connect TL-WCS200 to CE and Qi certied USB charger or power source that complies with
Limited Power Source (LPS), for example your phone original charger. The LED Indicator Ring
will turn white for 5 seconds, then it will turn o and TL-WCS200 is ready to use.
50mm Diameter Charger Coil
(Inside)

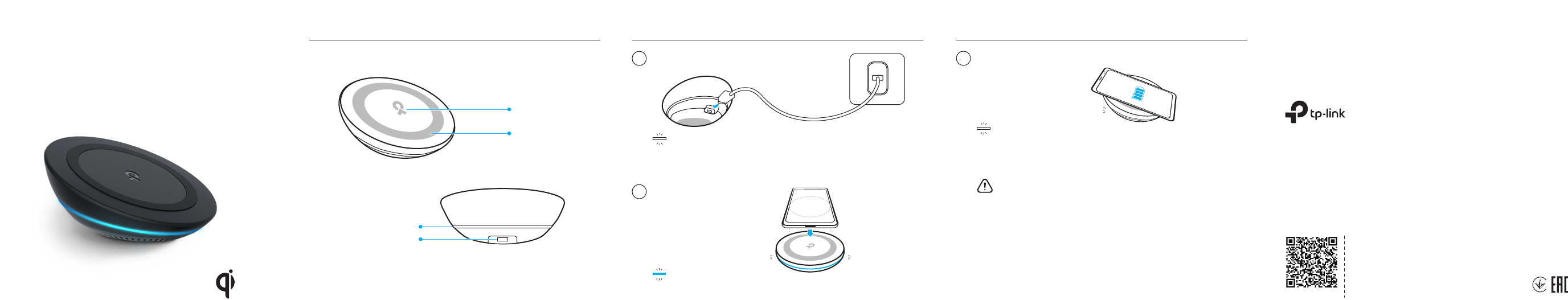

Device Layout
Slip Proof Mat
Micro-USB Power Port
LED Indicator Ring
2
* Check the device's wireless
charging coil before charging,
make sure it is placing on
WCS200's charging coil properly.
Placing the device that supports the Qi Wireless Charging Standard
on TL-WCS200, then the LED Indicator Ring will turn blue and charging will begin.
Charging
Ready to Charge
* The wall charger is not included.
* A Qi certied, Quick Charge 2.0
or above fast charge USB
charger is required to enable
the wireless Fast Charge feature.
Qi Certied Convertible 10W
Wireless Fast Charging Station
TL-WCS200
REV1.0.4 1910012440
Specications are subject to change without notice. TP-Link is a registered
trademark of TP-Link Technologies Co., Ltd. Other brands and product
names are registered trademarks of their respective holders.
No part of the specications may be reproduced in any form or by any
means or used to make any derivative such as translation, transformation,
or adaptation without permission from TP-Link Technologies Co., Ltd.
Copyright © 2018 TP-Link Technologies Co., Ltd. All rights reserved.
The ‘Qi’ symbol is a trademark of the Wireless Power Consortium.
All rights reserved.
www.tp-link.com
Technical Support
Tel: +86 755 2650 4400
E-mail: support@tp-link.com
Web: http://www.tp-link.com/support
Using TL-WCS200
3Device Fully Charged
Device Fully Charged
When the device is fully charged, the LED Indicator Ring will turn white until the device
is being removed from TL-WCS200, and automatically turning o after 5 seconds.
Supports Samsung wireless Fast Charge feature* for Galaxy Note5,
Galaxy S6 edge+ & later models of Galaxy Note and Galaxy S series.
Also supports Fast Charge feature** for iPhone by delivering up to 10W.
Notication
*A Quick Charge 2.0 or above fast charge USB charger is required to enable the wireless Fast Charge feature.
**Fast wireless charging for iPhone is enabled with a free software update later this year.
Attention
To begin fast wireless charging, place a mobile device that supports fast wireless charging
on the TL-WCS200. For more information, please refer to the user manual.
· You may need to purchase a charger separately depending on TL-WCS200.
· Depending on the location of the mobile wireless charging coil, your mobile device may
not charge properly.
· Wireless charging may not work properly if you have attached a thick case to your
mobile device. If your case is thick, remove it before placing your mobile device on the
wireless charger.
· If you connect a charger to the mobile device during wirless charging, the wireless
charging feature will be unavailable.
The socket-outlet shall be installed near the equipment and shall be easily accessible.
· Do not place foreign materials, such as metal objects, magnets, and magnetic
stripe cards, between the mobile device and the wireless charger. The mobile device
may not charge properly.
· Use only chargers that comply with Limited Power Source (LPS) chargers that support
fast charging.
Specication
Input
Output
5V 2A or 9V 1.67A
10W Max.
OPERATING FREQUENCY (the maximum H-eld strength)
DC voltage
Explanation of the symbols on the product label
RECYCLING
This product bears the selective sorting symbol for Waste electrical and electronic
equipment (WEEE). This means that this product must be handled pursuant to
European directive 2012/19/EU in order to be recycled or dismantled to minimize its
impact on the environment.User has the choice to give his product to a competent
recycling organization or to the retailer when he buys a new electrical or
electronic equipment.
110KHz-205KHz（-2.13dBuA/m）

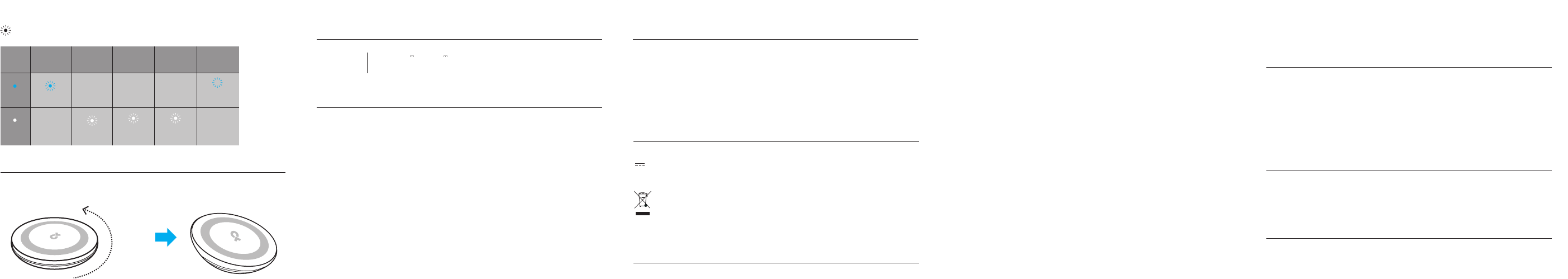

Changing Mode
Pad Mode Stand Mode
180 degree
anti-clockwise
rotation
Device
Charging
/
LED Indication Status
Blue
Fully
Charged
Light On
White /
Standby Error
/Blink
Continuously
/
/
Removing
Device
Light for 5s
Then Turn O
Light On Light for 5s
Then Turn O
(After Fully Charged)
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
· Reorient or relocate the receiving antenna.
· Increase the separation between the equipment and receiver.
· Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
· Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
· This device may not cause harmful interference.
· This device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modications to this equipment. Such modications could void the user’s
authority to operate the equipment.
Please read and follow the above safety information when operating the device.
We cannot guarantee that no accidents or damage will occur due to improper use of the device.
Please use this product carefully and operating at your own risk.
· Keep the device away from water, re, humidity or hot environments.
· Do not attempt to disassemble, repair, or modify the device.
· Do not use damaged charger or USB cable to charge the device.
· Do not use the device where wireless devices are not allowed.
Safety Information
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This device and its antenna must not be co-located or operating in conjunction with
any other antenna or transmitter.
“To comply with FCC RF exposure compliance requirements, this grant is applicable to only
Mobile Congurations. The antennas used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter.”
EU declaration of conformity
TP-Link hereby declares that the device is in compliance with the essential requirements and
other relevant provisions of directives 2014/53/EU, 2009/125/EC and 2011/65/EU.
The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce
RF Exposure Information
This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of
the general public to electromagnetic elds by way of health protection.
The device complies with RF specications when the device used at 20 cm from your body.
