TL-WN321G 54M Wireless USB Adapter User Guide
Package Contents
The following contents should be found in your box:
One TL-WN321G USB Wireless Adapter
One USB extension cable
Quick Installation Guide
One TL-WN321G USB Wireless Adapter Resource CD, including:
• Utility and Drivers
• User Guide
• Other Helpful Information
Note: If any of the listed contents is damaged or missing, please contact the retailer from
whom you purchased the TL-WN321G USB Wireless Adapter for assistance.
- 1 -
TL-WN321G 54M Wireless USB Adapter User Guide
Chapter 1: Introduction
1.1 Overview of the product
The TP-LINK TL-WN321G Wireless USB Adapter gives you the flexibility to install your
PC or notebook PC in the most convenient location available, without the cost of running
the network cables.
Its auto-sensing capability allows high packet transfer up to 54Mbps for maximum
throughput, or dynamic range shifting to lower speeds due to distance or operating
limitations in an environment with a lot of electromagnetic interference. It can also
interoperate with all 11Mbps wireless (802.11b) products. Your wireless communications
are protected by up to 128-bit WEP and WPA encryption, so your data stays secure.
1.2 Features
Complies with IEEE802.11g, IEEE802.11b standards
Supports WPA data security, IEEE 802.1x authentication, TKIP/AES encryption,
64/128-bit WEP encryption
Supports 54/48/36/24/18/12/9/6/11/5.5/2/1Mbps wireless LAN data transfer rates
Provides USB interface
Supports Ad-Hoc and Infrastructure modes
Supports roaming between access points when configured in Infrastructure mode
Eases configuration and provides monitoring information
Supports Windows 98SE, Me, 2000, XP
Internal Antenna
1.3 LED Status
The LED on the top of this card indicates Link/Act status, LED indicators blink at green
light when sending and receiving data.
- 2 -
TL-WN321G 54M Wireless USB Adapter User Guide
Chapter 2: Installation Guide
2.1 Software Installation
2.1.1 Overview
The Adapter’s Setup Wizard will guide you through the installation procedure for
Windows 98SE, Me, 2000, XP. The Setup Wizard will install the Utility and drivers.
If you install the hardware before the software, the system will prompt “Found New
Hardware Wizard”, click the Cancel button, and run the Setup Wizard program on the
CD-ROM.
The Setup steps for windows 98SE, Me, 2000 and windows XP are very similar. The
following setup steps are for windows 2000.
2.1.2 Software Installation for Windows 2000
1. Insert the Resource CD into your CD-ROM drive, click the Start button and choose
Run. In the field that appears, enter F:\TL-WN321G\Setup.exe (if “F” is the letter of
your CD-ROM drive.), figure 2-1 should then appear.
2. You can click the Cancel button to end the installation on the Preparing Setup
screen, figure 2-1. Otherwise, the Setup Wizard will display a screen similar to that
shown in figure 2-2 after a moment.

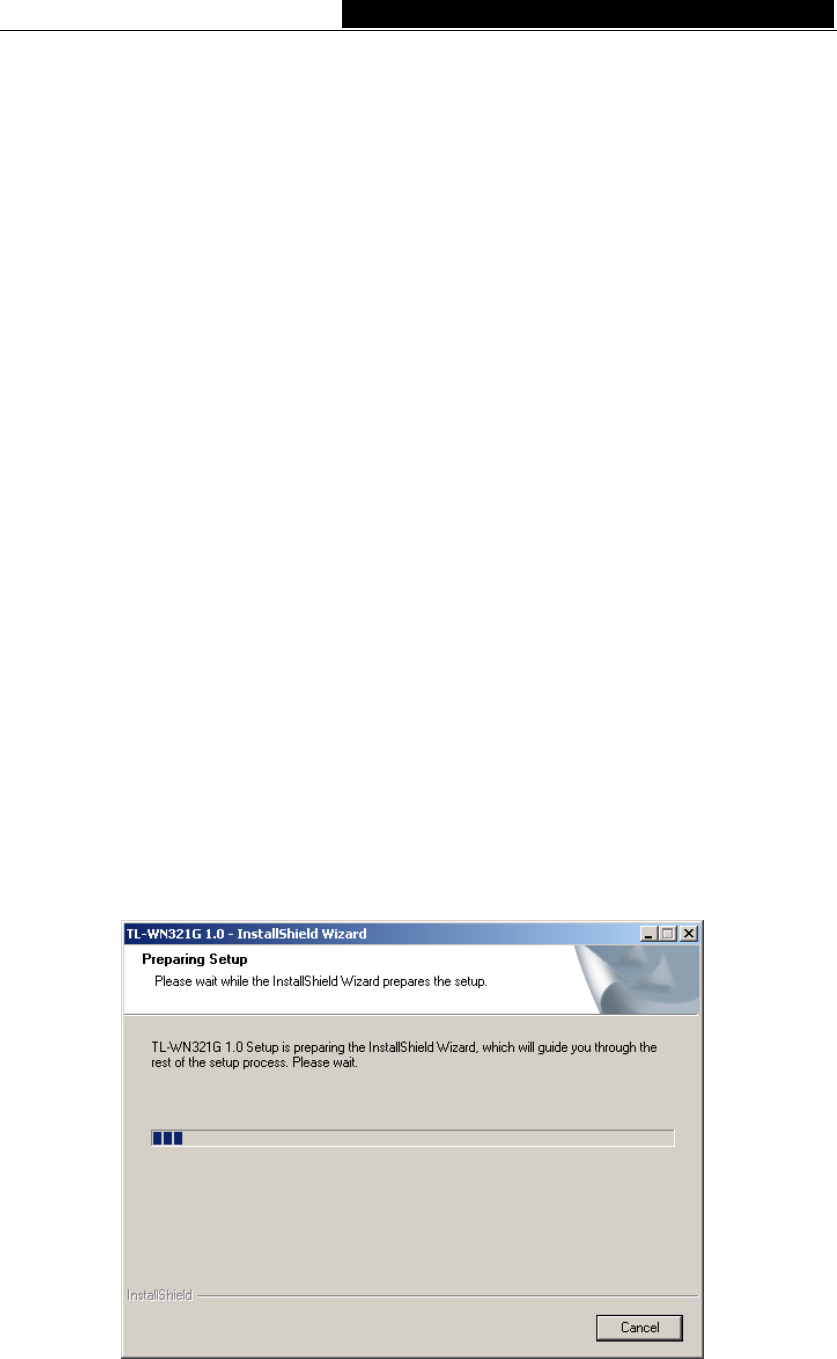

Figure 2-1 Preparing Setup
- 3 -
TL-WN321G 54M Wireless USB Adapter User Guide
3. To continue, click the Next button on the screen, figure 2-2. Click the Cancel button
to end the Installation.

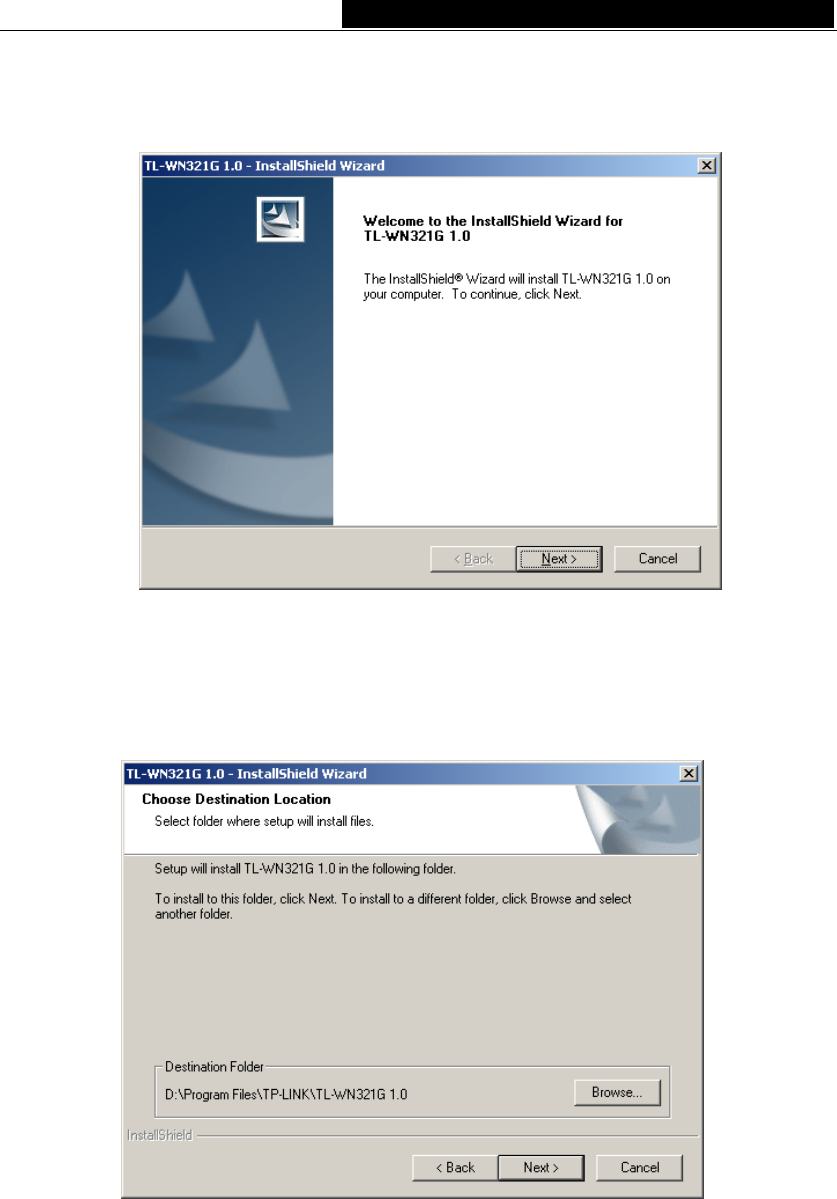

Figure 2-2 Start Setup
4. Click Browse to change the destination location for the software in figure 2-3. Click
Next to continue the Installation. Click Back to return to the previous page, or click
Cancel to end the Installation.
Figure 2-3 Choose Destination Location
5. The Setup Wizard will ask you to choose a Setup type in figure 2-3. It is
recommended that you select all (including TL-WN321G 1.0 Driver and
TL-WN321G 1.0 Utility). Select TL-WN321G 1.0 Driver only to install driver only,
select TL-WN321G 1.0 Utility to install utility only. You can click the Next button to
continue the Installation. Click the Back button to return to the previous page, or
click the Cancel button to end the Installation.
- 4 -
TL-WN321G 54M Wireless USB Adapter User Guide

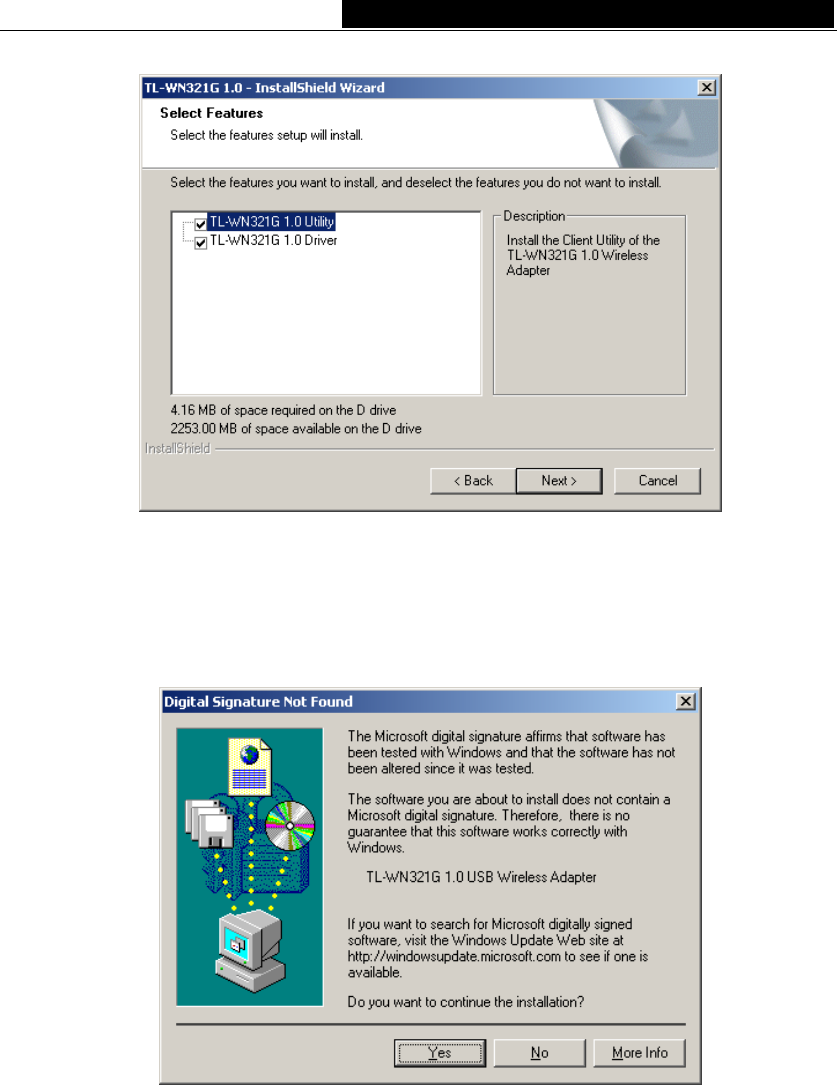

Figure 2-4 Select the setup type.
6. While files are copying, you will see a warning box shown in figure 2-4. Please
select YES to continue installation. Our drivers have been tested thoroughly, and are
able to work with the operating system.
Figure 2-5 Windows 2000 Warning Box
7. After the files have been successfully copied, the screen in figure 2-6 will appear.
Click the Finish button to finish the wizard.
- 5 -
TL-WN321G 54M Wireless USB Adapter User Guide

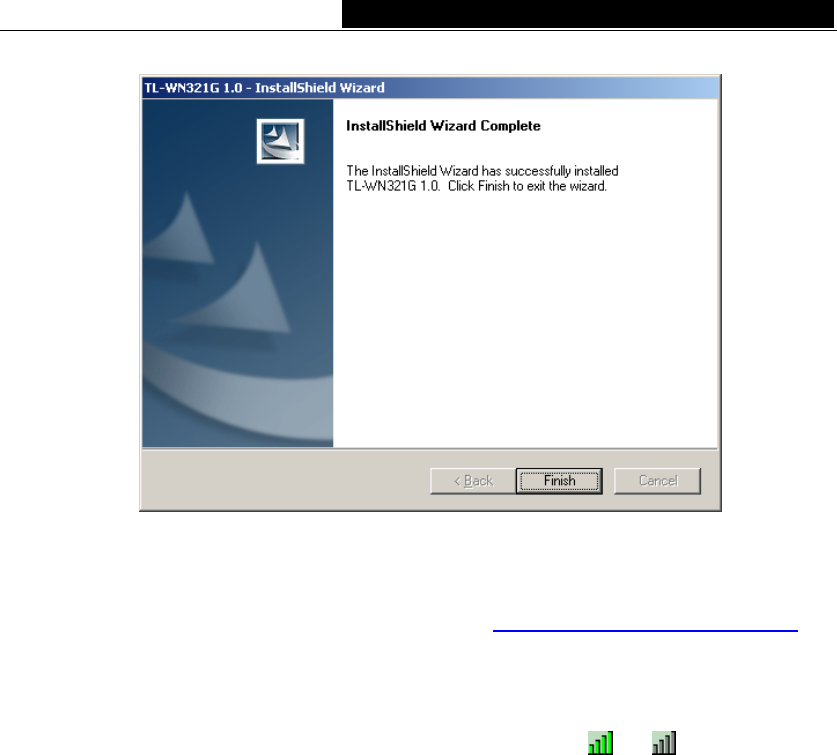

Figure 2-6 Finish
8. After installing the software, Please plug the adapter into your PC. If you need
instructions as to how to do this, please refer to section 2.2 Hardware Installation. If
you have plugged it into you PC already, please un-plug it and plug it back in. The
OS will automatically detect the adapter and automatically setup the driver for the
adapter. If it does not, please follow the setup steps to finish the driver installation.
After installing the driver successfully, you should see an icon, or , appear in your
system tray.
2.2 Hardware Installation
1. Connect one end of the USB cable to the Adapter.
2. Connect the other end of the USB cable to the USB port on your computer. Because
the Adapter gets its power from the host, there is no external power supply. The LED
should light up when the Adapter is plugged in and the PC is on.
2.3 Uninstall Software
2.3.1 Uninstall the driver software from your PC
1. On the Windows taskbar, click the Start button, point to Settings, and then click
Control Panel.
2. Double-click the System icon, click on the Hardware tab in the System window that
appears.
3. Click on the Device Manager button, double-click Network Adapters, and then
right-click TL-WN321G 1.0 USB WLAN Adapter.
- 6 -
TL-WN321G 54M Wireless USB Adapter User Guide

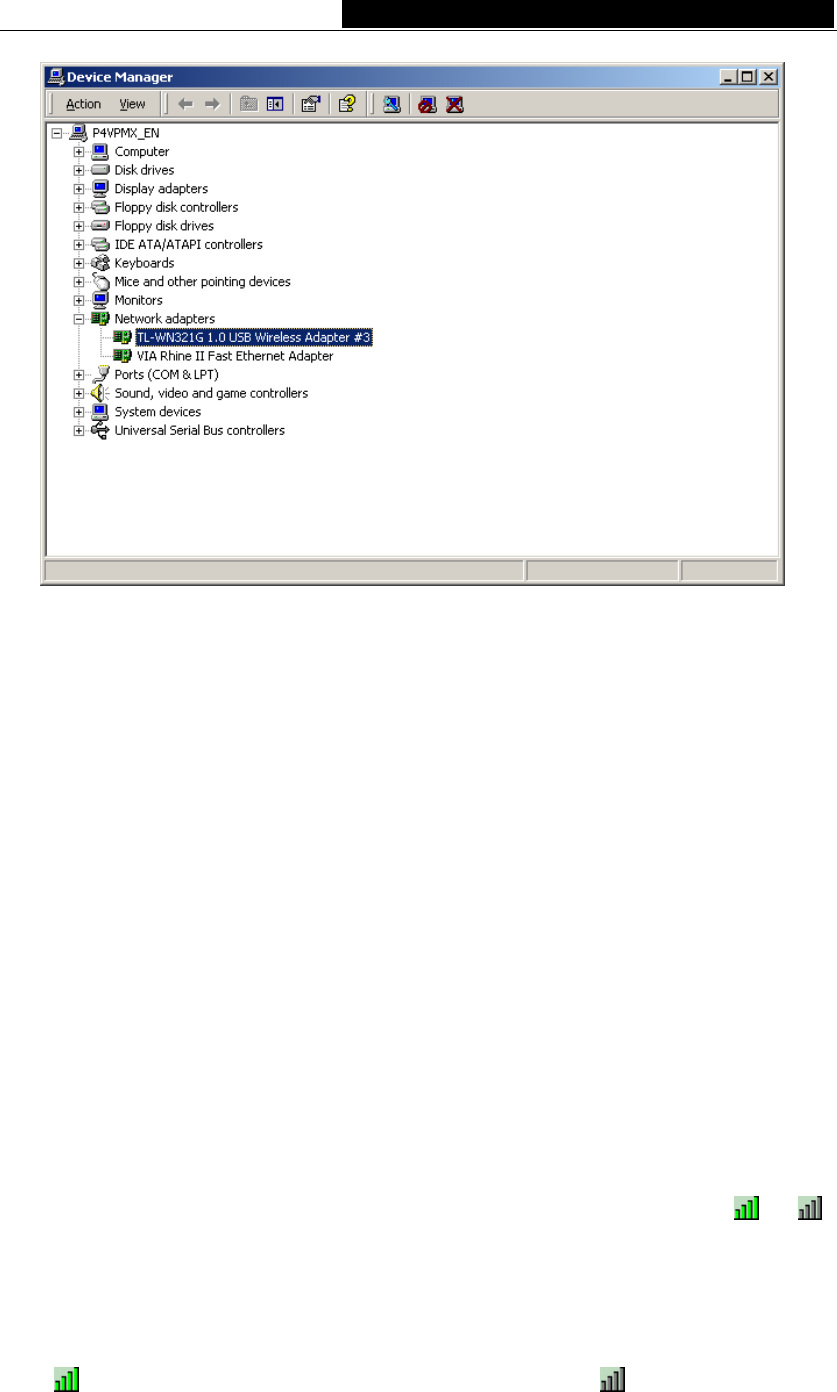

Figure 2-7 uninstall driver
4. Click Uninstall..., shown in above figure 2-7, the system will uninstall the driver
software of the adapter from your PC.
2.3.2 Uninstall the utility software from your PC
1. On the Windows taskbar, click the Start button, point to Settings, and then click
Control Panel
2. Double-click the Add/Remove Programs icon, find the TL-WN321G 1.0 program
from the installed program lists, click the Remove button.
3. Please follow the Install Shield Wizard steps, the system will uninstall the utility
software from your PC automatically.
Chapter 3: Configuration
TP-LINK TL-WN321G Wireless USB Adapter can be configured by its utility. This section
describes how to configure your Wireless USB Adapter for wireless connectivity on your
Wireless Local Area Network (WLAN) and use the data security encryption features.

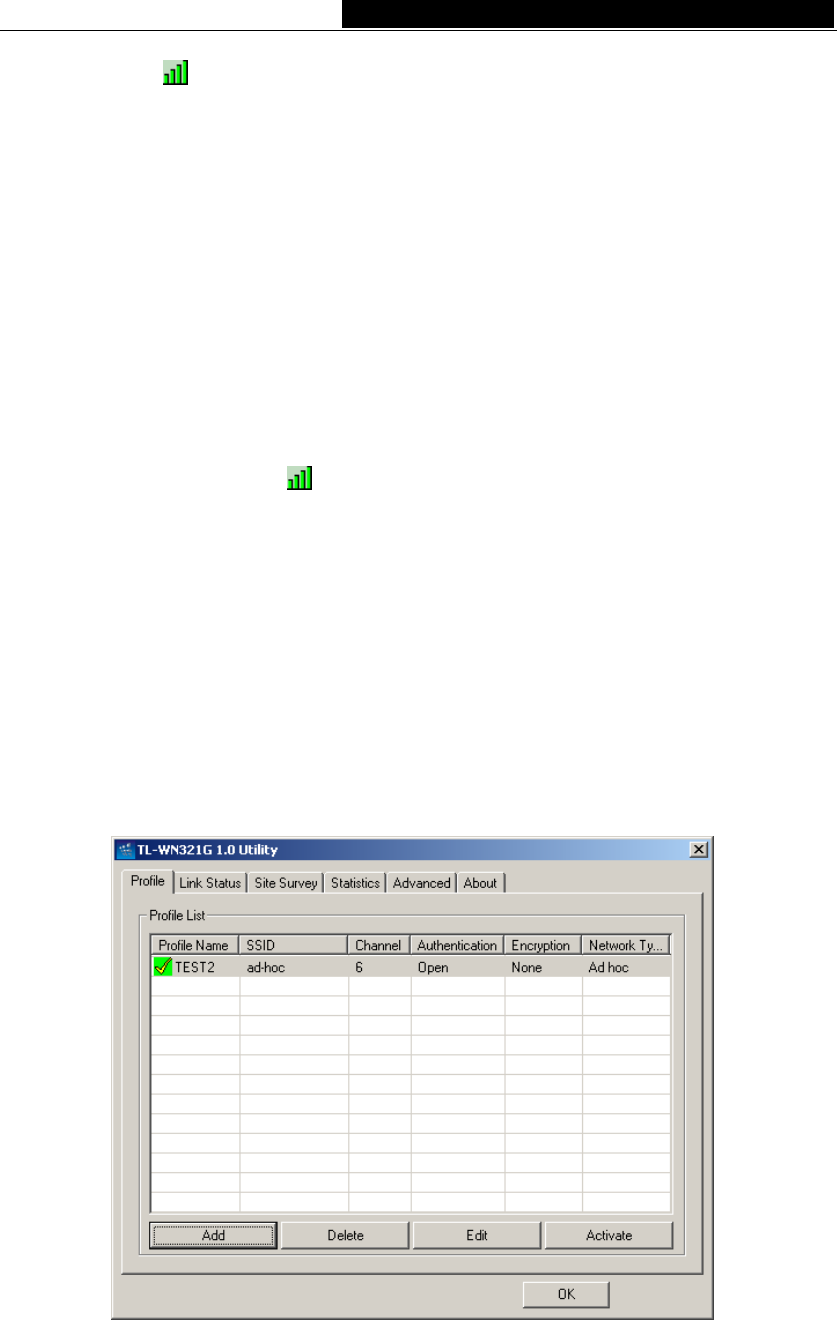

After the Adapter's driver and utility has been installed, the adapter’s tray icon, or ,
will appear in your system tray. It means the utility is running on your system. If the utility
does not run, you can run the utility by clicking: Start> Program> TP-LINK>
TL-WN321G 1.0> TL-WN321G1.0 Utility. If the icon still does not appear, the driver or
utility may be installed incorrectly or the adapter is unplugged, please try again.
Icon means the connection has been established. Icon means there is no
connection.
- 7 -
TL-WN321G 54M Wireless USB Adapter User Guide
Double-click the icon and the configuration screen of the utility will appear. You can
also run the utility by clicking: Start> Program> TP-LINK> TL-WN321G 1.0>
TL-WN321G1.0 Utility. The utility provides a complete and easy to use set of tools to:
Display current status information
Edit and add configured profiles
Display current diagnostics information
The section below introduces these above capabilities.
Note: If your OS is Windows XP, you can use Windows XP to configure the wireless
network settings. (To use this function, you must update Windows XP to Windows XP
sp1).
If you want to use Windows XP to configure wireless network settings, you should exit
the utility. Right-click the icon , at the bottom of the screen, and click Exit to exit the
utility.
3.1 Profile
Click the Profile tab of the utility and the Profile screen will appear, figure 3-1. The
Profile screen provides tools to:
Add a Profile
Delete a profile
Edit a profile
Activate a profile
Figure 3-1 Profile Tab
To create a new profile, click the Add button on the Profile tab, the Profile configuration
screen will appear shown in figure 3-2.
- 8 -
TL-WN321G 54M Wireless USB Adapter User Guide
To edit a profile, highlight the desired profile name on Profile Name list, and click the
Edit button, the Profile configuration screen will appear shown in figure 3-10.
To delete a profile, highlight the desired profile name on Profile Name list, and click the
Delete button.
To switch to another profile, highlight the desired profile name on Profile Name list,
and click the Activate button.
Note: Do not forget to click the Activate button when you create a new profile for
connection.
3.1.1 Add or Edit a Configuration Profile
To add a new configuration profile, click Add button on the Profile Management tab. To
modify a configuration profile, select the configuration from the Profile list and click Edit.
The Profile Management dialog box will display a screen similar to that shown in Figure
3-2.
1. Edit the Configuration tab
Profile Name - Identifies the configuration profile. This name must be unique.
Profile names are not case-sensitive.
SSID - The IEEE 802.11 wireless network name. This field has a maximum limit of
32 characters.
PSW(Power Save Mode)
• CAM(Constantly Awake Mode) – Continuous Access Mode.
• PSW(Power Saving Mode) - Power Saving mode.
Network Type – Displays the wireless mode, either Ad-hoc or Infrastructure mode
Preamble - Specifies the preamble setting in 802.11b. The default setting is Auto
Switch (access point mode), which allows both short and long headers in the
802.11b frames. The adapter can only use short radio headers if the access point
supports and uses them.
RTS Threshold – Default is 2312。
Fragment Threshold – Default is 2312。
Ad-hoc mode – Displays the wireless mode, either Only 802.11B or 802.11B/G
mode.
Channel – Shows the current channel in use. This field determines which operating
frequency will be used.
- 9 -
TL-WN321G 54M Wireless USB Adapter User Guide

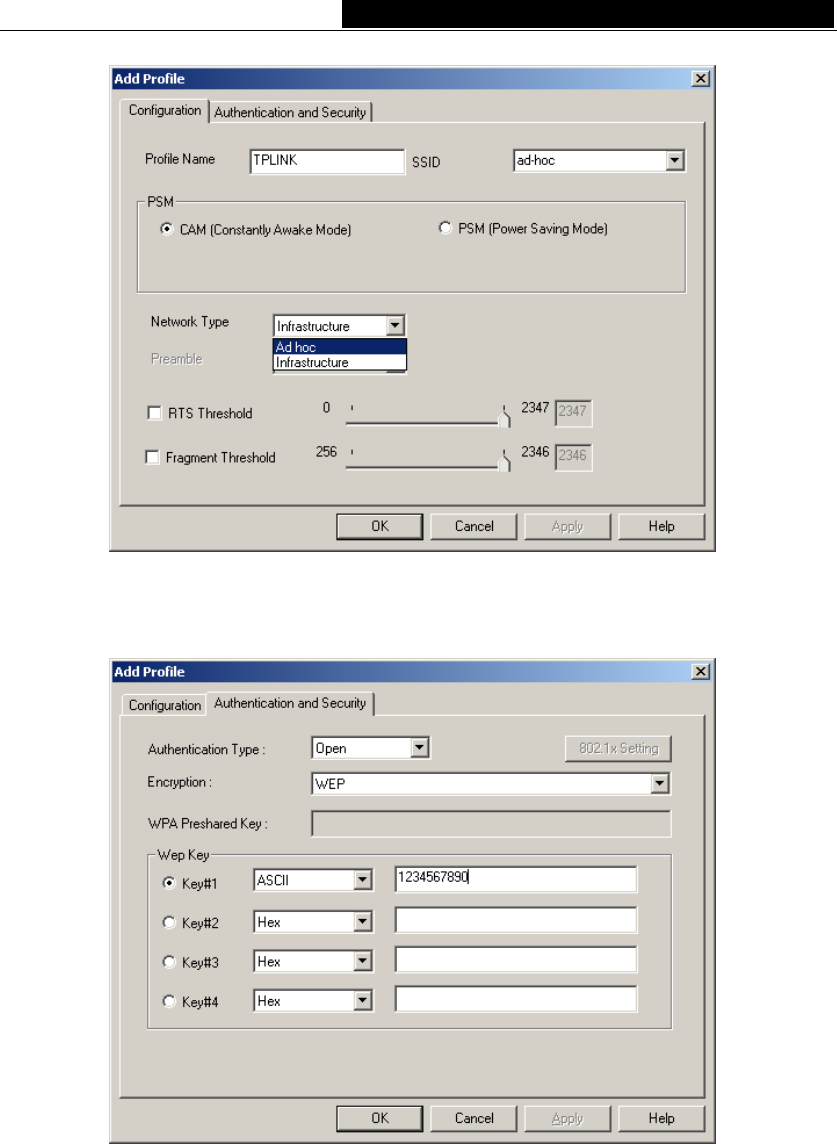

Figure 3-2 Add Profile - configuration
2. Edit the Authentication and Security tab
Figure 3-3 Add Profile – configuration
Authentication Type - There are three options: either Open System or
Shared-Key System or LEAP.
802.1xSetting – It enables when Authentication Type is setting to WPA.
Encryption - Displays which encryption type that the driver is using. When you
select Open System, Shared-Key System as Network Authentication, there are
two options: WEP and Disabled. If you select WPA-PSK as Network
Authentication, there are TKIP and AES options instead of WEP and Disabled.
Wep Key - Key #1, Key #2, Key #3, Key #4, the Key groups. You can enter 10
- 10 -
TL-WN321G 54M Wireless USB Adapter User Guide
hexadecimal digits (any combination of 0-9, a-f, A-F) or 5 ASCII characters for 64-bit
(also called 40bits) encryption. You can enter 26 hexadecimal digits (any
combination of 0-9, a-f, A-F) or 13 ASCII characters for 128-bit (also called 104bits)
encryption.
3.2 Link Status
The Link Status tab displays the adapter's current status.

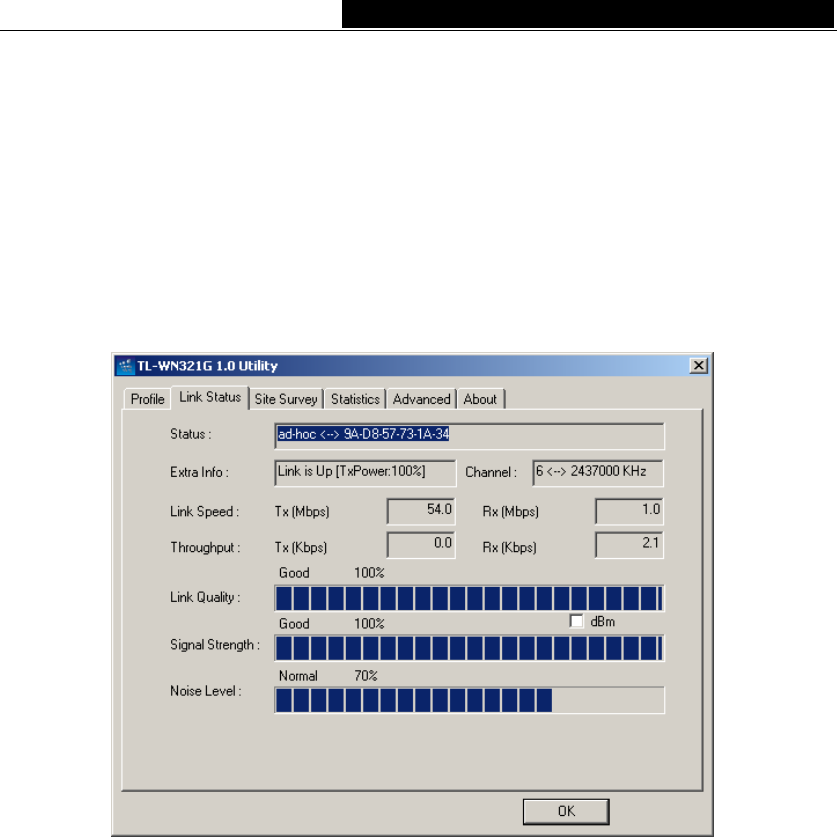

Figure 3-4 Link Status
The following table describes the items found on the Network Status screen.
Status - Shows whether the station is connected to the wireless network, if no
connected, display RF is closed; if connected, display AP name and BSSID.
Extra Info - Shows link status and the current channel in use.
Link Speed - Shows the current max Transfer rate, unit is Mbit/sec.
Throughput - Displays Tx and Rx rate, unit is Kbits/sec.
Link Quality - Shows the quality of the signal..
Signal Strength - Shows the strength of the signal.
3.3 Site Survey
Click the Site Survey tab of the Utility and the Site Survey screen will appear, figure 3-5.
On the Site Survey screen you can scan the Available Infrastructure and Ad Hoc
Networks.
- 11 -
TL-WN321G 54M Wireless USB Adapter User Guide

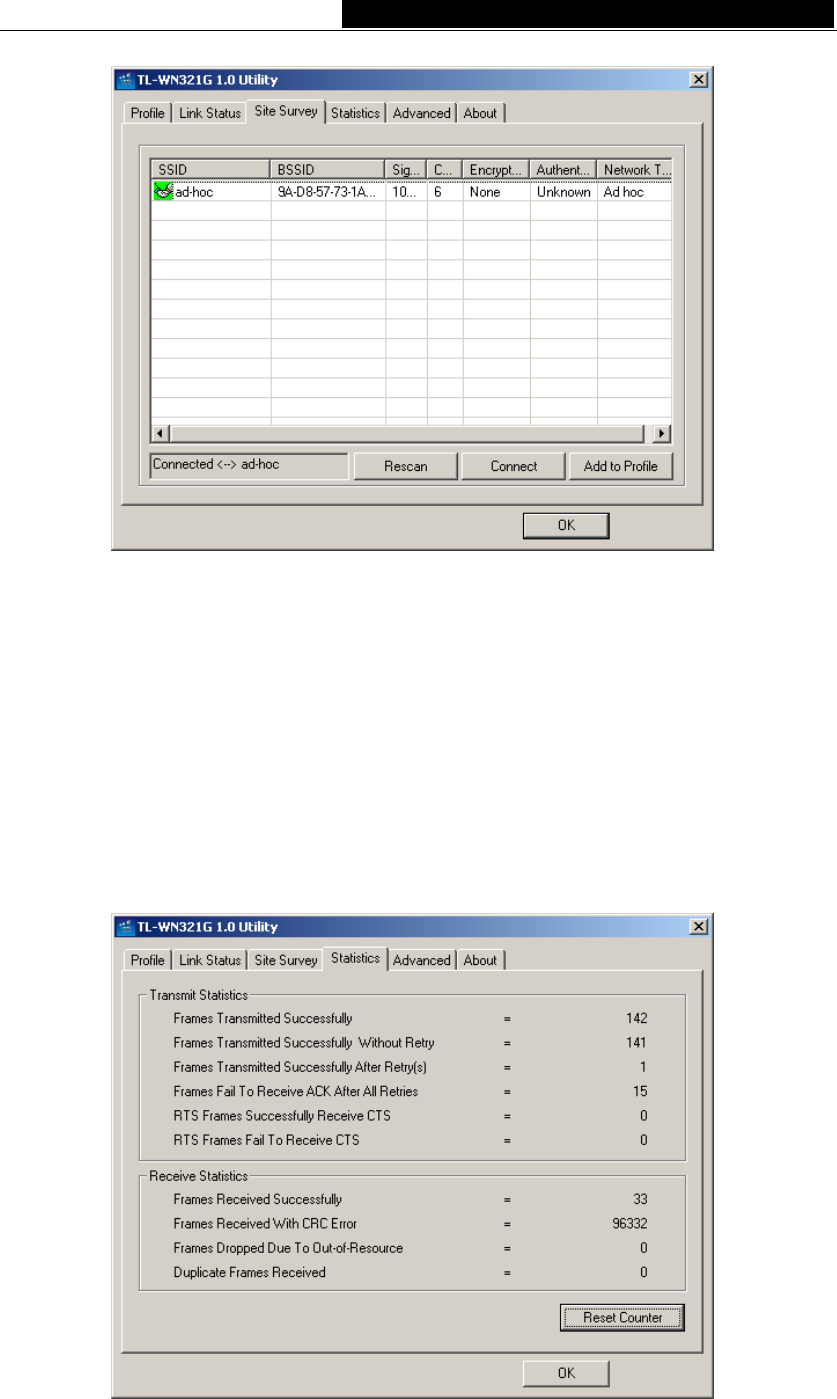

Figure 3-5 Site Survey tab
Click the Rescan button to refresh the list at any time. Highlight an SSID and click the
Connect button to connect to an available network.
3.3 Statistics
The Statistics tab show receiving and transmitting statistical information for the following
receive and transmit diagnostics for frames received by or transmitted to the wireless
network adapter. Click the Reset Counter button to reset the count of the statistics
information.
Figure 3-6 Statistics tab
- 12 -
TL-WN321G 54M Wireless USB Adapter User Guide
3.4 Advanced

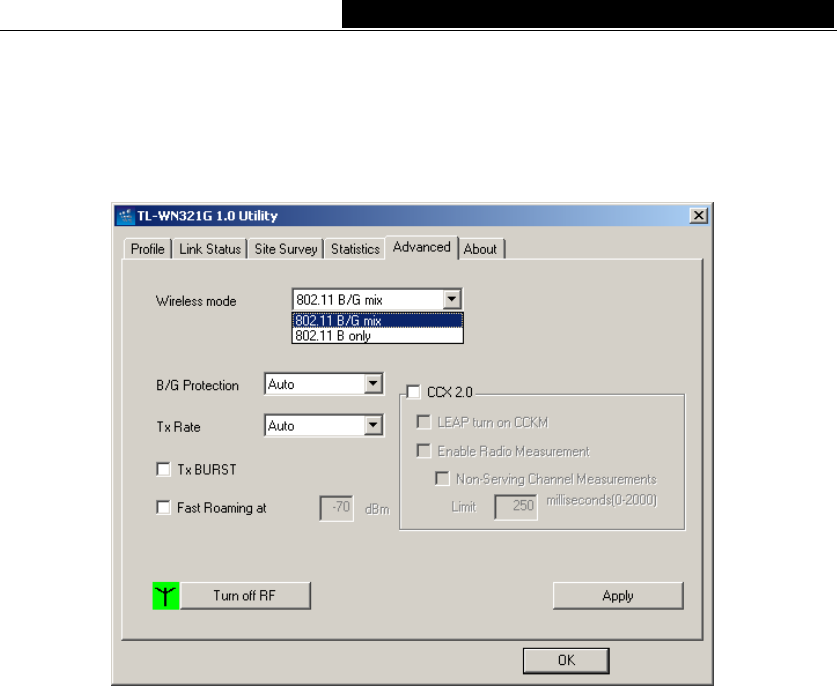

On this Screen, you can configure the WEP key or view the configured WEP key.
Figure 3-7 Advanced
Wireless mode - Displays the wireless mode, either 802.11B/G mix or 802.11B
only.
B/S Protection - There are three options: either Auto or Enable, or Close.
TxRate - Shows the current Transfer rate.
TxBURST - It can translate more data when it enable.
Fast Roaming at - Roaming will disable when Transmit Power is below some dBm.
Turn off RF - The wireless radio of this adapter can be enabled or disabled. You can
turn the wireless radio off by selecting the check-box.
Apply - Click the Apply button to save the current setting.
3.5 About
This screen displays some information about this adapter, including Driver Date, Driver
Version, Utility Date, Utility Version, MAC Address, IP Address, SubMask, Power Save
mode and Preamble.
Utility Version - The version of this utility.
Utility Date - The creation date of this utility.
Driver Version - The version of the wireless network adapter driver.
Driver Date - The creation date of the wireless network adapter driver.
EEPROM Version - The version of this EEPROM.
IP Address - The IP address of the wireless network.
- 13 -
TL-WN321G 54M Wireless USB Adapter User Guide
Phy_Address - The MAC address of the wireless network adapter.
SubMask - The subnet mask of the wireless network.
Default Gateway - The default gateway of the wireless network.
Figure 3-8 About
3.7 An example for application
Suppose you have an installed and using AP, its SSID is ABC and adopts 64-bit
encryption with the key 0123456789. To establish a connection with this AP, you should
follow these steps below:
1. Launch TL-WN321G 1.0 Utility.
2. Click the Profile tab of the utility and click the Add button on the screen that
appears.
3. The Profile configuration screen will appear, please enter Test for the Profile Name,
ABC for the SSID, select Infrastructure for the Network Mode, select WEP for the
Data Encryption and enter 0123456789 for Network key.
4. Click OK to save this profile.
5. Click Activate on the Profile screen. The utility will establish a connection with this
AP by configured profile.
6. Of course, you can select Site Survey tab too, highlight ABC for the SSID, then
connect it, and then do these steps form 3 to 5 above.
- 14 -
TL-WN321G 54M Wireless USB Adapter User Guide
Appendix A: Specifications
Normal
Interface A-type USB 2.0 Connector
Standards IEEE802.11b; IEEE802.11g
Operating System Windows 2000; Windows XP; Windows Me; Windows 98SE
Transmission
Distance
In door up to 100m, out door up to 300m (it is limited to the
environment).
Radio Data Rate 54/48/36/24/12/9/6/11/5.5/2/1 Mbps (Auto Rate Sensing)
Modulation 1M DBPSK; 2M DQPSK; 5.5M, 11M CCK; 6M, 9M, 12M, 18M,
24M, 36M, 48M, 54M OFDM;
Media Access
Protocol
CSMA/CA with ACK
Transmit Power 12.9dBm (Typical)
Data Security WPA; IEEE 802.1x authentication; 64/128 BIT WEP; TKIP/AES
Frequency 2.4 ~ 2.4835GHz
Spread Spectrum Direct Sequence Spread Spectrum (DSSS)
Power
Consumption
Typically 480mA in full Transmit (TX), 420mA in full Receive (RX)
Safety & Emissions FCC, CE
Physical Environmental
Operating Temp 0℃~40℃ (32℉~104℉)
Storage Temp -40℃ – 70℃ (-40℉~158℉)
Humidity 10% - 95% RH, Non-condensing
Dimensions
(W×D×H)
3.9×1.2×.4 in. (100×30×11 mm)
Appendix B: Glossary
802.11b - The 802.11b standard specifies a wireless networking at 11 Mbps using
direct-sequence spread-spectrum (DSSS) technology and operating in the
unlicensed radio spectrum at 2.4GHz, and WEP encryption for security. 802.11b
networks are also referred to as Wi-Fi networks.
802.11g - specification for wireless networking at 54 Mbps using direct-sequence
spread-spectrum (DSSS) technology, using OFDM modulation and operating in the
unlicensed radio spectrum at 2.4GHz, and backward compatibility with IEEE 802.11b
devices, and WEP encryption for security.
Ad-hoc Network - An ad-hoc network is a group of computers, each with a wireless
- 15 -
TL-WN321G 54M Wireless USB Adapter User Guide
adapter, connected as an independent 802.11 wireless LAN. Ad-hoc wireless
computers operate on a peer-to-peer basis, communicating directly with each other
without the use of an access point. Ad-hoc mode is also referred to as an
Independent Basic Service Set (IBSS) or as peer-to-peer mode, and is useful at a
departmental scale or SOHO operation.
DSSS (Direct-Sequence Spread Spectrum) - DSSS generates a redundant bit pattern
for all data transmitted. This bit pattern is called a chip (or chipping code). Even if one
or more bits in the chip are damaged during transmission, statistical techniques
embedded in the receiver can recover the original data without the need for
retransmission. To an unintended receiver, DSSS appears as low power wideband
noise and is rejected (ignored) by most narrowband receivers. However, to an
intended receiver (i.e. another wireless LAN endpoint), the DSSS signal is recognized
as the only valid signal, and interference is inherently rejected (ignored).
FHSS (Frequency Hopping Spread Spectrum) - FHSS continuously changes (hops)
the carrier frequency of a conventional carrier several times per second according to
a pseudo-random set of channels. Because a fixed frequency is not used, and only
the transmitter and receiver know the hop patterns, interception of FHSS is extremely
difficult.
Infrastructure Network - An infrastructure network is a group of computers or other
devices, each with a wireless adapter, connected as an 802.11 wireless LAN. In
infrastructure mode, the wireless devices communicate with each other and to a
wired network by first going through an access point. An infrastructure wireless
network connected to a wired network is referred to as a Basic Service Set (BSS). A
set of two or more BSS in a single network is referred to as an Extended Service Set
(ESS). Infrastructure mode is useful at a corporation scale, or when it is necessary to
connect the wired and wireless networks.
Spread Spectrum - Spread Spectrum technology is a wideband radio frequency
technique developed by the military for use in reliable, secure, mission-critical
communications systems. It is designed to trade off bandwidth efficiency for reliability,
integrity, and security. In other words, more bandwidth is consumed than in the case
of narrowband transmission, but the trade off produces a signal that is, in effect,
louder and thus easier to detect, provided that the receiver knows the parameters of
the spread-spectrum signal being broadcast. If a receiver is not tuned to the right
frequency, a spread-spectrum signal looks like background noise. There are two
main alternatives, Direct Sequence Spread Spectrum (DSSS) and Frequency
Hopping Spread Spectrum (FHSS).
SSID - A Service Set Identification is a thirty-two character (maximum) alphanumeric
key identifying a wireless local area network. For the wireless devices in a network to
communicate with each other, all devices must be configured with the same SSID.
This is typically the configuration parameter for a wireless PC card. It corresponds to
the ESSID in the wireless Access Point and to the wireless network name.
- 16 -
TL-WN321G 54M Wireless USB Adapter User Guide
WEP (Wired Equivalent Privacy) - A data privacy mechanism based on a 64-bit or
128-bit or 152-bit shared key algorithm, as described in the IEEE 802.11 standard.
Wi-Fi - A trade name for the 802.11b wireless networking standard, given by the
Wireless Ethernet Compatibility Alliance (WECA, see http://www.wi-fi.net), an
industry standards group promoting interoperability among 802.11b devices.
WLAN (Wireless Local Area Network) - A group of computers and associated
devices communicate with each other wirelessly, which network serving users are
limited in a local area.
WPA (Wi-Fi Protected Access) - A wireless security protocol use TKIP (Temporal
Key Integrity Protocol) encryption, which can be used in conjunction with a RADIUS
server.
Appendix C: Contact Information
For help with the Installation or operation of the TP-LINK TL-WN321G Wireless Adapter,
please contact us.
E-mail: support@tp-link.com
Website: http://www.tp-link.com
- 17 -
